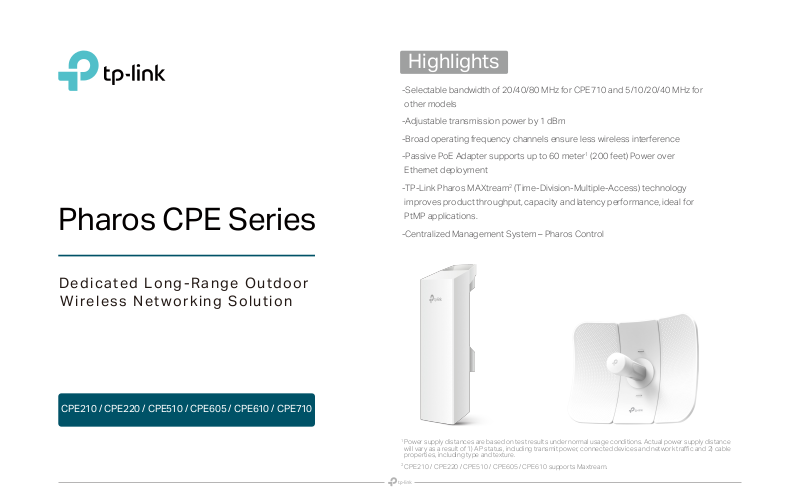

Pharos CPE Series
Dedicated Long-Range Outdoor
Wireless Networking Solution
CPE210 / CPE220 / CPE510 / CPE605 / CPE610 / CPE710
Highlights
-Selectable bandwidth of 20/40/80 MHz for CPE710 and 5/10/20/40 MHz for other models
-Adjustable transmission power by 1 dBm
-Broad operating frequency channels ensure less wireless interference
-Passive PoE Adapter supports up to 60 meter1 (200 feet) Power over Ethernet deployment
-TP-Link Pharos MAXtream2 (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications.
-Centralized Management System – Pharos Control
1Power supply distances are based on test results under normal usage conditions. Actual power supply distance will vary as a result of 1) AP status, including transmit power, connected devices and network traffic and 2) cable properties, including type and texture.
2CPE210 / CPE220 / CPE510 / CPE605 / CPE610 supports Maxtream.
Typical Application
TP-Link’s Outdoor CPE is dedicated to reliable solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for
Point-to-Point and Point-to-Multipoint applications.
Long-distance Wireless Connection
Using two CPEs to build a long-distance Point-to-Point wireless connection.
Large-area Wireless Coverage
Using Base Station combined with Sector Antenna as the Access Point at the central station, and several CPEs as client to build a Point-to-Multipoint coverage.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among outdoor devices will be so fierce that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, TP-Link’s
Pharos series uses MAXtream3 TDMA Technology. Total Throughput vs Clients
Total Throughput * |
|
|
|
|
* Real throughput |
100% |
|
|
|
|
|
|
|
|
|
depends on the |
|
90% |
|
|
|
|
|
|
|
MAXtream TDMA Mode |
actual application |
||
80% |
|
|
environment. |
||
70% |
|
|
|
|
|
60% |
|
|
|
|
|
50% |
|
|
|
|
|
40% |
|
|
|
|
|
30% |
|
|
|
802.11 CSMA Mode |
|
20% |
|
|
|
||
10% |
|
|
|
|
|
5 |
10 |
15 |
20 |
25 |
Quantity of Clients |
3 CPE210 / CPE220 / CPE510 / CPE605 / CPE610 supports Maxtream. |
|
|
|||
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Pharos Control – Centralized Management System
Pharos also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC -
Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
Specification
Features & Performance
Model |
CPE210 V3.2 |
CPE220 V3.0 |
CPE510 V3.2 |
CPE605 V1.0 |
CPE610 V2.0 |
CPE710 V1.0 |
|
|
|
|
|
|
|
|
|
Name |
2.4 GHz 300 Mbps 9 dBi Outdoor CPE |
2.4 GHz 300 Mbps 12 dBi Outdoor CPE |
5 GHz 300 Mbps 13 dBi Outdoor CPE |
5 GHz 150 Mbps 23 dBi Outdoor CPE |
5 GHz 300 Mbps 23 dBi Outdoor CPE |
5GHz 867Mbps 23dBi Outdoor CPE |
|
|
|
|
|
|
|
|
|
|
|
Outdoor CPE |
|
|
|
|
|
|
|
24 V Passive PoE Adapter |
|
|
|
|
|
Package Contents |
AC Power Cord |
|
|
|
|
|
|
|
|
Mounting Kits |
|
|
|
|
|
|
|
Quick Installation Guide |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Processor |
Qualcomm 650 MHz CPU, MIPS 24 Kc |
|
Qualcomm 560 MHz CPU, MIPS 74 Kc |
|
|
Qualcomm 750 MHz CPU, MIPS 74 Kc |
|
|
|
|
|
|
|
|
|
Memory |
64 MB DDR2 RAM, 8 MB Flash |
|
|
|
|
128 MB DDR2 RAM, 16 MB Flash |
|
|
|
|
|
|
|
|
|
Antenna Gain |
9 dBi |
12 dBi |
13 dBi |
23 dBi |
|
|
|
|
|
|
|
|
|
|
|
Beamwidth |
65° (Azimuth) / 40° (Elevation) |
60° (Azimuth) / 30° (Elevation) |
45° (Azimuth) / 45° (Elevation) |
7° (Azimuth) / 10° (Elevation) |
9° (Azimuth) / 7° (Elevation) |
|
|
|
|
|
|
|
|
|
|
|
1 10/100 Mbps Shielded Ethernet Port (LAN/ |
1 10/100 Mbps Shielded Ethernet Port (LAN0/ |
1 10/100 Mbps Shielded Ethernet Port (LAN/ |
|
|
|
|
|
POE) |
|
|
1 10/100/1000 Mbps Shielded |
||
|
|
POE) |
POE) |
1 10/100 Mbps Shielded Ethernet Port (LAN/POE) |
|||
|
Interfaces |
1 10/100 Mbps Shielded Ethernet Port (LAN1) |
Ethernet Port (LAN/POE) |
||||
Hardware |
1 Grounding Terminal |
1 Grounding Terminal |
1 Reset Button |
|
|||
|
1 Grounding Terminal |
|
1 Reset Button |
||||
|
1 Reset Button |
1 Reset Button |
|
|
|||
Feature |
|
1 Reset Button |
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Power Supply |
24 VDC / 0.25 A Passive PoE |
24 VDC / 0.5 A Passive PoE |
|
24 VDC / 0.25 A Passive PoE |
24 VDC / 0.5 A Passive PoE |
|
|
(+4,5 pins; -7,8 pins) |
(+4,5 pins; -7,8 pins) |
|
(+4,5 pins; -7,8 pins) |
(+4,5 pins; -7,8 pins) |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
Dimensions |
224 × 79 × 60 mm |
276 × 79 × 60 mm |
224 × 79 × 60 mm |
207 x 255 x 350 mm |
207 × 280 × 366 mm |
|
|
(L x W x H) |
|
|||||
|
|
|
|
|
|
|
|
|
Protection4 |
15 kV ESD Protection |
|
|
|
|
|
|
6 kV Lightning Protection |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enclosure |
Material: Outdoor ASA stabilized plastic |
|
|
Material: Outdoor PC stabilized plastic |
|
|
|
Weatherproof: IPX5 water and dust proof design |
|
|
Weatherproof: IP65 water and dust proof design |
|
||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
4 Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
