Page 1
’02 Rav4_U (L/O 0108)

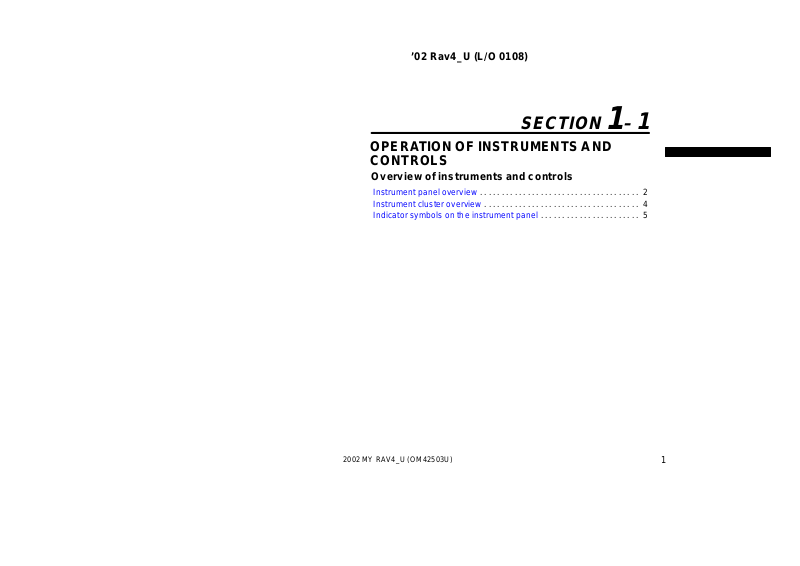

SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .
1
2002 MY RAV4_U (OM42503U)
1
Page 2
Instrument panel overview
’02 Rav4_U (L/O 0108)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Garage door opener box or auxiliary
box
6. Electr ic moon roof switc h and pers onal
light
7. Glove box
8. Power door lock switches
(with power windows)
9. Power window switches
10. Automatic transmission selector lever
or manual transmission gear shift lever
11. Parki ng brake lever
12. Cup holders
13. Ashtray
14. Power outlet
15. Auxiliary box
16. Hood lock release lever
17. Window lock switch
2
2002 MY RAV4_U (OM42503U)
Page 3
’02 Rav4_U (L/O 0108)
1. Power rear view mirror control switches
2. Instrument panel light control knob
3. Engine immobiliser system indicator
light
4. Headlight, turn signal and front fog
light switches
5. Wiper and washer switches
6. Front passenger’s seat belt reminder
light
7. Car audio
8. Clock display
9. Emergency flasher switch
10. Rear window and outside rear view
mirror defogger switch
11. Air conditioning controls
12. Cigarette lighter
13. Ashtray
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Power door lock switch
(without power windows)
2002 MY RAV4_U (OM42503U)
3
Page 4
Instrument cluster overview
’02 Rav4_U (L/O 0108)
1. Speedometer
2. Service reminder indicators and
indicator lights
3. Tachometer
4

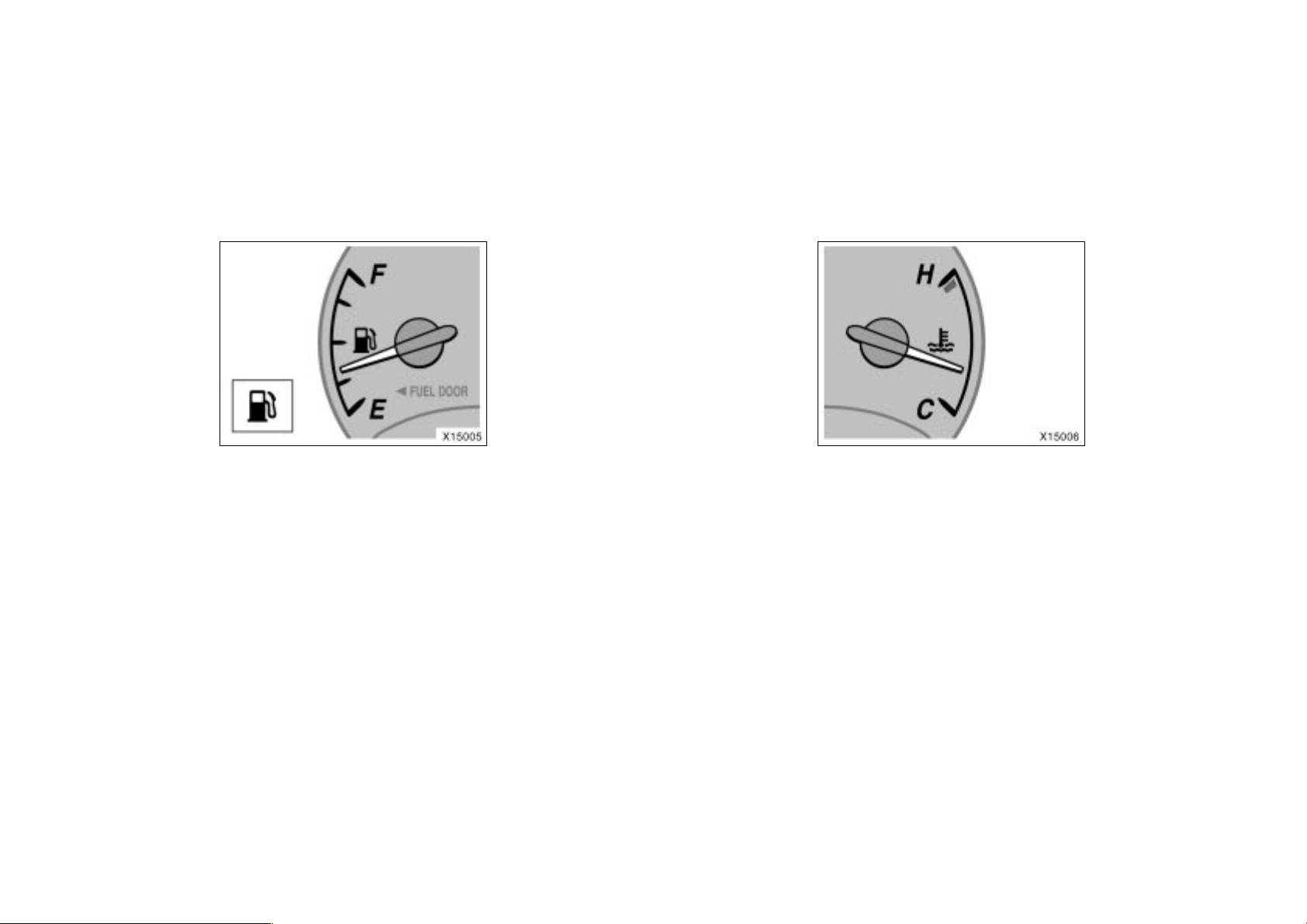

4. Fuel gauge
5. Engine coolant temperature gauge

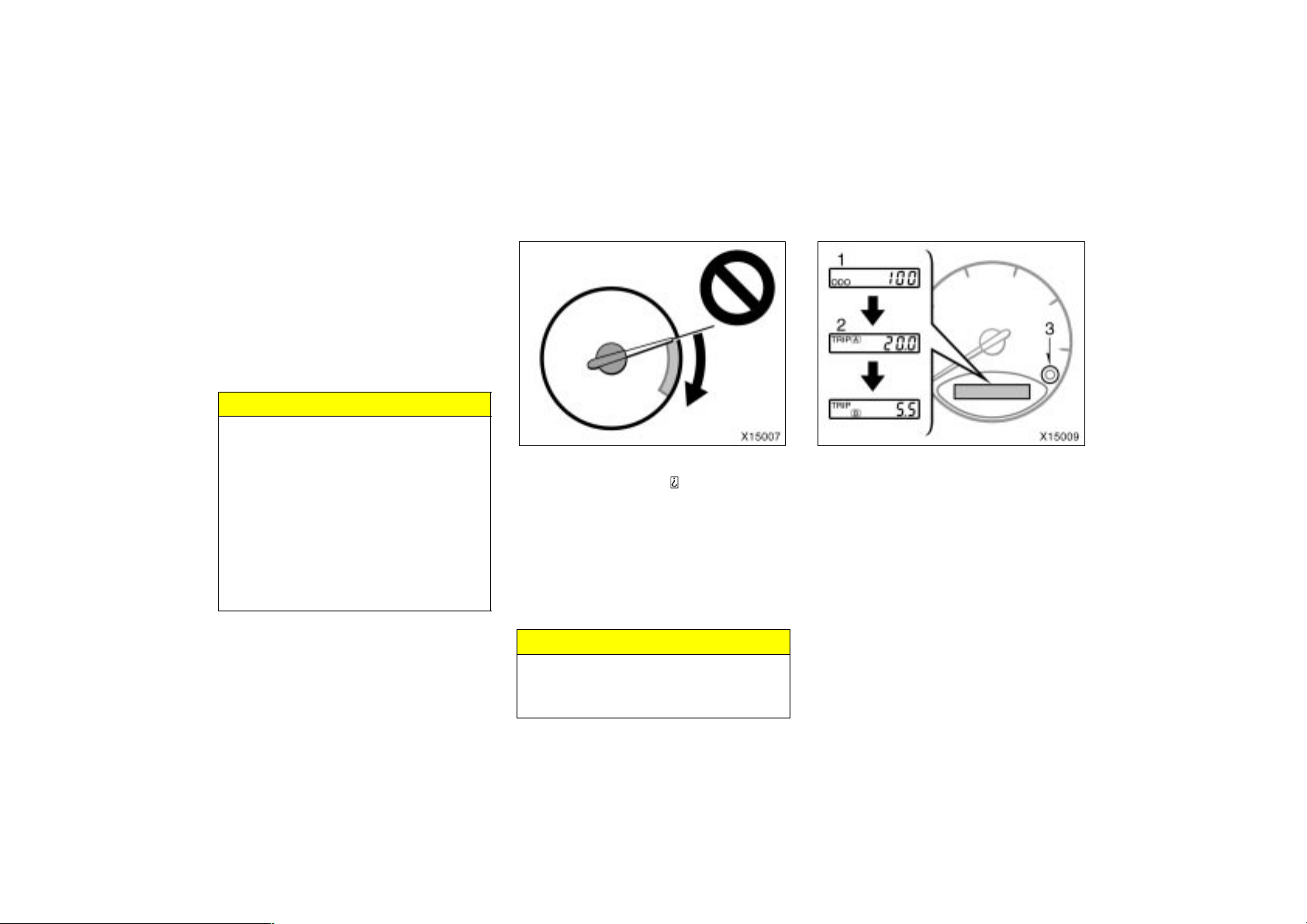

6. Trip m eter res et knob
2002 MY RAV4_U (OM42503U)
7. Odometer and two trip meters
Page 5

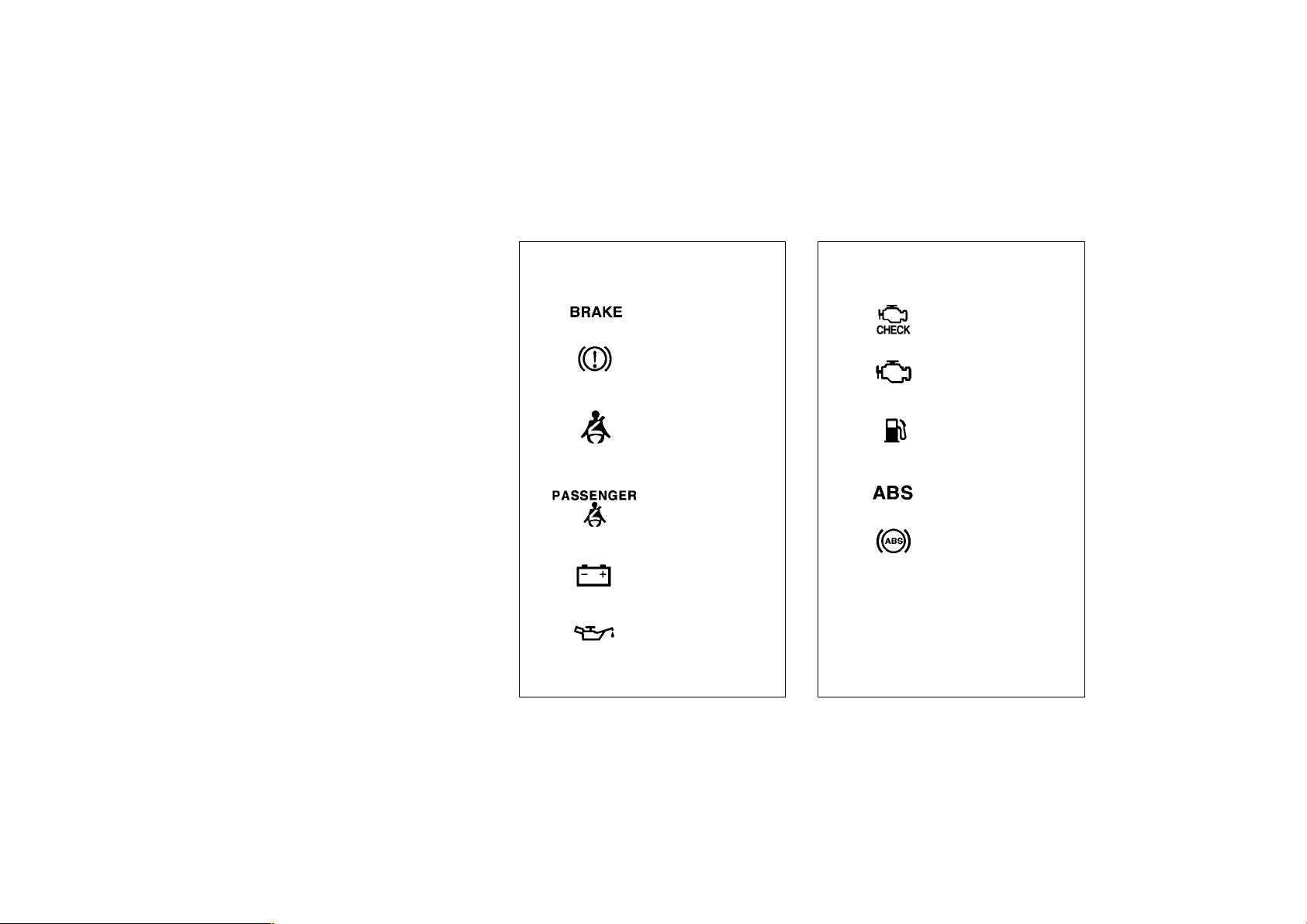

Indicator symbols on the instrument panel
’02 Rav4_U (L/O 0108)
∗
or
Brake system warning light
Driver’s seat belt reminder light
Front passenger’s seat belt reminder light
Discharge warning light
Low engine oil pressure warning light
1
∗
1
∗
1
∗
1
∗
1
or
Anti–lock brake system warning light
∗
Open door warning light
SRS warning light
Automatic transmission fluid temperature warning
∗
1
light
1
∗
1
Low windshield washer fluid level warning light
∗
1
∗
1
Headlight high beam indicator light
∗
or
Malfunction indicator lamp
1
Turn signal indicator lights
∗
Low fuel level warning light
1
Automatic transmission indicator lights
2002 MY RAV4_U (OM42503U)
5
Page 6

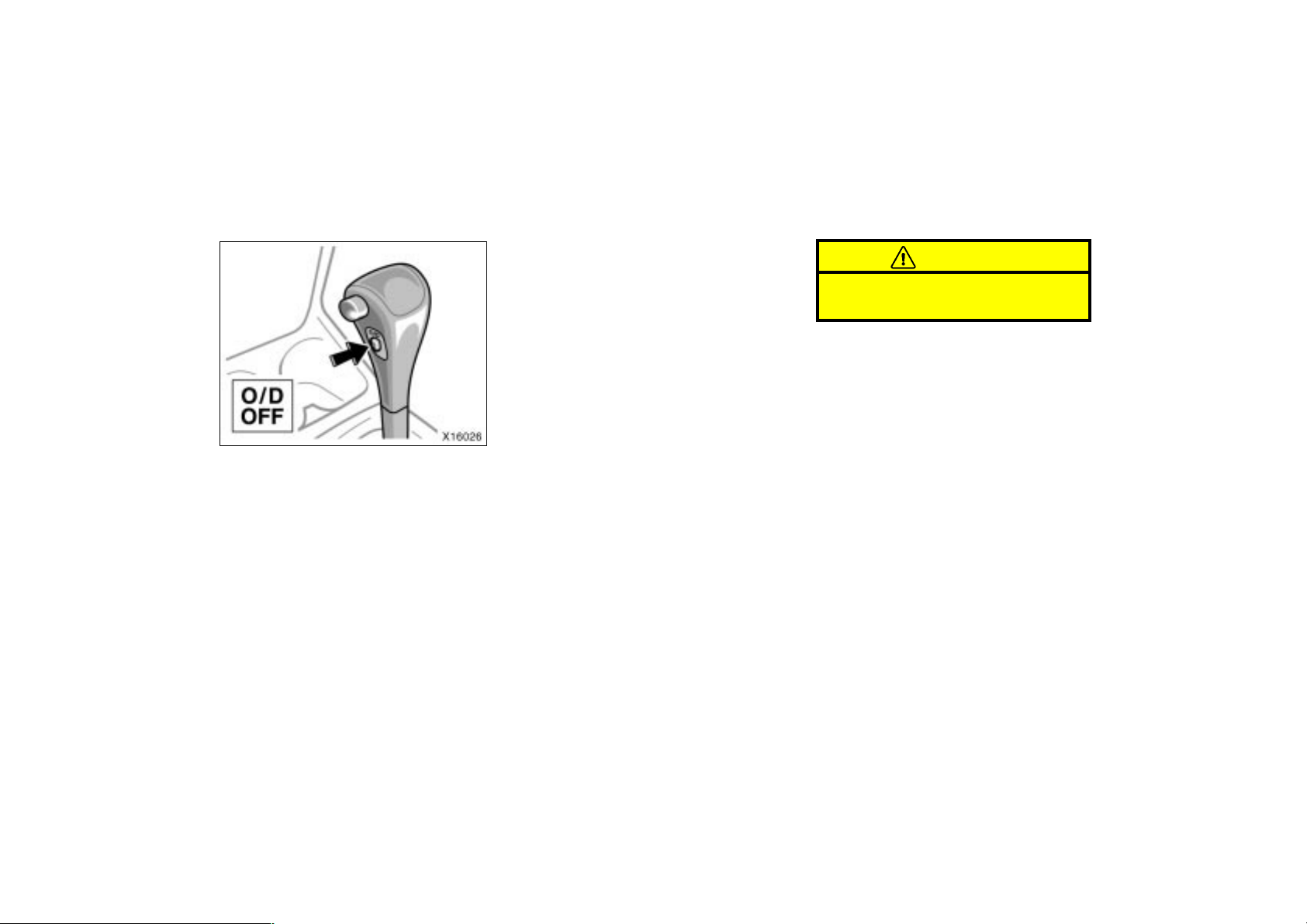

Overdrive–off indicator light
∗
Cruise control indicator light
∗
1
: For details, see “Service reminder indicators and warning
2
buzzers” on page 90 in Section 1–5.
∗
2
: If this light flashes, see “Cruise control” on page 105 in
Section 1–6.
’02 Rav4_U (L/O 0108)
6
2002 MY RAV4_U (OM42503U)
Page 7
’02 Rav4_U (L/O 0108)
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2002 MY RAV4_U (OM42503U)
7
Page 8
’02 Rav4_U (L/O 0108)
Keys (without engine
immobiliser system)
Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked without a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Keys (with engine immobiliser
system)
Your vehicle is supplied with two kinds
of keys.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built–in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box.
8
2002 MY RAV4_U (OM42503U)
Page 9
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked without a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
’02 Rav4_U (L/O 0108)
NOTICE
When using a key containing a transponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of other vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (including keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
2002 MY RAV4_U (OM42503U)
9
Page 10
Do not bend the key grip.
’02 Rav4_U (L/O 0108)
Do not cover the key grip with any
material that cuts off electromagnetic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromagnetic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
10
2002 MY RAV4_U (OM42503U)
Page 11
Engine immobiliser system
The engine immobiliser system is a
theft prevention system. When you insert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the vehicle. The engine will start, only when
the electronic code in the chip corresponds to the registered ID code for
the vehicle.
’02 Rav4_U (L/O 0108)
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
In the following cases, contact your Toyota
dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built–in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the system or start the engine.
NOTICE
Do not modify, remove or disassemble the engine immobiliser system. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
2002 MY RAV4_U (OM42503U)
11
Page 12
For vehicles sold in U.S.A.
’02 Rav4_U (L/O 0108)
Side doors—
For vehicles sold in Canada
FCC ID: NI4TMIM–4
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with RSS–210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interference, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—
All the side doors and back door lock and
unlock simultaneously with either front
door. In the driver’s door lock, turning the
key once will unlock the driver’s door and
twice in succession will unlock all the side
doors and back door simultaneously.
12
2002 MY RAV4_U (OM42503U)
Page 13
When all the side doors and back door
are unlocked simultaneously with a key,
the interior light comes on for about 15
seconds and then fades out, even if the
door is not opened. (For further information, see “Interior lights” on page 82 in
Section 1–4.)
’02 Rav4_U (L/O 0108)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the vehicle.
2002 MY RAV4_U (OM42503U)
With power windows (driver’s side)
With power windows (passenger’s side)
13
Page 14
’02 Rav4_U (L/O 0108)
Operating the switch simultaneously locks
or unlocks all the side doors and back
door.
Without power windows
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
With power windows—
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Without power windows—
To lock: Push the switch on the “LOCK”
side.
To unlock: Push the switch on the
“UNLOCK” side.
14
REAR DOOR CHILD–PROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend using this feature whenever small children
are in the vehicle.
2002 MY RAV4_U (OM42503U)
Page 15
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the vehicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the vehicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
’02 Rav4_U (L/O 0108)
—Wireless remote control
Locking operation
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
“PANIC” mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches of
the transmitter slowly and securely.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked simultaneously. At this time, parking lights
and tail lights flash.
Check to see that all the side doors and
back door are securely locked.
If any of side doors or back door is not
securely closed, or if the key is in the
ignition switch, locking cannot be performed by the “LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. At this time, parking lights
and tail lights flash twice.
Unlocking operation
2002 MY RAV4_U (OM42503U)
15
Page 16
’02 Rav4_U (L/O 0108)
When all the side doors and back door
are unlocked simultaneously with a wireless remote control transmitter, the interior
light comes on for about 15 seconds and
then fade out, even if the door is not
opened. (For further information, see “Interior light” on page 82 in Section 1–4.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automatically locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking operation is not repeated. Release the button
and then push again.
16
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter vehicle theft when you witness anyone attempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
Push the “PANIC” switch once again.
Unlock any of side door or back door
with the key or wireless remote control
transmitter.
Turn the ignition key from the “LOCK”
to “ON” position.
2002 MY RAV4_U (OM42503U)
The “PANIC” mode does not work when
the ignition key is in the “ON” position.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the following instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote control transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
Page 17
’02 Rav4_U (L/O 0108)
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “REPLACING
TRANSMITTER BATTERY”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an accident. (See “If you lose your wireless remote control transmitter” on page 203 in
Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interference, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
2002 MY RAV4_U (OM42503U)
17
Page 18
REPLACING TRANSMITTER BATTERY
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the removed transmitter battery or components.
NOTICE
During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
When replacing the transmitter battery, be careful not to lose the components.
Replace only with the same or
equivalent type recommended by
the manufacturer.
Dispose of used batteries according
to the local laws.
’02 Rav4_U (L/O 0108)
1. Using a coin or equivalent, open the
transmitter case.
2. Remove the discharged transmitter battery.
NOTICE
Do not bend the terminals.
Replace the transmitter battery by the following procedures:
18
2002 MY RAV4_U (OM42503U)
Page 19
’02 Rav4_U (L/O 0108)
Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the transmitter still does not operate properly, contact your Toyota dealer.
Power windows
3. Put a new transmitter battery with positive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and
negative side of the transmitter battery should be faced correctly.
Do not replace the battery with wet
hands. Water may cause unexpected
rust.
Do not touch or move any components inside of the transmitter, or
it may interfere with proper operation.
2002 MY RAV4_U (OM42503U)
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If the either front door
is closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when the either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
19
Page 20
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window partway, lightly move the switch in the opposite direction and then release it.
’02 Rav4_U (L/O 0108)
Jam protection function: During automat-
ic closing operation, the window stops and
opens half way if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger’s
door or the switches on the driver’s
door that control each passenger’s window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver’s door, the passengers’ windows
cannot be operated.
20
2002 MY RAV4_U (OM42503U)
Page 21
’02 Rav4_U (L/O 0108)
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely inside the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervision. Use the window lock switch to
prevent them from making unexpected use of the switches.
Never leave small children alone in
the vehicle, especially with the ignition key still inserted. They could
use the power window switches and
get trapped in a window. Unattended children can be involved in
serious accidents.
Back door
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock release lever.
Vehicles with a power door lock system—
All the side doors and back door lock and
unlock simultaneously with the back door.
2002 MY RAV4_U (OM42503U)
21
Page 22
When all the side doors and back door
are unlocked simultaneously with a key,
the interior light comes on for about 15
seconds and then fades out, even if the
door is not opened. (For further information, see “Interior lights” on page 82 in
Section 1–4.)
Operating the power door lock switch or
wireless remote control transmitter simultaneously locks or unlocks the back door.
(See “Side doors” on page 12 in this section.)
When closing the back door, make sure
it is fully closed.
See “Luggage stowage precautions” on
page 164 in Section 2 for precautions to
observe in loading luggage.
’02 Rav4_U (L/O 0108)
Hood
CAUTION
Keep the back door closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
If the open back door hides the
stop, tail or rear turn signal lights
while you are parked, other road
users must be warned of the presence of your vehicle by a warning
triangle or other device.
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
22
Before driving, be sure that the hood
is closed and securely locked. Otherwise, the hood may open unexpectedly while driving and an accident may
occur.
2002 MY RAV4_U (OM42503U)
Page 23
’02 Rav4_U (L/O 0108)
Be sure to return the support rod to
its clip before closing the hood. Closing the hood with the support rod up
could cause the hood to bend.
NOTICE
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
2002 MY RAV4_U (OM42503U)
23
Page 24
Fuel tank cap
’02 Rav4_U (L/O 0108)
This indicates that the fuel filler door
is on the left side of your vehicle.
24
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weather, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly removed.
2002 MY RAV4_U (OM42503U)
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
Page 25
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
Electric moon roof
Sliding operation
Tilting operation
’02 Rav4_U (L/O 0108)

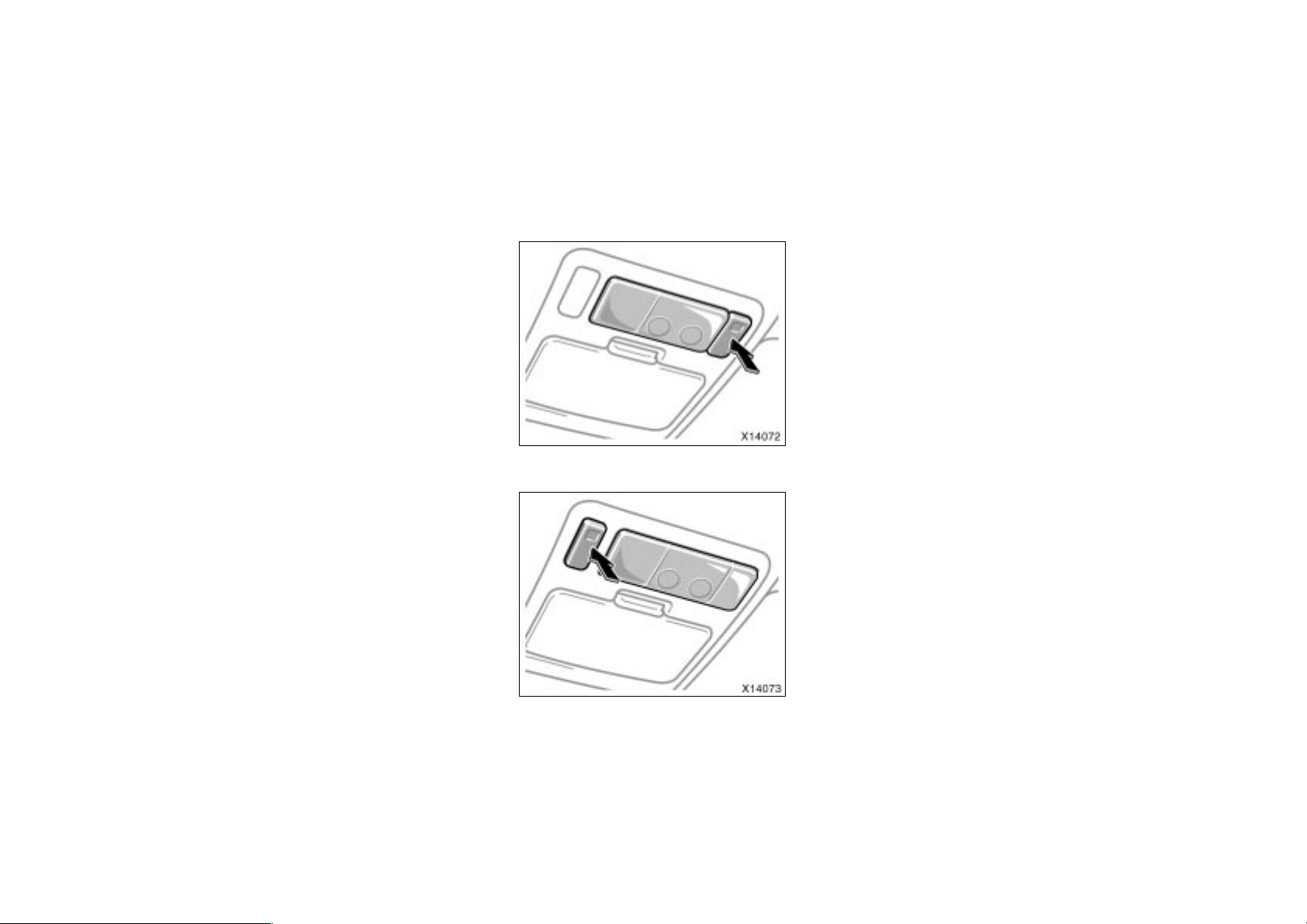

To operate the moon roof, use the
switch beside the personal light.
The key must be in the “ON” position.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the “SLIDE
OPEN” side.
The roof will fully open. To stop the roof
partway, push the switch on either the
“SLIDE OPEN” or “TILT UP” side briefly.
The sun shade will be opened together
with the roof.
To close: Push the switch on the “TILT
UP” side.
As a precaution when closing, the roof
stops at the three–quarters closed position
before fully closing. Therefore, release the
switch and then push it again to close it
completely.
Tilting operation—
To tilt up: Push the switch on the “TILT
UP” side.
To lower: Push the switch on the “SLIDE
OPEN” side.
2002 MY RAV4_U (OM42503U)
25
Page 26
’02 Rav4_U (L/O 0108)
You may stop the moon roof at any desired position. The roof will move while
the switch is being pushed and stop when
released except to slide open.
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Otherwise, they could be seriously injured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening before you close the roof. If someone’s neck, head or hand gets
caught in the closing roof, it could
result in a serious injury. When
anyone close the roof, first make
sure it is safe to do so.
Never leave small children alone in
the vehicle, especially with the ignition key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unattended children can be involved in
serious accidents.
Never sit on top of the vehicle
around the roof opening.
NOTICE
Do not touch the plastic resin moon
roof with anything hard or sharp.
The roof is damaged more easily
than ordinary glass.
When washing the plastic resin
moon roof, use a mild soap or neutral detergent. Do not use wax, window cleaner or abrasive cleaner—these may damage the plastic
resin moon roof. (See “Washing and
waxing your Toyota” on page 207 in
Section 5.)
Do not use organic substances
(gasoline, kerosene, benzine or
strong solvents), which may toxic
or cause damage.
Do not use window scraper or deicer when the plastic resin moon roof
is heavily coated with frost or ice.
The plastic resin moon roof is easily damaged.
26
2002 MY RAV4_U (OM42503U)
Page 27
’02 Rav4_U (L/O 0108)
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seat s 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seats 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

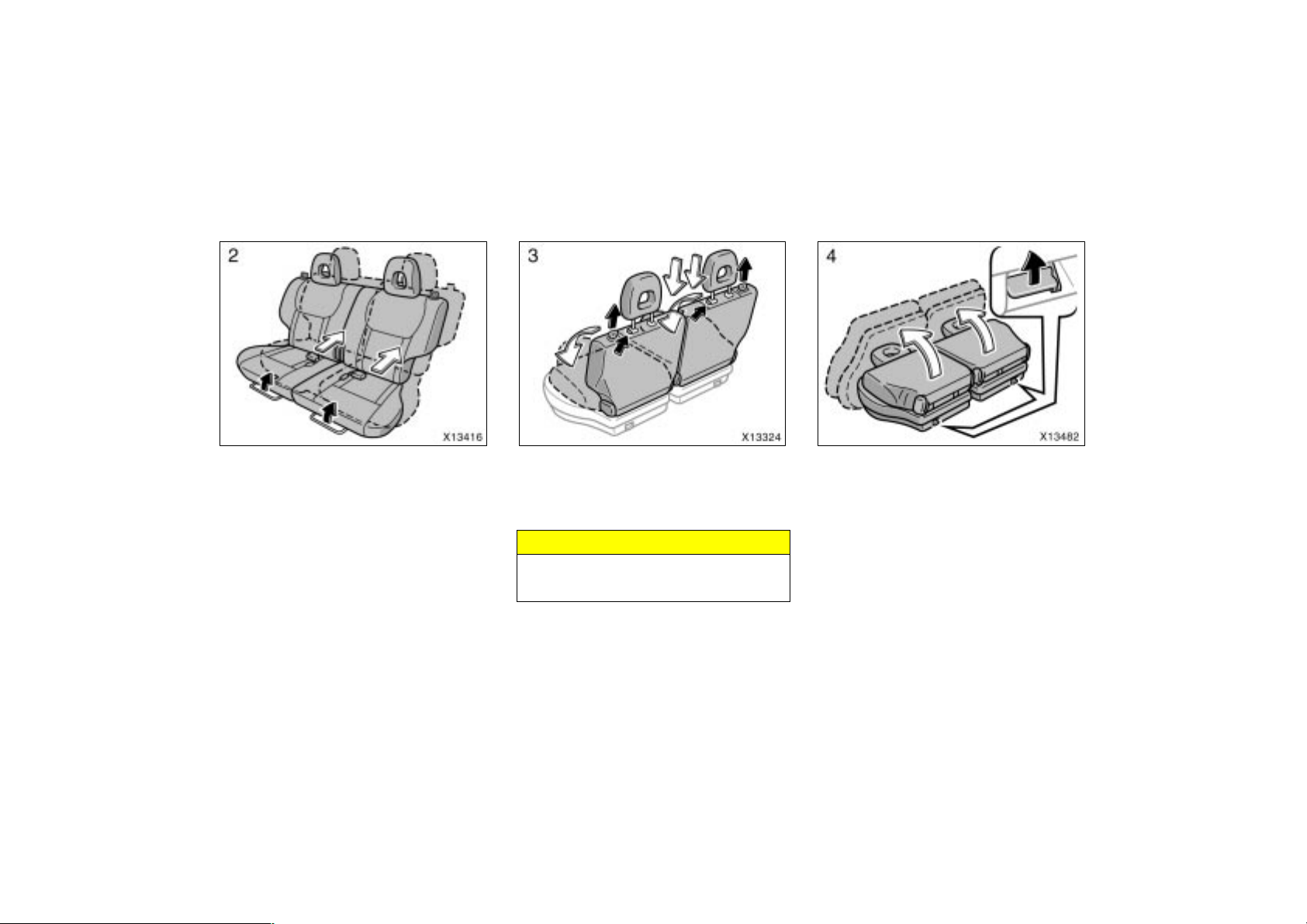

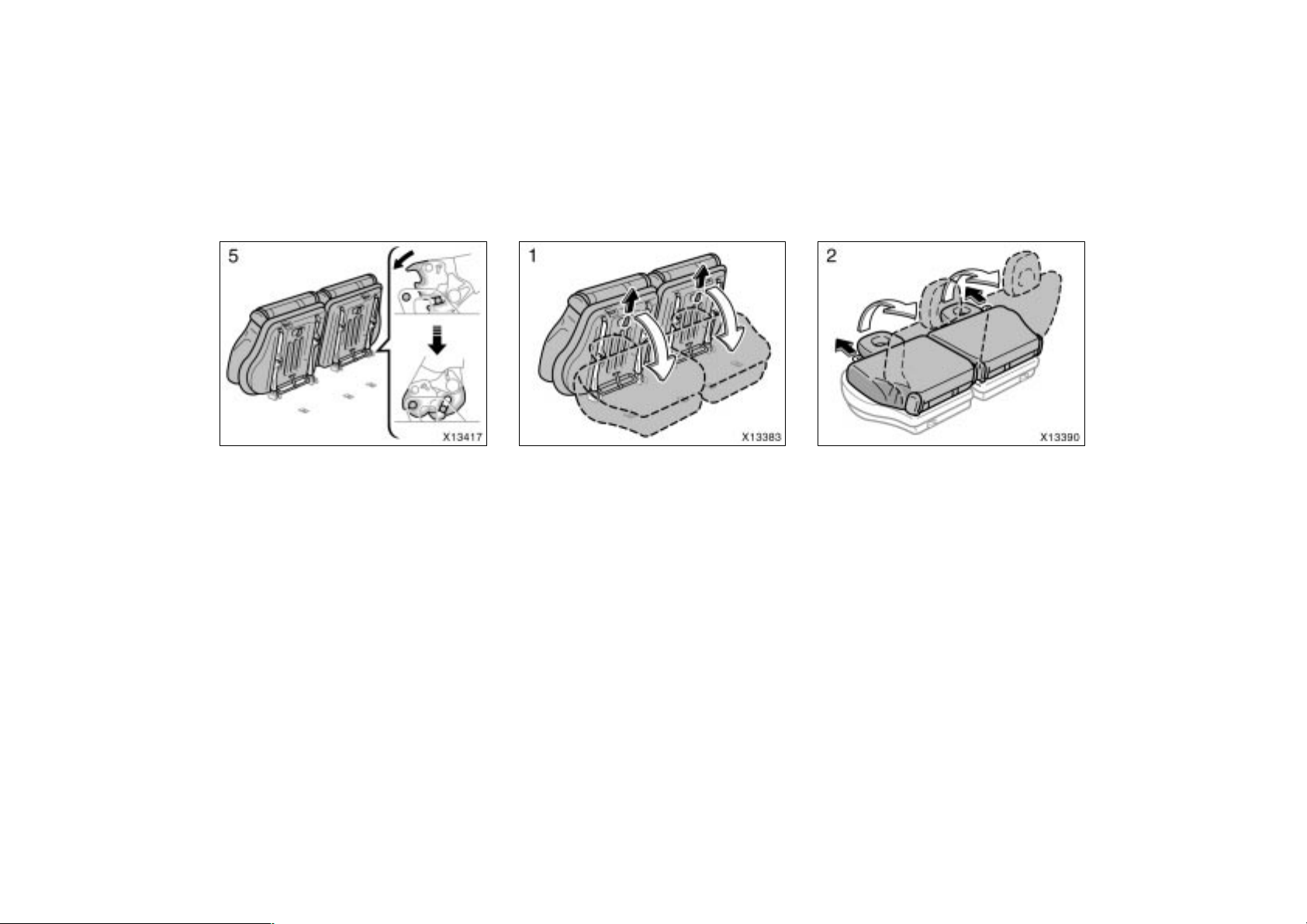

Flattening seatbacks 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

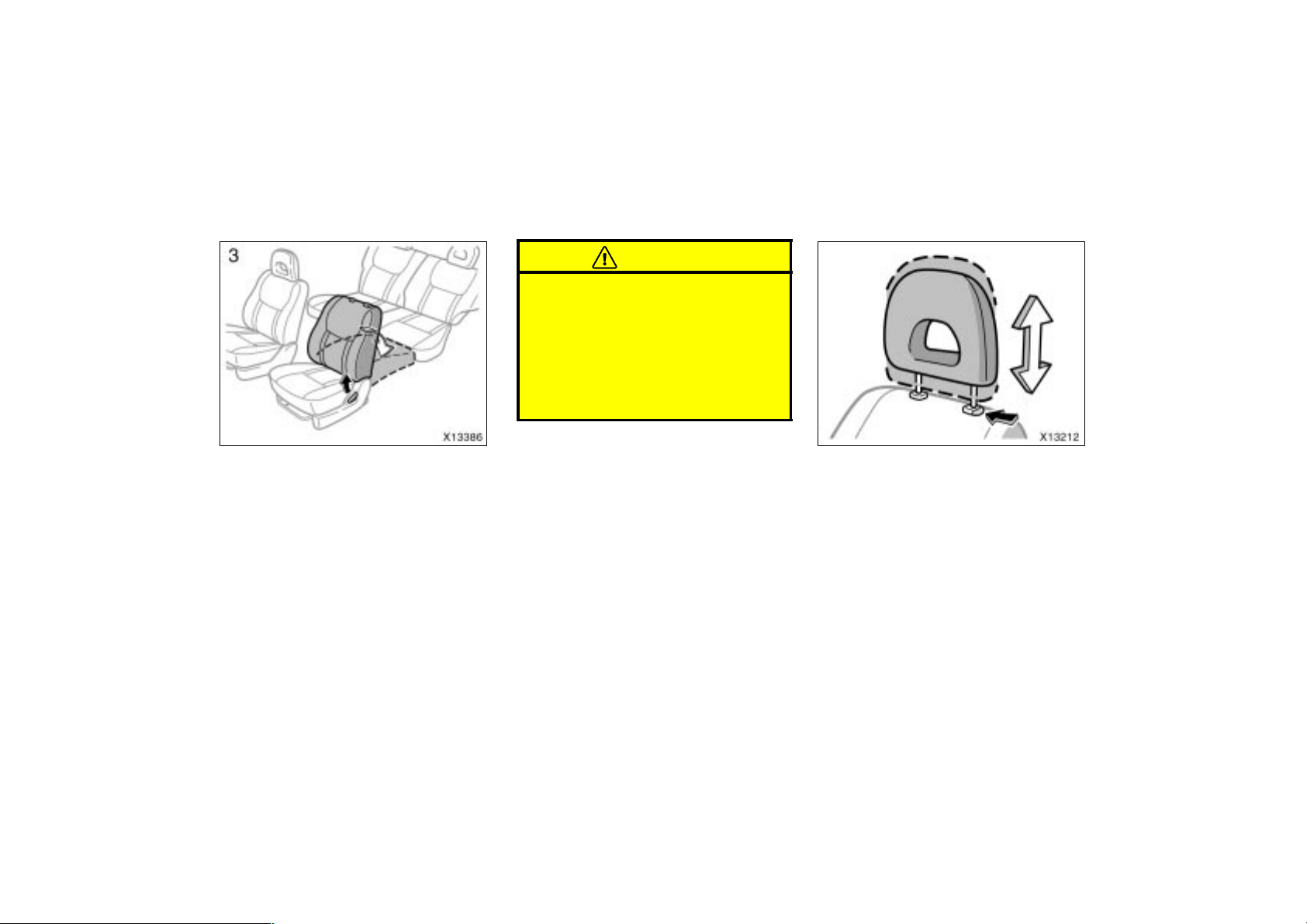

Head rest raints 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

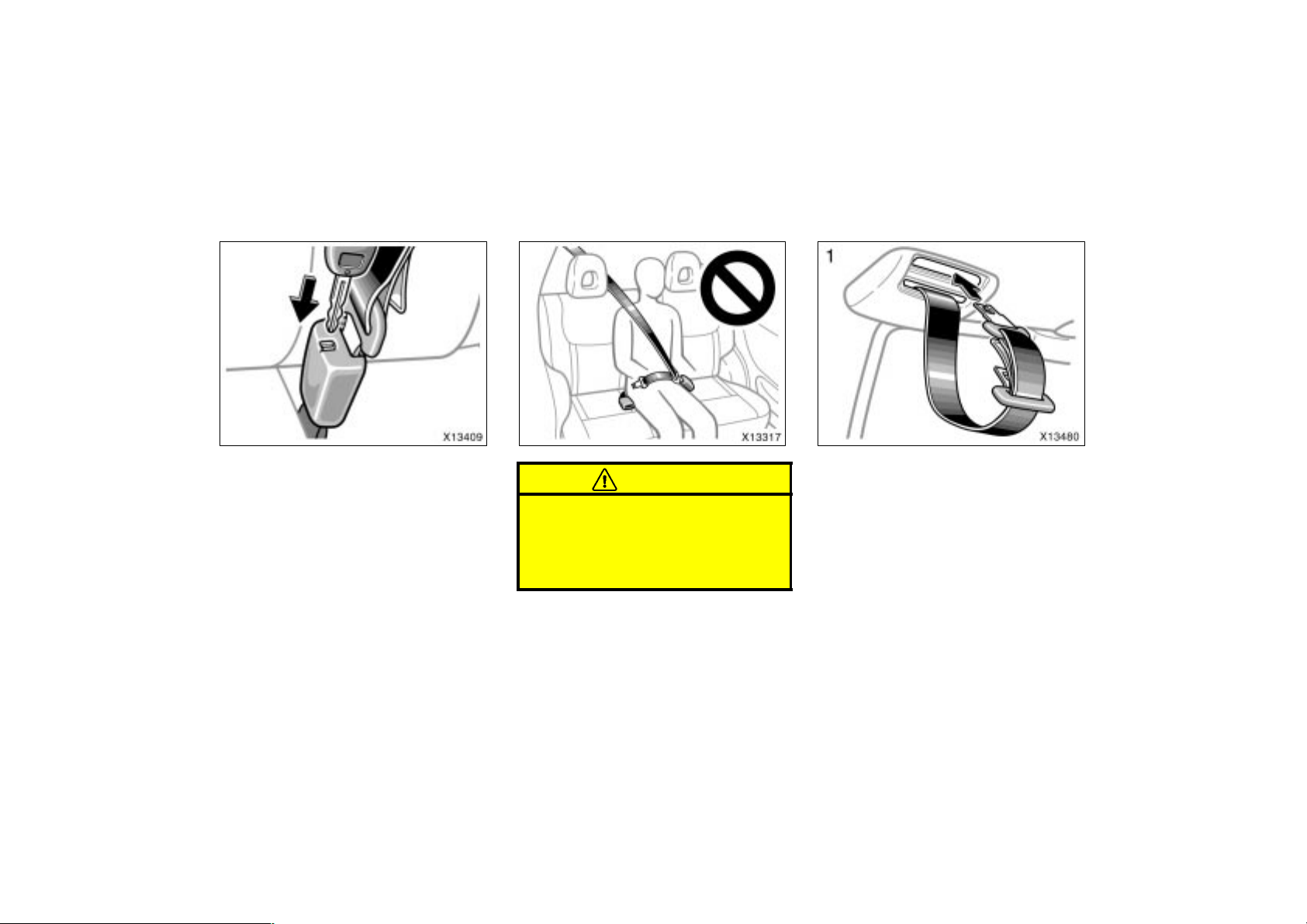

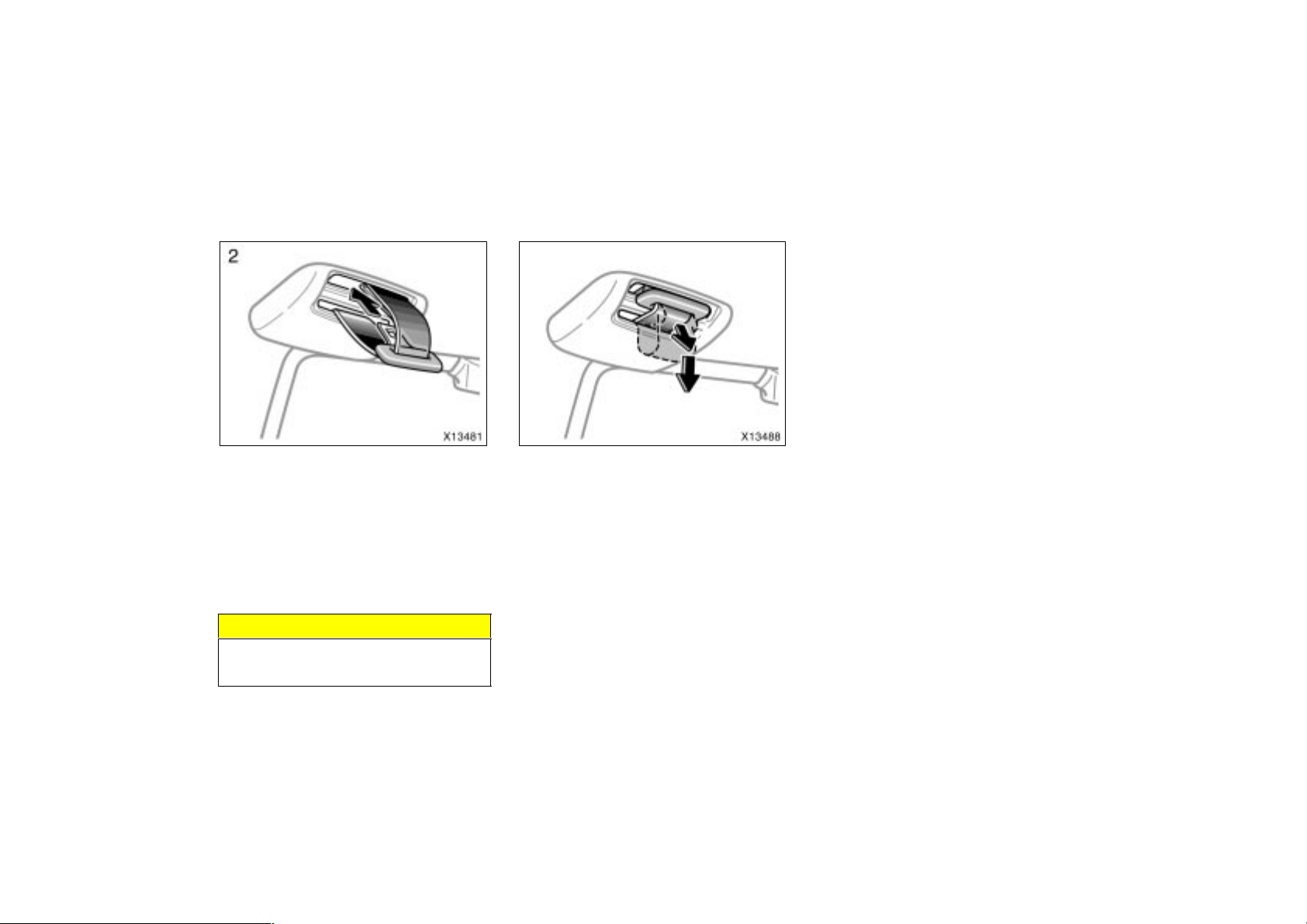

Seat belts 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

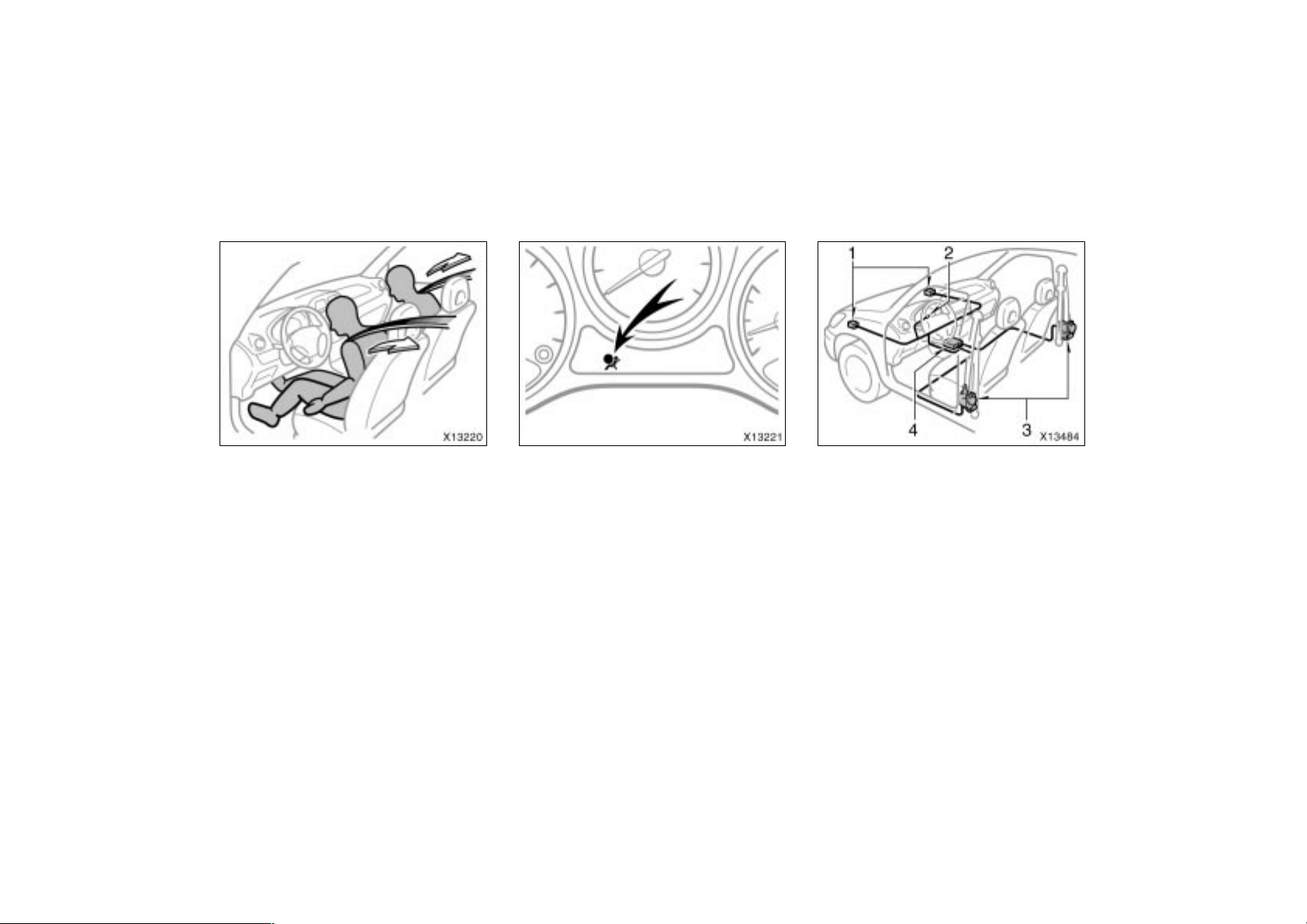

SRS dri ver airbag and front passenger airbag 50. . . . . . . . . . . . . . . . . . .
Child restraint 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

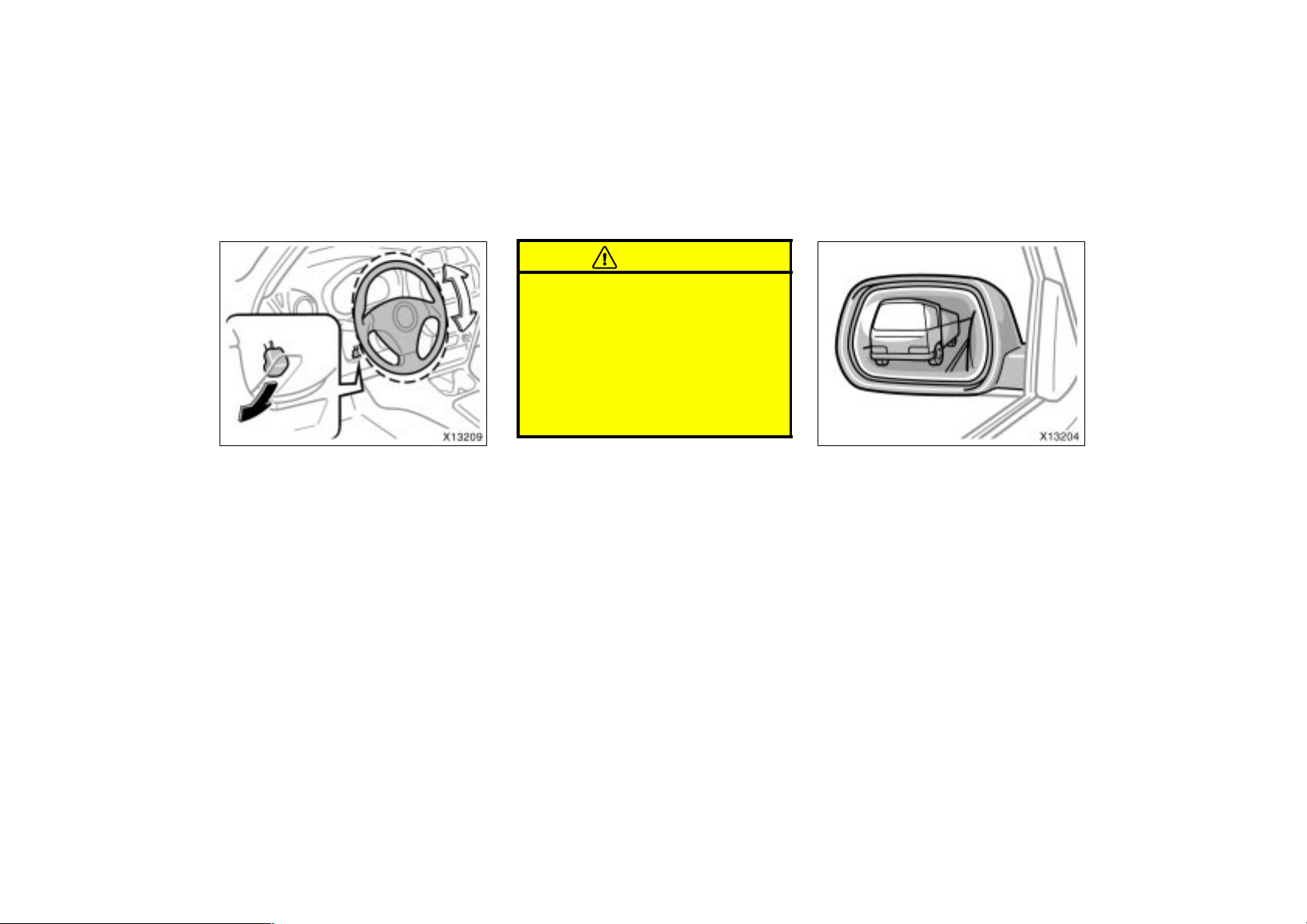

Tilt steering wheel 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror s 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti–glare inside r ear view mirror 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
2002 MY RAV4_U (OM42503U)
27
Page 28
Seats
While the vehicle is being driven, all vehicle occupants should have the seatback
upright, sit well back in the seat and properly wear the seat belts provided.
CAUTION
’02 Rav4_U (L/O 0108)
Front seats—
—Seat adjustment precau tio ns
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise you
may catch and injure your hands or
fingers.
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
folded–down seatback, or in the
luggage compartment or cargo area.
Persons not properly seated and/or
properly restrained by seat belts
can be severely injured in the event
of emergency braking or a collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe injuries can occur in the event of emergency braking or a collision.
28
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
that the seat does not hit a passenger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in position.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the
seat–lock mechanism or unexpectedly push up the seat position adjusting lever. Otherwise the seat
may suddenly move, causing the
driver to lose control of the vehicle.
2002 MY RAV4_U (OM42503U)
Page 29
—Adjusting front seats
’02 Rav4_U (L/O 0108)
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING
KNOB
Turn the knob either way.
3. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maximum protection in a frontal or rear
collision when the driver and the passenger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seatback.
2002 MY RAV4_U (OM42503U)
29
Page 30
Rear seats—
—Rear seat precautions
’02 Rav4_U (L/O 0108)
—Adjusting rear seats
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
that the seat does not hit a passenger or luggage.
Adjust both seat cushions to the
same position and align both seatbacks at the same angle when a
person sits in the rear center position. Otherwise, the person cannot
wear the seat belt properly and this
may cause serious injuries in a collision.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is lock in position.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent personal injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rearward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Folding the seats up will enlarge the luggage compartment. See “Luggage stowage
precautions” on page 164 in Section 2 for
precautions in loading luggage.
30
2002 MY RAV4_U (OM42503U)
Page 31
’02 Rav4_U (L/O 0108)
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
When a person sits in the rear center
position, adjust both seat cushions to
the same position.
Do not place anything under the seats. It
might interfere with the seat–lock mechanism.
2. SEATBACK ANGLE ADJUSTING
STRAP
Pull the strap up. Then lean back to the
desired angle and release the strap.
When a person sits in the rear center
position, align both seatbacks at the
same angle.
CAUTION
Adjustments should not be made
while the vehicle is moving.
Adjust both seat cushions to the
same position and align both seatbacks at the same angle when a
person sits in the rear center position. Otherwise, the person cannot
wear the seat belt properly and this
may cause serious injuries in a collision.
To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen.
Therefore, in the event of a frontal
collision, the risk of personal injury
may increase with increasing recline
of the seatback.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
NOTICE
Do not fold the seatback forward
while the luggage cover is set.
2002 MY RAV4_U (OM42503U)
31
Page 32
—Folding up rear seats
’02 Rav4_U (L/O 0108)

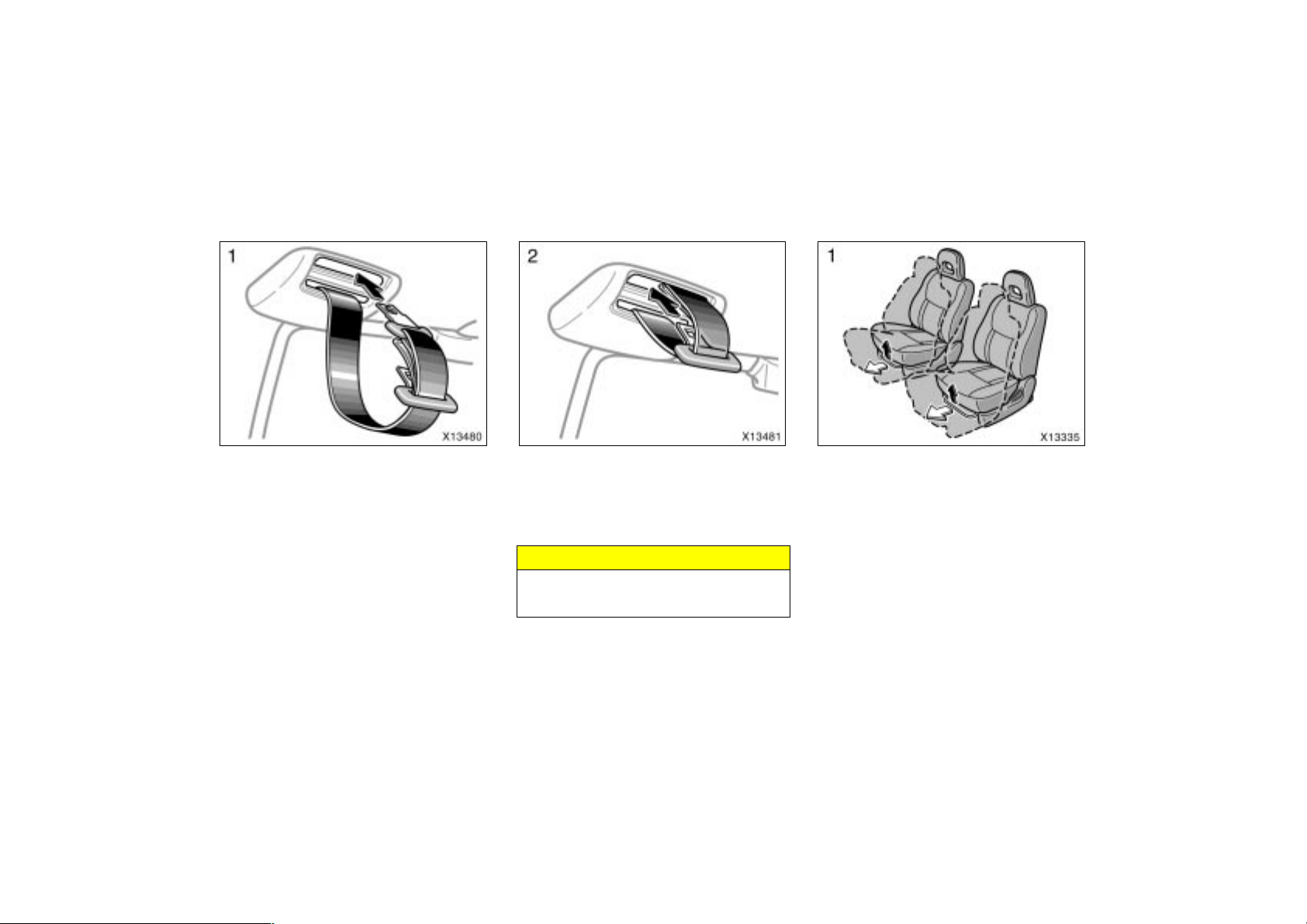

BEFORE FOLDING UP REAR SEAT
Stow the rear center seat belt, do the
following:

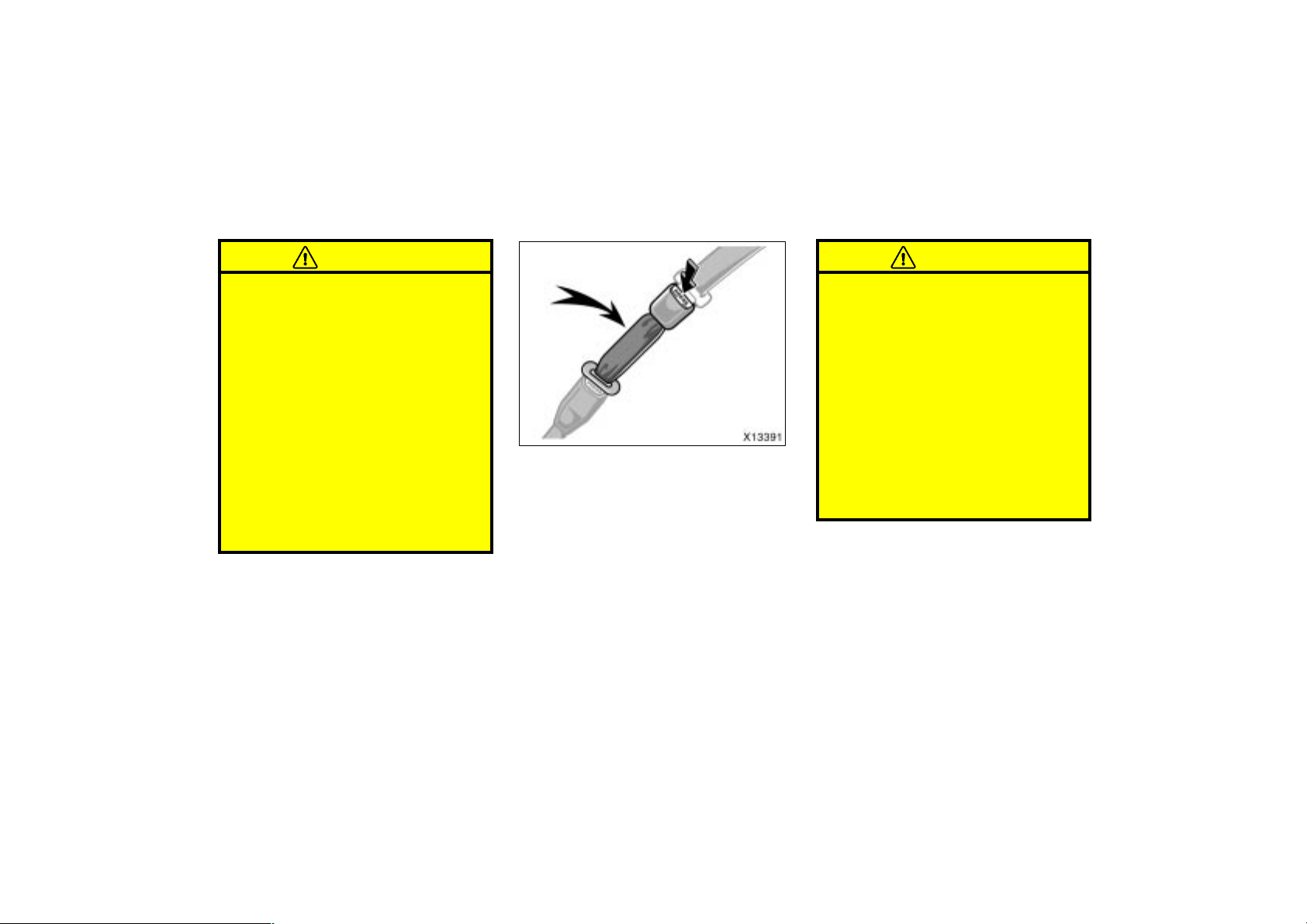

1. Pull the seat belt out of its cover a
little and insert the concave end tab
into the higher slot of the cover.
32
2. Insert the round end tab into the
cover. You will hear a click when the
tabs are locked in the seat belt cover. Make sure the tabs are securely
locked in the cover.
NOTICE
The seat belt must be stowed before
you fold the seatback.
2002 MY RAV4_U (OM42503U)
FOLDING UP REAR SEATS
1. Hold the center of the lever and pull
it up. Then slide the front seat fully
forward.
Folding up the rear seats will enlarge the
luggage compartment. See “Luggage stowage precautions” on page 164 in Section
2 for precautions in loading luggage.
Page 33
’02 Rav4_U (L/O 0108)
2. Hold the center of the lever and pull
it up. Then slide the rear seat fully
backward and pull it forward slightly
till it locks.

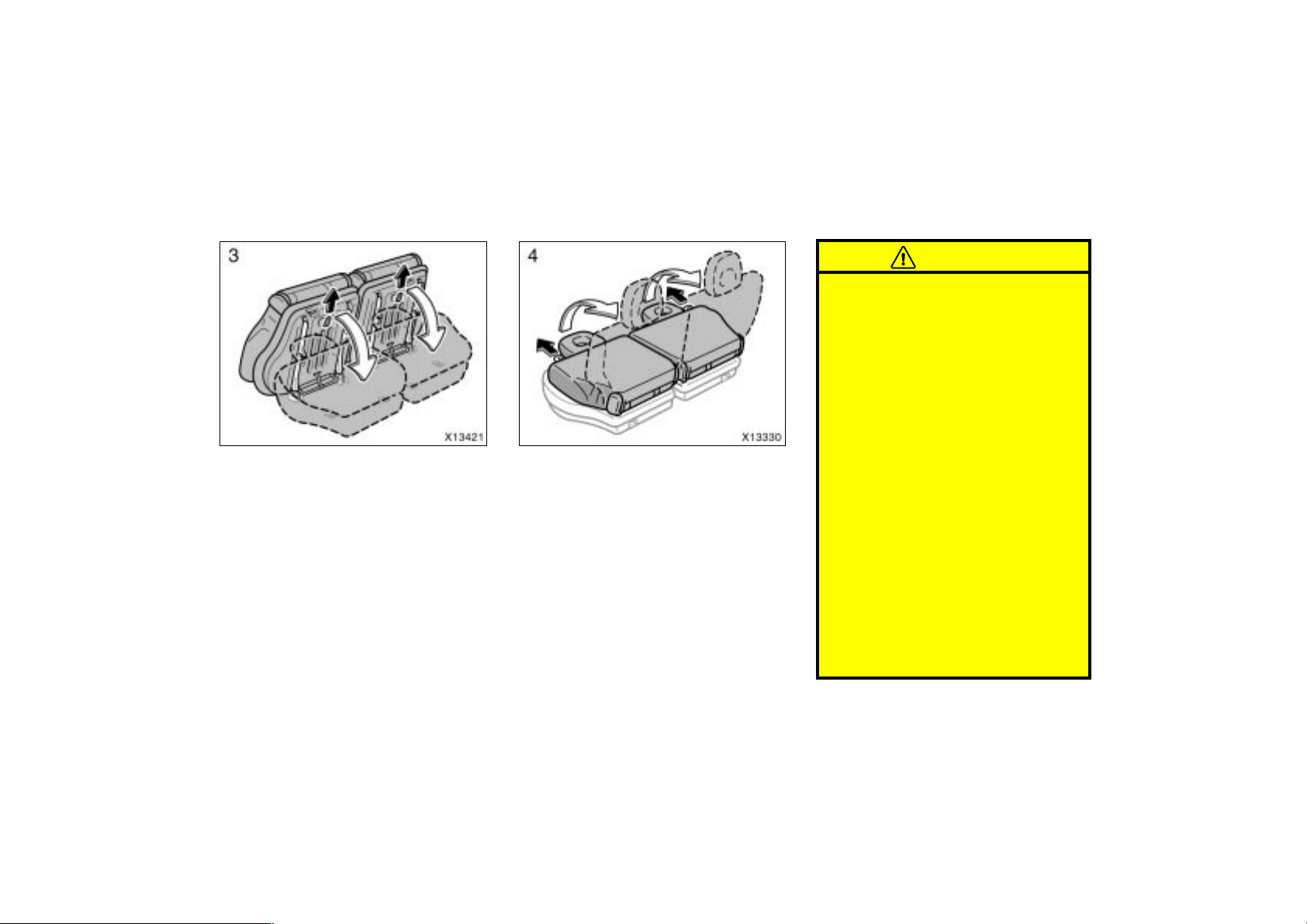

3. Lower the head restraint to the lowest position. Pull up the strap to
unlock the seatback and fold the
seatback forward until it locks.
NOTICE
Do not fold the seatback forward
while the luggage cover is set.
2002 MY RAV4_U (OM42503U)
4. Pull up the seat cushion lock release
lever and swing the whole seat up
and forward.
33
Page 34
’02 Rav4_U (L/O 0108)
5. Make sure the front legs are locked
and the seat is securely locked in
position.
34
RETURNING REAR SEATS
1. To unlock the seat, hold the upper
back of the seat with your hand and
pull the lock release strap up. Swing
the whole seat down and set the
rear legs to the hooks on the floor.
Make sure the rear legs are securely
set to the hooks by trying to pull up
the rear part of the seat.
2002 MY RAV4_U (OM42503U)
2. Pull the seatback lock release strap
and swing the seatback up.
Page 35
CAUTION
When returning seats to their original
position, observe the following precautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rearward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
’02 Rav4_U (L/O 0108)

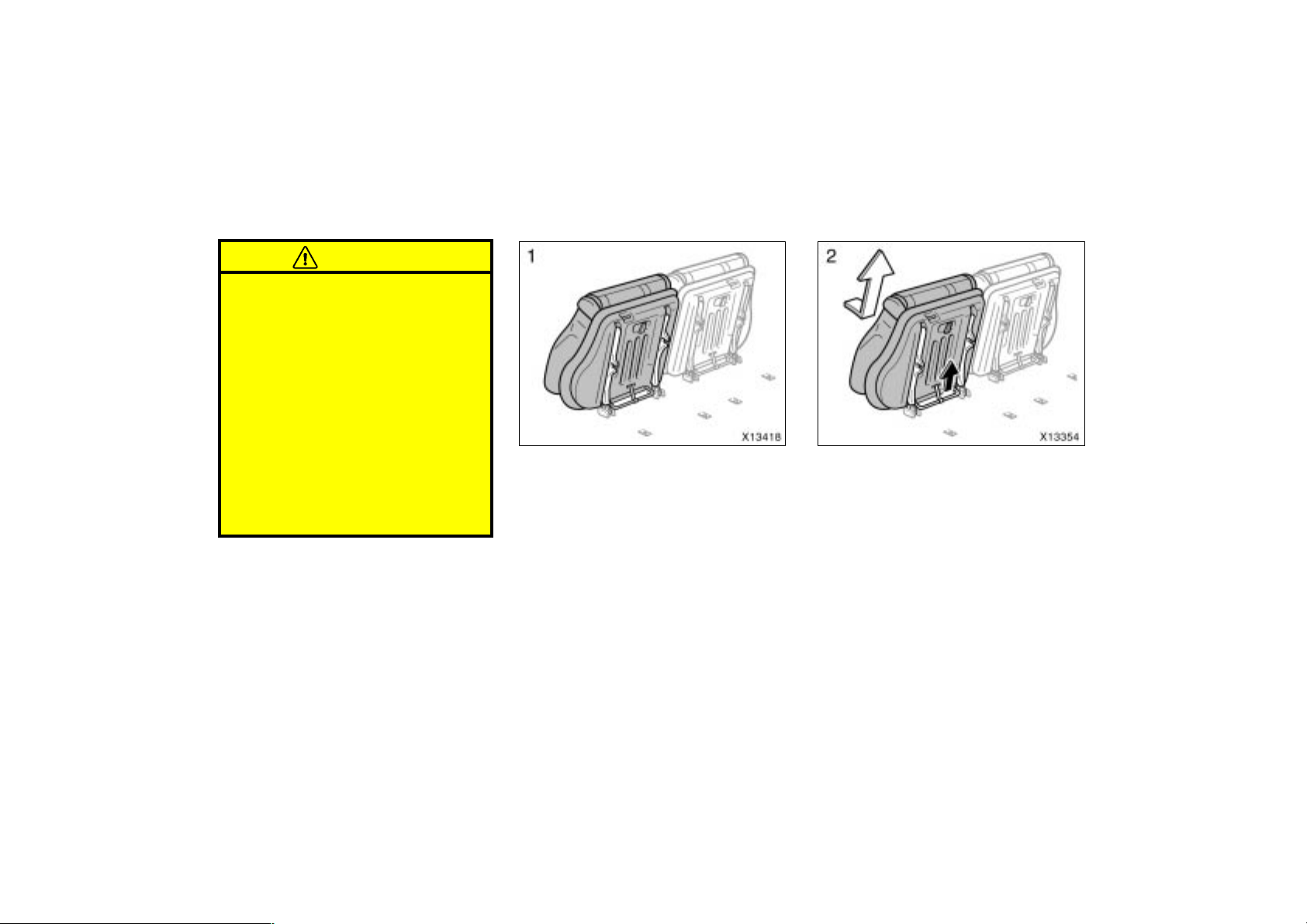

—Removing rear seats
1. Fold up rear seats. (See “—Folding
up rear seats” on page 32 in this
section for instructions.)
2. Unlock the seat by pulling the lock
release lever. Pull the seat toward
you slightly and lift.
Removing the rear seats will enlarge the
luggage compartment. See “Luggage stowage precautions” on page 164 in Section
2 for precautions in loading luggage.
2002 MY RAV4_U (OM42503U)
35
Page 36
CAUTION
When removing the seat, observe the
following precautions in order to prevent personal injury:
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
’02 Rav4_U (L/O 0108)
—Reinstalling rear seats
NOTICE
Avoid putting heavy loads on the removed seat. The metallic tips of the
seat leg may be damaged and the
seat cannot be reinstalled.
36

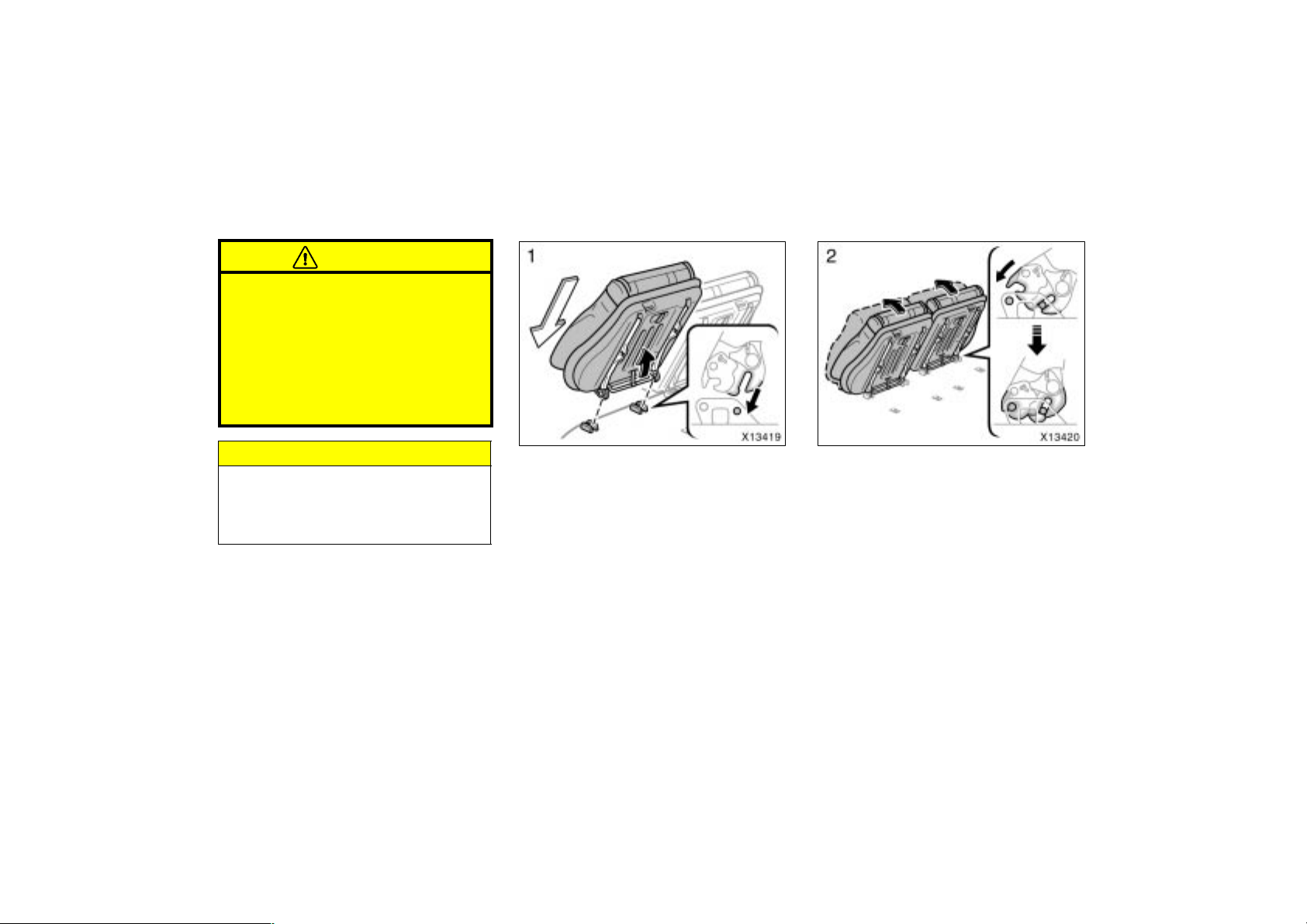

1. While pulling up the lock release lever, place the rear hinge into the
rear hook on the floor.
2002 MY RAV4_U (OM42503U)
2. Push the seat forward until it locks.
Page 37
3. To unlock the seat, hold the upper
back of the seat with your hand and
pull the lock release strap up. Swing
the whole seat down and set the
rear legs to the hooks on the floor.
Make sure the rear legs are securely
set to the hooks by trying to pull up
the rear part of the seat.
’02 Rav4_U (L/O 0108)
4. Pull the seatback lock release strap
and swing the seatback up.
CAUTION
When returning seats to their original
position, observe the following precautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rearward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
When removing or reinstalling the
seat, observe the following precautions in order to prevent personal injury:
Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.
2002 MY RAV4_U (OM42503U)
37
Page 38
Be careful not to hit the removed
seat against a person or drop it on
yourself.
After folding or installing the seat,
push it forward and backward to
make sure it is locked in position.
To prevent personal injury in a collision or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat
loose in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
When reinstalling the seat, be care-
ful not to hit the seat against you
or inside of the vehicle.
Install each seat in the same posi-
tion from which it was removed.
Failure to do so will prevent rear
seat occupants from using seat
belts properly.
’02 Rav4_U (L/O 0108)

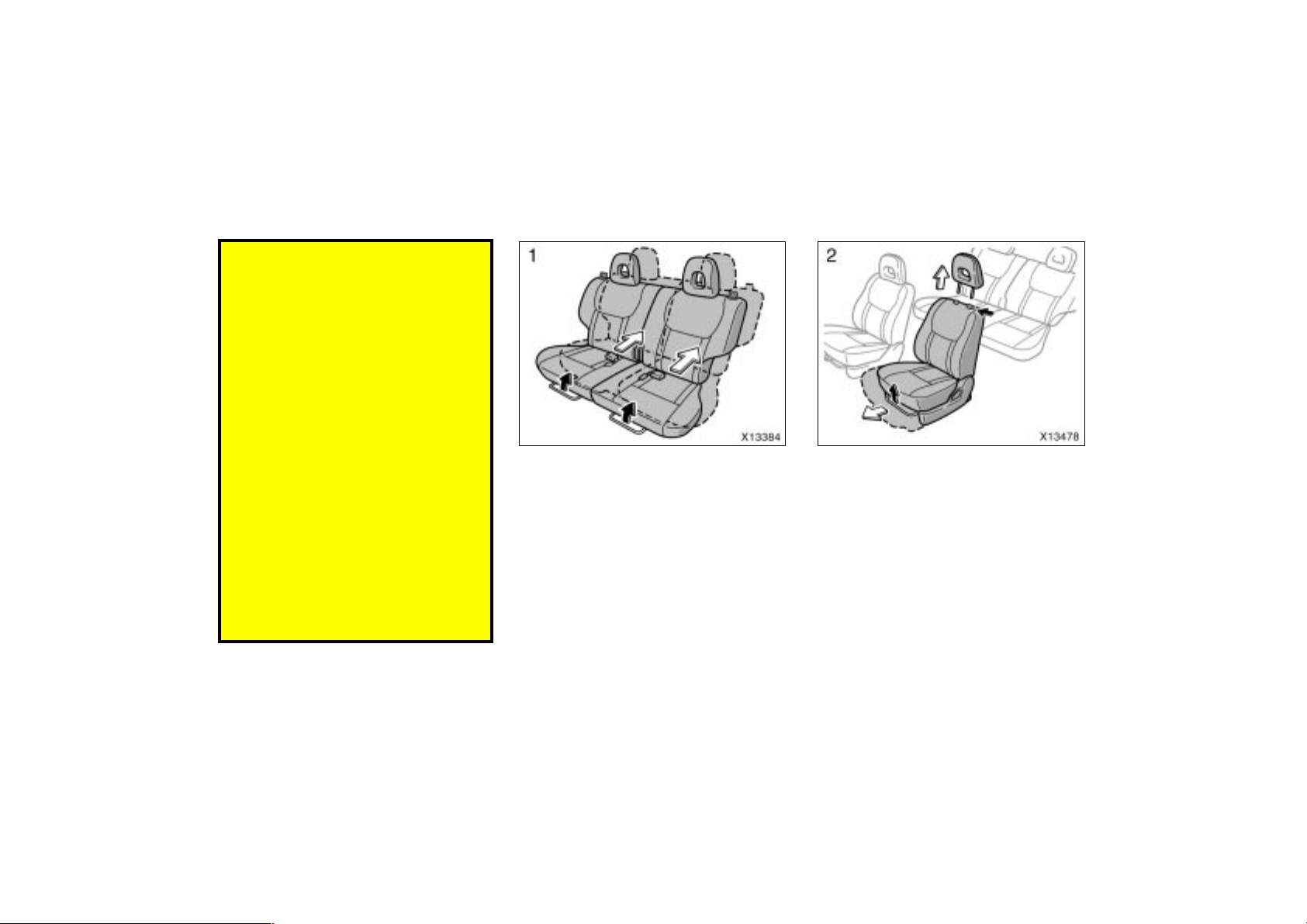

Flattening seatbacks
(front seat only)
For flattening seatbacks, do the following:
1. Hold the center of the lever and pull
it up. Then slide the rear seat fully
backward and pull it forward slightly
till it locks.
2. Remove the head restraint. Hold the
center of the lever and pull it up.
Then slide the seat further forward
than the front–most lock position.
38
2002 MY RAV4_U (OM42503U)
Page 39
’02 Rav4_U (L/O 0108)
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback forward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.
Head restraints
3. Pull the seatback angle adjusting lever to unlock and push down the
seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with considerable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
2002 MY RAV4_U (OM42503U)
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recommended.
39
Page 40
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
’02 Rav4_U (L/O 0108)
Seat belts—
—Seat belt precautions
Toyota strongly urges that the driver and
passengers in the vehicle be properly restrained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.

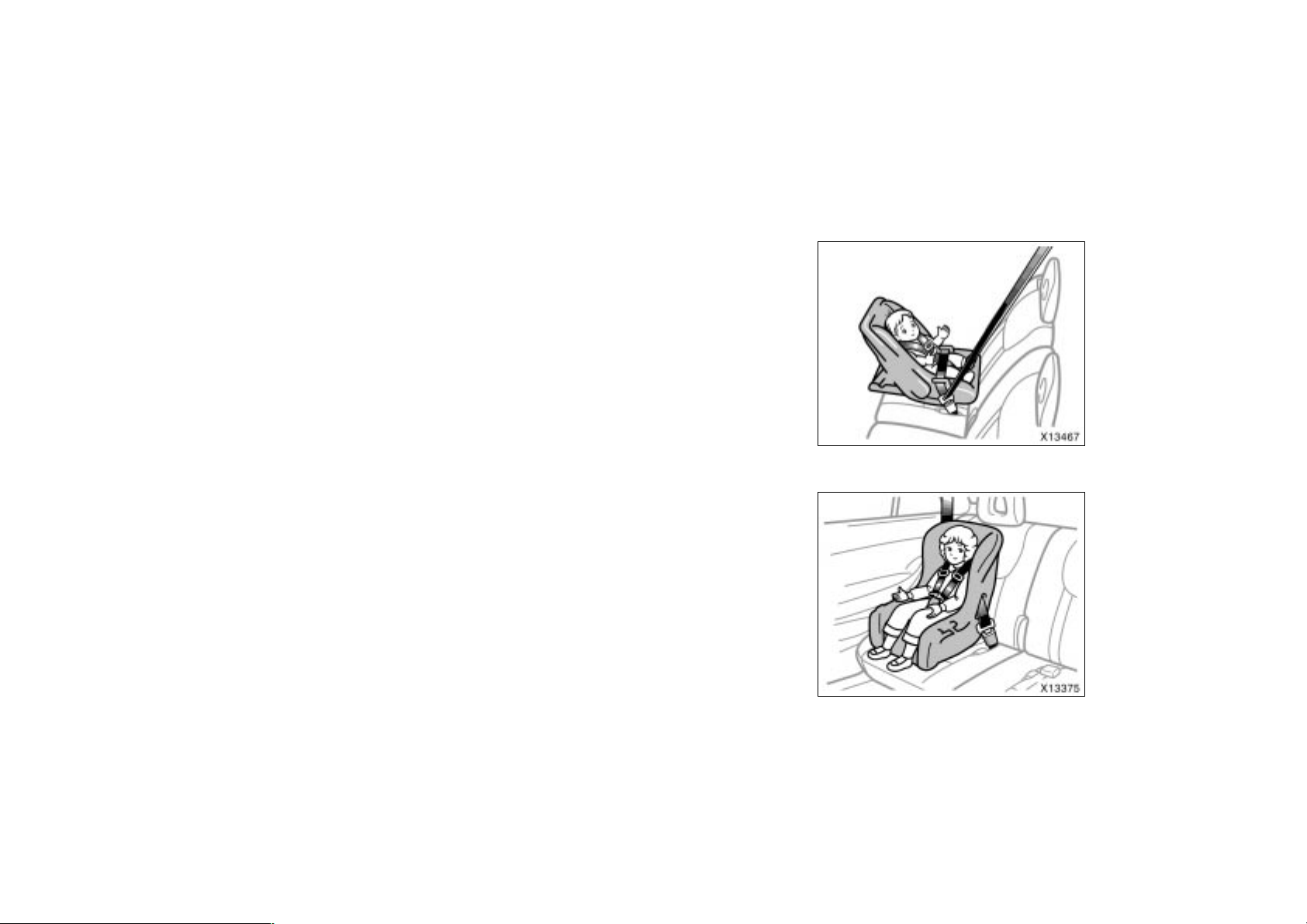

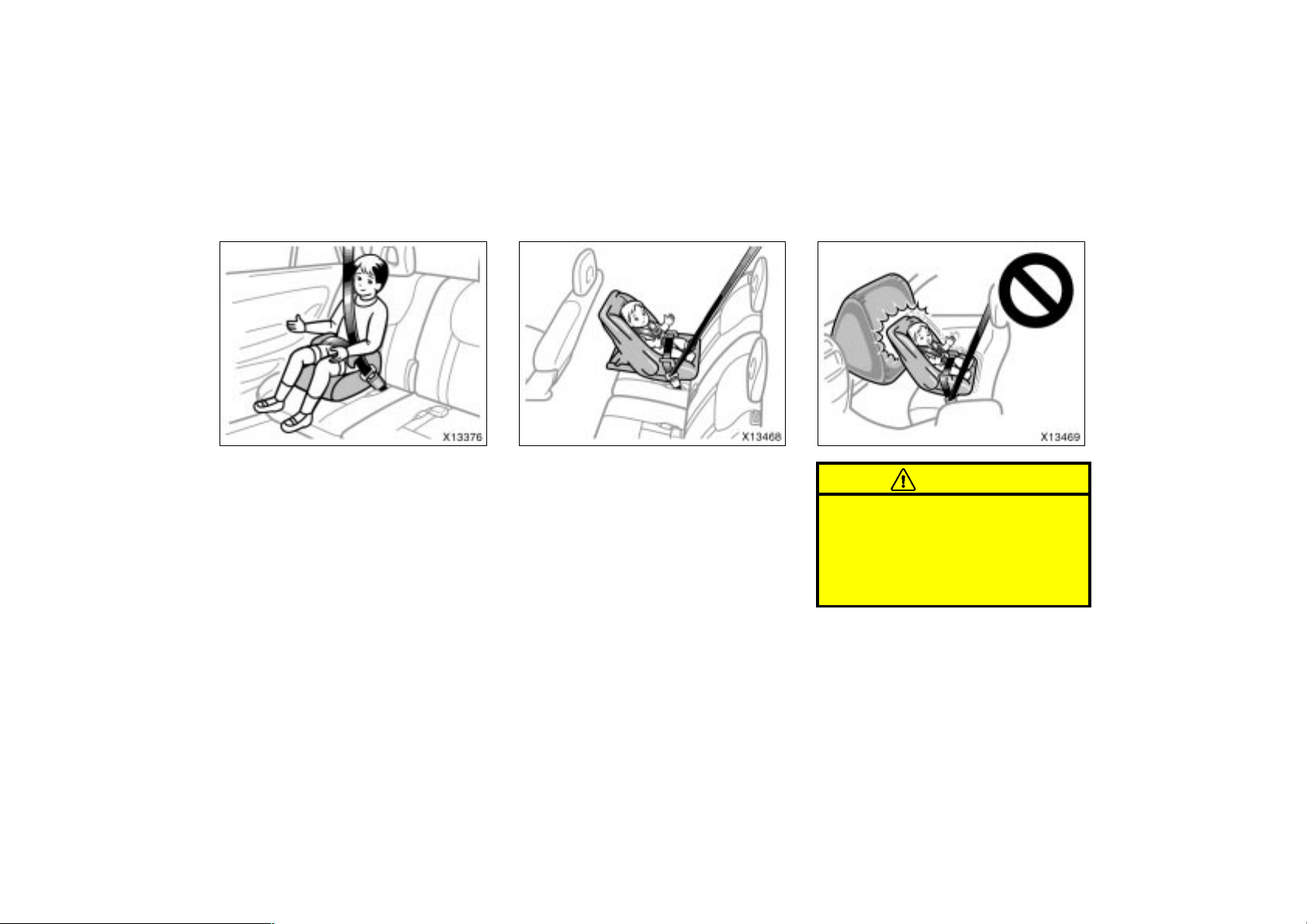

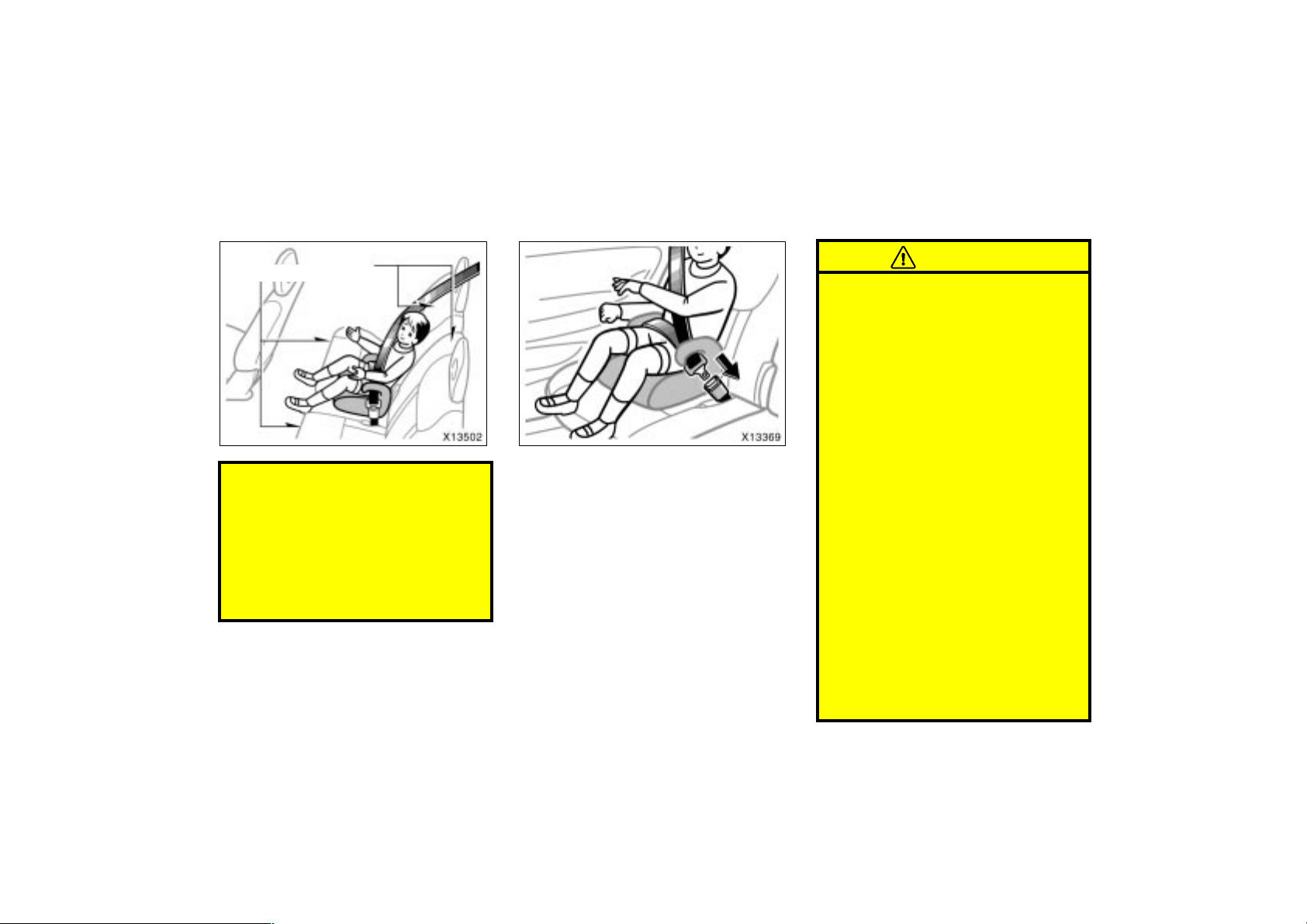

Child. Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 57 for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and seat belts are not
worn properly, the force of the rapid inflation of the airbag may cause death or
serious injury to the child.
Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious injury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the injury, first check with your doctor for specific
recommendations.
40
2002 MY RAV4_U (OM42503U)
Page 41
’02 Rav4_U (L/O 0108)
—Front and rear seat belts
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatbacks too
much. The seat belts provide maximum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be replaced. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive cleaners—they may severely weaken the
belts. (See “Cleaning the interior”
on page 209 in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

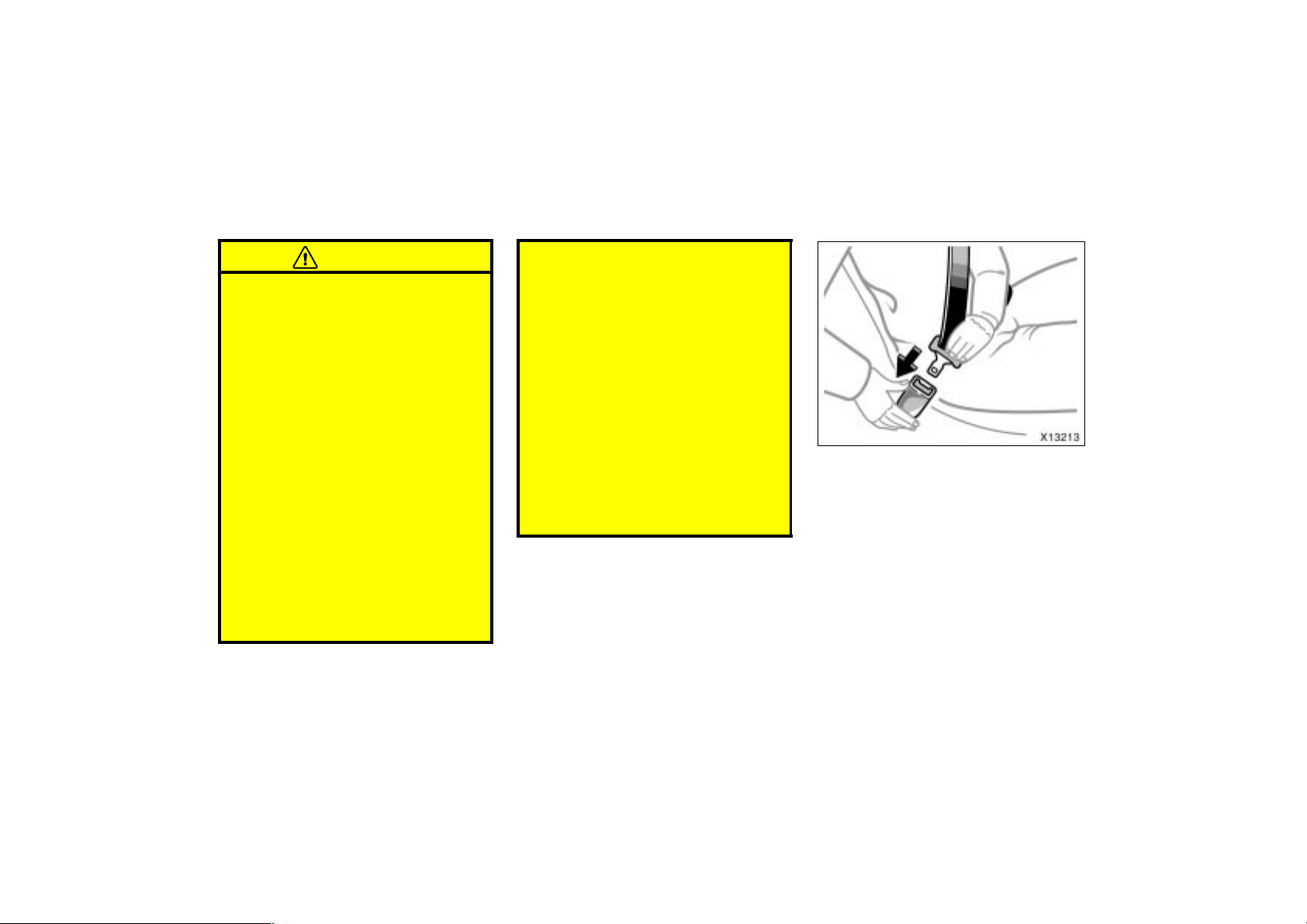

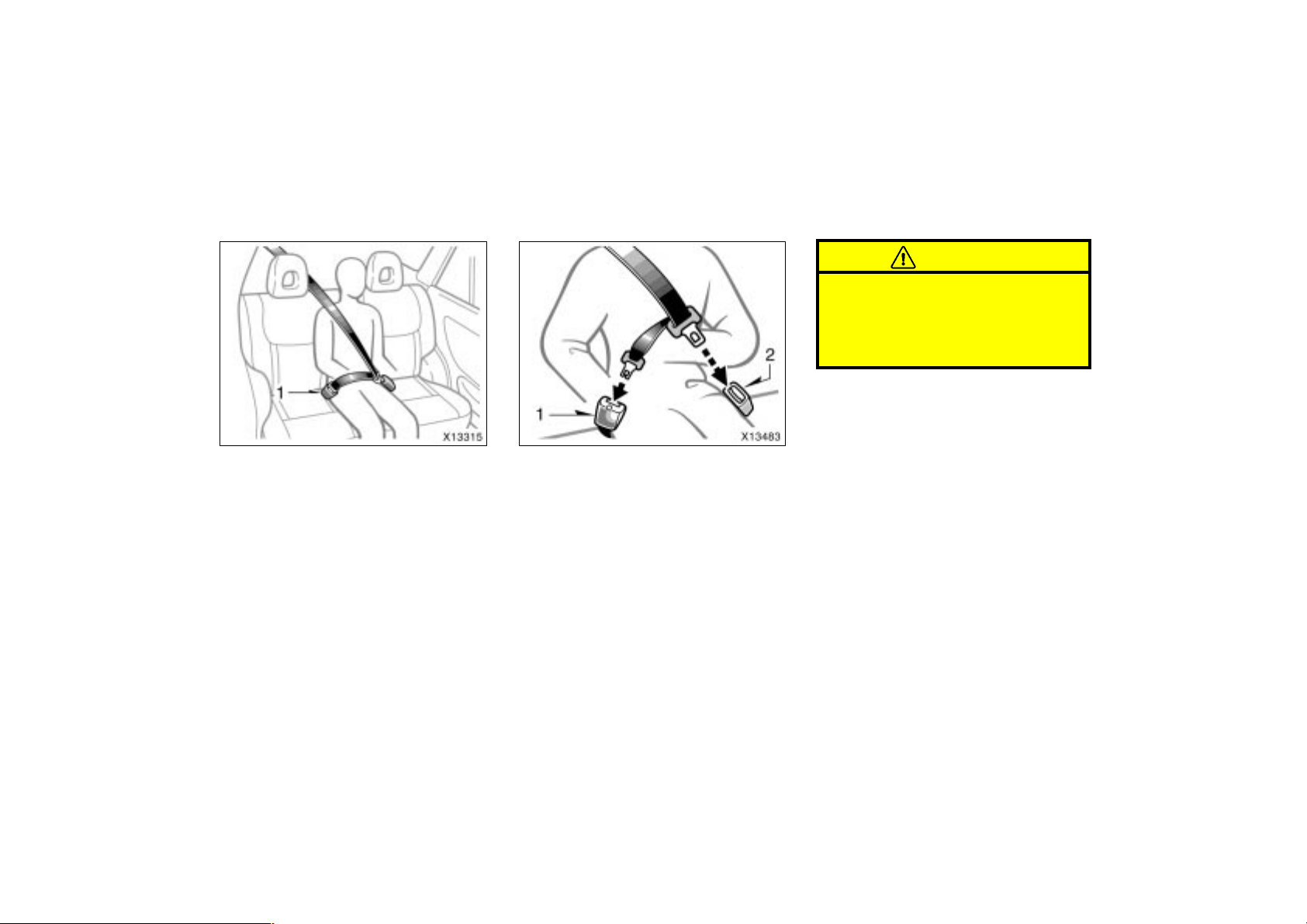

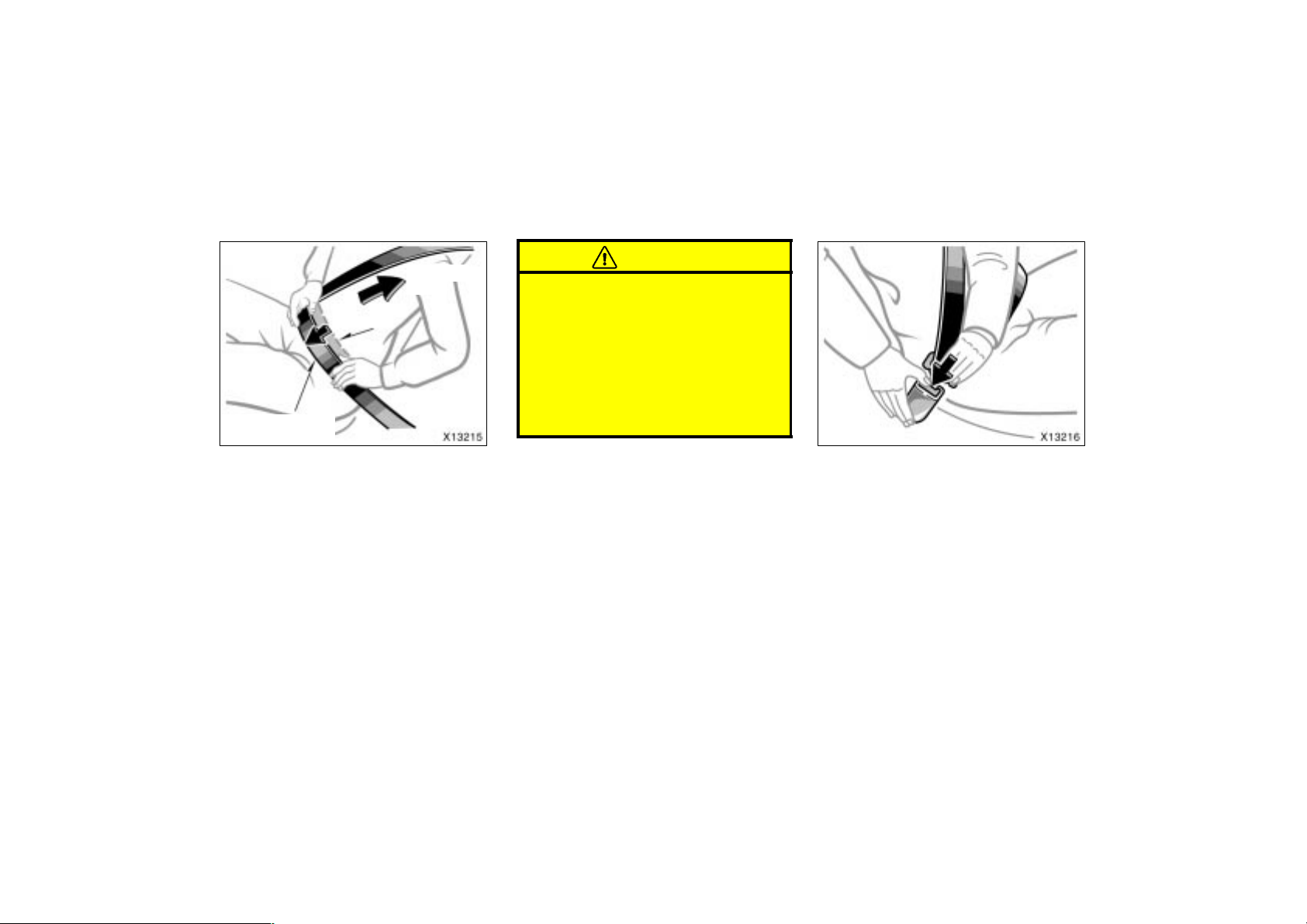

Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the retractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
2002 MY RAV4_U (OM42503U)
41
Page 42
’02 Rav4_U (L/O 0108)
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger’s shoulder belt is completely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This feature is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 57 in this section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.

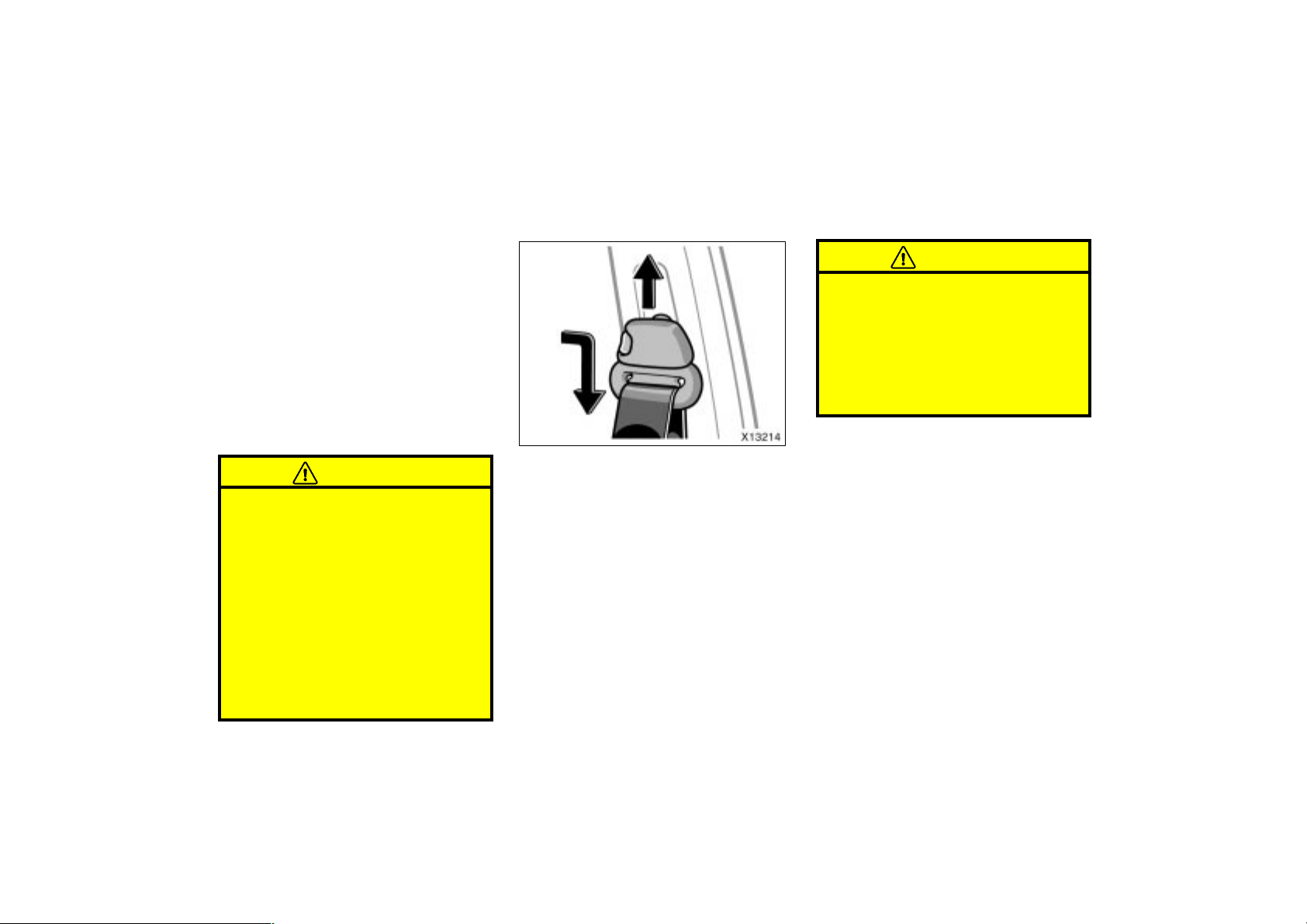

Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment, make sure the anchor is
locked in position.
42
2002 MY RAV4_U (OM42503U)
Page 43
Keep as low on
hips as possible
To o h i g h
Take up
slack
’02 Rav4_U (L/O 0108)
CAUTION
Both high–positioned lap belts and
loose–fitting belts could cause serious injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on hips
as possible.
For your safety, do not place the
shoulder belt under your arm.
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then adjust it to a snug fit by pulling the shoulder
portion upward through the latch plate.
2002 MY RAV4_U (OM42503U)
To release the belt, press the buckle–release button and allow the belt to retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it retracts.
43
Page 44
’02 Rav4_U (L/O 0108)
Make sure the both buckles are correctly located and securely latched.
Failure to properly match the buckle
and tab may cause severe injury in
case of an accident or a collision.
CAUTION
SEAT BELT FOR REAR CENTER SEAT
The rear center seat belt is a 3–point type
restraint with 2 buckles. Both seat belt
buckles must be correctly located and securely latched for proper operation.
Make sure that buckle 1 (with light gray
buckle–release button) is securely latched
for ready use of the center seat belt.
44
Two buckles and tabs for rear center
seat belt
The 2 buckles for the rear center seat
belt are distinguished with colors of the
buckle release button. Also the 2 tabs
have different shape for its end so that
the belt is not buckled in the wrong place.
Buckle 1 (with light gray buckle–release button)—Properly matches with
concave end tab
Buckle 2 (with red buckle–release button)—Properly matches with round end
tab
2002 MY RAV4_U (OM42503U)
Page 45
’02 Rav4_U (L/O 0108)
—Stowin g the rear center seat
belt
To release the concave end tab, insert the
key into the hole on buckle 1 (with light
gray buckle–release button) and allow the
belt to retract.
CAUTION
Do not use the rear center seat belt
with either buckle released. Fastening
only the shoulder belt or lap belt may
cause severe personal injury in case
of sudden braking or a collision.
2002 MY RAV4_U (OM42503U)
STOWING THE REAR CENTER SEAT
BELT
1. To stow the rear center seat belt,
pull the seat belt out of its cover a
little and insert the concave end tab
into the higher slot of the cover.
45
Page 46
’02 Rav4_U (L/O 0108)
—Seat belt extender
If your seat belt cannot be fastened securely because it is not long enough, a
personalized seat belt extender is available from your Toyota dealer free of
charge.
Please contact your local Toyota dealer so
that the dealer can order the proper required length for the extender. Bring the
heaviest coat you expect to wear for proper measurement and selection of length.
Additional ordering information is available
at your Toyota dealer.
2. Insert the round end tab into the
cover. You will hear a click when the
tabs are locked in the seat belt cover. Make sure the tabs are securely
locked in the cover.
Seat belt must be stowed before you fold
the seatback. (See “—Folding up rear
seats” on page 32 or “—Removing rear
seats” on page 35 in this section.)
NOTICE
Stow the rear center seat belt except
when you are wearing it.
46
PULLING OUT THE REAR CENTER SEAT
BELT
To use the rear center seat belt, pull
the belt out a little and then pull the
tabs out from the cover.
2002 MY RAV4_U (OM42503U)
Page 47
’02 Rav4_U (L/O 0108)
CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could result in less effectiveness of
the seat belt restraint system in case
of vehicle accident, increasing the
chance of personal injury.
Never use the seat belt extender if
you can fasten the seat belt without
it.
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, or for
another person or at a different
seating position than the one originally intended for.
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the “PRESS” signs on
the buckle–release buttons of the extender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle–release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
2002 MY RAV4_U (OM42503U)
47
Page 48
—Front seat belt
pretensioners
’02 Rav4_U (L/O 0108)
The driver and front passenger’s seat
belt pretensioners are designed to be
activated in response to a severe frontal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belts are quickly drawn back in by the
retractors so that the belts snugly restrain
the front seat occupants.
The front seat belt pretensioners are activated even with no passenger in the front
seat.
Collisions occurring at certain speeds and
angles may cause the seat belt pretensioners and SRS airbags not to operate
all together.
48
This indicator comes on when the ignition key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, front seat belt pretensioner assemblies, inflators, warning light, interconnecting wiring and power sources. (For details,
see “Service reminder indicators and
warning buzzers” on page 90 in Section
1–5.)
2002 MY RAV4_U (OM42503U)
The front seat belt pretensioner system
mainly consists of the following components and their locations are shown in the
illustration.
1. Front airbag sensors
2. SRS warning light
3. Front seat belt pretensioner assemblies
4. Airbag sensor assembly
The front seat belt pretensioners are controlled by the airbag sensor assembly. The
airbag sensor assembly consists of a safing sensor and airbag sensor.
Page 49
’02 Rav4_U (L/O 0108)
When the front seat belt pretensioners are
activated, an operating noise may be
heard and a small amount of smoke–like
gas may be released. This gas is harmless and does not indicate that a fire is
occurring.
Once the front seat belt pretensioners
have been activated, the seat belt retractors remain locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner assemblies, airbag sensor or surrounding area or wiring. Doing any of
these may cause sudden operation of
the front seat belt pretensioners or
disable the system, which could result in death or serious injury.
Failure to follow these instructions
can result in death or serious injuries.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
front seat belt pretensioners in some
cases.
Installation of electronic devices
such as a mobile two–way radio,
cassette tape player or compact
disc player
Repairs on or near the front seat
belt retractor assemblies
Modification of the suspension system
Modification of the front end structure
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure or console
2002 MY RAV4_U (OM42503U)

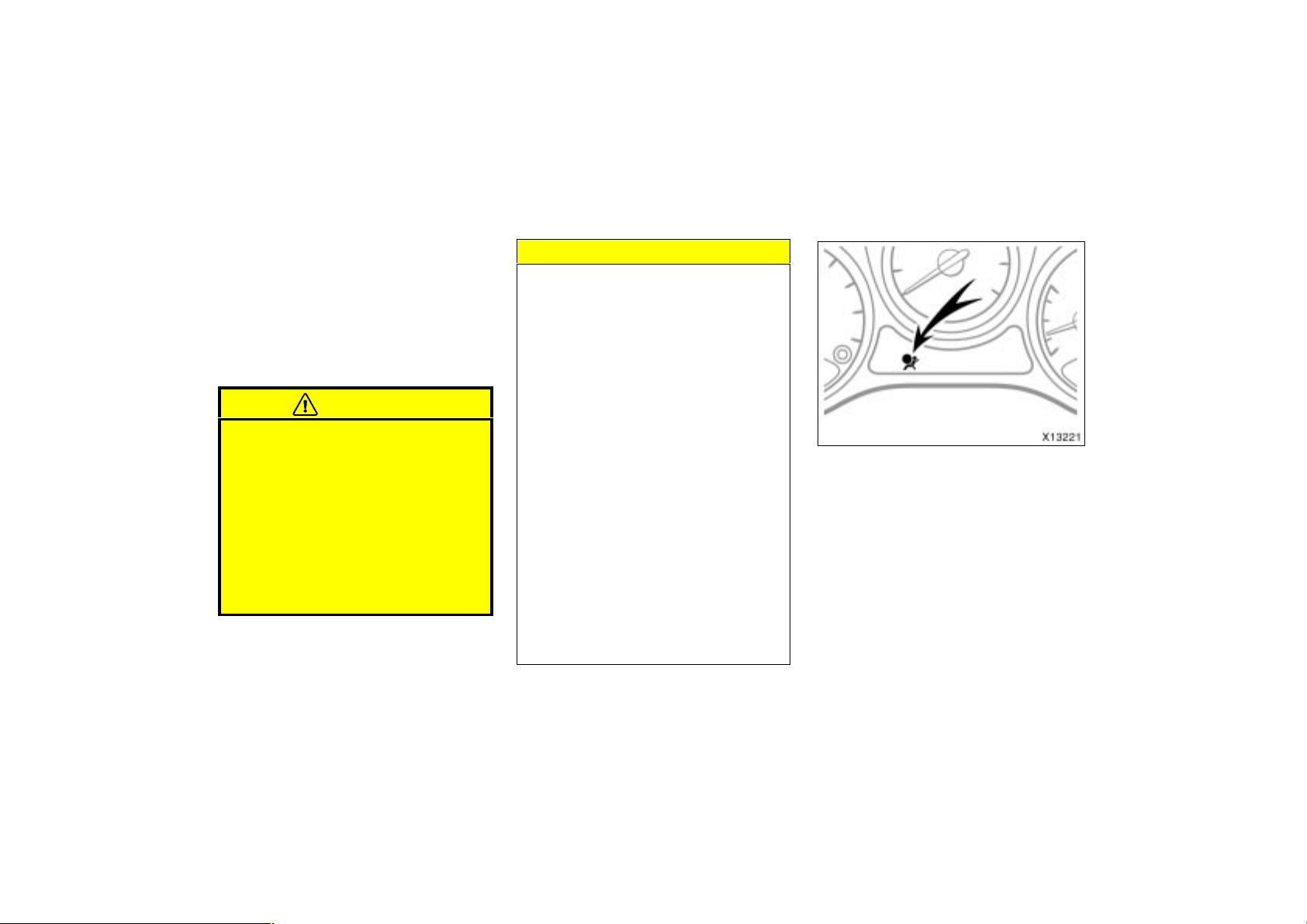

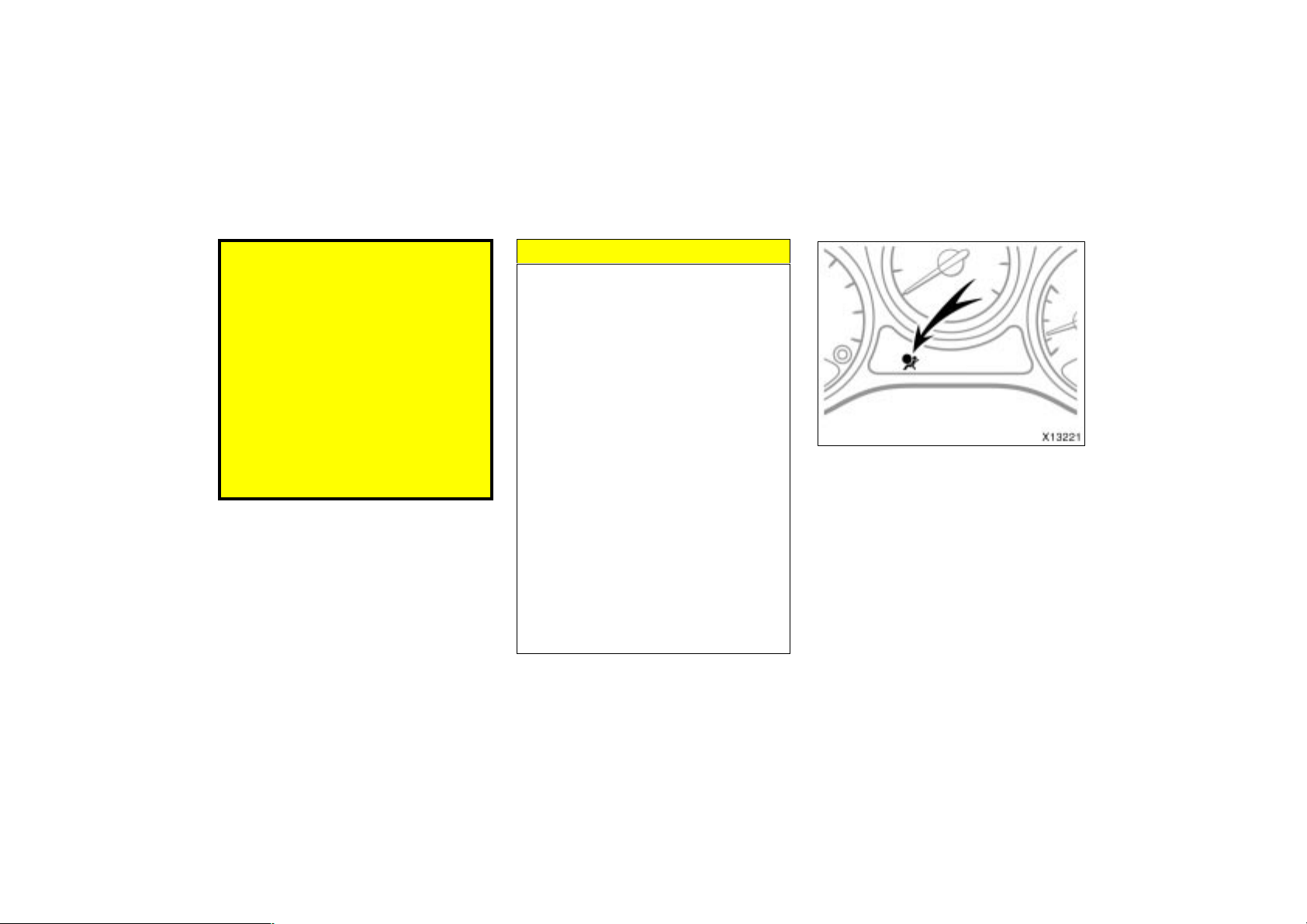

This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If any of
the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.
The light does not come on when the
ignition key is turned to the “ON” position, or the light remains on.
The light comes on or flashes while
driving.
If either front seat belt does not retract
or cannot be pulled out due to a malfunction or activation of the relevant
front seat belt pretensioner.
49
Page 50

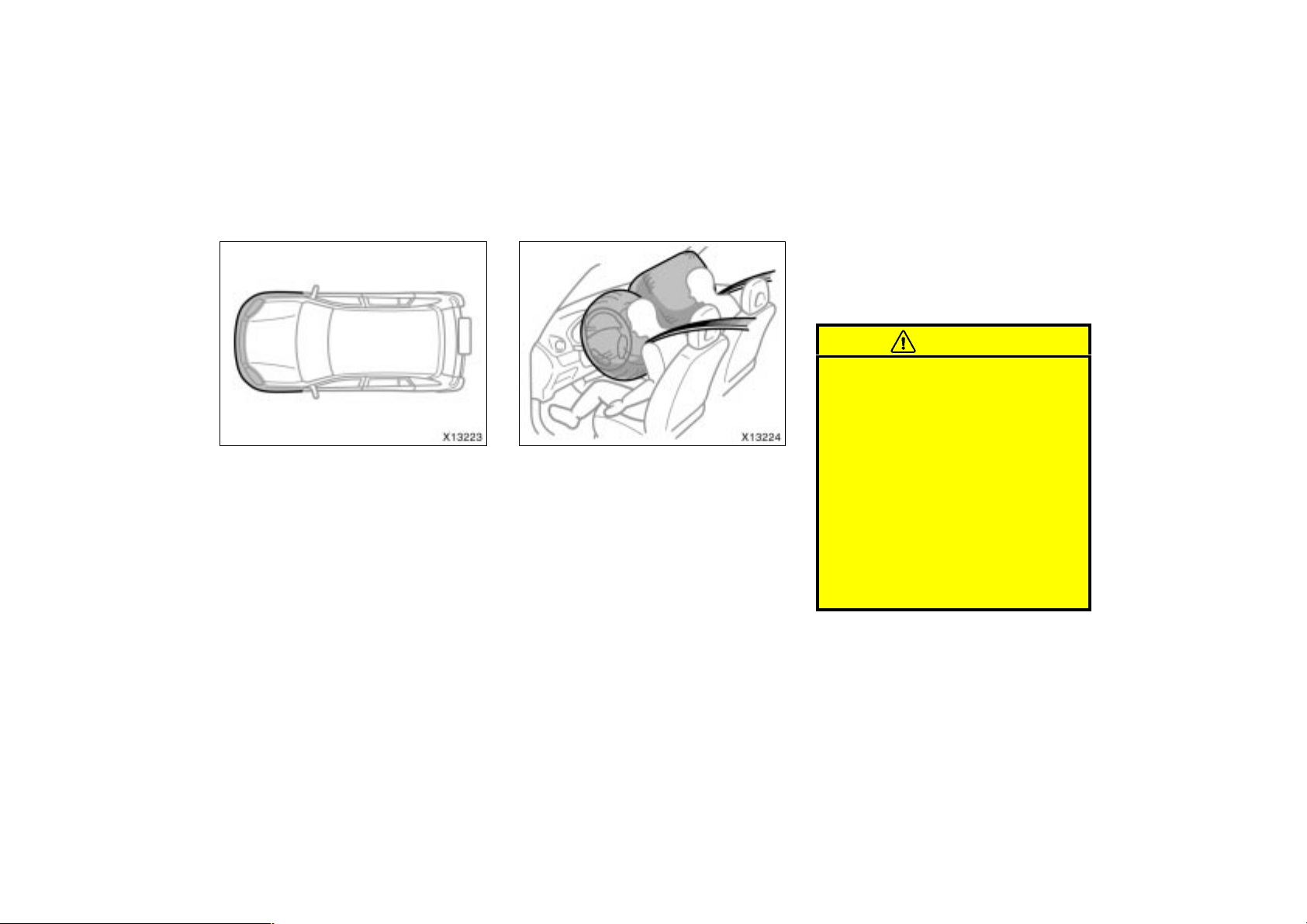

In the following cases, contact your Toyota
dealer as soon as possible:
The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the front seat belt pretensioners
to operate.
Either front seat belt pretensioner as-
sembly or surrounding area is
scratched, cracked, or otherwise damaged.
’02 Rav4_U (L/O 0108)
SRS driver airbag and front
passenger airbag
The SRS (Supplemental Restraint System) airbags are designed to provide
further protection for the driver and
front passenger in addition to the primary safety protection provided by the
seat belts.
In response to a severe frontal impact,
the SRS airbags work together with the
seat belts to help reduce injury by inflating. The SRS airbags help to reduce injuries mainly to the driver’s or front passenger’s head or chest caused by directly
hitting the steering wheel or dashboard.
The front passenger airbag is activated
even with no passenger in the front seat.
Be sure to wear your seat belt properly.
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and front passenger
when the SRS airbags are inflated.
CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the vehicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
50
2002 MY RAV4_U (OM42503U)
Page 51

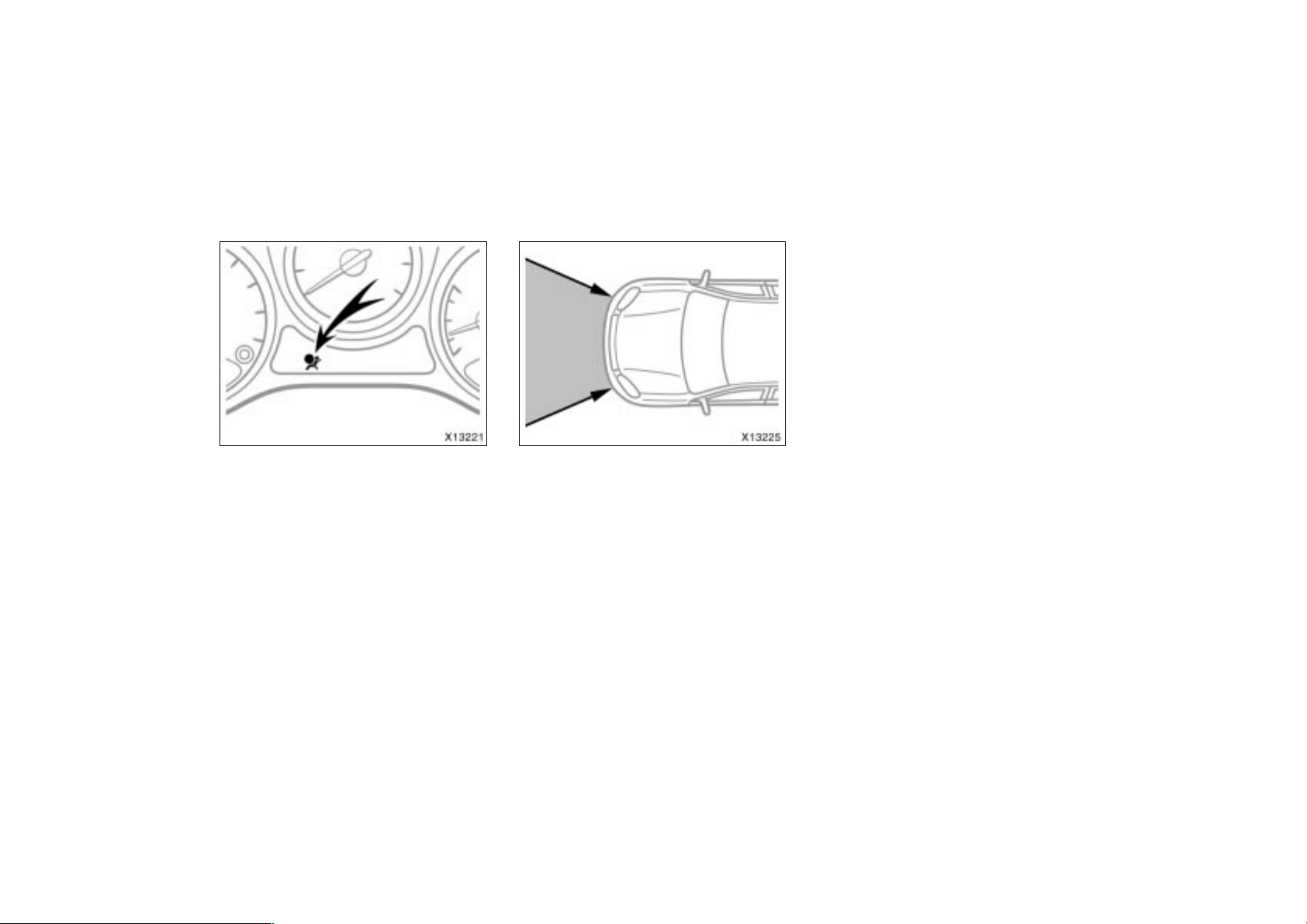

This indicator comes on when the ignition key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS airbags are operating
properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, front seat belt pretensioner assemblies, inflators, warning light, interconnecting wiring and power sources. (For details,
see “Service reminder indicators and
warning buzzers” on page 90 in Section
1–5.)
’02 Rav4_U (L/O 0108)
The SRS airbag system is designed to
activate in response to a severe frontal
impact within the shaded area between
the arrows in the illustration.
The SRS airbags will deploy if the severity of the impact is above the designed
threshold level, comparable to an approximate 25 km/h (15 mph) collision when
impacting straight into a fixed barrier that
does not move or deform.
If the severity of the impact is below the
above threshold level, the SRS airbags
may not deploy.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if it is involved in an underride
collision (e.g. a collision in which the nose
of the vehicle “underrides”, or goes under,
the bed of a truck, etc.).
It is possible that in some collisions at the
lower zone of airbag sensor detection and
activation the SRS airbags and front seat
belt pretensioners will not operate all together.
For the safety of all occupants, always
wear your seat belts properly.
2002 MY RAV4_U (OM42503U)
51
Page 52

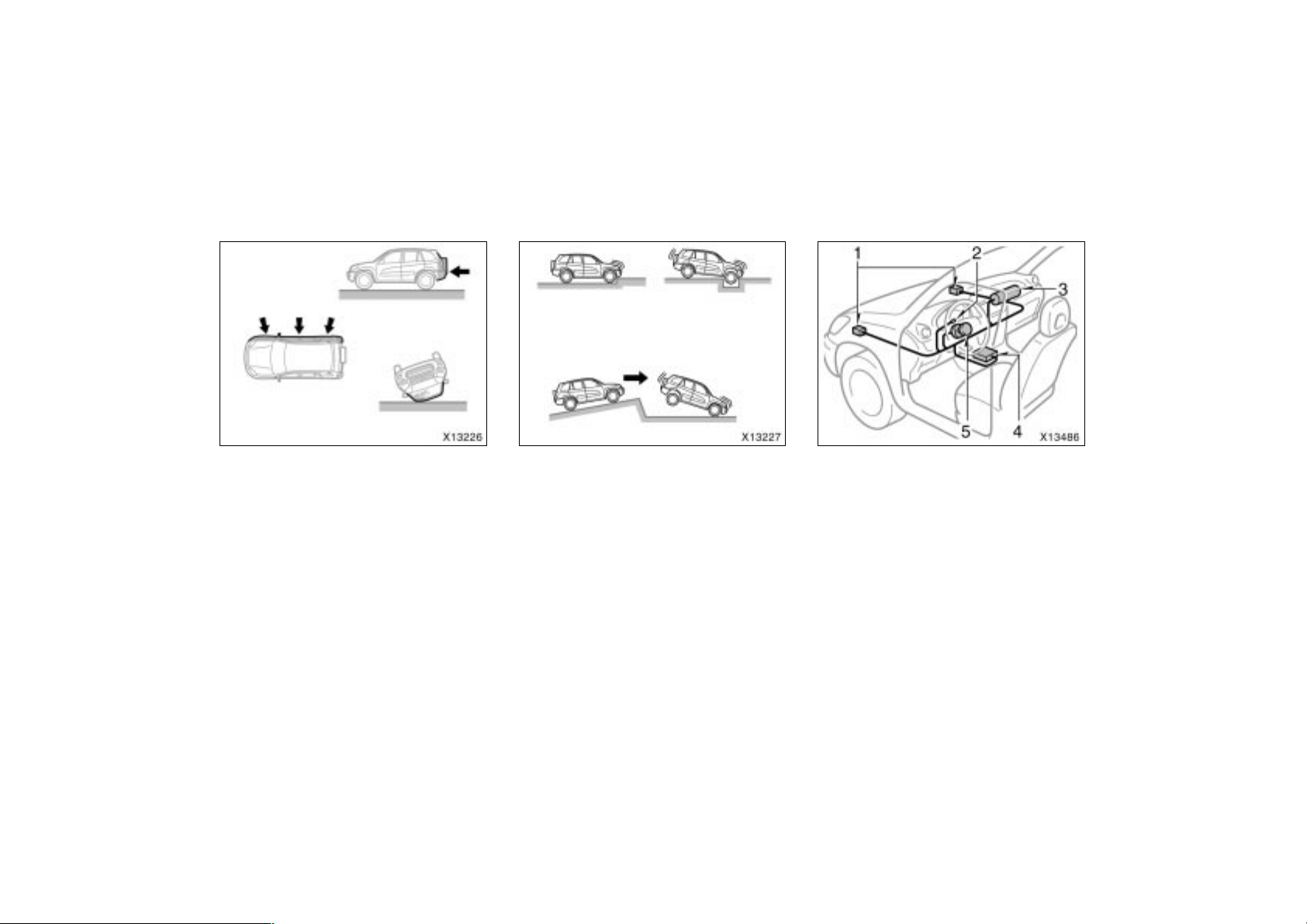

’02 Rav4_U (L/O 0108)
Collision from the rear
Collision from the side
Vehicle rollover
The SRS airbags are not designed to
inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or
if it is involved in a low–speed frontal
collision.
52
Hitting a curb, edge
of pavement or
hard material
Landing hard or vehicle falling
Falling into or
jumping over
a deep hole
The SRS airbags may deploy if a serious impact occurs to the underside of
your vehicle. Some examples are shown
in the illustration.
2002 MY RAV4_U (OM42503U)
The SRS airbag system consists mainly of
the following components, and their locations are shown in the illustration.
1. Front airbag sensors
2. SRS warning light
3. Airbag module for front passenger
(airbag and inflator)
4. Airbag sensor assembly
5. Airbag module for driver
(airbag and inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor.
Page 53
’02 Rav4_U (L/O 0108)
In a severe frontal impact, the sensors
detect deceleration and the system triggers the airbag inflators. Then a chemical
reaction in the inflators quickly fills the
airbags with non–toxic gas to help restrain
the forward motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non–toxic gas. This
does not indicate a fire. This gas is normally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious injuries, it may also cause minor burns or
abrasions and swelling.
Parts of the airbag module (steering wheel
hub, dashboard) may be hot for several
minutes, but the airbags themselves will
not be hot. The airbags are designed to
inflate only once.
A crash severe enough to inflate the airbags may break the windshield as the
vehicle buckles. In vehicles with a passenger airbag the windshield may also be
damaged by absorbing some of the force
of the inflating airbag.
CAUTION
The SRS airbag system is designed
only as a supplement to the primary protection of the driver side and
front passenger side seat belt systems. The front seat occupants can
be killed or seriously injured by the
inflating airbags if they do not wear
the available seat belts properly.
During sudden braking just before
a collision, an unrestrained driver
or front passenger can move forward into direct contact with or
close proximity to the airbag which
may then deploy during the collision. To ensure maximum protection
in an accident, the driver and all
passengers in the vehicle must
wear their seat belts properly. Wearing a seat belt properly during an
accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For
instructions and precautions concerning the seat belt system, see
“Seat belts” on page 40 in this section.
2002 MY RAV4_U (OM42503U)
53
Page 54
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploying airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all infants and children be placed in the
rear seat of the vehicle and properly restrained. The rear seat is the
safest for infants and children. For
instructions concerning the installation of a child restraint system, see
“Child restraint” on page 57 in this
section.
’02 Rav4_U (L/O 0108)

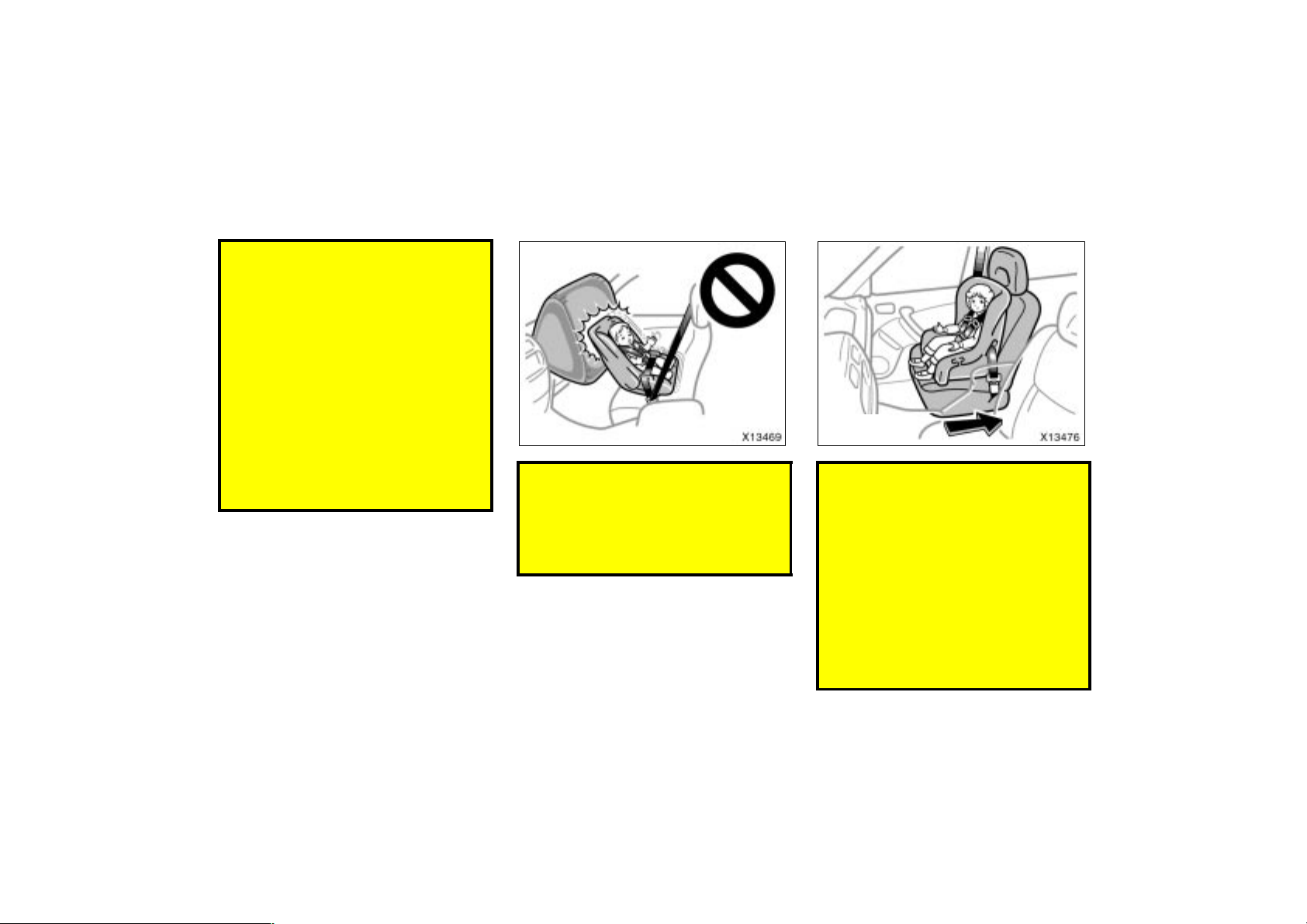

Never install a rear–facing child re-
straint system on the front passenger seat because the force of the
rapid inflation of the front passenger airbag can cause death or serious injury to the child.
Move seat
fully back
A forward–facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger airbag could cause death or serious
injury to the child.
For instructions concerning the
installation of a child restraint system, see “Child restraint” on page
57 in this section.
54
2002 MY RAV4_U (OM42503U)
Page 55
’02 Rav4_U (L/O 0108)

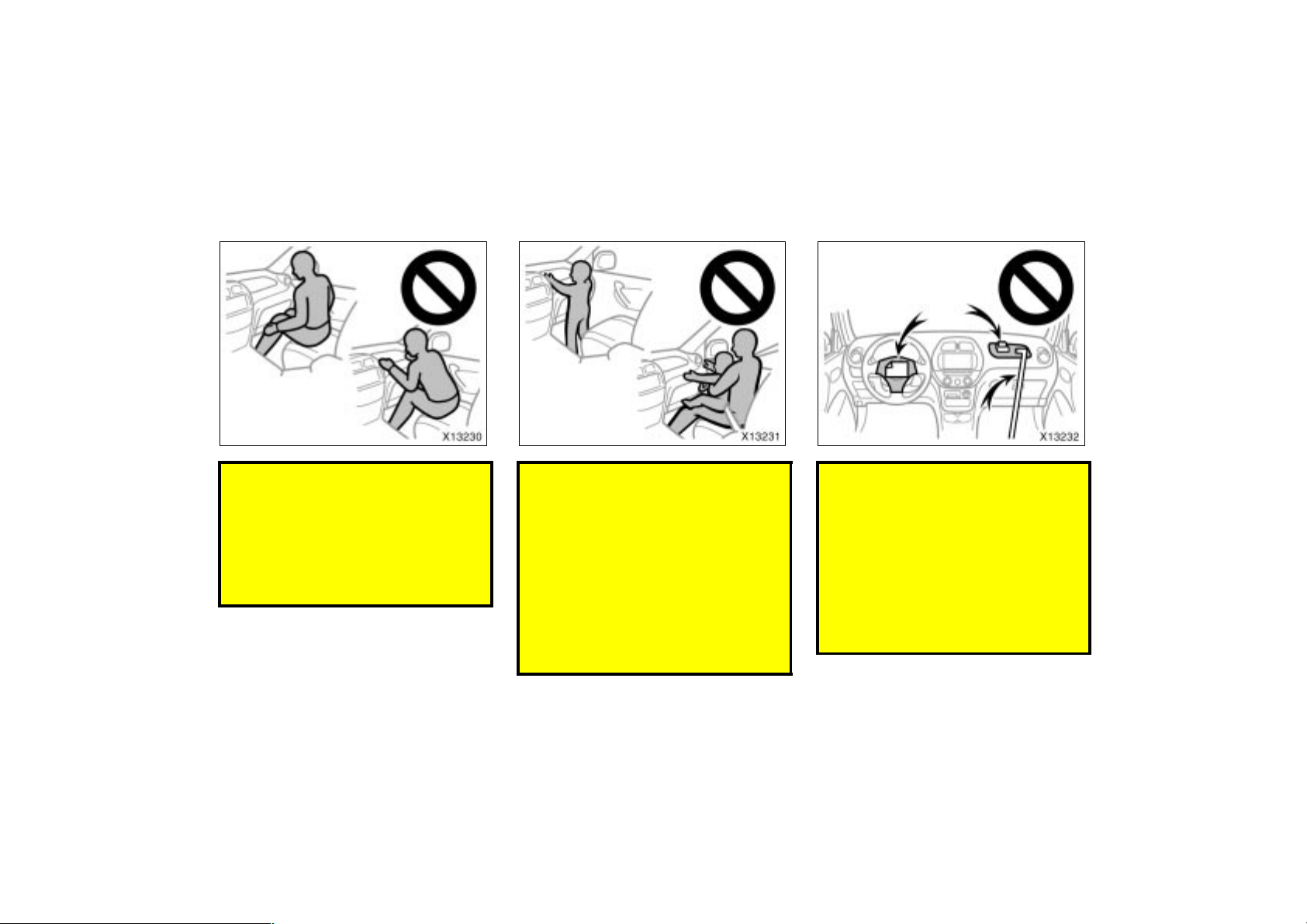

Do not sit on the edge of the seat
or lean over the dashboard when
the vehicle is in use. The airbags
inflate with considerable speed and
force; you may be killed or seriously injured. Sit up straight and well
back in the seat, and always use
your seat belt properly.
Do not allow a child to stand up,
or to kneel on the front passenger
seat. The airbag inflates with considerable speed and force; the child
may be killed or seriously injured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instructions concerning the installation of
a child restraint system, see “Child
restraint” on page 57 in this section.
2002 MY RAV4_U (OM42503U)
Do not put objects or your pets on
or in front of the dashboard or
steering wheel pad that houses the
airbag system. They might restrict
inflation or cause death or serious
injury as they are projected rearward by the force of the deploying
airbags. Likewise, the driver and
front passenger should not hold
things in their arms or on their
knees.
55
Page 56
’02 Rav4_U (L/O 0108)
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components, such as
the steering wheel pad, steering
wheel, column cover, front passenger airbag cover, front passenger
airbag or airbag sensor assembly.
Doing so may cause sudden SRS
airbag inflation or disable the system, which could result in death or
serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repairs and modifications.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS airbag syst em in some cases.
Installation of electronic devices
such as a mobile two–way radio,
cassette tape player or compact
disc player
Modification of the suspension system
Modification of the front end structure
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure, console, steering column, steering
wheel or dashboard near the front
passenger airbag
This SRS airbag system has a service
reminder indicator to inform the driver of
operating problems. If either of the following conditions occurs, this indicates a
malfunction of the airbags. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” position, or the light remains on.
The light comes on while driving.
56
2002 MY RAV4_U (OM42503U)
Page 57

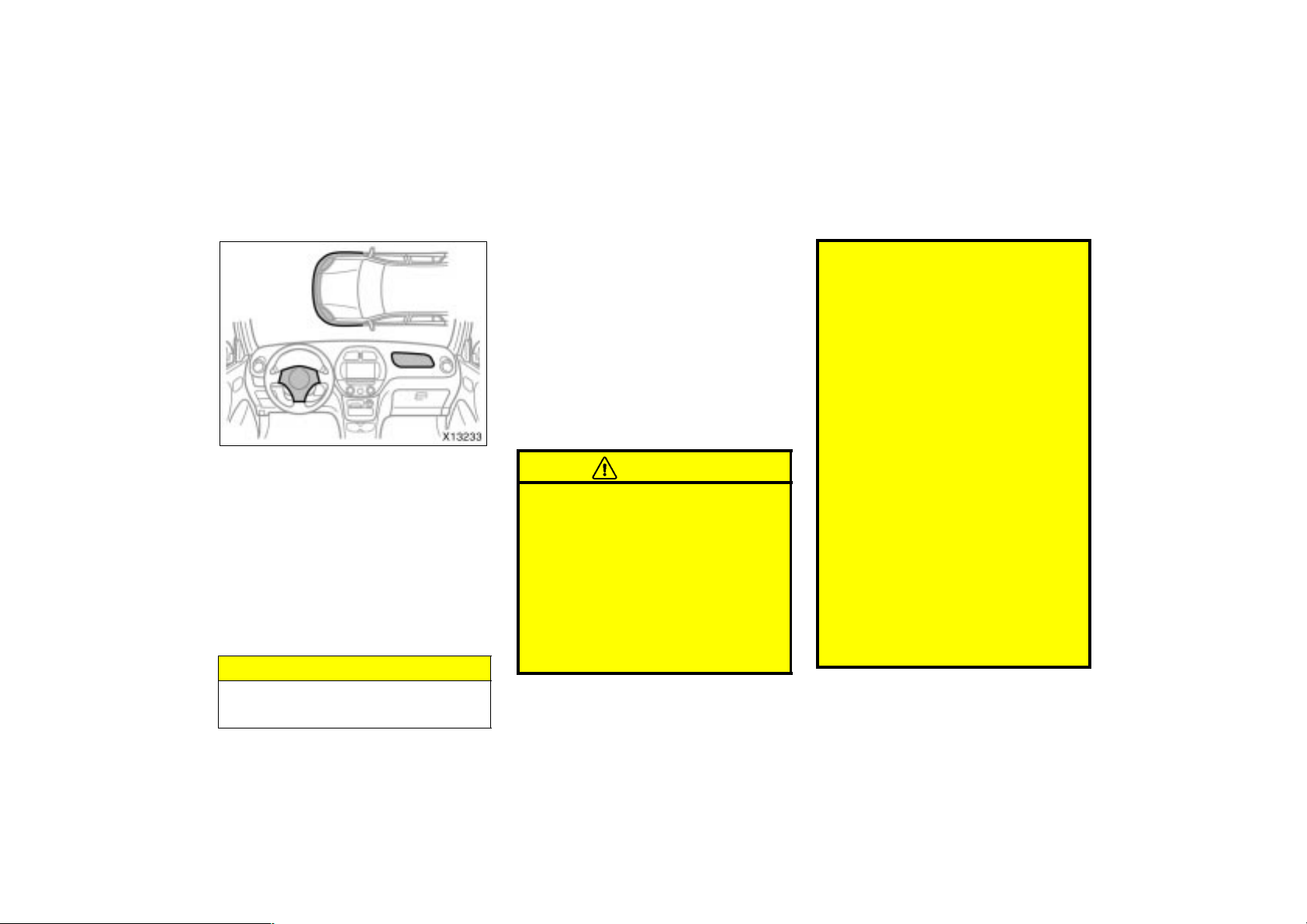

In the following cases, contact your Toyota
dealer as soon as possible:
The SRS airbags have been inflated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
’02 Rav4_U (L/O 0108)
Child restraint—
—Child restraint precautions
Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all fifty states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 40 for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. According to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rear–facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear–facing child restraint system
is installed on the front seat.
Unless it is unavoidable, do not
install a forward–facing child restraint system on the front seat.
A forward–facing child restraint sys-
tem should be allowed to installed
on the front seat only when it is
unavoidable. Always move the seat
as far back as possible, because
the force of the deploying airbag
could cause death or serious injury
to the child.
2002 MY RAV4_U (OM42503U)
57
Page 58
Make sure that you have complied
with all installation instructions provided by the child restraint
manufacturer and that the system is
properly secured.
’02 Rav4_U (L/O 0108)
—Child restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt. You must
carefully consult the manufacturer’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufacturer’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
CAUTION
Never install a rear–facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear–facing child restraint system
is installed on the front seat.
Unless it is unavoidable, do not
install a forward–facing child restraint system on the front seat.
A forward–facing child restraint sys-
tem should be allowed to installed
on the front seat only when it is
unavoidable. Always move the seat
as far back as possible, because
the force of the deploying airbag
could cause death or serious injury
to the child.
After installing the child restraint
system, make sure it is secured in
place following the manufacturer’s
instructions. If it is not restrained
securely, it may cause death or serious injury to the child in the
event of a sudden stop or accident.
58
2002 MY RAV4_U (OM42503U)
Page 59
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from injuring passengers in the event of a sudden stop or accident.
’02 Rav4_U (L/O 0108)
—Types of child restraint
system
Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufacturer.
Your vehicle has anchor brackets for securing the top strap of a child restraint
system.
For instructions about how to use the anchor bracket, see “—Using a top strap” on
page 69 in this section.
The child restraint lower anchorages approved for your vehicle may also be used.
See “—Installation with child restraint lower anchorages” on page 72 in this section.
(A) Infant seat
2002 MY RAV4_U (OM42503U)
(B) Convertible seat
59
Page 60
’02 Rav4_U (L/O 0108)
—Installation with seat belt
(C) Booster seat
60
(A) INFANT SEAT INSTALLATION
An infant seat is used in rear–facing
position only.
2002 MY RAV4_U (OM42503U)
CAUTION
Never install a rear–facing child re-
straint system on the front passenger seat because the force of the
rapid inflation of the front passenger airbag can cause death or serious injury to the child.
Page 61

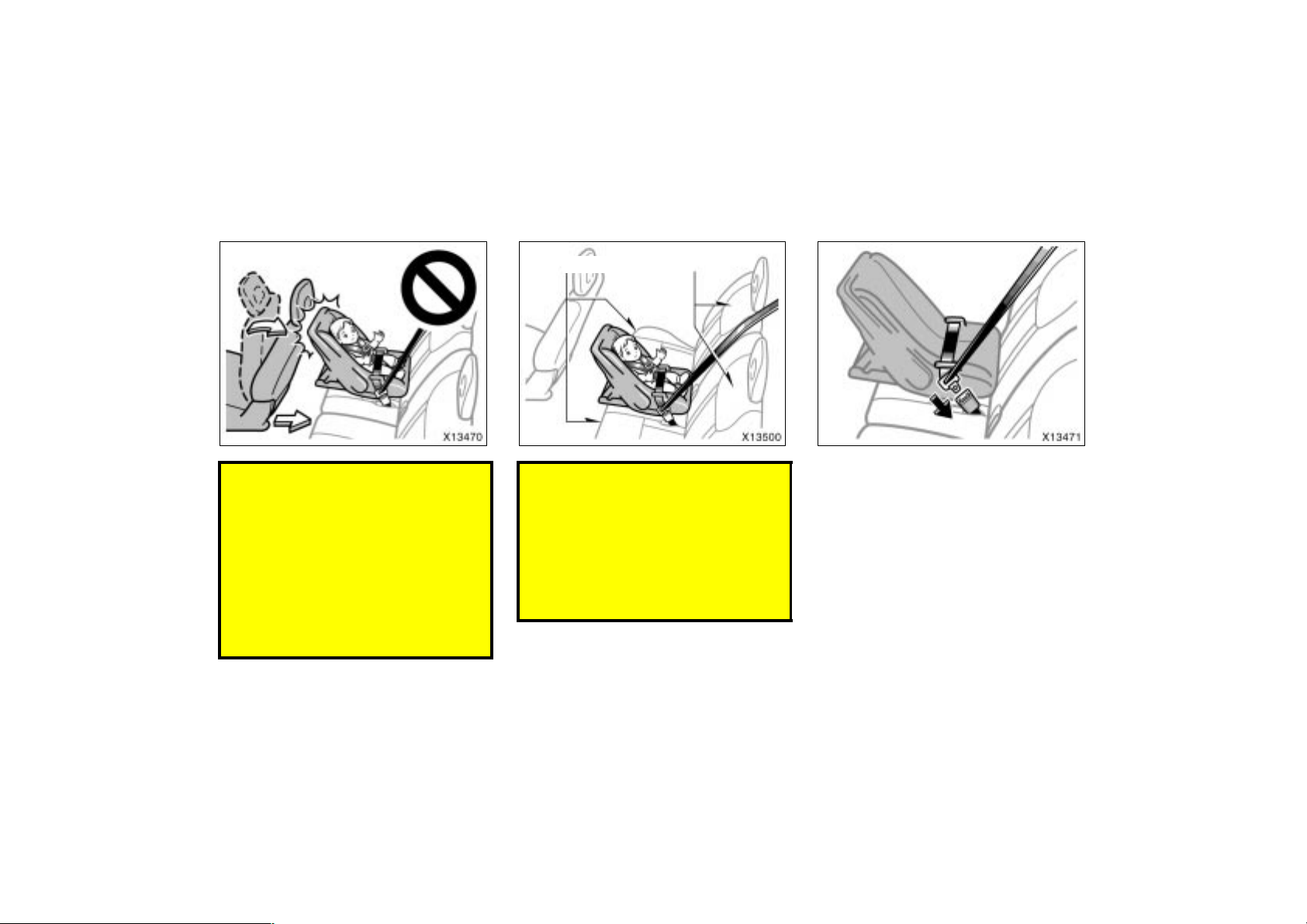

’02 Rav4_U (L/O 0108)
Same angleSame position
Do not install a rear–facing child
restraint system on the rear seat if
it interferes with the lock mechanism of the front seats. This can
cause death or serious injury to the
child and front passenger in case
of sudden braking or a collision.
If the driver’s seat position does
not allow sufficient space for safe
installation, install the child restraint system at another position.
When installing a child restraint
system on the rear center position,
adjust both seat cushions to the
same position and align both seatbacks at the same angle. Otherwise,
the child restraint system cannot be
securely restrained and this may
cause death or serious injuries in a
collision.
2002 MY RAV4_U (OM42503U)
1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufacturer and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
61
Page 62
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.
’02 Rav4_U (L/O 0108)

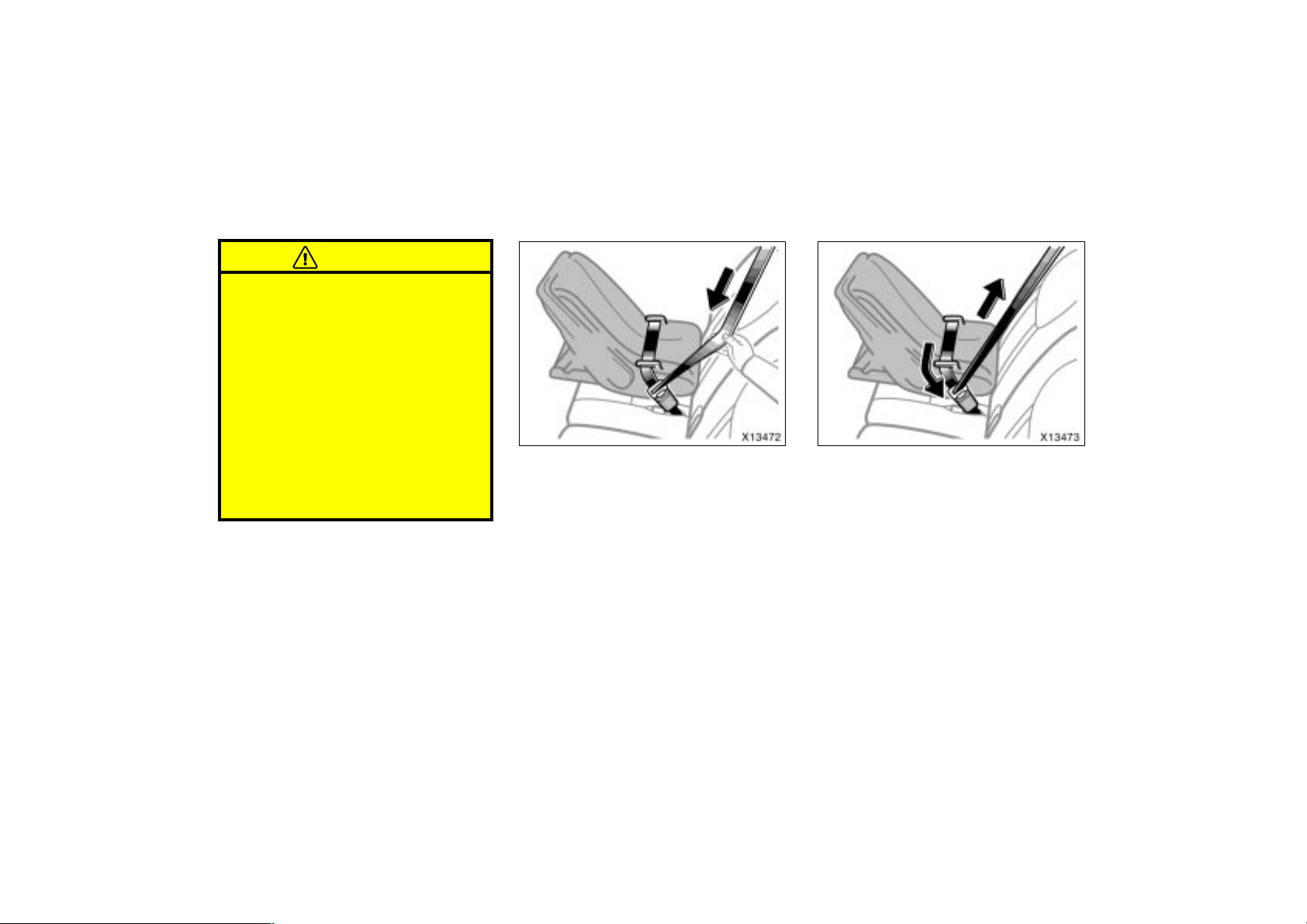

2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat securely.
62
2002 MY RAV4_U (OM42503U)
Page 63

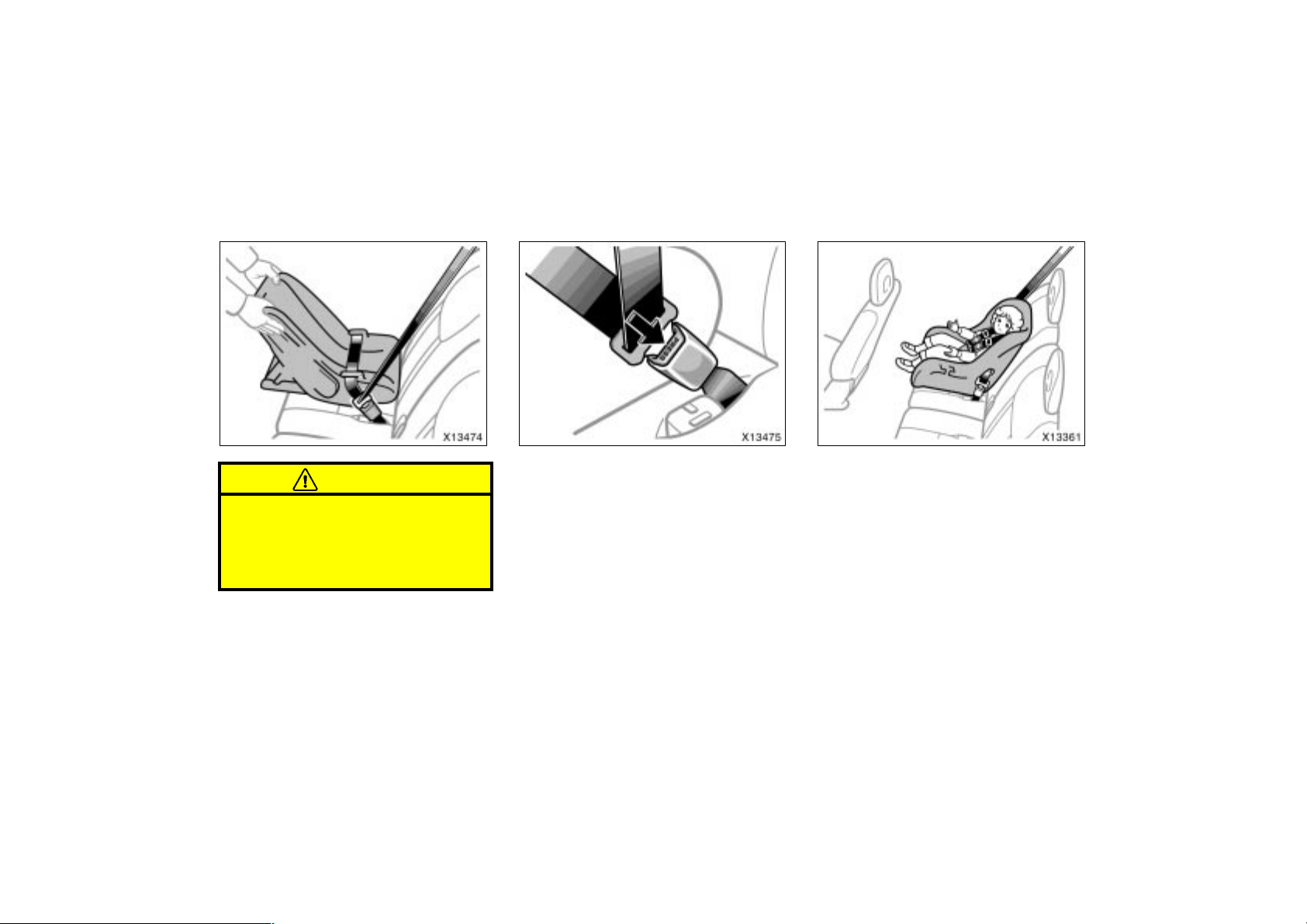

’02 Rav4_U (L/O 0108)
CAUTION
Push and pull the child restraint system in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufacturer.
4. To remove the infant seat, press the
buckle–release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passenger.
2002 MY RAV4_U (OM42503U)
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward–
facing or rear–facing position depending on the child’s age and size. When
installing, follow the manufacturer’s instruction about the applicable child’s
age and size as well as directions for
installing the child restraint system.
63

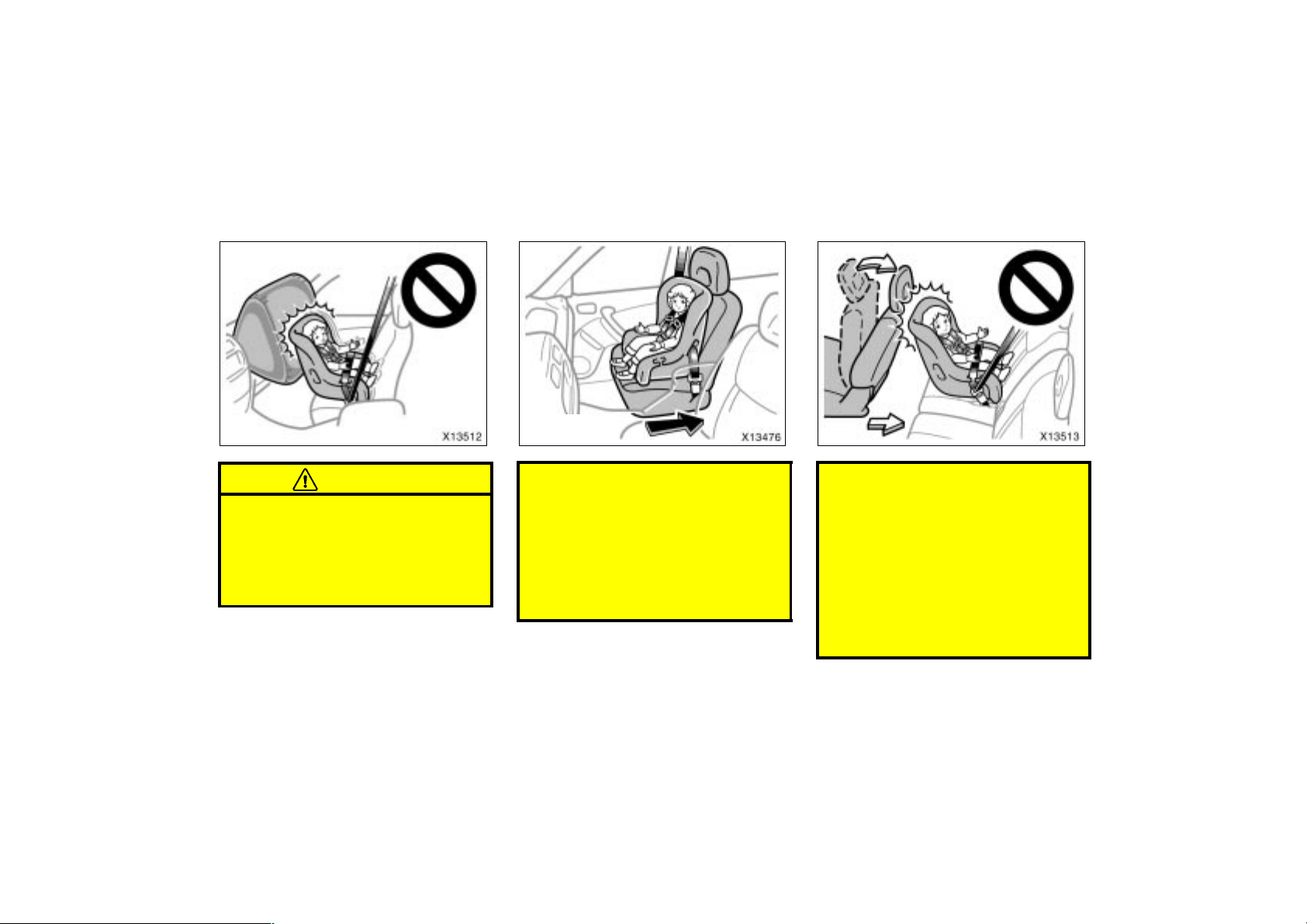

Page 64
Move seat
fully back
’02 Rav4_U (L/O 0108)
CAUTION
Never install a rear–facing child re-
straint system on the front passenger seat because the force of the
rapid inflation of the front passenger airbag can cause death or serious injury to the child.
64
A forward–facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger airbag could cause death or serious
injury to the child.
2002 MY RAV4_U (OM42503U)
Do not install a rear–facing child
restraint system on the rear seat if
it interferes with the lock mechanism of the front seats. This can
cause death or serious injury to the
child and front passenger in case
of sudden braking or a collision.
If the driver’s seat position does
not allow sufficient space for safe
installation, install the child restraint system at another position.

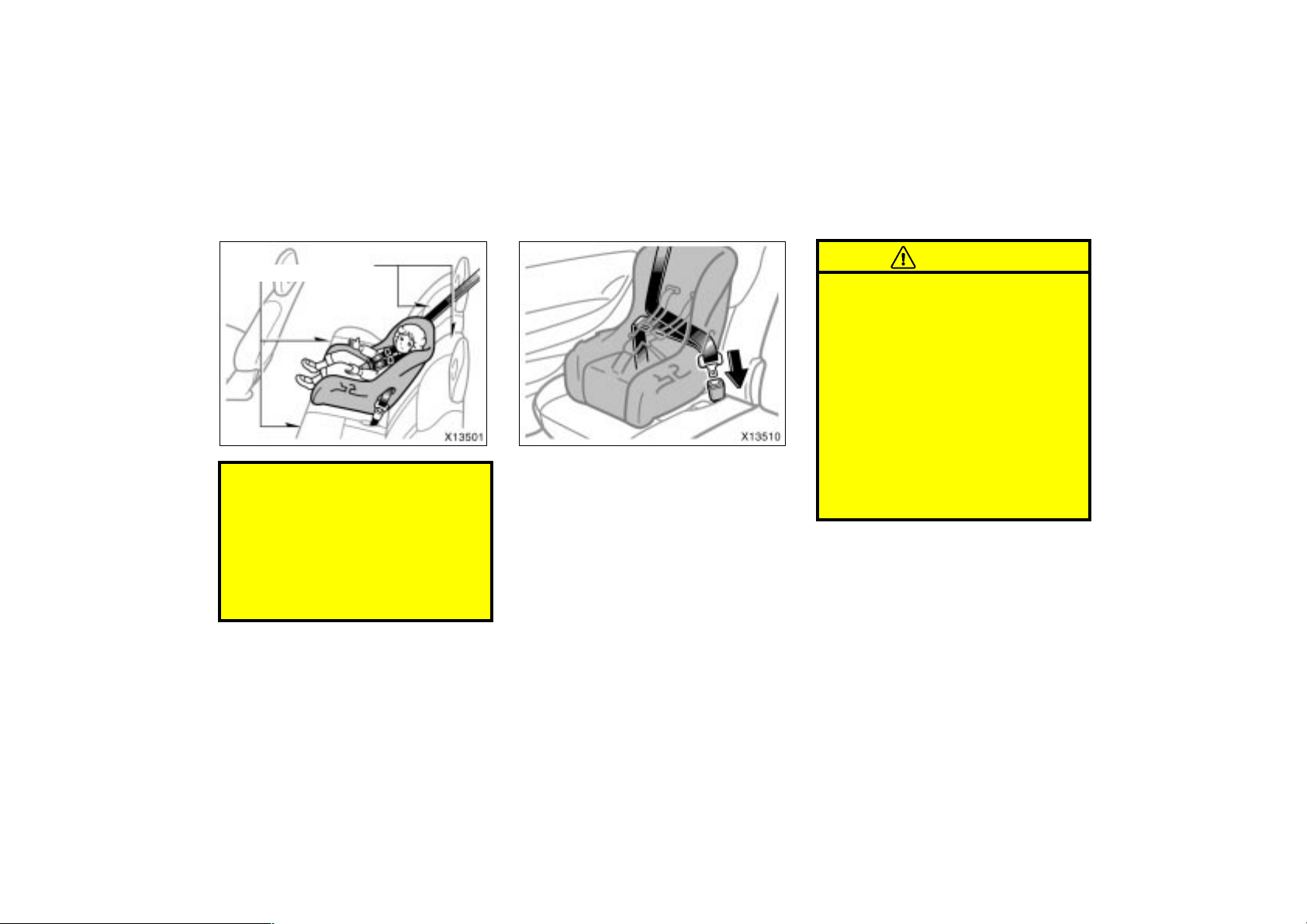

Page 65
’02 Rav4_U (L/O 0108)
Same
angleSame position
When installing a child restraint
system on the rear center position,
adjust both seat cushions to the
same position and align both seatbacks at the same angle. Otherwise,
the child restraint system cannot be
securely restrained and this may
cause death or serious injuries in a
collision.
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.
2002 MY RAV4_U (OM42503U)
65
Page 66
’02 Rav4_U (L/O 0108)

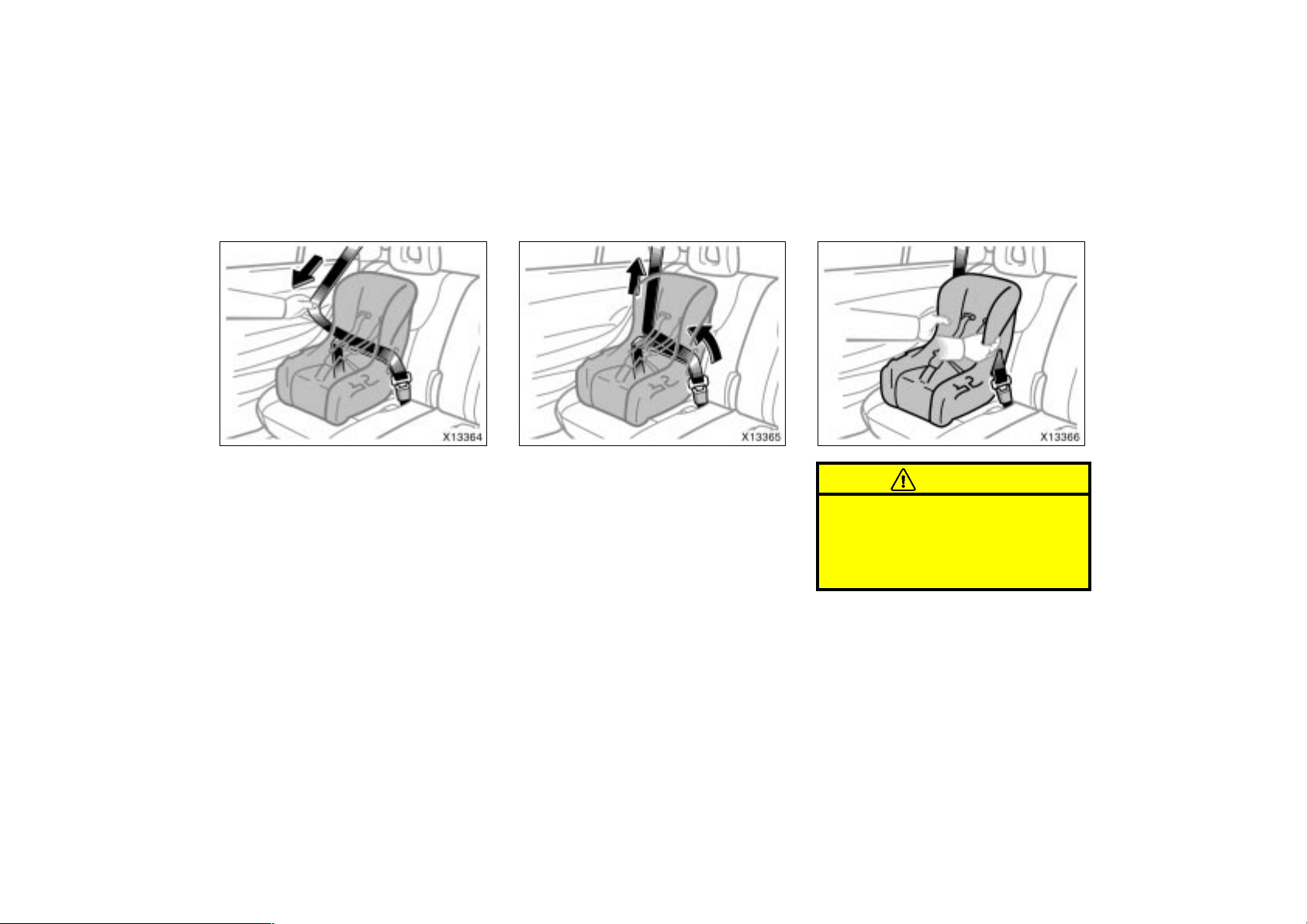

2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted slightly, it cannot be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
66
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convertible seat securely.
2002 MY RAV4_U (OM42503U)
CAUTION
Push and pull the child restraint system in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufacturer.

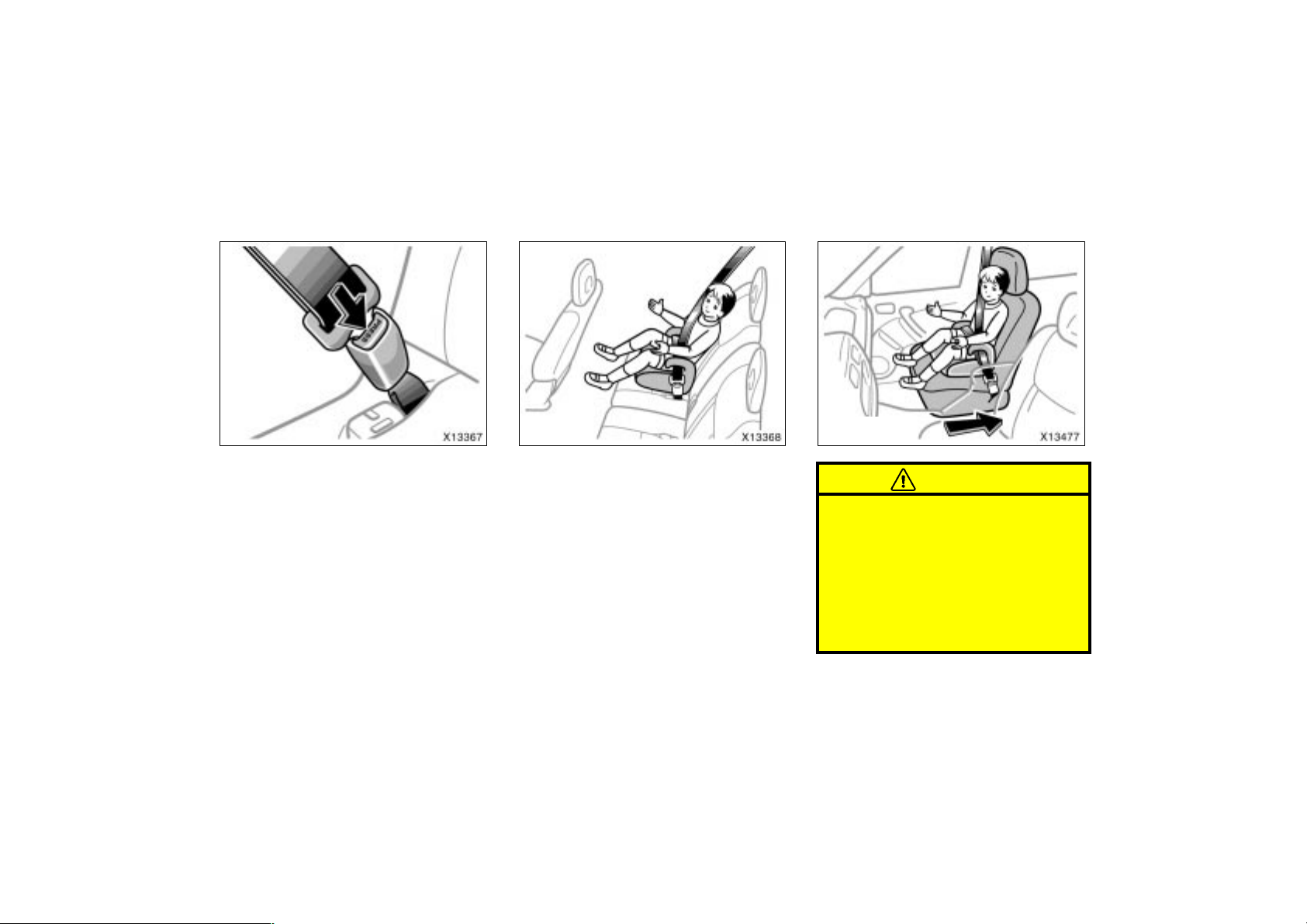

Page 67
’02 Rav4_U (L/O 0108)
Move seat
fully back
4. To remove the convertible seat, press
the buckle–release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passenger.
(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward–fac-
ing position only.
2002 MY RAV4_U (OM42503U)
CAUTION
A forward–facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger airbag could cause death or serious
injury to the child.
67
Page 68
’02 Rav4_U (L/O 0108)
Same
angleSame position
When installing a child restraint
system on the rear center position,
adjust both seat cushions to the
same position and align both seatbacks at the same angle. Otherwise,
the child restraint system cannot be
securely restrained and this may
cause death or serious injuries in a
collision.
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and child following the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” on page
40 for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder. Failure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a collision.
Both high–positioned lap belts and
loose–fitting belts could cause serious injuries due to sliding under
the lap belt during a collision or
other unintended. Keep the lap belt
positioned as low on a child’s hips
as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
68
2002 MY RAV4_U (OM42503U)

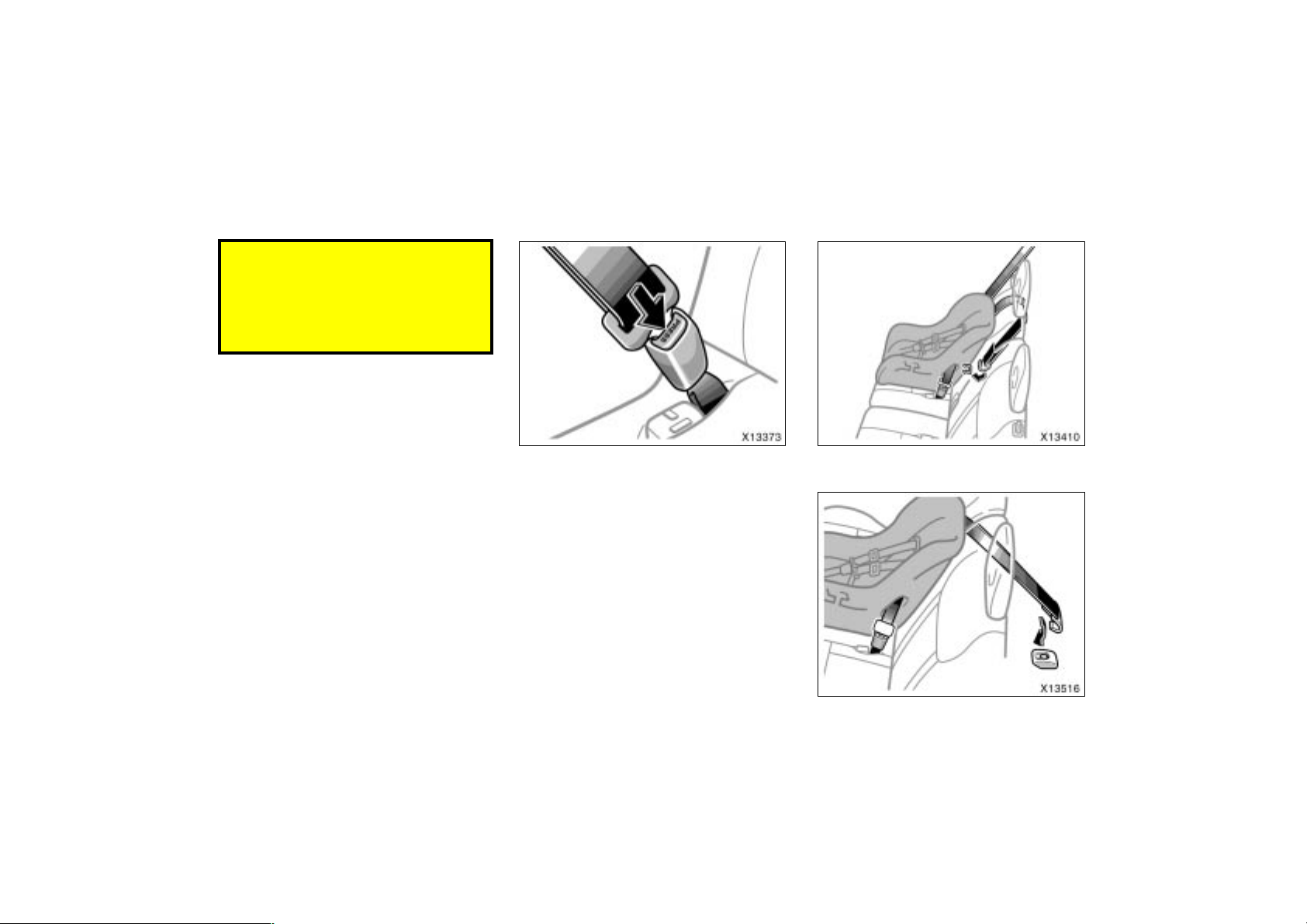

Page 69
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
’02 Rav4_U (L/O 0108)
—Using a top strap
2. To remove the child restraint system,
press the buckle–release button and allow the belt to retract.
2002 MY RAV4_U (OM42503U)
Outside position
Center position (U.S.A. only)
69
Page 70

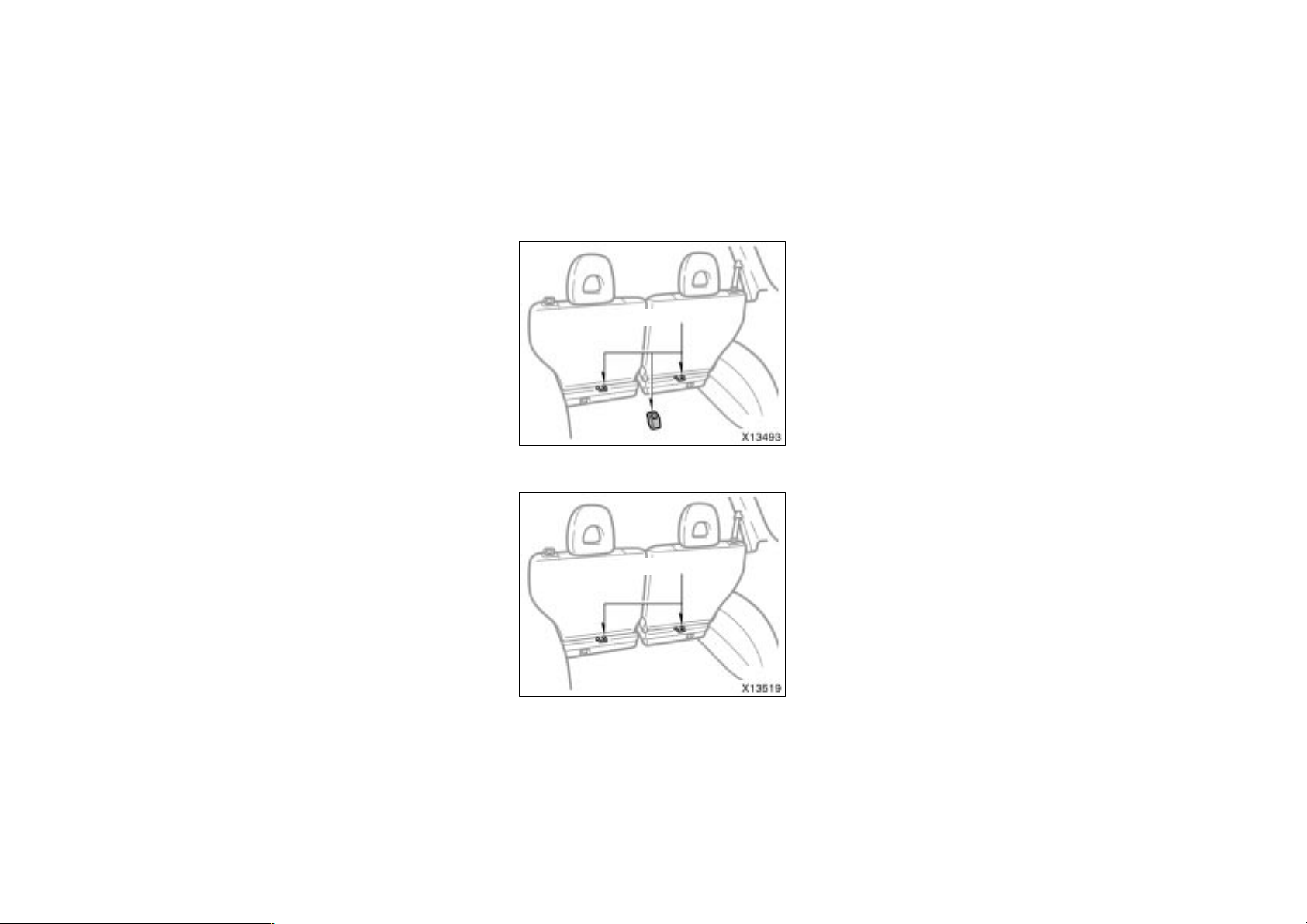

’02 Rav4_U (L/O 0108)
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
U.S.A.
Anchor brack ets
Anchor brack ets
For U.S.A.—
Use the anchor brackets behind the rear
seatbacks and on the luggage compartment to attach the top strap.
Anchor brackets are installed for each
rear seating position.
For Canada—
Use the anchor brackets behind the rear
seatbacks to attach the top strap.
Anchor brackets are installed for both out-
side rear seating positions.
70
Canada
2002 MY RAV4_U (OM42503U)

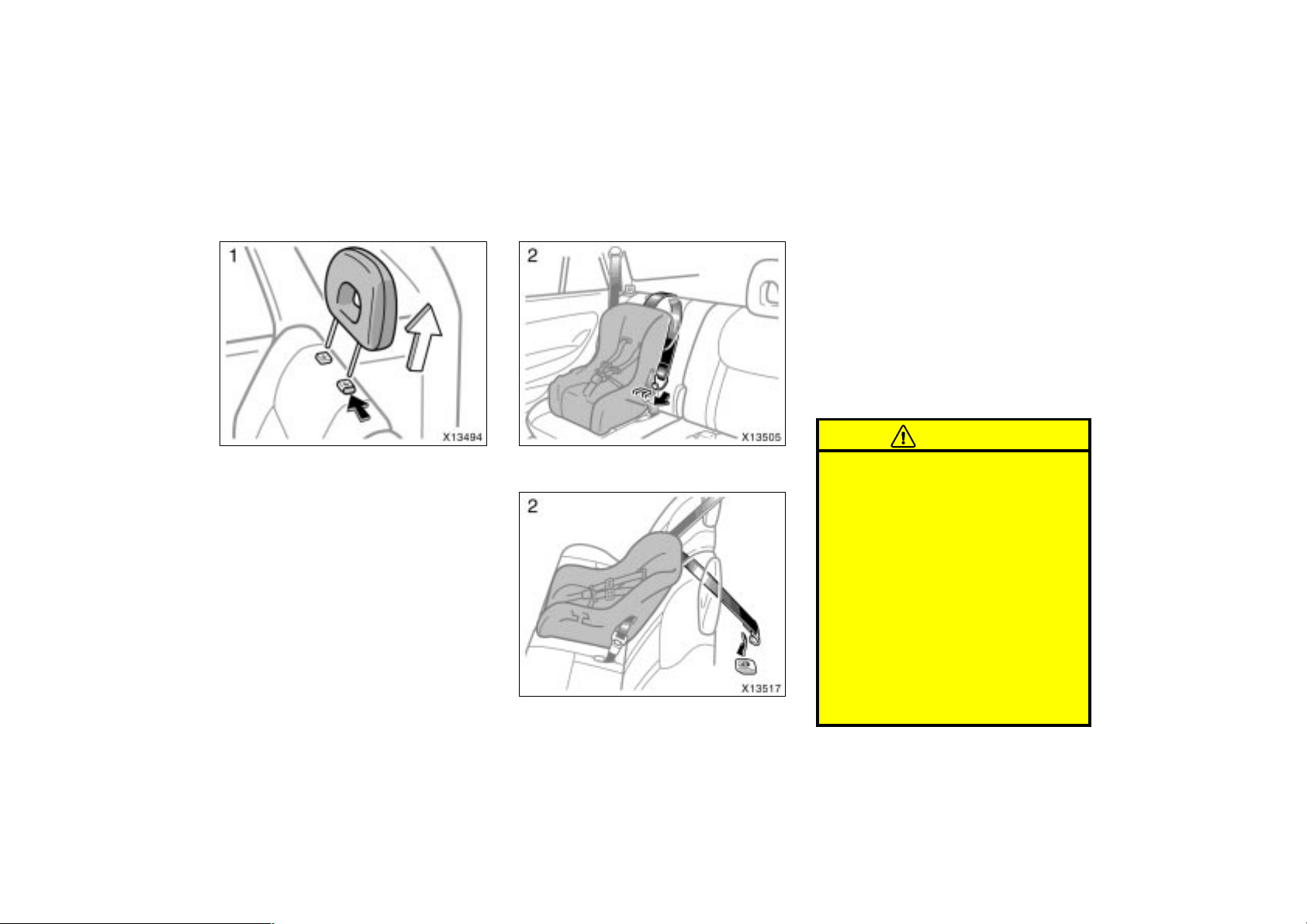

Page 71
TO USE THE ANCHOR BRACKET:
1. Outside anchor brackets only—
Remove the head restraint.
’02 Rav4_U (L/O 0108)
Outside position
Center position (U.S.A. only)
2. Fix the child restraint system with
the seat belt.
Center anchor bracket only—
Run the top strap through between
both seatbacks.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child restraint system, see “Child restraint” on
page 57 in this section.
CAUTION
When you use the center anchor
bracket, make sure the top strap
runs through between both seatbacks and tighten it. The top strap
on seatback could cause death or
serious injury due to abnormal
moving of the child restraint system
in case of sudden braking or a collision.
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by pushing and pulling it in different directions. Follow all the installation instructions provided by its manufacturer.
2002 MY RAV4_U (OM42503U)
71
Page 72

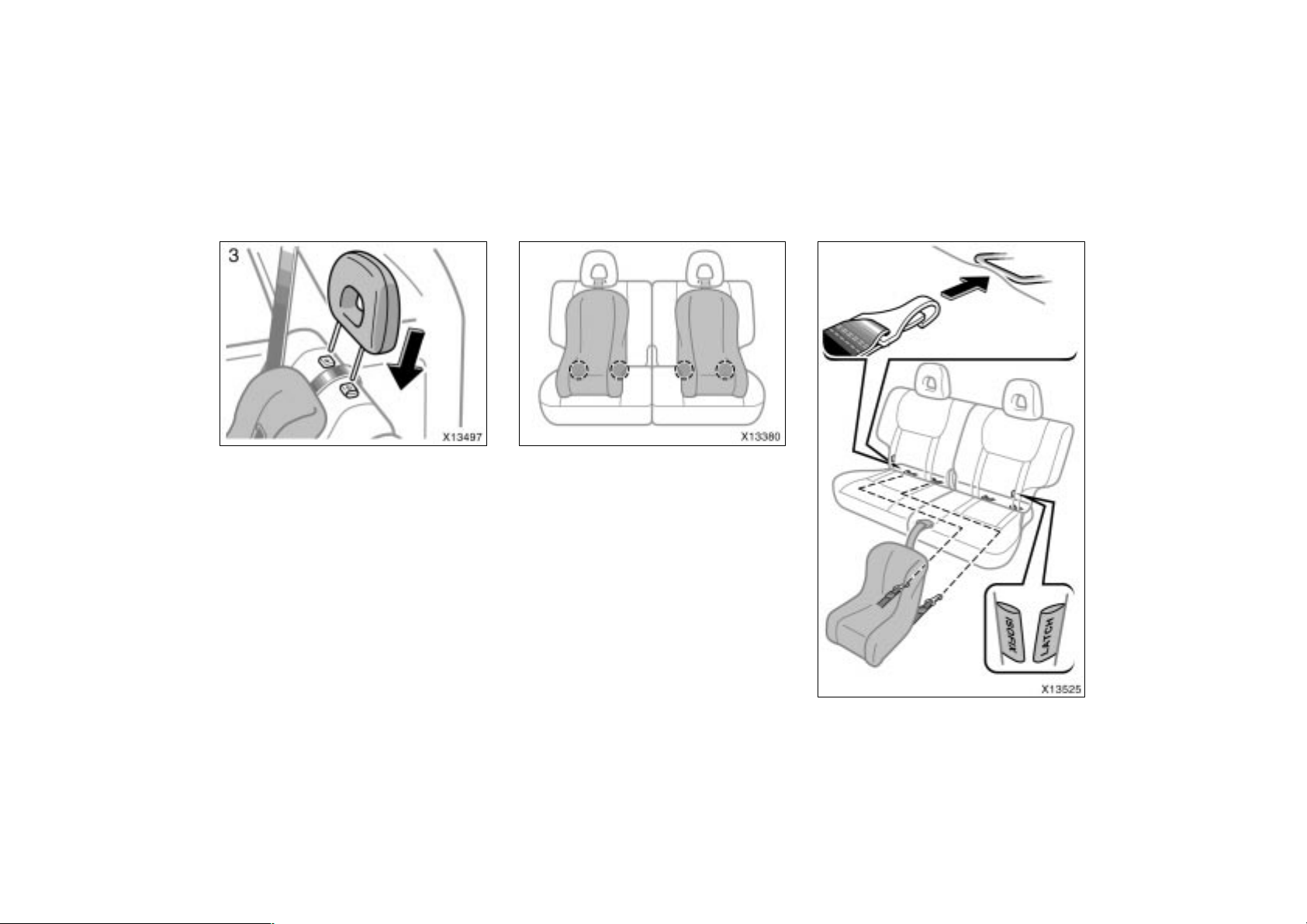

’02 Rav4_U (L/O 0108)
—Installation with child
restraint lower anchorages
3. Outside anchor brackets only—
Replace the head restraint.
72
The lower anchorages for the child restraint system interfaced with the
FMVSS225 specification are installed in
the rear seat.
The anchorages are installed in the clearance between the seat cushion and seatback of both outside rear seats.
Child restraint system interfaced with the
FMVSS225 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
Type A
2002 MY RAV4_U (OM42503U)
Page 73
’02 Rav4_U (L/O 0108)

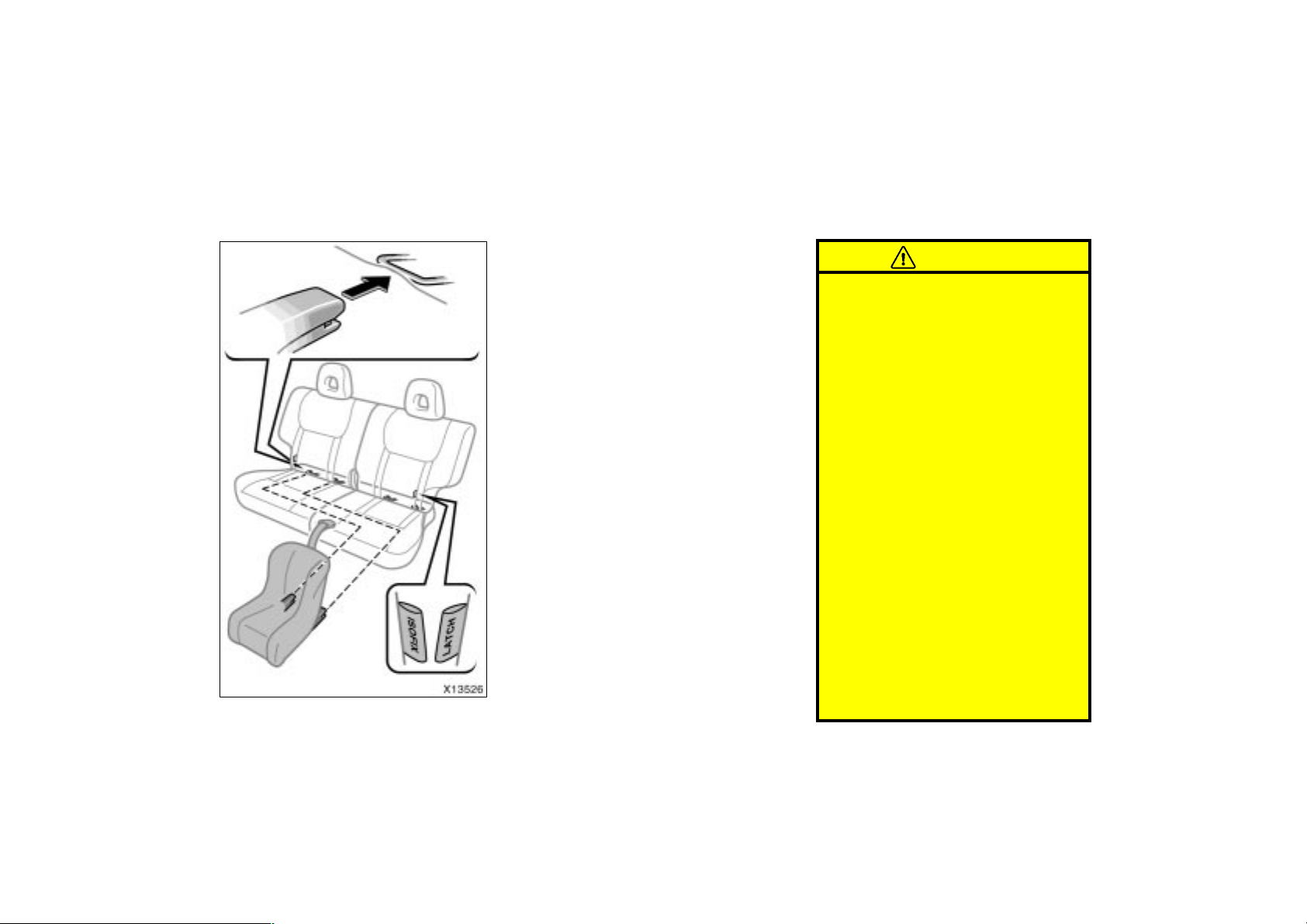

Type B
CHILD RESTRAINT SYSTEM
INSTALLATION
Type A—
1. Widen the clearance between the
seat cushion and seatback a little
and confirm the position of the lower anchorages below the tag in the
seatback.
2. Latch the hooks of lower straps onto
the anchorages and tighten the lower
straps.
Type B—
1. Widen the clearance between the
seat cushion and seatback a little
and confirm the position of the lower anchorages below the tag in the
seatback.
2. Latch the buckles onto the anchorages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 69 in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular objects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
When using the lower anchorages
for the child restraint system, ensure that the seat is moved to the
rear–most position, with the seatback close to the child restraint
system.
After securing the child restraint
system, never slide or recline the
seat.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. This can cause death or
severe injury to the child and front
passenger in case of sudden braking or a collision.
2002 MY RAV4_U (OM42503U)
73
Page 74
’02 Rav4_U (L/O 0108)
Tilt steering wheel Outside rear view mirrors—
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
74
Adjust the mirror so that you can just
see the side of your vehicle in the mirror.
Be careful when judging the size or distance of any object seen in the outside
rear view mirror on the passenger’s side.
It is a convex mirror with a curved surface. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quickly clear the mirror surface. (See “Rear
window and outside rear view mirror defoggers” on page 85 in section 1–4.)
2002 MY RAV4_U (OM42503U)
Page 75

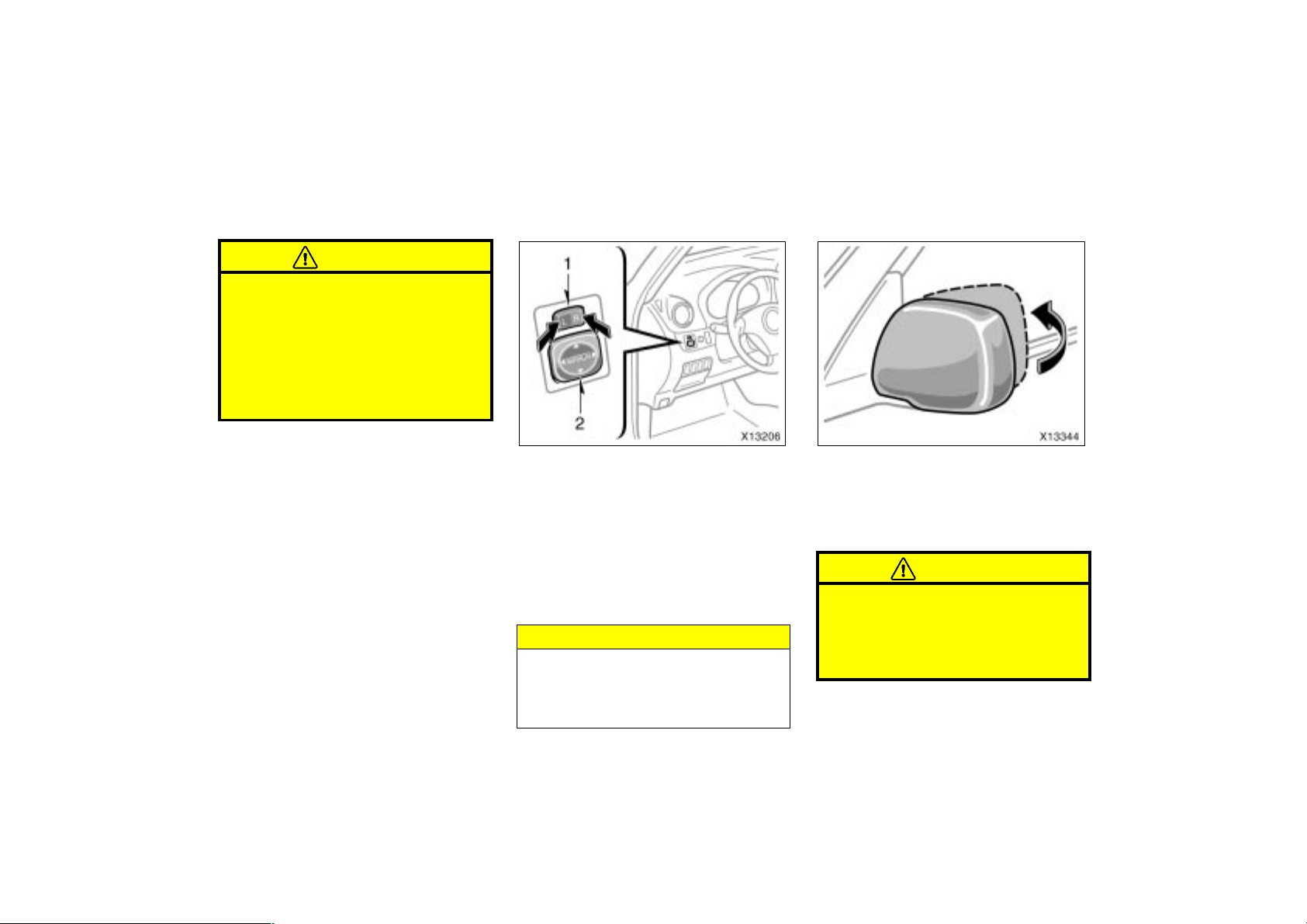

CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
Since the mirror surfaces can get
hot, keep your hands off them when
the defogger switch is on.
’02 Rav4_U (L/O 0108)
—Power rear view mirror
control
—Folding rear view mirrors
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to
be adjusted
Push the “L” (left) or “R” (right) switch.
2. Control switch—To move the mirror
Push the switch in the desired direction.
Mirror can be adjusted when the key is in
the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mirror face. Use a spray de–icer to free
the mirror.
2002 MY RAV4_U (OM42503U)
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirror, push backward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and passenger side rear view mirrors must
be extended and properly adjusted
before driving.
75

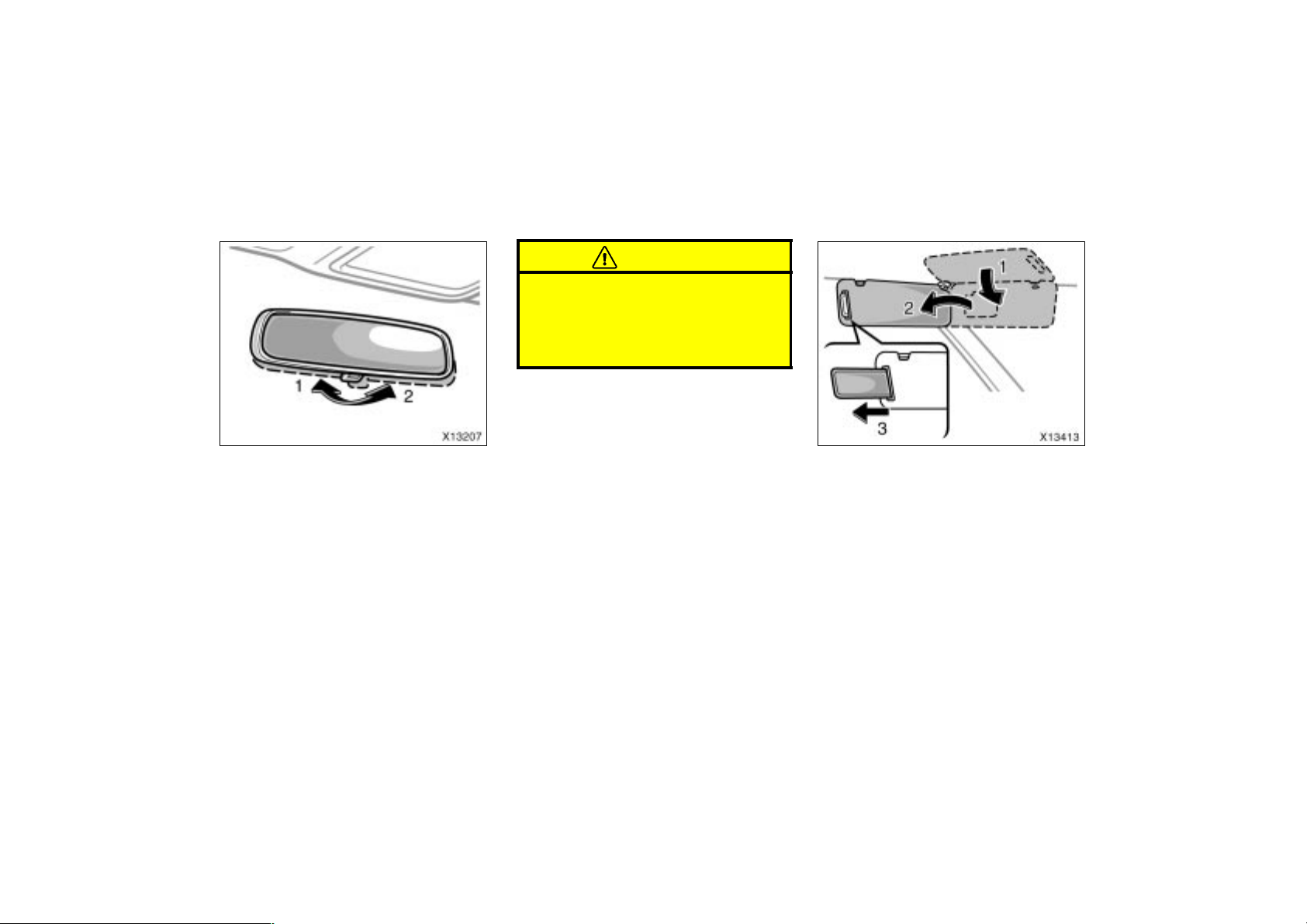

Page 76
Anti–glare inside rear view
mirror
’02 Rav4_U (L/O 0108)
Sun visors—
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mirror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
76
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (position 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3).
2002 MY RAV4_U (OM42503U)
Page 77
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the anti–glare
inside rear view mirror and obstruct
the rear view.
’02 Rav4_U (L/O 0108)

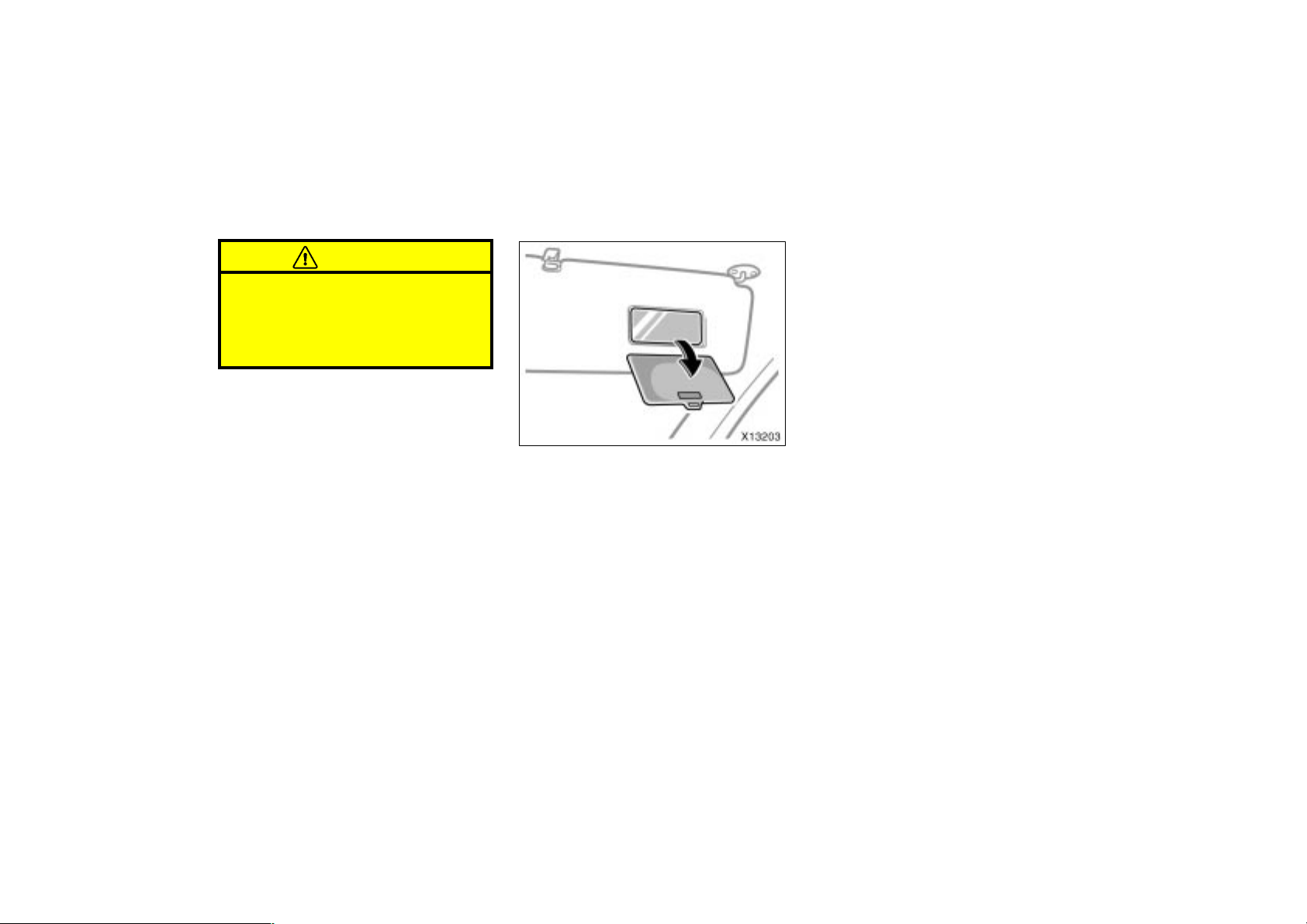

—Vanity mirrors
To use the vanity mirrors, swing down
the sun visor and open the cover.
2002 MY RAV4_U (OM42503U)
77
Page 78
’02 Rav4_U (L/O 0108)
78
2002 MY RAV4_U (OM42503U)
Page 79
’02 Rav4_U (L/O 0108)
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights a nd turn signals 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel l i ght control 82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front f og lights 82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights 82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal li ghts 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror def oggers 85. . . . . . . . . . . .
4
2002 MY RAV4_U (OM42503U)
79

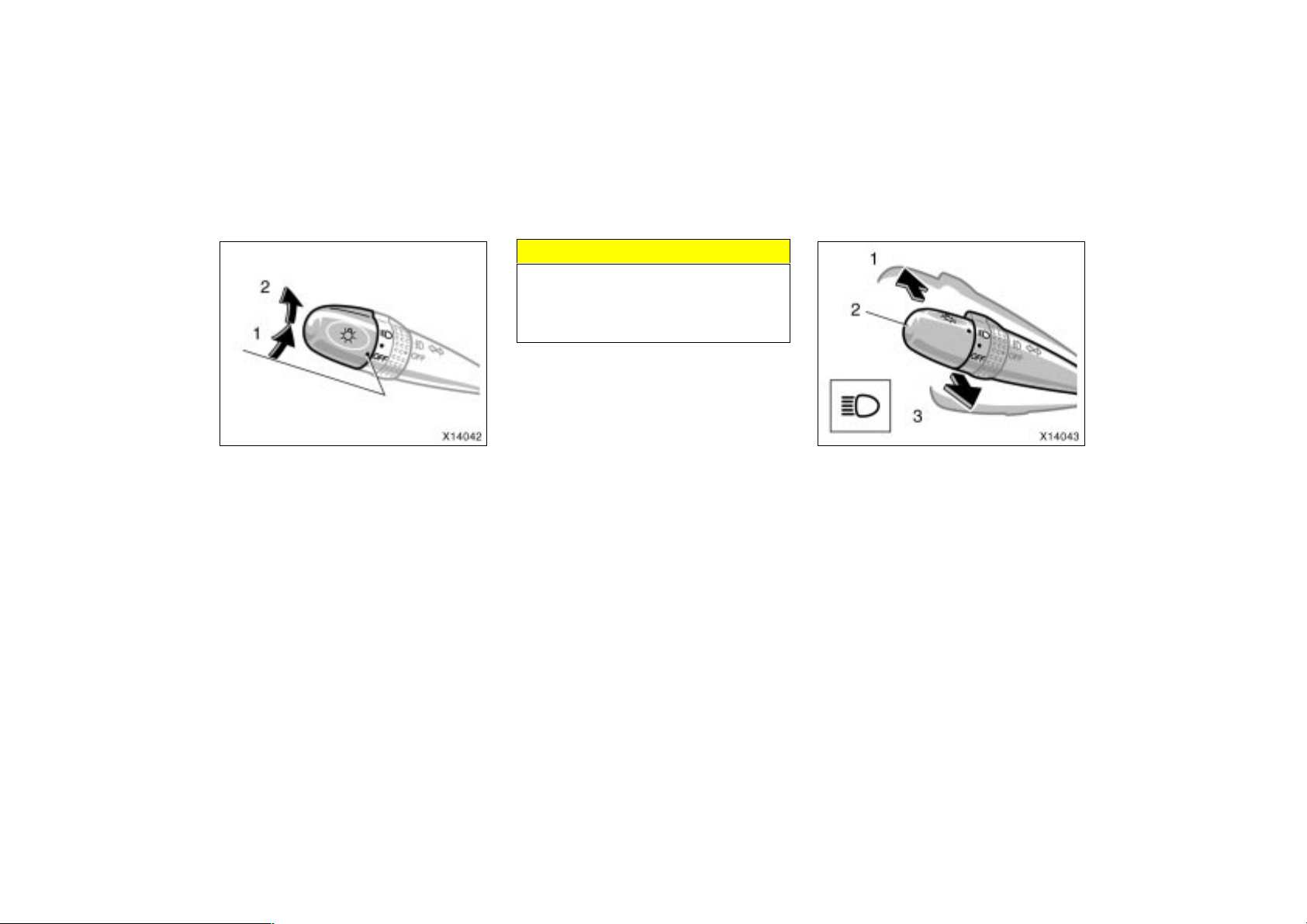

Page 80
Headlights and turn signals
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver’s door is opened if you
remove the key with the headlight switch
on.
’02 Rav4_U (L/O 0108)
NOTICE
To prevent the battery from being discharged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
(on some models)
The headlights turn on at reduced intensity when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
High–Low beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever toward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.
80
2002 MY RAV4_U (OM42503U)
Page 81

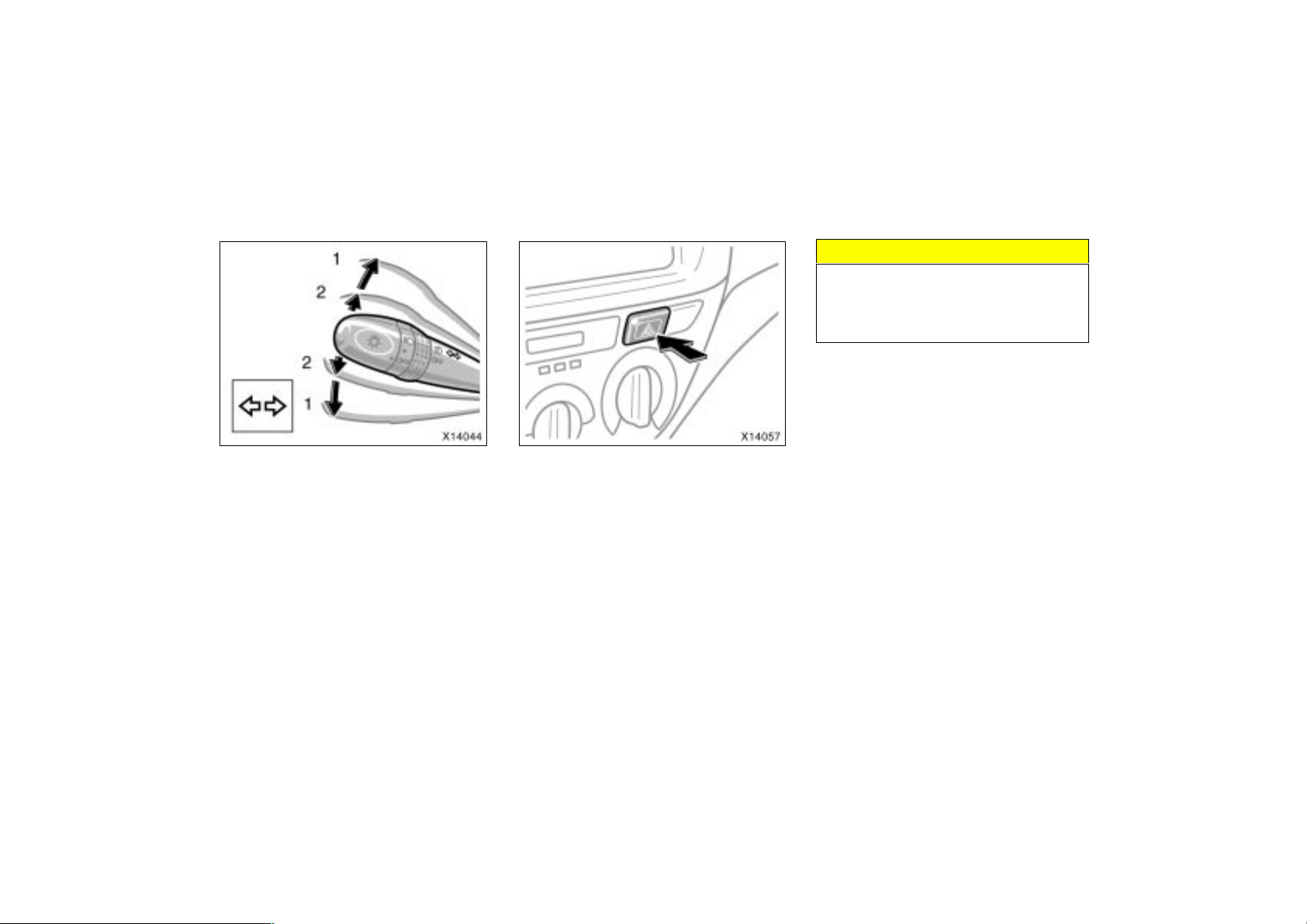

’02 Rav4_U (L/O 0108)
Emergency flashers
NOTICE
To prevent the battery from being discharged, do not leave the switch on
longer than necessary when the engine is not running.
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 244 in Section 7–3.
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as possible.
The turn signal light switch will not work
when the emergency flashers are operating.
2002 MY RAV4_U (OM42503U)
81
Page 82

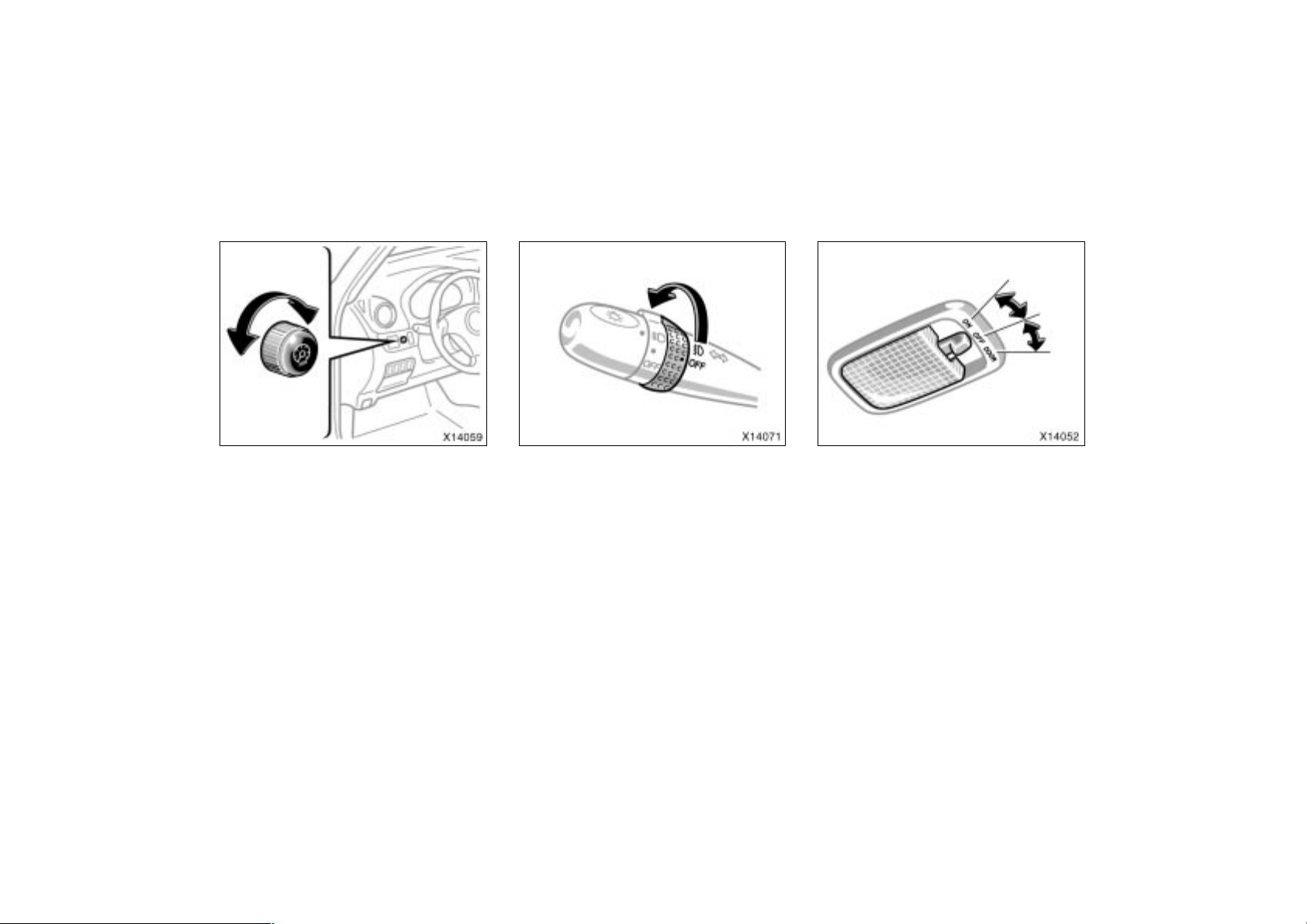

’02 Rav4_U (L/O 0108)
Instrument panel light control Front fog lights Interior lights
To adjust the brightness of the instrument panel lights, turn the knob.
82
To turn on the front fog lights, twist
the band of the headlight and turn signal switch lever. They will come on
only when the headlights are on low
beam.
2002 MY RAV4_U (OM42503U)
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors and back door are opened.
The light goes off when all the side doors
and back door are closed.
Page 83
ILLUMINATED ENTRY SYSTEM
(with power door lock system)
With the switch in the “DOOR” position,
the light comes on when any of the side
doors and back door are opened. After all
the side doors and back door are closed,
the light remains on for about 15 seconds
and then fades out.
However, in the following cases, the light
fades out immediately:
All the side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
All the side doors and back door are
locked when the light is still on.
When all the side doors and back door
are unlocked simultaneously with a key or
wireless remote control transmitter, the interior light comes on for about 15 seconds
and then fades out, even if the door is
not opened.
INTERIOR LIGHT CUT OFF OPERATION
To prevent the battery being discharged,
the light will automatically turn off when
the ignition switch is in the “LOCK” position and the door is left opened with the
switch at “DOOR” position for 20 minutes
or more.
’02 Rav4_U (L/O 0108)
Personal lights
To turn on the personal light, push the
switch. To turn the light off, push the
switch once again.
With moon roof
Without moon roof
2002 MY RAV4_U (OM42503U)
83

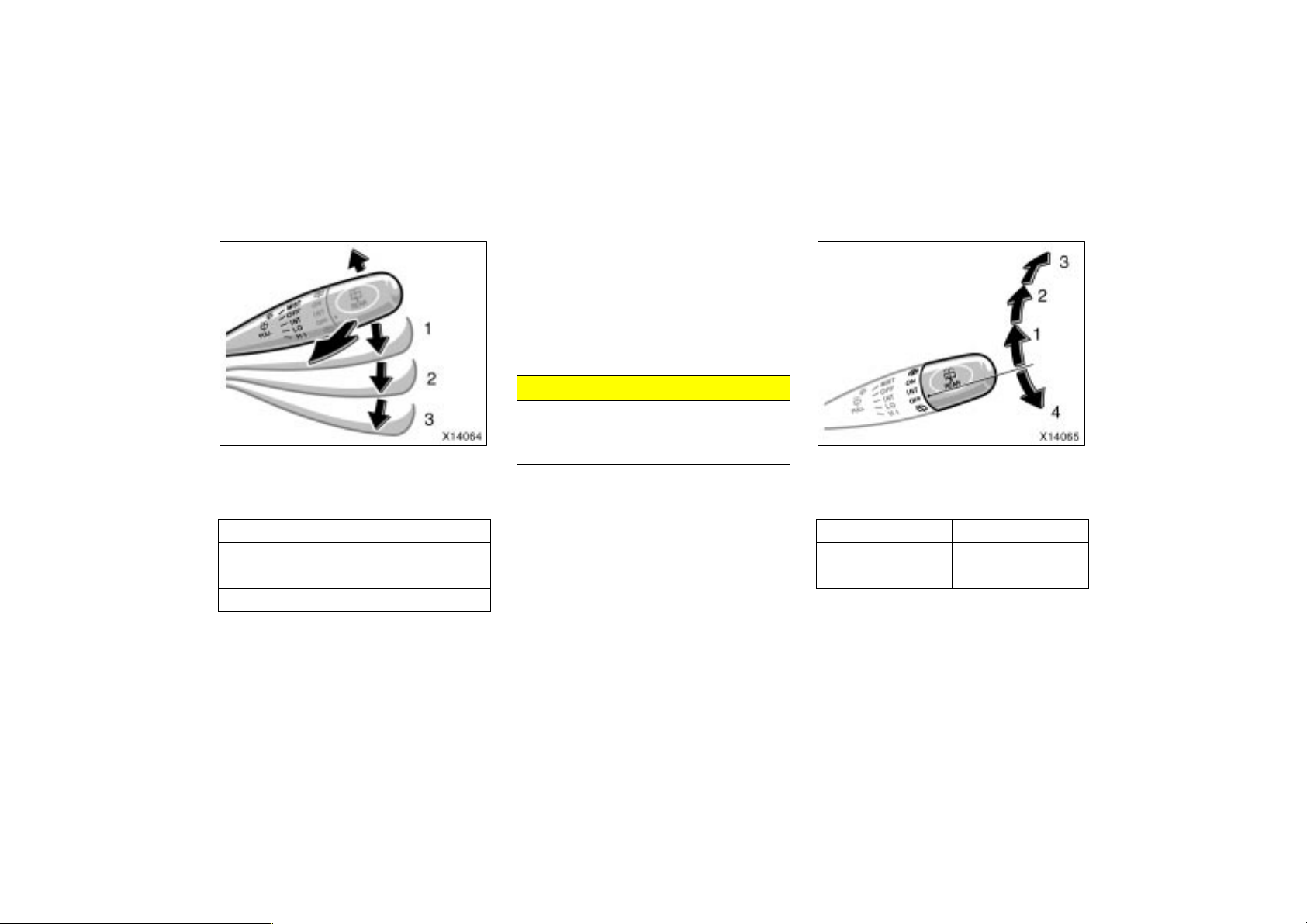

Page 84
Windshield wipers and washer
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
’02 Rav4_U (L/O 0108)
Rear window wiper and
washer
For instructions on adding washer fluid,
see “Adding washer fluid” on page 243 in
Section 7–3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may scratch the
glass.
To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the “ON” position.
Lever position Speed setting
Positi on 1 Intermittent
Positi on 2 Slow
Positi on 3 Fast
For a single sweep of the windshield,
push the lever up and release it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
84
Lever position Speed setting
Positi on 1 Intermittent
Positi on 2 Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 243 in
Section 7–3.
2002 MY RAV4_U (OM42503U)
Page 85

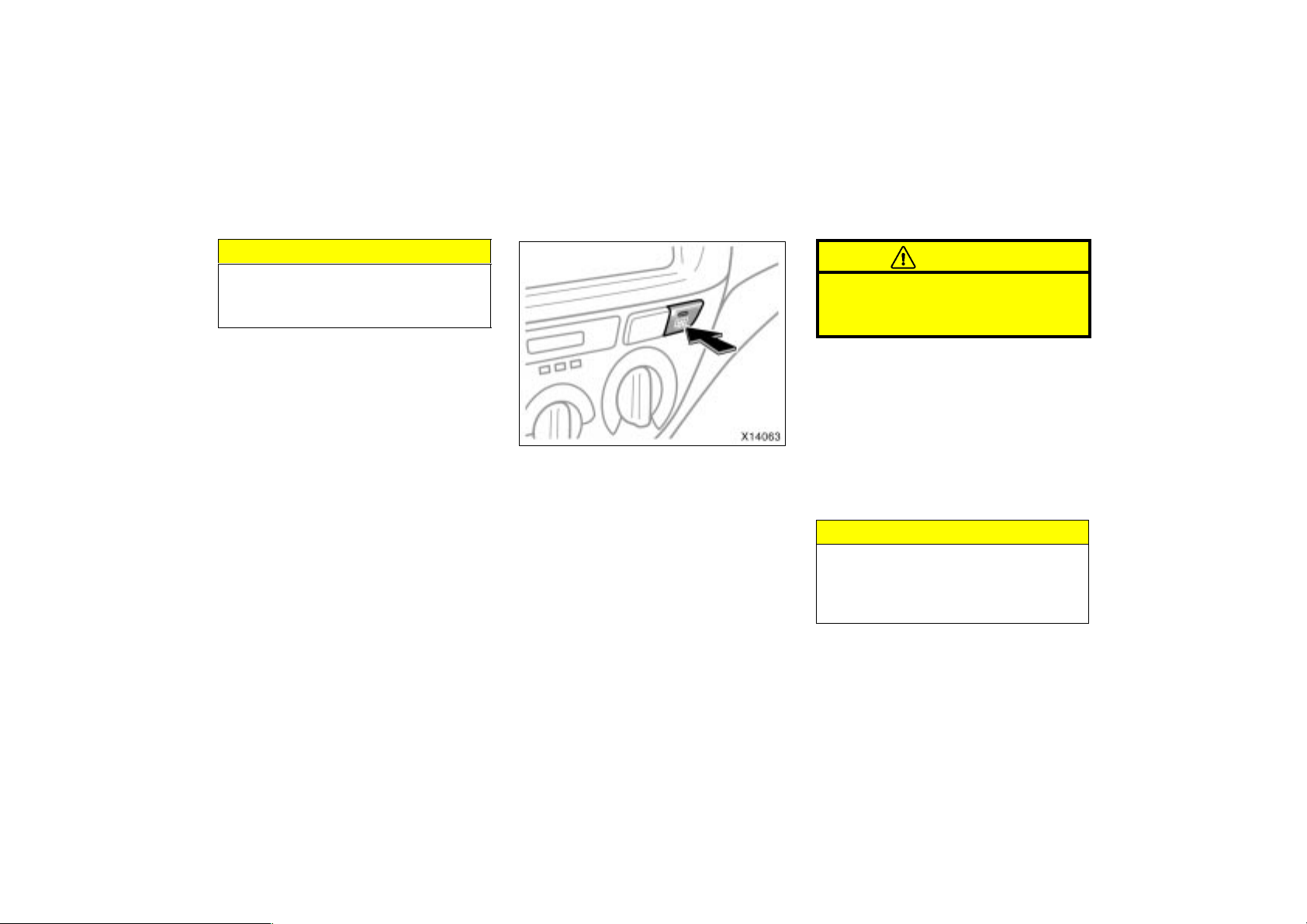

’02 Rav4_U (L/O 0108)
Rear window and outside rear
view mirror defoggers
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surface. An indicator light will illuminate to
indicate the defogger is operating.
On some models, the heater panels in the
outside rear view mirrors will also quickly
clear the surfaces.
Push the switch once again to turn the
defoggers off.
The system will automatically shut off after the defoggers have operated about 15
minutes.
CAUTION
Since the mirror surfaces can get hot,
keep your hands off them when the
defogger switch is on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop–and–go driving. The defoggers are
not designed for drying rain water or for
melting snow.
If the outside rear view mirrors are heavily coated with ice, use a spray de–icer
before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connectors.
2002 MY RAV4_U (OM42503U)
85
Page 86
’02 Rav4_U (L/O 0108)
86
2002 MY RAV4_U (OM42503U)
Page 87
’02 Rav4_U (L/O 0108)
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 88. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters 89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indi cators and w arning buzzers 90. . . . . . . . . . . . . . .
5
2002 MY RAV4_U (OM42503U)
87
Page 88
Fuel gauge
’02 Rav4_U (L/O 0108)
Engine coolant temperature
gauge
On inclines or curves, due to the movement of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
The gauge works when the ignition
switch is on and indicates the approximate quantity of fuel remaining in the
tank.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, accelerating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
88
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
2002 MY RAV4_U (OM42503U)
Page 89
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop–and–go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to control the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See “If your vehicle overheats” on page 188 in
Section 4.
’02 Rav4_U (L/O 0108)
Tachometer Odometer and two trip meters
The tachometer indicates engine speed
in thousands of rpm
minute). Use it while driving to select
correct shift points and to prevent engine lugging and over–revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
(revolutions per
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance
the vehicle has been driven.
2. Two trip meters—Show two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the electrical power source is disconnected.
2002 MY RAV4_U (OM42503U)
89
Page 90
3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, display the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
’02 Rav4_U (L/O 0108)
Service reminder indicators
and warning buzzers
If the indicator or
buzzer comes on...
(a) If parking brake
or
(b) Fas ten driver ’s
(indicator and buzzer)
Do this.
is off, stop
immediately and
contact Toyota
dealer.
seat belt.
If the indicator or
buzzer comes on...
(f) Take vehicle to
or
(g) Fill up tank.
Do this.
Toy ota dealer.
90
(c) Fasten front
passenger’s seat
belt.
(d) St op and chec k.
(e) Stop and check.
2002 MY RAV4_U (OM42503U)
(h) Take vehicle to
or
Toy ota dealer.
If brake system
warning light is
also on, stop
immediately and
contact Toyota
dealer.
Page 91
’02 Rav4_U (L/O 0108)
If the indicator or
buzzer comes on...
(i) Close all side
(j) Stop and chec k.
(k) Take vehicle to
(l) Add was her fluid.
(m) Remove key.
Key reminder
buzzer
(n) Turn off l ights.Light reminder
buzzer
Do this.
doors and back
door.
Toy ota dealer
immediately.
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” position.
When the parking brake is applied...
Vehicles with anti–lock brake system—
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the ignition key is in the “ON” position.
Vehicles with anti–lock brake system—
The light does not come on even if the
ignition key is turned on with the parking brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. Depress the brake pedal firmly and
bring the vehicle to an immediate
stop.
Vehicles with anti–lock brake system—
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the anti–lock
brake system will fail but also the
vehicle will become extremely unstable during braking.
2002 MY RAV4_U (OM42503U)
91
Page 92
’02 Rav4_U (L/O 0108)
(b) Driver’s Seat Belt Reminder Light
and Buzzer
This light and buzzer remind you to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
buzzer sounds if the driver’s seat belt is
not fastened. Unless the driver fastens the
belt, the light keeps flashing and the
buzzer stops after about 4 to 8 seconds.
(c) Front Passenger’s Seat Belt Re-
minder Light
This light reminds you to buckle up the
front passenger’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. However, if a front passenger uses an additional
seat cushion, the light may not flash even
when the seat belt is not buckled up.
If luggage load is placed on the front
passenger seat, depending on its weight
and how it is placed on the seat, built–in
sensors in the seat cushion may detect
the pressure, causing the reminder light to
keep flashing.
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to operate, however, until the battery is discharged. Turn off the air conditioning,
blower, radio,etc., and drive directly to the
nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Low Engine Oil Pressure Warning
Light
This light warns that the engine oil pressure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immediately.
92
2002 MY RAV4_U (OM42503U)
Page 93
’02 Rav4_U (L/O 0108)
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp will not go off even after the
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, automatic transmission electrical system or
warning light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
Emissions Inspection and Maintenance
(I/M) programs
Your vehicle may not pass a state
emission inspection if the malfunction
indicator lamp remains on. Contact your
Toyota dealer to check your vehicle’s
emission control system and OBD
(On–Board Diagnostics) system before
taking your vehicle for the inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” on page 216
in Section 6.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(h) “ABS” Warning Light
The light comes on with the ignition key
turned to the “ON” position. If the anti–
lock brake system works properly, the
light turns off after a few seconds. Thereafter, if the system malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti–lock brake system does not operate,
but the brake system still operates conventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti–lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
2002 MY RAV4_U (OM42503U)
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” position, or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warning light, immediately stop your vehicle at a safe place and contact your
Toyota dealer.
In this case, not only the anti–lock
brake system will fail but also the
vehicle will become extremely unstable during braking.
93
Page 94
’02 Rav4_U (L/O 0108)
(i) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed.
(j) Automatic Transmission Fluid Tem-
perature Warning Light (four–wheel
drive models)
This light warns that the automatic transmission fluid temperature is too high.
If this light comes on while you are driving, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in “P”. With the engine idling, wait until the light goes off. If the
light goes off, you can start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning
light on may damage the automatic
transmission.
(k) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the systems of the airbag and front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, front seat belt pretensioner assemblies, inflators, warning light, interconnecting wiring and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” position or remains on.
The light comes on or flashes while
driving.
(l) Low Windshield Washer Fluid Level
Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” on page 243 in
Section 7–3.)
(m) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the “ACC” or “LOCK”
position.
(n) Light Reminder Buzzer
This buzzer will sound if the headlight
switch is left on and the driver’s door is
opened with the key removed from the
ignition switch.
94
2002 MY RAV4_U (OM42503U)
Page 95
CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the side doors or back
door.
The open door warning light should
come on.
3. Close the door.
The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do
not start the engine.
All the service reminder indicators except the open door warning light should
come on. The “ABS” warning light goes
off after a few seconds. The SRS
warning light goes off after about 6
seconds.
If any service reminder indicator or warning buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
’02 Rav4_U (L/O 0108)
2002 MY RAV4_U (OM42503U)
95
Page 96
’02 Rav4_U (L/O 0108)
96
2002 MY RAV4_U (OM42503U)
Page 97
’02 Rav4_U (L/O 0108)
SECTION 1–
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock 98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 99. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual transmission 103. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake 104. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control 105. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
2002 MY RAV4_U (OM42503U)
97
Page 98

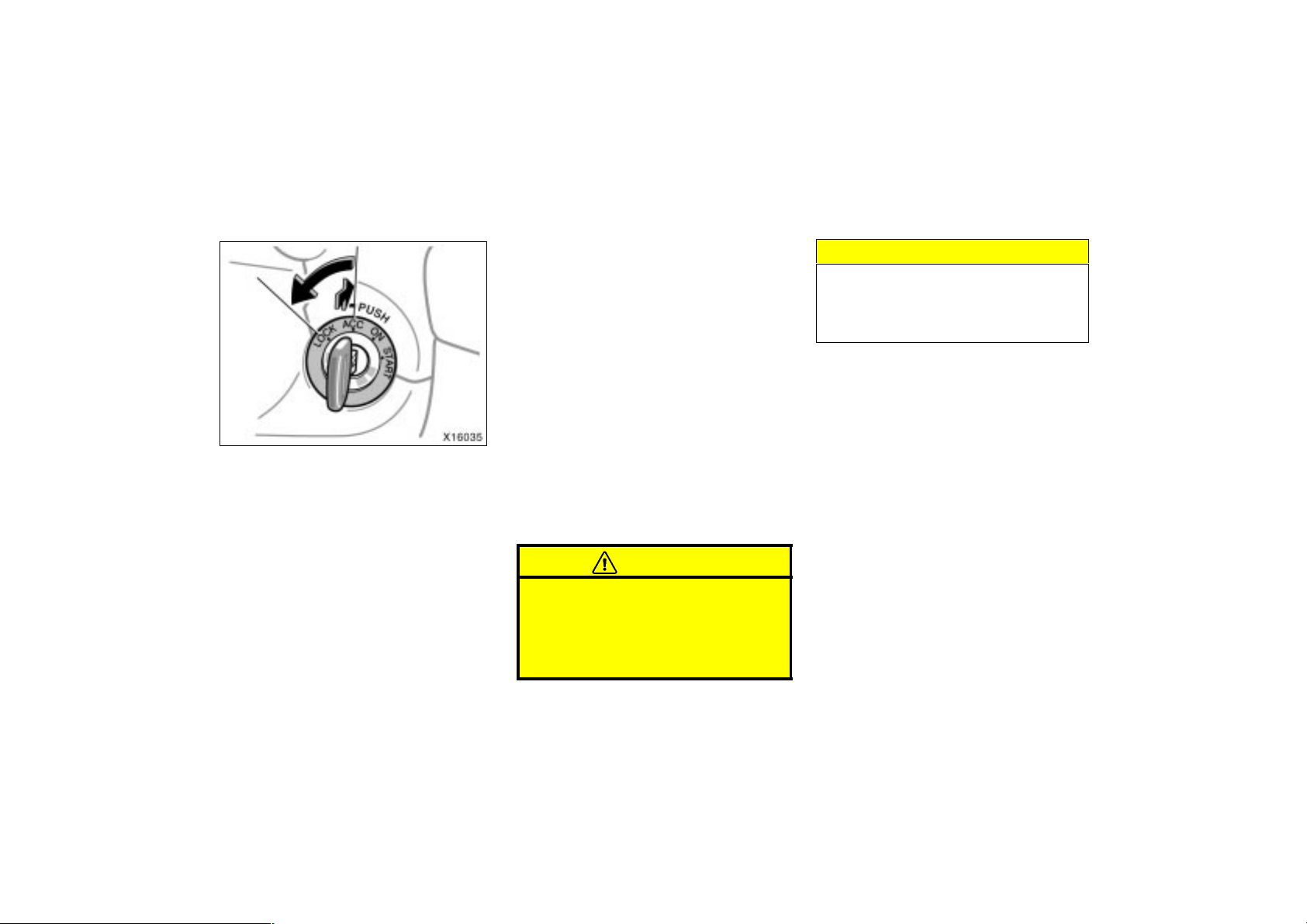

Ignition switch with steering
lock
“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see page 169 in Section
3.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
’02 Rav4_U (L/O 0108)
“LOCK”—Engine is off and the steering
wheel is locked. The key can be removed only at this position.
You must push in the key to turn it from
“ACC” to the “LOCK” position. On vehicles
with an automatic transmission, the selector lever must be in the “P” position before pushing the key.
Vehicles with engine immobiliser system—Once you remove the key, the engine immobiliser system is automatically
set. (See “Engine immobiliser system” on
page 11 in Section 1–2.)
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
CAUTION
For manual transmission:
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
98
2002 MY RAV4_U (OM42503U)
Page 99

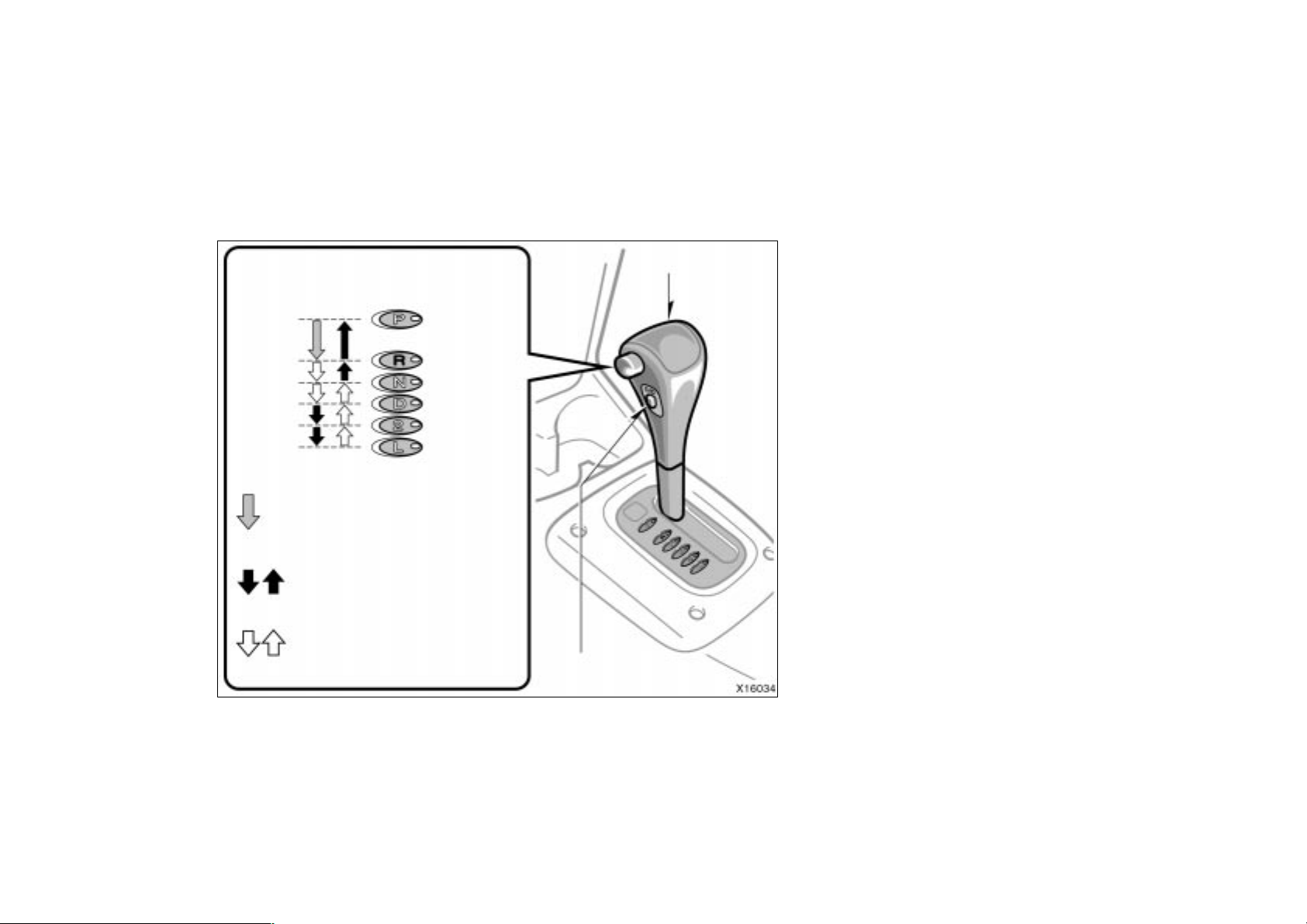

Automatic transmission
Lock release button
To p revent misshifting
With the brake pedal depres sed,
shift while holding the lock release
button in. (The ignition switch must
be in “ON” position.)
’02 Rav4_U (L/O 0108)
Selector lever
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” position and the lock release button depressed).
(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P: Parking, engine starting and
key removal
R: Reverse
N: Neutral
D: Normal driving (with overdrive on)
2: Stronger engine braking
L: Maxi mum engine br aking
Shift while holding the lock release
button in.
Shift normally.
Overdriv e
switch
2002 MY RAV4_U (OM42503U)
99
Page 100
’02 Rav4_U (L/O 0108)
(b) Overdrive switch
You can select either third gear (with
overdrive off) or fourth gear (with overdrive on) by pushing this switch.
To turn the overdrive off, push the switch.
The “O/D OFF” indicator light should come
on. To turn the overdrive on again, push
the switch again. The “O/D OFF” indicator
light should go off.
Always drive your vehicle with the overdrive on for better fuel economy and
quieter driving.
If the engine is turned off when the overdrive is off and restarted, the overdrive
will automatically be on.
Vehicles with cruise control—When the
cruise control is being used, even if you
downshift the transmission by pushing and
releasing the overdrive switch, engine
braking will not be enabled because the
cruise control is not cancelled.
For ways to decrease the vehicle speed,
see “Cruise control” on page 105 in this
section.
(c) Normal driving
1. Start the engine as instructed in “How
to start the engine” on page 170 in
Section 3. The transmission must be in
“P” or “N”.
2. With your foot holding down the brake
pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running conditions such as normal cruising, hill climbing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into the overdrive gear even with the overdrive on.
CAUTION
Never put your foot on the accelerator pedal while shifting.
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The “O/D
OFF” indicator light will come on and
the transmission will downshift to third
gear.
Shift into the “2” position. The trans-
mission will downshift to second gear
when the vehicle speed drops down to
or lower than the following speed, and
stronger engine braking will be enabled.
Two–wheel drive models
108 km/h (67 mph)
Four–wheel drive models
103 km/h (64 mph)
100
2002 MY RAV4_U (OM42503U)
Loading...
