Toshiba VF-S9 User Manual 2

E6580757

Safety precautions

Instruction Manual

The new generation

Compact inverter

TOSVERT VF-S9

1-phase 200V class 0.2 2.2kW 3-phase 200V class 0.2 15kW 3-phase 400V class 0.75 15kW

Introduction

Contents

Read first

Connecting equipment

Operations

Basic VF-S9 operations

Basic parameters

Extended parameters

Applied operation

Monitoring the operation status

Taking measures to satisfy the CE/UL directive

Peripheral devices

Table of parameters and data

1 2 3 4 5 6 7 8 9 10 11

TOSHIBA INDUSTRIAL PRODUCTS MANUFACTURING CORPORATION

NOTICE

1. Make sure that this instruction manual is delivered to the end user of the inverter unit.

2. Read this manual before installing or operating the inverter unit, and store it in a safe place for reference.

Specifications

Before making a service call - Trip information and remedies

Inspection and maintenance

Warranty

Disposal of the inverter

2000 Ver. 101

12 13 14 15 16

E6580757

 Contents 

I Safety precautions.........................................................................................................................................................1

II Introduction....................................................................................................................................................................7

1. Read first.......................................................................................................................................................................A-1

1.1 Check product purchase....................................................................................................................................A-1

1.2 Contents of the product code.............................................................................................................................A-2

1.3 Names and functions.........................................................................................................................................A-3

1.4 Notes on the application....................................................................................................................................A-10

2. Connection equipment...................................................................................................................................................B-1

2.1 Cautions on wiring.............................................................................................................................................B-1

2.2 Standard connections........................................................................................................................................B-3

2.3 Description of terminals.....................................................................................................................................B-6

3. Operations.....................................................................................................................................................................C-1

3.1 How to operate the VF-S9.................................................................................................................................C-2

3.2 Simplified Operation of the VF-S9.....................................................................................................................C-6

4. Basic VF-S9 operations.................................................................................................................................................D-1

4.1 How to set parameters.......................................................................................................................................D-2

5. Basic parameters...........................................................................................................................................................E-1

5.1 Setting acceleration/deceleration time...............................................................................................................E-1

5.2 Increasing starting torque..................................................................................................................................E-3

5.3 Setting environmental protection.......................................................................................................................E-5

5.4 Setting parameters by operating method...........................................................................................................E-5

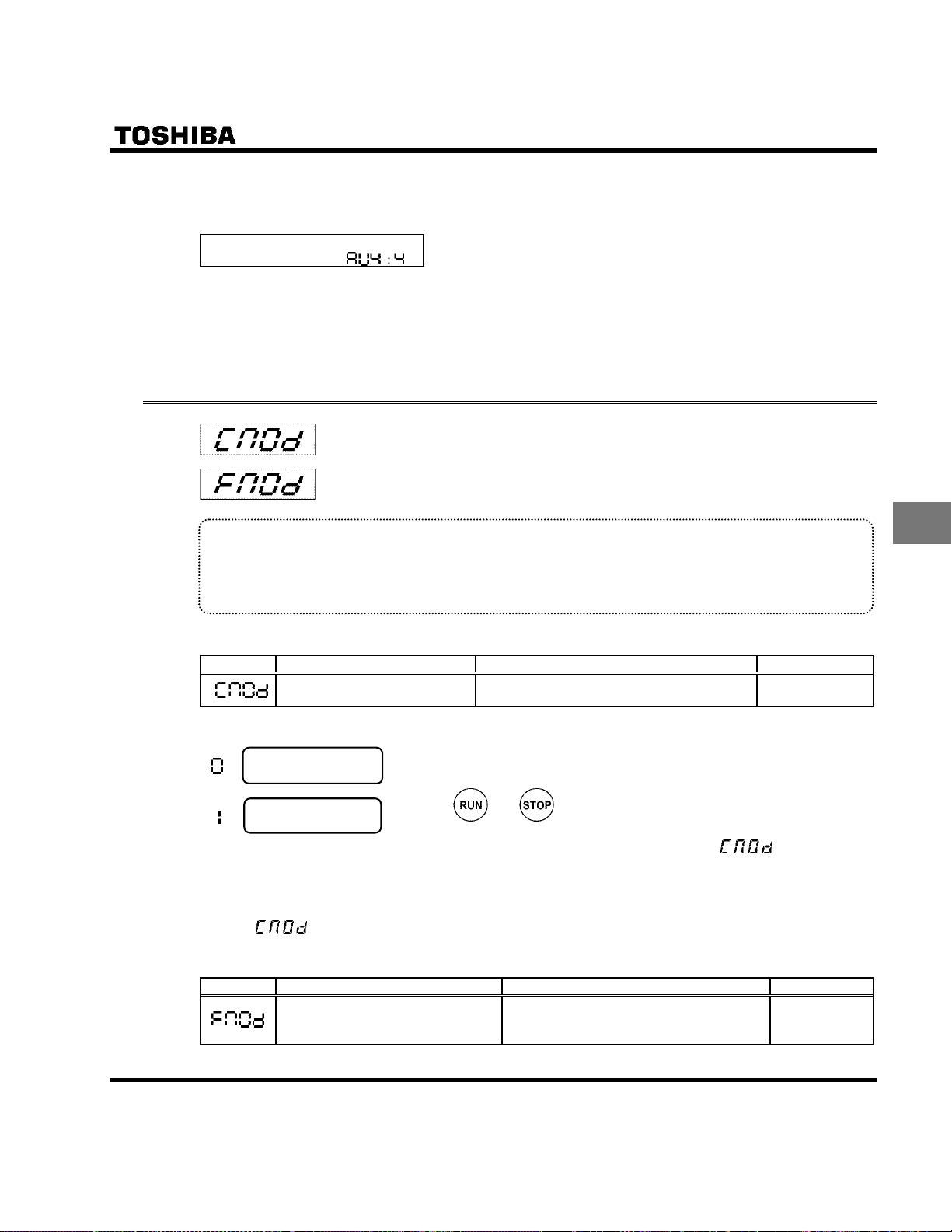

5.5 Selection of operation mode..............................................................................................................................E-7

5.6 Meter setting and adjustment.............................................................................................................................E-8

5.7 Standard default setting.....................................................................................................................................E-10

5.8 Selecting forward and reverse runs (operation panel only)................................................................................E-11

5.9 Maximum frequency..........................................................................................................................................E-12

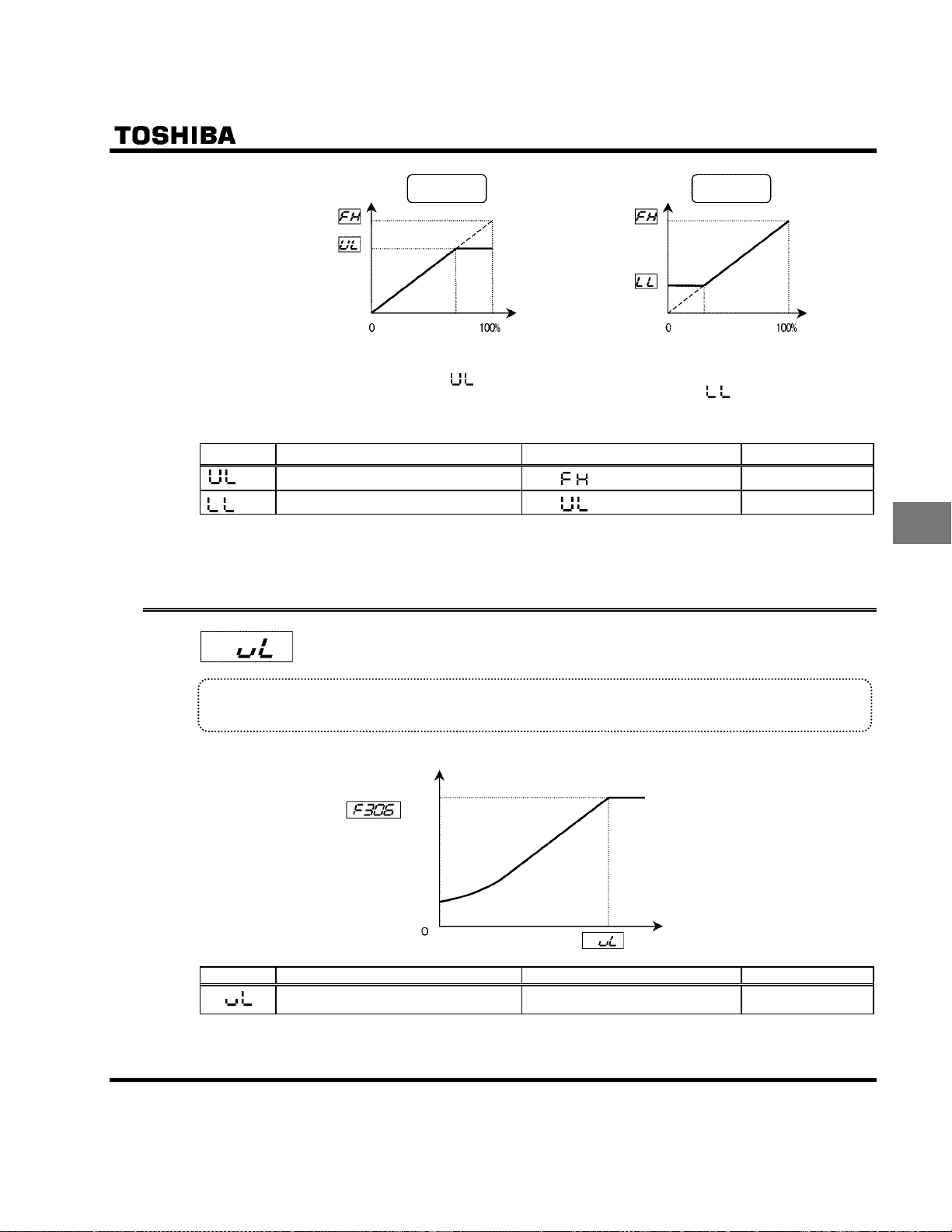

5.10 Upper limit and lower limit frequencies..............................................................................................................E-12

5.11 Base frequency..................................................................................................................................................E-13

5.12 Selecting control mode......................................................................................................................................E-14

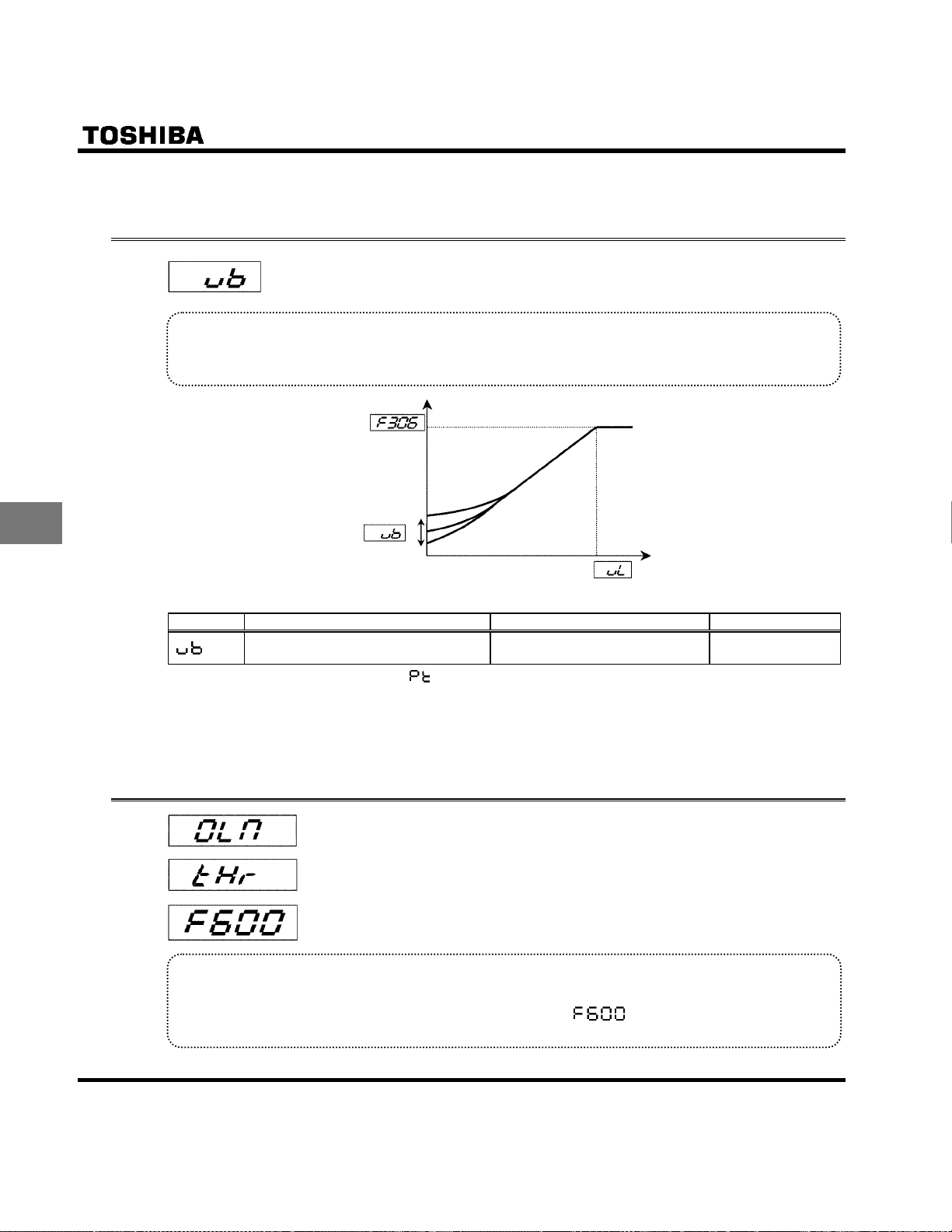

5.13 Manual torque boost-increasing torque at low speeds ......................................................................................E-18

E6580757

5.14 Setting the electronic thermal.............................................................................................................................E-18

5.15 Preset-speed operation (speed in 15 steps) ......................................................................................................E-22

6. Extended parameters.....................................................................................................................................................F-1

6.1 Input/output parameters.....................................................................................................................................F-1

6.2 Input signal selection..........................................................................................................................................F-4

6.3 Terminal function selection.................................................................................................................................F-6

6.4 Basic parameters 2............................................................................................................................................F-10

6.5 Frequency priority selection...............................................................................................................................F-11

6.6 Operation frequency...........................................................................................................................................F-17

6.7 DC braking.........................................................................................................................................................F-18

6.8 Jog run mode.....................................................................................................................................................F-19

6.9 Jump frequency-jumping resonant frequencies .................................................................................................F-21

6.10 Preset-speed operation frequency 8 to 15.........................................................................................................F-22

6.11 PWM carrier frequency......................................................................................................................................F-22

6.12 Trip-less intensification.......................................................................................................................................F-23

6.13 Setting motor constants .....................................................................................................................................F-36

6.14 Acceleration/deceleration patterns and acceleration/deceleration 2..................................................................F-39

6.15 Protection functions............................................................................................................................................F-42

6.16 Operation panel parameter................................................................................................................................F-50

6.17 Communication function (Common serial).........................................................................................................F-54

7. Applied operation...........................................................................................................................................................G-1

7.1 Setting the operation frequency.........................................................................................................................G-1

7.2 Setting the operation mode ................................................................................................................................G-5

8. Monitoring the operation status......................................................................................................................................H-1

8.1 Status monitor mode..........................................................................................................................................H-1

8.2 Display of trip information...................................................................................................................................H-3

9. Taking measures to satisfy the CE/UL directive.............................................................................................................I-1

9.1 How to cope with the CE directive.....................................................................................................................I-1

10. Peripheral devices..........................................................................................................................................................J-1

10.1 Selection of wiring materials and devices ..........................................................................................................J-1

10.2 Installation of a magnetic contactor....................................................................................................................J-3

10.3 Installation of an overload relay .........................................................................................................................J-4

10.4 Optional external devices...................................................................................................................................J-4

E6580757

11. Table of parameters and data........................................................................................................................................K-1

11.1 User parameters................................................................................................................................................K-1

11.2 Basic parameters...............................................................................................................................................K-1

11.3 Extended parameters........................................................................................................................................K-2

12. Specifications ................................................................................................................................................................L-1

12.1 Models and their standard specifications...........................................................................................................L-1

12.2 Outside dimensions and mass...........................................................................................................................L-3

13. Before making a service call-Trip information and remedies.........................................................................................M-1

13.1 Trip causes/warnings and remedies ..................................................................................................................M-1

13.2 Restoring the inverter from a trip.......................................................................................................................M-5

13.3 If the motor does not run while no trip message is displayed….........................................................................M-6

13.4 How to determine the causes of other problems................................................................................................M-7

14. Inspection and maintenance..........................................................................................................................................N-1

14.1 Regular inspection.............................................................................................................................................N-1

14.2 Periodical inspection..........................................................................................................................................N-2

14.3 Making a call for servicing .................................................................................................................................N-4

14.4 Keeping the inverter in storage..........................................................................................................................N-4

15. Warranty........................................................................................................................................................................O-1

16. Disposal of the inverter..................................................................................................................................................P-1

iii

E6580757

I. Safety precautions

The items described in these instructions and on the inverter itself are very important so that you can use the inverter safely prevent injury to yourself and other people around you as well as prevent damage to property in the area. Thoroughly familiarize yourself with the symbols and indications shown below and then continue to read the manual. Make sure that you observe all warnings given.

Explanation of markings

Marking Meaning of marking

Danger Warning

(*1) Such things as injury, burns or shock that will not require hospitalization or long periods of outpatient treat-

ment.

(*2) Physical property damage refers to wide-ranging damage to assets and materials.

Meanings of symbols

Symbol Meaning of Symbol

Indicates prohibition (Don't do it). What is prohibited will be described in or near the symbol in either text or picture form.

Indicates something mandatory (must be done). What is mandatory will be described in or near the symbol in either text or picture form.

Indicates danger. What is dangerous will be described in or near the symbol in either text or picture form.

Indicates warning. What the warning should be applied to will be described in or near the symbol in either text or picture form.

Indicates that errors in operation may lead to death or serious injury. Indicates that errors in operation may lead to injury (*1) to people or that these errors may

cause damage to physical property. (*2)

■ Limits in purpose

This inverter is used for controlling speeds of three-phase induction motors in general industrial use.

Safety precautions

The inverter cannot be used in any device that would present danger to the human body or from which malfunction or error in operation would present a direct threat to human life (nuclear power control device, aviation and space flight control device, traffic device, life support or operation system, safety device, etc.). If the inverter is to be used for any special purpose, first get in touch with the people in charge of sales.

This product was manufactured under the strictest quality controls but if it is to be used in critical equipment, for example, equipment in which errors in malfunctioning signal output system would cause a major accident, safety devices must be installed on the equipment.

Do not use the inverter for loads other than those of properly applied three-phase induction motors in general industrial use. (Use in other than properly applied three-phase induction motors may cause an accident.)

E6580757

■ General operation

• Never disassemble, modify or repair. This can result in electric shock, fire and injury. For repairs, call your sales agency.

Disassembly

prohibited

• Never remove the front cover when power is on or open door if enclosed in a cabinet. The unit contains many high voltage parts and contact with them will result in electric shock.

• Don't stick your fingers into openings such as cable wiring hole and cooling fan covers. This can result in electric shock or other injury.

Prohibited

Mandatory

• Don't place or insert any kind of object into the inverter (electrical wi re cuttings, rods, wires). This can result in electric shock or fire.

• Do not allow water or any other fluid to come in contact with the inverter. This can result in electric shock or fire.

• Turn power on only after attaching the front cover or closing door if enclosed in a cabinet. If power is turned on without the front cover attached or closing door if enclosed in a cabinet. This can result in electric shock or other injury.

• If the inverter begins to emit smoke or an unusual odor, or unusual sounds, immediately turn power off. If the equipment is continued in operation in such a state, the result may be fire. Call your local sales agency for repairs.

• Always turn power off if the inverter is not used for long periods of time since there is a possibility of malfunction caused by leaks, dust and other material. If power is left on with the inverter in that state, it may resul t in fire.

Danger

See item

2.1 2

2.1

Prohibited

contact

Prohibited

Warning

• Do not touch heat radiating fins or discharge resistors. These device are hot, and you'll get burned if you touch them.

• Avoid operation in any location where there is direct spraying of the following solvents or other chemicals. The plastic parts may be damaged to a certain degree depending on their shape, and there is a possibility of the plastic covers coming off and the plastic units being dropped. If the chemical or solvent is anything other than those shown below, please contact us in advance.

(Table 1) Examples of applicable chemicals

Hydrochloric acid (density of 10% or less) Sulfuric acid (density of 10% or less) Nitric acid (density of 10% or less) Caustic soda Mesopropanol Ammonia Glycerin Sodium chloride (salt)

and solvents

Chemical Solvent

Methanol Ethanol Triol

(Table 2) Examples of unapplicable

Phenol Gasoline, keroBenzenesulfonic

acid

chemicals and solvents

Chemical Solvent

sene, light oil Turpentine oil

Benzol Thinner

See item

1.4.4

E6580757

■ Transportation  Installation Danger

• Do not install or operate the inverter if it is damaged or any component is missing. This can result in electric shock or fire. Please consult your local sales agency for repairs.

• Do not place any inflammable objects nearby.

Prohibited

Mandatory

If a flame is emitted due to malfunction, it may result in a fire.

• Do not install in any location where the inverter could come into contact with water or other fluids. This can result in electric shock or fire.

• Must be used in the envi ronmental conditions prescribed in the instruction manual. Use under any other conditions may result in malfunction.

• Must be installed in non-inflammables such as metals. The rear panel gets very hot. If installation is in an inflammable object, this can result in fire.

• Do not operate with the front panel cover removed. This can result in electric shock.

• An emergency stop device must be installed that fits with system specifications (e.g. shut

off input power then engage mechanical brake). Operation cannot be stopped immediately by the inverter alone, thus risking an accident or injury.

• All options used must be those specified by Toshiba. The use of any other option may result in an accident.

Warning

• When transporting or carrying, do not hold by the front panel covers. The covers may come off and the unit will drop out resulting in injury.

Prohibited

Mandatory

• Do not install in any area where the unit would be subject to large amounts of vibration. That could result in the unit falling, resulting in injury.

• The main unit must be installed on a base that can bear the unit's weight. If the unit is installed on a base that cannot withstand that weight, the unit may fall resulting in injury .

• If braking is necessary (to hold motor shaft), install a mechanical brake. The brake on the inverter will not function as a mechanical hold, and if used for that purpose, injury may result.

See item

1.4.4

See item

1.4.4

■ Wiring

Prohibited

Danger

• Do not connect input power to the output (motor side) terminals (U/T1,V/T2,W/T3). That will destroy the inverter and may result in fire.

• Do not connect resistors to the DC terminals (across PA-PC or PO-PC). That may cause a fire. Connect resistors as directed by the instructions for "Installing separate braking resistors."

• Within ten minutes after turning off input power, do not touch wires of devices (MCCB) connected to the input side of the inverter . That could result in electric shock.

See item

2.2

E6580757

Mandatory

Be Grounded

Danger

• Electrical construction work must be done by a qualified expert. Connection of input power by someone who does not have that expert knowledge may result in fire or electric shock.

• Connect output terminals (motor side) correctly. If the phase sequence is incorrect, the motor will operate in reverse and that may result in injury.

• Wiring must be done after installation. If wiring is done prior to installation that may result in injury or electric shock.

• The following steps must be performed before wiring. (1) Turn off all input power. (2) Wait at least ten minutes and check to make sure that the charge lamp is no longer lit. (3) Use a tester that can measure DC voltage (800VDC or more), and check to make sure

that the voltage to the DC main circuits (across PA-PC) is 45V or less.

If these steps are not properly performed, the wiring will cause electric shock.

• Tighten the screws on the terminal board to specified torque. If the screws are not tightened to the specified torque, it may lead to fire.

• Check to make sure that the input power voltage is +10%, -15% of the rated power voltage written on the rating label (±10% when the load is 100% in continuous operation) If the input power voltage is not +10%, -15% of the rated power voltage (±10% when the load is 100% in continuous operation) this may result in fire.

• Ground must be connected securely. If the ground is not securely connected, it could lead to electric shock or fire when a malfunction or current leak occurs.

Warning

See item

2.1

1.4.4

2.1

2.2

See item

• Do not attach equipment (such as noise filters or surge absorbers) that have built-in ca-

Prohibited

■ Operations

• Do not touch inverter terminals when electrical power is going to the inverter even if the

• Do not touch switches when the hands are wet and do not try to clean the inverter with a

Prohibited

Mandatory

• Do not go near the motor in alarm-stop status when the retry function is selected.

• Turn input power on after attaching the front cover.

• Make sure that operation signals are off before resetting the inverter after malfunction.

pacitors to the output (motor side) terminals. That could result in a fire.

Danger

motor is stopped. Touching the inverter terminals while power is connected to it may result in electric shock.

damp cloth. Such practices may result in electric shock. The motor may suddenly restart and that could result in injury.

Take measures for safety, e.g. attaching a cover to the motor, against accidents when the motor unexpectedly restarts..

When storing inside the cabinet and using with the front cover removed, always close the cabinet doors first and then turn power on. If the power is turned on with the front cover or the cabinet doors open, it may result in electric shock.

If the inverter is reset before turning off the operating signal, the motor may restart suddenly causing injury.

2.1

See item

E6580757

Warning

• Observe all permissible operating ranges of motors and mechanical equipment. (Refer to the motor's instruction manual.) Not observing these ranges may result in injury.

Prohibited

See item

When sequence for restart after a momentary power failure is selected (inverter)

See item

6.12.1

Mandatory

Warning

• Stand clear of motors and mechanical equipment If the motor stops due to a momentary power failure, the equipment will start suddenly after power recovers. This could result in unexpected injury.

• Attach warnings about sudden restart after a momentary power failure on inverters, motors and equipment for prevention of accidents in advance.

When retry function is selected (inverter)

See item

6.12.3

Mandatory

Warning

• Stand clear of motors and equipment. If the motor and equipment stop when the alarm is given, selection of the retry function will restart them suddenly after the specified time has elapsed. This could result in unexpected injury.

• Attach warnings about sudden restart in retry function on inverters, motors and equipment for prevention of accidents in advance.

Maintenance and insp ection

• Do not replace parts. This could be a cause of electric shock, fire and bodily injury. To replace parts, call the lo-

Prohibited

Mandatory

cal sales agency.

• The equipment must be inspected every day. If the equipment is not inspected and maintained, errors and malfunctions may not be discovered and that could result in accidents.

• Before inspection, perform the following steps. (1) Turn off all input power to the inverter. (2) Wait for at least ten minutes and check to make sure that the charge lamp is no longer

lit.

(3) Use a tester that can measure DC voltages (800VDC or more), and check to make

sure that the voltage to the DC main circuits (across PA-PC) is 45V or less. If inspection is performed without performing these steps first, it could lead to electric shock.

Danger

See item

14.2

14.

E6580757

Disposal

Warning

• If you throw away the inverter, have it done by a specialist in industry waste disposal*. If you throw away the inverter by yourself, this can result in explosion of capacitor or produce noxious gases, resulting in injury.

(*) Persons who specialize in the processing of waste and known as "industrial waste product collectors

Mandatory

and transporters" or "industrial waste disposal persons." If the collection, transport and disposal of industrial waste is done by someone who is not licensed for that job, it is a punishable violation of the law. (laws in regard to cleaning and processing of waste materials)

Attach warning labe ls

Shown here are examples of warning labels to prevent, in advance, accidents in relation to inverters, motors and other equipment. If the inverter has been programmed for auto-restart function after momentary power failure or retry function, place warning labels in a place where they can be easily seen and read.

If the inverter has been programmed for restart sequence of momentary power failure, place warning labels in a place where they can be easily seen and read. (Example of warning label)

Warning(Functions programmed for restart)

Do not go near motors and equipment. Motors and equipment that have stopped temporarily after momentary power failure will restart suddenly after recovery.

If the retry function has been selected, place warning labels in a location where they can be easily seen and read.

(Example of warning label)

Warning (Functions programmed for retry)

Do not go near motors and equipment. Motors and equipment that have stopped temporarily after an alarm will restart suddenly after the specified time has elapsed.

II. Introduction

E6580757

Thank you for your purchase of the Toshiba "TOSVERT VF-S9" industrial inverter

This is the Ver.101 CPU version inverter. Please be informed that this version will be frequently upgraded.

■ Features

1. Built-in noise filter

2. Simple operation

3. Superior basic performance

1) All models in both the 200V and 400V series have a noise filter inside.

2) These models conform to European CE markings and United States UL standards.

3) Reduces space requirements and cuts down on time and labor needed in wiring.

1) Automatic functions (torque boost acceleration/deceleration time, function programming, environment programming) Just by wiring the motor to the power supply allows instant operation without the need to program parameters.

2) Switches and potentiometer dial on the front panel allow immediate and easy operation.

1) Torque from low frequency to 150% and higher

2) Smooth operation : Reduced rotation ripple through the use of Toshiba's unique dead-band compen-

sation.

3) Built-in current surge suppression circuit : Can be safely connected even if power load is low.

4) Maximum 400Hz high frequency output : Optimum for use with high speed motors such as those in

lumber machinery and milling machines.

5) Maximum carrier frequency: 16.5kHz quiet operation Toshiba's unique PWM control reduces noise at low carrier.

4. Globally compatible

1) Compatible with 240V and 500V power supplies

2) Conforms to CE marking and with UL, CUL and C-Tick.

3) Sink/source switching of control input/output.

5. Options allow use with a wide variety of applications

• Communication functions (RS485/RS232C)

• Extension panel/Parameter writer

• DIN rail kit (For 200V class 0.2 to 0.75 kW)

• Foot-mounted type noise reduction filter (EMC directive: For class A and class B)

• Other options are common to all models

1. Read first

1.1 Check product purchase

Before using the product you have purchased, check to make sure that it is exactly what you ordered.

E6580757

Mandatory

Warning

Use an inverter that conforms to the specifications of power supply and three-phase induction motor being used. If the inverter being used does not conform to those specifications, not only will the three-phase induction motor not rotate correctly, but it may cause serious accidents through overheating and fire.

Applicable

motor label

Pet name

Power supply

Motor capacity

Carton box

Type indication

Inverter main unit

Warning label

Name plate

Inverter typ e Power supply Rated output current and

acit

Name plate

A-1

1.2 Contents of the product code

Here is explained the type and form written on the label

Type

Form

E6580757

Optional circuit board and special specification code

Model name

TOSVERT VF-S9 Series

Number of

power phases

S: single-phase None:

three-phase

Input voltage

2:200V`240V

230V)

(200V

4:380V

500V

Warning: Always shut power off first then check the ratings label of inverter held in a cabinet.

Applicable

motor capacity

002: 0.2kW 004: 0.4kW 007: 0.75kW 015: 1.5kW 022: 2.2kW 037: 3.7kW 055: 5.5kW 075: 7.5kW 110: 11kW 150: 15kW

Additional

functions

L: Class A

built-in filter

M: Standard

built-in filter

* Logic (negative/positive) is

switched by one-touch operation. See 2.3.2

Operation panel P: Provided

Interface logic*

AN: negative WN:negative WP: positive

Optional circuit board and special specification code

A : Special specification

code( is the number)

A-2

1.3 Names and functions

1.3.1 Outside view

E6580757

VEC lamp

Lights when sensorless vector operation control is running.

ECN lamp

Lights when energy-saving mode is in operation.

Up/down key lamp

Pressing up or down key when this lamp is lighted allows the setting of operation frequency.

RUN key lamp

Lights when the RUN key is enabled.

RUN key

Pressing this key while the RUN key lamp is lighted starts operations.

RUN lamp

Lights when the inverter is operating. Blinks when the automatic acceleration/ dec e leration is operating.

STOP key

Every pressing of this key while the RUN key lamp is lit will cause a slowdown stop.

MON lamp

Lights when the inve r te r is in monitor mode.

PRG lamp

Lights when the inverter is in parameter setting mode.

Monitor key

Displays operation frequency, parameters, and error causes.

Built-in

potentiometer lamp

Built-in potentiometer

Operation frequency can be changed when the built-in potentiometer lamp is lit.

Enter key

Down key

Up key

[Front panel 1]

A-3

E6580757

Indicates that high voltage is still present within the inverter. Do not open the terminal board cover while this is lit.

Terminal board cover

Covers the terminal board. Always shut tight before operation so that the terminal board is not touched accidentally.

Charge lamp

Connector cover for

common serial option

Slide this cover to the right to use the connectors for options.

• Parameter writer

• Extension panel

• RS485/RS232C

Terminal board cover

lock screws

A-4

Wiring hole

E6580757

Top warning label Note 1)

Cooling fin

[Bottom] [Side]

Note 1) If ambient temperature is high, peel off this label.

Removing label invalidates NEMA 1 rating unless enclosed in a cabinet.

Example of the label.

Ventilation slits

Name Plate

A-5

1.3.2 Main circuit and control circuit terminal boards

1) Main circuit terminal board In case of the lug connector, cover the lug connector with insulated tube, or use the insulated lug connector.

Screw size tightening torque M3 screw 0.8N y m M4 screw 1.2N y m M5 screw 2.8N y m M6 screw 5.0N y m

VFS9S-2002PL ∼ 2022PL

R/L1 S/L2

M3 screw (2002〜2007) M4 screw (2015/2022)

E6580757

Shorting-bar

PO PA PB

Screw hole of EMC plate

PC U/T1 V/T2 W/T3

Grounding terminal M5 screw

A-6

VFS9S-2002PM ∼ 2015PM

R/L1

S/L2 T/L3

M3 screw (2002〜2007) M4 screw (2015)

E6580757

Shorting-bar

VFS9-2022PM/2037PM VFS9-4007PL ∼ 4037PL

Shorting-bar

PA P B

Screw hole of EMC plate

R/L1 S/L2 T/L3

PAPO

PC U/T1 V/T2 W/T3

M4 screw

PC U/T1 V/T2 W/T3PB

Grounding terminal M5 screw

Screw hole of EMC plate

A-7

Grounding terminal M5 screw

VFS9-2055PL/2075PL

4055PL/4075PL

R/L1 S/L2 T/L3 PO PA PB PC U/T1 V/T2 W/T3

Shorting-bar

VFS9-2110PM/2150PM

4110PL/4150PL

Screw hole of EMC plate

E6580757

M5 screw

Grounding terminal M5 screw

M6 screw

R/L1 S/L2 T/L3

PO PA

Shorting-bar

Screw hole of EMC plate

In case of the lug connector, cover the lug connector with insulated tube, or use the insulated lug connector.

PB PC U/T1 V/T2 W/T3

Grounding terminal M5 screw

A-8

2) Control circuit terminal board

The control circuit terminal board is common to all equipment.

E6580757

M3 screw

(0.5N･m)

FLA FLB FLC RY RC CC

Wire size Solid wire : 0.3 to 1.5(mm Stranded wire

: 0.3 to 1.5(mm

(AWG 22 to 16)

M2 screw (0.25N･m)

VIA VIB

PP II FM F R

Wire size Solid wire : 0.3 to 1.5(mm

)

Stranded wire : 0.3 to 1.25(mm

)

Sheath strip length : 5 (mm)

RST

S1 S2 S3 CC

)

(AWG 22 to 16)

)

OUT

P24

JP302

FMV

FMC

JP301A

Sheath strip length : 6 (mm)

See 2.3.2 for details on all terminal functions.

1.3.3 How to open the front (terminal board) cover

To wire the terminal board, remove the front lower cover in line with the steps given below

JP301

SOURCE

SINK

Case of SINK

JP301: Input JP301A: Output

Remove the screw at the right hand side of the front cover.

Pull and lift the front (terminal board) cover out toward you.

A-9

1.4 Notes on the application

1.4.1 Motors

When the VF-S9 and the motor are used in conjunction, pay attention to the following items.

Warning

Use an inverter that conforms to the specifications of the three-phase induction motor and power supply being used. If the inverter being used does not conform to those specifications, not only will the three-

Mandatory

phase induction motor not rotate correctly, but it may causes serious accidents through overheating and fire.

Comparisons with commercial power operation.

The VF-S9 Inverter employs the sinusoidal PWM system. However, the output voltage and output current do not assume a precise sine wave, they have a distorted wave that is close to sinusoidal waveform. This is why compared to operation with a commercial power there will be a slight increase in motor temperature, noise and vibration.

Operation in the low-speed area

When running continuously at low speed in conjunction with a general purpose motor, there may be a decline in that motor's cooling effect. If this happens, operate with the output decreased from rated load. If you want to run continuously low speed operations at rated torque, please use the VF motor made especially for Toshiba inverter. When operating in conjunction with a VF motor, you must change the inverter's motor overload protection level to "VF motor use (

E6580757

)".

Adjusting the overload protection level

The VF-S9 Inverter protects against overloads with its overload detection circuits (electronic thermal). The electronic thermal's reference current is set to the inverter's rated current, so that it must be adjusted in line with the rated current of the general purpose motor being used in combination.

High speed operation at and above 60Hz

Operating at frequencies greater than 60Hz will increase noise and vibration. There is also a possibility that such operation will exceed the motor's mechanical strength limits and the bearing limits so that you should inquire to the motor' s manufacturer about such operation.

Method of lubricating load mechanisms.

Operating an oil-lubricated reduction gear and gear motor in the low-speed areas will worsen the lubricating effect. Check with the manufacturer of the reduction gear to find out about operable gearing area.

A-10

Extremely low loads and low inertia loads

The motor may demonstrate instability such as abnormal vibrations or overcurrent trips at light loads of 50 percent or under of the load percentage, or when the load's inertia moment is extremely small. If that happens reduce the carrier frequency.

Occurrence of instability

Unstable phenomena may occur under the load and motor combinations shown below.

 Combined with a motor that exceeds applicable motor ratings recommended for the inverter  Combined with special motors such as explosion-proof motors

To deal with the above lower the settings of inverter carrier frequency. (Do not set to 2.2kHz or lower during vector control).  Combined with couplings between load devices and motors with high backlash In this case, set the S-pattern acceleration/deceleration function and adjust the response time (inertial moment setting) during vector control or switch to V/f control.  Combined with loads that have sharp fluctuations in rotation such as piston movements In this case, adjust the response time (inertial moment setting) during vector control or switch to V/f control.

Braking a motor when cutting off power supply

A motor with its power cut off goes into free-run, and does not stop immediately. To stop the motor quickly as soon as the powe r is cut off install an auxili ary brake. There are different kinds of brake devices, both electrical and mechanical. Select the brake that is best for the system.

E6580757

Loads that generate negative torque

When combined with loads that generate negative torque the protection for overvoltage and overcurrent on the inverter will go into operation and may cause a trip. For this kind of situation, you must install a dynamic braking resistor, etc. that complies with the load conditions.

Motor with brake

If a motor with brake is connected directly to the output side of the inverter, the brake will not release because voltage at startup is low. Wire the brake circuit separately from the motor's main circuits.

MC1

Three-phase power supply

FLB FLC ST CC

MC1

MC3

Circuit Configuration 1

MC2 (Non-exciting brake)

MC3

MC2

MC1

Three-phase power supply

Circuit Configuration 2

In circuit configuration 1, the brake is turned on and off through MC2 and MC3. If the circuit is confi g -

MC2

RY RC

MC2

A-11

ured in some other way, the overcurrent trip may be activated because of the locked rotor current when the brake goes into operation. Circuit configuration 2 uses low-speed signal RY to turn on and off the brake. Turning the brake on and off with a low-speed signal may be better in such applications as elevators. Please confer with us before designing the system.

1.4.2 Inverters

E6580757

Protecting inverters from overcurrent

The inverter has an overcurrent protection function. However because the programmed current level is set to the inverter's maximum applicable motor, if the motor is one of small capacity and it is in operation, the overcurrent level and the electronic thermal protection must be readjusted. If adjustment is necessary, see 5-14 in Chapter 5, and make adjustments as directed.

Inverter capacity

Do not operate a large capacity motor with a small capacity (kVA) inverter even with light loads. Current ripple will raise the output peak current making it easier to set off the overcurrent trip.

Power factor improving capacitors

Power factor improving capacitors cannot be installed on the output side of the inverter. When a motor is run that has a power factor improving capacitor attached to it, remove the capacitors. This can cause inverter malfunction trips and capacitor destruction.

Inverter

Remove the power factor improving capacitor and surge absorber

Power factor improving capacitor

Operating at other than rated voltage

Connections to voltages other than the rated voltage described in the rating label cannot be made. If a connection must be made to a power supply other than one with rated voltage, use a tr ansformer to raise or lower the voltage to the rated voltage.

A-12

E6580757

Circuit interrupti ng when two or more inverters are used on the same power line.

(circuit interupting fuse)

MCCB1

MCCB2

INV1

MCCB3

INV2

MCCBn+1

INVn

Breaking of selected inverter

There is no fuse in the inverter's main circuit. Thus, as the diagram above shows, when more than one inverter is used on the same power line, you must select interrupting characteristics so that only the MCCB2 will trip and the MCCB1 will not trip when a short occurs in the inverter (INV1). When you cannot select the proper characteristics install a circuit interrupting fuse between the MCCB2 and the INV1.

■ Disposal

If an inverter is no longer usable, dispose of it as industrial waste.

1.4.3 What to do about leak current

Warning

Current may leak through the inverter's input/output wires because of insufficient electrostatic capacity on the motor with bad effects on peripheral equipment. The leak current's value is affected by the carrier frequency and the length of the input/output wires. Test and adopt the following remedies against leak current.

(1)Effects of leak current across ground

Leak current may flow not just through the inverter system but also through ground wires to other systems. Leak current will cause earth leakage breakers, leak current relays, ground relays, fire alarms and sensors to operate improperly, and it will cause superimposed noise on the CRT screen or display of incorrect current amounts during current detection with the CT.

A-13

E6580757

Power supply

ELCB

Leak current path across gr oun d

Remedies:

1.Reduce PWM carrier frequency. The setting of PWM carrier frequency is done with the parameter .

2.Use high frequency remedial products (Schneider Toshiba electric corporation: Esper Mighty Series) for earth leakage breakers. If you use equipment like this, there is no need to reduce the PWM carrier frequency.

3.If the sensors and CRT are affected, it can be remedied using the reduction of PWM carrier frequency described in 1 above, but if this cannot be remedied since there is an increase in the motor's magnetic noise, please consult with Toshiba.

(2)Effects of leak current across lines

Inverter

Thermal relay

Power supply

Leak current path across wires

(1) Thermal relays

The high frequency component of current leaking into electrostatic capacity between inverter ou tput wires will increase the effective current values and make externally connected thermal relays operate improperly. If the wires are more than 50 meters long, it will be easy for the external thermal relay to operate improperly with models having motors of low rated current (several A(ampere) or less), especially the 400V class low capacity (3.7kW) models, because the leak current will increase in proportion to the motor rating.

Inverter

A-14

Remedies:

1.Use the electronic thermal built into the inverter. The setting of the electronic thermal is done using parameter , ( ).

2.Reduce the inverter's PWM carrier frequency. However, that will increase the motor's magnetic noise. Use parameter for setting the PWM carrier frequency.

3.This can be improved by installing 0.1µ~0.5µF-1000V film capacitor to the input/output terminals of each phase in the thermal relay.

Thermal relay

(2) CT and ammeter

If a CT and ammeter are connected externally to detect inverter output current, the leak current's high frequency component may destroy the ammeter. If the wires are more than 50 meters long, it will be easy for the high frequency component to pass through the externally connected CT and be superimposed on and burn the ammeter with models having motors of low rated current (several A(ampere) or less), especially the 400V class low capacity (3.7kW or less) models, because the leak current will increase in proportion to the motor's rated current.

E6580757

Remedies:

1.Use a meter output terminal in the inverter control circuit. The output current can be output on the meter output terminal (FM). If the meter is connected, use an ammeter of 1mAdc full scale or a voltmeter of 7.5V-1mA full scale.

2.Use the monitor functions built into the inverter. Use the monitor functions on the panel built into the inverter to check current values.

A-15

1.4.4 Installation

■ Installation environment

The VF-S9 Inverter is an electronic control instrument. Take full consideration to installing it in the proper operating environment.

E6580757

Prohibited

Mandatory

Prohibited

Mandatory

Prohibited

Danger

• Do not place any inflammable substances near the VF-S9 Inverter. If an accident occurs in which flame is emitted, this could lead to fire.

• Operate under the environmental conditions prescribed in the instruction manual. Operations under any other conditions may result in malfunction.

Warning

• Do not install the VF-S9 Inverter in any location subject to large amounts of vibration. This could cause the unit to fall, resulting in bodily injury.

Warning

(Table 1) Examples of applicable chemicals

Hydrochloric acid (density of 10% or less) Sulfuric acid (density of 10% or less) Nitric acid (density of 10% or less) Caustic soda Mesopropanol Ammonia Glycerin Sodium chloride (salt)

and solvents

Chemical Solvent

Methanol Ethanol Triol

Note: The plastic cover has resistance to deformation by the above applicable solvents. They are

not examples for resistance to fire or explosion.

(Table 2) Examples of inapplicable

Phenol Gasoline, Benzenesulfonic

acid

chemicals and solvents

Chemical Sol vent

kerosene , light oil Turpentine oil

Benzol Thinner

A-16

E6580757

• Do not install in any location of high temperature, high humidity, moisture condensation and freezing and avoid locations where there is exposure to water and/or where there may be large amounts of dust, metallic fragments and oil mist.

• Do not install in any location where corrosive gases or grinding fluids are present.

• Operate in areas where ambient temperature ranges from -10°C to 60°C. (Operation over 40°C is allowed when peel off the top warning label. And operation over 50°C is allowed when reduce to 70°C or less of rated current.)

5cm 5cm

Measurement position

Measurement

5cm

position

Note: The inverter is a heat-emitting body. Make sure to provide proper space and ventilation when install-

ing in the cabinet. When installing inside a cabinet, we recommend peel of the top seal although 40°C or less.

• Do not install in any location that is subject to large amounts of vibration.

Note: If the VF-S9 Inverter is installed in a location that is subject

to vibration, anti-vibration measures are required. Please consult with Toshiba about these measures.

• If the VF-S9 Inverter is installed near any of the equipment listed below, provide measures to insure against errors in operation.

Solenoids: Attach surge suppressor on coil. Brakes: Attach surge suppressor on coil . Magnetic contactors: Attach surge suppressor on coil. Fluorescent lights: Attach surge suppressor on coil. Resistors: Place far away from VF-S9 Inverter.

A-17

■ How to install

Prohibited

Mandatory

E6580757

Danger

• Do not install and operate the inverter if it is damaged or any component is missing. This can result in electric shock or fire. Please consult your local agency for repairs.

• Must be installed in nonflammables such as metals. The rear panel gets very hot so that if installation is in an inflammable object, this can result in fire.

• Do not operate with the front panel cover removed. This can result in electric shock.

• An emergency stop device must be installed that fits with system specifications (e.g. cuts off input

power then engages mechanical brakes). Operation cannot be stopped immediately by the inverter alone, thus risking an accident or injury.

• All options used must be those specified by Toshiba. The use of any other option may result in an accident.

Warning

• The main unit must be installed on a base that can bear the unit's weight. If the unit is installed on a base that cannot withstand that weight, the unit may fall resulting in injury.

• If braking is necessary (to hold motor shaft), install a mechanical brake. The brake on the inverter will not function as a mechanical hold, and if used for that purpose, injury may result.

■ Installation location

Select a location with good indoor ventilation, place lengthwise in the vertical direction and attach to a metal wall surface. If you are installing more than one inverter, the separation between inverters should be at least 5 centimeters, and they should be arranged in horizontal rows. If the inverters are horizontally arranged with no space between them (side-by-side installation), peel of the ventilation seals on top of the inverters and operate at 40°C or less (model of 3.7kW or less). Operate at 50°C or less (model of 5.5kW or more).

•••• Standard installation

10 centimeters or more

5 centimeters or more

The space shown in the diagram is the minimum allowable space. Because air cooled equipment has cooling fans built in on the top or bottom surfaces, make the space on top and bottom as large as possible to allow for air passage.

VFS9 VFS9 VFS9 VFS9

5 centimeters or more

10 centimeters or more

•••• Horizontal installation (side-by-side installation)

10 centimeters or more Remove seals on top

mbient temperature of 40°C or less (model of 3.7kW or less)

Ambient temperature of 50°C or less (model of 5.5kW or more).

A-18

E6580757

Note: Do not install in any location where there is high humidity or high temperatures and where there are

large amounts of dust, metallic fragments and oil mist. If you are going to install the equipment in any area that presents a potential problem, please consult with Toshiba before doing so.

■ Calorific values of the inverter and the required ventilation

The energy loss when the inverter converts power from AC to DC and then back to AC is about 5 percent. In order to suppress the rise in temperature inside the cabinet when this loss becomes heat loss, the interior of the cabinet must be ventilated and cooled.

The amount of forcible air cooling ventilation required and the necessary heat discharge surface quantity when operating in a sealed cabinet according to motor capacity are as follows.

Voltage Class

Single-Phase

200V Class

Single-Phase

200V Class

Three-Phase

400V Class

Operating motor

capacity

(kW)

0.2 2002PL 23 29 0.23 0.8

0.4 2004PL 47 60 0.29 1.0

0.75 2007PL 74 88 0.40 1.4

1.5 2015PL 142 169 0.60 2.1

2.2

0.2 2002PM 21 26 0.23 0.8

0.4 2004PM 43 54 0.29 1.0

0.75 2007PM 67 79 0.40 1.4

1.5 2015PM 131 150 0.60 2.1

2.2 2022PM 168 195 0.80 2.8

3.7 2037PM 330 374 1.2 4.3

5.5 2055PL 450 510 1.7 6.1

7.5 2075PL 576 635 2.3 8.1 11 2110PM 750 820 3.4 12.0 15

0.75 2007PL 44 57 0.40 1.4

1.5 2015PL 77 99 0.60 2.1

2.2 2022PL 103 134 0.80 2.8

3.7 2037PL 189 240 1.2 4.3

5.5 2055PL 264 354 1.7 6.1

7.5 2075PL 358 477 2.3 8.1 11 2110PL 490 650 3.4 12.0 15

Inverter Type

VFS9S-

2022PL 239 270 0.80 2.8

VFS9-

2150PM 942 1035 4.6 16.0

VFS9-

2150PL 602 808 4.6 16.0

Notes

1) The heat loss for the optional external devices (input reactor, DC reactor, radio noise reduction filters, etc.) is not included in the calorific values in the table.

2) Case of 100% Load Continuati on operation.

Calorific Values

Carrier

frequency

4kHz

Carrier

frequency

12kHz

Amount of forc i bl e air cooling ven ti l at i on re-

quired (m

/min)

Heat discharge surface area required for sealed

storage cabinet(m2)

■ Panel designing taking into consideration the effects of noise.

The inverter generates high frequency noise. When designing the control panel setup, consideration must be given to that noise. Examples of measures are given below.

• Wire so that the main circuit wires and the control circuit wires are separated. Do not place them in the

same conduit, do not run them parallel, and do not bundle them.

• Provide shielding and twisted wire for control circuit wiring.

• Separate the input (power) and output (motor) wires of the main circuit. Do not place them in the same

conduit, do not run them parallel, and do not bundle them.

• Ground the inverter gr ound terminals (

A-19

+ 168 hidden pages
