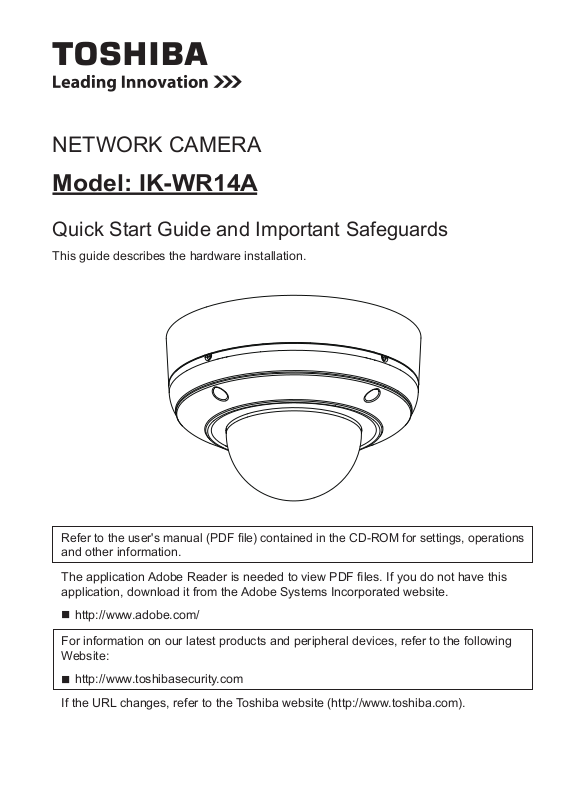

Page 1
NETWORK CAMERA
Model: IK-WR14A
Quick Start Guide and Important Safeguards
This guide describes the hardware installation.
Refer to the user's manual (PDF le) contained in the CD-ROM for settings, operations
and other information.
The application Adobe Reader is needed to view PDF les. If you do not have this
application, download it from the Adobe Systems Incorporated website.
http://www.adobe.com/
n
For information on our latest products and peripheral devices, refer to the following
Website:
http://www.toshibasecurity.com
n
If the URL changes, refer to the Toshiba website (http://www.toshiba.com).
Page 2
Introduction
FCC (USA)-INFORMATION
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
USER-INSTALLER CAUTION: Your authority to operate this FCC veried
equipment could be voided if you make changes or modications not expressly
approved by the party.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numé rique de la classe A est conforme à la norme
NMB-003 du Canada
22
Page 3
Thank you for purchasing the IK-WR14A Network Camera. Before using the
camera, read this quick start guide carefully to ensure correct usage. After reading
this quick start guide, save it for future reference.
The design, specications, software, and quick start guide contents are subject to
change without prior notice.
Terms and Trademarks
The term "OS" is used in this manual to indicate operating systems compatible
l
with this product.
-- Windows XP: Microsoft Windows XP operating system
-- Windows Vista: Microsoft Windows Vista Business operating system
-- Windows 7: Microsoft Windows 7 Professional operating system
The formal name of Windows is Microsoft Windows Operating System.
l
Microsoft, Windows and Windows Vista are trademarks or registered trademarks
l
of Microsoft Corporation in the United States and other countries.
Intel and Intel Core are trademarks or registered trademarks of
l
Intel Corporation or its subsidiaries in the United States and other
countries.
Adobe is a registered trademark and Adobe Reader is a trademark of Adobe
l
Systems Incorporated.
“ONVIF” and
l
Other product names appearing in this quick start guide may be trademarks or
l
registered trademarks of their respective holders.
are trademarks of ONVIF Inc.
NOTE
The performance of the network camera may vary depending on the network
l
environment.
3
Page 4
Table of Contents
Introduction 2
FCC (USA)-INFORMATION .......................................................................................2
Terms and Trademarks ..............................................................................................3
Table of Contents.............................................................................................. 4
Important Safeguards ....................................................................................... 5
Important Safeguards (Cont.) ........................................................................... 7
Notes on Use and Installation........................................................................... 8
Setting the Network Camera Environment ....................................................... 9
Items needed for network camera monitoring ...........................................................9
Contents ......................................................................................................... 10
Physical Description .......................................................................................11
Hardware Installation ..................................................................................... 13
Network Deployment ..................................................................................... 17
Assigning IP Address ...................................................................................... 19
Retrieving Images........................................................................................... 20
Adjusting the Lens .......................................................................................... 21
Dome cover .................................................................................................... 22
Adjusting the Zoom and Focus ....................................................................... 23
44
Page 5
Important Safeguards
1. Read Instructions
Read all the safety and operating instructions before operating the product.
2. Retain Instructions
Retain the safety instructions and user's manual for future reference.
3. Warnings
Comply with all warnings on the product and in the user's manual.
4. Follow Instructions
Follow all operating and use instructions.
5. Cleaning
Disconnect this camera from the power supply before cleaning.
6. Attachments
Do not use attachments not recommended by the camera manufacturer as they may pose
safety risks.
7. Accessories
Do not place this camera on an unstable cart, stand, tripod, bracket or table. The camera
may fall, causing serious injury to a person, or serious damage to the product. Use only
with stand, tripod,bracket,or table recommended by the manufacturer, or sold with the
camera. Any mounting of the product should follow the manufacturer's instructions, and
should use a mounting accessory recommended by the manufacturer.
8. Ventilation
This camera should never be placed near or over a radiator or heat register. If this product
is placed in a built-in installation, verify that there is proper ventilation so that the camera
temperature operates within the recommended temperature range.
9. Power Sources
This camera should be operated only from the type of power source indicated on the
information label. If you are not sure of the type of power supply at your location, consult
your product dealer.
10. Power-Cord Protection
Power cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them. Pay particular attention to cords at plugs, screws and
the point where they exit the product.
11. Installation
Install this camera on a secure part of the ceiling or wall. If installed on an unsecured
location, the camera could fall causing injury and damage.
5
Page 6
12. Lightning
For additional protection on this camera during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the power supply and cable system. This will prevent damage to the camera
due to lightning and power-line surges. If lightning occurs, do not touch the unit or any
connected cables in order to avoid electric shock.
13. Overloading
Do not overload the power supply or extension cords as this can result in a risk of re or
electric shock.
14. Object and Liquid Entry
Never push objects of any kind into this camera through openings as they may touch
dangerous electrical points or short-out parts that could result in a re or electrical shock.
Never intentionally spill liquid of any kind on the camera.
15. Servicing
Do not attempt to service this camera yourself as opening or removing covers may expose
you to dangerous electrical or other hazards. Refer all servicing to qualied service
personnel.
16. Damage Requiring Service
Disconnect this camera from the power supply and refer servicing to qualied service
personnel under the following conditions.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the camera.
c. If the camera has been submerged in water.
d. If the camera does not operate normally by following the operating instructions in the
user's manual. Adjust only those controls that are covered by the user's manual as
an improper adjustment of other controls may result in damage and will often require
extensive work by a qualied technician to restore the camera to its normal operation.
e. If the camera has been dropped or the cabinet has been damaged.
f. When the camera exhibiting a distinct change in performance which indicates a need for
service.
g. Other trouble.
17. Replacement Parts
When replacing parts, be sure the service technician uses parts specied by the
manufacturer or have the same characteristics as the original part. Unauthorized
substitutions may result in re, electric shock or other hazards.
18. Safety Check
Upon completion of any service or repairs to this camera, ask the service technician to
perform safety checks to determine that the camera is in proper operating condition.
66
Page 7
Important Safeguards (Cont.)
CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning ash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT SUBMERGE
THIS CAMERA IN WATER.
FIELD INSTALLATION MARKING:
WORDED: “THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE
PERSON AND SHOULD CONFORM TO ALL LOCAL CODES.”
This product is intended to be supplied by a Listed Power Adapter with LPS, reted
12V DC,0.85A minimum or 48V DC, 0.4A(for POE) minimum or 24V AC, 50-60Hz,
0.8A minimum.
7
Page 8
Notes on Use and Installation
Do not aim the camera at the sun
l
Never aim the camera at the sun even with the camera power off.
Do not shoot intense light
l
Intense light such as a spotlight may cause a bloom or smear. A vertical stripe
may appear on the screen. However, this is not a malfunction.
Treat the camera with care
l
Dropping or subjecting the camera to intense vibration may cause it to
malfunction.
Never touch internal parts
l
Do not touch the internal parts of the camera other than the parts specied.
Do not submerge in water
l
The camera has some protection to water (see IP rating), and can be used
indoors or outdoors. If the camera was submerged in water, turn off the power
and contact your dealer.
Keep the camera installation away from video noise
l
If cables are wired near electric lighting wires or a TV set, noise may appear in
images. In this event relocate cables or reinstall equipment.
Check the ambient temperature and humidity
l
Avoid using the camera where the temperature is hotter or colder than the
specied operating range. Doing so could affect the internal parts or cause the
image quality to deteriorate. Special care is required to use the camera at high
temperature and humidity.
Should you notice any trouble
l
If any trouble occurs while you are using the camera, turn off the power and
contact your dealer. If you continue to use the camera when there is something
wrong with it, the trouble may get worse and an unpredictable problem may
occur.
88
Page 9
Setting the Network Camera Environment
Items needed for network camera monitoring
Administrator's personal computer
l
The personal computer that allows setting, operating, monitoring and other
functions with the network camera is called the "administrator's personal
computer" in this guide.
* The personal computer for viewing monitored images is called the "user's
personal computer" in this quick start guide. The network camera can be
viewed by more than one personal computer at the same time.
Recommended personal computer system requirements:
l
-- Windows® XP, Windows Vista® Business, or Windows® 7 professional.
®
-- Internet Explorer
-- CPU: Intel
-- Memory: 1GB RAM or greater
Connection equipment such as LAN cables, and switch or router.
l
-- The LAN cable type differs depending on the connection method.
Camera search application "Installation Wizard"
l
-- Install this application from the CD-ROM supplied as an accessory (Double-click
"Setup.exe" in the CD-ROM and install the application by following the onscreen
instructions.)
-- This application is the tool to discover the IP address of a camera. Using this
application, the IP address of a camera can be easily determined.
Ver 8.0
®
Core2 Duo 2GHz or greater
99
Page 10
Package Contents
IK-WR14A
l
CD-ROM
l
Warranty Card
l
AV Out cable
l
Alignment Sticker/Mounting Plate
l
Quick Start Guide and Important
l
Safeguards
Waterproof Connector & Bushing
l
1010
Gasket, Torx Wrench, Silica Gel and
l
tape, Hex Nut , Screws and Anchors
Page 11
Physical Description
Camera Base
Dome Cover
Cover screws
Side Opening Cover
NOTE
Replace the side opening cover with
the supplied bushing if you want to
route cables from the side of camera.
The 1/2" (12.7mm) protection conduits
and tubing are not supplied.
1111
Page 12
CAMERA BASE
Front View
l
Lens
Mounting
screws
Status LED
Rear View
l
Micro SD/
SDHC Card
Slot
Recessed
Reset Button
DIP switch
Microphone
internal
external
Video Output
NTSC
60Hz
PAL
50Hz
1
IR LEDs
(SR-LED)
Light Sensor
Focus Button
Lens cover
Tilt adjustment
screws
General I/O
Terminal Block
1. GND
2. Power input (DC 12V)
3. Power input (AC 24V)
4. Power input (AC 24V)
5. Signal GND
6. Digital Input
7. Digital output
8. 12V DC Output
10/100BaseT
Ethernet Socket
MIC In
2
(Printed "AV Out")
Audio/Video Out
(Printed "Audio In")
NOTE
Fix microphone switch to the external, because IK-WR14A doesn't have built-in
microphone.
12
Page 13
Hardware Installation
First, use the supplied torx wrench to detach the dome cover from the camera
base. Then, follow the steps below to install the camera; either to a ceiling or to a
wall.
Bottom of the
Camera
NOTE
Record the MAC address under the
camera base before installing the
camera.
Cabling Assembly
Connect the appropriate power cables and external devices such as sensors and
alarms, to the general I/O terminal block.
Power and IO cables pass through a
Top View
waterproof connector. The Ethernet cable
should be routed through the supplied
gasket. All cables are user-supplied.
For Ethernet
Cable
For Power &
IO Cables
Operating environment:
PoE : –30 °C ~ +50 °C {–22 °F ~ 122 °F}
24V AC, 12V DC : -25°C ~ +50 °C {–13 °F ~
122 °F} *1
The operating temperature range changes
with kinds of power supply which uses this
camera.
*
1 When the camera is installed and
operated in low temperatures below –10 °C
{14 °F}, normal images may not be obtained
immediately after startup. In such a case,
wait until the camera warms up (taking
more than 1 hour) and start adjustment after
turning on the power again.
13
Page 14
Waterproof Connector
Sealing Nut (A)
Housing (B)
Seals (C)
Seal (D)
Screw Nut (E)
Hex Nut (F)
Assembling Steps
1. Di s a s s embl e th e co m p onen ts of th e
waterproof connector into parts (A) ~ (E) as
shown above. And Hex Nut is including in
the accessory separately.
2. Place the screw nut (E) as shown.
3. Fe ed th e po w e r cab le s th ro u g h th e
waterproof connector (F --> E --> D --> B -->
A) as the illustration shows. Then connect
the power cables to the power source. Note:
There are 8 holes on the seal (D), and the
widest holes with a crack on the side are
specic for power cables.
4. If you have exte rna l d evi ces such as
sensors and alarms, feed the cables through
Connecting RJ45 Ethernet Cable
RJ45 Cable Dimension (unit: mm)
Recommended cable gauge: 24AWG (0.51 mm)
Assembling Steps:
1
Gasket
(A)
(B)
(D)
(E)
(F)
the waterproof connector (F --> E --> D --> B
--> A) as previously described. Refer to the
pin denition to connect them to the general
I/O terminal block. Note: The recommended
cable gauge is 2.0 ~ 2.8 mm.
5. Push the seal (D) into the housing (B).
6. Insert the seals (C) into unused holes on the
seal (D) to avoid moisture.
7. Secure the sealing nut (A) tightly and hex nut
(F) from the bottom of the camera.
1. Drill a hole on the supplied gasket
and insert an Ethernet cable through
the opening.
141414
2. Strip part of the sheath from the Eth-
2
ernet cable.
Page 15
3
o: white/orange stripe
O: orange solid
g: white/green stripe
B: blue solid
b: white/blue stripe
G: green solid
br: white/brown stripe
BR: brown solid
4. Press the Ethernet cable into the routing path at the bottom of
the camera so that the cable will not get in the way when the
mounting plate is attached.
o
O
g
B
b
G
br
BR
1
2
3
4
5
6
7
8
3. You will need an RJ45 crimping tool to
attach the Ethernet wires to a connector. When done, connect the cable to
the camera’s Ethernet socket .
NOTE
l
RJ45 crimping tool and plug are not
included.
l
Use Category (Cat) 5e or higher cable.
4
Ceiling and Wall mount
Notes:
l
The included screws and anchors are used to install the
camera to a solid surface. (e.g. concrete) If installing on loose
or thin material surfaces , use the appropriate anchors (not
included) with the screws.
l
Generally point the status LED towards the object.
l
Install the camera securely.
1. Attach the supplied alignment sticker to the ceiling or wall.
2. Using the circle marks on the sticker, drill four pilot holes (Ø0.19inch×1.02inches(D)
(Ø4.8mm×26mm(D))) symmetrically on each side into the ceiling. Then hammer the four sup-
plied plastic anchors into the holes.
3. Through four holes on the mounting plate, insert the supplied screws into the corresponding
holes and secure the mounting plate with a screwdriver.
4. Drill a hole (Ø1.0inch(Ø25mm)) in the triangular cutout of mounting plate, and lead the cables
through this hole. (A)
5. Align the three mounting holes of the camera with the three studs on the mounting plate and
tighten them with a supplied torx wrench securely.
Cable installation
If possible, lead all cables behind the camera body through a wall or ceiling.
If this is not possible, remove the side opening cover with a screwdriver (B), and to route the
cables through the side. (Refer to the page 11.)
1
3
A
2
5
15
Page 16
1
3
2
5
A
B
CAUTION
Installation should be done only by qualied personnel and conform to all local codes.
l
Install this camera on a rm and solid part of the ceiling or wall.
l
If installed improperly or on a weak surface, the camera could fall causing injury and
damage.
16
Page 17
POWER
COLLISION
LIN
K
RECEIV
E
P
AR
TITIO
N
1
2
3
4
5
POWER
COLLISION
LIN
K
RECEIV
E
P
AR
TITIO
N
1
2
3
4
5
POWER
COL
LISION
LIN
K
RECEIV
E
PAR
TITION
1
2
3
4
5
POWER
COL
LISION
LIN
K
RECEIV
E
PAR
TITION
1
2
3
4
5
Network Deployment
Power over Ethernet (PoE)
l
When using a PoE-enabled switch
The camera is PoE-compliant, allowing transmission of power and data via single LAN
cable. See the following illustration to connect the camera to a PoE switch via LAN
cable.
Client PC
(not supplied)
PoE switch
(not supplied)
l
When using a non-PoE switch
Use a PoE power injector (not supplied) to connect between the camera and a non-PoE
switch.
PoE power injector
(not supplied)
non-PoE switch
(not supplied)
Client PC
(not supplied)
17
17
Page 18
General Connection (without PoE)
1. Connect the camera to an Ethernet switch via LAN cable.
2. Connect the power cable from a power unit (not supplied) to the appropriate port of
the general I/O terminal.
(See page 12).
3. Connect the PC to an Ethernet switch via Ethernet cable.
Ethernet switch
1
(not supplied)
LINK
RECEIVE
2
PARTITION
3
4
5
3
POWER
COLLIS
ION
1
Client PC
(not supplied)
2
AC 120V
AC24V or DC12V adapter
UL Listed Class 2 power supply (not supplied)
CAUTION
Recommended power cord is twisted pair line with a minimum wire size of 18 AWG.
l
The recommended power supply for this camera is 12 watts minimum.
l
When PoE is connected, don't supply AC24V or DC12V from the I/O
l
terminal.
Never input AC24V and DC12V at the same time.
l
18
1818
Page 19
Assigning IP Address
1. Install the "Installation Wizard" under the Software Utility directory from the CDROM.
2. The program will analyze your network environment. After your network is
analyzed, please click on the "Next" button to continue the program.
Installation
Wizard
3. The program searches for other Network Cameras on the same network.
4. After searching, the main installer window will pop up. Click on the MAC address
of the appropriate device to connect to the Network Camera.
00-02-D1-71-42-70 169.254.0.99 IK-WR12A
0002D 1714270
NOTE
If "Installation Wizard" does not nd the camera during the search, try turning off the
l
wireless LAN of a PC.
Installation Wizard can search the location of the Network Camera even though
l
DHCP is not used on the network. In this scenario, assign the camera a static
IP address because the IP address of the Network Camera has been assigned
169.254.*.* by default.
191919
Page 20
Retrieving Images
1. Access the Network Camera from the network.
2. Retrieve live video through Internet Explorer
For more information on camera conguration, please refer to user's
manual on the CD-ROM.
®
.
2020
Page 21
Adjusting the Lens
Based on the live image retrieved from the camera, adju st th e camera lens by
performing the following:
To adjust the viewing angle
1. Turn the lens module left and right.
2. Loosen the tilt adjustment screws on both side of the camera and then turn the lens
module up and down. Upon completion, tighten the screws.
3. Turn the lens cover to adjust the image orientation.
NOTE
Do not cover or block the IR LEDs or the light sensor with status LED board.
l
1
Pan 350
o
o
Tilt 81
orientation 350
DO NOT over rotate the lens. Doing
so wi ll d am ag e the camera len s
module
o
2
3
Monitoring on the television
This camera is able to output an analog NTSC or PAL video signal and sound from the
Audio/Video Out jack.
Adjustment of Viewing angle is possible using a portable monitor without using a
personal computer when installing.
Use the included AV Out cable for this purpose.
Focus button
When adjusting the viewing angle, the camera focus may shift.
In this case, push the focus button on the camera body for 2 seconds or more. The
zoom lens will move to a wide position and the focus will move to the optimal position.
NOTE
Depending on an object's conditions, the focus may not move to the optimal position.
l
In this case, focus the lens manually from your personal computer.
IMPORTANT:
Zoom and Focus adjustment is made via the Remote Focus function on
your web browser. There is no mechanical zoom or focus adjustment for the
camera.
2121
Page 22
Dome cover
1. Attach the dome cover to the camera and aligning with the mounting holes.
2. You will nd a silica gel bag attached to the dome cover.
Remove the supplied silica gel from the aluminum foil bag, and replace it to new silica
gel with supplied double-sided tape.
(Please replace the silica gel with a new one if you open the dome cover after
installation.)
3. Secure the four dome screws with the supplied torx wrench. Make sure all parts of
the camera are securely installed.
1
2
3
The supplied torx wrench is exclusively designed to match the dome screws. Do not
discard the torx wrench.
Treat silica gel bag with care. Do not tear the silica gel packge.
3
WARNING:
Keep the silica gel out of the reach of babies, infants, and children.
DO NOT EAT, HARMFUL IF SWALLOWED
2222
Page 23
Adjusting the Zoom and Focus
Access the Network Camera from the browser interface, and click the conguration
button onthe main page. Then click the following:
Audio and Video Image Zoom and Focus
To adjust the zoom factor and focus range
1. Use the Zoom slide bar to nd an optimal view of the area of interest where you want
to adjust its focus. Click and drag the double-triangle pointer to rapidly adjust the
zoom ratio. The Focus pointer moves with the Zoom pointer correspondingly.
2. Select Full view from the bottom of the screen.
3. Click to select the Fully-open iris check boxes. Selecting Full-range scan, a fullrange scan through the camera's entire focal length can take about 80 seconds. If
not, the focus scan will only go through the length where optimal focus may occur,
and that takes about 12 seconds.
4. Click on the START button, and wait for the scan to complete.
5. After a short time, the clearest image obtained should be displayed and the optimal
focus range is indicated by the densest color area on the color bar. Use the "N" or "F"
button to ne tune the focus if you are not satised with the results.
One-T ouch Focus
START
NOTE
The focus may shift due to the refractive index of the dome cover.
l
To avoid this, verify the zoom and focus from your personal computer after
installation.
(One-Touch Focus) Depending on an object's conditions, focus may not
l
move to the optimal position. In this case, adjust the focus manually via the browser.
For more information, please refer to user's manual on the CD-ROM.
l
2323
Page 24
