Printed in China
TOSHIBA DVD VIDEO RECORDER
D-R400
1VMN23530 / E7E7AUD
2007 Toshiba Corporation
DVD VIDEO RECORDER D-R400
D-R400
OPERATIONS
GUIDE
DVD VIDEO RECORDER
OWNER’S MANUAL
Disc
Management
Recording PlaybackIntroduction Connections Basic Setup Editing Function Setup Others
cover.indd2-3cover.indd2-3 2007/01/2918:03:312007/01/2918:03:31
2EN2EN
PRECAUTIONS
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device,
due to possible eye injury.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION:
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.
LOCATION: INSIDE, NEAR THE DECK MECHANISM.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION
:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in the manual. The
user could lose the authority to operate this equipment if an unauthorized change or modification is made.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
A NOTE ABOUT RECYCLING
This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance
with your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations
concerning chemical wastes.
For Customer Use:
Read carefully the information located at the back of this unit and enter below the Model No. and Serial No. Retain
this information for future reference.
Model No. _____________________
Serial No. _____________________
Make your contribution to the environment!!!
• Used up batteries do not belong in the dust bin.
• You can dispose of them at a collection point for used up batteries or special waste.
Contact your council for details.
The caution marking is located on the rear of the cabinet.
ATTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND
.
Laser Safety
E7E7AUDEN.indb2E7E7AUDEN.indb2 2007/01/2919:03:372007/01/2919:03:37
3EN 3EN
Disc
Management
Recording
Playback
Introduction
Connections Basic Setup
Editing Function Setup
Others
PRECAUTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
15. Do not overload wall outlets; extension cords, or integral
convenience receptacles as this can result in a risk of fire
or electric shock.
16. Never expose the apparatus to dripping or splashing or
place items such as vases, aquariums, any other item
filled with liquid, or candles on top of the unit.
17.
Keep your fingers well clear of the disc tray as it is closing.
Neglecting to do so may cause serious personal injury.
18. Do not place anything on top of this unit.
19. Do not place the apparatus on amplifiers or equipment
that may produce heat.
20. Never block or cover the slots or openings in the unit.
Never place the unit:
• on a bed, sofa, rug, or similar surface;
• too close to drapes, curtains, or walls; or
• in a confined space such as a bookcase, built-in cabinet,
or any other place with poor ventilation.
The slots and openings are provided to protect the unit
from overheating and to help maintain reliable operation.
21. Do not use a cracked, deformed, or repaired disc. These
discs are easily broken and may cause serious personal
injury and apparatus malfunction.
22. If the apparatus should emit smoke or an unusual odor,
immediately disconnect the power cord from the wall
outlet. Wait until the smoke or smell stops, then ask your
dealer for a check and repair. Neglecting to do so may
cause fire.
23. During thunderstorms, do not touch the connecting
cables or the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
E7E7AUDENIntroduction.indd3E7E7AUDENIntroduction.indd3 2007/01/2921:26:462007/01/2921:26:46
4EN4EN
PRECAUTIONS
The unauthorized recording, use, distribution, or revision
of television programs, videotapes, DVDs and other
materials, is prohibited under the copyright laws of the
United States and other countries, and may subject you
to civil and/or criminal liability.
This product incorporates copyright protection
technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright
protection technology must be authorized by
Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized
by Macrovision. Reverse engineering or disassembly is
prohibited.
Moisture condensation may occur inside the unit when it
is moved from a cold place to a warm place or after
heating a cold room or under conditions of high
humidity. Do not use this unit at least for 2 hours until its
inside gets dry.
Consumers should note that not all high definition
television sets are fully compatible with this product and
may cause artifacts to be displayed in the picture. In case
of picture problems with 525 progressive scan output, it
is recommended that the user switch the connection to
the “standard definition” output. If there are questions
regarding your TV set compatibility with this 525p DVD
recorder, please contact TACP’s Consumer Solution
Center.
For safety and optimum performance of this unit:
• Install the unit in a horizontal and stable position. Do
not place anything directly on top of the unit. Do not
place the unit directly on top of the TV.
• Shield it from direct sunlight and keep it away from
devices of intense heat. Avoid dusty or humid places.
Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes on
the sides of the unit. Avoid locations subject to strong
vibration or strong magnetic fields.
• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it
from AC outlet. Grasp it by the plug.
• If, by accident, water is spilled on this unit, unplug
the power cord immediately and take the unit to our
Authorized Service Center for servicing.
Supplied Accessories
remote control with batteries (AAx2)
RCA audio/video cables
owner’s manual
quick start guide
Installation Location
Avoid the Hazards of Electrical Shock and Fire
Moisture Condensation Warning
About Copyright
Notice for Progressive Scan Output
OWNER’S MANUAL
return stop sheet
E7E7AUDEN.indb4E7E7AUDEN.indb4 2007/01/2919:03:382007/01/2919:03:38
5EN 5EN
Disc
Management
Recording
Playback
Introduction
Connections Basic Setup
Editing Function Setup
Others
PRECAUTIONS
Servicing
• Please refer to relevant topics on “TROUBLESHOOTING”
on pages 96-99 before returning the product.
• If you need to call a customer service representative,
please know the model number and serial number of
your product before you call. This information is
displayed on the back of the product. Also, please take
a moment to identify the problem you are having, and
be prepared to explain this to the representative. If you
believe the representative will need to help you with
operations, please stay near the product. Our
representatives will be happy to assist you.
Cleaning The Cabinet
• Wipe the front panel and other exterior surfaces of the
unit with a soft, slightly damp cloth.
• Never use a solvent, thinner, benzene or alcohol to
clean the unit. Do not spray insecticide liquid near the
unit. Such chemicals may discolor the surface or
damage the unit.
Cleaning Discs
• When a disc becomes dirty, clean it with a cleaning
cloth. Wipe the disc from the center to out. Do not
wipe in a circular motion.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, detergent, abrasive
cleaning agents or antistatic spray intended for analog
records.
Cleaning The Disc Lens
• If this unit still does not perform properly although you
refer to the relevant sections and to
“TROUBLESHOOTING” in this owner’s manual, the laser
optical pickup unit may be dirty. Consult your dealer or
an Authorized Service Center for inspection and
cleaning of the laser optical pickup unit.
Disc Handling
• Handle the discs so that fingerprints and dust do not
adhere to the surfaces of the discs.
• Always store the disc in its protective case when it is
not used.
Maintenance
If the remote control does not work properly, you can test if
the remote control sends out the infrared signal with AM
radio or a digital camera (including built-in camera of cellular
phone). It will help to define the cause of malfunction.
• With an AM radio:
Tune an AM radio to a station with no
broadcasting. Press a button on remote
control toward the radio. Sound will be
fluttering when you press any key and the
radio receives the signal. This means the
remote control is working.
• With a digital camera (including built-in camera of
cellular phone):
Direct a digital camera to remote control,
press and hold a button on remote control. If
infrared light appears through digital camera,
the remote control is working.
IR Signal Check
Dolby Digital Recording
“Dolby® Digital Recording enables consumers to record
high-quality video with stereo sound on recordable DVD
discs. The technology, when utilized instead of PCM
recording, also saves recordable disc space, allowing for
higher video resolution or extended recording time on
each DVD. DVDs created using Dolby Digital Recording
will play back on all DVD-video players.”
Note: This is true when the players are compatible with
actual recordable DVD discs.
“WMA” (Windows Media Audio) is a new audio codec
developed by Microsoft® in the United States of America.
Manufactured under license from
Dolby Laboratories. “Dolby” and the
double-D symbol are trademarks of
Dolby Laboratories.
HDMI, the HDMI logo and HighDefinition Multimedia Interface
are trademarks or registered
trademarks of HDMI Licensing
LLC.
“DTS” and “DTS Digital Out” are registered trademarks of
DTS, Inc.
E7E7AUDEN.indb5E7E7AUDEN.indb5 2007/01/2919:03:392007/01/2919:03:39
6EN6EN
CONTENTS
Introduction
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Symbols Used in this Owner’s Manual . . . . . . . . . . . . . . .8
FUNCTIONAL OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing the Batteries in the Remote Control . . . . . . 12
Using a Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
GUIDE TO ON-SCREEN DISPLAYS AND MENUS . . . . 14
On-Screen Display / Menu . . . . . . . . . . . . . . . . . . . . . . . . . 14
Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
FRONT PANEL DISPLAY GUIDE . . . . . . . . . . . . . . . . . . . 17
Connections
CONNECTION TO A CABLE / SATELLITE BOX. . . . . . . 18
SETTINGS FOR THE VIDEO INPUT. . . . . . . . . . . . . . . . . 19
CONNECTION TO A TV . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CONNECTION TO A TV WITH AN HDMI™
COMPATIBLE PORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CONNECTION TO AN AUDIO SYSTEM . . . . . . . . . . . . . 23
Basic Setup
INITIAL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CLOCK SETTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Disc Management
FORMATTING A DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Choosing the Recording Format of a Brand-New
DVD-RW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Reformatting a Disc Manually . . . . . . . . . . . . . . . . . . . . . 27
PREPARING A DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Make Recording Compatible . . . . . . . . . . . . . . . . . . . . . . 28
Setting for Auto Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Recording Audio Select (XP) . . . . . . . . . . . . . . . . . . . . . . . 29
Setting Aspect Ratio for Video Mode Recording . . . . 29
SETTING A DISC TO PROTECT . . . . . . . . . . . . . . . . . . . . 30
PLAYING THE DISCS IN OTHER DVD PLAYERS . . . . . 31
Auto Finalizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Finalizing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Recording
INFORMATION ON DVD RECORDING . . . . . . . . . . . . . 34
Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Restrictions on Recording . . . . . . . . . . . . . . . . . . . . . . . . . 34
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
TIMER RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Hints for Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . 40
SETTINGS FOR AN EXTERNAL DEVICE . . . . . . . . . . . . 41
Connection to an External Device. . . . . . . . . . . . . . . . . . 41
Recording from an External Device . . . . . . . . . . . . . . . . 42
SATELLITE LINK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
DV DUBBING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Guide to DV and On-Screen Display . . . . . . . . . . . . . . . 45
DVC to DVD Dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
E7E7AUDEN.indb6E7E7AUDEN.indb6 2007/01/2919:03:392007/01/2919:03:39
7EN 7EN
Disc
Management
Recording
Playback
Introduction
Connections Basic Setup
Editing Function Setup
Others
CONTENTS
Playback
INFORMATION ON PLAYBACK . . . . . . . . . . . . . . . . . . . 48
Structure of Disc Contents. . . . . . . . . . . . . . . . . . . . . . . . . 48
BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Direct Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Playback from the Title List . . . . . . . . . . . . . . . . . . . . . . . . 50
Playing Back an Audio CD and a CD-RW/-R with MP3/
WMA/JPEG Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Playing Back a DivX® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Using the Title/Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . 55
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
SPECIAL PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Resume Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Fast Forward / Fast Reverse Playback . . . . . . . . . . . . . . 56
Skipping TV Commercials During Playback. . . . . . . . . 56
Rapid Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Step by Step Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Slow Forward / Slow Reverse Playback. . . . . . . . . . . . . 57
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Marker Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Chasing Playback during Recording . . . . . . . . . . . . . . . 59
Simultaneous Playback and Recording. . . . . . . . . . . . . 60
SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Title/Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Track Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Time Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
REPEAT/RANDOM/PROGRAM PLAYBACK/
SLIDE SHOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Program Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
SELECTING THE FORMAT OF AUDIO AND VIDEO . . 65
Switching Subtitles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Switching Audio Soundtrack . . . . . . . . . . . . . . . . . . . . . . 65
Switching Virtual Surround System . . . . . . . . . . . . . . . . 66
Switching Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . . 66
Reducing Block Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Adjusting Black Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Editing
INFORMATION ON DISC EDITING. . . . . . . . . . . . . . . . . 68
Guide to a Title List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Editing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
DELETING TITLES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
CREATING/DELETING PLAYLIST . . . . . . . . . . . . . . . . . . 71
Adding Titles to a Playlist. . . . . . . . . . . . . . . . . . . . . . . . . . 71
Erasing All Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
EDITING DISCS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Putting Names on Titles . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Setting Chapter Marks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Hiding Chapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Deleting a Part of a Title . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Dividing a Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Combining Titles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Setting or Releasing the Title Protection . . . . . . . . . . . 81
Setting or Clearing All Chapter Marks at Once. . . . . . 82
Function Setup
LIST OF THE DEFAULT SETTINGS . . . . . . . . . . . . . . . . . 83
GENERAL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
DivX® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Reset All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Others
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . 99
LANGUAGE CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
E7E7AUDEN.indb7E7E7AUDEN.indb7 2007/01/2919:03:392007/01/2919:03:39
8EN8EN
FEATURES
This unit not only plays back DVD and CD but also offers features for you to record on DVD and edit them after that.
The following features are offered with this unit.
This unit is compatible with recording on DVD-RW/+RW which
are recordable repeatedly and DVD-R, DVD+R which accept
the additional recordings until the disc becomes full but not
overwritable. You can choose either one for your convenience.
Up to 12 program recording:
You can program the unit to record up to 12 programs, with
in a month in advance. Daily or weekly program recordings
are also available.
One-touch timer recording (OTR):
You can easily set a recording time as you prefer. Every time
[REC I] is pressed during recording, the recording time
will be increased by 30 minutes up to 8 hours. The recording automatically stops when the recording time you set is
reached.
DV dubbing:
This function helps you to easily dub the contents of the
DVC (digital video camcorder) to DVD.
Automatic chapter mark setting:
Chapter marks will be put on recordings as you set before
attempting to record.
Automatic title menu making:
The unit creates title menu automatically when finalizing discs.
Automatic playlist making (VR mode DVD-RW):
The unit creates a playlist automatically after recording.
Automatic title finalizing (Video mode DVD-RW/-R,
DVD+R):
You can finalize discs automatically after finishing all timer
recordings or at the end of the disc space if you set this in
the main menu.
Left channel stereo recording:
This unit can record the sound of the left channel monaural
input as left and right channels automatically (the input
from the L2 jacks only).
Recording
Deleting titles:
You can delete titles which you do not need anymore.
Setting or clearing chapter marks:
You can set or clear chapter marks on titles.
Hiding chapters:
To keep others from playing back some chapters without
permission, you can hide chapters.
Deleting parts of titles:
You can delete a specific part of a title.
Editing
Theater surround sound in your home:
When connecting the unit to an amplifier or a decoder which
is compatible with Dolby Digital or DTS, you can experience
the theater surround sound from discs with surround sound
system.
Quick search for what you want to watch:
You can easily find the part you want to watch using the
search function. Search for a desired point on a disc by title,
chapter/track or time.
Virtual surround system:
You can enjoy stereophonic space through your existing 2
channel stereo system.
Playing back on MP3/WMA/JPEG/DivX® files:
You can enjoy MP3/WMA/JPEG/DivX® files which are recorded on CD-RW/-R.
DivX® files can also be recorded on DVD-RW/-R and
DVD+RW/+R.
Playback
Available for playing back discs on a regular DVD player:
Recorded discs can be played back on regular DVD players,
including computer DVD drives compatible with DVD-video
playback. Although DVD+RW/+R are playable on other units
without finalization in most cases, it is recommended to
finalize in order to stabilize the performance.
Compatibility
Progressive scan system
Unlike conventional interlace scanning, the progressive scan
system provides less flickering and images in higher
resolution than that of traditional television signals.
HDMI (High-Definition Multimedia Interface)
You can enjoy clearer audio/video output when connecting
this unit to a display device with an HDMI-compatible port.
Line through output
When an external device, such as cable/satellite box is
connected to L1(Rear) jacks of this unit, the signal from the
external device can be output even when the power of the
unit is off.
Others
Symbols Used in this Owner’s Manual
To specify for what disc type each function is, we put the
following symbols at the beginning of each item to operate.
* DVD-R recorded in VR format or non compatible recording
format are not playable.
Dividing or combining titles:
You can divide or combine a title.
Editing title names:
You can change the title name you prefer.
Symbol
For Recording, Playing Back, and Editing
For Playback only
Description
Description refers to DVD-RW in video mode
Description refers to DVD-R in video mode
Description refers to audio CD
Description refers to CD-RW/-R with MP3 files
Description refers to DVD-RW in VR mode
Description refers to CD-RW/-R with WMA files
Description refers to CD-RW/-R with JPEG files
Description refers to DVD-RW/-R, DVD+RW/+R
and CD-RW/-R with DivX® files
Description refers to DVD-video
Description refers to DVD+RW
Description refers to DVD+R
If you do not find any of the symbols listed above under
the function heading, the operation for the media is not
applicable.
E7E7AUDEN.indb8E7E7AUDEN.indb8 2007/01/2919:03:402007/01/2919:03:40
9EN 9EN
Disc
Management
Recording
Playback
Introduction
Connections Basic Setup
Editing Function Setup
Others
FEATURES
Discs for Recording, Playing back
Disc type DVD-RW DVD-R DVD+RW DVD+R
Logo
Format
Can be formatted in VR or video
mode
Automatically
formatted in
video mode
Automatically
formatted in
+VR mode
Automatically
formatted in
+VR mode
Video Mode VR Mode
Icon
Maximum record
time
480 min (12cm)
144 min (8cm)
480 min (12cm)
144 min (8cm)
480 min (12cm)
144 min (8cm)
480 min (12cm)
144 min (8cm)
480 min (12cm)
144 min (8cm)
Recordable/playable
versions
Ver.1.1,1.2
Ver.1.1/2× CPRM compatible
Ver.1.2/4× CPRM compatible
Ver.2.0
Ver.2.0/4×
Ver.2.0/8×
Ver2.0/16×
1×-4× 1×-16×
Compatibility
Playable on
most DVD
players.
Finalization
necessary.
(DVD menu will
be created)
Playable only
on VR mode
compatible unit.
Finalization
recommended.
Playable on
most DVD
players.
Finalization
necessary.
(DVD menu will
be created)
Playable on
DVD+RW
compatible
players.
Finalization
recommended.
(DVD menu will
be created)
Playable on
most DVD
players.
Finalization
recommended.
(DVD menu will
be created)
Available Features
Recording Features
Record TV
programmes
✓✓✓✓✓
Reuse by deleting
the current
contents
✓✓
\
✓
Record 16:9 size
pictures
✓✓✓
Record copy-once
programmes
✓*
Create chapters
at fixed intervals
(auto chapter)
✓✓✓✓✓
Editing Features
Playlist
Original
Scene delete
✓✓
Edit title name
✓✓✓✓✓✓
Create chapters
wherever you like
(chapter mark)
✓✓ ✓ ✓
Divide a title
✓✓
Combine titles
✓
Hide chapters
✓✓
Delete a title
✓✓✓✓✓✓
Create a
playlist
✓
Protect a title
✓
✓: Available Gray: Not available
*CPRM compatible disc only.
E7E7AUD_EN.indb 9E7E7AUD_EN.indb 9 2007/01/31 11:55:302007/01/31 11:55:30
10 EN10 EN
Discs for playing back
Disc Type DVD-VIDEO CD-DA CD-RW CD-R
Logo
Icon
Files for playing back
Type of title MP3 WMA JPEG DivX®
Icon
Media CD-RW/-R CD-RW/-R CD-RW/-R
CD-RW/-R
DVD-RW/-R
DVD+RW/+R
is a trademark of DVD Format/Logo Licensing Corporation.
DivX, DivX Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
• Official DivX® Certified product; Plays DivX® 6.0, DivX® 5,
DivX® 4, DivX® 3, and DivX®VOD video content (in
compliance with DivX Certified™ technical requirements).
• Discs containing the DivX® files with the DivX® GMC (Global
Motion Compensation) playback feature, which is DivX®
supplemental function, cannot be played back on this unit.
* This unit cannot play back the disc contents protected
by Windows Media Digital Rights Management (DRM).
DVD is recorded in different color systems throughout
the world. The most common color system is NTSC
(which is used primarily in the United States and Canada).
This unit uses NTSC, so DVD you play back must be
recorded in the NTSC system. You cannot play back DVD
recorded in other color systems.
Color Systems
This unit has been designed to play back DVD
with region 1. DVD must be labeled for ALL
regions or for region 1 in order to play back on
the unit. You cannot play back DVD that are
labeled for other regions. Look for the symbols
on the right on your DVD. If these region
symbols do not appear on your DVD, you cannot
play back the DVD in this unit.
Region Codes
The following discs will not play back on this unit.
• CD-ROM • Compact Disc-Interactive (CD-I)
• Video Single Disc (VSD) • DVD-ROM
• DVD-audio • Unfinalized disc
• DVD contains MP3, WMA or JPEG files
• DVD-R recorded in VR format or non compatible
recording format
On the following disc, the sound may not be heard.
• Super audio CD - Only the sound on the CD layer can be
heard. The sound on the high-density super audio CD
layer cannot be heard.
Unplayable Discs
The number inside the globe refers to region of the world.
A DVD labeled for a specific region can only play back on
the unit with the same region code.
• Toshiba is not liable for any damage or loss caused directly
or indirectly by the malfunction of this recorder, including,
without limitation, any one of the following:
• Failure to record contents intended to be recorded by
the consumer.
• Failure to edit contents as intended by the consumer.
• When a DVD-RW/-R, DVD+RW/+R disc created on this
recorder is used (e.g., insertion, playback, recording or
editing) in another DVD player, recorder or personal
computer drive.
• When a DVD-RW/-R, DVD+RW/+R disc that is used in
the manner described in the immediately preceding
bullet point is used again in this recorder.
• When a DVD-RW/-R, DVD+RW/+R disc that was
recorded in another DVD recorder, or in a personal
computer drive is used in this recorder.
•
Some functions may not work with personal computer discs.
• Discs recorded in this recorder may not operate as expected
on other DVD players, recorders or personal computer
drives.
Because of problems and errors that can occur during the
creation of DVD and CD software and/or the manufacture
of DVD and CD discs, Toshiba cannot assure that this DVD
Video Recorder will successfully play every disc bearing the
DVD and CD logos. If you happen to experience any
difficulty playing a DVD and/or CD disc on this DVD Video
Recorder, please contact Toshiba Customer Service.
DVD players with
are capable of playing DVD-RW
recorded in VR mode.
Following discs are recommended for good recording
quality and are proven to be compatible with this unit.
However, depending on the media condition, the unit
may not read the disc properly.
Verbatim DVD+R 8x, DVD+RW 4x, DVD-R 8x, DVD-RW 2x
JVC DVD-RW 4x
Maxell DVD+R 4x/8x/16x, DVD-R 8x/16x
SONY DVD+R 4x/8x/16x, DVD+RW 4x
TDK DVD+R 4x/8x/16x
Performance of any other discs are not guaranteed.
FEATURES
E7E7AUDEN.indb10E7E7AUDEN.indb10 2007/01/2919:03:412007/01/2919:03:41
11EN 11EN
Disc
Management
Recording
Playback
Introduction
Connections Basic Setup
Editing Function Setup
Others
FUNCTIONAL OVERVIEW
Front Panel
(*) The unit can also be turned on by pressing these buttons.
1. I/y ON/STANDBY button
Press to turn the unit on and off.
If timer programmings have been set, press to set the
unit in timer-standby mode.
2. Disc tray
Place a disc when the disc tray is opened.
3. A OPEN/CLOSE button*
Press to open or close the disc tray.
4. Infrared sensor window
Receive signals from your remote control so that you
can control the unit from a distance.
5. H (SKIP) button
During playback, press once midway through a
chapter or track to go back to the beginning of the
current chapter or track. When pressed twice in quick
succession, playback will start from the preceding
chapter or track.
During playback, press and hold for 1.5 seconds to
fast reverse.
When playback is paused, press to play back reverse
step by step.
When playback is paused, press and hold for 1.5
seconds to slow reverse.
6. G (SKIP) button
During playback, press to skip to the next chapter or track.
During playback, press and hold for 1.5 seconds to
fast forward.
When playback is paused, press to play back advance
step by step.
When playback is paused, press and hold for 1.5
seconds to slow foward.
7. Display
Refer to “FRONT PANEL DISPLAY GUIDE” on page 17.
8. HDMI indicator
Lights up and indicates the HDMI output mode when
HDMI output is on.
9. DV IN jack (L3)
Use to connect the DV output of external device with
a DV cable.
10. AUDIO input jacks (L2)
Use to connect external device with a RCA audio
cable.
11. VIDEO input jack (L2)
Use to connect external device with a RCA video
cable.
12. S-VIDEO input jack (L2)
Use to connect the S-video output of external device
with an S-video cable.
13. I REC button
Press once to start a recording. Press repeatedly to
start one-touch timer recording.
14. B PLAY button*
Press to start or resume playback.
15. C STOP button
Press to stop playback or recording.
1080p
RECPLAYSTOPSKIP
1080i 720p 480p
DVD -RW/R +RW/R RECORDING
I/y
OPEN/CLOSE
ON/STANDBY
S-VIDEO VIDEO L R DV IN
L2
12
3* 5 6
9101112
15
14* 13
4
78
Rear Panel
IN OUT
Y
PR/CR
PB/CB
L
R
L
R
VIDEOINVIDEO
OUT
S-VIDEO
AUDIO IN
(L1)
S-VIDEO
AUDIO OUT
COAXIAL
HDMI OUT
COMPONENT
VIDEO OUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
3
5
7
69 810
21 4
1. VIDEO IN jack (L1)
Use to connect external device with a RCA video
cable.
2. VIDEO OUT jack
Use to connect a TV monitor, AV receiver or other
device with a RCA video cable.
3. COMPONENT VIDEO OUTPUT jacks
Use to connect a TV monitor with component video
inputs with a component video cable.
4. HDMI OUT jack
Use an HDMI cable to connect to a display with an
HDMI compatible port.
5. AC Power Cord
Connect to a standard AC outlet to supply power to
this unit.
6. COAXIAL DIGITAL AUDIO OUTPUT jack
Use to connect an AV receiver, Dolby Digital decoder,
DTS decoder or other device with a digital audio
coaxial input jack with a digital audio coaxial cable.
7. S-VIDEO OUT jack
Use to connect the S-video input of a TV monitor, AV
receiver or other device with an S-video cable.
8. AUDIO OUT jacks
Use to connect a TV monitor, AV receiver or other
device with a RCA audio cable.
9. S-VIDEO IN jack (L1)
Use to connect the S-video output of external device
with an S-video cable.
10. AUDIO IN jacks (L1)
Use to connect external device with a RCA audio
cable.
Note
• Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
E7E7AUDEN.indb11E7E7AUDEN.indb11 2007/01/2919:03:432007/01/2919:03:43
12 EN12 EN
FUNCTIONAL OVERVIEW
Remote Control
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TIMER
PROG.
SATELLITE
LINK
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
2*
3
18
17
19
21
23
24
25
20
28
30
26
27
29
22
4
5
7
12
13
8
10
6
9
11*
14
1
15
16
Installing the Batteries in the Remote
Control
Keep in mind the following when using the remote
control:
• Make sure that there are no obstacles between the remote
control and the infrared sensor window on the unit.
• Remote operation may become unreliable if strong
sunlight or fluorescent light is shining on the infrared
sensor window of the unit.
• Remote control for different devices can interfere with
each other. Avoid using remote control for other device
located close to the unit.
• Replace the batteries when you notice a fall off in the
operating range of the remote control.
• The maximum operable ranges from the unit are as
follows.
- Line of sight: approx. 23 feet (7m)
- Either side of the center:
approx. 23 feet (7m) within 30°
Install the batteries (AAx2) matching the polarity
indicated inside battery compartment of the remote
control.
Caution:
Never throw batteries into a fire.
Note:
• Be sure to use AA size batteries.
• Dispose of batteries in a designated disposal area.
• Batteries should always be disposed of with the
environment in mind. Always dispose of batteries in
accordance with applicable laws and regulations.
• If the remote control does not operate correctly, or if
the operating range becomes reduced, replace
batteries with new ones.
• When necessary to replace batteries in the remote
control, always replace both batteries with new ones.
Never mix battery types or use new and used
batteries in combination.
• Always remove batteries from remote control if they
are dead or if the remote control is not to be used for
an extended period of time. This will prevent battery
acid from leaking into the battery compartment.
Using a Remote Control
DVD VIDEO RECORDER D-R400 DVD VIDEO RECORDER D-R400
23feet (7m)
30˚
23feet (7m)
30˚
23feet (7m)
1
Open the cover.
2
Insert batteries.
Make sure to match + and - on the batteries to
the marks indicated in the battery compartment.
3
Close the cover.
E7E7AUDEN.indb12E7E7AUDEN.indb12 2007/01/2919:03:432007/01/2919:03:43
13EN 13EN
Disc
Management
Recording
Playback
Introduction
Connections Basic Setup
Editing Function Setup
Others
FUNCTIONAL OVERVIEW
(*) The unit can also be turned on by pressing these buttons.
1. INPUT SELECT
button
Press to select the appropriate input.
2. OPEN/CLOSE A button*
Press to open or close the disc tray.
3. Number/Character buttons
• Press to select a title/chapter/track/file on display.
• Press to enter values for the settings in the main
menu.
• Press to enter title names.
4. SETUP button
• Press to display the main menu.
• During DVD playback, press and hold for more than
3 seconds to switch the progressive scanning mode
to the interlace mode.
5. TOP MENU button
Press to display the title list.
6. Cursor K / L / { / B buttons
Press to select items or settings.
7. CLEAR button
Press to clear the password once entered, to cancel
the programming for CD, to clear the selecting marker number in the display menu, etc.
8. SKIP H button
• During playback, press to return to the beginning of
the current chapter, track or file.
• When playback is in pause, press repeatedly to
reverse the playback step by step.
9. REV E button
• During playback, press to fast reverse playback.
• When playback is in pause, press to slow reverse
playback.
10. PAUSE F button
Press to pause playback or recording.
11. PLAY B button*
Press to start playback or resume playback.
12. TIME SLIP button
Press once to start recording the TV program you are
watching. Press again to watch the content being
recorded from the beginning while recording continues. (VR mode DVD-RW with the recording mode of
LP, EP or SLP only)
13. REPEAT button
Press to display the repeat menu.
14. REC MODE button
Press to switch the recording mode.
15. HDMI button
Press to set the HDMI connector’s video signal out-
put mode.
16.
I/y
ON/STANDBY button
Press to turn the unit on and off. If timer program-
mings have been set, press to set the unit in timerstandby mode.
17. SATELLITE LINK button
Press to call up the Satellite Link setting.
18. TIMER PROG. button
Press to display the timer programming list.
19. AUDIO
button
• Press to display the audio menu during playback.
20. DISPLAY button
Press to display the display menu on or off.
21. MENU/LIST button
Press to display the disc menu. To change original
and playlist on the TV screen.
22. ENTER button
Press to confirm or select menu items.
23. RETURN
button
Press to return to the previous displayed menu
screen.
24. SKIP G button
• During playback, press to skip to the next chapter,
track or file.
• When playback is in pause, press repeatedly to forward the playback step by step.
25. FWD D button
• During playback, press to fast forward playback.
• When playback is in pause, press to slow forward
playback.
26. STOP C button
• Press to stop playback or recording.
• Press to exit from the title list.
27. INSTANT SKIP button
During playback, press to skip 30 seconds.
28. 1.3x/0.8x PLAY button
During playback, press to play back in a slightly
faster/slower while keeping the audio quality just as
normal playback.
29. ZOOM button
During playback, press to enlarge the picture on the
TV screen.
30. REC I button
• Press once to start a recording.
• Press repeatedly to start the one-touch timer
recording.
E7E7AUDEN.indb13E7E7AUDEN.indb13 2007/01/2919:03:442007/01/2919:03:44
14 EN14 EN
1/ 5 1/ 5
-
RW VR ORG
0:01:00 / 1:23:45
SP 1:53
L1
25
6 16133
474
* This is an example screen only
for explanation.
1. Indicates a disc type and format mode.
2. Indicates a type of titles for VR mode DVD-RW .
3. Indicates the external input position.
4. Indicates a recording mode and possible recording
time left.
5. Indicates a title number, chapter number, elapsed time
and total time of disc playback.
6. Each icon means:
: Search
: Audio
: Subtitle
: Angle
: Repeat
: Marker
: Noise Reduction / Black Level
: Zoom
: Surround
7. Indicates an operation status.
Note
• In some descriptions on this manual, only one disc
type is indicated as an example.

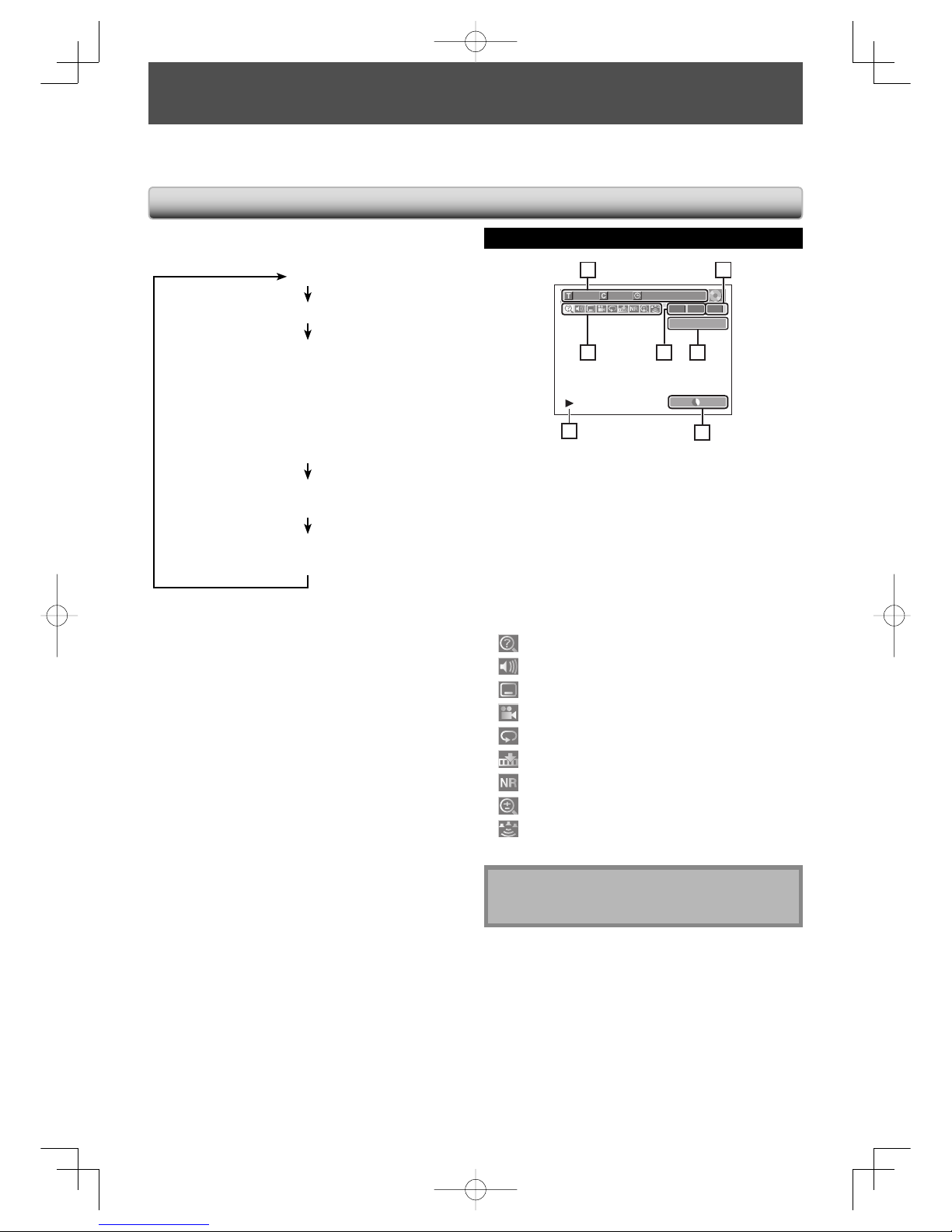

This unit uses the following on-screen displays and menus to guide you to the easy operations.
The on-screen displays give you the information on the loaded disc, the disc/file in playback, or the HDMI status, etc.
The menus allow you to change the various kinds of settings for playing back, recording, or editing to suite your preference.
On-Screen Display / Menu
GUIDE TO ON-SCREEN DISPLAYS AND MENUS
Disc Information / Menu
The on-screen display changes in the following order
as you press [DISPLAY].
OFF
Disc Information/Menu
Title Name Information
(only when DVD+RW/+R, VR mode DVD-RW/-R, or
unfinalized Video mode DVD-RW/-R is in playback)
or
File Name Information
(only when a CD with MP3/WMA/
JPEG/DivX® files is in playback)
WMA Tag Information
(only when a WMA file is in playback)
HDMI Information
(only for the images output through the HDMI output)
E7E7AUDEN.indb14E7E7AUDEN.indb14 2007/01/2919:03:442007/01/2919:03:44
15EN 15EN
Disc
Management
Recording
Playback
Introduction
Connections Basic Setup
Editing Function Setup
Others
1. Indicates artist/title information
• First, artist name will be displayed.
Artist Name
• If you press [DISPLAY] one more time, title name will
be displayed.
Track Name
• If there is no artist or track name, “Not Available” will
be displayed.
WMA Tag Information
Video Info. : 480p / YCbCr
Audio Info. : Bitstream
21
343
*1. Indicates the resolution of the HDMI output image.
*2. Indicates the HDMI video format.
*3. Indicates the HDMI audio format.
4. Indicates current disc status.
* “- - -” will be displayed, when it does not have any
information.
HDMI Information
GUIDE TO ON-SCREEN DISPLAYS AND MENUS
1. Displays title/file name.
Title name information
Title Name
My Title
1
File name information
File Name
My File
1
Title/File Name Information
E7E7AUDEN.indb15E7E7AUDEN.indb15 2007/01/2919:03:442007/01/2919:03:44
16 EN16 EN
1. Format (DVD-RW, DVD+RW only):
Allows you to format the disc.
2. Finalize:
Allows you to finalize a disc containing recorded titles.
3. Disc Protect (VR mode DVD-RW, DVD+RW/+R only):
Allows you to protect a disc from accidental editing or
recording.
4. Delete All Playlists (VR mode DVD-RW only):
Allows you to delete playlist.
5. Random Play:
Allows you to activate the random playback feature.
6. Program Play: (Audio CD only)
Allows you to activate the program playback feature.
7. Slide Show: (JPEG files only)
Allows you to select the display time of the slide show
mode.
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlists
1
2
3
4
1
2
3
4
<DVD Menu menu>
CD Playback Mode
Random Play
Program Play
Slide Show
1
2
3
5
6
7
<CD Playback Mode menu>
GUIDE TO ON-SCREEN DISPLAYS AND MENUS
Main Menu
Press [SETUP] to display the main menu. Then use
[K / L] to select a menu and press [ENTER] to display the
menu. These menus provide entries to all main functions
of the unit.
1. General Setting:
To go to general setting menu.
2. Timer Programming:
To program a timer recording.
3. Title List:
To call up the title list.
4. DVD Menu:
To set up the DVD setting.
5. CD Playback Mode:
To set up the CD playback setting.
• “CD Playback Mode” is available only when an audio
CD, a CD-RW/-R with MP3 / WMA / JPEG.
Setup
Timer Programming
Title List
DVD Menu
CD Playback Mode
General Setting
1
2
3
4
5
1
2
3
4
5
DVD Menu / CD Playback Mode
General Setting Menu
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
1
2
3
4
5
2
3
4
5
1
2
3
4
5
6
7
8
1. Playback:
To set up the unit to play back discs as you prefer.
2. Display:
To set up the OSD screen as you prefer.
3. Video:
To set up the video setting.
4. Recording:
To set up the unit to record to discs as you prefer.
5. Clock:
To set up the clock of the unit as you need.
6. DivX:
To set up the setting for the DivX® playback.
7. HDMI:
To set up the HDMI connection setting.
8. Reset All:
To reset the setting to the factory default.
E7E7AUDEN.indb16E7E7AUDEN.indb16 2007/01/2919:03:452007/01/2919:03:45
17EN 17EN
Disc
Management
Recording
Playback
Introduction
Connections Basic Setup
Editing Function Setup
Others
FRONT PANEL DISPLAY GUIDE
PM
1
4
2
3
1.
: Appears in the afternoon
with the clock display.
2. Title/Track and chapter mark
: Appears when indicating a
title/track number.
: Appears when indicating a
chapter number.
3. Current status of the unit
: Appears when playback is
paused.
: Appears when playing
back a disc.
: Appears when the timer
programming or OTR has
been set and is
proceeding.
: Flashes when all timer
recordings have been
finished.
: Appears during recording
process.
: Flashes when a recording
pauses.
: Appears when a disc is in
this unit.
4. Displays the following
• Elapsed playback time
• Current title / chapter / track
number
• Recording time / remaining time
• Clock
• Selected external input position
• Remaining time for one-touch
timer recording
• Selected HDMI OUTPUT mode
Appears when data is being
recorded on a disc.
Appears when a disc is loaded
on the disc tray.
Appears when the disc tray is
closing.
Appears when the disc tray is
opening.
Display Message
Appears when HDMI output
mode (720p) is selected.
Appears when HDMI output
mode (1080p) is selected.
Appears when HDMI output
mode (480p) is selected.
Appears when HDMI output
mode (1080i) is selected.
E7E7AUDEN.indb17E7E7AUDEN.indb17 2007/01/2919:03:452007/01/2919:03:45
18 EN18 EN
CONNECTION TO A CABLE / SATELLITE BOX
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
3) Plug in the power cords of the devices to the AC outlet.
Note
• Required cables and connecting methods differ depending on the cable/satellite box.
For more information, please contact your cable/satellite provider.
• Instead of using VIDEO OUT jack of this unit, you can also use S-VIDEO OUT jack, COMPONENT VIDEO OUTPUT
jack, or HDMI OUT jack (no AUDIO OUT jack connection required) for connecting to your TV.
With this setup:
• You can record any unscrambled channel by selecting the channel on the cable/satellite box. Be sure that the
cable/satellite box is turned on.
• Signal from the cable/satellite box can be output even when the power of the unit is off.
• You cannot record one channel while watching another channel.
IN OUT
Y
PR/CR
PB/CB
LRL
R
VIDEOINVIDEO
OUT
S-VIDEO
AUDIO IN
(L1)
S-VIDEO
AUDIO OUT
COAXIAL
HDMI OUT
COMPONENT
VIDEO OUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
ANT. IN
AUDIO IN
RL
VIDEO IN
AUDIO OUT
RL
VIDEO
OUT
S-VIDEO
OUT
OUTIN
IN OUT
Y
PR/CR
PB/CB
L
R
L
R
VIDEOINVIDEO
OUT
S-VIDEO
AUDIO IN
(L1)
S-VIDEO
AUDIO OUT
COMPONENT
VIDEO OUT
RCA audio
cable
RCA audio cable
RCA video cable
RCA video cable
S-video cable
RF coaxial cable
or
rear of your TV
cable/satellite box
rear of this unit
RF coaxial cable
satellite
dish
e.g.)
cable TV
company
or
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Note to CATV system installer
• This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electrical
Code, which provides guidelines for proper grounding - in particular, specifying that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as possible.
E7E7AUDEN.indb18E7E7AUDEN.indb18 2007/01/2919:03:472007/01/2919:03:47
19EN 19EN
Disc
Management
Recording
PlaybackIntroduction
Connections
Basic Setup
Editing Function Setup
Others
SETTINGS FOR THE VIDEO INPUT
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SETUP
You must let the unit know which video input jack you are using before making a recording.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
“General Setting” menu will appear.
2
Use [K / L] to select “Video”, then
press [ENTER].
Submenu will appear.
3
Use [K / L] to select “Select Video”,
then press [ENTER].
4
Use [K / L] to select desired external
input position, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Progressive Scan
TV Aspect
Video Input
Select Video
L1 (Rear)
L2 (Front)
5
Use [K / L] to select the input jack
type to connect, then press [ENTER].
If you want to use VIDEO IN jack, select “Video
In”.
If you want to use S-VIDEO IN jack, select
“S-Video In”.
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Progressive Scan
TV Aspect
Video Input
Select Video
L1 (Rear)
L2 (Front)
L1 (Rear)
Video In
S-Video In
6
Press [SETUP] to exit.
E7E7AUDEN.indb19E7E7AUDEN.indb19 2007/01/2919:03:472007/01/2919:03:47
20 EN20 EN
Make one of the following connections, depending on the capabilities of your display device.
S-VIDEO IN
OUT
S-VIDEO
Y
PR/CR
PB/CB
COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN
Y
PB/CB
PR/CR
IN
LRL
R
VIDEOINVIDEO
OUT
S-VIDEO
AUDIO IN
(L1)
AUDIO OUT
COAXIAL
HDMI OUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
AUDIO IN
RL
L
R
VIDEO
OUT
AUDIO OUT
rear of your TV
AUDIO OUT
TV
analog audio
Method 2 Method 3
good picture better picture
S-VIDEO OUT COMPONENT
VIDEO OUTPUT
RCA
audio cable
S-video cable
component
video cable
this unit
Note
• Connect this unit directly to the TV. If the RCA audio/video cables are connected to a VCR, pictures may be
distorted due to the copy protection system.
• When “Progressive Scan” is set to “ON”, no video signal will be output from the VIDEO OUT or S-VIDEO OUT
jack.
After you have completed the connections
• Switch the input selector on your TV to an appropriate external input channel. Press a button on the TV’s original
remote control that selects an external input channel until the DVD recorder’s opening picture appears. Check your
TV owner’s manual for details.
To set progressive scan mode, refer to page 91
• This unit is compatible with the progressive scan system. The feature provides you the higher quality images than the
traditional output system. To utilize this feature, you must set “Progressive Scan” to “ON”.
CONNECTION TO A TV
Method 1
standard picture
VIDEO OUT
L
R
VIDEO
OUT
AUDIO OUT
VIDEO
IN
RCA
video cable
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
and or or
E7E7AUDEN.indb20E7E7AUDEN.indb20 2007/01/2919:03:482007/01/2919:03:48
21EN 21EN
Disc
Management
Recording
PlaybackIntroduction
Connections
Basic Setup
Editing Function Setup
Others
CONNECTION TO A TV WITH AN HDMI™ COMPATIBLE PORT
A simple 1-cable connection with a device having an HDMI (high-definition multimedia interface) connector allows
digital transfer of the digital images of DVD-video and other devices.
HDMI IN
HDMI cable
HDMI OUT
TV
this unit
HDMI Mode and Actual Output Signals
Press [HDMI] to select the HDMI output mode. The output mode changes as follows every time [HDMI] is pressed.
Front Panel Display HDMI Indicator Video Output Signal
480p 480 Progressive
Press [HDMI]
720p 720 Progressive
Press [HDMI]
1080i 1080 interlaced
Press [HDMI]
1080p 1080 Progressive
Press [HDMI]
• The HDMI mode that is not supported by display device will be skipped.
Cables not included.
Please purchase the necessary cables at your local store.
When connecting with an HDMI cable, the audio signal will be output as the digital audio signal simultaneously, so
you do not need the analog audio connection described on page 20.
DVD VIDEO RECORDER D-R400 DVD VIDEO RECORDER D-R400
HDMI indicator
E7E7AUDEN.indb21E7E7AUDEN.indb21 2007/01/2919:03:482007/01/2919:03:48
22 EN22 EN
*HDMI: High Definition Multimedia Interface
Copyright protection system
To play back the digital video images of a DVD via an HDMI connection, it is necessary that both the player and the
display device (or an AV amplifier) support a copyright protection system called HDCP (high-bandwidth digital
content protection system). HDCP is copy protection technology that comprises data encryption and authentication
of the connected AV device. This unit supports HDCP. Please read the operating instructions of your display device
(or AV amplifier) for more information.
Note
• Because HDMI is an evolving technology, it is possible that some devices with an HDMI input may not operate
properly with this unit.
• When using an HDCP-incompatible display device, the image will not be viewed properly.
• Among the devices that support HDMI, some devices can control other devices via the HDMI connector; however,
this unit cannot be controlled by another device vice the HDMI connector.
• The audio signals from the HDMI connector (including the sampling frequency, the number of channels and bit
length) maybe limited by the device that is connected.
• Among the monitors that support HDMI, some do not support audio output (for example, projectors). In
connections with device such as this unit, audio signals are not output from the HDMI output connector.
• When this unit’s HDMI connector is connected to a DVI-D compatible monitor (HDCP compatible) with an HDMIDVI converter cable, the signals are output in digital RGB.
• If the connected equipment is not compatible with HDMI BITSTREAM, DTS sound will not be output.
• When the power failure occurs, or when you unplug the unit, some problems in the HDMI setting might occur.
Please check and set the HDMI setting again.
CONNECTION TO A TV WITH AN HDMI™ COMPATIBLE PORT
Audio recording format of the disc Dolby Digital setting of this unit Actual output
DVD-video
Dolby Digital
PCM 2channel PCM
Stream Dolby Digital
LPCM
PCM
2channel PCM
Stream
DivX®
Dolby Digital
PCM 2channel PCM
Stream Dolby Digital
MP3 / MP2
PCM
2channel PCM
Stream
For audio CD and MP3 / WMA files, 2 channel PCM will be output regardless of the “Dolby Digital” setting.
If the connected device is not compatible with HDMI BITSTREAM, audio will be output as PCM even if you select
“Stream” in “Dolby Digital” setting (Refer to page 87).
Actual Output Modes by Media
E7E7AUDEN.indb22E7E7AUDEN.indb22 2007/01/2919:03:492007/01/2919:03:49
23EN 23EN
Disc
Management
Recording
PlaybackIntroduction
Connections
Basic Setup
Editing Function Setup
Others
CONNECTION TO AN AUDIO SYSTEM
• When you change the connections, all devices should be turned off.
• Refer to the owner’s manual accompanying external devices for more information.
IN OUT
Y
PR/CR
PB/CB
L
R
VIDEOINVIDEO
OUT
S-VIDEO
AUDIO IN
(L1)
S-VIDEO
HDMI
O
COMPONENT
VIDEO OUT
DI
G
P
C
L
R
AUDIO OUT
AUDIO IN
R
L
stereo system
audio
analog audio
input jacks
RCA audio cable
AUDIO OUT
Playing Back 2 Channel Analog Audio Playing Back Multi Channel Digital Audio
Dolby Digital decoder, DTS decorder
COAXIAL
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN OUT
Y
PR/CR
PB/CB
L
R
VIDEOINVIDEO
OUT
S-VIDEO
AUDIO IN
(L1)
S-VIDEO
HDMI OUT
COMPONENT
VIDEO OUT
L
R
AUDIO OUT
COAXIAL
digital audio
coaxial input jack
digital audio coaxial cable
DIGITAL AUDIO OUTPUT
Multi Channel Digital Audio Setting
Setting Setup >General Setting >Playback >Audio Out >
Connection Dolby Digital DTS
If output is Dolby Digital encoded audio, connect to
a Dolby Digital decoder.
Stream OFF
If output is DTS encoded audio, connect to a DTS
decoder.
PCM ON
If output is encoded audio for both Dolby Digital
and DTS, connect to the decoder which encodes
multiple audio sources.
Stream ON
Connecting to an MD deck or DAT deck. PCM OFF
If not connected to any external devices. PCM OFF
* To complete these settings, refer to page 87.
this unit
Note
• The audio source on a disc in a Dolby Digital multi channel surround format cannot be recorded as digital sound
by an MD or DAT deck.
• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel
surround sound as heard in the movie theaters.
• By connecting this unit to the DTS decoder, you can enjoy Multi-channel Surround System which reproduces the
original sound as truthfully as possible. Multi-channel Surround System is developed by the DTS, Inc.
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
*MD deck or DAT deck can be also connected through coaxial jack.
E7E7AUD_EN.indb 23E7E7AUD_EN.indb 23 2007/01/31 11:55:402007/01/31 11:55:40
24 EN24 EN
INITIAL SETTING
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
RETURN
SETUP
Turn on this unit for the first time, you need to follow these steps.
1
Press [I/yy ON/STANDBY].
Before:
Turn the TV on. Select the input to
which the unit is connected.
2
Use [K / L] to select your desired
language, then press [ENTER] to set
language.
Initial Setting
OSD Language
English
Français
Español
3
Press [ENTER] to activate “Clock
Setting”.
Initial Setting
Clock Setting
- - - / - - / - - - - ( - - - )
- - : - - - -
4
Proceed to step 4 in “CLOCK
SETTING” on page 25.
E7E7AUDEN.indb24E7E7AUDEN.indb24 2007/01/2919:03:492007/01/2919:03:49
25EN 25EN
Disc
Management
Recording
PlaybackIntroduction Connections
Basic Setup
Editing Function Setup
Others
CLOCK SETTING
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
.@/: ABC
GHI
PQRS TUV WXYZ
JKL MNO
DEF
SETUP
ENTER
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
2
Use [K / L] to select “Clock”, then
press [ENTER].
3
Use [K / L] to select calendar or time,
then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Clock Setting
JAN / 01 / 2007 ( MON )
12 : 00 AM
4
Use [{ / B] to select an item to set,
and use [K / L] to select the contents
to suit your preference, then press
[ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Clock Setting
JAN / 01 / 2007 ( MON )
12 : 00 AM
Your setting will be activated.
The clock start counting when you press
[ENTER].
5
Press [SETUP] to exit.
Note
• Your clock setting will be lost if either there is a power
failure or this unit has been unplugged for more than
30 seconds.
• For setting the day, year, hour and minute,
[the Number buttons] can also be used.
• You can set the built-in calendar from the year 2007
up to 2056.
E7E7AUDEN.indb25E7E7AUDEN.indb25 2007/01/2919:03:502007/01/2919:03:50
26 EN26 EN
FORMATTING A DISC
Choosing the Recording Format of a Brand-New DVD-RW
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SETUP
When inserting a brand-new DVD-RW or DVD+RW, the unit automatically starts to initialize the disc. DVD+RW will
always be formatted in +VR mode, and DVD-RW will be formatted either video or VR mode according to the recording
format mode setting of the unit. Before insert a brand-new DVD-RW, you need to set the recording format to the
desired mode. You can also manually format a DVD-RW once it has been used.
1
Press [SETUP].
2
Use [K / L] to select “DVD Menu”,
then press [ENTER].
Setup
Timer Programming
Title List
DVD Menu
General Setting
3
Use [K / L] to select “Format”, then
press [ENTER].
DVD Menu
Format
Finalize
4
Use [K / L] to select “Format Mode”,
then press [ENTER].
DVD Menu
Format
Finalize
Start
Format Mode
5
Use [K / L] to select “Video mode” or
“VR mode”, then press [ENTER].
6
Press [SETUP] to exit.
7
Insert a brand-new disc.
Formatting will start.
Formatting 90%
8
Formatting is completed.
“100%” is indicated.
Note
• The recording format setting is effective only for
DVD-RW. You cannot change the recording format
for a DVD-R and DVD+RW/+R.
• You cannot mix two formats on one DVD-RW. If you
insert a disc that has been recorded before, the
recording format cannot be changed even if you
change it in the main menu.
E7E7AUDEN.indb26E7E7AUDEN.indb26 2007/01/2919:03:502007/01/2919:03:50
27EN 27EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
FORMATTING A DISC
Reformatting a Disc Manually
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SETUP
If you are using a DVD-RW or DVD+RW, you can format the disc by performing “Format”. You can format DVD-RW for
either video mode recording or VR mode recording. DVD+RW can be format in order to erase all content of the disc.
Insert a recordable disc.
1
Press [SETUP].
2
Use [K / L] to select “DVD Menu”,
then press [ENTER].
Setup
Timer Programming
Title List
DVD Menu
General Setting
3
Use [K / L] to select “Format”, then
press [ENTER].
e.g.) VR mode DVD-RW
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlists
4
Use [K / L] to select “Start”, then
press [ENTER].
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlist
Start
Format Mode
Selection menu will appear and prompt you to
confirm.
• For DVD+RW, use [K / L] to select “Yes”, then
press [ENTER].
5
Use [K / L] to select “Yes”, then press
[ENTER].
Formatting will start.
If you want to cancel formatting, select “No”.
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlist
Start
Format Mode
Format disc?
Yes
No
6
Formatting is completed.
“100%” is indicated.
Formatting 100%
Note
• When you reformat the disc, the contents of the disc
are erased.
• For DVD-RW, make sure that the recording format is
set to the desired mode. (See steps 1 to 6 in
“Choosing the Recording Format of a Brand-New
DVD-RW” on page 26.)
E7E7AUDEN.indb27E7E7AUDEN.indb27 2007/01/2919:03:512007/01/2919:03:51
28 EN28 EN
PREPARING A DISC
Use this feature to make the discs recorded on other unit
recordable on this unit. When you make an additional
recording on this unit with “Make Recording Compatible”
set to “ON”, the title menu is automatically converted to
our style.
1) Press [SETUP] and use [K / L] to select “General
Setting”, then press [ENTER].
2) Use [K / L] to select “Recording”, then press
[ENTER].
“Recording” menu will appear.
3) Use [K / L] to select “Make Recording Compatible”,
then press [ENTER].
4) Use [K / L] to select “ON” or “OFF”, then press
[ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Auto Chapter
Recording Audio Select (XP)
Auto Finalize
Aspect Ratio (Video mode)
Make Recording Compatible
Make Recording Compatible
ON
OFF
ON: Title list will be replaced when you make
additional recordings to the discs recorded by
other units.
OFF: Prohibiting additional record to the disc that
has a title list created by other units.
5) Press [SETUP] to exit.
Make Recording Compatible Setting for Auto Chapter
You can set a specified time for chapter marks.
1) Press [SETUP] and use [K / L] to select “General
Setting”, then press [ENTER].
2) Use [K / L] to select “Recording”, then press
[ENTER].
“Recording” menu will appear.
3) Use [K / L] to select “Auto Chapter”, then press
[ENTER].
4) Use [K / L] to select a desired time option, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Auto Chapter
Recording Audio Select (XP)
Auto Finalize
Aspect Ratio (Video mode)
Make Recording Compatible
Auto Chapter
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
5) Press [SETUP] to exit.
Note
• The interval for auto chapter marks may slightly
differ.
• A blank chapter may be created depending on the
remaining time of the disc.
Note
• This function is also available for unfinalized DVD+R.
E7E7AUDEN.indb28E7E7AUDEN.indb28 2007/01/2919:03:522007/01/2919:03:52
29EN 29EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
PREPARING A DISC
You can enjoy high quality sound recording. This function
works only when the recording mode is set at XP.
1) Press [SETUP] and use [K / L] to select “General
Setting”, then press [ENTER].
2) Use [K / L] to select “Recording”, then press
[ENTER].
“Recording” menu will appear.
3) Use [K / L] to select “Recording Audio Select (XP)”,
then press [ENTER].
4) Use [K / L] to select “PCM” or “Dolby Digital”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Auto Chapter
Recording Audio Select (XP)
Auto Finalize
Aspect Ratio (Video mode)
Replace Disc Menu
Recording Audio Select (XP)
PCM
Dolby Digital
PCM:
Records PCM audio for the best quality sound.
Dolby Digital:
Records Dolby Digital audio for good quality sound.
5) Press [SETUP] to exit.
Recording Audio Select (XP) Setting Aspect Ratio for Video Mode
Recording
You can set aspect ratio for video mode recording.
1) Follow step 1 to 2 on “Recording Audio Select(XP)”.
2) Use [K / L] to select “Aspect Ratio (Video mode)”,
then press [ENTER].
3) Use [K / L] to select your desired setting, then press
[ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Auto Chapter
Recording Audio Select (XP)
Auto Finalize
Aspect Ratio (Video mode)
Make Recording Compatible
Aspect Ratio (Video mode)
Auto
4 : 3
16 : 9
Auto (default): It will be recorded with whichever the
ratio that the program you started to record are
broadcasted with.
4:3 : Recorded in the aspect ratio of 4:3.
16:9 : Recorded in the aspect ratio of 16:9.
4) Press [SETUP] to exit.
Note
• “PCM” stands for Pulse Code Modulation. It changes
analog sound to digital sound without compressing
audio data.
• When the recording mode is set at other than XP, the
unit records “Dolby Digital” audio automatically even
if you selected “PCM”.
Note
• For DVD-RW VR mode, the image will be recorded in
whichever the ratio that the program you record are
broadcasted with, regardless of the “Aspect Ratio
(Video mode)” setting.
• For DVD+RW/+R, the image will always be recorded
in aspect ratio of 4:3.
E7E7AUDEN.indb29E7E7AUDEN.indb29 2007/01/2919:03:522007/01/2919:03:52
30 EN30 EN
SETTING A DISC TO PROTECT
1
Press [SETUP].
2
Use [K / L] to select “DVD Menu”,
then press [ENTER].
3
Use [K / L] to select “Disc Protect
OFF
ON”, then press [ENTER].
e.g.) VR mode DVD-RW
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlists
4
Use [K / L] to select “Yes”, then press
[ENTER].
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlist
Protect this disc?
Yes
No
A disc will be protected.
This operation may take
awhile to be completed.
To prevent accidental recording, editing or erasing the
titles, you can protect them from “DVD Menu”.
Note
To cancel the disc protect:
• When you insert a disc protected with this unit,
“Disc Protect ON
OFF” will appear instead of “OFF
ON”.
DVD Menu
Format
Finalize
Disc Protect ON OFF
Delete All Playlist
To release the protect for the disc, select “Yes” at step 4.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SETUP
E7E7AUDEN.indb30E7E7AUDEN.indb30 2007/01/2919:03:532007/01/2919:03:53
31EN 31EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
PLAYING THE DISCS IN OTHER DVD PLAYERS
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
“General Setting” menu will appear.
2
Use [K / L] to select “Recording”,
then press [ENTER].
“Recording” menu will appear.
3
Use [K / L] to select “Auto Finalize”,
then press [ENTER].
4
Use [K / L] to select “Disc Full” or
“End of Timer Rec”, then press
[ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Auto Chapter
Recording Audio Select (XP)
Auto Finalize
Aspect Ratio (Video mode)
Replace Disc Menu
Auto Finalize
Disc Full
End of Timer Rec
5
Use [K / L] to select “ON”, then press
[ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Auto Chapter
Recording Audio Select (XP)
Auto Finalize
Aspect Ratio (Video mode)
Replace Disc Menu
Auto Finalize
Disc Full
End of Timer Rec
Disc Full
ON
OFF
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Auto Chapter
Recording Audio Select (XP)
Auto Finalize
Aspect Ratio (Video mode)
Replace Disc Menu
Auto Finalize
Disc Full
End of Timer Rec
End of Timer Rec
ON
OFF
Your setting will be activated.
6
Press [SETUP] to exit.
You can finalize discs automatically using this function.
You can use this function to finalize discs after finishing
all timer recordings and at the end of the disc space.
Auto Finalizing
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SETUP
E7E7AUDEN.indb31E7E7AUDEN.indb31 2007/01/2919:03:532007/01/2919:03:53
32 EN32 EN
PLAYING THE DISCS IN OTHER DVD PLAYERS
Finalizing a Disc
1
Press [SETUP].
2
Use [K / L] to select “DVD Menu”,
then press [ENTER].
“DVD Menu“ will appear.
3
Use [K / L] to select “Finalize”, then
press [ENTER].
4
Use [K / L] to select “Yes”, then press
[ENTER].
e.g.) VR mode DVD-RW
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlist
Finalize disc?
Yes
No
Finalizing will start.
Finalizing 90%
This operation may take
awhile to be completed.
5
Finalizing is completed.
You will need to finalize discs to play back on other DVD
players.
Finalizing may take several minutes up to an hour.
Since the process of the finalization fills empty space of
the disc, a shorter recording period on the disc will
require a longer time period for finalization. Do not
unplug the power cord during finalization.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SETUP
TOP MENU
RETURN
MENU/LIST
STOP
E7E7AUDEN.indb32E7E7AUDEN.indb32 2007/01/2919:03:542007/01/2919:03:54
33EN 33EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
PLAYING THE DISCS IN OTHER DVD PLAYERS
To cancel finalizing...
(DVD-RW only)
Press [STOP C] during the finalizing is in progress. Use
[K / L] to select “Yes”, then press [ENTER]. Finalizing is
canceled and the unit switches to stop mode.
Finalizing 5%
Do you want to cancel ?
Yes
No
If “ ” appears when [STOP C] is pressed, you cannot
cancel finalizing because the finalizing has already
reached at a critical point in its process.
If “No” is selected and [ENTER] or [RETURN] is pressed,
finalizing is continued.
You cannot cancel finalizing a DVD-R, DVD+R and
DVD+RW once it has started.
Note
• Finalizing a disc in video mode and +VR mode
automatically creates a DVD menu.
• After you finalize the DVD+RW, you can call up the
title list by pressing [TOP MENU], or you can call up
the DVD menu by pressing [MENU/LIST].
• Even after DVD+RW is finalized, you can still record
or edit. After you finalize DVD-RW/-R or DVD+R, you
cannot edit or record anything else on that disc.
• If you insert a DVD-RW finalized with this unit, “Undo
Finalization” will appear instead of “Finalize” at step
3.
• To release the finalization of the DVD-RW disc, select
“Undo Finalization” at step 3.
DVD Menu
Format
Undo Finalization
Disc Protect OFF ON
Delete All Playlists
• To undo the finalization of the DVD+RW, make an
additional recording to the disc.
• DO NOT power off during finalizing. This may result
in a malfunction.
• For DVD+RW, if you have added or deleted chapters,
or made chapters hidden, you must finalize the disc
before being able to see those effects on other units.
To play back discs other than DVD+RW on other DVD
players, you will need to finalize.
E7E7AUDEN.indb33E7E7AUDEN.indb33 2007/01/2919:03:542007/01/2919:03:54
34 EN34 EN
INFORMATION ON DVD RECORDING
You can select a recording mode among 5 options, and
the recording time will depend on the recording mode
you select as follows.
Recording mode
Recording time
Video/
Sound Quality
12cm 8cm
XP 60 min 18 min
SP 120 min 36 min
LP 240 min 72 min
EP 360 min 108 min
SLP 480 min 144 min
• The recording times listed above are estimates and are
for reference purposes only. Actual recording times may
vary.
• The audio and video quality of content being recorded
may differ depending on the recording mode/recording
time chosen.
Recording Mode
You cannot record copy-protected video using this
unit. Copy-protected video includes DVD-videos
and some satellite broadcasts, some pay-per-view
stations and some “premium” stations.
If copy-protected material is detected, recording
will pause or stop automatically and an error
message appears on the screen.
“Copy-once only” video can only be recorded to
CPRM compatible DVD-RW formatted in VR mode.
What is “CPRM”?
CPRM is a copy protection system with scramble
system regarding the recording of “copy-once”
broadcast programs. CPRM stands for Content
Protection for Recordable Media.
This unit is CPRM compatible, which means that
you can record copy-once broadcast programs, but
you cannot make another copy of those recordings.
CPRM recordings can only be made on CPRM compatible DVD-RW formatted in VR mode, and CPRM
recordings can only be played back on DVD players
that are specifically compatible with CPRM.
Making discs playable in other DVD players(Finalize)
For DVD-RW/-R, it is necessary to finalize the disc
after recording, in order to play back the disc
on other DVD players. (Refer to page 31.) For
DVD+RW/+R, it is recommended to finalize the
disc in order to make the disc more compatible to
other DVD player. When video and +VR mode disc
are finalized, a DVD menu is created. You cannot
finalize discs in other DVD recorders.
Restrictions on Recording
Note
• This unit cannot record to CD-RW or CD-R.
• DVD-RW/-R, DVD+RW/+R and CD-RW/-R recorded on
a personal computer or a DVD or CD recorder may
not be played back if the disc is damaged or dirty or
if there is condensation on the player’s lens.
• If you record a disc using a personal computer, even
if it is recorded in a compatible format it may not be
played back because of the settings of the
application software used to create the disc. (Check
with the software publisher for more detailed
information.)
• Discs recorded in video mode on this unit cannot
record additional information using other DVD
recorders.
• It is not possible to use a DVD-RW/DVD+RW
formatted with this unit on other DVD recorder
unless the content of the disc was also recorded with
this unit.
• Since the recording is made by the VBR (variable bit
rate) method, depending on the picture you are
recording, the actual remaining time for recording
may be a little shorter than the remaining time
displayed on the TV screen.
E7E7AUDEN.indb34E7E7AUDEN.indb34 2007/01/2919:03:552007/01/2919:03:55
35EN 35EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
1
Press [I/yy ON/STANDBY].
Turn on the TV and be sure to select the input to
which the unit is connected.
2
Press [OPEN/CLOSE A] to open the
disc tray and insert your disc with its
label facing up.
Align the disc to
the disc tray guide.
3
Press [OPEN/CLOSE A] to close the
disc tray.
It may take awhile to load
the disc completely.
• When inserting a brand-new DVD-RW or
DVD+RW, the unit automatically starts to
format.
• If titles have been recorded on the disc, the
title list is displayed. Press [STOP C] to exit the
title list.
4
Press [REC MODE] to select a
recording mode.
Refer to “Recording Mode” on page 34.
SP 1:53
5
Press [INPUT SELECT ] to select the
appropriate external input position
(L1/L2) to which your cable/satellite
box is connected. Then select the
desired channel to record on the
cable/satellite box.
Follow the steps to record TV programs.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
OPEN/
CLOSE
GHI
PQRS TUV
SPACE
WXYZ
JKL MNO
REC MODE REC
PAUS E ST OP
.@/: ABC DEF
E7E7AUDEN.indb35E7E7AUDEN.indb35 2007/01/2919:03:552007/01/2919:03:55
36 EN36 EN
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
7
Press [STOP C] to stop recording.
The recorded title will be included in the title list.
(Refer to “Guide to a Title List” on page 68.)
Wait for a moment 90%
This operation may take
awhile to be completed.
6
Press [REC I] to start recording.
“I” will be displayed for 5 seconds.
I
Press [PAUSE F] to pause recording.
Press [PAUSE F]] or [REC I] again to restart
recording.
To set one-touch timer recording (OTR)...
This is a simple way to set the recording time in blocks
of 30 minutes.
Press [REC I] repeatedly until the desired recording
time (30 minutes to 8 hours) appears on the TV screen.
One-touch timer recording will start.
0:30
(normal recording)
8:00 7:30
1:00
I
0:30
• To change the recording length during one-touch
timer recording, press [REC I] repeatedly until the
desired length appears.
• To cancel one-touch timer recording within the
specified time, press [STOP C].
Note
• When you press [REC I], recording starts immediately and continues until the disc is full or you stop recording.
• When the unit clock has not been set, the space for a date and time of title names will be blank.
• You cannot change the recording mode during the recording pause mode.
Note for one-touch timer recording
• The remaining recording time will be displayed on the front panel display during one-touch timer recording. Press
[DISPLAY] to see it on the TV screen.
• Unlike the timer recording, you can perform the following operations during one-touch timer recording.
- Turning off the power (One-touch timer recording will be canceled.).
- Using [REC I] or [STOP C] on the remote control.
• You cannot use the pause function during one-touch timer recording.
• When one-touch timer recording is finished and the power is turned off, the unit will switch to the timer-standby
mode automatically if a timer recording has been programmed. Press [I/
y
y ON/STANDBY] to cancel the timer-
standby mode to use the unit continuously.
E7E7AUDEN.indb36E7E7AUDEN.indb36 2007/01/2919:03:562007/01/2919:03:56
37EN 37EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others

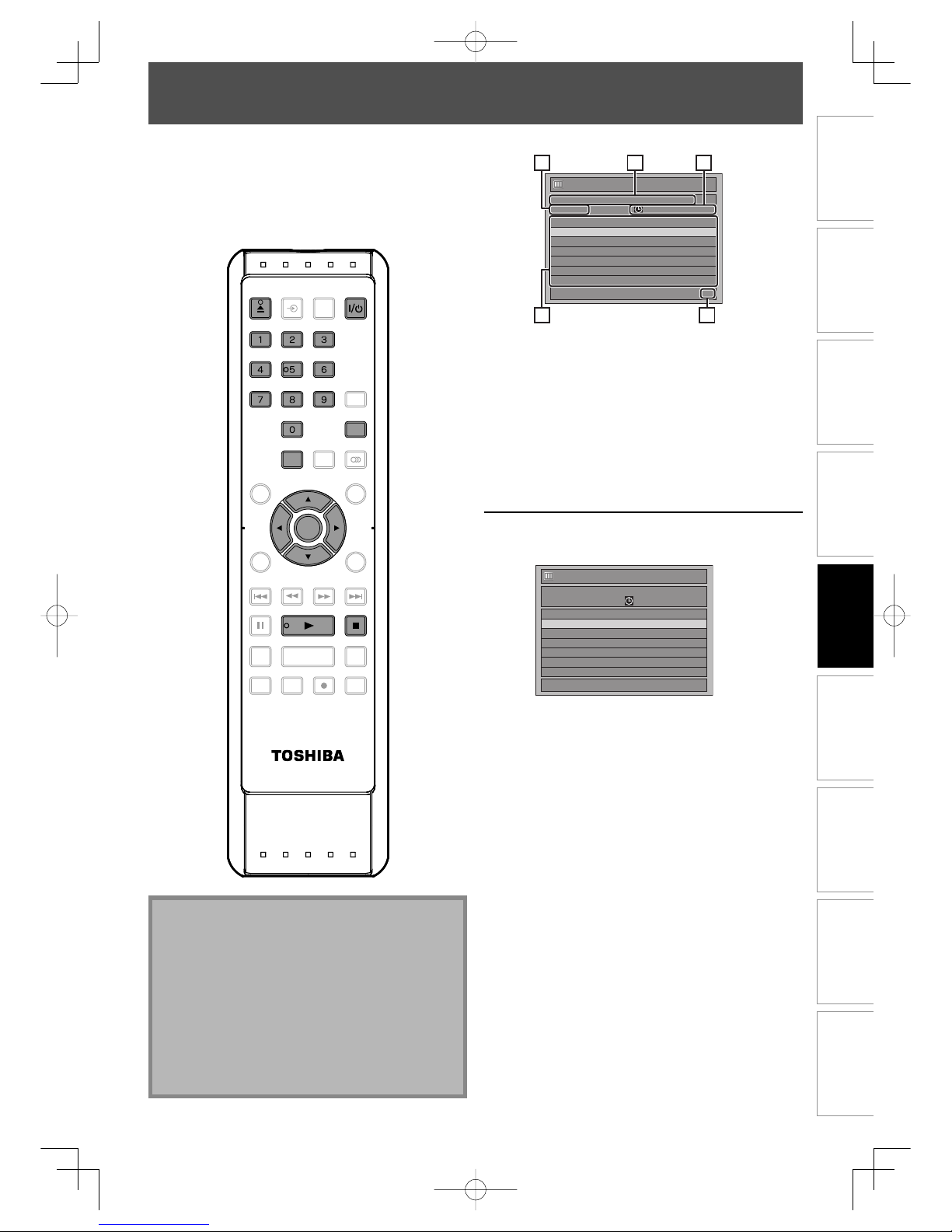

TIMER RECORDING
1
Press [TIMER PROG.].
2
Use [K / L] to select “New Program”,
then press [ENTER].
Timer Programming
1/1
MON JAN/01 10:00AM
Date Start End L1/L2
New Program
• If there are 6 or more programs, use
[SKIP H / G] to change pages.
You can program the unit to record up to 12 programs
within a month in advance. Daily or weekly program
recordings are also available.
Before recording, make sure
• Set the clock before setting a timer programming.
• Insert a recordable disc with enough recordable space.
Note
• If you have not set the clock yet:
“Clock Setting” menu will appear instead of the timer
programming list at step 1. Continue with the step 3
in “Clock Setting” on page 25 before setting a timer
programming.
• Use [s / B] to move the cursor to the left and the
right in “Timer Programming” menu.
• Timer recording will not work when the power is on.
• When power is on, programs registered for recording
in timer recording will be automatically cleared after
the end time and date have passed.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
OPEN/
CLOSE
GHI
PQRS TUV
SPACE
WXYZ
JKL MNO
STOP
ENTER
.@/: ABC DEF
PLAY
TIMER
PROG.
Guide to Timer Programming Display
Timer Programming
1/1
MON JAN/01 10:00AMSP (1:00)
JAN/ 2/07 12:00 AM L1 SP
Date Start End L1/L2
JAN/02 12:00AM 1:00AM L1
New Program
1
5
3
4
2
1. Title of a timer program (Contains date, time, external
input, recording mode of the program)
2. Current date and time
3. Recording mode and length of the recording
4. Timer program list
5.
Total number of pages and current page (2 pages maximum)
E7E7AUDEN.indb37E7E7AUDEN.indb37 2007/01/2919:03:562007/01/2919:03:56
38 EN38 EN
3
Use [K / L] to enter the date, then
press [B].
Timer Programming
1/1
MON JAN/01 10:00AM
Date Start End L1/L2
New Program
Date
JAN/02
L1/L2 Mode
SP
SP 2 : 00
Start
- - : - -
End
- - : - -
L1
Daily
MON-SAT
JAN/01
JAN/31
MON-FRI
SAT
FRI
SUN
4
Use [K / L / { / B] or [the Number
buttons] to enter the start and end
time, then press [B].
1/1
New Program
Date
JAN/02
L1/L2 Mode
SP
SP 2 : 00
Start
12 : 00AM
End
- - : - -
L1
5
Use [K / L] to select the appropriate
external input position (L1/L2) to
which your cable/satellite box is
connected, then press [B].
1/1
New Program
Date
JAN/02
L1/L2L1Mode
SP
SP 1 : 00
Start
12 : 00AM
End
1 : 00AM
6
Use [K / L] to select a recording mode.
1/1
New Program
Date
JAN/02
L1/L2 Mode
SP
SP 1 : 00
Start
12 : 00AM
End
1 : 00AM
L1
Refer to “Recording Mode” on page 34.
•
You can check the remaining recordable space
of the disc when you select the recording mode.
Date
JAN/02
L1/L2 Mode
SP
SP 1 : 00
Start
12 : 00AM
End
1 : 00AM
L1
Auto recording mode select...
When “Auto” is selected as a recording mode, the unit
calculates how much time is available on the disc and
determines the appropriate recording mode to
complete recording the program.
1/1
New Program
Date
JAN/02
L1/L2 Mode
Auto
Auto 1 : 00
Start
12 : 00AM
End
1 : 00AM
L1
• “Auto” is only available for one program in the timer
program list.
• The recording may be cut short, when the available
recording space of the disc is too limited.
7
Press [ENTER] when all items are
entered.
Your program setting will be stored.
• To set another program, repeat steps 2 to 7.
• To exit, press [TIMER PROG.] or [SETUP].
• When 2 or more programs are overlapped,
“Timer program overlapped” appears, and the
overlapped program will be displayed in blue.
To correct the timer program refer to
“Checking, canceling, or correcting the timer
programming information” on page 39.
8
Press [I/y ON/STANDBY] to set a
timer programming.
indicator will appear on the front panel display,
while this unit waits to make the recording.
TIMER RECORDING
When pressing [L] at
the current date, the
date will change as
follows.
e.g.) January 1st
E7E7AUDEN.indb38E7E7AUDEN.indb38 2007/01/2919:03:572007/01/2919:03:57
39EN 39EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
Checking, canceling, or correcting the timer
programming information
If the timer program did not complete correctly,
the error number appears in the timer programming list.
1) Press [I/y ON/STANDBY].
2) Press [TIMER PROG.].
3) Check the information on the list you want to edit.
Timer Programming
1/1
MON JAN/01 10:00AMSP (1:00)
JAN/ 2/07 12:00 AM L1 SP
Date Start End L1/L2
JAN/02 12:00AM 1:00AM L1
New Program
4-A) To delete the timer program:
1 Use [K / L] to select the program you want to
delete, then press [ENTER].
2 Use [K / L] to select “Delete”, then press
[ENTER].
Selection menu will appear.
3 Use [K / L] to select “Yes”, then press [ENTER].
4-B) To correct the timer program:
1 Use [K / L] to select the program you want to
correct, then press [ENTER].
2 Use [K / L] to select “Program Change”, then
press [ENTER].
3 Correct the timer program by using
[K / L / { / B], then press [ENTER].
5) Press [TIMER PROG.] to exit.
6) Press [I/
y
ON/STANDBY] to return to the timer
standby mode.
Timer Programming
1/1
MON JAN/01 10:00AM
Date Start End L1/L2
E40 JAN/02 12:00AM 1:00AM L1
New Program
Each error number means:
E1-22
E37-39
Recording error other
than below
E40 Some portion has
not been recorded
because of program
overlapping.
Recording did not
start at the start time.
E23-24 Unrecordable disc
E25-28
Copy prohibited program
E29 Disc protected E41 Power failed
E30 Disc full E42
No disc when recording
E31-32 Already 99 titles
recorded
E43 Already 49 titles
recorded
E33 Already 999 chapters
recorded
E44 Already 254 chapters
recorded
E34 No space for Control
information
E45 Copy prohibited
program
E35 PCA full *1 E46 I
t is impossible to
record additionally
on a disc recorded
by other units
when setting
“Make Recording
Compatible” to “OFF”.
E36 Already finalized
video format disc
• A program with the error number is grayed in the timer
programming list.
• Once the timer programming list with error line(s) is
displayed, or after canceling and setting again the timer
standby mode, the program line(s) with error will be
cleared.
*1 PCA is a disc's space reserved for recording test.
Press [STOP C] on the front panel of the unit.
[STOP C] on the remote control is not effective.
Note
• Press [TIMER PROG.] to check the timer recording in
progress.
When the timer recording is proceeding, that
program will be highlighted with red. In this case,
you cannot select any other program.
To stop the timer recording in process
TIMER RECORDING
E7E7AUDEN.indb39E7E7AUDEN.indb39 2007/01/2919:03:582007/01/2919:03:58
40 EN40 EN
TIMER RECORDING
Hints for Timer Recording
PROG. A
PROG. B
actual
recording
PROG. A
PROG. B
When the starting time is the same:
A program set previously (PROG. A) has priority.
The rst 2 minutes (at the longest) will be cut o.
PROG. A
PROG. B
actual
recording
PROG. A
PROG. A
PROG. C
PROG. B
PROG. C
When the starting time and the ending time
for each programs are dierent:
A program that has earlier start time has priority.
The rst 2 minutes (at the longest) will be cut o.
PROG. A
PROG. B
actual
recording
PROG.B PROG.A
When the recording time is partially overlapped:
PROG. A will start after PROG. B is complete to
be recorded.
The rst 2 minutes (at the longest) will be cut o.
PROG. A
PROG. B
actual
recording
PROG. B
When the recording time is entirely overlapped:
PROG.A will not be recorded.
This unit records the programs according to priority if the timer programmings are overlapped. The timer
programming set previously has priority.
A timer recording of lower priority will be canceled or start from the middle.
Check the overlapped timer programmings and change the priority if necessary.
• If there is a power failure or this unit has been unplugged for more than 30 seconds, the clock setting and all timer
programming will be lost.
• If a disc is not inserted,
flashes and timer recording cannot be performed. In some cases, will appear
momentarily around the start point as the unit attempts to record. Please insert a recordable disc.
• When all the timer recording is completed,
flashes. To play back or eject the recorded disc, press
[I/
y
ON/STANDBY] first, then select the recorded title and press [PLAY B], or [OPEN/CLOSE A] to remove the disc.
• During timer recording or timer standby mode (
will appear), any operations on the unit will not be available. To make
these operations available, press [STOP C] on the front panel to cancel the timer recording or [I/
y
ON/STANDBY] to
release timer standby mode (
will disappear).
• To cancel the timer standby mode, press [I/
y
ON/STANDBY].
• When the starting and the ending time are the same, the length of the recording will be set for 24 hours. When the
disc becomes full during the recording, the unit turns itself off.
• When the programmed starting and ending time are earlier than the current time, the setting will not be accepted
and be cleared for redoing.
• If the starting time is earlier and the ending time is later than the current time, the recording will start right after you
turn the power off.
The Priority of Overlapped Settings
Note for DVD recording
• When the recording time of 2 programs are overlapped, or
the end time of a program and the start time of another
program is the same, the first 2 minutes (at the longest) of
the subsequent program will be cut off.
• If the cut-off portion comes up to 3 minutes or more, this
program will be displayed with error number E40 in the
timer programming list.
PROG. A
PROG. B
actual
recording
The first 2 minutes (at the longest) will be cut off.
PROG. BPROG. A
When the end time of the programming
currently being recorded and the start time
of the subsequent program are same:
The beginning of the PROG. B may be cut off.
E7E7AUD_EN.indb 40E7E7AUD_EN.indb 40 2007/01/31 11:55:502007/01/31 11:55:50
41EN 41EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
SETTINGS FOR AN EXTERNAL DEVICE
front of this unit
rear of this unit
IN OUT
Y
PR/CR
PB/CB
LRL
R
VIDEOINVIDEO
OUT
S-VIDEO
AUDIO IN
(L1)
S-VIDEO
AUDIO OUT
COAXIAL
HDMI OUT
COMPONENT
VIDEO OUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
UT
1080p
RECPLAYSTOPSKIP
1080i 720p 480p
DVD -RW/R +RW/R RECORDING
I/y
OPEN/CLOSE
ON/STANDBY
S-VIDEO VIDEO L R DV IN
L2
IN OUT
Y
PR/CR
PB/CB
L
R
L
R
VIDEOINVIDEO
OUT
S-VIDEO
AUDIO I N
(L1)
S-VIDEO
AUDIO OUT
COMPONENT
VIDEO OUT
AUDIO OUT DV-OUT
LR
VIDEO
OUT
S-VIDEO
OUT
AUDIO OUT
LR
VIDEO
OUT
S-VIDEO
OUT
to L1 IN
external device
(camcorder, VCR etc.)
S-video
cable
RCA
video
cable
S-video
cable
DV cable
(4-pin)
RCA
video
cable
RCA
audio
cable
RCA
audio
cable
to L2 & L3 IN
or
or
or
L2
L1
L3
or
Connection to an External Device
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Note
• When connecting an external device of monaural output to this unit, use AUDIO L jack of L2 (Front).
If you use L2 or L1 connection, make sure to select the appropriate video input type by following the steps in
“SETTINGS FOR THE VIDEO INPUT” on page 19.
Connect the external device properly to either L2 (front) or L1 (rear) input jacks of this unit by using S-video or RCA
audio / video cables. If you are connecting a DVC (digital video camcorder), connect it to L3 (front) by using DV cable.
E7E7AUDEN.indb41E7E7AUDEN.indb41 2007/01/2919:03:592007/01/2919:03:59
42 EN42 EN
1080p
RECPLAYSTOPSKIP
1080i 720p 480p
S-VIDEO VIDEO L R DV IN
L2
DVD -RW/R +RW/R RECORDING
I/y
OPEN/CLOSE
ON/STANDBY
SETTINGS FOR AN EXTERNAL DEVICE
Recording from an External Device
1
Turn on the TV and press
[I/
y
y ON/STANDBY], and be sure to
select the input of the TV to which
the unit is connected.
2
Press [OPEN/CLOSE A] to open the
disc tray. Place the disc to record on
properly.
3
Press [OPEN/CLOSE A] to close the
disc tray.
It takes awhile to load
the disc.
4
Select the input of the unit which the
external device is connected. (L1, L2
or L3)
• To use the input jacks on the rear of this unit;
Select “L1” by using [INPUT SELECT
].
• To use the input jacks on the front of this unit;
Select “L2” or “DV“ by using
[INPUT SELECT
].
5
Press [REC MODE] to select a
recording mode.
Refer to “Recording Mode” on page 34.
XP
(1Hr)SP(2Hr)LP(4Hr)EP(6Hr)
SLP
(8Hr)
6
Press [REC I] on the unit to start
recording.
7
Start playback on the external device
to record from.
8
Press [STOP C] on the unit to stop
recording.
This operation may take
awhile to be completed.
Before recording from an external device, refer to the
instructions for the connection on page 41.
8
1
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
REC MODE REC
STOP
INPUT
SELECT
OPEN/
CLOSE
GHI
PQRS TUV
SPACE
WXYZ
JKL MNO
.@/: ABC DEF
2 3
6
E7E7AUDEN.indb42E7E7AUDEN.indb42 2007/01/2919:03:592007/01/2919:03:59
43EN 43EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
SATELLITE LINK
You can set the unit to start recording whenever it
detects the video signal from the external tuner.
Preparing for the satellite link timer recording:
Preparation on the tuner
• The external tuner should be equipped with some kind
of timer function. Using timer function of the tuner, set
it to output audio/video signals when it comes to the
time you want to start recording, and stop output audio/
video signals when it comes to the time you want to
finish recording. Refer to the tuner’s manual on how to
set the timer.
• Make sure to set the satellite link standby mode when
you finish setting.
1
Press [SATELLITE LINK].
2
Use [K / L] to select the time and
recording mode, then press [ENTER].
Satellite Link
Start Mode
12:00 AM XP
To Standby Mode
3
Use [K / L] or [the Number buttons]
to set the desired starting time, then
press [
B].
• The hour can be selected from 1 to 12 with AM
or PM.
• Repeat procedures in this step to set the
desired minutes.
• If you wish to go back to the left, press [{].
4
Use [K / L] to select the recording
mode.
Refer to page 34 for details.
Instructions continue on the next page.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SATELLITE
LINK
E7E7AUDEN.indb43E7E7AUDEN.indb43 2007/01/2919:04:002007/01/2919:04:00
44 EN44 EN
SATELLITE LINK
5
Press [ENTER].
“To Standby Mode” is highlighted.
6
Press [ENTER] again.
Satellite Link
Start Mode
12:00 AM XP
To Standby Mode
In a second, the unit will be turned off
automatically as it goes into the satellite link
standby mode.
To cancel the satellite link function while in
the satellite link standby mode:
Press [I/
y
y ON/STANDBY] to turn on the unit.
To cancel the satellite link function while the
satellite link recording is in progress:
Press [STOP C] on the front panel of the unit.
Note
• If the signal of external input breaks up over 5 seconds, satellite link function will be canceled.
• If you have not set the clock, “Clock Setting” menu will appear at step 1. Follow to step 3 in “CLOCK SETTING” on
page 25.
• You cannot set the end time for the satellite link timer recording on this unit.
• Recording picture will be distorted if the copy protection signal is being detected during satellite link timer
recording.
• You can record the satellite link by using S-video input jacks on the rear panel. Refer to page 41 for more
information.
• Press [TIMER PROG.] during the satellite link timer recording to check the satellite link timer recording in
progress.
• When a regular timer recording and the satellite link timer recording are overlapped, those recordings are
recorded as illustrated below.
example 2
actual
recording
timer
recording
satellite link
example 3
actual
recording
timer
recording
satellite link
The rst 2 minutes (at the longest) will be cut o.
example 1
timer
recording
actual
recording
satellite link
The rst 2 minutes (at the longest) will be cut o.
E7E7AUDEN.indb44E7E7AUDEN.indb44 2007/01/2919:04:002007/01/2919:04:00
45EN 45EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
DV DUBBING
Guide to DV and On-Screen Display
This function helps you to easily dub the contents of the DVC (digital video camcorder) to DVD.
You can control basic operations of the DVC from the remote control of this unit such as playback, fast forward or
reverse and stop all operations if the DVC is in video mode. Use the DV cable that has 4-pin input jack and is
compliance with the IEEE1394 standards. When you connect to DV IN jack on the front of this unit, select “DV” position
by using [INPUT SELECT
] on the remote control and press [DISPLAY] to show the DV dubbing information for the
operating your DVC.
1. DV icon
2. Indicator of active device
• When the “Control” is
highlighted, press [ENTER] to
display the item selection. Use [K
/ L] to select the device you wish
to operate, then press [ENTER] to
activate.
• Select “DVD” to control this unit.
• Select “DVC” to control your DVC.
3. Recording audio mode
• Other than the DVC is in stop
mode, the “DV Audio” can be
selected. Press [ENTER] to display
the item selection and then use
[K / L] to select the audio you
wish to output. Press [ENTER]
again to activate.
• Select “Stereo1” to dub the stereo
sound.
• Select “Stereo2” to dub the sound
with after recording sound.
• Select “Mix” to dub the stereo1
and stereo2.
4. Indicator of dubbing function
• When the unit is ready for
dubbing, “Start Rec” will appear.
• When the unit is in dubbing,
“Pause Rec” will appear.
5. Channel position
• When you select “DV” by using
[INPUT SELECT], “DV” will
appear.
DV
AB-1234
0:12:34
1/ 1 1/ 1
SP 1:00
-
RW VR ORG
Control DVD
DV Audio Stereo1
Start Rec
DV
AB-1234
0:12:34
1/ 1 1/ 1
SP 1:00
-
RW VR ORG
2
3
1
4
5
7 6
The menu changes according to
what mode of DVC.
Switch the mode on the DVC to
playback mode for the dubbing
information.
When the DVC is in
video mode...
When the DVC is not in
camera mode...
6. Product name of your DVC
• If the unit cannot recognize the
input signal from the DVC or the
unknown product, “No Device” or
“****” will appear instead.
7. Status of the current operation
and the time counter
Each icon means:
DVC is in stop mode.
DVC is in playback mode.
DVC is in pause mode.
DVC is fast forwarding.
(standard speed)
DVC is fast forwarding.
(faster than above)
DVC is fast forwarding.
(faster than above)
DVC is slow forwarding.
(standard speed)
DVC is slow forwarding.
(faster than above)
DVC is slow forwarding.
(faster than above)
DVC is fast forwarding.
(in stop mode)
DVC is fast reversing.
(in stop mode)
DVC is in reverse playback.
DVC is fast reversing.
(standard speed)
DVC is fast reversing.
(faster than above)
DVC is fast reversing.
(faster than above)
DVC is in slow reverse
playback.
DVC is in recording.
DVC is in recording pause
mode.
The following instructions are described with the operations using the remote control of this unit.
E7E7AUDEN.indb45E7E7AUDEN.indb45 2007/01/2919:04:002007/01/2919:04:00
46 EN46 EN
DV DUBBING
DVC to DVD Dubbing
Insert a recordable DVD-RW/-R or DVD+RW/+R and make
sure your DVC is in video mode.
1
Use [INPUT SELECT ] to select “DV”.
AB-1234
0:00:00
DV
2
Press [REC MODE] to select a
recording mode.
(Refer to page 34.)
3
Press [DISPLAY].
4
Press [ENTER] to display the item
selection. Use [K / L] to select “DVC”,
then press [ENTER].
DV
AB-1234
0:12:34
1/ 1 1/ 1
XP 1:00
-
RW VR ORG
Control DVD
DV Audio Stereo1
Start Rec
Before recording from DVC, see page 41 for connection
instructions.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
INPUT
SELECT
DISPLAY
ENTER
PAUS E PLAY STOP
REC MODE
E7E7AUDEN.indb46E7E7AUDEN.indb46 2007/01/2919:04:022007/01/2919:04:02
47EN 47EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
DV DUBBING
5
Press [PLAY B] to find the point
where you wish to start dubbing.
Then, press [STOP C] where you wish
to start dubbing.
6
Use [K / L] to select “Start Rec”, then
press [ENTER].
The dubbing will start.
7
To stop dubbing;
Use [K / L] to select “Control”, then
press [ENTER].
Use [K / L] to select “DVD”, then
press [ENTER].
Then press [STOP C].
Note for DV dubbing
• If you press [PAUSE F] at step 5, the tape will rewind to the point a few seconds preceding the paused point
when you press [ENTER] at step 6, then, it will start dubbing when it comes to the paused point.
• The unit does not send out the output signal to DVC.
• For the proper operation, connect DVC to the unit directly. Do not connect this unit and DVC via any other unit.
• Do not connect more than 1 DVC.
• The unit can only accept DVC. Other DV device such as cable/satellite box or D-VHS VCR cannot be recognized.
• If no video signal is detected from the DVC during DVC to DVD dubbing, the recording will be paused and “I” will
flash on the TV screen. The recording will resume when the unit detects the video signal again.
• When the DVC is in camera mode, refer to “Guide to DV and On-Screen Display” on page 45.
• You cannot dub from DVC during timer standby mode.
• Date / time and cassette memory data will not be recorded.
• Pictures with a copy-guard signal cannot be recorded.
• A DV terminal is a terminal that can use the transmission mode conforming to the IEEE 1394 standards called “Fire
Wire”. It serves as the interface that connects the PC and peripheral device such as “i.Link” (registered trademark of
SONY). It enables digital dubbing between DV devices with little degradation.
E7E7AUDEN.indb47E7E7AUDEN.indb47 2007/01/2919:04:022007/01/2919:04:02
48 EN48 EN
INFORMATION ON PLAYBACK
Structure of Disc Contents
The contents of DVD are generally divided into titles, and the titles are subdivided into chapters.
Audio CDs are divided into tracks.
Data disc contains MP3/WMA/JPEG/DivX® are divided into folders, and the folders are subdivided into files.
Title: Divided contents of a DVD video disc.Roughly
corresponds to a story title in short stories.
Chapter: Divided contents of a title. This corresponds
to a chapter in a story.
Track: Divided contents of an audio CD.
Folder: Divided contents of a MP3/WMA/JPEG/DivX®
data disc. Consists of number of files.
Each title, chapter, track, folder or file is assigned a
number, which is called “title number”, “chapter number”,
“track number”, “folder number” or “file number”
respectively.
Some discs may not have these numbers.
DVD video disc
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3
audio CD
Track 1 Track 2 Track 3 Track 4 Track 5
MP3/WMA/JPEG/DivX®
folder 1 folder 2
file 1 file 2 file 3 file 4 file 5
E7E7AUDEN.indb48E7E7AUDEN.indb48 2007/01/2919:04:022007/01/2919:04:02
49EN 49EN
Disc
Management
Recording
Playback
Introduction Connections Basic Setup
Editing Function Setup
Others
BASIC PLAYBACK
Direct Playback
1
Press [I/yy ON/STANDBY].
Turn on the TV and be sure to select the input to
which the unit is connected.
2
Press [OPEN/CLOSE A] to open the
disc tray and insert your disc with its
label facing up.
Align the disc to
the disc tray guide.
3
Press [OPEN/CLOSE A] to close the
disc tray.
It may take awhile to load
the disc completely.
4
Press [PLAY B] to start playback.
If you are playing back a DVD-video, a menu
may appear.
Refer to “Using the Title/Disc Menu” on page 55.
5
Press [STOP C] once to stop playback
temporarily.
• Refer to “Resume Playback” on page 56.
Note
• Some discs may start playback automatically.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
PLAY STOP
OPEN/
CLOSE
E7E7AUDEN.indb49E7E7AUDEN.indb49 2007/01/2919:04:032007/01/2919:04:03
50 EN50 EN
BASIC PLAYBACK
1
Press [I/yy ON/STANDBY].
Turn on the TV and be sure to select the input to
which the unit is connected.
2
Press [OPEN/CLOSE A] to open the
disc tray and insert your disc with its
label facing up.
Align the disc to
the disc tray guide.
3
Press [OPEN/CLOSE A] to close the
disc tray.
It may take awhile to load
the disc completely.
Title list will appear automatically.
• To exit the title list, press [STOP C].
• To resume the title list, press [TOP MENU].
Note
• Some discs may start playback automatically.
• You can also start playback by pressing [PLAY B]
instead of [ENTER] at step 5 on page 51.
• At step 4, you can press [SKIP G], or press [B]
when the title on the lower right of the title list is
highlighted to display the next page, and press
[SKIP H], or press [{] when the title on the upper
left of the title list is highlighted to display the
previous page.
Playback from the Title List
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
OPEN/
CLOSE
TOP MENU
ENTER
SKIP SKIP
STOPPLAY
E7E7AUDEN.indb50E7E7AUDEN.indb50 2007/01/2919:04:042007/01/2919:04:04
51EN 51EN
Disc
Management
Recording
Playback
Introduction Connections Basic Setup
Editing Function Setup
Others
4
Use [K / L / { / B] to select a desired
title, then press [ENTER].
e.g.) VR mode DVD-RW original
Title List
1 / 6
JAN/ 1/07 12:00AM L1 SP
12:00AM (0:12:00) JAN/ 1/07 L1 SP
4 5 6
1 2 3
ORG
5
Use [K / L] to select “Play From
Start”, then press [ENTER].
Title List
1 / 2
JAN/ 1/07 12:00AM L1 SP
12:00AM (0:12:00) JAN/ 1/07 L1 SP
4 5 6
1 32
ORG
Play From Start
Edit
Title Delete
Add To Playlist
Playback will start.
6
Press [STOP C] once to stop playback
temporarily.
• Refer to “Resume Playback” on page 56.
To eject the disc, press [OPEN/CLOSE A] to
open the disc tray, then remove the disc before
turning off the unit.
BASIC PLAYBACK
E7E7AUDEN.indb51E7E7AUDEN.indb51 2007/01/2919:04:042007/01/2919:04:04
52 EN52 EN
BASIC PLAYBACK
Playing Back an Audio CD and a CD-RW/-R with MP3/WMA/JPEG Files
1
Follow steps 1 to 2 in “Direct
Playback” on page 49.
2
Press [OPEN/CLOSE A] to close the
disc tray.
It may take awhile to load
the disc completely.
File list will appear automatically.
• To exit the file list, press [STOP C].
• To resume the file list, press [TOP MENU].
3
Use [K / L] to select a desired folder
or track/file, then press [ENTER].
File List
DISC NAME
1/ 2
A
B
1 JPEG file1
2 JPEG file2
3 MP3 file1
4 MP3 file2
5 WMA file1
6 WMA file2
Note
• The audio source of MP3 files cannot be recorded as
digital sound by an MD or DAT deck.
• Files whose extension is other than “.mp3(MP3)”
“.wma(WMA)” or “.jpg / .jpeg(JPEG)” will not be listed.
• Some unplayable folders or files may be listed due to
the recording status.
• High-resolution JPEG files take longer to be displayed.
• Progressive JPEG files (JPEG files saved in progressive
format) cannot be played back on this unit.
•
The JPEG pictures can also rotate by using
[{/B].
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
OPEN/
CLOSE
TOP MENU
ENTER
STOPPLAY
RETURN
When selecting track/file:
Playback will start.
When selecting folder:
The files in the folder will appear.
Use [K / L] to select the file or folder you want to play
back, then press [ENTER].
• Press [PLAY B], [ENTER] or [B] to move to any lower
hierarchies.
• Press [s] or [RETURN] to move back to the previous
hierarchy.
Hints for audio CD tracks and MP3 / WMA / JPEG files:
• Folders are shown by
.
• Audio CD tracks are shown by
.
• MP3 files are shown by
3
.
• WMA files are shown by
W
.
• JPEG files are shown by
.
• The system can recognize up to 255 folders and up to 99
tracks/999 files.
• Letters of a file/folder name overflowing the given space
will be displayed as “…”.
•
If there are no files in the folder, “No Files” will be displayed.
It is recommended that files to be played back in this
unit are recorded under the following specifications:
<MP3 / WMA>
• Sampling frequency : 44.1 kHz or 48 kHz.
• Constant bit rate : 112 kbps - 320 kbps (MP3),
48 kbps - 192 kbps
(WMA).
<JPEG>
• Upper limit : 6,300 x 5,100 dots.
• Lower limit : 32 x 32 dots.
• File size of image maximum : 12 MB.
This DVD Video Recorder requires discs/recordings to meet
certain technical standards in order to achieve optimal
playback quality. There are many different types of
recordable disc formats (including CD-R containing MP3/
WMA files). Not all recordable discs will operate or produce
optimal playback quality. The technical criteria set forth in
this owner's manual are meant only as a guide. Use of CD-RW
for MP3 files is not recommended.
You must obtain any required permission from copyright
owners to download or use copyrighted content. Toshiba
cannot and does not grant such permission.
E7E7AUDEN.indb52E7E7AUDEN.indb52 2007/01/2919:04:042007/01/2919:04:04
53EN 53EN
Disc
Management
Recording
Playback
Introduction Connections Basic Setup
Editing Function Setup
Others
BASIC PLAYBACK
Playing Back a DivX®
1
Follow steps 1 to 2 in “Direct
Playback” on page 49.
2
Press [OPEN/CLOSE A] to close the
disc tray.
It may take awhile to load
the disc completely.
File list will appear automatically.
• To exit the file list, press [STOP C].
• To resume the file list, press [TOP MENU].
3
Use [K / L] to select the desired
folder or file, then press [ENTER].
File List
DISC NAME
Folder1
Folder2
1 DivX File1
2 DivX File2
When selecting file:
Playback will start.
When selecting folder:
The files in the folder will appear.
Use [K / L] to select the file you want to play back, then
press [ENTER].
• Press [PLAY B], [ENTER] or [B] to move to any lower
hierarchy.
• Press [s] or [RETURN] to move back to the previous
hierarchy.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
OPEN/
CLOSE
TOP MENU
ENTER
STOP
RETURN
PLAY
MENU/LIST
PAUS E
DivX® subtitle
The subtitle created by the user can be displayed
during DivX® playback.
1) After selecting the DivX® file, the “Subtitle List”
menu will appear when “DivX Subtitle” is set to
anything other than “OFF”. (Refer to page 92.)
2) Use [K / L] to select the extension you want to
display, then press [ENTER].
Subtitle List
DivX File1
OFF
SMI
SRT
SUB
ASS
SSA
TXT
DivX® with the subtitle starts playback. The subtitle
cannot be displayed when the setting is “OFF”.
• If there is more than one extension, the extension
selection appears in the subtitle list.
E7E7AUDEN.indb53E7E7AUDEN.indb53 2007/01/2919:04:062007/01/2919:04:06
54 EN54 EN
Note for DivX®
• DivX® is a codec (compression/decompression) that
can compress images to a very small amount of data.
The software can compress video data from almost
any devices to the size that can be sent on the Internet
without compromising visual quality of the images.
• A file with an extension of “.avi” and “.divx” is called an
DivX® file. All files with the “.avi” extension are
recognized as MPEG4.
• Files whose extension other than “.avi” and “.divx” will
not be listed on the DivX® menu. However, unplayable
folders and files may be displayed, depending on the
recording conditions.
• Even if the file has an extension of either “.avi” and
“.divx”, this unit cannot play it back if it is recorded in
the format other than DivX®.
• A symbol of
is shown on the top of the file name.
• A maximum of 255 folders or 999 files may be
recognized in a disc.
• Up to 8 hierarchies can be recognized in a folder. Files
in the 9th or deeper hierarchies cannot be played back.
• If there are more than 9 files, a down arrow “
”
appears, indicating that the user can view another part
on the previous page. The current page number and
the number of total pages are shown on the bottom of
the screen.
• Letters of a file/folder name overflowing the given
space will be displayed as “…”.
• You can play back the disc recorded in multi-session.
• It may take awhile for audio and images to be output
after you inserted a disc and pressed [PLAY B].
• When playing back the files recorded in high bit rates,
the images can be interrupted in some occasions.
• Although DivX® logo has been obtained for this unit, it
may not be able to play back some data, depending
on the characteristics, bit rates, or audio format
settings, etc.
• A DivX® file whose file size exceeds 2 GB cannot be
played back.
• If a large-sized DivX® file is selected, it may take awhile
to start the playback (over 20 seconds sometimes).
•
If you try to playback the DivX® file that has the screen
resolution which this unit does not support, the
playback will be stopped and error message will appear.
• If DivX® files written on a CD-RW/-R cannot be played
back, rewrite them on a DVD-RW/-R or DVD+RW/+R
and try to play back.
• For more information for
DivX®, please visit
http://www.divx.com.
• If you insert a CD-RW/-R with
DivX® files that are mixed
with MP3/WMA/JPEG files,
the playback media selection
screen will be displayed.
Please select “Video” and proceed to next step.
• Press [MENU/LIST] to call up the playback media
selection screen in stop mode.
• If you select “Audio & Picture” instead of “Video” on
the playback media selection screen, this unit can play
back MP3/WMA/JPEG files.
•
Some DivX® files cannot be played back on this unit due to the
configuration and characteristics
of the disc, or due to the
condition of recording and
authoring software.
• You cannot play back the
DivX® VOD files obtained
with different registration
codes on this unit. Press
[TOP MENU] and select other files that can be played
back.
Note for DivX® subtitle
• To utilize this function, the following conditions must
meet.
– “DivX Subtitle” must be activated in “DivX” menu.
(Refer to “DivX Subtitle” on page 92.)
– Playback file and the subtitle file must have the same
name.
– Playback file and the subtitle file must locate in the
same folder.
– Only the subtitle files with the following extensions
are supported; .smi (.SMI), .srt (.SRT), .sub (.SUB) .ass
(.ASS), .ssa (.SSA), .txt (.TXT).
(.sub (.SUB) and .txt (.TXT) files may not be recognized.)
– The subtitles that exceeds the playback time of the
DivX® file will not be displayed.
It is recommended that files to be played back in this
unit are recorded under the following specifications:
Official DivX® Certified product
• Playable codec of AVI files : DivX®3.x, DivX®4.x,
DivX®5.x, DivX®6.0
• Maximum size of image : 720 x 480 @30 fps
720 x 576 @25 fps
• Sampling frequency of audio : 8 kHz - 48 kHz
• Audio type : MPEG1 audio layer 3(MP3),
MPEG1 audio layer 2,
Dolby Digital
Hint for the purchased or rental official DivX®
Certified product
• When you purchased or rental a DivX® file through the
official site of DivX® video which is called DivX® VideoOn-Demand (VOD) services, a registration code is
required every time you get the new file from the DivX®
VOD services. Refer to “DivX® VOD” on page 92.
BASIC PLAYBACK
• Some DivX® VOD files are
restricted with the limited
playable times (you cannot
play them back beyond the
limit). If your DivX® VOD file
has such limit, the playback
confirmation screen will
appear.
Use [s / B] to select “Yes” if you want to play back the
file, or to select “No” if you do not wish to play it back.
Then, press [ENTER] to
confirm the selection.
• You cannot play back the
DivX® VOD files, of which
rental period has been
expired. In such case, press
[TOP MENU] and select other
files that can be played back.
DivX VOD Rental
R
This rental has views left.
Do you want to use one
of your views now?
Yes
No
This rental is expired.
Please push ‘TOP MENU’.
Rental Expired
Please select the media
to play back.
Audio & Picture
Video
This player is not authorized to
play this video.
Please push 'TOP MENU'.
Authorization Error
E7E7AUDEN.indb54E7E7AUDEN.indb54 2007/01/2919:04:072007/01/2919:04:07
55EN 55EN
Disc
Management
Recording
Playback
Introduction Connections Basic Setup
Editing Function Setup
Others
BASIC PLAYBACK
Using the Title/Disc Menu
DVD may contain a title list, which describes the contents
of the disc, or a disc menu, which guides you through the
available functions in the disc.
1) Press [MENU/LIST] or [TOP MENU] to call up the title
list or disc menu.
2) Use [K / L / { / B] to make a selection, and then
press [ENTER] to enable your selection.
3) Press [STOP C] to exit the disc menu.
1) During playback, press [PAUSE F].
Playback will be paused and sound will be muted.
F
2) Press [PLAY B] to return to the normal playback.
Note
• You can select a numbered menu with [the Number
buttons] also.
• Menus vary among discs. Refer to the information
accompanying the disc for details.
• [MENU/LIST] or [TOP MENU] will not always
effective for all DVDs.
Note
• For DVD, set “Still Mode” to “Field” in “Playback”
menu if pictures in the pause mode are blurred.
(Refer to page 88.)
Pause
E7E7AUDEN.indb55E7E7AUDEN.indb55 2007/01/2919:04:072007/01/2919:04:07
56 EN56 EN
SPECIAL PLAYBACK
You can skip TV commercials to enjoy the recorded
programs without interrupting.
During playback, press [INSTANT SKIP].
Normal playback will start at 30 seconds ahead from the
point you press [INSTANT SKIP].
Every time you press [INSTANT SKIP], the searching
point will be extended by 30 seconds ahead.
You can press
[INSTANT SKIP]
up to 6 times (180 seconds).
e.g.) Press [INSTANT SKIP] once.
B
Instant Skip 30sec.
(forwarding 30 seconds)
Playback will return to the normal playback.
You can play back from where you stopped playing back
the disc last.
1) During playback, press [STOP C].
The resume message will appear.
Resume ON
2) Press [PLAY B].
In a few seconds, playback will resume from the point
at which it stopped last. You can resume playback at
the same point even if you turn off the unit.
To cancel the resume playback and start playing back
the disc from the beginning, press [STOP C] again
while the playback is stopped.
Resume Playback
Note
• For MP3/WMA/JPEG files, playback will resume from
the beginning of the file at which playback was
stopped.
Note
• Forward/reverse speed will be indicated with icons
as follows.
forward (approx. speed)
2x:
20x:
40x:
reverse (approx. speed)
5x:
20x:
40x:
1) During playback, press [FWD D] or [REV E].
Every time you press [FWD D] or [REV E],
approximate speed will be changed as follows.
Fast forward or fast reverse playback across titles (for
DVD), or files (for MP3 / WMA / DivX® files) is not
possible.
20x
normal
speed
playbac k
2x 20x5x 40x40x
REV
FWD
REV
FWD
REV
FWD
REV
FWD
REV
FWD
REV
FWD
For audio CD, MP3/WMA files, approximate speed is
fixed at 8x with sound.
Picture quality of DivX® files in fast reverse is lower
than that in fast forward.
For some DivX® files, fast forward/fast reverse may not
function.
2) Press [PLAY B] to return to the normal playback.
Fast Forward / Fast Reverse Playback
Skipping TV Commercials During
Playback
E7E7AUDEN.indb56E7E7AUDEN.indb56 2007/01/2919:04:082007/01/2919:04:08
57EN 57EN
Disc
Management
Recording
Playback
Introduction Connections Basic Setup
Editing Function Setup
Others
SPECIAL PLAYBACK
Rapid playback function is available only during
playback.
This function is available only on discs recorded in the
Dolby Digital format, and plays back in a slightly faster/
slower speed while keeping the sound quality just as
normal playback.
1) During playback, press [
1.3X / 0.8X PLAY
].
B x0.8 :
Press [1.3X / 0.8X PLAY] once during playback.
Plays back approximately at 0.8 times of normal
playback.
B x1.3 :
Press [1.3X / 0.8X PLAY] twice during playback.
Plays back approximately at 1.3 times of normal
playback.
B :
Press [
1.3X / 0.8X PLAY
] thrice to play back in
normal speed.
No effects.
2) Press [PLAY B] to resume the normal playback.
Rapid Playback
Note
• Audio (language) setting cannot be changed while
using this mode.
• This feature may not work at some point in a disc.
• Audio is PCM during rapid playback mode except
when using digital audio connection.
• When using digital audio connection (COAXIAL or
HDMI), the LPCM sound (2 channel) will be output.
Step by Step Playback
1) During playback, press [PAUSE F].
Playback will be paused and sound will be muted.
2) Press [SKIP i ] repeatedly.
Playback will advance one frame at a time when you
press [SKIP i ] with the sound muted.
To play back step by step backward:
Press [SKIP j ] repeatedly.
Every time you press the button, the playback will go
backward by one frame.
• Press and hold [SKIP j ] / [SKIP i ] to reverse/
advance continuously.
3) Press [PLAY B] to resume the normal playback.
Note
• Only step by step forward playback is available for
playing back DivX® files.
Note
• Forward/reverse speed will be indicated with icons
as follows.
forward (approx. speed)
1/16x:
1/8x:
1/3x:
reverse (approx. speed)
1/16x:
1/8x:
1/4x:
• For some DivX® files, slow forward/slow reverse may
not function.
• Only slow forward is available when playing back
DivX® files.
Slow Forward / Slow Reverse Playback
1) During playback, press [PAUSE F]. Then press
[FWD D] or [REV E].
Every time you press [FWD D] or [REV E],
approximate speed will be changed as follows. (The
sound will remain muted.)
1/8x
pause
1/16x 1/8x1/16x 1/3x1/4x
To return to the normal playback, press [PLAY B].
E7E7AUDEN.indb57E7E7AUDEN.indb57 2007/01/2919:04:102007/01/2919:04:10
58 EN58 EN
SPECIAL PLAYBACK
Zoom
Note
• When selecting a smaller factor than the current one,
the zoom area will not be displayed.
• To exit the zoom menu, press [DISPLAY] repeatedly.
• To cancel the zoom function, select “x1.0” using
[K / L], then press [ENTER] at step 3.
• You cannot slide the zoomed picture on some JPEG
files.
1) During playback, press [DISPLAY] or [ZOOM].
• If [ZOOM] is pressed, skip to step 3.
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the
selection menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired zoom factor to zoom,
then press [ENTER].
1/ 5 1/ 5
DVD
× 1.2
× 1.5
× 2.0
0:01:00 / 1:23:45
Video
Zoom menu will appear.
There are four options
(x1.0, x1.2, x1.5 and x2.0), these are displayed
excluding the current zoom rate.
Zoom area will be displayed.
4) Use [K / L / { / B] to select a desired zoom
position, then press [ENTER].
Zoom playback will start.
This feature allows you to assign a specific point on a disc
to be called back later.
• For audio CD, skip to step 2.
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the marker
list.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired marker number.
When it reaches the desired point, press [ENTER].
e.g.) DVD-video
1/ 5 1/ 5
DVD
---
---
---
---
---
---
1
2
3
4
5
6
0:01:00 / 1:23:45
Video
The title (track) number and the time will be displayed.
4) To return to the marker:
Use [K / L] to select the desired marker number,
then press [ENTER].
Marker Setting
Note
• To clear a marker, select the marker number to be
cleared, then press [CLEAR].
• All markers will be erased when you operate these
operations listed below.
– Opening the disc tray
– Turning off the power
– Record on a recordable disc
• You can mark up to 6 points.
E7E7AUDEN.indb58E7E7AUDEN.indb58 2007/01/2919:04:112007/01/2919:04:11
59EN 59EN
Disc
Management
Recording
Playback
Introduction Connections Basic Setup
Editing Function Setup
Others
SPECIAL PLAYBACK
Chasing Playback during Recording
Note
• Playback image may freeze momentarily using this
function.
However, this does not affect the recording.
• The 2x fast forward playback is not available.
• [REC I] is not available during this function.
• You must cancel this function first by pressing
[STOP C] once. Then you can use [REC I] to use
OTR (one-touch timer recording) function or change
recording time for the OTR.
• “Wait for a moment.” will be displayed on the screen
if you press [PLAY B] before 1 minute of recording.
• This function is available only when you are
recording on a DVD-RW in VR mode, with the
recording mode LP, EP or SLP.
You can play back the already recorded part of the
currently recording programme without waiting for the
recording to the end. This function works from 1
minute after the start of the recording.
1) During recording, press [PLAY B].
Playback will start from the beginning of the
programme that you are currently recording.
Screen for the current playback:
1/ 5 1/ 5 0:01:00 / 1:23:45
-
RW VR ORG
If you play back the fast forward playback and the
playback reaches the scene recorded 1 minute before,
the forwarding playback will automatically return to
the normal playback.
2) Press [STOP C] once to stop playback.
The resume message will appear.
Screen for the current recording:
L1
1/ 5 1/ 5 1:23:45
LP 1:01Resume ON
-
RW VR ORG
To stop recording, press [STOP C] again.
To cancel the resume, press [STOP C] again.
Using the [TIME SLIP] button...
With [TIME SLIP] button, even if you leave your couch
while you are watching TV through this unit, you can
come back and watch rest of the programme from
right where you left at any convenient time with just
one button. Please make sure to put VR mode DVD-RW
disc, and set the recording mode to LP, EP or SLP.
1) While viewing a TV broadcast via this unit, press
[TIME SLIP].
This unit start to record the TV broadcast.
2) Press [TIME SLIP] again.
Playback will start from the point you press [TIME
SLIP] first while recording continues.
• While viewing the recorded content, you can pause
and resume the playback by pressing [TIME SLIP].
3) To stop the recording, press [STOP C] twice.
E7E7AUDEN.indb59E7E7AUDEN.indb59 2007/01/2919:04:132007/01/2919:04:13
60 EN60 EN
You can also play back a recorded title during current
recording or the timer recording on the same disc.
1) During recording, press [DISPLAY].
Screen for the current recording:
L1
1/ 5 1/ 5 1:23:45
-
RW VR ORG
2) Select icon using [{ / B], then press [ENTER].
The title number next to
will be highlighted.
Title:
Enter a desired title number to search using
[K / L] or [the Number buttons], then press
[ENTER].
Selected title playback will start.
Chapter:
To move to
for chapter, press [B].
Enter a desired chapter number to search using
[K / L] or [the Number buttons], then press
[ENTER].
Selected chapter playback will start.
If you play back the currently recording programme and
the playback reaches the scene recorded 1 minute
before, the forwarding playback will automatically return
to the normal playback.
Simultaneous Playback and Recording
SPECIAL PLAYBACK
3) Press [STOP C] once to stop playback.
The resume message will appear.
Screen for the current recording:
L1
1/ 5 1/ 5 1:23:45
LP 1:01Resume ON
-
RW VR ORG
To stop recording, press [STOP C] again.
To cancel the resume, press [STOP C] again.
Note
• Playback image may freeze momentarily using this
function.
However, this does not affect the recording.
• The 2x fast forward playback is not available.
• This function is available only when you are
recording on a DVD-RW in VR mode, with the
recording mode LP, EP or SLP.
• Only the titles (chapters) in the original can be
selected.
You cannot select titles from the title list.
• When you stop the playback after the timer
recording is completed, the unit will be switched to
the timer standby mode if another programme has
been set (refer to “Hints for Timer Recording” on
page 40).
E7E7AUDEN.indb60E7E7AUDEN.indb60 2007/01/2919:04:132007/01/2919:04:13
61EN 61EN
Disc
Management
Recording
Playback
Introduction Connections Basic Setup
Editing Function Setup
Others
SEARCH
Using [SKIP j ] / [SKIP i ]
1) During playback, press [SKIP i ] to skip the
current title or chapter and move to the next.
The title or chapter will move forward by one at a time.
• If there is no chapter in one title, the current title will
be skipped.
To go back to the beginning of the current title or
chapter, press [SKIP j ].
Press it twice in quick successions to go to the previous
title or chapter. The title or chapter will move
backward one title at a time.
Using [DISPLAY]
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER].
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
The number next to will be highlighted.
3) Title:
Use [K / L] or [the Number buttons] to enter a
desired title number to search, then press [ENTER].
Title search will start.
Chapter:
Press [B] to move to the number next to
for
chapter.
Use [K / L] or [the Number buttons] to enter a
desired chapter number to search, then press
[ENTER].
After the search, playback will start automatically.
Title/Chapter Search
Note
• In search mode display, total numbers of each search
contents (title/chapter/time) are shown as a
denominator.
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD
Video
total number
of titles
total number
of chapters
total time
of the disc
Using [SKIP j ] / [SKIP i ]
1) During playback, press [SKIP i] to skip the
current track/file and move to the next.
The track/file will move forward one at a time.
To go back to the beginning of the current track/file,
press [SKIP j ].
Press it twice in quick successions to go to the previous
track/file. The track/file will move backward one at a
time.
Track Search
Note
• During CD playback, you can enter a track number
directly using [the Number buttons] for track search
without displaying the menu.
Using [DISPLAY]
• For audio CD, skip to step 2.
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER].
e.g.) audio CD
1/ 5CD0:00:15 / 0:05:00
e.g.) MP3 files
1/ 5 0:00:15
MP3
The number next to will be highlighted.
3) Use [K / L] or [the Number buttons] to enter a
desired track/file number to search, then press
[ENTER].
After the search, playback will start automatically.
E7E7AUDEN.indb61E7E7AUDEN.indb61 2007/01/2919:04:142007/01/2919:04:14
62 EN62 EN
• For audio CD, skip to step 2.
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER].
e.g.) DVD-video
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD
Video
e.g.) audio CD
1/ 5CD0:00:15 / 0:05:00
The number next to will be highlighted.
To move to the number next to , press [B].
When time search is not available,
and time
counter are not displayed.
3) Use [K / L / { / B] or [the Number buttons] to
enter a desired time to search, then press [ENTER].
After the search, playback will start automatically.
Note
• Time search is available only in the same track, file or
title.
Time Search
SEARCH
E7E7AUDEN.indb62E7E7AUDEN.indb62 2007/01/2919:04:152007/01/2919:04:15
63EN 63EN
Disc
Management
Recording
Playback
Introduction Connections Basic Setup
Editing Function Setup
Others
REPEAT/RANDOM/PROGRAM PLAYBACK/SLIDE SHOW
Repeat Playback
Random Playback
Available repeat function may vary depending the discs.
• For audio CD, MP3, or WMA, skip to step 2, or press
[REPEAT] and skip to step 3.
1) During playback, press [DISPLAY] or [REPEAT].
• If you press [REPEAT], skip to step3.
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the
selection menu.
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired option to repeat,
then press [ENTER].
e.g.) DVD-video
1/ 5 1/ 5
DVD
OFF
Title
Chapter
A – B
0:01:00 / 1:23:45
Video
e.g.) audio CD
1/ 5CD0:00:15 / 0:05:00
Track
All
A-B
OFF
e.g.) MP3/WMA/JPEG files
1/ 5 0:00:15
MP3
Track
All
Group
OFF
The selected repeat playback will start.
Repeat
Title
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
Title:
The current title will be played back repeatedly.
Chapter:
The current chapter will be played back repeatedly.
All:
The current disc will be played back repeatedly.
A-B:
Desired section can be played back repeatedly.
1) Use [K / L] to select “A-B”, then press [ENTER].
2) Press [ENTER] at the desired starting point A.
3) Press [ENTER] at the desired ending point B.
Track:
The current track or file will be played back repeatedly.
Group:
The current folder will be played back repeatedly.
You can play back a disc randomly instead of playing
back in the original order.
1) Press [SETUP] in stop mode.
2) Use [K / L] to select “CD Playback Mode”, then press
[ENTER].
“CD Playback Mode” menu will appear.
3) Use [K / L] to select “Random Play”, then press
[ENTER].
Random playback will start.
e.g.) audio CD
1/ 5 0:00:15 / 0:05:00
Random
CD
Note
• To cancel random playback, press [STOP C] twice
during random playback. “OFF” appears on the
display menu.
Note
• Point B for the repeat A-B playback should be set
within the same chapter or track of point A.
• To cancel the repeat playback, select “OFF” at step 3.
The repeat setting will also be canceled when you
stop playback.
• You cannot select “Group” during the random
playback of MP3/WMA/JPEG files.
• For some DivX® files, A-B repeat playback may not
function.
• Chapter/Track repeat will be canceled whenever
[SKIP G] or [SKIP H] is pressed.
E7E7AUDEN.indb63E7E7AUDEN.indb63 2007/01/2919:04:162007/01/2919:04:16
64 EN64 EN
Program Playback
Note
• To erase tracks you selected, press [CLEAR] at step 4.
• You can make program settings up to 50 tracks.
• To cancel program playback, press [STOP C] twice
during program playback. “OFF” appears on the TV
screen.
• You may also select a desired track using [the
Number buttons] at step 4.
REPEAT/RANDOM/PROGRAM PLAYBACK/SLIDE SHOW
You can program the disc to play back in your desired
order.
1) Press [SETUP] in stop mode.
2) Use [K / L] to select “CD Playback Mode”, then press
[ENTER].
“CD Playback Mode” menu will appear.
3) Use [K / L] to select “Program Play”, then press
[ENTER].
4) Use [K / L] to select a desired track, then press
[ENTER] or [B].
CD Playback Mode
Program Play
0:00:00Total
--
-- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
Repeat this step until you program all the desired
tracks.
5) Press [PLAY B].
CD Playback Mode
Program Play
0:31:07Total
09
04 10 06 -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
Program playback will start.
Slide Show
You can select the display time between 5 seconds and
10 seconds.
1) Follow steps 1 and 2 in “Program Playback” on the
left.
2) Use [K / L] to select “Slide Show”, then press
[ENTER].
3) Use [K / L] to select the display time, then press
[ENTER].
4) Press [SETUP] to exit.
Note
• Large-size JPEG files take a few moments to be
displayed.
E7E7AUDEN.indb64E7E7AUDEN.indb64 2007/01/2919:04:172007/01/2919:04:17
65EN 65EN
Disc
Management
Recording
Playback
Introduction Connections Basic Setup
Editing Function Setup
Others
DVD-video may have subtitles in one or more languages.
Available subtitle languages can be found on the disc
case. You can switch subtitle languages anytime during
playback.
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the
selection menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired subtitle language,
then press [ENTER].
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
OFF
1.English
Video
Subtitle will be displayed in the selected language.
When “OFF” is selected, subtitle will disappear.
SELECTING THE FORMAT OF AUDIO AND VIDEO
Switching Subtitles
Note
• Some discs will only allow you to change the subtitle
from the disc menu. Press [MENU/LIST] or [TOP
MENU] to display the disc menu.
• If a 4-digit language code appears in the subtitle
menu, refer to the “LANGUAGE CODE” on page 100.
• For disc with DivX® files, the TV screen only displays
the number of subtitle languages and “_ _ _ _“ next
to the numbers.
You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back.
When playing back a DVD-video recorded with 2 or more
soundtracks (these are often in different languages), you
can switch them during playback.
When playing back audio CD, you can switch “L/R”(stereo),
“L”(left) or “R”(right).
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the
selection menu.
3) Use [K / L] to select a desired audio soundtrack or
audio channel, then press [ENTER].
For DVD-video, VR mode DVD-RW, or DivX® files
• Audio soundtrack will switch.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
1.Dolby Digital 2ch English
2.Dolby Digital 5.1ch English
Video
• If the title contains both main and sub audio, you can
further select “L“ (main), “R“ (sub), “L/R“ (mixed of
main and sub).
For audio CD
• Audio channel will switch.
e.g.) audio CD
1/ 5CD0:00:15 / 0:05:00
2. L
3. R
1. L/R
Switching Audio Soundtrack
Note
• Some discs will only allow you to change the
soundtrack from the disc menu. Press [MENU/LIST]
or [TOP MENU] to display the disc menu.
E7E7AUDEN.indb65E7E7AUDEN.indb65 2007/01/2919:04:172007/01/2919:04:17
66 EN66 EN
You can enjoy stereophonic virtual space through your
existing 2 channel stereo system.
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the
selection menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select “OFF”, “Type 1” or “Type 2”,
then press [ENTER].
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
OFF
Type 1
Type 2
Video
OFF : no effect
Type 1 : natural effect
Type 2 : emphasized effect
Note
• Select “OFF” if sound is distorted.
• The setting will be kept when the unit is turned off.
Switching Virtual Surround System
SELECTING THE FORMAT OF AUDIO AND VIDEO
Switching Camera Angles
Reducing Block Noise
Some DVD-video have scenes shot from two or more
angles. Angle information should be on the disc case if
the disc contains multi-angle scenes.
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER].
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
Angle icon appears when a switching camera angle is available.
Angle will switch each time you press [ENTER].
1) During playback, press [DISPLAY].
2) Use [{ / B] to select
, then press [ENTER] within
1 second, or wait for 1 second to display the
selection menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3)
Use [K
/ L]
to, select “Noise Reduction”, then press
[ENTER]
.
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Noise Reduction OFF
Black Level OFF
Video
4)
Use [K
/ L]
to select a desired option, then press
[ENTER]
.
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
OFF
Type 1
Type 2
Video
Your setting will be activated.
This function reduces noise in the playback picture. If
noises appear on the TV screen during playing back
discs recorded in long time recording mode such as EP
or SLP, select “Type 1” or “Type 2”.
(“Type 2” is more effective.)
When playing back discs with a few noises such as
DVD-video, select “OFF”.
Note
• Angle icon does not appear on the TV screen if you
set “Angle Icon” to “OFF” in “Playback” menu.
Refer to page 88.
E7E7AUDEN.indb66E7E7AUDEN.indb66 2007/01/2919:04:182007/01/2919:04:18
67EN 67EN
Disc
Management
Recording
Playback
Introduction Connections Basic Setup
Editing Function Setup
Others
You can adjust the black level to control the brightness
of the picture in order to get a better picture.
1)During playback, press [DISPLAY].
2) Use [{ / B] to select
. Press [ENTER] within 1
second, or wait for 1 second to display the selection
menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select “Black Level”, then press
[ENTER].
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Noise Reduction OFF
Black Level OFF
Video
4) Use [K / L] to select “ON”, then press [ENTER].
Your setting will be activated.
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
ON
OFF
Video
Adjusting Black Level
SELECTING THE FORMAT OF AUDIO AND VIDEO
Note
• You can adjust black level setting only during
playback.
• The setting will be kept even when the unit is turned
off.
• The default setting is “ON”.
• You cannot adjust the black level for the images
output through the HDMI.
E7E7AUDEN.indb67E7E7AUDEN.indb67 2007/01/2919:04:202007/01/2919:04:20
68 EN68 EN
INFORMATION ON DISC EDITING
Guide to a Title List Editing Discs
Title list allows you to check the titles recorded on the
disc easily. You can choose a title to play back from this
list and easily edit the titles as you prefer.
Press [TOP MENU].
Title List
1 / 2
JAN/ 1/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/ 1/07 L1 LP
4 5 6
1 2 3
ORG
Chapter Mark
Protect
Edit Title Name
Scene Delete
Edit
JAN/31/07 11:00PM L1 LP
0:00:59
2
ORG
789
10
11
4 5 6
3 312
1. Title list: List of the titles recorded on the disc, and
their information.
•For DVD+RW/+R, empty title always appears at the
last of the title list.
2. The protect icon, which appears when the title has
been protected. (Original titles only)
3. Arrow: Indicating there is a previous / next page.
4. Title list icon, which indicates a type of the displayed
title list.
ORG
: VR(original).
PL
: VR (Playlist).
+VR
: +VR mode.
Video
: Video mode.
5. Title name.
6. Title information, which displays recorded year/ date/
month/ time, length of the title, recorded external
input position (L1, L2 or L3), and the recording mode.
7. Submenu: Submenus for the selected menu are
displayed here.
8. Title name (editable): If you do not name the title,
the recorded date, time, channel and the recording
mode are displayed here.
9. Progress bar: Indicating the progress of the
playback.
10. Preview window: Preview of the selected title is
displayed here.
11. Playback status: Indicating the current playback
status of the selected title.
Press [RETURN] to exit the title list.
Edit the recorded disc
You will find editing discs is easy. This unit offers
convenient edit functions which are possible only with
DVD-RW/-R and DVD+RW/+R discs.
You can edit the following from a title list.
• Assigning a name to a title
• Dividing a title
• Combining titles
• Adding titles to a playlist
• Erasing all playlist
• Setting or releasing the title protection
• Adding or deleting chapter marks
• Deleting titles or parts of titles
(Possible editing functions depend on the recording
format and editing method.)
Original and playlist (VR mode)
For VR mode DVD-RW, you can edit the recordings in
playlist without changing the original recordings. Playlist
does not take up much disc space. After you make a
recording to VR mode DVD-RW, a playlist will be created
automatically.
What “Original” or “Playlist” is for?
Throughout this manual, you will find original and playlist
which refer to the actual content and the edited version.
• Original content refers to what’s actually recorded on
the VR mode DVD-RW.
• Playlist content refers to the edited version of the VR
mode DVD-RW; how the original content is to be played
back.
Finalizing a disc
• This will allow a disc that is recorded on this unit to be
played back on other DVD player — without finalization
it will not be playable on other DVD player.
• After finalizing a DVD-RW/-R or DVD+R, you cannot edit
any information that is on that disc.
• If you have recorded in DVD+RW, then editing is still
permitted after finalizing.
Using these editing functions to modify copyrighted
content for any purpose other than your private viewing
may be prohibited under the Copyright Laws of the
United States and other countries, and may subject you
to civil and criminal liability.
E7E7AUDEN.indb68E7E7AUDEN.indb68 2007/01/2919:04:212007/01/2919:04:21
69EN 69EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
DELETING TITLES
Note
• If you delete the title in DVD+RW, deleted title will be displayed as “Empty”.
• You cannot overwrite on the “Empty”
• For DVD+RW, if “Empty” appears right next to the other “Empty”, those “Empty” combines into one.
1Delete the
title No.5
Title List
1 / 1
JAN/21/07 7:00AM L1 SLP
7:00AM (2:00:00) JAN/21/07 SLP
4 5 6
EmptyEmpty
1 2 3
+VR
Title List
1 / 1
EMPTY TITLE
4
Empty
1 2 3
+VR
Notes for deleting titles
TITLE 1 TITLE 1
TITLE 1
TITLE 1
TITLE 1
TITLE 2
TITLE 1
TITLE 2
TITLE 1
TITLE 2
TITLE 2
TITLE 2
TITLE 2
TITLE 2
TITLE 3
TITLE 3
TITLE 3
TITLE 3
Delete! Delete!
You can record
a new title.
You cannot
record
a new title.
You cannot
record
a new title.
You can record
a new title.
Delete!
The Full-Recorded discThe Full-Recorded disc
Delete!
The Full-Recorded disc
After the disc is fully recorded:
DVD-RW/DVD+RW DVD-R/DVD+R
• When a title is deleted
from DVD-RW in VR
mode, the recordable disc
space will be increased.
• When the last title is deleted from
DVD-RW in video mode or DVD+RW,
the recordable space will be
increased.
• When a title is deleted from
DVD-R and DVD+R, the
recordable space will NOT be
increased.
The deleted title
cannot be created the space.
Once all editings are made, press [RETURN] in several times to exit the editing mode. “Writing to Disc” appears
momentarily. It also appears when pressing [AOPEN/CLOSE] or [I/
y
y ON/STANDBY] before exiting the editing
mode after editing.
E7E7AUD_EN_Editing.indd 69E7E7AUD_EN_Editing.indd 69 2007/01/31 13:46:462007/01/31 13:46:46
70 EN70 EN
DELETING TITLES
You can delete titles which you do not need anymore.
Please be advised that the titles once deleted cannot be brought back to the disc.
Be sure to read “Notes for deleting titles” on page 69 before you delete the title.
1
In stop mode, press [TOP MENU].
Title list, original or playlist will appear.
• For VR mode DVD-RW, press [MENU/LIST] to
switch between “Original” and “Playlist”.
2
Use [K / L/ s / B] to select a desired
title, then press [ENTER].
e.g.) VR mode DVD-RW original
Title List
1 / 2
JAN/ 1/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/ 1/07 L1 LP
4 5 6
1 2 3
ORG
3
Use [K / L] to select “Title Delete”,
then press [ENTER].
Title List
1 / 2
JAN/ 1/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/ 1/07 L1 LP
4 5 6
1 2 3
ORG
Play From Start
Edit
Title Delete
Add To Playlist
4
Use [K / L] to select “Yes”, then press
[ENTER].
Title List
1 / 2
JAN/ 1/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/ 1/07 L1 LP
4 5 6
1 2 3
ORG
Delete this title?
Yes
No
After that, “Are you sure?” will appear, select
“Yes” and then press [ENTER].
Title will be deleted.
5
Press [RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
Writing to Disc 90%
This operation may take
awhile to be completed.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
TOP MENU
ENTER
STOP
RETURN
MENU/LIST
E7E7AUDEN.indb70E7E7AUDEN.indb70 2007/01/2919:04:222007/01/2919:04:22
71EN 71EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
Adding Titles to a Playlist
Playlist
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
STOP
RETURN
For VR mode DVD-RW, you can create the playlist as you wish.
You can add up to 99 titles to a playlist (as long as the total number of the playlist does not exceed 999
chapters).
1
Follow the step 1 in “DELETING
TITLES” on page 70 to display the
original.
2
Use [K / L/ s / B] to select the
desired title, then press [ENTER].
3
Use [K / L] to select “Add To
Playlist”, then press [ENTER].
Title List
1 / 2
JAN/ 1/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/ 1/07 L1 LP
4 5 6
1 32
ORG
Play From Start
Edit
Title Delete
Add To Playlist
4
Use [K / L] to select “Yes”, then press
[ENTER].
Title List
1 / 2
JAN/ 1/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/ 1/07 L1 LP
4 5 6
1 32
ORG
Create a Playlist ?
Yes
No
The title is added to playlist.
5
Press [RETURN] or [STOP C] to exit.
Writing on the disc starts.
It may take awhile to write the data on a disc.
Note
• To delete a title from the playlist, refer to “DELETING
TITLES” on page 70.
• To delete all titles in the playlist, refer to “Erasing All
Playlist” on page 72.
• When a playlist contains 99 titles or more, or 999
chapters or more, “Add to Playlist” cannot be
selected.
CREATING/DELETING PLAYLIST
E7E7AUDEN.indb71E7E7AUDEN.indb71 2007/01/2919:04:222007/01/2919:04:22
72 EN72 EN
CREATING/DELETING PLAYLIST
Erasing All Playlist
Playlist
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SETUP
A playlist can be deleted if it is no longer needed.
1
Press [SETUP].
Main menu will appear.
2
Use [K / L] to select “DVD Menu”,
then press [ENTER].
3
Use [K / L] to select “Delete All
Playlists”, then press [ENTER].
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlists
4
Use [K / L] to select “Yes”, then press
[ENTER].
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlist
Delete entire playlist?
Yes
No
“Are you sure?” will appear.
Use [K / L] to select “Yes” and then press
[ENTER].
DVD Menu
Format
Finalize
Disc Protect OFF ON
Delete All Playlist
Delete entire play list?
Yes
No
Are you sure?
Yes
No
Playlist is deleted.
Writing on the disc starts.
It may take awhile to write the data on a disc.
Note
• Deleting a playlist will not increase the available
recording time on the disc.
E7E7AUDEN.indb72E7E7AUDEN.indb72 2007/01/2919:04:232007/01/2919:04:23
73EN 73EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others

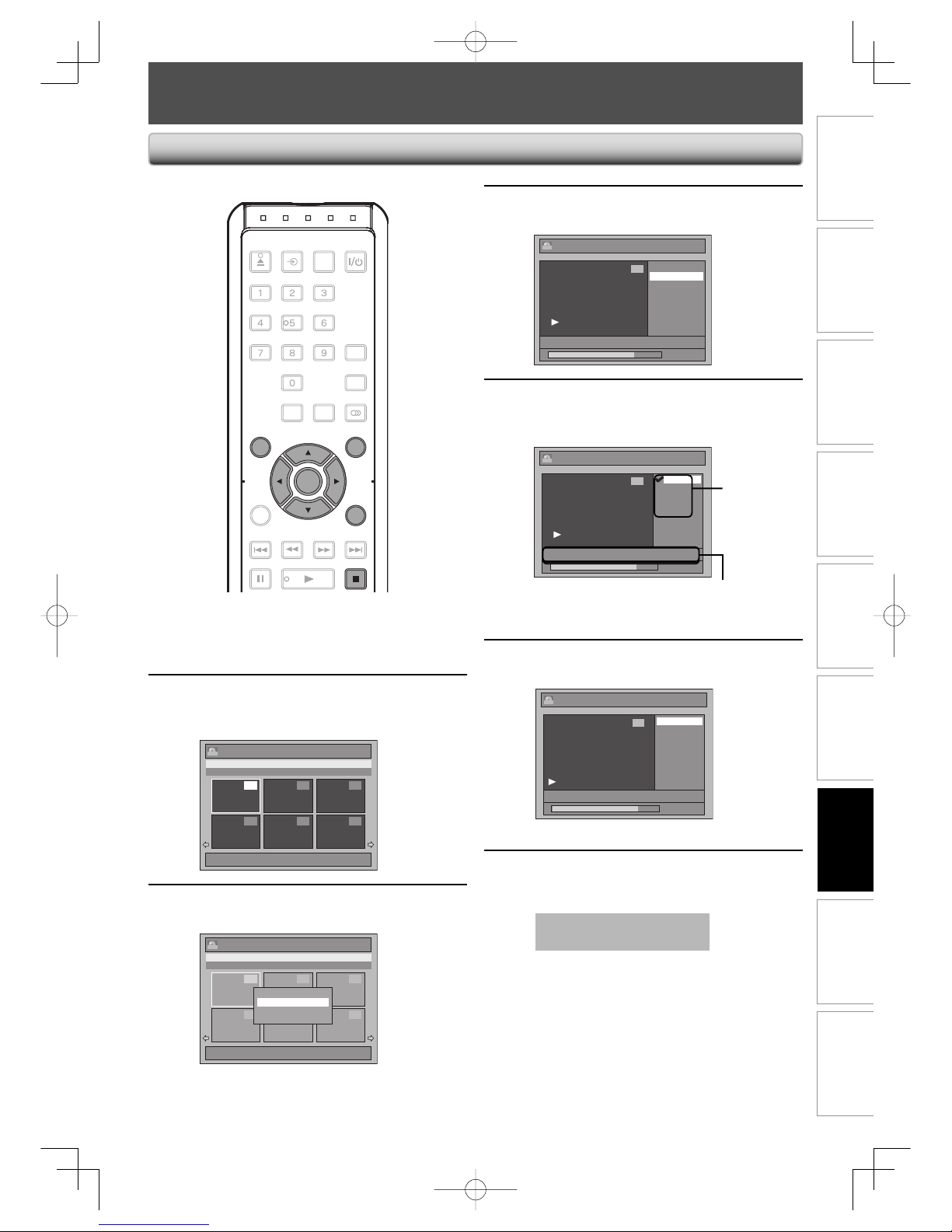

Putting Names on Titles
4
Use [K / L] to select “Edit Title
Name”, then press [ENTER].
Edit
Scene Delete
Edit Title Name
Chapter Mark
Protect
JAN/ 1/07 12:00AM L1 LP
1 : 25 : 47
1
ORG
5
To enter a title name, follow the
steps of “Guide to Edit Title Name”
on page 74.
Edit - Edit Title Name
abc
ABC
123
@! ?
M
1:25:47
1
ORG
character set
area for entering title names
When you finish entering a title name, press
[ENTER].
6
Use [K / L] to select “Yes”, then press
[ENTER].
Edit - Edit Title Name
No
Yes
MY FAVORITE
1
1:25:47
ORG
The name you entered will be activated for the title.
7
Press [RETURN] and then [RETURN] or
[STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
You can put a name on the disc and change it from this
menu.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAYPAUS E STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
TOP MENU MENU/LIST
RETURN
ENTER
STOP
1
In stop mode, press [TOP MENU].
Title list, original or playlist will appear.
• For VR mode DVD-RW, press [MENU/LIST] to
switch between “Original” and “Playlist”.
2
Use [K / L/ s / B] to select a desired
title, then press [ENTER].
e.g.) VR mode DVD-RW original
Title List
1 / 2
JAN/ 1/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/ 1/07 L1 LP
4 5 6
1 2 3
ORG
3
Use [K / L] to select “Edit”, then press
[ENTER].
Title List
1 / 2
JAN/ 1/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/ 1/07 L1 LP
4 5 6
1 2 3
ORG
Play From Start
Edit
Title Delete
Add To Playlist
EDITING DISCS
E7E7AUDEN.indb73E7E7AUDEN.indb73 2007/01/2919:04:242007/01/2919:04:24
74 EN74 EN
1) Use [K / L] to select a desired character set, then
press [ENTER].
2) Follow the list below, use [the Number buttons]
repeatedly until the desired letter appears.
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
! ” # $ % & ’ ( )
*
+ , - . / : ; < = >
? @ [ ] ^ _ { | }
2
3
4
5
6
7
8
9
0
1
ABC
abc @ ! ?
123
(*1) (*1)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
Select
Press
<space> <space> <space>
*1 Press , character set will be changed to the “ @!? ”
mode automatically.
*2 Press
to , character set will be changed to the
previous input mode automatically.
• To delete letters, press [CLEAR] repeatedly.
Press and hold [CLEAR] to delete all letters.
• Use [s / B] to move the cursor to the left and right.
• You can enter up to 30 letters.
Note
• Undefined letters in a title name are shown by “*”. If
you delete them, adjoining letters may change to “*”
or other.
Guide to Edit Title Name
EDITING DISCS
Putting Names on Titles (cont’d)
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
CLEAR
GHI
PQRS TUV
SPACE
WXYZ
JKL MNO
.@/: ABC DEF
E7E7AUDEN.indb74E7E7AUDEN.indb74 2007/01/2919:04:252007/01/2919:04:25
75EN 75EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
EDITING DISCS
Setting Chapter Marks
1
Follow steps 1 to 3 in “Putting Names
on Titles” on page 73 to display “Edit”
menu.
2
Use [K / L] to select “Chapter Mark”,
then press [ENTER].
Submenu will appear.
3
Use [SKIP H / G],
[REV E], [FWD D], [PLAY B] and
[PAUSE F] to find the point where
you will create a new chapter mark.
Or, use [SKIP H / G] to find a
chapter mark that you wish to delete.
4
Use [K / L] to select “Add” or
“Delete”, then press [ENTER].
e.g.) VR mode DVD-RW original
Edit - Chapter Mark
Add
Delete
JAN/ 1/07 12:00AM L1 LP
1
Chapter 2 / 3
ORG
1 : 25 : 47
5
Use [K / L] to select “Yes”, then press
[ENTER].
If you select “Add” at step 4, a new chapter mark
will be added, and if you select “Delete” at step
4, the chapter mark will be deleted.
e.g.) Add
Edit - Chapter Mark - Add
Yes
No
JAN/ 1/07 12:00AM L1 LP
1
Chapter 2 / 3
ORG
1 : 25 : 47
A new chapter mark will be added.
6
Press [RETURN].
7
Press [RETURN] again and then
[RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
You can put chapter marks in each title. Once a chapter is
marked, you can use it for the chapter search feature.
Note
• Maximum numbers of chapter for each DVD:
VR mode DVD : 999 chapters per title and per
each playlist and original
+VR mode DVD : 254 chapters per disc, 99 chapters
per title
• Besides the above-mentioned, it is not likely to be
able to add according to recorded time and number
of chapters.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
REV FWD
PAUS E
SKIP SKIP
PLAY STOP
RETURN
ENTER
E7E7AUDEN.indb75E7E7AUDEN.indb75 2007/01/2919:04:252007/01/2919:04:25
76 EN76 EN
EDITING DISCS
Hiding Chapters
1
In stop mode, press [TOP MENU].
Title list will appear.
2
Use [K / L/ s / B] to select a desired
title, then press [ENTER].
Title List
1 / 2
JAN/15/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/15/07 L1 LP
4 5 6
1 2 3
+VR
Note
• ”Hidden” will be displayed in the preview window
while previewing the hidden chapter.
• When you make all chapters in the title “Hidden”,
“Hidden” is displayed in a thumbnail of the title list.
Title List
1 / 1
JAN/15/07 12:00AM L1 LP
--:-- (2:00:00) ---/--/-- LP
4
Empty
1
Hidden
2 3
+VR
You can hide chapters from the title list.
Hidden chapters are skipped during playback.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAYPAUS E STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
SKIP SKIP
RETURN
ENTER
PLAY
3
Use [K / L] to select “Edit”, then press
[ENTER].
Title List
1 / 2
JAN/15/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/15/07 L1 LP
4 5 6
1 2 3
+VR
Play From Start
Edit
Title Delete
4
Use [K / L] to select “Hide Chapter”,
then press [ENTER].
Submenu will appear.
5
Use [SKIP H] or [SKIP G] to decide
the chapter to be hidden.
6
Use [K / L] to select “Hidden”, then
press [ENTER].
Edit - Hide Chapter
Visible
Hidden
JAN/15/07 12:00AM L1 LP
1
Chapter 2 / 3 Hidden
+VR
1 : 25 : 47
7
Press [RETURN].
8
Press [RETURN] again and then
[RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
If you want hidden chapters to be “Visible”,
select the chapter to be shown. Then use
[K / L] to select “Visible”, then press [ENTER]
at the step 4 above.
Data will be written onto the disc momentarily.
E7E7AUDEN.indb76E7E7AUDEN.indb76 2007/01/2919:04:262007/01/2919:04:26
77EN 77EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
Deleting a Part of a Title
1
Follow the steps 1 to 3 in “Putting
Names on Titles” on page 73 to
display the “Edit” menu.
2
Use [K / L] to select “Scene Delete”,
then press [ENTER].
e.g.) VR mode DVD-RW playlist.
Edit
Scene Delete
Edit Title Name
Chapter Mark
Title Dividing
Title Combining
JAN/ 1/06 12:00AM L1 LP
1 : 25 : 47
1
PL
You can delete a specific part of a title.
Even when parts of title are deleted from the playlist, the
original title will remain as it is.
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
SKIP SKIP
ENTER
PLAY
REV FWD
PAUS E
Original
Playlist
3
Use [SKIP H / G],
[REV E], [FWD D], [PLAY B] and
[PAUSE F] to find the start point,
then press [ENTER].
Edit - Scene Delete
Start
End
Preview
Delete
JAN/ 1/07 12:00AM L1 LP
1 : 00 : 00
1
PL
Then use [SKIP H / G],
[REV E], [FWD D], [PLAY B] and
[PAUSE F] again to move to the end
point, and press [ENTER].
Edit - Scene Delete
Start
End
Preview
Delete
JAN/ 1/07 12:00AM L1 LP
1 : 15 : 00
1
PL
The cursor will move to “Preview”.
The bar at the bottom of the screen indicates the
total and the elapsed time of the title, and the
area selected for deletion is indicated in red.
You can check the preview by pressing
[ENTER].
• Before and after 5seconds of the deleted point
will be playback for preview.
EDITING DISCS
Instructions continue on the next page.
Before
editing
Edited
start point end point
E7E7AUDEN.indb77E7E7AUDEN.indb77 2007/01/2919:04:272007/01/2919:04:27
78 EN78 EN
EDITING DISCS
Deleting a Part of a Title (cont’d)
4
Use [K / L] to select “Delete” then
press [ENTER].
Edit - Scene Delete
Start
End
Preview
Delete
JAN/ 1/07 12:00AM L1 LP
1 : 40 : 00
1
PL
5
Use [K / L] to select “Yes” then press
[ENTER].
“Are you sure?” will appear. Select “Yes” using
[K / L] and then press [ENTER].
Edit - Scene Delete
Are you sure?
Yes
No
JAN/ 1/07 12:00AM L1 LP
1 : 40 : 03
1
PL
The part of the title is deleted.
6
Press [RETURN] and then [RETURN] or
[STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
Note
• When a scene is deleted from an original, the scene
on the playlist will also be deleted.
• You cannot select “Scene Delete” if the number of
chapter marks in the original or playlist is more than
999.
• The recordable disc space will not increase even after
deleting a part of a title on the playlist.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
STOP
RETURN
E7E7AUDEN.indb78E7E7AUDEN.indb78 2007/01/2919:04:282007/01/2919:04:28
79EN 79EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
EDITING DISCS
Dividing a Title
1
In stop mode, press [TOP MENU].
• For VR mode DVD-RW, press [MENU/LIST] to
select “Playlist”.
2
Use [K / L/ s / B] to select a desired
title, then press [ENTER].
Playlist
You can divide one title into two new titles.
Note
• You cannot divide a title of the disc when the
number of recording titles reaches the maximum of
99 (-RW) or 49 (+RW), and the number of recording
chapters reaches the maximum of 999 (-RW) or 254
(+RW).
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
SKIP SKIP
ENTER
PLAY
REV FWD
PAUS E STOP
RETURN
3
Use [K / L] to select “Edit”, then press
[ENTER].
e.g.) VR mode DVD-RW playlist
Title List
1 / 2
JAN/ 1/07 12:00AM L1 LP
12:00AM (2:00:00) JAN/ 1/07 L1 LP
4 5 6
1 2 3
PL
Play From Start
Edit
Title Delete
4
Use [SKIP H], [SKIP G], [REV E],
[FWD D], [PAUSE F] and [PLAY B]
to decide the point at which you will
divide the title.
5
Use [K / L] to select “Title Dividing”,
then press [ENTER].
6
Use [K / L] to select “Yes”, then press
[ENTER].
e.g.) VR mode DVD-RW playlist
Edit - Title Dividing
Yes
No
JAN/ 1/07 12:00AM L1 LP
1 : 25 : 47
1
PL
The title will be divided into two new titles.
Both title names are identical.
For DVD+RW: Data will be written onto the disc
momentarily.
Writing to Disc 90%
This operation may take
awhile to be completed.
For VR mode DVD-RW: Proceed to step 5.
7
Press [RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
E7E7AUDEN.indb79E7E7AUDEN.indb79 2007/01/2919:04:282007/01/2919:04:28
80 EN80 EN
EDITING DISCS
Combining Titles
1
Follow the steps 1 to 3 in “Dividing a
Title” on page 79 to display “Edit”
menu.
2
Use [K / L] to select “Title
Combining”, then press [ENTER].
Edit
Scene Delete
Edit Title Name
Chapter Mark
Title Dividing
Title Combining
JAN/ 1/07 12:00AM L1 LP
1 : 25 : 47
1
PL
Title combining setting window will appear.
Selected title grays out, and the frame of the
next title becomes yellow.
Edit - Title Combining
1 / 6
JAN/31/07 11:00PM L1 LP
11:00PM (0:30:00) JAN/31/07 L1 LP
4 5 6
2 3
PL
1
1 +
3
Use [K / L / { / B] to select another
title to combine, then press [ENTER].
Selection menu will appear.
4
Use [K / L] to select “Yes”, then press
[ENTER].
Edit - Title Combining
1 / 6
JAN/31/07 11:00PM L1 LP
11:00PM (0:30:00) JAN/31/07 L1 LP
PL
1
1 + 2
4 5 6
2 3
Combine selected titles?
Yes
No
The two titles will combine into a single title.
Title List
1 / 6
JAN/ 1/07 12:00AM L1 LP
12:00AM (2:30:00) JAN/ 1/07 L1 LP
PL
1
4 5 6
2 3
5
Press [RETURN] or [STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
Playlist
You can combine two titles into a single title.
Note
• You cannot select the same title twice and combine
it into a single title.
• If either one of the two original titles is deleted, the
combined new title is also deleted.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
STOP
RETURN
E7E7AUDEN.indb80E7E7AUDEN.indb80 2007/01/2919:04:292007/01/2919:04:29
81EN 81EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
EDITING DISCS
Setting or Releasing the Title Protection
1
Follow the steps 1 to 3 in “Putting
Names on Titles” on page 73 to
display “Edit” menu.
2
Use [K / L] to select “Protect”, then
press [ENTER].
Edit
Scene Delete
Edit Title Name
Chapter Mark
Protect
JAN/ 1/07 12:00AM L1 LP
1 : 25 : 47
1
ORG
• If the title is protected, icon will appear in
the original list.
3
Confirm the indication
“OFF
ON”. Press [ENTER] again.
• If the title is already protected, “ON OFF” will
appear. If you press [ENTER], the title will be
released from protection.
Edit - Protect
OFF ON
JAN/ 1/07 12:00AM L1 LP
1
ORG
1 : 25 : 47
• icon will appear on the title in the original
list.
4
Press [RETURN] and then [RETURN] or
[STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
To protect a whole disc
(VR mode DVD-RW, DVD+RW/+R
only):
Select “Disc Protect OFF ON” from the DVD
Menu, then select “Yes”.
Refer to “SETTING A DISC TO PROTECT” on page
30.
To prevent the accidental editing, or erasing of the titles,
you can protect them in “Edit” menu.
You can cancel the title protection feature after it is
applied.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
STOP
RETURN
Original
E7E7AUDEN.indb81E7E7AUDEN.indb81 2007/01/2919:04:292007/01/2919:04:29
82 EN82 EN
EDITING DISCS
Setting or Clearing All Chapter Marks at Once
1
Follow the steps 1 to 3 in “Putting
Names on Titles” on page 73 to
display “Edit” menu.
2
Use [K / L] to select “Chapter Mark”,
then press [ENTER].
Edit
Edit Title Name
Chapter Mark
JAN/ 1/07 12:00AM L1 LP
1 : 25 : 47
1
Video
3
Use [K / L] to select the desired
interval, then press [ENTER].
Edit - Chapter Mark
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
JAN/ 1/07 12:00AM L1 LP
1
1 : 25 : 47
Video
4
Use [K / L] to select “Yes”, then press
[ENTER].
Chapter marks are added.
If you select “OFF” at step 3, all the chapter
marks are erased.
5
Press [RETURN] and then [RETURN] or
[STOP C] to exit.
Data will be written onto the disc momentarily.
This operation may take
awhile to be completed.
For titles in video mode DVD-RW, you can set or edit
chapter at every time interval. You can clear the chapter
mark too.
You can specify the interval of chapter marks for titles last
more than 5 minutes.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
STOP
RETURN
Note
• You cannot select a chapter mark interval that
exceeds the length of a title.
• The length of chapters may slightly deviate from the
one specified at the step 3.
• A chapter mark may be delayed depending on the
recording content.
• Maximum number of chapter for Video mode DVD is
99 chapters per disc and title.
E7E7AUDEN.indb82E7E7AUDEN.indb82 2007/01/2919:04:302007/01/2919:04:30
83EN 83EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
LIST OF THE DEFAULT SETTINGS
The following table is the contents which you can set and the default settings.
Refer to the following table for useful operation.
Setup Items (highlight is the default) Contents
General Setting
Playback Parental Lock
→ page 86
All
level 8 to 1
Set the parental level for DVD playback.
Audio Out
→ page 87
Dynamic Range
Control
ON
OFF
Compressing the range of sound volume.
PCM
48kHz
96kHz
Set whether the sound recorded in 96kHz will be
down sampled in 48kHz.
Dolby Digital PCM
Stream
Set the type of sound signal which outputs from the
digital audio output jack.
DTS ON
OFF
Set whether DTS signal is output or not.
Disc Menu Language
→ page 88
English
French
Spanish
Other
Set the language for disc menu language.
Audio Language
→ page 88
Original
English
French
Spanish
Other
Set the language for audio.
Subtitle Language
→ page 88
OFF
English
French
Spanish
Other
Set the language for subtitles.
Angle Icon
→ page 88
ON
OFF
Set whether to display the angle icon or not.
Still Mode
→ page 88
Auto
Field
Frame
Set the type of still image in pausing playback.
Display OSD Language
→ page 89
English
Français
Español
Set the language for OSD (on-screen display).
Screen Saver
→ page 89
OFF
5minutes
10minutes
15minutes
30miniutes
Set the idling time before the screen saver starts.
FL Dimmer
→ page 89
Auto
Bright
Dark
Set the brightness of the front panel display.
E7E7AUDEN.indb83E7E7AUDEN.indb83 2007/01/2919:04:312007/01/2919:04:31
84 EN84 EN
Note
• Your change to each settings stays on even when the power is off.
• An item which is not currently available is grayed in the settings.
Setup Items (highlight is the default) Contents
General Setting
Video Progressive
→ page 91
ON
OFF
Set to the progressive scan mode (set to "ON") or to
the interlace scan mode(set to "OFF").
TV Aspect
→ page 91
4:3 Letter Box
4:3 Pan & Scan
16:9 Wide
Set a picture size according to aspect ratio of your TV.
Select Video
→ page 19
L1(Rear)
Video In
S-Video In
Set the video input type for the external input.
L2(Front)
Video In
S-Video In
Recording Auto Chapter
→ page 28
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
Insert chapter marks at even time interval.
Recording Audio Select (XP)
→ page 29
PCM
Dolby Digital
Set the recording audio type. (Only when the rec
mode is set to XP.)
Auto
Finalize
→ page 31
Disc Full ON
OFF
Set the unit to finalize the disc automatically.
End of Timer Rec ON
OFF
Aspect Ratio(Video mode)
→ page 29
Auto
4:3
16:9
Set a aspect ratio for video mode recording.
Make Recording Compatible
→ page 28
ON
OFF
Set to prohibiting additional recording (OFF) or to
replace the title list after recording (ON).
Clock
Clock Setting → page 25
Set the clock.
DivX
DivX®VOD → page 92
Provide DivX®VOD registration code.
DivX Subtitle
→ page 92
OFF
English
French
Spanish
German
Italian
Swedish
Dutch
Russian1
Russian2
Hungarian
Polish
Czech
Set the language for DivX® Subtitle.
HDMI Format
→ page 93
RGB
YCbCr
Set the color space for the HDMI output.
HDMI Audio
→ page 94
ON
OFF
Set whether to output the HDMI audio signal or not.
RGB Range
→ page 94
Normal
Enhanced
Set the black-white contrast level for HDMI RGB
output.
Reset All
→ page 95
Yes
No
Set to the default setting.
LIST OF THE DEFAULT SETTINGS
E7E7AUDEN.indb84E7E7AUDEN.indb84 2007/01/2919:04:322007/01/2919:04:32
85EN 85EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
GENERAL SETTING
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
STOP
CLEAR
OPEN/
CLOSE
GHI
PQRS TUV
SPACE
WXYZ
JKL MNO
.@/: ABC DEF
SETUP
Press [STOP C] if you are playing back a disc.
1
Press [SETUP] and use [K / L] to
select “General Setting“, then press
[ENTER].
2
Use [K / L] to select “Playback”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
3
Use [K / L] to select a desired item,
then press [ENTER].
1
2
3
4
5
6
7
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Submenu will appear.
4
Refer 1 to 7 on pages 86 to 88 and
set the selected item.
5
When you finish with the setting,
press [SETUP] to exit.
Playback
E7E7AUDEN.indb85E7E7AUDEN.indb85 2007/01/2919:04:322007/01/2919:04:32
86 EN86 EN
GENERAL SETTING
1
Parental Lock (Default: All)
Some DVD-video feature a parental lock level. Playback
will stop if the ratings exceed the levels you set, it will
require you to enter a password before the disc will
playback. This feature prevents your children from
viewing inappropriate material.
Use [K / L] to select the desired level, then press
[ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Parental Lock
All
8
7
6
5
4
3
2
1
If a password has not been set yet, proceed to A.
If a password has been set already, proceed to
B
.
Note
• Parental lock function may not be available to some
discs.
• With some DVD, it may be difficult to find if they are
compatible with parental lock. Be sure to check if the
parental lock function operates in the way that you
have set.
• Record the password in case you forget it.
• If there is a DVD in the unit when you set up the
parental lock, press [OPEN/CLOSE A] to activate the
parental lock level.
A
A password has not been set yet.
Use [K / L] to select “Yes”, then press [ENTER]. Use
[the Number buttons] to enter a new password except
for 4737, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Parental Lock
All
8
7
6
5
4
3
2
1
Change Password?
Yes
No
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Parental Lock
All
8
7
6
5
4
3
2
1
Password Input
Yes
Your setting will be activated.
B
A password has been set already.
• Use [the Number buttons] to enter the current
password.
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Parental Lock
All
8
7
6
5
4
3
2
1
Password Input
Your setting will be activated.
• If you want to change password, use [K / L] to select
“Yes” then press [ENTER]. Use [the Number buttons]
to enter a new password, then press [ENTER].
<change the password>
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Parental Lock
All
8
7
6
5
4
3
2
1
Password Input
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Parental Lock
All
8
7
6
5
4
3
2
1
Change Password?
Yes
No
Yes
Your setting will be activated.
Note
• Press [CLEAR] to erase numbers entered incorrectly.
• When you forget the password or you want to clear
all settings in “Parental Lock” menu, enter 4,7,3,7
using [the Number buttons] in password input
window. Password will be cleared and parental levels
will be set to “All”.
Playback (cont’d)
E7E7AUDEN.indb86E7E7AUDEN.indb86 2007/01/2919:04:332007/01/2919:04:33
87EN 87EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
GENERAL SETTING
2
Audio Out
Choose the appropriate audio setting for your external device.
It will only affect a disc playback.
Use [K / L] to select a desired item, then press
[ENTER]
.
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Audio Out
Dynamic Range Control
PCM
Dolby Digital
DTS
A
Dynamic Range Control (Default : ON)
Set to “ON” to compress the range between soft and loud sounds.
Use [K / L] to select a setting, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Audio Out
Dynamic Range Control
PCM
Dolby Digital
DTS
Dynamic Range Control
ON
OFF
Your setting will be activated.
Note
• Dynamic range control function is available only on
the discs which are recorded in the Dolby Digital
format.
B
Settings for PCM (Default : 48kHz)
Use [K / L] to select a setting, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Audio Out
Dynamic Range Control
PCM
Dolby Digital
DTS
PCM
48kHz
96kHz
Your setting will be activated.
48kHz : If your amplifier/decoder is NOT compatible
with 96kHz PCM, select “48kHz”. 96kHz sound
will be output in 48kHz.
96kHz : If your amplifier/decoder is compatible with
96kHz PCM, select “96kHz”. 96kHz sound will
be output.
Note
When playing back disc with copyright protection
• Even if you select “96kHz”, the sound will be down
sampled at 48kHz.
C
Settings for Dolby Digital (Default : Stream)
Use [K / L] to select a setting, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Audio Out
Dynamic Range Control
PCM
Dolby Digital
DTS
Dolby Digital
PCM
Stream
Your setting will be activated.
PCM : Converts the Dolby Digital into PCM (2 channel).
When your amplifier/decoder is NOT
compatible with Dolby Digital, set to “PCM”.
Stream : Outputs Dolby Digital signals
When your amplifier/decoder is compatible
with Dolby Digital, set to “Stream”.
D
Settings for DTS (Default : OFF)
Select a setting using [K / L], then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Audio Out
Dynamic Range Control
PCM
Dolby Digital
DTS
DTS
ON
OFF
Your setting is activated.
ON : Outputs DTS signals.
If your amplifier / decoder is compatible with
DTS, set to “ON”.
OFF : No DTS signal is output.
If your amplifier / decoder is NOT compatible
with DTS, set to “OFF”.
Playback (cont’d)
E7E7AUDEN.indb87E7E7AUDEN.indb87 2007/01/2919:04:342007/01/2919:04:34
88 EN88 EN
GENERAL SETTING
3
Disc Menu Language (Default : English)
Set the language for disc menu.
Use [K / L] to select a language, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Disc Menu Language
English
French
Spanish
Other
Your setting will be activated.
4
Audio Language (Default : Original)
Set the audio language.
Use [K / L] to select a language, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Audio Language
Original
English
French
Spanish
Other
Your setting will be activated.
• When “Original” is selected, the audio language will be
in the disc’s default language.
5
Subtitle Language (Default : OFF)
Set the subtitle language.
Use [K / L] to select a language, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Subtitle Language
OFF
English
French
Spanish
Other
Your setting will be activated.
If “Other” is selected for
3
to 5, press 4-digit code
using [the Number buttons].
Code Input
----
• When you finish entering the code, press [ENTER].
Refer to the language code table on page 100.
Note
• Only the languages supported by the disc can be
selected.
• Audio language setting may not be available to
some discs.
• You can change or switch off the subtitles on a DVD
also from the disc menu if it is available.
• Press [CLEAR] to erase numbers entered incorrectly.
6
Angle Icon (Default : ON)
Set to “ON” to show the angle icon during the playback.
Use [K / L] to select a setting, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Angle Icon
ON
OFF
Your setting will be activated.
7
Still Mode (Default : Auto)
Select “Auto” usually.
Use [K / L] to select a setting, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Parental Lock
Audio Out
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Still Mode
Auto
Field
Frame
Your setting will be activated.
Auto : Optimum resolution setting (“Field” or
“Frame”) will be selected.
Field : Images in the still mode will be stabilized.
Frame : Images in the still mode will be highly defined.
Note
•
Frame is one completed video image made up of two
fields (There are 30 frames per second of NTSC video).
Playback (cont’d)
E7E7AUDEN.indb88E7E7AUDEN.indb88 2007/01/2919:04:342007/01/2919:04:34
89EN 89EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
1
OSD Language (Default : English)
Set the language for the on-screen display.
Use [K / L] to select a language, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
OSD Language
English
Français
Español
Your setting will be activated.
2
Screen Saver (Default : 10 minutes)
Set the time to activate the screen saver function on the
TV screen.
Use [K / L] to select a setting, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
Screen Saver
OFF
5 minutes
10 minutes
15 minutes
30 minutes
Your setting will be activated.
3
FL Dimmer (Default: Bright)
Set the front panel display brightness.
Use [K / L] to select a setting, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
FL Dimmer
Auto
Bright
Dark
You can choose one from “Auto”, “Bright” or “Dark”.
If “Auto” is selected, the display gets dark when the
power is off.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
CLEAR
GHI
PQRS TUV
SPACE
WXYZ
JKL MNO
.@/: ABC DEF
SETUP
Press [STOP C] if you are playing back a disc.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
2
Use [K / L] to select “Display”, then
press [ENTER].
3
Use [K / L] to select a desired item,
then press [ENTER].
OSD Language
Screen Saver
FL Dimmer
1
2
3
Submenu will appear.
Display
GENERAL SETTING
E7E7AUDEN.indb89E7E7AUDEN.indb89 2007/01/2919:04:352007/01/2919:04:35
90 EN90 EN
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
STOP
SETUP
Press [STOP C] if you are playing back a disc.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[ENTER].
2
Use [K / L] to select “Video”, then
press [ENTER].
3
Use [K / L] to select a desired item,
then press [ENTER].
Progressive
TV Aspect
Select Video
1
2
3
Submenu will appear.
4
Refer 1 to 2 on page 91 and set the
selected item.
• For
3
, refer to “SETTING FOR THE VIDEO
INPUT“ on page 19.
5
When you finish with the setting,
press [SETUP] to exit.
Video
GENERAL SETTING
E7E7AUDEN.indb90E7E7AUDEN.indb90 2007/01/2919:04:362007/01/2919:04:36
91EN 91EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
GENERAL SETTING
1
Progressive (Default : OFF)
This unit is compatible with the progressive scan system.
The feature provides you with the higher definition
images than the traditional output system does. To utilize
this feature, you must set progressive scan mode to “ON”.
1) Use [K / L] to select “ON“, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Progressive
TV Aspect
Select Video
Progressive
ON
OFF
2) Use [{ / B] to select “Yes“, then press [ENTER].
General Setting
Playback
Display
Video
Rcording
Clock
DivX
HDMI
Reset All
Progressive
TV Aspect
Select Video
Progressive
ON
OFF
Activating progressive scan:
Check your TV has progressive scan
and connect with component video cable.
NOTE :
If there is no picture or picture is
ޓ ޓdistorted after selecting “Yes”,
ޓ ޓWait about 15 seconds for auto recovery.
Activate? Yes No
3) Use [K / L] to select “Yes“ within 15 seconds, then
press [ENTER].
Your setting will be activated.
Note
• If your TV is compatible with progressive scan (525p /
480p), you are recommended to use the HDMI or
component video cable (commercially available) to
connect this unit to the TV. (Refer to “Method 3” on
page 20.) If not, use the RCA video cable and set the
progressive scan to “OFF” or press and hold [SETUP]
for more than 3 seconds during DVD playback.
• When selecting “No” or not pressing any buttons on
the unit or remote control within 15 seconds at step 3,
progressive scan remains to be “OFF” (interlace scan).
2
TV Aspect (Default: 4:3 Letter Box)
You can select the TV aspect ratio to match the formats of
what you are playing back with the unit and your TV
screen (4:3 standard or 16:9 widescreen TV).
Use [K / L] to select a desired option, then press
[ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Progressive
TV Aspect
Select Video
TV Aspect
4:3 Letter Box
4:3 Pan & Scan
16:9 Wide
If you have a standard TV:
Select “4:3 Letter Box”, so that black bars appear on the
top and bottom of the TV screen when playing back a
wide-screen picture. Select “4:3 Pan & Scan” for a full
height picture with both sides trimmed when playing
back wide-screen picture.
If you have a widescreen TV:
Select “16:9 Wide”.
Video (cont’d)
E7E7AUDEN.indb91E7E7AUDEN.indb91 2007/01/2919:04:372007/01/2919:04:37
92 EN92 EN
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SETUP
3
Use [K / L] to select a desired item,
then press [ENTER].
DivX
R
VOD
DivX Subtitle
1
2
1
DivX® VOD
This unit allows you to play back the files purchased or
rented from DivX® VOD (video-on-demand) services. The
files are available on the internet. When you purchase or
rent DivX® VOD files on the internet, you will be asked to
enter an activation/registration code. This menu item
provides you with the activation/registration code.
On how to activate this unit for the DivX® VOD file
playback, visit www.divx.com/vod.
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
DivX
R VOD
DivX Subtitle
Your registration code is :
To learn more visit
www.divx.com/vod
DivX
R
VOD
Note
• One registration code is only valid for one DivX® VOD
file.
• You must first download the file from the internet
and play it back on this unit before you are able to
get another code.
• You must follow this step every time you purchase or
rent a DivX® VOD file from the internet.
• For more information for DivX®, please visit
http://www.divx.com/vod.
• The registration code will be displayed in 8
characters consist of numbers between 0 to 9 and
capital letters chosen randomly.
2
DivX Subtitle (Default : OFF)
Set the DivX® subtitle.
Use [K / L] to select a setting, then press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
DivX
R VOD
DivX Subtitle
DivX Subtitle
OFF
English
French
Spanish
German
Italian
Swedish
Your setting will be activated.
4
When you finish with the setting,
press [SETUP] to exit.
DivX®
1
Press [SETUP] in stop mode and use
[K / L] to select “General Setting”,
then press [ENTER].
2
Use [K / L] to select “DivX”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
GENERAL SETTING
E7E7AUDEN.indb92E7E7AUDEN.indb92 2007/01/2919:04:372007/01/2919:04:37
93EN 93EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SETUP
1
Press [SETUP] in stop mode and use
[K / L] to select “General Setting”,
then press [ENTER].
2
Use [K / L] to select “HDMI”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
3
Use [K / L] to select a desired item,
then press [ENTER].
Format
HDMI Audio
RGB Range
1
2
3
1
Format (Default : RGB)
You can select the color space for HDMI output.
Set the appropriate color space for your display device.
Use [K / L] to select a setting, then press [ENTER].
• When the connected device is not compatible with the
Y/Cb/Cr, HDMI signal is output as RGB regardless of the
setting.
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Format
HDMI Audio
RGB Range
Format
RGB
YCbCr
Your setting will be activated.
HDMI
GENERAL SETTING
E7E7AUDEN.indb93E7E7AUDEN.indb93 2007/01/2919:04:382007/01/2919:04:38
94 EN94 EN
2
HDMI Audio (Default : ON)
If you do not want to output the audio through HDMI
(when you digitally output the audio through the
COAXIAL DIGITAL AUDIO OUTPUT jack to your audio
system, etc.), you can set the HDMI audio output off.
Use [K / L] to select a setting, then press [ENTER].
• Set to “OFF” when the HDMI sound is not outputted.
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Format
HDMI Audio
RGB Range
HDMI Audio
ON
OFF
Your setting will be activated.
3
RGB Range (Default : Normal)
You can adjust the RGB range to make the dark areas of
the HDMI images brighter.
Use [K / L] to select a setting, then press [ENTER].
• Select “Enhanced“ if the black-white contrast is not clear.
• This setting is effective only for HDMI RGB output.
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Format
HDMI Audio
RGB Range
RGB Range
Normal
Enhanced
Your setting will be activated.
4
When you finish with the setting,
press [SETUP] to exit.
GENERAL SETTING
HDMI (cont’d)
E7E7AUDEN.indb94E7E7AUDEN.indb94 2007/01/2919:04:392007/01/2919:04:39
95EN 95EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing
Function Setup
Others
GENERAL SETTING
Reset the setting to default.
SE-R0265
OPEN/
CLOSE
INPUT
SELECT
HDMI
.@/: ABC
GHI
PQRS TUV
SPACE
SETUP DISPLAY AUDIO
TOP MENU
CLEAR RETURN
MENU/LIST
WXYZ
JKL MNO
DEF
ENTER
SKIP REV
PLAY
REC MODE ZOOMRECREPEAT
PAUS E
TIME SLIP
1.3x / 0.8x PLAY
INSTANT SKIP
STOP
FWD SKIP
TIMER
PROG.
SATELLITE
LINK
ENTER
SETUP
1
Press [SETUP] in stop mode and use
[K / L] to select “General Setting”,
then press [ENTER].
2
Use [K / L] to select “Reset All”, then
press [ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
3
Select “Yes” using [K / L] , then press
[ENTER].
General Setting
Playback
Display
Video
Recording
Clock
DivX
HDMI
Reset All
Reset to factory default
Yes
No
“Are you sure?” will appear. Select “Yes” using
[K / L] and then press [ENTER].
Your setting will be initialized.
Reset All
GENERAL SETTING
Note
• The settings listed below will remain unchanged
even after resetting to the factory default.
- Clock setting
- OSD language setting
- Parental lock setting
- DivX® VOD code
- Timer programs
E7E7AUDEN.indb95E7E7AUDEN.indb95 2007/01/2919:04:392007/01/2919:04:39
96 EN96 EN
TROUBLESHOOTING
Before requesting service for this unit, check the table below for a possible cause of the problem you are experiencing.
Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.
Symptom Remedy
Power
The power does not turn on. • Check that the AC power cord is connected securely.
• Check the breaker (in case of power failure).
There is no picture. • Re-connect the connecting cords securely.
• Check if the connecting cords are damaged.
• If the main menu appears on the TV screen, press [RETURN] to exit.
• Check the connection to your TV (page 20).
• Check if the progressive scan mode is set correctly according to your TV
(page 91).
• Switch the input selector on your TV (such as to “L1”) so that the signal from
the unit appears on the TV screen.
Picture noise appears. • Clean the disc with a cleaning cloth.
TV program pictures are
distorted.
• Check if all the connections are made correctly (page 18).
Playback picture is distorted. • Keep the device which may cause electrical disturbances, such as a cellular
phone away.
Playback picture or TV program
from the device connected
through the unit is distorted.
• If the playback picture output from a DVD player, VCR or tuner goes through
the unit before reaching your TV, the copy-protection signal applied to some
programs could affect picture quality. Disconnect the playback device in
question and connect it directly to your TV.
Cannot record a TV program. • This unit does not have a tuner to receive TV broadcasting.
• You must connect this unit to an external tuner to record TV programs
(page 18).
Sound
There is no sound. • Clean the disc with a cleaning cloth.
• Re-connect all connections securely.
• Check if the connecting cord is damaged.
• Check the connections to the amplifier input.
• The input device setting on the amplifier is incorrect.
• The unit is in pause mode or in slow-motion playback mode.
• The unit is in fast forward or fast reverse mode.
• If the audio signal does not come through the DIGITAL AUDIO OUTPUT
(COAXIAL) jack, check the setting in “Audio Out” (page 87).
No DTS sound on digital output. • Change the setting menu for DTS to ON.
No DTS sound from analog
output
• This unit has no analog sound output when playing back the selected DTS
sound mode.
Sound is noisy. • Clean the disc with a cleaning cloth.
Remote control
The remote control does not
function.
• Batteries are weak.
• There are obstacles between the remote control and the unit.
• The remote control is far from the unit.
• There are no batteries in the remote control.
• Check if the unit is turned on.
• The remote control is not pointed at the infrared sensor window on the unit.
E7E7AUDEN.indb96E7E7AUDEN.indb96 2007/01/2919:04:392007/01/2919:04:39
97EN 97EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
TROUBLESHOOTING
Symptom Remedy
Playback
The disc does not play back. • No disc is inserted.
• A blank disc is inserted.
• The disc is upside down. Insert the disc with the labeled side facing up.
• The disc is not correctly inserted.
• The unit cannot play back certain discs (such as a CD-ROM) (page 10).
• The region code on the DVD-video does not match the unit (page 10).
• Moisture has condensed inside the unit. Remove the disc and leave the unit
turned on for about 2 hours until the moisture evaporates (page 4).
• If the disc was recorded on another recorder, the unit cannot play back the
disc if it was not finalized.
Playback image freezes for a
second.
• During the playback of 2 layered disc, picture may freeze for a moment when
the 1st layer switches to the 2nd layer. This is not a malfunction.
The disc does not start playback
from the beginning.
• Resume playback was activated (page 56). Press [STOP C] twice.
• You have inserted a disc whose title menu or DVD menu automatically
appears on the TV screen when it is first inserted.
The unit starts playing back the
disc automatically.
• The DVD-video features an auto playback function.
Some functions such as stop,
search, or slow-motion playback
cannot be performed.
• Depending on the disc, you may not be able to do some of the operations.
Refer to the instruction manual supplied with the disc.
The language for the sound track
cannot be changed.
• Tracks multilingual are not recorded being played back.
• The DVD-video prohibits the changing of the language for the sound track.
The subtitle language cannot be
changed or turned off.
• Multilingual subtitle are not recorded on the DVD-video.
The angles cannot be changed. • Multi-angles are not recorded on the DVD-video being played back.
• The angle-change operation is whenever possible as long as the disc contains
a multi-angle portion. Actual change will be performed when the portion has
come up.
• The DVD-video prohibits changing angles.
• Try changing the angle using the DVD-video’s menu.
Recording / Timer recording / Editing
External input position (L1/L2)
cannot be changed while
recording.
• This unit is designed so. This is not a malfunction.
Nothing was recorded even
though you set the timer setting
correctly.
• There was a power failure during recording.
• The unit’s internal clock stopped due to a power failure that lasted for more
than 30 seconds. Reset the clock (page 25).
• The program contains copy protection signals that restricts copying.
• The timer setting overlapped with another setting that has priority.
Recording does not stop
immediately after you press
[STOP C].
• It will take a few seconds for the unit to input disc data before recording
stops.
Timer recording is not complete
or did not start from the
beginning.
• The timer setting overlapped with another setting that has priority (page 40).
• Disc space was not enough.
• “Make Recording Compatible“ is not set to “ON”, when recording onto
DVD+RW/+R that was recorded on other unit.
E7E7AUDEN.indb97E7E7AUDEN.indb97 2007/01/2919:04:402007/01/2919:04:40
98 EN98 EN
TROUBLESHOOTING
Symptom Remedy
DV
DV signal cannot be input. • Before connection, turn on the power supplies for both this unit and the DVC,
and make sure that these units are in stop mode.
• Only a “DVC-SD” signal can be input from the DVC to this unit. Other types of
signals are not supported.
• Do not connect any device other than the DVC. Even if a recorder or PC with
another DV terminal is connected, the DV function will not operate.
• If the DVC is not recognized after connection, turn off the power supply for
the unit and re-connect the DVC.
The DVC cannot be operated
with this unit.
• Signal input or DVC operation from this unit may be disabled depending on
the type of DVC.
• If a DVC signal cannot be input, use an external input (L1/L2) for analog
connection via audio/video cables.
• DVC control may be disabled depending on the type of DVC, even in a mode
other than camera mode. In this case, switch to DVD control and execute the
normal recording procedure while operating the DVC.
Certain functions of the unit
cannot operate.
• Some functions may not operate depending on the type of DVC. For
example, if the DVC does not support slow playback mode, the slow playback
function is disabled.
• With L3 (DV), the disc display menu does not appear unless disc playback is
executed.
DV audio signal cannot be
switched.
• For recording with the DVC, the recording audio signal can be set to 12 bits
or 16 bits. However, when 16-bit recording mode is selected, audio signal
cannot be switched. To record an audio signal, set it to 12 bits.
HDMI
No image from HDMI connection. • Check the HDMI connection. (Check the status of the HDMI related
indications.)
• Check whether the connected monitor device or other device supports
HDCP. (This unit will not output a video signal unless the other device
supports HDCP.)
• Check the setting of HDMI.
• Check whether the output format of this unit (HDMI FORMAT) matches the
supported input format of other connected device.
There is no sound or the sound is
distorted.
• The HDMI sound is not output when “HDMI Audio” is set to “OFF”.
• Check the RCA audio cable connection. If you are using HDMI-DVI conversion
cable, you must connect the RCA audio cable, too.
• Check whether the output format of this unit (HDMI FORMAT) matches the
supported input format of other connected device.
Others
The unit does not operate
properly.
• When static electricity, etc., causes the unit to operate abnormally, unplug
the unit and then plug it in again.
The disc tray does not open when
you press [OPEN/CLOSE A].
• It may take a few seconds for the disc tray to open after you have recorded or
edited a disc. This is because the unit is adding disc data to the disc.
“Repairing” appears on the TV
screen.
Repairing
• If there is a power failure or unplugging during recording, finalizing,
formatting or editing (even after “Repairing” disappears), a repairing process
will begin automatically just after turning the unit on again.
It may take several minutes up to about several hours.
In a case you intend to cancel the
repairing process.
• If you intend to cancel the repairing process, press [OPEN/CLOSE A]
on the front panel, then select “Yes” and press [ENTER]. After that, press
[OPEN/CLOSE A] to take out the disc. The disc canceled during the
repairing process MAY NOT work.
Repairing
Do you want to cancel a repairing process ?
When selecting “Yes”, the disc may not be
usable.
Yes
No
E7E7AUDEN.indb98E7E7AUDEN.indb98 2007/01/2919:04:402007/01/2919:04:40
99EN 99EN
Disc
Management
Recording
PlaybackIntroduction Connections Basic Setup
Editing Function Setup
Others
TROUBLESHOOTING
Error message Cause Solution
Disc Error
— Please eject the disc. —
Playback feature may not be available on this disc.
• Unplayable disc is inserted in the unit.
• The disc is upside down.
• Insert the standardized disc which have
the marks on page 10.
•
Insert the disc with the labeled side facing up.
Region Error
— Please eject the disc. —
Playback is not authorized in your region.
• Playback is not authorized in the region
of the DVD-video which you inserted in
the unit.
• Insert the DVD-video with region codes
1 or ALL.
Parental Lock On
The current selected parental level
prohibits playback.
• The current selected parental level
prohibits playback.
• Check “Parental Lock” setting in
“Playback” menu (page 86).
Recording Error
This program is not allowed to be recorded.
• You are trying to record the copy
prohibited program.
• You cannot record copy prohibited
programs.
Recording Error
This program is not recordable in Video
mode.
• You are trying to record the copy-once
program onto the DVD-RW disc in video
mode.
• Set “Format Mode” to “VR mode”
(pages 26-27).
Recording Error
This program is not recordable in +VR mode.
• You are trying to record the copy-once
program.
• Insert the DVD-RW disc in VR mode
(ver.1.1 or 1.2 compatible with CPRM).
Recording Error
Cannot record on this disc.
• You are trying to record onto the disc
which is unrecordable, or the disc status
is unable to record.
• The disc is dirty.
• The disc is damaged.
• Insert the recordable disc, and ensure
the disc status satisfies the recording
requirements (page 9).
• Clean the disc with a cleaning cloth.
• Replace the disc.
Recording Error
This program is not allowed to be
recorded on this disc.
• You are trying to record the copy-once
program onto the DVD-RW disc which
is not compatible with CPRM.
• Insert the DVD-RW disc in VR mode
(ver.1.1 or 1.2 compatible with CPRM).
Recording Error
This disc is protected and not recordable.
•
You are trying to record on to the protected
disc which is set in “DVD Menu” menu.
• Release the disc protect setting in “DVD
Menu” menu (page 30).
Recording Error
Disc is full.
(No area for new recording)
• You are trying to record onto the disc
which has no space for recording.
• Insert the recordable disc with enough
recording space.
Recording Error
You cannot record more than 99 titles on one disc.
(The maximum is 99)
•
You are trying to record onto the DVDRW/-R on which the number of recording
titles comes up to the maximum (99).
• Delete unnecessary titles (page 69).
Recording Error
You cannot record more than 999 chapters on one disc.
(The maximum is 999)
•
You are trying to record onto the VR mode
DVD-RW on which the number of recording
chapters comes up to the maximum (999).
• Delete unnecessary chapter marks
(page 75).
Recording Error
You cannot record more than 49 titles on one disc.
(The maximum is 49)
•
You are trying to record onto the DVD+RW/
+R on which the number of recording titles
comes up to the maximum (49).
• Delete unnecessary titles (page 69).
Recording Error
You cannot record more than 254 chapters on one disc.
(The maximum is 254)
•
You are trying to record onto the DVD+RW
on which the number of recording
chapters comes up to the maximum (254).
• Delete unnecessary chapter marks
(page 75).
Recording Error
You cannot record on this disc as Control
Information is full.
•
This disc has no space to write the Control
Information when recording or deleting contents.
When editing has been repeatedly performed,
the control Information area may come up to be
full even the recording area has enough space.
• Delete unnecessary titles
(page 69).
Recording Error
You cannot record on this disc as Power
Calibration Area is full.
•
When recordings are performed
repeatedly onto an unstable disc, this
area may come up to be full.
•
Every time you insert a disc for recording,
the disc’s working area will be taken up.
And if you repeat this frequently, it will
be used up sooner and you may not be
able to record full 49 titles.
• Insert a new disc.
Recording Error
This disc is already finalized.
• You are trying to record onto the disc
already finalized.
• Undo the finalizing for this disc
(page 33).
Recording Error
The disc has no recording compatibility.
(Set “Make Recording Compatible” to
“ON” to convert the disc menu.)
• You are trying to record onto the
unfinalised +VR mode discs recorded
on other unit.
• Set “Make Recording Compatible” to
“ON” to rewrite the menu, after that you
will record to disc (page 28).
* If you are still having trouble with the unit after checking “TROUBLESHOOTING”, write down the error code and the
error description for calling our help line to locate an Authorized Service Center.
– Can I record to CD-RW/-R? No, this unit records only DVD.
– Can I play back DVD-video that is bought in another country? Possible when the region code of the disc is 1 and All.
– Can I connect the unit to my PC? No, you cannot control the unit by PC.
– Can I program a timer recording with cable/satellite box?
Yes, you can. Select “L1” or “L2” as your recording channel,
and leave the cable/satellite box on (pages 18, 37-40).
Frequently Asked Questions
E7E7AUDEN.indb99E7E7AUDEN.indb99 2007/01/2919:04:412007/01/2919:04:41
100 EN100 EN
LANGUAGE CODE
Language Code
Abkhazian 4748
Afar 4747
Afrikaans 4752
Albanian 6563
Amharic 4759
Arabic 4764
Armenian 5471
Assamese 4765
Aymara 4771
Azerbaijani 4772
Bashkir 4847
Basque 5167
Bengali;Bangla 4860
Bhutani 5072
Bihari 4854
Bislama 4855
Breton 4864
Bulgarian 4853
Burmese 5971
Byelorussian 4851
Cambodian 5759
Catalan 4947
Chinese 7254
Corsican 4961
Croatian 5464
Czech 4965
Danish 5047
Dutch 6058
English 5160
Esperanto 5161
Estonian 5166
Faroese 5261
Fiji 5256
Finnish 5255
French 5264
Frisian 5271
Galician 5358
Georgian 5747
German 5051
Greek 5158
Greenlandic 5758
Guarani 5360
Gujarati 5367
Hausa 5447
Hebrew 5569
Hindi 5455
Language Code
Hungarian 5467
Icelandic 5565
Indonesian 5560
Interlingua 5547
Interlingue 5551
Inupiak 5557
Irish 5347
Italian 5566
Japanese 5647
Javanese 5669
Kannada 5760
Kashmiri 5765
Kazakh 5757
Kinyarwanda 6469
Kirghiz 5771
Kirundi 6460
Korean 5761
Kurdish 5767
Laothian 5861
Latin 5847
Latvian; Lettish 5868
Lingala 5860
Lithuanian 5866
Macedonian 5957
Malagasy 5953
Malay 5965
Malayalam 5958
Maltese 5966
Maori 5955
Marathi 5964
Moldavian 5961
Mongolian 5960
Nauru 6047
Nepali 6051
Norwegian 6061
Occitan 6149
Oriya 6164
Oromo (Afan) 6159
Panjabi 6247
Pashto; Pushto 6265
Persian 5247
Polish 6258
Portuguese 6266
Quechua 6367
Rhaeto-Romance 6459
Romanian 6461
Language Code
Russian 6467
Samoan 6559
Sangho 6553
Sanskrit 6547
Scots Gaelic 5350
Serbian 6564
Serbo-Croatian 6554
Sesotho 6566
Setswana 6660
Shona 6560
Sindhi 6550
Singhalese 6555
Siswat 6565
Slovak 6557
Slovenian 6558
Somali 6561
Spanish 5165
Sundanese 6567
Swahili 6569
Swedish 6568
Tagalog 6658
Tajik 6653
Tamil 6647
Tatar 6666
Telugu 6651
Thai 6654
Tibetan 4861
Tigrinya 6655
Tonga 6661
Tsonga 6665
Turkish 6664
Turkmen 6657
Twi 6669
Ukrainian 6757
Urdu 6764
Uzbek 6772
Vietnamese 6855
Volapuk 6861
Welsh 4971
Wolof 6961
Xhosa 7054
Yiddish 5655
Yoruba 7161
Zulu 7267
