1/16
Compatible: PC
Hardware User Manual
2/16
U.S. Air Force A-10C attack aircraft replica dual throttles:
1 Replica CONTROL PANEL
- Weighted base (over 3,5kg) incorporated underneath the throttles
- Backlit functions
- 5 programmable LEDs
- Realistic pressure on buttons and switches
- 15 action buttons in total + 1 TRIM wheel:
. 1 x TRIM wheel
. 2 x push buttons
. 5 x 2-position switches (2 permanent)
. 2 x 3-position switches (1 momentary + 2 permanent)
. 2 x 3-position switches (3 permanent)
3/16
Dual Replica THROTTLES
• Innovative H.E.A.R.T HallEffect AccuRate Technology (*):
- 3D magnetic sensors (Hall Effect) on the 2 throttles
- 14-bit resolution (16,384 values) on each throttle
• USB connection with upgradeable firmware
• Dual throttles, featuring:
- metal hand rest
- locking system
- adjustable friction system
- realistic IDLE detent with “Pull & Push”(*) system
- realistic and disengageable AFTERBURNER detent with “Pull & Push”(*) system
- realistic pressure on buttons and switches
- 17 action buttons in total + 1 mouse hat with push button + one 8-way “point of view” hat:
. 1 x mouse hat with push button and 3D magnetic sensor (Hall Effect)
. 1 x 8-way hat
. 1 x 4-way hat with push button
. 1 x push button
. 1 x 3-position switch (2 momentary + 1 permanent)
. 2 x 3-position switches (3 permanent)
. 1 x 3-position switch (1 momentary + 2 permanent)
(*) Patent pending.
(**) HOTAS™ is a trademark of Guillemot Corporation S.A.
4/16
CONFIGURATION OF BUTTONS AND AXES
On the THROTTLE:
5/16
On the CONTROL PANEL:
6/16
“A-10C” AIRCRAFT FUNCTIONS
On the THROTTLE:
7/16
On the CONTROL PANEL:
8/16
REALISTIC IDLE AND AFTERBURNER DETENTS
The HOTAS Warthog’s throttle features realistic systems for IDLE and AFTERBURNER
detents (the AFTERBURNER system is disengageable).
IDLE:
When set to IDLE: to cut off the aircraft’s motors (in compatible games), raise the throttle
levers slightly (in order to get over the stop) and put the throttle levers into the OFF position.
To power the motors back on, simply push the throttle levers forward (and then slightly
down), into the IDLE position.
9/16
AFTERBURNER:
When the AFTERBURNER module stop is in place, raise the throttle levers slightly (in order
to get over the stop) and push them forward.
INSTALLING/UNINSTALLING THE AFTERBURNER STOP:
(By default, the AFTERBURNER module stop is not installed).
- Using the included Allen Key, unscrew the 2 screws as shown below, and take out the
removable bar located between the 2 throttle levers.
10/16

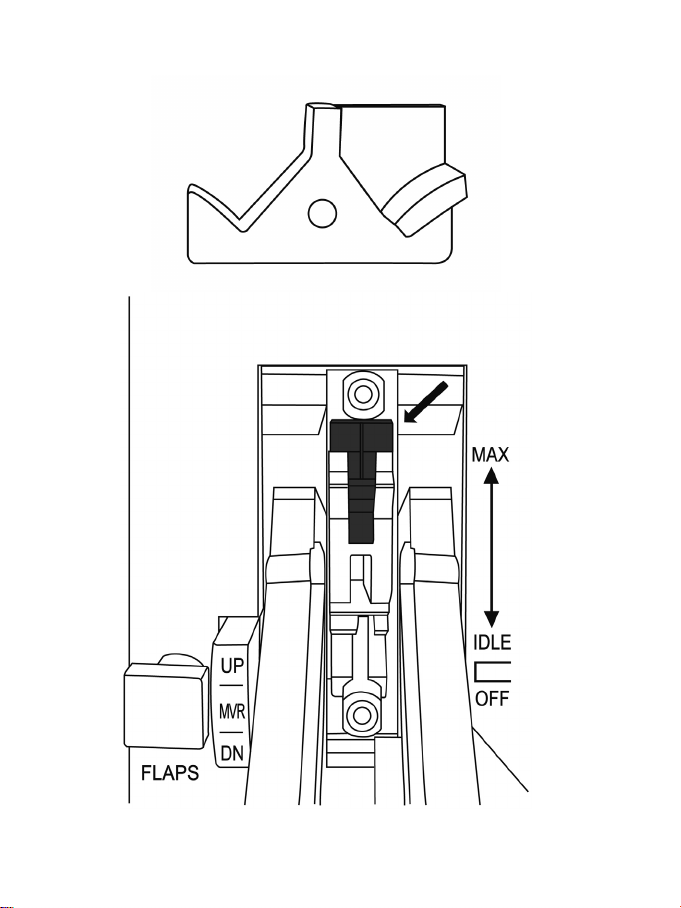

- Take out the AFTERBURNER module, located underneath the removable bar:
(In this position, the AFTERBURNER stop is disabled)
11/16

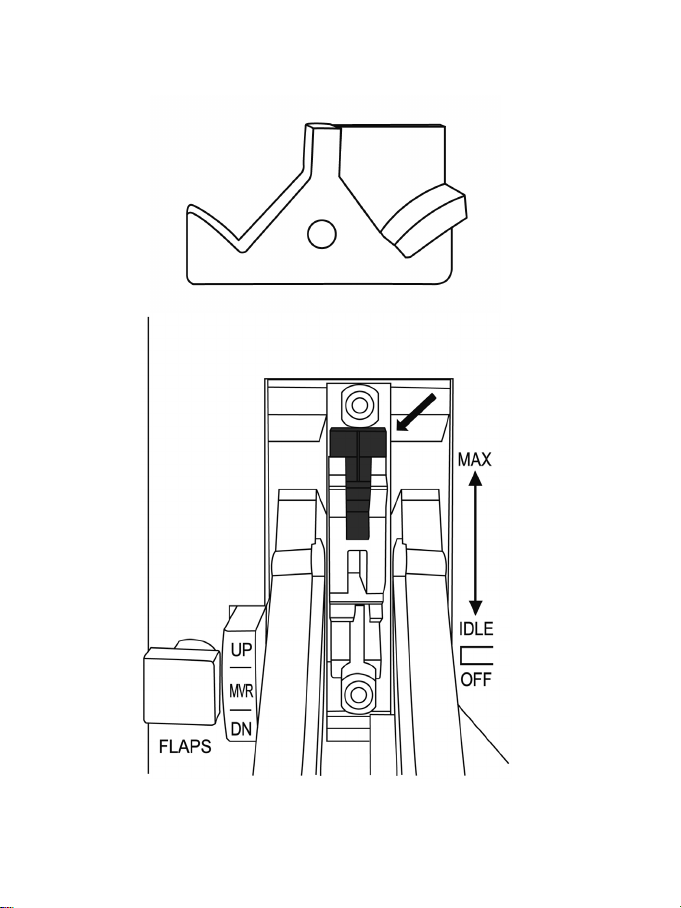

- Turn the module upside down and put it back in its place:
(In this position, the AFTERBURNER stop is now enabled)
- Put the removable bar back between the 2 throttle levers, then replace and re-tighten the
2 screws.
IMPORTANT NOTE: In order to avoid any possible damage to the AFTERBURNER module,
you must never use the throttle levers without the removable bar properly installed (using the
2 screws) between the 2 throttle levers.
12/16
ATTACHING/SEPARATING THE 2 THROTTLE LEVERS
To attach the throttle levers together:
To detach the throttle levers from one another:
13/16
THROTTLE ADJUSTABLE FRICTION SYSTEM
- To increase the friction: turn the wheel to the right.
- To decrease the friction: turn the wheel to the left.
IMPORTANT NOTES:
- Friction on the dual throttles is set to the minimum value by default.
- In order to allow for precise adjustment according to your taste, roughly ten full turns must
be made to go from minimum friction to maximum friction.
- You can use the white mark, found on the wheel, to help count your turns, if necessary.
CONTROL PANEL BACKLIGHTING
The intensity of the control panel's backlighting can be adjusted directly via T.A.R.G.E.T
(Thrustmaster Advanced pRogramming Graphical EdiTor). Five different levels of intensity
are available: from 1 (minimum intensity) to 5 (maximum intensity), with the default level set
at 2.
MANAGING THE 5 PROGRAMMABLE LEDS
You can manage the Control Panel’s 5 programmable LEDs directly via T.A.R.G.E.T.
(Thrustmaster Advanced pRogramming Graphical EdiTor).
14/16
CONSUMER WARRANTY INFORMATION
Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143,
35571 Chantepie, France (hereinafter “Guillemot”) warrants to the consumer that this Thrustmaster product
shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time
limit to bring an action for conformity with respect to this product. In the countries of the European Union, this
corresponds to a period of two (2) years from delivery of the Thrustmaster product. In other countries, the
warranty period corresponds to the time limit to bring an action for conformity with respect to the Thrustmaster
product according to applicable laws of the country in which the consumer was domiciled on the date of
purchase of the Thrustmaster product (if no such action exists in the corresponding country, then the warranty
period shall be one (1) year from the original date of purchase of the Thrustmaster product).
Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months
from the date of original purchase.
Should the product appear to be defective during the warranty period, immediately contact Technical
Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned
to its place of purchase (or any other location indicated by Technical Support).
Within the context of this warranty, the consumer’s defective product shall, at Technical Support’s option,
be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is
subject to such reconditioning, any period of at least seven (7) days during which the product is out of use
shall be added to the remaining warranty period (this period runs from the date of the consumer’s request
for intervention or from the date on which the product in question is made available for reconditioning, if
the date on which the product is made available for reconditioning is subsequent to the date of the request
for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries
(including for consequential damages) is limited to the return to working order or the replacement of the
Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of
merchantability or fitness for a particular purpose.
This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered
damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other
cause unrelated to a material or manufacturing defect (including, but not limited to, combining the
Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable
batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has
been used for any use other than home use, including for professional or commercial purposes (game
rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions
provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to
consumables (elements to be replaced over the product’s lifespan: disposable batteries, audio headset or
headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for
example); (7) if the product was sold at public auction.
This warranty is nontransferable.
The consumer’s legal rights with respect to laws applicable to the sale of consumer goods in his or her
country are not affected by this warranty.
Additional warranty provisions
During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is
the only party authorized to open and/or recondition any Thrustmaster product (with the exception of any
reconditioning procedures which Technical Support may request that the consumer carry out, by way of written
instructions – for example, due to the simplicity and the lack of confidentiality of the reconditioning process –
and by providing the consumer with the required spare part(s), where applicable).
Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not
provide, in principle, any reconditioning notification or spare parts for any Thrustmaster product whose
warranty period has expired.
15/16
In the United States of America and in Canada, this warranty is limited to the product’s internal
mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third
party for any consequential or incidental damages resulting from the breach of any express or implied
warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or
exclusion or limitation of liability for consequential or incidental damages, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from State to State or Province to Province.
Liability
If permitted under applicable law, Guillemot Corporation S.A. (hereinafter “Guillemot”) and its subsidiaries
disclaim all liability for any damages caused by one or more of the following: (1) the product has been
modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive
use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any
use other than home use, including for professional or commercial purposes (game rooms, training,
competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries disclaim all
liability for any damages unrelated to a material or manufacturing defect with respect to the product
(including, but not limited to, any damages caused directly or indirectly by any software, or by combining
the Thrustmaster product with any unsuitable element, including in particular power supplies,
rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).
DECLARATION OF CONFORMITY
CANADIAN COMPLIANCE NOTICE: this Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
USA COMPLIANCE NOTICE: this equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rul es. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment on and
off, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING: This product can expose you to chemicals including Bisphenol A (BPA)
which is known to the State of California to cause birth defects or other reproductive harm. For
more information go to http://www.p65warnings.ca.gov/
16/16
COPYRIGHT
*
*
TECHNICAL SUPPORT
© 2022 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of
Guillemot Corporation S.A. Windows® is a registered trademark of Microsoft Corporation in the United
States and/or other countries. All other trademarks and brand names are hereby acknowledged and are
property of their respective owners. Illustrations not binding. Contents, designs and specifications are
subject to change without notice and may vary from one country to another. Made in China.
Officially licensed product of the Department of the Air Force. Endorsement by the United States Air Force
is neither intended nor implied.
ENVIRONMENTAL PROTECTION RECOMMENDATION
Please contact your local authorities for information on the collection point nearest you.
For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.
Retain this information. Colors and decorations may vary.
Plastic fasteners and adhesives should be removed from the product before it is used.
This product conforms to all standards regarding children 16 years of age and older. This product is not
suitable for use by children less than 16 years of age.
www.thrust master.com
*Applicable to EU, UK and Turkey only
In the European Union: At the end of its working life, this product should not be disposed
of with standard household waste, but rather dropped off at a collection point for the
disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.
This is confirmed by the symbol found on the product, user manual or packaging.
Depending on their characteristics, the materials may be recycled. Through recycling
and other forms of processing Waste Electrical and Electronic Equipment, you can
make a significant contribution towards helping to protect the environment.
https://support.thrustmaster.com
1/16
Compatible : PC
Manuel de l'utilisateur Hardware
2/16
Double manette des gaz réplique de l’avion d’attaque A-10C de l’U.S. Air Force :
1 PANNEAU DE CONTRÔLE (réplique)
- Base lestée (> à 3,5 kg) incorporée sous les poignées des gaz
- Rétro-éclairage des fonctions
- 5 voyants lumineux programmables
- Force de pression réaliste des boutons et des interrupteurs
- 15 boutons d’actions au total + 1 molette TRIM :
. 1 x molette TRIM
. 2 x boutons-poussoirs
. 5 x interrupteurs 2 positions (2 permanents)
. 2 x interrupteurs 3 positions (1 à rappel + 2 permanents)
. 2 x interrupteurs 3 positions (3 permanents)
3/16
DOUBLE MANETTE DES GAZ (répliques)
• Technologie H.E.A.R.T HallEffect AccuRate Technology (*) :
- capteurs magnétiques 3D (Hall Effect) sur les 2 manettes des gaz
- résolution de 14 bits (16 384 valeurs) sur chaque manette des gaz
• Connectique USB avec possibilité de mise à jour du firmware
• Double manette des gaz avec :
- repose-main en métal
- système de verrouillage
- système de friction ajustable
- IDLE réaliste avec système « Pull & Push » (*)
- AFTERBURNER réaliste débrayable avec système « Pull & Push »(*)
- force de pression réaliste des boutons et des interrupteurs
- 17 boutons d’actions au total + 1 chapeau souris avec bouton-poussoir + 1 chapeau chinois
« point de vue » 8 directions :
. 1 x chapeau souris avec bouton-poussoir et capteur magnétique 3D (Hall Effect)
. 1 x chapeau 8 directions
. 1 x chapeau 4 directions avec bouton-poussoir
. 1 x bouton-poussoir
. 1 x interrupteur 3 positions (2 à rappel + 1 permanent)
. 2 x interrupteurs 3 positions (3 permanents)
. 1 x interrupteur 3 positions (1 à rappel + 2 permanents)
(*) Brevet en instance.
(**) HOTAS™ est une marque de Guillemot Corporation S.A.
4/16
CONFIGURATION DES BOUTONS ET DES AXES
Sur les MANETTES DES GAZ (THROTTLE) :
5/16
Sur le PANNEAU DE CONTRÔLE :
6/16
FONCTIONNALITÉS SUR L’AVION « A-10C »
Sur les MANETTES DES GAZ (THROTTLE) :
7/16
Sur le PANNEAU DE CONTRÔLE :
8/16
DÉTENTE IDLE ET AFTERBURNER RÉALISTE
Les manettes des gaz du « Hotas Warthog » possèdent un système de détente IDLE et
AFTERBURNER réaliste (système débrayable pour l’Afterburner).
IDLE :
Après avoir positionné les manettes des gaz sur IDLE pour couper les moteurs de l’avion
(dans les jeux compatibles), soulevez-les (afin de dépasser la butée), puis ramenez-les en
position OFF.
Pour rallumer les moteurs, poussez simplement les manettes des gaz jusqu’à la position
IDLE.
9/16
AFTERBURNER:
Lorsque la butée du module Afterburner est mise en place, soulevez les manettes des gaz
(afin de dépasser la butée), puis poussez les.
INSTALLER / DÉSINSTALLER LA BUTÉE AFTERBURNER :
(Par défaut, la butée du module AFTERBURNER n’est pas installée).
- À l’aide de la clé Allen fournie, dévissez les 2 vis et retirez la barre amovible située entre
les 2 manettes des gaz.
10/16
- Retirez le module Afterburner situé sous la barre amovible :
(dans cette position, la butée AFTERBURNER est désactivée)
11/16
- Retournez le module et repositionnez-le dans son emplacement :
(dans cette position, la butée AFTERBURNER est désormais activée)
- Repositionnez la barre amovible entre les 2 manettes des gaz, puis revissez les 2 vis.
IMPORTANT : Afin de ne pas endommager le module Afterburner, ne jamais utiliser les
manettes des gaz sans que la barre amovible ne soit préalablement vissée entre les 2
manettes.
12/16
ATTACHER / SÉPARER LES 2 MANETTES DES GAZ
Pour solidariser les 2 manettes :
Pour désolidariser les 2 manettes :
13/16
MOLETTE DE FRICTION DE LA DOUBLE MANETTE DES GAZ
- Pour augmenter la friction : tourner la molette vers la droite
- Pour diminuer la friction : tourner la molette vers la gauche
REMARQUES IMPORTANTES :
- La friction de la double manette des gaz est réglée par défaut au minimum.
- Afin de permettre un réglage précis selon votre convenance, une dizaine de tours
complets sont nécessaires pour passer de la friction minimale à la friction maximale (et
inversement).
- La marque blanche, située sur la molette, vous permettra de compter les tours, si
nécessaire.
RÉTRO-ÉCLAIRAGE DU PANNEAU DE CONTRÔLE
L’intensité du rétro-éclairage du panneau de contrôle pourra être ajustée directement via
T.A.R.G.E.T (Thrustmaster Advanced pRogramming Graphical EdiTor). Cinq niveaux
d’intensité sont disponibles : de 1 (intensité minimum) à 5 (intensité maximum), le niveau par
défaut étant réglé sur 2.
GESTION DES 5 LEDS PROGRAMMABLES
La gestion des 5 Leds programmables du panneau de contrôle s’effectuera directement via
T.A.R.G.E.T (Thrustmaster Advanced pRogramming Graphical EdiTor).
Loading...
