Texas instruments TMS320F28332, TMS320F28232, TMS320F28235, TMS320F28234, TMS320F28334 Data Manual

...

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

Digital Signal Controllers (DSCs)

Data Manual

PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

Literature Number: SPRS439I

June 2007–Revised March 2011

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Contents

1 TMS320F2833x, TMS320F2823x DSCs .................................................................................. 11

1.1 Features .................................................................................................................... 11

1.2 Getting Started ............................................................................................................. 12

2 Introduction ...................................................................................................................... 13

2.1 Pin Assignments ........................................................................................................... 15

2.2 Signal Descriptions ........................................................................................................ 24

3 Functional Overview .......................................................................................................... 34

3.1 Memory Maps .............................................................................................................. 35

3.2 Brief Descriptions .......................................................................................................... 42

3.2.1 C28x CPU ....................................................................................................... 42

3.2.2 Memory Bus (Harvard Bus Architecture) .................................................................... 42

3.2.3 Peripheral Bus .................................................................................................. 42

3.2.4 Real-Time JTAG and Analysis ................................................................................ 43

3.2.5 External Interface (XINTF) .................................................................................... 43

3.2.6 Flash ............................................................................................................. 43

3.2.7 M0, M1 SARAMs ............................................................................................... 43

3.2.8 L0, L1, L2, L3, L4, L5, L6, L7 SARAMs ..................................................................... 44

3.2.9 Boot ROM ........................................................................................................ 44

3.2.9.1 Peripheral Pins Used by the Bootloader ........................................................ 45

3.2.10 Security .......................................................................................................... 45

3.2.11 Peripheral Interrupt Expansion (PIE) Block ................................................................. 47

3.2.12 External Interrupts (XINT1–XINT7, XNMI) .................................................................. 47

3.2.13 Oscillator and PLL .............................................................................................. 47

3.2.14 Watchdog ........................................................................................................ 47

3.2.15 Peripheral Clocking ............................................................................................. 47

3.2.16 Low-Power Modes .............................................................................................. 47

3.2.17 Peripheral Frames 0, 1, 2, 3 (PFn) ........................................................................... 48

3.2.18 General-Purpose Input/Output (GPIO) Multiplexer ......................................................... 48

3.2.19 32-Bit CPU-Timers (0, 1, 2) ................................................................................... 48

3.2.20 Control Peripherals ............................................................................................. 49

3.2.21 Serial Port Peripherals ......................................................................................... 49

3.3 Register Map ............................................................................................................... 50

3.4 Device Emulation Registers .............................................................................................. 52

3.5 Interrupts .................................................................................................................... 53

3.5.1 External Interrupts .............................................................................................. 57

3.6 System Control ............................................................................................................ 58

3.6.1 OSC and PLL Block ............................................................................................ 59

3.6.1.1 External Reference Oscillator Clock Option .................................................... 60

3.6.1.2 PLL-Based Clock Module ......................................................................... 61

3.6.1.3 Loss of Input Clock ................................................................................ 62

3.6.2 Watchdog Block ................................................................................................. 63

3.7 Low-Power Modes Block ................................................................................................. 64

4 Peripherals ....................................................................................................................... 65

4.1 DMA Overview ............................................................................................................. 65

4.2 32-Bit CPU-Timers 0/1/2 ................................................................................................. 67

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

4.3 Enhanced PWM Modules (ePWM1/2/3/4/5/6 ) ........................................................................ 69

4.4 High-Resolution PWM (HRPWM) ....................................................................................... 73

4.5 Enhanced CAP Modules (eCAP1/2/3/4/5/6) ........................................................................... 74

4.6 Enhanced QEP Modules (eQEP1/2 ) ................................................................................... 76

4.7 Analog-to-Digital Converter (ADC) Module ............................................................................ 78

4.7.1 ADC Connections if the ADC Is Not Used .................................................................. 82

4.7.2 ADC Registers .................................................................................................. 83

4.7.3 ADC Calibration ................................................................................................. 84

4.8 Multichannel Buffered Serial Port (McBSP) Module .................................................................. 84

4.9 Enhanced Controller Area Network (eCAN) Modules (eCAN-A and eCAN-B) .................................... 87

4.10 Serial Communications Interface (SCI) Modules (SCI-A, SCI-B, SCI-C) .......................................... 92

4.11 Serial Peripheral Interface (SPI) Module (SPI-A ) ..................................................................... 96

4.12 Inter-Integrated Circuit (I2C) ............................................................................................. 99

4.13 GPIO MUX ................................................................................................................ 100

4.14 External Interface (XINTF) .............................................................................................. 107

SPRS439I–JUNE 2007–REVISED MARCH 2011

5 Device Support ................................................................................................................ 109

5.1 Device and Development Support Tool Nomenclature ............................................................. 109

5.2 Documentation Support ................................................................................................. 111

5.3 Community Resources .................................................................................................. 116

6 Electrical Specifications ................................................................................................... 117

6.1 Absolute Maximum Ratings ............................................................................................. 117

6.2 Recommended Operating Conditions ................................................................................. 118

6.3 Electrical Characteristics ................................................................................................ 118

6.4 Current Consumption .................................................................................................... 119

6.4.1 Reducing Current Consumption ............................................................................. 121

6.4.2 Current Consumption Graphs ............................................................................... 122

6.4.3 Thermal Design Considerations ............................................................................. 123

6.5 Emulator Connection Without Signal Buffering for the DSP ....................................................... 124

6.6 Timing Parameter Symbology .......................................................................................... 125

6.6.1 General Notes on Timing Parameters ...................................................................... 125

6.6.2 Test Load Circuit .............................................................................................. 125

6.6.3 Device Clock Table ........................................................................................... 126

6.7 Clock Requirements and Characteristics ............................................................................. 127

6.8 Power Sequencing ....................................................................................................... 128

6.8.1 Power Management and Supervisory Circuit Solutions .................................................. 128

6.9 General-Purpose Input/Output (GPIO) ................................................................................ 131

6.9.1 GPIO - Output Timing ........................................................................................ 131

6.9.2 GPIO - Input Timing .......................................................................................... 132

6.9.3 Sampling Window Width for Input Signals ................................................................. 133

6.9.4 Low-Power Mode Wakeup Timing .......................................................................... 134

6.10 Enhanced Control Peripherals ......................................................................................... 139

6.10.1 Enhanced Pulse Width Modulator (ePWM) Timing ....................................................... 139

6.10.2 Trip-Zone Input Timing ....................................................................................... 139

6.10.3 Enhanced Capture (eCAP) Timing ......................................................................... 140

6.10.4 Enhanced Quadrature Encoder Pulse (eQEP) Timing ................................................... 140

6.10.5 ADC Start-of-Conversion Timing ............................................................................ 141

6.11 External Interrupt Timing ................................................................................................ 141

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

6.12 I2C Electrical Specification and Timing ............................................................................... 142

6.13 Serial Peripheral Interface (SPI) Timing .............................................................................. 142

6.13.1 Master Mode Timing .......................................................................................... 142

6.13.2 SPI Slave Mode Timing ...................................................................................... 147

6.14 External Interface (XINTF) Timing ..................................................................................... 150

6.14.1 USEREADY = 0 ............................................................................................... 150

6.14.2 Synchronous Mode (USEREADY = 1, READYMODE = 0) ............................................. 151

6.14.3 Asynchronous Mode (USEREADY = 1, READYMODE = 1) ............................................ 152

6.14.4 XINTF Signal Alignment to XCLKOUT ..................................................................... 154

6.14.5 External Interface Read Timing ............................................................................. 155

6.14.6 External Interface Write Timing ............................................................................. 157

6.14.7 External Interface Ready-on-Read Timing With One External Wait State ............................ 159

6.14.8 External Interface Ready-on-Write Timing With One External Wait State ............................. 162

6.14.9 XHOLD and XHOLDA Timing ............................................................................... 165

6.15 On-Chip Analog-to-Digital Converter .................................................................................. 168

6.15.1 ADC Power-Up Control Bit Timing .......................................................................... 169

6.15.2 Definitions ...................................................................................................... 170

6.15.3 Sequential Sampling Mode (Single-Channel) (SMODE = 0) ............................................ 171

6.15.4 Simultaneous Sampling Mode (Dual-Channel) (SMODE = 1) .......................................... 172

6.15.5 Detailed Descriptions ......................................................................................... 173

6.16 Multichannel Buffered Serial Port (McBSP) Timing ................................................................. 174

6.16.1 McBSP Transmit and Receive Timing ...................................................................... 174

6.16.2 McBSP as SPI Master or Slave Timing .................................................................... 177

6.17 Flash Timing .............................................................................................................. 181

6.18 Migrating Between F2833x Devices and F2823x Devices ......................................................... 182

www.ti.com

7 Revision History .............................................................................................................. 183

8 Thermal/Mechanical Data .................................................................................................. 184

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

List of Figures

2-1 F2833x, F2823x 176-Pin PGF/PTP LQFP (Top View)...................................................................... 15

2-2 F2833x, F2823x 179-Ball ZHH MicroStar BGA™ (Upper Left Quadrant) (Bottom View) .............................. 17

2-3 F2833x, F2823x 179-Ball ZHH MicroStar BGA™ (Upper Right Quadrant) (Bottom View)............................. 18

2-4 F2833x, F2823x 179-Ball ZHH MicroStar BGA™ (Lower Left Quadrant) (Bottom View) .............................. 19

2-5 F2833x, F2823x 179-Ball ZHH MicroStar BGA ™(Lower Right Quadrant) (Bottom View)............................. 20

2-6 F2833x, F2823x 176-Ball ZJZ Plastic BGA (Upper Left Quadrant) (Bottom View)...................................... 21

2-7 F2833x, F2823x 176-Ball ZJZ Plastic BGA (Upper Right Quadrant) (Bottom View).................................... 22

2-8 F2833x, F2823x 176-Ball ZJZ Plastic BGA (Lower Left Quadrant) (Bottom View)...................................... 23

2-9 F2833x, F2823x 176-Ball ZJZ Plastic BGA (Lower Right Quadrant) (Bottom View).................................... 23

3-1 Functional Block Diagram ...................................................................................................... 35

3-2 F28335/F28235 Memory Map ................................................................................................. 37

3-3 F28334/F28234 Memory Map ................................................................................................. 38

3-4 F28332/F28232 Memory Map ................................................................................................. 38

3-5 External and PIE Interrupt Sources............................................................................................ 54

3-6 External Interrupts................................................................................................................ 54

3-7 Multiplexing of Interrupts Using the PIE Block ............................................................................... 55

3-8 Clock and Reset Domains ...................................................................................................... 58

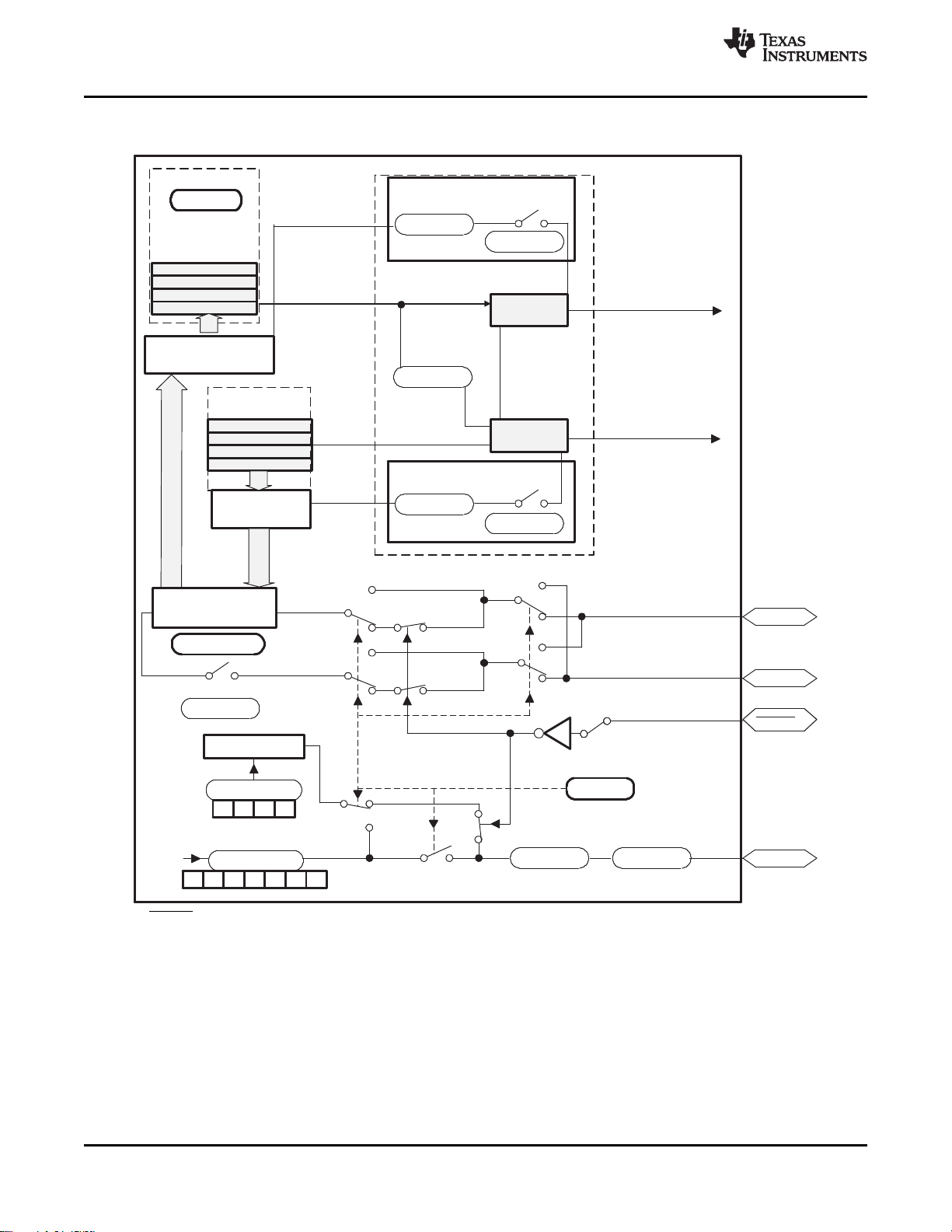

3-9 OSC and PLL Block Diagram................................................................................................... 59

3-10 Using a 3.3-V External Oscillator............................................................................................... 60

3-11 Using a 1.9 -V External Oscillator.............................................................................................. 60

3-12 Using the Internal Oscillator .................................................................................................... 60

3-13 Watchdog Module................................................................................................................ 63

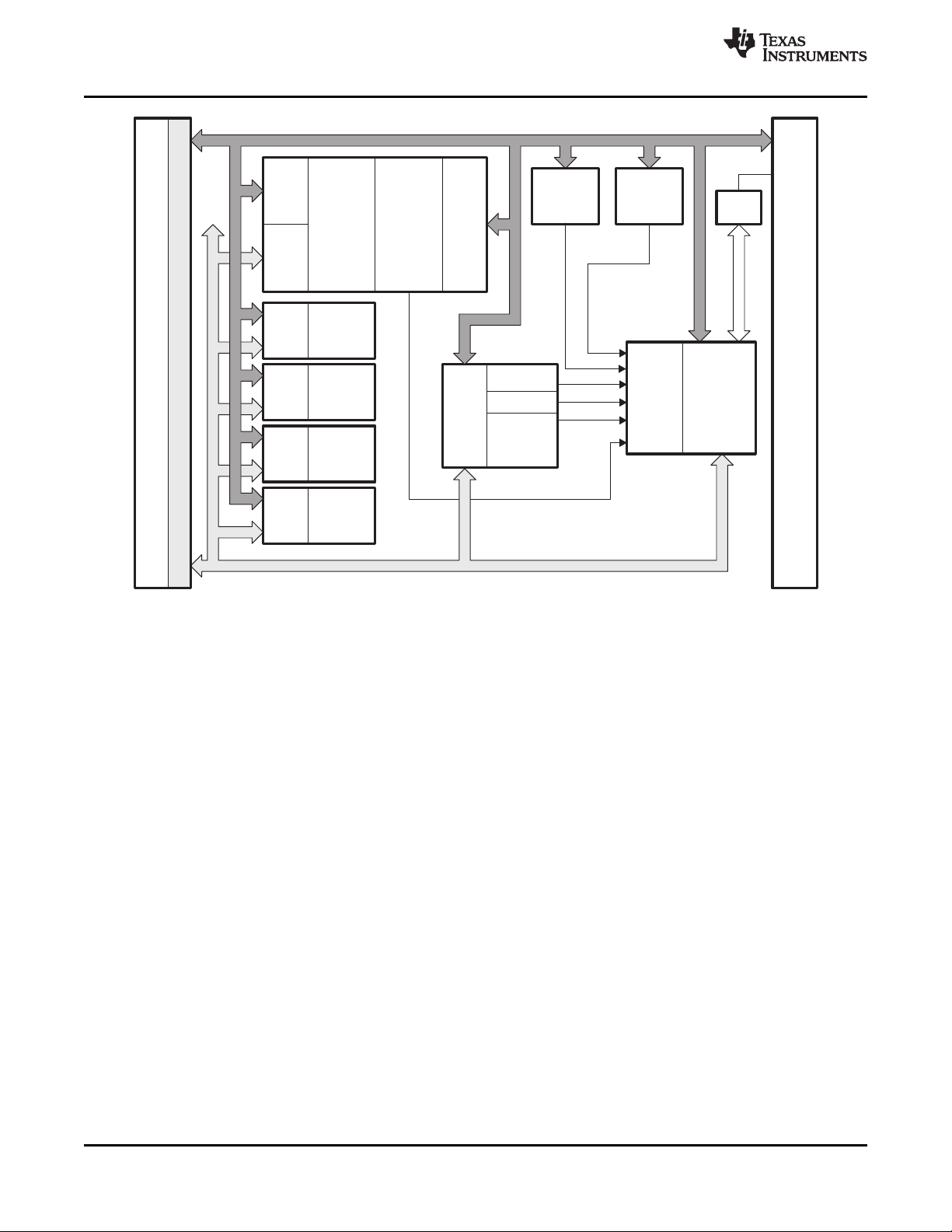

4-1 DMA Functional Block Diagram ................................................................................................ 66

4-2 CPU-Timers....................................................................................................................... 67

4-3 CPU-Timer Interrupt Signals and Output Signal ............................................................................. 67

4-4 Multiple PWM Modules in an 2833x/2823x System ......................................................................... 69

4-5 ePWM Submodules Showing Critical Internal Signal Interconnections................................................... 72

4-6 eCAP Functional Block Diagram ............................................................................................... 74

4-7 eQEP Functional Block Diagram............................................................................................... 76

4-8 Block Diagram of the ADC Module ............................................................................................ 79

4-9 ADC Pin Connections With Internal Reference .............................................................................. 80

4-10 ADC Pin Connections With External Reference ............................................................................. 81

4-11 McBSP Module .................................................................................................................. 85

4-12 eCAN Block Diagram and Interface Circuit ................................................................................... 88

4-13 eCAN-A Memory Map ........................................................................................................... 89

4-14 eCAN-B Memory Map ........................................................................................................... 90

4-15 Serial Communications Interface (SCI) Module Block Diagram............................................................ 95

4-16 SPI Module Block Diagram (Slave Mode) .................................................................................... 98

4-17 I2C Peripheral Module Interfaces .............................................................................................. 99

4-18 GPIO MUX Block Diagram .................................................................................................... 101

4-19 Qualification Using Sampling Window ....................................................................................... 106

4-20 External Interface Block Diagram............................................................................................. 107

4-21 Typical 16-bit Data Bus XINTF Connections................................................................................ 108

4-22 Typical 32-bit Data Bus XINTF Connections................................................................................ 108

5-1 Example of F2833x, F2823x Device Nomenclature........................................................................ 110

6-1 Typical Operational Current Versus Frequency (F28335/F28235/F28334/F28234)................................... 123

6-2 Typical Operational Power Versus Frequency (F28335/F28235/F28334/F28234) .................................... 123

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

6-3 Emulator Connection Without Signal Buffering for the DSP ............................................................. 124

6-4 3.3-V Test Load Circuit......................................................................................................... 125

6-5 Clock Timing..................................................................................................................... 128

6-6 Power-on Reset ................................................................................................................. 129

6-7 Warm Reset ..................................................................................................................... 130

6-8 Example of Effect of Writing Into PLLCR Register ......................................................................... 131

6-9 General-Purpose Output Timing.............................................................................................. 132

6-10 Sampling Mode ................................................................................................................. 132

6-11 General-Purpose Input Timing................................................................................................ 133

6-12 IDLE Entry and Exit Timing.................................................................................................... 134

6-13 STANDBY Entry and Exit Timing Diagram.................................................................................. 136

6-14 HALT Wake-Up Using GPIOn................................................................................................. 138

6-15 PWM Hi-Z Characteristics..................................................................................................... 139

6-16 ADCSOCAO or ADCSOCBO Timing ........................................................................................ 141

6-17 External Interrupt Timing....................................................................................................... 141

6-18 SPI Master Mode External Timing (Clock Phase = 0) ..................................................................... 144

6-19 SPI Master Mode External Timing (Clock Phase = 1) ..................................................................... 146

6-20 SPI Slave Mode External Timing (Clock Phase = 0)....................................................................... 148

6-21 SPI Slave Mode External Timing (Clock Phase = 1)....................................................................... 149

6-22 Relationship Between XTIMCLK and SYSCLKOUT ....................................................................... 153

6-23 Example Read Access......................................................................................................... 156

6-24 Example Write Access......................................................................................................... 158

6-25 Example Read With Synchronous XREADY Access ...................................................................... 160

6-26 Example Read With Asynchronous XREADY Access..................................................................... 161

6-27 Write With Synchronous XREADY Access.................................................................................. 163

6-28 Write With Asynchronous XREADY Access ................................................................................ 164

6-29 External Interface Hold Waveform............................................................................................ 166

6-30 XHOLD/XHOLDA Timing Requirements (XCLKOUT = 1/2 XTIMCLK).................................................. 167

6-31 ADC Power-Up Control Bit Timing ........................................................................................... 169

6-32 ADC Analog Input Impedance Model ........................................................................................ 170

6-33 Sequential Sampling Mode (Single-Channel) Timing...................................................................... 171

6-34 Simultaneous Sampling Mode Timing ....................................................................................... 172

6-35 McBSP Receive Timing........................................................................................................ 176

6-36 McBSP Transmit Timing....................................................................................................... 176

6-37 McBSP Timing as SPI Master or Slave: CLKSTP = 10b, CLKXP = 0................................................... 177

6-38 McBSP Timing as SPI Master or Slave: CLKSTP = 11b, CLKXP = 0................................................... 178

6-39 McBSP Timing as SPI Master or Slave: CLKSTP = 10b, CLKXP = 1................................................... 179

6-40 McBSP Timing as SPI Master or Slave: CLKSTP = 11b, CLKXP = 1................................................... 180

www.ti.com

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

List of Tables

2-1 F2833x Hardware Features .................................................................................................... 13

2-2 F2823x Hardware Features .................................................................................................... 14

2-3 Signal Descriptions............................................................................................................... 24

3-1 Addresses of Flash Sectors in F28335/F28235 ............................................................................. 39

3-2 Addresses of Flash Sectors in F28334/F28234.............................................................................. 39

3-3 Addresses of Flash Sectors in F28332/F28232.............................................................................. 39

3-4 Handling Security Code Locations............................................................................................. 40

3-5 Wait-states ........................................................................................................................ 41

3-6 Boot Mode Selection............................................................................................................. 44

3-7 Peripheral Bootload Pins ........................................................................................................ 45

3-8 Peripheral Frame 0 Registers .................................................................................................. 50

3-9 Peripheral Frame 1 Registers .................................................................................................. 50

3-10 Peripheral Frame 2 Registers .................................................................................................. 51

3-11 Peripheral Frame 3 Registers .................................................................................................. 51

3-12 Device Emulation Registers..................................................................................................... 52

3-13 PIE Peripheral Interrupts ....................................................................................................... 55

3-14 PIE Configuration and Control Registers...................................................................................... 56

3-15 External Interrupt Registers..................................................................................................... 57

3-16 PLL, Clocking, Watchdog, and Low-Power Mode Registers ............................................................... 59

3-17 PLL Settings ...................................................................................................................... 61

3-18 CLKIN Divide Options ........................................................................................................... 61

3-19 Possible PLL Configuration Modes ............................................................................................ 62

3-20 Low-Power Modes ............................................................................................................... 64

4-1 CPU-Timers 0, 1, 2 Configuration and Control Registers................................................................... 68

4-2 ePWM Control and Status Registers (Default Configuration in PF1)...................................................... 70

4-3 ePWM Control and Status Registers (Remapped Configuration in PF3 - DMA-Accessible)........................... 71

4-4 eCAP Control and Status Registers ........................................................................................... 75

4-5 eQEP Control and Status Registers ........................................................................................... 77

4-6 ADC Registers ................................................................................................................... 83

4-7 McBSP Register Summary...................................................................................................... 86

4-8 3.3-V eCAN Transceivers ...................................................................................................... 88

4-9 CAN Register Map .............................................................................................................. 91

4-10 SCI-A Registers .................................................................................................................. 93

4-11 SCI-B Registers .................................................................................................................. 93

4-12 SCI-C Registers ................................................................................................................. 94

4-13 SPI-A Registers................................................................................................................... 97

4-14 I2C-A Registers ................................................................................................................. 100

4-15 GPIO Registers ................................................................................................................. 102

4-16 GPIO-A Mux Peripheral Selection Matrix ................................................................................... 103

4-17 GPIO-B Mux Peripheral Selection Matrix ................................................................................... 104

4-18 GPIO-C Mux Peripheral Selection Matrix ................................................................................... 105

4-19 XINTF Configuration and Control Register Mapping....................................................................... 108

5-1 TMS320x2833x, 2823x Peripheral Selection Guide ....................................................................... 111

6-1 TMS320F28335/F28235 Current Consumption by Power-Supply Pins at 150-MHz SYSCLKOUT ................. 119

6-2 TMS320F28334/F28234 Current Consumption by Power-Supply Pins at 150-MHz SYSCLKOUT ................. 120

6-3 Typical Current Consumption by Various Peripherals (at 150 MHz) .................................................... 121

6-4 Clocking and Nomenclature (150-MHz Devices) ........................................................................... 126

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

6-5 Clocking and Nomenclature (100-MHz Devices) ........................................................................... 126

6-6 Input Clock Frequency ......................................................................................................... 127

6-7 XCLKIN Timing Requirements – PLL Enabled ............................................................................. 127

6-8 XCLKIN Timing Requirements – PLL Disabled ............................................................................ 127

6-9 XCLKOUT Switching Characteristics (PLL Bypassed or Enabled) ...................................................... 127

6-10 Power Management and Supervisory Circuit Solutions ................................................................... 128

6-11 Reset (XRS) Timing Requirements .......................................................................................... 130

6-12 General-Purpose Output Switching Characteristics........................................................................ 131

6-13 General-Purpose Input Timing Requirements .............................................................................. 132

6-14 IDLE Mode Timing Requirements ........................................................................................... 134

6-15 IDLE Mode Switching Characteristics ....................................................................................... 134

6-16 STANDBY Mode Timing Requirements ..................................................................................... 135

6-17 STANDBY Mode Switching Characteristics ................................................................................ 135

6-18 HALT Mode Timing Requirements ........................................................................................... 137

6-19 HALT Mode Switching Characteristics ...................................................................................... 137

6-20 ePWM Timing Requirements ................................................................................................. 139

6-21 ePWM Switching Characteristics ............................................................................................ 139

6-22 Trip-Zone Input Timing Requirements ...................................................................................... 139

6-23 High-Resolution PWM Characteristics at SYSCLKOUT = (60 –150 MHz).............................................. 140

6-24 Enhanced Capture (eCAP) Timing Requirement .......................................................................... 140

6-25 eCAP Switching Characteristics ............................................................................................. 140

6-26 Enhanced Quadrature Encoder Pulse (eQEP) Timing Requirements .................................................. 140

6-27 eQEP Switching Characteristics ............................................................................................. 140

6-28 External ADC Start-of-Conversion Switching Characteristics............................................................. 141

6-29 External Interrupt Timing Requirements .................................................................................... 141

6-30 External Interrupt Switching Characteristics ................................................................................ 141

6-31 I2C Timing ...................................................................................................................... 142

6-32 SPI Master Mode External Timing (Clock Phase = 0) .................................................................... 143

6-33 SPI Master Mode External Timing (Clock Phase = 1) .................................................................... 145

6-34 SPI Slave Mode External Timing (Clock Phase = 0) ...................................................................... 147

6-35 SPI Slave Mode External Timing (Clock Phase = 1) ...................................................................... 149

6-36 Relationship Between Parameters Configured in XTIMING and Duration of Pulse ................................... 150

6-37 XINTF Clock Configurations .................................................................................................. 153

6-38 External Interface Read Timing Requirements ............................................................................. 155

6-39 External Interface Read Switching Characteristics......................................................................... 155

6-40 External Interface Write Switching Characteristics......................................................................... 157

6-41 External Interface Read Switching Characteristics (Ready-on-Read, 1 Wait State)................................... 159

6-42 External Interface Read Timing Requirements (Ready-on-Read, 1 Wait State) ....................................... 159

6-43 Synchronous XREADY Timing Requirements (Ready-on-Read, 1 Wait State) ....................................... 159

6-44 Asynchronous XREADY Timing Requirements (Ready-on-Read, 1 Wait State)....................................... 159

6-45 External Interface Write Switching Characteristics (Ready-on-Write, 1 Wait State) ................................... 162

6-46 Synchronous XREADY Timing Requirements (Ready-on-Write, 1 Wait State) ....................................... 162

6-47 Asynchronous XREADY Timing Requirements (Ready-on-Write, 1 Wait State) ...................................... 162

6-48 XHOLD/XHOLDA Timing Requirements (XCLKOUT = XTIMCLK) ...................................................... 166

6-49 XHOLD/XHOLDA Timing Requirements (XCLKOUT = 1/2 XTIMCLK) ................................................. 167

6-50 ADC Electrical Characteristics (over recommended operating conditions) ............................................ 168

6-51 ADC Power-Up Delays......................................................................................................... 169

6-52 Typical Current Consumption for Different ADC Configurations (at 25-MHz ADCCLK) .............................. 169

www.ti.com

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

6-53 Sequential Sampling Mode Timing ........................................................................................... 171

6-54 Simultaneous Sampling Mode Timing ....................................................................................... 172

6-55 McBSP Timing Requirements ................................................................................................ 174

6-56 McBSP Switching Characteristics ........................................................................................... 175

6-57 McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 10b, CLKXP = 0) ................................ 177

6-58 McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 10b, CLKXP = 0)............................ 177

6-59 McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 11b, CLKXP = 0) ................................ 178

6-60 McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 11b, CLKXP = 0)............................ 178

6-61 McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 10b, CLKXP = 1) ................................ 179

6-62 McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 10b, CLKXP = 1)............................ 179

6-63 McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 11b, CLKXP = 1) ................................ 180

6-64 McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 11b, CLKXP = 1) ........................... 180

6-65 Flash Endurance for A and S Temperature Material ...................................................................... 181

6-66 Flash Endurance for Q Temperature Material .............................................................................. 181

6-67 Flash Parameters at 150-MHz SYSCLKOUT............................................................................... 181

6-68 Flash/OTP Access Timing..................................................................................................... 181

6-69 Minimum Required Flash/OTP Wait-States at Different Frequencies ................................................... 181

8-1 Thermal Model 176-Pin PGF Results........................................................................................ 184

8-2 Thermal Model 176-Pin PTP Results ........................................................................................ 184

8-3 Thermal Model 179-Ball ZHH Results ....................................................................................... 184

8-4 Thermal Model 176-Ball ZJZ Results ....................................................................................... 185

SPRS439I–JUNE 2007–REVISED MARCH 2011

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Digital Signal Controllers (DSCs)

Check for Samples: TMS320F28335, TMS320F28334, TMS320F28332, TMS320F28235, TMS320F28234, TMS320F28232

1 TMS320F2833x, TMS320F2823x DSCs

1.1 Features

123

• High-Performance Static CMOS Technology • Enhanced Control Peripherals – Up to 150 MHz (6.67-ns Cycle Time) – Up to 18 PWM Outputs – 1.9-V/1.8 -V Core, 3.3-V I/O Design – Up to 6 HRPWM Outputs With 150 ps MEP

• High-Performance 32-Bit CPU (TMS320C28x) – IEEE-754 Single-Precision Floating-Point

Unit (FPU) (F2833x only) – Up to 2 Quadrature Encoder Interfaces – 16 x 16 and 32 x 32 MAC Operations – Up to 8 32-Bit/Nine 16-Bit Timers – 16 x 16 Dual MAC • Three 32-Bit CPU Timers – Harvard Bus Architecture • Serial Port Peripherals – Fast Interrupt Response and Processing – Up to 2 CAN Modules – Unified Memory Programming Model – Up to 3 SCI (UART) Modules – Code-Efficient (in C/C++ and Assembly) – Up to 2 McBSP Modules (Configurable as

• Six-Channel DMA Controller (for ADC, McBSP, ePWM, XINTF, and SARAM) – One SPI Module

• 16-Bit or 32-Bit External Interface (XINTF) – One Inter-Integrated-Circuit (I2C) Bus – Over 2M x 16 Address Reach • 12-Bit ADC, 16 Channels

• On-Chip Memory – 80-ns Conversion Rate – F28335/F28235: 256K x 16 Flash, 34K x 16 – 2 x 8 Channel Input Multiplexer

SARAM

– F28334/F28234: 128K x 16 Flash, 34K x 16

SARAM

– F28332/F28232: 64K x 16 Flash, 26K x 16

SARAM

– 1K x 16 OTP ROM

• Boot ROM (8K x 16) – With Software Boot Modes (via SCI, SPI,

CAN, I2C, McBSP, XINTF, and Parallel I/O)

– Standard Math Tables

• Clock and System Control – Dynamic PLL Ratio Changes Supported – On-Chip Oscillator – Watchdog Timer Module

• GPIO0 to GPIO63 Pins Can Be Connected to One of the Eight External Core Interrupts

• Peripheral Interrupt Expansion (PIE) Block That Supports All 58 Peripheral Interrupts

• 128-Bit Security Key/Lock – Protects Flash/OTP/RAM Blocks – Prevents Firmware Reverse Engineering

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

2MicroStar BGA, Code Composer Studio, DSP/BIOS, TMS320C28x, Delfino, PowerPAD, TMS320C54x, TMS320C55x, C28x are trademarks

of Texas Instruments.

3All other trademarks are the property of their respective owners.

Resolution

– Up to 6 Event Capture Inputs

SPI)

– Two Sample-and-Hold – Single/Simultaneous Conversions – Internal or External Reference

• Up to 88 Individually Programmable, Multiplexed GPIO Pins With Input Filtering

• JTAG Boundary Scan Support

(1)

• Advanced Emulation Features – Analysis and Breakpoint Functions – Real-Time Debug via Hardware

• Development Support Includes – ANSI C/C++ Compiler/Assembler/Linker – Code Composer Studio™ IDE – DSP/BIOS™ – Digital Motor Control and Digital Power

Software Libraries

• Low-Power Modes and Power Savings – IDLE, STANDBY, HALT Modes Supported – Disable Individual Peripheral Clocks

(1) IEEE Standard 1149.1-1990 Standard Test Access Port and

Boundary Scan Architecture

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

• Package Options: • Temperature Options: – Lead-free, Green Packaging – A: –40°C to 85°C (PGF, ZHH, ZJZ) – Low-Profile Quad Flatpack (PGF, PTP) – S: –40°C to 125°C (PTP, ZJZ) – MicroStar BGA™ (ZHH) – Q: –40°C to 125°C (PTP, ZJZ) – Plastic BGA (ZJZ)

1.2 Getting Started

This section gives a brief overview of the steps to take when first developing for a C28x device. For more detail on each of these steps, see the following:

• Getting Started With TMS320C28x Digital Signal Controllers (literature number SPRAAM0).

• C2000 Getting Started Website (http://www.ti.com/c2000getstarted)

• TMS320F28x DSC Development and Experimenter's Kits (http://www.ti.com/f28xkits)

www.ti.com

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

2 Introduction

The TMS320F28335, TMS320F28334, TMS320F28332, TMS320F28235, TMS320F28234, and TMS320F28232 devices, members of the TMS320C28x™/ Delfino™ DSC/MCU generation, are highly integrated, high-performance solutions for demanding control applications.

Throughout this document, the devices are abbreviated as F28335, F28334, F28332, F28235, F28234, and F28232, respectively. Table 2-1 and Table 2-2 provide a summary of features for each device.

Table 2-1. F2833x Hardware Features

FEATURE TYPE

Instruction cycle – 6.67 ns 6.67 ns 10 ns Floating-point Unit – Yes Yes Yes

3.3-V on-chip flash (16-bit word) – 256K 128K 64K Single-access RAM (SARAM) (16-bit word) – 34K 34K 26K One-time programmable (OTP) ROM

(16-bit word) Code security for on-chip

HRPWM channels 0 ePWM1A/2A/3A/4A/5A/6A ePWM1A/2A/3A/4A 32-bit Capture inputs or auxiliary PWM

outputs 32-bit QEP channels (four inputs/channel) 0 eQEP1/2 eQEP1/2 eQEP1/2 Watchdog timer – Yes Yes Yes

No. of channels 16 16 16

12-Bit ADC MSPS 2 12.5 12.5 12.5

Conversion time 80 ns 80 ns 80 ns 32-Bit CPU timers – 3 3 3 Multichannel Buffered Serial Port

(McBSP)/SPI Serial Peripheral Interface (SPI) 0 1 1 1 Serial Communications Interface (SCI) 0 3 (A/B/C) 3 (A/B/C) 2 (A/B) Enhanced Controller Area Network (eCAN) 0 2 (A/B) 2 (A/B) 2 (A/B) Inter-Integrated Circuit (I2C) 0 1 1 1 General Purpose I/O pins (shared) – 88 88 88 External interrupts – 8 8 8

176-Pin PGF – Yes Yes Yes

Packaging

Temperature S: –40°C to 125°C – (PTP, ZJZ) (PTP, ZJZ) (PTP, ZJZ) options

176-Pin PTP – Yes Yes Yes

179-Ball ZHH – Yes Yes Yes

176-Ball ZJZ – Yes Yes Yes

A: –40°C to 85°C – (PGF, ZHH, ZJZ) (PGF, ZHH, ZJZ) (PGF, ZHH, ZJZ)

Q: –40°C to 125°C

(Q100 Qualification)

(1)

– 1K 1K 1K

– Yes Yes Yes

0 eCAP1/2/3/4/5/6 eCAP1/2/3/4 eCAP1/2/3/4

1 2 (A/B) 2 (A/B) 1 (A)

– (PTP, ZJZ) (PTP, ZJZ) (PTP, ZJZ)

F28335 (150 MHz) F28334 (150 MHz) F28332 (100 MHz)

ePWM1A/2A/3A/4A/5A/

(1) A type change represents a major functional feature difference in a peripheral module. Within a peripheral type, there may be minor

differences between devices that do not affect the basic functionality of the module. These device-specific differences are listed in the TMS320x28xx, 28xxx DSP Peripheral Reference Guide (literature number SPRU566) and in the peripheral reference guides.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Table 2-1. F2833x Hardware Features (continued)

FEATURE TYPE

Product status

(2) See Section 5.1, Device and Development Support Tool Nomenclature, for descriptions of device stages.

(2)

(1)

– TMS TMS TMS

F28335 (150 MHz) F28334 (150 MHz) F28332 (100 MHz)

Table 2-2. F2823x Hardware Features

FEATURE TYPE

Instruction cycle – 6.67 ns 6.67 ns 10 ns Floating-point Unit – No No No

3.3-V on-chip flash (16-bit word) – 256K 128K 64K Single-access RAM (SARAM) (16-bit

word) One-time programmable (OTP) ROM

(16-bit word) Code security for on-chip

flash/SARAM/OTP blocks Boot ROM (8K x 16) – Yes Yes Yes 16/32-bit External Interface (XINTF) 1 Yes Yes Yes 6-channel Direct Memory Access (DMA) 0 Yes Yes Yes PWM outputs 0 ePWM1/2/3/4/5/6 ePWM1/2/3/4/5/6 ePWM1/2/3/4/5/6 HRPWM channels 0 ePWM1A/2A/3A/4A/5A/6A ePWM1A/2A/3A/4A/5A/6A ePWM1A/2A/3A/4A 32-bit Capture inputs or auxiliary PWM

outputs 32-bit QEP channels (four inputs/channel) 0 eQEP1/2 eQEP1/2 eQEP1/2 Watchdog timer – Yes Yes Yes

No. of channels 16 16 16

12-Bit ADC MSPS 2 12.5 12.5 12.5

Conversion time 80 ns 80 ns 80 ns 32-Bit CPU timers – 3 3 3 Multichannel Buffered Serial Port

(McBSP)/SPI Serial Peripheral Interface (SPI) 0 1 1 1 Serial Communications Interface (SCI) 0 3 (A/B/C) 3 (A/B/C) 2 (A/B) Enhanced Controller Area Network

(eCAN) Inter-Integrated Circuit (I2C) 0 1 1 1 General Purpose I/O pins (shared) – 88 88 88 External interrupts – 8 8 8

176-Pin PGF – Yes Yes Yes

Packaging

Temperature options

Product status

(1) A type change represents a major functional feature difference in a peripheral module. Within a peripheral type, there may be minor

(2) See Section 5.1, Device and Development Support Tool Nomenclature, for descriptions of device stages.

176-Pin PTP – Yes Yes Yes

179-Ball ZHH – Yes Yes Yes

176-Ball ZJZ – Yes Yes Yes

A: –40°C to 85°C – (PGF, ZHH, ZJZ) (PGF, ZHH, ZJZ) (PGF, ZHH, ZJZ)

S: –40°C to 125°C – (PTP, ZJZ) (PTP, ZJZ) (PTP, ZJZ)

Q: –40°C to 125°C

(Q100 – (PTP, ZJZ) (PTP, ZJZ) (PTP, ZJZ)

Qualification)

(2)

(1)

– 34K 34K 26K

– 1K 1K 1K

– Yes Yes Yes

0 eCAP1/2/3/4/5/6 eCAP1/2/3/4 eCAP1/2/3/4

1 2 (A/B) 2 (A/B) 1 (A)

0 2 (A/B) 2 (A/B) 2 (A/B)

– TMS TMS TMS

F28235 (150 MHz) F28234 (150 MHz) F28232 (100 MHz)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45

133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

100

GPIO48/ECAP5/XD31 TCK EMU1 EMU0

DD3VFL

TEST2 TEST1 XRS TMS TRST TDO TDI GPIO33/SCLA/EPWMSYNCO/ADCSOCBO GPIO32/SDAA/EPWMSYNCI/ADCSOCAO GPIO27/ECAP4/EQEP2S/MFSXB GPIO26/ECAP3/EQEP2I/MCLKXB

DDIO

GPIO25/ECAP2/EQEP2B/MDRB GPIO24/ECAP1/EQEP2A/MDXB GPIO23/EQEP1I/MFSXA/SCIRXDB GPIO22/EQEP1S/MCLKXA/SCITXDB GPIO21/EQEP1B/MDRA/CANRXB GPIO20/EQEP1A/MDXA/CANTXB GPIO19/ /SCIRXDB/CANTXASPISTEA GPIO18/SPICLKA/SCITXDB/CANRXA

DD2A18

SS2AGND

ADCRESEXT ADCREFP ADCREFM ADCREFIN ADCINB7 ADCINB6 ADCINB5 ADCINB4 ADCINB3 ADCINB2 ADCINB1 ADCINB0

DDAIO

GPIO75/XD4

GPIO74/XD5

GPIO73/XD6

GPIO72/XD7

GPIO71/XD8

GPIO70/XD9

VDDV

GPIO69/XD10

GPIO68/XD11

GPIO67/XD12

DDIOVSS

GPIO66/XD13

VSSVDDGPIO65/XD14

GPIO64/XD15

GPIO63/SCITXDC/XD16

GPIO62/SCIRXDC/XD17

GPIO61/MFSRB/XD18

GPIO60/MCLKRB/XD19

GPIO59/MFSRA/XD20

VDDVSSV

DDIO

XCLKIN

VDDGPIO58/MCLKRA/XD21

GPIO57/ /XD22SPISTEA

GPIO56/SPICLKA/XD23

GPIO55/SPISOMIA/XD24

GPIO54/SPISIMOA/XD25

GPIO53/EQEP1I/XD26

GPIO52/EQEP1S/XD27

DDIOVSS

GPIO51/EQEP1B/XD28

GPIO50/EQEP1A/XD29

GPIO49/ECAP6/XD30

GPIO30/CANRXA/XA18

GPIO29/SCITXDA/XA19

GPIO0/EPWM1A

GPIO1/EPWM1B/ECAP6/MFSRB

GPIO2/EPWM2A

DDIO

GPIO3/EPWM2B/ECAP5/MCLKRB

GPIO4/EPWM3A

GPIO5/EPWM3B/MFSRA/ECAP1

GPIO6/EPWM4A/EPWMSYNCI/EPWMSYNCO

GPIO7/EPWM4B/MCLKRA/ECAP2

GPIO8/EPWM5A/CANTXB/ADCSOCAO

GPIO9/EPWM5B/SCITXDB/ECAP3

GPIO10/EPWM6A/CANRXB/ADCSOCBO

GPIO11/EPWM6B/SCIRXDB/ECAP4

GPIO12 /CANTXB/MDXB/TZ1

GPIO13/ /CANRXB/MDRBTZ2

GPIO14/ /XHOLD/ /TZ3 SCITXDBMCLKXB

GPIO15/ /XHOLDATZ4 /SCIRXDB/MFSXB

GPIO16/SPISIMOA/CANTXB/TZ5

GPIO17/SPISOMIA/CANRXB/TZ6

DD1A18

SS1AGND

SSA2

DDA2

ADCINA7

ADCINA6

ADCINA5

ADCINA4

ADCINA3

ADCINA2

ADCINA1

ADCINA0

ADCLO

SSAIO

GPIO76/XD3

GPIO77/XD2

GPIO78/XD1

GPIO79/XD0

GPIO38/XWE0

XCLKOUT

GPIO28/SCIRXDA/XZCS6

GPIO34/ECAP1/XREADY

DDIO

GPIO36/SCIRXDA/XZCS0

GPIO35/SCITXDA/XR/W

XRD

GPIO37/ECAP2/XZCS7

GPIO40/XA0/XWE1

GPIO41/XA1 GPIO42/XA2

GPIO43/XA3 GPIO44/XA4 GPIO45/XA5

DDIO

GPIO46/XA6 GPIO47/XA7 GPIO80/XA8 GPIO81/XA9

GPIO82/XA10

GPIO83/XA11

GPIO84/XA12

DDIO

GPIO85/XA13 GPIO86/XA14 GPIO87/XA15 GPIO39/XA16

GPIO31/CANTXA/XA17

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

2.1 Pin Assignments

The 176-pin PGF/PTP low-profile quad flatpack (LQFP) pin assignments are shown in Figure 2-1. The 179-ball ZHH ball grid array (BGA) terminal assignments are shown in Figure 2-2 through Figure 2-5. The 176-ball ZJZ plastic ball grid array (PBGA) terminal assignments are shown in Figure 2-6 through

Figure 2-9.Table 2-3 describes the function(s) of each pin.

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 2-1. F2833x, F2823x 176-Pin PGF/PTP LQFP (Top View)

The powerpad on the bottom side of the PTP package is not connected to the ground (GND) of the die. Proper thermal management of the PowerPAD™ package requires PCB preparation. A thermal land is required on the surface of the PCB directly underneath the body of the PowerPAD package. The size of the thermal land should be as large as needed to dissipate the required heat. Note that the PowerPAD package with exposed pad down must be soldered to the PCB. Refer to the PowerPAD™ Thermally Enhanced Package Application Report (literature number SLMA002) for more details on using the PowerPAD package.

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

NOTE

TMS320F28232

ADCINB0 ADCINB2 ADCINB6 ADCREFP

ADCINA1

ADCRESEXTADCINA2

ADCLO

ADCINA0 ADCINB4

SS1AGND

ADCINA4

ADCINA3 ADCINB3

ADCREFIN

P P

N N

M M

L LADCINA5

GPIO18/ SPICLKA/ SCITXDB/

CANRXA

SSA2

ADCINA7 ADCINB7

GPIO17/

SPISOMIA/

CANRXB/

TZ6

DD1A18

GPIO14/

SCITXDB/

MCLKXB

TZ3XHOLD/

GPIO13/

CANRXB/

MDRB

TZ2/

DDAIO

K K

J J

H H

1 2 3 4 5

6 7

GPIO20/

EQEP1A/

MDXA/

CANTXB

SS2AGND

GPIO21/

EQEP1B/

MDRA/

CANRXB

GPIO22/ EQEP1S/ MCLKXA/ SCITXDB

1 2

5 6

SSAIO

GPIO23/ EQEP1I/

MFSXA/

SCIRXDB

GPIO19/

SCIRXDB/

CANTXA

SPISTEA/

ADCINA6

GPIO16/

SPISIMOA/

CANTXB/

TZ5

GPIO15/

SCIRXDB/

MFSXB

TZ4XHOLDA/

DDA2

DD2A18

ADCREFMADCINB5ADCINB1

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Figure 2-2. F2833x, F2823x 179-Ball ZHH MicroStar BGA™ (Upper Left Quadrant) (Bottom View)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

GPIO50/

EQEP1A/

XD29

TMS TEST2

EMU1

GPIO51/

EQEP1B/

XD28

GPIO48/

ECAP5/

XD31

TCK

GPIO52/

EQEP1S/

XD27

GPIO27/

ECAP4/

EQEP2S/

MFSXB

XRS

EMU0

GPIO53/ EQEP1I/

XD26

GPIO55/

SPISOMIA/

XD24

GPIO56/

SPICLKA/

XD23

GPIO58/

MCLKRA/

XD21

GPIO33/

SCLA/

EPWMSYNCO/

ADCSOCBO

TRST

GPIO32/

SDAA/

EPWMSYNCI/

ADCSOCAO

DDIO

8 9

10 11 12 13 14

GPIO57/

XD22

SPISTEA

XCLKIN

GPIO59/ MFSRA/

XD20

GPIO25/

ECAP2/

EQEP2B/

MDRB

8 9 10

11 12

TEST1

DD3VFL

GPIO24/

ECAP1/

EQEP2A/

MDXB

GPIO26/

ECAP3/ EQEP2I/ MCLKXB

TDO

DDIO

GPIO54/

SPISIMOA/

XD25

TDI

DDIO

GPIO49/

ECAP6/

XD30

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 2-3. F2833x, F2823x 179-Ball ZHH MicroStar BGA™ (Upper Right Quadrant) (Bottom View)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

GPIO11 EPWM6B SCIRXDB

ECAP4

/ /

GPIO12

CANTXB

MDXB

//TZ1

GPIO10

EPWM6A

CANRXB

ADCSOCBO

GPIO9/ EPWM5B/ SCITXDB/

ECAP3

GPIO81/

XA9

GPIO8/

EPWM5A/

CANTXB/

ADCSOCAO

GPIO7/ EPWM4B/ MCLKRA/

ECAP2

GPIO84/

XA12

GPIO6/

EPWM4A/

EPWMSYNCI/

EPWMSYNCO

GPIO4/

EPWM3A

GPIO5/

EPWM3B/

MFSRA/

ECAP1

GPIO3/

EPWM2B/

ECAP5/

MCLKRB

DDIO

GPIO2/

EPWM2A

GPIO1/

EPWM1B/

ECAP6/ MFSRB

GPIO86/

XA14

GPIO83/

XA11

GPIO0/

EPWM1A

GPIO29/

SCITXDA/

XA19

GPIO85/

XA13

GPIO82/

XA10

GPIO30/

CANRXA/

XA18

GPIO39/

XA16

GPIO31/

CANTXA/

XA17

GPIO87/

XA15

DDIO

1 2 3 4 5 6 7

GPIO45/

XA5

GPIO80/

XA8

GPIO46/

XA6

GPIO43/

XA3

GPIO44/

XA4

GPIO47/

XA7

1 2 3 4 5

6 7

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Figure 2-4. F2833x, F2823x 179-Ball ZHH MicroStar BGA™ (Lower Left Quadrant) (Bottom View)

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

GPIO60/

MCLKRB/

XD19

GPIO64/

XD15

GPIO63/

SCITXDC/

XD16

GPIO61/ MFSRB/

XD18

GPIO67/

XD12

GPIO65/

XD14

GPIO62/

SCIRXDC

XD17

GPIO78/

XD1

GPIO79/

XD0

GPIO66/

XD13

GPIO68/

XD11

GPIO37/

ECAP2/

XZCS7

GPIO34/

ECAP1/

XREADY

GPIO38/

XWE0

GPIO70/

XD9

GPIO40/

XA0/

XWE1

XCLKOUT

GPIO73/

XD6

GPIO42/

XA2

XRD

GPIO28/

SCIRXDA/

XZCS6

GPIO35/

SCITXDA/

XR/W

GPIO69/

XD10

DDIO

8 9 10 11 12 13 14

GPIO74/

XD5

GPIO76/

XD3

GPIO72/

XD7

GPIO75/

XD4

GPIO77/

XD2

GPIO41/

XA1

8 9

10 11 12 13 14

DDIO

GPIO36/

SCIRXDA/

XZCS0

GPIO71/

XD8

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 2-5. F2833x, F2823x 179-Ball ZHH MicroStar BGA ™(Lower Right Quadrant) (Bottom View)

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

SSA2

ADCINB0 ADCREFM ADCREFP ADCRESEXT ADCREFIN

SSAIO

ADCLO

ADCINB1

ADCINB3

ADCINB5 ADCINB7

EMU0

ADCINA2 ADCINA1 ADCINA0 ADCINB2 ADCINB4 ADCINB6 TEST1

ADCINA5 ADCINA4

ADCINA3

SS1AGND

DDAIO

DD2A18

TEST2

ADCINA7 ADCINA6

DD1A18

DDA2

GPIO15/

/ /

SCIRXDB/

MFSXB

TZ4XHOLDA

GPIO16/

SPISIMOA/

CANTXB/

TZ5

GPIO17/

SPISOMIA/

CANRXB/

TZ6

GPIO14/

/TZ3XHOLD/

SCITXDB/

MCLKXB

1 2 3 4 5 6 7

SS2AGND

GPIO12/

TZ1/

CANTXB/

MDXB

GPIO13/

TZ2/

CANRXB/

MDRB

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Figure 2-6. F2833x, F2823x 176-Ball ZJZ Plastic BGA (Upper Left Quadrant) (Bottom View)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

8 9 10 11 12 13 14

EMU1

GPIO20/

EQEP1A/

MDXA/

CANTXB

GPIO23/ EQEP1I/

MFSXA/

SCIRXDB

GPIO26/

ECAP3/

EQEP2I/

MCLKXB

GPIO33/

SCLA/

EPWMSYNCO/

ADCSOCBO

GPIO18/

SPICLKA/

SCITXDB/

CANRXA

GPIO21/

EQEP1B/

MDRA/

CANRXB

GPIO24/

ECAP1/

EQEP2A/

MDXB

GPIO27/

ECAP4/

EQEP2S/

MFSXB

TDI

TDO

DDIO

GPIO19/

SCIRXDB/

CANTXA

SPISTEA

GPIO22/

EQEP1S/

MCLKXA/

SCITXDB

GPIO25/

ECAP2/

EQEP2B/

MDRB

GPIO32/

SDAA/

EPWMSYNCI/

ADSOCAO

TMS

XRS

TCK

DD3VFL

DDIO

TRST

GPIO50/

EQEP1A/

XD29

GPIO49/

ECAP6/

XD30

GPIO48/

ECAP5/

XD31

GPIO53

EQEP1I/

XD26

GPIO52/

EQEP1S/

XD27

GPIO51/

EQEP1B/

XD28

GPIO56/

SPICLKA/

XD23

GPIO55/

SPISOMIA/

XD24

GPIO54/

SPISIMOA/

XD25

GPIO59/

MFSRA/

XD20

GPIO58/

MCLKRA/

XD21

GPIO57/

XD22

SPISTEA

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 2-7. F2833x, F2823x 176-Ball ZJZ Plastic BGA (Upper Right Quadrant) (Bottom View)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

1 2 3 4 5 6 7

GPIO9/ EPWM5B/ SCITXDB/

ECAP3

GPIO10/

EPWM6A/

CANRXB/

ADCSOCBO

GPIO11/ EPWM6B/ SCIRXDB/

ECAP4

DDIO

GPIO6/

EPWM4A/

EPWMSYNCI/

EPWMSYNCO

GPIO7/

EPWM4B/

MCLKRA/

ECAP2

GPIO8/

EPWM5A/

CANTXB/

ADCSOCAO

GPIO3/

EPWM2B/

ECAP5/

MCLKRB

GPIO4/

EPWM3A

GPIO5/

EPWM3B/

MFSRA/

ECAP1

DDIO

GPIO0/

EPWM1A

GPIO1/

EPWM1B/

ECAP6/ MFSRB

GPIO2/

EPWM2A

GPIO47/

XA7

DDIO

GPIO29/

SCITXDA/

XA19

GPIO30/

CANRXA/

XA18

GPIO39/

XA16

GPIO85/

XA13

GPIO82/

XA10

GPIO46/

XA6

GPIO43/

XA3

DDIO

GPIO31/

CANTXA/

XA17

GPIO87/

XA15

GPIO84/

XA12

GPIO81/

XA9

GPIO45/

XA5

GPIO42/

XA2

GPIO86/

XA14

GPIO83/

XA11

GPIO80/

XA8

GPIO44/

XA4

GPIO41/

XA1

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Figure 2-8. F2833x, F2823x 176-Ball ZJZ Plastic BGA (Lower Left Quadrant) (Bottom View)

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

8 9 10 11 12 13 14

DDIO

GPIO60/

MCLKRB/

XD19

XCLKIN

GPIO63/

SCITXDC/

XD16

GPIO62/

SCIRXDC/

XD17

GPIO61/ MFSRB/

XD18

GPIO66/

XD13

GPIO65/

XD14

GPIO64/

XD15

GPIO28/

SCIRXDA/

XZCS6

DDIO

GPIO69/

XD10

GPIO68/

XD11

GPIO67/

XD12

GPIO40/

XA0/XWE1

GPIO36/

SCIRXDA/

XZCS0

GPIO38/

XWE0

GPIO78/

XD1

GPIO75/

XD4

GPIO71/

XD8

GPIO70/

XD9

GPIO37/

ECAP2/

XZCS7

GPIO35/

SCITXDA/

XR/W

GPIO79/

XD0

GPIO77/

XD2

GPIO74/

XD5

GPIO72

XD7

XRD

GPIO34/

ECAP1/

XREADY

XCLKOUT

GPIO76/

XD3

GPIO73/

XD6

DDIO

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 2-9. F2833x, F2823x 176-Ball ZJZ Plastic BGA (Lower Right Quadrant) (Bottom View)

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

2.2 Signal Descriptions

Table 2-3 describes the signals. The GPIO function (shown in Italics) is the default at reset. The peripheral

signals that are listed under them are alternate functions. Some peripheral functions may not be available in all devices. See Table 2-1 and Table 2-2 for details. Inputs are not 5-V tolerant. All pins capable of producing an XINTF output function have a drive strength of 8 mA (typical). This is true even if the pin is not configured for XINTF functionality. All other pins have a drive strength of 4-mA drive typical (unless otherwise indicated). All GPIO pins are I/O/Z and have an internal pullup, which can be selectively enabled/disabled on a per-pin basis. This feature only applies to the GPIO pins. The pullups on GPIO0–GPIO11 pins are not enabled at reset. The pullups on GPIO12–GPIO87 are enabled upon reset.

Table 2-3. Signal Descriptions

PIN NO.

NAME DESCRIPTION

TRST 78 M10 L11 normal device operation. An external pulldown resistor is required on this pin. The value of

TCK 87 N12 M14 JTAG test clock with internal pullup (I, ↑) TMS 79 P10 M12

TDI 76 M9 N12

TDO 77 K9 N13

EMU0 85 L11 N7

EMU1 86 P12 P8

DD3VFL

TEST1 81 K10 M7 Test Pin. Reserved for TI. Must be left unconnected. (I/O) TEST2 82 P11 L7 Test Pin. Reserved for TI. Must be left unconnected. (I/O)

PGF/

PTP

PIN #

ZHH ZJZ

BALL # BALL #

JTAG

JTAG test reset with internal pulldown. TRST, when driven high, gives the scan system control of the operations of the device. If this signal is not connected or driven low, the device operates in its functional mode, and the test reset signals are ignored. NOTE: TRST is an active high test pin and must be maintained low at all times during

this resistor should be based on drive strength of the debugger pods applicable to the design. A 2.2-kΩ resistor generally offers adequate protection. Since this is application-specific, it is recommended that each target board be validated for proper operation of the debugger and the application. (I, ↓)

JTAG test-mode select (TMS) with internal pullup. This serial control input is clocked into the TAP controller on the rising edge of TCK. (I, ↑)

JTAG test data input (TDI) with internal pullup. TDI is clocked into the selected register (instruction or data) on a rising edge of TCK. (I, ↑)

JTAG scan out, test data output (TDO). The contents of the selected register (instruction or data) are shifted out of TDO on the falling edge of TCK. (O/Z 8 mA drive)

Emulator pin 0. When TRST is driven high, this pin is used as an interrupt to or from the emulator system and is defined as input/output through the JTAG scan. This pin is also used to put the device into boundary-scan mode. With the EMU0 pin at a logic-high state and the EMU1 pin at a logic-low state, a rising edge on the TRST pin would latch the device into boundary-scan mode. (I/O/Z, 8 mA drive ↑) NOTE: An external pullup resistor is required on this pin. The value of this resistor should be based on the drive strength of the debugger pods applicable to the design. A 2.2-kΩ to

4.7-kΩ resistor is generally adequate. Since this is application-specific, it is recommended that each target board be validated for proper operation of the debugger and the application.

Emulator pin 1. When TRST is driven high, this pin is used as an interrupt to or from the emulator system and is defined as input/output through the JTAG scan. This pin is also used to put the device into boundary-scan mode. With the EMU0 pin at a logic-high state and the EMU1 pin at a logic-low state, a rising edge on the TRST pin would latch the device into boundary-scan mode. (I/O/Z, 8 mA drive ↑) NOTE: An external pullup resistor is required on this pin. The value of this resistor should be based on the drive strength of the debugger pods applicable to the design. A 2.2-kΩ to

4.7-kΩ resistor is generally adequate. Since this is application-specific, it is recommended that each target board be validated for proper operation of the debugger and the application.

FLASH

84 M11 L9 3.3-V Flash Core Power Pin. This pin should be connected to 3.3 V at all times.

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 2-3. Signal Descriptions (continued)

PIN NO.

NAME DESCRIPTION

XCLKOUT 138 C11 A10

XCLKIN 105 J14 G13 case, the X1 pin must be tied to GND. If a crystal/resonator is used (or if an external 1.9-V

X1 104 J13 G14 1.9-V core digital power supply. A 1.9-V external oscillator may be connected to the X1 pin.

X2 102 J11 H14

XRS 80 L10 M13

ADCINA7 35 K4 K1 ADC Group A, Channel 7 input (I) ADCINA6 36 J5 K2 ADC Group A, Channel 6 input (I) ADCINA5 37 L1 L1 ADC Group A, Channel 5 input (I) ADCINA4 38 L2 L2 ADC Group A, Channel 4 input (I) ADCINA3 39 L3 L3 ADC Group A, Channel 3 input (I) ADCINA2 40 M1 M1 ADC Group A, Channel 2 input (I) ADCINA1 41 N1 M2 ADC Group A, Channel 1 input (I) ADCINA0 42 M3 M3 ADC Group A, Channel 0 input (I) ADCINB7 53 K5 N6 ADC Group B, Channel 7 input (I) ADCINB6 52 P4 M6 ADC Group B, Channel 6 input (I) ADCINB5 51 N4 N5 ADC Group B, Channel 5 input (I) ADCINB4 50 M4 M5 ADC Group B, Channel 4 input (I) ADCINB3 49 L4 N4 ADC Group B, Channel 3 input (I) ADCINB2 48 P3 M4 ADC Group B, Channel 2 input (I) ADCINB1 47 N3 N3 ADC Group B, Channel 1 input (I) ADCINB0 46 P2 P3 ADC Group B, Channel 0 input (I) ADCLO 43 M2 N2 Low Reference (connect to analog ground) (I) ADCRESEXT 57 M5 P6 ADC External Current Bias Resistor. Connect a 22-kΩ resistor to analog ground. ADCREFIN 54 L5 P7 External reference input (I)

PGF/

PTP

PIN #

ZHH ZJZ

BALL # BALL #

CLOCK

Output clock derived from SYSCLKOUT. XCLKOUT is either the same frequency, one-half the frequency, or one-fourth the frequency of SYSCLKOUT. This is controlled by bits 18:16 (XTIMCLK) and bit 2 (CLKMODE) in the XINTCNF2 register. At reset, XCLKOUT = SYSCLKOUT/4. The XCLKOUT signal can be turned off by setting XINTCNF2[CLKOFF] to 1. Unlike other GPIO pins, the XCLKOUT pin is not placed in high-impedance state during a reset. (O/Z, 8 mA drive).

External Oscillator Input. This pin is to feed a clock from an external 3.3-V oscillator. In this oscillator is used to feed clock to X1 pin), this pin must be tied to GND. (I)

Internal/External Oscillator Input. To use the internal oscillator, a quartz crystal or a ceramic resonator may be connected across X1 and X2. The X1 pin is referenced to the

In this case, the XCLKIN pin must be connected to ground. If a 3.3-V external oscillator is used with the XCLKIN pin, X1 must be tied to GND. (I)

Internal Oscillator Output. A quartz crystal or a ceramic resonator may be connected across X1 and X2. If X2 is not used, it must be left unconnected. (O)

RESET

Device Reset (in) and Watchdog Reset (out). Device reset. XRS causes the device to terminate execution. The PC will point to the address contained at the location 0x3FFFC0. When XRS is brought to a high level, execution begins at the location pointed to by the PC. This pin is driven low by the DSC when a watchdog reset occurs. During watchdog reset, the XRS pin is driven low for the watchdog reset duration of 512 OSCCLK cycles. (I/OD, ↑) The output buffer of this pin is an open-drain with an internal pullup. It is recommended that this pin be driven by an open-drain device.

ADC SIGNALS

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 2-3. Signal Descriptions (continued)

PIN NO.

NAME DESCRIPTION

ADCREFP 56 P5 P5

ADCREFM 55 N5 P4

DDA2

SSA2

DDAIO

SSAIO

DD1A18

SS1AGND

DD2A18

SS2AGND

DDIO

PGF/

PTP

PIN #

ZHH ZJZ

BALL # BALL #

Internal Reference Positive Output. Requires a low ESR (under 1.5 Ω) ceramic bypass capacitor of 2.2 μF to analog ground. (O) NOTE: Use the ADC Clock rate to derive the ESR specification from the capacitor data sheet that is used in the system.

Internal Reference Medium Output. Requires a low ESR (under 1.5 Ω) ceramic bypass capacitor of 2.2 μF to analog ground. (O) NOTE: Use the ADC Clock rate to derive the ESR specification from the capacitor data sheet that is used in the system.

CPU AND I/O POWER PINS

34 K2 K4 ADC Analog Power Pin 33 K3 P1 ADC Analog Ground Pin 45 N2 L5 ADC Analog I/O Power Pin 44 P1 N1 ADC Analog I/O Ground Pin 31 J4 K3 ADC Analog Power Pin 32 K1 L4 ADC Analog Ground Pin 59 M6 L6 ADC Analog Power Pin 58 K6 P2 ADC Analog Ground Pin

4 B1 D4

15 B5 D5 23 B11 D8 29 C8 D9

61 D13 E11 101 E9 F4 109 F3 F11 CPU and Logic Digital Power Pins 117 F13 H4 126 H1 J4 139 H12 J11 146 J2 K11 154 K14 L8 167 N6

9 A4 A13 71 B10 B1 93 E7 D7

107 E12 D11 121 F5 E4 Digital I/O Power Pin 143 L8 G4 159 H11 G11 170 N14 L10

N14

www.ti.com

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 2-3. Signal Descriptions (continued)

PIN NO.

NAME DESCRIPTION

GPIO0 General purpose input/output 0 (I/O/Z) EPWM1A Enhanced PWM1 Output A and HRPWM channel (O)

- -

- GPIO1 General purpose input/output 1 (I/O/Z)

EPWM1B Enhanced PWM1 Output B (O) ECAP6 Enhanced Capture 6 input/output (I/O) MFSRB McBSP-B receive frame synch (I/O)

GPIO2 General purpose input/output 2 (I/O/Z) EPWM2A Enhanced PWM2 Output A and HRPWM channel (O)

- -

- GPIO3 General purpose input/output 3 (I/O/Z)

EPWM2B Enhanced PWM2 Output B (O) ECAP5 Enhanced Capture 5 input/output (I/O) MCLKRB McBSP-B receive clock (I/O)

GPIO4 General purpose input/output 4 (I/O/Z) EPWM3A Enhanced PWM3 output A and HRPWM channel (O)

- -

- GPIO5 General purpose input/output 5 (I/O/Z)

EPWM3B Enhanced PWM3 output B (O) MFSRA McBSP-A receive frame synch (I/O) ECAP1 Enhanced Capture input/output 1 (I/O)

PGF/

PTP

PIN #

ZHH ZJZ

BALL # BALL #

3 A5 A1

8 A10 A2 14 A11 A14 22 B4 B14 30 C3 F6 60 C7 F7 70 C9 F8 83 D1 F9 92 D6 G6

103 D14 G7 106 E8 G8 108 E14 G9 118 F4 H6 Digital Ground Pins 120 F12 H7 125 G1 H8 140 H10 H9 144 H13 J6 147 J3 J7 155 J10 J8 160 J12 J9 166 M12 P13 171 N10 P14

N11

P6 P8

GPIO AND PERIPHERAL SIGNALS

5 C1 D1

6 D3 D2

7 D2 D3

10 E4 E1

11 E2 E2

12 E3 E3

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Table 2-3. Signal Descriptions (continued)

PIN NO.

NAME DESCRIPTION

GPIO6 General purpose input/output 6 (I/O/Z) EPWM4A Enhanced PWM4 output A and HRPWM channel (O) EPWMSYNCI External ePWM sync pulse input (I) EPWMSYNCO External ePWM sync pulse output (O)

GPIO7 General purpose input/output 7 (I/O/Z) EPWM4B Enhanced PWM4 output B (O) MCLKRA McBSP-A receive clock (I/O) ECAP2 Enhanced capture input/output 2 (I/O)

GPIO8 General Purpose Input/Output 8 (I/O/Z) EPWM5A Enhanced PWM5 output A and HRPWM channel (O) CANTXB Enhanced CAN-B transmit (O) ADCSOCAO ADC start-of-conversion A (O)

GPIO9 General purpose input/output 9 (I/O/Z) EPWM5B Enhanced PWM5 output B (O) SCITXDB SCI-B transmit data(O) ECAP3 Enhanced capture input/output 3 (I/O)

GPIO10 General purpose input/output 10 (I/O/Z) EPWM6A Enhanced PWM6 output A and HRPWM channel (O) CANRXB Enhanced CAN-B receive (I) ADCSOCBO ADC start-of-conversion B (O)

GPIO11 General purpose input/output 11 (I/O/Z) EPWM6B Enhanced PWM6 output B (O) SCIRXDB SCI-B receive data (I) ECAP4 Enhanced CAP Input/Output 4 (I/O)

GPIO12 General purpose input/output 12 (I/O/Z) TZ1 Trip Zone input 1 (I) CANTXB Enhanced CAN-B transmit (O) MDXB McBSP-B transmit serial data (O)

GPIO13 General purpose input/output 13 (I/O/Z) TZ2 Trip Zone input 2 (I) CANRXB Enhanced CAN-B receive (I) MDRB McBSP-B receive serial data (I)

GPIO14 General purpose input/output 14 (I/O/Z)

TZ3/XHOLD disable this function by writing XINTCNF2[HOLD] = 1. If this is not done, the XINTF bus

SCITXDB SCI-B Transmit (O) MCLKXB McBSP-B transmit clock (I/O)

GPIO15 General purpose input/output 15 (I/O/Z)

TZ4/XHOLDA XHOLDA is driven active (low) when the XINTF has granted an XHOLD request. All XINTF

SCIRXDB SCI-B receive (I) MFSXB McBSP-B transmit frame synch (I/O)

GPIO16 General purpose input/output 16 (I/O/Z) SPISIMOA SPI slave in, master out (I/O) CANTXB Enhanced CAN-B transmit (O) TZ5 Trip Zone input 5 (I)

PGF/

PTP

PIN #

ZHH ZJZ

BALL # BALL #

13 E1 F1

16 F2 F2

17 F1 F3

18 G5 G1

19 G4 G2

20 G2 G3

21 G3 H1

24 H3 H2

25 H2 H3

26 H4 J1

27 H5 J2

Trip Zone input 3/External Hold Request. XHOLD, when active (low), requests the external interface (XINTF) to release the external bus and place all buses and strobes into a high-impedance state. To prevent this from happening when TZ3 signal goes active,

will go into high impedance anytime TZ3 goes low. On the ePWM side, TZn signals are ignored by default, unless they are enabled by the code. The XINTF will release the bus when any current access is complete and there are no pending accesses on the XINTF. (I)

Trip Zone input 4/External Hold Acknowledge. The pin function for this option is based on the direction chosen in the GPADIR register. If the pin is configured as an input, then TZ4 function is chosen. If the pin is configured as an output, then XHOLDA function is chosen.

buses and strobe signals will be in a high-impedance state. XHOLDA is released when the XHOLD signal is released. External devices should only drive the external bus when XHOLDA is active (low). (I/O)

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

Table 2-3. Signal Descriptions (continued)

PIN NO.

NAME DESCRIPTION

GPIO17 General purpose input/output 17 (I/O/Z) SPISOMIA SPI-A slave out, master in (I/O) CANRXB Enhanced CAN-B receive (I) TZ6 Trip zone input 6 (I)

GPIO18 General purpose input/output 18 (I/O/Z) SPICLKA SPI-A clock input/output (I/O) SCITXDB SCI-B transmit (O) CANRXA Enhanced CAN-A receive (I)

GPIO19 General purpose input/output 19 (I/O/Z) SPISTEA SPI-A slave transmit enable input/output (I/O) SCIRXDB SCI-B receive (I) CANTXA Enhanced CAN-A transmit (O)

GPIO20 General purpose input/output 20 (I/O/Z) EQEP1A Enhanced QEP1 input A (I) MDXA McBSP-A transmit serial data (O) CANTXB Enhanced CAN-B transmit (O)

GPIO21 General purpose input/output 21 (I/O/Z) EQEP1B Enhanced QEP1 input B (I) MDRA McBSP-A receive serial data (I) CANRXB Enhanced CAN-B receive (I)

GPIO22 General purpose input/output 22 (I/O/Z) EQEP1S Enhanced QEP1 strobe (I/O) MCLKXA McBSP-A transmit clock (I/O) SCITXDB SCI-B transmit (O)

GPIO23 General purpose input/output 23 (I/O/Z) EQEP1I Enhanced QEP1 index (I/O) MFSXA McBSP-A transmit frame synch (I/O) SCIRXDB SCI-B receive (I)

GPIO24 General purpose input/output 24 (I/O/Z) ECAP1 Enhanced capture 1 (I/O) EQEP2A Enhanced QEP2 input A (I) MDXB McBSP-B transmit serial data (O)

GPIO25 General purpose input/output 25 (I/O/Z) ECAP2 Enhanced capture 2 (I/O) EQEP2B Enhanced QEP2 input B (I) MDRB McBSP-B receive serial data (I)

GPIO26 General purpose input/output 26 (I/O/Z) ECAP3 Enhanced capture 3 (I/O) EQEP2I Enhanced QEP2 index (I/O) MCLKXB McBSP-B transmit clock (I/O)

GPIO27 General purpose input/output 27 (I/O/Z) ECAP4 Enhanced capture 4 (I/O) EQEP2S Enhanced QEP2 strobe (I/O) MFSXB McBSP-B transmit frame synch (I/O)

GPIO28 General purpose input/output 28 (I/O/Z) SCIRXDA 141 E10 D10 SCI receive data (I) XZCS6 External Interface zone 6 chip select (O)

GPIO29 General purpose input/output 29. (I/O/Z) SCITXDA 2 C2 C1 SCI transmit data (O) XA19 External Interface Address Line 19 (O)

GPIO30 General purpose input/output 30 (I/O/Z) CANRXA 1 B2 C2 Enhanced CAN-A receive (I) XA18 External Interface Address Line 18 (O)

GPIO31 General purpose input/output 31 (I/O/Z) CANTXA 176 A2 B2 Enhanced CAN-A transmit (O) XA17 External Interface Address Line 17 (O)

PGF/

PTP

PIN #

ZHH ZJZ

BALL # BALL #

28 J1 J3

62 L6 N8

63 K7 M8

64 L7 P9

65 P7 N9

66 N7 M9

67 M7 P10

68 M8 N10

69 N8 M10

72 K8 P11

73 L9 N11

SPRS439I–JUNE 2007–REVISED MARCH 2011

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Table 2-3. Signal Descriptions (continued)

PIN NO.

NAME DESCRIPTION

GPIO32 General purpose input/output 32 (I/O/Z) SDAA I2C data open-drain bidirectional port (I/OD) EPWMSYNCI Enhanced PWM external sync pulse input (I) ADCSOCAO ADC start-of-conversion A (O)

GPIO33 General-Purpose Input/Output 33 (I/O/Z) SCLA I2C clock open-drain bidirectional port (I/OD) EPWMSYNCO Enhanced PWM external synch pulse output (O) ADCSOCBO ADC start-of-conversion B (O)

GPIO34 Enhanced Capture input/output 1 (I/O) ECAP1 142 D10 A9 External Interface Ready signal. Note that this pin is always (directly) connected to the XREADY XINTF. If an application uses this pin as a GPIO while also using the XINTF, it should

GPIO35 General-Purpose Input/Output 35 (I/O/Z) SCITXDA 148 A9 B9 SCI-A transmit data (O) XR/W External Interface read, not write strobe

GPIO36 General-Purpose Input/Output 36 (I/O/Z) SCIRXDA 145 C10 C9 SCI receive data (I) XZCS0 External Interface zone 0 chip select (O)

GPIO37 General-Purpose Input/Output 37 (I/O/Z) ECAP2 150 D9 B8 Enhanced Capture input/output 2 (I/O) XZCS7 External Interface zone 7 chip select (O)

GPIO38 General-Purpose Input/Output 38 (I/O/Z)

- 137 D11 C10 XWE0 External Interface Write Enable 0 (O)

GPIO39 General-Purpose Input/Output 39 (I/O/Z)

- 175 B3 C3 XA16 External Interface Address Line 16 (O)

GPIO40 General-Purpose Input/Output 40 (I/O/Z)

- 151 D8 C8 XA0/XWE1 External Interface Address Line 0/External Interface Write Enable 1 (O)

GPIO41 General-Purpose Input/Output 41 (I/O/Z)

- 152 A8 A7 XA1 External Interface Address Line 1 (O)

GPIO42 General-Purpose Input/Output 42 (I/O/Z)

- 153 B8 B7 XA2 External Interface Address Line 2 (O)

GPIO43 General-Purpose Input/Output 43 (I/O/Z)

- 156 B7 C7 XA3 External Interface Address Line 3 (O)

GPIO44 General-Purpose Input/Output 44 (I/O/Z)

- 157 A7 A6 XA4 External Interface Address Line 4 (O)

GPIO45 General-Purpose Input/Output 45 (I/O/Z)

- 158 D7 B6 XA5 External Interface Address Line 5 (O)

GPIO46 General-Purpose Input/Output 46 (I/O/Z)

- 161 B6 C6 XA6 External Interface Address Line 6 (O)

GPIO47 General-Purpose Input/Output 47 (I/O/Z)

- 162 A6 D6 XA7 External Interface Address Line 7 (O)

GPIO48 General-Purpose Input/Output 48 (I/O/Z) ECAP5 88 P13 L14 Enhanced Capture input/output 5 (I/O) XD31 External Interface Data Line 31 (I/O/Z)

GPIO49 General-Purpose Input/Output 49 (I/O/Z) ECAP6 89 N13 L13 Enhanced Capture input/output 6 (I/O) XD30 External Interface Data Line 30 (I/O/Z)

PGF/

PTP

PIN #

ZHH ZJZ

BALL # BALL #

74 N9 M11

75 P9 P12

General-Purpose Input/Output 34 (I/O/Z)

configure the XINTF to ignore READY.

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

Table 2-3. Signal Descriptions (continued)

PIN NO.

NAME DESCRIPTION

GPIO50 General-Purpose Input/Output 50 (I/O/Z) EQEP1A 90 P14 L12 Enhanced QEP1 input A (I) XD29 External Interface Data Line 29 (I/O/Z)

GPIO51 General-Purpose Input/Output 51 (I/O/Z) EQEP1B 91 M13 K14 Enhanced QEP1 input B (I) XD28 External Interface Data Line 28 (I/O/Z)

GPIO52 General-Purpose Input/Output 52 (I/O/Z) EQEP1S 94 M14 K13 Enhanced QEP1 Strobe (I/O) XD27 External Interface Data Line 27 (I/O/Z)

GPIO53 General-Purpose Input/Output 53 (I/O/Z) EQEP1I 95 L12 K12 Enhanced QEP1 lndex (I/O) XD26 External Interface Data Line 26 (I/O/Z)

GPIO54 General-Purpose Input/Output 54 (I/O/Z) SPISIMOA 96 L13 J14 SPI-A slave in, master out (I/O) XD25 External Interface Data Line 25 (I/O/Z)

GPIO55 General-Purpose Input/Output 55 (I/O/Z) SPISOMIA 97 L14 J13 SPI-A slave out, master in (I/O) XD24 External Interface Data Line 24 (I/O/Z)

GPIO56 General-Purpose Input/Output 56 (I/O/Z) SPICLKA 98 K11 J12 SPI-A clock (I/O) XD23 External Interface Data Line 23 (I/O/Z)

GPIO57 General-Purpose Input/Output 57 (I/O/Z) SPISTEA 99 K13 H13 SPI-A slave transmit enable (I/O) XD22 External Interface Data Line 22 (I/O/Z)

GPIO58 General-Purpose Input/Output 58 (I/O/Z) MCLKRA 100 K12 H12 McBSP-A receive clock (I/O) XD21 External Interface Data Line 21 (I/O/Z)

GPIO59 General-Purpose Input/Output 59 (I/O/Z) MFSRA 110 H14 H11 McBSP-A receive frame synch (I/O) XD20 External Interface Data Line 20 (I/O/Z)

GPIO60 General-Purpose Input/Output 60 (I/O/Z) MCLKRB 111 G14 G12 McBSP-B receive clock (I/O) XD19 External Interface Data Line 19 (I/O/Z)

GPIO61 General-Purpose Input/Output 61 (I/O/Z) MFSRB 112 G12 F14 McBSP-B receive frame synch (I/O) XD18 External Interface Data Line 18 (I/O/Z)

GPIO62 General-Purpose Input/Output 62 (I/O/Z) SCIRXDC 113 G13 F13 SCI-C receive data (I) XD17 External Interface Data Line 17 (I/O/Z)

GPIO63 General-Purpose Input/Output 63 (I/O/Z) SCITXDC 114 G11 F12 SCI-C transmit data (O) XD16 External Interface Data Line 16 (I/O/Z)

GPIO64 General-Purpose Input/Output 64 (I/O/Z)

- 115 G10 E14 XD15 External Interface Data Line 15 (I/O/Z)

GPIO65 General-Purpose Input/Output 65 (I/O/Z)

- 116 F14 E13 XD14 External Interface Data Line 14 (I/O/Z)

GPIO66 General-Purpose Input/Output 66 (I/O/Z)

- 119 F11 E12 XD13 External Interface Data Line 13 (I/O/Z)

GPIO67 General-Purpose Input/Output 67 (I/O/Z)

- 122 E13 D14 XD12 External Interface Data Line 12 (I/O/Z)

GPIO68 General-Purpose Input/Output 68 (I/O/Z)

- 123 E11 D13 XD11 External Interface Data Line 11 (I/O/Z)

PGF/

PTP

PIN #

ZHH ZJZ

BALL # BALL #

SPRS439I–JUNE 2007–REVISED MARCH 2011

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 2-3. Signal Descriptions (continued)

PIN NO.

NAME DESCRIPTION

GPIO69 General-Purpose Input/Output 69 (I/O/Z)

- 124 F10 D12 XD10 External Interface Data Line 10 (I/O/Z)

GPIO70 General-Purpose Input/Output 70 (I/O/Z)

- 127 D12 C14 XD9 External Interface Data Line 9 (I/O/Z)

GPIO71 General-Purpose Input/Output 71 (I/O/Z)

- 128 C14 C13 XD8 External Interface Data Line 8 (I/O/Z)

GPIO72 General-Purpose Input/Output 72 (I/O/Z)

- 129 B14 B13 XD7 External Interface Data Line 7 (I/O/Z)

GPIO73 General-Purpose Input/Output 73 (I/O/Z)

- 130 C12 A12 XD6 External Interface Data Line 6 (I/O/Z)

GPIO74 General-Purpose Input/Output 74 (I/O/Z)

- 131 C13 B12 XD5 External Interface Data Line 5 (I/O/Z)

GPIO75 General-Purpose Input/Output 75 (I/O/Z)

- 132 A14 C12 XD4 External Interface Data Line 4 (I/O/Z)

GPIO76 General-Purpose Input/Output 76 (I/O/Z)

- 133 B13 A11 XD3 External Interface Data Line 3 (I/O/Z)

GPIO77 General-Purpose Input/Output 77 (I/O/Z)

- 134 A13 B11 XD2 External Interface Data Line 2 (I/O/Z)

GPIO78 General-Purpose Input/Output 78 (I/O/Z)

- 135 B12 C11 XD1 External Interface Data Line 1 (I/O/Z)

GPIO79 General-Purpose Input/Output 79 (I/O/Z)

- 136 A12 B10 XD0 External Interface Data Line 0 (I/O/Z)

GPIO80 General-Purpose Input/Output 80 (I/O/Z)

- 163 C6 A5 XA8 External Interface Address Line 8 (O)

GPIO81 General-Purpose Input/Output 81 (I/O/Z)

- 164 E6 B5 XA9 External Interface Address Line 9 (O)

GPIO82 General-Purpose Input/Output 82 (I/O/Z)

- 165 C5 C5 XA10 External Interface Address Line 10 (O)

GPIO83 General-Purpose Input/Output 83 (I/O/Z)

- 168 D5 A4 XA11 External Interface Address Line 11 (O)

GPIO84

- 169 E5 B4 XA12

GPIO85 General-Purpose Input/Output 85 (I/O/Z)

- 172 C4 C4 XA13 External Interface Address Line 13 (O)

GPIO86 General-Purpose Input/Output 86 (I/O/Z)

- 173 D4 A3 XA14 External Interface Address Line 14 (O)

PGF/

PTP

PIN #

ZHH ZJZ

BALL # BALL #

General-Purpose Input/Output 84 (I/O/Z) External Interface Address Line 12 (O)

www.ti.com

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

Table 2-3. Signal Descriptions (continued)

PIN NO.

NAME DESCRIPTION

GPIO87 General-Purpose Input/Output 87 (I/O/Z)

- 174 A3 B3 XA15 External Interface Address Line 15 (O)

XRD 149 B9 A8 External Interface Read Enable

PGF/

PTP

PIN #

ZHH ZJZ

BALL # BALL #

SPRS439I–JUNE 2007–REVISED MARCH 2011

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

L0SARAM4Kx16 (0-Wait,DualMap)

L1SARAM4Kx16 (0-Wait,DualMap)

L2SARAM4Kx16 (0-Wait,DualMap)

L3SARAM4Kx16 (0-Wait,DualMap)

M0SARAM1Kx16

(0-Wait)

M1SARAM1Kx16

(0-Wait)

L4SARAM4Kx16

(0-WData,1-WProg)

L5SARAM4Kx16

(0-WData,1-WProg)

L6SARAM4Kx16

(0-WData,1-WProg)

L7SARAM4Kx16

(0-WData,1-WProg)

MemoryBus

BootROM

8Kx16

Code

Security

Module

DMA Bus

PSWD

OTP 1Kx16

Flash

256Kx16

8Sectors

Pump

Flash

Wrapper

TEST1

TEST2

XINTF

XA0/XWE1

XWE0

XZCS6

XZCS7

XZCS0

XR/W

XREADY

XHOLD

XHOLDA

XD31:0

XA19:1

GPIO

MUX

MemoryBus

XCLKOUT

XRD

GPIO

MUX

88GPIOs

8ExternalInterrupts

88GPIOs

12-Bit

ADC

2-S/H

A7:0

B7:0

CPUTimer0

CPUTimer1

CPUTimer2

OSC,

PLL,

LPM,

DMA

6Ch

PIE

(Interrupts)

32-bitCPU

(150MHZ@1.9V)

(100MHz@1.8V)

EMU1

EMU0

TRST

TDO

TMS

TDI

TCK

XRS

XCLKIN

FPU

REFIN

DMA Bus

MemoryBus

FIFO

(16Levels)

SCI-A/B/C

FIFO

(16Levels)

SPI-A

FIFO

(16Levels)

I2C

16-bitperipheralbus

SPISOMIx

SPISIMOx

SPICLKx

SPISTEx

SCIRXDx

SCITXDx

SDAx

SCLx

McBSP-A/B

MRXx

MDXx

MCLKXx

MCLKRx

MFSXx

MFSRx

32-bitperipheralbus

(DMA accessible)

ePWM-1/../6

HRPWM-1/../6

eCAP-1/../6

eQEP-1/2

EPWMxA

EPWMxB

ESYNCI

ESYNCO

TZx

ECAPx

EQEPxA

EQEPxB

EQEPxI

EQEPxS

CAN-A/B

(32-mbox)

CANRXx

CANTXx

32-bitperipheralbus

GPIOMUX

88GPIOs

XINTF

Securezone

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

3 Functional Overview

www.ti.com

Figure 3-1. Functional Block Diagram

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

3.1 Memory Maps

In Figure 3-2 through Figure 3-4, the following apply:

• Memory blocks are not to scale.

• Peripheral Frame 0, Peripheral Frame 1, Peripheral Frame 2, and Peripheral Frame 3 memory maps are restricted to data memory only. A user program cannot access these memory maps in program space.

• Protected means the order of "Write followed by Read" operations is preserved rather than the pipeline order. See the TMS320x2833x, 2823x System Control and Interrupts Reference Guide (literature number SPRUFB0) for more details.

• Certain memory ranges are EALLOW protected against spurious writes after configuration.

• Locations 0x38 0080–0x38 008F contain the ADC calibration routine. It is not programmable by the user.

• If the eCAN module is not used in an application, the RAM available (LAM, MOTS, MOTO, and mailbox RAM) can be used as general-purpose RAM. The CAN module clock should be enabled for this.

SPRS439I–JUNE 2007–REVISED MARCH 2011

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

Block

Start Address

0x000000

M0Vector-RAM(32x32)

(EnabledifVMAP =0)

DataSpace

ProgSpace

M0SARAM(1Kx16)

M1SARAM(1Kx16)

PeripheralFrame0

0x000040

0x000400

0x000800

PIEVector-RAM

(256x16) (Enabledif VMAP =1, ENPIE=1)

PeripheralFrame0

Reserved

L0SARAM(4Kx16,SecureZone,Dual-Mapped)

PeripheralFrame1

(Protected)

Reserved

PeripheralFrame2

(Protected)

L1SARAM(4Kx16,SecureZone,Dual-Mapped)

FLASH(256Kx16,SecureZone)

Reserved

BootROM(8Kx16)

BROMVector-ROM(32x32)

(EnabledifVMAP =1,ENPIE=0)

0x000D00

0x000E00

0x002000

0x006000

0x007000

0x008000

0x009000

0x010000

0x300000

0x3FC000

0x3FE000

0x3FFFC0

DataSpace

ProgSpace

Reserved

On-ChipMemory ExternalMemoryXINTF

Onlyoneofthesevectormaps-M0vector,PIEvector,BROMvector-shouldbeenabledatatime.

LEGEND:

L2SARAM(4Kx16,SecureZone,Dual-Mapped)

L3SARAM(4Kx16,SecureZone,Dual-Mapped)

L4SARAM(4Kx16,DMA-Accessible)

L5SARAM(4Kx16,DMA-Accessible)

L6SARAM(4Kx16,DMA-Accessible)

L7SARAM(4Kx16,DMA-Accessible)

0x00 A000

0x00B000

0x00C000

0x00D000

0x00E000

0x00F000

Reserved

XINTFZone0(4Kx16, )XZCS0

(Protected)DMA-Accessible

0x004000

0x005000

Low64K

(24x/240xEquivalentDataSpace)

High64K

(24x/240xEquivalent

ProgramSpace)

0x005000

PeripheralFrame3

(Protected)DMA-Accessible

128-bitPassword

0x33FFF8

0x340000

L0SARAM(4Kx16,SecureZone,Dual-Mapped)

UserOTP (1Kx16,SecureZone)

0x3F8000

Reserved

0x380400

L1SARAM(4Kx16,SecureZone,Dual-Mapped)

0x3F9000

L2SARAM(4Kx16,SecureZone,Dual-Mapped)

0x3F A000

L3SARAM(4Kx16,SecureZone,Dual-Mapped)

0x3FB000

0x380800

Reserved

XINTFZone6(1Mx16, )(DMA-Accessible)XZCS6

0x100000

0x200000

0x300000

XINTFZone7(1Mx16, )XZCS7 (DMA-Accessible)

ADCCalibrationData

0x380080

Reserved

0x380090

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 3-2. F28335/F28235 Memory Map

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

www.ti.com

ExternalMemoryXINTF

Block

Start Address

0x000000

M0Vector-RAM(32x32)

(EnabledifVMAP =0)

DataSpace

ProgSpace

M0SARAM(1Kx16)

M1SARAM(1Kx16)

PeripheralFrame0

0x000040

0x000400

0x000800

PIEVector-RAM

(256x16) (Enabledif VMAP =1, ENPIE=1)

Reserved

L0SARAM(4Kx16,SecureZone,Dual-Mapped)

PeripheralFrame1

(Protected)

Reserved

PeripheralFrame2

(Protected)

L1SARAM(4Kx16,SecureZone,Dual-Mapped)

FLASH(128Kx16,SecureZone)

Reserved

BootROM(8Kx16)

BROMVector-ROM(32x32)

(EnabledifVMAP =1,ENPIE=0)

0x000D00

0x000E00

0x002000

0x006000

0x007000

0x008000

0x009000

0x010000

0x320000

0x3FC000

0x3FE000

0x3FFFC0

DataSpace

ProgSpace

Reserved

XINTFZone0(4Kx16, )

(Protected)DMA-Accessible

XZCS0

Reserved

On-ChipMemory

Onlyoneofthesevectormaps-M0vector,PIEvector,BROMvector-shouldbeenabledatatime.

LEGEND:

L2SARAM(4Kx16,SecureZone,Dual-Mapped)

L3SARAM(4Kx16,SecureZone,Dual-Mapped)

L4SARAM(4Kx16,DMA-Accessible)

L5SARAM(4Kx16,DMA-Accessible)

L6SARAM(4Kx16,DMA-Accessible)

L7SARAM(4Kx16,DMA-Accessible)

0x00 A000

0x00B000

0x00C000

0x00D000

0x00E000

0x00F000

Reserved

0x004000

0x005000

Low64K

(24x/240xEquivalentDataSpace)

High64K

(24x/240xEquivalent

ProgramSpace)

0x005000

PeripheralFrame3

(Protected)

DMA-Accessible

128-bitPassword

0x33FFF8

0x340000

L0SARAM(4Kx16,SecureZone,Dual-Mapped)

UserOTP (1Kx16,SecureZone)

0x3F8000

Reserved

0x380400

L1SARAM(4Kx16,SecureZone,Dual-Mapped)

0x3F9000

L2SARAM(4Kx16,SecureZone,Dual-Mapped)

0x3F A000

L3SARAM(4Kx16,SecureZone,Dual-Mapped)

0x3FB000

PeripheralFrame0

XINTFZone6(1Mx16, )(DMA-Accessible)XZCS6

0x100000 0x200000 0x300000

XINTFZone7(1Mx16, )XZCS7 (DMA-Accessible)

0x380080

ADCCalibrationData

Reserved

0x380800

Reserved

0x380090

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 3-3. F28334/F28234 Memory Map

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

Block

Start Address

0x000000

M0Vector-RAM(32x32)

(EnabledifVMAP =0)

DataSpace

ProgSpace

M0SARAM(1Kx16)

M1SARAM(1Kx16)

PeripheralFrame0

0x000040

0x000400

0x000800

PIEVector-RAM

(256x16) (Enabledif

VMAP =1, ENPIE=1)

Reserved

L0SARAM(4Kx16,SecureZone,Dual-Mapped)

PeripheralFrame1

(Protected)

Reserved

PeripheralFrame2

(Protected)

L1SARAM(4Kx16,SecureZone,Dual-Mapped)

FLASH(64Kx16,SecureZone)

Reserved

BootROM(8Kx16)

BROMVector-ROM(32x32)

(EnabledifVMAP =1,ENPIE=0)

0x000D00

0x000E00

0x002000

0x006000

0x007000

0x008000

0x009000

0x330000

0x3FC000

0x3FE000

0x3FFFC0

DataSpace

ProgSpace

Reserved

XINTFZone0(4Kx16, )

(Protected)DMA-Accessible

XZCS0

Reserved

On-ChipMemory ExternalMemoryXINTF

Onlyoneofthesevectormaps-M0vector,PIEvector,BROMvector-shouldbeenabledatatime.

LEGEND:

L2SARAM(4Kx16,SecureZone,Dual-Mapped)

L3SARAM(4Kx16,SecureZone,Dual-Mapped)

L4SARAM(4Kx16,DMA-Accessible)

L5SARAM(4Kx16,DMA-Accessible)

0x00 A000

0x00B000

0x00C000

0x00D000

0x00E000

Reserved

0x004000

0x005000

Low64K

(24x/240xEquivalentDataSpace)

High64K

(24x/240xEquivalent

ProgramSpace)

0x005000

PeripheralFrame3

(Protected)DMA-Accessible

128-bitPassword

0x33FFF8

0x340000

L0SARAM(4Kx16,SecureZone,Dual-Mapped)

UserOTP (1Kx16,SecureZone)

0x3F8000

Reserved

0x380400

L1SARAM(4Kx16,SecureZone,Dual-Mapped)

0x3F9000

L2SARAM(4Kx16,SecureZone,Dual-Mapped)

0x3F A000

L3SARAM(4Kx16,SecureZone,Dual-Mapped)

0x3FB000

PeripheralFrame0

XINTFZone6(1Mx16, )(DMA-Accessible)XZCS6

0x100000

0x200000

0x300000

XINTFZone7(1Mx16, )XZCS7 (DMA-Accessible)

ADCCalibrationData

0x380080

0x380800

Reserved

0x380090

Reserved

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 3-4. F28332/F28232 Memory Map

www.ti.com

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 3-1. Addresses of Flash Sectors in F28335/F28235

ADDRESS RANGE PROGRAM AND DATA SPACE

0x30 0000 - 0x30 7FFF Sector H (32K x 16) 0x30 8000 - 0x30 FFFF Sector G (32K x 16) 0x31 0000 - 0x31 7FFF Sector F (32K x 16) 0x31 8000 - 0x31 FFFF Sector E (32K x 16) 0x32 0000 - 0x32 7FFF Sector D (32K x 16) 0x32 8000 - 0x32 FFFF Sector C (32K x 16) 0x33 0000 - 0x33 7FFF Sector B (32K x 16) 0x33 8000 - 0x33 FF7F Sector A (32K x 16)

0x33 FF80 - 0x33 FFF5

0x33 FFF6 - 0x33 FFF7

0x33 FFF8 - 0x33 FFFF

Program to 0x0000 when using the

Code Security Module

Boot-to-Flash Entry Point

(program branch instruction here)

Security Password

(128-Bit) (Do Not Program to all zeros)

Table 3-2. Addresses of Flash Sectors in F28334/F28234

ADDRESS RANGE PROGRAM AND DATA SPACE

0x32 0000 - 0x32 3FFF Sector H (16K x 16)

0x32 4000 - 0x32 7FFF Sector G (16K x 16) 0x32 8000 - 0x32 BFFF Sector F (16K x 16) 0x32 C000 - 0x32 FFFF Sector E (16K x 16)

0x33 0000 - 0x33 3FFF Sector D (16K x 16)

0x33 4000 - 0x33 7FFFF Sector C (16K x 16)

0x33 8000 - 0x33 BFFF Sector B (16K x 16) 0x33 C000 - 0x33 FF7F Sector A (16K x 16) 0x33 FF80 - 0x33 FFF5 Program to 0x0000 when using the

0x33 FFF6 - 0x33 FFF7 Boot-to-Flash Entry Point

0x33 FFF8 - 0x33 FFFF Security Password (128-Bit)

Code Security Module

(program branch instruction here)

(Do Not Program to all zeros)

Table 3-3. Addresses of Flash Sectors in F28332/F28232

ADDRESS RANGE PROGRAM AND DATA SPACE

0x33 0000 - 0x33 3FFF Sector D (16K x 16)

0x33 4000 - 0x33 7FFFF Sector C (16K x 16)

0x33 8000 - 0x33 BFFF Sector B (16K x 16) 0x33 C000 - 0x33 FF7F Sector A (16K x 16) 0x33 FF80 - 0x33 FFF5 Program to 0x0000 when using the Code Security Module 0x33 FFF6 - 0x33 FFF7 Boot-to-Flash Entry Point (program branch instruction here) 0x33 FFF8 - 0x33 FFFF Security Password (128-Bit) (Do Not Program to all zeros)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

• When the code-security passwords are programmed, all addresses between 0x33FF80 and 0x33FFF5 cannot be used as program code or data. These locations must be programmed to 0x0000.

• If the code security feature is not used, addresses 0x33FF80 through 0x33FFEF may be used for code or data. Addresses 0x33FFF0–0x33FFF5 are reserved for data and should not contain program code. .

Table 3-4 shows how to handle these memory locations.

Table 3-4. Handling Security Code Locations

ADDRESS FLASH

0x33FF80 – 0x33FFEF Application code and data

0x33FFF0 – 0x33FFF5 Reserved for data only

Peripheral Frame 1, Peripheral Frame 2, and Peripheral Frame 3 are grouped together to enable these blocks to be write/read peripheral block protected. The protected mode ensures that all accesses to these blocks happen as written. Because of the C28x pipeline, a write immediately followed by a read, to different memory locations, will appear in reverse order on the memory bus of the CPU. This can cause problems in certain peripheral applications where the user expected the write to occur first (as written). The C28x CPU supports a block protection mode where a region of memory can be protected so as to make sure that operations occur as written (the penalty is extra cycles are added to align the operations). This mode is programmable and by default, it will protect the selected zones.

www.ti.com

NOTE

Code security enabled Code security disabled

Fill with 0x0000

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

The wait-states for the various spaces in the memory map area are listed in Table 3-5 .

Table 3-5. Wait-states

AREA COMMENTS

M0 and M1 SARAMs 0-wait Fixed

Peripheral Frame 0 0-wait (writes) 0-wait (reads)

Peripheral Frame 3 0-wait (writes) 0-wait (writes) Assumes no conflicts between CPU and DMA.

Peripheral Frame 1 0-wait (writes) No access Cycles can be extended by peripheral generated ready.

Peripheral Frame 2 0-wait (writes) No access Fixed. Cycles cannot be extended by the peripheral.

L0 SARAM 0-wait No access Assumes no CPU conflicts L1 SARAM L2 SARAM L3 SARAM L4 SARAM 0-wait data (reads) 0-wait Assumes no conflicts between CPU and DMA. L5 SARAM 0-wait data (writes) L6 SARAM 1-wait program

L7 SARAM 1-wait program

XINTF Programmable Programmable Programmed via the XTIMING registers or extendable via

OTP Programmable No access Programmed via the Flash registers.

FLASH Programmable No access Programmed via the Flash registers.

FLASH Password 16-wait fixed No access Wait states of password locations are fixed.

Boot-ROM 1-wait No access 0-wait speed is not possible.

(1) The DMA has a base of 4 cycles/word.

WAIT-STATES WAIT-STATES

(CPU) (DMA)

1-wait (reads) No access (writes)

2-wait (reads) 1-wait (reads)

2-wait (reads) Consecutive (back-to-back) writes to Peripheral Frame 1

2-wait (reads)

(reads)

(writes)

0-wait minimum writes 0-wait minimum writes 0-wait minimum for writes assumes write buffer enabled and

with write buffer with write buffer enabled not full.

enabled Assumes no conflicts between CPU and DMA. When DMA and

1-wait minimum 1-wait is minimum number of wait states allowed. 1-wait-state

1-wait Paged min 0-wait minimum for paged access is not allowed

1-wait Random min

Random ≥ Paged

(1)

registers will experience a 1-cycle pipeline hit (1-cycle delay)

external XREADY signal to meet system timing requirements. 1-wait is minimum wait states allowed on external waveforms

for both reads and writes on XINTF.

CPU attempt simultaneous conflict, 1-cycle delay is added for arbitration.

operation is possible at a reduced CPU frequency.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

3.2 Brief Descriptions

3.2.1 C28x CPU

The F2833x (C28x+FPU)/F2823x (C28x) family is a member of the TMS320C2000™ digital signal controller (DSC) platform. The C28x+FPU based controllers have the same 32-bit fixed-point architecture as TI's existing C28x DSCs, but also include a single-precision (32-bit) IEEE 754 floating-point unit (FPU). It is a very efficient C/C++ engine, enabling users to develop their system control software in a high-level language. It also enables math algorithms to be developed using C/C++. The device is as efficient at DSP math tasks as it is at system control tasks that typically are handled by microcontroller devices. This efficiency removes the need for a second processor in many systems. The 32 x 32-bit MAC 64-bit processing capabilities enable the controller to handle higher numerical resolution problems efficiently. Add to this the fast interrupt response with automatic context save of critical registers, resulting in a device that is capable of servicing many asynchronous events with minimal latency. The device has an 8-level-deep protected pipeline with pipelined memory accesses. This pipelining enables it to execute at high speeds without resorting to expensive high-speed memories. Special branch-look-ahead hardware minimizes the latency for conditional discontinuities. Special store conditional operations further improve performance.

The F2823x family is also a member of the TMS320C2000™ digital signal controller (DSC) platform but it does not include a floating-point unit (FPU).

3.2.2 Memory Bus (Harvard Bus Architecture)

www.ti.com

As with many DSC type devices, multiple busses are used to move data between the memories and peripherals and the CPU. The C28x memory bus architecture contains a program read bus, data read bus and data write bus. The program read bus consists of 22 address lines and 32 data lines. The data read and write busses consist of 32 address lines and 32 data lines each. The 32-bit-wide data busses enable single cycle 32-bit operations. The multiple bus architecture, commonly termed Harvard Bus, enables the C28x to fetch an instruction, read a data value and write a data value in a single cycle. All peripherals and memories attached to the memory bus will prioritize memory accesses. Generally, the priority of memory bus accesses can be summarized as follows:

Highest: Data Writes (Simultaneous data and program writes cannot occur on the

Program Writes (Simultaneous data and program writes cannot occur on the

Data Reads Program (Simultaneous program reads and fetches cannot occur on the

Reads memory bus.)

Lowest: Fetches (Simultaneous program reads and fetches cannot occur on the

3.2.3 Peripheral Bus

To enable migration of peripherals between various Texas Instruments (TI) DSC family of devices, the 2833x/2823x devices adopt a peripheral bus standard for peripheral interconnect. The peripheral bus bridge multiplexes the various busses that make up the processor Memory Bus into a single bus consisting of 16 address lines and 16 or 32 data lines and associated control signals. Three versions of the peripheral bus are supported. One version supports only 16-bit accesses (called peripheral frame 2). Another version supports both 16- and 32-bit accesses (called peripheral frame 1). The third version supports DMA access and both 16- and 32-bit accesses (called peripheral frame 3).

memory bus.)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

3.2.4 Real-Time JTAG and Analysis

The 2833x/2823x devices implement the standard IEEE 1149.1 JTAG interface. Additionally, the devices support real-time mode of operation whereby the contents of memory, peripheral and register locations can be modified while the processor is running and executing code and servicing interrupts. The user can also single step through non-time critical code while enabling time-critical interrupts to be serviced without interference. The device implements the real-time mode in hardware within the CPU. This is a feature unique to the 2833x/2823x device, requiring no software monitor. Additionally, special analysis hardware is provided that allows setting of hardware breakpoint or data/address watch-points and generate various user-selectable break events when a match occurs.

3.2.5 External Interface (XINTF)

This asynchronous interface consists of 20 address lines, 32 data lines, and three chip-select lines. The chip-select lines are mapped to three external zones, Zones 0, 6, and 7. Each of the three zones can be programmed with a different number of wait states, strobe signal setup and hold timing and each zone can be programmed for extending wait states externally or not. The programmable wait-state, chip-select and programmable strobe timing enables glueless interface to external memories and peripherals.

3.2.6 Flash

The F28335/F28235 devices contain 256K × 16 of embedded flash memory, segregated into eight 32K × 16 sectors. The F28334/F28234 devices contain 128K × 16 of embedded flash memory, segregated into eight 16K × 16 sectors. The F28332/F28232 devices contain 64K × 16 of embedded flash, segregated into four 16K × 16 sectors. All the devices also contain a single 1K × 16 of OTP memory at address range 0x380400–0x3807FF. The user can individually erase, program, and validate a flash sector while leaving other sectors untouched. However, it is not possible to use one sector of the flash or the OTP to execute flash algorithms that erase/program other sectors. Special memory pipelining is provided to enable the flash module to achieve higher performance. The flash/OTP is mapped to both program and data space; therefore, it can be used to execute code or store data information. Note that addresses 0x33FFF0–0x33FFF5 are reserved for data variables and should not contain program code.

SPRS439I–JUNE 2007–REVISED MARCH 2011

The Flash and OTP wait-states can be configured by the application. This allows applications running at slower frequencies to configure the flash to use fewer wait-states.

Flash effective performance can be improved by enabling the flash pipeline mode in the Flash options register. With this mode enabled, effective performance of linear code execution will be much faster than the raw performance indicated by the wait-state configuration alone. The exact performance gain when using the Flash pipeline mode is application-dependent.

For more information on the Flash options, Flash wait-state, and OTP wait-state registers, see the TMS320x2833x, 2823x System Control and Interrupts Reference Guide (literature number SPRUFB0).

3.2.7 M0, M1 SARAMs

All 2833x/2823x devices contain these two blocks of single access memory, each 1K × 16 in size. The stack pointer points to the beginning of block M1 on reset. The M0 and M1 blocks, like all other memory blocks on C28x devices, are mapped to both program and data space. Hence, the user can use M0 and M1 to execute code or for data variables. The partitioning is performed within the linker. The C28x device presents a unified memory map to the programmer. This makes for easier programming in high-level languages.

NOTE

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

3.2.8 L0, L1, L2, L3, L4, L5, L6, L7 SARAMs

The F28335/F28235 and F28334/F28234 each contain 32K × 16 of single-access RAM, divided into 8 blocks (L0–L7 with 4K each). The F28332/F28232 contain 24K × 16 of single-access RAM, divided into 6 blocks (L0–L5 with 4K each). Each block can be independently accessed to minimize CPU pipeline stalls. Each block is mapped to both program and data space. L4, L5, L6, and L7 are DMA-accessible.

3.2.9 Boot ROM

The Boot ROM is factory-programmed with boot-loading software. Boot-mode signals are provided to tell the bootloader software what boot mode to use on power up. The user can select to boot normally or to download new software from an external connection or to select boot software that is programmed in the internal Flash/ROM. The Boot ROM also contains standard tables, such as SIN/COS waveforms, for use in math related algorithms.

Table 3-6. Boot Mode Selection

MODE GPIO87/XA15 GPIO86/XA14 GPIO85/XA13 GPIO84/XA12 MODE

F 1 1 1 1 Jump to Flash E 1 1 1 0 SCI-A boot D 1 1 0 1 SPI-A boot C 1 1 0 0 I2C-A boot B 1 0 1 1 eCAN-A boot A 1 0 1 0 McBSP-A boot

9 1 0 0 1 Jump to XINTF x16 8 1 0 0 0 Jump to XINTF x32 7 0 1 1 1 Jump to OTP 6 0 1 1 0 Parallel GPIO I/O boot 5 0 1 0 1 Parallel XINTF boot 4 0 1 0 0 Jump to SARAM 3 0 0 1 1 Branch to check boot mode 2 0 0 1 0 Branch to Flash, skip ADC calibration 1 0 0 0 1 Branch to SARAM, skip ADC

calibration

0 0 0 0 0 Branch to SCI, skip ADC calibration

(1) All four GPIO pins have an internal pullup.

(1)

www.ti.com

NOTE

Modes 0, 1, and 2 in Table 3-6 are for TI debug only. Skipping the ADC calibration function in an application will cause the ADC to operate outside of the stated specifications

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

3.2.9.1 Peripheral Pins Used by the Bootloader

Table 3-7 shows which GPIO pins are used by each peripheral bootloader. Refer to the GPIO mux table

to see if these conflict with any of the peripherals you would like to use in your application.

Table 3-7. Peripheral Bootload Pins

BOOTLOADER PERIPHERAL LOADER PINS

SCI-A SCIRXDA (GPIO28)

SCITXDA (GPIO29)

SPI-A SPISIMOA (GPIO16)

SPISOMIA (GPIO17) SPICLKA (GPIO18) SPISTEA (GPIO19)

I2C SDAA (GPIO32)

SCLA (GPIO33)

CAN CANRXA (GPIO30)

CANTXA (GPIO31)

McBSP MDXA (GPIO20)

MDRA (GPIO21) MCLKXA (GPIO22) MFSXA (GPIO23) MCLKRA (GPIO7) MFSRA (GPIO5)

SPRS439I–JUNE 2007–REVISED MARCH 2011

3.2.10 Security

The devices support high levels of security to protect the user firmware from being reverse engineered. The security features a 128-bit password (hardcoded for 16 wait-states), which the user programs into the flash. One code security module (CSM) is used to protect the flash/OTP and the L0/L1/L2/L3 SARAM blocks. The security feature prevents unauthorized users from examining the memory contents via the JTAG port, executing code from external memory or trying to boot-load some undesirable software that would export the secure memory contents. To enable access to the secure blocks, the user must write the correct 128-bit KEY value, which matches the value stored in the password locations within the Flash.

In addition to the CSM, the emulation code security logic (ECSL) has been implemented to prevent unauthorized users from stepping through secure code. Any code or data access to flash, user OTP, L0, L1, L2, or L3 memory while the emulator is connected will trip the ECSL and break the emulation connection. To allow emulation of secure code, while maintaining the CSM protection against secure memory reads, the user must write the correct value into the lower 64 bits of the KEY register, which matches the value stored in the lower 64 bits of the password locations within the flash. Note that dummy reads of all 128 bits of the password in the flash must still be performed. If the lower 64 bits of the password locations are all ones (unprogrammed), then the KEY value does not need to match.

When initially debugging a device with the password locations in flash programmed (i.e., secured), the emulator takes some time to take control of the CPU. During this time, the CPU will start running and may execute an instruction that performs an access to a protected ECSL area. If this happens, the ECSL will trip and cause the emulator connection to be cut. Two solutions to this problem exist:

1. The first is to use the Wait-In-Reset emulation mode, which will hold the device in reset until the emulator takes control. The emulator must support this mode for this option.

2. The second option is to use the “Branch to check boot mode” boot option. This will sit in a loop and continuously poll the boot mode select pins. The user can select this boot mode and then exit this mode once the emulator is connected by re-mapping the PC to another address or by changing the boot mode selection pin to the desired boot mode.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

• When the code-security passwords are programmed, all addresses between 0x33FF80 and 0x33FFF5 cannot be used as program code or data. These locations must be programmed to 0x0000.

The 128-bit password (at 0x33 FFF8–0x33 FFFF) must not be programmed to zeros. Doing so would permanently lock the device.

Code Security Module Disclaimer

THE CODE SECURITY MODULE (CSM) INCLUDED ON THIS DEVICE WAS DESIGNED TO PASSWORD PROTECT THE DATA STORED IN THE ASSOCIATED MEMORY (EITHER ROM OR FLASH) AND IS WARRANTED BY TEXAS INSTRUMENTS (TI), IN ACCORDANCE WITH ITS STANDARD TERMS AND CONDITIONS, TO CONFORM TO TI'S PUBLISHED SPECIFICATIONS FOR THE WARRANTY PERIOD APPLICABLE FOR THIS DEVICE.

TI DOES NOT, HOWEVER, WARRANT OR REPRESENT THAT THE CSM CANNOT BE COMPROMISED OR BREACHED OR THAT THE DATA STORED IN THE ASSOCIATED MEMORY CANNOT BE ACCESSED THROUGH OTHER MEANS. MOREOVER, EXCEPT AS SET FORTH ABOVE, TI MAKES NO WARRANTIES OR REPRESENTATIONS CONCERNING THE CSM OR OPERATION OF THIS DEVICE, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL TI BE LIABLE FOR ANY CONSEQUENTIAL, SPECIAL, INDIRECT, INCIDENTAL, OR PUNITIVE DAMAGES, HOWEVER CAUSED, ARISING IN ANY WAY OUT OF YOUR USE OF THE CSM OR THIS DEVICE, WHETHER OR NOT TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO LOSS OF DATA, LOSS OF GOODWILL, LOSS OF USE OR INTERRUPTION OF BUSINESS OR OTHER ECONOMIC LOSS.

www.ti.com

NOTE

disclaimer

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

3.2.11 Peripheral Interrupt Expansion (PIE) Block

The PIE block serves to multiplex numerous interrupt sources into a smaller set of interrupt inputs. The PIE block can support up to 96 peripheral interrupts. On the 2833x/2823x , 58 of the possible 96 interrupts are used by peripherals. The 96 interrupts are grouped into blocks of 8 and each group is fed into 1 of 12 CPU interrupt lines (INT1 to INT12). Each of the 96 interrupts is supported by its own vector stored in a dedicated RAM block that can be overwritten by the user. The vector is automatically fetched by the CPU on servicing the interrupt. It takes 8 CPU clock cycles to fetch the vector and save critical CPU registers. Hence the CPU can quickly respond to interrupt events. Prioritization of interrupts is controlled in hardware and software. Each individual interrupt can be enabled/disabled within the PIE block.

3.2.12 External Interrupts (XINT1–XINT7, XNMI)

The devices support eight masked external interrupts (XINT1–XINT7, XNMI). XNMI can be connected to the INT13 or NMI interrupt of the CPU. Each of the interrupts can be selected for negative, positive, or both negative and positive edge triggering and can also be enabled/disabled (including the XNMI). XINT1, XINT2, and XNMI also contain a 16-bit free running up counter, which is reset to zero when a valid interrupt edge is detected. This counter can be used to accurately time stamp the interrupt. Unlike the 281x devices, there are no dedicated pins for the external interrupts. XINT1 XINT2, and XNMI interrupts can accept inputs from GPIO0–GPIO31 pins. XINT3–XINT7 interrupts can accept inputs from GPIO32–GPIO63 pins.

3.2.13 Oscillator and PLL

SPRS439I–JUNE 2007–REVISED MARCH 2011

The device can be clocked by an external oscillator or by a crystal attached to the on-chip oscillator circuit. A PLL is provided supporting up to 10 input-clock-scaling ratios. The PLL ratios can be changed on-the-fly in software, enabling the user to scale back on operating frequency if lower power operation is desired. Refer to the Electrical Specification section for timing details. The PLL block can be set in bypass mode.

3.2.14 Watchdog

The devices contain a watchdog timer. The user software must regularly reset the watchdog counter within a certain time frame; otherwise, the watchdog will generate a reset to the processor. The watchdog can be disabled if necessary.

3.2.15 Peripheral Clocking

The clocks to each individual peripheral can be enabled/disabled so as to reduce power consumption when a peripheral is not in use. Additionally, the system clock to the serial ports (except I2C and eCAN) and the ADC blocks can be scaled relative to the CPU clock. This enables the timing of peripherals to be decoupled from increasing CPU clock speeds.

3.2.16 Low-Power Modes

The devices are full static CMOS devices. Three low-power modes are provided:

IDLE: Place CPU into low-power mode. Peripheral clocks may be turned off selectively and

only those peripherals that need to function during IDLE are left operating. An enabled interrupt from an active peripheral or the watchdog timer will wake the processor from IDLE mode.

STANDBY: Turns off clock to CPU and peripherals. This mode leaves the oscillator and PLL

functional. An external interrupt event will wake the processor and the peripherals. Execution begins on the next valid cycle after detection of the interrupt event

HALT: Turns off the internal oscillator. This mode basically shuts down the device and

places it in the lowest possible power consumption mode. A reset or external signal can wake the device from this mode.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

3.2.17 Peripheral Frames 0, 1, 2, 3 (PFn)

The device segregates peripherals into four sections. The mapping of peripherals is as follows:

PF0: PIE: PIE Interrupt Enable and Control Registers Plus PIE Vector Table

Flash: Flash Waitstate Registers XINTF: External Interface Registers DMA DMA Registers Timers: CPU-Timers 0, 1, 2 Registers CSM: Code Security Module KEY Registers ADC: ADC Result Registers (dual-mapped)

PF1: eCAN: eCAN Mailbox and Control Registers

GPIO: GPIO MUX Configuration and Control Registers ePWM: Enhanced Pulse Width Modulator Module and Registers (dual mapped) eCAP: Enhanced Capture Module and Registers eQEP: Enhanced Quadrature Encoder Pulse Module and Registers

PF2: SYS: System Control Registers

SCI: Serial Communications Interface (SCI) Control and RX/TX Registers SPI: Serial Port Interface (SPI) Control and RX/TX Registers ADC: ADC Status, Control, and Result Register I2C: Inter-Integrated Circuit Module and Registers XINT External Interrupt Registers

PF3: McBSP Multichannel Buffered Serial Port Registers

ePWM: Enhanced Pulse Width Modulator Module and Registers (dual mapped)

www.ti.com

3.2.18 General-Purpose Input/Output (GPIO) Multiplexer

Most of the peripheral signals are multiplexed with general-purpose input/output (GPIO) signals. This enables the user to use a pin as GPIO if the peripheral signal or function is not used. On reset, GPIO pins are configured as inputs. The user can individually program each pin for GPIO mode or peripheral signal mode. For specific inputs, the user can also select the number of input qualification cycles. This is to filter unwanted noise glitches. The GPIO signals can also be used to bring the device out of specific low-power modes.

3.2.19 32-Bit CPU-Timers (0, 1, 2)

CPU-Timers 0, 1, and 2 are identical 32-bit timers with presettable periods and with 16-bit clock prescaling. The timers have a 32-bit count down register, which generates an interrupt when the counter reaches zero. The counter is decremented at the CPU clock speed divided by the prescale value setting. When the counter reaches zero, it is automatically reloaded with a 32-bit period value. CPU-Timer 2 is reserved for Real-Time OS (RTOS)/BIOS applications. It is connected to INT14 of the CPU. If DSP/BIOS is not being used, CPU-Timer 2 is available for general use. CPU-Timer 1 is for general use and can be connected to INT13 of the CPU. CPU-Timer 0 is also for general use and is connected to the PIE block.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

3.2.20 Control Peripherals

The 2833x/2823x devices support the following peripherals which are used for embedded control and communication:

ePWM: The enhanced PWM peripheral supports independent/complementary PWM

generation, adjustable dead-band generation for leading/trailing edges, latched/cycle-by-cycle trip mechanism. Some of the PWM pins support HRPWM features. The ePWM registers are supported by the DMA to reduce the overhead for servicing this peripheral.

eCAP: The enhanced capture peripheral uses a 32-bit time base and registers up to four

programmable events in continuous/one-shot capture modes. This peripheral can also be configured to generate an auxiliary PWM signal.

eQEP: The enhanced QEP peripheral uses a 32-bit position counter, supports low-speed

measurement using capture unit and high-speed measurement using a 32-bit unit timer. This peripheral has a watchdog timer to detect motor stall and input error detection logic to identify simultaneous edge transition in QEP signals.

ADC: The ADC block is a 12-bit converter, single ended, 16-channels. It contains two

sample-and-hold units for simultaneous sampling. The ADC registers are supported by the DMA to reduce the overhead for servicing this peripheral.

SPRS439I–JUNE 2007–REVISED MARCH 2011

3.2.21 Serial Port Peripherals

The devices support the following serial communication peripherals:

eCAN: This is the enhanced version of the CAN peripheral. It supports 32 mailboxes, time

stamping of messages, and is CAN 2.0B-compliant.

McBSP: The multichannel buffered serial port (McBSP) connects to E1/T1 lines,

phone-quality codecs for modem applications or high-quality stereo audio DAC devices. The McBSP receive and transmit registers are supported by the DMA to significantly reduce the overhead for servicing this peripheral. Each McBSP module can be configured as an SPI as required.

SPI: The SPI is a high-speed, synchronous serial I/O port that allows a serial bit stream of

programmed length (one to sixteen bits) to be shifted into and out of the device at a programmable bit-transfer rate. Normally, the SPI is used for communications between the DSC and external peripherals or another processor. Typical applications include external I/O or peripheral expansion through devices such as shift registers, display drivers, and ADCs. Multi-device communications are supported by the master/slave operation of the SPI. On the 2833x/2823x, the SPI contains a 16-level receive and transmit FIFO for reducing interrupt servicing overhead.

SCI: The serial communications interface is a two-wire asynchronous serial port,

commonly known as UART. The SCI contains a 16-level receive and transmit FIFO for reducing interrupt servicing overhead.

I2C: The inter-integrated circuit (I2C) module provides an interface between a DSC and

other devices compliant with Philips Semiconductors Inter-IC bus (I2C-bus) specification version 2.1 and connected by way of an I2C-bus. External components attached to this 2-wire serial bus can transmit/receive up to 8-bit data to/from the DSC through the I2C module. On the 2833x/2823x, the I2C contains a 16-level receive and transmit FIFO for reducing interrupt servicing overhead.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

3.3 Register Map

The devices contain four peripheral register spaces. The spaces are categorized as follows:

Peripheral Frame 0: These are peripherals that are mapped directly to the CPU memory bus.

See Table 3-8.

Peripheral Frame 1 These are peripherals that are mapped to the 32-bit peripheral bus.

See Table 3-9.

Peripheral Frame 2: These are peripherals that are mapped to the 16-bit peripheral bus.

See Table 3-10.

Peripheral Frame 3: These are peripherals that are mapped to the 32-bit DMA-accessible

peripheral bus. See Table 3-11.

Table 3-8. Peripheral Frame 0 Registers

NAME ADDRESS RANGE SIZE (x16) ACCESS TYPE

Device Emulation Registers 0x00 0880 – 0x00 09FF 384 EALLOW protected FLASH Registers Code Security Module Registers 0x00 0AE0 – 0x00 0AEF 16 EALLOW protected ADC registers (dual-mapped) 0x00 0B00 – 0x00 0B0F 16 Not EALLOW protected

0 wait (DMA), 1 wait (CPU), read only XINTF Registers 0x00 0B20 – 0x00 0B3F 32 EALLOW protected CPU–TIMER0/1/2 Registers 0x00 0C00 – 0x00 0C3F 64 Not EALLOW protected PIE Registers 0x00 0CE0 – 0x00 0CFF 32 Not EALLOW protected PIE Vector Table 0x00 0D00 – 0x00 0DFF 256 EALLOW protected DMA Registers 0x00 1000 – 0x00 11FF 512 EALLOW protected

(1) Registers in Frame 0 support 16-bit and 32-bit accesses. (2) If registers are EALLOW protected, then writes cannot be performed until the EALLOW instruction is executed. The EDIS instruction

disables writes to prevent stray code or pointers from corrupting register contents.

(3) The Flash Registers are also protected by the Code Security Module (CSM).

(3)

0x00 0A80 – 0x00 0ADF 96 EALLOW protected

(1)

(2)

Table 3-9. Peripheral Frame 1 Registers

NAME ADDRESS RANGE SIZE (x16)

eCAN-A Registers 0x00 6000 – 0x00 61FF 512 eCAN-B Registers 0x00 6200 – 0x00 63FF 512 ePWM1 + HRPWM1 registers 0x00 6800 – 0x00 683F 64 ePWM2 + HRPWM2 registers 0x00 6840 – 0x00 687F 64 ePWM3 + HRPWM3 registers 0x00 6880 – 0x00 68BF 64 ePWM4 + HRPWM4 registers 0x00 68C0 – 0x00 68FF 64 ePWM5 + HRPWM5 registers 0x00 6900 – 0x00 693F 64 ePWM6 + HRPWM6 registers 0x00 6940 – 0x00 697F 64 eCAP1 registers 0x00 6A00 – 0x00 6A1F 32 eCAP2 registers 0x00 6A20 – 0x00 6A3F 32 eCAP3 registers 0x00 6A40 – 0x00 6A5F 32 eCAP4 registers 0x00 6A60 – 0x00 6A7F 32 eCAP5 registers 0x00 6A80 – 0x00 6A9F 32 eCAP6 registers 0x00 6AA0 – 0x00 6ABF 32 eQEP1 registers 0x00 6B00 – 0x00 6B3F 64 eQEP2 registers 0x00 6B40 – 0x00 6B7F 64 GPIO registers 0x00 6F80 – 0x00 6FFF 128

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 3-10. Peripheral Frame 2 Registers

NAME ADDRESS RANGE SIZE (x16)

System Control Registers 0x00 7010 – 0x00 702F 32 SPI-A Registers 0x00 7040 – 0x00 704F 16 SCI-A Registers 0x00 7050 – 0x00 705F 16 External Interrupt Registers 0x00 7070 – 0x00 707F 16 ADC Registers 0x00 7100 – 0x00 711F 32 SCI-B Registers 0x00 7750 – 0x00 775F 16 SCI-C Registers 0x00 7770 – 0x00 777F 16 I2C-A Registers 0x00 7900 – 0x00 793F 64

Table 3-11. Peripheral Frame 3 Registers

NAME ADDRESS RANGE SIZE (x16)

McBSP-A Registers (DMA) 0x5000 – 0x503F 64 McBSP-B Registers (DMA) 0x5040 – 0x507F 64 ePWM1 + HRPWM1 (DMA) ePWM2 + HRPWM2 (DMA) 0x5840 – 0x587F 64 ePWM3 + HRPWM3 (DMA) 0x5880 – 0x58BF 64 ePWM4 + HRPWM4 (DMA) 0x58C0 – 0x58FF 64 ePWM5 + HRPWM5 (DMA) 0x5900 – 0x593F 64 ePWM6 + HRPWM6 (DMA) 0x5940 – 0x597F 64

(1) The ePWM/HRPWM modules can be re-mapped to Peripheral Frame 3 where they can be accessed by the DMA module. To achieve

this, bit 0 (MAPEPWM) of MAPCNF register (address 0x702E) must be set to 1. This register is EALLOW protected. When this bit is 0, the ePWM/HRPWM modules are mapped to Peripheral Frame 1.

(1)

0x5800 – 0x583F 64

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

3.4 Device Emulation Registers

These registers are used to control the protection mode of the C28x CPU and to monitor some critical device signals. The registers are defined in Table 3-12.

Table 3-12. Device Emulation Registers

NAME SIZE (x16) DESCRIPTION

DEVICECNF 2 Device Configuration Register PARTID 0x380090 1 Part ID Register TMS320F28335 0x00EF

CLASSID 0x0882 1 TMS320F2833x TMS320F28335 0x00EF

REVID 0x0883 1 Revision ID

PROTSTART 0x0884 1 Block Protection Start Address Register PROTRANGE 0x0885 1 Block Protection Range Address Register

ADDRESS

RANGE

0x0880 0x0881

TMS320F28334 0x00EE TMS320F28332 0x00ED TMS320F28235 0x00E8 TMS320F28234 0x00E7 TMS320F28232 0x00E6

Floating-Point Class Device

TMS320F2823x TMS320F28235 0x00E8 Fixed-Point Class Device

TMS320F28334 0x00EF TMS320F28332 0x00EF

TMS320F28234 0x00E8 TMS320F28232 0x00E8

0x0001 – Silicon Rev. A – TMS

www.ti.com

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

WDINT

LPMINT

Watchdog

Low-PowerModels

Sync

SYSCLKOUT

WAKEINT

DMA

Clear

Peripherals

(SPI,SCI,I2C,CAN,McBSP

C )

(A)

ePWM ,eCAP,eQEP, AD

(A) (A)

DMA

XINT1

InterruptControl

XINT1CR(15:0)

XINT1CTR(15:0)

XINT1

Latch

MUX

GPIOXINT1SEL(4:0)

DMA

XINT2

InterruptControl

XINT2CR(15:0)

XINT2CTR(15:0)

XINT2

Latch

MUX

GPIOXINT2SEL(4:0)

ADC

XINT2SOC

DMA

TINT0

CPUTimer0

DMA

TINT2

CPUTimer2

CPUTimer1

MUX

TINT1

InterruptControl

XNMICR(15:0)

XNMICTR(15:0)

MUX

DMA

NMI

INT13

INT14

INT1

INT12

C28

Core

96Interrupts

PIE

XNMI_

XINT13

Latch

MUX

GPIOXNMISEL(4:0)

GPIO

Mux

GPIO0.int

GPIO31.int

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

3.5 Interrupts

Figure 3-5 shows how the various interrupt sources are multiplexed.

SPRS439I–JUNE 2007–REVISED MARCH 2011

A. DMA-accessible

Figure 3-5. External and PIE Interrupt Sources

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

InterruptControl

XINT3CR(15:0)

Latch

Mux

GPIOXINT3SEL(4:0)

DMA

XINT3

InterruptControl

XINT4CR(15:0)

Latch

Mux

GPIOXINT4SEL(4:0)

XINT4

InterruptControl

XINT5CR(15:0)

Mux

GPIOXINT5SEL(4:0)

XINT5

InterruptControl

XINT6CR(15:0)

Mux

GPIOXINT6SEL(4:0)

XINT6

InterruptControl

XINT7CR(15:0)

Mux

GPIOXINT7SEL(4:0)

XINT7

DMA

96Interrupts

PIE

INT1

INT12

C28

Core

GPIO32.int

GPIO63.int

GPIO

Mux

Latch

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Eight PIE block interrupts are grouped into one CPU interrupt. In total, 12 CPU interrupt groups, with

Figure 3-6. External Interrupts

8 interrupts per group equals 96 possible interrupts. On the 2833x/2823x devices , 58 of these are used by peripherals as shown in Table 3-13 .

The TRAP #VectorNumber instruction transfers program control to the interrupt service routine corresponding to the vector specified. TRAP #0 attempts to transfer program control to the address pointed to by the reset vector. The PIE vector table does not, however, include a reset vector. Therefore, TRAP #0 should not be used when the PIE is enabled. Doing so will result in undefined behavior.

When the PIE is enabled, TRAP #1 through TRAP #12 will transfer program control to the interrupt service routine corresponding to the first vector within the PIE group. For example: TRAP #1 fetches the vector from INT1.1, TRAP #2 fetches the vector from INT2.1, and so forth.

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

INT12

MUX

INT11

INT2

INT1

CPU

(Enable)(Flag)

INTx

INTx.8

PIEIERx(8:1) PIEIFRx(8:1)

MUX

INTx.7

INTx.6

INTx.5

INTx.4

INTx.3

INTx.2

INTx.1

From

Peripherals

External

Interrupts

(Enable) (Flag)

IER(12:1)IFR(12:1)

Global Enable

INTM

PIEACKx

(Enable/Flag)

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 3-7. Multiplexing of Interrupts Using the PIE Block

Table 3-13. PIE Peripheral Interrupts

CPU INTERRUPTS

INT1 XINT2 XINT1 Reserved

INT2 Reserved Reserved

INT3 Reserved Reserved

INT4 Reserved Reserved

INT5 Reserved Reserved Reserved Reserved Reserved Reserved

INT6 Reserved Reserved

INT7 Reserved Reserved

INT8 Reserved Reserved Reserved Reserved

INT9

INT10 Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved INT11 Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

INT12 Reserved XINT7 XINT6 XINT5 XINT4 XINT3

INTx.8 INTx.7 INTx.6 INTx.5 INTx.4 INTx.3 INTx.2 INTx.1

WAKEINT TINT0 ADCINT SEQ2INT SEQ1INT (LPM/WD) (TIMER 0) (ADC) (ADC) (ADC)

EPWM6_TZINT EPWM5_TZINT EPWM4_TZINT EPWM3_TZINT EPWM2_TZINT EPWM1_TZINT

(ePWM6) (ePWM5) (ePWM4) (ePWM3) (ePWM2) (ePWM1)

EPWM6_INT EPWM5_INT EPWM4_INT EPWM3_INT EPWM2_INT EPWM1_INT

(ePWM6) (ePWM5) (ePWM4) (ePWM3) (ePWM2) (ePWM1)

ECAP6_INT ECAP5_INT ECAP4_INT ECAP3_INT ECAP2_INT ECAP1_INT

(eCAP6) (eCAP5) (eCAP4) (eCAP3) (eCAP2) (eCAP1)

MXINTA MRINTA MXINTB MRINTB SPITXINTA SPIRXINTA

(McBSP-A) (McBSP-A) (McBSP-B) (McBSP-B) (SPI-A) (SPI-A)

DINTCH6 DINTCH5 DINTCH4 DINTCH3 DINTCH2 DINTCH1

(DMA) (DMA) (DMA) (DMA) (DMA) (DMA)

SCITXINTC SCIRXINTC I2CINT2A I2CINT1A

(SCI-C) (SCI-C) (I2C-A) (I2C-A)

ECAN1_INTB ECAN0_INTB ECAN1_INTA ECAN0_INTA SCITXINTB SCIRXINTB SCITXINTA SCIRXINTA

(CAN-B) (CAN-B) (CAN-A) (CAN-A) (SCI-B) (SCI-B) (SCI-A) (SCI-A)

LUF LVF

(FPU) (FPU)

(1) Out of the 96 possible interrupts, 58 interrupts are currently used. The remaining interrupts are reserved for future devices. These

interrupts can be used as software interrupts if they are enabled at the PIEIFRx level, provided none of the interrupts within the group is being used by a peripheral. Otherwise, interrupts coming in from peripherals may be lost by accidentally clearing their flag while modifying the PIEIFR. To summarize, there are two safe cases when the reserved interrupts could be used as software interrupts:

1) No peripheral within the group is asserting interrupts.

2) No peripheral interrupts are assigned to the group (example PIE group 11).

PIE INTERRUPTS

(1)

EQEP2_INT EQEP1_INT

(eQEP2) (eQEP1)

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 3-14. PIE Configuration and Control Registers

NAME ADDRESS SIZE (x16) DESCRIPTION

PIECTRL 0x0CE0 1 PIE, Control Register PIEACK 0x0CE1 1 PIE, Acknowledge Register PIEIER1 0x0CE2 1 PIE, INT1 Group Enable Register PIEIFR1 0x0CE3 1 PIE, INT1 Group Flag Register PIEIER2 0x0CE4 1 PIE, INT2 Group Enable Register PIEIFR2 0x0CE5 1 PIE, INT2 Group Flag Register PIEIER3 0x0CE6 1 PIE, INT3 Group Enable Register PIEIFR3 0x0CE7 1 PIE, INT3 Group Flag Register PIEIER4 0x0CE8 1 PIE, INT4 Group Enable Register PIEIFR4 0x0CE9 1 PIE, INT4 Group Flag Register PIEIER5 0x0CEA 1 PIE, INT5 Group Enable Register PIEIFR5 0x0CEB 1 PIE, INT5 Group Flag Register PIEIER6 0x0CEC 1 PIE, INT6 Group Enable Register PIEIFR6 0x0CED 1 PIE, INT6 Group Flag Register PIEIER7 0x0CEE 1 PIE, INT7 Group Enable Register PIEIFR7 0x0CEF 1 PIE, INT7 Group Flag Register PIEIER8 0x0CF0 1 PIE, INT8 Group Enable Register PIEIFR8 0x0CF1 1 PIE, INT8 Group Flag Register PIEIER9 0x0CF2 1 PIE, INT9 Group Enable Register PIEIFR9 0x0CF3 1 PIE, INT9 Group Flag Register PIEIER10 0x0CF4 1 PIE, INT10 Group Enable Register PIEIFR10 0x0CF5 1 PIE, INT10 Group Flag Register PIEIER11 0x0CF6 1 PIE, INT11 Group Enable Register PIEIFR11 0x0CF7 1 PIE, INT11 Group Flag Register PIEIER12 0x0CF8 1 PIE, INT12 Group Enable Register PIEIFR12 0x0CF9 1 PIE, INT12 Group Flag Register Reserved 0x0CFA – 0x0CFF 6 Reserved

(1) The PIE configuration and control registers are not protected by EALLOW mode. The PIE vector table

is protected.

www.ti.com

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

3.5.1 External Interrupts

NAME ADDRESS SIZE (x16) DESCRIPTION

XINT1CR 0x00 7070 1 XINT1 configuration register XINT2CR 0x00 7071 1 XINT2 configuration register XINT3CR 0x00 7072 1 XINT3 configuration register XINT4CR 0x00 7073 1 XINT4 configuration register XINT5CR 0x00 7074 1 XINT5 configuration register XINT6CR 0x00 7075 1 XINT6 configuration register XINT7CR 0x00 7076 1 XINT7 configuration register XNMICR 0x00 7077 1 XNMI configuration register XINT1CTR 0x00 7078 1 XINT1 counter register XINT2CTR 0x00 7079 1 XINT2 counter register Reserved 0x707A – 0x707E 5 XNMICTR 0x00 707F 1 XNMI counter register

Each external interrupt can be enabled/disabled or qualified using positive, negative, or both positive and negative edge. For more information, see the TMS320x2833x, 2823x System Control and Interrupts Reference Guide (literature number SPRUFB0).

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 3-15. External Interrupt Registers

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

ePWM1/../6,HRPWM1/../6,

eCAP1/../6,eQEP1/2

Peripheral

Registers

Bridge

ClockEnables

I/O

Peripheral

Registers

ClockEnables

I/O

eCAN-A/B

Peripheral

Registers

ClockEnables

I/O

SPI-A,SCI-A/B/C

LOSPCP

LSPCLK

System Control

Bridge

SYSCLKOUT

MemoryBus

C28xCore

GPIO

Mux

ClockEnables

Peripheral

Registers

I/O

McBSP-A/B

LOSPCP

LSPCLK

ClockEnables

Bridge

HISPCP

HSPCLK

DMA

Bus

Result

Registers

Bridge

12-Bit ADC

ADC

Registers

16Channels

DMA

ClockEnables

PeripheralBus

CLKIN

I2C-A

ClockEnables

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

3.6 System Control

This section describes the oscillator, PLL and clocking mechanisms, the watchdog function and the low power modes. Figure 3-8 shows the various clock and reset domains that will be discussed.

www.ti.com

A. CLKIN is the clock into the CPU. It is passed out of the CPU as SYSCLKOUT (that is, CLKIN is the same frequency

as SYSCLKOUT). See Figure 3-9 for an illustration of how CLKIN is derived.

Figure 3-8. Clock and Reset Domains

NOTE

There is a 2-SYSCLKOUT cycle delay from when the write to PCLKCR0/1/2 registers (enables peripheral clocks) occurs to when the action is valid. This delay must be taken into account before attempting to access the peripheral configuration registers.

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

XCLKIN

(3.3-Vclockinput

fromexternal

oscillator)

On-chip

oscillator

PLLSTS[OSCOFF]

OSCCLK

PLL

VCOCLK

4-bitMultiplierPLLCR[DIV]

OSCCLKor

VCOCLK

CLKIN

OSCCLK

PLLSTS[PLLOFF]

n ≠ 0

PLLSTS[DIVSEL]

External

Crystalor

Resonator

CPU

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

The PLL, clocking, watchdog and low-power modes, are controlled by the registers listed in Table 3-16.

Table 3-16. PLL, Clocking, Watchdog, and Low-Power Mode Registers

NAME ADDRESS SIZE (x16) DESCRIPTION

PLLSTS 0x00 7011 1 PLL Status Register Reserved 0x00 7012 – 0x00 7018 7 Reserved HISPCP 0x00 701A 1 High-Speed Peripheral Clock Pre-Scaler Register LOSPCP 0x00 701B 1 Low-Speed Peripheral Clock Pre-Scaler Register PCLKCR0 0x00 701C 1 Peripheral Clock Control Register 0 PCLKCR1 0x00 701D 1 Peripheral Clock Control Register 1 LPMCR0 0x00 701E 1 Low Power Mode Control Register 0 Reserved 0x00 701F 1 Reserved PCLKCR3 0x00 7020 1 Peripheral Clock Control Register 3 PLLCR 0x00 7021 1 PLL Control Register SCSR 0x00 7022 1 System Control and Status Register WDCNTR 0x00 7023 1 Watchdog Counter Register Reserved 0x00 7024 1 Reserved WDKEY 0x00 7025 1 Watchdog Reset Key Register Reserved 0x00 7026 – 0x00 7028 3 Reserved WDCR 0x00 7029 1 Watchdog Control Register Reserved 0x00 702A – 0x00 702D 4 Reserved MAPCNF 0x00 702E 1 ePWM/HRPWM Re-map Register

3.6.1 OSC and PLL Block

Figure 3-9 shows the OSC and PLL block.

The on-chip oscillator circuit enables a crystal/resonator to be attached to the 2833x/2823x devices using the X1 and X2 pins. If the on-chip oscillator is not used, an external oscillator can be used in either one of the following configurations:

1. A 3.3-V external oscillator can be directly connected to the XCLKIN pin. The X2 pin should be left unconnected and the X1 pin tied low . The logic-high level in this case should not exceed V

2. A 1.9-V (1.8-V for 100 MHz devices) external oscillator can be directly connected to the X1 pin. The X2 pin should be left unconnected and the XCLKIN pin tied low . The logic-high level in this case should not exceed .

Figure 3-9. OSC and PLL Block Diagram

DDIO

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

External Clock Signal

(Toggling 0-V )

DDIO

XCLKIN

External Clock Signal

(Toggling 0-V )

XCLKIN

X2X1

Crystal

XCLKIN

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

The three possible input-clock configurations are shown in Figure 3-10 through Figure 3-12.

Figure 3-10. Using a 3.3-V External Oscillator

Figure 3-11. Using a 1.9 -V External Oscillator

www.ti.com

Figure 3-12. Using the Internal Oscillator

3.6.1.1 External Reference Oscillator Clock Option

The typical specifications for the external quartz crystal for a frequency of 30 MHz are listed below:

• Fundamental mode, parallel resonant

• CL(load capacitance) = 12 pF

• CL1= CL2= 24 pF

• C

shunt

= 6 pF

• ESR range = 25 to 40 Ω

TI recommends that customers have the resonator/crystal vendor characterize the operation of their device with the DSC chip. The resonator/crystal vendor has the equipment and expertise to tune the tank circuit. The vendor can also advise the customer regarding the proper tank component values that will produce proper start up and stability over the entire operating range.

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

3.6.1.2 PLL-Based Clock Module

The devices have an on-chip, PLL-based clock module. This module provides all the necessary clocking signals for the device, as well as control for low-power mode entry. The PLL has a 4-bit ratio control PLLCR[DIV] to select different CPU clock rates. The watchdog module should be disabled before writing to the PLLCR register. It can be re-enabled (if need be) after the PLL module has stabilized, which takes 131072 OSCCLK cycles. The input clock and PLLCR[DIV] bits should be chosen in such a way that the output frequency of the PLL (VCOCLK) does not exceed 300 MHz.

Table 3-17. PLL Settings

PLLCR[DIV] VALUE

0000 (PLL bypass) OSCCLK/4 (Default) OSCCLK/2 OSCCLK

0001 (OSCCLK * 1)/4 (OSCCLK * 1)/2 – 0010 (OSCCLK * 2)/4 (OSCCLK * 2)/2 – 0011 (OSCCLK * 3)/4 (OSCCLK * 3)/2 – 0100 (OSCCLK * 4)/4 (OSCCLK * 4)/2 – 0101 (OSCCLK * 5)/4 (OSCCLK * 5)/2 – 0110 (OSCCLK * 6)/4 (OSCCLK * 6)/2 – 0111 (OSCCLK * 7)/4 (OSCCLK * 7)/2 – 1000 (OSCCLK * 8)/4 (OSCCLK * 8)/2 – 1001 (OSCCLK * 9)/4 (OSCCLK * 9)/2 – 1010 (OSCCLK * 10)/4 (OSCCLK * 10)/2 –

1011 – 1111 Reserved Reserved Reserved

(1) By default, PLLSTS[DIVSEL] is configured for /4. (The boot ROM changes this to /2.) PLLSTS[DIVSEL] must be 0 before writing to the

PLLCR and should be changed only after PLLSTS[PLLLOCKS] = 1.

(2) The PLL control register (PLLCR) and PLL Status Register (PLLSTS) are reset to their default state by the XRS signal or a watchdog

reset only. A reset issued by the debugger or the missing clock detect logic have no effect.

(3) This register is EALLOW protected. See the TMS320x2833x, 2823x System Control and Interrupts Reference Guide (literature

numberSPRUFB0 ) for more information.

(4) A divider at the output of the PLL is necessary to ensure correct duty cycle of the clock fed to the core. For this reason, a DIVSEL value

of 3 is not allowed when the PLL is active.

(2) (3)

PLLSTS[DIVSEL] = 0 or 1

PLLSTS[DIVSEL] = 2 PLLSTS[DIVSEL] = 3

(1)

SYSCLKOUT (CLKIN)

(4)

Table 3-18. CLKIN Divide Options

PLLSTS [DIVSEL] CLKIN DIVIDE

0 /4 1 /4 2 /2 3 /1

(1) This mode can be used only when the PLL is bypassed or off.

(1)

The PLL-based clock module provides two modes of operation:

• Crystal-operation - This mode allows the use of an external crystal/resonator to provide the time base to the device.

• External clock source operation - This mode allows the internal oscillator to be bypassed. The device clocks are generated from an external clock source input on the X1 or the XCLKIN pin.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Table 3-19. Possible PLL Configuration Modes

PLL MODE REMARKS PLLSTS[DIVSEL]

Invoked by the user setting the PLLOFF bit in the PLLSTS register. The PLL block

PLL Off power operation. The PLLCR register must first be set to 0x0000 (PLL Bypass) 2 OSCCLK/2

PLL Bypass 2 OSCCLK/2

PLL Enable

is disabled in this mode. This can be useful to reduce system noise and for low 0, 1 OSCCLK/4 before entering this mode. The CPU clock (CLKIN) is derived directly from the 3 OSCCLK/1

input clock on either X1/X2, X1 or XCLKIN. PLL Bypass is the default PLL configuration upon power-up or after an external

reset (XRS). This mode is selected when the PLLCR register is set to 0x0000 or while the PLL locks to a new frequency after the PLLCR register has been modified. In this mode, the PLL itself is bypassed but the PLL is not turned off.

Achieved by writing a non-zero value n into the PLLCR register. Upon writing to the 0, 1 OSCCLK*n/4 PLLCR the device will switch to PLL Bypass mode until the PLL locks. 2 OSCCLK*n/2

0, 1 OSCCLK/4

3 OSCCLK/1

CLKIN AND

SYSCLKOUT

3.6.1.3 Loss of Input Clock

In PLL-enabled and PLL-bypass mode, if the input clock OSCCLK is removed or absent, the PLL will still issue a limp-mode clock. The limp-mode clock continues to clock the CPU and peripherals at a typical frequency of 1–5 MHz. Limp mode is not specified to work from power-up, only after input clocks have been present initially. In PLL bypass mode, the limp mode clock from the PLL is automatically routed to the CPU if the input clock is removed or absent.

Normally, when the input clocks are present, the watchdog counter decrements to initiate a watchdog reset or WDINT interrupt. However, when the external input clock fails, the watchdog counter stops decrementing (i.e., the watchdog counter does not change with the limp-mode clock). In addition to this, the device will be reset and the “Missing Clock Status” (MCLKSTS) bit will be set. These conditions could be used by the application firmware to detect the input clock failure and initiate necessary shut-down procedure for the system.

NOTE

Applications in which the correct CPU operating frequency is absolutely critical should implement a mechanism by which the DSC will be held in reset, should the input clocks ever fail. For example, an R-C circuit may be used to trigger the XRS pin of the DSC, should the capacitor ever get fully charged. An I/O pin may be used to discharge the capacitor on a periodic basis to prevent it from getting fully charged. Such a circuit would also help in detecting failure of the flash memory and the V

DD3VFL

rail.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

/512

OSCCLK

WDCR (WDPS[2:0])

WDCLK

WDCNTR[7:0]

WDKEY[7:0]

Good Key

WDCR (WDCHK[2:0])

Bad

WDCHK

Key

WDCR (WDDIS)

Clear Counter

SCSR (WDENINT)

Watchdog

Prescaler

Generate

Output Pulse

(512 OSCCLKs)

8-Bit

Watchdog

Counter

CLR

WDRST

WDINT

Watchdog

55 + AA

Key Detector

XRS

Core-reset

WDRST

(A)

Internal

Pullup

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

3.6.2 Watchdog Block

The watchdog block on the 2833x/2823x device is similar to the one used on the 240x and 281x devices. The watchdog module generates an output pulse, 512 oscillator clocks wide (OSCCLK), whenever the 8-bit watchdog up counter has reached its maximum value. To prevent this, the user disables the counter or the software must periodically write a 0x55 + 0xAA sequence into the watchdog key register which will reset the watchdog counter. Figure 3-13 shows the various functional blocks within the watchdog module.

SPRS439I–JUNE 2007–REVISED MARCH 2011

A. TheWDRST signal is driven low for 512 OSCCLK cycles.

Figure 3-13. Watchdog Module

The WDINT signal enables the watchdog to be used as a wakeup from IDLE/STANDBY mode. In STANDBY mode, all peripherals are turned off on the device. The only peripheral that remains

functional is the watchdog. The WATCHDOG module will run off OSCCLK. The WDINT signal is fed to the LPM block so that it can wake the device from STANDBY (if enabled). See Section 3.7, Low-Power Modes Block, for more details.

In IDLE mode, the WDINT signal can generate an interrupt to the CPU, via the PIE, to take the CPU out of IDLE mode.

In HALT mode, this feature cannot be used because the oscillator (and PLL) are turned off and hence so is the WATCHDOG.

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

3.7 Low-Power Modes Block

The low-power modes on the 2833x/2823x devices are similar to the 240x devices. Table 3-20 summarizes the various modes.

Table 3-20. Low-Power Modes

(3)

, XNMI

(1)

MODE LPMCR0(1:0) OSCCLK CLKIN SYSCLKOUT EXIT

IDLE 00 On On On

STANDBY 01 Off Off

HALT 1X (oscillator and PLL turned off, Off Off

(1) The Exit column lists which signals or under what conditions the low power mode will be exited. A low signal, on any of the signals, will

exit the low power condition. This signal must be kept low long enough for an interrupt to be recognized by the device. Otherwise, the IDLE mode will not be exited and the device will go back into the indicated low power mode.

(2) The IDLE mode on the C28x behaves differently than on the 24x/240x. On the C28x, the clock output from the CPU (SYSCLKOUT) is

still functional while on the 24x/240x the clock is turned off.

(3) On the C28x, the JTAG port can still function even if the CPU clock (CLKIN) is turned off.

(watchdog still running) signal, debugger

watchdog not functional)

On XRS, Watchdog interrupt, GPIO Port A

Off

(2)

XRS, Watchdog interrupt, any enabled interrupt, XNMI

XRS, GPIO Port A signal, XNMI, debugger

(3)

The various low-power modes operate as follows:

IDLE Mode: This mode is exited by any enabled interrupt or an XNMI that is recognized

by the processor. The LPM block performs no tasks during this mode as long as the LPMCR0(LPM) bits are set to 0,0.

STANDBY Mode: Any GPIO port A signal (GPIO[31:0]) can wake the device from STANDBY

mode. The user must select which signal(s) will wake the device in the GPIOLPMSEL register. The selected signal(s) are also qualified by the OSCCLK before waking the device. The number of OSCCLKs is specified in the LPMCR0 register.

HALT Mode: Only the XRS and any GPIO port A signal (GPIO[31:0]) can wake the

device from HALT mode. The user selects the signal in the GPIOLPMSEL register.

NOTE

The low-power modes do not affect the state of the output pins (PWM pins included). They will be in whatever state the code left them in when the IDLE instruction was executed. See the TMS320x2833x, 2823x System Control and Interrupts Reference Guide (literature number SPRUFB0) for more details.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

4 Peripherals

The integrated peripherals of the 2833x/2823x devices are described in the following subsections:

• 6-channel Direct Memory Access (DMA)

• Three 32-bit CPU-Timers

• Up to six enhanced PWM modules (ePWM1, ePWM2, ePWM3, ePWM4, ePWM5, ePWM6)

• Up to six enhanced capture modules (eCAP1, eCAP2, eCAP3, eCAP4, eCAP5, eCAP6)

• Up to two enhanced QEP modules (eQEP1, eQEP2)

• Enhanced analog-to-digital converter (ADC) module

• Up to two enhanced controller area network (eCAN) modules (eCAN-A, eCAN-B)

• Up to three serial communications interface modules (SCI-A, SCI-B, SCI-C)

• One serial peripheral interface (SPI) module (SPI-A)

• Inter-integrated circuit module (I2C)

• Up to two multichannel buffered serial port (McBSP-A, McBSP-B) modules

• Digital I/O and shared pin functions

• External Interface (XINTF)

4.1 DMA Overview

Features:

• 6 Channels with independent PIE interrupts

• Trigger Sources: – ePWM SOCA/SOCB – ADC Sequencer 1 and Sequencer 2 – McBSP-A and McBSP-B transmit and receive logic – XINT1–7 and XINT13 – CPU Timers – Software

• Data Sources/Destinations: – L4–L7 16K × 16 SARAM – All XINTF zones – ADC Memory Bus mapped RESULT registers – McBSP-A and McBSP-B transmit and receive buffers – ePWM registers

• Word Size: 16-bit or 32-bit (McBSPs limited to 16-bit)

• Throughput: 4 cycles/word (5 cycles/word for McBSP reads)

SPRS439I–JUNE 2007–REVISED MARCH 2011

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

ADC RESULT registers

ADC CPU

PF0

I/F

ADC DMA

PF0

I/F

ADC

control

and

RESULT

registers

ADC

PF2

I/F

L4 I/F

L4 SARAM (4Kx16)

L5 I/F

L5 SARAM (4Kx16)

L6 I/F

L6 SARAM (4Kx16)

L7 I/F

L7 SARAM (4Kx16)

PF3

I/F

McBSP A

McBSP B

Event

triggers

DMA

6-ch

External

interrupts

CPU

timers

CPUbus

DMA bus

PIE

INT7

DINT[CH1:CH6]

CPU

XINTFzonesinterface

XINTFmemoryzones

ePWM/

HRPWM

registers

(A)

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

A. The ePWM/HRPWM registers must be remapped to PF3 (through bit 0 of the MAPCNF register) before they can be

accessed by the DMA. The ePWM/HRPWM connection to DMA is not present in silicon revision 0.

Figure 4-1. DMA Functional Block Diagram

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

Borrow

Reset

Timer Reload

SYSCLKOUT

TCR.4

(Timer Start Status)

TINT

16-Bit Timer Divide-Down

TDDRH:TDDR

32-Bit Timer Period

PRDH:PRD

32-Bit Counter

TIMH:TIM

16-Bit Prescale Counter

PSCH:PSC

Borrow

INT1

INT12

INT14

28x

CPU

TINT2

TINT0

PIE

CPU-TIMER0

CPU-TIMER2

(ReservedforDSP/BIOS)

INT13

TINT1

CPU-TIMER1

XINT13

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

4.2 32-Bit CPU-Timers 0/1/2

There are three 32-bit CPU-timers on the devices (CPU-TIMER0/1/2). Timer 2 is reserved for DSP/BIOS™. CPU-Timer 0 and CPU-Timer 1 can be used in user applications.

These timers are different from the timers that are present in the ePWM modules.

NOTE: If the application is not using DSP/BIOS, then CPU-Timer 2 can be used in the application.

SPRS439I–JUNE 2007–REVISED MARCH 2011

NOTE

Figure 4-2. CPU-Timers

The timer interrupt signals (TINT0, TINT1, TINT2) are connected as shown in Figure 4-3.

A. The timer registers are connected to the memory bus of the C28x processor. B. The timing of the timers is synchronized to SYSCLKOUT of the processor clock.

Figure 4-3. CPU-Timer Interrupt Signals and Output Signal

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

The general operation of the timer is as follows: The 32-bit counter register "TIMH:TIM" is loaded with the value in the period register "PRDH:PRD". The counter register decrements at the SYSCLKOUT rate of the C28x. When the counter reaches 0, a timer interrupt output signal generates an interrupt pulse. The registers listed in Table 4-1 are used to configure the timers. For more information, see the TMS320x2833x, 2823x System Control and Interrupts Reference Guide (literature number SPRUFB0) .

Table 4-1. CPU-Timers 0, 1, 2 Configuration and Control Registers

NAME ADDRESS SIZE (x16) DESCRIPTION

TIMER0TIM 0x0C00 1 CPU-Timer 0, Counter Register TIMER0TIMH 0x0C01 1 CPU-Timer 0, Counter Register High TIMER0PRD 0x0C02 1 CPU-Timer 0, Period Register TIMER0PRDH 0x0C03 1 CPU-Timer 0, Period Register High TIMER0TCR 0x0C04 1 CPU-Timer 0, Control Register Reserved 0x0C05 1 TIMER0TPR 0x0C06 1 CPU-Timer 0, Prescale Register TIMER0TPRH 0x0C07 1 CPU-Timer 0, Prescale Register High TIMER1TIM 0x0C08 1 CPU-Timer 1, Counter Register TIMER1TIMH 0x0C09 1 CPU-Timer 1, Counter Register High TIMER1PRD 0x0C0A 1 CPU-Timer 1, Period Register TIMER1PRDH 0x0C0B 1 CPU-Timer 1, Period Register High TIMER1TCR 0x0C0C 1 CPU-Timer 1, Control Register Reserved 0x0C0D 1 TIMER1TPR 0x0C0E 1 CPU-Timer 1, Prescale Register TIMER1TPRH 0x0C0F 1 CPU-Timer 1, Prescale Register High TIMER2TIM 0x0C10 1 CPU-Timer 2, Counter Register TIMER2TIMH 0x0C11 1 CPU-Timer 2, Counter Register High TIMER2PRD 0x0C12 1 CPU-Timer 2, Period Register TIMER2PRDH 0x0C13 1 CPU-Timer 2, Period Register High TIMER2TCR 0x0C14 1 CPU-Timer 2, Control Register Reserved 0x0C15 1 TIMER2TPR 0x0C16 1 CPU-Timer 2, Prescale Register TIMER2TPRH 0x0C17 1 CPU-Timer 2, Prescale Register High Reserved 0x0C18 – 0x0C3F 40

www.ti.com

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

PIE

TZ1

toTZ6

PeripheralBus

ePWM1module

ePWM2module

ePWMxmodule

EPWM1SYNCI

EPWM2SYNCI

EPWM2SYNCO

EPWMxSYNCI

EPWMxSYNCO

ADC

GPIO

MUX

EPWM1SYNCI

EPWM1SYNCO

ADCSOCxO

(A)

EPWMxA

EPWMxB

EPWM2A

EPWM2B

EPWM1A

EPWM1B

EPWM1INT

EPWM1SOC

EPWM2INT

EPWM2SOC

EPWMxINT

EPWMxSOC

toeCAP1

andePWM4

module

(syncin)

TZ1

toTZ6

TZ1 toTZ6

EPWM1SYNCO

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

4.3 Enhanced PWM Modules (ePWM1/2/3/4/5/6 )

The 2833x/2823x devices contain up to six enhanced PWM Modules (ePWM). Figure 4-4 shows a block diagram of multiple ePWM modules. Figure 4-4 shows the signal interconnections with the ePWM.

Table 4-2 show the complete ePWM register set per module and Table 4-3 shows the remapped register

configuration.

SPRS439I–JUNE 2007–REVISED MARCH 2011

A. ADCSOCxO is sent to the DMA as well when the ePWM registers are remapped to PF3 (through bit 0 of the

MAPCNF register).

B. By default, ePWM/HRPWM registers are mapped to Peripheral Frame 1 (PF1). Table 4-2 shows this configuration. To

re-map the registers to Peripheral Frame 3 (PF3) to enable DMA access, bit 0 (MAPEPWM) of MAPCNF register (address 0x702E) must be set to 1. Table 4-3 shows the remapped configuration.

Figure 4-4. Multiple PWM Modules in an 2833x/2823x System

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Table 4-2. ePWM Control and Status Registers (Default Configuration in PF1)

NAME ePWM1 ePWM2 ePWM3 ePWM4 ePWM5 ePWM6 DESCRIPTION

TBCTL 0x6800 0x6840 0x6880 0x68C0 0x6900 0x6940 1 / 0 Time Base Control Register TBSTS 0x6801 0x6841 0x6881 0x68C1 0x6901 0x6941 1 / 0 Time Base Status Register TBPHSHR 0x6802 0x6842 0x6882 0x68C2 0x6902 0x6942 1 / 0 Time Base Phase HRPWM Register TBPHS 0x6803 0x6843 0x6883 0x68C3 0x6903 0x6943 1 / 0 Time Base Phase Register TBCTR 0x6804 0x6844 0x6884 0x68C4 0x6904 0x6944 1 / 0 Time Base Counter Register TBPRD 0x6805 0x6845 0x6885 0x68C5 0x6905 0x6945 1 / 1 Time Base Period Register Set CMPCTL 0x6807 0x6847 0x6887 0x68C7 0x6907 0x6947 1 / 0 Counter Compare Control Register CMPAHR 0x6808 0x6848 0x6888 0x68C8 0x6908 0x6948 1 / 1 Time Base Compare A HRPWM Register CMPA 0x6809 0x6849 0x6889 0x68C9 0x6909 0x6949 1 / 1 Counter Compare A Register Set CMPB 0x680A 0x684A 0x688A 0x68CA 0x690A 0x694A 1 / 1 Counter Compare B Register Set AQCTLA 0x680B 0x684B 0x688B 0x68CB 0x690B 0x694B 1 / 0 Action Qualifier Control Register For Output A AQCTLB 0x680C 0x684C 0x688C 0x68CC 0x690C 0x694C 1 / 0 Action Qualifier Control Register For Output B AQSFRC 0x680D 0x684D 0x688D 0x68CD 0x690D 0x694D 1 / 0 Action Qualifier Software Force Register AQCSFRC 0x680E 0x684E 0x688E 0x68CE 0x690E 0x694E 1 / 1 Action Qualifier Continuous S/W Force Register Set DBCTL 0x680F 0x684F 0x688F 0x68CF 0x690F 0x694F 1 / 1 Dead-Band Generator Control Register DBRED 0x6810 0x6850 0x6890 0x68D0 0x6910 0x6950 1 / 0 Dead-Band Generator Rising Edge Delay Count Register DBFED 0x6811 0x6851 0x6891 0x68D1 0x6911 0x6951 1 / 0 Dead-Band Generator Falling Edge Delay Count Register TZSEL 0x6812 0x6852 0x6892 0x68D2 0x6912 0x6952 1 / 0 Trip Zone Select Register TZCTL 0x6814 0x6854 0x6894 0x68D4 0x6914 0x6954 1 / 0 Trip Zone Control Register TZEINT 0x6815 0x6855 0x6895 0x68D5 0x6915 0x6955 1 / 0 Trip Zone Enable Interrupt Register TZFLG 0x6816 0x6856 0x6896 0x68D6 0x6916 0x6956 1 / 0 Trip Zone Flag Register TZCLR 0x6817 0x6857 0x6897 0x68D7 0x6917 0x6957 1 / 0 Trip Zone Clear Register TZFRC 0x6818 0x6858 0x6898 0x68D8 0x6918 0x6958 1 / 0 Trip Zone Force Register ETSEL 0x6819 0x6859 0x6899 0x68D9 0x6919 0x6959 1 / 0 Event Trigger Selection Register ETPS 0x681A 0x685A 0x689A 0x68DA 0x691A 0x695A 1 / 0 Event Trigger Prescale Register ETFLG 0x681B 0x685B 0x689B 0x68DB 0x691B 0x695B 1 / 0 Event Trigger Flag Register ETCLR 0x681C 0x685C 0x689C 0x68DC 0x691C 0x695C 1 / 0 Event Trigger Clear Register ETFRC 0x681D 0x685D 0x689D 0x68DD 0x691D 0x695D 1 / 0 Event Trigger Force Register PCCTL 0x681E 0x685E 0x689E 0x68DE 0x691E 0x695E 1 / 0 PWM Chopper Control Register HRCNFG 0x6820 0x6860 0x68A0 0x68E0 0x6920 0x6960 1 / 0 HRPWM Configuration Register

(1) Registers that are EALLOW protected.

SIZE (x16) /

#SHADOW

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 4-3. ePWM Control and Status Registers (Remapped Configuration in PF3 - DMA-Accessible)

NAME ePWM1 ePWM2 ePWM3 ePWM4 ePWM5 ePWM6 DESCRIPTION

TBCTL 0x5800 0x5840 0x5880 0x58C0 0x5900 0x5940 1 / 0 Time Base Control Register TBSTS 0x5801 0x5841 0x5881 0x58C1 0x5901 0x5941 1 / 0 Time Base Status Register TBPHSHR 0x5802 0x5842 0x5882 0x58C2 0x5902 0x5942 1 / 0 Time Base Phase HRPWM Register TBPHS 0x5803 0x5843 0x5883 0x58C3 0x5903 0x5943 1 / 0 Time Base Phase Register TBCTR 0x5804 0x5844 0x5884 0x58C4 0x5904 0x5944 1 / 0 Time Base Counter Register TBPRD 0x5805 0x5845 0x5885 0x58C5 0x5905 0x5945 1 / 1 Time Base Period Register Set CMPCTL 0x5807 0x5847 0x5887 0x58C7 0x5907 0x5947 1 / 0 Counter Compare Control Register CMPAHR 0x5808 0x5848 0x5888 0x58C8 0x5908 0x5948 1 / 1 Time Base Compare A HRPWM Register CMPA 0x5809 0x5849 0x5889 0x58C9 0x5909 0x5949 1 / 1 Counter Compare A Register Set CMPB 0x580A 0x584A 0x588A 0x58CA 0x590A 0x594A 1 / 1 Counter Compare B Register Set AQCTLA 0x580B 0x584B 0x588B 0x58CB 0x590B 0x594B 1 / 0 Action Qualifier Control Register For Output A AQCTLB 0x580C 0x584C 0x588C 0x58CC 0x590C 0x594C 1 / 0 Action Qualifier Control Register For Output B AQSFRC 0x580D 0x584D 0x588D 0x58CD 0x590D 0x594D 1 / 0 Action Qualifier Software Force Register AQCSFRC 0x580E 0x584E 0x588E 0x58CE 0x590E 0x594E 1 / 1 Action Qualifier Continuous S/W Force Register Set DBCTL 0x580F 0x584F 0x588F 0x58CF 0x590F 0x594F 1 / 1 Dead-Band Generator Control Register DBRED 0x5810 0x5850 0x5890 0x58D0 0x5910 0x5950 1 / 0 Dead-Band Generator Rising Edge Delay Count Register DBFED 0x5811 0x5851 0x5891 0x58D1 0x5911 0x5951 1 / 0 Dead-Band Generator Falling Edge Delay Count Register TZSEL 0x5812 0x5852 0x5892 0x58D2 0x5912 0x5952 1 / 0 Trip Zone Select Register TZCTL 0x5814 0x5854 0x5894 0x58D4 0x5914 0x5954 1 / 0 Trip Zone Control Register TZEINT 0x5815 0x5855 0x5895 0x58D5 0x5915 0x5955 1 / 0 Trip Zone Enable Interrupt Register TZFLG 0x5816 0x5856 0x5896 0x58D6 0x5916 0x5956 1 / 0 Trip Zone Flag Register TZCLR 0x5817 0x5857 0x5897 0x58D7 0x5917 0x5957 1 / 0 Trip Zone Clear Register TZFRC 0x5818 0x5858 0x5898 0x58D8 0x5918 0x5958 1 / 0 Trip Zone Force Register ETSEL 0x5819 0x5859 0x5899 0x58D9 0x5919 0x5959 1 / 0 Event Trigger Selection Register ETPS 0x581A 0x585A 0x589A 0x58DA 0x591A 0x595A 1 / 0 Event Trigger Prescale Register ETFLG 0x581B 0x585B 0x589B 0x58DB 0x591B 0x595B 1 / 0 Event Trigger Flag Register ETCLR 0x581C 0x585C 0x589C 0x58DC 0x591C 0x595C 1 / 0 Event Trigger Clear Register ETFRC 0x581D 0x585D 0x589D 0x58DD 0x591D 0x595D 1 / 0 Event Trigger Force Register PCCTL 0x581E 0x585E 0x589E 0x58DE 0x591E 0x595E 1 / 0 PWM Chopper Control Register HRCNFG 0x5820 0x5860 0x58A0 058E0 0x5920 0x5960 1 / 0 HRPWM Configuration Register

(1) Registers that are EALLOW protected.

SIZE (x16) /

#SHADOW

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

CTR=PRD

TBPRD shadow (16)

TBPRD active (16)

Counter up/down

(16 bit)

TBCTR

active (16)

TBCTL[PHSEN]

TBCTL[SWFSYNC] (software forced sync)

EPWMxSYNCI

CTR=ZERO

CTR_Dir

CTR=CMPB

Disabled

Sync

in/out

select

Mux

TBCTL[SYNCOSEL]

EPWMxSYNCO

TBPHS active (24)

TBPHSHR (8)

Phase control

Time−base (TB)

CTR=CMPA

CMPA active (24)

CMPA shadow (24)

Action

qualifier

(AQ)

Counter compare (CC)

CMPB active (16)

CTR=CMPB

CMPB shadow (16)

CMPAHR (8)

EPWMA

EPWMB

Dead band

(DB) (PC)

chopper

PWM

zone

(TZ)

Trip

CTR = ZERO

EPWMxAO

EPWMxBO

EPWMxTZINT

TZ1 to TZ6

HiRes PWM (HRPWM)

CTR = PRD

CTR = ZERO

CTR = CMPB

CTR = CMPA

CTR_Dir

Event

trigger

and

interrupt

(ET)

EPWMxINT

EPWMxSOCA

EPWMxSOCB

CTR=ZERO

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 4-5. ePWM Submodules Showing Critical Internal Signal Interconnections

www.ti.com

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

4.4 High-Resolution PWM (HRPWM)

The HRPWM module offers PWM resolution (time granularity) which is significantly better than what can be achieved using conventionally derived digital PWM methods. The key points for the HRPWM module are:

• Significantly extends the time resolution capabilities of conventionally derived digital PWM

• Typically used when effective PWM resolution falls below ~ 9–10 bits. This occurs at PWM frequencies greater than ~200 kHz when using a CPU/System clock of 100 MHz.

• This capability can be utilized in both duty cycle and phase-shift control methods.

• Finer time granularity control or edge positioning is controlled via extensions to the Compare A and Phase registers of the ePWM module.

• HRPWM capabilities are offered only on the A signal path of an ePWM module (i.e., on the EPWMxA output). EPWMxB output has conventional PWM capabilities.

SPRS439I–JUNE 2007–REVISED MARCH 2011

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TSCTR

(Counter - 32-bit)

RST

CAP1

(APRD Active)

CAP2

(ACMP Active)

CAP3

(APRD Shadow)

CAP4

(ACMP Shadow)

Continuous/

One-Shot

Capture Control

LD1

LD2

LD3

LD4

PRD [0-31]

CTR [0-31]

eCAPx

MODE SELECT

Interrupt

Trigger

and Flag

Control

to PIE

CTR=CMP

ACMP

Shadow

Event

Prescale

CTRPHS

(Phase Register - 32-bit)

SYNCOut

SYNCIn

SYNC

Event

Qualifier

Polarity

Select

Polarity

Select

Polarity

Select

Polarity

Select

CTR=PRD

CTR_OVF

PWM

Compare

Logic

CTR [0-31]

PRD [0-31]

CMP [0-31]

CTR=CMP

CTR=PRD

CTR_OVF

OVF

APWM Mode

Delta Mode

Capture Events

CEVT[1:4]

APRD

Shadow

CMP [0-31]

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

4.5 Enhanced CAP Modules (eCAP1/2/3/4/5/6)

The 2833x/2823x device contains up to six enhanced capture (eCAP) modules. Figure 4-6 shows a functional block diagram of a module.

www.ti.com

Figure 4-6. eCAP Functional Block Diagram

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

The eCAP modules are clocked at the SYSCLKOUT rate. The clock enable bits (ECAP1/2/3/4/5/6ENCLK) in the PCLKCR1 register are used to turn off the eCAP

modules individually (for low power operation). Upon reset, ECAP1ENCLK, ECAP2ENCLK, ECAP3ENCLK, ECAP4ENCLK, ECAP5ENCLK, and ECAP6ENCLK are set to low, indicating that the peripheral clock is off.

Table 4-4. eCAP Control and Status Registers

NAME eCAP1 eCAP2 eCAP3 eCAP4 eCAP5 eCAP6 DESCRIPTION

TSCTR 0x6A00 0x6A20 0x6A40 0x6A60 0x6A80 0x6AA0 2 Time-Stamp Counter

CTRPHS 0x6A02 0x6A22 0x6A42 0x6A62 0x6A82 0x6AA2 2 Counter Phase Offset Value

CAP1 0x6A04 0x6A24 0x6A44 0x6A64 0x6A84 0x6AA4 2 Capture 1 Register CAP2 0x6A06 0x6A26 0x6A46 0x6A66 0x6A86 0x6AA6 2 Capture 2 Register CAP3 0x6A08 0x6A28 0x6A48 0x6A68 0x6A88 0x6AA8 2 Capture 3 Register CAP4 0x6A0A 0x6A2A 0x6A4A 0x6A6A 0x6A8A 0x6AAA 2 Capture 4 Register

Reserved 0x6A0C- 0x6A2C- 0x6A4C- 0x6A6C- 0x6A8C- 0x6AAC- 8 Reserved

0x6A12 0x6A32 0x6A52 0x6A72 0x6A92 0x6AB2 ECCTL1 0x6A14 0x6A34 0x6A54 0x6A74 0x6A94 0x6AB4 1 Capture Control Register 1 ECCTL2 0x6A15 0x6A35 0x6A55 0x6A75 0x6A95 0x6AB5 1 Capture Control Register 2

ECEINT 0x6A16 0x6A36 0x6A56 0x6A76 0x6A96 0x6AB6 1 Capture Interrupt Enable Register

ECFLG 0x6A17 0x6A37 0x6A57 0x6A77 0x6A97 0x6AB7 1 Capture Interrupt Flag Register ECCLR 0x6A18 0x6A38 0x6A58 0x6A78 0x6A98 0x6AB8 1 Capture Interrupt Clear Register ECFRC 0x6A19 0x6A39 0x6A59 0x6A79 0x6A99 0x6AB9 1 Capture Interrupt Force Register

Reserved 0x6A1A- 0x6A3A- 0x6A5A- 0x6A7A- 0x6A9A- 0x6ABA- 6 Reserved

0x6A1F 0x6A3F 0x6A5F 0x6A7F 0x6A9F 0x6ABF

SIZE

(x16)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

QWDTMR

QWDPRD

QWDOG

UTIME

QUPRD

QUTMR

UTOUT

WDTOUT

Quadrature

Capture

Unit

(QCAP)

QCPRDLAT

QCTMRLAT

QFLG

QEPSTS

QEPCTL

Registers

Used by

Multiple Units

QCLK

QDIR

PHE

PCSOUT

Quadrature

Decoder

(QDU)

QDECCTL

Position Counter/

Control Unit

(PCCU)

QPOSLAT

QPOSSLAT

QPOSILAT

EQEPxAIN

EQEPxBIN

EQEPxIIN

EQEPxIOUT

EQEPxIOE

EQEPxSIN

EQEPxSOUT

EQEPxSOE

GPIO

MUX

EQEPxA/XCLK

EQEPxB/XDIR

EQEPxS

EQEPxI

QPOSCMP

QEINT

QFRC

QCLR

QPOSCTL

1632

QPOSCNT

QPOSMAX

QPOSINIT

PIE

EQEPxINT

Enhanced QEP (eQEP) Peripheral

System Control

Registers

QCTMR

QCPRD

1616

QCAPCTL

EQEPxENCLK

SYSCLKOUT

To CPU

Data Bus

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

4.6 Enhanced QEP Modules (eQEP1/2 )

The device contains up to two enhanced quadrature encoder (eQEP) modules . Figure 4-7 shows the block diagram of the eQEP module.

www.ti.com

Figure 4-7. eQEP Functional Block Diagram

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 4-5 provides a summary of the eQEP registers.

Table 4-5. eQEP Control and Status Registers

NAME SIZE(x16)/ REGISTER DESCRIPTION

QPOSCNT 0x6B00 0x6B40 2/0 eQEP Position Counter QPOSINIT 0x6B02 0x6B42 2/0 eQEP Initialization Position Count QPOSMAX 0x6B04 0x6B44 2/0 eQEP Maximum Position Count QPOSCMP 0x6B06 0x6B46 2/1 eQEP Position-compare QPOSILAT 0x6B08 0x6B48 2/0 eQEP Index Position Latch QPOSSLAT 0x6B0A 0x6B4A 2/0 eQEP Strobe Position Latch QPOSLAT 0x6B0C 0x6B4C 2/0 eQEP Position Latch QUTMR 0x6B0E 0x6B4E 2/0 eQEP Unit Timer QUPRD 0x6B10 0x6B50 2/0 eQEP Unit Period Register QWDTMR 0x6B12 0x6B52 1/0 eQEP Watchdog Timer QWDPRD 0x6B13 0x6B53 1/0 eQEP Watchdog Period Register QDECCTL 0x6B14 0x6B54 1/0 eQEP Decoder Control Register QEPCTL 0x6B15 0x6B55 1/0 eQEP Control Register QCAPCTL 0x6B16 0x6B56 1/0 eQEP Capture Control Register QPOSCTL 0x6B17 0x6B57 1/0 eQEP Position-compare Control Register QEINT 0x6B18 0x6B58 1/0 eQEP Interrupt Enable Register QFLG 0x6B19 0x6B59 1/0 eQEP Interrupt Flag Register QCLR 0x6B1A 0x6B5A 1/0 eQEP Interrupt Clear Register QFRC 0x6B1B 0x6B5B 1/0 eQEP Interrupt Force Register QEPSTS 0x6B1C 0x6B5C 1/0 eQEP Status Register QCTMR 0x6B1D 0x6B5D 1/0 eQEP Capture Timer QCPRD 0x6B1E 0x6B5E 1/0 eQEP Capture Period Register QCTMRLAT 0x6B1F 0x6B5F 1/0 eQEP Capture Timer Latch QCPRDLAT 0x6B20 0x6B60 1/0 eQEP Capture Period Latch Reserved 0x6B21 – 0x6B61 – 31/0

eQEP1 eQEP2

ADDRESS ADDRESS

0x6B3F 0x6B7F

eQEP1

#SHADOW

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

0,ValueDigital =

V0inputwhen £

4095,ValueDigital =

V3inputwhen ³

V3inputV0when <<

ADCLOVoltageAnalogInput

4096ValueDigital

´=

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

4.7 Analog-to-Digital Converter (ADC) Module

A simplified functional block diagram of the ADC module is shown in Figure 4-8. The ADC module consists of a 12-bit ADC with a built-in sample-and-hold (S/H) circuit. Functions of the ADC module include:

• 12-bit ADC core with built-in S/H

• Analog input: 0.0 V to 3.0 V (Voltages above 3.0 V produce full-scale conversion results.)

• Fast conversion rate: Up to 80 ns at 25-MHz ADC clock, 12.5 MSPS

• 16 dedicated ADC channels. 8 channels multiplexed per Sample/Hold

• Autosequencing capability provides up to 16 "autoconversions" in a single session. Each conversion can be programmed to select any 1 of 16 input channels

• Sequencer can be operated as two independent 8-state sequencers or as one large 16-state sequencer (i.e., two cascaded 8-state sequencers)

• Sixteen result registers (individually addressable) to store conversion values – The digital value of the input analog voltage is derived by:

www.ti.com

• Multiple triggers as sources for the start-of-conversion (SOC) sequence – S/W - software immediate start – ePWM start of conversion – XINT2 ADC start of conversion

• Flexible interrupt control allows interrupt request on every end-of-sequence (EOS) or every other EOS.

• Sequencer can operate in "start/stop" mode, allowing multiple "time-sequenced triggers" to synchronize conversions.

• SOCA and SOCB triggers can operate independently in dual-sequencer mode.

• Sample-and-hold (S/H) acquisition time window has separate prescale control.

The ADC module in the 2833x/2823x devices has been enhanced to provide flexible interface to ePWM peripherals. The ADC interface is built around a fast, 12-bit ADC module with a fast conversion rate of up to 80 ns at 25-MHz ADC clock. The ADC module has 16 channels, configurable as two independent 8-channel modules. The two independent 8-channel modules can be cascaded to form a 16-channel module. Although there are multiple input channels and two sequencers, there is only one converter in the ADC module. Figure 4-8 shows the block diagram of the ADC module.

The two 8-channel modules have the capability to autosequence a series of conversions, each module has the choice of selecting any one of the respective eight channels available through an analog MUX. In the cascaded mode, the autosequencer functions as a single 16-channel sequencer. On each sequencer, once the conversion is complete, the selected channel value is stored in its respective RESULT register. Autosequencing allows the system to convert the same channel multiple times, allowing the user to perform oversampling algorithms. This gives increased resolution over traditional single-sampled conversion results.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

ResultRegisters

EPWMSOCB

S/W

GPIO/

XINT2_ADCSOC

EPWMSOCA

S/W

Sequencer2

Sequencer1

SOCSOC

ADCControlRegisters

70B7h

70B0h

70AFh

70A8h

ResultReg15

ResultReg8

ResultReg7

ResultReg1

ResultReg0

12-Bit

ADC

Module

Analog

MUX

ADCINA0

ADCINA7

ADCINB0

ADCINB7

System

ControlBlock

High-Speed

Prescaler

HSPCLK

ADCENCLK

DSP

SYSCLKOUT

S/H

HALT

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 4-8. Block Diagram of the ADC Module

To obtain the specified accuracy of the ADC, proper board layout is very critical. To the best extent possible, traces leading to the ADCIN pins should not run in close proximity to the digital signal paths. This is to minimize switching noise on the digital lines from getting coupled to the ADC inputs. Furthermore, proper isolation techniques must be used to isolate the ADC module power pins ( V V

DD2A18

, V

DDA2

, V

DDAIO

) from the digital supply.Figure 4-9 shows the ADC pin connections for the devices.

NOTE

1. The ADC registers are accessed at the SYSCLKOUT rate. The internal timing of the ADC module is controlled by the high-speed peripheral clock (HSPCLK).

2. The behavior of the ADC module based on the state of the ADCENCLK and HALT signals is as follows:

– ADCENCLK: On reset, this signal will be low. While reset is active-low (XRS) the

clock to the register will still function. This is necessary to make sure all registers and modes go into their default reset state. The analog module, however, will be in a low-power inactive state. As soon as reset goes high, then the clock to the registers will be disabled. When the user sets the ADCENCLK signal high, then the clocks to the registers will be enabled and the analog module will be enabled. There will be a certain time delay (ms range) before the ADC is stable and can be used.

– HALT: This mode only affects the analog module. It does not affect the registers. In

this mode, the ADC module goes into low-power mode. This mode also will stop the clock to the CPU, which will stop the HSPCLK; therefore, the ADC register logic will be turned off indirectly.

DD1A18

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

ADCINA[7:0] ADCINB[7:0]

ADCLO

ADCREFIN

ADCExternalCurrentBiasResistor ADCRESEXT

ADCREFP

DD1A18

DD2A18

SS1AGND

SS2AGND

DDAIO

SSAIO

DDA2

SSA2

ADCReferencePositiveOutput

ADCREFM

ADCReferenceMediumOutput

ReferenceI/OPower

Analoginput0−3VwithrespecttoADCLO

Connecttoanalogground

ADCAnalogPowerPin(1.9V/1.8V) ADCAnalogPowerPin(1.9V/1.8V)

ADCAnalogPowerPin(3.3V) ADCAnalogI/OGroundPin

ADCAnalogPowerPin(3.3V)

ADCREFPandADCREFMshouldnot beloadedbyexternalcircuitry

ADCAnalogGroundPin

ADC16-ChannelAnalogInputs

Connecttoanaloggroundifinternalreferenceisused

ADCAnalogGroundPin ADCAnalogGroundPin

22k

2.2 Fμ

(A)

2.2 Fμ

(A)

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 4-9 shows the ADC pin-biasing for internal reference and Figure 4-10 shows the ADC pin-biasing

for external reference.

www.ti.com

Figure 4-9. ADC Pin Connections With Internal Reference

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

ADCINA[7:0] ADCINB[7:0]

ADCLO

ADCREFIN

ADC External Current Bias Resistor

ADCRESEXT

ADCREFP

DD1A18

DD2A18

SS1AGND

SS2AGND

DDAIO

SSAIO

DDA2

SSA2

ADC Reference Positive Output

ADCREFM

ADC Reference Medium Output

Reference I/O Power

Analog input 0-3 V with respect to ADCLO

Connect to Analog Ground

ADCREFP and ADCREFM should not be loaded by external circuitry

ADC 16-Channel Analog Inputs

Connect to 1.500, 1.024, or 2.048-V precision source

(D)

ADC Analog Power Pin (1.9 V/1.8 V) ADC Analog Power Pin (1.9 V/1.8 V)

ADC Analog I/O Ground Pin

ADC Analog Power Pin (3.3 V) ADC Analog Ground Pin

ADC Analog Ground Pin ADC Analog Ground Pin

ADC Analog Power Pin (3.3 V)

22 k

2.2 Fμ

(A)

2.2 Fμ

(A)

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

A. TAIYO YUDEN LMK212BJ225MG-T or equivalent B. External decoupling capacitors are recommended on all power pins. C. Analog inputs must be driven from an operational amplifier that does not degrade the ADC performance. D. External voltage on ADCREFIN is enabled by changing bits 15:14 in the ADC Reference Select register depending on

the voltage used on this pin. TI recommends TI part REF3020 or equivalent for 2.048-V generation. Overall gain accuracy will be determined by accuracy of this voltage source.

Figure 4-10. ADC Pin Connections With External Reference

NOTE

The temperature rating of any recommended component must match the rating of the end product.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

4.7.1 ADC Connections if the ADC Is Not Used

It is recommended to keep the connections for the analog power pins, even if the ADC is not used. Following is a summary of how the ADC pins should be connected, if the ADC is not used in an application:

• V

DD1A18/VDD2A18

• V

, V

DDA2 SS1AGND/VSS2AGND

DDAIO

• ADCLO – Connect to V

• ADCREFIN – Connect to V

• ADCREFP/ADCREFM – Connect a 100-nF cap to V

• ADCRESEXT – Connect a 20-kΩ resistor (very loose tolerance) to VSS.

• ADCINAn, ADCINBn – Connect to V When the ADC is not used, be sure that the clock to the ADC module is not turned on to realize power

savings. When the ADC module is used in an application, unused ADC input pins should be connected to analog

ground (V

SS1AGND/VSS2AGND

ADC parameters for gain error and offset error are specified only if the ADC calibration routine is executed from the Boot ROM. See Section 4.7.3 for more information.

– Connect to V

, V

SSA2

)

DDIO

– Connect to V

SSAIO

www.ti.com

NOTE

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

4.7.2 ADC Registers

The ADC operation is configured, controlled, and monitored by the registers listed in Table 4-6.

Table 4-6. ADC Registers

0x711B

0x711F

(1)

ADDRESS

NAME ADDRESS

ADCTRL1 0x7100 1 ADC Control Register 1 ADCTRL2 0x7101 1 ADC Control Register 2

ADCMAXCONV 0x7102 1 ADC Maximum Conversion Channels Register ADCCHSELSEQ1 0x7103 1 ADC Channel Select Sequencing Control Register 1 ADCCHSELSEQ2 0x7104 1 ADC Channel Select Sequencing Control Register 2 ADCCHSELSEQ3 0x7105 1 ADC Channel Select Sequencing Control Register 3 ADCCHSELSEQ4 0x7106 1 ADC Channel Select Sequencing Control Register 4

ADCASEQSR 0x7107 1 ADC Auto-Sequence Status Register ADCRESULT0 0x7108 0x0B00 1 ADC Conversion Result Buffer Register 0 ADCRESULT1 0x7109 0x0B01 1 ADC Conversion Result Buffer Register 1 ADCRESULT2 0x710A 0x0B02 1 ADC Conversion Result Buffer Register 2 ADCRESULT3 0x710B 0x0B03 1 ADC Conversion Result Buffer Register 3 ADCRESULT4 0x710C 0x0B04 1 ADC Conversion Result Buffer Register 4 ADCRESULT5 0x710D 0x0B05 1 ADC Conversion Result Buffer Register 5 ADCRESULT6 0x710E 0x0B06 1 ADC Conversion Result Buffer Register 6 ADCRESULT7 0x710F 0x0B07 1 ADC Conversion Result Buffer Register 7 ADCRESULT8 0x7110 0x0B08 1 ADC Conversion Result Buffer Register 8 ADCRESULT9 0x7111 0x0B09 1 ADC Conversion Result Buffer Register 9

ADCRESULT10 0x7112 0x0B0A 1 ADC Conversion Result Buffer Register 10 ADCRESULT11 0x7113 0x0B0B 1 ADC Conversion Result Buffer Register 11 ADCRESULT12 0x7114 0x0B0C 1 ADC Conversion Result Buffer Register 12 ADCRESULT13 0x7115 0x0B0D 1 ADC Conversion Result Buffer Register 13 ADCRESULT14 0x7116 0x0B0E 1 ADC Conversion Result Buffer Register 14 ADCRESULT15 0x7117 0x0B0F 1 ADC Conversion Result Buffer Register 15

ADCTRL3 0x7118 1 ADC Control Register 3

ADCST 0x7119 1 ADC Status Register

Reserved 2

ADCREFSEL 0x711C 1 ADC Reference Select Register

ADCOFFTRIM 0x711D 1 ADC Offset Trim Register

Reserved 2

(1) The registers in this column are Peripheral Frame 2 Registers. (2) The ADC result registers are dual mapped. Locations in Peripheral Frame 2 (0x7108–0x7117) are 2 wait-states and left justified.

Locations in Peripheral frame 0 space (0x0B00–0x0B0F) are 1 wait-state for CPU accesses and 0 wait state for DMA accesses and right justified. During high speed/continuous conversion use of the ADC, use the 0 wait-state locations for fast transfer of ADC results to user memory.

0x711A –

0x711E –

(2)

SIZE (x16) DESCRIPTION

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

( )

CLKSRG

CLKG =

1 + CLKGDV

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

4.7.3 ADC Calibration

The ADC_cal() routine is programmed into TI reserved OTP memory by the factory. The boot ROM automatically calls the ADC_cal() routine to initialize the ADCREFSEL and ADCOFFTRIM registers with device specific calibration data. During normal operation, this process occurs automatically and no action is required by the user.

If the boot ROM is bypassed by Code Composer Studio during the development process, then ADCREFSEL and ADCOFFTRIM must be initialized by the application. For working examples, see the ADC initialization in the C2833x, C2823x C/C++ Header Files and Peripheral Examples (literature number

SPRC530). Methods for calling the ADC_cal() routine from an application are described in

TMS320x2833x, F2823x Analog-to-Digital Converter (ADC) Module Reference Guide (literature number

SPRU812).

NOTE

FAILURE TO INITIALIZE THESE REGISTERS WILL CAUSE THE ADC TO FUNCTION OUT OF SPECIFICATION.

If the system is reset or the ADC module is reset using Bit 14 (RESET) from the ADC Control Register 1, the routine must be repeated.

4.8 Multichannel Buffered Serial Port (McBSP) Module

The McBSP module has the following features:

• Compatible to McBSP in TMS320C54x™/ TMS320C55x™ DSP devices

• Full-duplex communication

• Double-buffered data registers that allow a continuous data stream

• Independent framing and clocking for receive and transmit

• External shift clock generation or an internal programmable frequency shift clock

• A wide selection of data sizes including 8-, 12-, 16-, 20-, 24-, or 32-bits

• 8-bit data transfers with LSB or MSB first

• Programmable polarity for both frame synchronization and data clocks

• Highly programmable internal clock and frame generation

• Direct interface to industry-standard CODECs, Analog Interface Chips (AICs), and other serially connected A/D and D/A devices

• Works with SPI-compatible devices

• The following application interfaces can be supported on the McBSP: – T1/E1 framers – IOM-2 compliant devices – AC97-compliant devices (the necessary multiphase frame synchronization capability is provided.) – IIS-compliant devices – SPI

• McBSP clock rate,

www.ti.com

where CLKSRG source could be LSPCLK, CLKX, or CLKR. Serial port performance is limited by I/O buffer switching speed. Internal prescalers must be adjusted such that the peripheral speed is less than the I/O buffer speed limit.

NOTE

See Section 6 for maximum I/O pin toggling speed.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

McBSP Receive

InterruptSelectLogic

MDXx

MDRx

ExpandLogic

DRR1ReceiveBuffer

Interrupt

DRR2ReceiveBuffer

RBR1RegisterRBR2Register

MCLKXx

MFSXx

MCLKRx

MFSRx

CompandLogic

DXR2 TransmitBuffer

RSR1

XSR2

XSR1

PeripheralReadBus

RSR2

DXR1 TransmitBuffer

LSPCLK

MRINT

ToCPU

RXInterruptLogic

McBSP Transmit

InterruptSelectLogic

Interrupt

MXINT

ToCPU

TXInterruptLogic

16 16

Bridge

DMA Bus

PeripheralBus

PeripheralWriteBus

CPU

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

Figure 4-11 shows the block diagram of the McBSP module.

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 4-11. McBSP Module

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

Table 4-7 provides a summary of the McBSP registers.

Table 4-7. McBSP Register Summary

NAME TYPE RESET VALUE DESCRIPTION

DRR2 0x5000 0x5040 R 0x0000 McBSP Data Receive Register 2 DRR1 0x5001 0x5041 R 0x0000 McBSP Data Receive Register 1 DXR2 0x5002 0x5042 W 0x0000 McBSP Data Transmit Register 2 DXR1 0x5003 0x5043 W 0x0000 McBSP Data Transmit Register 1

SPCR2 0x5004 0x5044 R/W 0x0000 McBSP Serial Port Control Register 2 SPCR1 0x5005 0x5045 R/W 0x0000 McBSP Serial Port Control Register 1 RCR2 0x5006 0x5046 R/W 0x0000 McBSP Receive Control Register 2 RCR1 0x5007 0x5047 R/W 0x0000 McBSP Receive Control Register 1 XCR2 0x5008 0x5048 R/W 0x0000 McBSP Transmit Control Register 2 XCR1 0x5009 0x5049 R/W 0x0000 McBSP Transmit Control Register 1 SRGR2 0x500A 0x504A R/W 0x0000 McBSP Sample Rate Generator Register 2 SRGR1 0x500B 0x504B R/W 0x0000 McBSP Sample Rate Generator Register 1

MCR2 0x500C 0x504C R/W 0x0000 McBSP Multichannel Register 2 MCR1 0x500D 0x504D R/W 0x0000 McBSP Multichannel Register 1 RCERA 0x500E 0x504E R/W 0x0000 McBSP Receive Channel Enable Register Partition A RCERB 0x500F 0x504F R/W 0x0000 McBSP Receive Channel Enable Register Partition B XCERA 0x5010 0x5050 R/W 0x0000 McBSP Transmit Channel Enable Register Partition A XCERB 0x5011 0x5051 R/W 0x0000 McBSP Transmit Channel Enable Register Partition B PCR 0x5012 0x5052 R/W 0x0000 McBSP Pin Control Register RCERC 0x5013 0x5053 R/W 0x0000 McBSP Receive Channel Enable Register Partition C RCERD 0x5014 0x5054 R/W 0x0000 McBSP Receive Channel Enable Register Partition D XCERC 0x5015 0x5055 R/W 0x0000 McBSP Transmit Channel Enable Register Partition C XCERD 0x5016 0x5056 R/W 0x0000 McBSP Transmit Channel Enable Register Partition D RCERE 0x5017 0x5057 R/W 0x0000 McBSP Receive Channel Enable Register Partition E RCERF 0x5018 0x5058 R/W 0x0000 McBSP Receive Channel Enable Register Partition F XCERE 0x5019 0x5059 R/W 0x0000 McBSP Transmit Channel Enable Register Partition E XCERF 0x501A 0x505A R/W 0x0000 McBSP Transmit Channel Enable Register Partition F RCERG 0x501B 0x505B R/W 0x0000 McBSP Receive Channel Enable Register Partition G RCERH 0x501C 0x505C R/W 0x0000 McBSP Receive Channel Enable Register Partition H XCERG 0x501D 0x505D R/W 0x0000 McBSP Transmit Channel Enable Register Partition G XCERH 0x501E 0x505E R/W 0x0000 McBSP Transmit Channel Enable Register Partition H MFFINT 0x5023 0x5063 R/W 0x0000 McBSP Interrupt Enable Register

McBSP-A McBSP-B

ADDRESS ADDRESS

Data Registers, Receive, Transmit

McBSP Control Registers

Multichannel Control Registers

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

4.9 Enhanced Controller Area Network (eCAN) Modules (eCAN-A and eCAN-B)

The CAN module has the following features:

• Fully compliant with CAN protocol, version 2.0B

• Supports data rates up to 1 Mbps

• Thirty-two mailboxes, each with the following properties: – Configurable as receive or transmit – Configurable with standard or extended identifier – Has a programmable receive mask – Supports data and remote frame – Composed of 0 to 8 bytes of data – Uses a 32-bit time stamp on receive and transmit message – Protects against reception of new message – Holds the dynamically programmable priority of transmit message – Employs a programmable interrupt scheme with two interrupt levels – Employs a programmable alarm on transmission or reception time-out

• Low-power mode

• Programmable wake-up on bus activity

• Automatic reply to a remote request message

• Automatic retransmission of a frame in case of loss of arbitration or error

• 32-bit local network time counter synchronized by a specific message (communication in conjunction with mailbox 16)

• Self-test mode – Operates in a loopback mode receiving its own message. A "dummy" acknowledge is provided,

thereby eliminating the need for another node to provide the acknowledge bit.

NOTE

For a SYSCLKOUT of 100 MHz, the smallest bit rate possible is 7.812 kbps. For a SYSCLKOUT of 150 MHz, the smallest bit rate possible is 11.719 kbps.

The F2833x/F2823x CAN has passed the conformance test per ISO/DIS 16845. Contact TI for test report and exceptions.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

Mailbox RAM

(512 Bytes)

32-Message Mailbox

of 4 x 32-Bit Words

Memory Management

Unit

CPU Interface,

Receive Control Unit,

Timer Management Unit

eCAN Memory

(512 Bytes)

Registers and

Message Objects Control

Message Controller

32 32

eCAN Protocol Kernel

Receive Buffer

Transmit Buffer

Control Buffer

Status Buffer

Enhanced CAN Controller

Controls

Address Data

eCAN1INTeCAN0INT

SN65HVD23x

3.3-V CAN Transceiver

CAN Bus

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

www.ti.com

PART NUMBER VREF OTHER T

SN65HVD230 3.3 V Standby Adjustable Yes – –40°C to 85°C

SN65HVD230Q 3.3 V Standby Adjustable Yes – –40°C to 125°C

SN65HVD231 3.3 V Sleep Adjustable Yes – –40°C to 85°C

SN65HVD231Q 3.3 V Sleep Adjustable Yes – –40°C to 125°C

SN65HVD232 3.3 V None None None – –40°C to 85°C

SN65HVD232Q 3.3 V None None None – –40°C to 125°C

SN65HVD233 3.3 V Standby Adjustable None Diagnostic –40°C to 125°C

SN65HVD234 3.3 V Standby and Sleep Adjustable None – –40°C to 125°C SN65HVD235 3.3 V Standby Adjustable None Autobaud –40°C to 125°C

Figure 4-12. eCAN Block Diagram and Interface Circuit

SUPPLY LOW-POWER SLOPE

VOLTAGE MODE CONTROL

Table 4-8. 3.3-V eCAN Transceivers

Loopback

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

Mailbox Enable - CANME

Mailbox Direction - CANMD

Transmission Request Set - CANTRS

Transmission Request Reset - CANTRR

Transmission Acknowledge - CANTA

Abort Acknowledge - CANAA

Received Message Pending - CANRMP

Received Message Lost - CANRML

Remote Frame Pending - CANRFP

Global Acceptance Mask - CANGAM

Master Control - CANMC

Bit-Timing Configuration - CANBTC

Error and Status - CANES

Transmit Error Counter - CANTEC

Receive Error Counter - CANREC

Global Interrupt Flag 0 - CANGIF0

Global Interrupt Mask - CANGIM

Mailbox Interrupt Mask - CANMIM

Mailbox Interrupt Level - CANMIL

Overwrite Protection Control - CANOPC

TX I/O Control - CANTIOC

RX I/O Control - CANRIOC

Time Stamp Counter - CANTSC

Global Interrupt Flag 1 - CANGIF1

Time-Out Control - CANTOC

Time-Out Status - CANTOS

Reserved

eCAN-A Control and Status Registers

Message Identifier - MSGID

61E8h-61E9h

Message Control - MSGCTRL

Message Data Low - MDL

Message Data High - MDH

Message Mailbox (16 Bytes)

Control and Status Registers

6000h

603Fh

Local Acceptance Masks (LAM)

(32 x 32-Bit RAM)

6040h

607Fh 6080h

60BFh 60C0h

60FFh

eCAN-A Memory (512 Bytes)

Message Object Time Stamps (MOTS)

(32 x 32-Bit RAM)

Message Object Time-Out (MOTO)

(32 x 32-Bit RAM)

Mailbox 06100h-6107h

Mailbox 1

6108h-610Fh

Mailbox 2

6110h-6117h

Mailbox 3

6118h-611Fh

eCAN-A Memory RAM (512 Bytes)

Mailbox 4

6120h-6127h

Mailbox 28

61E0h-61E7h

Mailbox 2961E8h-61EFh

Mailbox 3061F0h-61F7h

Mailbox 31

61F8h-61FFh

61EAh-61EBh

61ECh-61EDh

61EEh-61EFh

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

If the eCAN module is not used in an application, the RAM available (LAM, MOTS, MOTO, and mailbox RAM) can be used as general-purpose RAM. The CAN module clock should be enabled for this.

Figure 4-13. eCAN-A Memory Map

NOTE

SPRS439I–JUNE 2007–REVISED MARCH 2011

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

Mailbox Enable - CANME

Mailbox Direction - CANMD

Transmission Request Set - CANTRS

Transmission Request Reset - CANTRR

Transmission Acknowledge - CANTA

Abort Acknowledge - CANAA

Received Message Pending - CANRMP

Received Message Lost - CANRML

Remote Frame Pending - CANRFP

Global Acceptance Mask - CANGAM

Master Control - CANMC

Bit-Timing Configuration - CANBTC

Error and Status - CANES

Transmit Error Counter - CANTEC

Receive Error Counter - CANREC

Global Interrupt Flag 0 - CANGIF0

Global Interrupt Mask - CANGIM

Mailbox Interrupt Mask - CANMIM

Mailbox Interrupt Level - CANMIL

Overwrite Protection Control - CANOPC

TX I/O Control - CANTIOC

RX I/O Control - CANRIOC

Time Stamp Counter - CANTSC

Global Interrupt Flag 1 - CANGIF1

Time-Out Control - CANTOC

Time-Out Status - CANTOS

Reserved

eCAN-B Control and Status Registers

Message Identifier - MSGID

63E8h-63E9h

Message Control - MSGCTRL

Message Data Low - MDL

Message Data High - MDH

Message Mailbox (16 Bytes)

Control and Status Registers

6200h

623Fh

Local Acceptance Masks (LAM)

(32 x 32-Bit RAM)

6240h

627Fh 6280h

62BFh

62C0h

62FFh

eCAN-B Memory (512 Bytes)

Message Object Time Stamps (MOTS)

(32 x 32-Bit RAM)

Message Object Time-Out (MOTO)

(32 x 32-Bit RAM)

Mailbox 06300h-6307h

Mailbox 1

6308h-630Fh

Mailbox 2

6310h-6317h

Mailbox 3

6318h-631Fh

eCAN-B Memory RAM (512 Bytes)

Mailbox 4

6320h-6327h

Mailbox 28

63E0h-63E7h

Mailbox 2963E8h-63EFh

Mailbox 3063F0h-63F7h

Mailbox 31

63F8h-63FFh

63EAh-63EBh

63ECh-63EDh

63EEh-63EFh

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 4-14. eCAN-B Memory Map

www.ti.com

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

The CAN registers listed in Table 4-9 are used by the CPU to configure and control the CAN controller and the message objects. eCAN control registers only support 32-bit read/write operations. Mailbox RAM can be accessed as 16 bits or 32 bits. 32-bit accesses are aligned to an even boundary.

Table 4-9. CAN Register Map

CANME 0x6000 0x6200 1 Mailbox enable

CANMD 0x6002 0x6202 1 Mailbox direction CANTRS 0x6004 0x6204 1 Transmit request set CANTRR 0x6006 0x6206 1 Transmit request reset

CANTA 0x6008 0x6208 1 Transmission acknowledge CANAA 0x600A 0x620A 1 Abort acknowledge

CANRMP 0x600C 0x620C 1 Receive message pending

CANRML 0x600E 0x620E 1 Receive message lost CANRFP 0x6010 0x6210 1 Remote frame pending

CANGAM 0x6012 0x6212 1 Global acceptance mask

CANMC 0x6014 0x6214 1 Master control CANBTC 0x6016 0x6216 1 Bit-timing configuration

CANES 0x6018 0x6218 1 Error and status CANTEC 0x601A 0x621A 1 Transmit error counter CANREC 0x601C 0x621C 1 Receive error counter

CANGIF0 0x601E 0x621E 1 Global interrupt flag 0

CANGIM 0x6020 0x6220 1 Global interrupt mask

CANGIF1 0x6022 0x6222 1 Global interrupt flag 1

CANMIM 0x6024 0x6224 1 Mailbox interrupt mask

CANMIL 0x6026 0x6226 1 Mailbox interrupt level

CANOPC 0x6028 0x6228 1 Overwrite protection control

CANTIOC 0x602A 0x622A 1 TX I/O control

CANRIOC 0x602C 0x622C 1 RX I/O control

CANTSC 0x602E 0x622E 1 Time stamp counter (Reserved in SCC mode) CANTOC 0x6030 0x6230 1 Time-out control (Reserved in SCC mode) CANTOS 0x6032 0x6232 1 Time-out status (Reserved in SCC mode)

(1) These registers are mapped to Peripheral Frame 1.

eCAN-A eCAN-B SIZE

ADDRESS ADDRESS (x32)

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

8*1)(BRR

LSPCLK

rateBaud

0BRRwhen ¹

LSPCLK

rateBaud =

0BRRwhen =

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

4.10 Serial Communications Interface (SCI) Modules (SCI-A, SCI-B, SCI-C)

The devices include three serial communications interface (SCI) modules. The SCI modules support digital communications between the CPU and other asynchronous peripherals that use the standard non-return-to-zero (NRZ) format. The SCI receiver and transmitter are double-buffered, and each has its own separate enable and interrupt bits. Both can be operated independently or simultaneously in the full-duplex mode. To ensure data integrity, the SCI checks received data for break detection, parity, overrun, and framing errors. The bit rate is programmable to over 65000 different speeds through a 16-bit baud-select register.

Features of each SCI module include:

• Two external pins: – SCITXD: SCI transmit-output pin – SCIRXD: SCI receive-input pin

NOTE: Both pins can be used as GPIO if not used for SCI.

– Baud rate programmable to 64K different rates:

www.ti.com

NOTE

See Section 6 for maximum I/O pin toggling speed.

• Data-word format – One start bit – Data-word length programmable from one to eight bits – Optional even/odd/no parity bit – One or two stop bits

• Four error-detection flags: parity, overrun, framing, and break detection

• Two wake-up multiprocessor modes: idle-line and address bit

• Half- or full-duplex operation

• Double-buffered receive and transmit functions

• Transmitter and receiver operations can be accomplished through interrupt-driven or polled algorithms with status flags.

– Transmitter: TXRDY flag (transmitter-buffer register is ready to receive another character) and TX

EMPTY flag (transmitter-shift register is empty)

– Receiver: RXRDY flag (receiver-buffer register is ready to receive another character), BRKDT flag

(break condition occurred), and RX ERROR flag (monitoring four interrupt conditions)

• Separate enable bits for transmitter and receiver interrupts (except BRKDT)

• NRZ (non-return-to-zero) format

NOTE

All registers in this module are 8-bit registers that are connected to Peripheral Frame 2. When a register is accessed, the register data is in the lower byte (7-0), and the upper byte (15-8) is read as zeros. Writing to the upper byte has no effect.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Enhanced features:

• Auto baud-detect hardware logic

• 16-level transmit/receive FIFO

The SCI port operation is configured and controlled by the registers listed in Table 4-10, Table 4-11, and

Table 4-12.

Table 4-10. SCI-A Registers

NAME ADDRESS SIZE (x16) DESCRIPTION

SCICCRA 0x7050 1 SCI-A Communications Control Register

SCICTL1A 0x7051 1 SCI-A Control Register 1

SCIHBAUDA 0x7052 1 SCI-A Baud Register, High Bits

SCILBAUDA 0x7053 1 SCI-A Baud Register, Low Bits

SCICTL2A 0x7054 1 SCI-A Control Register 2 SCIRXSTA 0x7055 1 SCI-A Receive Status Register

SCIRXEMUA 0x7056 1 SCI-A Receive Emulation Data Buffer Register

SCIRXBUFA 0x7057 1 SCI-A Receive Data Buffer Register SCITXBUFA 0x7059 1 SCI-A Transmit Data Buffer Register

SCIFFTXA

SCIFFRXA

SCIFFCTA

SCIPRIA 0x705F 1 SCI-A Priority Control Register

(1) Registers in this table are mapped to Peripheral Frame 2 space. This space only allows 16-bit accesses. 32-bit accesses produce

undefined results.

(2) These registers are new registers for the FIFO mode.

(2) (2) (2)

0x705A 1 SCI-A FIFO Transmit Register 0x705B 1 SCI-A FIFO Receive Register 0x705C 1 SCI-A FIFO Control Register

(1)

Table 4-11. SCI-B Registers

NAME ADDRESS SIZE (x16) DESCRIPTION

SCICCRB 0x7750 1 SCI-B Communications Control Register

SCICTL1B 0x7751 1 SCI-B Control Register 1

SCIHBAUDB 0x7752 1 SCI-B Baud Register, High Bits

SCILBAUDB 0x7753 1 SCI-B Baud Register, Low Bits

SCICTL2B 0x7754 1 SCI-B Control Register 2 SCIRXSTB 0x7755 1 SCI-B Receive Status Register

SCIRXEMUB 0x7756 1 SCI-B Receive Emulation Data Buffer Register

SCIRXBUFB 0x7757 1 SCI-B Receive Data Buffer Register SCITXBUFB 0x7759 1 SCI-B Transmit Data Buffer Register

SCIFFTXB

SCIFFRXB

SCIFFCTB

SCIPRIB 0x775F 1 SCI-B Priority Control Register

(1) Registers in this table are mapped to Peripheral Frame 2 space. This space only allows 16-bit accesses. 32-bit accesses produce

undefined results.

(2) These registers are new registers for the FIFO mode.

(2) (2) (2)

0x775A 1 SCI-B FIFO Transmit Register 0x775B 1 SCI-B FIFO Receive Register 0x775C 1 SCI-B FIFO Control Register

(1) (2)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

Table 4-12. SCI-C Registers

NAME ADDRESS SIZE (x16) DESCRIPTION

SCICCRC 0x7770 1 SCI-C Communications Control Register

SCICTL1C 0x7771 1 SCI-C Control Register 1

SCIHBAUDC 0x7772 1 SCI-C Baud Register, High Bits

SCILBAUDC 0x7773 1 SCI-C Baud Register, Low Bits

SCICTL2C 0x7774 1 SCI-C Control Register 2 SCIRXSTC 0x7775 1 SCI-C Receive Status Register

SCIRXEMUC 0x7776 1 SCI-C Receive Emulation Data Buffer Register

SCIRXBUFC 0x7777 1 SCI-C Receive Data Buffer Register

SCITXBUFC 0x7779 1 SCI-C Transmit Data Buffer Register

SCIFFTXC SCIFFRXC SCIFFCTC

SCIPRC 0x777F 1 SCI-C Priority Control Register

(1) Registers in this table are mapped to Peripheral Frame 2 space. This space only allows 16-bit accesses. 32-bit accesses produce

undefined results.

(2) These registers are new registers for the FIFO mode.

(2)

0x777A 1 SCI-C FIFO Transmit Register 0x777B 1 SCI-C FIFO Receive Register 0x777C 1 SCI-C FIFO Control Register

(1) (2)

www.ti.com

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

LSPCLK

Frame Format and Mode

Even/Odd

Enable

Parity

SCIRXD

SCIRXST.1

TXENA

RXWAKE

SCITXD

SCICCR.6 SCICCR.5

RXSHF Register

SCITXD

TXSHF

WUT

SCICTL1.3

TXWAKE

Baud Rate

MSbyte

Baud Rate

LSbyte

SCIHBAUD. 15 - 8

SCILBAUD. 7 - 0

FIFO

Interrupts

RXENA

SCICTL1.0

FIFO

Interrupts

SCICTL1.1

SCIRXD

RX ERR INT ENA

SCICTL1.6

RX Error

PEFE OE

RX Error

SCIRXST.7 SCIRXST.4 - 2

SCITXBUF.7-0

TX FIFO Registers

Transmitter-Data

Buffer Register

SCIFFENA

TX FIFO _15

- - - - -

TX FIFO _1

TX FIFO _0

SCIFFTX.14

SCIRXBUF.7-0

RX FIFO Registers

Receive-Data

Buffer Register

SCIRXBUF.7-0

SCIFFRX.15

RXFFOVF

RX FIFO _0

- - - - -

RX FIFO _1

RX FIFO _15

SCI TX Interrupt Select Logic

TX EMPTY

SCICTL2.6

TXINT

TXRDY

SCICTL2.0

TX INT ENA

SCICTL2.7

To CPU

AutoBaud Detect Logic

TX Interrupt Logic

RX Interrupt Logic

SCI RX Interrupt Select Logic

RXRDY

SCIRXST.6

BRKDT

SCIRXST.5

RX/BK INT ENA

SCICTL2.1

RXINT

To CPU

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

Figure 4-15 shows the SCI module block diagram.

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 4-15. Serial Communications Interface (SCI) Module Block Diagram

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Submit Documentation Feedback

TMS320F28232

1)(SPIBRR

LSPCLK

rateBaud

127to3SPIBRRwhen =

LSPCLK

rateBaud =

21,0,SPIBRRwhen =

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

4.11 Serial Peripheral Interface (SPI) Module (SPI-A )

The device includes the four-pin serial peripheral interface (SPI) module. One SPI module (SPI-A) is available. The SPI is a high-speed, synchronous serial I/O port that allows a serial bit stream of programmed length (one to sixteen bits) to be shifted into and out of the device at a programmable bit-transfer rate. Normally, the SPI is used for communications between the DSC controller and external peripherals or another processor. Typical applications include external I/O or peripheral expansion through devices such as shift registers, display drivers, and ADCs. Multidevice communications are supported by the master/slave operation of the SPI.

The SPI module features include:

• Four external pins: – SPISOMI: SPI slave-output/master-input pin – SPISIMO: SPI slave-input/master-output pin – SPISTE: SPI slave transmit-enable pin – SPICLK: SPI serial-clock pin

NOTE: All four pins can be used as GPIO if the SPI module is not used.

• Two operational modes: master and slave Baud rate: 125 different programmable rates.

www.ti.com

NOTE

See Section 6 for maximum I/O pin toggling speed.

• Data word length: one to sixteen data bits

• Four clocking schemes (controlled by clock polarity and clock phase bits) include: – Falling edge without phase delay: SPICLK active-high. SPI transmits data on the falling edge of the

SPICLK signal and receives data on the rising edge of the SPICLK signal.

– Falling edge with phase delay: SPICLK active-high. SPI transmits data one half-cycle ahead of the

falling edge of the SPICLK signal and receives data on the falling edge of the SPICLK signal.

– Rising edge without phase delay: SPICLK inactive-low. SPI transmits data on the rising edge of the

SPICLK signal and receives data on the falling edge of the SPICLK signal.

– Rising edge with phase delay: SPICLK inactive-low. SPI transmits data one half-cycle ahead of the

falling edge of the SPICLK signal and receives data on the rising edge of the SPICLK signal.

• Simultaneous receive and transmit operation (transmit function can be disabled in software)

• Transmitter and receiver operations are accomplished through either interrupt-driven or polled algorithms.

• Nine SPI module control registers: Located in control register frame beginning at address 7040h.

NOTE

All registers in this module are 16-bit registers that are connected to Peripheral Frame 2. When a register is accessed, the register data is in the lower byte (7–0), and the upper byte (15–8) is read as zeros. Writing to the upper byte has no effect.

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

SPRS439I–JUNE 2007–REVISED MARCH 2011

Enhanced features:

• 16-level transmit/receive FIFO

• Delayed transmit control

The SPI port operation is configured and controlled by the registers listed in Table 4-13 .

Table 4-13. SPI-A Registers

NAME ADDRESS SIZE (x16) DESCRIPTION

SPICCR 0x7040 1 SPI-A Configuration Control Register

SPICTL 0x7041 1 SPI-A Operation Control Register SPISTS 0x7042 1 SPI-A Status Register SPIBRR 0x7044 1 SPI-A Baud Rate Register

SPIRXEMU 0x7046 1 SPI-A Receive Emulation Buffer Register

SPIRXBUF 0x7047 1 SPI-A Serial Input Buffer Register SPITXBUF 0x7048 1 SPI-A Serial Output Buffer Register

SPIDAT 0x7049 1 SPI-A Serial Data Register

SPIFFTX 0x704A 1 SPI-A FIFO Transmit Register SPIFFRX 0x704B 1 SPI-A FIFO Receive Register SPIFFCT 0x704C 1 SPI-A FIFO Control Register

SPIPRI 0x704F 1 SPI-A Priority Control Register

(1) Registers in this table are mapped to Peripheral Frame 2. This space only allows 16-bit accesses. 32-bit accesses produce undefined

results.

(1)

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

SPICTL.0

SPIINTFLAG

SPIINT

ENA

SPISTS.6

Clock

Polarity

Talk

LSPCLK

456 123 0

0123

SPIBitRate

StateControl

SPIRXBUF

BufferRegister

Clock

Phase

Receiver

OverrunFlag

SPICTL.4

Overrun INTENA

SPICCR.3 − 0

SPIBRR.6 − 0

SPICCR.6 SPICTL.3

SPIDAT.15 − 0

SPICTL.1

Master/Slave

SPISTS.7

SPIDAT

DataRegister

SPICTL.2

SPIChar

SPISIMO

SPISOMI

SPICLK

SW2

SW3

ToCPU

SW1

SPITXBUF

BufferRegister

RXFIFO_0 RXFIFO_1

−−−−−

RXFIFO_15

TXFIFOregisters

TXFIFO_0

TXFIFO_1

−−−−−

TXFIFO_15

RXFIFOregisters

TXInterrupt

Logic

RXInterrupt

Logic

SPIINT/SPIRXINT

SPITXINT

SPIFFOVFFLAG

SPIFFRX.15

TXFIFOInterrupt

RXFIFOInterrupt

SPIRXBUF

SPITXBUF

SPIFFTX.14

SPIFFENA

SPISTE

(A)

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

Figure 4-16 is a block diagram of the SPI in slave mode.

www.ti.com

A. SPISTE is driven low by the master for a slave device.

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

Figure 4-16. SPI Module Block Diagram (Slave Mode)

Submit Documentation Feedback

TMS320F28232

SYSRS

SYSCLKOUT

Control

I2CINT1A

I2CINT2A

C28x CPU

GPIO

MUX

Peripheral Bus

I C-A

System Control Block

I2CAENCLK

PIE

Block

SDAA

SCLA

Data[16]

Addr[16]

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

www.ti.com

4.12 Inter-Integrated Circuit (I2C)

The device contains one I2C Serial Port. Figure 4-17 shows how the I2C peripheral module interfaces within the device.

SPRS439I–JUNE 2007–REVISED MARCH 2011

A. The I2C registers are accessed at the SYSCLKOUT rate. The internal timing and signal waveforms of the I2C port are

also at the SYSCLKOUT rate.

B. The clock enable bit (I2CAENCLK) in the PCLKCR0 register turns off the clock to the I2C port for low power

operation. Upon reset, I2CAENCLK is clear, which indicates the peripheral internal clocks are off.

Figure 4-17. I2C Peripheral Module Interfaces

The I2C module has the following features:

• Compliance with the Philips Semiconductors I2C-bus specification (version 2.1): – Support for 1-bit to 8-bit format transfers – 7-bit and 10-bit addressing modes – General call – START byte mode – Support for multiple master-transmitters and slave-receivers – Support for multiple slave-transmitters and master-receivers – Combined master transmit/receive and receive/transmit mode – Data transfer rate from 10 kbps up to 400 kbps (I2C Fast-mode rate)

• One 16-word receive FIFO and one 16-word transmit FIFO

• One interrupt that can be used by the CPU. This interrupt can be generated as a result of one of the following conditions:

– Transmit-data ready – Receive-data ready – Register-access ready – No-acknowledgment received

Submit Documentation Feedback

Product Folder Link(s): TMS320F28335 TMS320F28334 TMS320F28332 TMS320F28235 TMS320F28234

TMS320F28232

TMS320F28335, TMS320F28334, TMS320F28332 TMS320F28235, TMS320F28234, TMS320F28232

SPRS439I–JUNE 2007–REVISED MARCH 2011

– Arbitration lost – Stop condition detected – Addressed as slave

• An additional interrupt that can be used by the CPU when in FIFO mode

• Module enable/disable capability

• Free data format mode

The registers in Table 4-14 configure and control the I2C port operation.

NAME ADDRESS DESCRIPTION

I2COAR 0x7900 I2C own address register

I2CIER 0x7901 I2C interrupt enable register

I2CSTR 0x7902 I2C status register

I2CCLKL 0x7903 I2C clock low-time divider register

I2CCLKH 0x7904 I2C clock high-time divider register

I2CCNT 0x7905 I2C data count register I2CDRR 0x7906 I2C data receive register I2CSAR 0x7907 I2C slave address register

I2CDXR 0x7908 I2C data transmit register I2CMDR 0x7909 I2C mode register I2CISRC 0x790A I2C interrupt source register

I2CPSC 0x790C I2C prescaler register I2CFFTX 0x7920 I2C FIFO transmit register

I2CFFRX 0x7921 I2C FIFO receive register

I2CRSR – I2C receive shift register (not accessible to the CPU)

I2CXSR – I2C transmit shift register (not accessible to the CPU)

www.ti.com

Table 4-14. I2C-A Registers

4.13 GPIO MUX

On the 2833x/2823x devices, the GPIO MUX can multiplex up to three independent peripheral signals on a single GPIO pin in addition to providing individual pin bit-banging I/O capability. The GPIO MUX block diagram per pin is shown in Figure 4-18. Because of the open drain capabilities of the I2C pins, the GPIO MUX block diagram for these pins differ. See the TMS320x2833x, 2823x System Control and Interrupts Reference Guide (literature number SPRUFB0 ) for details.

NOTE
