Refs. 593101
593102
593103
EN
CATV & DOCSIS3.0 Meter / Analyzer
Instruction Manual
w w w . t e l e v e s . c o m
Index
Safety requirements ..................................................................................... 4
Overview ...................................................................................................... 5
Key Features ............................................................................................... 5
General specications ................................................................................. 6
Technical specications .............................................................................. 7
Description of equipment components ....................................................... 8
Connectors and controls .......................................................................... 8
Keyboard .................................................................................................. 8
Power Supply .............................................................................................. 9
Product Operation ....................................................................................... 10

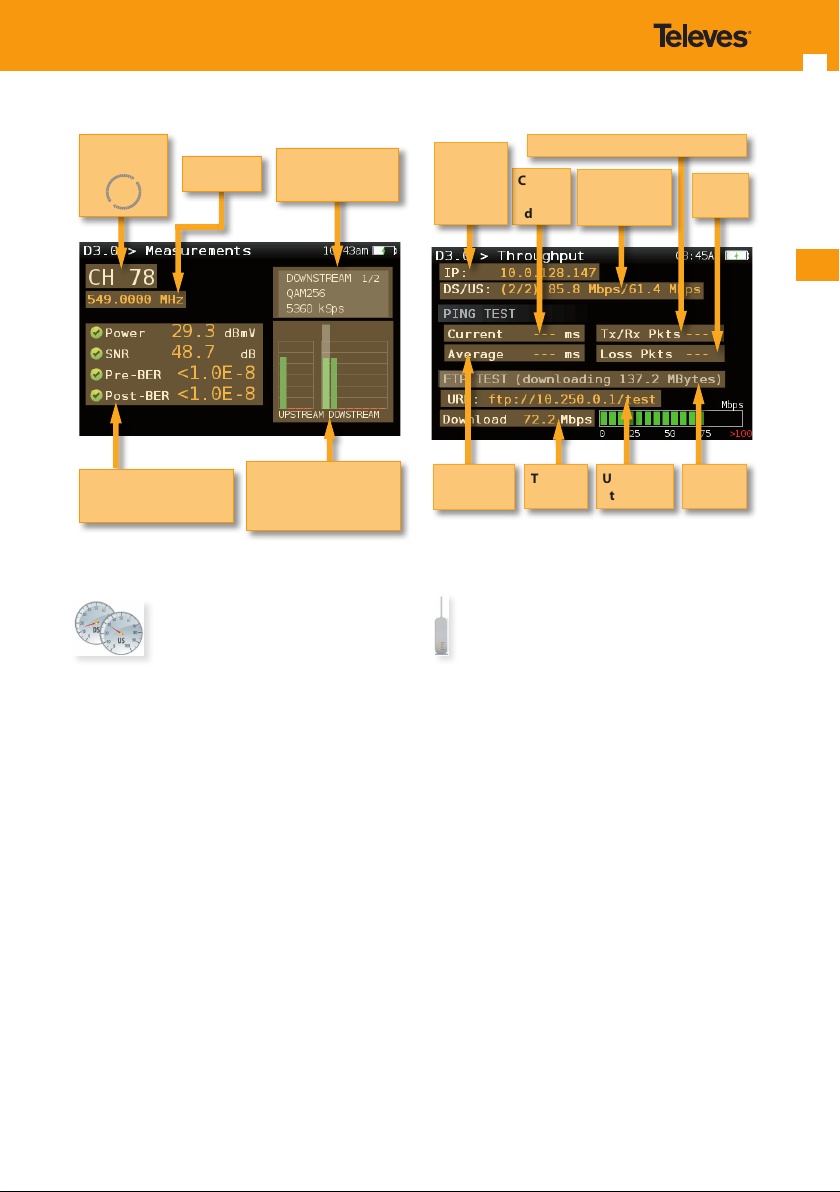

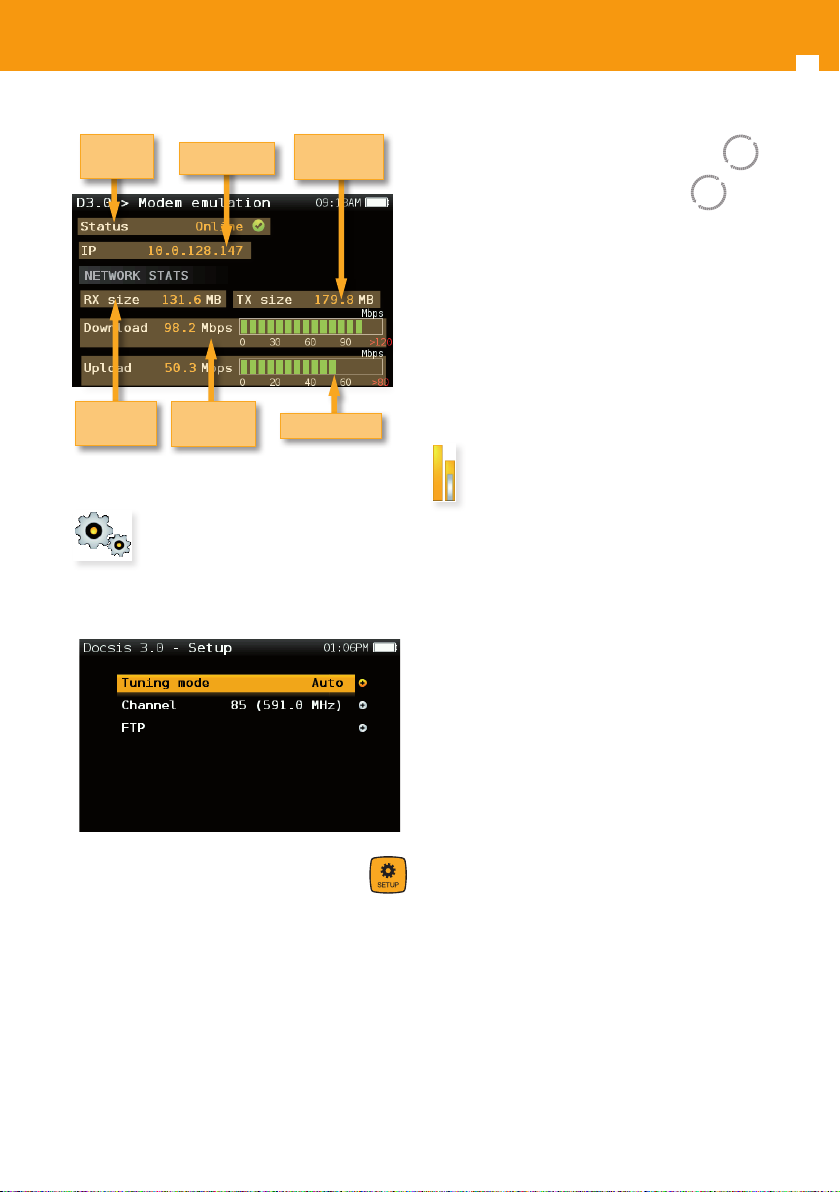

Docsis 3.0 .................................................................................................. 10

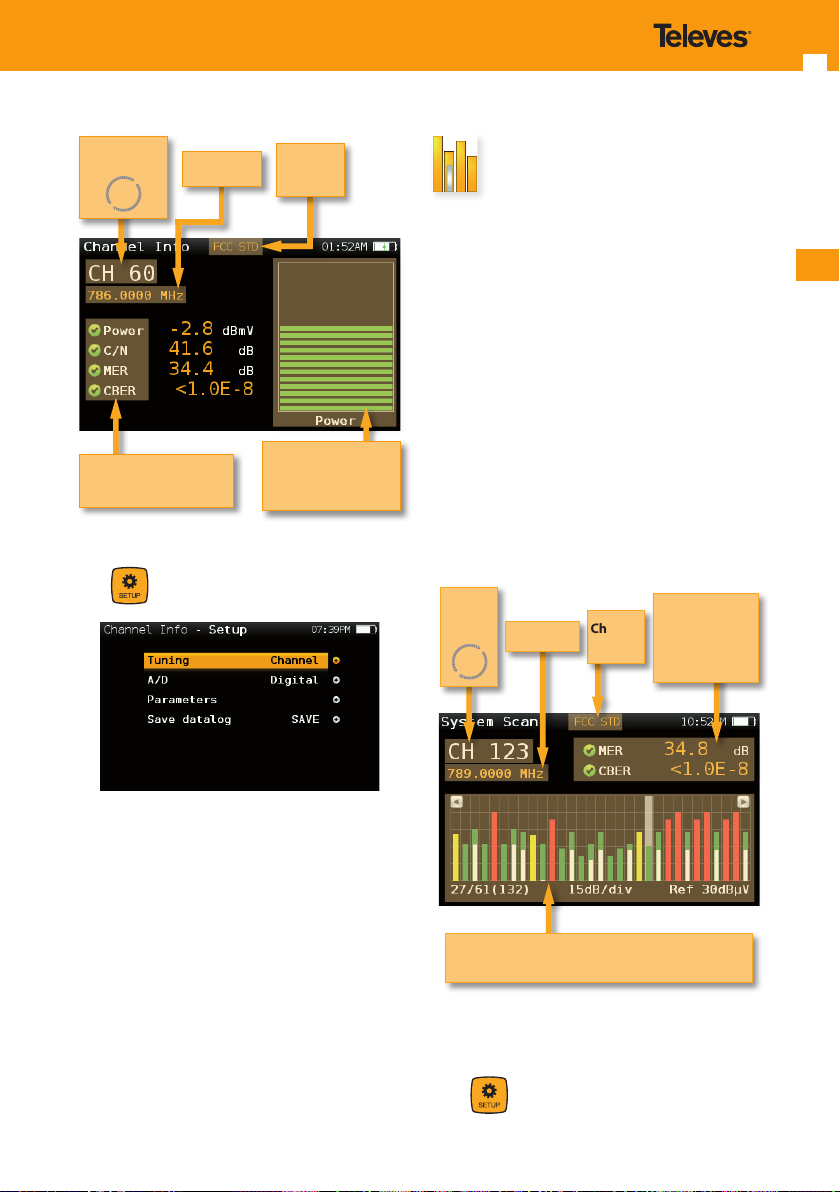

Channel info .............................................................................................. 12

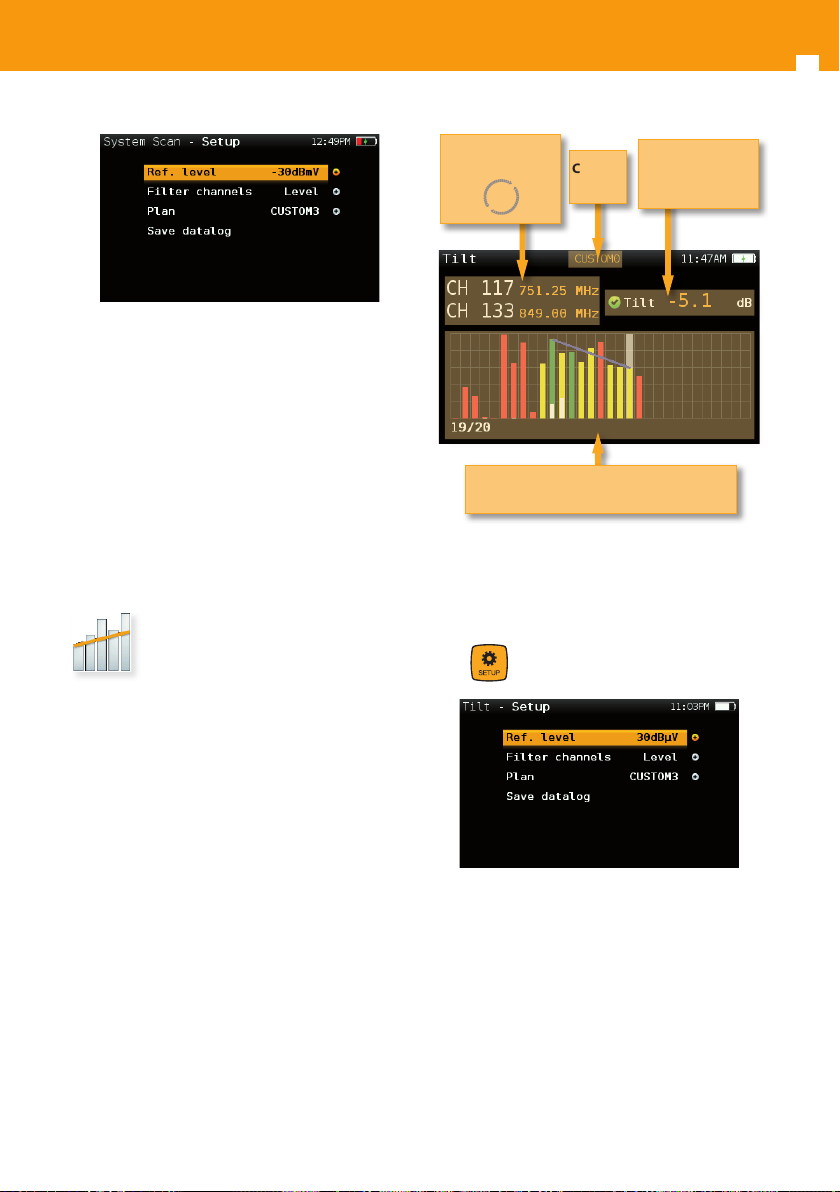

System scan ............................................................................................. 13
Tilt ............................................................................................................. 14

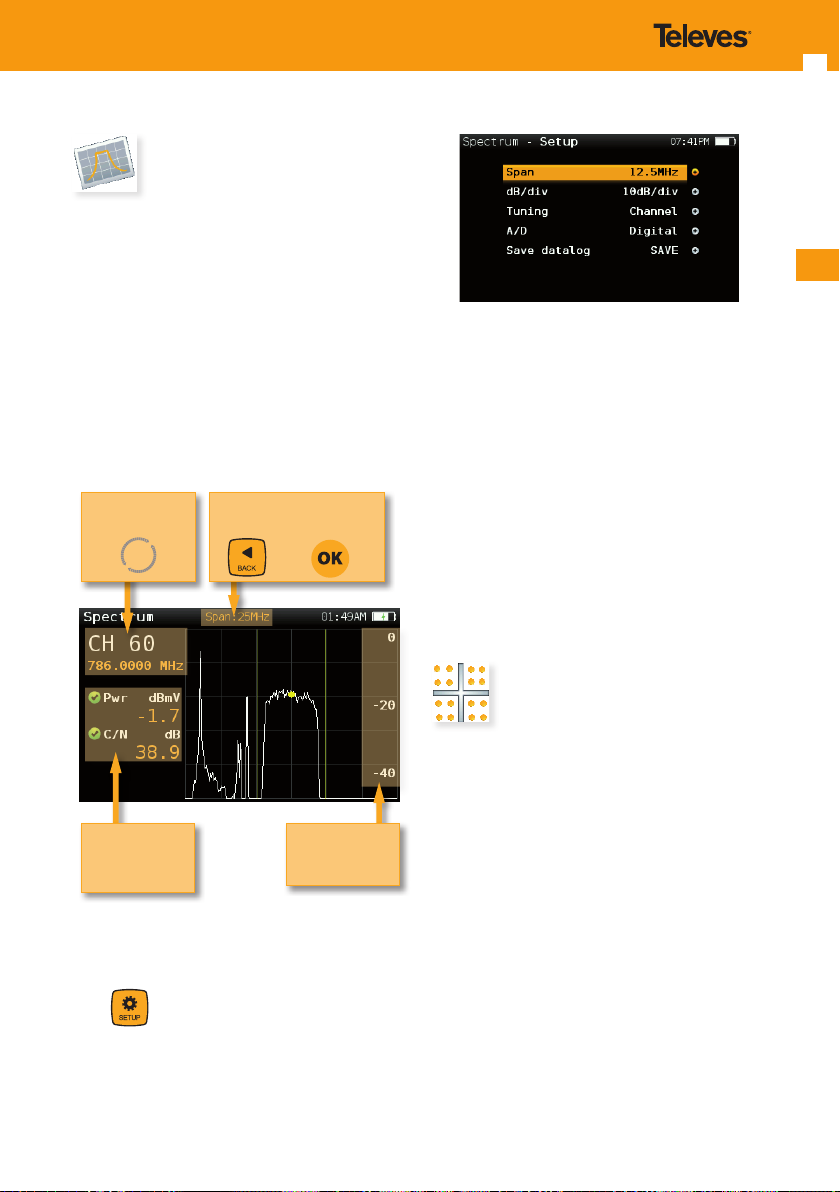

Spectrum .................................................................................................. 15

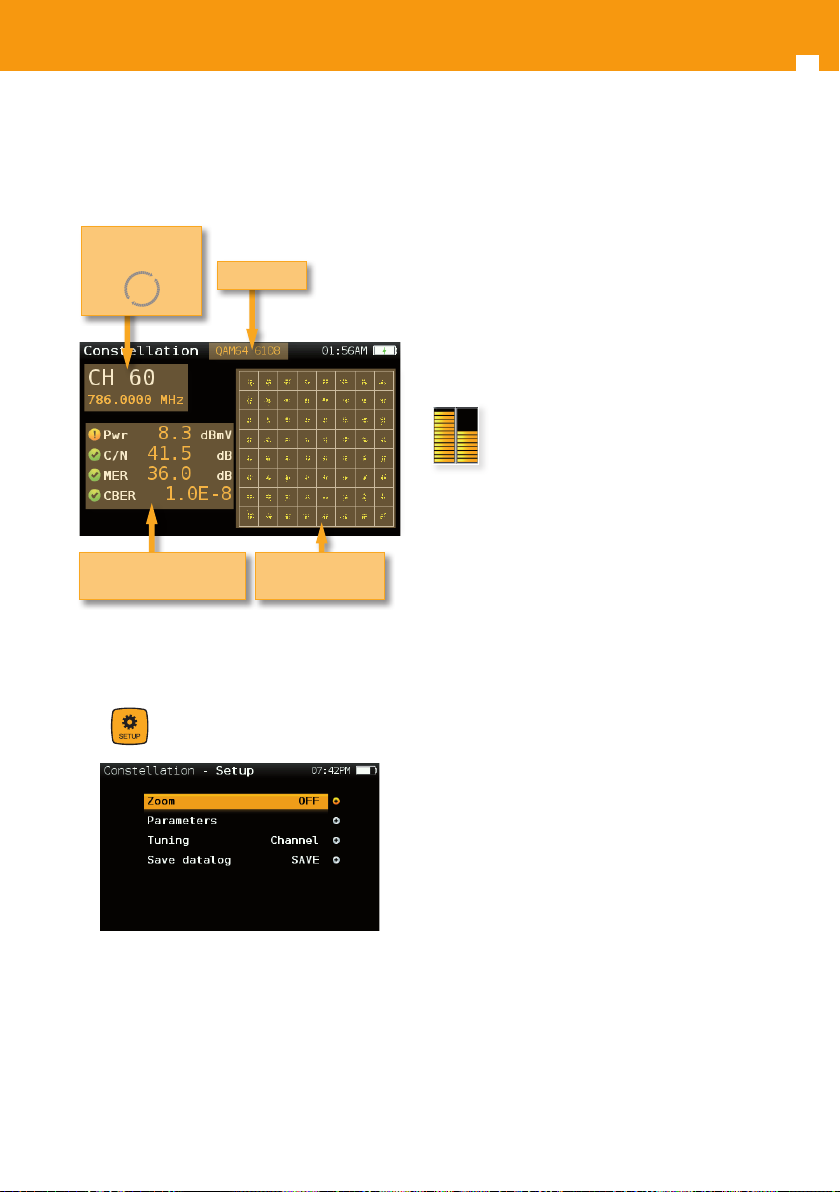

Constellation ............................................................................................ 15

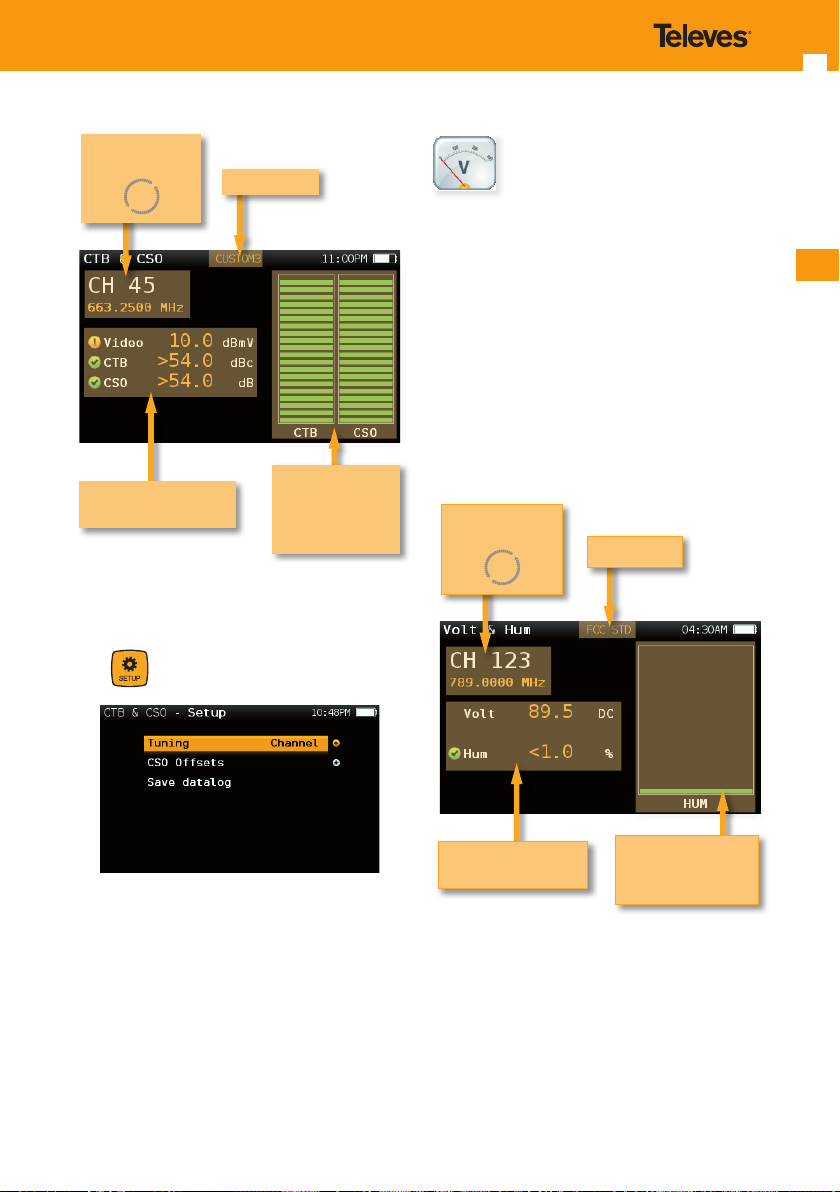

CTB & CSO .............................................................................................. 16
Voltmeter & Hum ...................................................................................... 17
Equalizer ................................................................................................... 18
Learning plan ............................................................................................. 19
Ingress Scan ............................................................................................. 19

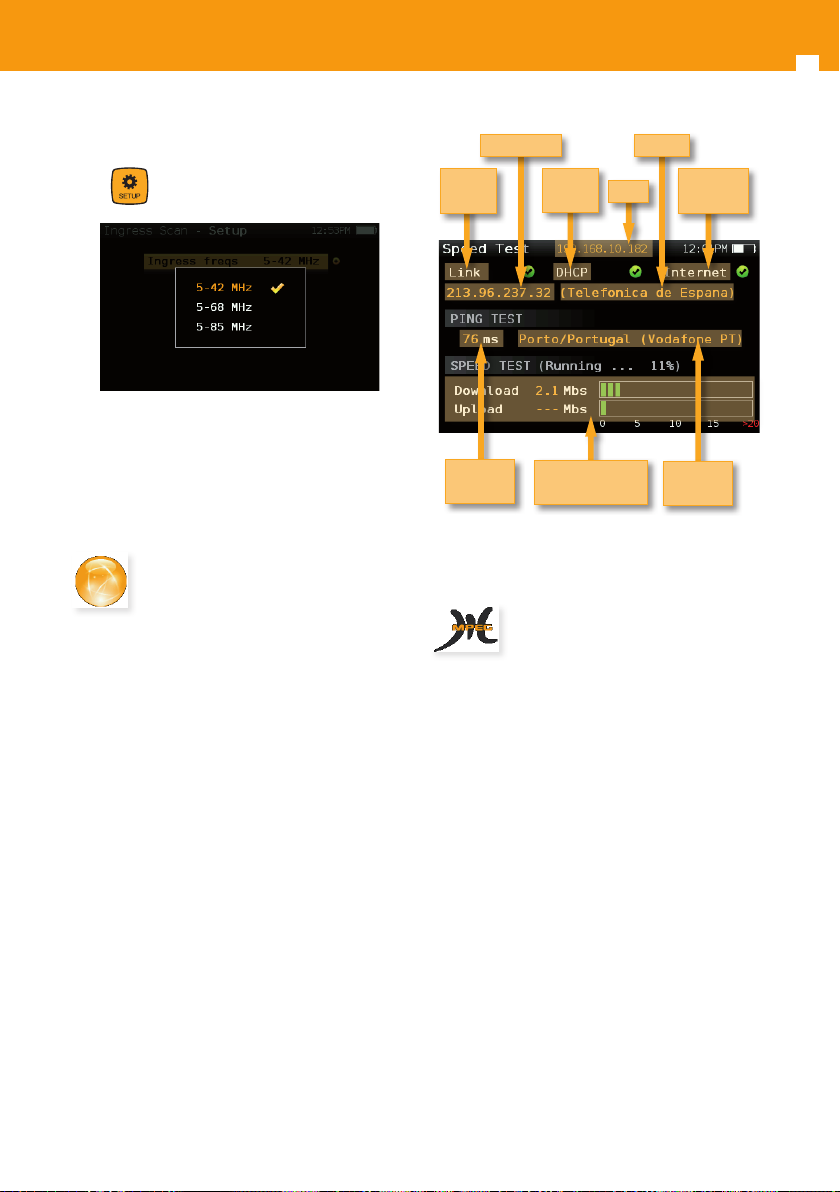

Speed Test ................................................................................................ 20
Service Info ............................................................................................... 20
Setup ........................................................................................................ 21
Ethernet Features ........................................................................................ 22

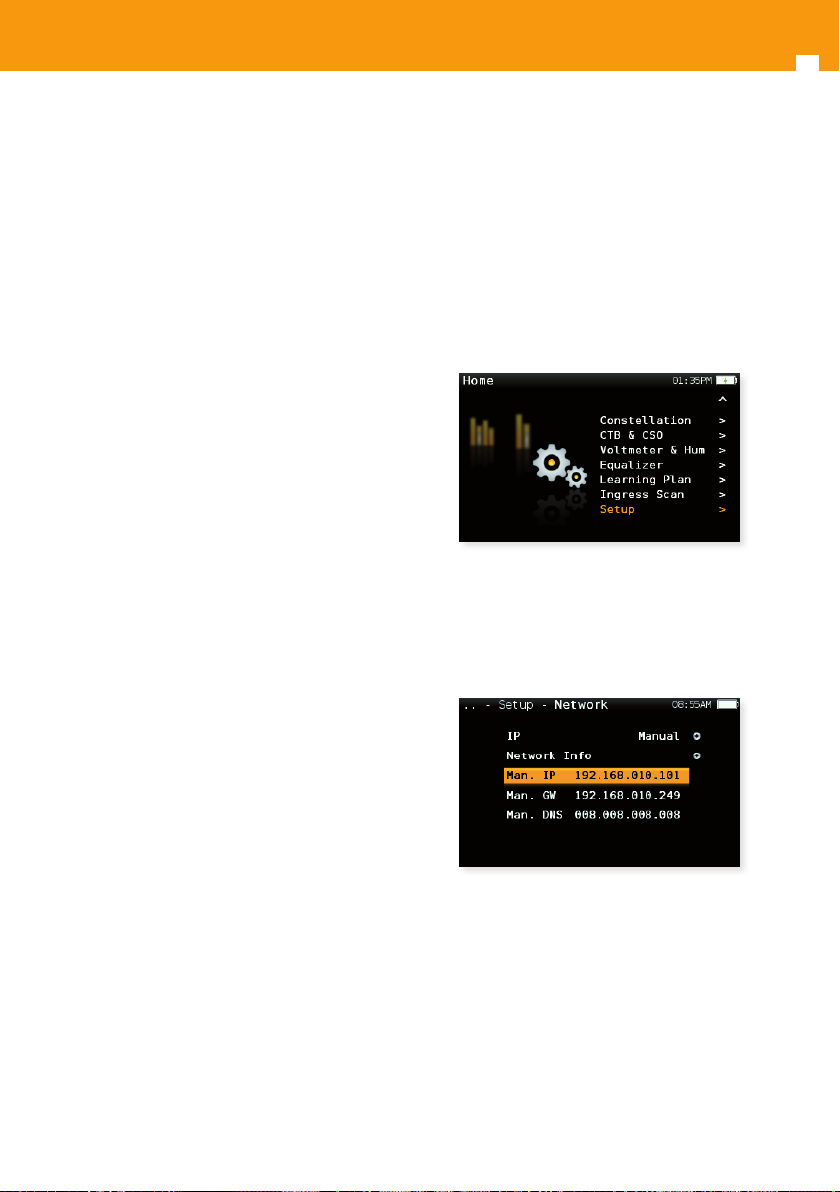

Network setup ............................................................................................ 22
Firmware update ........................................................................................ 23

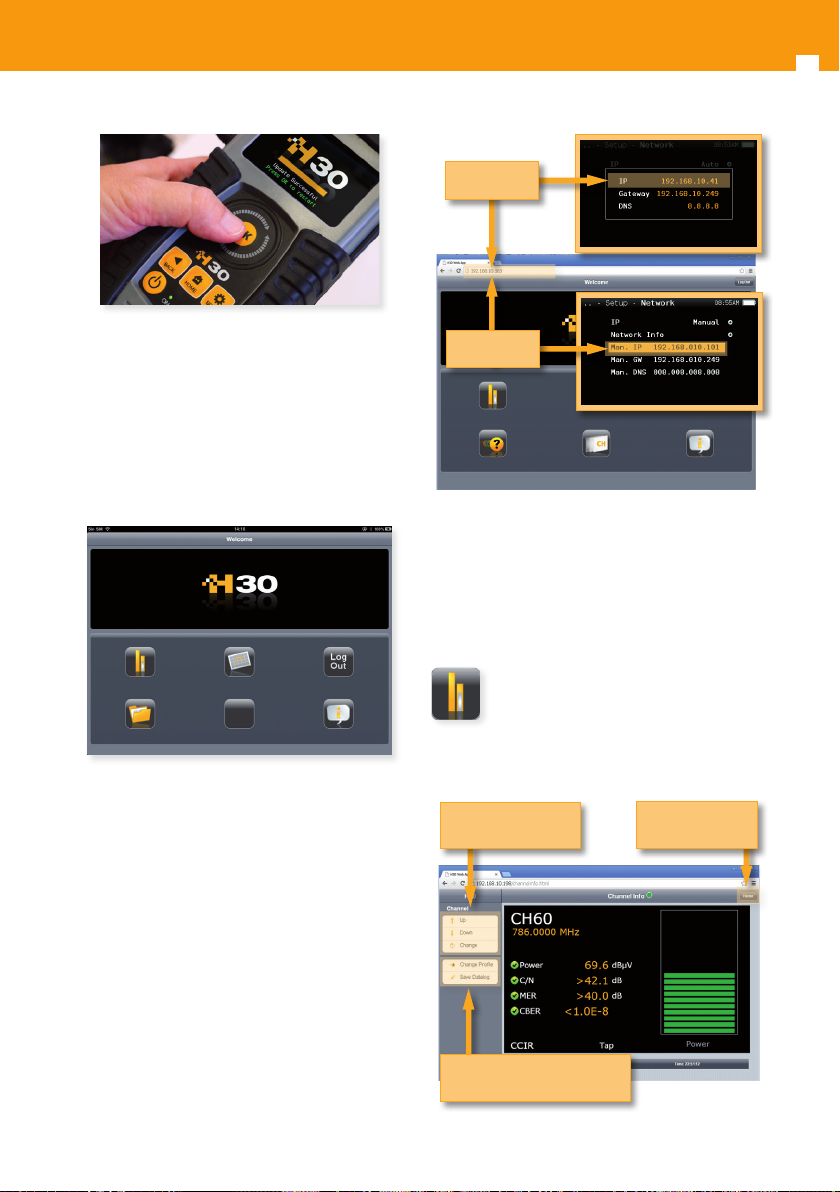

Remote Control ........................................................................................ 24
Maintenance ................................................................................................ 27
Technical support ......................................................................................... 27
Warranty ...................................................................................................... 28
EN
ENGLISH
H30 - CATV & DOCSIS3.0 Meter / Analyzer
Safety requirements
4
Product inspection
- Inspect the equipment for shipping damage.
Should any damage be discovered, immediately
le a claim with the carrier.
Read and Follow All Instructions
- All the safety and operating instructions should
be read prior to and followed while operating
this product.
Cleaning
- Follow the cleaning instructions contained in
the Maintenance section of this manual.
Attachments
- Do not use attachments that are not approved
by the product manufacturer.
Water and Moisture
- This product is weather resistant but is not
submersible.
Power Sources
- This product should be operated only from the
type of power source specied.
Grounding or Polarization
- Do not bypass or defeat electrical plug
polarization or grounding. Doing so will violate
the warranty and may pose a risk of re or
electrocution.
Wire Protection
- Ensure all connected wiring is routed correctly
to avoid damage including pinching, excessive
bends, or compression.
Electrical Supply, Grounding, and Surge
Protection
- Ensure that all local or national electrical codes
are followed.
Power Lines
- Always use caution and avoid operating this
or any connected equipment near uninsulated
power lines or any other hazards.
Servicing
- There are no user serviceable parts except the
battery. Do not attempt to service this product or
remove covers other than the battery cover. Refer
all servicing to qualied service personnel. Follow
the instructions in this manual when replacing the
battery.
Heat
- The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including ampliers) that produce
heat.
5
Overview

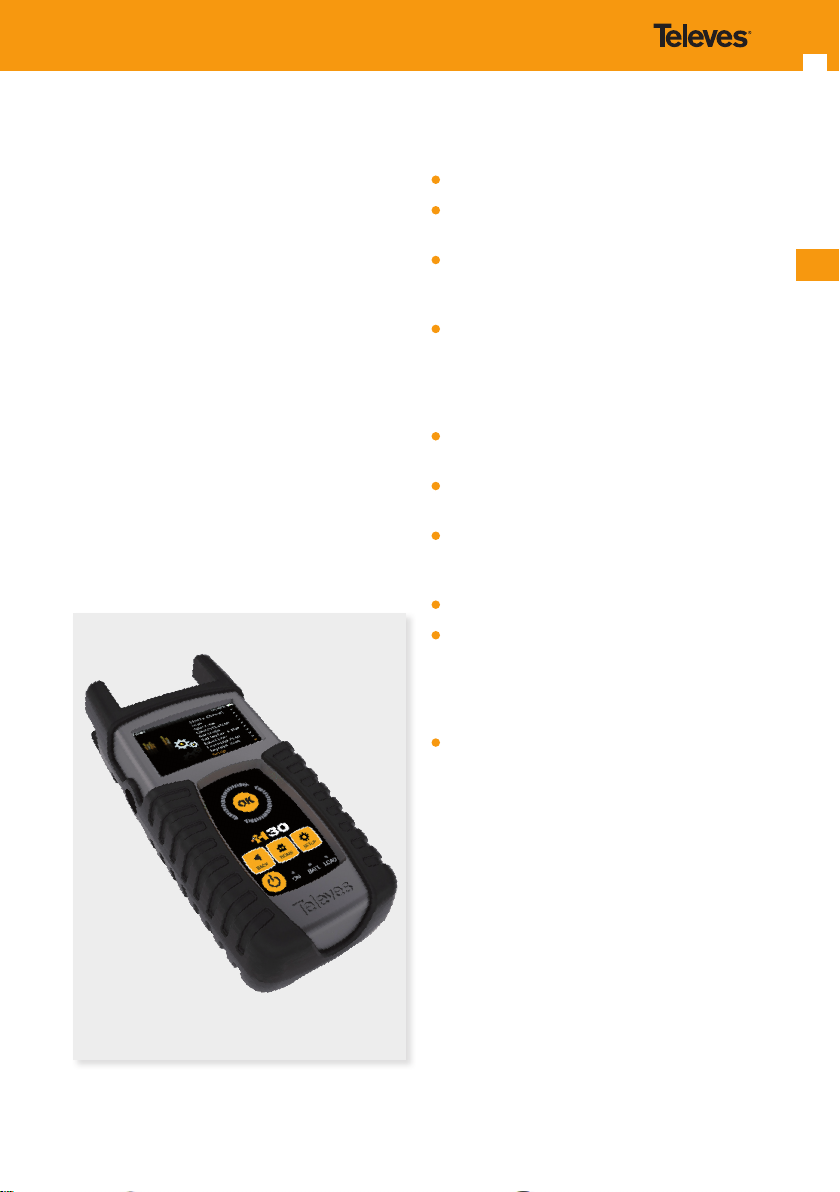

Introducing the H30.
New from Televes, a go-to meter designed with the
needs of a Cable TV operator in mind.
The H30 is a light weight, rugged unit, packed with
all the features needed to install and troubleshoot
a television system using QAM digital modulation
as well as NTSC analog signals.
This handy little unit is even inexpensive enough to
leave in your headend and use its unique in its class
remote measurement and control capabilities to
provide long term monitoring or to troubleshoot
those hard to nd, intermittent problems.
Available for the rst time in such a portable and
aordable package, its real time digital processing
engine gives the installers the lab-precision
measurements needed in today’s fullment
environment.
Key Features
User friendly, handheld QAM meter.
Remote measurements and control in an
aordable package.
Complete portfolio of Analog/Digital
measurements with easy-to-read pass/fail
indicators.
Quick and easy to use interface with features
such as Channel measurements, System Scans,
Tilt Function, Constellation Diagram, Spectrum
Analyzer, Voltmeter, Hum, Service Identication
(option 593210), Datalogger, and more.
Rugged, light weight, fully automatic, fast, and
accurate.
Automatic through-the-cloud software
updates.
100% automatic ITU-T J.83 Annex A/B/C
parameter detection and measurement with no
setup needed.
1 GHz spectrum range with selectable span.
PASS/FAIL Indicators: Icons indicate if a
measurement is good, bad, or in the warning
zone for quick and easy status checks. Reduce
installer entry errors and improve decision
making.
Control your H30 remotely and make
measurements from any internet connected
device. Ideal for extended signal tests over
time in headends and broadband distribution
networks. Leave your H30 connected to your
headend or anywhere in your plant and control
the unit and measure signals and quality
parameters remotely. Once nished, export the
results to your computer using the included
Remote Application software.
EN
H30 - CATV & DOCSIS3.0 Meter / Analyzer
General Specification
Display 2.8”TFT 400 x 240 full colour
Weight
Dimensions 6.9 x 3.9 x 2 in /175 x 100 x 52 mm(H x W x D)
AC Adaptor
Battery LiIon smart battery (7.2VDC, 2300mAh)
Operating Time Up to 4 hours
Operating Temperature 23ºF to 104ºF (-5ºC to 45ºC)
Storage Temperature -4ºF to 158ºF (-20ºC to 70ºC)
Humidity 5% to 95% non-condensing
Ruggedness Survives 1 m (3 ft) drop to concrete on all sides
Communication
Interfaces
Storage 400 MB (internal) for measurements
Power up time < 10 seconds
Ref. 593101&593102: 12.12lb (510g)
Ref. 593103: 1.39lb (632.2g)
Input: 100-240V~ 50-60Hz
Output: 12VDC, 2A
RJ45 10/100-T Ethernet interface for Remote Control, Measurements,
Datalog Retrieval andAutomatic Software Updates
6
Technical Specifications
7
Frequency
Range 5 MHz to 1002 MHz
Resolution 50 kHz
Tuning Frequency or channel
Input
Impedance 75Ω F-type connector
Spectrum Analyzer
Span
Scale 5 and 10 dB/div
Automatic and
manual reference
level
Reverse Path Ingress Scan
Range
Mode
Digital Measurements
Demodulation ITU-T J.83 Annex A/B/C standard
Support
Symbol Rate 2 to 6.9 MS/sec
Q.A.L. Technology
(QAM Auto Lock)
DFE lter On / O
Power -30 to +60 dBmV
C/N Up to 45 dB
MER Up to 40 dB
Accuracy ±2 dB
Resolution 0.1 dB
Pre-BER and PostBER (Annex B)
BER (Annex A/C) 1.0E-3 to 1.0E-8
Constellation
Display 4, 16, 32, 64, 128 and 256 QAM
Zoom Capability
Channel Equalizer
Graphical
representation
Analog Measurements
Level measurement -30 to +60 dBmV
2.5, 6.25, 12.5, 25, 62.5, 125, 250,
500 MHz and Full
Selectable5 to 42MHz, 5 to
68MHz, and5 to 85MHz
Peak, Average, Min, and Realtime
16, 32, 64, 128 and 256 QAM,
QPSK
Automatic detection of signal
characteristics and modulation
parameters
1.0E-3 to 1.0E-8
Specications are subject to change without notice.
V/A up to 30 dB
C/N up to 54 dB
Accuracy ±2 dB
Resolution 0.1 dB
CSO/CTB
Channel Plans
Factory channel
plans
Custom channel
plans (learning
plan)
System Scan
Channels
Measurements
Tilt
Channels
Selectable markers
Pass/Fail Indicators
Factory proles
Custom proles up to 10 proles
Voltmeter
Range 9V to 150V
Accuracy ±(0.5V +1%)
Hum
Range 2 to 5%
Accuracy ±1%
Speed Test Option 593211
Download and
upload Speed
Ping times
Service Info Option 593210
Channel
parameters
Service parameters SID, VID, AID, bitrate, encode type
Cable Modem (593103)
Modes Docsis3.0/2.0/1.1/1.0/BPI/BPI+
Dowstream Up to 8 channels (88-1002MHz)
UpStream Up to 4 channels (5-42MHz)
Up to 24 with dierent world
wide regions
Up to 16 channel plans
Up to 100 channels (analog and/
or digital)
Level bar representation and C/N
BER/MER of the selected channel
Up to 100 channels (analog and/
or digital)
Headend, Fiber Nod, Trunk,
Bridge, Line Ext, Tap, End Line,
Ground, Modem/STB, O Air
Up to 20Mbps
NIT, PAT, TSID, CBRT
EN
H30 - CATV & DOCSIS3.0 Meter / Analyzer
8

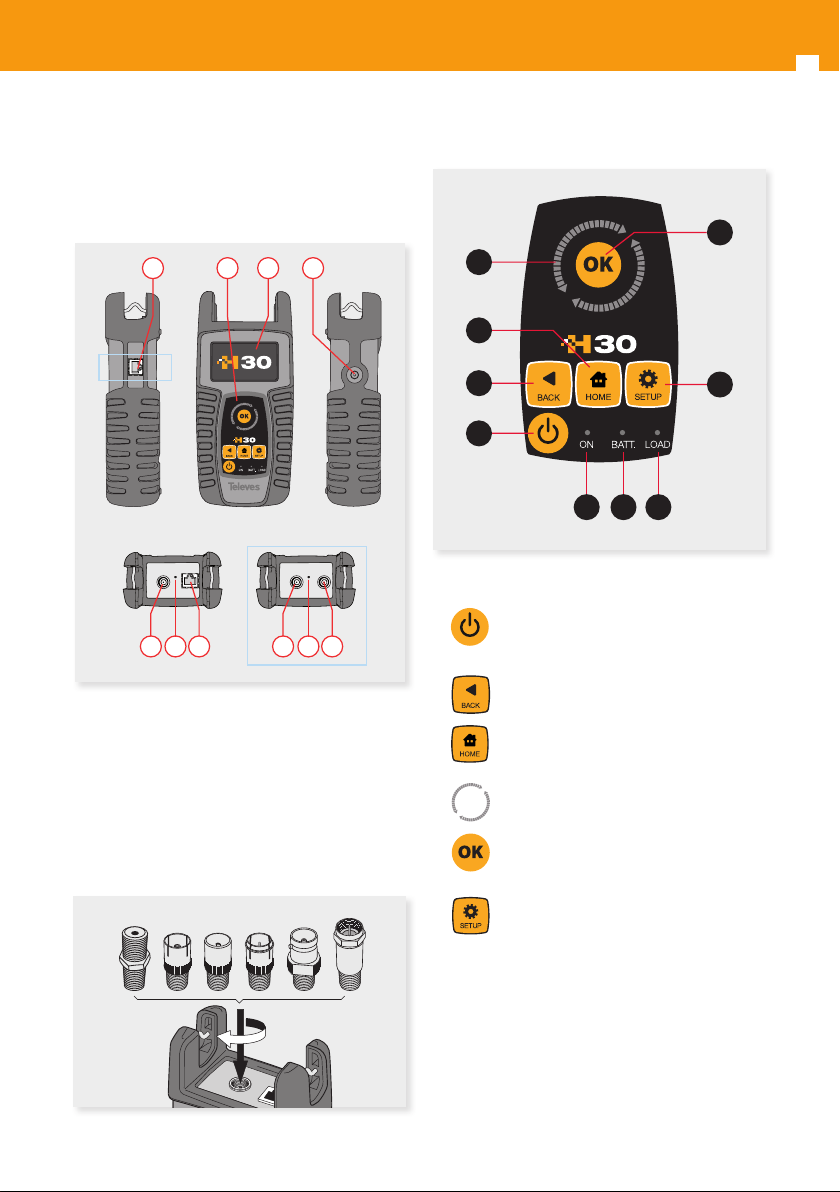

Description of equipment
components
Connectors and controls
*
1. External power connector (12VDC).
2. LCD display.
3. Keyboard and LED indicators
4. RF F-connector (see options below).
5. Reset.
6. Ethernet connector.
7. DOCSIS connector (ref. 593103).
*
Keyboard
1. Device On/O button: To turn the
* Ref. 593103
2.
3.
4.
5.
equipment o, press and hold for
approximately 3 seconds.
Back button: Return to the previous
menu or close a parameter entry window.
Home button: Return to the main menu.
Rotating selector: Used to scroll through
options.
OK Button: To conrm selection.
F-connector options
6.
Setup button: Parameter window for the
current function.
7. LED Load: Indicates if the equipment is
powering an external load.
8. LED Charging Battery: Indicates if the battery
is charging.
9. LED Power ON: Illuminated when the
equipment is on.

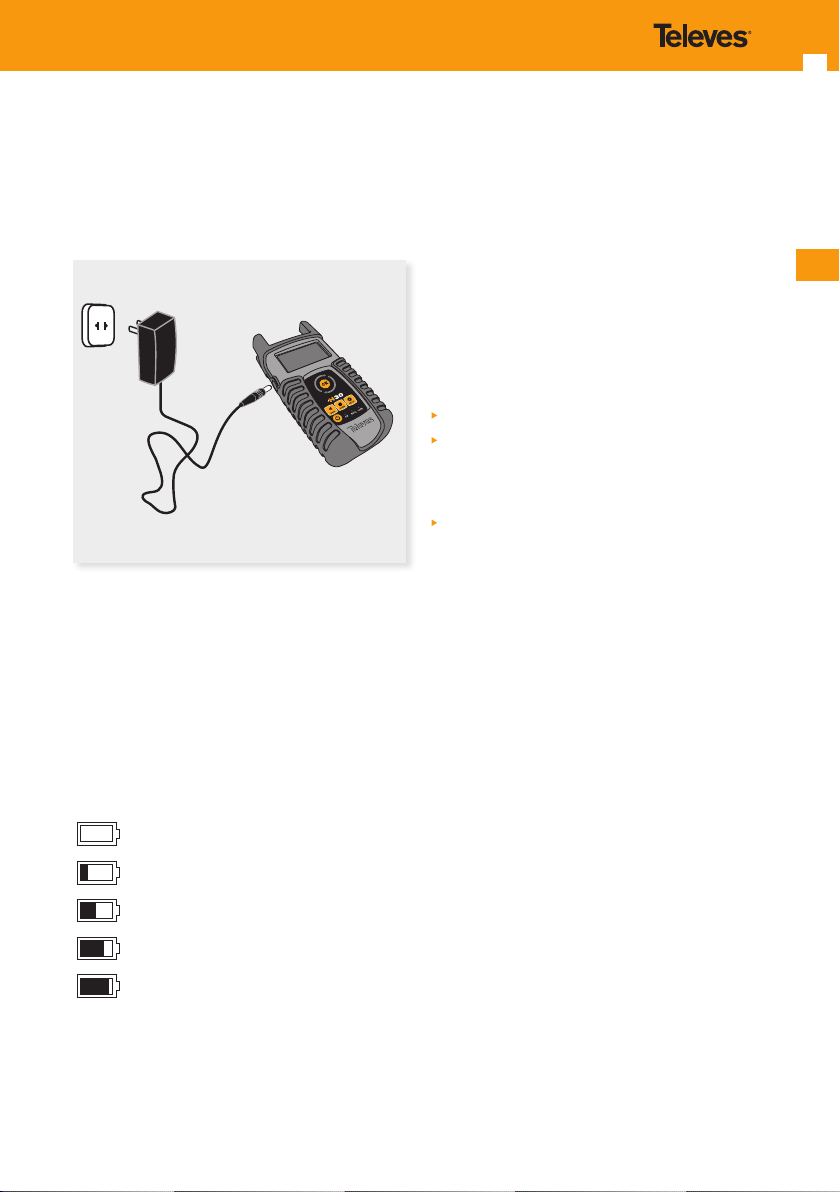

Power supply
A DC adapter is provided to power and charge the
meter. Plug the adapter into a properly grounded
electrical supply and the power connector on the
side of the unit.
When external power is supplied, the battery
management system automatically controls the
charging process.
A battery icon indicates the charge status of the
battery.
When the battery is fully charged, the battery icon
is completely lled. As the battery discharges, the
amount the icon is lled decreases in steps.
The icon shows 5 states representing the
approximate battery charge:
From a fully discharged state, a full charge takes
approximately 8 hours and a 3 hour charge will
provide approximately a 75% charge.
The charge management system will detect
various conditions preventing charging, such as a
battery that is over a safe temperature.
Battery Recommendations
To maximize battery life:
Avoid fully discharging the battery.
The battery should always be charged with the
battery pack attached to the device and using
the supplied DC adapter or applying a constant
voltage within the specied range (12-15VDC).
For long term storage, keep the unit at room
temperature, or about 25º C. Start with a charged
battery and re-charge the battery every 2 to 3
months.
9
EN
- Battery charge less than 5%.
- Battery charge between 5% and 25%.
- Battery charge between 25% and 50%.
- Battery charge between 50% and 75%.
- Battery charge greater than 75%.
H30 - CATV & DOCSIS3.0 Meter / Analyzer
10
Product operation
1. Docsis 3.0 (ref. 593103)
In this menu are grouped all functions related to
Docsis network.
1.1. Connection Status
This function shows all the steps the H30 is taking
to connect to a DOCSIS network.
Each time a step is successfully completed, it is
indicated with a checkmark.
The steps are shown in the window in order.
The rst thing that the modem has to do is range
and lock on to the downstream channel. Once the
modem is locked, it is shown the frequency of the
channel used for receiving data from the CMTS
(Cable Modem Termination System). The modem
will then attempt the same with the upstream
channel.
Then, the DHCP server must assign the IP network
parameters to the modem. The next step is to
synchronize the time with the TOD (Time Of Day)
server. In both cases, the IP addresses of the servers
will be shown in the window.
The modem then gets and displays the name of
the conguration le given by the CMTS.
Last, is the modem registration status, the level of
security (BPI, BPI+), the DOCSIS version, and the
channel bonding conguration.

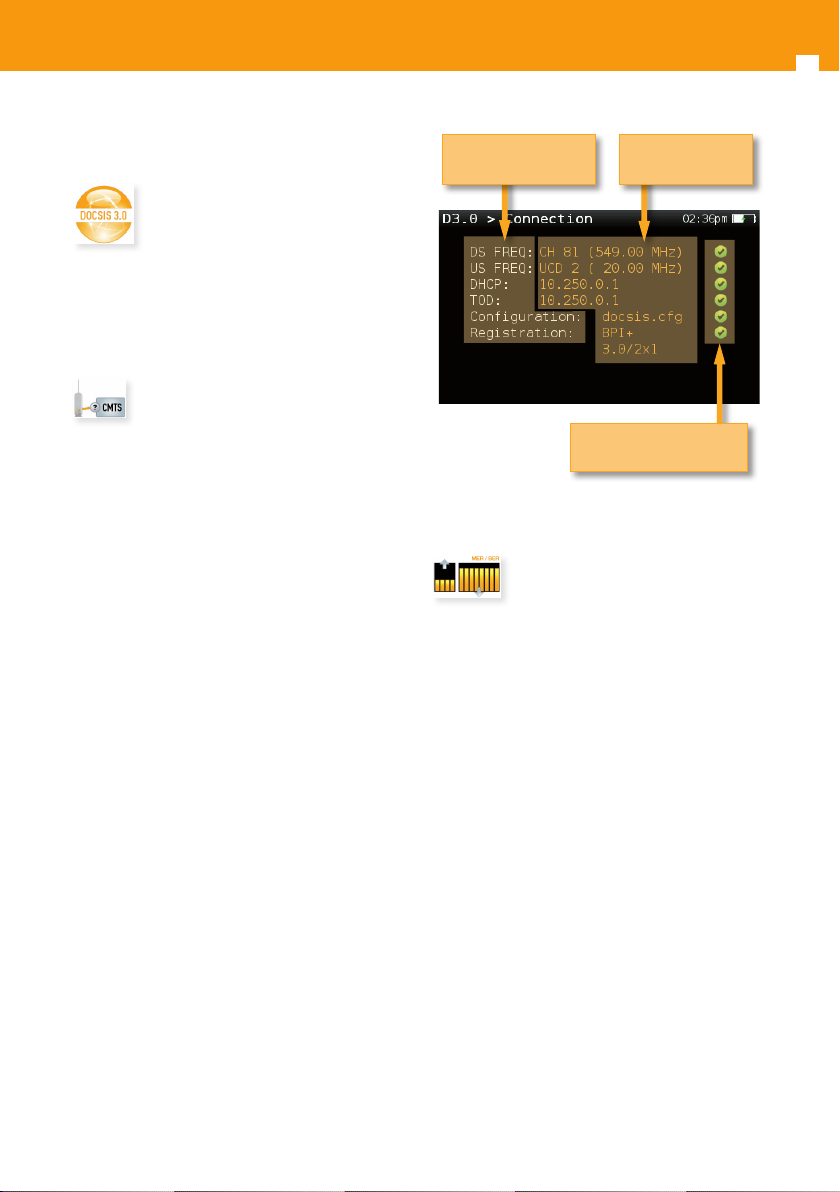

1.1.1. Main window
Below is a capture of a Connection window with a
brief explanation of its features.
Steps that the meter
must be completing
Parameters of the
DOCSIS network
Indicators that show the
state of the processes
1.2. Measurements
This function shows the status of all the upstream
and downstream channels at a glance.
The internal modem of the H30 supports eight
downstream channels and four upstream channels.
This function graphically shows the status of all of
these channels in a way that clearly shows which
channels comply with the used-dened thresholds
by its green, yellow, or red colour.
A single channel can then be chosen for further
analysis. The detailed measurements of the
selected channel as well as the modulation data
and the symbol rate will then be shown.
To evaluate the quality of the channels, this
function provides the Power, SNR, Pre-BER and
Post-BER measurements of the selected channel.
All the metrics reported are based on user-dened
location thresholds providing easy to interpret
pass/fail results.
1.2.1. Main window
Below is a capture of a Measurements window with
a brief explanation of its features.
11
Channel
Change using
List of measurements
with pass/fail indicators
Frequency
Parameters of the
selected channel
Bar graph representing
all the found channels.
Color according to
checkmarks
1.3. Throughput test
This function measures the upstream and
downstream rates of the DOCSIS network.
The rate measurements are performed using an
FTP server that must be congured by the user
(URL, le, get/put, user, password). See section 1.5
Setup.
This feature shows the IP modem within the DOCSIS
network and the maximum speed negotiated (DS/
US). When you start the speed test, the speed value
is constantly updated.
Modem IP
within the
DOCSIS
network
Average
PING delay
Transmitted and received packets
Current
PING
delay
Transfer
speed
Maximum DS
and US speed
negociated
URL set by
the user
packets
Transfer
status
Lost
1.4. Modem Emulation
This function sets the H30 to be used as a DOCSIS
modem and to use it to give to another device a
connection to the DOCSIS network via the H30’s
ethernet port.
This feature shows the connection status of the
modem as well as the instantaneous speed and the
size of the data sent through the modem.
1.4.1. Main window
EN
1.3.1. Main window
Below is a capture of a Throughput Test window
with a brief explanation of its features.
Below is a capture of a Modem Emulation window
with a brief explanation of its features.
H30 - CATV & DOCSIS3.0 Meter / Analyzer
12
Modem
status
Received
data size
Modem IP
Download
speed
Transmitted
data size
Upload speed
1.5. Setup
The features in this menu, allows you to set the
required parameters to analyze a DOCSIS network.
FTP Server: Enter the ftp address using
FTP Path: Enter the le path using
.
Method: GET, PUT.
GET selects the upstream channel and
PUT select the upstream for the FTP Test
in the Troughput test feature.
User: Enter the user for the FTP server.
Pass: Enter the appropriate password for the for
the FTP server user.
2. Channel Info
Analog and digital channels are very dierent in
terms of signal content and power distribution
and thus require the advanced SLM techniques
provided in the Televes H30.
In analog mode, video and audio levels, V/A and
Carrier to Noise (C/N) are measured.
In digital mode it´s Power, C/N, Pre-BER and
Post-BER.
.
You can access to Setup menu by pressing
button.
- Tuning mode: Auto, Manual.
If Auto is selected, the H30 automatically
searches for the DOCSIS network channel. If you
select Manual, you must select one channel from
the Channel list
- Channel: Allows you to select the channel when
Manual is selected in the Tuning mode.
- FTP: These parameters allows to set the ftp to do
the Throughput test.
2.1. Main window
Below is a capture of a Channel Info window with a
brief explanation of its features.
13
Channel
Change using
List of measurements
with pass/fail indicators
2.2. Setup
Press
to change the Channel Info options.
Frequency
Channel
plan
Bar graph of main
measurement.
Color according to
checkmarks
3. System Scan
This function scans the selected channel plan and
detects every existing analog and digital channel
in real time to determine the overall frequency
response of the system.
The scan measurement leverages the location
based thresholds to clearly show whether or
not signal levels comply with the cable system’s
specications with their green, yellow and red bars.
This gives an easy-to-understand real-time view of
the system, including the BER and MER values of
the selected channel.
3.1. Main window
Below is a capture of a System Scan window with a
brief explanation of its features:
Channel
Change
using
Frequency
Channel
plan
Measurements
of the selected
channel
with pass/fail
indicators
EN
- Tuning: Channel, Frequency
- A/D: Auto, Analog, Digital
- Parameters:
Bandwidth: Auto, 6 MHz, 7MHz, 8MHz
Symbol Rate: Auto, 6111, 5156, Other
Constellation: Auto, 4QAM, 16QAM,
32QAM, 64QAM, 128QAM, 256QAM
Standard: ITU J.83-A, J.83-B, J.83-C
DFE: OFF, ON.
- Save datalog: Saves the current
measurements. You can see the datalogs
using the remote control application.
Bar graph representing all the found channels.
Color according to checkmarks
3.2. Setup
Press
to change the System Scan options.
H30 - CATV & DOCSIS3.0 Meter / Analyzer
14
- Ref. Level: Select the reference level of the
bar graph.
- Filter channels: Level, None
User can choose to lter the channels that
don´t meet a minimum level.
- Plan: FCC STD, FCC RETURN, FCC IRC, FCC
HRC, FCC OFFAIR, CCIR, Custom plans.
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application.
4. Tilt
Any number of analog, digital or DOCSIS channels
can be measured using the tilt measurement,
and you can even select which carriers are your
reference points to determine the tilt between any
of the channels included in the measurement.
The Tilt measurement leverages the location based
thresholds to clearly show whether or not signal
levels comply with the cable system’s specications
with their green, yellow and red bars.
Selected channels
Change using
Bar graph representing all the channels.
Color according to checkmarks
Channel
plan
4.2. Setup
Press
to change the Tilt options.
Tilt measurement
between the
selected channels
4.1. Main window
Below is a capture of a Tilt window with a brief
explanation of its features:
- Ref. Level: Select the reference level of the
bar graph.
- Filter channels: Level, None
User can choose to lter the channels that
don´t comply a minimum level.
- Plan: FCC STD, FCC RETURN, FCC IRC, FCC
HRC, FCC OFFAIR, CCIR, Custom plans.
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application.
5. Spectrum
Real-time processing speeds ensure capture of any
fast, intermittent plant impairments.
Due to the accuracy and level of detail provided
by this spectrum analyzer, the H30 is the ideal tool
for identifying and locating noise, interference,
ingress and other waveforms that may be aecting
cable services quality.
5.1. Main window
Below is a capture of a Spectrum window with a
brief explanation of its features:
Selected channel
Change using
Span
User can change it using
(+) or (
-
)
15
EN
- Span: 2.5MHz, 6.25MHz, 12.5MHz, 25MHz,
62.5MHz, 125MHz, 250MHz, 500MHz, Full.
Set the span of the spectrum. To easily change
the span, use the OK Button to decrease the
span and the Back Button to increase the span.
- dB/div: 5 dB/div, 10 dB/div
- Tuning: Channel, Frequency
- A/D: Auto, Analog, Digital.
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application.
List of
measurements
with pass/fail
indicators
5.2. Setup
Press
Reference level
(Auto)
to change Spectrum options.
6. Constellation
Digital video often does not show signal
impairment until it is too late due to the small
margin between acceptable quality and failure.
Constellation diagrams are an indispensable tool
to help detect the presence of noise, phase jitter,
interference, and gain compression, all of which
impact overall signal quality and thus reduce
Modulation Error Ratio (MER).
Ideally, each of the symbols in a constellation
diagram should display a clean dot indicating a
perfect QAM signal.
The H30’s real time constellation, allows the
installer to assess the size and shape of the build
up of dots indicative of problems which contribute
to bit errors leading to service disruption
H30 - CATV & DOCSIS3.0 Meter / Analyzer
16
6.1. Main window
Below is a capture of a Constellation window with
a brief explanation of its features:
Selected channel
Change using
List of measurements
with pass/fail indicators
Modulation
Constellation
diagram
6.2. Setup
Press
to change Constellation options.
Constellation: Auto, 4QAM, 16QAM,
32QAM, 64QAM, 128QAM, 256QAM
Standard: ITU J.83-A, J.83-B, J.83-C
DFE: OFF, ON.
- Tuning: Channel, Frequency
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application.
7. CTB & CSO
Cable TV networks are generally located in densely
populated areas or extend over large geographical
regions. This makes cascading large numbers of
ampliers a frequent necessity that can be the
cause of quality of service to drop below minimum
acceptable levels.
Composite second order (CSO) and composite
triple beat (CTB) are commonly used quality
parameters that can be measured with the H30
to ensure the best possible quality video for
customers receiving analog signals.
In order to get an accurate measurement of CTB
and CSO, the meter must be tuned to an analog
channel with unmodulated video and audio
carriers. Many operators will choose to leave an
unmodulated channel on the system to allow for
this measurement at any time without aecting
customers.
- Zoom: OFF, 1st, 2nd, 3rd, 4th.
Select a quadrant of the constellation to be
represented for more detailed view. Select
Zoom OFF for the full constellation.
- Parameters:
Bandwidth: Auto, 6 MHz, 7MHz, 8MHz
Symbol Rate: Auto, 6111, 5156, Other
7.1. Main window
Below is a capture of a CTB & CSO window with a
brief explanation of its features:
Selected channel
Change using
List of measurements
with pass/fail indicators
7.2. Setup
Channel plan
Bar graphs of
the CTB and CSO
measurements.
Color according to
checkmarks
8. Voltmeter & Hum
H30 measures the voltage present at the RF input.
The HUM measurement indicates the variation
in percentage of the video carrier amplitude of
the TV signal. This will help you diagnose those
ground and power interference problems that
may result from a defective power supply or faulty/
overloaded power inserters.
8.1. Main window
Below is a capture of a Voltmeter & Hum window
with a brief explanation of its features:
Selected channel
Change using
Channel plan
17
EN
Press
to change CTB & CSO options.
- Tuning: Channel, Frequency.
- CSO osets: The CSO measure is carried
out in dierent frequencies (at a variable
range from the video carrier) within the
selected channel. This allows setting these
frequencies in kHz from the video carrier.
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application.
List of measurements
with pass/fail indicators
Bar graph of the HUM
measurement.
Color according to
checkmarks
H30 - CATV & DOCSIS3.0 Meter / Analyzer
18
8.2. Setup
Press
to change Voltmeter & Hum options.
- Tuning: Channel, Frequency.
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application.

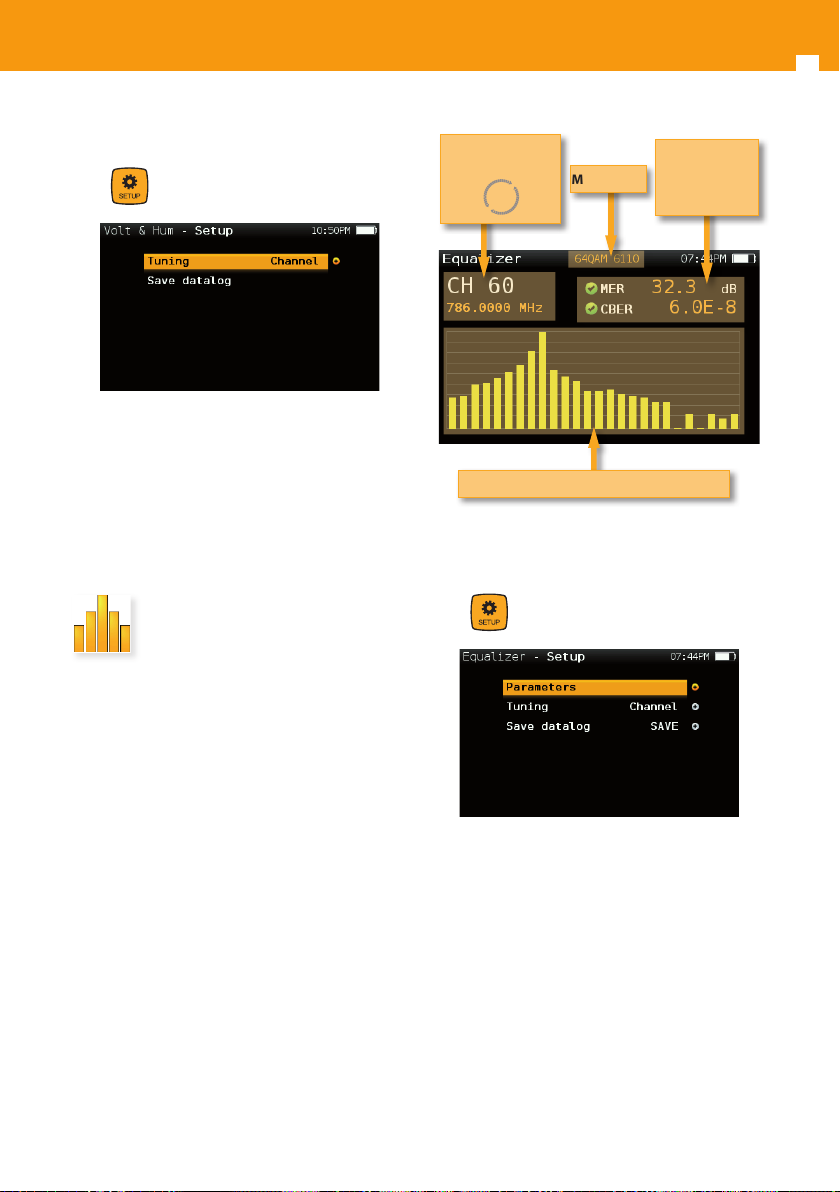

9. Equalizer
Displays a bar chart representing the equalizer
coecients needed to correct the phase and
amplitude distortions in the QAM signal.
This feature helps identify impedance mismatches, echos, and micro-reections.
Selected channel
Change using
Bar graph of the equalizer coecients
Modulation
9.2. Setup
Press
to change Equalizer options.
List of
measurements
with pass/fail
indicators
9.1. Main window
Below is a capture of an Equalizer window with a
brief explanation of its features:
- Parameters: Auto, 6 MHz, 7MHz, 8MHz.
Bandwidth: Auto, 6 MHz, 7MHz, 8MHz
Symbol Rate: Auto, 6111, 5156, Other
Constellation: Auto, 4QAM, 16QAM,
32QAM, 64QAM, 128QAM, 256QAM
Standard: ITU J.83-A, J.83-B, J.83-C
DFE: OFF, ON
- Tuning: Channel, Frequency
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application.
19

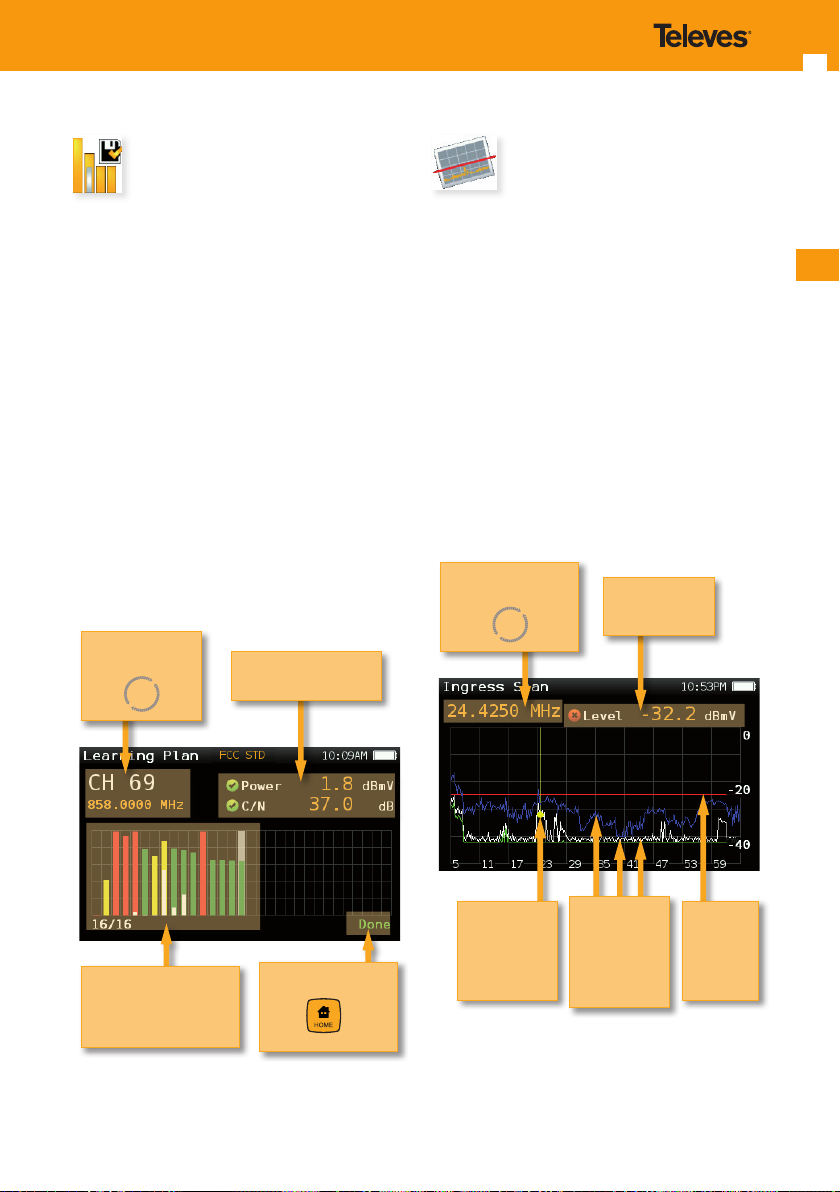

10. Learning plan
Analyzes the input signal to the meter and
automatically detects all channels.
This feature automatically identies the channels
as either analog or digital and performs
measurements on each.
A bar graph is displayed with the height
representing the power for digital channels and the
level of the video carrier for the analog channels.
The measurements made for analog channels are
video carrier level and V/A. For digital channels the
measurements are power and C/N.
The analog channels will have an extra, smaller
white bar indicating the level of the audio carrier.
10.1. Main window
Below is a capture of a Learning Plan window with
a brief explanation of its features:
Selected channel
Change using
List of measurements
with pass/fail indicators
11. Ingress Scan
Help identify reverse path problems before your
customers are aected.
Poorly shielded coaxial cable and faulty
terminations are important sources of ingress
noise which can easily add up in the return due to
the large number of subscriber-generated signals
that are sent back to the headend.
The combined and amplied interference is often
responsible for service disruption, so having a
good reverse path ingress scan tool is a must.
11.1. Main window
Below is a capture of an Ingress Scan window with
a brief explanation of its features:
Selected frequency
Change using
Level of the
selected
frequency
EN
Bar graph representing
found channels
Color according to
checkmarks
Indicates that the
scan is nished.
Press
to save
the plan
Yellow mark:
indicates
the selected
frequency in
the spectrum
Blue graph:
max-hold
White graph:
real-time
Green graph:
min-hold
Red line:
indicates
the current
maximun
level
H30 - CATV & DOCSIS3.0 Meter / Analyzer
20
11.2. Setup
Press
to change Ingress Scan options.
- Ingress frequencies: 5-47 MHz, 5-68 MHz,
5-85 MHz.
Select the span of the graph.
12. Speed Test
(Option 593211)
Allows you to check your basic network
performance parameters so you don’t need to get
your laptop out.
This function attempts to connect to the server
(the server is selected automatically by the H30
by location), checks the DHCP protocol and the
connection to the Internet.
If it is all right, the H30 makes a ping to the server
and shows the delay times.
Finally, the H30 makes a download and upload
speed test.
To start a new test, press OK button.
Public IP ISP
Link
check
Ping
delay
DHCP
check
Download and
upload speed
IP
Internet
check
Server
name

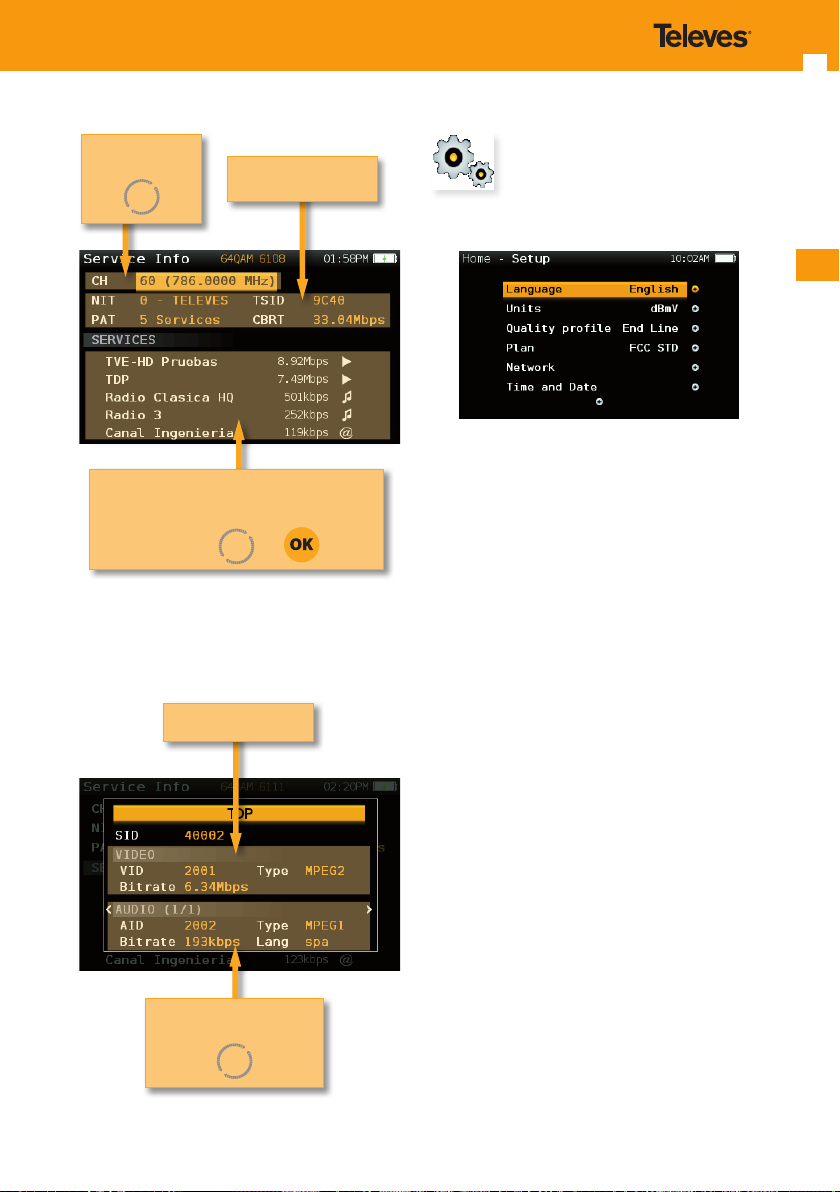

13. Service Info
(Option 593210)
The H30’s Service Info feature will tell you what
program content is on that QAM channel.
In addition to the short description of the service,
you’ll get the important parameters including the
NIT (Network Information Table), PAT (Program
Association Table), TSID (Transport Stream Id) and
CBRT (Channel Bit Rate) for the channel. And for
each individual service you’ll get the SID and the
VID (Video Id)/AID (Audio Id), encode type and
bit rate for both the audio and video, all of which
greatly help when trouble shooting your encoder
conguration.
12.1. Main window
Below is a capture of a Speed Test window with a
brief explanation of its features:
13.1. Main window
Below is a capture of a Service Info window with a
brief explanation of its features:
Selected channel
Change using
List of services of the channel, with the bit
rate of each one and the icon that indicates
the type of service.
Select with
MPEG channel info
and .
Once a service is selected, it will be displayed the
information for that service:
Video info
MPEG audio info
Change audio service using
21
14. Setup
Change main conguration settings:
EN
- Language: English, Español.
- Units: dBµV, dBmV, dBm
- Quality proles: Trunk, Tap, End Line,
Ground.
Dierent thresholds are available for dierent
testing locations.
- Plan: FCC STD, FCC RETURN, FCC IRC, FCC
HRC, FCC OFFAIR, CCIR, and customers plans
saved using Learning Plan.
- Audio Carrier: 4.5 MHz, 5.5 MHz, 6.0 MHz, 6.5
MHz.
- Test port Compensation: O / 1 dB to 30 dB.
Automatic compensation of the measures for
ports with attenuation.
- Network:
Setup: Manual, Auto
IP.
When Setup Manual is selected, the user
must set the IP.
Gateway.
When Setup Manual is selected, the user
must set the gateway.
DNS.
When Setup Manual is selected, the user
must set the DNS.
- Time and Date:
Set current time (hour and minutes) and
date (day of the month, month and year).
H30 - CATV & DOCSIS3.0 Meter / Analyzer
22
- Energy:
Auto suspension
Auto shutdown
- Update rmware: ON, OFF
When ON, every time the H30 is connected
to the internet, it will allow the user to
update the rmware if a new version is
available.
Ethernet Features
Set the network parameters in the H30 to use the
Ethernet port.

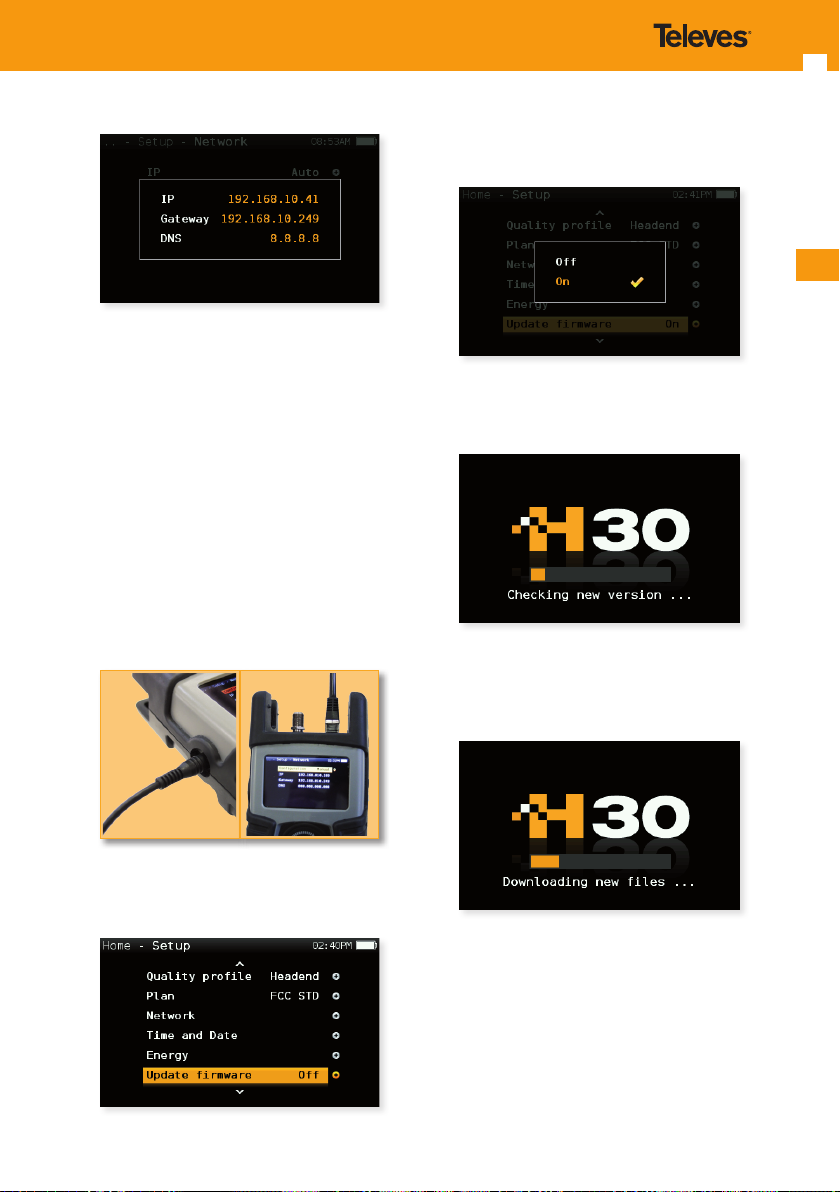

1. Network setup
To congure Internet access, select the function
“Setup” from the main menu.
- Then, select the “Network” option and then the
“Setup” menu.
- IP selection can be Auto or Manual.
If you choose “Manual”, you must set the IP
address, gateway, and DNS in the Man. items:
- If you choose Auto, you can see the IP that the
H30 chose automatically in the “Network Info”
menu:
3.- Press OK and the select “On”. Press OK again to
select the On option.
23
EN
2. Firmware update
Following are details to update the rmware of
your H30.
Important:
- You need to have a connection to the internet.
- Congure your network parameters (see section
1.- Network setup).
1.- Connect the H30 to the external power supply
using the source provided with the meter.
Connect the H30 to the Internet.
2.- In the main menu, select the function “Setup”.
Then, select “Update rmware”.
4.- Turn the meter o by pressing the “Device On/
O” button for some seconds.
5.- The meter will connect to our server, download
the new rmware and install it in your H30. This
process will take around ve minutes.
6.- When the installation is complete, press the OK
button to reboot the meter.
Note: When your H30 connects to the ser ver to
update the rmware, it checks in our database if you
have purchased any of the available options. If so,
they will be activated automatically with the update.
H30 - CATV & DOCSIS3.0 Meter / Analyzer
3. Remote Control
Allows remote use of the H30 with your web
browser.
24
IP Auto
IP Manual
The following functions are available in the remote
control application:
Important:
- You need to have a connection to the internet.
- Your web browser must support HTML5.
- Google Chrome or Safari is recommended.
- Open your browser in your PC or in your tablet.
- Congure your network parameters (see section
1.- Network setup).
To run the remote control application, you
must copy the IP in the web browser bar and
automatically will appear the main window of the
application.
- Channel Info
Sets the H30 in Channel Info mode and shows the
current Channel Info main window:
Select other channel
from the plan
Select another prole and
save the Datalog in the H30
Go back to the
main window
25

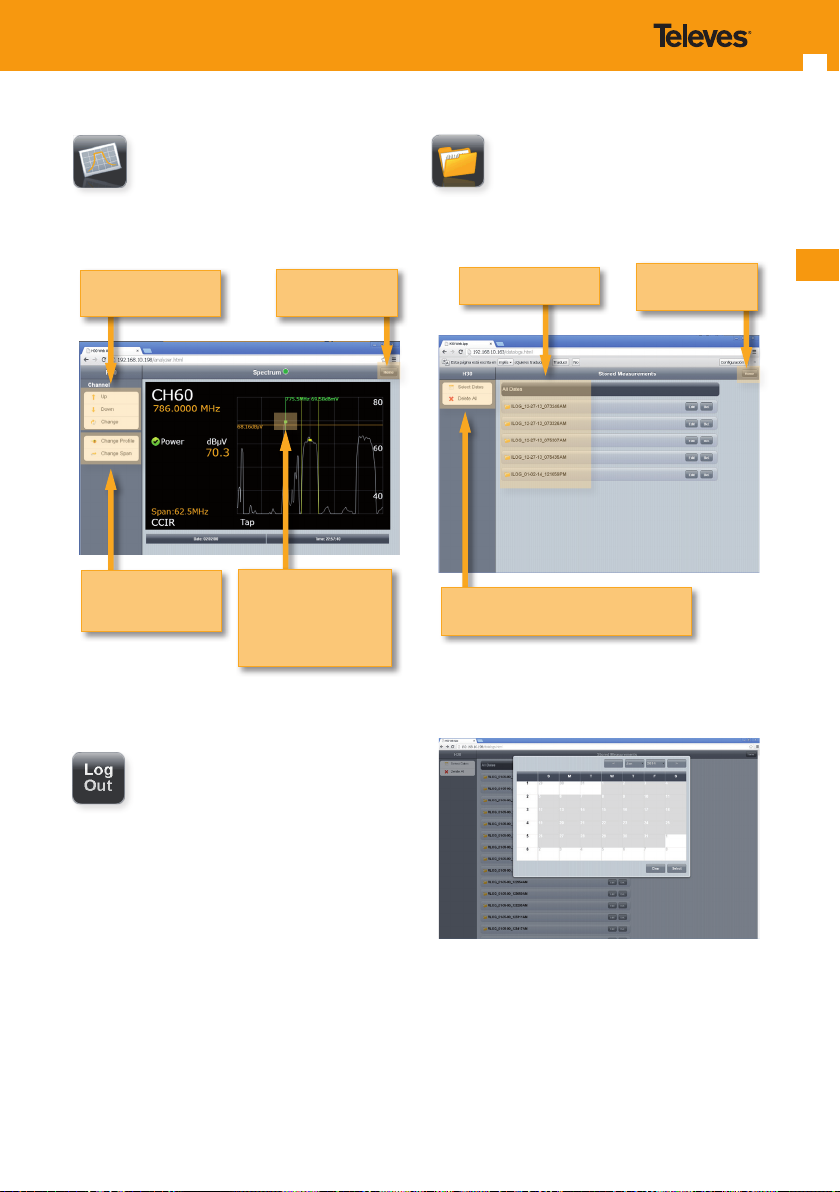

- Spectrum
Sets the H30 in Spectrum mode and shows the
current Spectrum main window:
Select other channel
from the plan
Select another prole
and save the Datalog
in the H30
Go back to the
main window
The user can move
the marker to display
the values of level and
frequency at any point
of the spectrum
- Datalogs

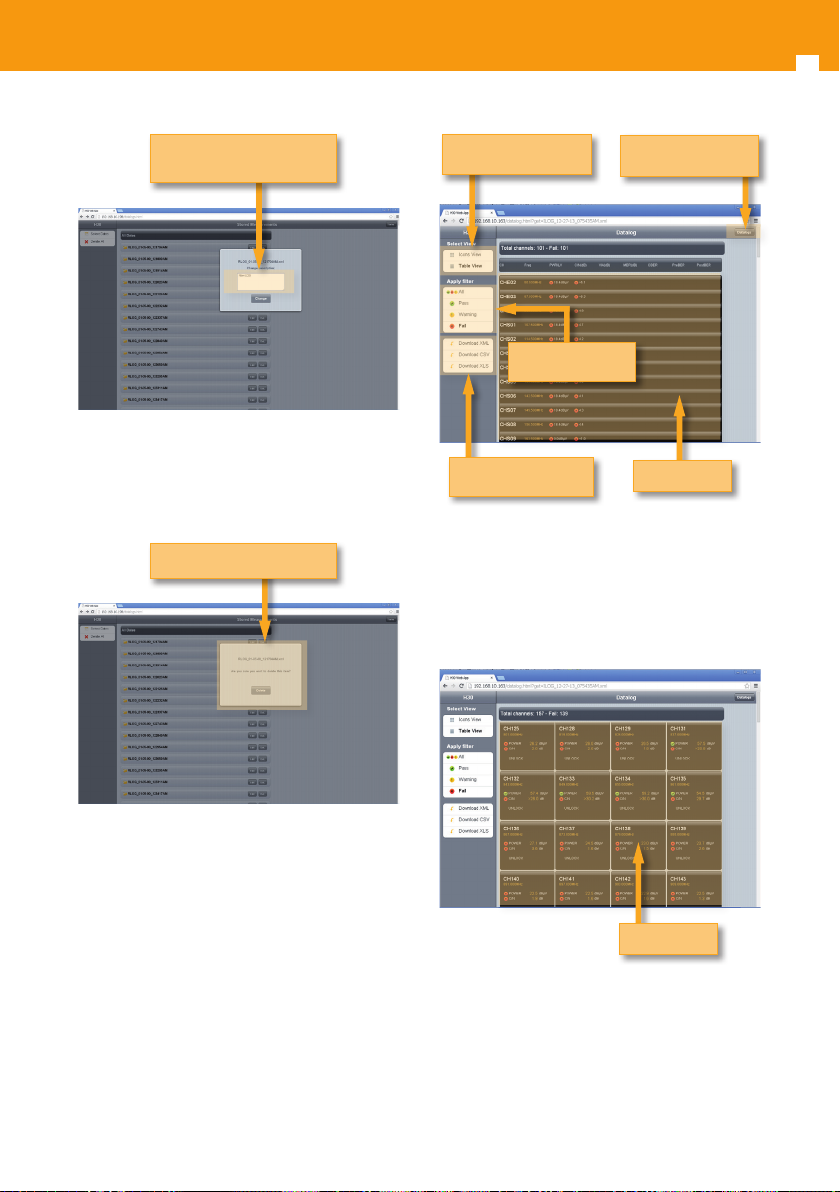

In this section you can see all the measures saved
in your H30 with the “Save Datalog” feature.
List of Datalogs
Allows to lter by date the Datalogs in
the list and delete all the Datalogs
User can lter by the Datalogs shown in the list.
Press “Select Dates” button on the left of the list.
Go back to the
main window
EN
- Log Out
Log out the current session from the H30.
User can add a description for each datalog. Press
“Edit” button of the selected Datalog.
H30 - CATV & DOCSIS3.0 Meter / Analyzer
26
Enter the description and
press “Change”
User can also delete a log from the list by pressing
“Del” button.
Press “Delete” to conrm
Two views: Table view
and Icon view
Filter results with
quality indicators
Allows to export data
in dierent formats
Back to the list of
Datalogs
Table view
There are two views for the list of channels: Table
view and Icons View.
Above is shown the Table View, and below the
Icons View.
Selecting a Datalog shows a list of all the channels
of the selected datalog with its corresponding
measurements and pass/fail indicators:
Icons view
27
Maintenance
Always disconnect the unit before cleaning. Use
only a mild solution of detergent and water applied
with a soft damp cloth. Dry thoroughly before use.
Do not use aromatic hydrocarbons or chlorinated
solvents. These products may damage the unit.
Do not use alcohol or alcohol based products
on the front panel, especially the display. These
products may damage the unit.
Technical support
For any questions, contact Technical Support at
www.televes-usa.com.
Before contacting Technical Support for repair,
read the manual to ensure proper use and attempt
to RESET the unit to clear any problems.
Repair service
Do not return the unit without rst contacting
Televes Technical Support.
If the unit needs to be returned, Televes will
arrange for free shipping. The unit will need to be
appropriately packed for shipping.
In compliance with IATA Regulations, when using
our shipping service follow these instructions:
Label the package.
The equipment should t as snugly as
possible in the box. It is recommended to use
the original packing materials.
Attach the precaution label to the package.
EN
Lithium ion battery
DO NOT LOAD OR TRANSPORT
PACKAGE IF DAMAGED
Failure to comply with these shipping requirements
may result in the shipping agent rejecting the
package.
H30 - CATV & DOCSIS3.0 Meter / Analyzer
Warranty
A) Televes warrants, only to the original Purchaser,
all Products be free from any defect in materials
or workmanship for a period of one (1) year,
six (6) months for the battery, from the date of
original purchase, unless otherwise specied.
(B) Televes shall, free of charge and in its sole
discretion, either repair, replace with a new or
factory reconditioned equivalent, or refund
the purchase price of the Product(s), that has
been determined by Televes to be defective in
material or workmanship, subject to the limits
of this warranty.
(C) This warranty excludes any inoperability
resulting from:
(I) use or installation that is not in strict
compliance with the written instructions
and specications;
(II) any modication or alteration performed
by any third party not authorized in writing
by Televes;
(III) service or repair performed by any third
party not authorized in writing by Televes;
(IV) misuse, abuse, intentional harm, or lack of
reasonable care;
(V) re, ice, snow, rain, wind, water, volcano,
excessive heat or cold, lightning, ood,
power surge, earthquake, or any other acts
of God;
(VI) war, crime, strike, riot, electro-magnetic
pulse, or any other acts beyond the control
of Televes;
(VII) shipping.
(D) All claims under the terms of this warranty must
be made in writing, by the original Purchaser,
within fourteen (14) days of the defect being
known to the Purchaser. Such claims shall be
accompanied by a description of any material
facts related to the claimed defect and the
invoice or other proof of original purchase date
and price. If Televes so requests, the Purchaser
shall, at Purchaser’s expense, deliver the
claimed Product(s) to Televes, within 14 days of
the date of the return authorization. Under no
circumstances shall the Product(s) be returned
to Televes without a return authorization.
28
(E) Any refund to the Purchaser, shall be limited to
the purchase price of the Product(s), excluding
any applicable taxes, duties, freight costs,
removal costs, installation costs, or any other
charges incident to the purchase of the product.
(F) Any damage caused by shipper shall be claimed
with the shipper in accordance with the
shipper’s policies and procedures.
(G) Televes shall in no event and under no
circumstances be liable or responsible for any
consequential, indirect, incidental, punitive,
direct or special damages based upon breach of
warranty, breach of contract, negligence, strict
tort liability or otherwise or any other legal
theory, arising directly or indirectly from the
sale, use, installation or failure of any product
acquired by Purchaser from Televes.
(H) This limited warranty extends to the original
Purchaser and cannot be assigned or
transferred to any other party without the
prior express written permission of Televes,
which permission Televes may withhold for any
reason or for no reason at all.
(I) Televes will not assume any liabilities for any
other warranties, whether statutory, express or
implied, made by any other person.
(J) Televes reserves the right to modify or
discontinue this warranty at Televes’ sole
discretion without notication. No other
warrantees are expressed or implied.
29
EN
Rua Benéfica de Conxo, 17
15706 - Santiago de Compostela
Spain
Address:
Phone / Fax Nº: 981522200 / 981522262
Product Name: H30 D3
Model Number: 593103
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: Televes S.A.
DECLARATION OF CONFORMITY Nº 140527105219
Hereby declares that the product
FCC Part 15, Subpart B, Section 15.107(e) and section 15.109(g)
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Conforms to the following specifications:
Supplementary Information:
Signature:
Date: 27/5/2014
Representative Person’s Name: José L. Fernández Carnero
H30 - CATV & DOCSIS3.0 Meter / Analyzer
BEKREFTELSE
PROHLÁŠENÍ O SHODĚ
ATITIKTIES DEKLARACIJA
KONFORMITÄTSERKLÄRUNG
ДЕКЛАРАЦІЯ ВІДПОВІДНОСТІ
MEGFELELŐSÉGI NYILATKOZAT
ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ
ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦΩΣΗΣ
VAATIMUSTENMUKAISUUSVAKUUTUS
FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
VASTAVUSE SERTIFIKAAT
DEKLARACJA ZGODNOŚCI
ATBILSTĪBAS DEKLARĀCIJA
KONFORMITETSERKLÆRING
CONFORMITEITSVERKLARING
DECLARATION DE CONFORMITE
DECLARATIE DE CONFORMITATE
DICHIARAZIONE DI CONFORMITÀ
DECLARACIÓN DE CONFORMIDAD
DECLARAÇÃO DE CONFORMIDADE
DECLARATION OF CONFORMITY Nº DCI140527132725
Televes S.A.
Rua Benéfica de Conxo, 17 - 15706 - Santiago de Compostela - Spain
Manufacturer / Fabricante / Fabricante / Fabricant / Fabbricante / Fabrikant / Κατασκευαστής / Tillverkare / Valmistaja / Producent / Gamintojas /
Изготовитель / Producator / Gyártó / Fabrikant / Produsent / Fabrikant / Виробник / Valmistaja / Ražotājs / Výrobce:
Declare under our own responsibility the conformity of the product/ Declara bajo su exclusivaresponsabilidad la conformidad delproducto / Declara
sob sua exclusiva responsabilidade a conformidade do produto /Déclare sous notre propre responsabilité la conformité de ce produit / Dichiara sotto la sua
esclusiva responsabilità la conformità del prodotto / Wir übernehmen die Veranwortung für die Konformität des Produktes / Πιστοποιούμε με δικιά μας
ευθύνη την συμμόρφωση του προϊόντος / Försäkrar om överstämmelse enligt tillverkarens eget ansvar för produkten / Vakuutamme yskinomaan omalla
vastuullamme tuotteen yhdenmukaisuus / Oświadczamy na własną odpowiedzialność zgodność wyrobu /Deklaruojame savo atsakomybe, kad produktasyra
atitinkamas / Заявляет с полной своей ответственностью о соответствии продукта / Declaram pe propria raspundere ca produsul este in
conformitate cu cerintele esentiale si celalalte prevederi aplicabile / Sajátfelelősségünkre kijelentjük, hogy a termék megfelel / Erklærer under vores eget
593102
ansvar overensstemmelse for produktet / Erklærer under vårt eget ansvaroverenstemmelsen for produktet / Wij nemen de verantwoording voor de
conformiteit van het product / Заявляє зповною своєю відповідальністющо до відповідностіпродукта / Kinnitame tootevastavust / Deklarēar pilnu
savu atbildību par produkta atbilstību / Prohlašuje na vlastní odpovědnost shodu výrobku:
Reference / Referencia / Referência / Référence / Articolo / Artikelnummer / Δήλωση / Referens / Referenssi / Numer Katalogowy / Produkto numeris /
Артикул / Referinta / Termékszám / Varenummer / Varenummer / Artikelnummer / Артикул / Viide / Atsauce / Reference:
Description / Descripción / Descrição / Description / Descrizione / Beschreibung / Περιγραφή / Beskrivning / Kuvaus / Opis /Produkto aprašas / Описание /
Descriere / Leírás / Beskrivelse / Beskrivelse / Beschrijving / Опис / Kirjeldus / Apraksts / Popis:
30
Technical Director
José L. Fernández Carnero
Santiago de Compostela, 07/3/2013
· Low Voltage Directive 2006 / 95 / EC
With the requirements of / Con losrequerimientos de / Com as especificações de / Avec les conditions de / Con i requisiti di / Die Voraussetzungen erfüllen
/ Με τις απαιτήσεις του / Enligt följande bestämmelser / Seuraavien määrityksien / Zgodność z wymogami / Atitinka reikalavimus / Требованиям / In
conformitate cu / Az alábbikövetelményeknek /Med bestemmelserne/ Medbestemmelsene /In overeenstemmingmet /відновідно довимог /tingimustel /
prasībām / S požadavky na:
· EMC Directive 2004 / 108 / EC
Following standards / Con las normas / Com as normas / Selon les normes / Con le norme / Folgende Anforderung / Ακόλουθα πρότυπα / Följande
standard / Seuraavien standardien /Zastosowanie następująceych norm / Pagal standartus / Следующих стандартов / Respecta urmatoarele standarde / A
Következő szabványoknak / Følgende standarder / Følgende standarder / Volgende richtlijnen en normen / Наступних стандартів / Järgmistele
standarditele / sekojošiem standartiem / Následující normy:
EN 60950-1:2006 + A1:2010 + A11:2009, EN 61010-1:2010, EN 61326-1:2006
H30
Televes
Trademark / Marca / Marca / Marque / Marchio / Handelsmarke / Μάρκα / Varumärke / Tavaramerkki / Marka / Prekės ženklas / Торговаямарка / Marca /
Márkanév / Varemærke / Varemerke / Handelsmerk / Торгівельна марка / Kaubamärk / Preču zīme / Značka:
BEKREFTELSE
PROHLÁŠENÍ O SHODĚ
ATITIKTIES DEKLARACIJA
KONFORMITÄTSERKLÄRUNG
ДЕКЛАРАЦІЯ ВІДПОВІДНОСТІ
MEGFELELŐSÉGI NYILATKOZAT
ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ
ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦΩΣΗΣ
VAATIMUSTENMUKAISUUSVAKUUTUS
FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
VASTAVUSE SERTIFIKAAT
DEKLARACJA ZGODNOŚCI
ATBILSTĪBAS DEKLARĀCIJA
KONFORMITETSERKLÆRING
DECLARATION OF CONFORMITY Nº 140527105119
CONFORMITEITSVERKLARING
DECLARATION DE CONFORMITE
DECLARATIE DE CONFORMITATE
DICHIARAZIONE DI CONFORMITÀ
DECLARACIÓN DE CONFORMIDAD
DECLARAÇÃO DE CONFORMIDADE
Televes S.A.
Rua Benéfica de Conxo, 17 - 15706 - Santiago de Compostela - Spain
Manufacturer / Fabricante / Fabricante / Fabricant / Fabbricante / Fabrikant / Κατασκευαστής / Tillverkare / Valmistaja / Producent / Gamintojas /
Изготовитель / Producator / Gyártó / Fabrikant / Produsent / Fabrikant / Виробник / Valmistaja / Ražotājs / Výrobce:
Declare under our own responsibility the conformity of the product/ Declara bajo suexclusiva responsabilidad la conformidad delproducto / Declara
sob sua exclusiva responsabilidade a conformidade do produto /Déclare sous notre propre responsabilité la conformité de ce produit / Dichiara sotto la sua
esclusiva responsabilità la conformità del prodotto / Wir übernehmen die Veranwortung für die Konformität des Produktes / Πιστοποιούμε με δικιά μας
ευθύνη την συμμόρφωση του προϊόντος / Försäkrar omöverstämmelse enligt tillverkarens eget ansvar för produkten / Vakuutamme yskinomaan omalla
vastuullamme tuotteen yhdenmukaisuus / Oświadczamy na własną odpowiedzialność zgodność wyrobu /Deklaruojame savo atsakomybe, kad produktasyra
atitinkamas / Заявляет с полной своей ответственностью о соответствии продукта / Declaram pe propria raspundere ca produsul este in
conformitate cu cerintele esentialesi celalalteprevederi aplicabile / Saját felelősségünkre kijelentjük, hogya termék megfelel / Erklærer under voreseget
593103
ansvar overensstemmelse for produktet / Erklærer under vårt eget ansvaroverenstemmelsen for produktet / Wij nemen de verantwoording voor de
conformiteit van het product / Заявляє зповною своєю відповідальністющо до відповідностіпродукта / Kinnitametoote vastavust /Deklarē ar pilnu
savu atbildību par produkta atbilstību / Prohlašuje na vlastní odpovědnost shodu výrobku:
Reference / Referencia / Referência / Référence / Articolo / Artikelnummer / Δήλωση / Referens / Referenssi / Numer Katalogowy / Produkto numeris /
Артикул / Referinta / Termékszám / Varenummer / Varenummer / Artikelnummer / Артикул / Viide / Atsauce / Reference:
Description / Descripción / Descrição / Description / Descrizione / Beschreibung / Περιγραφή / Beskrivning / Kuvaus / Opis/ Produkto aprašas / Описание /
Descriere / Leírás / Beskrivelse / Beskrivelse / Beschrijving / Опис / Kirjeldus / Apraksts / Popis:
H30 D3
Technical Director
José L. Fernández Carnero
Santiago de Compostela, 27/5/2014
· Low Voltage Directive 2006 / 95 / EC
With the requirements of / Con losrequerimientos de / Com as especificações de / Avec les conditions de / Con i requisiti di / Die Voraussetzungen erfüllen
/ Με τις απαιτήσεις του / Enligt följande bestämmelser / Seuraavien määrityksien / Zgodność z wymogami / Atitinka reikalavimus / Требованиям / In
conformitate cu / Az alábbikövetelményeknek /Med bestemmelserne/ Medbestemmelsene /In overeenstemmingmet /відновідно довимог /tingimustel /
prasībām / S požadavky na:
· EMC Directive 2004 / 108 / EC
Following standards / Con las normas / Com as normas / Selon les normes / Con le norme / Folgende Anforderung / Ακόλουθα πρότυπα / Följande
standard / Seuraavien standardien /Zastosowanie następująceych norm / Pagal standartus / Следующих стандартов / Respecta urmatoarele standarde / A
Következő szabványoknak / Følgende standarder / Følgende standarder / Volgende richtlijnen en normen / Наступних стандартів / Järgmistele
standarditele / sekojošiem standartiem / Následující normy:
EN 60950-1:2006 + A1:2010 + A11:2009, EN 61010-1:2010, EN 61326-1:2013
Televes
Trademark / Marca / Marca / Marque / Marchio / Handelsmarke / Μάρκα / Varumärke / Tavaramerkki / Marka / Prekės ženklas / Торговаямарка / Marca /
Márkanév / Varemærke / Varemerke / Handelsmerk / Торгівельна марка / Kaubamärk / Preču zīme / Značka:
31
EN
televes.com
593101_593102_004_EN
Loading...
