Refs. 554511

554611

DVB-T Modulators

User´s Manual

www.televes.com

Index

1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1 Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Blocks diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 Technical speciﬁ cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2. Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1 Indicators and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Installation precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.1 Button introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ENGLISH

3.2 Initial status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.3 General setting for main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4. Encoders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.1 Speciﬁ cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

5. Web nms operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5.1 Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5.2 Conﬁ guration setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7. Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.1 Ordering guideline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.2 Application example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.3 Conﬁ guration example for more than one unit in the same installation . . . . . . . . . . . . . . . . 16

DVB-T Modulator

1. Introduction

1.1 Product overview

The product is presented for two types of mounting: onto the wall (Ref. 554511), and 19 inch cabinet mounting (Ref. 554611).

The modulator converts the HD A/V baseband signals into a DVB-T multiplex of RF within the range 47~862 MHz. It features 2 encoders and 1 additional RF input. The input signals of the encoders can come from satellite receivers, CCTV cameras, Blu-ray players, antennas, ... etc. Its output is a DVB-T TV multiplex which can be received with the corresponding DTT STB. The device can be used for monitoring, training courses and presentations, schools, universities, hospitals, ..., in addition to being the best choice for public premises which o er sporting events, VIP entertainment channels,.. and other.

1.2 Blocks diagram

IN IN

Encoder Encoder

1.3 Technical speciﬁ cations

DVB-T modulator section

Standard

EN300744

FFT mode 2K, 8K

Bandwidth 6M, 7M, 8M

Constellation QPSK, 16QAM, 64QAM

Guard Interval 1/4, 1/8, 1/16, 1/32

FEC 1/2, 2/3, 3/4, 5/6, 7/8

MER ≥42dB

RF frequency 47~862MHz, 1KHz step

RF output level

-30~ -10dBm (81~97 dBμV),

0.1dB step

Interface

Front panel

Remote management

buttons, LCD display

Web NMS

Modulator

RF IN

Combiner

RF OUT

MUX

Language

English

General

Mains

Dimensions

AC 100V~240V

360 x 280 x 50 mm (554511) 480 x 300 x 44 mm 1U rack 19” ( 554611)

Weight 2.6 kgs

Operating temperature

0~45 ºC

Con gurations

LCN con g

NIT Table con g

Ye s

Settings

Network Name

Ye s

Network ID Yes

Transport Stream ID (TSID) Yes

Original Network ID (ONID) Yes

Hierarchy Information Yes

2. Product Description

2.1 Indicators and controls

554511

2 3

12 131514

554611

1 LCD display

2 NMS port

3 IP port

4 ON LED and alarm LED

5 Locking LED

6 Up/Down and Left/Right buttons

7 ENTER button

8 MENU button

9 Locking button

10 Encoder 1 slot (open)

4 5 6 7 8 91

12 13 14 15

11 Encoder 2 slot (with tap)

12 RF input

13 RF output

14 ON/OFF switch

15 Mains socket

DVB-T Modulator

2.2 Installation precautions

This section to explain the cautions the users must have to avoid any injures when using or installing the product. For this reason, please read all details here before installing or using the product.

General Precautions

Must be operated and maintained free of dust or dirty. The cover should be securely fastened, do not open the cover of the products

with the power on.

After use, securely stow away all loose cables, external antenna, and others.

Power precautions

When you connect the power source, make sure it will not cause any overload. Avoid operating on a wet  oor in the open. Make sure the extension cable is

in good condition.

Make sure the power switch is o before you start to install the device.

Grounding Requirement

All function modules’ good grounding is the basis of reliability and stability of devices. Also, they are the most important guarantee of lightning arresting and interference rejection. Therefore, the system must follow this rule.

Grounding conductor must be a copper conductor in order to reduce high

frequency impedance, and the grounding wire must be as thick and short as possible.

Users should make sure the both ends of grounding wire are electric

conductor and antirust. It is prohibited to use any other device as part of grounding electric circuit. The area of the conduction between grounding wire and device’s frame

should be no less than 2,5mm2.

3.2 Initial Status

Switch On, then below status will be displayed, few seconds’ initialization then open startup picture

Start up ...

Start OK ...

DVB-T XXX.00MHz X.XXMbps Y.YYMbps

DVB-T: indicate the modulation standard of this device XXX.XX MHz: indicate the output frequency, and the frequency range is

47~862MHz X.XX Mbps: indicate the encoding bit rate in slot 1 Y.YY Mbps: indicate the encoding bit rate in slot 2

3.3 General setting for Main Menu

By pressing “Lock” key to enter the main menu, the LCD will display the following pages:

1 Alarm Status 2 Encode Setting

3 Modulate Setting 4 IP Output Setting

5 Network Setting 6 Saving Config

7 Loading Config 8 Version

3. Operation

3.1 Button introduction

DVB-T XXX.00MHz X.XXMbps 0.0M

To move left To move right

Con rm setting

Setting value up and moving up

Setting value down and moving down

Back step

LCD display window. Display window for setting menu Status display when power On.

Lock button

User pressing UP or DOWN buttons to speci ed menu item, and then pressing ENTER to enter the submenus as below:

1) Alarm status --- the alarm indicator will light on if there is no A/V signals input.

2) Encoder setting --- choose this submenu, the LCD will show “input setting”, press the ENTER key and control the UP or Down key to move the arrow. User could  nd how to set the audio and video encoding bit rate.

3) Modulator setting

When the “modulator setting” submenu has been chosen, users can  nd below di erent parameters for setting. And the LCD window would respectively show like these.

3.1 Bandwidth

3.2 Constellation

3.3 Transmisson Mod

3.4 Guard Interval

- Bandwidth

There are three possible options provided for selecting bandwidth: 6M, 7M, and 8M. When the display shows them, user just need swift LEFT and RIGHT key to choose and repressing “ENTER” for con rm.

- Constellation

Three di erent constellations: QPSK, 16QAM, and 64QAM will be show on the LCD window when Constellation been entered.

- QPSK: Quadrature Phase Shift Keying, Selecting this option indicates the

device works as DVB-S modulation mode

- 16QAM: Quadrature Amplitude Modulation is 16

- 64QAM: Quadrature Amplitude Modulation is 64

3.5 Code Rate

3.6 RF Frequency

3.7 RF Outlevel

Setting method just the same, when the display shows them, user just need swift LEFT and RIGHT key to choose and repressing “ENTER” for con rm.

- Transmission mode After entering Trans mode, the LCD would show the current working mode. User can move LEFT/RIGHT key and repress ENTER key to select and con rm. 2K and 8K are the options.

- 2K: when the device works as current mode, the number of current carrier is 2048.

- 8K: when the device works as current mode, the number of current carrier is 8192.

- Guard interval

In communications, guard intervals are used to ensure that distinct transmissions do not interfere with one another. These transmissions may belong to di erent operators (as in TDMA) or same operator (as in OFDM). The purpose of the guard interval is to introduce immunity to propagation delays, echoes and re ections, to which digital data is normally very sensitive. There are four possible options provided to be selected. They are 1/4, 1/8, 1/16, 1/32. User can shift the LEFT/RIGHT key to select and press ENTER to con rm.

- FEC

Forward Error Correction (FEC) rates include 1/2, 2/3, 3/4, 5/6, and 7/8. After entering FEC submenu, and the LCD display would shows them, users just need press LEFT and RIGHT button to choose, and press ENTER button for con rm.

- RF Frequency

The RF output frequency range is from 30 to 1000MHz with 1K stepping. After entering the RF frequency setting submenu, users the can press LEFT, RIGHT, UP, and DOWN buttons to adjust the frequency and con rm by press ENTER button.

- RF out level

The RF attenuation range is from -30~-10dBm (81~97dBμV) with 0.1dB step. After entering this setting submenu, user can shift UP/DOWN/LEFT/RIGHT key to set the output level and press ENTER to con rm.

- Gateway If the device is in di erent net segment, you must set the gateway.

- Port The UDP protocol port (like as 8001), you should use Output IP and new port to receive IP Output data (like as udp://224.2.2.2:8001).

5) Network setting After inter network setting, there are three Submenu Items for setting, just show as the following LCD display pictures.

5.1 IP Address

5.2 Subnet Mask

5.5 Reset Password

5.6 Web Manage Port

5.3 Gateway

5.4 MAC Address

User can press “UP/DOWN” to choose this item. “Enter” and “LEFT/RIGHT” to set the parameters.

Note: The MAC address is according to the factory setting, and it’s unique. The

display will respectively show as below:

IP Address

192.168.000.136

Subnet mask

255.255.255.000

Gateway

192.168.000.001

MAC Address 201110140940

Reset pasword ? Yes No

Web Manage Port 00080

4) IP Output Setting

4.1 IP Output

4.2 Service IP

4.5 Gateway

4.6 Port

4.3 Output IP

4.4 Subnet Mask

User can press “UP/DOWN” to choose this item. “Enter” and “LEFT/RIGHT” to set the parameters.

If not set the following parameters will be no use, the IP Output will not work.

IP Output OFF ON

Service IP

192.168.002.137

Output IP

224.002.002.002

- IP Output

The IP Output option, must be enable.

- Service IP

The IP Output Port address. The format is xxx.xxx.xxx.xxx (like as 192.168.2.137).

- Output IP

The IP Output data receive address. The format is xxx.xxx.xxx.xxx (like as

224.2.2.2). After set the Output IP address , you must use the new address to

receive IP Output data.

Subnet Mask

255.255.255.000

Gateway

192.168.002.000

Port 01234

6) Save con g Users enter save con g submenu for saving settings. Choose yes for con rm set.

Save Configuration? Yes No

7) Loading con g At this menu, user can press UP/DOWN key to select and repress ENTER to con rm. User can restore the device into the last saved con guration by choosing “7.1” and restore the device into factory con guration by choosing “7.2” the display will show as below:

Saving config ...

7.1 Load Saved CFG

7.2 Load Default

Load Saved CFG ? Yes No

Note: In the  rst use of the product, it is recommended to “Load Default” before

starting with the con guration.

8) Version User can check the hardware version and software version of this equipment when enter this submenu.

Loading config ...

EncoderModulator SW 5.13b HW 5.0

- Subnet Mask

General is 255.255.255.0, it is must the same in a local area network.

DVB-T Modulator

4. Encoders

Ref. 554801 – 1 A/V Input (MPEG2)

CVBS L ---- Audio ---- R

(1) CVBS input (video input) (2) Unbalanced audio input (left and right)

Ref. 554802 – 2 A/V Inputs (MPEG2)

CVBS L ---- Audio ---- R CVBS L ---- Audio ---- R

Ref. 554804 – 2 HDMI Inputs (MPEG4)

HDMI1 HDMI2

(1) HDMI input –Channel 1 (2) HDMI input –Channel 2

Input resolutions: 1280x720p60, 1280x720p50, 1920x1080i60, 1920x1080i50,

1920x1080p60, 1920x1080p50

Note: 3D signal from Blu-ray 3D is not supported.

Ref. 554812 – 2 CVBS/YPbPr/S-Video inputs (MPEG2)

Y Pb Pr Y Pb Pr

1 3

(1) CVBS input (video input) –Channel 1 (2) Unbalanced audio input (left and right) –Channel 1 (3) CVBS input (video input) –Channel 2 (4) Unbalanced audio input (left and right) –Channel 2

2 4

Ref. 554803 – 1 HDMI Input (MPEG4)

HDMI1 HDMI2

(1) HDMI input –Channel 1 (2) HDMI input –Channel 2

Input resolutions: 1280x720p60, 1280x720p50, 1920x1080i60, 1920x1080i50,

1920x1080p60, 1920x1080p50

Note: It is only possible to obtain on the output the signal of one input at a time. When both inputs have signal at the same time, the signal on the output is

the one of HDMI1(if HDMI input is set in automatic see chapter 5.2, otherwise the output will be from the input selected).

Note: 3D signal from Blu-ray 3D is not supported.

S-Video CVBS

CVBS L----Audio----R S-VideoL----Audio----R

1 2

(1) CVBS / YpbPr / S-Video inputs – Channel 1 (2) CVBS / YpbPr / S-Video inputs – Channel 2

Input resolutions YPbPr: 720x480 60i, 720x576 50i

Ref. 554813 – 1 HDMI Input (MPEG2/MPEG4)

HDMI1 HDMI2

(1) HDMI

input

(2) HDMI

Input resolutions: 1280x720p60, 1280x720p50, 1920x1080i60, 1920x1080i50,

Note: It is only possible to obtain on the output the signal of one input at a time.

When both inputs have signal at the same time, the signal on the output is

(video MPEG2/4, audio MPEG-2, MPEG-2 AAC, MPEG-4 AAC -

input

(video MPEG2/4, audio MPEG-2, MPEG-2 AAC, MPEG-4 AAC -

1920x1080p60, 1920x1080p50

the one of HDMI1(if HDMI input is set in automatic see chapter 5.2, otherwise the output will be from the input selected).

Channel Channel

1 2

Note: 3D signal from Blu-ray 3D is not supported.

4.1 Speciﬁ cation

Ref. 554801 554802 554803 554804 554812 554813

Video Compress. Audio Compress.

Encoding mode

Input port

MPEG-2 SD MPEG-2 SD

MPEG-2 MPEG-2 MPEG-2 MPEG-2 MPEG-2 MPEG-2/4

MPEG-2 / H264 / AVC SD / HD

Option 1

Option 2

Option 3

Option 4

Option 5

Option 6

Option 7

Option 8

Option 9

Option 10

MPEG-4

(H264 HD)

Port 1 A

Port 2 A

Port 1

Port 2 B o C

Port 1 D o E

Port 2 D o E

Port 1 A

Port 2 B o C

Port 1 A

Port 2 D o E

Port 1 A

Port 2 F

Port 1 B o C

Port 2 D o E

Port 1 B o C

Port 2 F

Port 1 D o E

Port 2 F

Port 1 F

Port 2 F

MPEG-4

(H264 HD)

RF input

MPEG-2 SD MPEG-2/4

B o C

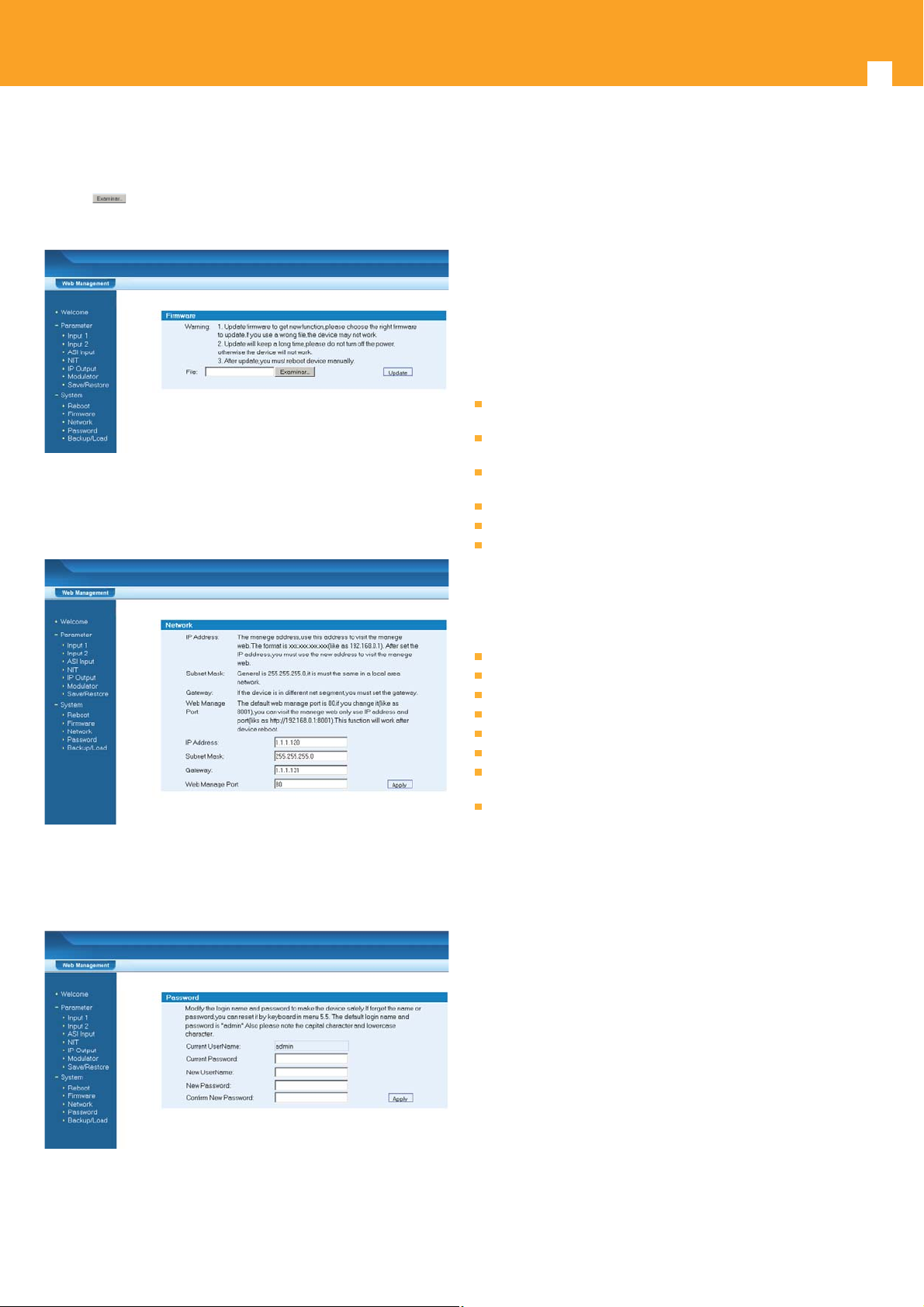

5. WEB NMS operation

User not only can use front buttons for setting con guration, but also can control and set the con guration in computer by connect to web NMS Port. User should ensure that the computer’s IP address is di erent from the Modulator’s IP address; otherwise, it would cause IP con ict.

5.1 Login

A login interface will pop up  rstly when user entered the IP address: http://192.168.0.136 (or shown in 5.1 IP Address menu), the interface shows as follow picture. Both of the default user name and password are admin.

User will face welcome interface after login, and all setting options are been listed on the left side. And the main window at the right shows version information and status information. (All the example pictures been showed here just window captures pictures when the device connected in our test room, status shows on the picture just for reference, they are not  xed value).

(554801)

(554802)

Legend

IMPORTANT: This equipment generates a delay of about 2 seconds between the signal at inputs A/V and HDMI, and their corresponding outputs in RF and IP. For this reason, the use of game consoles (eg PS3, XBox360 ...) as signal sources is not recommended, because only watching movies is achieved, not being able to really play.”

(554812)

(554803)

(554813)

(554804)

Unbalanced audio input Two channel CVBS input

Unbalanced audio input Two channels S-Video/YPbPr/CVBS input

Unbalanced audio input

One channel HDMI MPEG4 (H264) input

One channel HDMI MPEG2/4 (H264) input

Two channels HDMI MPEG4 (H264) input

One channel CVBS input

DVB-T Modulator

5.2 Conﬁ guration setting

1) 1 HDMI input setting (554803)

HDMI Input: Display which HDMI port is used (Only for HDMI Band Input). H.264 Pro le: user can set the H.264 Pro le in this area, there are four possible

options provided to be selected: Automatic, High Pro le, Main Pro le and Baseline Pro le.

H.264 Level: user can set the H.264 Level in this area, there are twelve possible

options provided to be selected: Automatic, Level 1.2, Level 1.3, Level 2, Level

2.1, Level 2.2, Level 3, Level 3.1, Level 3.2, Level 4, Level 4.1 & Level 4.2.

Video bit rate: user can set the video bit rate in this area, the range is

1~19.5Mbps.

Audio bit rate: user can set the audio bit rate in this area, there are six possible

options provided to be selected: 64kbps, 96kbps, 128kbps, 192kbps, 256kbps and 320kbps. The default value is 128kbps.

Program name: it shows current program information. User can select and

type the program name to be played as needed.

Service ID: Also called progam number, it is must di erent from other

program. If you change it, you should modify the LCN.

PMT/Video/Audio/PCR PID: in this area, user can set program PIDs as needed,

usually system will automatically select the default values. Encoding and video light: the light should show green colour normally HDMI input: it shows if there is real-time HDMI signal inputting Video format: the current video format of the device Bit rate: the current encoding bit rate

HDMI Input: Display which HDMI port is used(Only for HDMI Band Input). H.264 Pro le: user can set the H.264 Pro le in this area, there are four possible

options provided to be selected: Automatic, High Pro le, Main Pro le and Baseline Pro le.

H.264 Level: user can set the H.264 Level in this area, there are twelve possible

options provided to be selected: Automatic, Level 1.2, Level 1.3, Level 2, Level

2.1, Level 2.2, Level 3, Level 3.1, Level 3.2, Level 4, Level 4.1 & Level 4.2.

Video bit rate: user can set the video bit rate in this area, the range is

1~19.5Mbps.

Audio bit rate: user can set the audio bit rate in this area, there are  ve possible

options provided to be selected: 64kbps, 96kbps, 128kbps, 192kbps, 256kbps

and 320kbps. The default value is 128kbps. Program Out Enable: Enables / Disables the program out. Program name: Indicates the program that is being modulated. User can type

the program name according to his needs. Service ID: Also called progam number, it is must di erent from other

program. If you change it, you should modify the LCN.

PMT/Video/Audio/PCR PID: in this area, user can set program PIDs as needed,

usually system will automatically select the default values. Encoding and video light: the light should show green colour normally Video format: the current video format of the device Bit rate: the current encoding bit rate ROM version: Display software version(Only for H.264 encoder).

3) 1 HDMI input setting (554813)

2) 2 HDMI input setting (554804)

Video Format: Select the video format between Mpeg2 and H.264. Video bit rate: The range of values from 1.000 to 19.500 Mbps. For SD signal,

3.000 Mbps is ok, HD signal at least need 6.000 Mbps.

Audio Format: Select the audio format between Mpeg2, Mpeg2 AAC y Mpeg4

AAC. Audio bit rate: user can set the audio bit rate in this area, there are six possible

options provided to be selected: 64kbps, 96kbps, 128kbps, 192kbps, 256kbps

and 320kbps. The default value is 128kbps. Program Out Enable: Enables / Disables the program out. Program name: Indicates the program that is being modulated. User can type

the program name according to his needs. Service ID: Also called progam number, it is must di erent from other

program. If you change it, you should modify the LCN.

PMT/Video/Audio/PCR PID: in this area, user can set program PIDs as needed,

4) 2 CVBS / YPbPr / S-Video inputs setting (554812)

Interface: Selection of input signal among CVBS (RCA), YPbPr and S-Video

(when YPbPr is selected, it is necessary to set one of the following resolutions:

720x480 60i, 720x576 50i). B frame in GOP: Select a value for the GOP structure. Video bit rate: The range of values from 1.000 to 19.500 Mbps. For SD signal,

3.000 Mbps is ok, HD signal at least need 6.000 Mbps.

Audio Bit Rate: Audio encode bitrate con guration.You can select the suitable

audio bitrate from list. Brightness: The range of values from 0 to 255 (Only for SD signal). Contrast: The range of values from 0 to 255 (Only for SD signal). Saturation: The range of values from 0 to 255 (Only for SD signal). Hue: The range of values from -127 to 127 (Only for SD signal). Sharpness: Con gures the sharpness of the video image. You can select one

of several preset values (Only for 2CH MPEG2 SD Encoder). Aspect Ratio: Con gures the aspcet ratio of the video image. You can select

one of several preset values (Only for 2CH MPEG2 SD Encoder). Program Out Enable: Enables / Disables the program out. Program Name: Only support character and number. The length can not over

32 byte

Service ID: Also called program number, it is must di erent from other

program. If you change it, you should modify the LCN. PMT PID: Program Mapping Table PID

Video/Audio/PCR PID: in this area, user can set program PIDs as needed,

usually system will automatically select the default values.

Video: Green is normal, red means signal input error, please check signal

input and video format.

Encoding: Green is normal, red means encoder is not work, please check

signal input and video format. Bit rate: Display the current encoder Bit rate.

5) 1 A/V input setting (554801)

Video Bit Rate: The range of values from 1.000 to 19.500 Mbps. For SD signal,

3.000 Mbps is ok, HD signal at least need 6.000 Mbps.

Audio Bit Rate: Audio encode bit rate con guration. You can select the

suitable audio bit rate from list. Brightness: The range of values from 0 to 255 (Only for SD signal). Contrast: The range of values from 0 to 255 (Only for SD signal). Saturation: The range of values from 0 to 255 (Only for SD signal). Hue: The range of values from -127 to 127 (Only for SD signal). Aspect Ratio: User can set the Aspect ratio. There are 4 possible options to be

selected: 1:1, 4:3, 16:9 and 2.21:1. Program Out Enable: Enables / Disables the program out. Program Name: Only support character and number. The length can not over

32 byte Service ID: Also called program number, it is must di erent from other

program. If you change it, you should modify the LCN. PMT PID: Program Mapping Table PID Video: Green is normal, red means signal input error, please check signal input

and video format. Encoding: Green is normal, red means encoder is not work, please check

signal input and video format. Norm: Display the video format of the input (Only for SD signal). Video Format: Display the video format of the input (Only for HD signal). Bit rate: Display the current encoder Bit rate.

DVB-T Modulator

6) 2 A/V input setting (554802)

7) NIT table setting

The location of the NIT is de ned in the present document in compliance with ISO/IEC 13818-1 [1] speci cation, but the data format is outside the scope of ISO/IEC 13818-1 [1]. It is intended to provide information about the physical network. The syntax and semantics of the NIT are de ned in the present document.

Network name: The name of current network, user can change it as he likes. Network ID: This is a 16-bit  eld which identi es the terrestrial network that

supports the service indicated. User can click “Add” to pop up a table, following is the interface:

Interface: Select the CVBS (BNC) input signal. B frame in GOP: Select a value for the GOP structure. Video Bit Rate: The range of values from 1.000 to 19.500 Mbps. For SD signal,

3.000 Mbps is ok, HD signal at least need 6.000 Mbps.

Audio Bit Rate: Audio encode Bit rate con guration. You can select the suitable

audio Bit rate from list. Brightness: The range of values from 0 to 255 (Only for SD signal). Contrast: The range of values from 0 to 255 (Only for SD signal). Saturation: The range of values from 0 to 255 (Only for SD signal). Hue: The range of values from -127 to 127 (Only for SD signal). Sharpness: There are 4 possible options to be selected: O , Smooth, Medium

and Sharp. Aspect Ratio: User can set the Aspect ratio. There are 4 possible options to be

selected: 1:1, 4:3, 16:9 and 2.21:1. Program Out Enable: Enables / Disables the program out. Program Name: Only support character and number. The length can not over

32 byte. Service ID: Also called program number, it is must di erent from other

program. If you change it, you should modify the LCN. PMT PID: Program Mapping Table PID. Video: Green is normal, red means signal input error, please check signal input

and video format. Encoding: Green is normal, red means encoder is not work, please check

Transport stream ID: This 16-bit  eld which serves as a label identifying the TS

which contains the service, event or mosaic described by the cell.

Original network ID: This is also a 16-bit  eld, a label which in conjunction with

the following  elds uniquely identi es a service, event or mosaic.

RF Frequency: user can set the RF frequency in this menu. The range is

47~862MHz with 1 KHz step.

Bandwidth: there are three possible options provided to be selected: 6M, 7M

and 8M.

Constellation: there also have three possible options to be selected: QPSK,

16QAM and 64QAM. Hierarchy information: this option only adopts ISDB-T standard device. Code rate: user can select the FEC value in the pull-down menu. There are  ve

possible options provided to be chosen: 1/2, 2/3, 3/4, 5/6 and 7/8. Guard interval: user can select the guard interval value in the pull-down

menu: 1/32, 1/16, 1/8 and 1/4. Transmission mode: user can decide transmission mode 2k or 8k. Service ID: unique identi er of a service within a TS. LCN: logical channel number. Add: User can add a logical number in system by clicking “Add” menu and

typing the program information. The LCN can be added more than one by

re-clicking “Add” option. The interface shows as below:

Del: clicking “Del” to delete the added LCN information. Save: clicking “Save” to save the current NIT parameters. Cancel: clicking “Cancel” to exit the edit interface. The display will show as below when user saved the NIT settings.

Update NIT: clicking to update the NIT tables in system. Save NIT: clicking to save the settings. Clear NIT: clicking to remove all the table have been inserted before.

8) IP out setting

9) Modulator setting

Bandwidth: there are three possible options provided to be selected: 6M, 7M

and 8M. Constellation: there also have three possible options to be selected: QPSK,

16QAM and 64QAM. FFT: user can set the FFT (transmission mode) by selecting in the pull-down

menu. Guard interval: user can select the guard interval value in the pull-down

menu: 1/32, 1/16, 1/8 and 1/4. FEC: user can select the FEC value in the pull-down menu. There are  ve

possible options provided to be chosen: 1/2, 2/3, 3/4, 5/6 and 7/8. RF frequency: the range is 30~1000MHz. RF output level: the range is -30~-10dBm.

Follow the help guideline for set IP out con guration.

IP Output: The IP Output option, must be enable. Service IP: The IP Output Port address. The format is xxx.xxx.xxx.xxx (like as

192.168.2.137).

Output IP: The IP Output data receive address. The format is xxx.xxx.xxx.xxx

(like as 224.2.2.2). After set the Output IP address , you must use the new address to receive IP Output data.

Subnet Mask: General is 255.255.255.0, it is must the same in a local area

network. Gateway: If the device is in di erent net segment, you must set the gateway. Port: The UDP protocol port (like as 8001), you should use Output IP and new

port to receive IP Output data (like as udp://224.2.2.2:8001).

Note: The signal available at the IP Output is the same as the RF output. The protocol used for the MUX stream is UDP, so to see the modulated

channels you need a program that has this protocol, like VLC Media Player.

In recent versions of this particular program is necessary to put @ before the

IP address, for example, “udp :/ / @ 224.2.2.2:1234”.

10) Save/Restore

Note: In the  rst use of the product, it is recommended to “Load Default” before

starting with the con guration.

11) Reboot

Important: Not all computers have the ability to view a service provided by a

554803.

DVB-T Modulator

12) Firmware

This function is used to upgrade the device’s latest software program. If user wants to update the device to latest version, he should contact with manufacturer to get the latest version software. When upgrading it, user can click the “

Note: User should strictly follow the “Warning” information.

13) Network

This interface indicates the default IP address and network mask of this device. User can revise it and click “Apply” to con rm.

” button to select the program needs burned into system.

6. Troubleshooting

Televés’ ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All Televés products have been passed the testing and inspection before ship out factory.

The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by Televés. To prevent potential hazard, please strictly follow the operation conditions.

Prevention Measure

Installing the device at the place in which environment temperature between

0 to 45 °C

Making sure good ventilation for the heat-sink on the rear panel and other

heat-sink bores if necessary

Checking the input AC within the power supply working range and the

connection is correct before switching on device

Checking the RF output level varies within tolerant range if it is necessary

Checking all signal cables have been properly connected

Frequently switching on/o device is prohibited; the interval between every

switching on/o must greater than 10 seconds.

14) Password

User can revise the login password in this menu by type accordingly information as required and click “Apply” to con rm.

Conditions need to unplug power cord

Power cord or socket damaged.

Any liquid  owed into device.

Any stu causes circuit short

Device in damp environment

Device was su ered from physical damage

Longtime idle.

After switching on and restoring to factory setting, device still cannot work

properly.

Maintenance needed

7. Application

7.1 Ordering guideline

Our design is individual module, for this series device the encoding module including this version for optional:

MPEG2 SD encoding with 1 CVBS module => (554801). MPEG2 SD super encoding with 2 CVBS module => (554802). MPEG2 SD encoding with 2 CVBS/YPbPr/S-Video module => (554812). MPEG4 AVC H.264 encoding with 1 HDMI module => (554803). MPEG4 AVC H.264 encoding with 2 HDMI module => (554804). MPEG2/4 AVC H.264 encoding with 1 HDMI module => (554813).

Modulation module including one version for optional:

DVB-T COFDM RF out module

7.2 Application example

DVD

System

Monitor

Camera

Hard Disk Sender

Blue DVD

HDMI

Source

and / or

CVBS

Source

Channel injection

Antenna

Wall socket

Eventual roof antenna

Pay Channel STB

IRD STB

IP (optional)

Network Wireless router

DVB-T Modulator

7.3 Conﬁ guration example for more than one unit in the same installation

Unit 1

Unit 2

7.3.1 NIT Conﬁ guration

7.3.2 NIT, Hierarchy and LCN Con guration

In this menu is possible to edit the Transport Stream ID, Original Network ID (each unit has to have a di erent TSID and ONID), assign a Network name (the same in all units of the same network) and more. After each change is necessary to press Update NIT.

By pressing “Add” you will have access to the menu of the next images:

In this menu is possible to edit the LCN of each program (in order to be listed correctly the Hierarchy Information must be set to “a-1, a-2 or a-4”, the same on each unit of the same network). The LCN can be set by any order, in the image above it can be observed that the unit 2 will have program 1, 3 and 4 and unit 1 will have program 2.
