Tektronix TDS1001B Data Sheet

Digital Storage Oscilloscopes

TDS1000B Series • TDS2000B Series

Features & Benefits

40 MHz, 60 MHz, 100 MHz
and 200 MHz Bandwidths

Sample Rates up to 2 GS/s
Real Time

2 or 4 Channels

Color or Monochrome
LCD Display

Removable Data Storage
via Front Panel USB Port

Seamless PC Connectivity
via USB Device Port, with
OpenChoice®and NI
SignalExpress®PC Software

Advanced Triggers Including Pulse
Width Trigger and Line-selectable
Video Trigger

FFT Standard on All Models

11 Automatic Measurements

Multiple Language User Interface
and Context-sensitive Help

Direct Print to all PictBridge
Compatible Printers via USB
Device Port

Lifetime Warranty

*1

®

TDS1000B and TDS2000B Series Oscilloscopes

Instantly Productive. Incredibly Easy.

The TDS1000B and TDS2000B Series
digital storage oscilloscopes deliver an
unbeatable combination of performance
and ease-of-use at a price you can afford.

Affordable Digital Precision

With up to 200 MHz bandwidth and
2 GS/s maximum sample rate, no other
color digital storage oscilloscope offers as
much bandwidth and sample rate for the
price. The TDS1000B and TDS2000B
Series oscilloscopes provide accurate
real-time acquisition up to their full band­width, the same record length at all time
base settings, advanced triggers to isolate
signals of interest, and 11 standard auto­matic measurements on all models. Their
Fast Fourier Transform (FFT) and wave­form add, subtract, and multiply math
functions allow you to analyze, characterize
and troubleshoot circuits.

Quick and Easy Waveform Capture

The simple user interface with classic
analog-style controls makes these instru­ments easy to use, reducing learning time
and increasing efficiency. Innovative features
such as the Autoset Menu, Probe Check
Wizard, Context-Sensitive Help Menu
and color LCD display (TDS2000B Series)
optimize instrument setup and operation.

Flexible Data Transfer

With USB host and device ports which
enable removable data storage, seamless
PC connectivity, and direct printing, no
other color or monochrome digital storage
oscilloscope offers as much flexibility
and ease of data transfer for the price.

Applications

Design and Debug

Education and Training

Manufacturing Test and Quality
Control

Service and Repair

*1

Limitations apply. For terms and conditions, visit
www.tektronix.com/lifetimewarranty.

Digital Storage Oscilloscopes

TDS1000B Series • TDS2000B Series

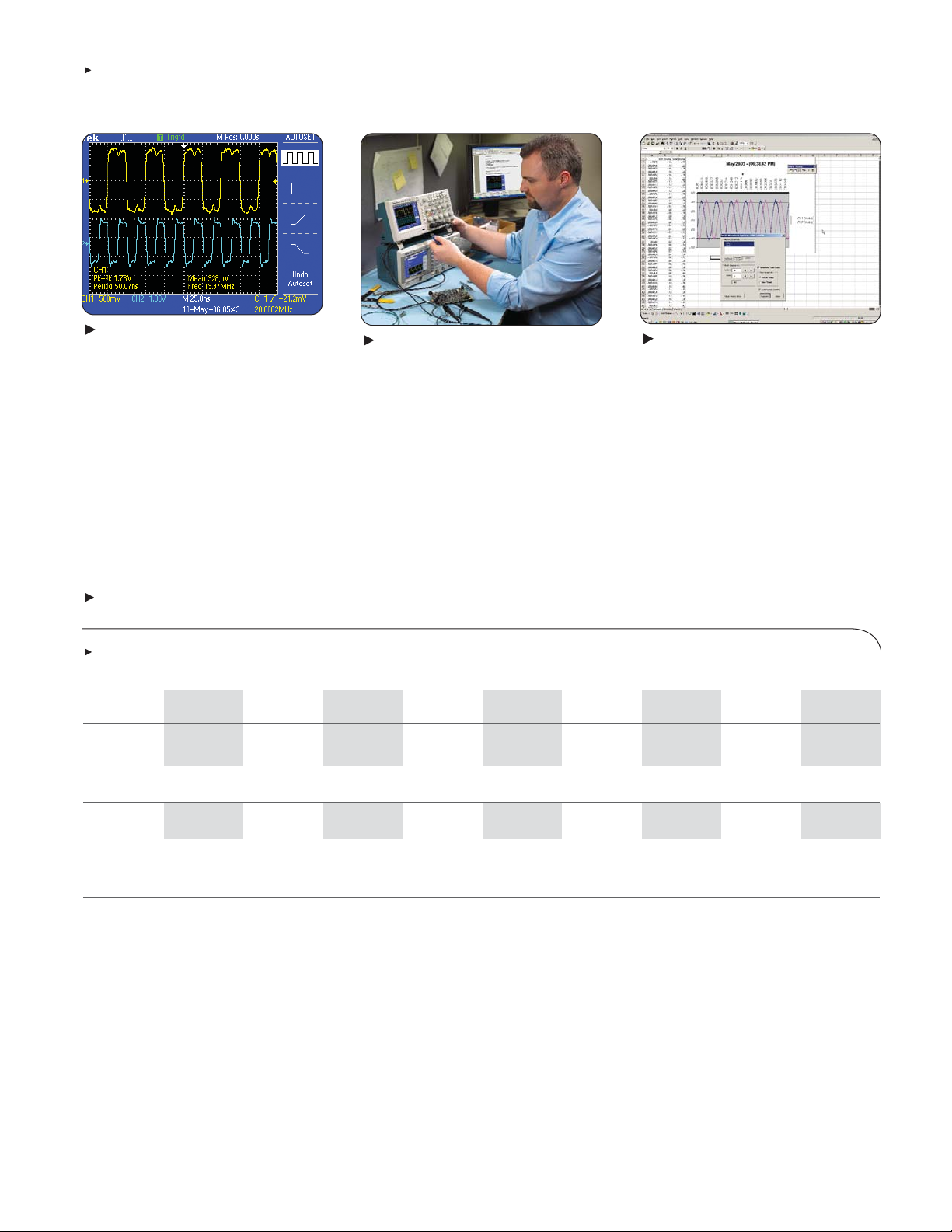

Quickly and easily capture waveforms.

Conveniently use your USB flash drive to
store screen shots and waveform data.

Easily capture, save and analyze measure­ment results with OpenChoice

®

PC

Communications Software.

Simple Documentation and Analysis

Easily capture, save and analyze meas­urement results with OpenChoice

®

PC
Communications Software. Simply pull
screen images and waveform data into
the stand-alone desktop application or
directly into Microsoft Word and Excel.
To complement OpenChoice, National

Instruments SignalExpress Tektronix Edition
Software provides you with extended
capabilities, including advanced analysis,
remote oscilloscope control and live
waveform analysis. Alternatively, if you
prefer not to use the PC, you can simply
print your image directly to any PictBridge
compatible printer via the USB device port.

Performance You Can Count On

Depend on Tektronix to provide you with
performance you can count on. In addition
to industry leading service and support,
every TDS1000B and TDS2000B Series
oscilloscope comes backed with a
Lifetime Warranty

*1

Limitations apply. For terms and conditions, visit
www.tektronix.com/lifetimewarranty

*1

as standard.

Characteristics

TDS1000B and TDS2000B Series Digital Storage Oscilloscopes

TDS1001B TDS1002B TDS1012B TDS2002B TDS2004B TDS2012B TDS2014B TDS2022B TDS2024B

Display (1/4 Mono Mono Mono Color Color Color Color Color Color
VGA LCD)

Bandwidth

Channels 2 2 2 2 4 2 4 2 4

External Trigger Included on all models
Input

Sample Rate on 500 MS/s 1.0 GS/s 1.0 GS/s 1.0 GS/s 1.0 GS/s 1.0 GS/s 1.0 GS/s 2.0 GS/s 2.0 GS/s
each channel

Record Length 2.5 K points at all time-bases on all models

Vertical 8-Bits
Resolution

Vertical 2 mV to 5 V/div on all models with calibrated fine adjustment
Sensitivity

*2

*2

Bandwidth is 20 MHz at 2 mV/div, all models.

40 MHz 60 MHz 100 MHz 60 MHz 60 MHz 100 MHz 100 MHz 200 MHz 200 MHz

Digital Storage Oscilloscopes • www.tektronix.com/tds2000b

2

Digital Storage Oscilloscopes

TDS1000B Series • TDS2000B Series

TDS1000B and TDS2000B Series Digital Storage Oscilloscopes (continued)

TDS1001B TDS1002B TDS1012B TDS2002B TDS2004B TDS2012B TDS2014B TDS2022B TDS2024B

DC Vertical +3% on all models
Accuracy

Vertical Zoom Vertically expand or compress a live or stopped waveform

Maximum Input 300V
Voltage

Position Range 2 mV to 200 mV/div +2 V; >200 mV to 5 V/div +50 V

Bandwidth Limit 20 MHz for all models

Input Coupling AC, DC, GND on all models

Input Impedance 1 MΩ in parallel with 20pF

Time Base 5 ns to 5 ns to 5 ns to 5 ns to 5 ns to 5 ns to 5 ns to 2.5 ns to 2.5 ns to
Range 50 sec/div 50 sec/div 50 sec/div 50 sec/div 50 sec/div 50 sec/div 50 sec/div 50 sec/div 50 sec/div

Time Base 50 ppm
Accuracy

Horizontal Zoom Horizontally expand or compress a live or stopped waveform

I/O Interfaces

USB Ports Included on all models: 2 USB 2.0 Ports

USB device port on back of instrument supports connection to PC and all PictBridge compatible printers

GPIB Optional

CAT II; derated at 20 dB/decade above 100 kHz to 13V

RMS

USB host port on front panel supports USB flash drives

AC at 3 MHz

pk-pk

Non-volatile
Storage

Reference Wave- (2) 2.5 K point reference waveforms
form Display

Waveform (2) 2.5 K point (2) 2.5 K point (2) 2.5 K point (2) 2.5 K point (4) 2.5 K point (2) 2.5 K point (4) 2.5 K point (2) 2.5 K point (4) 2.5 K point
Storage w/o
USB Flash Drive

Waveform 96 or more reference waveforms per 8 MB
Storage with
USB Flash Drive

Setups w/o USB 10 front panel setups
Flash Drive

Setups with USB 4000 or more front panel setups per 8 MB
Flash Drive

Screen Images 128 or more screen images per 8 MB (the number of images depends on file format selected)
with USB Flash
Drive

Save All with 12 or more Save All operations per 8 MB
USB Flash Drive A single Save All operation creates 3 to 9 files (setup, image, plus one file for each displayed waveform)

Digital Storage Oscilloscopes • www.tektronix.com/tds2000b

3

Digital Storage Oscilloscopes

TDS1000B Series • TDS2000B Series

Front Panel Features

2

6

5

3

7

4

1

Digital Real-Time Technology – Quickly

1 4

debug and characterize a wide range of signal
types on four channels simultaneously with
Tektronix’ unique digital real-time (DRT) sampling
technology. This acquisition technology allows
you to capture high-frequency, non-repetitive
information, such as glitches and edge anomalies,
that eludes other oscilloscopes in its class.

USB Host Port – Conveniently use your USB

2

flash drive to store your personal oscilloscope
setups, screen shots, and waveform data for
later use. Also use the USB host port to easily
update your instrument firmware.

Advanced Triggers – Quickly capture your

3

event of interest with advanced triggers including
pulse width and line selectable video triggers.

Easy and Precise On-board Analysis – Fast
Fourier Transform (FFT) and waveform add, sub­tract and multiply math functions come standard
on all models. FFT function displays frequency
domain spectrums for fast harmonic distortion
analysis or other frequency based analysis.

Simple Setup and Operation – Simplify setup

5

with smart Autoset function which identifies the
type of waveform, adjusts controls to produce a
usable display of the input signal, and allows you
to select how the waveform should be presented
(for example, single versus multiple cycles).

Built-in context-sensitive help further eases
the operation by providing indexed and linked
topics that allow you to selectively learn about
the operation of various oscilloscope features
and functions. Help is provided in the same
languages as the user interface.

Simple User Interface – The most frequently

6

used functions are brought forth to the panel for
direct accessibility (for example, single sequence
button, print button and default setup button).

Dedicated reference button allows you to
quickly recall your “golden” waveform for quick
comparisons.

Autorange function automatically scales each
waveform as you move your probe from test
point to test point.

Probe Check Wizard – Quickly verify that

7

your probe is calibrated and operating properly.

4

Digital Storage Oscilloscopes • www.tektronix.com/tds2000b

12

Digital Storage Oscilloscopes

TDS1000B Series • TDS2000B Series

Side and Rear Panel Features

11

USB Device Port Combined with

8

OpenChoice
for Seamless PC Connectivity – Easily

communicate with other instruments, peripherals
or systems via USB or GPIB (optional). The
USB device port allows you full programmable
control for automated measurements and
remote display and archiving.

For seamless integration to your PC without
programming, OpenChoice PC communications
software and NI SignalExpress TE interactive
measurement software enable transferring of
waveform data, screen images and front panel
setups between the oscilloscope and the PC.
Both allow you to transfer your d ata into a stand­alone desktop application, Microsoft Word or
Microsoft Excel. NI SignalExpress TE software
provides extended capabilities, including
advanced analysis, remote oscilloscope
control and live waveform analysis.

®

and NI SignalExpress®TE

10

USB Device Port Combined with PictBridge

9

for Direct Print – Directly print your screen
image to any PictBridge compatible printer
via the USB device port. Each image can be
stamped with date, time and instrument model
and serial number (if supported by printer).

10

Compact 124.2 mm (4.8 in) Depth – Free
up valuable space on your bench or desktop.

9

8

®

Integrated Handle – Easily carry your ultra-

11

lightweight (2.0 kg [4.4 lb]) portable instrument
into the field or to another room on a different
floor of your building.

12

Integrated Security Loop and Kensington
Lock – If necessary, secure your oscilloscope

in place. Security slots connect to Kensington
lock or allow cable to pass through.

Digital Storage Oscilloscopes • www.tektronix.com/tds2000b

5

Digital Storage Oscilloscopes

TDS1000B Series • TDS2000B Series

Acquisition Modes

Peak Detect –

High frequency and random glitch capture. Captures
glitches as narrow as 12 ns (typical) using acquisition
hardware at all time base settings from 5 µs/div to
50 s/div.

Sample – Sample data only.
Average –

Waveform averaged, selectable: 4, 16, 64, 128.

Single Sequence –

Use the Single Sequence button to capture a single
triggered acquisition sequence at a time.

Roll Mode –

At acquisition time base settings of >100 ms/div.

Trigger System

Trigger Modes – Auto, Normal, Single Sequence.

Trigger Types

Edge (Rising/Falling) –

Conventional level-driven trigger. Positive or negative
slope on any channel. Coupling selections: AC, DC,
Noise Reject, HF Reject, LF Reject.

Video –

Trigger on all lines or individual lines, odd/even or all
fields from composite video, or broadcast standards
(NTSC, PAL, SECAM).

Pulse Width (or Glitch) –

Trigger on a pulse width less than, greater than,
equal to, or not equal to, a selectable time limit
ranging from 33 ns to 10 s.

Trigger Source

2-channel Models – CH1, CH2, Ext, Ext/5, AC Line.
4-channel Models –

CH1, CH2, CH3, CH4, Ext, Ext/5, AC Line.

Trigger View

Displays trigger signal while trigger view button
is depressed.

Trigger Signal Frequency
Readout

Provides a frequency readout of the trigger source.

Cursors

Types – Amplitude, Time.
Measurements – [Δ]T, 1[Δ]T (frequency), [Δ]V.

Autoset Menu

Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with undo Autoset.

Signal Type Autoset Menu Choices

Square Wave Single-cycle, Multi-cycle, Rising or Falling Edge

Sine Wave Single-cycle, Multi-cycle, FFT Spectrum

Video (NTSC, PAL, SECAM) Field: All, Odd or Even

Line: All or Selectable Line Number

Automatic Waveform
Measurements

Period, Frequency, +Width, –Width, Rise Time, Fall
Time, Max, Min, Peak-to-Peak, Mean, Cycle RMS.

Waveform Math

Operators – Add, Subtract, Multiply, FFT.
FFT –

Windows, Hanning, Flat Top, Rectangular,
2048 sample points.

Sources –

2-channel Models: CH1 to CH2, CH2 to CH1,
CH1+CH2, CH1xCH2.
4-channel Models: CH1 to CH2, CH2 to CH1,
CH3 to CH4, CH4 to CH3, CH1+CH2, CH3+CH4,
CH1xCH2, CH3xCH4.

Autorange

Automatically adjust vertical and/or horizontal oscil­loscope settings when probe is moved from point
to point, or when the signal exhibits large changes.

Display Characteristics

Display –

Color models:
black background with adjustable multi-level contrast.
Monochrome models:

1

⁄4 VGA passive color LCD with color on

1

⁄4 VGA backlit passive LDC with
adjustable multi-level contrast and inverse video
selectable from front panel.

Interpolation – Sin(x)/x.
Display Types – Dots, vectors.
Persistence – Off, 1 s, 2 s, 5 s, infinite.
Format – YT and XY.

Environmental and Safety

Temperature –

Operating: 0 ºC to +50 ºC.
Non-operating: –40 ºC to +71 ºC.

Humidity –

Operating and Non-operating: Up to 80% RH at
or below +40 ºC. Operating and Non-operating:
Up to 45% RH up to +50 ºC.

Altitude –

Operating and Non-operating: Up to 3,000 m.

Electromagnetic Compatibility –

Meets Directive 89/336/EEC, amended by 93/68/EEC,
meets or exceed EN55011 Class A Radiated and
Conducted Emissions; FCC 47 CFR, Part 15,
Subpart B, Class A; Australian EMC Framework,
demonstrated per Emission Standard AS/NZS 2064;
Russian GOST EMC regulations.

Safety –

UL610100-1:2003, CSA22.2 No. 61010-1:2003,
EN61010-1:2001, IEC61010-1:2001.

Physical Characteristics

Instrument
Dimensions mm in.

Width 326.3 12.85
Height 158.0 6.22
Depth 124.2 4.89

Weight kg lbs.

Instrument only 2.0 4.4
With accessories 2.2 4.9

Instrument Shipping
Package Dimensions mm in.

Width 476.2 18.75
Height 266.7 10.5
Depth 228.6 9

RM2000B Rackmount mm in.

Width 482.6 19
Height 177.8 7
Depth 108 4.25

6

Digital Storage Oscilloscopes • www.tektronix.com/tds2000b

Digital Storage Oscilloscopes

TDS1000B Series • TDS2000B Series

Ordering Information

TDS1001B: 40 MHz, 2 Ch, 500 MS/s, Monochrome
DSO.

TDS1002B: 60 MHz, 2 Ch, 1 GS/s, Monochrome
DSO.

TDS1012B: 100 MHz, 2 Ch, 1 GS/s, Monochrome
DSO.

TDS2002B: 60 MHz, 2 Ch, 1 GS/s, Color DSO.

TDS2004B: 60 MHz, 4 Ch, 1 GS/s, Color DSO.

TDS2012B: 100 MHz, 2 Ch, 1 GS/s, Color DSO.

TDS2014B: 100 MHz, 4 Ch, 1 GS/s, Color DSO.

TDS2022B: 200 MHz, 2 Ch, 2 GS/s, Color DSO.

TDS2024B: 200 MHz, 4 Ch, 2 GS/s, Color DSO.

Standard Accessories

P2220 – 200 MHz 10x to 1x Switchable Passive
Probes (one per channel).

Power Cord – Please specify plug option.

NIM/NIST – Traceable Certificate of Calibration.

Documentation – User Manual (Please specify

preferred language option).

OpenChoice

Enables fast and easy communication between a
Windows PC and the TDS1000B and TDS2000B
Series via USB. Transfer and save settings, wave­forms, measurements and screen images.

National Instruments SignalExpress Tektronix
Edition Interactive Measurement Software –
Base Version – A fully interactive measurement

software environment optimized for the TDS1000B
and TDS2000B Series. Enables you to instantly
acquire, generate, analyze, compare, import and
save measurement data and signals using intuitive
drag-and-drop user interface that does not require
any programming. Standard TDS1000B and
TDS2000B Series support for acquiring, controlling,
viewing and exporting your live signal. A 30-day
trial period of the Professional Version provides
additional signal processing, advance analysis,
mixed signal, sweeping, limit testing and user­defined step capabilities. Order SIGEXPTE for
permanent Professional Version capability.

LLiimmiitteedd LLiiffeettiimmee WWaarrrraannttyy
parts for defects in materials and workmanship
for a minimum of 10 years, excluding probes
and accessories.

*1

Lifetime is defined as five years after Tektronix discontinues
manufacturing the product, but the warranty length shall be
at least ten years from date of original purchase. Lifetime
warranty is non-transferable, proof of original purchase is
required. Limitations apply. For terms and conditions visit
www.tektronix.com/lifetimewarranty.

*2

Probes and accessories are not covered by the oscilloscope
warranty and Service Offerings. Refer to the datasheet of
each probe and accessory model for its unique warranty
and calibration terms.

®

PC Communications Software –

*1

– Covering labor and

*2

International Power Plugs

Opt. A0 – North America power.

Opt. A1 – Universal Euro power.

Opt. A2 – United Kingdom power.

Opt. A3 – Australia power.

Opt. A5 – Switzerland power.

Opt. A6 – Japan power.

Opt. A10 – China power.

Opt. A11 – India power.

Opt. A99 – No power cord or AC adapter.

User Manual Options

Opt. L0 – English manual.

Opt. L1 – French manual.

Opt. L2 – Italian manual.

Opt. L3 – German manual.

Opt. L4 – Spanish manual.

Opt. L5 – Japanese manual.

Opt. L6 – Portuguese manual.

Opt. L7 – Simplified Chinese manual.

Opt. L8 – Standard Chinese manual.

Opt. L9 – Korean manual.

Opt. L10 – Russian manual.

Translated front panel overlays included with their
respective user manuals.

Recommended Accessories

TEK-USB-488 – GPIB-to-USB converter.

SIGEXPTE – National Instruments SignalExpress

Tektronix Edition Interactive Measurement Software –
Professional Version.

AC2100 – Soft carrying case for instrument.

HCTEK4321 – Hard plastic carrying case for

instrument (requires AC2100).

RM2000B – Rackmount kit.

071-1075-xx – Programmer Manual – English only.

071-1828-xx– Service Manual – English only.

TNGTDS01 – Operator Training Kit – Extensive

instructions and step-by-step lab exercises provide
education about the operation of TDS1000B
and TDS2000B Series oscilloscopes. Kit includes
self-paced CD-ROM based manual and signal
source board.

174-4401-00 – USB host-to-device cable,
3 feet long.

Recommended Probes

P2220 – 10x to 1x Switchable Passive Probe (200
MHz when 10x is selected).

P6101B – 1X passive probe (15 MHz, 300 V
CAT II rating).

RMS

P6015A – 1000X high-voltage passive probe
(75 MHz).

P5100 – 100X high-voltage passive probe
(75 MHz).

P5200 – High-voltage active differential probe
(25 MHz).

P6021 – 15 A, 60 MHz AC current probe.

P6022 – 6 A, 120 MHz AC current probe.

A621 – 2000 A, 5 to 50 kHz AC current probe.

A622 – 100 A, 100 kHz AC/DC current probe.

TCP303/TCPA300 – 15 A, 15 MHz AC/DC current

probe/amplifier.

TCP305/TCPA300 – 50 A, 50 MHz AC/DC current
probe/amplifier.

TCP312/TCPA300 – 30 A, 100 MHz AC/DC current
probe/amplifier.

TCP404XL/TCPA400 – 500 A, 2 MHz AC/DC
current probe/amplifier.

Service Options

*2

Opt. C3 – Calibration Service 3 years.

Opt. C5 – Calibration Service 5 years.

Opt. D1 – Calibration Data Report.

Opt. D3 – Calibration Data Report 3 years

(with Opt. C3).

Opt. D5 – Calibration Data Report 5 years
(with Opt. C5).

Opt. CA1 – Provides a single calibration event or
coverage for the designated calibration interval,
whichever comes first.

Service Offerings (Available
After Purchase)

TDSxxxxB-CA1 – Provides a single calibration
event or coverage for the designated calibration
interval, whichever comes first.

Digital Storage Oscilloscopes • www.tektronix.com/tds2000b

7

Digital Storage Oscilloscopes

TDS1000B Series • TDS2000B Series

The Complete Measurement
Solution

The AFG3000 Series arbitrary function generator
pairs with the TDS2000B and TDS1000B Series
digital storage oscilloscopes to deliver the two
elements of a complete measurement solution –
stimulus and acquisition. This instrument combines
the capabilities of a function generator with the
power of an arbitrary waveform generator, offering
the performance needed to accurately verify,
validate and characterize designs with ease
and confidence at a price you can afford.

The Tektronix Customer
Service Advantage

You can trust Tektronix to offer unequalled engi­neering expertise and a customer-centric approach
to ensure the optimal performance of your Tektronix
products and maximize the lifetime value of your
Tektronix investment.With service from Tektronix
you get:

Access to the source of product knowledge;
unsurpassed technical expertise

Your challenges solved via front-line technical
experts, design engineering reinforcement
and online support tools

Comprehensive and thorough support provided
worldwide, including software and firmware
updates, data reports and adjustments

Efficiency and convenience; no hassle service
from initial service call to turnaround and
delivery

Flexible repair and calibration service with
access to the best on-call technical trouble
shooting staff in the industry, with over 20
years of training per support engineer

Balkan, Israel, South Africa and other ISE Countries [phone]

Customer-centric approach dedicated to
serving your needs everyday with services
designed to optimize your product perform­ance, increase productivity and ROI by
delivering a fixed cost of ownership and
efficient management of service

Contact Tektronix:

ASEAN / Australasia (65) 6356 3900

Austria [phone]

Belgium 07 81 60166

Brazil & South America 55 (11) 3741-8360

Canada 1 [phone]

Central East Europe, Ukraine and the Baltics [phone]

Central Europe & Greece [phone]

Denmark [phone]

Finland [phone]

France [phone]

Germany [phone]

Hong Kong (852) 2585-6688

India (91) 80-22275577

Italy [phone]

Japan 81 (3) 6714-3010

Luxembourg [phone]

Mexico, Central America & Caribbean 52 (55) 5424700

Middle East, Asia and North Africa [phone]

The Netherlands 090 02 021797

Norway 800 16098

People’s Republic of China 86 (10) 6235 1230

Poland [phone]

Portugal 80 08 12370

Republic of Korea 82 (2) 528-5299

Russia & CIS [phone]

South Africa [phone]

Spain ([phone]

Sweden 020 08 80371

Switzerland [phone]

Taiwan 886 (2) 2722-9622

United Kingdom & Eire [phone]

USA 1 [phone]

For other areas contact Tektronix, Inc. at: 1 [phone]

Updated 12 May 2006

Our most up-to-date product information is available at:

www.tektronix.com

Get checked by Tektronix.
Visit www.tektronix.com/serviceandsupport

Product(s) are manufactured in ISO registered facilities.

Product(s) complies with IEEE Standard 488.1-1987, RS-232-C, and with
Tektronix Standard Codes and Formats.

Copyright © 2006, Tektronix. All rights reserved.Tektronix products are covered
by U.S. and foreign patents, issued and pending. Information in this publication
supersedes that in all previously published material. Specification and price
change privileges reserved. TEKTRONIX and TEK are registered trademarks
of Tektronix, Inc. All other trade names referenced are the service marks,
trademarks or registered trademarks of their respective companies.

6/06 HB/WOW 3GW-19558-0
