TechniSat i1 User Manual

TechniFon i1 USB

Phone User Manual

TechniFon i1 USB

Phone

integrated
soundcard

driver

Phoning

via the internet

for free

1)

WWW

VoIP phone

1) Phoning via the internet for free. To use Technisat TechniFon i1 you need
to have access to the internet, with possible additional costs arising.

2

Please read this first!

Before starting the use of the device, please check whether the delivery is comple­te. The following items are included:
1 TechniFon i1 USB Phone, 1 USB Connecting Cable, 1 CD-ROM, 1 Connecting
Cable TechniFon / Receiver, 1 Guarantee Card, 1 Installation Guide

If any of these items are missing or appear to be damaged, please contact your
dealer or call our technical support immediately.

Safety instructions

For your own protection read the safety instructions carefully before starting to use
your new device.The manufacturer is not liable to damage caused by improper
handling or by disregarding the safety instructions.

• Do not use the device near radiators, stoves or other heat sources.

• Protect your device from splash water and do not use it in rooms with high
air humidity.

• Use the device in moderate climate only

• Never open the device! There is danger of an electric shock. Repairs
should be carried out by qualified personal only.

• In the following cases disconnect the device from power and contact a
specialist:

• the power supply cord or the connector is dama­ged

• the device was exposed to humidity or fluid got
into the device

• in case of considerable malfunctions

• in case of considerable external damage

Content:

Connecting the cables . . . . . . . . . . . . . . . . . . . . . . . . .4

Software installation . . . . . . . . . . . . . . . . . . . . . . .5 - 7

VoIP software support by various providers . . . . . .8

Activating Drivers for the provider Skype . . . . . . . . .9

Configuration of the TechniFon i1 for Skype . . . . .10

Using TechniFon i1 with Skype . . . . . . . . . . . . .12 - 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Disposal notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

System requirements:

• Pentium III 800 MHz, 256 MB Ram

• Windows 2000 or Windows XP

• 20 MB free hard-disk space

• CD-ROM drive for the installation

• One free USB-Port

• Internet connection

3

Connecting the cables:

4

1

2

3

Connect the USB
plug with your
laptop or PC

USB plug

USB handset USB base station handset cableUSB cable

handset cable

USB cable

USB base station

USB handset

5

Software-Installation

Enclosed to your TechniFon i1 you will find a CD.
Please insert this CD into your CD-ROM drive. In the appearing window you can
either choose to install the driver or to open the manual.
If this window does not start automatically, you can start the setup file manually from
the folder “TechniFon i1” on the CD.

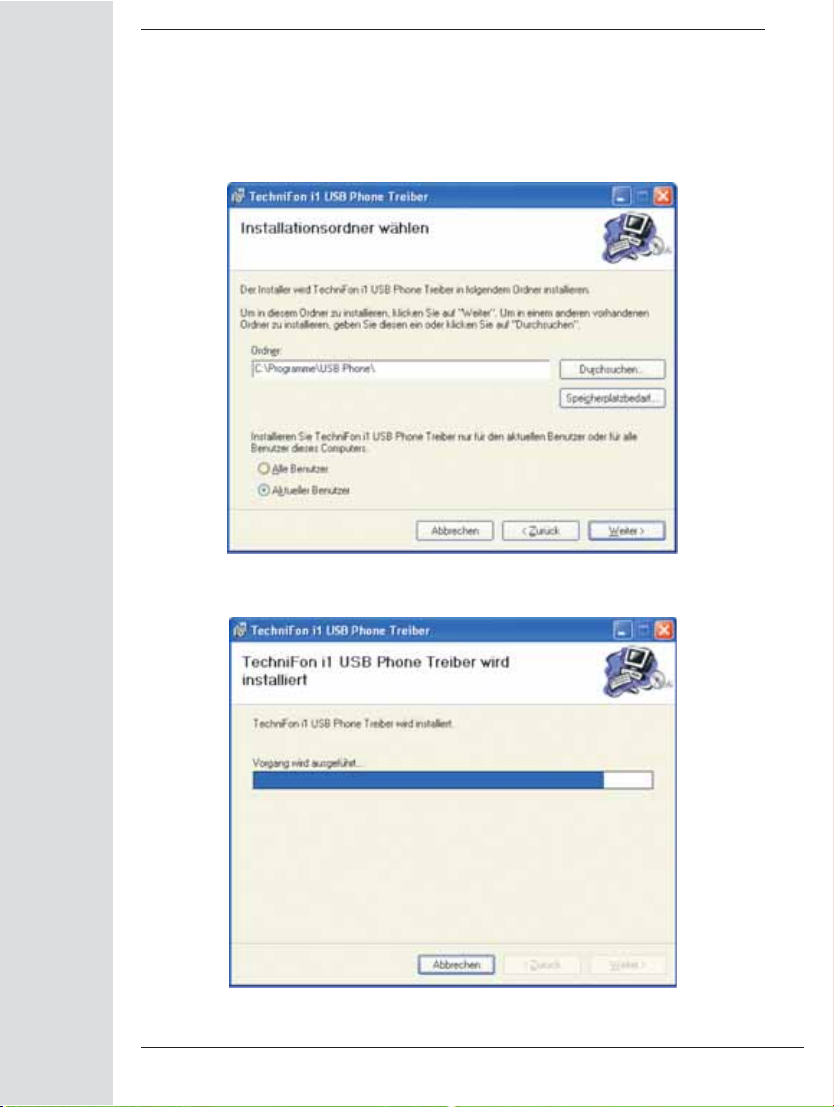

Clicking the button “Weiter” in Figure 2 takes you to Figure 3. There you can speci­fy the folder where the drivers should be installed. (You can type the folder into the
textbox or choose a folder from your hard drive by clicking the button “Durchsu­chen”.)

Figure 1

(Figure 2)
