Teac HDR2250T User Manual

HDR2250T

Twin Tuner PVR

WARRANTY PROCEDURE

v1.7b: July 2016 for 12M Repair

Please read the owner’s manual carefully and ensure that you have followed the correct
installation and operating procedures.

1. Please read this warranty card.

2. Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty
Service.

3. If you require Warranty Service, please contact the TEAC Warranty Service Hotline at
1300 553 315 for assistance. Please ensure that you have the model number, serial
number and purchase receipt ready when you call.

Please complete the section below and keep this information for your own records.

Owner’s Name

Owner’s Address

Postcode

Model Name/No. Serial No.

Dealer’s Name

Dealer’s Address

Postcode

Thank you for selecting a TEAC product

If your TEAC product malfunctions, please call us directly for

warranty support between Monday to Friday at 8.30AM – 5PM AEST at the

TEAC Warranty Service Hotline

1300 553 315

For other enquiries, please contact us at:

www.teac.com.au

When calling to receive warranty service, please have:

1. Your model and serial number

2. Proof of purchase

3. And your product in front of you

NOTE:

- You are required to provide a copy of your proof of purchase in order
to have your claim processed.

- Please read the Terms and Conditions for details of your warranty

entitlement.

TERMS AND CONDITIONS

v1.7b: July 2016 for 12M Repair

Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.

1. TEAC warrants that this product is free from defects in material and workmanship under normal
domestic use with reasonable care and skill. Maintenance and cleaning (i.e. laser head) is not
covered by this warranty. The TEAC warranty only applies to TEAC products purchased NEW
from a TEAC Authorised Retailer in Australia. This warranty only applies to the original purchaser
and cannot be transferred.

2. The benefits to the consumer given by this Warranty are in addition to other rights and remedies
of the consumer under a law in relation to goods or services to which the warranty relates, being
the Australian Consumer Law.

3. Refund or replacement via your TEAC Authorised Retailer is available for a period of 14 days
after purchase for goods that have been inspected and determined to have a major failure.
Refund and exchange is not applicable for change of mind.

4. Subject to the terms herein, this warranty effectively covers TEAC products under the 12 Month
Repair Warranty Scheme, 12 months from the date of original purchase.

5. The warranty is void and warranty claims may be refused, subject to the Australian Consumer
Law, if:

a) The product was not transported, installed, operated or maintained according to manufacturer

instruction, or

b) The product was abused, damaged, tampered, altered or repaired by any unauthorised persons,

or

c) Product failure is due to accidents during use, installation or transit, power surges, use of

defective or incompatible external devices, exposure to abnormal conditions such as excessive
temperatures or humidity, or entry of liquids, objects or creatures into the product, cockroach
infestations, or

d) The customer is unable to provide proof of purchase of the product for verification, or
e) The serial number of the product is missing or has been tampered with.

6. No one is authorised to assume any liability on behalf of TEAC or impose any obligation on it, in
connection with the sale of any equipment other than as stated in this warranty and outlined
above.

7. TEAC and/or its Authorised Service Centres reserve the right to inspect and verify whether the
product is exhibiting a major failure as claimed by customers/retailers.

1

Content

1.Reference ....................................................................................................................2

1.1General Features ............................................................................................... 2

1.2 Accessories........................................................................................................2

1.3 Basic Function...................................................................................................3

1.3.1 Front and Real Panel......................................................................................3

2.Remote Control Unit (RCU) ........................................................................................4

3.Installation....................................................................................................................5

3.1 Terrestrial Auto Search.....................................................................................5

.................................................................................53.2 Terrestrial Manual Search

3.3 Backup & Recovery ..........................................................................................6

4.Channel Edit.................................................................................................................6

4.1 Channel Edit......................................................................................................7

4.2 Delete All Channels ..........................................................................................8

4.3 Vertical Epg ......................................................................................................8

4.4 Horizontal Epg..................................................................................................8

5. Setting .........................................................................................................................9

5.1 Audio&Video Output Setting ...........................................................................9

5.2 Osd Setting........................................................................................................9

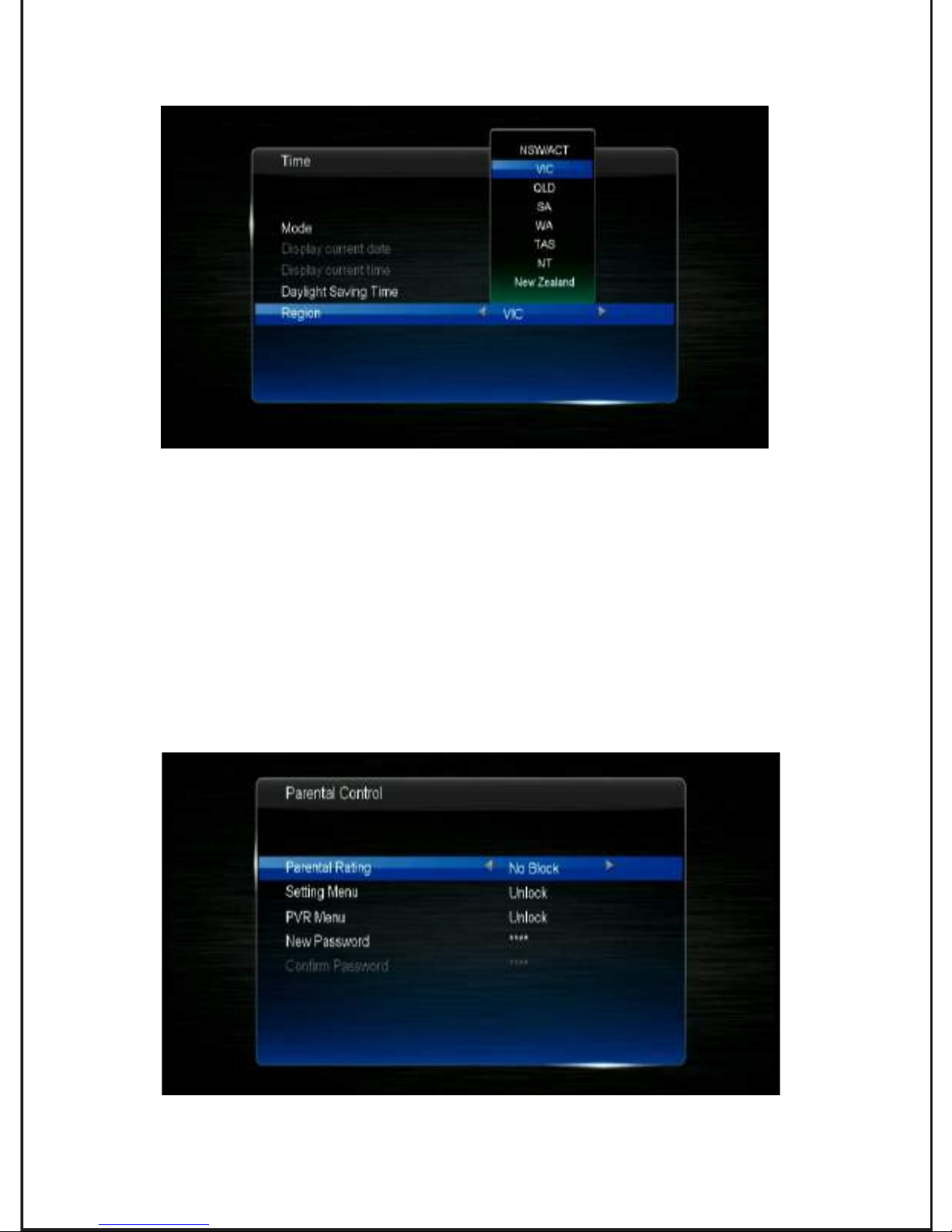

5.3 Time .................................................................................................................10

5.4 Parental

Control ...............................................................................................10

5.5 System Information..........................................................................................11

5.6 Firmware Update..............................................................................................11

5.7 Factory Default ................................................................................................11

6.PVR.............................................................................................................................11

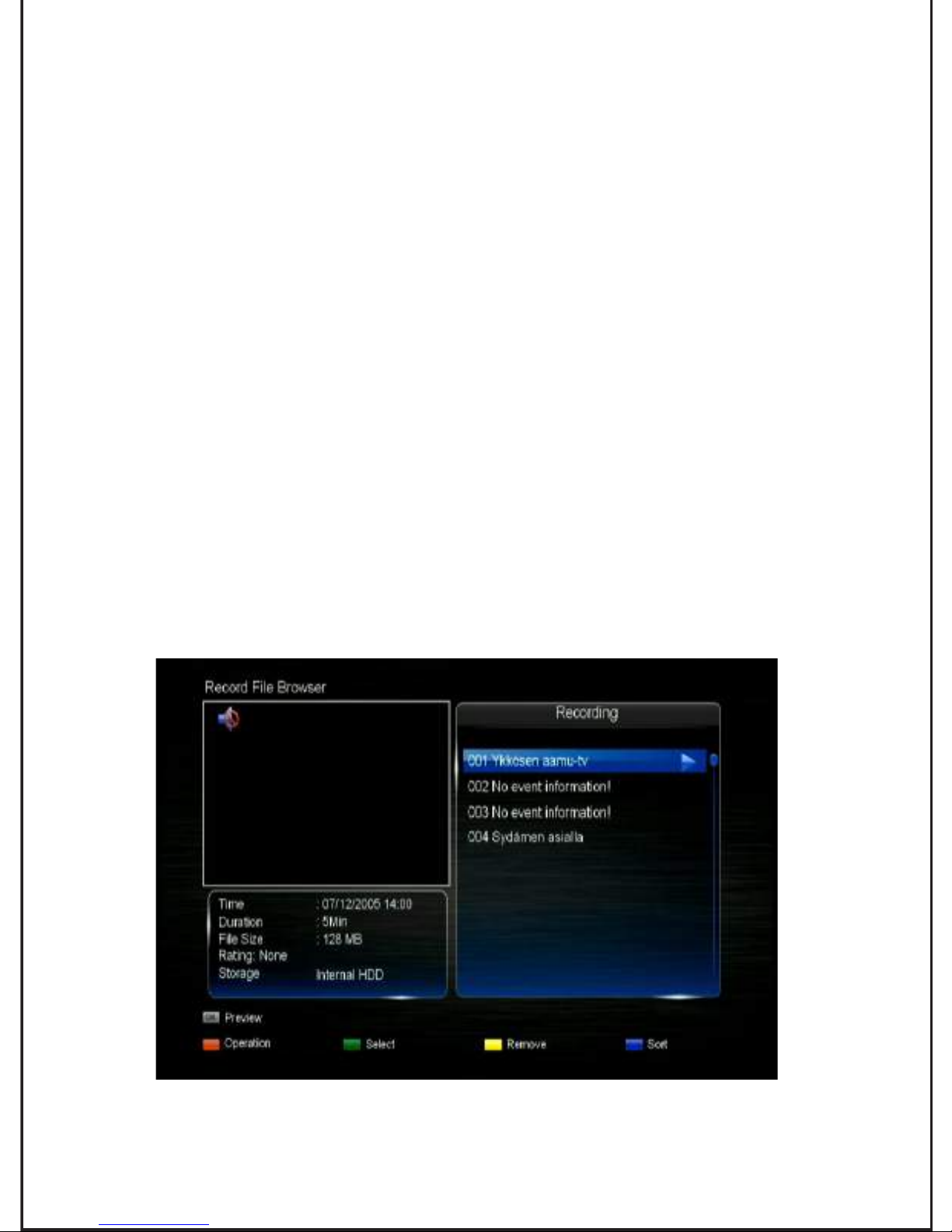

6.1 Record File Browser ........................................................................................11

6.2 Media Browser.................................................................................................12

6.3 Picture Browser................................................................................................12

6.4 Timer List.........................................................................................................12

6.5 Storage .............................................................................................................13

6.6 PVR Setting .....................................................................................................13

7. Additional Information ..............................................................................................13

7.1 Problem Solving..........................................................................................13

7.2 Technical Specification Tuner & Demodulator ............................................14

2

1.Reference

1.1General Features

1.2 Accessories

·User manual

·A/V Cable

·DC12V Power Adaptor

·Remote Control

HDMI cable

·

Fully DVB T2/T compliant

Max 5000 Channels memory space

Multi-language OSD support with subtitles function

Easy and fast software upgrade via USB

Support Auto/NTSC/PAL and 4:3 16:9 widescreen

Parental lock function

8 Favourite channel groups

Channel search in automatic, manual and network search

7 days searchable EPG with program info

Powerful PVR and time-shift function

Various channel editing functions (favourite, move, lock

rename)

NTFS file system playback

FAT32 recording

Scheduled recording via EPG

500GB Internal hard disk

Record 2 channels while watching a 3rd

Series record

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

3

1.3 Basic Function

1.3.1 Front and Real Panel

ANT IN

LOOP OUT

HD-OUT

12V

SPDIF CVBS RL

Y PB PR

Model No.:HDR2250T
100-240V~ 50/60Hz 25W MAX
Standby: <1W
