Tower DVD Duplicator
User’s Manual
DVW-D13
DVW-D13H
DVW-D17
DVW-D17H
®
Safety Precautions
TEAC DVD Duplicator systems are high-precision electronic devices. Do not use them in
any manner other than as specified in this manual. Please read this manual in its entirety
before you begin the installation procedure. Use of controls, adjustments, or performance
of procedures other than those specified herein may result in hazardous radiation exposure.
To prevent fire or shock, do not expose the unit to moisture or rain.
To prevent electrical shock, do not attempt to disassemble the DVD Duplicator system.
Refer servicing to authorized personnel.
TEAC DVD Duplicator drives utilize a laser beam that can be harmful to your eyes. Do not
disassemble the cabinet or unit. Do not attempt to look through the front panel or into the
unit while the power is turned on.
A user who changes or modifies the unit or operating procedures specified herein without
expressed written approval by the manufacturer will void user authority to operate the
equipment.
Specifications and features subject to change without notice or obligation.
TEAC Tower DVD Duplicator User’s Manual i
Copyright and Trademark Information
© Copyright 2005 TEAC America, Inc. All rights reserved.
TEAC America, Inc. reserves the right to modify product offerings or specifications
without advanced notice. No part of this publication may be reproduced in any format
without the expressed written permission of TEAC America, Inc.
TEAC is a trademark of TEAC Corporation. All other trademarks and registered
trademarks are the property of their respective owners.
Piracy Statement
Copying audio, video, or software without the permission of the copyright holder is illegal.
TEAC accepts no responsibility for copyright infringement or misuse of this equipment. It
is the sole responsibility of the user to ensure that the legal copyrights of the copyright
owners are respected.
About This Manual
This
TEAC Tower DVD Duplicator User’s Manual
Tower DVD Duplicator. It is divided into the following chapters:
Chapter 1: Introduction
This chapter describes the shipping package contents and introduces the TEAC Tower
DVD Duplicator.
Chapter 2: Using the DVD Duplicator
This chapter explains how to set up the DVD Duplicator. It also details its basic copy
operation.
Chapter 3: DVD Duplicator Functions
This chapter explains all available functions of the DVD Duplicator.
Appendix A: List of Functions
Appendix A includes a complete list of all DVD Duplicator functions.
Appendix B: LCD Messages
Appendix B lists all messages that may appear on the LCD display.
Appendix C: About DVD-R and DVD-RW Discs
Appendix C contains information about handling, loading, and ejecting discs.
Appendix D: Specifications
Appendix D includes technical specifications for the TEAC Tower DVD Duplicator units.
Appendix E: Technical Support and Warranty
This appendix explains how to contact technical support at TEAC America, Inc. and
provides Limited Warranty information.
explains how to operate the TEAC
ii TEAC Tower DVD Duplicator User’s Manual
Table of Contents
Table of Contents
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
Copyright and Trademark Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Piracy Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Chapter 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
DVD Duplicator Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 2. Using the DVD Duplicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Copying from the Optical (DVD) Source Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Loading Data to and Copying from the Hard Disk Source Drive . . . . . . . . . . . . . . . . . 9
Chapter 3. Tower DVD Duplicator Functions . . . . . . . . . . . . . . . . . . . . . . . 13
1 Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2 Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 Test & Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Verify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Compare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Prescan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7 Disc Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8 Select Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9 Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.1 Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.2 Delete Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.3 Image Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.4 Compare Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.5 Select Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.6 Image Src Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9.7 Image Format Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10. Edit Track (for CD only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10.1 CD to CD Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10.2 CD to HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10.3 Play Audio Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10.4 Close Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11.1 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11.2 CD Burn Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11.3 DVD Burn Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11.4 Read Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11.5 Auto Start Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11.6 Startup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11.7 Auto Verify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
TEAC Tower DVD Duplicator User’s Manual iii
Table of Contents
11.8 Auto Compare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11.9 Auto Prescan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11.10 Eject Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11.11 Burn on the Fly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11.12 Burn Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11.13 Display Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11.14 Button Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11.15 Device Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11.16 System Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11.17 Quick Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11.18 Full Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11.19 Auto Close Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
11.20 Quick Compare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11.21 Audio Burn Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
12 Advanced Setup (Adv Setup) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
12.1 UnderRun Protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
12.2 Overburn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
12.3 Read Error Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
12.4 Format HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12.5 Verify HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12.6 Burn-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12.7 Update Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12.8 Compare Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12.9 H/W Diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12.10 Load Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12.11 CD+G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12.12 ISRC & MCN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12.13 Switch USB Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12.14 CD-Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12.15 MultiSession DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Appendix A. List of Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Appendix B. LCD Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Normal Conditions (for all DVD Duplicator models) . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Normal Conditions (for models that feature a hard disk drive) . . . . . . . . . . . . . . . . . . . . 26
Audio Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Appendix C. About DVD-R and DVD-RW Discs . . . . . . . . . . . . . . . . . . . . . 27
Handling Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Loading and Ejecting Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Appendix D. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Appendix E. Technical Support and Warranty . . . . . . . . . . . . . . . . . . . . . . 30
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
iv TEAC Tower DVD Duplicator User’s Manual
List of Figures
Figure 1. DVD Duplicator Unit Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Figure 2. Front Panel of the DVD Duplicator Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

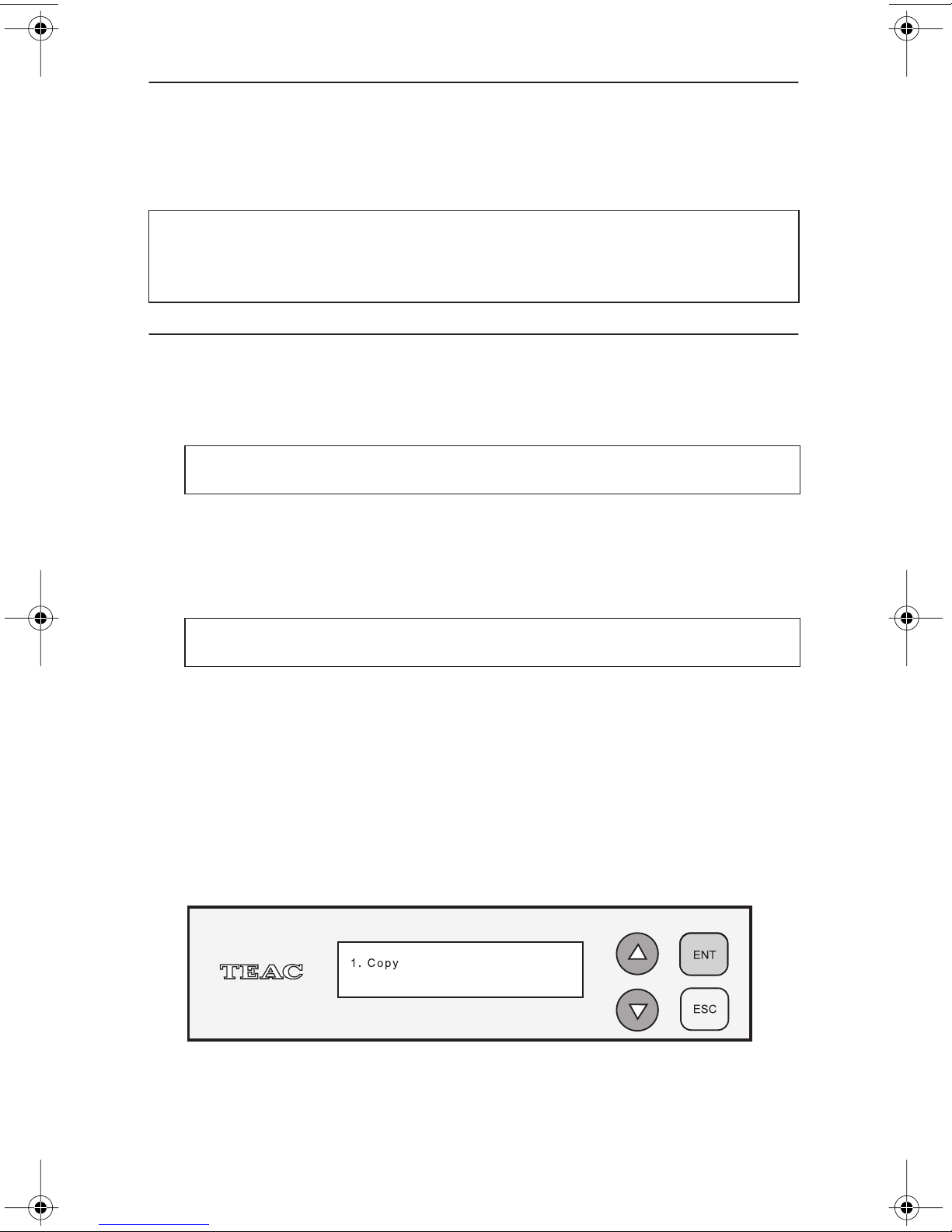

Figure 3. LCD Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

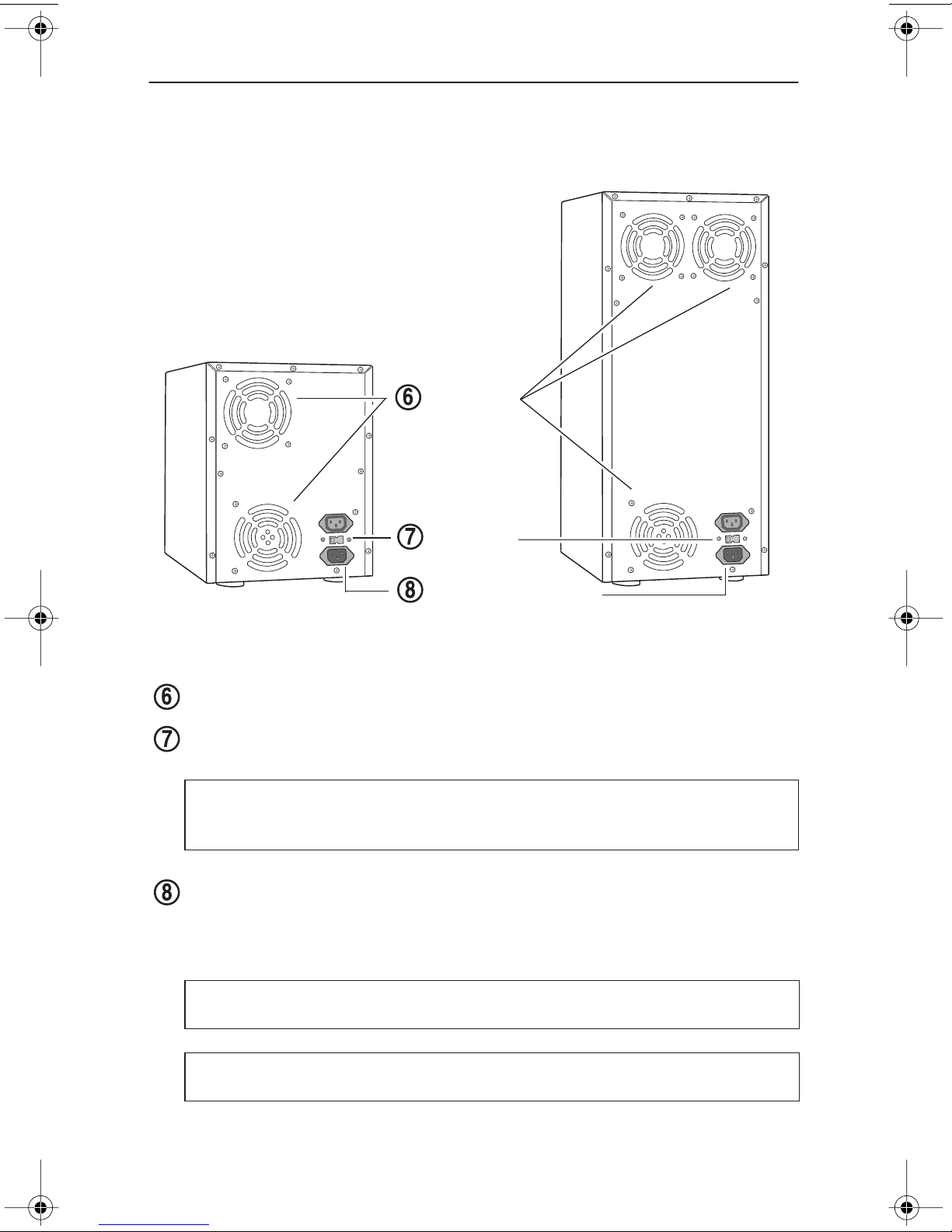

Figure 4. Rear Panel of the DVD Duplicator Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Figure 5. Copy Function on LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 6. How to Handle Compact Discs (DVD-R and DVD-RW) . . . . . . . . . . . . . . . . 27

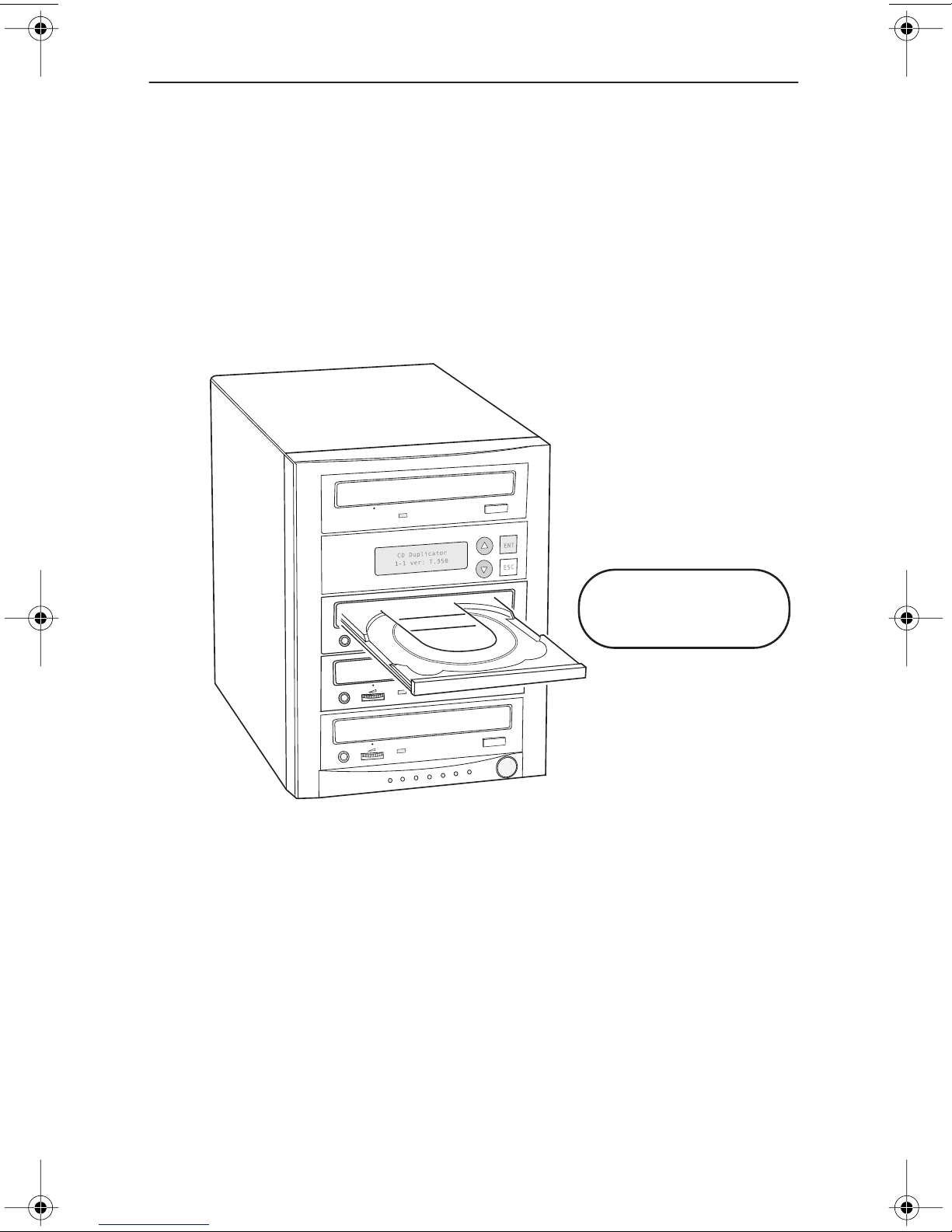

Figure 7. Ejecting the Disc Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
TEAC Tower DVD Duplicator User’s Manual v
vi
TEAC Tower DVD Duplicator User’s Manual
Chapter 1. Introduction
Thank you for purchasing a TEAC Tower DVD Duplicator.
Note:
❑
TEAC Tower DVD Duplicators are available in 1x3 (one source drive and
three target drives) and 1x7 (one source drive and seven target drives) models, with or without internal hard disk drives. Please refer to “Specifications” on page 29 for detailed information on the model you purchased.
❑
This User's Manual is intended for both 1x3 and 1x7 Tower DVD Duplicator systems. Operational instructions for all models are essentially the
same. The primary difference between models is the number of target drives
and the inclusion of an optional hard disk drive. Other minor differences
between the models are described herein as necessary.
The TEAC Tower DVD Duplicator is a stand-alone disc-to-disc DVD Duplicator
system that does not require connection to a computer. It can duplicate a single
master DVD to DVD media at up to 16X speeds, resulting in an exact replica of a
4.7GB disc. It can also duplicate discs to CD-R media at up to 48X speeds.
The TEAC Tower DVD Duplicator is designed to perform DVD copying quickly
and accurately. The DVD Duplicator automatically identifies source DVD
formats and replicates the content as required.
The TEAC Tower DVD Duplicator performs continuous copying with no waiting.
It is an ideal DVD Duplicator for the advanced user who requires speed and
accuracy.
You can set up your TEAC Tower DVD Duplicator very quickly and easily. There
is no need to install any software. There is no need to attach any cables to your
computer. The TEAC Tower DVD Duplicator functions entirely as a stand-alone
unit.
Caution:
Your TEAC Tower DVD Duplicator can operate on either 115VAC or
220VAC voltage. Before you turn on the power to the unit, be certain to select
the correct voltage for your region by setting the AC Voltage Selector on the rear
panel. Failure to do so can result in damage to the unit. For more information,
refer page 5.
TEAC Tower DVD Duplicator User’s Manual 1
DVD Duplicator Package Contents
DVD Duplicator Package Contents
Your TEAC DVD Duplicator package includes the following items (see
Figure 1).
❑
TEAC (1x3 or 1x7) Tower DVD Duplicator unit
❑
AC power cable
❑
TEAC Tower DVD Duplicator User’s Manual
(this booklet)
Note:
1x3 DVD Duplicator AC power cable
Figure 1. DVD Duplicator Unit Package Contents
OR
If any of the items above is missing from your package upon purchase,
1x7 DVD Duplicator
please contact your vendor immediately.
User’s Manual
2 TEAC Tower DVD Duplicator User’s Manual
Front Panel
Figure 2 illustrates the front panel of the Tower DVD Duplicator unit.
source drive
target drive
LCD control panel
target drive
Front Panel
power switch
LED status indicators
Figure 2. Front Panel of the DVD Duplicator Unit
source drive:
Insert the disc to be copied into the source drive. Use the disc
tray to load a DVD into the drive. You can open the tray by pressing the eject
button (if the tray fails to open, you can use the emergency eject mechanism).
You can close the tray by pressing the eject button.
Notes:
❑
TEAC strongly recommends that you do not push the tray in to close it.
Please press the eject button to eject or retract the tray.
❑
The Tower DVD Duplicator may include an internal hard disk drive as
an alternate source drive. Please refer to “Specifications” on page 29
for detailed information on the model that you purchased.
TEAC Tower DVD Duplicator User’s Manual 3
Front Panel
LCD control panel:
Use the control panel buttons to navigate through the
various functions viewed on the LCD display.
Figure 3. LCD Control Panel
The DVD Duplicator control panel features an LCD display and four buttons.
These buttons are described in the following table:
Press the Up arrow button to scroll up functions or menus.
Press the Down arrow button to scroll down functions or menus.
Press the ENT (Enter) button to execute a selected function.
Press the ESC (Escape) button to cancel a selected function or to return to
the main menu.
target drives:
Insert a blank disc into each target drive to make a copy of the
source disc. You can open the tray by pressing the eject button (if the tray fails
to open, you can use the emergency eject mechanism). You can close the tray
by pressing the eject button.
Note:
TEAC strongly recommends that you do not push the tray in to close
it. Please press the eject button to eject or retract the tray.
power switch:
Use the power switch to turn the power to the DVD Duplicator
unit on and off.
LED power indicator:
when the DVD Duplicator power is on
The LED power indicator will be continuously lit
.
4 TEAC Tower DVD Duplicator User’s Manual
Rear Panel
Figure 4 illustrates the rear panel of the DVD Duplicator unit.
cooling fans
Rear Panel
AC voltage
selector
AC IN power connector
Figure 4. Rear Panel of the DVD Duplicator Unit
cooling fan:
AC voltage selector:
Caution:
Ball-bearing fans cool the DVD Duplicator.
Use this switch to select either 115VAC or 220VAC.
Before you turn on the power to the DVD Duplicator, make sure
the correct voltage is selected. Otherwise, you risk damage to the unit. The
default setting is 115VAC.
AC IN power connector:
Connect the included AC power cable to this input
connector. Plug the other end of the power cable into a three-prong receptacle
AC power outlet.
Caution:
Do not attempt to bypass the grounding plug. Otherwise, you risk
electrical shock or damage to the unit.
Note:
To ensure proper operation, use only the original AC power cable with
your TEAC Tower DVD Duplicator unit.
TEAC Tower DVD Duplicator User’s Manual 5
Rear Panel
6 TEAC Tower DVD Duplicator User’s Manual
Chapter 2. Using the DVD Duplicator
This chapter explains how to set up the DVD Duplicator, as well as basic
operation and menu functions.
Setup
Note:
The following instructions are applicable to 1x3 and 1x7 Tower DVD
Duplicators. The primary difference between models is the number of target
drives and the inclusion of an optional hard disk drive. Please refer to
“Specifications” on page 29 for detailed information on your model.
Setup
1. Carefully remove the DVD Duplicator unit, AC power cord and user’s
manual from the shipping box.
Note:
event of future storage or transportation of the unit.
2. Connect one end of the included power cable to the back of the DVD
Duplicator. Connect the other end of the power cable to a three-prong
receptacle AC outlet.
Caution:
damage to the unit and electrical shock.
Please keep the original box and packaging materials for use in the
Do not attempt to bypass the grounding plug. Otherwise, you risk
3. Turn on the power to the DVD Duplicator by pressing the power button
on the lower right-hand side of the unit.
During initialization, the DVD Duplicator performs a self-test in which the
unit’s internal buffer is tested, source and target drives are detected, and the
LCD display is tested. Once the initialization is complete, the DVD
Duplicator is ready for use.
The LCD initially displays the Copy function by default.
Figure 5. Copy Function on LCD Panel
TEAC Tower DVD Duplicator User’s Manual 7
Basic Operation
Basic Operation
This section explains the basic operation of the DVD Duplicator.
Copying from the Optical (DVD) Source Drive
Note:
The following instructions apply to all DVD Duplicator models.
1. Place a source disc in the disc tray of the source drive.
2. Switch to function
[1 Copy]
by pressing the button (if necessary).
3. Place a blank DVD-R disc into as many of the target drives as you
desire, then press the
(ENT)
button to start copying.
You do not need to insert a DVD disc into every available target drive. You
can make fewer copies if you prefer. The internal controller will
automatically detect inserted discs and issue the record command to only
those target drives that contain a blank disc.
When the copy operation is complete, the DVD disc in each of the target
drives will be ejected automatically.
Note:
❑
With the default setting, after a source disc has been successfully copied, the
DVD Duplicator automatically ejects the target DVD discs.
❑
With the default setting, if the copy operation fails, the failed target DVD disc
remains in the target drive. To remove the failed DVD disc, press the eject
button on the target drive and retrieve the disc. Press the eject button again
to retract the disc tray. You can change the default settings by using the
[Advanced Setup] menu. (For more information, see “12 Advanced Setup
(Adv Setup)” on page 20.)
8 TEAC Tower DVD Duplicator User’s Manual
Loading Data to and Copying from the Hard Disk Source Drive
Loading Data to and Copying from the Hard Disk Source Drive
Note:
The following instructions apply only to Tower DVD Duplicator models
that feature a factory-installed hard disk drive (DVW-D13H and DVW-D17H).
During initialization (see Step 3 on page 7), the DVD Duplicator performs a selftest to detect source drives. The DVD-ROM drive and hard disk drive will be
detected as available source drives. The DVD-ROM drive is the default source
drive.
The internal hard disk drive was formatted and partitioned at the factory. Each
partition occupies 5GB of hard disk space. The number of partitions depends on
the capacity of the hard disk drive. Partitions are arranged alphabetically and
initially contain no data. A set of data loaded into a partition on the hard disk drive
is called an “image file.”
To use the hard disk drive as the source drive, you must first load an image file
from a DVD onto a partition on the hard disk drive, select the partition that
contains the data you want to copy, specify the hard disk drive as the source drive,
then execute the copy function.
1. Insert a source DVD into the DVD-ROM drive.
This disc (DVD-ROM or DVD) contains the data that you wish to copy to the
partition on the internal hard disk drive.
2. Press the / buttons to select function menu
the
The
Image, Select Image, Image Src Drive
3. Press the / buttons to select function
press the
(ENT)
button.
menu includes the
(ENT)
button to access the Select a Partition submenu.
Load, Delete Image, Image Info, Compare
ImageFormat Info
and
[9-5 Select Image]
[9 Image]
functions.
, then press
The Select a Partition submenu enables you to select a partition (A, B, C, etc.)
into which to load an image file on the hard disk drive. (When the unit is
shipped from the factory, the partitions on the hard disk drive contain no
data.)
The LCD will display a message similar to the following for each
corresponding partition:
, then
Select a Partition
No image in A
TEAC Tower DVD Duplicator User’s Manual 9
Loading Data to and Copying from the Hard Disk Source Drive
4. Press the / buttons to select the desired partition letter.
The LCD will display partition A as the first option, but you can select any
partition letter at any time.
5. Press the
(ENT)
button to confirm the desired partition.
The LCD will display a message similar to the following:
Set Partition To A
(If you selected partition B, the LCD will display the message:
Set Partition To B,
6. Press the
7. Press the / buttons to select function
(ENT)
button to transfer data from the DVD to the specified parti-
and so on.)
(ESC)
button to return to function menu
[9-1 Load]
[9 Image]
, then press the
tion on the hard disk drive.
The data (image file) on the DVD in the source drive will be copied onto the
partition you selected in Step 5.
Note: To help you quickly locate your data in the future, TEAC recommends
that you keep track of the data that you load into each partition.
.
8. Once the data is loaded successfully, remove the source disc from the
DVD-ROM drive.
9. Repeat Steps 1 through 8 to load additional image files from other DVDs
to other partitions, if desired.
At this point, the selected partition is the same as the one you selected in Step
5 above. If you want to copy from this partition, skip to Step 12.
If you want to copy an image file from another partition into which you have
already loaded data, continue with Step 10.
10. Press the / buttons to select function
[9-5 Select Image]
, then
press the (ENT) button to access the Select a Partition submenu.
The Select a Partition submenu also enables you to select a partition (A, B, C,
etc.) from which you want to copy an image file.
10 TEAC Tower DVD Duplicator User’s Manual
Loading Data to and Copying from the Hard Disk Source Drive
11. Press the / buttons to select the partition you wish to copy from,
then press the (ENT) button.
The data will be copied from the selected partition when you specify the hard
disk drive as the source and execute the copy function as described in Steps
13 through 16.
12. Press the (ESC) button twice to exit to the DVD Duplicator’s main
menu.
13. Press the / buttons to select function menu [8 Select Source],
then press the (ENT) button to access a list of available source drive
options.
14. Press the / buttons to select the hard disk drive, then press the
(ENT) button.
The hard disk drive is now designated as the source drive.
15. Press the button to switch to function [1 Copy].
The LCD will display a message similar to the following:
1 Copy. P : A
This message indicates that the data will be copied from the hard disk drive’s
partition “A” (which was selected in Step 11).
(If you selected partition B, the LCD will display the message:
“1 Copy. P : B,” and so on.)
16. Place a blank DVD-R disc into each of the target drives, then press the
(ENT) button to start copying.
TEAC Tower DVD Duplicator User’s Manual 11
Loading Data to and Copying from the Hard Disk Source Drive
Note:
❑ With the default setting, after source data has been successfully copied to the
target DVD discs, the DVD Duplicator automatically ejects the discs.
❑ With the default setting, if the copy operation fails, the failed target DVD disc
remains in the target drive. To remove the failed DVD disc, press the eject
button on the target drive and retrieve the disc. Then press the eject button
again to retract the disc tray. You can change the default settings by using
the [Advanced Setup] menu. (See “12 Advanced Setup (Adv Setup)” on
page 20.)
12 TEAC Tower DVD Duplicator User’s Manual
1 Copy
Chapter 3. Tower DVD Duplicator Functions
The Tower DVD Duplicator features 12 functions: Copy, Test, Test &Copy,
Verify, Compare, Prescan, Disc Info, Select Source, Image, Edit Track, Setup, and
Advanced Setup. Each function is explained below.
1 Copy
The Copy function enables you to copy data from a source DVD or a partition on
the internal hard disk (if your Tower DVD Duplicator features a factory-installed
hard disk drive). For more information, refer to “Basic Operation” on page 8.
To copy data to one of more DVD-R discs, follow the steps below:
1. Switch to function [1 Copy] by pressing the button.
2. Insert a source disc in the source drive and a blank DVD-R disc in as
many of the target drives as you desire.
(Note: If your Tower DVD Duplicator features a factory-installed hard disk
drive and you wish to copy data from a partition on the hard disk, refer to
“Loading Data to and Copying from the Hard Disk Source Drive” on page 9.)
3. Press the (ENT) button.
When the copy operation is complete, the target drives eject the copied discs.
4. To make additional copies of the same source disc, insert another blank
DVD-R disc in each of the target drives and press the (ENT) button.
Otherwise, press (ESC) to return to the main menu.
Note: You can use DVD-RW discs that already contain data (i.e., DVD-RW discs
that are not fully blank) as target discs. However, the data stored on the DVDRW disc will be erased automatically before the new data is copied. No special
setting or procedure is required to erase the old data.
2 Test
The Test function simulates writing to the target disc. Discs will remain blank
after the test is complete. This function is recommended if you are using
unsupported media. This function enables the target drive to adjust its laser to the
proper intensity.
TEAC Tower DVD Duplicator User’s Manual 13
3 Test & Copy
Note: Unexpected termination or cancellation of a test will not affect a target
DVD-R disc. The target DVD-R disc will remain blank and available for use.
However, DVD-RW discs that contain data may be damaged and the data they
contained may be rendered unrecoverable. It may be necessary to re-start the
DVD Duplicator if the target drive hangs during a sudden termination.
3 Test & Copy
The Test & Copy function performs the test simulation and the copy process in one
step.
The copy process is performed only if the simulation detects no problems. If the
simulation fails, the copy process is cancelled.
4 Verify
The Verify function verifies that the target disc was written completely and with
no errors.
5 Compare
The Compare function compares data on the source and target discs after the copy
process is complete.
Note: This function works only with data discs.
6 Prescan
The Prescan function is performed on the source drive. This function scans the
disc to determine the maximum data/audio extraction speed.
7 Disc Info
The Disc Info function displays detailed information about the source disc,
including sessions, tracks, capacity, etc.
8 Select Source
The Select Source function enables you to select a drive (DVD-ROM drive, DVD
Writer drive, or hard disk drive) as the source from which to copy. You can select
a hard disk drive only on those Tower DVD Duplicator systems that feature a
factory-installed hard disk drive.
14 TEAC Tower DVD Duplicator User’s Manual
9 Image
9 Image
The Image menu, which consists of seven functions (9.1 through 9.7), is valid only
on Tower DVD Duplicator systems that feature a factory-installed hard disk drive.
The Image menu includes Load, Delete Image, Image Info, Compare Image,
Select Image, Image Src Drive
onto the hard disk drive is called an “image file.”
9.1 Load
The factory-installed hard disk drive was partitioned and formatted at the factory.
An alphabetical letter identifies each partition. Each partition is approximately
5GB in capacity. The number of partitions depends on the capacity of the hard
disk drive. The Load function enables you to transfer data from the DVD-ROM
drive or any DVD Writer drive to the current partition of the hard disk drive.
(Note: P:A stands for partition A.) You can load as many disc images as the
number of partitions available on the hard disk drive.
, and Image Format Info functions. The data loaded
9.2 Delete Image
Use the Delete Image function to delete an image stored in a particular partition.
9.3 Image Info
Use the Image Info function to display basic information for an image file stored
in a particular partition.
9.4 Compare Image
Use the Compare Image function to compare the contents of a source DVD-ROM
disc with the image file in the partition.
9.5 Select Image
The internal hard disk drive was partitioned and formatted at the factory. An
alphabetical letter identifies each partition. Each partition is approximately 5GB
in capacity. The number of partitions depends on the capacity of the hard disk
drive. Use the Select Image function to select an image file that is stored in a
specific partition on the hard disk drive.
9.6 Image Src Drive
Use the Image Src Drive function to select the DVD-ROM drive or a DVD Writer
drive as the source from which you can load data into a particular partition as an
image file.
TEAC Tower DVD Duplicator User’s Manual 15
9.7 Image Format Info
9.7 Image Format Info
The partitions on the hard disk drive can be configured to store a CD (1GB), DVD
(5GB), or a Double Layer (DL) (10GB) image. The factory partitions the hard disc
drive for DVD images at (5GB per partition). Use the Image Format Info function
to verify this setting.
10. Edit Track (for CD only)
The Edit Track functions enable you to create and copy a collection of songs from
different audio discs.
Note: The CD+G value must be set to OFF before you can use the Track
Extraction feature. For more information, refer to “12 Advanced Setup (Adv
Setup)” on page 20.
10.1 CD to CD Edit
The CD to CD Edit function enables you to select specific tracks from various
audio discs, combine them to create a collection of songs, and copy the collection
to blank CD-R/CD-RW discs.
Note: CD-R discs support up to 80 minutes of audio. Therefore, the number of
tracks that can be copied onto a single disc depends on the length of each
individual track.
10.2 CD to HDD
The CD to HDD function enables you to select one or more tracks from an audio
CD-ROM disc and copy them to a specific partition on the hard disk drive.
Note: CD-R discs support up to 80 minutes of audio. Therefore, the number of
tracks that can be copied onto a single disc depends on the length of each
individual track.
10.3 Play Audio Track
This function enables you to use the designated source drive as a music CD player.
If the DVD-ROM drive does not feature a headphone jack, change the source
drive designation to one of the DVD-RW drives using function [8 Select Source]
(see page 14.)
You can connect standard multimedia speakers to the audio jack of the designated
source drive. The volume knob on the front of the drive controls the audio volume
level. The arrow buttons on the LCD panel enable you to skip to the next
track (forward or back).
16 TEAC Tower DVD Duplicator User’s Manual
10.4 Close Session
10.4 Close Session
This function finalizes your CD-R disc. Once the CD-R disc is finalized, no more
audio can be added to that disc.
11 Setup
The Setup menu includes a list of options that enable you to change the original
default configuration. Various settings are available under the Setup menu that
control the operation of the DVD Duplicator. However, TEAC recommends that
you use the original default settings for optimal operation.
11.1 Language
The DVD Duplicator LCD panel can display text in English and Spanish. The
Language function enables you to select the display language. English is the
default option.
11.2 CD Burn Speed
The CD Burn Speed setting controls the writing speed of the target drive when
recording onto CD-R/CD-RW media. The default value is AUTO, which writes at
the highest speed allowed by the media.
11.3 DVD Burn Speed
The DVD Burn Speed setting controls the writing speed of the target drive when
recording onto DVD±RW media. The default value is MAXIMUM, which writes at
the highest speed available on the target drive. On occasion, using the maximum
writing speed will cause copy failure due to poor quality DVD±RW discs. In this
case, TEAC recommends that you reduce the writing speed.
11.4 Read Speed
The Read Speed function enables you to set the reading speed of the target drive.
MAXIMUM is the default setting.
11.5 Auto Start Drive
The Auto Start Drive setting enables the DVD Duplicator to auto-start the copy or
test process as soon as a blank disc is inserted into the target drive. The default
setting is OFF.
TEAC Tower DVD Duplicator User’s Manual 17
11.6 Startup Menu
11.6 Startup Menu
The Startup Menu setting enables you to select a menu item to be displayed as the
first menu item when you turn on the DVD Duplicator. COPY is the default.
11.7 Auto Verify
The Auto Verify setting controls auto verification of discs after a copy operation.
The default setting is OFF.
11.8 Auto Compare
The Auto Compare setting controls auto-comparison of data between source and
target discs after a copy operation. The default setting is OFF.
11.9 Auto Prescan
The Auto Prescan setting controls automatic prescan of the source disc whenever
a data/audio disc is inserted in the source drive. The default setting is OFF.
11.10 Eject Disc
The Eject Disc setting controls the ejection of discs by the target drive. Three
options are available:
❑ Eject Good Only – This option ejects only successfully copied discs. This is
the default setting
❑ Eject All Disc – This option ejects successful and failed copy discs.
❑ Do Not Eject – With this option, all discs remain in the target drive. Manual
ejection is required after every copy operation.
11.11 Burn on the Fly
The Burn on the Fly function enables you to control the copy operation. When the
setting is ON, data is copied directly from the source DVD to the target DVDs.
When the setting is OFF, the DVD Duplicator first loads the data into a partition
on the hard disk drive, then copies the data to the target DVDs.
This function is valid only on Tower DVD Duplicators that feature an internal
hard disk drive.
18 TEAC Tower DVD Duplicator User’s Manual
11.12 Burn Mode
11.12 Burn Mode
The Burn Mode setting enables you to select from two writing methods for CD-R
media:
❑ Disc At Once (DAO)
❑ Track At Once (TAO)
DAO
is the default setting.
11.13 Display Time
The Display Time function displays the total time of each copy operation. The
default setting is OFF.
11.14 Button Sound
The Button Sound setting turns the button sound on or off. The default setting is
ON.
11.15 Device Info
The Device Info function displays information for both the source and target
drives.
11.16 System Info
The System Info function displays information for the interface board.
11.17 Quick Erase
The Quick Erase function performs a Quick Erase on DVD-RW discs.
11.18 Full Erase
The Full Erase function performs a Full Erase on DVD-RW discs. This function
takes longer than the Quick Erase.
11.19 Auto Close Tray
The Auto Close Tray setting function closes the DVD writer’s tray automatically
after the recording is completed and the disc has been ejected. It is related to
function 11.5 Auto Start Drive.
TEAC Tower DVD Duplicator User’s Manual 19
11.20 Quick Compare
If you have not set any DVD writer to copy using function 11.5, the Auto Close
Tray
function will be invalid. If function 11.5 is valid, you can set for the writer’s
tray to close automatically after copying finishes. You can specify tray closure to
occur within 5 to 50 seconds.
11.20 Quick Compare
With the Quick Compare function, you can specify a comparison of the source and
the copied target discs in increments of 1byte through 100MB.
11.21 Audio Burn Speed
Use the Audio Burn Speed function to specify the write speed at which audio CDs
will be recorded.
12 Advanced Setup (Adv Setup)
The Advanced Setup functions enable you to modify the system configuration.
You should make changes only after you become completely familiar with the
functions in this menu. To enter Advanced Setup mode, press the ESC button for
two (2) seconds.
12.1 UnderRun Protect
The UnderRun Protect setting turns Buffer UnderRun Protection on or off. The
default setting is ON.
12.2 Overburn
The Overburn setting turns the Overburn function in the target drive on or off. The
default setting is OFF.
12.3 Read Error Skip
The Read Error Skip setting controls error skipping during reading of the source
disc.
If the setting is OFF and an error is detected, the target drive stops and displays
the read error message.
If the setting is ON, no messages will be displayed if an error occurs. The copy
operation will be completed and the copy will include all errors detected during
the process.
The default setting is OFF.
20 TEAC Tower DVD Duplicator User’s Manual
12.4 Format HDD
12.4 Format HDD
(For factory use only; please do NOT use this function.)
Warning! Do not run this function. It will erase all data already loaded into disk
partitions. This function is reserved for factory use only.
The Format HDD option is valid only on Tower DVD Duplicators that feature a
factory-installed hard disk drive. The factory-installed hard disk drive has already
been partitioned and formatted and is ready for use.
12.5 Verify HDD
(For factory use only; please do NOT use this function.)
Warning! Do not run this function. It will erase all data already loaded into disk
partitions. This function is reserved for factory use only.
The Verify HDD option is valid only on Tower DVD Duplicators that feature a
factory-installed hard disk drive. The factory-installed hard disk drive has already
been partitioned and formatted and is ready for use.
12.6 Burn-in
The Burn-in function runs an emulate writer function continuously. The disc in the
target drive is ejected and re-inserted automatically between each test cycle. This
function can be prepared to run continuously or specified to run from 1 to 1000
times.
12.7 Update Firmware
The Update Firmware function updates the firmware of the interface board via a
CD or DVD disc. The disc must contain the required data file and be inserted in
the source drive. The DVD Duplicator will locate the data and update its firmware
automatically. During the update, do not turn off the power to the unit. The update
process is complete after the system resets automatically and displays the main
menu.
12.8 Compare Firmware
The
Compare Firmware function compares the current firmware version in the
interface board to the update version in the CD or DVD disc.
12.9 H/W Diagnostic
The H/W Diagnostic function detects the devices connected to the interface board,
confirms functionality, and displays information about the hardware on the LCD.
TEAC Tower DVD Duplicator User’s Manual 21
12.10 Load Default
12.10 Load Default
The Load Default function resets all settings to factory default values. It is
recommended that you reset to the default values if the DVD Duplicator fails to
function properly after you make changes to the original configuration.
12.11 CD+G
The CD+G function enables or disables CD+G (karaoke CD) format support. The
default setting is OFF.
Note: The CD+G value must be set to OFF before you can use the Track
Extraction features.
12.12 ISRC & MCN
The ISRC & MCN function enables or disables ISRC and MCN format support.
The default setting is OFF.
12.13 Switch USB Mode
The Switch USB Mode function is not applicable to TEAC Tower DVD
Duplicators.
12.14 CD-Text
The CD-Text function enables or disables the copying of CD-Text discs. The
default setting is OFF.
12.15 MultiSession DVD
The MultiSession DVD function is designed for DVDs with multiple sessions. The
default setting is OFF, but when you want to copy a multi-session DVD disc, you
must set this function to ON.
Note that you should insert the source DVD with multiple sessions into a DVD
writer, not into the DVD-ROM drive. You will need to change the source drive
using function 8 Select Source.
22 TEAC Tower DVD Duplicator User’s Manual
Appendix A. List of Functions
1 Copy
2 Test
3 Test & Copy
4 Verify
5 Compare
6 Prescan
7 Disc Info
8 Select Source
9 Image (available only on DVW-D13H and DVW-D17H)
9.1 Load
9.2 Delete Image
9.3 Image Info
9.4 Compare Image
9.5 Select Image
9.6 Image Src Drive
9.7 ImageFormat Info
10 Edit Track (for CD only)
10.1 CD to CD
10.2 CD to HDD (available only on DVW-D13H and DVW-D17H)
10.3 Play Audio Track
10.4 Close Session
11 Setup
11.1 Language (Default is English.)
11.2 CD Burn Speed (Default is Auto.)
11.3 DVD Burn Speed (Default is Maximum.)
11.4 Read Speed (Default is Maximum.)
11.5 Auto Start Drive (Default is Off.)
11.6 Startup Menu (Default is Copy.)
11.7 Auto Verify (Default is Off.)
11.8 Auto Compare (Default is Off.)
11.9 Auto Prescan (Default is Off.)
11.10 Eject Disc (Default is Eject Good Only.)
11.11 Burn on the Fly (Default is On.)
11.12 Burn Mode (Default is DAO.)
11.13 Display Time (Default Off.)
11.14 Button Sound (Default is On.)
11.15 Device Info
11.16 System Info
11.17 Quick Erase
11.18 Full Erase
11.19 Auto Close Tray
11.20 Quick Compare
11.21 Audio Burn Speed
12 Advanced Setup (Adv Setup)
12.1 UnderRun Protect (Default is On)
12.2 Overburn (Default is Off)
12.3 Read Error Skip (Default is Off)
12.4 Format HDD (factory use only)
12.5 Verify HDD (factory use only)
12.6 Burn-in
12.7 Update Firmware
12.8 Compare Firmware
TEAC Tower DVD Duplicator User’s Manual 23
12.9 H/W Diagnostic
12.10 Load Default
12.11 CD+G (Default is Off)
12.12 ISRC & MCN (Default is Off)
12.13 Switch USB Mode (Optional)
12.14 CD-Text (Default is Off)
12.15 MultiSession DVD
24 TEAC Tower DVD Duplicator User’s Manual
Appendix B. LCD Messages
This appendix explains the messages that may appear on the LCD panel.
Normal Conditions (for all DVD Duplicator models)
Message Meaning
Initialize SDRAM Initialize system memory.
Detect drives Detect the drives connected to the system.
User Abort Cancel a job during operation.
Analyzing Analyze the source disc.
Source Drive Not Ready Source drive is not ready to read.
Target Drive Not Ready Target drive is not ready to write.
Erasing disc The system is erasing the data on the disc.
Source Disc Not Ready Source disc is not ready to be read.
Target Disc Not Ready Target disc is not ready to be written into.
Fail to get Drive Info! Drive information cannot be obtained.
Fail to get SRC Disc Info! Information about a source disc cannot be obtained.
Save new config Fail! The new configuration settings cannot be saved.
Load Default Config? Do you want to load the default settings?
Src&Tgt can't in the same
channel
Preparing The system is preparing to record.
Check Target Please Wait The system is checking the target device.
Audio Disc!!!Can't compare! The system cannot compare the audio disc.
Identical Comparison results are identical.
Read disc error During a comparison, the disc could not be read.
Cannot read TOC The system cannot read the contents of the disc.
TOC not match Comparison results are not identical.
Source Disc Empty!!! The source disc contains no data.
Target overflow The target disc capacity is insufficient to store new data.
Target Disc Not Empty!!! The target disc still contains data.
Press a Key to Eject Good Disc Press any key to eject a disc after copying. (Copy suc-
Press a key to Eject Fail Disc Press any key to eject a disc after copying. (Copy failed.)
DVD-RW does not Support the
Func
Hold ESC to exit Press ESC for one second to terminate the test.
All data will be lost, erase? All data on the disc will be lost. Confirm erasure request.
Erase Finished The erasing of the data is complete.
No Erasing to Disc in DVD-
RW!!
During comparison, the source and target discs cannot
occupy the same channel.
cessful.)
DVD-RW does not support this function.
The disc in the DVD-RW drive is not rewritable.
TEAC Tower DVD Duplicator User’s Manual 25
Normal Conditions (for models that feature a hard disk drive)
Normal Conditions (for models that feature a hard disk drive)
Message Meaning
HDD not Format! The hard disk has not been formatted.
Format HDD? Do you want to format the hard disk?
All data will be lost, format? All data on the hard disk will be lost. Confirm the format
request.
Format HDD OK! Formatting of the hard disk is complete.
Image load OK The image has been successfully loaded from DVD to
the hard disk.
Image load Fail The image has not been loaded successfully from DVD
to the hard disk.
HDD too small to handle
image!
No Valid HDD! The system cannot locate a hard disk.
HDD too small The hard disk capacity is too small.
No Image in Partition xx There is no data image in the specified partition.
Image Exists Overwrite? The current partition contains a data image. Confirm the
Delete Image in Partition xx? Confirm the request to delete the data image in the spec-
Partition Damage The partition is damaged.
Verify Disk Or Partition? Do you want to verify the entire hard disk or only a parti-
Verify Hard Disk OK! The hard disk has been verified successfully.
Verify the Hard Disk Fail! The hard disk has not been verified successfully.
Verify Partition Header! Verify the partition header.
Select HDD First! First select a formatted hard disk.
The hard disk capacity is insufficient to store the data
image (at least 5Gbytes is required).
overwriting request.
ified partition.
tion?
Audio Editing
Message Meaning
Lost selected Tracks? Abort and delete the selected tracks.
End edit disc and burn? Finish the music disc editing and start to copy.
Continue edit next Disc? Do you want to continue the music disc editing?
Target Overflow Re-Select The disc capacity is insufficient to store the selected
tracks. Please select fewer tracks.
Close all disc's session? Confirm the closing of disc sessions.
Can't edit HDD The hard disk cannot be edited as a source audio disc.
NO AUDIO track in this disc The source disc contains no audio tracks.
Insert next disc Insert the next audio disc.
Sessions were closed already! The disc sessions have already been closed.
Burn or Move to partition? Do you want to copy the data directly to disc or transfer
the data to a hard disk partition?
Tgt overflow, del last trk? Disc capacity is insufficient to store the selected tracks.
Do you want to delete the last track?
Ins empty disc Continue? Do you want to insert a blank disc and continue copying?
26 TEAC Tower DVD Duplicator User’s Manual
Normal Conditions (for models that feature a hard disk drive)
Appendix C. About DVD-R and DVD-RW Discs
This appendix explains how to handle, load, and eject DVD-R and DVD-RW
discs.
Handling Discs
❑ Handle compact discs only by their edges to avoid getting fingerprints on the
surface. Do not touch the disc’s data surface (unlabeled side).
❑ Do not place discs in direct sunlight or in locations subject to high humidity,
high temperatures, or dusty conditions.
❑ If it becomes necessary to clean a disc due to erratic operation, visible dust,
or smudges, gently wipe the surface of the disc from the center to the outside
edge. Do not use benzene, alcohol, thinner, or other solvents.
wipe disc surface from
center to outside edge

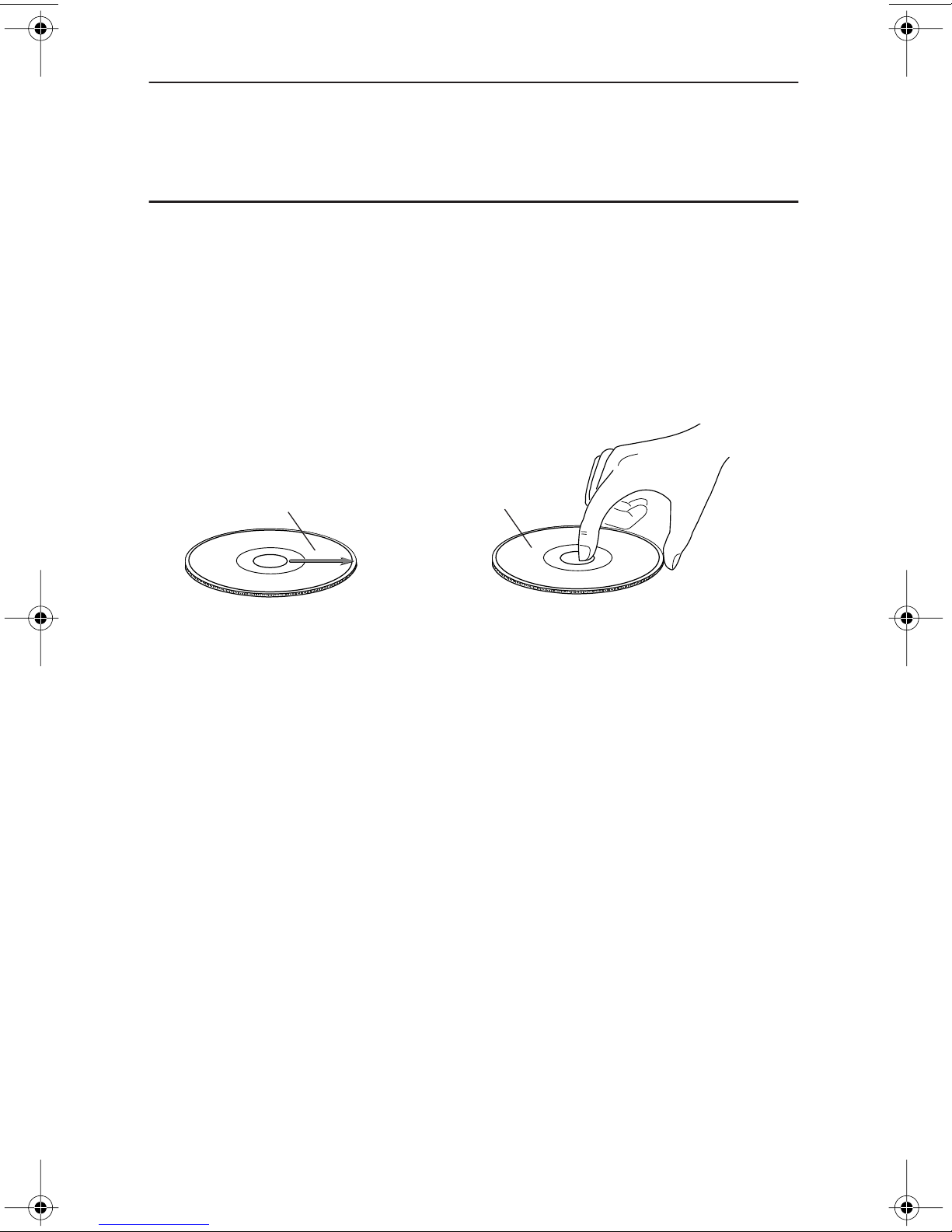

Figure 6. How to Handle Compact Discs (DVD-R and DVD-RW)
handle discs
by their edges
TEAC Tower DVD Duplicator User’s Manual 27
Loading and Ejecting Discs
Loading and Ejecting Discs
To load a disc into the source or a target drive, first open the disc tray by pressing
the Eject button on the front of the drive. Place the disc on the disc tray with its
label side facing up. Then press the Eject button again to retract the disc tray back
into the drive.
To eject a disc from the source or a target drive, press the Eject button on the front
of the drive to extend the disc tray. Remove the disc from the disc tray and place
it in its protective case. Then press the Eject button again to retract the disc tray
back into the drive.
Figure 7. Ejecting the Disc Tray
Press the Eject button
to extend and retract
the disc tray.
28 TEAC Tower DVD Duplicator User’s Manual
Loading and Ejecting Discs
Appendix D. Specifications
The following table lists the product specifications for the TEAC Tower DVD
Duplicator.
Model DVW-D13 DVW-D13H DVW-D17 DVW-D17H
HDD Capacity None 80GB None 80GB
Weight 22 lbs. 23.5 lbs. 37 lbs. 38.5 lbs.
Dimensions (HxWxD) 10.5" x 7.5" x 17.25" 17.25" x 7.5" x 18"
DVD Recorders TEAC 16X DVD-RW
Drive Interface IDE / ATAPI
Read Speed DVD: 16x; CD: 48x
Write Speed DVD: 16x; CD: 48x
Drive Buffer Size 2MB
System Buffer Size 1x3: 32MB; 1x7: 64MB
Supported Discs DVD+R, DVD+RW, DVD+DL, DVD-R, DVD-RW, CD-R, and
CD-RW discs
System Control Copy and Search Buttons
System Display LCD Panel; LED Indicator
Write Method Auto Detect (DAO, TAO)
Operation Mode Copy, Test, Scan, Compare
Firmware Upgrade Via CD-ROM/DVD-ROM
Power Supply AC Input: 115 - 230V
TEAC Tower DVD Duplicator User’s Manual 29
Limited Warranty
Appendix E. Technical Support and Warranty
For technical support, please contact the TEAC America Support Center
TEAC America, Inc. (USA)
Technical Support
Telephone: (323) 727-4860 • Fax: (323) 869-8751
Monday - Friday 8:00 a.m. - 5:00 pm PST
http://www.teac.com/DSPD/techsupport-America.htm
E-mail: dspdtsg@teac.com
Limited Warranty
This product is warranted by TEAC America, Inc. against defects in materials and workmanship.
LENGTH OF WARRANTY – This warranty will be effective for both labor and parts, and this
warranty will be effective for one (1) year from the date of original purchase.
WHO MAY ENFORCE THE WARRANTY - This warranty is valid only in the United States, and
enforceable only by the original purchaser. This warranty is not valid outside the United States.
WHAT IS NOT COVERED BY THIS WARRANTY
1. Damage to or deterioration of the external cabinet.
2. Damage resulting from accident, misuse, abuse, or neglect.
3. Damage resulting from failure to follow instructions contained in your user’s manual.
4. Damage occurring during shipment of the product (claims must be presented to the carrier).
5. Damage resulting from repair or attempted repair by anyone other than TEAC Service Department.
6. Damage resulting from modification or attempted modification of product not authorized by
TEAC.
7. Damage resulting from causes other than product defects, including lack of technical skill,
competence, or experience of the user.
8. Damage to any unit that has been altered or on which the serial number has been defaced, modified
or removed.
9. Damage or malfunction resulting from installation and cabling.
10. For wireless configurations, TEAC cannot be responsible for interference or operation in locations
that restrict range.
11. Damage to or from interconnected network equipment.
12. Data integrity or loss of data.
HOW YOU CAN GET WARRANTY SERVICE – Please contact the TEAC service department for a Return
Authorization number before shipping unit(s) to TEAC. Information required for R/A request should
include your name and/or company name, telephone number, TEAC model, version and serial
number(s). Return Authorization (R/A) number must be clearly marked on the outside of each carton
shipped to TEAC. Return merchandise must be packed in original shipping containers or otherwise
packed adequately to prevent damage in shipment. You are responsible for all risk of damage to or loss
of merchandise in transit to TEAC. TEAC reserves the right to reject any merchandise that is not
packaged and/or marked as instructed herein. You must pay any shipping charges if it is necessary to
ship the product for service. However, if the necessary repairs are covered by the warranty, we will
pay the return shipping charges to any destination within the United States. Whenever warranty service
is required, you must present a copy of the original dated sales receipt as proof of warranty coverage.
Please contact us at the addresses listed at the end of this warranty statement.
WHAT TEAC WILL PAY FOR – We will pay all labor and material expenses for items covered by the
warranty. Payment of shipping charges is discussed in the next section of this warranty.
LIMITATION OF IMPLIED WARRANTIES
ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH
OF THIS WARRANTY.
30 TEAC Tower DVD Duplicator User’s Manual
Limited Warranty
EXCLUSION OF DAMAGES
TEAC’S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO REPAIR OR
REPLACEMENT OF THE PRODUCT, AT TEAC’S OPTION. TEAC SHALL NOT BE LIABLE
FOR DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS
OF TIME, INTERRUPTED OPERATION OR COMMERCIAL LOSS, LOST PROFITS OR ANY
OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR
OTHERWISE.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS AND/ OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY
NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC RIGHTS, AND MAY VARY FROM SOME OF THE
RIGHTS PROVIDED BY LAW. THESE RIGHTS MAY VARY FROM STATE TO STATE.
To contact the TEAC Service Center in the United States:
Tel: 1-323-727-7694 or 1-323-727-7616
Fax: 1-323-727-7606
E-mail:
dssvce@teac.com
TEAC America, Inc.
7733 Telegraph Road
Montebello, California 90640
TEAC Tower DVD Duplicator User’s Manual 31
Limited Warranty
32 TEAC Tower DVD Duplicator User’s Manual
