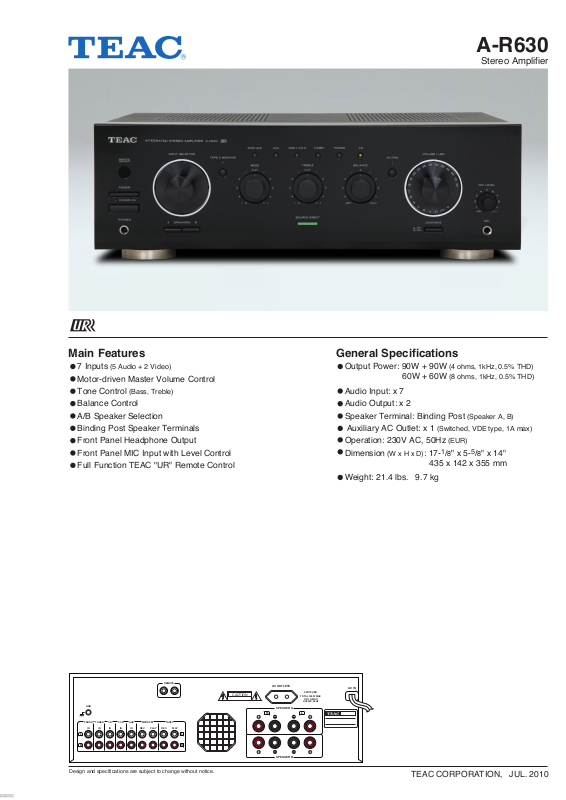

TEAC A-R630 Product information

A-R630

Stereo Amplifier

7 Inputs (5 Audio + 2 Video)
Motor-driven Master Volume Control
Tone Control

(Bass, Treble)

Balance Control
A/B Speaker Selection
Binding Post Speaker Terminals
Front Panel Headphone Output
Front Panel MIC Input with Level Control
Full Function TEAC "UR" Remote Control

General SpecificationsMain Features

Output Power: 90W + 90W

60W + 60W (8 ohms, 1kHz, 0.5% THD)

Audio Input: x 7
Audio Output: x 2
Speaker Terminal: Binding Post

Auxiliary AC Outlet: x 1 (Switched, VDE type, 1A max)
Operation: 230V AC, 50Hz (EUR)
Dimension (W x H x D): 17-1/8" x 5-5/8" x 14"

Weight: 21.4 lbs. 9.7 kg

(4 ohms, 1kHz, 0.5% THD)

(Speaker A, B)

435 x 142 x 355 mm

Rev. 1 JUL01-10
Rev. 0 FEB23-10

REMOTE

GND

PHONO

TUNER

VCRINAUX

MD/TAPE1 TAPE2

IN INCDIN

L

R

Design and specifications are subject to change without notice.

IN REC

REC PLAY

PLAY

L

R

CAUTION

AC OUTLETS

SPEAKER A

SPEAKER B

SWITCHED

TOTAL 100W MAX

OR 1A MAX

AC230V, 50Hz

LR

AC IN

TEAC CORPORATION, JUL. 2010
