GR-500EXL
(Left-hand drive)
51 Ton Capacity
SPEC. SHEET NO. GR-500E-3-00102/EX-06
HYDRAULIC ROUGH TERRAIN CRANE
DIMENSIONS
2,480: MIN |
5,000: MID1 6,500: MID2 7,000: MAX |
|
|
|
|
R4,100 |
|
|
|
11,100–42,000 |
|
|
|
|
|
2,370 |
|
|
|
|
1° |
|
3,865 |
|
|
|
|
|
5° |
|
|
|
|
. |
|
|
|
|
17 |
480 |
|
|
|
|
|
1,830 |
|
|
|
3,360 |
3,670 |
|
5,000 |
|
8,390 |
|
2,400 |
7,020 |
|
3,800 |
2,570 |
2,960 |
|
|
13,390 |
|
450
3,860
13°
Note : Dimension is with boom angle at -1 degree.
GENERAL DIMENSIONS
Turning radius (505/95 R25 Tires) |
|
4 wheel steer |
6.0 m |
2 wheel steer |
10.3 m |
|
|
Overall length |
approx. |
13,390 mm |
Overall width |
approx. |
2,960 mm |
Overall height |
approx. |
3,865 mm |
|
|
|
Speci cations are subject to change without notice.
CRANE SPECIFICATIONS
BOOM
5 section full power partially synchronized telescoping boom of round hexagonal box construction with 5 sheaves at boom head. The synchronization system consists of 2 telescope cylinders, extension cables and retraction cables. Hydraulic cylinder tted with holding valve. 2 easily removable wire rope guards, rope dead end provided on one side of boom head. Boom telescope sections are supported by wear pads both vertically and
horizontally. |
|
Fully retracted length....... |
11.1 m |
Fully extended length ...... |
42.0 m |
Extension speed.............. |
30.9 m in 150 s |
Root diameter.................. |
0.32 m |
BOOM ELEVATION
By a pair of double acting hydraulic cylinders with holding valve.
Boom angle indicator. |
|
Boom angle ..................... |
-1˚– 80.5˚ |
Boom raising speed ........ |
20˚ to 60˚ in 30 s |
JIB
2 stage boom swing around type with triple offset (tilt type). Single sheave at jib head.
Box type top section telescopes from box type bace section which stows alongside base boom section.
Length ............................. |
8.0 m, 12.7 m |
Offset............................... |
5˚, 25˚, 45˚ |
Root diameter.................. |
0.32 m |
AUXILIARY LIFTING SHEAVE (SINGLE TOP)
Single sheave mounted to main boom head for single line
work(stowable). |
|
Root diameter.................. |
0.32 m |
ANTI-TWO-BLOCK DEVICE
Pendant type over-winding cut out device with audio-visual (FAILURE lamp/BUZZER) warning system.
SLEWING
Hydraulic axial piston motor driven through planetary slewing speed reducer. Continuous 360˚ full circle slewing on ball bearing.
Equipped with manually locked/released slewing brake.
A positive slewing lock for pick and carry and travel modes, manually engaged in cab. Twin slewing system : Free slewing or lock slewing controlled by selector switch on front console.
Slewing speed................. 2.1 min-1 {rpm}
WINCH
MAIN WINCH
Variable speed type with grooved drum driven by hydraulic axial piston motor through speed reducer. Power load lowering and raising.
Equipped with automatic brake (neutral brake) and counterbalance valve. Controlled independently of auxiliary winch. Equipped with cable follower and drum rotation indicator.
MAIN DRUM |
|
Root diameter x wide ........................................ |
0.32 m x 0.69 m |
Wire rope diameter x length ............................... |
16 mm x 225 m |
Drum capacity .................................................... |
304 m, 6 layers |
Maximum single line pull (1st layer)............... |
56.0 kN (5,710 kgf) |
Maximum permissible linepull wire strength..... |
55.1 kN (5,620 kgf) |
AUXILIARY WINCH
Variable speed type with grooved drum driven by hydraulic axial piston motor through speed reducer. Power load lowering and raising.
Equipped with automatic brake (neutral brake) and counterbalance valve. Controlled independently of main winch. Equipped with cable follower and drum rotation indicator.
SPEC. SHEET NO. GR-500E-3-00102/EX-06
AUXILIARY DRUM |
|
Root diameter x wide ...................................... |
0.32 m x 0.484 m |
Wire rope diameter x length ................................ |
16 mm x 117 m |
Drum capacity .................................................. |
219.5 m, 6 layers |
Maximum single line pull (1st layer)................ |
56.0 kN (5,710 kgf) |
Maximum permissible linepull wire strength ....... |
55.1 kN (5,620 kgf) |
WIRE ROPE
Nu ex wire (no-spin), extra improved plow steel, preformed, independent wire rope core, right regular lay.
Main & Auxillary................. 16 mm 35 x 7 class
HOOK BLOCKS 51 ton (option)
6 sheaves with swivel hook and safety latch
25 ton (option)
3 sheaves with swivel hook and safety latch
4.5 ton
Weighted hook with swivel and safety latch
HYDRAULIC SYSTEM
PUMPS
2 variable piston pumps for crane functions.
Tandem gear pump for steering, slewing and optional equipment. Powered by carrier engine. Pump disconnect for crane is engaged/disengaged by rotary switch from operator's cab.
CONTROL VALVES
Multiple valves actuated by pilot pressure with integral pressure relief valves.
RESERVOIR
690 liters capacity. External sight level gauge.
FILTRATION
BETA10=10 return lter, full ow with bypass protection, located inside of hydraulic reservoir. Accessible for easy replacement.
OIL COOLER - Air cooled fan type.
CAB AND CONTROLS
Both crane and drive operations can be performed from one cab mounted on rotating superstructure.
Left side, 1 man type, steel construction with sliding door access and safety glass windows opening at side. Door window is powered control. Windshield glass window and roof glass window are shatter-resistant. Wiper and washer (front windshield and roof window). Tinted safety glass and sun visor.
Tilt-telescoping steering wheel. Adjustable control lever stands for slewing, boom elevating, boom telescoping, auxiliary winch and main winch. Control lever stands can change neutral positions and tilt for easy access to cab. Foot operated controls: boom telescoping, service brake and engine throttle. 3 way adjustable operator's seat with high back, headrest and armrest. Cab oor mat. Engine throttle knob. Hot water cab heater and air conditioning.
Dash-mounted engine start/stop, monitor lamps, cigarette
lighter, drive mode selector switch, parking brake switch, steering mode select switch, power window switch, pump engaged/ disengaged switch, slewing brake switch, boom telescoping/auxiliary winch select switch, outrigger control panel, and slewing free/ lock selector switch.
Instruments - Torque converter oil temperature, engine water temperature, air pressure, fuel, speedometer, tachometer, hour meter and odometer / tripmeter. Engin over-run alarm.
Back-up alarm. Low oil pressure/high water temp. Warning device (visual). Rear steer centering light. Hydraulic oil pressure is monitored and displayed on the AML-C display panel.
-2 -
CRANE SPECIFICATIONS
TADANO Automatic Moment Limiter (AML-C) including:
•Control lever lockout function with audible and visual pre-warning
•Number of parts of line
•Boom position indicator
•Outrigger state indicator
•Slewing angle
•Boom angle / boom length / jib offset angle / jib length / load radius / rated lifting capacities / actual loads read out
•Potential lifting height
•Ratio of actual load moment to rated load moment indication
•Permissible load
•Automatic Speed Reduction and Slow Stop function on slewing
•Working condition register switch
•Load radius / boom angle / tip height / slewing range preset function
•External warning lamp
•Tare function
•Main hydraulic oil pressure
SPEC. SHEET NO. GR-500E-3-00102/EX-06
•Fuel consumption monitor
•Main winch / auxiliarly winch select
•Drum rotation indicator (audible and visible type) main and auxiliary winch
•On-rubber indicator
TADANO AML-C monitors outrigger extended length and automatically programs the corresponding "RATED LIFTING CAPACITIES" table
Operator's right hand console includes transmission gear selector, slewing lock lever and sight level bubble.
Upper right console includes ood lamp switch, roof washer and wiper switch, emergency outrigger set up key switch, jib status switch, eco mode switch, and air conditioning control switch. Lower right console includes boom emergency telescoping switch (2nd and 3rd-top)
NOTE: Each crane motion speed is based on unladen conditions.
CARRIER SPECIFICATIONS
TYPE
Rear engine, left-hand drive, driving axle 2-way selected type by manual switch, 4x2 front drive, 4x4 front and rear drive.
FRAME
High tensile steel, all welded mono-box construction.
ENGINE |
MITSUBISHI 6M60-TL |
Model |
|
Type |
Direct injection diesel |
No. of cylinders |
6 |
Combustion |
4 cycle, turbo charged and after cooled |
Bore x Stroke, mm |
118 x 115 |
Displacement, liters |
7.54 |
Air inlet heater |
24 volt preheat |
Air cleaner |
Dry type, replaceable element |
Oil lter |
Full ow with replaceable element |
Fuel lter |
Full ow with replaceable element |
Fuel tank, liters |
300, right side of carrier |
Cooling |
Liquid pressurized, recirculating by-pass |
Radiator |
Fin and tube core, thermostat controlled |
Fan, mm |
Suction type, 6-blade, 600 dia. |
Starting |
24 volt |
Charging |
24 volt system, negative ground |
Battery |
2-120 amp. Hour |
Compressor, air, l /min |
830 at 2,600 min-1 |
Output, Max. kW (HP) |
Gross 200 (267) at 2,600 min-1 |
Torque, Max. Nm |
785 at 1,400 min-1 |
Capacity, liters |
13 |
Cooling water |
|
Lubrication |
13–15 |
Fuel |
300 |
TRANSMISSION
Electronically controlled full automatic transmission.
Torque converter driving full powershift with driving axle selector. 6 forward and 2 reverse speeds, constant mesh.
4 speeds - high range - 2-wheel drive; 4-wheel drive 3 speeds - low range - 4-wheel drive
TRAVEL SPEED - 48 km/h
GRADE ABILITY (tanθ) - 65% (at stall), 30% *
*Machine should be operated within the limit of engine crankcase design (17˚: MITSUBISHI 6M60-TL)
AXLE
Front: Full oating type, steering and driving axle with planetary reduction.
Rear: Full oating type, steering and driving axle with planetary reduction and inter-wheel rear differential lock.
STEERING
Hydraulic power steering controlled by steering wheel.
3 steering modes available: 2 wheel front, 4 wheel coordinated and 4 wheel crab.
SUSPENSION
Front: Rigid mounted to the frame.
Rear: Semi-elliptic leaf springs.
BRAKE SYSTEMS
Service/Emergency: Air over hydraulic disc brakes on all 4 wheels. Parking: Spring applied-air released brake acting
on input shaft of front axle.
Auxiliary: Electro-pneumatic operated exhaust brake.
TIRES - 505/95R25 Air pressure: 800 kPa
OUTRIGGERS
4 hydraulic, beam and jack outriggers.
Vertical jack cylinders equipped with integral holding valve.
Each outrigger beam and jack is controlled independently from cab. Beams extend to 7.0 m center-line and retract to within
2.96 m overall width with oats. Outrigger jack oats
are attached thus eliminating the need of manually attaching and detaching them. Controls and sight bubble located in superstructure cab. 4 outrigger extension lengths are provided with corresponding "RATED LIFTING CAPACITIES" for crane duty in
con ned areas. |
|
Min. Extension |
2.48 m center to center |
Mid. Extension |
5.0 m center to center |
Mid. Extension |
6.5 m center to center |
Max. Extension |
7.0 m center to center |
Float size (Diameter) |
0.4 m |
COUNTERWEIGHT |
|
Integral with slewing frame |
Mass... 5,300 kg |
-3 -
STANDARD EQUIPMENT
-Telematics (machine data logging and monitoring system) with - HELLO-NET via internet
(availability depends on countries)
-Eco mode system
-Over unwinding prevention
-Emergency steering system
-Transmission neutral position engine start
-Overshift prevention
-Parking braked travel warning
-Tilt-telescope steering wheel
-Halogen head lamp
-Fenders
OPTIONAL EQUIPMENT
-Wind speed indicator
-Beacon lamp
-Hook block–51 t capacity
(6 sheaves, swivel type with safty latch. Mass: approx. 460 kg)
SPEC. SHEET NO. GR-500E-3-00102/EX-06
-Air dryer
-Water separator with lter (high ltration)
-Air cleaner dust indicator
-Full instrumentation package
-Tire in ation kit
-Towing hooks-Front and rear
-Lifting eyes
-Hook block tie down (front bumper)
-Weighted hook storage compartment
-Winch drum mirror
-Tool storage compartment
-Hook block–25 t
(3 sheaves, swivel type with safty latch. Mass: approx. 280 kg)
-Attachment sheave for over 47 t lifting
HOISTING PERFORMANCE
LINE SPEEDS AND PULLS
|
Main or auxiliary winch - 0.32 m drum |
|
Layer |
Line speeds1 |
Line pulls |
Available2 |
||
|
m/min |
kN (kgf) |
1st |
106 |
56.0 (5,710) |
2nd |
115 |
51.1 (5,210) |
3rd |
124 |
46.7 (4,760) |
4th |
132 |
43.1 (4,400) |
5th |
141 |
40.0 (4,080) |
6th3 |
150 |
37.3 (3,800) |
- Maximum permissible line pull wire strength.
Main & Auxiliary: 55.1 kN (5,620 kgf) with 35 x 7 class rope.
1Line speed based only on hook block, not loaded.
2Developed by machinery with each layer of wire rope, but not based on rope strength or other limitations in machinery or equipment.
3Sixth layer of wire rope are not recommended for hoisting operations.
DRUM WIRE ROPE CAPACITIES
Wire |
Main drum grooved lagging |
Auxiliary drum grooved lagging |
|||
16 mm wire rope |
16 mm wire rope |
||||
rope |
|||||
Rope per layer |
Total wire rope |
Rope per layer |
Total wire rope |
||
layer |
|||||
m |
m |
m |
m |
||
|
|||||
1 |
41.8 |
41.8 |
29.1 |
29.1 |
|
2 |
45.3 |
87.1 |
31.6 |
60.7 |
|
3 |
48.8 |
135.9 |
34.1 |
94.8 |
|
4 |
52.3 |
188.2 |
36.6 |
131.4 |
|
5 |
55.9 |
244.1 |
39.1 |
170.5 |
|
6 |
59.4 |
303.5 |
41.6 |
212.1 |
DRUM DIMENSIONS
Root diameter |
|
320 mm |
|
Length |
Main |
690 mm |
|
Auxiliary |
484 mm |
||
|
|||
Flange diameter |
|
530 mm |
-4 -
SPEC. SHEET NO. GR-500E-3-00102/EX-06

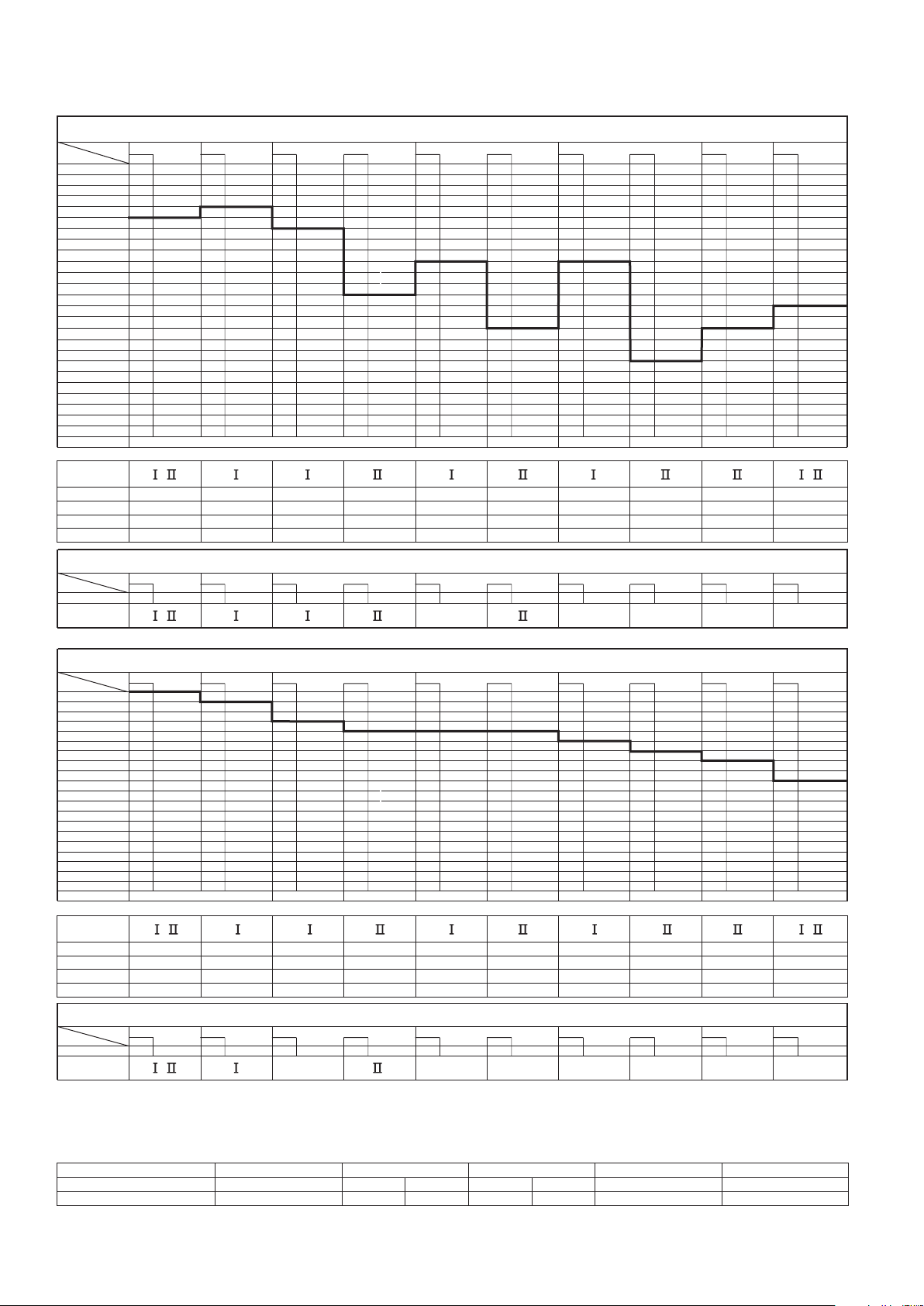

GR-500EXL WORKING RANGE CHART
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Telescoping mode |
|
|
|
|
|
|
5° |
|
|
25° |
|
45° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BOOM |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
42. |
|
|
|
|
|
|
|
|
|
55 |
|
Approx. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2.0 m |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
m |
Boom+12 |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
42 |
|
|
|
|
|
|
|
|
50 |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
.0- |
|
|
|
|
|
|
.7- |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
m |
|
|
|
|
|
|
|
m |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Boom+8. |
|
|
|
|
Jib |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
JIB |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0- |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
m |
Jib |
|
|
|
45 |
|
|
|
80.5˚ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
70˚ |
|
|
|
42. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
m |
Boom |
|
|
|
|
|
|
|
|
40 |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60˚ |
|
|
|
|
|
|
|
|
|
|
Approx. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(m) |
1.9 m |
|
|
|
|
|
|
|
|
|
|
|
|
34.3 |
|
|
|
|
|
|
|
50˚ |
|
|
|
|
|
|
35 |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
40˚ |
|
|
HEIGHT |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
30 |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
m |
Boom |
|
|
|
|
|
47˚ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
45˚ |
|
|
|
|
|
SINGLE TOP |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
26. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30˚ |
|
25 |
LIFTING |
Approx. |
|
|
|
|
|
|
|
|
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.7 m |
|
|
|
|
|
|
|
|
|
|
|
m |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Boom |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
18. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.9 m |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
25˚ |
|
|
|
|
|
15. |
|
|
|
-m |
Boom |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
11. |
|
|
|
|
m |
Boom |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20˚ |
|
|
15 |
|
|
||||
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
m |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Boom |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10˚ |
|
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0˚ |
|
40 0 |
|
|
0 |
|
|
|
|
5 |
|
|
10 |
|
|
|
|
15 |
|
|
20 |
|
|
|
25 |
|
|
|
30 |
35 |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
LOAD RADIUS (m) |
|
|
|
|
|
|
|
|
The above lifting height and boom angle are based on a straight (unloaded) boom and machine standing level onrm supporting surface. Allowance should be made for boom de ection obtained under loaded conditions. The above working range is shown on condition with outriggers fully (7.0 m) extended.
Boom Length
11.1 m 15.0 m
18.8 m
26.6 m
34.3 m
42.0 m
-5 -
