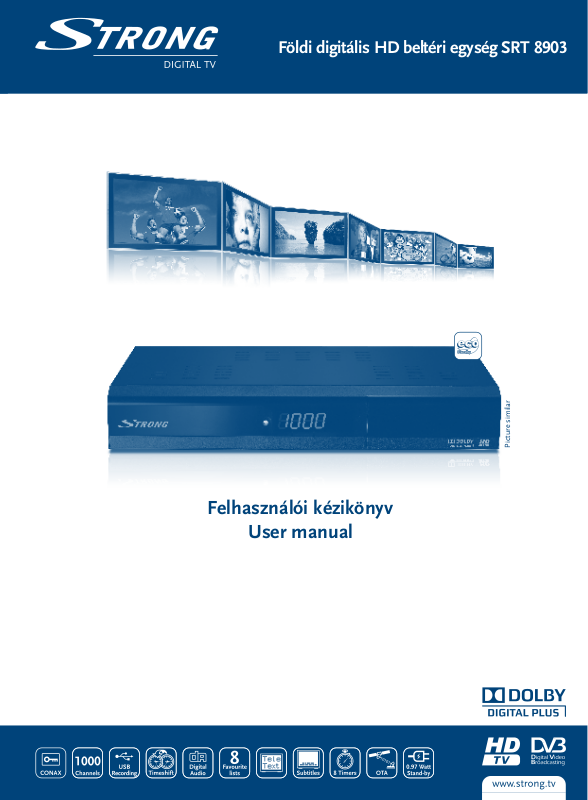

Strong SRT 8903 User Manual

Földi digitális HD beltéri egység SRT 8903

Felhasználói kézikönyv

User manual

Picture similar

PART 2 • English

TABLE OF CONTENTS

1.0 INSTRUCTION 2

1.1 Safety Instructions 2

1.2 Storage 3

1.3 Equipment Set-up 4

1.4 Accessories 4

1.5 Usage of external USB devices 4

2.0 YOUR RECEIVER 5

2.1 Default PIN code: 1234 5

2.2 Front panel 5

2.3 Rear Panel 5

2.4 CA Interface 5

2.5 Remote Control 6

2.6 Installing the Batteries 7

2.7 Using the Remote Control 7

3.0 CONNECTIONS 7

3.1 Connecting to a terrestrial antenna 7

3.2 Connecting to HD TV with HDMI cable 7

3.3 Connecting to TV with SCART cable 7

3.4 Connecting to TV with cinch cable 7

3.5 Connecting to a digital audio amplifier with S/PDIF 8

3.6 Connecting to a digital audio amplifier and TV using HDMI 8

3.7 Connecting a USB storage device 8

4.0 STARTING UP FOR THE FIRST TIME 8

5.0 QUICK GUIDE TO USING YOUR RECEIVER 9

6.0 OPERATION 9

6.1 Changing channels 9

6.2 Info Banner 10

6.3 Selection of audio language 10

6.4 Teletext 10

6.5 Subtitles 10

6.6 Timeshift 11

6.7 EPG (Electronic Programme Guide) 11

6.8 Instant Recording 11

7.0 MAIN MENU 11

7.1 Edit Channel 11

7.2 Installation 14

7.3 System Setup 14

7.4 Tools 18

7.5 Games 19

7.6 Media+ 19

8.0 TROUBLESHOOTING 21

9.0 TECHNICAL SPECIFICATIONS 22

STRONG declares that this item complies with the basic requirements and other relevant regulations of directives 2004/108/EC and 73/23/EC, RoHS
2002/95/EC

Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may
change. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. Conax is a trademark of Telenor Conax AS, Antenna Hungária
is a trademark of Antenna Hungária Zrt, all other product names are trademarks or registered trademarks of their respective owners.
© STRONG 2012. All rights reserved.

23 Aug 2012 16:44

English

1

PART 2 • English

1.0 INSTRUCTION

1.1 Safety Instructions

This receiver has been manufactured to satisfy international safety standards. Please read the
following recommended safety precautions carefully.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of not isolated dangerous voltage with the inside of the product that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and servicing instructions in the literature accompanying the appliance.
Read All Instructions — Before you use the product, read all operation instructions. For more
information on accessories such as the lithium ion battery, refer to the manuals provided with those
products.

Save These Instructions — Save all safety and operating instructions for future reference.
Heat Warnings — Read carefully and follow all warning labels on the product and those described in

the instructions.

Follow Instructions — Follow all instructions provided with this product.
Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth

for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean
this product.
Attachments — For your safety, and to avoid damaging the product, use only accessories
recommended by STRONG.
Water and Moisture — Never use this product around water (near a bathtub, kitchen sink, laundry
tub, wet basement. swimming pool or in the rain)
Location — To avoid damage to the product and prevent personal injury, never place this product
on an unstable stand, tripod, bracket, Follow the instructions that describe how to safely mount the
product, and use only the mounting devices recommended by the manufacturer.
Power Sources — Connect this product only to the power source described on the product label. If
you are not sure about the type of power supply in your home, consult your local power company.
Refer to instruction pages for information on using the product with a battery.
Grounding, Polarization — If this product is used with a specified AC adapter, the adapter may be
equipped with a polarized alternating current line plug (a plug with one blade wider than the other).
This safety feature allows the plug to fit into the power outlet only one way. If you cannot insert the
plug into the wall outlet, pull it out, reverse it, and have the receptacle replaced.
Ventilation — Slots and openings — They are provided for ventilation to ensure reliable operation
of the receiver and to protect it from overheating. These openings must not be blocked or covered.
The openings should never be blocked by placing the receiver on a bed, sofa, rug, or heat register.
This receiver should not be placed in a built-in installation such as a book case or rack, unless proper
ventilation is provided. Ensure that free airflow is maintained around the receiver.
Protecting the Power Cord — The power supply cord should be placed so it will not be walked on.
Never put a heavy object on the power cord or wrap it around the leg of a table or chair. Keep the area
around the power cord connection points, at the power outlet, and at the product connection, free of
all AC adapter or accessory power cords.

2

PART 2 • English

GENERAL PRECAUTIONS — SAFETY PRECAUTIONS
Lightning — If a lightning storm occurs while using a specified AC adapter, remove it from the wall

outlet immediately. To avoid damage from unexpected power surges, always unplug the AC adapter
from the power outlet and disconnect it from the receiver when the receiver is not in use.
Overloading — Never overload wall outlets, extension cords, power strips, or other power connection
points with too many plugs.
Foreign Objects, Liquid Spillage — To avoid personal injury caused by fire or electrical shock from
contact with internal high voltage points, never insert a metal object into the product. Avoid using the
product where there is a danger of spillage.
Heat — Never use or store this product near any heat source such as a radiator heat register, stove,
or any type of equipment or appliance that generates heat, including stereo amplifiers.
Servicing — Refer all servicing to qualified personnel. Attempting to remove the covers or
disassemble the product, could expose you to dangerous high voltage points.
Damage Requiring Service — If you notice any of the conditions described below while using a
specified AC adapter unplug it from the wall outlet and refer servicing to qualified service personnel:

1. Liquid has been spilled onto the product or some other object has fallen into the product.

2. The product has been exposed to water.

3. The product does not operate normally despite following operating instructions.
Adjust only the controls described in the operating instructions as improper
adjustment of other controls could damage the product and require extensive repair
word by a qualified technician.

4. The product has been dropped or damaged in any way.

5. The product exhibits distinct change in performance.

Replacement Parts — When replacement parts are required, make sure that the authorized service
centre uses only parts with the same characteristics as the originals, as recommended by the
manufacturer. Unauthorized substitution of parts could result in fire, electrical shock, or create other
hazards.
Safety Check — Upon completion of servicing or repairs, ask the service technician to perform safety
checks to determine that the product is in good working order.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as
vases, shall be placed on or next to the apparatus.
Where the mains plug or all-pole mains switch is used as the disconnect device, the disconnect
device shall remain readily operable.
Remote control transmits a directional infrared beam. Ensure to aim the remote control directly at the
infrared sensor of the unit during operation. If the sensor has been covered or there is a large object
between the RCU and sensor or it is exposed to direct sunlight or a strong artificial light (fluorescent
or strobe light) the sensor may not be able to receive the remote signal. In this case, change the
direction of the light or reposition the unit.

1.2 Storage

Your receiver and its accessories are stored and delivered in a packaging designed to protect against
electric shocks and moisture. When unpacking it, make sure that all the parts are included and keep
the packaging away from children.
When transporting the receiver from one place to another or if you are returning it under warranty
make sure to repack the receiver in its original packaging with its accessories. Failing to comply with
such packaging procedures could void your warranty.

English

3

PART 2 • English

1.3 Equipment Set-up

We recommend you consult a professional installer to set up your equipment. Otherwise, please
follow these instructions carefully:

This manual provides complete instructions for installing and using this receiver.
The following symbols will serve as follow.

WARNING: Indicates a warning information.

NOTE: Indicates any other additional important or helpful information.

MENU Represents a button on the remote control

(Bold Characters)

Move to Represents a menu item within a window
(Italic Characters)

1.4 Accessories

NOTE: The batteries should not be recharged, disassembled, electrically short-

 Refer to the user manual of your TV and your antenna.
 Make sure that the Audio/Video connectors and outdoor components of the antenna

are in a good condition and the Audio/Video connections are well shielded.

 1 User Manual
 1 Remote control unit
 2x Batteries (AAA type)

circuited or be mixed or used with other types of batteries. If rechargeable
accumulators instead of batteries are going to be used, we recommend using
(e.g. NiMH) types with low self-discharge to ensure long time operation of
remote control.

1.5 Usage of external USB devices

Please ensure that either the USB device is already formatted to FAT/FAT32, or format the USB device
via your receiver.

4

 It is recommended to use USB 2.0 storage devices. If your device is not compatible

to USB 2.0 specifications, recording, playback and other multimedia functions of the
receiver would not work properly.

 STRONG cannot guarantee compatibility to all types of USB storage devices.
 It is advised not to store important information on USB storage devices used with

the receiver. Always make backups of data on your USB storage device before using it
with this receiver. STRONG will not take responsibility for any loss of information or
circumstances caused by loss of information.

PART 2 • English

2.0 YOUR RECEIVER

2.1 Default PIN code: 1234

2.2 Front panel

1. Smartcard reader Built in Conax smartcard reader for encrypted

2. Power button: Turn ON from standby, and turn OFF to standby

3. pq: Viewing mode: switch channel up/down.

*The Conax smartcard and subscription are not part of this set-top box.

channels with Conax smartcard and valid
subscription.* Insert smartcard with the chip side
down.

mode

Menu mode: for navigation

2.3 Rear Panel

1. ANT IN To connect an antenna for reception of broadcasting

2. TO TV To connect a TV set

3. SPDIF coaxial To connect to digital audio amplifier

4. HDMI To connect receiver to your TV set using an HDMI

5. TV SCART To connect receiver to your TV set using a SCART

6. VIDEO (RCA) To connect to the RCA video input of your TV or VCR

7. AUDIO (L/R) To connect to the audio input of your HIFI or

8. USB device To connect an external storage device

9. Power cable To connect the receiver to your main power supply

2.4 CA Interface

Although some TV and radio services are free-to-air, others are only available on a subscription basis
and can only be received via a Conditional Access component.

Inserting a CA card

It is suitable for Conax coding system.

1. Open the right-hand flap on the front panel of the product to access the card slot.

2. Insert the CA card into the slot. Insert the smartcard with the chip side down.

signal

cable

cable

using an RCA cable

television

Fig. 1

Fig. 2

Fig. 3

English

5

PART 2 • English

2.5 Remote Control

1. q Turns the receiver On/Standby

2. ! Mutes the audio output of the receiver

3. PG+/PG- Page up/down and 10 channels steps in the channel

4. DTV/VCR No function

5. INFO Shows the current channel information

6. VOL+/VOL- Volume up/down

7. MENU Open and close the main menu; in a menu, you will

8. EXIT Exits from the menu or sub-menu

9. pq Menu Off: Change channel to next /previous.

10. tu Menu Off: Decreases/increases the volume level.

11. OK Menu Off: Displays the current channel list

12. 4 Records the TV programme to the connected storage

13. TIMESHIFT Activates/deactivates the timeshift function

14. 0~9 Channel selection or value input

15. EPG Shows the EPG (Electronic Programme Guide) in TV

16. RECALL Back to the previously shown channel

17. AUDIO Select audio mode and audio track

18. TV/RADIO Toggles between TV and RADIO mode

19. FAV Open the favourite list

20. FILE Shows the Media Player list

21. TTX Shows Teletext on the OSD (On Screen Display)

22. SUBTITLE Subtitle On/Off

23. 5/6 Fast rewind/fast forward

24. Coloured buttons For interactive functions/submenu function buttons

25. 3 (Red) To stop recording and shortcut to the Record

26. " Green) Slow motion button in timeshift or playback.

27. 2 (Yellow) To freeze the picture or to initiate timeshift when a

28. u (Blue) To start play or replay after picture freeze or timeshift.

list mode

go one step back.

Menu On: Moves the cursor up/down.

Menu On: Change settings for specific menus

Menu On: Activates the highlighted menu item.

device

mode

Sets the current audio channel to left, right or stereo
with the L/R buttons

Shows list of subtitle languages

For Multimedia and Teletext functions

Manager

USB device is connected.

Fig. 4

6
