For your safety
Your set-top box has been manufactured to meet international safety
standards, but you must take care if you want to obtain the best results
and operate it safely.
It is important that you read this booklet completely, especially the
safety instructions below. If you have any doubts about the installation,
operation or safety of your set-top box, please consult your dealer .
WARNING!
Remember that contact with 230 V AC mains can be lethal
or can cause a severe electric shock. To avoid this risk:
Never remove the top cover from your set-top box.
There are no user-serviceable parts inside it, but there
are some high-voltage live parts.
Make sure that all electrical connections are properly
made.
Do not connect any of your equipment (set-top box,
TV, video recorder etc.) to the mains supply until you
have properly connected all the other leads.
Disconnect your set-top box from the mains supply
(by disconnecting its mains lead from the mains wall
socket) before you disconnect any other equipment
from its rear panel.
Never push anything into the holes, slots or other
openings of the set-top box case (except a smart card
into its correct slot).
CAUTION!
In order to ensure a free flow of air around the set-top box,
allow at least 5cm of space above and around the set-top box.
Never stand your set-top box on soft furnishings or carpets. Do
not cover any ventilation slots.
Do not place your set-top box in an unventilated cabinet or on
top of a unit which emits heat (e.g. a TV or VCR).
Do not place your set-top box in a cabinet with more than one
other piece of audio/video equipment, for example, VCR or
DVD.
Do not use or store your set-top box in hot, cold, damp or
dusty places.
Do not put anything on your set-top box which might drip or
spill into it. Never stand objects filled with liquids, such as vases,
on top of your set-top box.
Never place naked flame sources, such as lighted candles, on top
of your set-top box.
2
www.strongsat.com
✘
✔
✔
Welcome to digital satellite TV!
Thank you for choosing the Pace set-top box for Viasat. Please follow
the instructions in this User Guide carefully to enjoy all the advantages
of digital satellite TV. We advise following the user instructions and
recommendations supplied with your set-top box, especially for firsttime use.
Your set-top box fully complies with international DVB (Digital Video
Broadcasting) standards.
Updates to your set-top box
❖
From time to time, your set-top box may be updated. These updates
provide enhanced features; new screens and menus may become
available. Although any new screens and menus may look a little
different from those described in this User Guide, you should be able
to use the same techniques (e.g. highlight and select) with them.
Updates will usually happen in the middle of the night. You should not
unplug your set-top box at the mains, as this may affect any updates
which may occur.
❖
Inserting the batteries in your remote
control
Before you can use your remote control, you must insert the two
supplied AAA batteries as follows:
1. Push the catch at the top of the remote control battery cover
down, then lift off the cover.
2. Insert the batteries as shown below. Be sure to match the + and
– marks on the batteries to their respective marks inside the
battery compartment.
3. Replace the battery cover, by inserting the tab at the bottom of
the cover first, then pushing the cover into place.
ENGLISH
Don’t leave flat batteries in your remote control.
Replace both batteries at the same time.
Dispose of flat batteries in an environmentally-friendly way.
www.strongsat.com
3
Your remote control
❖
Remote control buttons: quick reference
S
To put your set-top box into
or out of standby
number buttons (0-9)
To change channel and enter
numbers
c
To turn the sound on or off
epg
To display the Viasat epg
colour buttons
(red, green, yellow, blue)
To perform various functions,
depending on what is showing
on your TV screen
red colour button
To switch between digital
satellite TV and terrestrial TV
back
To go back to the previous
screen or menu
exit
To remove a menu or onscreen display and redisplay
digital TV or radio
ch + and –
To change channel up or
down
tv/radio
To change between digital TV
and digital radio channels
info
To display the channel banner
and extra programme
information
epg
exit
+
ch
back menu
options
tv/radio
info
status
guide
To display the portal, to use
interactive services
guide
OK
To confirm a choice or make a
selection
U, D, L and R
To move the highlight around
the screen
menu
To display the main menu
options
To change the audio or subtitle
language
vol
vol + and –
To change the volume up or
down
status
To display a screen to check
the satellite signal quality
Note
Some of these buttons are
described in more detail on the
next page.
4
www.strongsat.com
t
Your remote control
❖
Making the most of your remote control
Changing channel
number buttons (0-9)
To change channel
ch + and –
To change channel up or
down
tv/radio
To change between digital TV
and digital radio channels
red colour button
To switch between digital
satellite TV and terrestrial TV
epg
guide
Displaying menus
and on-screen
displays
epg
To display the Viasat epg
(electronic programme guide)
guide
To display the portal, to use
interactive services
yellow colour button
To display the TV or radio
channel list
info
To display the channel banner;
o display extra programme
information
menu
To display the main menu
options
To change the audio or
subtitle language
exit
+
ch
back menu
options
tv/radio
info
vol
status
Using menus and
on-screen displays
number buttons (0-9)
To enter on-screen numbers
such as your PIN code
colour buttons
To perform various functions,
depending on what is showing
on your TV screen
U and D
To move the highlight up and
down a list
L and R
To move the highlight left or
right or change what is
displayed on screen;
L - to delete a number
OK
To confirm a choice or make a
selection
exit
To remove a menu or onscreen display (without saving
any changes) and redisplay
digital TV or radio
back
To remove a menu (without
saving any changes) and go back
up to the previous screen
ENGLISH
www.strongsat.com
5
❖ Front panel
Your set-top box
epg button
To display the Viasat epg
(electronic programme guide)
menu button
To display the
main menu
epg
epg
menu
OK
OK
menu
L, R, U and D buttons
To move the highlight and
change what is displayed on
screen
L, R - to change the value
of a setting
L - to delete a number
OK button
To confirm a choice or
make a selection
back button
To remove a menu
and go back up to
the previous screen
back
back
standby
standby
Digital Satellite Receiver with Embedded NDS
S button
To switch your
set-top box into
or out of standby
remote control sensor
Window that receives the
signal from your remote
control (do not block)
online
message
message
online
signal
signal
Digital Satellite Receiver
standby light
Lights up red when your set-top
box is in standby
Lights up green when your settop box is out of standby
Lights up orange if your set-top
box is on but is not receiving a
signal from the satellite
ir receive light
Lights up red when your set-top
box is receiving a signal from
your remote control
message light
Lights up yellow when there is a
message waiting
Flashes yellow when it is an
important message
online light
Lights up green when your settop box is connected to the
network via your telephone line
smart card slot
To insert your
smart card
smartcard
smartcard
6
www.strongsat.com
Your set-top box
❖ Rear panel connectors overview
Full details about connecting up and installing your set-top box begin
on page 8.
ANT IN
To connect the lead
from your TV antenna
SAT IN
To connect the lead
from your satellite dish
SPDIF (optional connector)
3.5 mm combined digital-optical and analoguestereo audio connector. This connector is not
fitted on all models
To connect to either a digital-optical or an
analogue-stereo audio input on your home
cinema, TV, video recorder or stereo sound
equipment
You can use this dual-purpose connector to
connect to various audio inputs - please
consult your electrical retailer for more details
of the leads available
TO T V
To connect an RF lead
to your TV (or VCR)
230V 50Hz mains in
Do not connect the mains plug to
the wall socket until you have
made ALL the other connections
telephone line in
To connect the telephone lead
ENGLISH
SCART VCR
To connect to the SCART
connector on your VCR (if your
VCR has a SCART connector)
SCART TV
To connect to the SCART
connector on your TV (if your
TV has a SCART connector)
WARNING
Always disconnect your set-top box from the mains supply
before you connect it to (or disconnect it from) any other
equipment.
www.strongsat.com
7
To install your Viasat set-top box, follow the instructions from this page
up to page 22.
❖ The supplied equipment
If you have not already done so, remove all the packaging.
You should have the following items:
◆ Viasat set-top box (see page 7)
◆ Remote control and batteries (see page 4)
◆ User guide
◆ Mains lead - with 2-way set-top box connector and 2-pin mains
plug (see right)
◆ SCART lead (see right)
◆ RF lead (see right)
◆ Telephone lead - RJ11 to RJ11 (see right)
◆ Telephone line (RJ11) adapter suitable for your location (see
page 13)
Installation
Mains lead
SCART lead
❖ Where to place your set-top box
Before you start, make sure that your TV, VCR and set-top box will be
placed in a location that is conveniently located:
◆ near an easily-accessible mains wall socket;
◆ within reach of your TV-antenna and satellite-dish leads;
◆ within 10 metres of a telephone point. (If not, you will need an
extension telephone lead.)
WARNING
Before you connect your set-top box to any other
equipment, you must disconnect ALL the equipment from
the mains supply.
RF lead
Telephone lead
8
www.strongsat.com
Installation
❖ What else do I need?
Smart card
If you wish to view premium services, you will need a smart card. This
is available from your service provider, Viasat.
Satellite dish
You will need a correctly-installed satellite dish, pointing at the correct
satellite(s).
◆ If you have a satellite dish but it is not pointing at the correct
satellite(s), you will need to make adjustments. Please see the
information supplied with your dish/LNB for details on how to
do this, or seek professional advice.
◆ If you do not have a satellite dish installed, please ask your dealer
to recommend a local dish-installation engineer.
Single LNB
If you have one LNB only, to ensure the simplest installation method,
and for the best Viasat channel line-up, you should use the ‘Sirius’
satellite, at 5° East. However, if you prefer, you can set up your system
for any one of the four satellites listed in the LNB positions table below.
Multiple LNB set-up
If you are using a DiSEqC™ unit* with 2 or more LNBs/satellite dishes,
to ensure a simpler installation, and for the best Viasat channel line-up,
you should connect up the LNBs to the DiSEqC™ ports as shown in
the LNB positions table below.
You must then connect your DiSEqC™ unit to the satellite input on
your set-top box (see also pages 10 to 12).
ENGLISH
LNB positions table
Satellite Position Recommended DiSEqC™ port
Thor 1° West 1
Sirius 5° East 2
Hotbird 13° East 3
Astra 19° East 4
*DiSEqC™ is a trademark of Eutelsat.
www.strongsat.com
(for multiple LNB set-ups)
9
Connection method 1:
To TV and VCR (with RF loopthrough)
If you wish to connect your set-top box to a TV (with or without a
SCART connector) and a VCR (without SCART connectors), connect
up as shown in the diagram below.
RF lead (not supplied)
Installation
TV
ANTENNA IN
IN
Supplied
Lead from your
satellite dish
SCART lead
Supplied RF lead
Lead from your
TV antenna
1. If your TV has a SCART connector, use the supplied SCART lead
to connect your set-top box to your TV, for improved quality
picture and sound.
2. Use the supplied RF lead to connect from your set-top box’s RF
out connector (marked TO T V) to the antenna input on your
VCR.
3. Use an RF lead (not supplied) to connect your VCR to your TV
as shown.
4. Connect the lead from your TV antenna to the antenna input
connector (marked ANT IN) on your set-top box.
5. Connect the lead from your satellite dish to the satellite input
connector (marked SAT IN) on your set-top box.
VCR
TV OUT
ANTENNA IN
10
www.strongsat.com
Installation
Connection method 2:
To TV and VCR
If you have a VCR with a SCART connector and a TV with a SCART
connector, you can connect up as shown in the diagram below.
TV
Lead
from your
satellite dish
IN
Supplied
SCART
lead
ANTENNA
IN
Supplied RF lead
IN
Lead from your TV antenna
VCR
TV OUT
ANTENNA
IN
SCART lead
(not supplied)
ENGLISH
1. Use the supplied SCART lead to connect your set-top box to
your TV.
2. Use a SCART lead (not supplied) to connect your set-top box
to your VCR.
3. Connect the lead from your satellite dish to the satellite input
connector (marked SAT IN) on your set-top box
The RF connection is not required for digital satellite TV. However, you
may wish to connect RF leads as shown, to continue to view or record
terrestrial TV from your TV antenna.
You must then connect the lead from your TV antenna to the antenna
input connector on your VCR.
www.strongsat.com
11
Connection method 3: To TV only
If you wish to connect your set-top box to a TV only, connect up as
described in 3A or 3B below.
(The diagram below shows methods 3A and 3B combined.)
TV
ANTENNA
Lead from your
satellite dish
IN
Supplied SCART lead
IN
Installation
Supplied RF lead
12
Lead from your
TV antenna
3A: If your TV has a SCART connector
1. Use the supplied SCART lead to connect your set-top box to
your TV.
2. Connect the lead from your satellite dish to the satellite input
connector (marked SAT IN) on your set-top box.
3. To continue to view terrestrial TV from your TV antenna,
connect the lead from your TV antenna directly to your TV (not
shown on the diagram).
3B: If your TV does not have a SCART connector
1. Use the supplied RF lead to connect from your set-top box’s RF
out connector (marked TO T V) to your TV.
2. Connect the lead from your satellite dish to the satellite input
connector (marked SAT IN) on your set-top box.
3. Connect the lead from your TV antenna to the antenna input
connector (marked ANT IN) on your set-top box.
www.strongsat.com
Installation
❖ Connecting to the telephone line
Telephone socket
Supplied telephone adapter
3
1
2
Supplied telephone lead
Note
If your telephone wall socket is not an RJ11 socket (see below), you
will need to use one of the supplied adapters, shown right.
RJ11 socket
If your telephone wall socket is an RJ11 socket, you may need a
splitter (not supplied) so that you can plug in both your set-top box
and your telephone.
Telephone line
wall-socket
ENGLISH
Adapter for Sweden
Adapter for Denmark
1. Insert one end of the supplied telephone lead into the
telephone socket (labelled ) on the rear panel of your settop box, as shown in the diagram at the top of the page.
2. If you need to use an adapter, choose the correct adapter for
your location. If you are not sure which one to use, compare
with your telephone connector.
Insert the free end of your supplied telephone lead into the RJ11
socket on the adapter.
3. Remove your telephone connector from your telephone wall
socket. Insert your telephone connector into the correct socket
on your adapter.
Insert the adapter into your telephone wall socket.
www.strongsat.com
Adapter for Norway,
Finland and Estonia
Adapter for Russia, Latvia,
Lithuania and Estonia
13
❖ Inserting your smart card
signal
message
online
smartcard
signal
message
online
smartcard
Digital Satellite Receiver
1. Take your smart card from its packaging (if you have not already
done so) and hold it so that the picture is facing upwards, with
the arrow pointing towards your set-top box, and the ‘smar t’
patch is facing downwards and at the end away from you.
2. Insert the smart card into the smart card slot of the front panel
of your set-top box. Insert it as far as it will go, without forcing it.
Installation
Taking care of your smart card
◆ Do not remove and re-insert your smart card unnecessarily.
◆ Do not bend your smart card; keep it away from children and
pets.
◆ Do not put your smart card in liquids or use cleaning fluids on it.
❖ Connecting a ‘magic eye’
On some models, you may be able to connect a ‘magic eye’ (not
supplied) to the RF output on your set-top box, so that you can
operate your set-top box from a different room.
To connect the magic eye, consult the instructions that came with it.
If you have connected up a magic eye, you must switch on the magic
eye support - see page 36.
14
www.strongsat.com
Installation

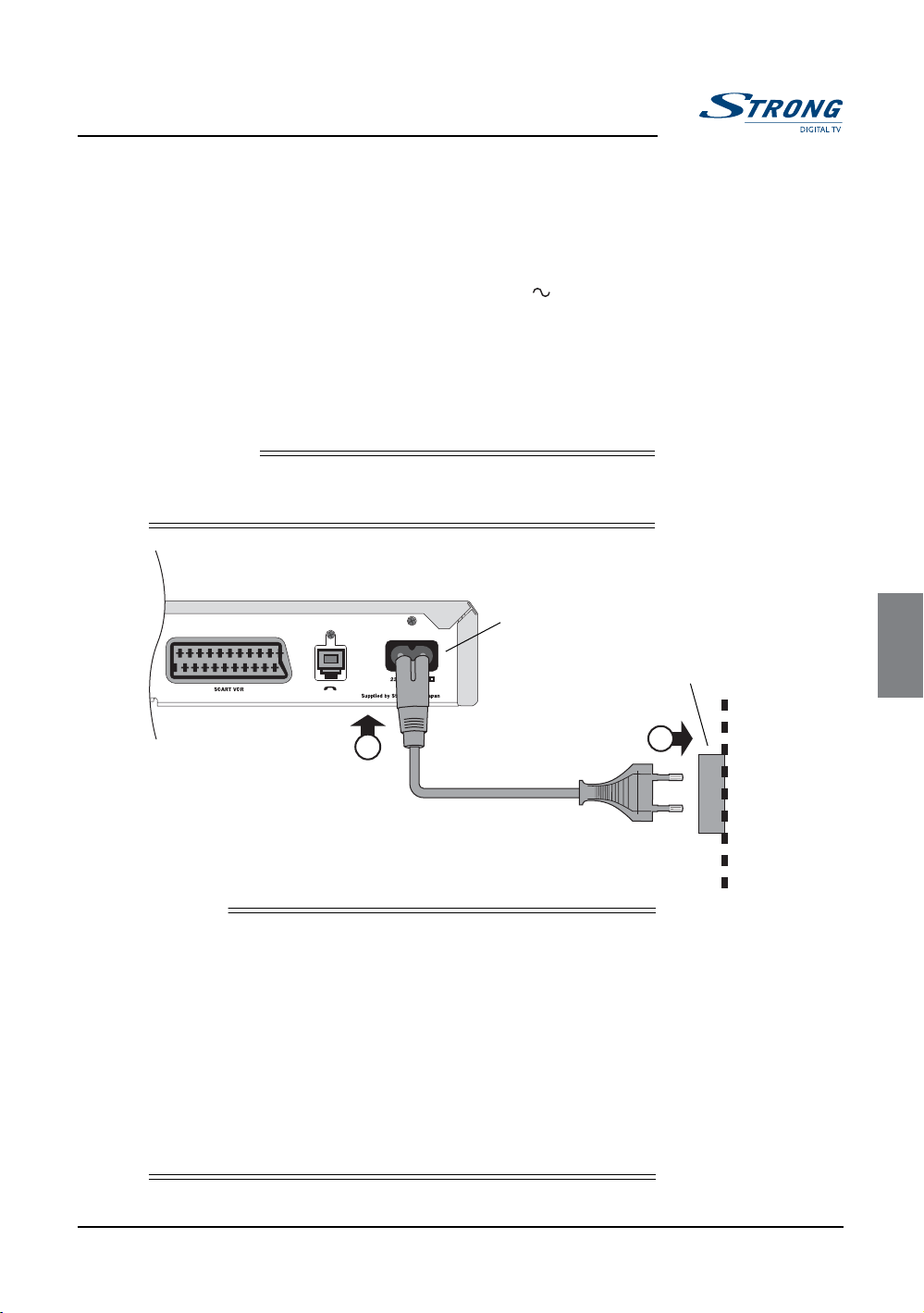

❖ Connecting to the mains supply
Once you have safely made all the other connections, you can connect
your set-top box to the mains supply.
1. Using the supplied mains lead, insert the set-top box mains
connector into the mains input (marked 230V 50Hz) on
your set-top box, as shown in the diagram below.
2. Connect the mains plug to the mains wall socket as shown in the
diagram below.
3. If there is a switch by the mains wall socket, switch it on.
4. Connect your other equipment to the mains supply.
WARNING
DO NOT connect the mains plug to the wall socket until
you have made ALL the other connections.
ENGLISH
Mains input
Wall socket
Mains
1
Notes
Your set-top box operates with 230V AC, 50Hz mains supplies.
Do not connect it to a DC power supply.
The supplied mains lead has a 2-way connector at one end and a
mains plug at the other. You should always insert the 2-way
connector into your set-top box before you insert the plug into the
mains supply.
The only way to disconnect your set-top box from the mains is to
remove the mains lead. Your set-top box must therefore be installed
near to the mains socket-outlet, which should be easily accessible.
If you are in any doubt about the mains lead, its plug or its connection,
consult a competent electrician.
connector
Mains plug
2
www.strongsat.com
15
❖ Switching on for the first time
When you connect your set-top box to the mains, your set-top box’s
front panel lights go through a start-up sequence. After about 20
seconds, your set-top box is switched on and out of standby, and the
standby light is green.
◆ Make sure your TV is switched on.

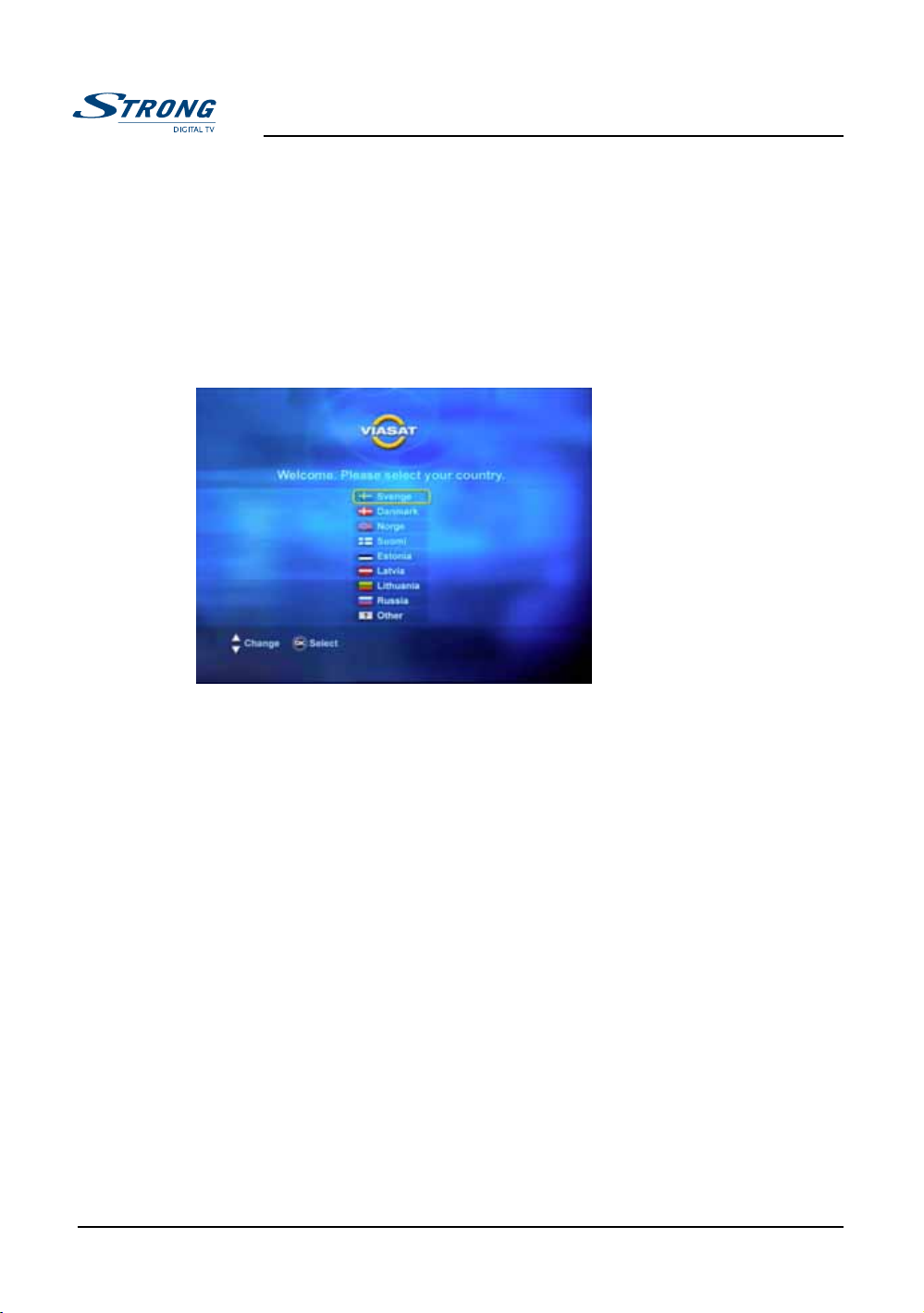

If the Countries screen below displays, your TV is ready for digital
satellite channels.
Installation
16
You can now continue the installation by turning to the section ‘Making
the installation settings’ on page 18, but note that if you have a VCR
connected to your set-top box via an RF lead (as in connection
method 1), to be able to record satellite programmes, you may need
to perform RF Tuning for your VCR - see page 17.
If the Countries screen does not display...
If you have connected your set-top box to your TV (and VCR) via
SCART leads, try selecting your TV’s ‘AV input’.
If you have connected your set-top box to your TV (and VCR) via RF
leads only, you need to tune a ‘channel for satellite TV’ (see ‘RF Tuning’
on page 17).
www.strongsat.com
Installation
❖ RF Tuning
If you have connected up your equipment via RF leads, you may need
to perform RF tuning before you can watch digital satellite TV.
Note
If you have previously had an analogue satellite receiver connected to
your TV (and/or VCR), you may find that your ‘channel for satellite TV’
still works for your new digital channels. Try it to see - if it works you
do not need to perform RF tuning.
RF tuning your TV (and VCR) to your set-top box
1. Make sure your set-top box is out of standby (the standby light
on the front panel should be green).
2. Consulting your TV’s user guide if necessary, tune the TV until
you can see the Countries screen (see page 16) on your TV
screen.
3. Store your new ‘channel for digital satellite TV’ on a TV channel
number of your choice. For example, if your terrestrial channels
are channels 1 to 5, and your ‘VCR channel’ is channel 8, you
may wish to use TV channel 9 as your ‘channel for digital satellite
TV’.
4. If you have a VCR, set your TV to its ‘VCR channel’, then tune
your VCR until you can again see the Countries screen.
If you cannot RF tune your TV (or VCR) to your set-top
box...
Your set-top box’s factory preset RF output channel is channel 38. (This
is not the same as a TV channel).
If channel 38 is not compatible with your TV, for example if it is already
being used as your VCR’s output channel, or for a terrestrial channel,
you may find you cannot tune your TV to your set-top box because of
interference.
Changing the RF output channel is covered in the setup section (see
page 35).
RF channels may also be known as UHF channels.
ENGLISH
www.strongsat.com
17
❖ Making the installation settings
Choosing your country
If you have completed the installation instructions up to this point, the
Countries screen is displayed on your TV screen. (See page 16 for a
picture of the Countries screen.)
1. Take your remote control. If you have not already inserted the
batteries, do so now (see page 3).
2. Press U or D until the country you want is highlighted, then
press OK.
A Welcome screen now displays.
Installation
18

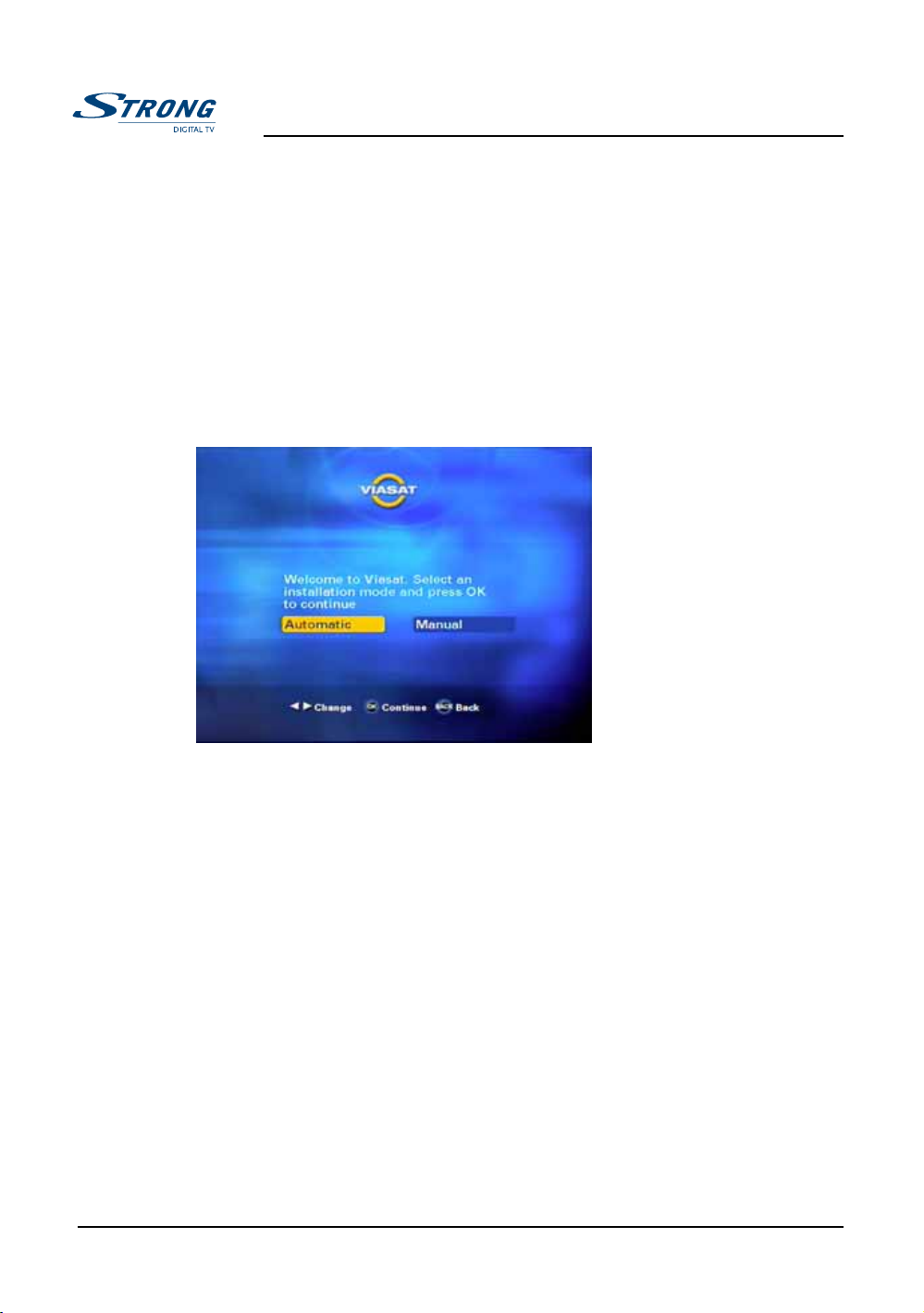

If you have:
◆ one LNB only, directed at Sirius, or
◆ two LNBs only, directed at Thor and Sirius,
you can carry out an ‘Automatic’ installation.
If you have any other LNB set-up, you must carry out a ‘Manual’
installation.
3. Use L or R to highlight the correct installation mode, then
press OK.
◆ If you selected ‘Automatic’, next see the section: ‘Checking
the signal and searching for channels’ on page 20.
◆ If you selected ‘Manual’, next see the section ‘Setting the
antenna configuration and choosing a satellite’ on page 19.
www.strongsat.com
Installation
Setting the antenna configuration and choosing a satellite
When you select ‘Manual’, the Antenna Configuration screen displays.
1. Press L or R to select the number of LNBs you have in your
set-up.
2. Press D to highlight the ‘LNB Index’ line, then press L or R to
select LNB Index 1.
3. Press D to highlight the ‘Satellite’ line, then:
◆ If you are using a single fixed LNB, press L or R to select
the satellite that your LNB is set-up for. Then press OK and
continue to the section ‘Checking the signal and searching for
channels’ on page 20.
◆ If you are using a DiSEqC™ unit*, select the satellite for the
LNB connected to port 1.
4. Press U to highlight the ‘LNB Index’ line, then press R to select
LNB Index 2.
5. Repeat steps 3 to 4 to select an LNB Index for each of the ports
on your DiSEqC™ unit. Then press OK and continue to the
section ‘Checking the signal and searching for channels’ on
page 20.
ENGLISH
*DiSEqC™ is a trademark of Eutelsat.
www.strongsat.com
19

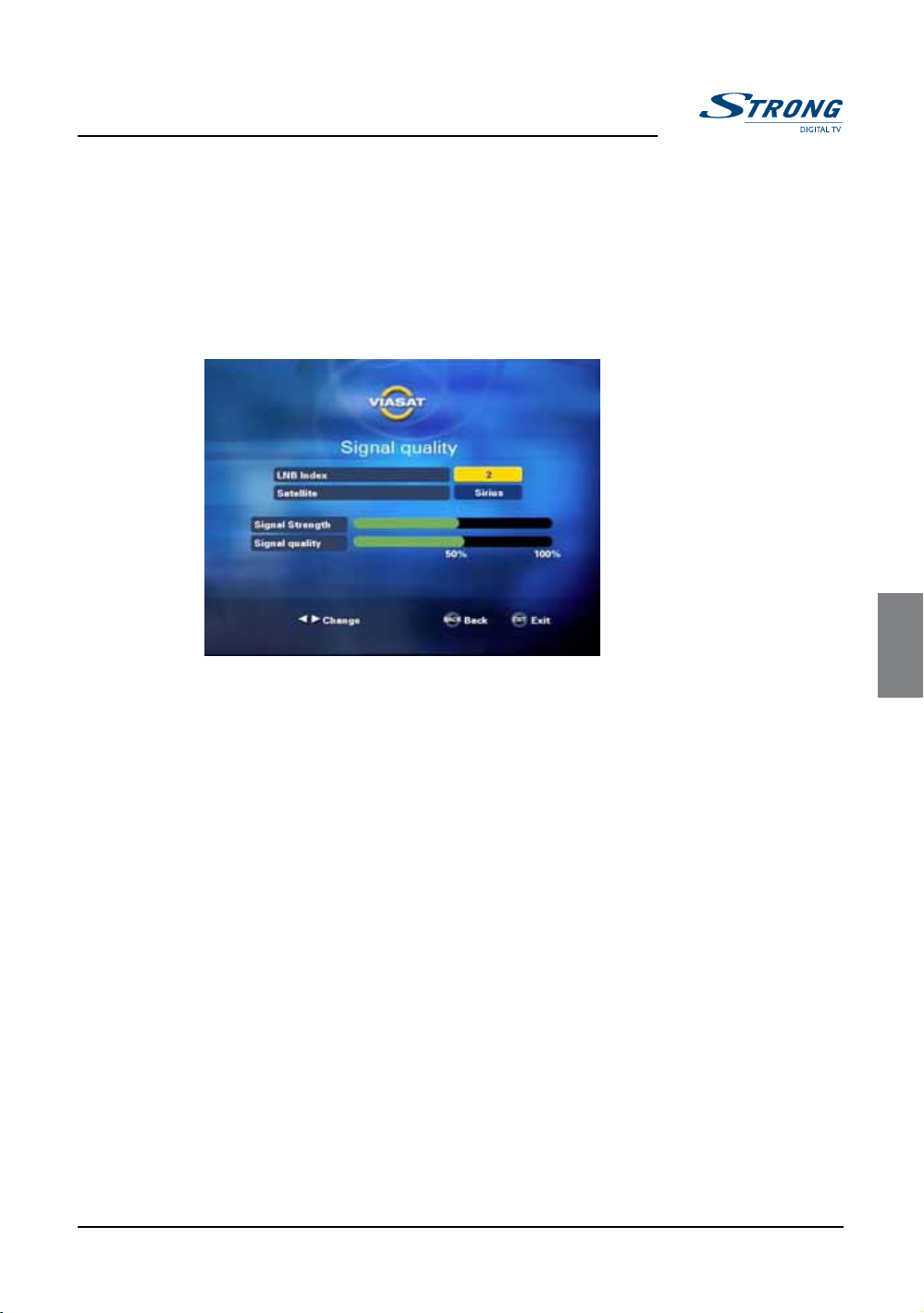

Checking the signal and searching for channels

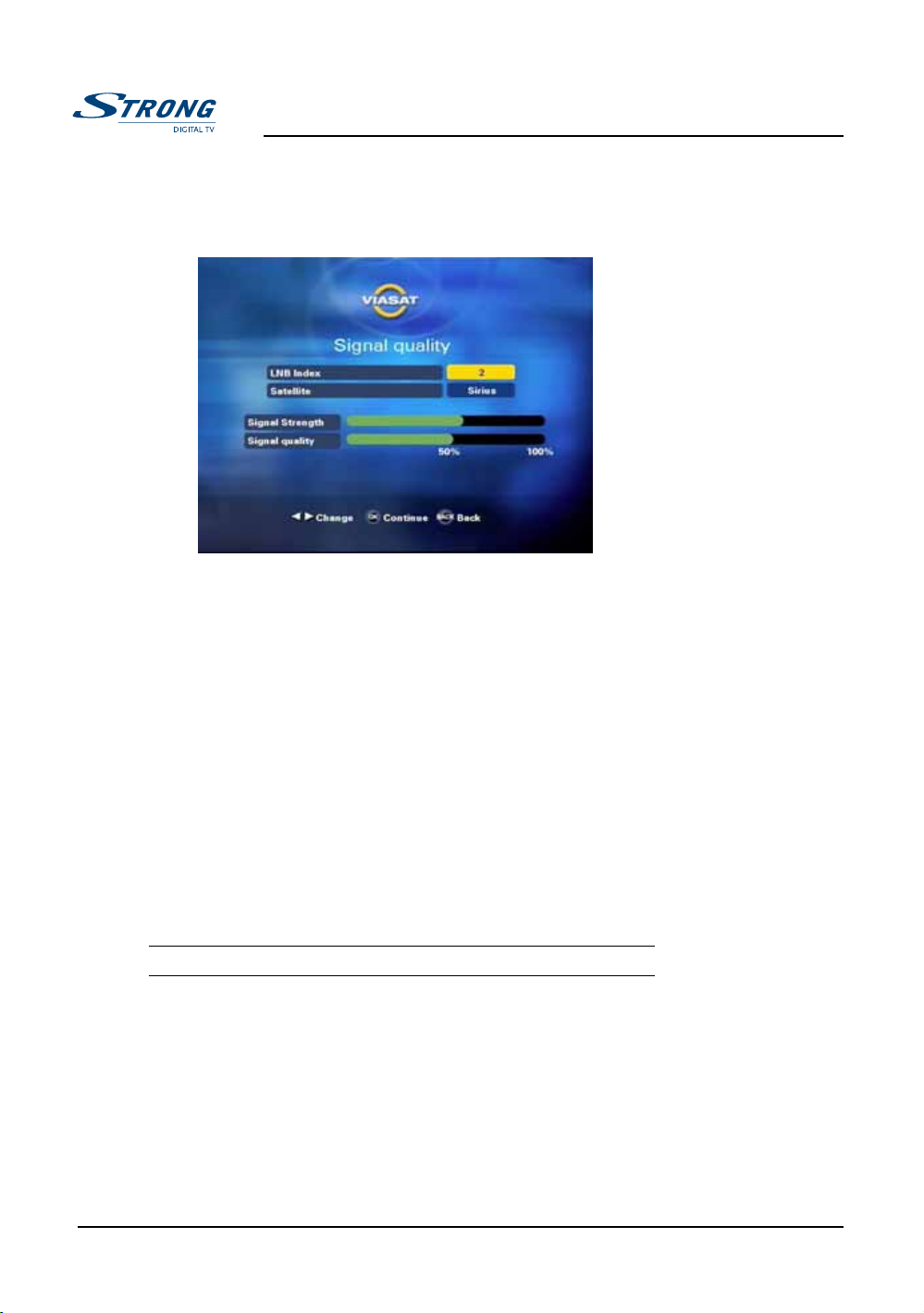

The Signal Quality screen is now displayed. You use this screen to
confirm that your set-top box is receiving a satellite signal.
The details on the screen show the name of the satellite, together with
bars showing the strength and quality of the signal being received from
this satellite.
Your set-top box must receive both a signal strength and a signal quality
of about 60% in order to successfully find channels.
Follow the instructions for ‘Automatic set-up’ below or ‘Manual set-up’
on page 21, depending on which set-up you have chosen.
Automatic set-up
Your set-top box is preset in the factory with the correct LNB settings
to receive signals from up to two satellites.
1. Press L or R to change which LNB index details are displayed.
2. Check that your set-top box is receiving an adequate signal
according to the table below.
Installation
20
If you have... Check for adequate signal strength
and quality on...
A single, fixed, universal LNB Index 2, Sirius
Two, fixed, universal LNBs Index 2, Sirius
And Index 1, Thor
If there is no signal, check your installation. Check all the connections
are properly made. See also the section ‘Solving problems’ on page 43.
3. When you are satisfied that there is an adequate signal, press
OK.
The Channel Auto-Search screen displays.
4. To start the channel search, press OK.
www.strongsat.com
Installation
A progress screen displays to confirm that the search is taking place.
When the search is complete, a screen displays to tell you the number
of TV and radio channels that your set-top box has found.
5. To confirm these channels and display the next screen, press
OK. Then see ‘Activating your subscription’ on page 22.
Manual set-up
1. Press L or R to change which LNB index details are displayed.
2. Check that your set-top box is receiving an adequate signal on
the satellites that you selected for each LNB index.
If there is no signal, check your installation. Check all the connections
are properly made. See also the section ‘Solving problems’ on page 43.
3. When you are satisfied that there is an adequate signal, press

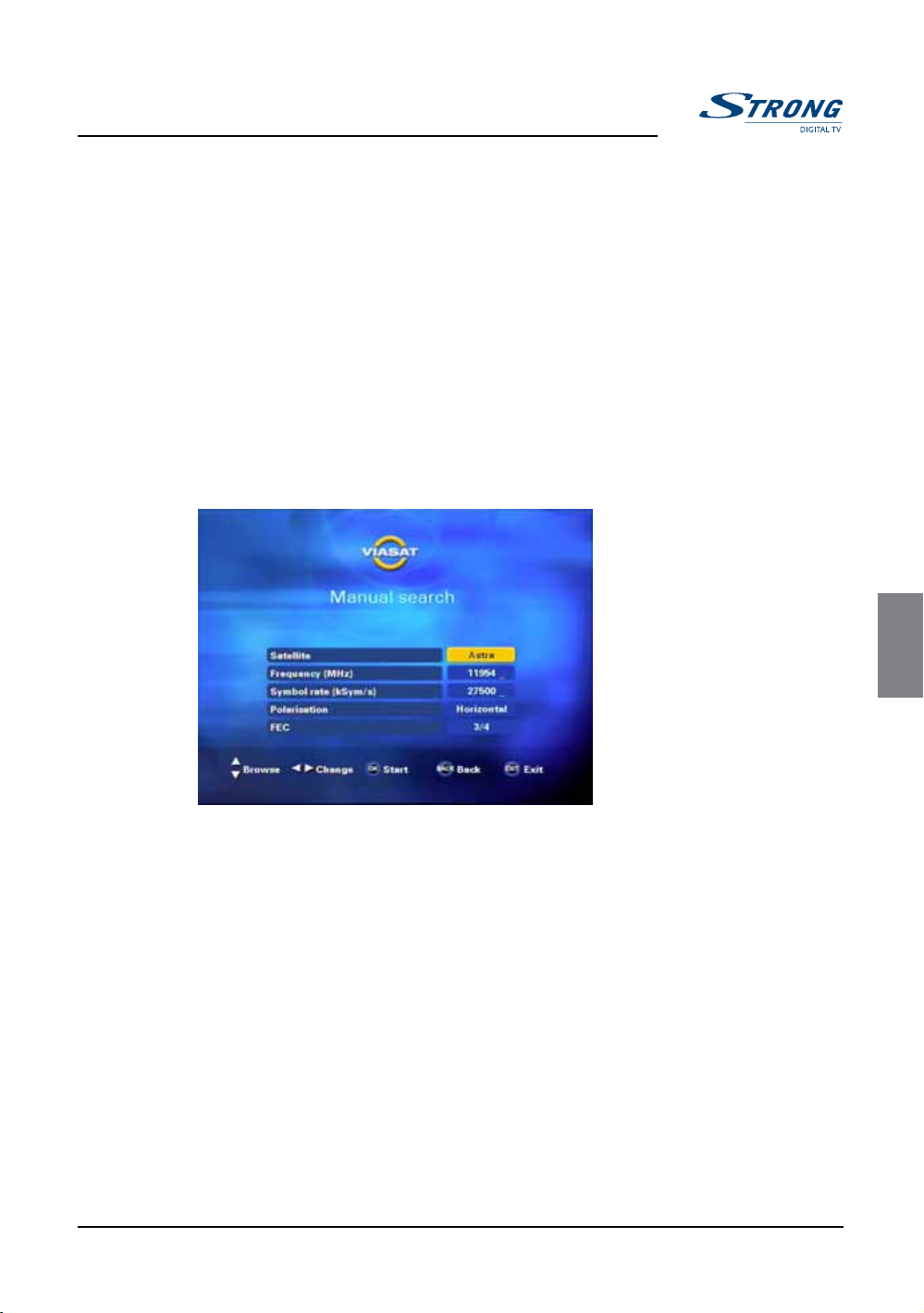

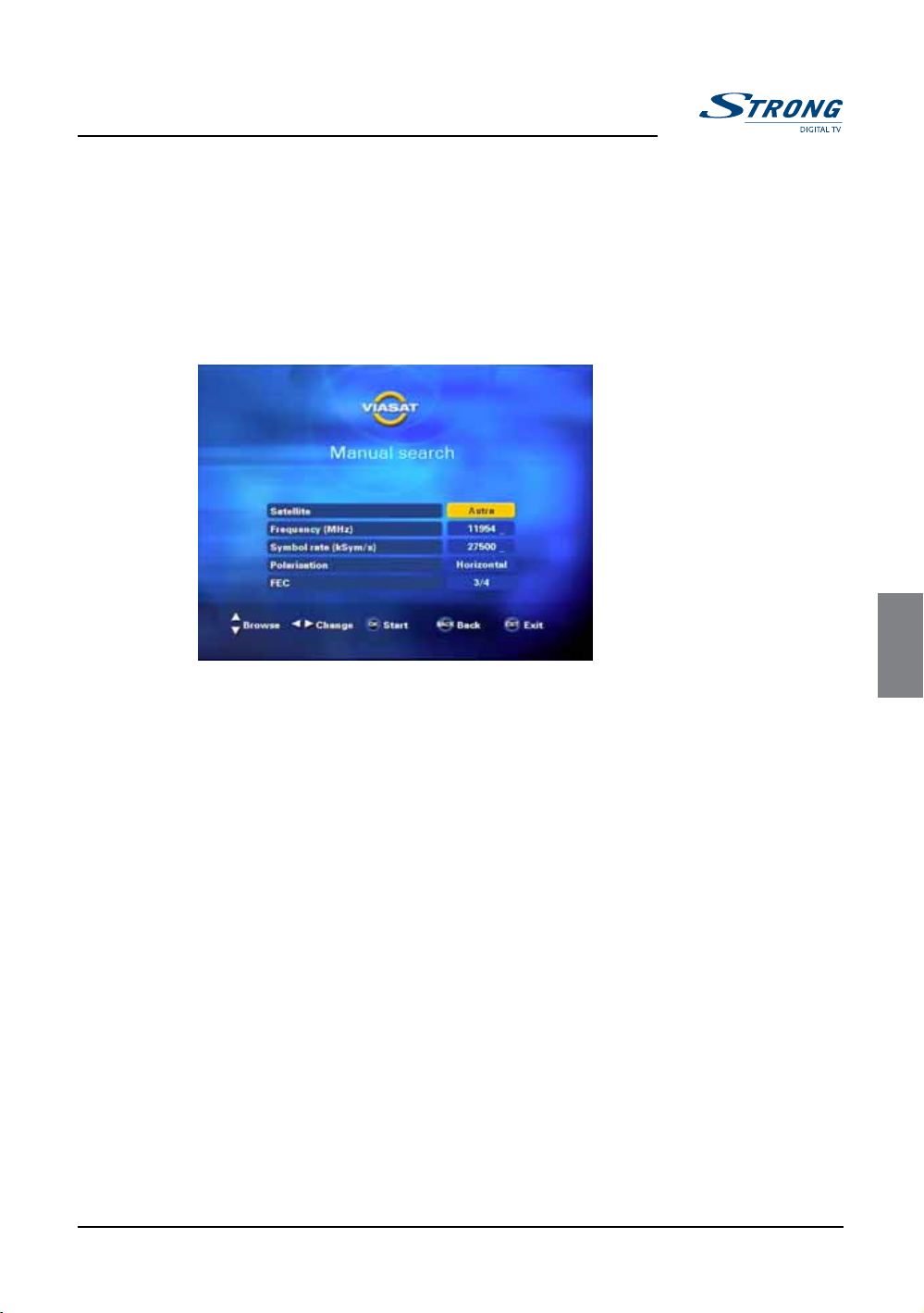

OK. The Manual Search screen displays.
ENGLISH
The ‘Satellite’ line shows the satellite you selected as LNB index 1, and
the details below show the search settings for that satellite.
If you have more that one LNB, you can view the details for each
satellite by highlighting the ‘Satellite’ line then pressing L or R.
You should not need to change the settings, as your set-top box is
preset with the correct settings to receive the best channel line-up. If
you use the preset settings, you can still search other frequencies at a
later date (see page 41).
4. If you do not want to change any search settings, go straight to
step 8.
5. If you want to change the search settings, first highlight the
‘Satellite’ line, then press L or R to select a satellite.
6. Press U or D to highlight each item you want to change, then
use the number buttons or L and R to enter the values you
want.
7. Repeat steps 5 and 6 to change the details for each satellite.
www.strongsat.com
21
8. Press OK to confirm the details and start the search.
A progress screen displays to confirm that the search is taking place.
When the search is complete, a screen displays to tell you the number
of TV and radio channels that your set-top box has found.
9. To confirm these channels and display the next screen, press
OK. Then see ‘Activating your subscription’ below.
Activating your subscription
Note
If you have not yet inserted your smart card, insert it the correct way
round now (see page 14). If you do not have a smart card, but you
wish to view premium services, contact Viasat to obtain a smar t card.
Once your set-top box has found the satellite channels, the
Subscription Activation screen displays.
1. To activate your subscription, follow the instructions that are
given on the screen.
2. When the subscription activation is complete, press OK.
Switching on and off
Whenever you are not using your set-top box you should put it into
standby. You should not unplug it at the mains socket.
◆ To put your set-top box into standby, press S.
◆ To take your set-top box out of standby, press S.
Installation
22
www.strongsat.com
Surfer
❖ What is the Surfer?
The Surfer is an on-screen guide that helps you get the most out of
digital satellite TV. You use it to:
◆ change channel;
◆ find out what is showing on other channels, both now and later
on;
◆ find out more about a programme you are interested in;
◆ change the audio or subtitle language;
◆ use interactive features.
❖ Changing channel
You can change channel by using:
◆ the number buttons;
◆ the ch + and – buttons; or
◆ one of the on-screen methods described in the following
sections.
❖ Unlocking a locked channel
ENGLISH
If you have used Parental Control to set an Age lock level (see
page 32), then programmes broadcast with a rating above the level
you have set, will be locked.
If you want to watch a locked programme, you will need to enter your
PIN code (see page 31).
If the following message appears when you change channel:
Please enter PIN code to unlock channel
1. Use the number buttons to enter the correct PIN code.
2. If you make a mistake, press L to delete a number.
3. When you have entered the correct number, press OK.
If the PIN code is correct, the programme you want to watch displays.
If the PIN code is not correct, you will see a message to tell you. You
can either try again, or change channel to a channel that is not locked.
www.strongsat.com
23
❖ Displaying the channel banner
You can display a banner to show information about the current
channel, and the programmes showing on it ‘now’ and ‘next’.
◆ To display the banner, press info.
Surfer
Shows that subtitles are
available (see page 27).
Shows the start and finish
times of the programme,
and how much of the
Shows that other audio
languages are available
programme has already
been shown.
(see page 27).
◆ To display information about the programme on next, press R.
◆ To redisplay information about the programme on now, press L.
◆ To display extra programme information (see page 25), press
info again.
◆ To remove the banner, press back.
Note
This banner also displays briefly when you change channel. It
automatically disappears after a few moments.
24
www.strongsat.com
Surfer
❖ Displaying extra programme information
While the channel banner is displayed, you can display extra
information about the programme listed in the banner.
◆ While the channel banner is displayed, to display extra
programme information, press info.
ENGLISH
◆ You can press L and R to change between information about
the programme on now, and information about the programme
on next.
◆ If the extra programme information spreads over more than one
page, you can press the blue colour button to switch between
the pages.
◆ To remove the extra programme information, press back.
www.strongsat.com
25
❖ Using the TV and radio channel lists
You can use the TV and radio channel lists to find out what is showing
on all channels.
◆ To display the channel list, press the yellow button.
The list of channels displays. The current channel is highlighted by the
channel banner (see page 24).
Surfer
◆ To change which channel is highlighted by the channel banner,
press U or D. (The banner stays in the same place but the list
moves.)
◆ To move up or down the list of channels a whole screen at a
time, press ch + or ch –.
◆ To highlight a particular channel number, enter the channel
number.
◆ To find out more about the programmes showing on the
highlighted channel, use the channel banner (see pages 24 and
25).
◆ To switch between the TV channel list and the Radio channel list,
press the tv/radio button.
◆ To change channel to the highlighted channel, press OK.
◆ To remove the channel list without changing channel, press exit.
26
www.strongsat.com
Surfer
❖ Changing the audio language
You can change the language of programmes which are broadcast with
more than one audio soundtrack.

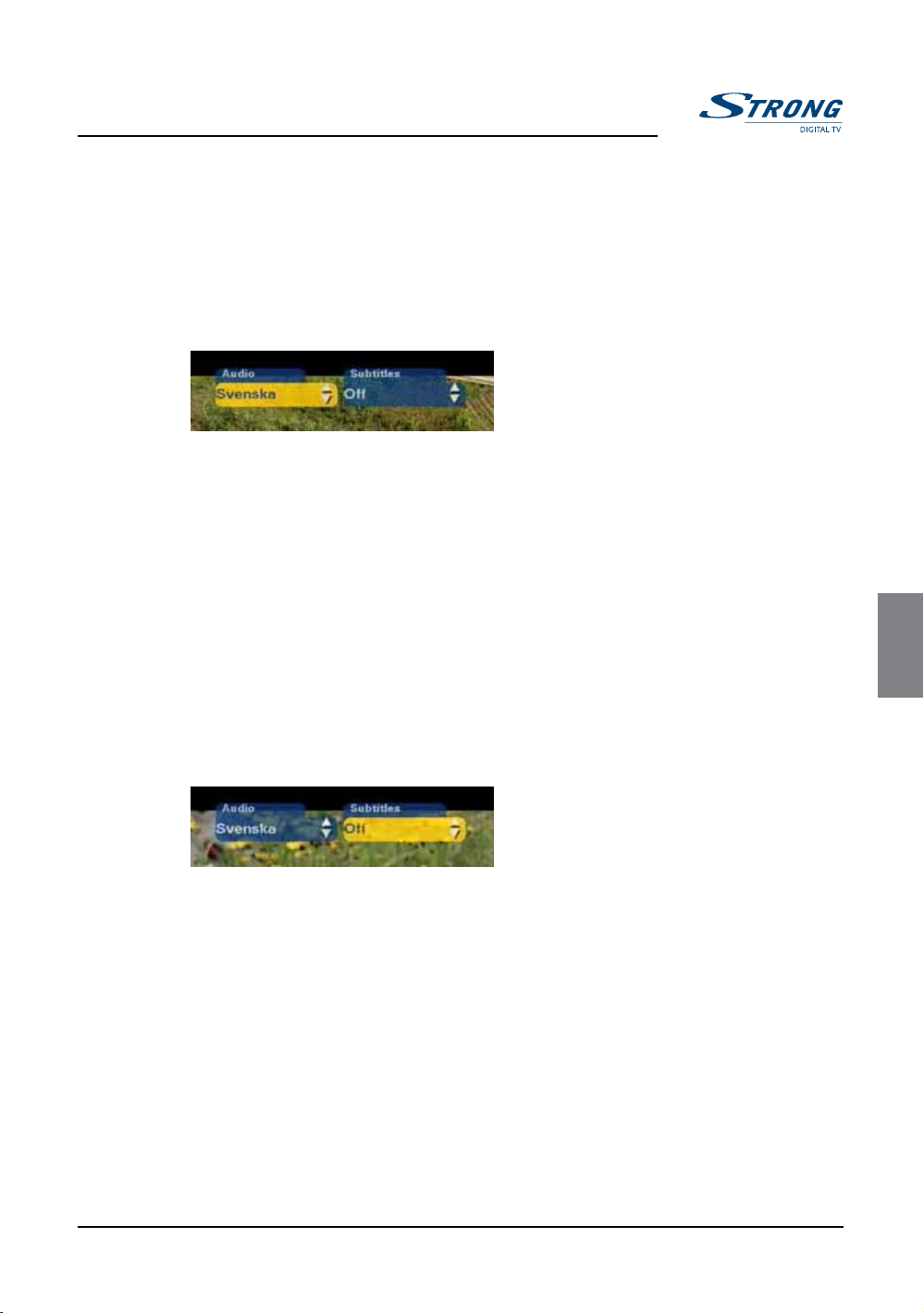

To change the audio language:
1. Press options.
The language options banner displays.
2. If the audio track button is not highlighted, press L to highlight
it.
3. Press U or D to look through the available languages, until the
language you want is displayed.
4. Press OK, or, to remove the banner without making any
changes, press back.
❖ Changing the subtitle language
ENGLISH
You can change the subtitle language for programmes which are
broadcast with subtitles in more than one language.
To change the subtitle language:
1. Press options.
The language options banner displays.
2. If the Subtitles button is not highlighted, press R to highlight it.
3. Press U or D to look through the available languages, until the
language you want is displayed. If you do not want subtitles to be
displayed, select ‘Off’.
4. Press OK, or, to remove the banner without making any
changes, press back.
❖ Interactive features
Some channels or programmes may include interactive features. When
these features are available, you will either see information about these
on your TV screen, or you will be informed by your interactive features
service provider.
www.strongsat.com
27
Extra information
❖ Recording a digital satellite programme
If you have a VCR you can use it to record satellite programmes from
your set-top box.
To record a satellite programme:
1. Make sure your set-top box is switched on and tuned to the
channel you wish to record.
2. Set your VCR correctly to record at the appropriate time,
making sure that your VCR is set to record its ‘channel for digital
satellite TV’, or if your set-top box is connected to your VCR via
a SCART lead, making sure your VCR is set to record its
appropriate AV channel.
For further information about your VCR, refer to your VCR’s User
Guide.
Notes
Your VCR must be correctly connected to your set-top box. For
further information, see pages 10 and 11.
Some programmes are copy-protected and may not play back
correctly if you record them.
While you are setting the recording up, you may wish to make sure
your TV is switched to its ‘VCR channel’ or the AV channel that you
use when you are watching videos, so you can check that the VCR is
showing what you want to record.
28
Watching other channels while you are recording a digital
satellite programme
If your equipment is connected using RF leads, as in connection
methods 1 or 2, you can watch any terrestrial channel while you record
digital satellite TV, by changing channel with your TV’s remote control.
You can also watch any digital channel while you record a terrestrial
channel.
However, you cannot watch one digital channel while you record a
different digital channel. If you use your set-top box’s remote control
to change channel while you are recording, your VCR will record the
channel change.
www.strongsat.com
Extra information
❖ Switching between digital satellite TV and
terrestrial TV
If your TV automatically shows digital satellite TV whenever your settop box is switched on, you can use your remote control to switch
between digital satellite TV and terrestrial TV.
This is also useful if you are using your VCR, for example to record a
digital channel, but you want to watch a terrestrial channel.
◆ To switch between digital satellite TV and terrestrial TV, press the
red colour button on your remote control. (Please do not press
the S button - this will switch your set-top box off.)
Note
In order for this feature to work, your digital set-top box must be
connected to your TV via a SCART lead, and your TV must also be
receiving the terrestrial channels from your TV aerial. For information
about connecting up, see pages 10 to 12.
Some TVs may not allow you to use this feature.
❖ Error messages
ENGLISH
If there is a temporary problem with a channel you are watching, you
may see an error message on your TV screen. If this happens, you can
still change channel, in the usual way, to a channel that is not
experiencing problems.
www.strongsat.com
29
❖ Displaying the Main Menu
You need to display the Main Menu in order to use the Setup menus.
You can also use the Main Menu to display the TV and Radio channel
lists (see page 26).
To display the Main Menu:
1. Press menu.
2. Press D or U to highlight the item you want, then press OK.
3. To remove the Main Menu, press exit.
❖ Using the Setup menus
You use the Setup menus to:
◆ control who can watch or purchase cer tain programmes;
◆ change the language settings;
◆ change the TV settings;
◆ change the signal settings and search for new channels;
◆ view information about your set-top box;
◆ reset your set-top box to its factory-preset settings.
To display the Setup menu:
1. Press menu, then press D to highlight ‘Setup’, then press OK.
Setup
30
2. Press D or U to highlight the item you want, then press OK.
◆ While you are using any of the setup menus, you can press back
to cancel any changes and return to the previous menu.
◆ To cancel changes and redisplay digital satellite TV, you can press
exit.
◆ To save changes, you press OK.
www.strongsat.com
Setup
❖ Using the Control Settings menu
You use the Control Settings menus to:
◆ set an age lock level to control who can watch cer tain digital
satellite programmes;
◆ set a purchase threshold to control how much other people are
allowed to spend on purchase TV;
◆ change the PIN code;
◆ view your entitlements.
When you use the Control Settings menu, you need to enter your PIN
code.
Note
If you do not have a smart card inserted in your set-top box, you
cannot use the Control Settings menu.
About your PIN code
When you first use your set-top box, your PIN code is 0000. In order
to make your PIN code secret, you should change it to a secret number
that you find easy to remember (see below).
To display the Control Settings menu:
1. On the Setup menu, highlight ‘Control Settings’, then press OK.
You will see a message asking you to enter your PIN code.
2. Enter the correct PIN code then press OK.
3. When you have finished using the Control Settings menu, press
back to redisplay the Setup menu.
ENGLISH
Changing your PIN code
You can change the PIN code to a secret number which you find easy
to remember. Please make sure you do not forget your PIN code.
To change the PIN code:
1. On the Control Settings menu, highlight ‘PIN code modification’
then press OK.
‘New PIN code’ is highlighted.
2. Use the number buttons to enter a new 4-digit PIN code of
your choice. If you make a mistake, you can press L to delete a
digit.
3. Press D.
‘Repeat new PIN code’ is now highlighted.
4. Enter your new 4-digit PIN code again.
www.strongsat.com
31
5. If you change your mind and do not wish to change the PIN
code, press back to cancel your changes.
If you want to save the new PIN code, press OK.
Setting the age lock level
The age lock level lets you set an age limit, so that people who do not
know the PIN code (for example young children) cannot watch
programmes that have an age category rating that is older than the age
lock level you have set.
For example, if you set this to ‘11+’, then programmes rated for
viewers older than 11 will be locked, and you will need to enter your
PIN code to watch them. Age lock only works if the broadcaster
provides rating category information.
If you do not want to set an age lock level, you can set this to ‘Off ’.
To set the age lock level:
1. On the Control Settings menu, highlight ‘Parental Control’ then
press OK.
‘Age lock level’ is highlighted.
Setup
32
2. Press L or R to choose the level you want.
3. If you now want to set a purchase threshold, press D. Or, if you
want to save the change to the age lock level, and redisplay the
Control Settings menu, press OK. Or, to remove the menu
without making any changes, press back.
www.strongsat.com
Setup
Setting the purchase threshold
The purchase threshold lets you specify how much a programme can
cost before your PIN code is required to purchase it. For example if
you set the limit at 5€, you can purchase a programme which costs 5€
or less, without entering your PIN code, but to purchase a programme
costing 5.01€ or more, you would need to enter your PIN code.

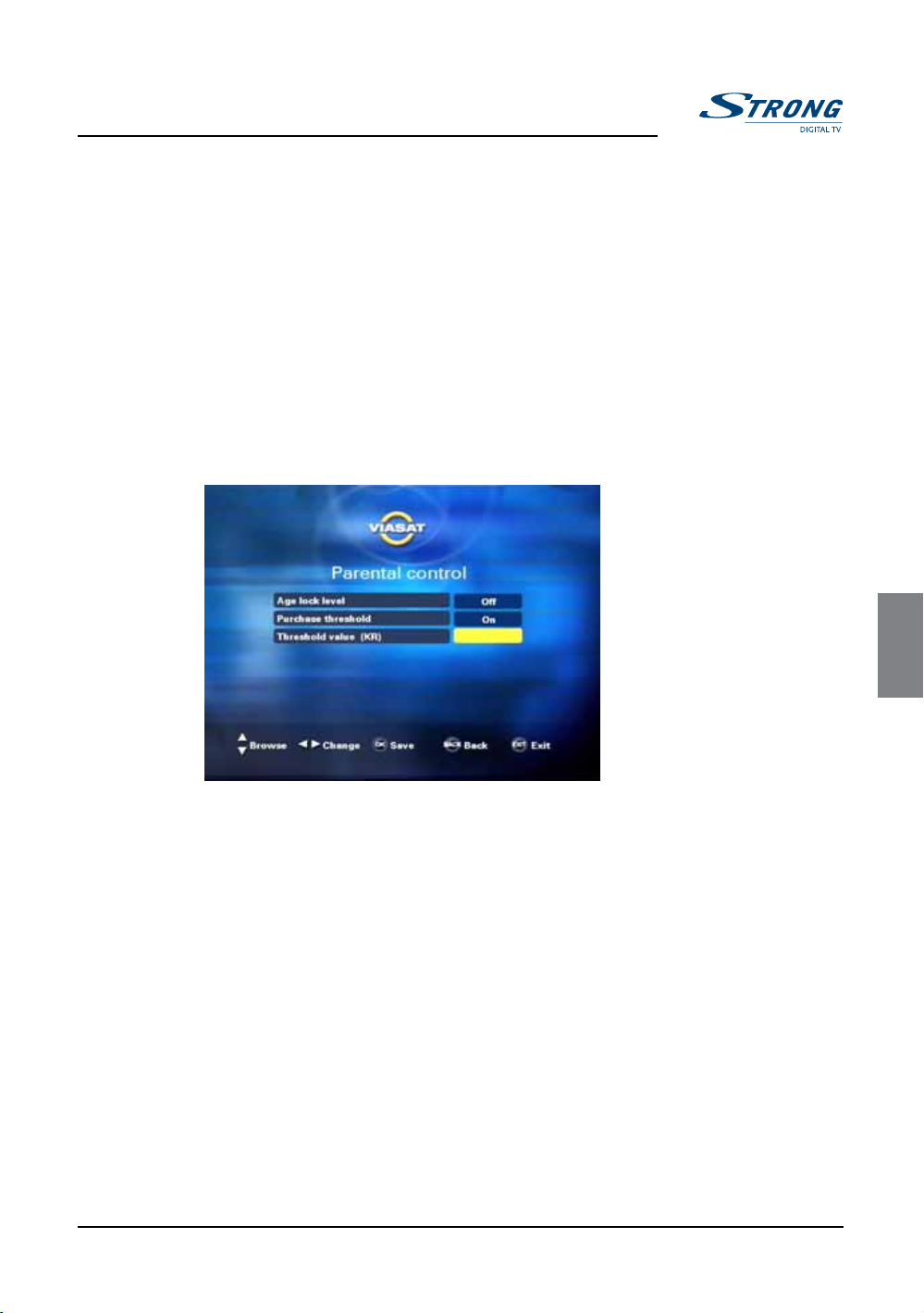

To set the purchase threshold:
1. On the Control Settings menu, highlight ‘Parental Control’ then
2. Press D to highlight ‘Purchase threshold’.
3. Press L or R to choose ‘On’ or ‘Off’.
If you selected ‘On’, you must enter a purchase threshold value.
press OK.
ENGLISH
4. Press D to highlight ‘Threshold value (KR)’, then, if necessary,
press L to delete the value that was previously there. Use the
number buttons to enter the amount you want to be the new
purchase threshold.
5. To save all the changes on the Parental Control menu, press
OK. Or, to remove the menu without saving any changes, press
back.
Viewing entitlements
You will only need to view entitlements if you are asked to do so by
customer support.
To view entitlements:
1. On the Control Settings menu, highlight ‘Entitlements’ then press
OK.
2. Press back to redisplay the Control Settings menu, or press
exit to redisplay digital satellite TV.
www.strongsat.com
33

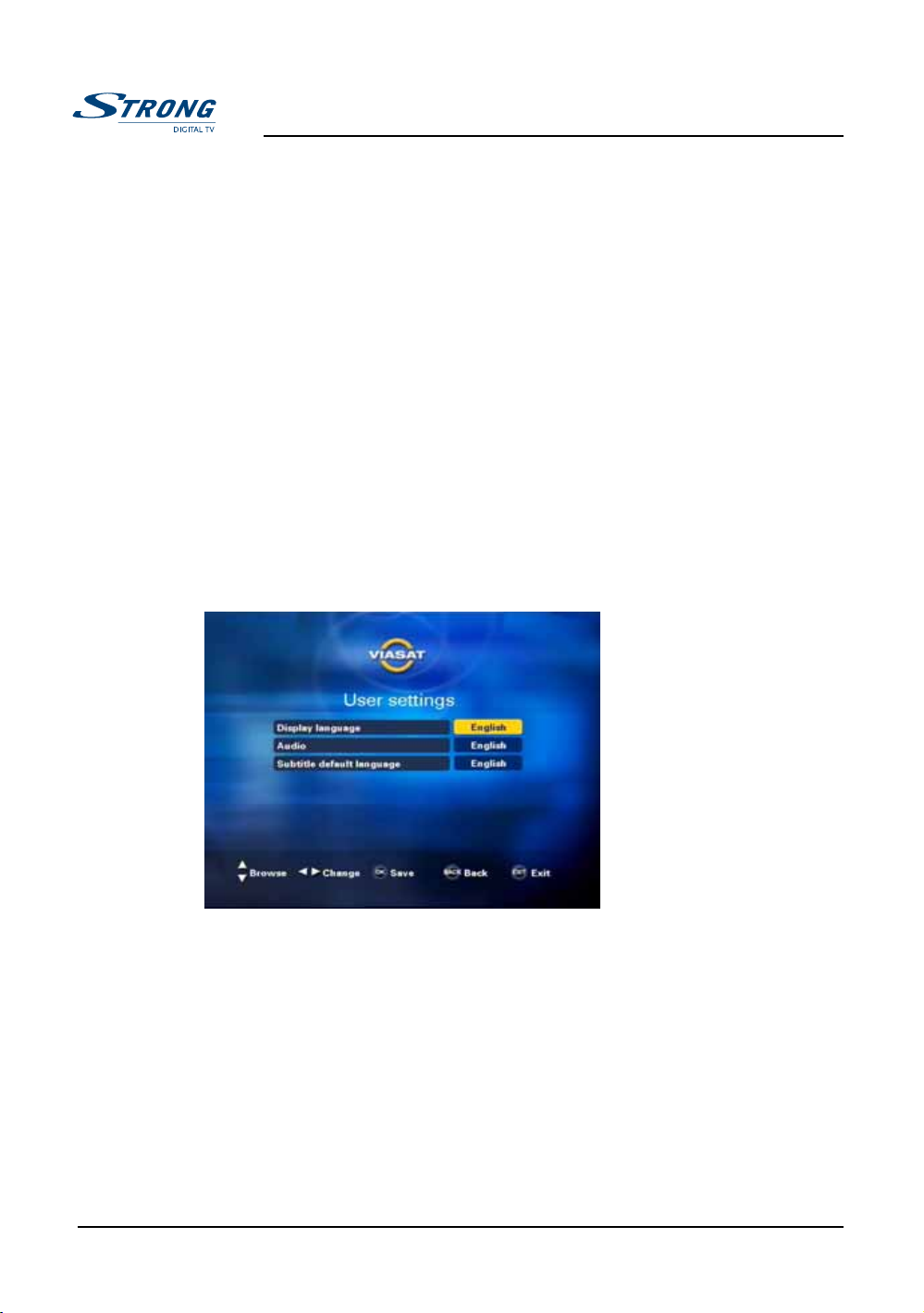

❖ Changing the language settings
You use the User Settings menu to change the following language
settings:
◆ Menu/banner language - the language used in all the menus and
on-screen displays;
◆ Audio default language - your first choice of language for
programmes which are broadcast with more than one audio
soundtrack;
◆ Subtitle default language - your first choice of language for
subtitles, when programmes are broadcast with subtitles in more
than one language.
Once you have made these settings, you can still temporarily change
the audio and/or subtitle languages quickly and easily while you are
watching a programme (see page 27).
To change the language settings:
1. On the Setup menu, highlight ‘User Settings’, then press OK.
The User Settings menu displays.
Setup
34
2. Press U or D to highlight the setting you want to change.
3. Press L or R to change the setting.
4. When you have made all the changes you want to make, press
OK. Or, to remove the menu without saving any changes, press
back.
www.strongsat.com
Setup

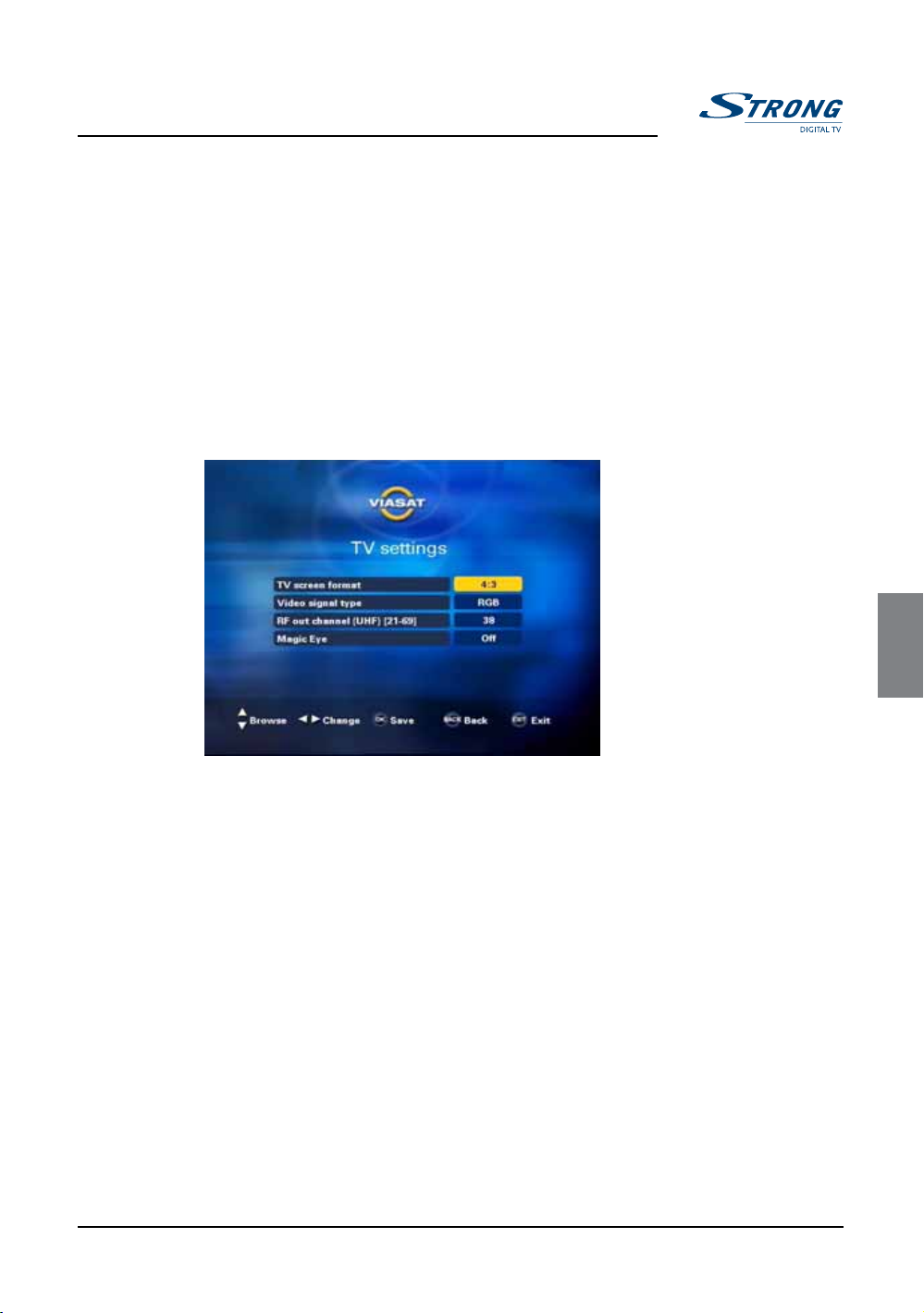

❖ Changing the TV settings
You use the TV Settings menu to change the following settings, to
control how your set-top box works with your other equipment:
◆ TV format;
◆ TV output signal;
◆ RF output channel;
◆ Magic eye support.
To change the TV settings:
1. On the Setup menu, highlight ‘TV Settings’, then press OK.
The TV Settings menu displays.
ENGLISH
2. Press U or D to highlight the setting you want to change (for
more information on the settings, see page 36).
3. Press L or R to change the setting. To change the ‘RF output
channel’, press L to delete the number that is there, then use
the number buttons to enter the RF channel number you want.
4. When you have made all the changes you want to make, press
OK. Or, to remove the menu without saving any changes, press
back.
www.strongsat.com
35
TV format
This is the type of TV you have connected to your set-top box, and
how widescreen broadcast programmes display. Make your choice
according to the following table:
Format Type of TV How do widescreen broadcasts display?
4/3 Standard (4/3) The centre portion only of any
widescreen transmissions will display
Letterbox Standard (4/3) The whole of any widescreen
transmissions will display, but the picture
does not fill the screen
16/9 Widescreen
(16/9)
TV output signal
This is the type of signal which is most compatible with your TV. If you
have connected your set-top box to your TV via a SCART lead, choose
RGB for a better quality picture.
RF output channel
The RF output channel for your set-top box.
The factory preset RF output channel is channel 38. If channel 38 is not
compatible with your TV or VCR, for example if it is already being used
as your VCR’s output channel, or for a terrestrial channel, you may find
you cannot tune your equipment to your set-top box because of
interference.
You can therefore use this setting to enter a different number. You may
find this easier if you disconnect your external antenna and/or your
VCR from your system while you make the changes, but if you do so,
make sure you follow all the safety advice on pages 8 to 15. You will
then need to tune any equipment that is connected to your set-top
box via an RF lead to this new channel number - see the section on RF
tuning on page 17.
RF channels may also be known as UHF channels.
For further advice, please call customer support.
Magic eye support
If you have connected a magic eye (see page 14) to your set-top box,
choose ‘On’.
Full screen
Setup
36
www.strongsat.com
Setup
❖ Using the Signal Settings menu
You use the Signal Settings menus to:
◆ select the antenna and LNB configuration that you have
connected to your set-top box;
◆ check that your set-top box is receiving satellite signals, and
check the strength and quality of the signal;
◆ carry out a search for new channels.
To display the Signal Settings menu:
1. On the Setup menu, highlight ‘Signal Settings’, then press OK.
ENGLISH
2. Press D or U to highlight the item you want, and press OK.
Then see the relevant section on the following pages.
3. When you have finished using the Signal Settings menu, press
back to redisplay the Setup menu.
www.strongsat.com
37
Changing the antenna configuration
This is the number of LNBs available in your dish installation. If you
change your satellite dish installation, you may need to change this
setting so that your set-top box can tune to all the satellites available.
To change the Antenna Configuration:
1. On the Signal Settings menu, highlight ‘Antenna Configuration’,
then press OK.
The Antenna Configuration menu displays.
Setup
2. Highlight ‘Number of LNBs’, then press L or R to select the
number of LNBs you have in your set-up.
3. Highlight ‘LNB index’, then press L or R to select the LNB
index you want to change. If you are using a single fixed LNB,
this will be LNB index 1.
4. Highlight ‘Satellite’ then select the satellite that you want that
LNB to direct towards.
◆ If you are using a single fixed LNB, press L or R to select
the satellite that your LNB is set-up for. Then go to step 6.
◆ If you are using a DiSEqC™ unit*, select the correct satellite
for the LNB connected to each port. LNB Index 1 is
associated with port 1, and so on.
5. Repeat steps 3 and 4 to select an LNB index for each of the
ports on your DiSEqC™ unit.
6. To save the changes, press OK.
7. If you have changed your antenna configuration must then
check the signal quality (see page 39) and search for the new
channels (see page 40).
*DiSEqC™ is a trademark of Eutelsat.
38
www.strongsat.com
Setup
Checking the signal quality
You use this screen to confirm that your set-top box is receiving a
satellite signal on all the LNBs/LNB positions available to it.
To check the signal:
1. On the Signal Settings menu, highlight ‘Signal Quality’, then press
The Signal Quality screen displays:
OK.
ENGLISH
The details on the screen show the name of the satellite, together with
bars showing the strength and quality of the signal being received from
this satellite.
Your set-top box must receive both a signal strength and a signal quality
of about 60% in order to successfully find channels. That is, the signal
strength and signal quality bars should both be about two thirds full.
2. Press L or R to change which LNB index details are displayed.
3. Check that your set-top box is receiving an adequate signal on
each LNB index that is being used.
For example, if you have a single LNB, this will be LNB index 1,
but if you are using a DiSEqC™ unit* to connect to more than
one LNB, then each LNB index is associated with the port of
the same number on your DiSEqC™ unit.
4. When you are satisfied that there is an adequate signal, press
back to redisplay the Signal Settings menu.
*DiSEqC™ is a trademark of Eutelsat.
www.strongsat.com
39
Searching for channels
Once you have confirmed the satellite signal strength, if you have
changed your Antenna Configuration, you need to search for channels.
To search for channels:
1. On the Signal Settings menu, highlight ‘VIASAT channels’, then
press OK.
The Auto Search screen displays:
2. To start the automatic channel search, press OK.
A progress screen displays to confirm that the search is taking place.
When the search is complete, a screen displays to tell you the number
of TV and radio channels that your set-top box has found.
3. To confirm these channels and redisplay the Signal Settings
menu, press OK.
Setup
40
www.strongsat.com
Setup
Adding extra channels
You can search for extra channels that may be available on the satellite
that your set-top box is tuned to.
To add extra channels:
1. On the Signal Settings menu, highlight ‘Manual Search’, then
The Manual Search screen displays.
press OK.
ENGLISH
2. Highlight the ‘Satellite’ line, then press L or R to select the
satellite that you want to search.
3. Press U or D to highlight each item you want to change, then
use the number buttons or L and R to enter the values you
want.
4. Repeat steps 2 and 3 to change the details for other satellites, if
required.
5. To start the search, press OK.
❖ Viewing set-top box information
You can view technical information about your set-top box.
To display the information:
1. On the Setup menu, highlight ‘Decoder information’, then press
OK.
2. To redisplay the Setup menu, press back.
www.strongsat.com
41
❖ Restoring the factory settings
If you wish, you can restore all your set-top box’s factory-preset
settings.
Note
If you restore your set-top box’s factory settings, you will need to
redo the country selection and search for channels - see page 18.
The items that are restored, and what they will be restored to, are
shown below.
Setting Factory setting
Menu/banner language English
Audio language English
Subtitle language English
Volume level MAX
TV format 4/3
TV output signal RGB
RF output channel 38
Magic eye support Off
Setup
42
To restore the factory settings:
1. On the Setup menu, highlight ‘Restore factory settings’, then
press OK.
2. A message displays asking you to confirm you want to restore
the factory settings. If you are sure you want to do this, press
OK. If you do not want to restore the factory settings, press
back.
The message ‘Default settings restored’ displays.
3. Press OK. The set-top box displays the Welcome screen (see
page 18).
4. Select the country and search for channels as described on
pages 18 to 22.
www.strongsat.com
Solving problems
Bef
ore you check connections between your equipment, make sure you disconnect all your equipment
from the mains supply. When you have finished checking and making connections, safely reconnect all the
equipment to the mains supply (see page 15).
Problem Possible cause Suggested solution
Your set-top box
doesn’t seem to be
working, and there
are no lights on the
front panel.
Your set-top box
doesn’t seem to be
working, and the
front-panel standby
light is red.
Your set-top box
doesn’t seem to be
working, and the
front-panel standby
light is green.
Your set-top box is not
receiving power.
Your set-top box is
switched off.
Your set-top box is not
correctly connected to
your other equipment,
or your other
equipment is not
correctly set up.
Your TV is not
switched to show
digital satellite
channels.
Make sure that the mains lead is properly plugged in
and that the mains supply is switched on.
Check that the mains wall socket has power (try
plugging in a lamp).
Press standby on the front panel, or S on your
remote control.
Check that all the connections are properly made.*
Check that your TV is plugged into the mains and
that it is switched on.
If your set-top box is connected to your TV via a
SCART lead, try selecting the appropriate AV
channel on your TV.
If your set-top box is connected to your TV via an
RF lead only, try selecting the appropriate ‘channel
for digital satellite TV’. If you do not have a ‘channel
for digital satellite TV’, you need to perform RF
tuning (see page 17).
ENGLISH
Your set-top box
doesn’t seem to be
working, and the
front-panel standby
light is orange.
www.strongsat.com
There is a problem
with the satellite signal.
Check that the lead from your satellite dish is
correctly connected to your set-top box.*
Check that your satellite dish and LNB(s) are
correctly set up and directed towards the correct
satellite(s) (see page 9).
Check that nothing is blocking your satellite dish, for
example a tree or high building.
There may be a temporary problem with the
reception, caused, for example, by bad weather; try
again later. If adverse weather conditions cause your
dish and/or LNB(s) to move, you may need to readjust them (see the information supplied with this
equipment).
43
Solving problems
Problem Possible cause Suggested solution
You can see onscreen interference
Your remote control
isn’t working.
You’ve forgotten
your PIN.
The menus and
banners are in a
language you don’t
understand.
Your TV or VCR is not
correctly tuned.
Something is between
the remote control
and your set-top box.
The batteries are flat
or inserted the wrong
way round.
The menu language
has been changed to a
language you don’t
understand,
Check that your TV and video recorder are
correctly tuned to your set-top box.
For further information, refer to your TV and VCR
instruction books.
In some cases your set-top box may need RF
tuning. See page 36 or call customer support for
further advice.
Make sure you point your remote control directly at
your set-top box and that nothing is between it and
your set-top box. The ir receive light on your settop box’s front panel should flash each time you
press a remote control button.
Check the batteries and replace them if necessary.
Call customer support for advice.
You can change the menu language as follows:
1. From a digital satellite channel, press menu.
2. Press D twice, to highlight the last item on the
menu, then press OK.
3. Press U 5 times, then press OK.
The User Settings menu displays. The first,
highlighted item is the menu language item.
4. Press R until your preferred language displays.
5. Press OK. The menus should now be in your
preferred language.
6. Press exit to redisplay digital satellite TV.
You have received a
new smart card but
you don’t know how
to activate it.
44
Make sure your set-top box is tuned to a
subscription channel. (You will not yet see the
picture.) Follow the instructions on ‘Inser ting your
smart card’ on page 14. The Subscription Activation
screen should appear - see the instructions on
page 22.
www.strongsat.com
Specification
Due to continued product improvement, this specification may change without notice.
General
Operating voltage: 230V AC ± 15%; 50Hz
Power consumption: 16.5W (max.)
Weight: 1.35kg
Dimensions (W x H x D): 275mm x 41 mm x 175 mm
UHF modulator: CCIR PAL System B/G and I;
Operating temperature range: 0°C to +40°C
Storage temperature range: –20°C to +60°C
Rear panel connectors
230V 50Hz MAINS INPUT : IEC 320 2-pin reversible
TELEPHONE LINE : RJ11
SCART TV : SCART (composite video out; RGB out)
SCART VCR : SCART (composite video in/out; RGB in)
ANT IN : IEC 129-2 female
TO T V : IEC 169-2 male
SAT IN : IEC 169-24 F-type female
SPDIF : 3.5mm connector; combined analogue-stereo
Ch 21 to 69 (factory setting is 38)
ENGLISH
and mini digital-optical audio output
(not fitted on all models)
❖ Environmental Issues
Packaging - When disposing of this product packaging, please ensure
that it is recycled
This will reduce the demand for virgin wood pulp, whilst diverting material that
would otherwise end up in landfill.
Set-top Box Recycling - Do not dispose of this product with your
domestic rubbish
At the end of its useful life, this product contains materials which when
processed correctly can be recovered and recycled. By participating in the
responsible recycling of this product you will be reducing the requirement for
new raw materials and reducing the amount of material that would otherwise
end up in landfill.
When you purchase a new, similar product your retailer may offer to take this old one off you.
Alternatively, you can take it to your local recycling centre. Your retailer or local municipal authority
will advise you of the collection facilities available for waste electronic products in your area. Use
of this service will be free to you.
www.strongsat.com
45
End User Licence Terms
The Product to which this documentation relates (the “Product”) incorporates software which is owned by Pace Micro
Technology plc (or its licensors). Before using the Product please read the End-User Licence Conditions detailed below. If you
do not agree to the terms and conditions of the End-User Licence please do not proceed to use the Product – repack the Product
unused and return it to your supplier who will refund the amount you paid for it to you.
1. Definitions
The following expressions have the meanings given here:
“Pace” means Pace Micro Technology plc, being either owner of all intellectual property rights in the Software, or having the
right to grant licences for the use of the Software.
“Software” means the software applications, utilities and modules embedded within the Product.
“Product” means the equipment or appliance to which this documentation relates and which incorporates the Software.
“Viasat” means Viasat AB, being the commercial broadcaster whose broadcasts this product has been designed to receive.
2. Licence Grant, Conditions and Restrictions
(a) Pace grants you a non-exclusive, world-wide (subject to export controls), non-transferable (except as permitted by 2(b)
below), royalty free licence to use the Software upon and with the Product.
(b) You may not transfer any of your licence rights in the Software without the written consent of Pace and if consent is provided
then the Software shall only be transferred in conjunction with the transfer of the Product AND provided that the transferee
has read and agreed to accept the terms and conditions of this licence.
(c) You must ensure that the copyright, trademark and other protective notices contained in the Software are maintained and
not altered or removed and that all such notices are reproduced and included in any copy of the Software.
(d) The Software provided hereunder is copyrighted and licensed (not sold). Pace especially does not transfer title or any
ownership rights in the Software to you. The Software provided hereunder may contain or be derived from portions of
materials provided to Pace under licence by a third party supplier.
(e) Except as authorised above or expressly permitted by statute you may not: use the Software in conjunction with any other
computer hardware other than the Product; copy all or part of the Software; incorporate all (or any of) the Software into
other programs developed by (or on behalf of) you and/or used by you; reverse engineer, decompile or disassemble the
Software; make the Software available, or permit its redistribution, for use with any other computer hardware than the
Product; rent, lease, gift, loan, sell, distribute or transfer possession of the Software in whole or in part.
(f) You will grant to Pace and/or Viasat, access to your Pace/Viasat digital decoder product, to enable Pace and/or Viasat to
upgrade, service and otherwise adapt the Software in such decoder, by (for example) remote downloading of updated
Software.
3. Termination
This licence is effective until terminated. You may terminate the licence by destroying the Software (and all copies thereof).
This licence will terminate automatically without notice if you fail to comply with any of its provisions. Upon termination you
must destroy the Software (and all copies thereof).
4. Disclaimer
(a) The Software is (to the extent permitted by law) supplied “as is” and Pace and its suppliers expressly exclude all warranties,
express or implied, including (but not limited to) warranties of satisfactory quality, fitness for purpose and non-infringement
(save to the extent that the same are not capable of exclusion at law).
(b) In no circumstances will Pace be liable for any direct, indirect, consequential, or incidental damage (including loss of profits,
business interruption, loss of data or the cost of procurement of substitute goods, technology or services) arising out of the
use or the inability to use the Software (save to the extent that such liability is not capable of exclusion at law).
5. General
(a) This End User Licence will be governed by the laws of Sweden and the User may only bring claims in the Swedish Courts
and Pace shall be entitled to bring a claim in the courts of any jurisdiction.
(b) The above terms and conditions supersede any prior agreement, oral or written, between you and Pace relating to the
Software.
46
www.strongsat.com
Loading...
