Steinberg Cubase LE - 4.0 Plug-in Reference

Plug-in Reference
Manual by Anders Nordmark
The information in this document is subject to change without notice and does not represent a commitment on the part of Steinberg Media Technologies GmbH. The software described by this document is subject to a License Agreement and may not be copied to other media except as specifically allowed in the License Agreement. No part of this publica­tion may be copied, reproduced or otherwise transmitted or recorded, for any purpose, without prior written permission by Steinberg Media Technologies GmbH.
All product and company names are ™ or ® trademarks of their respective owners. Windows XP is a trademark of Microsoft Corporation. The Mac logo is a trademark used under license. Macintosh and Power Macintosh are registered trademarks.
© Steinberg Media Technologies GmbH, 2007.
All rights reserved.
Table of Contents
5 Audio effects
6 About this chapter 6 Overview 7 Insert effects 9 Send effects 12 Making settings for the effects 13 Effect presets 16 Installing and managing effect plug-ins
18 The included effect plug-ins
19 Introduction 19 Delay plug-ins 19 Distortion plug-ins 20 Dynamics plug-ins 21 Filter plug-ins 22 Modulation plug-ins 25 Spatial plug-ins 26 Reverb plug-ins 26 Earlier VST plug-ins
33 HALionOne
34 Introduction 34 HALionOne parameters
35 Index
4
Table of Contents
1

Audio effects

About this chapter

Cubase LE comes with a number of effect plug-ins in­cluded. This chapter contains general details about how to assign, use and organize effect plug-ins. The effects and their parameters are described in the chapter “The in-
cluded effect plug-ins” on page 18.

Overview

Smart plug-in processing
Another feature of the VST3 standard is “smart” plug-in processing. Previously, any loaded plug-in was process­ing continuously, regardless of whether a signal was present or not. In VST3, there is a smart functionality built­in which disengages processing by a plug-in if there is no signal present. This can greatly reduce CPU load, thus al­lowing for more effects to be used. There are no settings involved for this functionality, it is fully automatic.
There are two ways to use audio effects in Cubase LE:
As insert effects.
An insert effect is inserted into the signal chain of an audio channel, which means that the whole channel signal passes through the effect. This makes inserts suitable for effects for which you don’t need to mix dry and wet sound, e.g. distortion, filters or other effects that change the tonal or dy­namic characteristics of the sound. You can have up to eight different in­sert effects per channel (and the same is true for output busses).
As send effects.
Each audio channel has eight effect sends, each of which can be freely routed to an effect (or to a chain of effects). Send effects are practical for two reasons: you can control the balance between the dry (direct) and wet (processed) sound individually for each channel using the sends, and several different audio channels can use the same send effect. In Cubase LE, send effects are handled by means of FX channel tracks.
About VST 3
The new VST 3 plug-in standard offers many improve­ments over the previous VST 2 standard, yet retains full backwards compatibility so you can still use your old VST effects and presets.
VST Preset management
From a user perspective, the main difference between VST 2 and VST 3 is in the effect preset management. The new preset handling replaces the old “.fxp/.fxb” files with VST 3 Presets (extension “.vstpreset”). You can also pre­view effect presets before you load them. A large number of presets for effects are included with the program. Should you have any previous VST plug-ins installed on your computer, you can still use them, and you can also chose to convert their programs to VST 3 Presets. See
“Effect presets” on page 13 for details.
About plug-in delay compensation
A plug-in effect may have some inherent delay or latency. This means that it takes a brief time for the plug-in to pro­cess the audio fed into it – as a result, the output audio will be slightly delayed. This especially applies to dynam­ics processors featuring “look-ahead” functionality.
However, Cubase LE provides full plug-in delay compen­sation throughout the entire audio path. All plug-in delays are compensated for, maintaining the sync and timing of all audio channels.
Normally, you don’t have to make any settings for this. However, VST3 dynamics plug-ins with look-ahead func­tionality have a “Live” button, allowing you to disengage the look-ahead to minimize latency if they are to be used during real-time recording (see the chapter “The included
effect plug-ins” on page 18 for details).
You can also constrain the delay compensation, which is useful to avoid latency when recording audio or playing a VST Instrument in real time. See the chapter “VST Instru­ments and Instrument tracks” in the Operation Manual for more details.
About tempo sync
Plug-ins can receive MIDI timing information from the host application (in this case, Cubase LE). A typical use for this feature are tempo-based effects (delays, auto-panning, etc.), but it is also used in other ways for certain plug-ins.
MIDI timing information is automatically provided to any VST (2.0 or later) plug-in that “requests it”.
You don’t need to make any special settings for this.
You set up tempo sync by specifying a base note value.
You can use straight, triplet or dotted note values (1/1 - 1/32).
6
Audio effects
When MIDI receive is available (or necessary) for other purposes than timing, the setting up and operation is de­scribed in the documentation for the corresponding effect.
Please refer to the chapter “The included effect plug-ins” on page 18 for details about the included effects.

Insert effects

Background
As the name implies, insert effects are inserted into the audio signal path – this means that the audio will be routed through the effect. You can add up to eight differ­ent insert effects independently for each audio channel (audio track, group channel track, FX channel track or VST Instrument channel) or bus. The signal passes through the effects in series from the top downwards, with the signal path shown below:
Input gain
Insert effect 1
Insert effect 2
Insert effect 3
Insert effect 4
Insert effect 5
Insert effect 6
Which effect plug-ins can I use as insert effects?
Most effect plug-ins will work fine as insert effects. In gen­eral, the only restrictions are with the number of inputs and outputs in the effects:
For a plug-in to be usable as an insert effect, it has to have at least 1 or 2 inputs and 1 or 2 outputs.
Different effects feature different amounts of inputs and outputs, but the number of inputs and outputs actually used is determined by whether you use the insert effects on a single (mono) audio channel or a stereo channel pair.
Routing an audio channel or bus through insert effects
Insert effect settings are available in the Channel Settings window and the Inspector. The examples below show the Channel Settings window, but the procedures are similar for both send sections:
1. Bring up the Channel Settings window or the Inserts section in the Inspector.
In the Channel Settings window, the inserts are located to the far left.
2. Pull down the effect type pop-up for one of the insert slots, and select an effect.
EQ
Volume (fader)
Insert effect 7
Insert effect 8
As you can see, the last two insert slots (for any channel) are post-EQ and post-fader. Post-fader slots are best suited for insert effects where you don’t want the level to be changed after the effect, such as dithering and maximizers – both typically used as insert effects for output busses.
Ö Applying insert effects on many channels uses up a lot of CPU power!
It might often be more efficient to use send effects or use insert effects on Group tracks, especially if you want to use the same type of effect on several channels. Remember that you can use the VST Performance win­dow to keep an eye on the CPU load.
Audio effects
The effect is loaded and automatically activated and its control panel appears. You can hide or show the control panel by clicking the “e” button for the insert slot.
7
If the effect has a Dry/Wet Mix parameter you can use this to adjust the balance between the dry signal and the effect signal.
See “Making settings for the effects” on page 12 for details about editing effects.
When one or several insert effects are activated for a channel, the insert effects buttons light up in blue in the mixer, the Inspector and the Track list. Click the button for a channel to bypass (disable) all its inserts.
When the inserts are bypassed, the buttons are yellow. Click the button again to enable the inserts. Note that the bypass button is also available in the Inspector and the Channel settings window for the audio track.
To remove an effect, pull down the effect type pop-up menu and select “No Effect”.
You should do this for all effects that you don’t intend to use, to minimize unnecessary CPU load.
When you have several insert effects for a channel, you can bypass separate effects by clicking the bypass button of the respective slot.
When an effect is bypassed, the button is yellow.
The “PingPongDelay” insert effect slot is bypassed.
Insert effects in the channel overview
If the “Channel” section is selected in the Inspector, you will get an overview of which EQ modules, insert effects and ef­fect sends are activated for the channel.
You can activate or deactivate individual insert effect slots by clicking the corresponding number (in the upper part of the overview).
The channel overview in the Inspector.
About adding insert effects to busses
As already stated, output busses have eight insert slots, just like regular audio channels. The procedures for add­ing insert effects are the same (except you cannot use the Inspector here).
Insert effects added to an output bus will affect all audio routed to that bus, like a “master insert effect”.
Typically you would add compressors, limiters, EQ or other plug-ins to tailor the dynamics and sound of the final mix.
8
Audio effects
Using group channels for insert effects
Like all other channels, group channels can have up to eight insert effects. This is useful if you have several audio tracks that you want to process through the same effect (e.g. different vocal tracks that all should be processed by the same compressor). Another special use for group channels and effects is the following:
If you have a mono audio track and want to process this through a stereo insert effect (e.g. a stereo chorus or an auto panner device), you cannot just insert the effect as usual. This is because the audio track is in mono – the output of the insert effect will then be in mono as well, and the stereo information from the effect will be lost.
One solution would be to route a send from the mono track to a stereo FX channel track, set the send to pre fader mode and lower the fader completely for the mono audio track. However, this makes mixing the track cumber­some, since you cannot use the fader.
Here’s another solution:
1. Create a group channel track in stereo and route it to the desired output bus.
2. Add the desired effect to the group channel as an in­sert effect.
3. Route the mono audio track to the group channel.
Now the signal from the mono audio track is sent directly to the group, where it passes through the insert effect, in stereo.

Send effects

Background
Send effects are handled through FX channel tracks. These are special tracks that each can contain up to eight insert effects. The signal path is as follows:
By routing an effect send from an audio track to an FX channel track, the audio is sent to the FX channel and through its insert effect(s).
Each audio channel has eight sends, which can be routed to different FX channels. You control the amount of signal sent to the FX channel by ad­justing the effect send level.
If you have added several effects to the FX channel, the signal passes through the effects in series, from the top (the first slot) downward.
This allows for “custom” send effect configurations – you could e.g. have a chorus followed by a reverb followed by an EQ and so on.
The FX channel track has its own channel strip in the mixer, the effect return channel.
Here you can adjust the effect return level and balance.
Each FX channel track has an automation subtrack, for automating various effect parameters.
See the chapter “Automation” in the Operation Manual for more informa­tion.
Setting up send effects
Adding an FX channel track
1. Pull down the Project menu and select “FX Channel” from the “Add Track” submenu.
A dialog appears.
2. Select a channel configuration for the FX channel track.
Normally, stereo is a good choice since most effect plug-ins have stereo outputs.
3. Select an effect for the FX channel track.
This is not strictly necessary at this point – you can leave the Plug-in pop-up menu set to “No Effect” and add effects to the FX channel later if you like.
4. Click OK.
An FX channel track is added to the Track list, and the selected effect, if any, is loaded into the first insert effect slot for the FX channel (in that case, the lit Inserts tab for the FX channel track in the Inspector indicates that an effect has been assigned and automatically activated).
9
Audio effects
All FX channel tracks you create will appear in a kind of “folder” in the Track list.
This makes it easy to manage and keep track of all your FX channel tracks, and also allows you to save screen space by folding the FX Channel folder.
FX channel tracks are automatically named “FX 1”, “FX 2” etc., but you can rename them if you wish. Just double click the name of an FX chan­nel track in either the Track list or the Inspector and type in a new name.
Adding and setting up effects
As mentioned above, you can add a single insert effect when you create the FX channel track if you like. To add and set up effects after the FX channel track is created, you can either use the Inspector for the track (click the In­serts tab) or the FX Channel Settings window:
1. Click the Edit (“e”) button for the FX channel track (in the Track list, mixer or Inspector).
The FX Channel Settings window appears, similar to a regular Channel Settings window.
4. When you add an effect, its control panel will automat­ically appear. Typically you should set the Wet/Dry Mix control to all “wet”.
This is because you control the balance between wet and dry signal with the effect sends. For more information about making settings in the effect control panels, see “Making settings for the effects” on page 12.
You can add up to eight insert effects for an FX channel.
Note that the signal will pass through all the effects in series. It is not possible to adjust the effect send and return levels separately for each effect – this is done for the FX channel as a whole. If what you want is several separate send effects (where you can control their send and re­turn levels independently) you should instead add more FX channel tracks – one for each effect.
To remove an insert effect from a slot, click the slot and select “No Effect” from the pop-up menu.
You should do this for all effects that you don’t intend to use, to minimize unnecessary CPU load.
You can also bypass individual effects (or all effects) by clicking the corresponding Bypass Inserts button(s) for the FX channel track.
See “Routing an audio channel or bus through insert effects” on page 7.
You can also adjust level, pan and EQ for the effect re­turn in this window.
Ö Remember that effects rely heavily on the CPU power in your computer.
The more activated effect units, the more computer power will be used for effects.
To the left in the window is the Inserts section with eight effect slots.
2. Make sure the FX channel is routed to the correct out­put bus.
This is done with the output routing pop-up menu at the top of the fader section (also available in the Inspector).
3. To add an insert effect in an empty slot (or replace the current effect in a slot), click on the slot and select an ef­fect from the pop-up menu.
This works just like when selecting insert effects for a regular audio channel.
Audio effects
Setting up the sends
The next step is to set up and route a send for an audio channel to the FX channel. This can be done in the Chan­nel Settings window or in the Inspector for the audio track. The example below shows the Channel Settings window, but the procedure is similar for both sections:
1. Click the “e” button for an audio channel to bring up its Channel Settings window.
In the Inspector you would click the Sends tab.
In the channel settings window, the send section is lo­cated to the left of the channel strip. Each of the eight sends has the following controls and options:
• A send on/off switch
• A send level slider
• A pre/post fader switch
•An Edit button
10
Note that the last three items are not shown until the Send is activated and an effect has been loaded.
2. Pull down the routing pop-up menu for a send by clicking in the empty slot, and select the desired routing destination.
6. If you want the signal to be sent to the FX channel be­fore the audio channel’s volume fader in the mixer, click on the Pre Fader button for the send so that it lights up.
Normally you want the effect send to be proportional to the channel vol­ume (post fader send). The picture below shows where the sends are “tapped” from the signal in pre and post fader mode:
Input gain
Insert effects 1-6
EQ
Pre-fader sends
Volume (fader)
• If the first item on this menu, “No Bus” is selected, the send isn’t routed anywhere.
• Items called “FX 1”, “FX 2” etc. correspond to existing FX tracks. If you have renamed an FX track (see “Adding an FX
channel track” on page 9) that name will appear on this menu
instead of the default.
• The menu also allows for routing a send directly to output bus­ses, separate output bus channels or Group channels.
3. In this case, select an FX channel track from the pop-
up menu.
Now the send is routed to the FX channel.
4. Click the power button for the effect send so that it
lights up in blue.
This activates the send.
5. Click and drag the send level slider to a moderate
value.
The send level determines how much of the signal from the audio chan­nel is routed to the FX channel via the send.
Insert effects 7-8
Post-fader sends
A send set to pre fader mode.
Ö You can choose whether a send in pre fader mode should be affected by the channel’s Mute button or not.
This is done with the option “Mute Pre-Send when Mute” in the Prefer­ences (VST page).
When one or several sends are activated for a channel, the Send Effects buttons light up in blue in the mixer and the Track list. Click the button for a channel to bypass (disable) all its effect sends.
When the sends are bypassed, the button is yellow. Click the button again to enable the sends. Note that this button is also available in the In­spector and the Channel settings window.
Setting the Send level.
Click this button to bypass the sends.
11
Audio effects
You can also bypass individual sends in the channel
overview.
See “Insert effects in the channel overview” on page 8.
Alternatively, in the same manner you can bypass the
send effects by clicking the “Bypass Inserts” button for the FX channel.
The difference is that this bypasses the actual send effects which may be used by several different channels. Bypassing a send affects that send and that channel only. If you bypass the insert effect the original sound will be passed through. This may lead to unwanted side effects (higher volume). To deactivate all effects, use the mute button in the FX channel.
Setting effect levels
After you have set up the sends as described in the previ­ous sections, the following is now possible:
You can use the send level slider in the Channel Set-
tings or the Inspector to set the send level.
By adjusting the send level you control the amount of signal sent from the audio channel to the FX channel.
Setting the effect send level.
In the mixer, you can use the level fader for the FX chan-
nel to set the effect return level.
By adjusting the return level you control the amount of the signal sent from the FX channel to the output bus.
FX channels and the Solo Defeat function
When mixing, you might sometimes want to solo specific audio channels, and listen only to these while other chan­nels are muted. However, this will mute all FX channels as well. If the soloed audio channels have sends routed to FX channels, this means you won’t hear the send effects for the channels.
To remedy this, you can use the Solo Defeat function for the FX channel:
1. First press [Alt]/[Option] and click on the Solo button for the FX channel.
This activates the Solo Defeat function for the FX channel. In this mode, the FX channel will not be muted if you solo another channel in the mixer.
2. You can now solo any of the audio channels without having the effect return (the FX channel) muted.
3. To turn off Solo Defeat for the FX channel, [Alt]/[Op­tion]-click the Solo button for the FX channel again.

Making settings for the effects

Editing effects
All inserts and sends have an Edit (“e”) button. Clicking this opens the selected effect’s control panel in which you can make parameter settings.
The contents, design and layout of the control panel de­pends on the selected effect. However, all effect control panels have a power button, a Bypass button, Read/Write automation buttons (for automating effect parameter changes (see the chapter “Automation” in the Operation Manual), a Preset selection pop-up menu and a Preset Management pop-up menu for saving or loading programs.
Setting the effect return level.
The Rotary effect control panel.
12
Audio effects
Please note that all effects can be edited using a simpli-
fied control panel (horizontal sliders only, no graphics). To edit effects using this “basic” control panel instead, press [Ctrl]/[Command]+[Alt]/[Option]+[Shift] and click on the Edit button for the effect send or slot.

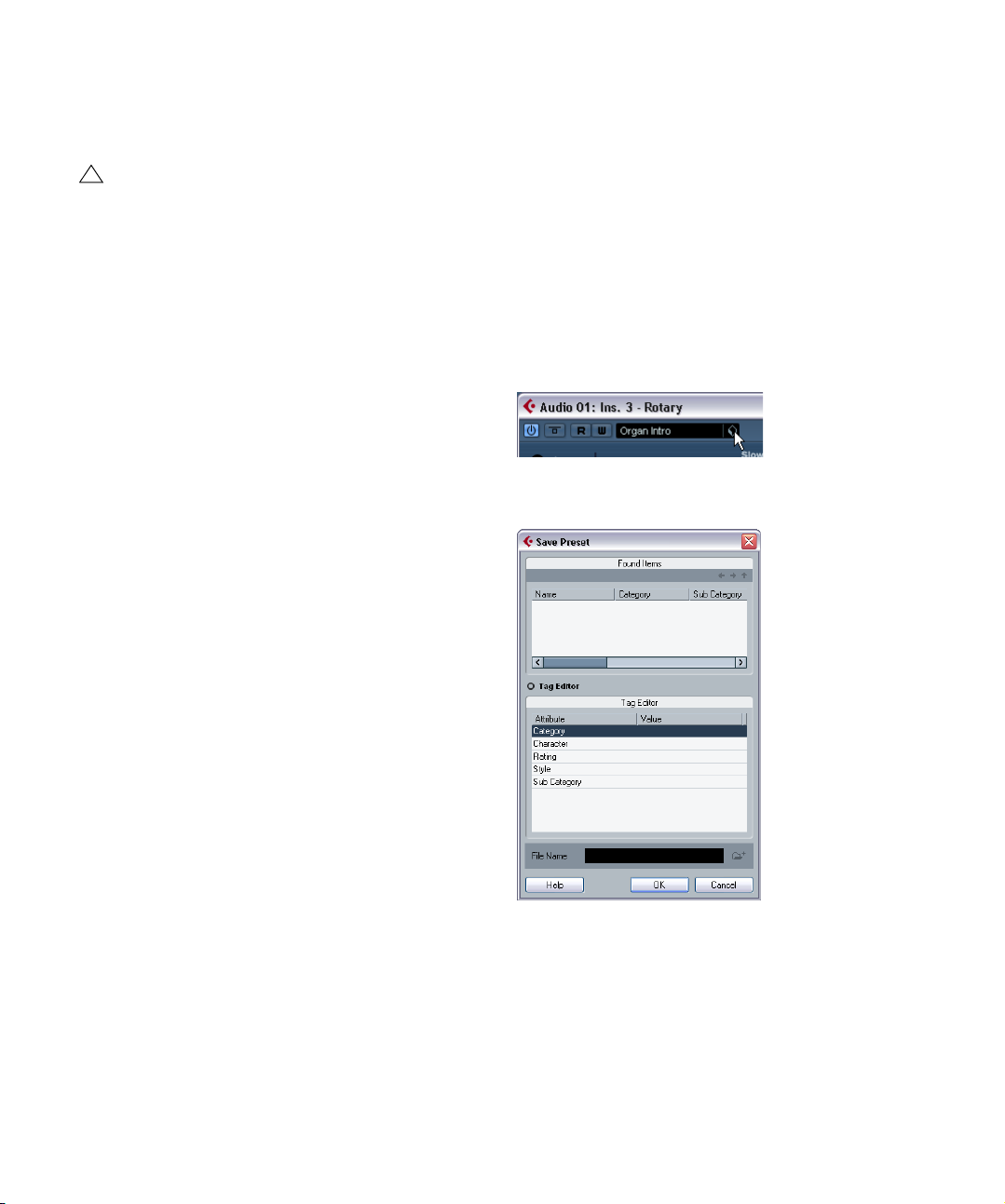

Effect presets

Cubase LE comes with a number of categorized VST pre­sets that you can use straight out of the box. VST presets are stored parameter settings for a specific effect.
Making settings
Effect control panels may have any combination of knobs, sliders, buttons and graphic curves.
Ö For specifics about the included effects and their pa­rameters, please refer to the chapter “The included effect
plug-ins” on page 18.
If you edit the parameters for an effect, these settings are saved automatically in the project. If you want to save the current settings, the following points apply:
• The basis for the current settings may have been a preset ef­fect program, in which case there is a name in the preset field.
• The basis for the current settings may have been a default set­ting program location in which case “Default” is displayed in the preset field.
In both cases, if you have changed any effect parameter settings, these are automatically saved when you save the program. How to select and save effect presets is de­scribed below.
Automating effect parameters
Effects parameters can be automated – see the chapter “Automation” in the Operation Manual.
Selecting effect presets
Most VST effect plug-ins come with a number of useful presets for instant selection. The Preset browser can ei­ther be accessed from the control panel for the effect, from the Channel Settings window, or from the Inspector.
To select an effect preset, proceed as follows:
1. Load an effect, either as a channel Insert or into a FX channel, it doesn’t matter.
The effect’s control panel is automatically shown when loaded.
2. Click in the name field at the top of the effect’s control panel.
This opens the Preset browser.
The right half of the browser shows the available pre­sets for the selected effect.
Selecting a preset loads it directly, replacing the previous preset.
The lower left half of the Preset browser contains a sec­tion where all assigned attributes (to any preset) for the selected effect are shown in the respective column.
If no attributes have been specified for the effect presets, the various col­umns will be empty. If attributes have been assigned to a preset for this effect, you can click on the assigned attribute in the respective column (Category, Style etc.), to filter out all presets that do not match the se­lected attribute(s).
The preset handling for VST 2 plug-ins is slightly differ­ent, see “About earlier VST effect presets” on page 15.
13
Audio effects
You can also open the Preset browser from the Inspec-
tor. Click the Inserts tab for the channel with the effect and click in the Preset name field.
!
In the Inspector there is a dual functionality. When an effect is loaded into a slot you can click on the Preset name (or in the bottom half of the effect slot) to open the Preset browser. Clicking in the upper half of the slot will instead open the Effect selection pop-up.
Click the SoundFrame button (the cube symbol) to
open the Preset Management pop-up menu and select “Load Preset…” from the pop-up menu that appears.
The “Load Preset” dialog opens.
This dialog is very similar to the Preset browser, but there is a difference in how the effect presets are loaded:
If you use the “Load Preset” dialog, this allows you to se-
lect different presets and to audition them without actually loading them. If you choose to cancel the operation and exit the dialog, the preset that was selected before opening the dialog will be reloaded exactly as it was, including any un­saved changes. See “Auditioning presets” on page 14.
When you use the Preset browser, selecting another
preset will load it directly, replacing the previous preset.
3. When you have selected an effect preset in the list to
the left, click OK to confirm the selection in case you used the Load Preset dialog, or simply click outside the browser window.
If you activate “Preview” in step 3 it works similarly, but you have to activate Preview for each selected preset to audition the settings.
To confirm a preset selection and to load it, click OK.
If you click Cancel, the previously loaded preset will re-
main, including any unsaved settings.
Saving effect presets
You can save your edited effects for further use (e.g. in other projects):
1. Click SoundFrame button to open the Load/Save Pre­set pop-up.
2. Select “Save Preset…” from the pop-up.
This opens a dialog where you can save the current settings as a preset.
Auditioning presets
A new VST 3 feature is the option to audition effects be­fore you load them. This works as follows:
1. Load an effect as usual for the track you wish to pro-
cess.
2. Start playback.
It may be helpful to set up cycle playback of a section to make compari­sons between different preset settings easier.
Open the Load Preset dialog by clicking the Sound-
Frame button in the effect slot and select “Load Preset” from the pop-up.
3. Activate “Auto Preview” below the Viewer display.
4. With playback still running, you now can step through
different presets in the list and hear the results instantly!
Audio effects
Presets are saved into a default folder named VST3 Pre­sets. Within this folder, there is a folder named “Steinberg Media Technologies” where the included presets are ar­ranged in subfolders named after each effect.
14
You cannot change the default folder, but you can add fur­ther subfolders inside the individual effect preset folder.
Under Windows, the default preset folder is located in the following location:
Boot drive/Documents and Settings/User name/Application data/VST3 Presets.
Under Mac OS, the default preset folder is located in
the following location:
Users/Username/Library/Audio/Plug-Ins/Presets/
3. In the File name field in the lower part of the dialog you
can enter a name for the new preset.
4. Click OK to store the preset and exit the dialog.
About earlier VST effect presets
As stated previously, you can use any VST 2.x plug-ins in Cubase LE. For a description of how to add VST plug-ins see “Installing and managing effect plug-ins” on page 16.
When you add a VST 2 plug-in, any previously stored pre­sets for it will be of the old FX program/bank (.fxp/.fxb) standard. You can import such files, but the preset han­dling will be slightly different. You will not immediately be able to use the new features like the Preview function until you have converted the old “.fxp/.fxb” presets to VST 3 presets. If you save new presets for the included VST 2 plug-ins these will automatically be saved in the new “.vst­preset” format.
For all the plug-ins in the “Earlier VST Plug-ins” cate-
gory (or any other VST 2 plug-ins you may have installed), you can import presets of the previous “.fxp/.fxb” standard to ensure backwards compatibility.
Importing and converting FXB/FXP files
To import .fxp/.fxb files, proceed as follows:
1. Load an effect from the “Earlier VST Plug-ins” folder (or any VST 2 effect you may have installed), and click on the SoundFrame button to open the Preset Management pop-up menu.
2. Select “Import FXB/FXP…” from the pop-up.
This menu item is only available for VST 2 plug-ins.
3. In the file dialog that opens, locate the file and click Open.
If you loaded a Bank, it will replace the current set of all effect programs. If you loaded a single effect, it will replace the currently selected effect program only.
4. After importing, you can convert the current program list to VST Presets by selecting “Convert Program List to VST Presets” from the Preset Management pop-up.
After converting, the presets will be available in the Preset browser. The new converted presets will be stored in the VST3 Preset folder.
15
Audio effects
Installing and managing effect plug­ins
Cubase LE supports two plug-in formats; the VST 2 for­mat (extension “.dll”) and the VST 3 format (extension “.vst3”). The formats are handled differently when it comes to installation and organizing.
Installing additional VST plug-ins
Installing VST 3 plug-ins under Mac OS X
To install a VST 3.x plug-in under Mac OS X, quit Cubase LE and drag the plug-in file to one of the following folders:
/Library/Audio/Plug-Ins/VST3/
This is only possible if you are the system administrator. Plug-ins in­stalled in this folder will be available to all users, for all programs that support them.
Users/Username/Library/Audio/Plug-Ins/VST3/
“Username” above is the name you use to log on to the computer (the easiest way to open this folder is to go to your “Home” folder and use the path /Library/Audio/Plug-Ins/VST/ from there). Plug-ins installed in this folder are only available to you.
When you launch Cubase LE again, the new effects will ap­pear on the effect pop-up menus. In the VST 3 protocol, the effect category, sub-folder structure etc. is built-in and can­not be changed. The effect(s) will show up in the assigned category folder(s) on the Effect pop-up menu.
Installing VST 2.x plug-ins under Mac OS X
!
Plug-ins in Mac OS 9.X format cannot be used.
To install a VST 2.x plug-in under Mac OS X, quit Cubase LE and drag the plug-in file to one of the following folders:
/Library/Audio/Plug-Ins/VST/
This is only possible if you are the system administrator. Plug-ins in­stalled in this folder will be available to all users, for all programs that support them.
Username/Library/Audio/Plug-Ins/VST/
“Username” above is the name you use to log on to the computer (the easiest way to open this folder is to go to your “Home” folder and use the path /Library/Audio/Plug-Ins/VST/ from there). Plug-ins installed in this folder are only available to you.
When you launch Cubase LE again, the new effects will appear on the effect pop-up menus.
Ö An effect plug-in may also come with its own installa­tion application, in which case you should use this.
Generally, always read the documentation or readme files before install­ing new plug-ins.
Installing VST 3 plug-ins under Windows
Under Windows, VST 3 plug-ins are installed simply by dragging the files (extension “.vst3”) into the vst3 folder in the Cubase LE application folder. When you launch Cu­base LE again, the new effects will appear on the Effect pop-up menus. In the VST 3 protocol, the effect category, sub-folder structure etc. is built-in and cannot be changed. The installed new effect(s) will show up in the assigned category folder(s) on the Effect pop-up menu.
Installing VST 2 plug-ins under Windows
Under Windows, VST 2.x plug-ins are usually installed simply by dragging the files (with the extension “.dll”) into the Vstplugins folder in the Cubase LE application folder, or into the Shared VST Plug-in folder – see below. When you launch Cubase LE again, the new effects will appear on the Effect pop-up menus.
Ö If the effect plug-in comes with its own installation ap­plication, you should use this.
Generally, always read the documentation before installing new plug-ins.
Organizing VST 2 plug-ins
If you have a large number of VST 2 plug-ins, having them all on a single pop-up menu in the program may become unmanageable. For this reason, the VST 2 plug-ins in­stalled with Cubase LE are placed in appropriate subfold­ers according to the effect type.
Under Windows, you can rearrange this by moving, adding or renaming subfolders within the Vstplugins folder if you like.
When you launch the program and pull down an Effects pop-up menu, the subfolders will be represented by hierarchical submenus, each listing the plug-ins in the corresponding subfolder.
Under Mac OS X, you cannot change the hierarchic ar­rangement of the “built-in” VST plug-ins.
You can however arrange any additional plug-ins you have installed (in the /Library/Audio/Plug-Ins/VST/ folders, see above) by placing them in sub­folders. In the program, the subfolders will be represented by hierarchical submenus, each listing the plug-ins in the corresponding subfolder.
16
Audio effects
The Plug-in Information window
On the Devices menu, you will find an item called “Plug-in Information”. Selecting this opens a dialog listing all the available VST compatible plug-ins in your system (includ­ing VST Instruments).
Managing and selecting VST plug-ins
To see which VST plug-ins are available in your system, click the “VST PlugIns” tab at the top of the window.
To enable a plug-in (make it available for selection),
click in the left column.
Only the enabled plug-ins (shown with a check mark in the left column) will appear on the effect menus.
The second column indicates how many instances of
the plug-in are currently used in Cubase LE.
Clicking in this column for a plug-in which is already in use produces a pop-up showing exactly where each use occurs – select an instance to open the control panel for the plug-in.
Ö A plug-in may be in use even if it isn’t enabled in the left column.
You might for example have opened a project containing effects that cur­rently are disabled on the menu. The left column purely determines whether or not the plug-in will be visible on the effect menus.
All columns can be resized by using the divider in the
column header.
The other columns show the following information about each plug-in:
Column Description
Name The name of the plug-in.
Vendor The manufacturer of the plug-in.
File This shows the complete name of the plug-in (with exten-
Path The path and name of the folder in which the plug-in file
Category This indicates the category of each plug-in (such as VST
Version Shows the current version of the plug-in.
SDK Shows with which version of the VST protocol a plug-in
Latency This shows the delay (in samples) that will be introduced
I/O This column shows the number of inputs and outputs for
sion).
is located.
Instruments etc.).
is compatible.
if the effect is used as an Insert. This is automatically compensated for by Cubase LE.
each plug-in.
Update button
Pressing this button will make Cubase LE re-scan the designated VST folders for updated information about the plug-ins.
VST 2.x Plug-in Paths button
This opens a dialog where you can see the current paths to where VST 2.x plug-ins are located. You can freely Add/Remove folder locations by using the corresponding buttons. If you click Add a file dialog is opened, where you can select a folder location.
About the Shared Plug-ins Folder (Windows and VST 2.x only)
You can designate a “shared” VST 2.x plugins folder. This will allow VST 2.x plug-in to be used by other programs that support this standard.
You designate a shared folder by selecting a folder in the list and clicking the “Set As Shared Folder” button in the VST 2.x Plug-in Paths dialog.
17
Audio effects
2

The included effect plug-ins

Introduction

Distortion plug-ins

This chapter contains descriptions of the included plug-in effects and their parameters.

Delay plug-ins

This section contains descriptions of the plug-ins in the “Delay” category.

PingPongDelay

This is a stereo delay effect that alternates each delay re­peat between the left and right channels. The effect can either be tempo-based or use freely specified delay time settings.
The parameters are as follows:
Parameter Description
Delay This is where you specify the base note value for the de-
Tempo sync on/off
Feedback This sets the number of repeats for the delay.
Spatial This parameter sets the stereo width for the left/right re-
Mix Sets the level balance between the dry signal and the ef-
lay if tempo sync is on (1/1–1/32, straight, triplet or dot­ted). If tempo sync is off, it sets the delay time in milliseconds.
The button below the Delay Time knob is used to turn tempo sync on or off. If set to off the delay time can be set freely with the Delay Time knob, without sync to tempo.
peats. Turn clockwise for a more pronounced stereo “ping-pong” effect.
fect. If PingPongDelay is used as a send effect, this should be set to maximum as you can control the dry/ef­fect balance with the send.
This section contains descriptions of the plug-ins in the “Distortion” category.

Distortion

Distortion is great for adding crunch to your tracks. This ef­fect is easy to use with only two parameters, but it is ex­tremely effective.
The parameters are as follows:
Parameter Description
Drive This is where you turn up the distortion amount.
Output This parameter raises or lowers the signal going out of the
effect.
19
The included effect plug-ins

Dynamics plug-ins

This section contains descriptions of the plug-ins in the “Dynamics” category.

VSTDynamics

Gate
Compressor
Limiter
VSTDynamics is an advanced dynamics processor. It combines three separate processors: Gate, Compressor and Limiter, covering a variety of dynamic processing functions. The window is divided into three sections, con­taining controls and meters for each processor.
Activating the individual processors

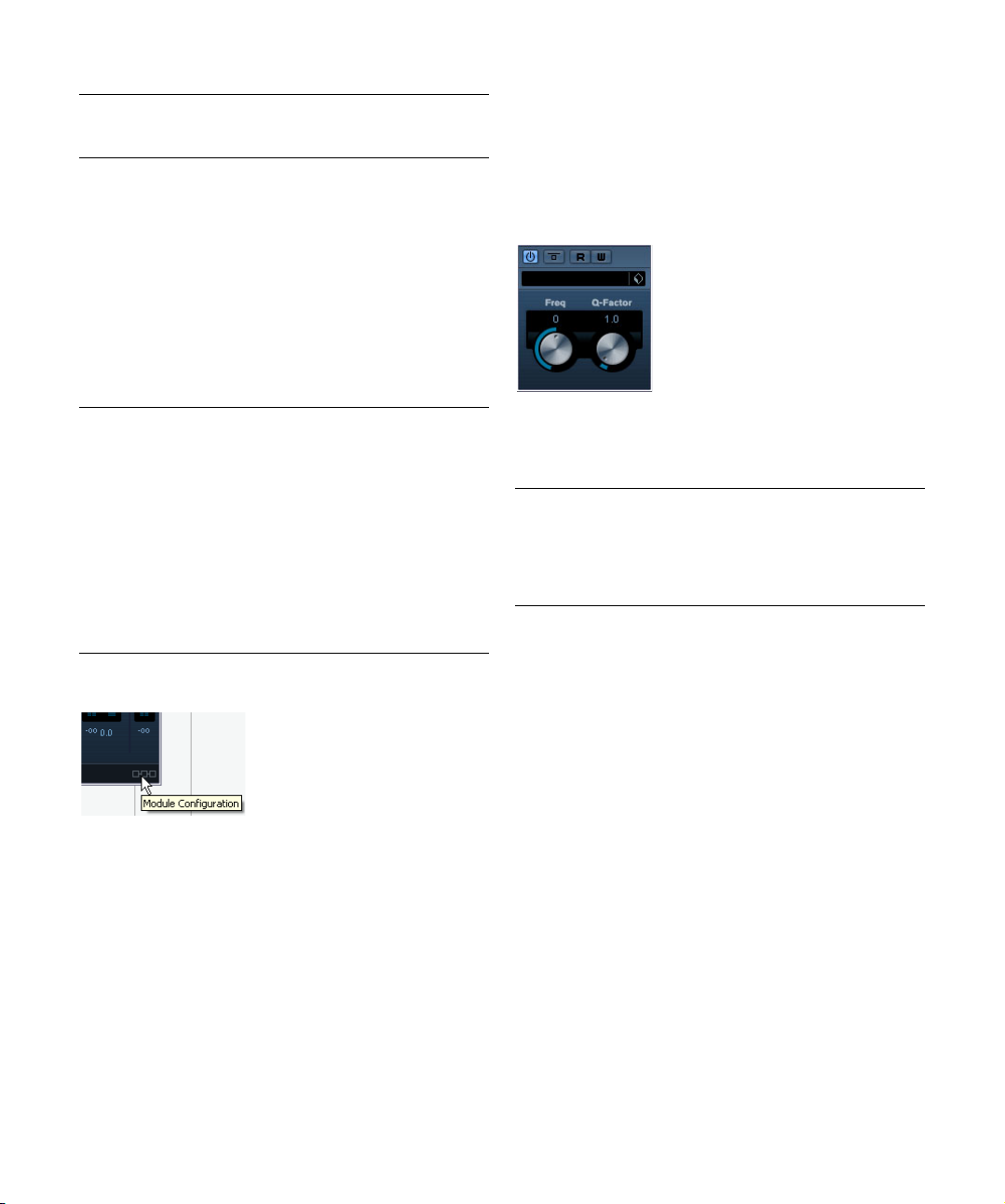

You activate the individual processors using the buttons at the bottom of the plug-in panel.
The Gate section
Gating, or noise gating, is a method of dynamic process­ing that silences audio signals below a certain set thresh­old level. As soon as the signal level exceeds the set threshold, the gate opens to let the signal through. The Gate trigger input can also be filtered using an internal side-chain.
The available parameters are as follows:
Parameter Description
Threshold (-60 – 0dB)
Side Chain (On/Off)
LP (Lowpass), BP (Bandpass), HP (Highpass)
This setting determines the level where Gate is activated. Signal levels above the set threshold trigger the gate to open, and signal levels below the set threshold will close the gate.
This button activates the internal side-chain filter. This lets you filter out parts of the signal that might otherwise trigger the gate in places you don’t want it to, or to boost frequencies you wish to accentuate, allowing for more control over the gate function.
These buttons set the basic filter mode.
Routing selector
Parameter Description
Center (50 – 22000Hz)
Q-Factor (0.001 – 10000)
Monitor (Off/On)
Attack (0,1 – 100 ms)
Hold (0 – 2000 ms)
Release (10 – 1000 ms or “Auto”)
This sets the center frequency of the filter.
This sets the resonance or width of the filter.
Allows you to monitor the filtered signal.
This parameter sets the time it takes for the gate to open after being triggered.
This determines how long the gate stays open after the signal drops below the threshold level.
This parameter sets the amount of time it takes for the gate to close (after the set hold time). If the “Auto” button is activated, Gate will find an optimal release setting, de­pending on the audio program material.
The Compressor section
Compressor reduces the dynamic range of the audio, making softer sounds louder or louder sounds softer, or both. Compressor functions like a standard compressor with separate controls for threshold, ratio, attack, release and make-up gain parameters. Compressor features a separate display that graphically illustrates the compres­sor curve shaped according to the Threshold, Ratio and MakeUp Gain parameter settings. Compressor also fea­tures a Gain Reduction meter that shows the amount of gain reduction in dB, and a program dependent Auto fea­ture for the Release parameter.
The available parameters work as follows:
Parameter Description
Threshold (-60 – 0dB)
Ratio (1:1 – 8:1)
Make-Up (0 – 24dB)
Attack (0.1 – 100 ms)
Release (10 – 1000ms or “Auto”)
This setting determines the level where Compressor “kicks in”. Signal levels above the set threshold are affected, but signal levels below are not processed.
Ratio determines the amount of gain reduction applied to signals over the set threshold. A ratio of 3:1 means that for every 3 dB the input level increases, the output level will in­crease by only 1 dB.
This parameter is used to compensate for output gain loss, caused by compression. When Auto is on, gain loss will be compensated automatically.
This determines how fast Compressor will respond to sig­nals above the set threshold. If the attack time is long, more of the early part of the signal (attack) will pass through un­processed.
Sets the amount of time it takes for the gain to return to its original level when the signal drops below the Threshold level. If the “Auto” button is activated, Compressor will au­tomatically find an optimal release setting that varies de­pending on the audio material.
20
The included effect plug-ins
Parameter Description
Graphic display
Use the graphic display to graphically set the Threshold or the Ratio value.
The Limiter section
Limiter is designed to ensure that the output level never exceeds a certain set output level, to avoid clipping in fol­lowing devices. Conventional limiters usually require very accurate setting up of the attack and release parameters, to prevent the output level from going beyond the set threshold level. Limiter adjusts and optimizes these pa­rameters automatically, according to the audio material. You can also adjust the Release parameter manually.
The available parameters are the following:
Parameter Description
Output (-24 – +6 dB)
Soft Clip (On/Off)
Release (10 – 1000ms or “Auto”)
This setting determines the maximum output level. Signal levels above the set threshold are affected, but signal levels below are left unaffected.
Soft Clip acts differently compared to the limiter. When the signal level exceeds -6dB, SoftClip starts limiting (or clip­ping) the signal “softly”, at the same time generating har­monics which add a warm, tubelike characteristic to the audio material.
This parameter sets the amount of time it takes for the gain to return to its original level when the signal drops below the threshold level. If the “Auto” button is activated, Limiter will automatically find an optimal release setting that varies depending on the audio material.

Filter plug-ins

This section contains descriptions of the plug-ins in the “Filter” category.

DualFilter

This effect filters out “Resonance” adds a ringing effect to the filtered sound.
The available parameters are the following:
Parameter Description
Freq With this setting you can change the focus frequency of
Q-Factor This adds a ringing effect to the filtered sound.
the filter. If the position is higher, only high frequencies are heard. If the position is lower, only low frequencies are heard.
The Module Configuration button
In the bottom right corner of the plug-in panel you will find a button with which you can set the signal flow order for the three processors. Changing the order of the proces­sors can produce different results, and the available op­tions allow you to quickly compare what works best for a given situation. Simply click the Module Configuration but­ton to change to a different configuration. There are three routing options:
• C-G-L (Compressor-Gate-Limit)
• G-C-L (Gate-Compressor-Limit)
• C-L-G (Compressor-Limit-Gate)
The included effect plug-ins
21

Modulation plug-ins

This section contains descriptions of the plug-ins in the “Modulation” category.

AutoPan

AutoPan automatically moves the track’s signal from left to right and back again.
The parameters are as follows:
Parameter Description
Tempo sync on/off
Rate This determines how quickly the signal moves back and
Width With this parameter you can adjust how far to the left and
The button below the Rate knob is used to switch tempo sync on or off. The button is lit when tempo sync is on.
forth. If tempo sync is on, this is where you specify the base note value for tempo syncing the flanger sweep (1/ 1 to 1/32, straight, triplet or dotted). If tempo sync is off, the sweep rate can be set freely with the Rate knob, without sync to tempo.
right the signal will go.

Chorus

Chorus works by doubling whatever is sent into it with a slightly detuned version.
The parameters are as follows:
Parameter Description
Tempo sync on/off
Rate With this parameter you can change the speed of the
Width With this parameter you can adjust how much the signal
Mix With this parameter you can set how much original signal
The button below the Rate knob is used to switch tempo sync on or off. The button is lit when tempo sync is on.
chorus effect. This determines how quickly the signal moves back and forth. If tempo sync is on, this is where you specify the base note value for tempo syncing the flanger sweep (1/1 to 1/32, straight, triplet or dotted). If tempo sync is off, the sweep rate can be set freely with the Rate knob, without sync to tempo.
is detuned.
you hear versus the affected signal.
22
The included effect plug-ins

Flanger

Phaser

Flanger is a classic flanger effect with added stereo en­hancement.
The parameters are as follows:
Parameter Description
Tempo sync on/off
Rate If tempo sync is on, this is where you specify the base
Feedback This determines the character of the flanger effect.
Mix Sets the level balance between the dry signal and the ef-
The button below the Rate knob is used to switch tempo sync on or off. The button is lit when tempo sync is on.
note value for tempo syncing the flanger sweep (1/1 to 1/32, straight, triplet or dotted). If tempo sync is off, the sweep rate can be set freely with the Rate knob, without sync to tempo.
Higher settings produce a more “metallic” sounding sweep.
fect. If the Flanger is used as a send effect, this should be set to maximum as you can control the dry/effect balance with the send.
Phaser produces the well-known “swooshing” phasing ef­fect with additional stereo enhancement.
The parameters are as follows:
Parameter Description
Tempo sync on/off
Rate If tempo sync is on, this is where you specify the base
Feedback This determines the character of the phaser effect.
Mix Sets the level balance between the dry signal and the ef-
The button below the Rate knob is used to switch tempo sync on or off. The button is lit when tempo sync is on.
note value for tempo syncing the phaser sweep (1/1 to 1/32, straight, triplet or dotted). If tempo sync is off, the sweep rate can be set freely with the Rate knob, without sync to tempo.
Higher settings produce a more pronounced effect.
fect. If the Phaser is used as a send effect, this should be set to maximum as you can control the dry/effect balance with the send.
23
The included effect plug-ins

Rotary

Tremolo

The Rotary plug-in simulates the classic effect of a rotary speaker. A rotary speaker cabinet features variable speed rotating speakers to produce a swirling chorus effect, commonly used with organs. Rotary features all the pa­rameters associated with the real thing.
The parameters are as follows:
Parameter Description
Speed (Stop/Slow/ Fast)
Mix Adjusts the mix between dry and processed signals.
This controls the speed of the Rotary in three steps.
Directing MIDI to the Rotary
For real-time MIDI control of the Speed parameter, MIDI must be directed to the Rotary.
Whenever the Rotary has been added as an insert ef-
fect (for an audio track or an FX channel), it will be avail­able on the Output Routing pop-up menu for MIDI tracks.
If Rotary is selected on the “out:” menu, MIDI will be directed to the plug­in from the selected track.
Tremolo produces amplitude (volume) modulation.
Parameters are as follows:
Parameter Description
Tempo sync on/off
Rate If tempo sync is on, this is where you specify the base
Depth This governs the depth of the amplitude modulation.
The button below the Rate knob is used to switch tempo sync on or off. The button is lit when tempo sync is on.
note value for tempo-syncing the effect (1/1 to 1/32, straight, triplet or dotted). If tempo sync is off, the modulation speed can be set freely with the Rate knob, without sync to tempo.
24
The included effect plug-ins

Vibrato

The Vibrato plug-in produces pitch modulation.
Parameter Description
Tempo sync on/off
Rate If tempo sync is on, this is where you specify the base
Depth This governs the depth of the pitch modulation.
The button below the Rate knob is used to switch tempo sync on or off. The button is lit when tempo sync is on.
note value for tempo-syncing the effect (1/1 to 1/32, straight, triplet or dotted). If tempo sync is off, the modulation speed can be set freely with the Rate knob, without sync to tempo.

Spatial plug-ins

This section contains descriptions of the plug-ins in the “Spatial” category.

MonoToStereo

This effect will turn a mono signal into a “pseudo-stereo” signal. The plug-in must be inserted on a stereo track playing a mono file to work.
The parameters are as follows:
Parameter Description
Width This controls the width or depth of the stereo enhance-
ment. Turn clockwise to increase the enhancement.
Color This parameter also generates differences between the
channels to increase the stereo effect.
25
The included effect plug-ins

Reverb plug-ins

Earlier VST plug-ins

This section contains descriptions of the plug-ins in the “Reverb” category.

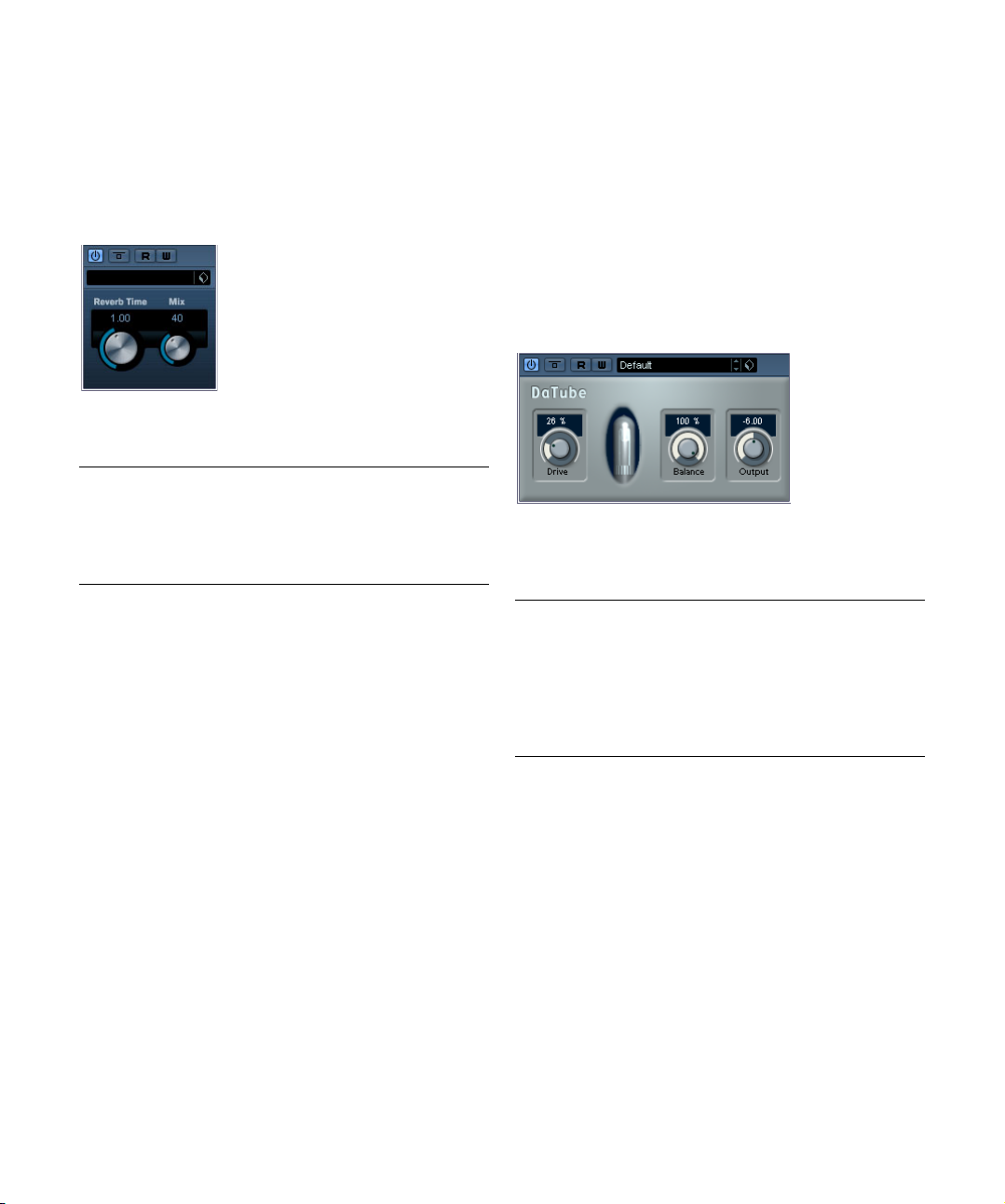

RoomWorks SE

RoomWorks SE is a high quality reverberation effect.
RoomWorks SE has the following parameters:
Parameter Description
Reverb Time Reverb Time in seconds.
Mix Determines the blend of dry (unprocessed) signal to wet
(processed) signal. When using RoomWorks SE in­serted in an FX channel, you will most likely want to set this to 100%.
This contains a selection of earlier VST plug-ins, divided into various sub-categories.

Distortion plug-ins

This section contains descriptions of the plug-ins in the “Distortion” category.
DaTube
This effect emulates the characteristic warm, lush sound of a tube amplifier.
The parameters are as follows:
Parameter Description
Drive Regulates the pre-gain of the “amplifier”. Use high values
Balance This controls the balance between the signal processed
Output Adjusts the post-gain, or output level, of the “amplifier”.
if you want an overdriven sound just on the verge of dis­tortion.
by the Drive parameter and the dry input signal. For max­imum drive effect, set this to its highest value.
26
The included effect plug-ins

Dynamics plug-ins

This section contains descriptions of the plug-ins in the “Dynamics” category.
MIDI Gate
Gating, in its fundamental form, silences audio signals be­low a certain set threshold level. That means, when a sig­nal rises above the set level, the Gate opens to let the signal through while signals below the set level are cut off. MIDI Gate however, is a Gate effect that is not triggered by threshold levels, but instead by MIDI notes. Hence it needs both audio and MIDI data to function.
Setting up
MIDI Gate requires both an audio signal and a MIDI input to function.
To set it up, proceed as follows:
1. Select the audio to be affected by the MIDI Gate.
This can be audio material from any audio track, or even a live audio input (provided you have a low latency audio card).
2. Select the MIDI Gate as an insert effect for the audio
track.
The MIDI Gate control panel opens.
3. Select a MIDI track to control the MIDI Gate.
This can be an empty MIDI track, or a MIDI track containing data, it doesn’t matter. However, if you wish to play the MIDI Gate in real-time – as opposed to having a recorded part playing it – the track has to be selected for the effect to receive the MIDI output.
4. Open the Output Routing pop-up menu for the MIDI
track and select the MIDI Gate option.
The MIDI Output from the track is now routed to the MIDI Gate.
What to do next depends on whether you are using live or recorded audio and whether you are using real-time or re­corded MIDI. We will assume for the purposes of this manual that you are using recorded audio, and play the MIDI in real-time.
Make sure the MIDI track is selected and start playback.
5. Now play a few notes on your MIDI keyboard.
As you can hear, the audio track material is affected by what you play on your MIDI keyboard.
The following MIDI Gate parameters are available:
Parameter Description
Attack This is used for determining how long it should take for
Hold Regulates how long the Gate remains open after a Note
Release This determines how long it takes for the Gate to close
Note To Attack The value you specify here determines to which extent
Note To Release The value you specify here determines to which extent
Velocity To VCA This controls to which extent the velocity values of the
Hold Mode Use this switch to set the Hold Mode. In Note-On mode,
the Gate to open after receiving a signal that triggers it.
On or Note Off message (see Hold Mode below).
(in addition to the value set with the Hold parameter).
the velocity values of the MIDI notes should affect the At­tack. The higher the value, the more the Attack time will increase with high note velocities. Negative values will give shorter Attack times with high velocities. If you do not wish to use this parameter, set it to the 0 position.
the velocity values of the MIDI notes should affect the Re­lease. The higher the value, the more the Release time will increase. If you do not wish to use this parameter, set it to the 0 position.
MIDI notes determine the output volume. A value of 127 means that the volume is controlled entirely by the veloc­ity values, while a value of 0 means that velocities will have no effect on the volume.
the Gate will only remain open for the time set with the Hold and Release parameters, regardless of the length of the MIDI note that triggered the Gate. In Note-Off mode on the other hand, the Gate will remain open for as long as the MIDI note plays, and then apply the Hold and Re­lease parameters.
27
The included effect plug-ins

Filter plug-ins

This section contains descriptions of the plug-ins in the “Filter” category.
StepFilter
StepFilter is a pattern-controlled multimode filter that can create rhythmic, pulsating filter effects.
The horizontal axis shows the pattern steps 1–16 from left to right, and the vertical axis determines the (relative) filter cutoff frequency and resonance setting.
The higher up on the vertical axis a step value is entered, the higher the relative filter cutoff frequency or filter resonance setting.
By starting playback and editing the patterns for the cutoff and resonance parameters, you can hear how your filter patterns affect the sound source connected to Step­Filter directly.
Selecting new patterns
Created patterns are saved with the project, and up to 8 different cutoff and resonance patterns can be saved in­ternally.
Both the cutoff and resonance patterns are saved together in the 8 Pat­tern memories.
To select new patterns you use the pattern selector.
New patterns are all set to the same step value by default.
General operation
StepFilter can produce two simultaneous 16-step pat­terns for the filter cutoff and resonance parameters, syn­chronized to the sequencer tempo.
Setting step values
Setting step values is done by clicking in the pattern
grid windows.
Individual step entries can be freely dragged up or
down the vertical axis, or directly set by clicking in an empty grid box. By click-dragging left or right, consecutive step entries will be set to the pointer position.
Setting filter cutoff values in the grid window.
The included effect plug-ins
Pattern Selector
Using pattern copy and paste to create variations
You can use the Copy and Paste buttons below the pat­tern selector to copy a pattern to another pattern memory location, which is useful for creating variations on a pat­tern.
Select the pattern you wish to copy, click the Copy but­ton, select another pattern memory location and click Paste.
The pattern is copied to the new location, and can now be edited to cre­ate variations using the original pattern as a starting point.
28
StepFilter parameters
Parameter/ Value
Base Cutoff This sets the base filter cutoff frequency. Cutoff values
Base Resonance
Glide This will apply glide between the pattern step values,
Filter Mode This slider selects between lowpass (LP), bandpass (BP)
Sync 1/1 to 1/32 (Straight, Triplet or Dotted)
Output Sets the overall volume.
Mix Adjusts the mix between dry and processed signal.
Description
set in the Cutoff grid window are values relative to the Base Cutoff value.
This sets the base filter resonance. Resonance values set in the Resonance grid window are values relative to the Base Resonance value. Note that very high Base Reso­nance settings can produce loud ringing effects at cer­tain frequencies.
causing values to change more smoothly.
or highpass (HP) filter modes (from left to right respec­tively).
This sets the pattern beat resolution, i.e. what note values the pattern will play in relation to the tempo.

Modulation plug-ins

This section contains descriptions of the plug-ins in the “Modulation” category.

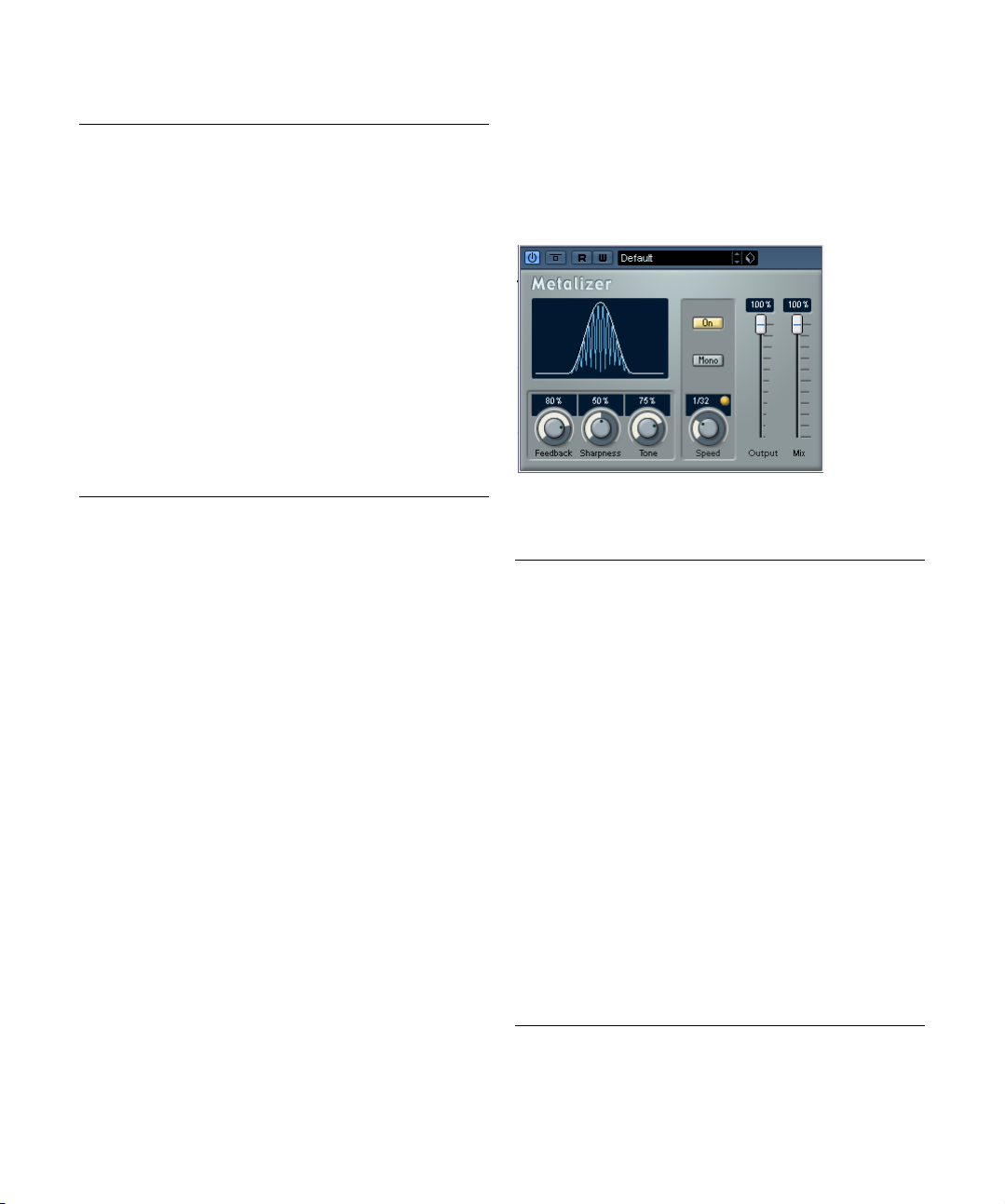

Metalizer
The Metalizer feeds the audio signal through a variable frequency filter, with tempo sync or time modulation and feedback control.
Parameter Description
Feedback The higher the value, the more “metallic” the sound.
Sharpness Governs the character of the filter effect. The higher the
Tone Governs the feedback frequency. The effect of this will
On button Turns filter modulation on and off. When turned off, the
Mono button When this is on, the output of the Metalizer will be in
Speed If tempo sync is on, this is where you specify the base
Tempo sync on/off
Output Sets the overall volume.
Mix Sets the level balance between the dry signal and the ef-
value, the narrower the affected frequency area, produc­ing sharper sound and a more pronounced effect.
be more noticeable with high Feedback settings.
Metalizer will work as a static filter.
mono.
note value for tempo-syncing the effect (1/1 to 1/32, straight, triplet or dotted). Note that there is no note value modifier for this effect. If tempo sync is off, the modulation speed can be set freely with the Speed knob, without sync to tempo.
The button above the Speed knob is used to switch tempo sync on or off. The button is lit when tempo sync is on.
fect. If Metalizer is used as a send effect, this should be set to maximum as you can control the dry/effect balance with the send.
29
The included effect plug-ins

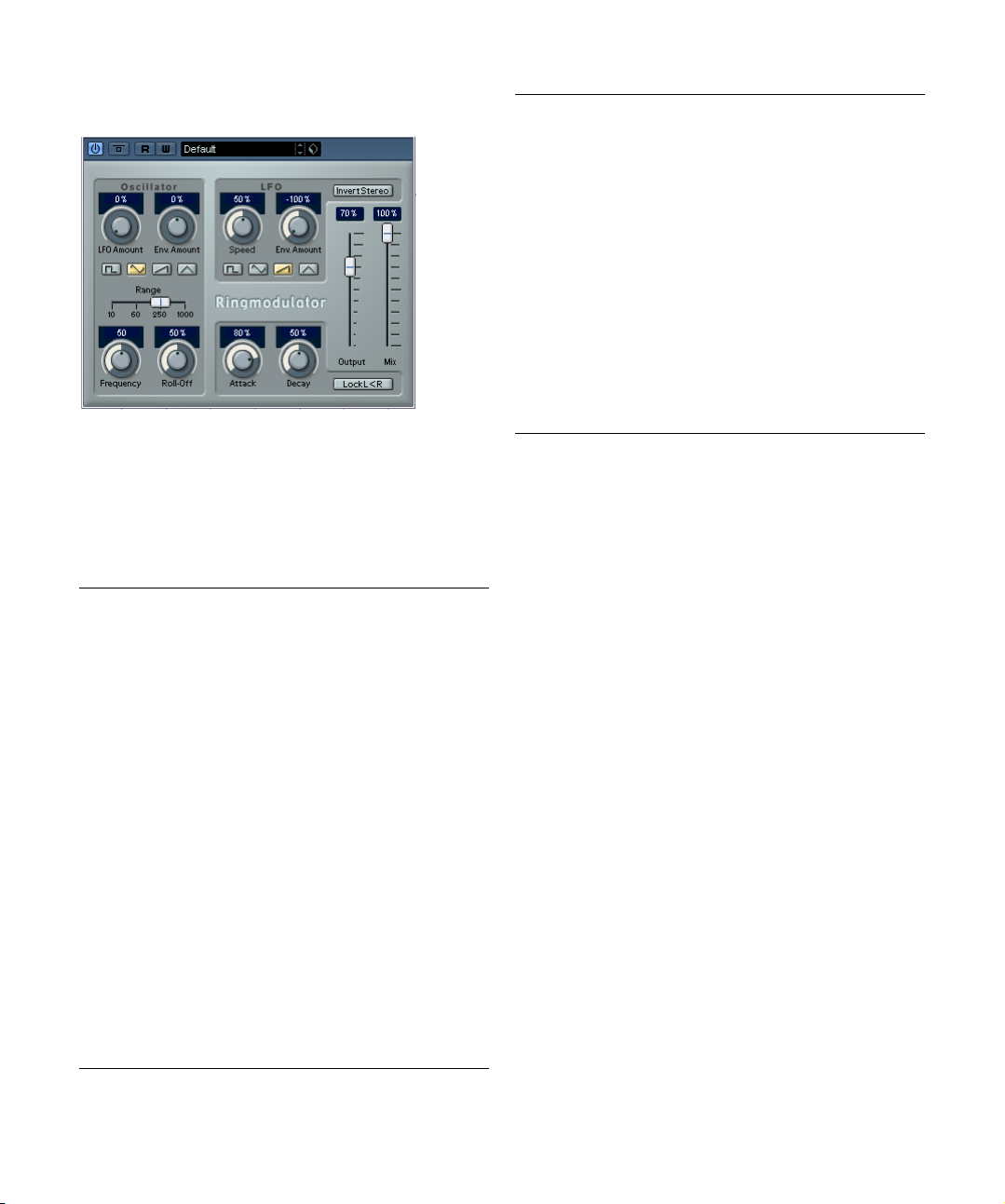

Ringmodulator
The Ringmodulator can produce complex, bell-like enhar­monic sounds. Ring modulators work by multiplying two audio signals. The ring modulated output contains added frequencies generated by the sum of, and the difference between, the frequencies of the two signals.
The Ringmodulator has a built-in oscillator that is multi­plied with the input signal to produce the effect.
Parameter Description
Oscillator LFO Amount
Oscillator Env. Amount
Oscillator Wave Selects the oscillator waveform; square, sine, saw or tri-
Oscillator Range Determines the frequency range of the oscillator in Hz.
Oscillator Frequency
Oscillator Roll­Off
LFO Speed Sets the LFO Speed.
LFO Env. Amount
LFO Waveform Selects the LFO waveform; square, sine, saw or triangle.
Controls how much the oscillator frequency is affected by the LFO.
Controls how much the oscillator frequency is affected by the envelope (which is triggered by the input signal). Positive and negative values can be set, with center posi­tion representing no modulation. Left of center, a loud in­put signal will decrease the oscillator pitch, whereas right of center the oscillator pitch will increase when fed a loud input.
angle.
Sets the oscillator frequency +/- 2 octaves within the se­lected range.
Cuts high frequencies in the oscillator waveform, to soften the overall sound. This is best used when harmon­ically rich waveforms are selected (e.g. square or saw).
Controls how much the input signal level – via the enve­lope generator – affects the LFO speed. Positive and negative values can be set, with center position repre­senting no modulation. Left of center, a loud input signal will slow down the LFO, whereas right of center a loud in­put signal will speed it up.
Parameter Description
Invert Stereo This inverts the LFO waveform for the right channel of the
Envelope Gener­ator (Attack and Decay dials)
Lock L<R When this button is enabled, the L and R input signals
Output Sets the overall volume.
Mix Adjusts the mix between dry and processed signal.
oscillator, which produces a wider stereo perspective for the modulation.
The Envelope Generator section controls how the input signal is converted to envelope data, which can then be used to control oscillator pitch and LFO speed. It has two main controls: Attack sets how fast the envelope output level rises in re­sponse to a rising input signal. Decay controls how fast the envelope output level falls in response to a falling input signal.
are merged, and produce the same envelope output level for both oscillator channels. When disabled, each chan­nel has its own envelope, which affects the two channels of the oscillator independently.
30
The included effect plug-ins

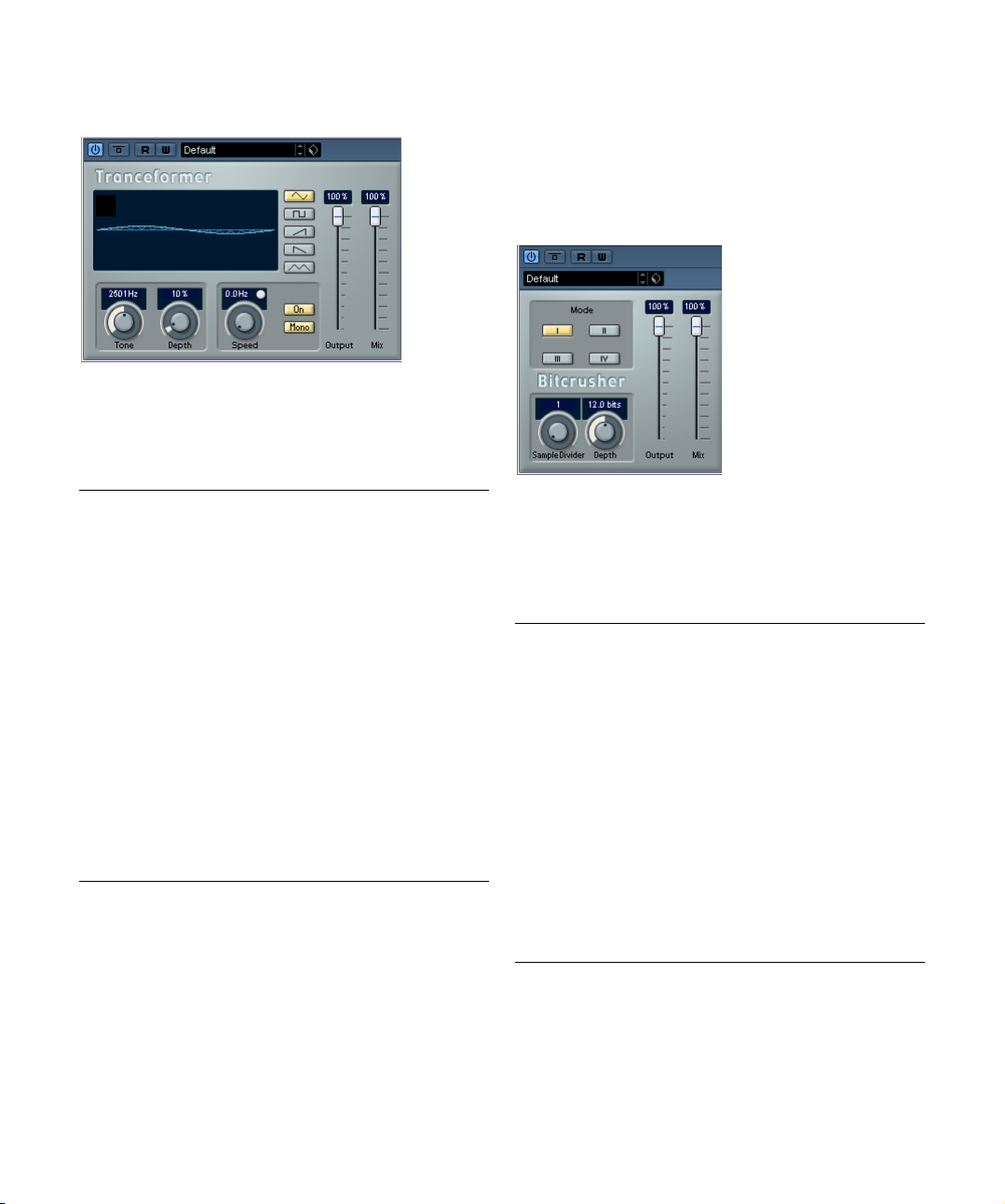

Tranceformer
Tranceformer is a ring modulator effect, in which the in­coming audio is ring modulated by an internal, variable fre­quency oscillator, producing new harmonics. A second oscillator can be used to modulate the frequency of the first oscillator, in sync with the Song tempo if needed.
Parameter Description
Waveform buttons
Tone Sets the frequency (pitch) of the modulating oscillator
Depth Governs the depth of the pitch modulation.
Speed If tempo sync is on, this is where you specify the base
Tempo sync on/off
On button Turns modulation of the pitch parameter on or off.
Mono button Governs whether the output will be stereo or mono.
Output Adjusts the output level of the effect.
Mix Sets the level balance between the dry signal and the ef-
Ö Note that clicking and dragging in the display allows you to adjust the Tone and Depth parameters at the same time!
Sets the pitch modulation waveform.
(1 to 5000 Hz).
note value for tempo-syncing the effect (1/1 to 1/32, straight, triplet or dotted). Note that there is no note value modifier for this effect. If tempo sync is off, the modula­tion speed can be set freely with the Speed knob, without sync to tempo.
The button above the Speed knob is used to switch tempo sync on or off. The button is lit when tempo sync is on.
fect.

Other plug-ins

This section contains descriptions of the plug-ins in the “Other” category.
Bitcrusher
If you’re into lo-fi sound, Bitcrusher is the effect for you. It offers the possibility of decimating and truncating the in­put audio signal by bit reduction, to get a noisy, distorted sound. You can for example make a 24 bit audio signal sound like an 8 or 4 bit signal, or even render it completely garbled and unrecognizable. The parameters are:
Parameter Description
Mode Select one of four operating modes for the Bitcrusher.
Sample Divider This sets the amount by which the audio samples are
Depth Use this to set the desired bit resolution. A setting of 24
Output Governs the output level from the Bitcrusher. Drag the
Mix This slider regulates the balance between the output
Each mode will produce a result sounding a bit different. Modes I and III are nastier and noisier, while modes II and IV are more subtle.
decimated. At the highest setting (65), nearly all of the in­formation describing the original audio signal will be elim­inated, turning the signal into unrecognizable noise.
gives the highest audio quality, while a setting of 1 will create mostly noise.
slider upwards to increase the level.
from the Bitcrusher and the original audio signal. Drag the slider upwards for a more dominant effect, and drag it downwards if you want the original signal to be more prominent.
31
The included effect plug-ins
Chopper
Chopper is a combined tremolo and autopan effect. It can use different waveforms to modulate the level (tremolo) or left-right stereo position (pan), either using tempo sync or manual modulation speed settings. The parameters are as follows:
Parameter Description
Waveform buttons
Depth Sets the depth of the Chopper effect. This can also be
Speed If tempo sync is on, this is where you specify the base
Tempo sync on/off
Stereo/Mono button
Mix Sets the level balance between the dry signal and the ef-
Sets the modulation waveform.
set by clicking in the graphic display.
note value for tempo-syncing the effect (1/1 to 1/32, straight, triplet or dotted). Note that there is no note value modifier for this effect. If tempo sync is off, the tremolo/auto-pan speed can be set freely with the Speed knob, without sync to tempo.
The button above the Speed knob is used to switch tempo sync on (the button lights up) or off.
Determines whether the Chopper will work as an auto­panner (button set to “Stereo”) or a tremolo effect (but­ton set to “Mono”).
fect. If Chopper is used as a send effect, this should be set to maximum.

Restoration plug-ins

This section contains descriptions of the plug-ins in the “Restoration” category.
Grungelizer
The Grungelizer adds noise and static to your recordings – kind of like listening to a radio with bad reception, or a worn and scratched vinyl record. The available parameters are as follows:
Parameter Description
Crackle This adds crackle to create that old vinyl record sound.
RPM switch When emulating the sound of a vinyl record, this switch
Noise This dial regulates the amount of static noise added.
Distort Use this dial to add distortion.
EQ Turn this dial to the right to cut off the low frequencies,
AC This emulates a constant, low hum of AC current.
Frequency switch
Timeline This dial regulates the amount of overall effect. The far-
The farther to the right you turn the dial, the more crackle is added.
lets you set the RPM (revolutions per minute) speed of the record (33/45/78 RPM).
and create a more hollow, lo-fi sound.
This sets the frequency of the AC current (50 or 60Hz), and thus the pitch of the AC hum.
ther to the right (1900) you turn this dial, the more notice­able the effect.
32
The included effect plug-ins
3

HALionOne

Introduction

Parameter Description
DCA Release Controls the DCA signal after a key is released.
DCA Amount Controls the amount of the DCA (amplifier) envelope.
As stated earlier, other parameters may be shown; these will be clearly labelled on the panel. Most of the presets make use of effects – usually, the effect parameters are associated with the quick controls on the right of the panel and typically control the dry/wet mix of the effect.
HALionOne is a sample player that can play sound content in the *.hsb (HALion Sound Bank) format. These samples have associated preset files that store the panel settings and reference the HSB samples. Included are several pre­sets (as *.vstpreset files).
The operation of HALionOne is very simple; load a preset and start playing! You also can tweak the basic parame­ters to tailor the sound to your liking.

HALionOne parameters

The HALionOne panel parameters shown can vary ac­cording to which parameters are stored in the HSB file. HSB files cannot be created with HALionOne – you need the full version of HALion to do this – but when created, certain parameters are assigned as part of the file and the associated preset. This means that for each preset, only these assigned parameters are shown on the instrument panel. Typically, these are filter cutoff, DCA and DCF pa­rameters and any assigned effect parameters (the effects are “built in”).
If you load HALionOne for an Instrument track and don’t select a preset, the following main parameters are shown:
Parameter Description
Cutoff This allows you to adjust filter frequency or cutoff. The fil-
Resonance Raising the filter resonance value will emphasize the fre-
DCF Amount Controls the amount of the DCF (filter) envelope.
DCA Attack Controls the time it takes for the DCA signal to reach its
DCA Decay Controls the time it takes the DCA signal to decay to the
DCA Sustain Controls the DCA signal level after the Decay phase, as
ter used is a Waldorf Low Pass filter with a 24 dB slope.
quencies around the set filter frequency.
highest level.
sustain level.
long as you press the key on your MIDI keyboard.
Effects Bypass
This button, located at the bottom right in the box dis­playing the preset name, allows you to bypass any effects.
The blue LED beside the button is lit if any effects are used in the preset.
Efficiency slider
The Efficiency slider provides a way of balancing audio quality vs. conservation of computer power. The lower the setting, the more voices are available. As a trade-off, sound quality is reduced.
Voices allocated
The Voices field dynamically displays the number of voices currently used.
MIDI and Disk activity LEDs
The MIDI activity LED indicates received MIDI input. The Disk LED will light up green when samples are streamed from disk, and red when samples cannot be loaded from disk in time. In such a case you should consider lowering the Efficiency slider. When the disk LED doesn’t light up during playback, there is no disk activity, i.e. samples are read from memory.
Locate Contents
If you have moved the HALionOne content files to a differ­ent location (i.e. any other location than the folder in which it was stored during the installation), you need to use the Locate Contents function to inform HALion One about where to find its files. This is done as follows:
Right-click anywhere on the control panel and select “Locate contents”.
A file dialog opens where you can navigate to the folder location.
34
HALionOne

Index

A
Audio effects
About 6 Editing 12 For output busses (Master inserts) 8 Inserts 7 Organizing in subfolders 16 Post-fader inserts 7 Pre/Post fader sends 11 Saving 14 Selecting Presets 13 Sends 10 Tempo sync 6
AutoPan 22
B
Bitcrusher 31 Bypass
Effect sends 11 Insert effects 8
C
Channel Overview
Insert effects 8 Chopper 32 Chorus 22
D
DaTube 26 Delay compensation
About 6 Disable inserts 8 Disable sends 11 Distortion 19 DualFilter 21
E
Effect Return channels 12 Effects
AutoPan 22
Chorus 22
Distortion 19
DualFilter 21 Effects, see “Audio effects”
F
Flanger 23 FX channel tracks
About 9 Adding effects for 10 Routing sends to 10 Setting up 9 Soloing 12
G
Group channel tracks
Using effects 9
Grungelizer 32
H
HALionOne
About 34 Parameters 34
I
Insert effects
About 7
M
Metalizer 29 MIDI Gate 27 MonoToStereo 25 Mute Pre-Send when Mute 11
P
Phaser 23 PingPongDelay 19 Plug-in delay compensation 6 Plug-in Information window
About 17
Plug-ins
Getting info 17 Installing VST 2.x 16 Organizing 16
Pre fader sends 11
R
Ringmodulator 30 RoomWorks SE 26 Rotary 24 Routing
Effect sends 11
S
Send effects 9 Solo Defeat 12 StepFilter 28
T
Tranceformer 31 Tremolo 24
V
VST Instruments
HALionOne 34
VST plug-ins
Getting info 17 Installing 16
VSTDynamics 20
36
Index
Loading...
