798 Series
IP67 Electronic
Caliper
USER'S GUIDE

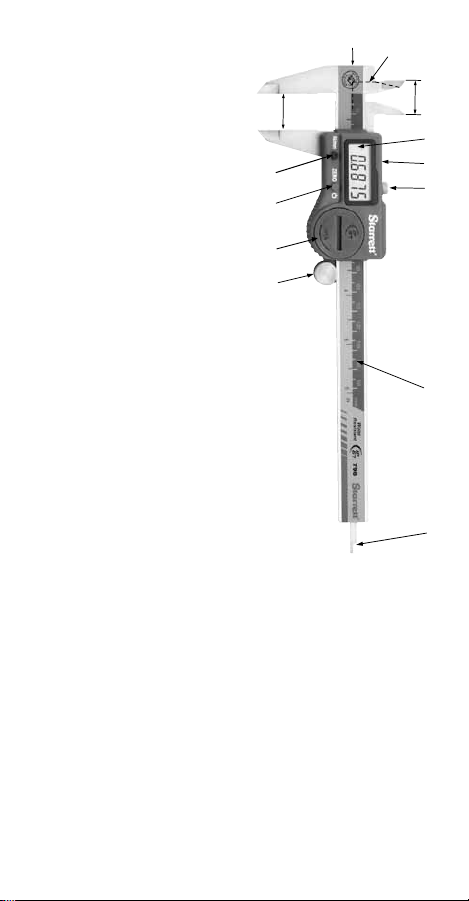

INTRODUCTION
Starrett 798B Electronic Calipers can output measurement data to a variety of peripherals with either a Starrett
DataSure
®
Wireless Data Collection System End Node or
cable.
The 798A version of this tool the same features as the
7987B without output capability.
FEATURES
• Large, easy to read LCD, .310" high characters
• Induction type linear encoder system
• Heavy-duty bar and slide, 3.5mm thick
• Hardened stainless steel measuring surfaces for long life
• Fine adjustment
• Slide lock
• Accuracy meets DIN862
• Zero at any position
• Automatic shut off of display after 30 minutes of non-use
• Reactivation of display with movement of slide with no
loss of position
• 6" (150mm), 8" (200mm) and 12" (300mm) sizes
2
BATTERY INSTALLATION
The caliper comes with one CR2032 lithium battery, not
installed. To change or install a new battery refer to Figure
1.

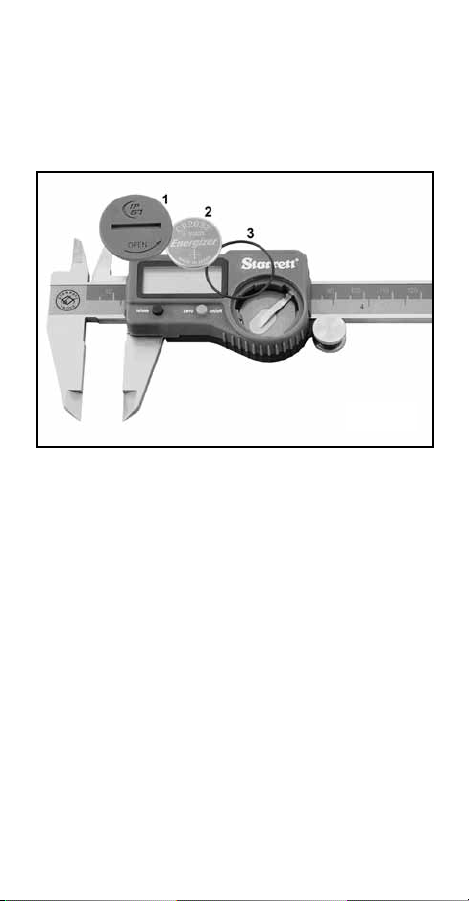

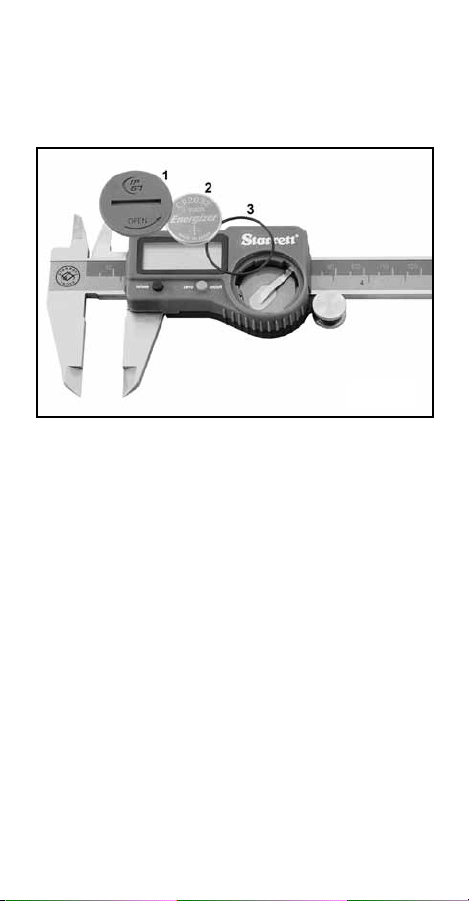

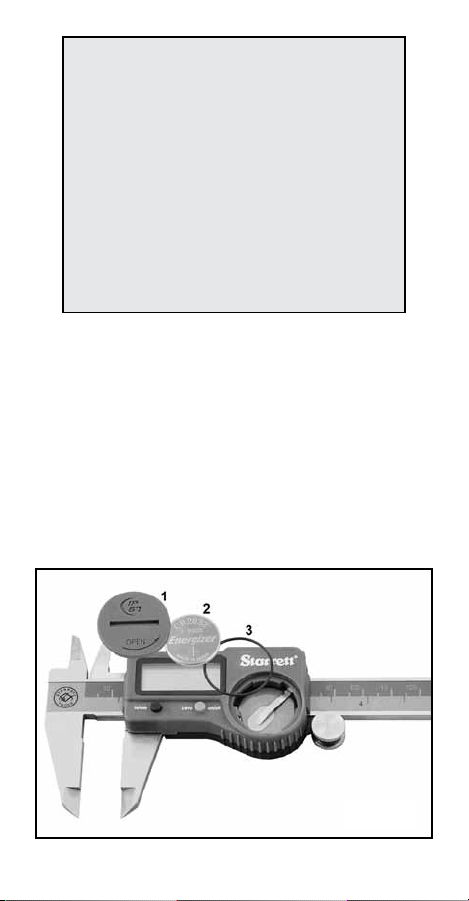

Fig. 1
First, unscrew and remove the battery cover (1) by turning
it to the left ¼ turn. Remove the old battery. Next, position
the rubber “O” ring (3) correctly in the bottom of the battery
compartment before inserting the new battery (2) negative
side (-) down. Then, re-install the battery cover (1) and lock
it into position by giving it a ¼ turn to the right.
(Note: If the display shows "Err0" after reinstalling the
battery, press the "zero on/off" button to return the tool to
its normal operation.)
3
OPERATING INSTRUCTIONS
Automatic OFF
The caliper will turn off (the display will go blank) after 30
minutes of no slide movement or press of a button. A one
second push of either the “in/mm or “zero on/off” button will
reactivate the display. Any movement of the slide will also
activate the display with no loss of position.
In/mm Button
The caliper can be changed from inch mode to millimeter
mode, or the reverse, with a two second push of this
button. When an RS-232 cable is installed in the output
slot of the 798B, the in/mm function is disabled and the
button becomes a send button.
A one-second push of this button will also active the display
with no loss of position.
Zero On/Off Button
If the display is off, a quick push of this button will activate
the display. A one second press of the same button will
also zero the tool at any position of the slide. A three
second push of the button will shut the display off.
Output (798B only)
798B calipers include an output port that allows data
transmission to computers or printers using the appropriate
Starrett cable/adapter or Starrett DataSure® wireless
interface. The output command is controlled by the in/mm
button. 798A models do not include output.
Low Battery Indication
A battery symbol in the lower left corner of the display will
light when the battery is getting weak indicating the battery
should be changed. To replace the battery, follow the
instructions listed under “Installation of Battery”.
4
Care and Maintenance
It is important to wipe the caliper with a lint-free cloth after
exposure to moisture. Apply a very light coat of lubricant
on all the mechanical parts. Do not use aggressive solvents to clean the plastic components. Do not store the
instrument in areas of extreme temperature.
SPECIFICATIONS
Dust/ Water Protection:
IP67 according to IEC529
• The first number “6” identifies protection against
complete ingress of dust.
• The second number “7” identifies protection against
the ingress of water when submerged 1 meter deep for
30 minutes.
Ranges:
0-6"/0-150mm
0-8"/0-200mm
0-12"/0-300mm
Resolution:
0.0005"/0.01mm
*Accuracy:
±0.001"/0.02mm
(≤4"/100mm)
±0.001"/0.03mm
(>4"/100mm)
* Meets the accuracy
requirements of DIN 862
Auto Shutdown:
30 minutes of non-use
Operational Temp.:
+41º-104ºF(+5º-+40ºC)
Data Output
(798B only): Patented
non-contact USB cable
Battery:
Lithium Coin Cell 3V CR2032 or Equivalent
Battery Life:
>3500 hours continuous
use
5
Serie 798
Calibre electrónico IP67
GUÍA DEL USUARIO
INTRODUCCIÓN
Los calibres electrónicos 798B de Starrett ofrecen la capacidad de transmitir los resultados a una variedad de periféricos, utilizando el nodo extremo de recolección inalámbrica
de datos DataSure® de Starrett o un cable tradicional.
La versión 798A de esta herramienta cuenta con las
mismas características que el modelo 798B sin la
capacidad de salida del instrumento.
CARACTERÍSTICAS
• LCD de gran tamaño y fácil lectura con caracteres de 79
mm de altura
• Sistema de codificación lineal de tipo inducción
• Barra y corredera de alta resistencia y 3,5 mm de grosor
• Superficies de medición de acero inoxidable reforzado
para una vida prolongada
• Ajuste preciso
• Bloqueo de corredera
• Precisión conforme a la norma DIN862
• Ajuste a cero en cualquier posición
• Apagado automático de la pantalla tras 30 minutos sin
6
