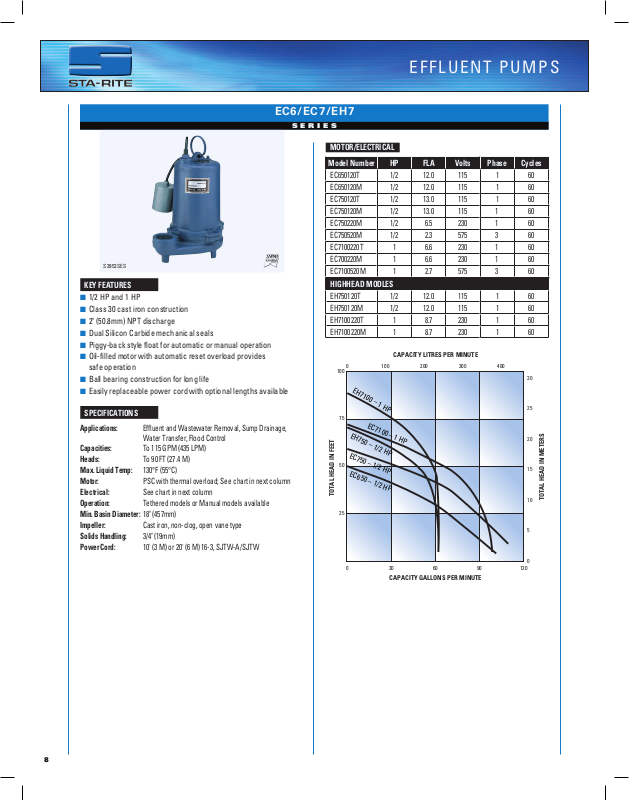

Sta-Rite EC700220M User Manual

S3953SES

KEY FEATURES

n

1/2 HP and 1 HP

n

Class 30 cast iron construction

n

2" (50.8mm) NPT discharge

n

Dual Silicon Carbide mechanical seals

n

Piggy-back style float for automatic or manual operation

n

Oil-filled motor with automatic reset overload provides

safe operation

n

Ball bearing construction for long life

n

Easily replaceable power cord with optional lengths available

EC 6/ EC 7/ EH 7

S E R I E S

MOTOR/ELECTRICAL

Model Number HP FLA Volts Phase Cycles

EC650120T 1/2 12.0 115 1 60
EC650120M 1/2 12.0 115 1 60
EC750120T 1/2 13.0 115 1 60
EC750120M 1/2 13.0 115 1 60
EC750220M 1/2 6.5 230 1 60
EC750520M 1/2 2.3 575 3 60
EC7100220T 1 6.6 230 1 60
EC700220M 1 6.6 230 1 60
EC7100520M 1 2.7 575 3 60

HIGHHEAD MODLES

EH750120T 1/2 12.0 115 1 60
EH750120M 1/2 12.0 115 1 60
EH7100220T 1 8.7 230 1 60
EH7100220M 1 8.7 230 1 60

0 100 200 300 400

100

EF FL UE NT P UM PS

CAPACITY LITRES PER MINUTE

30

EH7100 – 1 HP

SPECIFICATIONS

Applications: Effluent and Wastewater Removal, Sump Drainage,

Water Transfer, Flood Control

Capacities: To 115 GPM (435 LPM)
Heads: To 90 FT (27.4 M)
Max. Liquid Temp: 130°F (55°C)
Motor: PSC with thermal overload; See chart in next column
Electrical: See chart in next column
Operation: Tethered models or Manual models available
Min. Basin Diameter: 18" (457mm)
Impeller: Cast iron, non-clog, open vane type
Solids Handling: 3/4" (19mm)
Power Cord: 10' (3 M) or 20' (6 M) 16-3, SJTW-A/SJTW

75

EC7100 – 1 HP

EH750

–

1/2 HP

EC750 – 1/2 HP

50

EC650 – 1/2 HP

TOTAL HEAD IN FEET

25

0 30 60 90 120

CAPACITY GALLONS PER MINUTE

25

20

15

TOTAL HEAD IN METERS

10

5

0
