Stanford Research Systems SIM900 Operator Manual

Operation and Service Manual

Stanford Research Systems

Mainframe

SIM900

Revision 1.51 • July 19, 2005

Certification

Stanford Research Systems certifies that this product met its published specifications at the time
of shipment.

Warranty

This Stanford Research Systems product is warranted against defects in materials and workman­ship for a period of one (1) year from the date of shipment.

Service

For warranty service or repair, this product must be returned to a Stanford Research Systems
authorized service facility. Contact Stanford Research Systems or an authorized representative
before returning this product for repair.

Information in this document is subject to change without notice.

Copyrightc Stanford Research Systems, Inc., 2003 – 2005. All rights reserved.

Stanford Research Systems, Inc.
1290–D Reamwood Avenue
Sunnyvale, CA 94089 USA
Phone: [phone] • Fax: [phone]

www.thinkSRS.com • e-mail: [e-mail]

Printed in U.S.A.

SIM900 Mainframe

Contents

General Information iii

Safety and Preparation for Use . . . . . . . . . . . . . . . . iii

Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv

Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . vi

1 Operation 1 – 1

1.1 Introduction to the Instrument . . . . . . . . . . . . . 1 – 2

1.2 Getting Started . . . . . . . . . . . . . . . . . . . . . . 1 –3

1.3 Timebase . . . . . . . . . . . . . . . . . . . . . . . . . . 1 – 4

1.4 Configuration Switches . . . . . . . . . . . . . . . . . . 1–4

1.5 Activity Monitors . . . . . . . . . . . . . . . . . . . . . 1 – 6

1.6 SIM Interface Connector . . . . . . . . . . . . . . . . . 1 – 6

2 Remote Programming 2 – 1

2.1 Index of Commands . . . . . . . . . . . . . . . . . . . 2 – 2

2.2 Alphabetic List of Commands . . . . . . . . . . . . . . 2– 5

2.3 Introduction . . . . . . . . . . . . . . . . . . . . . . . . 2 – 9

2.4 Port Communications . . . . . . . . . . . . . . . . . . 2–10

2.5 Commands . . . . . . . . . . . . . . . . . . . . . . . . . 2 – 12

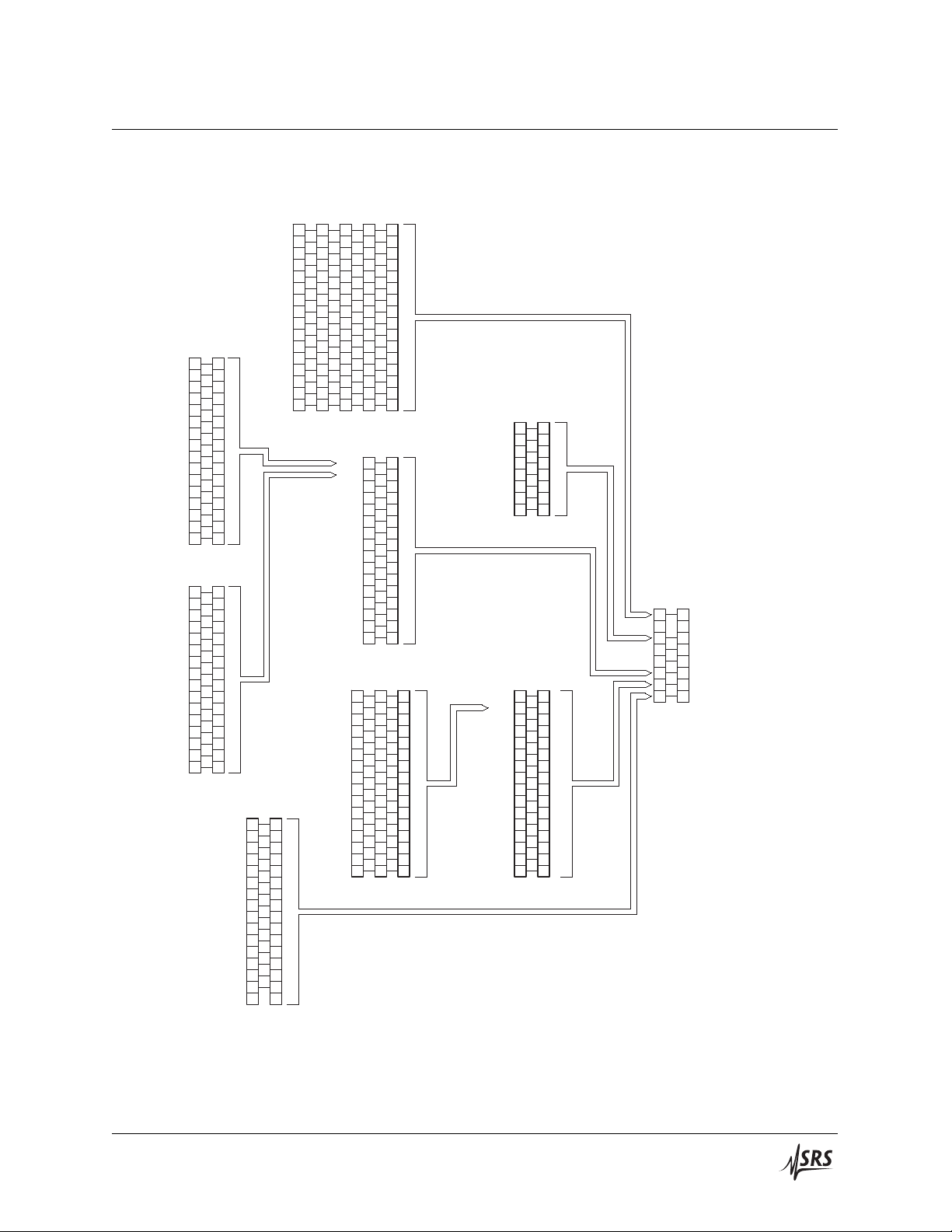

2.6 Register Model . . . . . . . . . . . . . . . . . . . . . . 2 –41

3 Communications Examples 3 – 1

3.1 Introduction to Communications . . . . . . . . . . . . 3 – 2

3.2 Streaming Example . . . . . . . . . . . . . . . . . . . . 3–4

3.3 Message-Based Example . . . . . . . . . . . . . . . . . 3 – 8

3.4 Combination Example . . . . . . . . . . . . . . . . . . 3 –16

4 Circuitry 4 – 1

4.1 Circuit Descriptions . . . . . . . . . . . . . . . . . . . . 4–2

4.2 Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . 4 – 6

4.3 Schematic Diagrams . . . . . . . . . . . . . . . . . . . 4 – 8

i

ii Contents

SIM900 Mainframe

General Information

Safety and Preparation for Use

Dangerous voltages, capable of causing injury or death, are
present in this instrument. Use extreme caution whenever theWARNING!
instrument covers are removed. Do not remove the covers while
the unit is plugged into a live outlet.

Line Voltage

The universal input power supply of the SIM900 accommodates any
voltage in the range 90 VAC to 260 VAC, with a frequencyin the range
47 Hz to 63 Hz.

Line Fuse

The line fuse is internal to the SIM900 and may not be serviced by
the user. If the Standby LED does not turn on when line power is
provided, contact Stanford Research Systems.

Line Cord

Service

The SIM900 has a detachable, three-wire power cord for connection
to the power source and to a protective ground. The exposed metal
parts of the instrument are connected to the outlet ground to protect
against electrical shock. Always use an outlet which has a properly
connected protective ground.

Do not attempt to service or adjust this instrument unless another
person, capable of providing first aid or resuscitation, is present.

Do not install substitute parts or perform any unauthorized modi­fications to this instrument. Contact the factory for instructions on
how to return the instrument for authorized service and adjustment.

The SIM900 Mainframe is not intended for hot-swapping applica­tions. Be certain to switch power to Standby before inserting or
ejecting modules in the mainframe. Do not connect a module to the
remote port while power is on.

iii

iv General Information

Symbol Description

Alternating current

Caution - risk of electric shock

Frame or chassis terminal

Caution - refer to accompanying documents

Earth (ground) terminal

Battery

Fuse

On (supply)

Off (supply)

Symbols you may Find on SRS Products

SIM900 Mainframe

General Information v

Notation

The following notation will be used throughout this manual:

• Front-panel indicators are set as Overload.

• Remote command names are set as *IDN?.

• Literal text other than command names is set as OFF.

Remote command examples will all be set in monospaced font. In
these examples, data sent by the host computer to the SIM900 are
set as straight teletype font, while responses received by the
host computer from the SIM900 are set as slanted teletype font.
Command terminators explicitly sent by the host computer are set

with the symbol “”.

SIM900 Mainframe

vi General Information

Specifications

Performance Characteristics

Power Supplies Voltages ±15 VDC, ±5 VDC, +24 VDC

Regulation ±0.5 % (±15 V, ±5 V)

±2 % (+24 V)

Current limits 5 A max (+5 V)

3 A max (all others)

Power limit 70 W total, all voltages

Timebase Internal timebase 10 MHz VCXO, ±10 ppm

External connector Rear panel BNC

External input 10 MHz, 1 V to 5 V pp
Capture range ±50 ppm (±500 Hz)

Interfaces SIM ports 8 internal + 1 Remote

DB–15 (female)

Aux. RS-232 2; DB–9 (male) DTE

Host interface RS-232; DB–9 (female) DCE

GPIB (optional)

Eavesdrop RS-232; DB–9 (female) DCE

Indicator Lights Interface RS-232, GPIB

Operating Temperature 0◦C to 40◦C, non-condensing

General Characteristics

Timebase Internal, External Lock, External Fault

Activity 8 slots, Remote SIM,

Aux A, Aux B,
Mainframe, Data Send,
Data Receive, Data Error

Startup Script Enabled

Power On, Standby, Overload, Trip

Power 90 VAC to 260 VAC, 47 Hz to 63 Hz

150 W max

Weight 12.6 lbs

Dimensions 17.000W × 5.300H × 9.000D

Rack mount O900RM (optional)

SIM900 Mainframe

1 Operation

In This Chapter

This chapter describes the operation of the SIM900 Mainframe.

1.1 Introduction to the Instrument . . . . . . . . . . . . 1 – 2

1.1.1 Front Panel . . . . . . . . . . . . . . . . . . . 1 – 2

1.1.2 Rear Panel . . . . . . . . . . . . . . . . . . . . 1 – 3

1.2 Getting Started . . . . . . . . . . . . . . . . . . . . . 1 – 3

1.3 Timebase . . . . . . . . . . . . . . . . . . . . . . . . . 1 – 4

1.4 Configuration Switches . . . . . . . . . . . . . . . . 1 – 4

1.4.1 Baud Rate/GPIB Address . . . . . . . . . . . 1 – 4

1.4.2 Host Select . . . . . . . . . . . . . . . . . . . . 1 – 5

1.4.3 Clock Distribution Enable . . . . . . . . . . . 1 – 5

1.4.4 Startup Script Enable . . . . . . . . . . . . . . 1 – 6

1.5 Activity Monitors . . . . . . . . . . . . . . . . . . . . 1 – 6

1.6 SIM Interface Connector . . . . . . . . . . . . . . . 1 – 6

1 – 1

1 – 2 Operation

1.1 Introduction to the Instrument

The SIM900 Mainframe is the platform on which a SIM system is
assembled. The mainframe provides power, computer interfaces,
clock synchronization, and individual module status.

1.1.1 Front Panel

The SIM900 front panel consists of a power switch and a collection
of indicator lamps (see Figures 1.1).

Figure 1.1: The SIM900.

Figure 1.2: The SIM900 rear panel (shown with a full complement of
SIM modules).

SIM900 Mainframe

1.2 Getting Started 1 – 3

1.1.2 Rear Panel

The SIM900 rear panel is shown in Figure 1.2. In addition to the
host interface connector(s) and power entry module, the rear panel
contains an external timebase reference input, auxiliary RS-232 inter­faces, and a window for access to SIM module rear panels.

1.2 Getting Started

The SIM architecture does not support hot insertion or extraction
of modules. Before installing or removing any SIM modules, the
mainframe power must be switched to “Standby.”

To install a module, align the back of the module with the black
guide-ramps in the mainframe slot. Ease the module in until the
connector begins to mate. Be careful to not apply pressure directly
on any module display; it is better to push along the upper part of
the edge of the module side covers until a positive “click” is heard.
At this time, the module will be fully mated and locked in place.

To remove a module, press firmly on the ejection button below the
module slot. When ejecting a double-wide module, the left-hand
button must be pressed to eject.

When the arrangement of desired SIM modules is installed, turn on
the mainframe power switch to begin operation.

SIM900 Mainframe

1 – 4 Operation

1.3 Timebase

The SIM900 Mainframe provides a common 10 MHz clock reference
to the SIM modules. By synchronizing clocks, low-frequency mix­ing products (beat tones) of independently running module clocks
is avoided. A common timebase also allows precision time and
frequency modules to be synchronized. This feature can be en­abled or disabled using the rear-panel configuration switches (see

section 1.4.3) or with the CLKD remote command.

In a laboratory employing multiple SIM900’s or where a high­precision clock reference is desired, this feature can be extended by
synchronizing the mainframe(s) to an external 10 MHz reference. An
auto-detect circuit senses the presence of an AC signal at the TIME­BASE IN connector on the rear panel, and attempts to phase-lock the
internal oscillator to the applied signal. The TIMEBASE block of the
SIM900 front panel (see Figure 1.3) indicates the clock status as one
of three states:

Internal 10 MHz : No signal is detected at the timebase input, and the SIM900

internal oscillator is being used.

External Lock : The SIM900 detected an external clock reference and success-

External Fault : An external clock signal was detected, but the SIM900 failed to

The phase-locked loop has a capture range of ±10 ppm (±100 Hz),
and should lock reliably with input signals of 1 V to 5 V peak-to­peak amplitude.

1.4 Configuration Switches

The rear panel DIP switches (see Figure 1.3) provide basic configura­tion of the SIM900 Mainframe host interface. The switches selecting
the remote interface are read only at power-up time, but may be
changed at any time.

1.4.1 Baud Rate/GPIB Address

The rightmost five (5) switches program either the default baud rate
for the “COMPUTER” RS-232 port, or the GPIB address.

The RS-232 default baud rate can be set to 1200, 9600, 19.2k, 57.6k, or

115.2k. Select one rate by setting that switch in the down position; if
no switch is selected or more than one is down, the SIM900 defaults
to 9600 baud and Error lights for several secondsafter power-up. The
host baud rate can be changed after power-up under remote program

fully phase-locked to it.

phase-lock to it.

SIM900 Mainframe

1.4 Configuration Switches 1 – 5

control (see the BAUD command), but will revert to the rear-panel

default after power cycling or a Device Clear (RS-232 hbreaki) signal.

For GPIB, the 5 switches set the binary-encoded bus address for the
SIM900. To add 2nto the address, set switch An in the lower position.

For example, to set the GPIB address to 19 (= 16 + 2 + 1) set switches
A0, A1, and A4 down (on).

1.4.2 Host Select

The next switch to the left of the Rate/Address field (position # 3)
selects the mainframe host interface: up selects RS-232, down selects
the (optional) GPIB interface.

1.4.3 Clock Distribution Enable

The next switch to theleft of the Host Select field(position #2) controls
the mainframe timebase distribution. When this switch is in the on
(down) position, the 10 MHz timebase is distributed to all 8 module
slots and the rear-panel Remote SIM port on pins 5 & 12. When the
switch is in the off (up) position, no clock signals are distributed, and
pins 5 & 12 on all SIM ports both idle at 0 V. In either case, all SIM
modules will continue to operate properly.

Figure 1.3: The SIM900 front and rear panels.

SIM900 Mainframe

1 – 6 Operation

Note that unlike the other DIP switch settings, the Clock Distribution
Enable switch is continuously monitored, and anychanges take effect

immediately (although they can be later overridden with the CLKD

remote command).

1.4.4 Startup Script Enable

The SIM900 has a 4000 byte non-volatile memory to store a se­quence of remotecommands to execute upon power-up (the “Startup
Script”). In order for a stored script to execute automatically after
power-up, the left-most switch must be in the on (down) position.

When the script is enabled and executed, the front-panel indicator
flashes and then remains lit.

See section 2.5.8 for the remote commands to configure the startup
script.

1.5 Activity Monitors

The ACTIVITY section of the front panel monitors data transfer to
and from the mainframe. When bytes are received from any port,
the corresponding port indicator (1–8, Remote SIM, Aux A (RS-232)
or Aux B (RS-232)) flashes together with From SIM. When the main­frame transmits data to the host interface, Mainframe and From SIM
both flash as well.

When data is received at the mainframe host interface or transmitted
to one of the ports, To SIM flashes, along with the corresponding
port indicator.

If a communication error is encountered, Error will flash briefly.

1.6 SIM Interface Connector

The DB–15 SIM Interface connector carries all the power and com­munications lines between the mainframe and SIM modules. The
module-side of the interface is DB–15 male (plug), while the main­frame side is DB–15 female (socket). The connector signals are spec­ified in Table 1.1

Note that all SIM modules are specified to operate with or without
the presence of the ±REF 10MHZ signals, so these lines are optional
in any cabling interface between the mainframe REMOTE SIM port
and a module.

SIM900 Mainframe

1.6 SIM Interface Connector 1 – 7

Direction

Pin Signal Src ⇒ Dest Description

1 SIGNAL GND MF ⇒ SIM Ground reference for signal
2 −STATUS SIM ⇒ MF Status/service request (GND=asserted, +5V=idle)
3 RTS MF ⇒ SIM HW Handshake (+5 V=talk; GND=stop)
4 CTS SIM ⇒ MF HW Handshake (+5 V=talk; GND=stop)
5 −REF 10MHZ MF ⇒ SIM 10 MHz reference
6 −5V MF ⇒ SIM Power supply (fast analog circuitry)
7

−15V MF ⇒ SIM Power supply (analog circuitry)
8 PS RTN MF ⇒ SIM Power supply return
9 CHASSIS GND Chassis ground

10 TXD MF ⇒ SIM Async data (start bit=“0”=+5 V; “1”=GND)
11 RXD SIM ⇒ MF Async data (start bit=“0”=+5 V; “1”=GND)
12 +REF 10MHz MF ⇒ SIM 10 MHz reference
13 +5V MF ⇒ SIM Power supply (digital & fast analog circuitry)
14 +15V MF ⇒ SIM Power supply (analog circuitry)
15 +24V MF ⇒ SIM Power supply (power circuitry)

SIM900 Mainframe

Table 1.1: SIM Interface connector pin assignments, DB–15

1 – 8 Operation

SIM900 Mainframe

2 Remote Programming

This chapter describes how to control the SIM900 Mainframe, and
any connected SIMs or generic RS-232 devices, from a host computer.

In This Chapter

2.1 Index of Commands . . . . . . . . . . . . . . . . . . 2 – 2

2.2 Alphabetic List of Commands . . . . . . . . . . . . 2 – 5

2.3 Introduction . . . . . . . . . . . . . . . . . . . . . . . 2 – 9

2.4 Port Communications . . . . . . . . . . . . . . . . . 2 – 10

2.5 Commands . . . . . . . . . . . . . . . . . . . . . . . 2 – 12

2.6 Register Model . . . . . . . . . . . . . . . . . . . . . 2 – 41

2.3.1 Device Clear . . . . . . . . . . . . . . . . . . . 2 – 9

2.3.2 Queues and buffers . . . . . . . . . . . . . . . 2 – 9

2.4.1 Message-based communication . . . . . . . . 2 – 10

2.4.2 Connection-based communication . . . . . . 2 – 10

2.4.3 Port map . . . . . . . . . . . . . . . . . . . . . 2 – 11

2.5.1 Command syntax . . . . . . . . . . . . . . . . 2 – 12

2.5.2 Examples . . . . . . . . . . . . . . . . . . . . 2 – 14

2.5.3 Communication commands . . . . . . . . . . 2 – 15

2.5.4 Configuration commands . . . . . . . . . . . 2 – 17

2.5.5 Eavesdropping commands . . . . . . . . . . 2 – 21

2.5.6 Serial commands . . . . . . . . . . . . . . . . 2 – 22

2.5.7 Status commands . . . . . . . . . . . . . . . . 2 – 24

2.5.8 Script commands . . . . . . . . . . . . . . . . 2 – 28

2.5.9 Housekeeping commands . . . . . . . . . . . 2 – 31

2.5.10 Interface commands . . . . . . . . . . . . . . 2 – 34

2.6.1 Control registers . . . . . . . . . . . . . . . . 2 – 41

2.6.2 Status registers . . . . . . . . . . . . . . . . . 2 – 44

2 – 1

2 – 2 Remote Programming

2.1 Index of Commands

symbol definition

p Port number
i,j Integers
z Literal token
b Multi-byte (string) block

(?) Required for queries; illegal for set commands
var Parameter always required

{var} Required parameter for set commands; illegal for queries
[var] Optional parameter for both set and query forms

Communications

CONN p,b 2 – 15 Connect to Port
SEND p,b [,i] 2 – 15 Send Message to Port
SNDT p,b [,i] 2 – 15 Send Terminated Message to Port
ECHO? b 2 – 16 Echo Message back to Host
BRDC b [,i] 2 – 16 Broadcast Message to Ports
BRDT b [,i] 2 – 16 Broadcast Terminated Message to Ports
GETN? p,i 2 – 16 Get Bytes from Port
RAWN? p,i 2 – 17 Get Raw Bytes from Port

Configuration

NINP? p 2 – 17 Input Bytes Waiting
NOUT? p 2 – 17 Output Bytes Waiting
AINP? p 2 – 18 Input Spaces Available
AOUT? p 2 – 18 Output Spaces Available
DONE? [p] 2 – 18 Transmit Complete
BRER(?) [p,] {i} 2 – 18 Broadcast Enable
RDDR(?) [p,] {i} 2 – 19 Receive Data Disable
RPER(?) [p,] {i} 2 – 19 Receive Pass-Through Enable
MSGL(?) {i} 2 – 19 Maximum MSG Length
TMOT(?) p,{i} 2 – 19 Timeout
TERM(?) p,{z} 2 – 20 Message Termination
CEOI(?) {z} 2 – 20 Generate EOI on hLFi
EOIX(?) {z} 2 – 20 EOI conversion during CONNect

Eavesdropping

VERB(?) [i],{j} 2 – 21 Verbosity
EAVS b 2 – 22 Echo Message to Eavesdrop
EIDN 2 – 22 Identify to Eavesdrop

Serial Configuration

PRTC(?) {z} 2 – 22 Port C Function
PRTD(?) {z} 2 – 23 Port D Function
BAUD(?) p {,i} 2 – 23 Baud Rate

SIM900 Mainframe

2.1 Index of Commands 2 – 3

FLOW(?) p {,z} 2 – 23 Flow Control
PARI(?) p {,z} 2 – 24 Parity
WORD(?) p {,i} 2 – 24 Word Length
SBIT(?) p {,i} 2 – 24 Stop Bits

Status

SSCR? [p] 2 – 25 SIM Status Condition
SSPT(?) [p,] {i} 2 – 25 SIM Status Positive Transition
SSNT(?) [p,] {i} 2 – 25 SIM Status Negative Transition
SSEV? [p] 2 – 25 SIM Status Event
SSEN(?) [p,] {i} 2 – 25 SIM Status Enable
CESR? [p] 2 – 26 Comm Error Status
CESE(?) [p,]{i} 2 – 26 Comm Error Status Enable
TOSR? [p] 2 – 26 Timeout Status
TOSE(?) [p,] {i} 2 – 26 Timeout Status Enable
IOSR? [p] 2 – 26 Input Overflow Status
IOSE(?) [p,] {i} 2 – 27 Input Overflow Status Enable
FCSR? [p] 2 – 27 Flow Control Status
FCSE(?) [p,] {i} 2 – 27 Flow Control Status Enable
CTCR? [p] 2 – 27 CTS Status Condition
CTSR? [p] 2 – 28 CTS Status
CTSE(?) [p,] {i} 2 – 28 CTS Status Enable
PDPR? [p] 2 – 28 Port Data Pending
PDPE(?) [p,] {i} 2 – 28 Port Data Pending Enable

Script

APSS b 2 – 29 Append to Script
ATSS b 2 – 29 Append Terminated to Script
ERSS 2 – 29 Erase Script
LKSS(?) {z} 2 – 29 Lock Script
LISS? 2 – 30 List Script
NBSS? 2 – 30 Bytes Used in Script
AVSS? 2 – 30 Space Available in Script
ENSS? 2 – 30 Script Enable
RNSS 2 – 30 Run Script

Housekeeping

TBIN? 2 – 31 Timebase Input Detect
VTBI? 2 – 31 Timebase Input Analog
PLLC(?) {z} 2 – 32 Timebase Control
CLKD(?) {z} 2 – 32 Clock Distribution
LOCK? 2 – 32 Timebase Status
VLOC? 2 – 33 Timebase Status Analog
VVCO? 2 – 33 Timebase VCO
VMON? 2 – 33 Primary Voltage

SIM900 Mainframe

2 – 4 Remote Programming

IMON? 2 – 33 Primary Current
PMON? 2 – 33 Primary Power
UNDV? 2 – 34 Undervoltage
TICK? 2 – 34 Elapsed Time
DIPS? [i] 2 – 34 DIP Switch

Interface

*RST 2 – 35 Reset
FLOQ 2 – 35 Flush Output Queue
SRST [p] 2 – 35 SIM Reset
FLSI [p] 2 – 36 Flush Port Input Buffers
FLSO [p] 2 – 36 Flush Port Output Queues
FLSH [p] 2 – 36 Flush Port Buffers
*IDN? 2 – 36 Identify
*TST? 2 – 36 Self Test
*CLS 2 – 36 Clear Status
*STB? [i] 2 – 37 Status Byte
*SRE(?) [i,] {j} 2 – 37 Service Request Enable
*ESR? [i] 2 – 37 Standard Event Status
*ESE(?) [i,] {j} 2 – 37 Standard Event Status Enable
*PSC(?) {i} 2 – 37 Power-on Status Clear
*OPC(?) 2 – 38 Operation Complete
*WAI 2 – 38 Wait to Continue
CONS(?) {z} 2 – 38 Console Mode
WAIT i 2 – 38 Wait
REQT(?) {z} 2 – 38 Announce REQT
REQF(?) {z} 2 – 39 Announce REQF
LEXE? 2 – 39 Execution Error
LCME? 2 – 40 Command Error
TOKN(?) {z} 2 – 40 Token Mode

SIM900 Mainframe

2.2 Alphabetic List of Commands 2 – 5

2.2 Alphabetic List of Commands

?

*CLS 2 – 36 Clear Status
*ESE(?) [i,] {j} 2 – 37 Standard Event Status Enable
*ESR? [i] 2 – 37 Standard Event Status
*IDN? 2 – 36 Identify
*OPC(?) 2 – 38 Operation Complete
*PSC(?) {i} 2 – 37 Power-on Status Clear
*RST 2 – 35 Reset
*SRE(?) [i,] {j} 2 – 37 Service Request Enable
*STB? [i] 2 – 37 Status Byte
*TST? 2 – 36 Self Test
*WAI 2 – 38 Wait to Continue

A

AINP? p 2 – 18 Input Spaces Available
AOUT? p 2 – 18 Output Spaces Available
APSS b 2 – 29 Append to Script
ATSS b 2 – 29 Append Terminated to Script
AVSS? 2 – 30 Space Available in Script

B

BAUD(?) p {,i} 2 – 23 Baud Rate
BRDC b [,i] 2 – 16 Broadcast Message to Ports
BRDT b [,i] 2 – 16 Broadcast Terminated Message to Ports
BRER(?) [p,] {i} 2 – 18 Broadcast Enable

C

CEOI(?) {z} 2 – 20 Generate EOI on hLFi
CESE(?) [p,]{i} 2 – 26 Comm Error Status Enable
CESR? [p] 2 – 26 Comm Error Status
CLKD(?) {z} 2 – 32 Clock Distribution
CONN p,b 2 – 15 Connect to Port
CONS(?) {z} 2 – 38 Console Mode
CTCR? [p] 2 – 27 CTS Status Condition
CTSE(?) [p,] {i} 2 – 28 CTS Status Enable
CTSR? [p] 2 – 28 CTS Status

D

DIPS? [i] 2 – 34 DIP Switch
DONE? [p] 2 – 18 Transmit Complete

SIM900 Mainframe

2 – 6 Remote Programming

E

EAVS b 2 – 22 Echo Message to Eavesdrop
ECHO? b 2 – 16 Echo Message back to Host
EIDN 2 – 22 Identify to Eavesdrop
ENSS? 2 – 30 Script Enable
EOIX(?) {z} 2 – 20 EOI conversion during CONNect
ERSS 2 – 29 Erase Script

F

FCSE(?) [p,] {i} 2 – 27 Flow Control Status Enable
FCSR? [p] 2 – 27 Flow Control Status
FLOQ 2 – 35 Flush Output Queue
FLOW(?) p {,z} 2 – 23 Flow Control
FLSH [p] 2 – 36 Flush Port Buffers
FLSI [p] 2 – 36 Flush Port Input Buffers
FLSO [p] 2 – 36 Flush Port Output Queues

G

GETN? p,i 2 – 16 Get Bytes from Port

I

IMON? 2 – 33 Primary Current
IOSE(?) [p,] {i} 2 – 27 Input Overflow Status Enable
IOSR? [p] 2 – 26 Input Overflow Status

L

LCME? 2 – 40 Command Error
LEXE? 2 – 39 Execution Error
LISS? 2 – 30 List Script
LKSS(?) {z} 2 – 29 Lock Script
LOCK? 2 – 32 Timebase Status

M

MSGL(?) {i} 2 – 19 Maximum MSG Length

N

NBSS? 2 – 30 Bytes Used in Script
NINP? p 2 – 17 Input Bytes Waiting
NOUT? p 2 – 17 Output Bytes Waiting

P

PARI(?) p {,z} 2 – 24 Parity
PDPE(?) [p,] {i} 2 – 28 Port Data Pending Enable

SIM900 Mainframe

2.2 Alphabetic List of Commands 2 – 7

PDPR? [p] 2 – 28 Port Data Pending
PLLC(?) {z} 2 – 32 Timebase Control
PMON? 2 – 33 Primary Power
PRTC(?) {z} 2 – 22 Port C Function
PRTD(?) {z} 2 – 23 Port D Function

R

RAWN? p,i 2 – 17 Get Raw Bytes from Port
RDDR(?) [p,] {i} 2 – 19 Receive Data Disable
REQF(?) {z} 2 – 39 Announce REQF
REQT(?) {z} 2 – 38 Announce REQT
RNSS 2 – 30 Run Script
RPER(?) [p,] {i} 2 – 19 Receive Pass-Through Enable

S

SBIT(?) p {,i} 2 – 24 Stop Bits
SEND p,b [,i] 2 – 15 Send Message to Port
SNDT p,b [,i] 2 – 15 Send Terminated Message to Port
SRST [p] 2 – 35 SIM Reset
SSCR? [p] 2 – 25 SIM Status Condition
SSEN(?) [p,] {i} 2 – 25 SIM Status Enable
SSEV? [p] 2 – 25 SIM Status Event
SSNT(?) [p,] {i} 2 – 25 SIM Status Negative Transition
SSPT(?) [p,] {i} 2 – 25 SIM Status Positive Transition

T

TBIN? 2 – 31 Timebase Input Detect
TERM(?) p,{z} 2 – 20 Message Termination
TICK? 2 – 34 Elapsed Time
TMOT(?) p,{i} 2 – 19 Timeout
TOKN(?) {z} 2 – 40 Token Mode
TOSE(?) [p,] {i} 2 – 26 Timeout Status Enable
TOSR? [p] 2 – 26 Timeout Status

U

UNDV? 2 – 34 Undervoltage

V

VERB(?) [i],{j} 2 – 21 Verbosity
VLOC? 2 – 33 Timebase Status Analog
VMON? 2 – 33 Primary Voltage
VTBI? 2 – 31 Timebase Input Analog
VVCO? 2 – 33 Timebase VCO

SIM900 Mainframe

2 – 8 Remote Programming

W

WAIT i 2 – 38 Wait
WORD(?) p {,i} 2 – 24 Word Length

SIM900 Mainframe

2.3 Introduction 2 – 9

2.3 Introduction

The SIM900 Mainframe provides fully buffered multiplexed commu­nications between the host computer and up to 9 SIM modules plus
2 (optionally as many as 4) external RS-232 devices. These SIM/RS­232 connections are generically called Ports here, and each port has
a dedicated UART (universal asynchronous receiver & transmitter)
with hardware input and output FIFO buffers. The host computer
(typically a PC) communicates with the mainframe through the host
interface, which can be either RS-232 or (optionally) GPIB. The active
interface is selected with rear-panel DIP switches at power-on.

No protocol requirements are placed on the communications across
the ports—any sequence of bytes can be transmitted to or received
from any port. Simultaneous ongoing communications with multi­ple ports can be maintained using a packet-message style of com-

mand (see SEND, BRDC, GETN?, RPER commands below). Sim­ple host-to-port communications are provided with the CONN com-

mand.

2.3.1 Device Clear

2.3.2 Queues and buffers

If the host interface is GPIB, the IEEE–488 DCL (Device Clear) or SDC
(Selected Device Clear) interface messages will cause the mainframe
to flush the host input buffer and output queue, and reset the parser
to the idle state.

If the host interface is RS-232, the same action is initiated by theRS-232 hbreaki
RS-232 hbreaki signal (space level (0) for at least one full character
frame). This single “out-of-band” signal allows the host to reset the
mainframe interface to a known state, independent of the current
operating mode.

In particular, a Device Clear event (either from DCL, SDC, or RS­232 hbreaki) will cause the mainframe to abandon an active connect

session (see CONN command).

Each port is separately buffered with a port input buffer and port
output queue, while the host interface is buffered with the host input
buffer and host output queue. All queues and buffers are 512 bytes
deep.

Data is initially received from the host interface into the host input
buffer. If the mainframe is not currently in connect mode, then bytes
from the host input buffer are read by the parser until a valid com­mand is found. Command Errors detected by the parser are reported

SIM900 Mainframe

2 – 10 Remote Programming

through the CME flag in the ESR register. Mainframe-directed com­mands and queries are then handled directly, and responses (if any)
transferred to the host output queue for the host computer to read.

2.4 Port Communications

2.4.1 Message-based communication

Port-directed messages SEND,SNDT and BRDC,BRDT are parsed

for syntax, and then given to the Message Handler for delivery. The
message payload is stripped out of the command, and copied to
the appropriate port output queue(s) for delivery. If the port out­put queue is full (because the SIM or external RS-232 device has
asserted flow control, or simply because of data rate mismatch), the

mainframe will wait up to TMOT milliseconds until there is suffi-

cient room in the port output queue for the data. In the meantime,
commands and queries from the host will simply accumulate in the
input buffer until that fills as well. At that point, flow control on
the host interface should hold off any further transmissions from the
host until the buffers clear up.

Data received from the ports is initially stored in the corresponding
port input buffer. If the corresponding bit in the ReceivePass-through
Enable Register (RPER) is set and there is sufficient room in the
host output queue, then the data is wrapped into a MSG unit and
transferred to the output queue for delivery to the host. If the output
queue was too full, the message will be sent as soon as sufficient
space becomes available. If the corresponding bit in RPER is clear,
then the corresponding bit in the Port Data Pending Register (PDPR)
is set.

2.4.2 Connection-based communication

If the mainframe is connected to a port via the CONN command, the

situation is somewhat different. Bytes received from the host accu­mulate in the input buffer, where they are scanned for matching the

escape string provided with CONN. Non-matching bytes are directly

transferred to the port output queue. A partial match is held off
until an unambiguous complete match or non-match is present. On
a successful complete match, the connect mode is terminated and the
mainframe is ready for new commands.

Concurrently, bytes received in the port input buffer are transferred
directly to the host output queue. Data received at the unconnected
ports will be held in their port input buffers (causing the correspond­ing bit(s) in the PDPR to be set).

SIM900 Mainframe

2.4 Port Communications 2 – 11

2.4.3 Port map

The SIM900 Mainframe ports are defined in the following table:

Port Type Description
1 SIM Slot 1 SIM port
2 SIM Slot 2 SIM port
3 SIM Slot 3 SIM port
4 SIM Slot 4 SIM port
5 SIM Slot 5 SIM port
6 SIM Slot 6 SIM port
7 SIM Slot 7 SIM port
8 SIM Slot 8 SIM port
9 SIM Remote SIM port (DB-15-F back panel connector)
A RS-232 Aux–1 DTE (DB–9/M back panel connector)
B RS-232 Aux–2 DTE (DB–9/M back panel connector)
C RS-232 Eavesdrop DCE (DB–9/F back panel connector)
D RS-232 COMM DCE (DB–9/F back panel connector)

Ports 1 through B are always available as user ports, with A & B
as generic RS-232 ports. After power-on, ports 1–B default to 9600
baud, 8-bits, no parity, and 1 stop bit.

Port C (Eavesdrop) is normally dedicated to monitoring communi­cations between the mainframe and host, but can be remapped as

an additional general purpose port with the PRTC command. At

power-on, this port defaults to 9600/8/N/1. Baud rate, parity, word
size, and stop bits can be reconfigured by command after power­on, regardless of whether Port C is used for eavesdrop or general
communications.

Port D (COMM) is normally dedicated as the RS-232 interface to
the host computer. At power-on, this port defaults to the baud rate
selected by the rear-panel DIP switches, or 9600 if the DIP settings are
invalid (8/N/1). If RS-232 is NOT the active host interface, then Port D
is normally inactive, but can be remapped as an additional general

purpose port with the PRTD command. Baud rate, parity, word

size, and stop bits can be reconfigured by command after power-on,
regardless of whether Port D is used for the host interface or general
communications.

When Port C or D are not reconfigured for general port communi­cations, the corresponding PC and/or PD bits in the RPER, BER, and
PDPR registers are undefined; they can be written or read, but will
have no effect.

SIM900 Mainframe

2 – 12 Remote Programming

2.5 Commands

All commands for the SIM900 Mainframe originate at the host com­puter1, and are sent to the mainframe via the host interface. The
commands are organized according to functional groups, beginning
with commands that directly control communications with the SIM
modules. Other groups of commands configure the mainframe com­munications hardware, status reporting mechanism, startup script,
internal housekeeping, and host interface.

2.5.1 Command syntax

All command names are 4-characters long and are case-insensitive.

IEEE–488.2 defined commands begin with the “*” character followed

by 3 letters, while SIM900-specific commands are composed of 4
letters.

The four letter mnemonic (shown in CAPS) in each command se-

quence specifies the command. The rest of the sequence consists of
parameters.

Commands may take either set or query form, depending on whether

the “?” character follows the mnemonic. Set only commands are
listed without the “?”, query only commands show the “?” after the
mnemonic, and optionally query commands are marked with a “(?)”.

Parameters shown in { } and [ ] are not always required. Parameters in
{ } are required to set a value, and are omitted for queries. Parameters
in [ ] are optional in both set and query commands. Parameters listed
without any surrounding characters are always required.

Do not send ( ) or { } or [ ] as part of the command.

The command buffer is limited to 255 bytes, with multi-byte block pa­rameter bytes separately stored in an independent 255 byte buffer—
any command that exceeds this size will generate a command error
and be discarded.

If the host interface is RS-232, commands are terminated by either
hCRi (ASCII 13) or hLFi (ASCII 10) characters that are outside any
protected binary block or string. If the host interface is GPIB, then
commands are terminated by either hLFi or hEOIi or hLF-EOIi. Exe­cution of the command does not begin until the command terminator
is received.

Unlike most SIM modules, nomulti-command messages(i.e., “;” separated
commands) are allowed for the SIM900.

1

or from the startup script

SIM900 Mainframe

2.5 Commands 2 – 13

The following table summarizes the notation used in the command
descriptions:

symbol definition

p Port number (1–9, a–d, A–D, but see below)

i,j Integers

z Literal token

b Multi-byte (string) block

(?) Required for queries; illegal for set commands

var parameter always required

{var} required parameter for set commands; illegal for queries

[var] optional parameter for both set and query forms

2.5.1.1 Ports

Port parameters can be given as either simple decimal integers, or a
single-letter hexadecimal value (without any leading 0x).

Many of the commands to set/query a register accept an optional
port parameter. In these cases, if the optional parameter p is given,
then the command only sets/queries the single bit corresponding to
the binary weight 2p. Typically, this bit represents Port p, but in a
few cases additional flag bits are packed into the register. For these
additional flag bits, the optional p still restricts the command to the
single bit, but it no longer corresponds to a port. Thus, it is possible
in these cases for p to be E, despite the maximum port value of D.

2.5.1.2 Integers

2.5.1.3 Tokens

SIM900 Mainframe

Integer parameters follow “C-language” style. Simple decimal inte­gers are indicated by beginning with a non-zero digit (1–9). Octal
integers are represented with a leading zero digit (0). Hexadecimal
integers are given by a leading 0x or 0X.

For example, 26, 032, 0x1A all refer to the integer value 26.

Tokens are listed here as word–integer pairs, such as AUTO 2. For
set commands, token parameters must either be the exact text word
indicated (case-insensitive), or the corresponding decimal integer
code. For example, to set the response termination sequence to
hCRi+hLFi, the following two commands are equivalent:

TERM CRLF —or— TERM 3

2 – 14 Remote Programming

For queries that return token values, the return format (keyword or

integer) is specified with the TOKN command.

2.5.1.4 Blocks

Multi-byte block parameters can follow one of 3 formats (4 on GPIB).

Quote-delimited strings : An arbitrary byte sequence bounded by either " or ’ charac-

ters. All characters (including control characters) are allowed.
The quoting character itself (either " or ’) can be included by
escaping with an additional quote. For example,

"It is a ""good"" quote"

is identical to

’It is a "good" quote’.

Hex-formatted binary : #Hxx xx xx, where xx are hexadecimal bytes (00 through ff).

Whitespace is ignored.

Definite-length arb. : #abbbrrrr, where a is a single non-zero digit equal to the digit

count in bbb, bbb is a decimal integer count of the number of
data bytes to follow, and rrrr are the raw data bytes.

Indefinite-length arb. : #0rrrrhLF-EOIi, where rrrr is the raw data block, and

2.5.2 Examples

hLF-EOIi is the newline character (ASCII 10) with the GPIB-EOI
line simultaneously asserted. (only on GPIB)

Each command is provided with a simple example illustrating its
usage. In these examples, all data sent by the host computer to
the SIM900 are set as straight teletype font, while responses
received the host computer from the SIM900 are set as slanted
teletype font. Command terminators explicitly sent by the host

computer are set with the symbol “”.

The usage examples vary with respect to set/query, optional param­eters, and block parameter formats. These examples are not exhaus­tive, but are intended to provide a convenient starting point for user
programming.

SIM900 Mainframe

2.5 Commands 2 – 15

2.5.3 Communication commands

These commands provide the actual communication, through the
SIM900 mainframe, between the host computer and the SIM modules
or external RS-232 devices. Stream-style communications is provided
with the CONN command, while packet messaging is supported
with the remainder of the commands in this section.

Connect to PortCONN p,b
The CONN command establishes a stream-style connection to Port p,

with escape string b.

Executing the CONN command automatically clears the RPER regis-

ter.

In the following, a SIM910 preamp is installed in slot 4 of the SIM900.Example:

CONN 4,"xyz"
IDN?

Stanford Research Systems,SIM910,s/n510998,ver1.0

xyz*IDN?

Stanford Research Systems,SIM900,s/n938272,ver3.4

Send Message to PortSEND p,b [,i]
The SEND command transfers the message b to Port p. If present, i

contains a checksum for b.

The optional checksum is calculated as the unsigned integer sum of
the ASCII value of each byte in b (excluding wrapping characters
such as #H).

SEND 4,"GAIN 10"Example:

Notice the(either hCRi or hLFi) before the closing quote mark;
this is the command terminator for the destination SIM instrument

located at slot 4. See SNDT(below) to have the SIM900 automatically

append the command terminator to outgoing messages to ports.

Send Terminated Message to PortSNDT p,b [,i]
The SNDTcommand transfers the message b followed by the htermi

sequence to Port p. If present, i contains the checksum value for b

(see SEND).
See the TERM command for more about the htermi sequence.

SNDT 4,"GAIN 10"Example:

SIM900 Mainframe

2 – 16 Remote Programming

Echo Message back to HostECHO? b
The ECHO command transfers the message b+htermi back to the

host output queue.

Note this command does not control character echoing back to a

console terminal; see the CONS (console) command.

ECHO? "Hello ""world."""Example:

Hello "world."

Broadcast Message to PortsBRDC b [,i]
The BRDC command transfers the message b to multiple ports. If

present, i is the checksum on b .

BRDCacts just like SEND, except instead of indicating a specific port

in the command, all ports enabled in the BRER register receive a copy
of the message b.

BRDC "*RST"Example:

Broadcast Terminated Message to PortsBRDT b [,i]
The BRDT command transfers the message b+htermi to multiple

ports. If present, i is the checksum on b.

BRDT #14*RSTExample:

Note the use of a definite-length arbitrary block (see section 2.5.1.4).

Get Bytes from PortGETN? p,i
The GETN command retrieves up to i bytes from Port p and transfers

them to the host output queue.

Data is formatted as a definite-length arbitrary block, #3aaabbbbbb,
where aaa = number of bytes actually retrieved from Port p. Re­sponse message may be up to 7 bytes longer than i, for the #3aaa
header + htermi.

SNDT 7,"GAIN?"Example:
GETN? 7,80

#300410



where the query response from Port 7 was “10”, and the response
terminatorwas the two character sequence hCRi+hLFi.

SIM900 Mainframe

2.5 Commands 2 – 17

Get Raw Bytes from PortRAWN? p,i
The RAWNcommand retrieves exactly i bytes from Port p and trans-

fers them to the host output queue.

No header or htermi characters are added. If fewer than i bytes are
available, no bytes are transferred and the EXE flag is set within the
ESR register.

SNDT 7,"GAIN?"Example:
RAWN? 7,2

10

2.5.4 Configuration commands

The first five Configuration commands query the current state of
the port I/O buffers, while the remaining commands are used to set
or query registers and other parameters controlling communications
with the SIMs.

See the Register Model section for more about the mainframe regis­ters.

Input Bytes WaitingNINP? p

Query bytes waiting in Port p input buffer. Returns the integer
number of bytes waiting to be read by the host.

NINP? 4Example:

30

Output Bytes WaitingNOUT? p

Query bytes waiting in Port p output queue. Returns the integer
number of bytes waiting to be transmitted to the SIM or RS-232
device.

NOUT? 4Example:

0

SIM900 Mainframe

2 – 18 Remote Programming

Input Spaces AvailableAINP? p

Query spaces available in Port p input buffer. Returns the integer
number of additional bytes that can be written by the host before
overflowing the port input buffer.

AINP? 4Example:

482

Output Spaces AvailableAOUT? p

Query spaces available in Port p output queue. Returns the integer
number of additional bytes that can be written by the SIM or RS-232
device before overflowing the port output queue.

AINP? 4Example:

512

Transmit CompleteDONE? [p]
DONE? returns 1 if there are no bytes remaining to be transferred,

and 0 if any bytes remain in either port output buffers or in the UART
output FIFO buffers.

If p is given, only the buffers for Port p are checked; otherwise all
port buffers are checked.

DONE?Example:

1

Broadcast EnableBRER(?) [p,] {i}

Set (query) the Broadcast Enable Register [Port p bit] {to i}. The Broad­cast Enable Register (BER) selects which ports will receive broadcast

messages via the BRDC and BRDT commands. If p is given, only

the bit corresponding to Port p is set (queried); otherwise the entire
register is indicated.

BRER 4,1Example:
BRER 5,1
BRER 7,1
BRER?

176

SIM900 Mainframe

2.5 Commands 2 – 19

Receive Data DisableRDDR(?) [p,] {i}

Set (query) the Receive Data Disable Register [Port p bit] {to i}. Bits
within the Receive Data Disable Register (RDDR) are used to inhibit
the serial receiver circuitry for the corresponding ports. If p is given,
only the bit corresponding to Port p is set (queried); otherwise the
entire register is indicated.

RDDR 6Example:

disables Ports 1 & 2 (binary weights 21+ 22= 6).

Receive Pass-Through EnableRPER(?) [p,] {i}

Set (query) Receive Pass-Through Enable Register [Port p bit] {to
i}. Bits within the Receive Pass-Through Enable Register (RPER) are
used to enable spontaneous delivery of port data messages to the host
output queue as MSG packets. If p is given, only the bit corresponding
to Port p is set (queried); otherwise the entire register is indicated.

RPER 510Example:

enables Ports 1–8 for Pass-Through.

Maximum MSG LengthMSGL(?) {i}

Set (query) the maximum overall MSG length to i bytes. The data
portion of MSG packets will have 10 or 11 fewer bytes than the
maximum data block length i, corresponding to the characters MSG
p,#2yy or MSG p,#3yyy that precede the data block. The command
terminator (either hCRihLFi or hLF-EOIi) is not included in i.

After reset, the default is MSGL 64. The maximum value is 128.

MSGL 128Example:

TimeoutTMOT(?) p,{i}
Set (query) the timeout value for Port p {to i milliseconds}. If TMOT

is non-zero, the mainframe will wait up to i milliseconds while at­tempting to transfer output to a port output queue that is full (either
due to flow control or simple transfer-rate mismatch). If the timeout
expires before the mainframe is able to transfer the message, an error
is recorded in the Timeout Status Register (TOSR).

If TMOT p,0, the timeout feature is disabled for Port p, and the

mainframe will wait indefinitely on a full output queue.

SIM900 Mainframe

After reset, the default is TMOT1000 (1 s) for all ports.

TMOT 4,500Example:

2 – 20 Remote Programming

Message TerminationTERM(?) p,{z}

Set (query) the htermi sequence for Port p {to z=CR 0, LF 1, CRLF 2,
LFCR 3, NONE 4}.

The htermi sequence is appended to port messages sent with the

SNDT or BRDT commands, and is constructed of ASCII charac-

ter(s) 13 (carriage return) and 10 (line feed). The token mnemonic
gives the sequence of characters. When the host interface is RS-232,

then TERM D (the host port) also determines the termination for

all mainframe-generated query responses (for GPIB host interface,
query responses always terminate in hLF-EOIi).

At power-on, ports default to TERM p,LF. After *RST, ports are reset
to TERM p,CR. When the host interface is RS-232, Port D defaults to

TERM D,CRLF both at power-on and *RST.

TERM 4,LFExample:

Generate EOI on hLFiCEOI(?) {z}

Set (query) the connect-mode EOI-on-hLFi {to z=(OFF 0, ON 1)}.

CEOIcontrols whether the hEOIi signal is generated on the GPIB host

interface whenever a hLFi character is received from a port during
connect mode. This command has no effect when the host interface
is RS-232. Set z to ON to enable hEOIi generation.

After reset, the default is CEOI ON.

†

CEOI ONExample:

EOI conversion during CONNectEOIX(?) {z}

Set (query) the EOI-conversion-mode {to z=(OFF 0, ON 1)}.

In connect mode, EOIX controls whether the receipt of the hEOIi

signal from the GPIB host interface causes a new hLFi character to
transmitted to the connected port. This command has no effect when
the host interface is RS-232. Set z to ON to enable hLFi generation.

After reset, the default is EOIX ON.

†

EOIX OFFExample:

†

This default setting changed with firmware revision 3 (February 2005).

SIM900 Mainframe

2.5 Commands 2 – 21

2.5.5 Eavesdropping commands

By default, Port C is an eavesdropping monitor port. This port can
be configured to provide real-time monitoring of communications
and internal state changes in the SIM900 Mainframe, and is intended
to help users build and debug their SIM applications.

VerbosityVERB(?) [i],{j}

Set (query) the eavesdropping verbosity control [bit i] {to j}.

The verbosity control is an 8-bit register providing on/off control of
separate eavesdropping monitor functions. The bit definitions are:

Weight Bit Flag

1 0 MFERRORS
2 1 LONGERRS
4 2 IOMON

8 3 MFMON
16 4 STATMON
32 5 FROMHOST
64 6 TOHOST

128 7 RTMON

MFERRORS : Error conditions in the mainframe will be reported.

LONGERRS : The long-form (English text) of error messages will be used.

This flag is only functional if MFERRORS is also set.

IOMON : I/O status messages (device-clear, buffer overrun, . . . ) will be

reported.

MFMON : Internal state changes in the mainframe (such as timebase set-

tings) will be reported. Also, if MFMON is set, any bytes sent
to Port C will be interpreted as though sent by the mainframe,
and processed as remote commands.

STATMON : Any (enabled) status register changes will be reported.

FROMHOST : All data received by the mainframe from the host interface is

echoed to Port C.

TOHOST : All data sent by the mainframe to the host interface is echoed

to Port C.

RTMON : A summary message of mainframe housekeeping data is re-

ported once a second. The message is formatted as:

<vtbi=#, vloc=#, vvoc=#; vmon=#, imon=#>

where the value of each field corresponds with the query com-

mand of the same name (i.e., see VTBI?, VLOC?, . . . ).

SIM900 Mainframe

2 – 22 Remote Programming

After reset, the default is VERB 5 (MFERRORS and IOMON).

VERB 127Example:

Echo Message to EavesdropEAVS b

Send message b to the eavesdrop port.

EAVS "This text will appear on the Eavesdrop port"Example:

Identify to EavesdropEIDN
Send the identify message (see *IDN) to the eavesdrop port.

EIDNExample:

2.5.6 Serial commands

The Serial commands control the configuration of the serial port
hardware in the SIM900 Mainframe, such as baud rate and parity.
Optional re-mapping of Port C and Port D is also provided with the

PRTC and PRTDcommands.

Port C FunctionPRTC(?) {z}

Set (query) Port C function {to z=(EAVS 0, PORT 1)}.

Ordinarily, Port C is dedicated to eavesdropping on communications

with the host computer. Using PRTC, it is possible to override this

function and make Port C available as a general purpose RS-232 port.

WithPRTCPORT, general communications with Port C are performed
using CONN, SEND, BRDC, etc., just as with other ports.

Set z to EAVS (0) for the default eavesdropping function, or PORT (1)
for the general purpose port.

After reset, the default is PRTC EAVS.

PRTC?Example:

EAVS

SIM900 Mainframe

2.5 Commands 2 – 23

Port D FunctionPRTD(?) {z}

Set (query) Port D function {to z=(COMM 0, PORT 1)}.

Ordinarily, Port D is dedicated to communications with the host
computer (when configured for host RS-232). If the host interface is
GPIB, Port D is normally idle. Using the PRTD command with the
GPIB interface, it is possible to make Port D available as a general
purpose RS-232 port.

Set z to COMM 0 for the default host function, or PORT 1 for the general

purpose port. Note that PRTD PORT will generate an execution error

if the host interface is RS-232.

After reset, the default is PRTD COMM.

PRTD PORTExample:

Baud RateBAUD(?) p {,i}

Set (query) Port p baud rate {to i}.

At power-on, all baud rates default to 9600. The minimum baud rate
for all ports is 110 baud. For Ports 1–9 (SIM ports), rates can be set
to standard values through 38 400; above that, most modules can be
set to the following (non-standard) rates: 62 500, 78 125, 104 167, and
156 250. For Ports A–D (RS-232 ports), high-speed standard rates of
57 600, 115 200, 230 400, and 460 800 are all available.

Changing baud rate must be carefully orchestrated to ensure proper
connectivity throughout the transaction.

SNDT 4,’BAUD 62500’Example:
BAUD 4,62500
SNDT 4,’*IDN?’
GETN? 4,80

#3053Stanford Research Systems,SIM923A,s/n003982,ver1.25

Flow ControlFLOW(?) p {,z}

Set (query) Port p flow control {to z=(NONE 0, RTS 1, XON 2)}.

At power-on, all ports default to FLOW RTS flow control.

FLOW 4,0Example:

SIM900 Mainframe

2 – 24 Remote Programming

ParityPARI(?) p {,z}

Set (query) Port p parity {to z = (NONE 0, ODD 1, EVEN 2, MARK 3,
SPACE 4)}.

At power-on, all ports default to PARI NONE.

PARI A,EVENExample:

Word LengthWORD(?) p {,i}

Set(query) Port p word length {to i bits (5, 6, 7, or 8)}.

WORD sets the RS-232 word length to 5–8 bits. The set command

is only valid for Ports A–D, and will generate an execution error if
p<A.

At power-on, all ports default to WORD 8.

WORD B,7Example:

2.5.7 Status commands

Stop BitsSBIT(?) p {,i}

Set(query) Port p stop bits {to i bits (1, or 2)}.

SBIT selects 1 or 2 stop bits for the RS-232 ports. The set command

is only valid for Ports A–D, and will generate an execution error if
p<A.

If WORD 5 (5-bit word length) is set, then SBIT 2 corresponds to 1.5

stop bits.

At power-on, all ports default to SBIT 1.

SBIT B,2Example:

The Status commands query and configure registers associated with
status reporting of SIMs and the mainframe.

See section 2.6.2 for more about the mainframe status registers.

SIM900 Mainframe

2.5 Commands 2 – 25

SIM Status ConditionSSCR? [p]

Query SIM Status Condition Register [for Port p bit].

SSCR? returns the present value of the STATUS signal.

SSCR?Example:

16

SIM Status Positive TransitionSSPT(?) [p,] {i}

Set (query) SIM Status Positive Transition Register [Port p] {to i }.

SSPT 4,1Example:

SIM Status Negative TransitionSSNT(?) [p,] {i}

Set (query) SIM Status Negative Transition Register [Port p] {to i }.

SSPT and SSNT together define the enabled events (positive and

negative transitions, respectively) that generate SIM Status Events.

At power-on, SSPT and SSNT are both cleared.

SSPT?Example:

16

SIM Status EventSSEV? [p]

Query SIM Status Event Register [for Port p bit].

Upon executing an SSEV? query, the returned bit(s) of the SSEV

register are cleared.

SSEV?Example:

16

SIM Status EnableSSEN(?) [p,] {i}

Set(query) SIM Status Enable Register [for Port p bit] {to i}.

SSEV 4,1Example:

SIM900 Mainframe

2 – 26 Remote Programming

Comm Error StatusCESR? [p]

Query Comm Error Status Register [for Port p bit].

Upon executing a CESR?query, the returned bit(s) of the CESR reg-

ister are cleared, with the exception of the TOSB bit (see the Register
Model section for details).

CESR?Example:

144

This corresponds to errors at Ports 4 & 7 (24+ 27= 144).

Comm Error Status EnableCESE(?) [p,]{i}

Set (query) Comm Error Status Enable Register [for Port p bit] {to i}

CESE 4,1Example:

Timeout StatusTOSR? [p]

Query Timeout Status Register [for Port p bit].

Upon executing a TOSR? query, the returned bit(s) of the TOSR

register are cleared.

TOSR?Example:

0

Timeout Status EnableTOSE(?) [p,] {i}

Set (query) Timeout Status Enable Register [for Port p bit] {to i}.

TOSE 4,1Example:

Input Overflow StatusIOSR? [p]

Query input Overflow Status Register [for Port p bit].

Upon executing a IOSR? query, the returned bit(s) of the IOSR reg-

ister are cleared.

IOSR?Example:

128

SIM900 Mainframe

2.5 Commands 2 – 27

Input Overflow Status EnableIOSE(?) [p,] {i}

Set (query) input Overflow Status Enable Register [for Port p bit] {to
i}.

IOSE 7,1Example:

Flow Control StatusFCSR? [p]

Query Flow Control Status Register value [for Port p bit].

Upon executing a FCSR? query, the returned bit(s) of the FCSR reg-

ister are cleared, with the exception of the CTSB bit (see the Register
Model section for details).

FCSR?Example:

0

Flow Control Status EnableFCSE(?) [p,] {i}

Set (query) Flow Control Status Enable Register [Port p bit] {to i}.

FCSE 7,1Example:

CTS Status ConditionCTCR? [p]

Query CTS Status Condition Register [for Port p bit].

CTCR? returns the present value of the CTS signal [from Port p].

Note that for Ports 1–9 (the SIM ports), a passive pull-down resistor

in the SIM900 causes CTCR? to always return 0 for unconnected

ports. A connected SIM module will normally drive the CTS line

high. This permits the use of CTCR?as a “module-present” detector

(see section 2.6.2.17).

This usage is not applicable to Ports A–D (the RS-232 ports), where

the passive termination is a pull-up resistor. This causes CTCR? to

always return 1 for Ports A–D except when hardware flow control is
being asserted by the remote device.

CTCR?Example:

15376

This shows a module on Port 4 (24+ 210+ 211+ 212+ 213= 15376).

SIM900 Mainframe

2 – 28 Remote Programming

CTS StatusCTSR? [p]

Query CTS Status Register [for Port p bit].

Upon executing a CTSR? query, the returned bit(s) of the CTSR

register are cleared.

CTSR?Example:

0

CTS Status EnableCTSE(?) [p,] {i}

Set (query) CTS Status Enable Register [for Port p bit] {to i}.

CTSE 4,1Example:

Port Data PendingPDPR? [p]

Query Port Data Pending Register value [for Port p bit].

2.5.8 Script commands

Upon executing a PDPR? query, the returned bit(s) of the PDPR

register are cleared.

PDPR?Example:

0

Port Data Pending EnablePDPE(?) [p,] {i}

Set (query) Port Data Pending Enable Register [bit for Port p] {to i}.

PDPE 4,1Example:

The Startup Script is a non-volatile block of memory that stores a
series of commands for optional execution by the mainframe upon

power-on. Any legal mainframe command, except for APSS, ATSS,
ERSS, LKSS, and RNSS, can be included within the Startup Script.

Automatic execution of the Startup Script on power-on is controlled
by the Startup Script Enable dip switch, on the rear panel of the
mainframe.

SIM900 Mainframe

2.5 Commands 2 – 29

Append to ScriptAPSS b

Append block b to Startup Script macro.

This command can only be executed after LKSS OFF.

LKSS OFFExample:
APSS "BRER 510
RPER 510



BRDT ’*IDN?’
WAIT 1000







RPER 0"

This example adds a script to identify modules in Ports 1–8.

Append Terminated to ScriptATSS b

Append block b+hLFi to Startup Script macro.

This command can only be executed after LKSS OFF.

ATSS "*IDN?"Example:

Erase ScriptERSS

Erase Startup Script macro.

This command can only be executed after LKSS OFF.

ERSSExample:

Lock ScriptLKSS(?) {z}

Set (query) Startup Script write/erase lockout {to z=(OFF 0, ON 1)}.

After LKSS ON has been executed, the Startup Script is protected

against any modification or erasure. To reprogram the Startup Script,

issue LKSS OFF.
After reset, the default is LKSS ON.

LKSS?Example:

ON

SIM900 Mainframe

2 – 30 Remote Programming

List ScriptLISS?

List Startup Script contents.

LISS?Example:

BRER 510
RPER 510
BRDT ’*IDN?’
WAIT 1000
RPER 0
IDN?

Bytes Used in ScriptNBSS?

Query number of bytes used in Startup Script macro.

NBSS?Example:

60

Space Available in ScriptAVSS?

Query number of spaces available in Startup Script memory.

AVSS?Example:

3968

Script EnableENSS?

Query Startup Script Enable token value (ON 1, OFF 0) from rear­panel DIP switch.

ENSS?Example:

OFF

Run ScriptRNSS

Run Startup Script now (independent of DIP switch setting).

RNSSExample:

MSG 4,#253Stanford Research Systems,SIM923A,s/n003982,ver1.25
Stanford Research Systems,SIM900,s/n000112,ver3.4



SIM900 Mainframe

2.5 Commands 2 – 31

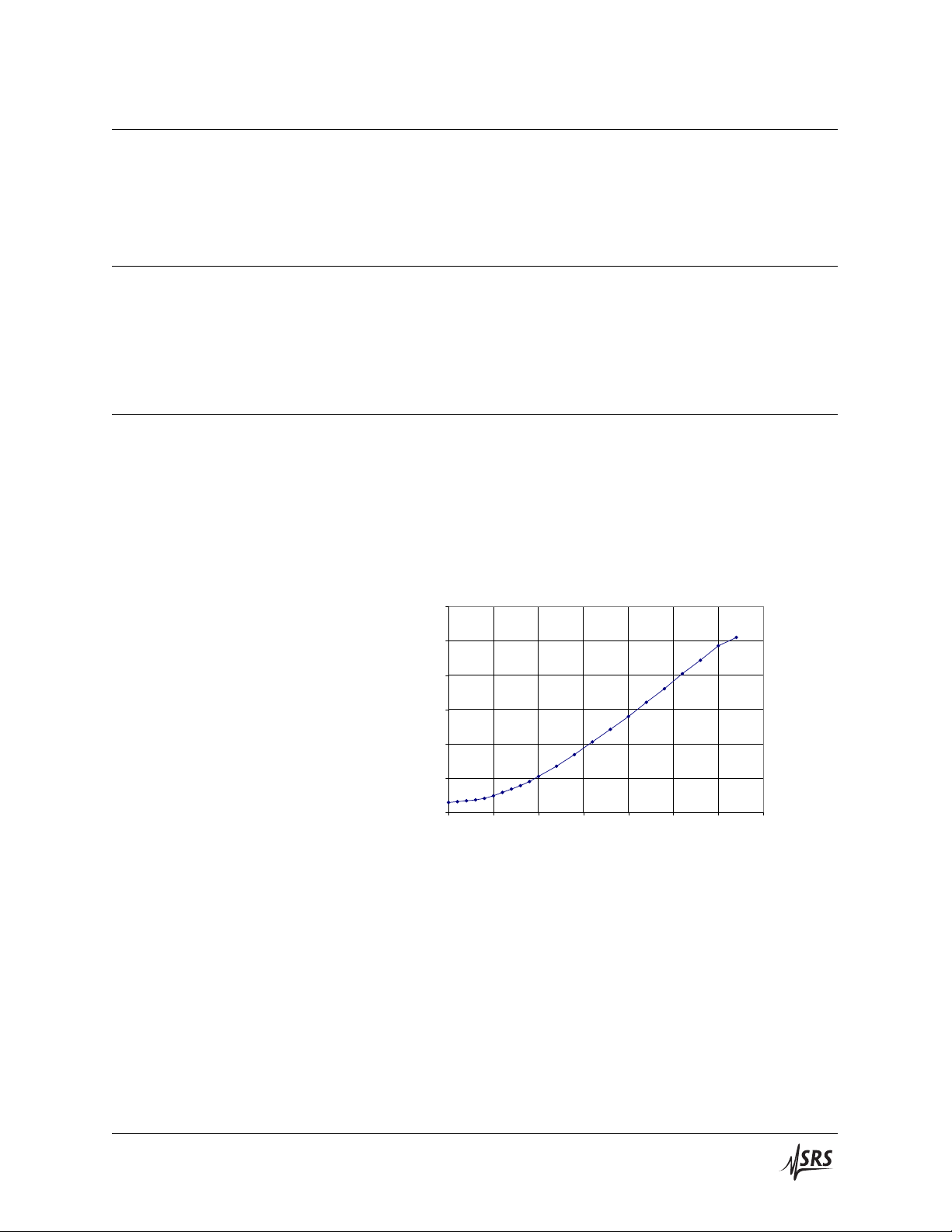

0

2000

4000

6000

8000

10000

12000

0 250 500 750 1000 1250 1500 1750

10 MHz input (mV pp)

VTBI? (mV)

2.5.9 Housekeeping commands

The Housekeeping commands provide status information on the
SIM900 Mainframe hardware, such as the 10 MHz timebase and the
total power consumption.

Timebase Input DetectTBIN?

Query external Timebase Input detected token (TRUE 1, FALSE 0).

TBIN?Example:

FALSE

Timebase Input AnalogVTBI?

Query external Timebase Input detection circuit voltage, in milli­volts. The detection circuit is a non-linear AC-detector, see plot for
the typical response versus 10 MHz input amplitude. Note that the

threshold for automatic detection is VTBI=2000 (see TBIN?, above).

SIM900 Mainframe

VTBI?Example:

390

2 – 32 Remote Programming

Timebase ControlPLLC(?) {z}

Set (query) Timebase PLL Control {to z=(OFF 0, ON 1, AUTO 2)}.

When PLLC AUTO is set, the SIM900 Mainframe will automatically ac­tivate the timebase phase-locked loop (PLL) whenever TBIN? TRUE.

To force the PLL to remain either off (free-running clock) or on (al-

ways attempting to lock), set PLLC appropriately.

PLLC?Example:

AUTO

Clock DistributionCLKD(?) {z}

Set (query) the Clock Distribution mode {to z=(OFF 0, ON 1}.

When CLKD ON is set, the SIM900 Mainframe will distribute the

10 MHz timebase signals to all SIM ports (on pins 5 & 12 of the DB–

15 SIM Interface connector. When CLKDOFF, the timebase signals are

turned off, and clock pins idle at 0 V (note, however, that the internal
oscillators in the SIM modules will continue to operate normally).

At reset, the value of CLKD is determined by the rear panel DIP
setting. Subsequent CLKD set commands will override the rear panel

setting. Any changes to the rearpanel setting, however, will takeeffect
immediately.

CLDK OFFExample:

Timebase StatusLOCK?

Query Timebase status token value (FREE 0, LOCKING 1, LOCKED 2,
FAULT 3).

While the PLL is off, LOCK? returns FREE. For 50 ms after activat­ing the PLL, LOCK? will return LOCKING; after that, either LOCKED or

FAULT is returned, indicating whether the loop is successfully track­ing the external timebase input.

LOCK?Example:

FREE

SIM900 Mainframe

2.5 Commands 2 – 33

Timebase Status AnalogVLOC?
Query lock detector voltage, in millivolts. When VLOC?≥4000, the

PLL is locked (see LOCK?, above).

VLOC?Example:

940

Timebase VCOVVCO?

Query the VCO control voltage, in millivolts.

VVCO?Example:

4490

Primary VoltageVMON?

Query the SIM900 Mainframe primary power supply voltage, in
millivolts (nominally 24000).

VMON?Example:

23740

Primary CurrentIMON?

Query the SIM900 Mainframe primary power supply current, in
milliamps.

IMON?Example:

430

Primary PowerPMON?

Query the SIM900 Mainframe primary power supply power, in mil-

liwatts. Equal to (VMON?)×(IMON?)/1000.

PMON?Example:

10683

SIM900 Mainframe

2 – 34 Remote Programming

UndervoltageUNDV?

Query output undervoltage detect.

While an output undervoltage condition exists, UNDV? returns

1; otherwise it returns 0. An undervoltage occurs if any of the
SIM900 Mainframe output voltages droop below their nominal
value, indicating an overload.

UNDV?Example:

0

Elapsed TimeTICK?

Query time elapsed since power-on (each count is 50 ms). The max­imum value before wrap-around is 4 294 967 295 (about 6.8 years).

TICK?Example:

114888

2.5.10 Interface commands

DIP SwitchDIPS? [i]

Query rear panel dip switch [bit i] value.

DIPS?Example:

64

The interface commands include required IEEE–488.2 common com­mands, along with additional commands for configuring the inter­face between the SIM900 Mainframe and the host computer. Addi­tionally, commands for flushing the port input buffers and output
queues are also provided.

SIM900 Mainframe

2.5 Commands 2 – 35

Reset*RST

Reset the mainframe to default configuration.

The following register and command values are established imme-

diately following a *RST:

cmd value

BRER 0
RDDR 0
RPER 0

†

TERM
TMOT
MSGL 64
CEOI 1 ON
EOIX 1 ON
PRTC 0 EAVS
PRTD 0 COMM
PLLC 2 AUTO
CLKD determined by rear-panel setting
CONS 0 OFF
VERB 5(MFERRORS and IOMON)
TOKN 0 OFF
LKSS 1 ON
REQT 0 OFF
REQF 0 OFF

0

†

1000

†

TERM and TMOT are reset for all ports

*RSTExample:

Flush Output QueueFLOQ

Flush the host output queue.

FLOQExample:

SIM ResetSRST [p]

Sends the SIM Reset signal [to Port p] (default is all SIM ports).

SRST causes a hbreaki signal (MARK level) to be asserted for 100

milliseconds, either to Port p or to all SIM ports. Upon receiving the
hbreaki signal, any connected SIM will flush its internal input buffer,
reset its command parser, and default to 9600 baud communications.

SRSTExample:

SIM900 Mainframe

2 – 36 Remote Programming

Flush Port Input BuffersFLSI [p]

Flushes port input buffers [associated with Port p].

FLSI 4Example:

Flush Port Output QueuesFLSO [p]

Flushes port output queues [associated with Port p].

FLSO 4Example:

Flush Port BuffersFLSH [p]

Flushes port input buffers & output queues [associated with Port p].

FLSHExample:

Identify*IDN?

Read the mainframe device identification string.

The identification string is formatted as:

Stanford Research Systems,SIM900,s/n******,ver#.#

where ****** is the 6-digit serial number, and #.# is the firmware
revision level.

*IDN?Example:

Stanford Research Systems,SIM900,s/n000112,ver3.4

Self Test*TST?

Perform mainframe self-test (currently no-op, returns 0).

*TST?Example:

0

Clear Status*CLS
*CLS immediately clears the SSEV, ESR, CESR, FCSR, PDPR, TOSR,

IOSR, and CTSR registers.

*CLSExample:

SIM900 Mainframe

2.5 Commands 2 – 37

Status Byte*STB? [i]

Reads the serial poll Status Byte register [bit i].

*STB?Example:

16

Service Request Enable*SRE(?) [i,] {j}

Set (query) the Service Request Enable register [bit i] {to j}.

*SRE 0,1Example:
SRE?

1

Standard Event Status*ESR? [i]

Reads the Standard Event Status Register [bit i].

Upon executing *ESR?, the returned bit(s) of the ESR register are

cleared.

*ESR?Example:

32

Standard Event Status Enable*ESE(?) [i,] {j}

Set (query) the Standard Event Status Enable Register [bit i] {to j}.

*ESE 32Example:

Power-on Status Clear*PSC(?) {i}

Set (query) the Power-on Status Clear flag {to j}. The Power-on Status
Clear flag is stored in non-volatile memory in the SIM900 Mainframe,
and thus maintains its value through power-cycle events.

If the *PSC=0, then the Service Request Enable and Standard Event
Status Enable registers (*SRE, *ESE) retain their values through
power-cycles. If *PSC=1, then *SRE and *ESE are cleared upon

power-cycle.

The initial factory default is *PSC 1.

*PSC?Example:

1

SIM900 Mainframe

2 – 38 Remote Programming

Operation Complete*OPC(?)

Operation Complete. Sets the OPC flag in the ESR register.

The query form *OPC?writesa 1 in theoutput queuewhen complete,

but does not affect the ESR register.

*OPC?Example:

1

Wait to Continue*WAI

Wait to Continue. Equivalent to a no-op.

*WAIExample:

Console ModeCONS(?) {z}

Set (query) the host port Console mode {to z=(OFF 0, ON 1)}.

CONS only has an effect when host interface is RS-232, and causes

each character received at the host input buffer to be copied to the
host output queue.

After reset, the default is CONS OFF.

CONS?Example:

OFF

WaitWAIT i

Wait i milliseconds before processing more commands from the host.

This command can be especially useful programming the Startup
Script.

WAIT 1000Example:

Announce REQTREQT(?) {z}

Set (query) the REQT announce mode {to z=(OFF 0, ON 1)}.

When REQT ON is set, any event which causes a new service re-

quest condition will cause the characters <reqt>+htermi to be spon­taneously written to the host output buffer.

On reset, the default is REQT OFF.

SIM900 Mainframe

2.5 Commands 2 – 39

REQT?Example:

OFF

Announce REQFREQF(?) {z}

Set (query) the REQF announce mode {to z=(OFF 0, ON 1)}.

When REQF ON is set, any event which causes the Master Sum-

mary Status message to become false will cause the characters
<reqf>+htermi to be spontaneously written to the host output buffer.

After reset, the default is REQF OFF.

REQF?Example:

OFF

Execution ErrorLEXE?

Query the last Execution Error code. Valid codes are:

Value Definition

0 No execution error since power-on
1 Invalid port
2 Invalid token
3 Command failed
4 Timeout
5 Invalid bit
6 Invalid value
7 Checksum failed
8 Invalid host interface

SIM900 Mainframe

*STB? 12Example:
LEXE?

5

The error code (5) corresponds to “Invalid bit,” since *STB? only

allows bit-specific queries of 0–7.

2 – 40 Remote Programming

Command ErrorLCME?

Query the last Command Error code. Valid codes are:

Value Definition

0 No parser error since power-on
1 Illegal first character
2 Illegal name
3 Undefined command
4 Extra questio mark
5 No query allowed
6 Only query allowed
7 Missing parameter(s)
8 No parameters allowed

9 Premature command terminator
10 Message buffer overflow
11 Illegal half-byte in hex parameter
12 Command buffer overflow
13 Illegal extra string parameter
14 Illegal extra hex parameter
15 Illegal extra binary parameter
16 Illegal byte-digits count
17 Illegal bytes count
18 Null parameter
19 Extra parameter(s)
20 Illegal port
21 Illegal short integer
22 Illegal long integer
23 Illegal token integer
24 Unknown token
25 Illegal string parameter
26 Illegal hex parameter
27 Illegal binary parameter
28 hEOIi without hLFi on indef. arb. block

*IDNExample:
LCME?

6

The error (6, “Only query allowed”) is due to the missing “?”.

Token ModeTOKN(?) {z}

Set (query) the Token Query mode {to z=(OFF 0, ON 1)}.

If TOKN ON is set, then queries to the SIM900 mainframe that return

tokens will return the text keyword; otherwise they will return the
decimal integer value.

After reset, the default is TOKNOFF.

TOKN ONExample:

SIM900 Mainframe

2.6 Register Model 2 – 41

2.6 Register Model

Registers in the SIM900 Mainframe are divided into 2 broad cate­gories: control registers and status registers. Control registers gov­ern the operation of the mainframe (specifically, controlling the au­tomatic routing of port data), while status registers (and their asso­ciated configuration registers) govern the monitoring and reporting
of status conditions within the mainframe.

The registers are represented as either 8-bit or 16-bit unsigned integer
values. Individual flags within a register correspond to an integer
weight of 2n. Most commands for setting or reading the registers
have an optional parameter to select a single bit within the register.
Using this optional parameter, all flag values are either 0 or 1. In
the default (whole-register) form, the commands treat the register
as a single integer value by summing the weighted values of the
individual flags.

2.6.1 Control registers

2.6.1.1 Receive Data Disable (RDDR)

This is a 16-bit wide register that controls transfers of data from the
ports to the port input buffers.

Weight Bit Flag

1 0 undef (0)
2 1 P1-disable
4 2 P2-disable

8 3 P3-disable
16 4 P4-disable
32 5 P5-disable
64 6 P6-disable

128 7 P7-disable
256 8 P8-disable

512 9 P9-disable
1024 10 PA-disable
2048 11 PB-disable
4096 12 PC-disable
8192 13 PD-disable

16384 14 undef (0)
32768 15 undef (0)

If the bit corresponding to a particular port is set in the RDDR,
and data from that port arrives at the mainframe, it is immediately
discarded. If the corresponding bit is cleared, then data flows as
normal from the port hardware into the port input buffer.

SIM900 Mainframe

If a bit is set in RDDR while data is already in the corresponding
port input buffer, that data remains available to the host computer,

2 – 42 Remote Programming

but no further data from the port will be accepted until the RDDR
bit is cleared. No flow control signals are asserted to stop the port from

transmitting data.

At power-on, this register is cleared.

2.6.1.2 Receive Pass-Through Enable (RPER)

This is a 16-bit wide register that controls transfers of data from the
ports to the mainframe output queue.

Weight Bit Flag

1 0 undef (0)
2 1 P1-passthrough
4 2 P2-passthrough

8 3 P3-passthrough
16 4 P4-passthrough
32 5 P5-passthrough
64 6 P6-passthrough

128 7 P7-passthrough
256 8 P8-passthrough

512 9 P9-passthrough
1024 10 PA-passthrough
2048 11 PB-passthrough
4096 12 PC-passthrough
8192 13 PD-passthrough

16384 14 undef (0)
32768 15 undef (0)

If the bit corresponding to a particular port is set in the RPER when
data from that port arrives at the mainframe, it is immediately en­capsulated into MSG packet(s) by the mainframe and transferred to
the output queue without further host intervention (i. e., no query
command is needed).

Messages are formatted as: MSG p,b

where p is the port the message came from, and b is a definite-length
arbitrary binary data block (see section 2.5.1.4 for format).

Since the mainframe imposes no protocol requirements on the data
transferred to or from the SIMs and external RS-232 devices, the
MSG packets are divided at arbitrary points in the data stream. To
correctly reconstruct the byte stream from a particular port, the host
must concatenate the contents of all packets from that port in the
order received.

The data block b of the MSG packets are guaranteed not to exceed

the byte limit set by the MSGL command. If fewer bytes are re-

ceived from a port, then a MSG packet is generated after a timeout of
approximately 5 serial-byte times (5 or 6 ms at 9600 baud).

SIM900 Mainframe

2.6 Register Model 2 – 43

When the mainframe is switched to connect mode to a port (via

CONN), the RPER is cleared to all zeros. This prevents data from any

of the unconnected ports from being interspersed in theoutput queue
with data bytes from the connected port. Upon leaving connect
mode the RPER remains cleared, so the host must reprogram RPER
if needed.

At power-on, this register is cleared.

2.6.1.3 Broadcast Enable (BER)

This is a 16-bit wide register that selects ports to receive broadcast

messages (BRDC, BRDT) from the mainframe.

Weight Bit Flag

1 0 undef (0)
2 1 P1–broadcast
4 2 P2–broadcast

8 3 P3–broadcast
16 4 P4–broadcast
32 5 P5–broadcast
64 6 P6–broadcast

128 7 P7–broadcast
256 8 P8–broadcast

512 9 P9–broadcast
1024 10 PA–broadcast
2048 11 PB–broadcast
4096 12 PC–broadcast
8192 13 PD–broadcast

16384 14 undef (0)
32768 15 undef (0)

SIM900 Mainframe

If the bit corresponding to a particular port is set in the BER, then
any broadcast messages sent from the host to the mainframe will be
transferred to that port. Note that the Port C and Port D bits are only

effective if PRTC PORT (or PRTDPORT) have been set.

This register is cleared on power-on.

2 – 44 Remote Programming

2.6.2 Status registers

The SIM900 Mainframe status registers follow the hierarchical IEEE–

488.2 format. A block diagram of the entire status register array is
given in Figure 2.1.

There are four broad categories of registers in the status model of the
mainframe:

Condition Registers : These read-only registers correspond to the real-time condi-

tion of some underlying physical property being monitored.
Queries return the latest value of the property, and have no

further side effects. Condition register names end with CR.

Transition Selection Registers : These read/write registers define specific transition events

(such as 0 → 1 or 1 → 0). The event is then defined by the
selected transition in the value of the underlying condition

register. Transition register names end with PT or NT.

Event Registers : These read-only registers record the occurrence of defined

events within the mainframe. If the event occurs, the corre­sponding bit is set to 1. Upon querying an event register, any
set bits within it are cleared2. These are sometimes known as
“sticky bits,” since once set, a bit can only be cleared by reading

its value. Event register names typically end with SR.

Enable Registers : These read/write registers define a bitwise mask for their cor-

responding event register. If any bit position is set in an event
register while the same bit position is also set in the enable
register, then the corresponding summary bit message is set.

Enable register names typically end with SE.

2

Except for any summary bit messages.

SIM900 Mainframe

7

X

5

4

3

2

1

0

SSSB: SIM Status Summary Bit

RQS / MSS: Master Summary Status

ESB: Event Status Bit

MAV: Message Available

IDLE

CESB: Comm Error Summary Bit

FCSB: Flow Control Summary Bit

PDSB: Port Data Pending Summary Bit

7

6

5

4

3

2

1

0

Status Byte

SB SRE

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

SSCR SSPT SSNT SSEV SSEN

SIM Status

STATUS1

STATUS2

STATUS3

STATUS4

STATUS5

STATUS6

STATUS7

STATUS8

STATUS9

undef

undef

undef

undef

undef

undef

undef

7

6

5

4

3

2

1

0

7

6

5

4

3

2

1

0

OPC: Operation Complete

undef

DDE: Device Error

EXE: Execution Error

CME: Command Error

undef

PON: Power On

QYE: Query Error

ESR ESE

Standard Event Status

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

DataAvail1

DataAvail2

DataAvail3

DataAvail4

DataAvail5

DataAvail6

DataAvail7

DataAvail8

DataAvail9

DataAvailA

DataAvailB

DataAvailC

DataAvailD

undef

undef

Port Data Pending

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

TOSR TOSE

TimeoutGPIB

Timeout1

Timeout2

Timeout3

Timeout4

Timeout5

Timeout6

Timeout7

Timeout8

Timeout9

TimeoutA

TimeoutB

TimeoutC

TimeoutD

undef

undef

Timeout Status

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

DCAS

CommErr1

CommErr2

CommErr3

CommErr4

CommErr5

CommErr6

CommErr7

CommErr8

CommErr9

CommErrA

CommErrB

CommErrC

CommErrD

IOSB

CESR CESE

Comm Error Status

TOSB

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

CTSR CTSE

CTS Event Status

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

undef

RTS_Halted1

RTS_Halted2

RTS_Halted3

RTS_Halted4

RTS_Halted5

RTS_Halted6

RTS_Halted7

RTS_Halted8

RTS_Halted9

RTS_HaltedA

RTS_HaltedB

CTS_HaltedC

CTS_HaltedD

undef

FCSR FCSE

Flow Control Status

CTSB

undef

0 0

PDPR PDPE

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

undef

CTS1

CTS2

CTS3

CTS4

CTS5

CTS6

CTS7

CTS8

CTS9

CTSA

CTSB

RTSC

RTSD

undef

undef

CTCR

(only neg. transitions CTCR ➜ CTSR)

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

IOSR IOSE

InovrGPIB

Inovr1

Inovr2

Inovr3

Inovr4

Inovr5

Inovr6

Inovr7

Inovr8

Inovr9

InovrA

InovrB

InovrC

InovrD

undef

undef

Input Overrun Status

2.6 Register Model 2 – 45

SIM900 Mainframe

Figure 2.1: Status Register Model for the SIM900 Mainframe.

2 – 46 Remote Programming

2.6.2.1 Status Byte (SB)

This is an 8-bit wide register defined by IEEE–488.2. It can be read

either by a GPIB serial poll, or through the *STB? command. The

Status Byte is the top-level summary of the SIM900 Mainframe status
model.

Weight Bit Flag

1 0 PDSB
2 1 FCSB
4 2 CESB

8 3 IDLE
16 4 MAV
32 5 ESB
64 6 RQS/MSS

128 7 SSSB

Bit 6 returns the RQS message during a GPIB serial poll, and MSS

when queried with *STB?

PDSB : Port Data Pending Summary Bit. Indicates whether one or

more of the enabled flags in the Port Data Pending Status Reg­ister has become true.

FCSB : Port Flow Control Summary Bit. Indicates whether one or more

of the enabled flags in the Port Flow Control Status Register has
become true.

CESB : Comm Error Summary Bit. Indicates whether one or more of

the enabled flags in the Comm Error Status Register has become
true.

IDLE : Indicates that the input buffer is empty and the command

parser is idle. Can be used to help synchronize mainframe
query responses.

MAV : Message Available. Indicates whether or not the output queue

has any data pending for the host.

ESB : Event Status Bit. Indicates whether one or more of the enabled

events in the Standard Event Status Register is true.

RQS : IEEE–488 Request Service message, indicating this device (the

SIM900 Mainframe) requested service.

MSS : Master Summary Status. Indicates whether one or more of the

enabled status messages in the Status Byte register is true.

SSSB : SIM Status Summary Bit. Indicates whether one or more of

the enabled event flags in the SIM Status Event Register has
become true.

SIM900 Mainframe

2.6 Register Model 2 – 47

Bits in the Status Byte are not cleared by the *STB? query. These

bits are only cleared by reading the underlying event registers, or by
clearing the corresponding enable registers.

2.6.2.2 Service Request Enable (SRE)

This is an 8-bit wide register defined by IEEE–488.2. Each bit in the
SRE corresponds one-to-one with a bit in the SB register, and acts as
a bitwise AND of the SB flags to generate MSS/RQS. Bit 6 of the SRE
is undefined - setting it has no effect, and reading it always returns

0. This register is set and queried with the *SRE(?) command.
At power-on, this register is cleared if *PSCis non-zero. It retains its

value if *PSC 0.

2.6.2.3 Standard Event Status (ESR)

This is an 8-bit wide register defined by IEEE–488.2. These event
flags are all “sticky bits” that are set by the corresponding event,

and cleared only by reading or with the *CLS command. Reading a
single bit (with the *ESR? i query) clears only bit i.

Weight Bit Flag

1 0 OPC

2 1 undef (0)

4 2 QYE

8 3 DDE
16 4 EXE
32 5 CME
64 6 undef (0)

128 7 PON

OPC : Operation Complete. Set by the *OPC command.

QYE : Query Error. Indicates either (1) an attempt to read data when

no output is present or pending (only valid for GPIB), or (2)
data in the output queue has been lost.

DDE : Device Dependent Error. Indicates a mainframe power supply

undervoltage.

EXE : Execution Error. Indicates an error in a command that was

successfully parsed. Out-of-range parameters are an example.

The error code can be queried with LEXE?.

CME : Command Error. Indicates a parser-detected error. The error

code can be queried with LCME?.

SIM900 Mainframe

PON : Power On. Indicates that an off-to-on transition has occurred.

2 – 48 Remote Programming

2.6.2.4 Standard Event Status Enable (ESE)

This is an 8-bit wide register defined by IEEE–488.2. It acts as a
bitwise AND with the ESR register to produce the single bit ESB
message in the Status Byte Register (SB). It can be set and queried

with the *ESE(?) command.
At power-on, this register is cleared if *PSCis non-zero. It retains its

value if *PSC 0.

2.6.2.5 SIM Status Condition (SSCR)

This 16-bit wide register monitors the −STATUS line from the 9 SIM
ports (1–9). There is no corresponding signal for the RS-232 ports.
SSCR is a read-only register.

Weight Bit Flag

1 0 undef (0)

2 1 Status1

4 2 Status2

8 3 Status3
16 4 Status4
32 5 Status5
64 6 Status6

128 7 Status7
256 8 Status8

512 9 Status9
1024 10 undef (0)
2048 11 undef (0)
4096 12 undef (0)
8192 13 undef (0)

16384 14 undef (0)
32768 15 undef (0)

The −STATUS output signal from a SIM idles high, indicating no
special status information to report, and set or pulsed to low to
indicate some (device-dependent) status message. The SSCR records
the complement of the signal, so −STATUS True (low) appears as a
1 in the SSCR, while −STATUS False (high) appears as a 0. Reads

to the SSCR (via SSCR?) return the present value of the −STATUS

signal for Port n as bit Statusn.

2.6.2.6 SIM Status Positive/Negative Transition (SSPT/SSNT)

These two 16-bit wide registers control the mapping of transitions in
the SSCR to setting flags in the SSEV register. For any particular SIM
port, if the corresponding bit is set in SSPT, then a 0 → 1 transition
in the SSCR causes the bit to be set in the SSEV. Likewise, if a bit is
set in SSNT, then a 1 → 0 transition in the SSCR causes the bit to be
set in the SSEV.

SIM900 Mainframe

2.6 Register Model 2 – 49

All combinations of SSPT and SSNT settings for the 9 SIM ports are
valid. At power-on, both SSPT and SSNT are cleared.

2.6.2.7 SIM Status Event (SSEV)

This 16-bit wide register monitors selected events in the SSCR, based
on transitions selected in SSPT and SSNT. When the selected transi­tion(s) occur, the corresponding bit is set. Reading the register clears
it (reading a single bit clears only that bit). This register is cleared by

the *CLS command.

2.6.2.8 SIM Status Enable (SSEN)

This is a 16-bit wide register that masks the SSEV register. The
logical OR of the bitwise AND of SSEV and SSEN produces the SSSB
message in the Status Byte register (SB).

2.6.2.9 Communications Error Status (CESR)

This is a 16-bit wide register that monitors communications errors
on the ports.

Weight Bit Flag

1 0 DCAS
2 1 CommErr1
4 2 CommErr2

8 3 CommErr3
16 4 CommErr4
32 5 CommErr5
64 6 CommErr6

128 7 CommErr7
256 8 CommErr8

512 9 CommErr9
1024 10 CommErrA
2048 11 CommErrB
4096 12 CommErrC
8192 13 CommErrD

16384 14 TOSB
32768 15 IOSB

DCAS : Device Clear Active State. Set by the mainframe receiving a

Device Clear event (either from DCL, SDC, or RS-232 hbreaki.

CommErrp : Communication Error for Port p. Set by the mainframe de-

tecting a serial error (such as parity violation or framing error,
or an input buffer overflow) on the corresponding port input
hardware.

SIM900 Mainframe

TOSB : Timeout Summary Bit message. TOSB indicates the logical OR

of the bitwise AND of TOSR and TOSE (see below).

2 – 50 Remote Programming

IOSB : Input Overflow Summary Bit message. IOSB indicates the

logical OR of the bitwise AND of IOSR and IOSE (see below).

This register (with the exception of the TOSB & IOSB bits) is cleared

either by reading, or with the *CLS command.

2.6.2.10 Communications Error Status Enable (CESE)

This is a 16-bit wide register that masks the CESR register. The
logical OR of the bitwise AND of CESR and CESE produces the
CESB message in the Status Byte register (SB).

At power-on, this register is cleared.

2.6.2.11 Timeout Status (TOSR)

This is a 16-bit wide register that monitors timeout errors.

Weight Bit Flag

1 0 TimeoutGPIB
2 1 Timeout1
4 2 Timeout2

8 3 Timeout3
16 4 Timeout4
32 5 Timeout5
64 6 Timeout6

128 7 Timeout7
256 8 Timeout8

512 9 Timeout9
1024 10 TimeoutA
2048 11 TimeoutB
4096 12 TimeoutC
8192 13 TimeoutD

16384 14 undef (0)
32768 15 undef (0)

If an attempt to write to a port output queue fails due to a timeout
error, the corresponding bit in the TOSR is set. (This can also be
thought of as an output overflow error.) The register is cleared either

by reading, or with the *CLS command.

2.6.2.12 Timeout Status Enable (TOSE)

This is a 16-bit wide register that masks the TOSR register. The
logical OR of the bitwise AND of TOSR and TOSE produces the
TOSB message in the Communications Error Status Register (CESR).

SIM900 Mainframe

2.6 Register Model 2 – 51

2.6.2.13 Input Overflow Status (IOSR)

This is a 16-bit wide register that monitors input overflow errors.

Weight Bit Flag

1 0 InoverGPIB
2 1 Inovr1
4 2 Inovr2

8 3 Inovr3
16 4 Inovr4
32 5 Inovr5
64 6 Inovr6

128 7 Inovr7
256 8 Inovr8

512 9 Inovr9
1024 10 InovrA
2048 11 InovrB
4096 12 InovrC
8192 13 InovrD

16384 14 undef (0)
32768 15 undef (0)

When data is received by the mainframe at a port, it is initially stored
in the 512-byte port input buffer, on a first-in, first-out (FIFO) basis. If
an input buffer overflows, an error condition is recorded in the IOSR,
and the corresponding input buffer is flushed. If the host input buffer
overflows, then the host output queue is also flushed (as though a
Device Clear had occurred).

The register is cleared either by reading, or with the *CLS command.

2.6.2.14 Input Overflow Status Enable (IOSE)

This is a 16-bit wide register that masks the IOSR register. The logical
OR of the bitwise AND of IOSRand IOSE produces the IOSB message
in the Communications Error Status Register (CESR).

2.6.2.15 Flow Control Status (FCSR)

This 16-bit wide register monitors the flow-control hardware of the
ports. If the mainframe stops the incoming flow of data from a port
(by deasserting RTS), then the corresponding bit in the FCSR is set.
Whether or not this means that data was actually lost depends on
the implementation of the particular SIM or RS-232 device sourcing
data to the mainframe.

Since Ports C and D (EAVS and COMM) are DCE ports rather than
DTE ports, the hardware flow-control outputs are actually CTS for
these two ports.

SIM900 Mainframe

2 – 52 Remote Programming

Note if FLOW is set to XON or NONE, the FCSR will not be set by flow

control events. Only RTS flow control is monitored by FCSR.

Weight Bit Flag

1 0 undef (0)
2 1 RTS–Halted1
4 2 RTS–Halted2

8 3 RTS–Halted3
16 4 RTS–Halted4
32 5 RTS–Halted5
64 6 RTS–Halted6

128 7 RTS–Halted7
256 8 RTS–Halted8

512 9 RTS–Halted9
1024 10 RTS–HaltedA
2048 11 RTS–HaltedB
4096 12 CTS–HaltedC
8192 13 CTS–HaltedD

16384 14 CTSB
32768 15 undef (0)

CTSB is the CTS Summary Bit status message, and is the logical OR
of the bitwise AND of CTSR and CTSE (see below).

This register (with the exception of the CTSB bit) is cleared either by

reading. All bits are cleared by *CLS.

2.6.2.16 Flow Control Status Enable (FCSE)

This is a 16-bit wide register that masks the FCSR register. The
logical OR of the bitwise AND of FCSR and FCSE produces the FCSB
message in the Status Byte register (SB).

At power-on, this register is cleared.

SIM900 Mainframe

2.6 Register Model 2 – 53

2.6.2.17 CTS Status Condition (CTCR)

This 16-bit wide register monitors the CTS line of all ports (1–D).

Weight Bit Flag

1 0 undef (0)
2 1 CTS1
4 2 CTS2

8 3 CTS3
16 4 CTS4
32 5 CTS5
64 6 CTS6

128 7 CTS7
256 8 CTS8

512 9 CTS9
1024 10 CTSA
2048 11 CTSB
4096 12 RTSC
8192 13 RTSD

16384 14 undef (0)
32768 15 undef (0)

The CTS output signal from a SIM or RS-232 device is typically used
for hardware flow control, and is asserted high (1) to indicate the
mainframe is Clear To Send new bytes to the device, and deasserted
(0) to stop the flow.

2.6.2.18 CTS Status (CTSR)

Since Ports C and D (EAVS and COMM) are DCE ports instead of
DTE ports, the hardware flow-control inputs for these two ports are
actually RTS rather than CTS.

SIM ports (1–9) each have a pull-down resistor wired to the CTS
input, so unconnected slots will show CTCR[p] = 0. The RS-232
ports each have a pull-up resistor wired to the flow-control input, so
unconnected RS-232 ports will show CTCR[p]=1.

Regardless of the current FLOWsetting for a port, the CTCR always

reflects the real-time value of CTS (RTS for Ports C & D).

This is another 16-bit wide register that monitors the flow control
hardware of the ports. A 1 → 0 transition in the CTCR will cause
the corresponding bit in the CTSR to be set. Thus, only Negative

Transitions generate the CTS Status events. When FLOW is RTS, this

indicates the SIM or RS-232 device has halted the flow of data from
the mainframe.

This register is cleared either by reading, or with the *CLS command.

SIM900 Mainframe

2 – 54 Remote Programming

2.6.2.19 CTS Status Enable (CTSE)

This is a 16-bit wide register that masks the CTSR register. The
logical OR of the bitwise AND of CTSR and CTSE produces the
CTSB message in the Flow Control Status register (FCSR).

At power-on, this register is cleared.

2.6.2.20 Port Data Pending (PDPR)

This is a 16-bit wide register that monitors incoming data from the
ports to the mainframe.

Weight Bit Flag

1 0 undef (0)
2 1 DataAvail1
4 2 DataAvail2

8 3 DataAvail3
16 4 DataAvail4
32 5 DataAvail5
64 6 DataAvail6

128 7 DataAvail7
256 8 DataAvail8

512 9 DataAvail9
1024 10 DataAvailA
2048 11 DataAvailB
4096 12 DataAvailC
8192 13 DataAvailD

16384 14 undef (0)
32768 15 undef (0)

A bit for a given port in the PDPR is set if any bytes arrive from that
port while it is NOT mapped to the mainframe output queue (either

by the CONN command or through the RPER register). Reading the

register clears it (reading a single bit clears only that bit).

This register is cleared by the *CLS command.

2.6.2.21 Port Data Pending Enable (PDPE)

This is a 16-bit wide register that masks the PDPR register. The
logical OR of the bitwise AND of PDPR and PDPE produces the
PDSB message in the Status Byte register (SB).

At power-on, this register is cleared.

SIM900 Mainframe

3 Communications Examples

This chapter providesdetailed examples of communications with the
SIM900 Mainframe.

In This Chapter

3.1 Introduction to Communications . . . . . . . . . . 3 – 2

3.1.1 Streaming Communications . . . . . . . . . . 3 – 2

3.1.2 Message-Based Communications . . . . . . . 3 – 3

3.1.3 Other Styles . . . . . . . . . . . . . . . . . . . 3 – 4

3.2 Streaming Example . . . . . . . . . . . . . . . . . . . 3 – 4

3.2.1 openMainframe() . . . . . . . . . . . . . . . . 3 – 4

3.2.2 main() . . . . . . . . . . . . . . . . . . . . . . 3 – 4

3.3 Message-Based Example . . . . . . . . . . . . . . . . 3 – 8

3.3.1 serviceMsgs() & deliverMsg() . . . . . . . . . 3 – 8

3.3.2 readMsg() & sendMsg() . . . . . . . . . . . . 3 – 8

3.3.3 openMainframe() . . . . . . . . . . . . . . . . 3 – 8

3.3.4 main() . . . . . . . . . . . . . . . . . . . . . . 3 – 9

3.4 Combination Example . . . . . . . . . . . . . . . . . 3 – 16

3.4.1 Details . . . . . . . . . . . . . . . . . . . . . . 3 – 16

3 – 1

3 – 2 Communications Examples

3.1 Introduction to Communications

The Small Instrumentation Module family supports several styles
of communications between a user’s computer and a collection of
instruments. While it is possible to communicate directly with a SIM
module, this chapter will only consider the case of communication
through a SIM900 Mainframe.

The SIM900 has two host computer interfaces: RS-232 and GPIB.
To switch interfaces, use the rear-panel piano-style DIP switch (see
section 1.4.2). The 5 right-most switches are interpreted based on the
host selection, and determine either default baud rate or instrument
address (see section 1.4.1). Only one host interface can be active, and
the selection is determined at power-on time for the SIM900.

3.1.1 Streaming Communications

The simplest style of communication through the SIM900 is the “con­nection” model, where a single bidirectional I/O stream is managed.
Upon power-on, the streamis initiallydirected tothe SIM900 itself, so

that, for example, an identification query (see *IDN?, section 2.5.10)

will result in the SIM900 ID string as a response back to the host

computer. Using the CONN command (section 2.5.3), the user can

steer the I/O stream to one of the instrument ports of the mainframe
(1–8 for the internal slots, 9 for the remote SIM port, and A or B for
the auxiliary RS-232 ports). After connecting to a particular port, all
I/O is directed from the host computer through the Mainframe to the
target port, and responses from the target port are passed through
the Mainframe back to the host computer.

To end the connection, the host computer sends a preprogrammed
“escape” string. The escape string is provided as the second pa-

rameter in the CONN command, and should be chosen carefully to

ensure that it does not inadvertently occur within the normal stream
of I/O from the host computer to the target. In the example below,
the nonsense sequence XYZZY is chosen as an escape string (note the
string is case-sensitive). When the mainframe is relaying data from
the host computer through to a connected port, it continually scans
for a possible match with the escape string. If the first character of
the string is received, the character is held in a memory buffer of the
mainframe. When the next character is received, it is compared with
the second character of the string; if it matches, it too is added to the
buffer, otherwise both the buffered previous character and the new
character are transmitted to the target port.

SIM900 Mainframe

3.1 Introduction to Communications 3 – 3

As an illustration, consider the following session:

from host to module

CONN 3,’DEFQ’ establish connection
GAIN 10 GAIN 10 “normal” pass-thru
ABCDEF ABC partial match found
GHIJK DEFGHIJK not escape string; catch up
ABCDEFQ ABC connection ended

Notice that when the host computer transmitted ABCDEF, the last
three characters (DEF) were not retransmitted by the mainframe to the
target module; the mainframe withheld these bytes waiting to see if
the complete escape string was being given. When the next character
(G) was sent, the mainframe determined that this was not the escape
string, and resumed transmission to the target module. There is no
timeout on this partial-match buffering, so the data will be held back
indefinitely until the Mainframe can uniquely disambiguate between
the message data and the escape string.

The situation get more interesting when multiple SIM900s are con­nected together using the auxiliary RS-232 ports. In this case, dif­ferent escape strings must be used for the two mainframes to enable
redirection of the downstream SIM900 I/O stream without discon­necting the upstream connection.

3.1.2 Message-Based Communications

An alternative to the streaming connection model, message-based
communications treats all transactions as mainframe-directed com­mands and queries. Transmissions from the host computer to in-

dividual modules are performed with the SEND and SNDT com-

mands; transmissions to multiple modules can broadcast with the

BRDC,BRDT commands (section 2.5.3).

There are several options available for receiving data from modules
back to the host computer under a message-based scheme:

• One or more ports can be enabled for “pass-through” messag-

ing with the RPER register (see sections 2.5.4 and 2.6.1.2). In-

coming data messages from an enabled port are encapsulated
in a MSG packet, and transmitted directly to the host output
queue. The example program below demonstrates this.

• Individual port(s) can be polled for data (with the NINP?query,
or through the RDPR status register). When data is available
from a port, it can be retreived with the GETN? or RAWN?

queries (see section 2.5.3).

SIM900 Mainframe

3 – 4 Communications Examples

3.1.3 Other Styles

It is also possible to combine elements of each communication model.
For instance, messages from the host to the modules can be con-

veniently dispatched with the SEND and SNDT commands, while
query responses can be retrieved by CONNecting to the port and sim-

ply reading the results. The final example program demonstrates this
hybrid style.

3.2 Streaming Example

This example demonstrates I/O to multiple SIM modules using the
stream-based connection model. Low-level I/O is handled by func­tion calls to the National Instruments VISA library, and supports
both RS-232 and GPIB.

3.2.1 openMainframe()

The most complicated function in this example is openMainframe().
After first performing a number of VISA-related initializations, the

program places the mainframe into a reset state (with *RST). The
next command (VERB127) enables debugging output on the Eaves-consider monitoring the

Eavesdrop port for debugging drop RS-232 port. The next two commands (CEOI and EOIX) enable

translation of line-feed characters to EOI messages (and visa-versa)
when connected via GPIB. The host interface terminator is next pro­grammed to line-feed for consistency when connected via RS-232.

3.2.2 main()

Because the mainframe serial baud rates are not modified by the

*RST command, the program next loops over all valid port numbers

and commands each port to 9600 baud (the module default).

Finally, all internal port buffers in the mainframe are flushed (FLSH),

and a serial break signal is sent to all SIM modules to force their

communications interfaces to a clean state (SRST).

After first querying the identification string of the mainframe, the
program moves the I/O stream to port 5 and identifies the module
plugged into that slot. Notice the “TERM LF” command that is first
sent to the module—this sets the module to terminate responses with
a line-feed character. This is particularly helpful for GPIB-based
communications.

The dialog is repeated for port 7, after which the program ends.

SIM900 Mainframe

3.2 Streaming Example 3 – 5

/* == = = = = = = = == = == = = == = = == = == = = == = == = = == = = == = == = = == = == = = == = == = = == = == = = == = == = =

* example_stream i n g .c -- simple IO
*
* compile l ine : cl ex a m p l e _ s t r e a m i n g .c /l ink visa 3 2 .lib
*/

#include <st d i o .h >
#include <st d l i b .h >
#include <st r i n g .h >
#include <ti m e . h >
#include <vi s a . h > /* external VI S A library */

/* the f ollowing mac r o defines the VIS A resource (uncomment o nly on e ) */
#define VI S A R E S O U R C E " G PIB :: 2 :: IN S T R " /* GPI B Address 2 */
/* #define VI S A R E S O U R C E " A S RL2 : : IN S T R " /* COM 2 (RS -232) */

#define VI S A T I M E O U T 1000 /* ti meou t , in ms */

/* Define the de f a u l t baud rate for th e host i n t e r f ace (for RS -232).

* Edi t to match the settin g on the rear -pane l DIP sw i tch .
*/

#define DE F A U L T B A U D 960 0

/* === function prototypes === */

in t openMainframe ( vo i d );
vo id closeMainframe (voi d );
vo id sendString ( ch ar *m s g );
vo id recvString ( ch ar *msg , int size );

/* ===== = = = = = = = == = = == = = == = == = = == = == = = == = = == = == = = == = == = = == = = == = == = = == = = == */
/* == = This is the ma in progra m . The ma i n f r a m e I D string is qu e ried , = = = */
/* == = and then mo d u l es in slots 5 & 7 are id e n t i f i e d . == = */
/* ===== = = = = = = = == = = == = = == = == = = == = == = = == = = == = == = = == = == = = == = = == = == = = == = = == */

in t main (void ) {

ch ar msg [81];

if (openMainframe () ) return 0; /* at t e m pt to open co m m u n i c a t i o n s */

sen d S t r i n g ("* IDN ?\ n " ); /* query m a i n f rame ID string */
rec v S t r i n g (ms g , sizeof ( msg )) ; /* rece i v e r e sponse */
pr i n t f (" MF IDN : % s \n " ,ms g ); /* report the re s u l t */
ff l u s h (stdout );

sen d S t r i n g (" CONN 5 ,’ x yZZy ’\ n " ); /* co nnect to Slot 5 */
sen d S t r i n g (" TERM LF \ n " ); /* set response te r m to LF */
sen d S t r i n g ("* IDN ?\ n " ); /* query m odule ID strin g */
rec v S t r i n g (ms g , sizeof ( msg )) ; /* rece i v e r e sponse */
pr i n t f (" S l o t 5: % s\ n" , m sg ); / * repor t the re s u lt */
ff l u s h (stdout );
sen d S t r i n g (" xyZZy " ) ; /* disconnect */

sen d S t r i n g (" CONN 7 ,’ x yZZy ’\ n " ); /* co nnect to Slot 7 */

SIM900 Mainframe

3 – 6 Communications Examples

sen d S t r i n g (" TERM LF \ n " ); /* set response te r m to LF */
sen d S t r i n g ("* IDN ?\ n " ); /* query m odule ID strin g */
rec v S t r i n g (ms g , sizeof ( msg )) ; /* rece i v e r e sponse */
pr i n t f (" S l o t 7: % s\ n" , m sg ); / * repor t the re s u lt */
ff l u s h (stdout );
sen d S t r i n g (" xyZZy " ) ; /* disconnect */

closeMainframe ( );

re t u r n 0;

}

/* ===== = = = = = = = == = = == = = == = == = = == = == = = == = = == = == = = == = == = = == = = == = == = = == = = ==

* low level I/ O funct i o n s :
* op e n M a i n f r a m e () -- open communications ch annel , and in i t i a l i ze
* mai n f r a m e & mo dules
* cl o s e M a i n f r a m e () - close co m m u n i c a t i o n s c h a n n el
* se n d S t r ing () -- --- transmit a null - te r m i n a t e d string
* re c v S t r ing () -- --- receive da ta int o a null - t e r m i n a t e d string
*/

st a t i c ViSession defaul t R M ;
st a t i c ViSession in s t r ;
st a t i c ViStatus st a t u s ;
st a t i c ViUInt32 ret C o u n t ;
st a t i c ViUInt32 write C o u n t ;

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

in t openMainframe ( vo i d ) {

V i U I n t 1 6 itype;

in t i;
ch ar buf [32];

st a t u s =viOpenDefaultRM (& defaultRM );
if (status < V I _ S U C C E S S ) {

pr i n t f (" Cou l d not open a s e s s i o n \n ");
ex i t (EXIT_FAILURE );

}

st a t u s = viOpen (d e f aultRM , VI SARESOURCE , VI_N ULL , VI_NUL L , &instr );
if (status < V I _ S U C C E S S ) {

pr i n t f (" Cannot op en a session to the devi c e .\ n");
st a t u s = viClose ( in str );
st a t u s = viClose ( de f a u l t R M );
ex i t (EXIT_FAILURE );

}

/* Set timeout va l u e */

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _TMO_VALUE , VI S A T I M E O U T );

/* Set interf a ce - sp e c i f i c config . (RS -2 3 2 or GPIB ...) */

st a t u s = vi G e t A t t r i b u t e (ins tr , VI _ A T T R _INTF_TYPE , &i t y pe );
if (itype == VI _ I N T F _ A S R L ) { /* int e r f a c e is RS - 2 3 2 */

SIM900 Mainframe

3.2 Streaming Example 3 – 7

/* transmit se r i al BREAK to re set SIM9 0 0 host in t e r f a c e */

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _END_OUT , VI_ASRL_END_BREAK );
st a t u s = viWrite (i nst r , (ViBuf) buf , 0, &writeCount );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _END_OUT , VI_ASRL_END_NONE );

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ASRL_BAUD , DE F A U L T B A U D );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _ D A T A _ B ITS , 8) ;
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S RL_PARITY , VI_ASRL_PAR_NONE );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _ S T O P _ B ITS , VI_AS R L _ S T O P _ O N E );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ T E RMCHAR_EN , VI_ T R U E );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R_TERMCHAR , 0xA ) ;

} els e if ( itype == VI _ I N T F _ G P I B ) { /* interface is GP I B */

st a t u s = viClear ( in str ); /* clear SI M 9 0 0 hos t i n t e r f ace */
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ T E RMCHAR_EN , VI _ F A L S E );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ S U P P R E S S _ E N D _ E N , VI_FALSE ) ;

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ S E ND_END_EN , VI_ T R U E );
}
sen d S t r i n g ("* RST\ n " ); /* SI M 9 0 0 default */
sen d S t r i n g (" VERB 127\ n " ); /* en a b l e E avesdrop */
sen d S t r i n g (" CEOI ON \ n " ); /* conve r t EOI ’ s (fo r GPIB ) */
sen d S t r i n g (" EOIX ON \ n " );
sen d S t r i n g (" TERM D, L F \ n " ); /* set SIM 9 0 0 to LF term */

fo r (i=1; i < = 0 xb ; + + i) { /* set po r ts to 9600 baud */

sp r i n t f (buf , " BA U D %x ,9600\ n" , i);

sen d S t r i n g (buf );
}
sen d S t r i n g (" FLSH\ n " ); /* fl u sh all port bu f f ers */
sen d S t r i n g (" SRST\ n " ); /* re s et module i n t e r f a c e s */
re t u r n 0;

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id closeMainframe (voi d ) {

st a t u s = viClose ( in str );
st a t u s = viClose ( de f a u l t R M );

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id sendString ( ch ar *m s g ) {

st a t u s = viWrite (i nst r , (ViBuf) msg , st r l e n (msg ), & writeCoun t );

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id recvString ( ch ar *msg , int size ) {

st a t u s = viRead ( i nstr , msg , s ize -1 , & re t C o u n t );
if (retCount == 0) ms g [0] = ’\0 ’;

}

SIM900 Mainframe

3 – 8 Communications Examples

3.3 Message-Based Example

This example demonstrates basic I/O to multiple SIM modules using
the message-based communication model. Low-level I/O is handled
by function calls to the National Instruments VISA library, and sup­ports both RS-232 and GPIB.

3.3.1 serviceMsgs() & deliverMsg()

The serviceMsgs() function handles the incoming stream of mes­sage packets from the various module ports to the host computer.
Ideally, this function would be repeatedly called within a parallel
thread to the main program. For simplicity, in this example, the
function is called repeatedly within the main thread of the program,
and no explicit parallelism is used.

Separate input port buffers (portBuf) are used to store the incoming
streams from each port; data originating with the mainframe itself is
buffered as “port 0”. Each incoming packet begins with a MSG header
(see section 2.6.1.2) containing the source port address and the byte
count for the payload data. The bulk of serviceMsgs() handles
the parsing of this header, buffering partial packets internally, and
sending any data not encapsulated in a MSG packet to the “port 0”
buffer.

Data is transferred to the portBuf array by the internal helper func­tion deliverMsg(); this function should not be called by any user­level code.

3.3.2 readMsg() & sendMsg()

These two functions constitute the user-level interface for communi­cations. readMsg() drains data from the portBuf array, and if neces­sary calls serviceMsgs() to retrieve more data. Calls to readMsg()
transfer data up to (and including) either the requested number of
bytes, or the first line-feed character.

The sendMsg() sends data to the SIM system; messages directed to
the mainframe (port=0) simply have a line-feed appended to the

end, while port-directed messages are sent as the payload of a SNDT

command (section 2.5.3).

3.3.3 openMainframe()

The only change to openMainframe(), compared with the previous
example, is the addition of the line:

sen d S t r i n g (" RPER 40 94\ n " );

SIM900 Mainframe

3.3 Message-Based Example 3 – 9

This programs the Receive Pass-Through Enable register (sec­tion 2.6.1.2) for ports 1–B, causing incoming data from the modules
to the mainframe to be immediately transmitted by the mainframe
to the host as MSG packets.

3.3.4 main()

The main program is similar to the first example. Notice that the
TERM LF message is now being broadcast to all module ports using

the BRDT command. Also, the serviceMsgs() function is called

after each query command is sent, before attempting to read the
results. Ideally, the calls to serviceMsgs() would be hidden in a
parallel thread, but that refinement is omitted here.

SIM900 Mainframe

3 – 10 Communications Examples

/* == = = = = = = = == = == = = == = = == = == = = == = == = = == = = == = == = = == = == = = == = == = = == = == = = == = == = =

* example_messages .c -- SIM IO ex a m p le
*
* compile l ine : cl example_messages .c /link v isa32 . lib
*/

#include <st d i o .h >
#include <st d l i b .h >
#include <st r i n g .h >
#include <ti m e . h >
#include <vi s a . h > /* external VI S A library */

/* the f ollowing mac r o defines the VIS A resource (uncomment o nly on e ) */
#define VI S A R E S O U R C E " G PIB :: 2 :: IN S T R " /* GPI B Address 2 */
/* #define VI S A R E S O U R C E " A S RL2 : : IN S T R " /* COM 2 (RS -232) */

#define VI S A T I M E O U T 500 /* ti meout , in ms */

/* Define the de f a u l t baud rate for th e host i n t e r f ace (for RS -232).

* Edi t to match the settin g on the rear -pane l DIP sw i tch .
*/

#define DE F A U L T B A U D 960 0

/* === function prototypes === */

vo id serviceMsgs ( vo id );
vo id deliverMsg ( int port , cha r *p, int len );
vo id readMsg( i nt port , cha r *buf , int ma x L en );
vo id sendMsg( i nt port , cha r *buf );
in t openMainframe ( vo i d );
vo id closeMainframe (voi d );
vo id sendString ( ch ar *m s g );
vo id recvString ( ch ar *msg , int size );

/* ===== = = = = = = = == = = == = = == = == = = == = == = = == = = == = == = = == = == = = == = = == = == = = == = = == */
/* == = This is the ma in progra m . The ma i n f r a m e I D string is qu e ried , = = = */
/* == = and then mo d u l es in slots 5 & 7 are id e n t i f i e d . == = */
/* ===== = = = = = = = == = = == = = == = == = = == = == = = == = = == = == = = == = == = = == = = == = == = = == = = == */

in t main (void ) {

ch ar msg [81];

if (openMainframe () ) return 0;

se n d M s g (0 , "BRER 1022 " ) ; /* enable por t s 1-9 to re c e ive broadcasts */
se n d M s g (0 , "BRDT ’ TERM LF ’ " ); /* set all modul e s to LF t e r m i n a t i o n s */

se n d M s g (0 , "*IDN ?"); /* qu e ry mainframe ID str i n g */
se r v i c e M s g s ();
re a d M s g (0 , msg , size o f (ms g )) ;
pr i n t f (" MF IDN : % s \n " ,ms g ); /* report the re s u l t */
ff l u s h (stdout );

se n d M s g (5 , "*IDN ?");

SIM900 Mainframe

3.3 Message-Based Example 3 – 11

serv i c e M s g s ();
re a d M s g (5 , msg , size o f (ms g )) ;
pr i n t f (" S l o t 5: % s\ n" , m sg ); / * repor t the re s u lt */
ff l u s h (stdout );

se n d M s g (7 , "*IDN ?");
se r v i c e M s g s ();
re a d M s g (7 , msg , size o f (ms g )) ;
pr i n t f (" S l o t 7: % s\ n" , m sg ); / * repor t the re s u lt */
ff l u s h (stdout );

closeMainframe ( );

re t u r n 0;

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * **

* mes sage - level I/ O function s :
* se r v i c e M s g s () -- pseu do - b a c k g r o u n d f unction to handl e i n c oming msg s
* de l i v e r Msg () - - in t e r n a l function to co p y msg to por t - s p e c i f i c buffer
* re adMsg () -- user - le v el function to re ad m s g from a s p e cific por t
* se ndMsg () -- user - le v el function to wr i t e msg to a s pecific po r t
*
* For readMsg ( ) an d sendMsg () , use por t =0 to send to the Mainframe it s elf .
* All reads will termina t e on ’\ n ’ or maxLen , an d all sends wi ll hav e a
* ’ \ n ’ postpended.
*/

#define MA X P O R T 0x d
#define BU F S I Z E 10 2 4
st a t i c char p o r tBuf [ BUFS I Z E ][ MAXPOR T ];
st a t i c unsigned int portFi l l [ M AXPORT ] ;
st a t i c unsigned int portDrain[ M A X P O R T ];
st a t i c unsigned int nBytesUsed [ MA X P ORT ];

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id serviceMsgs ( vo id ) {

st a t i c char msg [ 1 9 2 ];
st a t i c int idx;
in t res ult , ne wBytes ;
ch ar *p;
in t po rt , le n ;

rec v S t r i n g (&msg[ i dx ] , s i z eof ( ms g )- id x );
n e w B y t e s = strlen (& msg [ id x ]) ;
wh i le (newByte s ) {

id x = 0 ; /* we ’ l l upd a t e this if neces s a r y */

if (( p = str s t r (msg ,"MSG ") ) != NUL L ) {

/* detected a MSG pa c k e t */

if (p != msg ) {

/* send p r e c e eding bytes to bu f fer #0 */

del i v e r M s g (0, msg , msg -p );

SIM900 Mainframe

3 – 12 Communications Examples

st r c p y (msg ,p) ;
}
re s u l t = sscanf ( msg , " M SG %1 x ,#2 % 2 d" ,&por t ,& l en ) ;
if (result == 2) { /* is he a der complete ? */

p = msg + 10; /* point to star t of pa y load */

if (strlen(p ) >= le n ) { /* is pa y l oad complete ? */

del i v e r M s g (port , p , len );

p += len;
if (strlen(p )) { /* any tr a i l i ng data ? */

st r c p y (msg ,p); /* if so , buffer it . . . */
id x = strlen( m sg ) ;

}

}
}

} els e {

/* no MS G p acket detec t e d */

if (( p = strrch r (ms g ,’\n ’ ) ) != NUL L ) { /* any co m p l e t e lines ? */

p++; /* include te r m i n a t o r */

del i v e r M s g (0, msg , msg -p ) ; /* se n d to buffer # 0 */

if (strlen(p )) { /* anything le ft ? */

st r c p y (msg ,p);
id x = strlen( m sg ) ;

}
} els e {

/* no complete li n e s ; stor e and re t urn .. . */

id x = strlen( m sg ) ;
}

}
rec v S t r i n g (&msg[ i dx ] , s i z eof ( ms g )- id x ); /* look fo r mor e data */
n e w B y t e s = strlen (& msg [ id x ]) ;

}

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id deliverMsg ( int port , cha r *p, int len ) {

wh i le (len && nB y t e s U s e d [port ] < BUFSIZE ) {

po r t B u f [portFill [ p o rt ] + + ] [ por t ] = *p ++ ;
p o r t F i l l [port ] %= BU FSIZE ;
++ nBytesUsed[ p o rt ];

-- len ;

}

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id readMsg( i nt port , cha r *buf , int ma x L en ) {

ch ar lastRead ;

if (maxLen <= 1 ) {

*buf = ’\0 ’ ;
re t u r n ;

}

SIM900 Mainframe

3.3 Message-Based Example 3 – 13

l a s t R e a d = ’\0 ’;

do {

wh i le (nBytesUsed [ po r t ] & & (ma xLen -1) && la s t R e ad != ’\n’ ) {

l a s t R e a d = ( * buf ++ = portBuf[ po r t D r a in [por t ]++][ port ]);
por t D r a i n [port ] %= BU F S I Z E ;

-- nByt e s U s e d [port ];

-- ma x L e n ;

}
if (( m a x Len -1) && la s t R e a d != ’\n ’ ) {

se r v i c e M s g s (); /* tr y for some mo re .. . */

}

} whil e ( n B y t e s U s ed [por t ] & & (max L en - 1 ) && la s t R e a d != ’\n ’ );

*buf = ’\0 ’ ;

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id sendMsg( i nt port , cha r *msg ) {

ch ar buf [256];
if (strlen( m sg ) > 12 8 ) retu r n ; /* er r or ! */

if (port = = 0) {

st r c p y (buf , msg );
st r c a t (buf ,"\n");
sen d S t r i n g (buf );

} els e {

sp r i n t f (buf , " SN D T %x ,#3%03 d%s\n " , p ort , strle n (msg), m sg ) ;
sen d S t r i n g (buf );

}

}

/* ***** * * * * * * * ** * * ** * ** * * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * *

* low level I/ O funct i o n s :
* op e n M a i n f r a m e () -- open communications ch annel , and in i t i a l i ze
* mai n f r a m e & mo dules
* cl o s e M a i n f r a m e () - close co m m u n i c a t i o n s c h a n n el
* se n d S t r ing () -- --- transmit a null - te r m i n a t e d string
* re c v S t r ing () -- --- receive da ta int o a null - t e r m i n a t e d string
*/

st a t i c ViSession defaul t R M ;
st a t i c ViSession in s t r ;
st a t i c ViStatus st a t u s ;
st a t i c ViUInt32 ret C o u n t ;
st a t i c ViUInt32 write C o u n t ;

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

in t openMainframe ( vo i d ) {

V i U I n t 1 6 itype;

in t i;
ch ar buf [32];

SIM900 Mainframe

3 – 14 Communications Examples

st a t u s =viOpenDefaultRM (& defaultRM );
if (status < V I _ S U C C E S S ) {

pr i n t f (" Cou l d not open a s e s s i o n \n ");
ex i t (EXIT_FAILURE );

}

st a t u s = viOpen (d e f aultRM , VI SARESOURCE , VI_N ULL , VI_NUL L , &instr );
if (status < V I _ S U C C E S S ) {

pr i n t f (" Cannot op en a session to the devi c e .\ n");
st a t u s = viClose ( in str );
st a t u s = viClose ( de f a u l t R M );
ex i t (EXIT_FAILURE );

}

/* Set timeout va l u e */

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _TMO_VALUE , VI S A T I M E O U T );

/* Set interf a ce - sp e c i f i c config . (RS -2 3 2 or GPIB ...) */

st a t u s = vi G e t A t t r i b u t e (ins tr , VI _ A T T R _INTF_TYPE , &i t y pe );

if (itype == VI _ I N T F _ A S R L ) { /* int e r f a c e is RS - 2 3 2 */

/* transmit se r i al BREAK to re set SIM9 0 0 host in t e r f a c e */

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _END_OUT , VI_ASRL_END_BREAK );
st a t u s = viWrite (i nst r , (ViBuf) buf , 0, &writeCount );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _END_OUT , VI_ASRL_END_NONE );

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ASRL_BAUD , DE F A U L T B A U D );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _ D A T A _ B ITS , 8) ;
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S RL_PARITY , VI_ASRL_PAR_NONE );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _ S T O P _ B ITS , VI_AS R L _ S T O P _ O N E );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ T E RMCHAR_EN , VI_ T R U E );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R_TERMCHAR , 0xA ) ;

} els e if ( itype == VI _ I N T F _ G P I B ) { /* interface is GP I B */

st a t u s = viClear ( in str ); /* clear SI M 9 0 0 hos t i n t e r f ace */
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ T E RMCHAR_EN , VI _ F A L S E );
st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ S U P P R E S S _ E N D _ E N , VI_FALSE ) ;

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ S E ND_END_EN , VI_ T R U E );
}
sen d S t r i n g ("* RST\ n " ); /* SI M 9 0 0 default */
sen d S t r i n g (" VERB 127\ n " ); /* en a b l e E avesdrop */
sen d S t r i n g (" CEOI ON \ n " ); /* conve r t EOI ’ s (fo r GPIB ) */
sen d S t r i n g (" EOIX ON \ n " );

fo r (i=1; i < = 0 xb ; + + i) { /* set po r ts to 9600 baud */

sp r i n t f (buf , " BA U D %x ,9600\ n" , i);

sen d S t r i n g (buf );
}
sen d S t r i n g (" TERM D, L F \ n " ); /* set SIM 9 0 0 to LF term */
sen d S t r i n g (" FLSH\ n " ); /* fl u sh all port bu f f ers */
sen d S t r i n g (" SRST\ n " ); /* re s et module i n t e r f a c e s */
sen d S t r i n g (" RPER 40 94\ n " ); /* Re c e i ve Pa ss -Through En a b l e ports 1 -B */
re t u r n 0;

SIM900 Mainframe

3.3 Message-Based Example 3 – 15

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id closeMainframe (voi d ) {

st a t u s = viClose ( in str );
st a t u s = viClose ( de f a u l t R M );

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id sendString ( ch ar *m s g ) {

st a t u s = viWrite (i nst r , (ViBuf) msg , st r l e n (msg ), & writeCoun t );

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id recvString ( ch ar *msg , int size ) {

st a t u s = viRead ( i nstr , msg , s ize -1 , & re t C o u n t );
if (retCount == 0) ms g [0] = ’\0 ’;

}

SIM900 Mainframe

3 – 16 Communications Examples

3.4 Combination Example

This example demonstrates basic I/O to multiple SIM modules using
aspects of both the ”message”-based and ”stream”-based connection
models. Low-level I/O uses National Instrument’s VISA library, and
works with either RS-232 or GPIB.

3.4.1 Details

The main program for this final example is identical to the second
example (example messages.c); again, the user-level interface is the
functions sendMsg() and readMsg(). sendMsg() is also identical,

while readMsg() has been rewritten to use the CONN command.

The openMainframe() function is now identical to the first example

program, example streaming.c; the RPER register remains in the

reset state (value of 0).

By using the CONN path to retreive data from individual ports, the

intermediate layer serviceMsgs() is eliminated; instead of buffer­ing the module-originated data on the host computer, this data is
buffered in the mainframe until the host computer is ready to query
it directly. Since the SIM900 Mainframe has 512-byte buffers for each
port, this is usually sufficient.

SIM900 Mainframe

3.4 Combination Example 3 – 17

/* == = = = = = = = == = == = = == = = == = == = = == = == = = == = = == = == = = == = == = = == = == = = == = == = = == = == = =

* example_hybrid . c - - SIM IO exa m p l e
*
* compile l ine : cl example_hybrid . c / li nk visa 3 2 .li b
*/

#include <st d i o .h >
#include <st d l i b .h >
#include <st r i n g .h >
#include <ti m e . h >
#include <vi s a . h > /* external VI S A library */

/* the f ollowing mac r o defines the VIS A resource (uncomment o nly on e ) */
#define VI S A R E S O U R C E " G PIB :: 2 :: IN S T R " /* GPI B Address 2 */
/* #define VI S A R E S O U R C E " A S RL2 : : IN S T R " /* COM 2 (RS -232) */

#define VI S A T I M E O U T 500 /* ti meout , in ms */
#define ES C A P E K E Y " XY ZZY "

/* Define the de f a u l t baud rate for th e host i n t e r f ace (for RS -232).

* Edi t to match the settin g on the rear -pane l DIP sw i tch .
*/

#define DE F A U L T B A U D 960 0

/* === function prototypes === */

vo id readMsg( i nt port , cha r *buf , int ma x L en );
vo id sendMsg( i nt port , cha r *buf );
in t openMainframe ( vo i d );
vo id closeMainframe (voi d );
vo id sendString ( ch ar *m s g );
vo id recvString ( ch ar *msg , int size );

/* ===== = = = = = = = == = = == = = == = == = = == = == = = == = = == = == = = == = == = = == = = == = == = = == = = == */
/* == = This is the ma in progra m . The ma i n f r a m e I D string is qu e ried , = = = */
/* == = and then mo d u l es in slots 5 & 7 are id e n t i f i e d . == = */
/* ===== = = = = = = = == = = == = = == = == = = == = == = = == = = == = == = = == = == = = == = = == = == = = == = = == */

in t main (void ) {

ch ar msg [81];

if (openMainframe () ) return 0;

se n d M s g (0 , "BRER 1022 " ) ; /* enable por t s 1-9 to re c e ive broadcasts */
se n d M s g (0 , "BRDT ’ TERM LF ’ " ); /* set all modul e s to LF t e r m i n a t i o n s */

se n d M s g (0 , "*IDN ?"); /* qu e ry mainframe ID str i n g */
re a d M s g (0 , msg , size o f (ms g )) ;
pr i n t f (" MF IDN : % s \n " ,ms g ); /* report the re s u l t */
ff l u s h (stdout );

se n d M s g (5 , "*IDN ?");
re a d M s g (5 , msg , size o f (ms g )) ;

SIM900 Mainframe

3 – 18 Communications Examples

pr i n t f (" S l o t 5: % s\ n" , m sg ); / * repor t the re s u lt */
ff l u s h (stdout );

se n d M s g (7 , "*IDN ?");
re a d M s g (7 , msg , size o f (ms g )) ;
pr i n t f (" S l o t 7: % s\ n" , m sg ); / * repor t the re s u lt */
ff l u s h (stdout );

closeMainframe ( );

re t u r n 0;

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * **

* mes sage - level I/ O function s :
* re adMsg () -- user - le v el function to re ad m s g from a s p e cific por t
* se ndMsg () -- user - le v el function to wr i t e msg to a s pecific po r t
*
* For readMsg ( ) an d sendMsg () , use por t =0 to send to the Mainframe it s elf .
* All reads will termina t e on ’\ n ’ or maxLen , an d all sends wi ll hav e a
* ’ \ n ’ postpended.
*/

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id readMsg( i nt port , cha r *msg , int ma x L en ) {

ch ar buf [128];

if (port ) {

sp r i n t f (buf , " CO N N %x ,’%s ’\n" , port , ESCAPEKE Y );

sen d S t r i n g (buf ); /* co n n e c t to the port */

rec v S t r i n g (ms g , maxLen ) ;

sen d S t r i n g ( E SCAPEKEY ); /* end connection */
} els e {

rec v S t r i n g (ms g , maxLen ) ;
}

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id sendMsg( i nt port , cha r *msg ) {

ch ar buf [256];
if (strlen( m sg ) > 12 8 ) retu r n ; /* er r or ! */

if (port = = 0) {

st r c p y (buf , msg );

st r c a t (buf ,"\n");

sen d S t r i n g (buf );
} els e {

sp r i n t f (buf , " SN D T %x ,#3%03 d%s\n " , p ort , strle n (msg), m sg ) ;

sen d S t r i n g (buf );
}

}

SIM900 Mainframe

3.4 Combination Example 3 – 19

/* ***** * * * * * * * ** * * ** * ** * * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * *

* low level I/ O funct i o n s :
* op e n M a i n f r a m e () -- open communications ch annel , and in i t i a l i ze
* mai n f r a m e & mo dules
* cl o s e M a i n f r a m e () - close co m m u n i c a t i o n s c h a n n el
* se n d S t r ing () -- --- transmit a null - te r m i n a t e d string
* re c v S t r ing () -- --- receive da ta int o a null - t e r m i n a t e d string
*/

st a t i c ViSession defaul t R M ;
st a t i c ViSession in s t r ;
st a t i c ViStatus st a t u s ;
st a t i c ViUInt32 ret C o u n t ;
st a t i c ViUInt32 write C o u n t ;

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

in t openMainframe ( vo i d ) {

V i U I n t 1 6 itype;

in t i;
ch ar buf [32];

st a t u s =viOpenDefaultRM (& defaultRM );
if (status < V I _ S U C C E S S ) {

pr i n t f (" Cou l d not open a s e s s i o n \n ");

ex i t (EXIT_FAILURE );
}

st a t u s = viOpen (d e f aultRM , VI SARESOURCE , VI_N ULL , VI_NUL L , &instr );
if (status < V I _ S U C C E S S ) {

pr i n t f (" Cannot op en a session to the devi c e .\ n");

st a t u s = viClose ( in str );

st a t u s = viClose ( de f a u l t R M );

ex i t (EXIT_FAILURE );
}

/* Set timeout va l u e */

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _TMO_VALUE , VI S A T I M E O U T );

/* Set interf a ce - sp e c i f i c config . (RS -2 3 2 or GPIB ...) */

st a t u s = vi G e t A t t r i b u t e (ins tr , VI _ A T T R _INTF_TYPE , &i t y pe );

if (itype == VI _ I N T F _ A S R L ) { /* int e r f a c e is RS - 2 3 2 */

/* transmit se r i al BREAK to re set SIM9 0 0 host in t e r f a c e */

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _END_OUT , VI_ASRL_END_BREAK );

st a t u s = viWrite (i nst r , (ViBuf) buf , 0, &writeCount );

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _END_OUT , VI_ASRL_END_NONE );

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ASRL_BAUD , DE F A U L T B A U D );

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _ D A T A _ B ITS , 8) ;

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S RL_PARITY , VI_ASRL_PAR_NONE );

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ A S R L _ S T O P _ B ITS , VI_AS R L _ S T O P _ O N E );

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ T E RMCHAR_EN , VI_ T R U E );

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R_TERMCHAR , 0xA ) ;

SIM900 Mainframe

3 – 20 Communications Examples

} els e if ( itype == VI _ I N T F _ G P I B ) { /* interface is GP I B */

st a t u s = viClear ( in str ); /* clear SI M 9 0 0 hos t i n t e r f ace */

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ T E RMCHAR_EN , VI _ F A L S E );

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ S U P P R E S S _ E N D _ E N , VI_FALSE ) ;

st a t u s = vi S e t A t t r i b u t e (ins tr , VI _ A T T R _ S E ND_END_EN , VI_ T R U E );
}
sen d S t r i n g ("* RST\ n " ); /* SI M 9 0 0 default */
sen d S t r i n g (" VERB 127\ n " ); /* en a b l e E avesdrop */
sen d S t r i n g (" CEOI ON \ n " ); /* conve r t EOI ’ s (fo r GPIB ) */
sen d S t r i n g (" EOIX ON \ n " );

fo r (i=1; i < = 0 xb ; + + i) { /* set po r ts to 9600 baud */

sp r i n t f (buf , " BA U D %x ,9600\ n" , i);

sen d S t r i n g (buf );
}
sen d S t r i n g (" TERM D, L F \ n " ); /* set SIM 9 0 0 to LF term */
sen d S t r i n g (" FLSH\ n " ); /* fl u sh all port bu f f ers */
sen d S t r i n g (" SRST\ n " ); /* re s et module i n t e r f a c e s */
re t u r n 0;

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id closeMainframe (voi d ) {

st a t u s = viClose ( in str );
st a t u s = viClose ( de f a u l t R M );

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id sendString ( ch ar *m s g ) {

st a t u s = viWrite (i nst r , (ViBuf) msg , st r l e n (msg ), & writeCoun t );

}

/* ***** * * * * * * * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * ** * * ** * * ** * ** * * ** * * ** */

vo id recvString ( ch ar *msg , int size ) {

st a t u s = viRead ( i nstr , msg , s ize -1 , & re t C o u n t );
if (retCount == 0) ms g [0] = ’\0 ’;

}

SIM900 Mainframe

4 Parts Lists and Schematics

This chapter provides a brief description of the circuitry for the
SIM900.

In This Chapter

4.1 Circuit Descriptions . . . . . . . . . . . . . . . . . . 4 – 2

4.1.1 Power Distribution . . . . . . . . . . . . . . . 4 – 2

4.1.2 Microcontroller Board . . . . . . . . . . . . . 4 – 3

4.1.3 Backplane Board . . . . . . . . . . . . . . . . 4 – 3

4.1.4 Power Supply Controller Board . . . . . . . . 4 – 4

4.1.5 Power Supply Mezzanine Board . . . . . . . 4 – 4

4.1.6 Rear Panel Board . . . . . . . . . . . . . . . . 4 – 4

4.1.7 Front Panel Board . . . . . . . . . . . . . . . . 4 – 5

4.1.8 GPIB Option Board . . . . . . . . . . . . . . . 4 – 5

4.2 Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . 4 – 6

4.2.1 Microcontroller and GPIB Boards . . . . . . . 4 – 6

4.2.2 Backplane Board . . . . . . . . . . . . . . . . 4 – 7

4.2.3 Front and Rear Panel Boards . . . . . . . . . 4 – 7

4.2.4 Power Supply Controller Board . . . . . . . . 4 – 8

4.2.5 Power Supply Mezzanine Board . . . . . . . 4 – 8

4.3 Schematic Diagrams . . . . . . . . . . . . . . . . . . 4 – 8

4 – 1

4 – 2 Circuitry

4.1 Circuit Descriptions

The SIM900 is assembled from 6 (optionally 7) independent printed
circuit boards. The boards are interconnected with board-to-board
header connectors, as shown in Figure 4.1. Note that in this chapter,
page references are to the 21-sheet schematics pages at the end of the
manual.

4.1.1 Power Distribution

Figure 4.1: The SIM900 circuit board arrangement.

The internal distribution of power supply voltages within the SIM900
is somewhat involved. AC line power is converted to 24 VDC by the
universal input power supply, located at the left side of the main­frame (in front of the power entry module on the rear panel). Note
that this voltage (labeled +24US on the schematics) is always on
whenever AC line voltage is present.

The unswitched 24 VDC power comes across the top of the module
slots, and plugs into the power supply controller board at JP101
(schematic page 14 of 21). It routed from there up to the power

SIM900 Mainframe

4.1 Circuit Descriptions 4 – 3

supply mezzanine board, to the microcontroller board, and to the
front panel board.

Two additional cable assemblies plug into the power supply con­troller board, at JP202 & JP203 (page 15); these carry all DC power
for distribution to connected SIM modules.

4.1.2 Microcontroller Board

The microcontroller board (pages 1–6, labelled “µ-ctrl” in Figure 4.1)
is the central control circuit for the SIM900. The microcontroller
(U103) coordinates all functions of the SIM900 except for power.
The microcontroller operates with an external 16-bit address bus,
and an independent 8-bit data bus, with muliple address spaces
defined by independent chip select lines (−CSGPIB, −CSUARTS,

−CSRAM, −CSROM). Firmware is stored in off-chip rom (U302),
and port data is buffered in the off-chip ram (U301). Direct board-to­board header/socket interfaces connect the microcontroller board to
the front panel board (via JS103), the backplane board (via JP601), the
rear panel board (via JP602), and the power supply controller board
(via JP603).

4.1.3 Backplane Board

The clock circuit (page 2) is based on a 20 MHz crystal operated in
a classic Colpitts oscillator with varactor tuning to create a VCXO.
The tuning voltage is selected by U206 between a fixed DC voltage
from R222, or the PLL output voltage generated by U207 and filtered
at U205B. When operating in PLL mode, U207 is programmed to
mix the the oscillator and reference signals at 1 MHz. U202A divides
the oscillator output to produce complementary ±10 MHz signals for
distribution throughout the system.

U201 buffers the 10 MHz clocks for distribution to the SIM mod­ules; ±10MHZ DIST go the the back plane board for slots 1–8, while
±10MHZ RMT goes to the rear panel for port 9. −EN CLOCKS
(generated by U103) enables or disables this clock.

U204, together with U202B, further divide the clock to produce
the 200 kHz synch signal for the power supply controller board
(CLK PSSYNC), and the 5 MHz GPIB clock.

U402 is the quad UART controller for ports A–D (the true RS-232
ports).

The backplane board(pages 8–13) distributes power, data, and clocks
to 8 internal SIM ports. JP101 (page 8) is the main interconnect,
mating with JP601 (page 6) on the microcontroller board. The data
and address bus, along with some control signals, are also passed

SIM900 Mainframe

4 – 4 Circuitry

through to the (optional) GPIB board via JS103 (located near the top
of the backplane board).

Serial communication with ports 1–8 are managed by two quad
UARTS (U201, U202, page 9). Power is distributed along the back­plane on inner planes, with separate decoupling at each slot directly
before the DB–15 connectors.

4.1.4 Power Supply Controller Board

The power supply controller board (pages 14–16, labelled “P/S ctrl”
in Figure 4.1), produces the DC operating voltages (±5 V, ±15V) from
the incoming +24 V power supply. The incoming +24 V connects to
JP101 (page 14, located near the “front panel” edge of the board); note
that the negative return is not grounded, but drops below ground by
the IR drop across R101, a 0.01 Ω current sense resistor.

The DC-DC converter uses the transformer and diode bridges on the
power supply mezzanine to produce unregulated ±8 V & ±18 V DC
power, which is then linearly regulated to produce the final volt­ages. The center-tapped primary side of the tranformer is driven at
100 KHz by alternately pulling the two ends of the primary winding
to ground through Q101 & Q102. Voltage ordering for start-up and
fault protection is provided by D201–D206. The +24 V power to SIM
modules is not re-generated by the DC-DC converter, but is switched
with the other power rails, by the combination of U209 & Q201 (to
ensure soft-starting of the power).

The main interconnect to the microcontroller board is via JS301
(which mates with JP603). Prior to the oscillator stabilizing, the
switching controller (U104) self-clocks based on the time-constant
set by R107 & C109.

The overvoltage/overcurrent detection circuit (page 16) is powered
by the unswitched +5US power, derived linearly from +24US. The

−TRIP signal shuts down U104, and requires a new rising edge on
PWRSW 24 (the front-panel toggle switch) to clear the trip.

4.1.5 Power Supply Mezzanine Board

The power supply mezzanine board (page 17, labelled “P/S mez” in
Figure 4.1) holds the large components of the power supply, namely
the input filter, transformer, diode bridges, and post-rectifier filters.

4.1.6 Rear Panel Board

The rear panel board (pages 18–20) holds the Port 9 SIM connector,
and the 4 DB–9 RS-232 connectors. The external timebase reference

SIM900 Mainframe

4.1 Circuit Descriptions 4 – 5

input (rear-panel BNC) is wired to this board (at J101), which passes
the reference to the microcontroller board for the PLL circuit.

Line drivers and receivers are populated on this board, butthe UARTs
for the RS-232 ports are located on the microcontroller board (U402,
page 4). The remote SIM port uses the internal serial controller
interface of the microcontroller for its UART function.

4.1.7 Front Panel Board

The front panel board (page 21) holds the display LEDs for the
SIM900. Note that most indicators are driven statically from shift
registers U401, U402, U403. The STANDBY and TRIP leds, however,
must be directly driven by lines driven by the power supply con­troller board, since VCC is not powered when these indicators are
lit.

The cooling fan is controlled by the FAN CTRL signal, which is also
generated on the power supply controller board, and is proportional
to the total power consumption of the SIM900.

4.1.8 GPIB Option Board

The GPIB option board (page 7) contains the GPIB controller chip
and transceivers for the IEEE-488 bus. This board (not shown in
Figure 4.1) plugs horizontally into the socket (JS103, page 8) located
at the top of the backplane board. Use care when installing this
board to ensure that the pins are correctly registered and mated (an
inspection mirror can be helpful).

SIM900 Mainframe

4 – 6 Circuitry

Reference SRS P/N Part Value Reference SRS P/N Part Value
C101,C102,C103,C104,C105, 5-00299 0.1U R213,R225 4-01471 470

C201,C205,C206,C207,C217, R216,R217,R219,R220 4-01184 4.99K
C218,C219,C220,C221,C222, R222 4-00923 10K-POT
C223,C224,C301,C302,C403, R224,R236 4-01355 301K
C404,C405,C701,C702,C703 R228 4-01230 15.0K
C202 5-00381 330P R229 4-01213 10.0K
C204,C203 5-00373 68P R233,R234 4-01405 1.00M
C208,C209,C211,C212 5-00387 1000P R237 4-01317 121K
C210,C213 5-00379 220P R401 4-01405 1.00M
C214 5-00371 47P R402,R403,R404,R405 4-01503 10K
C215 5-00306 .033U R406,R407 4-01503 10K
C216 5-00363 10P RN201 4-01704 100Kx4
C401,C402 5-00369 33P S601 2-00014 SPSTx8
D201 3-00803 MMBV609LT1 SO U302 1-00514 PLCC32 SOCKET
D202,D203 3-00945 BAT54S U101 3-00902 74HC00
JP101 no pop. HEADER_3X2 U102 3-00903 MAX6348UR44T
JP102 1-00086 3 PIN SI U103 3-00904 68HC812A4
JP201 no pop. HEADER_3 U201 3-00905 74HC240
JP601 1-00490 SOCKET_20X2 U202 3-00742 74HC74
JP602 1-00491 SOCKET_14X2 U203 3-00741 74HC04
JP603 1-00512 HEADER 7X2 U204 3-00906 74HC390
JP701 1-00493 HEADER 13X2 U205 3-00907 LM324
JS103 1-00513 SOCKET 5X2 U206 3-01367 DG419DY
JS701 1-00160 GPIB CONNECTOR U207 3-00909 MC145157DW2
Q201 3-00808 MMBR5179LT1 U208 3-00653 AD8561
R101,R102,R103,R104,R105, 4-01503 10K U301 3-00910 UPD43256BGU-70LL
R106,R107,R108,R109,R110, U302 3-00911 AT27C512R-70JC
R111,R112,R113 U401 3-00662 74HC14
R201,R202,R223 4-01021 100/1% U402 3-00912 TL16C754BPN
R203 4-00982 39.2 U403 3-00743 74HC138
R204,R205,R230,R231,R232 4-01117 1.00K U701 3-00914 NAT9914APL
R206,R207,R208,R227 4-01309 100K/1% U702 3-00915 SN75ALS160DW
R209,R218,R221 4-01355 301K U703 3-00916 SN75ALS161DW
R210 4-01338 200K/1% Y201 6-00325 20.000MHZ
R211,R212,R214,R215 4-01455 100 Y401 6-00507 22.1184MHZ

4.2 Parts Lists

The parts lists are separated by the internal (SRS) assembly kit, which
consist of one or two boards each.

4.2.1 Microcontroller and GPIB Boards

SIM900 Mainframe

4.2 Parts Lists 4 – 7

Reference SRS P/N Part Value Reference SRS P/N Part Value
C201,C202,C203,C315,C316, 5-00299 0.1U R301,R303,R305,R307,R309, 4-01479 1.0K

C415,C416,C515,C516,C615, R310,R312,R313,R315,R317,
C616 R319,R321,R322,R324,R401,
C301,C302,C308,C309,C401, 5-00298 0.01U R403,R405,R407,R409,R410,
C402,C408,C409,C501,C502, R412,R413,R415,R417,R419,
C508,C509,C601,C602,C608, R421,R422,R424,R501,R503,
C609,C617 R505,R507,R509,R510,R512,
C303,C304,C305,C306,C307, 5-00102 4.7U/35T R513,R515,R517,R519,R521,
C310,C311,C312,C313,C314, R522,R524,R601,R603,R605,
C403,C404,C405,C406,C407, R607,R609,R610,R612,R613,
C410,C411,C412,C413,C414, R615,R617,R619,R621,R622,
C503,C504,C505,C506,C507, R624
C510,C511,C512,C513,C514, R302,R304,R314,R316,R402, 4-01455 100
C603,C604,C605,C606,C607, R404,R414,R416,R502,R504,
C610,C611,C612,C613,C614 R514,R516,R602,R604,R614,
JP101 1-00495 HEADER_20X2 R616,R625,R626
JS102 1-00496 HEADER_6 R306,R308,R311,R318,R320, 4-01527 100K
JS103 1-00497 SOCKET_13X2 R323,R406,R408,R411,R418,
JS301,JS302,JS401,JS402, 1-00484 DB15F R420,R423,R506,R508,R511,
JS501,JS502,JS601,JS602 R518,R520,R523,R606,R608,
L301,L302,L303,L304,L305, 6-00174 BEAD R611,R618,R620,R623
L306,L307,L308,L309,L310, U202,U201 3-00912 TL16C754BPN
L401,L402,L403,L404,L405, U203 3-00743 74HC138
L406,L407,L408,L409,L410, U301,U302,U401,U402,U501, 3-00662 74HC14
L501,L502,L503,L504,L505, U502,U601,U602
L506,L507,L508,L509,L510,
L601,L602,L603,L604,L605,
L606,L607,L608,L609,L610

Reference SRS P/N Part Value Reference SRS P/N Part Value
C202,C201 5-00298 0.01U L202,L203,L204,L205,L206 6-00174 BEAD

C203,C204,C205,C206,C207, 5-00382 390P Q401 3-00644 TIP48/TIP47
C301,C302,C303,C304,C305, R101,R201,R203 4-01021 100/1%
C306,C307,C308 R202,R204,R205,R208,R211, 4-01479 1.0K
C208,C209,C210,C211,C212 5-00102 4.7U/35T R213,R215
C213,C214,C309,C401,C402, 5-00299 0.1U R209,R206,R217 4-01527 100K
C403 R207,R210,R212,R214,R216 4-01455 100
C404 5-00102 4.7U/35T R301,R303,R305,R307 4-01503 10K
D401,D402,D404,D405,D407, 3-00424 LED-G

R302,R304,R306,R308 4-01496 5.1K

D409,D410,D411,D412,D413,

R401,R402,R403,R404,R405, 4-01469 390

D414,D416,D417,D418,D419,

R406,R407,R408,R409,R410,

D420,D421,D422,D423,D425,

R411,R412,R413,R414,R415,

D426

R416,R417,R418,R419,R422,
D406,D408,D415,D424 3-00425 LED-R R423,R425,R426
D427 3-00973 1N4742A R424 4-01435 15
JP101 1-00503 HEADER_14X2 S401 2-00049 SW_SPST
JP301,JP302 1-00486 DB9M U201 3-00905 74HC240
JP401 1-00511 HEADER 5X2 U202 3-00662 74HC14
JS102 1-00496 HEADER6 U301,U304 3-00923 MC1488D
JS201 1-00487 DB15F U303,U302 3-00924 MC1489D
JS304,JS303 1-00485 DB9F U401,U402,U403 3-00925 74HC164
J101 1-00003 BNC Z401 0-00158 FAN, 60MM 24V
L201 6-00512 CM BEAD

4.2.2 Backplane Board

4.2.3 Front and Rear Panel Boards

SIM900 Mainframe

4 – 8 Circuitry

Reference SRS P/N Part Value Reference SRS P/N Part Value
C101,C102,C103 5-00318 2.2U/T35 R302 4-01047 187

C104,C107,C301,C304,C306 5-00299 0.1U R303 4-01123 1.15K
C105,C106,C109 5-00387 1000P R304,R307,R308,R315 4-01213 10.0K
C108,C201,C202,C203,C204, 5-00318 2.2U/T35 R305 4-01146 2.00K
C205,C206,C219,C302 R306 4-01122 1.13K
C207,C208,C211,C212 5-00514 100U/35V/FC R309,R316,R317,R318,R333 4-01519 47K
C209,C210,C213,C214 5-00319 10U/T35 R328,R310 4-01527 100K
C215,C216,C217,C218 5-00299 .1U R319 4-01224 13.0K
C220 5-00471 10U/T16 R320 4-01114 931
C305,C303 5-00375 100P R323 4-01188 5.49K
C307 5-00299 .1U R324 4-01130 1.37K
C309,C308 5-00375 100P R327 4-01541 390K
D201,D202,D203,D204,D205, 3-00625 MBR1535CT R331 4-00954 20
D206 R334 4-01251 24.9K
JP101 1-00250 HEADER_2 R335 4-01145 1.96K
JP102 1-00498 HEADER_4 R336 4-01309 100K/1%
JP201 1-00499 HEADER_8 R337 4-01278 47.5K
JP202,JP203 1-00111 HEADER_6 R338 4-01142 1.82K
JS301 1-00331 SOCKET 7X2 R339 4-01294 69.8K
Q102,Q101 3-00283 IRF530 U101 3-00114 LM340-15
Q201 3-00944 IRF4905 U102 3-00112 LM340-5
R101 4-00924 0.01 U103 3-00918 AD820
R102,R104,R314,R332 4-01117 1.00K U104 3-00919 SG3525AP
R103,R105 4-01309 100K/1% U201 3-00112 LM340-5
R106,R311,R312,R313,R329, 4-01479 1.0K U202 3-00346 LM340-12
R330 U203 3-00330 LM320-12
R107 4-01201 7.50K U204 3-00384 LM350
R109,R108 4-00971 30.1 U205,U207 3-00920 LT1033
R201,R202,R209,R210 4-01021 100/1% U206 3-00921 LM338
R203,R204,R211,R212 4-01614 10-POT U209 3-00922 IPS511
R205,R206,R207,R208 4-01152 2.32K U301,U305,U306 3-00727 LM339
R213,R214 4-01068 309 U302 3-00662 74HC14
R221 4-01507 15K U303 3-00742 74HC74
R222,R223 4-01511 22K U304 3-00902 74HC00
R301 4-01184 4.99K U307 3-00804 74HC4066

Reference SRS P/N Part Value Reference SRS P/N Part Value
C2,C1 5-00515 1500U/35V/FC JS1 1-00501 SOCKET_4

C3,C4 5-00516 330U/35V/FC JS2 1-00502 SOCKET_8
C6,C5 5-00517 1000U/35V/FC L1,L4,L5 6-00509 47.7UH
C7,C8,C9,C10 5-00143 1200P/1000V L2,L3 6-00510 80.7UH
D1,D2,D3,D4,D5,D6,D7,D8 3-00479 MUR410 T1 6-00511 MF XFORMER revB
D1,D2,D3,D4,D5,D6,D7,D8 6-00528 BEAD

4.2.4 Power Supply Controller Board

4.2.5 Power Supply Mezzanine Board

4.3 Schematic Diagrams

Schematic diagrams follow this page.

SIM900 Mainframe
