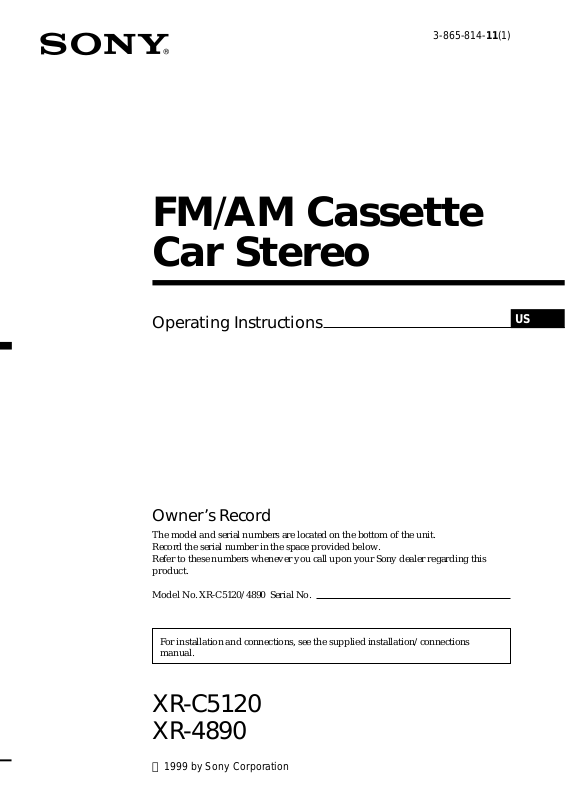

Sony XR-C5120 User Manual

3-865-814-11(1)

FM/AM Cassette
Car Stereo

Operating Instructions

Owner’s Record

The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.

Model No. XR-C5120/4890 Serial No.

For installation and connections, see the supplied installation/connections
manual.

XR-C5120

US

XR-4890

 1999 by Sony Corporation

Warning

Welcome !

This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the

equipment and receiver.

— Connect the equipment into an outlet on a

circuit different from that to which the
receiver is connected.

— Consult the dealer or an experienced radio/

TV technician for help.

You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.

Thank you for purchasing this Sony Cassette
Player. This unit lets you enjoy a variety of
features as well as an optional rotary
commander.

In addition to the cassette playback and radio
operations, you can expand your system by
connecting an optional CD/MD unit*.

* You can connect a CD changer, an MD changer, a

CD player, or an MD player
(XR-C5120 only).

2

Table of Contents

This Unit Only With Optional Equipment

Location of controls ............................................ 4

Getting Started

Resetting the unit ................................................ 5

Detaching the front panel .................................. 5

Setting the clock .................................................. 6

Cassette Player

Listening to a tape ............................................... 7

Playing a tape in various modes ....................... 8

Radio

Memorizing stations automatically

— Best Tuning Memory (BTM).................... 8

Memorizing only the desired stations ............. 9

Receiving the memorized stations.................... 9

CD/MD Unit (XR-C5120 only)

Playing a CD or MD ......................................... 13

Playing tracks repeatedly

— Repeat Play .............................................. 15

Playing tracks in random order

— Shuffle Play .............................................. 15

Other Functions

Labeling the rotary commander ..................... 10

Using the rotary commander .......................... 10

Adjusting the sound characteristics ............... 12

Attenuating the sound ..................................... 12

Changing the sound and display settings ..... 12

Boosting the bass sound

— D-bass ....................................................... 13

Additional Information

Precautions......................................................... 15

Maintenance....................................................... 16

Dismounting the unit ....................................... 17

Specifications ..................................................... 18

Troubleshooting guide ..................................... 19

3

Location of controls

MODE

SEEK / AMS

SOUND

SOURCE

6

DSPL

+

–

PRESET

DISC

D-BASS

1

2

OFF

3

SHIFT SET UP

RELEASE

OFF

Refer to the pages listed for details.

1 SEEK/AMS (seek/Automatic Music

Sensor/manual search) control
7, 9, 14

2 MODE (*) button

During tape playback:

Playback direction change 7

During radio reception:

BAND select 8, 9

During CD or MD playback*:

CD/MD Unit select 13

3 SOURCE (TAPE/TUNER/CD*/MD*) button

7, 8, 9, 13

4 Dial (volume/bass/treble/left-right/

rear-front control) 6, 12

5 SOUND button 12
6 Display window
7 DSPL (display mode change) button

7, 9, 13, 14

8 6 (eject) button 7

PLAY MODE

564321

XR-C5120

9 XR-C5120:

PRESET/DISC button
XR-4890:
PRST button

During radio reception:

Preset stations select 9

During CD/MD playback*:

Disc change 14

0 RELEASE (front panel release) button

5, 17

!¡ Reset button (located on the front side

of the unit behind the front panel) 5

!™ OFF button 5, 7
!£ SHIFT button

PLAY MODE 8, 9, 15
SET UP 6, 12, 14

!¢ POWER SELECT switch (located on the

bottom of the unit)

See “POWER SELECT switch” in the
Installation/Connections manual.

!∞ Number buttons 9
!§ D-BASS control 13

* XR-C5120 only

4

Getting Started

Resetting the unit

Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Remove the front panel and press the reset
button with a pointed object, such as a ball­point pen.

Reset button

Note

Pressing the reset button will erase the clock
setting and some memorized functions.

Detaching the front panel

You can detach the front panel of this unit to
protect the unit from being stolen.

1 Press (OFF).
2 Press (RELEASE), then slide the front

panel a little to the left, and pull it off
towards you.

(OFF)

Attaching the front panel

Attach part a of the front panel to part b of
the unit as illustrated and push the left side
into position until it clicks.

a

b

Notes

• Be sure not to attach the front panel upside
down.

• Do not press the front panel too hard against the
unit when attaching it.

• Do not press too hard or put excessive pressure
on the display window of the front panel.

• Do not expose the front panel to direct sunlight
or heat sources such as hot air ducts, and do not
leave it in a humid place. Never leave it on the
dashboard of a car parked in direct sunlight or
where there may be a considerable rise in
temperature.

Caution alarm

If you turn the ignition key switch to the OFF
position without removing the front panel, the
caution alarm will beep for a few seconds
(only when the POWER SELECT switch on the
bottom of the unit is set to the A position).
If you connect an optional power amplifier and
do not use the built-in amplifier, the beep
sound will be deactivated.

(RELEASE)

Notes

• Be sure not to drop the panel when detaching it
from the unit.

• If you detach the panel while the unit is still
turned on, the power will turn off automatically
to prevent the speakers from being damaged.

• When carrying the front panel with you, use the
supplied front panel case.

5

Setting the clock

2 Press (SHIFT).

The clock uses a 12-hour digital indication.

Example: To set the clock to 10:08

1 Press (SHIFT), then press (2) (SET UP)

repeatedly until “CLOCK” appears.

1 Press (4) (n).

The hour indication flashes.

2 Set the hour.

to go backward

to go forward

3 Press (4) (n).

The minute indication flashes.

4 Set the minute.

The clock starts.

3 Press (SHIFT).

After the clock setting is complete, the
display returns to normal playback mode.

Note

If the POWER SELECT switch on the bottom of the
unit is set to the B position, turn the power on
first, then set the clock.

to go backward

to go forward

6

Cassette Player

Listening to a tape

Fast-winding the tape

During playback, push the SEEK/AMS
control up or down and hold.

SEEK / AMS

Fast-forward

Rewind

Insert a cassette.

Playback starts automatically.

If a cassette is already inserted, press
(SOURCE) repeatedly until “FWD” or “REV”
appears to start playback.

The side facing up is played.

The side facing down is played.

Tip

To change the tape‘s playback direction, press
(MODE) (*).

To Press

Stop playback (OFF)
Eject the cassette 6

To start playback during fast-forwarding or
rewinding, press (MODE) (*).

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, push the SEEK/AMS
control up or down and release for each
track you want to skip.

You can skip up to nine tracks at one time.

To locate
succeeding tracks

To locate
preceding tracks

Note

The AMS function may not work when:
— the blanks between tracks are shorter than

four seconds
— there is noise between tracks
— there are long sections of low volume or quiet

sections.

SEEK / AMS

Changing the display item

Each time you press (DSPL), the item changes
as follows:

z Tape playback z Clock

Frequency* Z

* While the ATA function is activated.

After you select the desired item, the display
will automatically change to the Motion
Display mode after a few seconds.
In the Motion Display mode, all the above
items are scrolled in the display one by one in
order.

Tip

The Motion Display mode can be turned off. (See
“Changing the sound and display settings” on
page 12).

7

Playing a tape in various
modes

You can play the tape in various modes:

•REP (Repeat Play) repeats the current track.

•BL SKP (Blank Skip) skips blanks longer than
eight seconds.

•ATA (Automatic Tuner Activation) turns on
the tuner automatically while fast-winding
the tape.

1 During playback, press (SHIFT).

“SHIFT-ON” appears in the display.

Radio

Memorizing stations
automatically

— Best Tuning Memory (BTM)

The unit selects the stations with the strongest
signals and memorizes them in the order of
their frequencies. You can store up to 6 stations
on each band (FM1, FM2, FM3, AM1, and
AM2).

2 Press (3) (PLAY MODE) repeatedly until

the desired play mode appears.

Each time you press (3) (PLAY MODE),
the item changes as follows:

REP n BL SKP n ATA

3 Press (4) (n) to select “ON.”

Play mode starts.

4 Press (SHIFT).

To return to normal playback mode, select
“OFF” in step 3 above.

Note

If the “SFT” indication appears, press (SHIFT) to
complete the mode setting.

Caution

When tuning in stations while driving, use
Best Tuning Memory to prevent accidents.

1 Press (SOURCE) repeatedly to select the

tuner.

Each time you press (SOURCE), the source
changes as follows:

z TUNER z CD*
TAPE Z MD* Z

* If the corresponding optional equipment is

not connected, this item will not appear
(XR-C5120 only).

2 Press (MODE) repeatedly to select the

band.

Each time you press (MODE), the band
changes as follows:

z FM1 z FM2 z FM3

AM2 Z AM1 Z

3 Press (SHIFT), then press (3) (PLAY

MODE) repeatedly until “B.T.M” appears.

4 Press (4) (n).

The unit stores stations in the order of their
frequencies on the number buttons.
A beep sounds when the setting is stored.

5 Press (SHIFT).

Notes

• The unit does not store stations with weak
signals. If only a few stations can be received,
some number buttons will retain their former
setting.

• When a number is indicated in the display, the
unit starts storing stations from the one currently
displayed.

8

Memorizing only the
desired stations

You can preset up to 18 FM stations (6 each for
FM1, 2, and 3) and up to 12 AM stations (6
each for AM1 and 2) in the order of your
choice.

1 Press (SOURCE) repeatedly to select the

tuner.

2 Press (MODE) repeatedly to select the

band.

3 Push the SEEK/AMS control up or down

to tune in the station that you want to
store on the number button.

4 Press and hold the desired number

button ((1) to (6)) until “MEM” appears.

The number button indication appears in
the display.

Note

If you try to store another station on the same
number button, the previously stored station will
be erased.

Receiving the memorized
stations

If you cannot tune in a preset
station

Push and release the SEEK/AMS control
up or down to search for the station
(automatic tuning).

Scanning stops when the unit receives a
station. Push the SEEK/AMS control up or
down repeatedly until the desired station is
received.

Note

If the automatic tuning stops too frequently, press
(SHIFT), then press (3) (PLAY MODE) repeatedly
until “LOCAL” (local seek mode) is displayed. Then
press (4) (n) to select “LOCAL-ON.” Press (SHIFT).
Only the stations with relatively strong signals will
be tuned in.

Tip

If you know the frequency of the station you want
to listen to, push the SEEK/AMS control up or
down and hold until the desired frequency
appears (manual tuning).

If FM stereo reception is poor

— Monaural Mode

1 During radio reception, press (SHIFT),

then press (3) (PLAY MODE) repeatedly
until “MONO” appears.

2 Press (4) (n) repeatedly until “MONO-

ON“ appears.

The sound improves, but becomes
monaural (“ST” disappears).

3 Press (SHIFT).

1 Press (SOURCE) repeatedly to select the

tuner.

2 Press (MODE) repeatedly to select the

band.

3 Press the number button ((1) to (6)) on

which the desired station is stored.

Tip

Press either side of (PRESET/DISC) or (PRST) to
receive the stations in the order they are stored in
the memory (Preset Search Function).

To return to normal mode, select “MONO­OFF” in step 2 above.

Changing the display item

Each time you press (DSPL), the item changes
as follows:

Frequency ˜ Clock

After you select the desired item, the display
will automatically change to the Motion
Display mode after a few seconds.
In the Motion Display mode, all the above
items are scrolled in the display one by one in
order.

Tip

The Motion Display mode can be turned off. (See
“Changing the sound and display settings” on
page 12).

9

Other Functions

Using the rotary
commander

You can also control this unit with an optional
rotary commander.

Labeling the rotary
commander

Depending on how you mount the rotary
commander, attach the appropriate label as
shown in the illustration below.

SOUND

MODE

DSPL

DSPL

MODE

SOUND

The rotary commander works by pressing
buttons and/or rotating controls.

By pressing buttons
(the SOURCE and MODE buttons)

(SOURCE)

(MODE)

Each time you press (SOURCE), the
source changes as follows:

TUNER n CD* n MD*n TAPE

Pressing (MODE) changes the operation
in the following ways;

• Tape : playback direction

• Tuner : FM1 n FM2 n FM3 n AM1 n

• CD unit* : CD1 n CD2 n …

• MD unit* : MD1 n MD2 n …

* If the corresponding optional equipment is

not connected, this item will not appear
(XR-C5120 only).

Tip

When the POWER SELECT switch is set to position
B, you can turn on this unit by pressing (SOURCE)
on the rotary commander.

AM2

10

By rotating the control
(the SEEK/AMS control)

Rotate the control and release it to:

•Locate the beginnings of tracks on the
tape. Rotate and hold the control, and
release it to fast-wind the tape. To start
playback while fast-winding the tape,
press (MODE).

•Locate a specific track on a disc. Rotate
and hold the control until you locate the
specific point in a track, then release it to
start playback (XR-C5120 only).

•Tune in stations automatically. Rotate and
hold the control to find a specific station.

By pushing in and rotating the
control (the PRESET/DISC control)

Press (SOUND) to
adjust the volume
and sound menu.

Press (DSPL) to change the
displayed items.

Changing the operative direction

The operative direction of controls is factory­set as shown below.

To increase

To decrease

If you need to mount the rotary commander on
the right hand side of the steering column, you
can reverse the operative direction.

Push in and rotate the control to:

•Receive the stations memorized on the
number buttons.

•Change the disc (XR-C5120 only).

Other operations

Rotate the VOL control to
adjust the volume.

Press (ATT) to
attenuate the
sound.

Press (OFF) to turn
off the unit.

Press (SOUND) for two seconds while
pushing the VOL control.

Tip

You can also change the operative direction of
these controls with the unit (page 12).

OFF

11

Adjusting the sound
characteristics

Changing the sound and
display settings

You can adjust the bass, treble, balance, and
fader.
You can store the bass and treble levels
independently for each source.

1 Select the item you want to adjust by

pressing (SOUND) repeatedly.

VOL (volume) n BAS (bass) n
TRE (treble) n BAL (left-right) n
FAD (front-rear)

2 Adjust the selected item by rotating the

dial.

Adjust within three seconds after selecting
the item. (After three seconds, the dial
function reverts to volume control.)

Attenuating the sound

Press (ATT) on the optional rotary
commander or wireless remote.

“ATT-ON” flashes momentarily.

To restore the previous volume level, press
(ATT) again.

The following items can be set:

•CLOCK (page 6).

•BEEP – to turn the beep sound on or off.

•RM (Rotary Commander) – to change the
operative direction of the rotary commander.
— Select “NORM” to use the rotary

commander as the factory-set position.

— Select “REV” when you mount the rotary

commander on the right side of the
steering column.

•M.DSPL – to turn the Motion Display on or
off.

• A.SCRL (Auto Scroll)* (page 14).

1 Press (SHIFT).
2 Press (2) (SET UP) repeatedly until the

desired item appears.

Each time you press (2) (SET UP), the item
changes as follows:

CLOCK n BEEP n RM n M.DSPL n A.SCRL*
* When no MD is playing, this item will not

appear (XR-C5120 only).

Note

The displayed item will differ depending on
the source.

3 Press (4) (n) to select the desired

setting (Example: ON or OFF).

12

4 Press (SHIFT).

After the mode setting is complete, the
display returns to normal playback mode.

Note

If the “SFT” indication appears, press (SHIFT) to
complete the mode setting.

Boosting the bass sound

— D-bass

You can enjoy a clear and powerful bass
sound. The D-bass function boosts the low
frequency signal with a sharper curve than
conventional bass boost.
You can hear the bass line more clearly even
while the vocal volume remains the same. You
can emphasize and adjust the bass sound
easily with the D-BASS control.

With Optional Equipment

CD/MD Unit (XR-C5120 only)

This unit can control a maximum of ten
external CD/MD units in this configuration:
CD unit – maximum of five
MD unit – maximum of five
Any combination up to ten will work.

D-BASS 3

Level

0dB

D-BASS 2

D-BASS 1

Frequency (Hz)

Adjusting the bass curve

Turn the D-BASS control to adjust the
bass level (1, 2, or 3).

“D-BASS” appears in the display.

To cancel, turn the control to OFF.

Note

If the bass sound becomes distorted, adjust the
D-BASS control or volume.

Playing a CD or MD

1 Press (SOURCE) repeatedly to select CD

or MD.

2 Press (MODE) until the desired unit

appears.

CD/MD playback starts.

When a CD/MD unit is connected, all the
tracks play from the beginning.

Changing the display item

Each time you press (DSPL) during CD, or
MD playback, the item changes as follows:

Elapsed playback time

1

If there is no disc name prerecorded on the MD,

*

“NO NAME” appears in the display.

*2If the track name of an MD is not prerecorded,

“NO NAME” appears in the display.

$

$

Disc name*

$

Track name*

$

Clock

1

2

After you select the desired item, the display
will automatically change to the Motion
Display mode after a few seconds.
In the Motion Display mode, all the above
items are scrolled in the display one by one in
order.

Tip

The Motion Display mode can be turned off. (See
“Changing the sound and display settings” on
page 12).

13

Automatically scrolling a disc name

— Auto Scroll

If the disc name or track name on an MD
exceeds 8 characters and the Auto Scroll
function is on, information automatically
scrolls across the display as follows:

• The disc name appears when the disc has
changed (if the disc name is selected).

• The track name appears when the track has
changed (if the track name is selected).

If you press (DSPL) to change the display
item, the disc or track name of the MD is
scrolled automatically whether you set the
function on or off.

1 During playback, press (SHIFT).
2 Press (2) (SET UP) repeatedly until

“A.SCRL” appears.

3 Press (4) (n) to select “A.SCRL-ON.”
4 Press (SHIFT).

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, push the SEEK/AMS
control up or down and release for each
track you want to skip.

To locate
succeeding tracks

To locate preceding
tracks

SEEK / AMS

Locating a specific point in a track

— Manual Search

During playback, push the SEEK/AMS
control up or down and hold. Release
when you have found the desired point.

SEEK / AMS

To search forward

To search backward

To cancel Auto Scroll, select “A.SCRL-OFF” in
step 3 above.

Note

For some MDs with very many characters, the
following cases may happen:
— Some of the characters are not displayed
— Auto Scroll does not work.

Tip

To manually scroll the long name of an MD after
activating the Auto Scroll function, press (SHIFT),
then (1) (N) (manual scroll).

Changing Discs

During playback, press either side of
(PRESET/DISC) momentarily.

The desired disc in the current unit begins
playback.

PRESET

DISC

+

For succeeding
discs

For preceding
discs

Disc

–

Track number

14

Playing tracks repeatedly

— Repeat Play

You can select:

•REP-1 – to repeat a track.

•REP-2 – to repeat a disc.

1 During playback, press (SHIFT), then

press (3) (PLAY MODE) repeatedly until
“REP” appears.

2 Press (4) (n) repeatedly until the

desired setting appears.

z REP-1 z REP-2

REP-OFF Z

Repeat Play starts.

3 Press (SHIFT).

To return to normal playback mode, select
“REP-OFF” in step 2 above.

Additional
Information

Precautions

•

If your car was parked in direct sunlight
resulting in a considerable rise in temperature
inside the car, allow the unit to cool off before
operating it.

• If no power is being supplied to the unit,

check the connections first. If everything is in
order, check the fuse.

• If no sound comes from the speakers of a

two-speaker system, set the fader control to
the center position.

• When the tape is played back for a long

period, the cassette may become warm
because of the built-in power amplifier.
However, this is not a sign of malfunction.

If you have any questions or problems
concerning your unit that are not covered in
this manual, please consult your nearest Sony
dealer.

Playing tracks in random
order — Shuffle Play

You can select:

•SHUF-1 – to play the tracks on the current

disc in random order.

•SHUF-2 – to play the tracks in the current

unit in random order.

•SHUF-ALL – to play all the tracks in all the

units in random order.

1 During playback, press (SHIFT), then

press (3) (PLAY MODE) repeatedly until
“SHUF” appears.

2 Press (4) (n) repeatedly until the

desired setting appears.

z SHUF-1 z SHUF-2

SHUF-OFF Z SHUF-ALL Z

Shuffle Play starts.

3 Press (SHIFT).

To return to normal playback mode, select
“SHUF-OFF” in step 2 above.

To maintain high quality sound

If you have drink holders near your audio
equipment, be careful not to splash juice or
other soft drinks onto the car audio. Sugary
residues on this unit or cassette tapes may
contaminate the playback heads, reduce the
sound quality, or prevent sound reproduction
altogether.
Cassette cleaning kits cannot remove sugar
from the tape heads.

15

Notes on Cassettes

Cassette care

• Do not touch the tape surface of a cassette, as
any dirt or dust will contaminate the heads.

• Keep cassettes away from equipment with
built-in magnets such as speakers and
amplifiers, as erasure or distortion on the
recorded tape could occur.

• Do not expose cassettes to direct sunlight,
extremely cold temperatures, or moisture.

• Slack in the tape may cause the tape to be
caught in the machine. Before you insert the
tape, use a pencil or a similar object to turn
the reel and take up any slack.

Slack

• Distorted cassettes and loose labels can cause
problems when inserting or ejecting tapes.
Remove or replace loose labels.

Maintenance

Fuse Replacement

When replacing the fuse, be sure to use one
matching the amperage rating stated on the
original fuse. If the fuse blows, check the
power connection and replace the fuse. If the
fuse blows again after replacement, there may
be an internal malfunction. In such a case,
consult your nearest Sony dealer.

Fuse (10 A)

Warning

Never use a fuse with an amperage rating
exceeding the one supplied with the unit as
this could damage the unit.

• The sound may become distorted while
playing the cassette. The cassette player head
should be cleaned after each 50 hours of use.

Cassettes longer than 90 minutes

The use of cassettes longer than 90 minutes is
not recommended except for long continuous
play. The tape used for these cassettes is very
thin and tends to stretch easily. Frequent
playing and stopping of these tapes may cause
them to become entangled in the cassette deck
mechanism.

16

Cleaning the Connectors

The unit may not function properly if the
connectors between the unit and the front
panel are not clean. In order to prevent this,
open the front panel by pressing (RELEASE),
then detach it and clean the connectors with a
cotton swab dipped in alcohol. Do not apply
too much force. Otherwise, the connectors may
be damaged.

Dismounting the unit

1

Release key (supplied)

2

Main unit

Back of the front panel

Notes

• For safety, turn off the engine before cleaning

the connectors and remove the key from the
ignition switch.

• Never touch the connectors directly with your

fingers or with any metal device.

3

4

17

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION
17 watts (for XR-C5120)/13 watts (for XR-4890) per channel
minimum continuous average power into 4 ohms, 4 channels
driven from 20 Hz to 20 kHz with no more than 1 % total
harmonic distortion.

Other specifications

Cassette player section

Tape track 4-track 2-channel stereo
Wow and flutter 0.08 % (WRMS)
Frequency response 30 – 18,000 Hz
Signal-to-noise ratio

58 dB

Tuner section

FM

Tuning range 87.5 – 107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 9 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo),

Harmonic distortion at 1 kHz

Separation 35 dB at 1 kHz
Frequency response 30 – 15,000 Hz

68 dB (mono)

0.7 % (stereo),

0.4 % (mono)

AM

Tuning range 530 – 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV

Power amplifier section

Outputs Speaker outputs

Speaker impedance 4 – 8 ohms
Maximum power output XR-C5120:

(sure seal connectors)

40 W × 4 (at 4 ohms)
XR-4890:
35 W × 4 (at 4 ohms)

General

Outputs Audio output

Tone controls Bass ±8 dB at 100 Hz

Power requirements 12 V DC car battery
Dimensions Approx. 188 × 58 × 181 mm

Mounting dimensions Approx. 182 × 53 × 164 mm

Mass Approx. 1.2 kg (2 lb 10 oz)
Supplied accessories Parts for installation and

Optional accessories Rotary commander

Optional equipment XR-C5120:

Design and specifications are subject to change
without notice.

Power antenna relay
control lead
Power amplifier control
lead

Treble ±8 dB at 10 kHz

(negative ground)

1

/2 × 2 3/8 × 7 1/4 in.)

(7
(w/h/d)

1

/4 × 2 1/8 × 6 1/2 in.)

(7
(w/h/d)

connections (1 set)
Front panel case (1)

RM-X4S
XR-C5120:
BUS cable (supplied with
an RCA pin cord)
RC-61 (1 m), RC-62 (2 m)

CD changer (10 discs)

CDX-828, CDX-727

MD changer (6 discs)

MDX-65
Other CD/MD changers
with the Sony-BUS system
Source selector

XA-C30

18

Troubleshooting guide

The following checklist will help you remedy the problems you may encounter with your unit.
Before going through the checklist below, check the connections and operating procedures.

General

Problem

No sound.

The contents of the memory
have been erased.

Indications do not appear in the
display.

Tape playback

Problem

The sound is distorted.

The AMS does not operate
correctly.

Cause/Solution

•Cancel the ATT function.

•Set the fader control to the center position for two-speaker
systems.

•Rotate the dial clockwise to adjust the volume.

• The power cord or battery has been disconnected.

• The reset button was pressed.
n Store again into the memory.

Remove the front panel and clean the connectors. See
“Cleaning the connectors” (page 17) for details.

Cause/Solution

The tape head is contaminated.
n Clean the head with a commercially available dry-type

cleaning cassette.

• There is noise in the space between tracks.

• The blank space is too short (less than four seconds).

• The SEEK/AMS control was pushed up immediately before

the following track.

• The SEEK/AMS control was pushed down immediately after
the track starts.

• A long pause, or a passage of low frequencies or very low
sound level is treated as a blank space.

Radio reception

Problem

Preset tuning is not possible.

Automatic tuning is not
possible.

The “ST” indication flashes.

CD/MD playback

Problem

The sound skips.

Cause/Solution

• Memorize the correct frequency.

• The broadcast signal is too weak.

The broadcast signal is too weak.
n Use manual tuning.

•Tune in the frequency accurately.

•The broadcast signal is too weak.
n Set to MONO mode (page 9).

Cause/Solution

A dirty or defective disc.

19

Error displays (when an optional CD/MD unit is connected) (XR-C5120 only)

The following indications will flash for about five seconds, and an alarm sound will be heard.

Display

NO MAG

NO DISC

NG DISCS

ERROR

BLANK

RESET

NO READY

HI TEMP

*1 When an error occurs during playback of a CD or MD, the disc number of the CD or MD does not appear

in the display.

*2 The disc number of the disc causing the error appears in the display.

If the above-mentioned solutions do not help improve the situation, consult your nearest Sony
dealer.

Cause

The disc magazine is not inserted in
the CD/MD unit.

No disc is inserted in the CD/MD unit.

A CD/MD cannot play because of
some problem.

A CD is dirty or inserted upside

2

down.*

1

*

An MD does not play because of some
problem.*

No tracks have been recorded on an

1

*

MD.*
The CD/MD unit cannot be operated

because of some problem.
The lid of the MD unit is open or MDs

are not inserted properly.
The ambient temperature is more than

50°C (122°F).

2

2

Solution

Insert the disc magazine in the CD/
MD unit.

Insert discs in the CD/MD unit.

Insert another CD/MD.

Clean or insert the CD correctly.

Insert another MD.

Play an MD with tracks recorded on
it.

Press the reset button of the unit.

Close the lid or insert the MDs
properly.

Wait until the temperature goes
down below 50°C (122°F).

Sony Corporation Printed in Thailand

20
