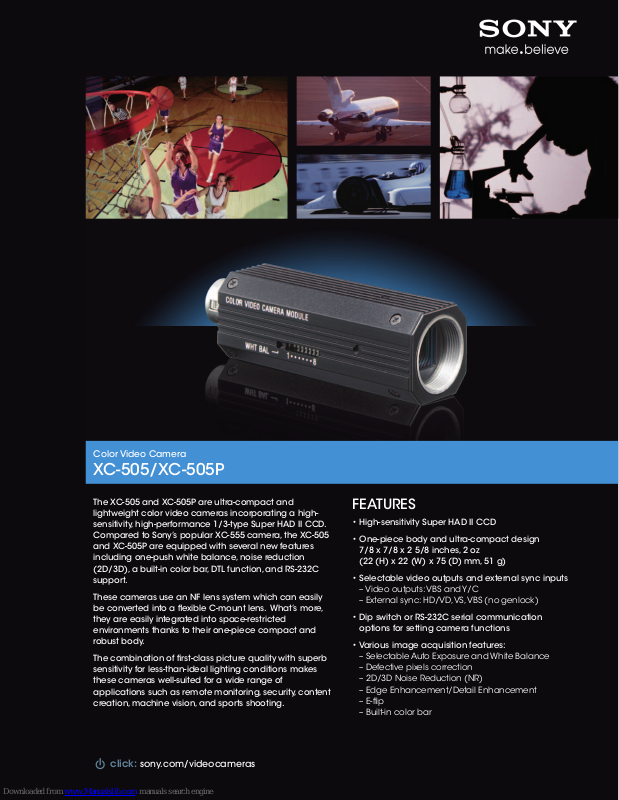

Sony XC-505, XC-505P Brochure

Color Video Camera

click: sony.com/sonysports

XC-505/XC-505P

The XC-505 and XC-505P are ultra-compact and
lightweight color video cameras incorporating a high­sensitivity, high-performance 1/3-type Super HAD II CCD.
Compared to Sony’s popular XC-555 camera, the XC-505
and XC-505P are equipped with several new features
including one-push white balance, noise reduction
(2D/3D), a built-in color bar, DTL function, and RS-232C
support.

These cameras use an NF lens system which can easily
be converted into a flexible C-mount lens. What’s more,
they are easily integrated into space-restricted
environments thanks to their one-piece compact and
robust body.

The combination of first-class picture quality with superb
sensitivity for less-than-ideal lighting conditions makes
these cameras well-suited for a wide range of
applications such as remote monitoring, security, content
creation, machine vision, and sports shooting.

sony.com/videocameras

FEATURES

• High-sensitivity Super HAD II CCD

• One-piece body and ultra-compact design
7/8 x 7/8 x 2 5/8 inches, 2 oz
(22 (H) x 22 (W) x 75 (D) mm, 51 g)

• Selectable video outputs and external sync inputs

– Video outputs: VBS and Y/C
– External sync: HD/VD, VS, VBS (no genlock)

• Dip switch or RS-232C serial communication
options for setting camera functions

• Various image acquisition features:

– Selectable Auto Exposure and White Balance
– Defective pixels correction
– 2D/3D Noise Reduction (NR)
– Edge Enhancement/Detail Enhancement
– E-flip
– Built-in color bar

SPECIFICATIONS

click: sony.com/sonysports

XC-505 XC-505P

Image sensor Super HAD II 1/3-type IT CCD

Color filter Complementary color mosaic

Effective picture elements (H) x (V) 768 x 494 752 x 582

Scanning system 525 lines, 2:1 interlace, 30 frames/sec 625 lines, 2:1 interlace, 25 frames/sec

Lens mount NF mount

Sync system Internal/External (automatic switching)

Horizontal resolution 470 TV lines 460 TV lines

Minimum illumination 1.5 lx at F1.4 AGC: max (18 dB)

Sensitivity 2000 lx at F11 AGC: OFF (0 dB)

S/N ratio 48 dB (standard) AGC: OFF (0 dB) 46 dB (standard) 9 AGC: OFF (0 dB)

Shutter speed

White balance

1/60 sec (OFF) (NTSC), 1/1000 sec,
CCD IRIS, and FLICKERLESS
(selectable)

3200K, 5600K, One Push WB, ATW (auto tracking white balance),

and MAN (manual) (selectable)

Gain control AGC/Fixed (0 dB)

VBS/Y/C (selected with the switch)

Video output

VBS: 1 Vp-p, 75 ohms, sync negative

C: C level depends on the composite video out signal

External synchronous input HD/VD, VS, VBS (no genlock)

Output connect DC IN/SYNC/VIDEO: multi 12-pin

Operating temperature 32°F to 104°F (0°C to 40°C)

Storage temperature -22°F to +140°F (-30°C to +60°C)

Operating humidity 20% to 80% (no condensation permissible)

Storage humidity 20% to 90% (no condensation permissible)

Power requirement DC 10.5 V to 15 V

Power consumption 1.5 W

Vibration resistance 10 G (20 Hz to 200 Hz)

Shock resistance 70 G

Dimensions (W x H x D) 7/8 x 7/8 x 2 61/64 inches (22 x 22 x 75 mm)

Weight 2 oz. (51 g)

Supplied Accessories Lens mount cap (1), Tripod adaptor (1 set), Operating instructions (1)

1/50 sec (OFF) (PAL), 1/1000 sec,
CCD IRIS, and FLICKERLESS
(selectable)

Y: 1 Vp-p, 75 ohms

Dip switches for setting functions

Dip switch setting Functions (Bold: default setting)

1 to 4 White Balance (3,200K, 5,600K,

5 and 6 Shutter Speed (OFF, 1/1,000, CCD

One Push W/B, ATW, Manual)

IRIS, FLICKERLESS)

7 Auto Gain Control (ON, OFF)

8 Camera Output Signal (VBS, Y/C)

1 · · · · · · 8

* This Dip switch is the default setting at ex-factory.

DC IN/VIDEO connector (multi 12-pin)

Sync signal types

Signal

External Sync signal

Pin No.

HD,VD VS Input

1 GND

2 +12 V

3 VBS/Y Output (GND)

4 VBS/Y Output (signal)

5 HD Input (GND) - -

HD Input

6

(signal)

VD Input

7

(signal)

- -

VS Input
(signal)

8 GND (-/C)

9 -/C Output (signal)

10 RS-232C (TXD) *

11 RS-232C (RXD) *

12 VD Input (GND) VS Input (GND) GND

* For details on how to change
this setting, please refer to the
Technical Manual.

Multi 12-pin Connector

Internal Sync
signal

-

9

1

2

8

10

3

7

12

11

456

DIMENSIONS

5/16 (7.8)

15/32 (11.25) 11/16 (17.4)

1 8

WHT BAL

Ø2

4 - Ø2.5 CBORE DEPTH1

Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656

sony.com/videocameras

IS-1228 (MK10652V1)

2

1 7/16 (35.2)

7/8 (22)

5/32 (3.25)

1/16 (1.2)

1/16 (1.2)

7/8 (22)

© 2009 Sony Corporation. All rights reserved.

Reproduction in whole or in part without written permission is prohibited.

Features and specifications are subject to change without notice.

The values for mass and dimension are approximate.

Sony is a registered trademark of Sony Corporation.

Super HAD CCD II is a trademark of Sony Corporation.

All other properties are the property of their respective owners.

Printed in USA (1/10)
