Sony KDL-32XBR950 - 32"" Flat Panel Lcd Wega&trade, Xbr Television, LCD WEGA KDL-42XBR950 Specifications
Video Features
• High Resolution Plasma TV
• Built-in NTSC TV Tuners (2)
Media Box
• Built-in ATSC TV Tuner (1)
Media Box
• Built-in Stereo Speakers
• Panel System: Plasma Display
Panel
• Screen Size (Diagonally):
KDL-42XBR950 = 42 inches
KDL-32XBR950 = 32 inches
• Display Resolution:
KDL-42XBR950 =1366 x 768
KDL-32XBR950 =1280 x 768
• Antenna: 75 Ohm External
Terminal for UHF/VHF
• TV System: (Media Box) NTSC
America TV Tuner
• Channel Coverage:
VHF 2 - 13
UHF 14 - 69
CATV 1 - 999
ATSC 1 - 99
• Advanced WEGA Engine™
System
• DRC® MultiFunction Circuitry
• CineMotion® Reverse 3-2
Pulldown Technology
• Multi-Image Driver (MID® X)
• DVI-HDTV Interface
• Steady Sound® Auto Volume
Control
• Input Signals: 480i, 480p,
1080i, 720p
• Color Temperature Adjustment
• AutoWide/Wide Screen Modes
• Monitor Output
• Closed Caption (CC)
• Multiple Language (3) OnScreen Display (English, French
and Spanish)
• Auto Channel Program
• Channel Skip/Add
• Clock/Timer (Two Event)
• Favorite Channel
• Program Palette™ Presets
• Sleep Timer
• V Chip Parental Control
Audio Features
• 2 Way Passive Radiator
Speaker System
• TruSurround®Sound Effect
• Audio Power: 15Wx2 (30W)
• High Definition LCD WEGA™ Television
• 16:9 Aspect Ratio
• Advanced WEGA Engine™ System
•Direct Digital II Circuitry
•DRC® MultiFunction V1 Circuitry
•Multi-Image Driver (MID® X) Circuitry
•Sony’s LCD Panel Driver LSI
• Floating Cosmetic Design
• Detachable Speaker - Only 42"
• Built-In ATSC/QAM Tuner
• CineMotion® Reverse 3-2 Pulldown Technology
• Block Noise Smoother™ Technology
• Enhanced Memory Stick® Media Playback*(JPEG/MPEG1/MP3 Audio BGM)
• High Contrast Screen with Double AR Coating
• DVI-HDTV Interface, i.LINK®, TOS Link (For 5.1 Pass-Thru)
• Display Resolution: KDL-42XBR950=1366 x 768, KDL-32XBR950=1280 x 768

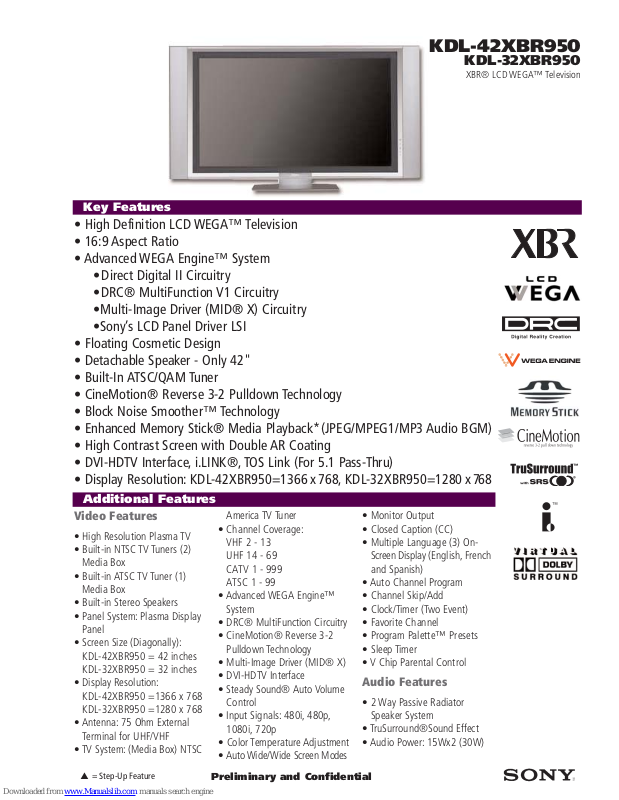

KDL-42XBR950
KDL-32XBR950
XBR® LCD WEGA™ Television
Key Features
Additional Features
Preliminary and Confidential
S = Step-Up Feature
Sony's Advanced Proprietary WEGA Engine™ System consists of 3 key technologies engineered and designed
by Sony.
1- Enhanced Direct Digital II Circuitry The first step in the digital processing system, Direct Digital II circuitry
with integrated 3D Comb filter, increases signal to noise ratio when converting the signal from analog to digital by reducing the number of Digital to Analog conversions.
2- Digital Reality Creation® MultiFunction Circuitry Gives viewers control over the level of DRC® circuitry
depending on quality of input signal, thereby displaying clear, stable images, no matter what the video source.
3- MID® X (Multi Driver Image) Circuitry Maintains the integrity of a converted signal by minimizing image
loss in the scaling process, providing unique Flexible Twin-View™ picture and picture features.
CineMotion® Reverse 3-2 Pull Down Technology Is a fixed algorithm irrespective of source which preserves the
integrity of movie film frames to create the best possible image.
Sony’s Proprietary LSI Panel Driver for LCD newly developed LSI improves fast-action, motion picture quality.
DVI-HDTV Interface (Digital Visual Interface) The DVI-HDTV Interface has been added for the latest generation
in high definition television connectivity. A single wire delivers a full digital, uncompressed HD signal that can be
received from any DVI set top box.
Inputs and Outputs
• 2 RF Inputs
• 2 HD Component Video
Input (Y/Pb/Pr)
• 1 DVI-HDTV Interface
• 1 Front/2 Rear Video Inputs
• 1 Front/2 Rear S-Video
Inputs
• 1 Front/5RearAudio Inputs
• 1 Front/2 Rear i.LINK®
Inputs (TS/DV/MICROMV)
• 1 Optical Audio Output
(TOS LINK)
• 1 Control S Output
• 1 Control S Input
• 1 Fixe d/Variable Aud io Output
• 1 Subwoofer Output
General
• Power Requirements:
AC120V, 60Hz
• Power Consumption
(Standby - Tentative):
System Total: 1.5 Watts
i.LINK® Standby 22W
(Energy Star Compliant)
• Power Consumption
(In Operation Tentative):
KDL-42XBR950: 240W
KDL-32XBR950: 150W
Media Receiver: 53W
Accessories
Supplied Accessories
• Instruction Manual
• PreprogrammableRemote
Control RM-Y1000
• Batteries (2)
• 75 ohm Coaxial Cable
• Display Interface Cable
Optional Accessories
• 10M Display Interface
Cable VMC-P10
• Wall Mount Bracket:
SU-LW1
Weights & Measures
• Approx. Dimensions(w/h/d):
Display Unit:
KDL-42XBR950:
With Stand: TBD
Without Stand:
53.11" x 27.32" x 4.02"
(1349 x 694 x 102mm)
KDL-32XBR950:
With Stand:
41.42" x 25" x 9.02"
(1052 x 635 x 229mm)
Without Stand:
41.42" x 22.4" x 3.82"
(1052 x 569 x 97mm)
Media Receiver Unit:
21.65" x 20.7" x 9.13"
(550 x 526 x 232mm)
• Approx. Weight:
Display Unit:
KDL-42XBR950:
With Stand:
- lbs. (-kg)
Without Stand:
66.14 lbs. (30kg)
KDL-32XBR950:
With Stand:
63.71 lbs. (28.9kg)
Without Stand
48.72 lbs. (22.1kg)
Media Receiver Unit:
14.33 lbs. (6.5kg)
Key Technology
Specifications
©2003 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, XBR, LCD WEGA, WEGA Engine, DRC, Digital Reality Creation,
CineMotion, Memory Stock, Twin-View, MID, Program Palette, Steady Sound and HD Detailer are trademarks of Sony. Any other trademarks referenced herein are either the property of Sony or their
respective owners.
*All Sony digital still cameras and camcorders except models DSCD-700, DSCD-770, DCR-TRV900, and DSR-PD100A store images on a Memory Stick media in the DCF file format, which is
required for playback on these televisions. If the image file is renamed or manipulated, the DCF file format must be restored before playback is possible. Images captured on all other digital still
cameras and camcorders will need to be formatted on a PC to the DCF file format (with third party software not supplied with the television) before they can be viewed.
KDL-42XBR950
KDL-32XBR950
XBR® LCD WEGA™ Television
