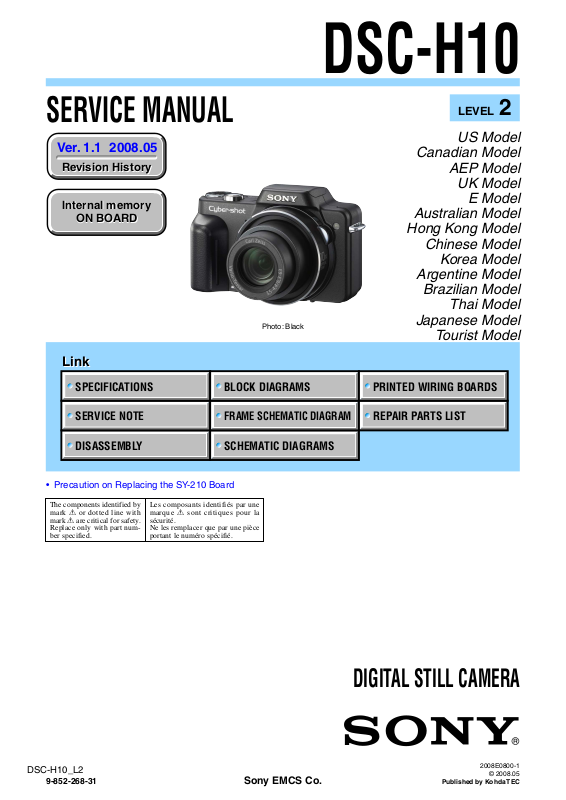

DSC-H10
SERVICE MANUAL
Ver. 1.1 2008.05
Revision History
Revision History
Internal memory
Internal memory
ON BOARD
ON BOARD
Photo: Black
Link
Link
BLOCK DIAGRAMS
LEVEL 2
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazilian Model
Thai Model
Japanese Model
Tourist Model
PRINTED WIRING BOARDS
SERVICE NOTE
DISASSEMBLY
• Precaution on Replacing the SY-210 Board
The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num­ber specified.
Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
FRAME SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAMS
REPAIR PARTS LIST
DIGITAL STILL CAMERA
DSC-H10_L2
Sony EMCS Co.
2008E0800-1
© 2008.05
Published by Kohda TEC9-852-268-31

SPECIFICATIONS

Camera
[System]
Image device: 7.18 mm (1/2.5 type) color CCD,
Primary color filter
Total pixel number of camera:
Approx. 8 286 000 pixels
Effective pixel number of camera:
Approx. 8 083 000 pixels
Lens: Carl Zeiss Vario-Tessar 10 × zoom lens f =
6.3 – 63 mm (38 – 380 mm (35 mm film equiralent)) F3.5 (W) – 4.4 (T)
Exposure control: Automatic exposure, Scene
Selection (9 modes)
White balance: Automatic, Daylight, Cloudy,
Fluorescent 1,2,3, Incandescent, Flash
File format (DCF compliant):
Still images: Exif Ver. 2.21 JPEG compliant, DPOF compatible Movies: MPEG1 compliant (Monaural)
Recording media: Internal Memory (approx.
31 MB), Memory Stick Duo
Flash:Flash range (ISO sensitivity
(Recommended exposure Index) set to Auto): approx. 0.2 to 7.0 m (7 7/8 inches to 22 feet 11 5/8 inches) (W)/approx. 0.9 to 5.6 m (2 feet 11 1/2 inches to 18 feet 4 1/2 inches) (T)
[Input and Output connectors]
Multi connector: Video output
USB communication: Hi-Speed USB (USB 2.0
compliant)
Audio output (Monaural) USB communication
[LCD screen]
LCD panel: 7.5 cm (3.0 type) TFT drive Total number of dots: 230 400 (960 × 240) dots
[Power, general]
Power: Rechargeable battery pack NP-BG1, 3.6 V
AC-LS5K AC Adaptor (not supplied), 4.2 V Power consumption (during shooting): 0.97 W Operating temperature: 0 to 40˚C (32 to 104˚F) Storage temperature: –20 to +60˚C (–4 to +140˚F) Dimensions: 106.0 × 68.5 × 48.9 mm (4 1/4 ×
2 3/4 × 1 15 /16 inches) (W/H/D, excluding
protrusions) Mass: Approx. 389 g (13.4 oz) (including NP-
BG1 battery pack, strap, adaptor ring, lens
hood and lens cap, etc.) Microphone: Monaural Speaker: Monaural Exif Print: Compatible PRINT Image Matching III: Compatible PictBridge: Compatible
BC-CSG/BC-CSGB/BC-CSGC battery charger
Power requirements: AC 100 V to 240 V, 50/
60 Hz, 2.6 W (BC-CSGB)/
2 W (BC-CSGC) Output voltage: DC 4.2 V, 0.25 A Operating temperature: 0 to 40˚C (32 to 104˚F) Storage temperature: –20 to +60˚C (–4 to
+140˚F) Dimensions: Approx. 62 × 24 × 91 mm (2 1/2 ×
31/32 × 3 5/8 inches) (W/H/D) Mass: Approx. 75 g (2.7 oz)
Rechargeable battery pack NP­BG1
Used battery: Lithium-ion battery Maximum voltage: DC 4.2 V Nominal voltage: DC 3.6 V Capacity: 3.4 Wh (960 mAh)
Design and specifications are subject to change without notice.
DSC-H10_L2
— 2 —
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
CAUTION
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer.
1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges.
2. Check the interboard wiring to ensure that no wires are "pinched" or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270˚C during repairing.
• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering or unsoldering.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead­free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40°C higher than
ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder.
DSC-H10_L2
— 3 —
ENGLISH JAPANESE
1. SERVICE NOTE
ENGLISH JAPANESE
1-1. PRECAUTION ON REPLACING THE SY-210 BOARD
DESTINATION DATA
When you replace to the repairing board, the written destination data of repairing board also might be changed to original setting. Refer to Service Manual ADJ, and perform “DESTINATION DATA WRITE”.
USB SERIAL No.
The set is shipped with a unique ID (USB Serial No.) written in it. This ID has not been written in a new board for service, and therefore it must be entered after the board replacement. Refer to Service Manual ADJ, and perform “USB SERIAL No. INPUT”.
1-2. SELF-DIAGNOSIS FUNCTION
1-2-1. Self-diagnosis Function
When problems occur while the unit is operating, the self-diagnosis function starts working, and displays on the LCD screen what to do. Details of the self-diagnosis functions are provided in the Instruction manual.
LCD screen
Blinks at 3.2 Hz
0 0
Refer to “1-2-3. Self-diagnosis Code Table”.
Repaired by:
C : Corrected by customer E : Corrected by service
engineer
3 2C
Block
Indicates the appropriate step to be taken. E.g.
13 ....Format the “Memory Stick Duo”.
32 ....Turn on power again.
1-2-2. Self-diagnosis Display
When problems occur while the unit is operating, the LCD screen shows a 4-digit display consisting of an alphabet and numbers, which blinks at 3.2 Hz. This 5-character display indicates the “repaired by:”, “block” in which the problem occurred, and “detailed code” of the problem.
Detailed Code
DSC-H10_L2
1-1
1-2-3. Self-diagnosis Code Table
Self-diagnosis Code
ENGLISH JAPANESE
ENGLISH JAPANESE
Block
Function
Repaired by:
C
13
C
32
E
61
E
61
E
62
E
62
E
62
E
62
E
62
E
91
E
92
Note: After repair, be sure to perform “1-3. PROCESS AFTER FIXING FLASH ERROR”.
Detailed
Code
01
01
00
10
02
10
11
12
20
01
00
Symptom/State
The internal memory has experienced a format error.
“Memory Stick Duo” is unformatted.
“Memory Stick Duo” is broken.
“Memory Stick Duo” type error
The camera cannot read or write data on the “Memory Stick Duo”.
Trouble with hardware
Difficult to adjust focus (Cannot initialize focus)
Zoom operations fault (Cannot initialize zoom lens.)
Abnormality of IC for steadyshot.
Lens initializing failure.
Lens overheating (PITCH).
Lens overheating (YAW).
Abnormality of thermistor.
Abnormality when flash is being charged.
Non-standard battery is used.
Format the internal memory.
Format the “Memory Stick Duo”.
Insert a new “Memory Stick Duo”.
Insert a supported “Memory Stick Duo”.
Turn the power off and on again, or taking out and inserting the “Memory Stick Duo” several times.
Turn the power off and on again.
Retry turn the power on by the power switch. If it does not recover, check the focus reset sensor of lens block (pin wj of CN402 on the SY-210 board). If it is OK, check the focus motor drive IC (IC401 on the SY-210 board).
Retry turn the power on by the power switch. Check the zoom reset sensor of lens block (pin qj of CN402 on the SY-210 board), if zooming is performed when the zoom button is operated. If it is OK, check the zoom motor drive IC (IC401 on the SY-210 board).
Check or replacement of the IC for steadyshot (IC501 on the SY­210 board).
Check or replacement of the IC for steadyshot (IC501 on the SY­210 board).
Check the HALL element (PITCH) of optical image stabilizer (pin 2, 3 of CN401 on the SY-210 board). If it is OK, check PITCH/YAW angular velocity sensor (SE502 on the SY-210 board) peripheral circuits.
Check the HALL element (YAW) of optical image stabilizer (pin 6, 7 of CN401 on the SY-210 board). If it is OK, check PITCH/YAW angular velocity sensor (SE501 on the SY-210 board) peripheral circuits.
Replacement of lens block.
Checking of flash unit or replacement of flash unit. (Note)
Use the compatible battery only.
Correction
DSC-H10_L2
1-2
ENGLISH JAPANESE
ENGLISH JAPANESE
1-3. PROCESS AFTER FIXING FLASH ERROR
When FLASH error (Self-diagnosis Code E : 91 : 01) occurs, to prevent any abnormal situation caused by high voltage, setting of the flash is changed automatically to disabling charge and flash setting. After fixing, this setting needs to be deactivated. Flash error code can be initialized by the operations on the HOME screen.
Method for Initializing the Flash Error Code
Initialize
Initializes the setting to the default setting. Even if you execute this function, the images stored in the internal memory are retained.
1 Select [Initialize] with v/V/b/B on the control button, then press z.
The message Initialize all settings appears.
2 Select [OK] with v, then press z.
The settings are reset to the default setting.
To cancel initializing
Select [Cancel] in step 2, then press z.
Be sure not to power off the camera while initializing.
1-4. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY
The data can be copied/erased by the operations on the HOME screen. (When erasing the data, execute formatting the internal memory.)
Note 1: When replacing the SY-210 board, erase the data in internal memory of the board before replacement. Note 2: When replacing the SY-210 board, execute formatting and initialize the internal memory after replacement.
Method for Copying the Data in Internal Memory
Copy
Copies all images in the internal memory to a Memory Stick Duo”.
1 Insert a Memory Stick Duo having sufficient free capacity. 2 Select [Copy] with v/V/b/B on the control button, then press z.
The message All data in internal memory will be copied appears.
3 Select [OK] with v, then press z.
Copying starts.
To cancel copying
Select [Cancel] in step 3, then press z.
Use a fully charged battery pack. If you attempt to copy image files using a battery pack with little remaining charge, the battery pack may run out, causing copying to fail or possibly corrupting the data.
You cannot select images to copy.
The original images in the internal memory are retained even after copying. To delete the contents of the
internal memory, remove the Memory Stick Duo after copying, then format the internal memory ([Format] in [Internal Memory Tool]).
A new folder is created on the “Memory Stick Duo and all the data will be copied to it. You cannot choose a specific folder and copy images to it.
The (Print order) marks on the images are not copied.
Method for Formatting the Internal Memory
This item does not appear when a Memory Stick Duo is inserted in the camera.
Format
Formats the internal memory.
Note that formatting permanently erases all data in the internal memory, including even protected images.
1 Select [Format] with v/V/b/B on the control button, then press z.
The message “All data in internal memory will be erased appears.
2 Select [OK] with v, then press z.
Formatting starts.
To cancel formatting
Select [Cancel] in step 2, then press z.
DSC-H10_L2
1-3
ENGLISH JAPANESE
ENGLISH JAPANESE
1-5. HOW TO WRITE DATA TO INTERNAL MEMORY
Usually, the camera has been set so as to disable the data writing from the PC to the internal memory of the camera. This setting must be changed temporarily when the data is to be written to the internal memory such as a case after the board replacement. To change the setting, use the write enable tool “WriteEnableTool.exe”.
Data writing method
1) Connect the PC to the camera (USB mode: Mass Storage), and switch the driver to the “Sony Seus USB Driver”.
2) Start the Write Enable Tool and the SeusEX.
3) Click the [Activate Write Enable Mode] button of the Write Enable Tool.
4) Upon completion of the setting change, the following message will be displayed.
5) Return the driver to the original one, and connect the PC to the camera (USB mode: Mass Storage).
6) Write the data read out into the PC to the internal memory of the camera.
7) Disconnect the PC from the camera, and turn off the camera.
Note: By turning off the camera, the write enable setting is reset.
DSC-H10_L2
1-4
ENGLISH JAPANESE
1. SERVICE NOTE
ENGLISH JAPANESE
1-1. SY-210基板交換時の注意
仕向けデータ
補修用基板と交換する時,補修用基板に書かれている仕向けデータは元の設定と違っている場合があります。 ADJ編を参照して,「DESTINATIONDATAWRITE」を行ってください。
USBシリアルNo.
セットは,1台毎に異なる固有のID(USBSerialNo.)を書き込んだ後,出荷されています。 新品の補修用基板には,このIDが書き込まれていないので,基板交換後にIDを入力する必要があります。 ADJ編を参照して,「USBSERIALNo.INPUT」を行ってください。
1-2. 自己診断機能
1-2-1. 自己診断機能について
本機の動作に不具合が生じたとき,自己診断機能が働き, LCD画面に,どう処置したらよいか判断できる表示を行い ます。自己診断機能については取扱説明書にも掲載されて います。
1-2-2. 自己診断表示
本機の動作に不具合が生じたとき,LCD画面にアルファベッ トと4桁の数字が表示され,3.2Hzで点滅します。この5文字 の表示によって対応者分類および不具合の生じたブロックの 分類,不具合の詳細コードを示します。
LCD画面
C : 3 2 : 00
3.2Hz点滅
3 2C
対応者分類
C :お客さま自身で対応 E :サービスエンジニア
で対応 デュオをフォーマッ
ブロック分類
対応方法の違いにより分類 例 13 ・・・メモリースティック
トする
32 ・・・電源を入れ直す
0 0
詳細コード
「1-2 -3 .自己診断コード表」
を参照
DSC-H10_L2
1-5
1-2-3. 自己診断コード表
自己診断コード
ブロック
機能
C
13
C
32
E
61
E
61
E
62
E
62
E
62
E
62
E
62
E
91
E
92
Note:交換後は,必ず「1-3.フラッシュエラー発生時の対処法」を行って下さい。
詳細
コード
01
01
00
10
02
10
11
12
20
01
00
症状/状態
内蔵メモリにフォーマットエラーが あった。
フォーマットしていないメモリー スティックデュオを入れた。
メモリースティックデュオが 壊れている。
メモリースティックデュオの タイプエラーを検出した。
メモリースティックデュオが 読み/書きできない。
ハードウェアトラブルを検出した。 フォーカスが合いにくい。
(フォーカスの初期化ができない)
ズーム動作の異常。 (ズームレンズの初期化ができな い)
手振れ補正用ICの異常。
手振れ補正用ICの異常。 (レンズ初期化異常)
レンズオーバーヒート(PITCH)
レンズオーバーヒート(YAW)
サーミスタの異常。 フラッシュの充電異常。 規定外の充電池が使用された。
内蔵メモリをフォーマットする。
メモリースティックデュオをフォーマットする。
新しいメモリースティックデュオに交換する。
規格内のメモリースティックデュオを挿入する。
電源の入れ直し,またはメモリースティックデュオ の挿し/外しを数回試す。
電源を入れ直す。 操作スイッチの電源を入れ直す。
復帰しない場合はレンズブロックのフォーカスリセットセ ンサ(SY-210基板CN402wjピン)を点検する。異常なけ ればフォーカスモータ駆動IC(SY-210基板IC401)を点検 する。
操作スイッチの電源を入れ直す。 ズームボタンを操作したときにズーム動作をすればレンズ ブロックのズームリセットセンサ(SY-210基板CN402qj ピン)を点検する。異常なければズームモータ駆動IC (SY-210基板IC401)を点検する。
手振れ補正用IC(SY-210基板IC501)を点検または交換す る。
手振れ補正用IC(SY-210基板IC501)を点検または交換す る。
光学手振れ補正ブロックのホール素子(PITCH)(SY-210 基板CN4012,3ピン)を点検する。異常なければ PITCH/YAW角速度センサ(SY-210基板SE502)周辺の回 路を点検する。
光学手振れ補正ブロックのホール素子(YAW)(SY-210 基板CN4016,7ピン)を点検する。異常なければ PITCH/YAW角速度センサ(SY-210基板SE501)周辺の回 路を点検する。
レンズブロックを交換する。 フラッシュユニットを点検または交換する。(Note) 規定の充電池を使用する。
ENGLISH JAPANESE
ENGLISH JAPANESE
対応/方法
DSC-H10_L2
1-6
ENGLISH JAPANESE
ENGLISH JAPANESE
1-3. フラッシュエラー発生時の対処法
本機はフラッシュエラー(自己診断コードE:91:01)が発生した場合,高電圧による異常を防止するために自動的にフラッシュ 充電および発光禁止の設定になります。 フラッシュエラー発生後はエラーの解除を行う必要があります。エラーの解除はホーム画面から初期化操作を実行することによ り行います。
設定リセット
お買い上げ時の設定に戻します。
[設定リセット]を実行しても、内蔵メモリーに記録されている画像は削除されません。
ʓ
コントロールボタンの Ă
「全ての設定内容をリセットします」というメッセージが表示される。
ʔ
Ăで[実行]を選び、中央の Ćを押す。
設定リセットが実行される。
設定リセットを中止するには
手順ʔで、[キャンセル]を選び、中央の Ć を押す。
ˎ
設定リセット中は電源が切れないようにご注意ください。
Ôで[設定リセット]を選び、中央のĆを押す。
/è/î/
1-4. 内蔵メモリのデータコピーおよび消去方法
内蔵メモリのデータコピーまたは消去はホーム画面の操作から実行可能です。(消去する場合は内蔵メモリの初期化を行いま す。)
Note1:SY-210基板交換の際は,基板交換前に内蔵メモリのデータを消去して下さい。 Note2:SY-210基板交換の際は,基板交換後に内蔵メモリのフォーマットおよび初期化を実行して下さい。
内蔵メモリのコピー方法
コピー
内蔵メモリーに記録した画像を、メモリースティック デュオに一括コピーします。
ʓ
充分な空き容量のあるメモリースティック デュオを本体に入れる。
ʔ
コントロールボタンのĂ
「内蔵メモリーのデータがすべてコピーされます」というメッセージが表示される。
ʕ
Ăで[実行]を選び、中央のĆを押す。
コピーが実行される。
コピーを中止するには
手順3で、[キャンセル]を選び、中央のz を押す。
充分に充電したバッテリーをご使用ください。残量の少ないバッテリーを使用して画像ファイ ルをコピーすると、バッテリー切れのためデータを転送できなかったり、データを破損するお それがあります。
画像ごとのコピーはできません。
データをコピーしても、内蔵メモリー内のデータは削除されません。内蔵メモリーの内容を消 去するには、コピー後にメモリースティックデュオを本体から取りはずし、[内蔵メモリー ツール]の[フォーマット]を行ってください。
データをコピーするとメモリースティックデュオ内に新しいフォルダが作成されます。コ ピー先のフォルダを指定することはできません。
データのコピーを行っても、
Ôで[コピー]を選び、中央のĆを押す。
/è/î/
(プリント予約)マークの設定はコピーされません。
内蔵メモリのフォーマット方法
メモリースティック デュオが本機に入っている場合は表示されません。
フォーマット
内蔵メモリーの管理領域をフォーマット(初期化)します。
ˎ
フォーマットすると、プロテクトしてある画像も含めて、すべてのデータが消去され、元に戻せ ません。
ʓ
コントロールボタンのĂ
「内蔵メモリーのデータがすべて消去されます」というメッセージが表示される。
ʔ
Ăで[実行]を選び、中央の Ćを押す。
フォーマットが実行される。
フォーマットを中止するには
手順ʔで、[キャンセル]を選び、中央の Ć を押す。
Ôで[フォーマット]を選び、中央のĆを押す。
/è/î/
DSC-H10_L2
1-7
ENGLISH JAPANESE
ENGLISH JAPANESE
1-5. 内蔵メモリへデータを書き戻す方法
通常は,PCからカメラの内蔵メモリへデータを書き込むことはできない設定になっています。 基板交換後などに,内蔵メモリへデータを書き戻す場合には,この設定を一時的に変更する必要があります。 設定の変更には,書き込み許可ツール(WriteEnableTool.exe)を使用します。
書き戻し方法
1) カメラとPCをマスストレージ接続し,ドライバを“SonySeusUSBDriver”に切り替える。
2) 書き込み許可ツールとSeusEXを起動する。
3) 書き込み許可ツールの[Activate Write Enable Mode]ボタンをクリックする。
4) 設定の変更が終了すると,次のメッセージが表示されます。
5) ドライバを元に戻して、カメラとPCをマスストレージ接続する。
6) PCに読み出しておいたデータをカメラの内蔵メモリに書き込む。
7) カメラとPCの接続を解除し,カメラの電源をOFFにする。
注意:カメラの電源をOFFにすることにより,書き込み許可の設定が解除されます。
DSC-H10_L2
1-8E
NOTE FOR REPAIR
2. DISASSEMBLY
• Make sure that the flat cable and flexible board are not cracked of bent at the terminal. Do not insert the cable insufficiently nor crookedly.
• When remove a connector, don’t pull at wire of connector. It is possible that a wire is snapped.
• When installing a connector, don’t press down at wire of connector. It is possible that a wire is snapped.
• Do not apply excessive load to the gilded flexible board.
Cut and remove the part of gilt which comes off at the point. (Be careful or some pieces of gilt may be left inside)
DISCHARGING OF THE ST-193 FLEXIBLE BOARD’S CHARGING CAPACITOR
(C006)
The charging capacitor (C006) of the ST-193 flexible board is charged up to the maximum 315 V potential. There is a danger of electric shock by this high voltage when the capacitor is handled by hand. The electric shock is caused by the charged voltage which is kept without discharging when the main power of the unit is simply turned off. Therefore, the remaining voltage must be discharged as described below.
Preparing the Short Jig
To preparing the short jig, a small clip is attached to each end of a resistor of 1 k /1 W (1-215-869-11). Wrap insulating tape fully around the leads of the resistor to prevent electrical shock.
1 k/1 W
Note: High-voltage cautions
Discharging the Capacitor
Short-circuit between the two points with the short jig about 10 seconds.
R:1 k/1 W (Part code: 1-215-869-11)
ST-193 Flexible Board
C006
Wrap insulating tape.
DSC-H10_L2
2-1
2-1. IDENTIFYING PARTS
Cabinet (Upper)
ST-193 Flexible BoardFL-179 Flexible BoardPL-048 Flexible Board
BT Holder Section
MS-403 BoardJK-373 Flexible Board
SY-210 Board
Cabinet (Front)
SW-530 Board
PD-360 Flexible Board
Cabinet (Rear)
- DISASSEMBLY FLOW -
2-2-1. CABINET (FRONT) SECTION
Side Cover (Lower) Cabinet (Front)
2-2-2. CABINET (REAR) SECTION
Cabinet (Rear) Cabinet (Upper)
2-2-4. MAIN BOARD SECTION
LCD Block Lens Block SY-210 Board
LCD Module
Lens Block
CCD Block (CD-708 Flexible Board)
2-2-3. CABINET (UPPER) SECTION
FL-179 Flexible Board ST-193 Flexible Board PL-048 Board
2-2-5. BT HOLDER SECTION
MS-403 Board SW-530 Board JK-373 Board BT Holder
DSC-H10_L2
2-2
HELP
EXPLODED VIEW
HELP
2-2. DISASSEMBLY
2-2-1. CABINET (FRONT) SECTION
Follow the disassembly in the numerical order given.
1 Side Cover (Lower) (1-1 to 1-3) 2 Cabinet (Front) (2-1 to 2-9)
Note: High-voltage cautions
Discharging the Capacitor
Short-circuit between the two points with the short jig about 10 seconds.
R:1 k/1 W (Part code: 1-215-869-11)
ST-193 Flexible Board
C006
Cabinet (Rear) Section
(See Page 2-4)
2-5 (#25/#69)
2-3 (#25)
HARDWARE LIST
2-2 (Open)
2-4 (Open)
2-8 (Claw)
2 Cabinet (Front)
2-9
(Claw)
2-6 (#25/#69)
2-1 (#25/#69)
2-7 (Claw)
1 Side Cover
(Lower)
Screw Hole
1-2 (Bring up)
1-3 (Slide)
(Claw)
(Claw)
1-1 (#25/#69)
Tweezers
DSC-H10_L2
2-3
2-2-2. CABINET (REAR) SECTION
EXPLODED VIEW
Follow the disassembly in the numerical order given.
1 Cabinet (Rear) (1-1 to 1-4) 2 Cabinet (Upper) (2-1 to 2-8)
2 Cabinet (Upper)
HARDWARE LIST
1 Cabinet (Rear)
2-6
(Claw)
2-4
HELP01
2-5 (Claw)
2-2
2-8
2-3
2-1 (#69)
1-2 (#23)
HELP01
2-7 (Claw)
1-4 (MC Connector)
Main Board Section
(See Page 2-6)
1-3 (Claw)
1-1 (#25/#69)
DSC-H10_L2
2-4
2-2-3. CABINET (UPPER) SECTION
EXPLODED VIEW
Follow the disassembly in the numerical order given.
1 FL-179 Flexible Board (1-1 to 1-14) 2 ST-193 Flexible Board (2-1 to 2-7) 3 PL-048 Board (3-1 to 3-4)
HELP06
2-7
1-8
1-12
(Claw)
1-13
HELP02
1-1
1-9
(Claw)
HARDWARE LIST
When install the ST case (Upper) assy, attach claws A and B in alphabetical order.
HELP03
HELP03
1-3 (Claw)
1-5
Claw B
Claw A
2-6 (Claw)
2-1 (Claw)
2-3
ST-193
2-4 (Claw)
1-2 (#23)
2-5 (#30)
2 ST-193
1-10
(Claw)
1-11
3-3
(Claw)
1-7
1-14
1-6 (Claw)
3-1 (#23)
ST Assy
Be sure not to touch the copper leads or contacts.
3 PL-048 Board
HELP05
3-4
1-4 (Claw)
1 FL-179
Flexible Board
HELP04
2-2 (Claw)
DSC-H10_L2
Flexible Board
Note: Solderling caution
Be careful not to cut so long the leads of capacitors (avoiding short-circuit).
3-2 (Claw)
2-5
2-2-4. MAIN BOARD SECTION
EXPLODED VIEW
Follow the disassembly in the numerical order given.
1 LCD Block (1-1 to 1-2) 2 Lens Block (2-1 to 2-4) 3 SY-210 Board (3-1 to 3-5)
In case of attaching SY radiation sheet, be sure to attach it in the center of IC softly. (Do not attach it out of the IC outline and press it forcefully.)
3-5
3-1
3 SY-210
Board
HARDWARE LIST
1 LCD Block
1-2
HELP07
3-3 (#23)
SY-210
3-2
3-4
(Claw)
2-2
2-3
2-4
2 Lens Block
HELP08
1-1 (Claw)
2-1 (Claw)
DSC-H10_L2
2-6
2-2-5. BT HOLDER SECTION
EXPLODED VIEW
Follow the disassembly in the numerical order given.
1 MS-403 Board (1-1 to 1-4) 2 SW-530 Board (2-1 to 2-8) 3 JK-373 Flexible Board (3-1 to 3-4) 4 BT Holder (4-1 to 4-2)
HARDWARE LIST
2 SW-530 Board
2-2 (#23)
HELP09
3 JK-373 Flexible Board
3-4
3-3 (#69)
M
S-403
1-1 (#23)
HELP10
1-4 (Claw)
2-1
3-1
(Solder)
3-2 (DC Jack)
4 BT Holder
HELP11
1-3 (Boss)
4-1 (Claw)
1-2 (Claw)
4-2 (Claw)
2-4 (Boss)
2-6 (Claw)
SW-530
3-3
2-8
2-3 (#3)
2-7
2-5
(Boss)
1 MS-403 Board
DSC-H10_L2
2-7E

HELP

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
Hook
HELP01
Speaker Harness
Mic Harness
HELP02
To cover the connector of the ST-193 flexible board and the FL-179 flexible board, the insulating sheet (lower) is put.
Insulating sheet (lower)
Hook
FL-179 flexible board
Connector of the ST-193 flexible board
HELP03
PB Insulating Sheet
OB Sheet
DSC-H10_L2
HELP
HELP04
THE METHOD OF ATTACHMENT OF FL-179 FLEXIBLE BOARD
1 Fold dotted line parts of the FL-179 flexible board,
and attach the FL insulating sheet as shown in figure.
FL-179 Flexible Board
Valley fold
FL Insulating Sheet
Mountain fold
2 Pass the FL-179 flexible board through the ST assy,
and connect the FL-179 flexible board to the ST-193 flexible board.
3 Connect the FL-179 flexible board to the
PL-048 flexible board.
FL-179 Flexible Board
PL-048 Flexible Board
ST Assy
4 Close the detect ST assy, and set the SW part of
the FL-179 flexible board to the ST base.
ST Assy
Pass the FL-179 Flexible Board
ST-193 Flexible Board
FL-179 Flexible Board
Detect SW Part of the FL-179 Flexible Board
ST Base
Close the ST Assy
FL-179 Flexible Board
DSC-H10_L2
HELP
5 Open the ST assy, and install the ST base
as shown in figure.
Claws
7 Open the ST assy, and install the ST case
(lower) assy as shown in figure.
ST Base
Open the ST Assy
FL-179 Flexible Board
6 Set the SW part of theFL-179 flexible board
as shown in figure.
ST case (lower) assy
Bosses
Open the ST Assy
FL-179 Flexible Board
FL-179 Flexible Board
SW part
8 Install the ST inner cover as shown in figure.
Claws
ST inner cover
SW part
Claws
FL-179 Flexible Board
DSC-H10_L2
HELP
Loading...
+ 47 hidden pages
