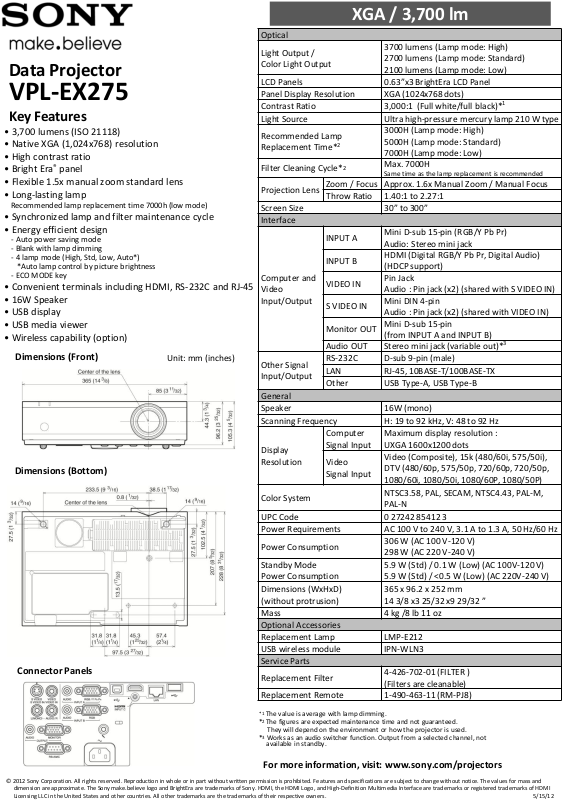

Sony VPL-EX275 Product Sheet

Data Projector

VPL-EX275

Key Features

• 3,700 lumens (ISO 21118)

• Native XGA (1,024x768) resolution

• High contrast ratio

• Bright Era® panel

• Flexible 1.5x manual zoom standard lens

• Long-lasting lamp

Recommended lamp replacement time 7000h (low mode)

• Synchronized lamp and filter maintenance cycle

• Energy efficient design

- Auto power saving mode

- Blank with lamp dimming

- 4 lamp mode (High, Std, Low, Auto*) *Auto lamp control by picture brightness

- ECO MODE key

• Convenient terminals including HDMI, RS-232C and RJ-45

• 16W Speaker

• USB display

• USB media viewer

• Wireless capability (option)

Dimensions (Front)

Dimensions (Bottom)

Connector Panels

Unit: mm (inches)

XGA / 3,700 lm

Optical

Light Output / Color Light Output

LCD Panels 0.63”x3 BrightEra LCD Panel Panel Display Resolution XGA (1024x768 dots) Contrast Ratio 3,000:1 (Full white/full black)*1 Light Source Ultra high-pressure mercury lamp 210 W type

Recommended Lamp Replacement Time*2

Filter Cleaning Cycle*

Projection Lens

Screen Size 30” to 300” Interface

Computer and Video Input/Output

Other Signal Input/Output

General Speaker 16W (mono) Scanning Frequency H: 19 to 92 kHz, V: 48 to 92 Hz

Display Resolution

Color System

UPC Code 0 27242 85412 3 Power Requirements AC 100 V to 240 V, 3.1 A to 1.3 A, 50 Hz/60 Hz

Power Consumption

Standby Mode Power Consumption

Dimensions (WxHxD) (without protrusion)

Mass 4 kg /8 lb 11 oz Optional Accessories Replacement Lamp LMP-E212 USB wireless module IPN-WLN3 Service Parts

Replacement Filter

Replacement Remote 1-490-463-11 (RM-PJ8)

* 1

The value is average with lamp dimming. *2 The figures are expected maintenance time and not guaranteed. They will depend on the environment or how the projector is used. *3 Works as an audio switcher function. Output from a selected channel, not

available in standby.

Zoom / Focus Approx. 1.6x Manual Zoom / Manual Focus Throw Ratio 1.40:1 to 2.27:1

INPUT A

INPUT B

VIDEO IN

S VIDEO IN

Monitor OUT

Audio OUT Stereo mini jack (variable out)* RS-232C D-sub 9-pin (male) LAN RJ-45, 10BASE-T/100BASE-TX Other USB Type-A, USB Type-B

Computer Signal Input

Video Signal Input

3700 lumens (Lamp mode: High) 2700 lumens (Lamp mode: Standard) 2100 lumens (Lamp mode: Low)

3000H (Lamp mode: High) 5000H (Lamp mode: Standard) 7000H (Lamp mode: Low) Max. 7000H

Same time as the lamp replacement is recommended

Mini D-sub 15-pin (RGB/Y Pb Pr) Audio: Stereo mini jack HDMI (Digital RGB/Y Pb Pr, Digital Audio) (HDCP support) Pin Jack Audio : Pin jack (x2) (shared with S VIDEO IN) Mini DIN 4-pin Audio : Pin jack (x2) (shared with VIDEO IN) Mini D-sub 15-pin (from INPUT A and INPUT B)

Maximum display resolution : UXGA 1600x1200 dots Video (Composite), 15k (480/60i, 575/50i), DTV (480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60P, 1080/50P)

NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

306 W (AC 100 V-120 V) 298 W (AC 220 V-240 V)

5.9 W (Std) / 0.1 W (Low) (AC 100V-120 V)

5.9 W (Std) / <0.5 W (Low) (AC 220V-240 V) 365 x 96.2 x 252 mm

14 3/8 x3 25/32 x9 29/32 ”

4-426-702-01 (FILTER ) (Filters are cleanable)
