Sony VPL-EX245, VPL-EX275, VPL-EX225, VPL-EW275, VPL-EW245 User Manual

...

Data Projector

4-435-798-11 (1)

Operating Instructions

Before operating the unit, please read this manual and supplied Quick Reference Manual thoroughly and retain it for future reference.

VPL-EW275/EW245/EW225 VPL-EX275/EX271/EX245/EX241/EX225/EX221

Not all models are available in all countries and area. Please check with your local Sony Authorized Dealer.

Table of Contents

Overview

Location and Function of Controls .... 4

Main Unit .....................................4

Connector Panel ...........................5

Remote Commander and Control

Panel Keys .................................6

Preparation

Connecting the Projector ................... 9

Connecting a Computer ................9

Connecting a Video

equipment ................................ 10

Connecting a microphone .......... 12

Connecting a USB memory

device ......................................12

Connecting a USB wireless LAN

module .................................... 13

Connecting an External Monitor and

Audio Equipment .................... 13

Projecting/Adjusting an Image

Projecting an Image ......................... 14

Adjusting the Projected image ... 15

Turning Off the Power ................18

The Connection/Power Menu ...........27

The Installation Menu ......................29

The Information Menu .....................30

Network

Using Network Features ...................31

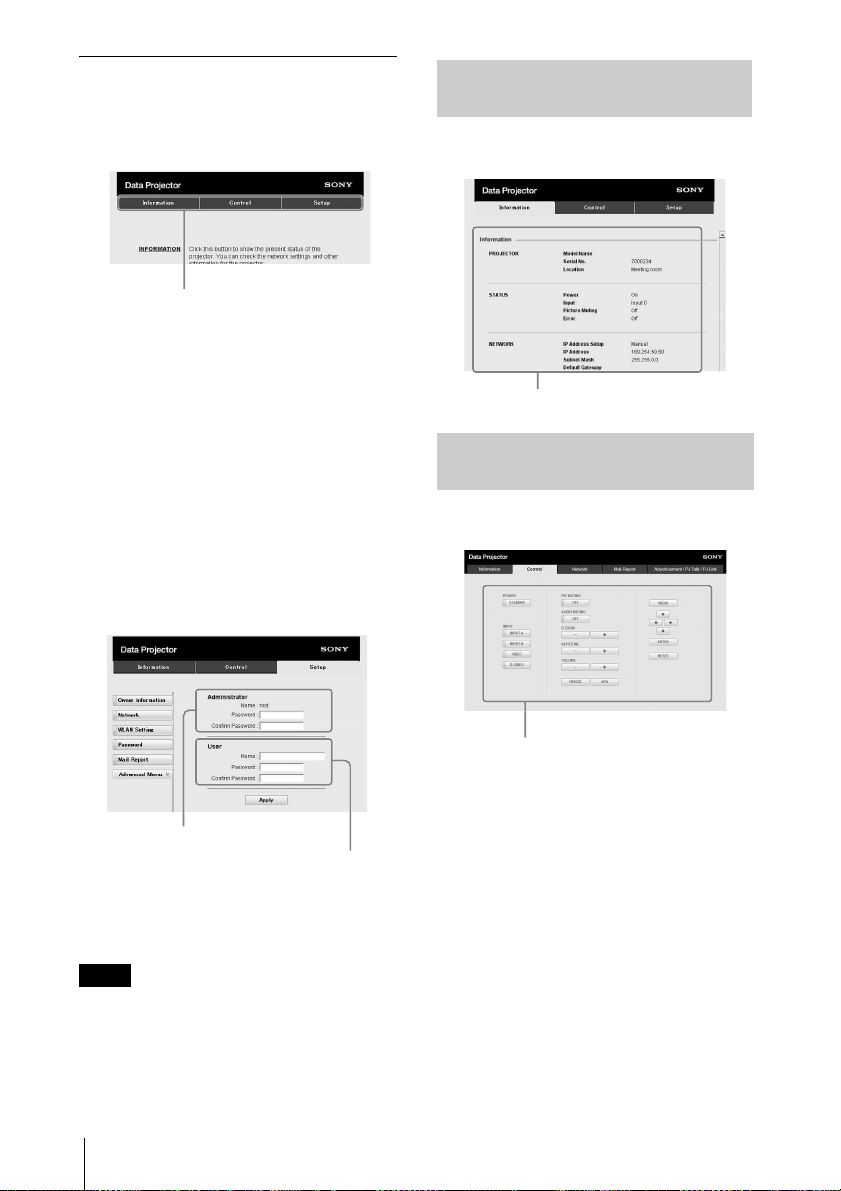

Displaying the Control Window of

the Projector with a Web

Browser ...................................31

Confirming the Information

regarding the Projector ............32

Operating the Projector from a

Computer .................................32

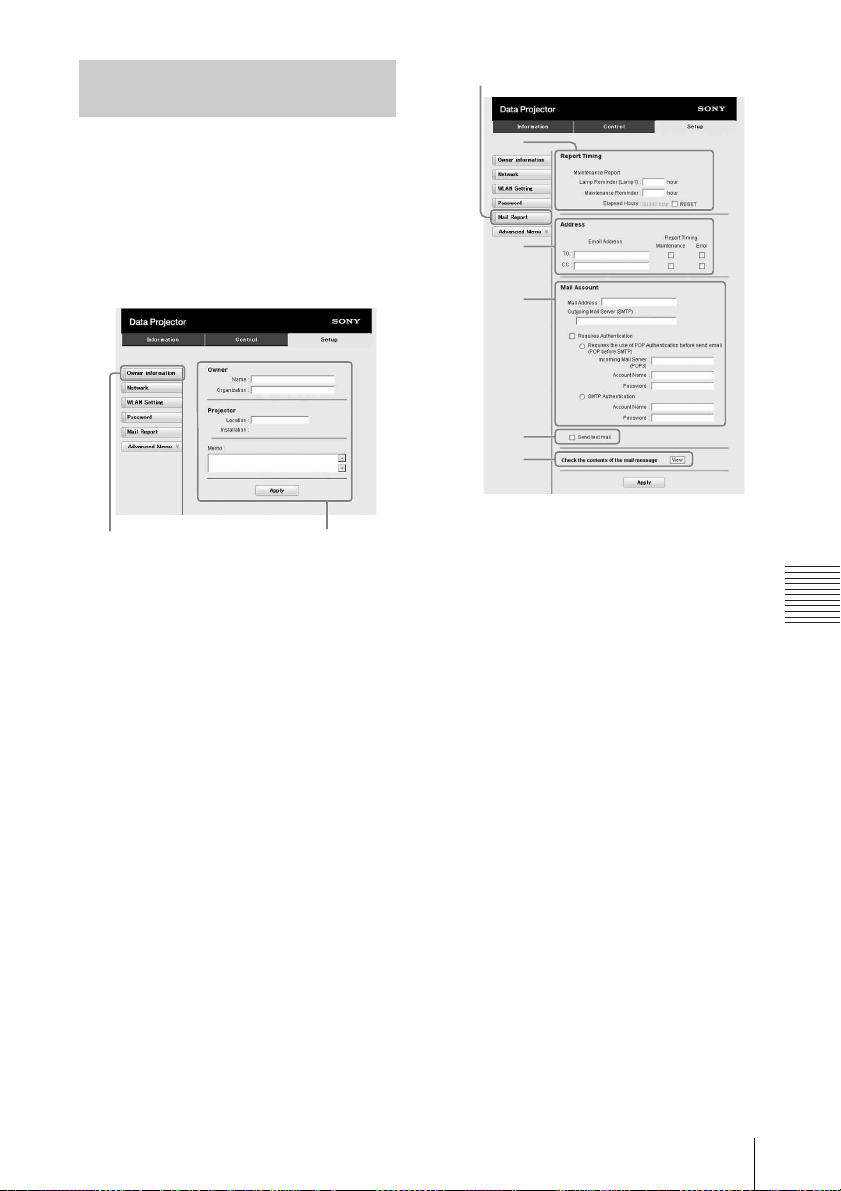

Using the e-mail report

Function ...................................33

Presentation Function via Network

Using Presentation Function via

Network .........................................35

Installing Projector Station for

Network Presentation ..............35

Starting Projector Station for

Network Presentation ..............35

Projecting an Image ....................36

Connection Settings ....................36

Using the Controller ...................37

Adjustments and Settings Using a Menu

Using a MENU ................................19

The Picture Menu .............................20

The Screen Menu ............................. 21

The Function Menu .......................... 25

The Operation Menu ........................ 26

Table of Contents

Projecting an Image using USB Connection

Projecting an Image using USB

Connection ....................................38

Starting USB Display .................38

Projecting an Image ....................38

Using the Controller ................... 38

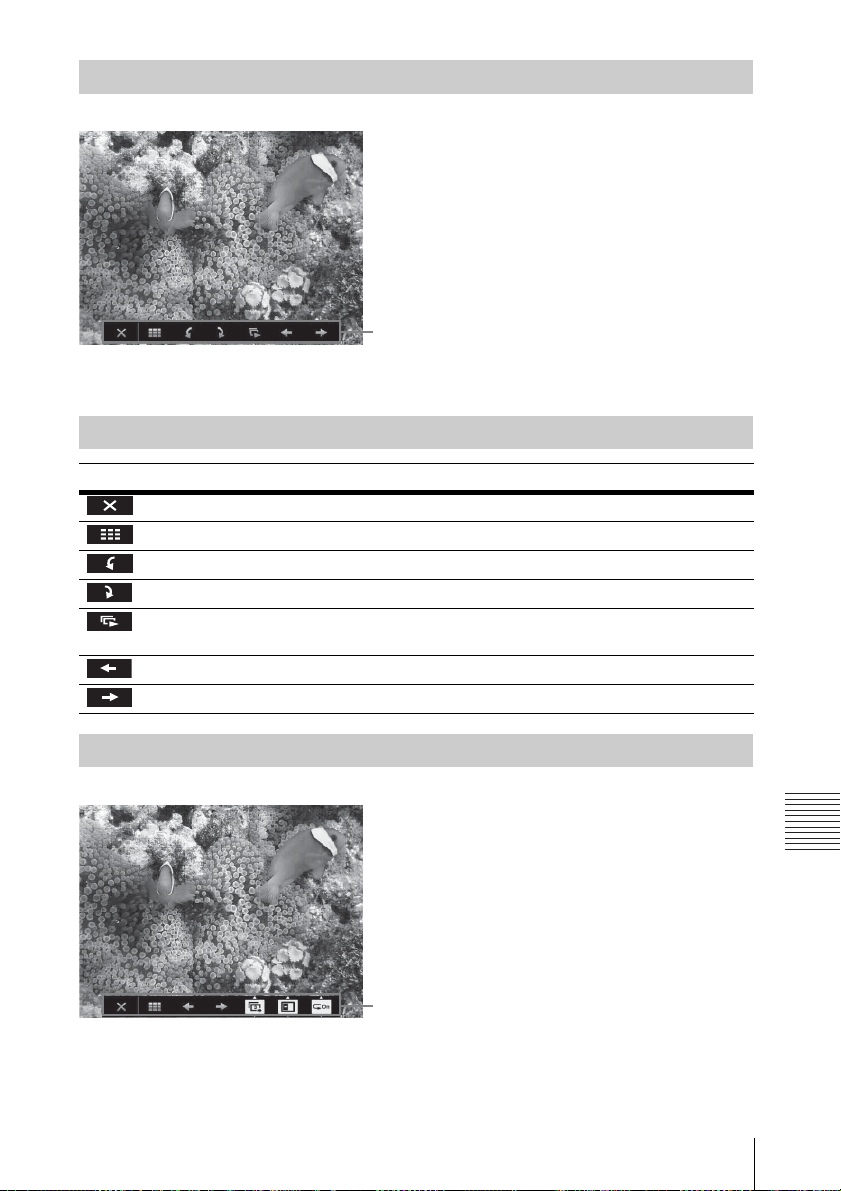

USB Media Viewer

Using USB Media Viewer ................39

Thumbnail Mode ........................40

Option Menu ...............................40

Display Mode .............................41

Option Menu ...............................41

Slideshow Mode .........................41

Option Menu ...............................42

Others

Indicators ..........................................43

Messages List ...................................44

Troubleshooting ...............................45

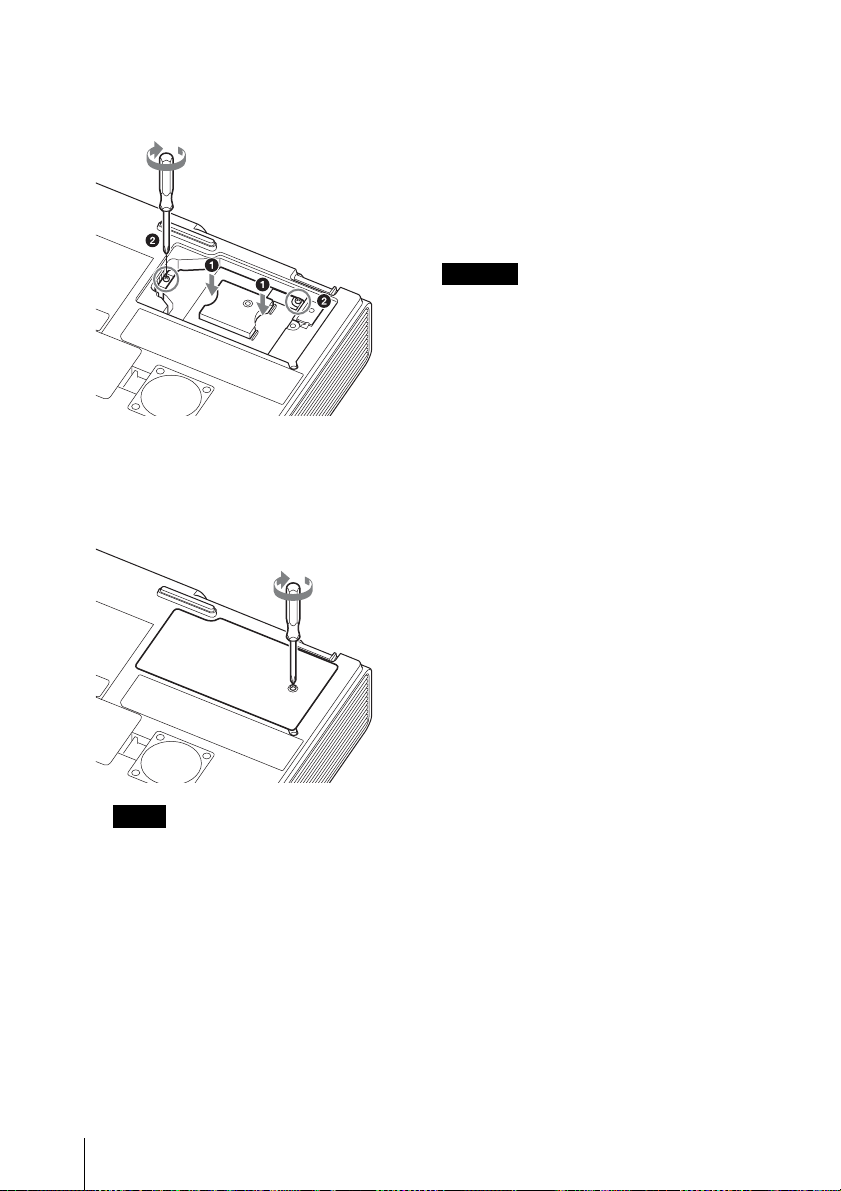

Replacing the Lamp .........................47

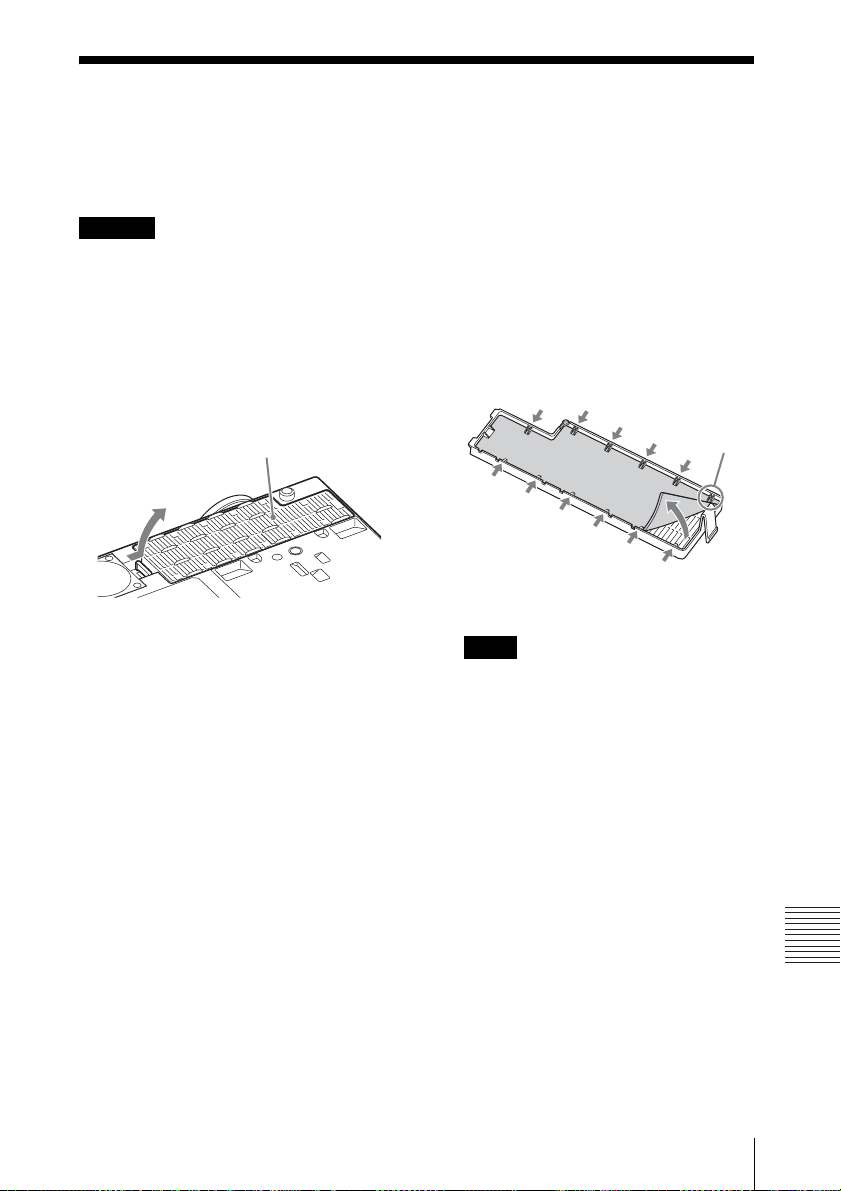

Cleaning the Air Filter .....................49

Specifications ...................................50

Projection Distance ..........................58

Dimensions .......................................72

Index .................................................78

Table of Contents

B Overview

Location and Function of Controls

Main Unit

5 4

7 8

qs qa

a Focus ring (page 15)

b Zoom ring (page 15)

c Lens

d Remote control detector

e ON/STANDBY indicator

(page 43)

f LAMP/COVER indicator

(page 43)

g Front feet (adjustable) (page 16)

7 8

Caution

Do not place anything near the ventilation holes as this may cause internal heat buildup. Do not place your hand near the ventilation holes and the circumference as this may cause injury.

l Speaker (VPL-EW275/EW245/

EW225/EX275/EX245/EX225 only)

m Connector panel (page 5)

n Security bar

Connects to a commercially available security chain or wire.

o Security lock

Connects to an optional security cable manufactured by Kensington. For details, visit Kensington’s web site. http://www.kensington.com/

p Control panel keys (page 6)

h Foot adjust button (page 16)

i Air filter cover/Ventilation holes

(intake) (page 49)

j Lamp cover (page 47)

k Ventilation holes (exhaust)

Location and Function of Controls

Connector Panel

VPL-EW275/EW245/EW225/EX275/EX245/EX225

4 5 6

VPL-EX271/EX241/EX221

6 7

Input (pages 9, 10)

a INPUT A

Video: RGB/YPBPR input connector

(RGB/YP

Audio: Audio input connector (AUDIO)

b INPUT B

Video: RGB input connector (RGB) Audio: Audio input connector (AUDIO)

c INPUT C

Video: HDMI input connector (HDMI) Audio: HDMI input connector (HDMI)

d S VIDEO (S VIDEO IN)

Video: S video input connector (S

VIDEO IN)

Audio: Audio input connector (L

(MONO) AUDIO/R)

BPR)

8q;3

e VIDEO (VIDEO IN)

Notes

• The audio inputs of S VIDEO and VIDEO

• The audio input connector and audio output

Output (page 13)

f OUTPUT

8q;3qa

Video: Video input connector (VIDEO) Audio: Audio input connector (L

(MONO) AUDIO/R)

are shared.

from the HDMI connector are available only on VPL-EW275/EW245/EW225/EX275/ EX245/EX225.

Video: Monitor output connector

(MONITOR)

Audio: Audio output connector

(AUDIO)

Overview

Location and Function of Controls

Notes

• This connector outputs the projected image or audio only when INPUT A or INPUT B is used.

• The audio output connector is available only on VPL-EW275/EW245/EW225/EX275/ EX245/EX225.

h LAN connector (page 31)

i AC IN (∼) socket

Connects the supplied AC power cord.

j USB connector (Type A) ( )

(pages 12, 39)

k USB connector (Type B) ( )

Others

g RS-232C connector (RS-232C)

RS-232C compatible control connector. Connects the computer’s RS-232C connector and th e RS-232C cross cables.

(page 38)

l Microphone input ( )

Note

Microphone input is available only on VPLEW275/EW245/EW225/EX275/EX245/ EX225.

Remote Commander and Control Panel Keys

Remote Commander

INPUT

APA ECO MODE

Control Panel Keys

RETURN

ASPECT

D ZOOM

ENTER

KEYSTONE

VOLUME

PATTERN

FREEZE

RESET

BLANK

MUTING

1 6

a Turning on the power/Going to

standby mode

?/1 (On/Standby) key

b Selecting an input signal

(page 14)

INPUT key

c Operating a menu (page 19)

MENU key RESET key ENTER /V/v/B/b (arrow) keys RETURN key

d Adjusting the image (page 15)

ASPECT key (page 21) KEYSTONE key (page 17) PATTERN key

This function is not available.

APA (Auto Pixel Alignment) key* (page 17)

Note

Use this key when inputting a computer

signal via the RGB input connector (INPUT A or INPUT B).

Location and Function of Controls

e Using various functions during

projecting

D ZOOM (Digital Zoom) +/– key

Enlarges a portion of the image while projecting.

1 Press the D ZOOM + key to display

the digital zoom icon on the projected image.

2 Press the V/v/B/b keys to move the

digital zoom icon to the point on the image you want to enlarge.

3 Press the D ZOOM + key or the D

ZOOM – key repeatedly to change the enlargement ratio. The image can be

enlarged up to 4 times. Press the RESET key to restore the previous image.

BLANK key

Cuts off the projected image temporarily. Press again to restore the previous image. Picture muting helps reduce power consumption.

MUTING key (VPL-EW275/EW245/ EW225/EX275/EX245/EX225 only)

Mutes the audio output temporarily. Press again to restore the previous volume.

VOLUME +/– key (VPL-EW275/ EW245/EW225/EX275/EX245/ EX225 only)

Adjusts the volume output.

FREEZE key

This function is not available.

Note

* Use this key when inputting a computer

signal. But it may not be used depending

on the resolution of the input signal.

f Setting the energy–saving mode

easily

ECO MODE key

Energy-saving mode can be set easily. Energy-saving mode consists of “Lamp Mode,” “With No Input,” “With Static Signal” and “Standby Mode.”

1 Press the ECO MODE key to display

the ECO Mode menu.

ECO Mode

ECO

User

RETURN

:Sel

:Back

2 Press the V/v key or ECO MODE key

to select “ECO” or “User” mode. ECO: Sets each mode to the optimum

energy-saving value. Lamp Mode: Low With No Input: Standby With Static Signal: Lamp Dimming Standby Mode: Low

User: Sets each item of the ECO

Mode menu as you desire (go to step 3).

3 Select “User” then press the b key.

The setting items appear.

User

Lamp Mode High

Auto Power Saving

With No Input With Static Signal

Standby Mode

:S el

:S et

Off Lamp Dimming

Standard

RETURN

:Back

4 Press the V/v key to select the item

then press the ENTER key.

5 Press the V/v key to select the setting

value.

6 Press the ENTER key.

The screen returns to the User screen. For details on ECO Mode settings, see “Lamp Mode,” “With No Input,” “With Static Signal” and “Standby Mode” on the Connection/Power menu (page 27).

Others

g Infrared transmitter

About remote commander operation

• Direct the remote commander toward the remote control detector.

• The shorter the distance between the remote commander and the projector is, the wider the angle within which the remote commander can control the projector becomes.

Overview

Location and Function of Controls

• Make sure that nothing obstructs the infrared beam between the remote commander and the remote control detector on the projector.

Location and Function of Controls

B Preparation

Connecting the Projector

Notes

• Make sure all the equipment is powered off when connecting the projector.

• Use the proper cables for each connection.

• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

• For more information, refer also to the instruction manuals of the equipment you are connecting.

• Use a no-resistance audio cable.

Connecting a Computer

Connection with a computer is explained for each input signal.

INPUT A/INPUT B

For connecting a computer with an RGB output connector.

Mini D-sub 15-pin cable (supplied)

RGB output

connector

Audio output

Computer

connector

Preparation

Audio cable (Stereo mini plug) (not supplied)

Notes

• The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.

• It is recommended that you set the resolution of your computer to 1280 × 800 pixels (VPL-EW275/ EW245/EW225) or 1024 × 768 pixels (VPL-EX275/EX271/EX245/EX241/EX225/EX221) for the external monitor.

INPUT C

For connecting a computer with an HDMI output connector.

HDMI cable (not supplied)

HDMI output

connector

Computer

Connecting the Projector

Notes

• Audio output from the HDMI connector is available only on VPL-EW275/EW245/EW225/ EX275/EX245/EX225.

• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

USB connector (Type B) ( )

For connecting to a computer with a USB connector (“Projecting an Image using USB Connection” (page 38)).

USB connector

(Type A)

Computer

USB A-B cable (not supplied)

Connecting a Video equipment

Connections with a VHS video deck, DVD player, or BD player are explained for each input signal.

S VIDEO IN

For connecting video equipment with an S-video output connector.

S video cable (not supplied)

S video output

connector

Audio output

Computer

Note

The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.

connector

Audio cable (Phono plug × 2) (not supplied)

Connecting the Projector

VIDEO IN

For connecting video equipment with a video output connector.

Video cable (not supplied)

Video output

connector

Audio output

Video equipment

Note

connector

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.

INPUT A

For connecting video equipment with a YPBPR output connector.

Component – Mini D-sub 15-pin cable (not supplied)

BPR output

connector

Audio output

Video equipment

connector

Preparation

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

Note

The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.

Connecting the Projector

INPUT C

For connecting video equipment with an HDMI output connector.

HDMI cable (not supplied)

HDMI output

connector

Video equipment

Notes

• Audio output from the HDMI connector is available only on VPL-EW275/EW245/EW225/ EX275/EX245/EX225.

• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

Connecting a microphone

Microphone ( )

For connecting a microphone.

Microphone (not supplied)

Notes

• The microphone input is available only on VPL-EW275/EW245/EW225/EX275/EX245/EX225.

• Only dynamic microphones are supported.

Connecting a USB memory device

USB connector (Type A) ( )

For connecting a USB memory device (“Using USB Media Viewer” (page 39)).

USB memory device (not supplied)

Connecting the Projector

Connecting a USB wireless LAN module

USB connector (Type A) ( )

For connecting a USB wireless LAN module IFU-WLM3 (not supplied) (“Presentation Function via Network” (page 35)).

USB wireless LAN module IFU-WLM3 (not supplied)

Notes

• Undesignated USB wireless LAN modules do not work.

• When connecting/disconnecting the USB wireless LAN module, make sure that the projector is in Standby mode (Standby Mode: “Low”), or the AC power cord is unplugged from the wall outlet.

Connecting an External Monitor and Audio Equipment

OUTPUT

Projected images or input audio can be output to display equipment such as a monitor or audio equipment such as speakers with a built-in amplifier.

Audio equipment

Audio input

connector

Audio cable (stereo mini plug) (not supplied)

Preparation

Display equipment

Notes

RGB input connector

Mini D-sub 15-pin cable (supplied)

• The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.

• Projected images and audio can be output.

Connecting the Projector

B Projecting/Adjusting an Image

Projecting an Image

The size of a projected image depends on the distance between the projector and screen. Install the projector so that the projected image fits the screen size. For details on projection distances and projected image sizes, see

“Projection Distance” (page 58).

Projector

1 Plug the AC power cord into the wall

outlet.

2 Connect all equipment to the projector

(page 9).

3 Press the ?/1 key to turn on the unit.

4 Turn on the connected equipment.

5 Select the input source.

Press the INPUT key on the projector to display the menu for switching input signal on the screen. Press the INPUT key repeatedly, or press the select an image to be projected.

V/v key to

Video equipment

Wall outlet

Computer

6 When projecting a computer image,

switch your computer’s output to external display.

The method to switch the output varies depending on the type of computer.

(Example)

To project image files stored in a USB memory device, see “USB Media Viewer” (page 39). To project an image using USB Connection, see “Projecting an Image using USB Connection” (page 38). To use Presentation Function via Network, see “Presentation Function via Network” (page 35).

Projecting an Image

7 Adjust the focus, size and position of

the projected image (page 15).

Adjusting the Projected image

Focus Size (Zoom) Position

Projecting/Adjusting an Image

Focus ring

Zoom ring

Foot adjust button

Front feet (adjustable)

Projecting an Image

Adjusting the tilt of the projector with the front feet (adjustable)

By changing the tilt of the projector with the foot adjust buttons/front feet (adjustable), you can adjust the position of the projected image.

How to adjust the angle

1 Press and hold the foot adjust buttons.

2 Lift up the front of the projector to

adjust the angle.

3 Release the foot adjust buttons.

4 Turn the front feet (adjustable) to set

the angle of the projector precisely.

Notes

• Be careful not to let the projector down on your fingers.

• Do not push hard on the top of the projector with the front feet (adjustable) extended.

Changing the aspect ratio of the projected image

Press the ASPECT key on the remote commander to change the aspect ratio of the projected image. You can also change the setting in Aspect of the Screen menu (pages 21, 23).

Projecting an Image

Correcting trapezoidal distortion of the projected image (Keystone feature)

Normally the Keystone feature automatically adjusts the projected image. The Keystone feature may not work automatically if the screen is tilted. In this case, set Keystone manually.

1 Press the KEYSTONE key on the remote

commander or select V Keystone in the Installation menu.

2 Use the V/v/B/b keys to set the value. The

higher the value, narrower the top of the projected image. The lower the value, the narrower the bottom.

Note

Since the Keystone adjustment is an electronic correction, the image may be deteriorated.

Increase the number towards plus

Increase the number towards minus

Automatically adjusts Phase, Pitch and Shift of projected image while a signal is input from a computer (APA (Auto Pixel Alignment))

Press the APA key on the remote commander. Press again to cancel adjusting during the setting. You can also set APA in the Screen Menu (page 22). If Smart APA in the Function menu is set to “On”, executes APA automatically when a signal is input (page 25).

Projecting/Adjusting an Image

Projecting an Image

Turning Off the Power

1 Press the ?/1 key on the unit or the remote commander.

The projector starts shutdown and turns off. If you press the ?/1 key within 10 seconds again, shutdown is cancelled.

2 Unplug the AC power cord from the wall outlet.

To turn off without displaying confirmation message

Press and hold the ?/1 key on the unit for a few seconds (page 44).

ECO gauge

This gauge indicates the current effectiveness of the projector’s ECO function. (For details on the ECO function, see “ECO MODE key” (page 7) and “ECO” (page 27).) The leaf icons are displayed when the projector is shut down. The number of displayed icons varies according to how much energy is saved as a result of using the ECO function.

Projecting an Image

ECO gauge

B Adjustments and Settings Using a Menu

Using a MENU

Note

The menu displays used for the explanation below may be different depending on the model you are using.

1 Press the MENU key to display the

menu.

2 Select the setting menu.

Use the V/v key to select the setting menu then press the b key or ENTER

key.

Setting menu


Picture Mode Standard Reset Contrast Brightness Color Hue Color Temp. Sharpness Expert Setting

:Sel :Set :Back

Low

3 Select the setting item.

Use the V/v key to select the setting menu then press the b key or ENTER

key.

To return to the selection screen of the setting menu, press the B or RETURN key.

Setting items


Picture Mode Standard

Reset Contrast Brightness Color Hue Color Temp. Sharpness Expert Setting

80 50 50 50

Low

operations in step 3 and then press the ENTER key to register the setting. To return to the selection screen of the setting items, press the B or RETURN key. You can press the RESET key to reset an item to its factory setting value to aid setting.

Using a pop-up menu

Press the V/v/B/b key to select an item. A selected item takes effect immediately, except “Language”, which will take effect after you press the ENTER key.

Picture Mode

Dynamic

Sta ndard

Presentation Blackbo ard Game Cinema

:Back

RETURN

:Sel

Using the setting menu

Press the V/v key to select the item. Press the ENTER key to register the setting and return to the previous screen.

Using the adjustment menu

To increase the value, press the V/b key and to decrease the number, press the v/B key. Press the ENTER key to register the setting and return to the previous screen.

Contrast

Adjustments and Settings Using a Menu

:Sel :Set :Back

4 Make the setting or adjustment for the

selected item.

The setting method varies, depending on the setting item. If the next menu window is displayed, select the item according to the

Adjust

Back

5 Press the MENU key to clear the

menu.

The menu disappears automatically if no operation is performed.

Using a MENU

The Picture Menu

The Picture is used to adjust the picture for each input signal.

Items Item descriptions

Picture Mode Dynamic: Emphasizes the contrast to produce a dynamic and vivid picture.

Reset

Contrast The higher the value, the greater the contrast. The lower the value, the lower

Brightness The higher the value, the brighter the picture. The lower the value, the darker

*3 *4

Color

*3 *4 *5

Hue

Color Temp.

Sharpness The higher the value, the sharper the picture. The lower the value, the softer

Expert Setting

Gamma

*1 *7

Mode

Standard: Provides an image which is natural and well balanced. Presentation Blackboard: Provides an image suitable for displaying on a blackboard. Game: Provides an image suitable for viewing games. Cinema: Provides an image suitable for viewing movies.

Resets the factory setting.

the contrast.

the picture.

The higher the value, the greater the intensity. The lower the value, the lower the intensity.

The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.

High/Middle/Low: The higher the value, the more bluish the picture. The lower the value, the more reddish the picture.

the picture.

Graphics1: Gamma correction to make halftones brighter. This setting is suitable when projecting highly colorful images, such as photos, in a bright place. Graphics2: Gamma correction to improve the reproduction of halftones. Highly colorful images, such as photos, can be reproduced in natural tones. Text: Improves black and white contrast. Suitable for images with lots of text content.

: Provides a bright image, suitable for presentations.

Notes

*1: When a computer signal is input, this option is available. *2: The settings in the Picture return to their factory defaults, except for Picture Mode. *3: When a video signal is input, this option is available. *4: When the signal without color burst signal is input, this option is unavailable. *5: When an analog TV signal is input, this option may not available, depending on the color system. *6: When “Picture Mode” is set to the item other than “Presentation” or “Blackboard,” this option

is available.

*7: When “Picture Mode” is set to “Blackboard,” this option is unavailable.

The Picture Menu

The Screen Menu

The Screen menu is used to adjust the size, position and aspect ratio of the projected image for each input signal.

Items Item descriptions

Aspect

VPL-EW275/EW245/ EW225: When the computer signal is input

VPL-EW275/EW245/ EW225: When the video signal is input

VPL-EX275/EX271/ EX245/EX241/ EX225/EX221: When the computer signal is input

VPL-EX275/EX271/ EX245/EX241/ EX225/EX221: When the video signal is input

Changes the aspect ratio of the projected image (page 23).

4:3: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 4:3. 16:9: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 16:9. Full 1: Displays the image to fit the maximum projected image size without changing the aspect ratio of the input signal. Full 2: Displays the image to fit the maximum projected image size changing the aspect ratio of the input signal. Full 3: Displays the image to fit the maximum width or height, up to 1280 × 720 pixels, without changing the aspect ratio of the input signal. Normal: Displays the image on the center position of the projected screen without changing the resolution of the input signal or enlarging the image.

Zoom: Zooms the center area of a projected image.

4:3: Displays the image to fit the maximum projected image size

with an aspect ratio fixed to 4:3. 16:9: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 16:9. Full 1: Displays the image to fit the maximum projected image size without changing the aspect ratio of the input signal. Normal: Displays the image on the center position of the projected screen without changing the resolution of the input signal or enlarging the image.

Adjustments and Settings Using a Menu

The Screen Menu

Items Item descriptions

Adjust Signal Adjusts the image of computer signal. Use this item if the edge of

the image is cut and reception is bad.

APA

*2 *3

Automatically adjusts the projected image to an optimum quality when you press the ENTER key (page 6).

Phase

Adjusts the dot phase of the display pixel and the input signal. Set to the value where looks clearest.

Pitch

The higher the value, the wider the horizontal image elements (pitch). The lower the value, the narrower the horizontal image elements (pitch).

Shift

H (Horizontal): The higher the value, the farther right the image is projected on the screen. The lower the value, the image farther left. V (Vertical): The higher the value, the farther up the image is projected on the screen. The lower the value, the image farther down.

Notes

*1: • Note that if the projector is used for profit or for public viewing, modifying the original picture

by switching to the aspect mode may constitute an infringement of the rights of authors or producers, which are legally protected.

• Depending on the input signal, setting items for aspect ratio or some other setting items cannot be set in some cases, or changing the aspect ratio setting may have no effect.

• A part of the image may be displayed in black, depending on the setting item.

*2: Available when a computer signal is input from the RGB input connector (INPUT A/INPUT B). *3: If the projected image includes large amount of black portion around it, the APA function will

not work properly and a part of the image may not be displayed on the screen and also optimum image cannot be obtained, depending on the type of input signal. In this case, adjust the “Phase,” “Pitch,” and “Shift” items manually.

*4: Available when a computer or a video signal is input from the RGB/YP

BPR input connector

(INPUT A).

The Screen Menu

Aspect

VPL-EW275/EW245/EW225

Input signal Recommended

setting value and

projected image

4:3 Full1

16:9 Full1

Computer signal

16:10 Full1

4:3 4:3

16:9 16:9

Video signal

*1 *2 *3

*4 *5

*1: If you select “Normal,” the image is

projected in the same resolution as the input signal without changing the aspect ratio of the original image.

*2: If you select “Full2,” the image is projected

to fit the projected image size, regardless of the aspect ratio of the image.

*3: If you adjust the projected image position

using an image with 16:9 aspect ratio and then switch the input source to 4:3 image, the top and bottom edge of the image may be hidden. In this a case, select “Full3.”

*4: Depending on the input signal, the

projected image may be projected as illustrated below. In this a case, select “16:9.”

Adjustments and Settings Using a Menu

*5: Depending on the input signal, the image

may be projected as illustrated below. In this a case, select “Zoom.”

The Screen Menu

VPL-EX275/EX271/EX245/EX241/ EX225/EX221

Input signal Recommended

setting value and

projected image

4:3

16:9

Full1

Computer signal

16:10 Full1

*1 *2

*1: If you select “Normal,” the image is

projected in the same resolution as the input signal without changing the aspect ratio of the original image.

*2: If you select “4:3,” the image is projected

to fit the projected image size, regardless of the aspect ratio of the image.

*3: Depending on the input signal, the

projected image may be projected as illustrated below. In this a case, select “16:9.”

The Screen Menu

4:3 4:3*3

*4: Depending on the input signal, the

projected image may be projected as illustrated below. In this a case, select “Zoom.”

16:9 16:9

Video signal

The Function Menu

The Function menu is used for setting various functions of the projector.

Items Item descriptions

Volume

Mic Volume

Speaker

Smart APA On/Off: When set to “On,” APA functions automatically when a

CC Display CC1/CC2/CC3/CC4/Text1/Text2/Text3/Text4: Select the closed

Lamp Timer Reset When replacing the lamp, resets the lamp timer (page 47).

Notes

*1: APA functions when a computer signal is input via the RGB input connector (INPUT A/INPUT

B). *2: The maximum available mic volume is set by the value of “Volume.” *3: VPL-EW275/EW245/EW225/EX275/EX245/EX225 only.

The higher the value, the louder an audio volume and the lower the value, the lower the audio volume.

Adjust the volume of the microphone.

On/Off: When set to “On,” speaker outputs sound. To not output sound from the speaker, select “Off.”

signal is input.

caption service (captions or text). Off: Closed caption does not appear.

Adjustments and Settings Using a Menu

The Function Menu

The Operation Menu

The Operation menu is used for setting for the operations by using the menu or the remote commander.

Items Item descriptions

Language Selects the language used in the menu and messages.

Status On: All on-screen statuses are enabled.

Security Lock

Control Key Lock

Off: Turns off the on-screen displays, except for menus, warning messages and messages from the message list.

On/Off: This function enables restriction of the projector to authorized users by password. The setting procedures for security locking are as follows:

1 Select “On” and press the ENTER key to display the setting menu. 2 Input the password with the MENU, V/v/B/b and ENTER keys. (The

default setting password is “ENTER, ENTER, ENTER, ENTER.”)

3 Input a new password with the MENU, V/v/B/b and ENTER keys. 4 Enter the password again to confirm.

Enter the password when you turn on the projector after disconnecting and reconnecting the AC power cord. When it is set to “Off,” you can cancel the security lock. You are required to input the password again. If you fail to enter the correct password after three consecutive times, the projector cannot be used. In this case, press the ?/1 key to go Standby mode then turn on the power again.

On/Off: When set to “On,” locks all the control panel keys of the projector. However, you can operate the following when set to “On”:

• Press and hold the ?/1 key for approximately 10 seconds during Standby

mode. c The projector turns on.

• Press and hold the MENU key for approximately 10 seconds during power on. c “Control Key Lock” is set to “Off” and enables operation of all keys on

the projector.

Note

*1: You will not be able to use the projector if you forget your password. If you call qualified Sony

personnel because you have forgotten the password, you will be asked to verify the projector’s serial number and your identity. (This process may differ in other countries/regions.) Once your identity has been confirmed, we will provide you with the password.

The Operation Menu

The Connection/Power Menu

The Connection/Power menu is used for setting for the connections and power.

Items Item descriptions

LAN Settings

IP Address Setup Auto (DHCP): The IP address is assigned automatically from the

WLAN Settings

WLAN Connection

Input-A Signal Sel.

ECO

Lamp Mode High/Standard/Low/Auto

Auto Power Saving

With No Input Lamp Cutoff: The lamp turns off automatically and power

With Static Signal

Standby Mode*

Direct Power On On/Off: When set to “On,” you can turn the power on without going to

DHCP server such as a router.

Manual: To specify the IP Address manually.

On/Off: Set the wireless output of the USB wireless LAN module (not

supplied) to On/Off.

Auto/Computer/Video GBR/Component:

When set to “Auto,” selects

the type of video signal input automatically when “Input-A” is selected.

*5 *7

: When set to “High,” the image

becomes brighter, and power consumption becomes higher. When set to “Low,” power consumption is minimized; however, the image will be darker. When set to “Auto,” brightness is adjusted automatically according to image content. Dark images are projected with brightness adjusted, leading to energy-saving. Bright images are projected brightly, without adjusting brightness.

consumption is reduced if no signal is input for more than 10 minutes. The lamp lights again when a signal is input or any key is pressed. In Lamp Cutoff, the ON/STANDBY indicator lights in orange. (page 43) Standby*

: If no signal is input to the unit for more than 10 minutes,

the power turns off automatically, and the unit enters standby mode.

Off: You can deactivate the With No Input.

Lamp Dimming

seconds, lamp output is gradually reduced (approximately 10% to

15%*

) from that set in the Lamp Mode. Automatically the lamp slowly

*4 *5 *7

: If an image does not change for about 10

darkens to approximately 30% of its lamp output according to the selected time (with no change to input signal) “5,” “10,” “ 15,” “ 20” minutes or “Demo.,” While dimming the lamp, the message “Lamp Dimming” appears. If you select “Demo.,” the image will start to darken about 40 seconds later. When any change in signal is detected, or an operation (remote control or control panel) is performed, normal brightness is restored. Off: You can deactivate the With Static Signal.

Standard/Low: When set to “Low,” lowers power consumption in Standby mode.

Standby mode when the AC power cord is connected to a wall outlet. With the projector turned off, you can also unplug the AC power cord without going to Standby mode, regardless of the Direct Power On setting.

Adjustments and Settings Using a Menu

The Connection/Power Menu

Notes

*1: This may not be optimum depending on the input signal. In this case set manually according to

the connected equipment.

*2: When “Standby Mode” is set to “Low,” the network and network control function cannot be

operated while the projector is in standby mode. *3: This varies depending on the “Lamp Mode” setting. *4: As the lamp is dimmed gradually, you may not notice any change in brightness. You might only

notice that the lamp has dimmed when its brightness is restored after there is a change in input

signal. *5: This mode does not work for about three minutes after the lamp lights. A change in signal may

not be detected depending on the input image. The lamp may become brighter at intervals during

lamp dimming. However, this is not a malfunction. If With No Input is set, it takes priority. *6: Select “Off” to avoid entering standby mode when there is no input signal. *7: Does not function when “Type A USB”, “Type B USB” or “Network” is selected as the input.

In this case, it becomes equivalent to “Standard.” *8: Reflecting changes in WLAN settings may take a few moments.

The Connection/Power Menu

The Installation Menu

The Installation menu is used for installing the projector.

Items Item descriptions

Image Flip HV/H/V/Off: Flips the projected image horizontally or vertically

Installation Attitude Right Side Up/Upside Down/Link to Image Flip: Change the cooling

High Altitude

Mode

V Keystone

Notes

*1: When “High Altitude Mode” is set to “On,” the speed of the fan increases, and the fan noise

*2: Since the Keystone adjustment is an electronic correction, the image may be deteriorated.

becomes slightly louder.

according to the installation method.

setting to suit to the installation attitude. When set to “Link to Image Flip,” the cooling setting changes based on the setting of “Image Flip.” Continuing to use the wrong setting may affect component reliability.

On/Off: Set to “On” when using the projector at an altitude of 1,500 m or higher. Continuing to use the wrong setting may affect component reliability.

Auto/M anual*2: The higher the value, the narrower the top of the projected image. The lower the value, the narrower the bottom.

Adjustments and Settings Using a Menu

The Installation Menu

The Information Menu

The Information menu is used to check projector status, such as total usage time of the lamp.

Items Item descriptions

Model Name Displays the model name.

Serial No. Displays the serial number.

fH/fV

Signal Type Displays the type of the current input signal.

Lamp Timer Indicates the total usage time of a lamp.

Note

*1: These items may not be displayed depending on the input signal.

Displays the horizontal/vertical frequency of the current input signal.

The Information Menu

B Network

Using Network Features

Connection to the network allows you to operate the following features:

• Checking the current status of the projector via a Web browser.

• Remotely controlling the projector via a Web browser.

• Receiving the e-mail report via the projector.

• Making the network settings for the projector.

• Supports network monitoring, control protocol (Advertisement, PJ Talk, PJ Link, AMX DDDP [Dynamic Device Discovery Protocol]).

Notes

• The menu displays used for the explanation below may be different depending on the model you are using.

• Supported Web browsers are Internet Explorer 6/7/8.

• The menu displays only in English.

• If the browser of your computer is set to [Use a proxy server] when you access to the projector from your computer, click the check mark to set accessing without using a proxy server.

Displaying the Control Window of the Projector with a Web Browser

1 Connect the LAN cable.

LAN cable (straight type) (not supplied)

Hub, router, etc

LAN Connector

2 Set the network settings for the

projector using “LAN Settings” on the Connection/Power menu (page 27).

3 Start a web browser on the computer,

enter the following in the address field, then press the Enter key on your computer.

http://xxx.xxx.xxx.xxx (xxx.xxx.xxx.xxx: IP address for the projector)

You can confirm the IP address of the projector in the “LAN Settings” on the Connection/Power menu (page 27).

The following window appears in the Web browser:

Once you make the network settings, you can open the Control window only by performing step 3 of this procedure.

Network

Using Network Features

How to operate the Control window

Switching the page

Click one of the Page Switching buttons to display the desired setting page.

Page Switching buttons

Setting the access limitation

You can limit a user for accessing any particular page.

Administrator: Allowed access to all

pages

User: Allowed access to all pages except

the Setup page Set the access limitation from [Password] of the Setup page. When you access the Setup page for the first time, enter “root” for user name and enter nothing for password. The name of the administrator is preset to “root.”

Confirming the Information regarding the Projector

You can confirm the current settings for the projector on the Information page.

Information area

Operating the Projector from a Computer

You can control the projector from the computer on the Control page.

Entry area for [Administrator]

Entry area for [User]

When you change the password, input a new password after deleting the password (*****) that was set.

Note

If you forget your password, consult with qualified Sony personnel.

Using Network Features

Operation area

The functions of the buttons shown in the operation area are the same as the keys on the remote commander.

Using the e-mail report Function

Set the e-mail report function on the Setup page. Entered values will not be applied unless you click on [Apply].

Mail Report button

1 Click on [Owner information] to enter

the owner information recorded in the

e-mail report.

Owner information button

2 Set the timing of the e-mail report.

Click on [Mail Report] to open the Mail Report page. Lamp Reminder (Lamp1): Set the

timing of the email report for lamp

replacement. To reset Lamp

Reminder, execute “Lamp Timer

Reset” on the projector (page 25).

Maintenance Reminder: Set the timing

of the email report for maintenance. To

reset Maintenance Reminder, check

the RESET check box and then click

on [Apply].

6 5

3 Enter the outgoing e-mail address in

the Email Address box then check the Report Timing check box of the e-mail report to be sent.

4 Set the mail account for sending e-

mail reports.

Mail Address: Enter the e-mail address. Outgoing Mail Server (SMTP): Enter

the address of outgoing mail server (SMTP).

Required Authentication: Check this

check box if authentication is required for sending e-mail.

Requires the use of POP

Authentication before sending email (POP before SMTP): Check this

check box to arrange for POP authentication to be performed before sending e-mail.

Incoming Mail Server (POP3): Enter

the address of the incoming-mail server (POP3) to be used for POP authentication.

Account Name: Enter the mail account

name.

Password: Enter the password.

Network

Using Network Features

SMTP Authentication: Check this

check box to arrange for SMTP authentication to be performed before sending e-mail.

Account Name: Enter the mail account

name.

Password: Enter the password.

5 Confirm the contents of the e-mail

report.

When you click on [View], the contents of the e-mail report are displayed.

6 Send the test mail.

Check on the Send test mail check box then click on [Apply] to send your test mail to the e-mail address you set.

Notes

• The email report function will not work if the network uses Outbound Port25 blocking, which prevents access to the SMTP server.

• You cannot use the following characters to enter the characters in the text box: “ ' ”, “ “ ”, “

\ ”, “ & ”, “ < ”, “ > ”

Using Network Features

B Presentation Function via Network

Using Presentation Function via Network

The Presentation Function via Network enables you to do the following:

• Connect a maximum of 8 computers to the projector.

• Project images from a maximum of 4 computers simultaneously.

• Connect a USB Wireless LAN Module (not supplied) to the projector allows the projector to connect to a network wirelessly.

Presentation Function via Network requires installation of Projector Station for Network Presentation (supplied CD-ROM). For information on updates of Projector Station for Network Presentation, visit Sony’s web site: https://www.servicesplus.sel.sony.com/ System requirements for using the application are as follows.

WindowsXP: Home/Professional (recommended) WindowsVista: Home Premium/Business/Ultimate/Enterprise Windows7: Home Premium/Professional (Recommended)/Ultimate/Enterprise

CPU

Pentium4 2.8GHz or faster

Notes

• To install the application, administrative rights are required.

• If you do not have administrative rights, the application may not run properly.

• If firewall or security software is installed, the application may not run properly.

• Depending on the type of network adapter, the application may not run properly.

• Movie player (Media Player, etc.) images may not be projected properly.

Installing Projector Station for Network Presentation

1 Close all running applications. 2 Insert the supplied CD-ROM into the

CD-ROM drive of the computer.

3 Open the CD-ROM and double-click

the .exe file.

When the message “User Account Control” is displayed, click “Allow” or “Yes.”

4 Follow the on-screen instructions to

install the software.

Starting Projector Station for Network Presentation

1 Connect the projector to a network.

For a wired connection, connect the projector by a LAN cable, then make the network settings (page 31). For a wireless connection, see “Connecting a USB Wireless LAN Module” (page 13). Also check the WLAN Settings (page 27).

2 Turn on the projector.

Select “Network” as the input source (page 14).

3 Start Projector Station for Network

Presentation.

Select [Start]-[All Programs]-[Projector Station for Network Presentation] on the computer.

Using Presentation Function via Network

Presentation Function via Network

Projecting an Image

After starting Projector Station for Network Presentation, the connection setting window appears.

Note

Display related settings (such as your computer’s resolution) change when the application is started.

1 Find projectors connected to the

network.

Click “Search” in the connection setting window to search for projectors.

Notes

• The appearance of the application on the screen is subject to change without notice.

• When a projector is connected to a network via a wireless connection, if the “SSID” is changed from the factory default, it may not be found.

• When a projector is connected to a network via a wired connection, depending on the network environment, it may not be found.

• When connecting a projector with its “SSID”, “Security Method” and “Wireless Password” in the “Wireless LAN Setting” changed, select “Manual Connect” and connect manually.

2 Select a projector to project an image.

Check the checkbox.

3 Click “Connect”.

If other users are projecting an image, the controller appears on the screen. Click the to start projecting an image (page 37). If no users are projecting an image, the controller appears on the screen and starts projecting an image.

Connection Settings

Item Item descriptions

Wireless LAN Adapter

Connection History

Search Results Show the search result.

Profile Name Display the registered names

Connection Display the connection

SSID Display SSID (appears only

IP Address Display IP address (appears

Search Start searching for projectors

Delete Delete selected profile.

Property Display the properties of the

Connect Connect to the selected

Manual Connect

To select a wireless LAN adapter used for Projector Station for Network Presentation (appears only when wireless connection is used).

List profiles that have been connected before.

of the projectors found in the network.

method (wired/wireless).

Displays the strength of the wireless signal (appears only when wireless connection is used).

when wireless connection is used).

only when wired connection is used).

in the network.

selected profile.

projector and start projecting an image.

Enter the SSID and IP address manually to connect with the projector, and start projecting an image.

Using Presentation Function via Network

Using the Controller

Network Presentation

User 000001

Items Functions

Start projecting an image.

Pause projecting an image.

Stop projecting an image (screen turns black).

Change the application settings.

Disconnect from the projector.

Select a projection method then start projecting an image.

Projection method

Not projecting an image.

Project in full screen.

Project in the left half of the screen.

Project in the right half of the screen.

Project in the upper left quadrant of the screen.

Project in the upper right quadrant of the screen.

Project in the lower left quadrant of the screen.

Project in the lower right quadrant of the screen.

Display the strength of the wireless signal.

Display the number of users connected to the projector.

Display the users’ status.

Presentation Function via Network

Using Presentation Function via Network

B Projecting an Image using USB Connection

Projecting an Image using USB Connection

You can also project an image simply by connecting the projector and computer with a USB AB cable (not supplied). Projecting an image using USB connection requires to start USB Display. System requirements for using the application are as follows.

WindowsXP: Home/Professional (recommended) WindowsVista: Home Premium/Business/Ultimate/Enterprise Windows7: Home Premium/Professional (Recommended)/Ultimate/Enterprise

CPU

Pentium4 2.8GHz or faster

Starting USB Display

1 Connecting the projector and your computer with a USB A-B cable (not supplied)

(page 10).

2 Turn on the projector.

Select “Type B USB” as the input source (page 14). After a short time, the projector is recognized as a CD-ROM drive in the computer.

3 Open “USB Display” in the CD-ROM drive.

Notes

• The resolution of your computer changes when the application is started.

• Depending of the computer’s setting, the application may start automatically.

• When you are finished using the projector, you can simply disconnect the USB cable without using the Safely Remove Hardware option.

• Movie player (Media Player, etc.) images may not be projected properly.

Projecting an Image Using the Controller

After starting USB Display, the controller appears on the screen, and projection starts automatically.

Projecting an Image using USB Connection

USB Display

Items Functions

Start projecting an image.

Pause projecting an image.

Stop projecting an image (the screen turns black).

Display information about USB Display.

B USB Media Viewer

Using USB Media Viewer

You can browse image files stored in a USB memory device inserted in the USB connector of the projector, without using a computer. Supported storage media and file format:

• Supported storage media: USB flash memory

• Supported format of storage media: FAT format

• Supported file format: JPEG (.jpg/.jpeg), Bitmap (.bmp), PNG (.png), GIF (.gif), TIFF (.tif/.tiff)

Notes

• exFAT, NTFS are not supported.

• TIFF files containing EXIF information are not supported.

• Image files in a USB memory device connected to the projector via a USB hub may not be displayed.

• Security protected USB memory may not function correctly.

• A USB memory card reader that is recognized as more than one drive may not function correctly.

• Display of image files that are larger than 4092 × 3072 pixels is not guaranteed. It may take a long time to display, or may not be displayed.

• A folder with a deep folder structure or with a very long folder name may not be displayed.

• An image may not be displayed, depending on its file type.

• Files or folders with names including non-alphanumeric characters may not be displayed.

• When displaying an image file, do not disconnect the USB memory device. It may cause a malfunction of the USB memory device or the projector. Disconnect the USB memory device when the USB Memory device selection screen is displayed.

1 Connect a USB Memory device to the projector (page 12).

2 Select “Type A USB” as the input source (page 14).

3 Select the USB Memory device.

Press the ENTER key to display in the thumbnail mode. USB Media Viewer has three display modes: “thumbnail mode,” “display mode” and “slideshow mode.”

Using USB Media Viewer

USB Media Viewer

Thumbnail Mode

The image files in the folder are displayed as a thumbnail list.

Option menu

Press the V/v/B/b key on the remote commander to select an image, then press the ENTER key. The option menu appears in the lower part of the screen.

Option Menu

You can select the display order of thumbnails and display method of image files.

Items Item descriptions

Hide the option menu.

Switch to the display mode, and display the selected image in full screen view. (page 41)

Switch to the slideshow mode, and start the slideshow from the selected image. (page 41)

a z

Sort image files

Sort image files.

a z

Sort by name in alphabetical order.

z a

Sort by name in reverse alphabetical order.

1 2

Sort by date in chronological order.

2 1

Sort by date in reverse chronological order.

Notes

• Files without thumbnail data (including those created by an application) appear as blank icons.

• Cannot display more than 200 image files and folders in one folder.

Using USB Media Viewer

Display Mode

In display mode, you can view a selected image in full screen view.

Option menu

Press the ENTER key on the remote commander. The option menu appears in the lower part of the screen.

Option Menu

Items Item descriptions

Hide the option menu.

Return to the thumbnail mode (page 40).

Rotate the image 90 degrees counter-clockwise.

Rotate the image 90 degrees clockwise.

Switch to the slideshow mode, and start the slideshow from the selected image. (page 41)

Display the previous image.

Display the next image.

Slideshow Mode

In slideshow mode, you can view images as a slideshow.

Option menu

Press ENTER key on the remote commander. The slideshow pauses and the option menu appears in the lower part of the screen.

Using USB Media Viewer

USB Media Viewer

Option Menu

Items Item descriptions

Hide the option menu.

Return to the thumbnail mode (page 40).

Display the previous image.

Display the next image.

Slideshow time interval

Slideshow effect

Repeat Setting

Press the V/v key to change the slideshow time interval.

After 3 seconds, display the next image.

After 5 seconds, display the next image.

After 10 seconds, display the next image.

Press the V/v key to change the slideshow effect.

The next image appears with tile transition effect.

The next image appears from the left side of the screen.

The next image appears from the right side of the screen.

The next image appears from the top of the screen.

The next image appears from the bottom of the screen.

Press the V/v key to change the slideshow repeat setting.

After displaying the last image, the slideshow starts from the first image again.

Off

After displaying the last image, the slideshow ends and returns to the thumbnail mode.

Using USB Media Viewer

B Others

Indicators

The indicators allow checking the status and notify you of abnormal operation of the projector. If the projector exhibits abnormal status, address the problem in accordance with the table below.

ON/STANDBY indicator

Status Meaning/Remedies

Lights in red The projector is in Standby mode.

Flashes in green • The projector is ready to operate after having been turned on.

Lights in green The projector’s power is on.

Lights in orange The projector is in With No Input (Lamp Cutoff). (page 27)

Flashes in red The projector is in abnormal status. Symptoms are indicated by

Flashes twice The internal temperature is unusually high. Check the items below.

Flashes six times Unplug the AC power cord from a wall outlet. After checking that the

Other number of flashes

• The lamp cools after the projector is turned off.

number of flashes. Address the problem in accordance with the following. If the symptom is shown again, consult with qualified Sony personnel.

• Check if nothing is blocking the ventilation holes. (pages 4, 4)

• Check if the air filter is not clogged. (page 49)

• Check if the Installation Attitude in the Installation menu is set correctly. (page 29)

ON/STANDBY indicator goes out, plug the power cord to a wall outlet again then turn on the projector.

Consult with qualified Sony personnel.

LAMP/COVER indicator

Status Meaning/Remedies

Flashes in red Symptoms are indicated by number of flashes. Address the problem in

accordance with the following.

Flashes twice The lamp cover is not attached securely. (page 47)

Flashes three times The temperature of lamp is unusually high. Turn off the power and

wait for lamp to cool then turn on the power again. If the symptom is shown again, the lamp may be burnt out. In this case, replace the lamp with a new one (page 47).

Indicators

Others

Messages List

When any of the messages listed below appears on the projected image, address the problem in accordance with the table below.

Messages Meaning/Remedy Page

High temp.! Lamp off in 1 min.

Frequency is out of range!

Please check Input-A Signal Sel.

Please clean the filter. Clean the air filter. 49

Please replace the Lamp and clean the Filter.

Projector temperature is high. High Altitude Mode should be “On” if Projector is being used at high altitude.

Not applicable! Invalid key was pressed. –

The control keys are locked!

Projector will shutdown soon Press ?/1 Key to Restart

Lamp Dimming Reduces lamp output when “With Static Signal” is set. When

Check the items below.

• Check if nothing is blocking the ventilation holes.

• Check if the air filter is not clogged.

• Check if the Installation Attitude in the Installation menu is set correctly.

Change the output setting of the connected equipment to one for signals supported by the projector.

Set “Input-A Signal Sel.” to “Auto” or select the input signal type to suit to the input signal.

Replace the lamp with a new one and clean the air filter. The message appears whenever you turn on the power until you replace the lamp and reset the lamp timer.

When not using the projector at an altitude of 1,500 m or higher, check the items below.

• Check if nothing is blocking the ventilation holes.

• Check if the air filter is not clogged.

• Check if Installation Attitude in the Installation menu is set correctly.

“Control Key Lock” is set to “On.” 26

The ?/1 key was pressed and the projector will be shut down soon. To cancel shutdown, press the ?/1 key again (the projector will remain on). To turn off the projector directly, press and hold the ?/1 key.

any change in signal is detected, or an operation (remote control or control panel) is performed, normal brightness is restored.

4, 4, 29, 49

47, 49

4, 4,

29, 49

Messages List

Troubleshooting

Before asking to have the projector repaired, try to diagnose the problem, following the instructions below.

Symptoms Remedy Page

The power is not turned on.

No image. Check if the connecting cable is connected to external

The application “USB Display” or “Projector Station for Network Presentation” does not start.

The computer cannot connect to the projector.

On-screen display does not appear.

The aspect ratio of the display is not right/the image is displayed smaller /a portion of image does not appear.

The image is a trapezoid.

Check if the AC power cord is firmly connected. –

When the “Control Key Lock” is set to “On,” you cannot turn on the projector using the ?/1 key on the projector.

If the lamp or lamp cover is not attached securely, the projector cannot be turned on.

equipment firmly.

Check the computer signal is set for output to an external monitor only. If you set your computer to output to both the computer’s display and an external monitor, the external monitor image may not be displayed properly. Set your computer to output to only an external monitor.

Check if the application “USB Display” or “Projector Station for Network Presentation” is running.

Check if the USB memory device connected to the projector is compatible with the projector.

Check if the input source is correctly selected. 14

Check if the picture is muted by pressing the BLANK key. 7

Check if the computer connected to the projector meets the system requirement for the applications.

• Check “LAN Settings” of the projector.

• Check the condition of the wireless connection.

The on-screen display does not appear when “Status” in the Operation menu is set to “Off.”

The image may not display correctly because the input signal cannot be judged correctly. In this case, set “Aspect” manually.

The images become trapezoidal because of the projection angle. In this case, you can correct the trapezoidal distortion, using a Keystone feature.

When the “V Keystone” is set to “Manual,” the keystone feature does not work automatically. Set “V Keystone” to “Auto” or “Manual” to set manually.

When the projector is installed on an uneven surface, the feature may not work properly. In this case, select “Manual” to set “V Keystone” manually.

35, 38

6, 21, 23

6, 17, 29

Others

Troubleshooting

Symptoms Remedy Page

The image is dark/too bright.

The settings for “Brightness,” “Contrast,” and “Lamp Mode” affect brightness of the image. Check if the value is appropriate.

The image will be dark when the lamp is burnt out. Check “Lamp Timer,” and replace the lamp with a new one if necessary.

“With Static Signal” is set to “On.” 27

20, 27

30, 47

During picture muting, the lamp is dimmed to reduce power consumption.

When video signal is not input, the lamp is dimmed to reduce power consumption.

The image becomes darker or brighter.

The image is not clear. Check if the projector is in focus. 15

The image is noisy. Check if the connecting cable is connected to the external

No sound. (VPLEW275/EW245/ EW225/EX275/EX245/ EX225 only)

The remote commander does not work.

The fan is noisy. The sound from the fan is often greater than normal to cool the

When the lamp is dimmed for a long time, brightness may increase temporarily, but this is not malfunction.

When the “Lamp Mode” is set to “Auto,” the luminance of the lamp changes according to the input image.

The picture will not be clear if condensation has accumulated on the lens. In this case, let the projector sit for about two hours with the power on.

equipment properly.

Check that the connecting cables between the projector and external video or audio equipment are securely connected.

Check if the external audio equipment is set properly. –

Audio is not output if “Speaker” is set to “Off.” 25

Audio is not output if audio muting is activated. 7

Check if the volume is not set to minimum. 7, 25

Check if the batteries are installed correctly. –

Check if the batteries are not exhausted. –

lamp, etc. in the following cases.

• “Lamp Mode” is set to “High.”

• The unit is used at a high altitude. “High Altitude Mode” is set to “On.”

• The unit is used in the location where the temperature is high.

If the ventilation holes are blocked, the internal temperature of the projector rises and the fan noise becomes larger.

27, 29

4, 4

–

Troubleshooting

Replacing the Lamp

Replace the lamp with a new one if a message displayed on the projected image (page 44). Use an LMP-E212 projector lamp (not supplied) for replacement.

Caution

• The lamp remains hot after the projector is

turned off. If you touch the lamp, you may

burn your finger. When you replace the lamp, wait for at least an hour after turning off the projector for the lamp to cool sufficiently.

• Do not allow any metallic or inflammable objects into the lamp replacement slot after removing the lamp, otherwise it may cause electrical shock or fire. Do not put your hands into the slot.

Notes

• If the lamp breaks, contact qualified Sony personnel. Do not replace the lamp yourself.

• When removing the lamp, be sure to pull it out straight, by holding the designated location. If you touch a part of the lamp other than the designated location, you may be burned or injured. If you pull out the lamp while the projector is tilted, the pieces may scatter if the lamp breaks any may cause injury.

1 Turn off the projector, and disconnect

the AC power cord from a wall outlet.

2 When the lamp has cooled

sufficiently, open the lamp cover by loosening 1 screw.

3 Loosen the 2 screws on the lamp then

pull out the lamp by its grab.

Grab

Replacing the Lamp

Others

4 Insert the new lamp all the way in until

it is securely in place. Tighten the 2 screws.

5 Close the lamp cover and tighten the

1 screw.

6 Connect the AC power cord to a wall

outlet and turn on the projector.

7 Reset the lamp timer for notification of

the next replacement time. Select “Lamp Timer Reset” on the

Function menu then press the ENTER key. When a message appears, select “Yes” to reset the lamp timer (page 25).

Caution

Disposal of the used lamp

For the customers in the USA

Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Telecommunications Industry Association (www.eiae.org).

The power will not turn on if the lamp is not secured properly.

Replacing the Lamp

Note

Cleaning the Air Filter

When a message appears on the projected image indicating time for a filter cleaning, clean the air filter (pages 43, 44). If the dust cannot be removed from the air filter even after cleaning, replace the air filter with a new one. For details on a new air filter, consult with qualified Sony personnel.

Caution

If you neglect to clean the air filter, dust may accumulate, clogging it. As a result, the temperature may rise inside the unit, leading to a possible malfunction or fire.

1 Turn off the projector, and disconnect

the AC power cord from the AC outlet.

2 Slide out and remove the air filter

cover from the unit.

Air filter cover

3 Clean the air filter with a vacuum

cleaner.

Pull out and remove the air filter cover, and clean it with a vacuum cleaner.

Claws

4 Reattach the air filter cover to the unit.

Note

Be sure to attach the air filter cover firmly, otherwise it may cause a malfunction.

Cleaning the Air Filter

Others

Specifications

Items Descriptions

Model VPL-EW275/EW245/EW225/EX275/EX271/EX245/EX241/

Projection system 3 LCD system

Display device Effective display

Projection lens Zoom Manual zoom:

Light source High-pressure mercury lamp, 210 W type

Projected image size

Luminous flux (Brightness)

Speaker (VPLEW275/EW245/ EW225/EX275/ EX245/EX225 only)

Applicable scanning frequency

Resolution

Color system NTSC

size

Effective picture elements

Focus Manual

When a compu ter signal is input

When a video signal is input

EX225/EX221

VPL-EW275: 0.75 inch (19.0 mm), 3 plate panels, Aspect ratio 16:10 VPL-EW245/EW225: 0.59 inch (15.0 mm), 3 plate panels, Aspect ratio 16:10 VPL-EX275/EX271/EX245/EX241/EX225/EX221:

0.63 inch (16.0 mm), 3 plate panels, Aspect ratio 4:3

VPL-EW275/EW245/EW225: 3,072,000 pixels (1280 × 800 pixels, 3 plate panels) VPL-EX275/EX271/EX245/EX241/EX225/EX221: 2,359,296 pixels (1024 × 768 pixels, 3 plate panels)

VPL-EW275/EW245/EX275/EX271/EX245: 1.6 times VPL-EW225/EX241/EX225: 1.3 times VPL-EX221: 1.2 times

30 inches to 300 inches (0.76 m to 7.62 m)

VPL-EW275: 3700 lm VPL-EW245: 3100 lm VPL-EW225: 2600 lm VPL-EX275/EX271: 3700 lm VPL-EX245/EX241: 3200 lm VPL-EX225/EX221: 2700 lm (when “Lamp Mode” is set to “High”)

16 W × 1 (monaural)

Horizontal: 14 kHz to 93 kHz, Vertical: 47 Hz to 93 Hz

Maximum display resolution: 1600 × 1200 pixels (resize) Panel display resolution: VPL-EW275/EW245/EW225: 1280 × 800 pixels VPL-EX275/EX271/EX245/EX241/EX225/EX221: 1024 × 768 pixels

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p

3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Specifications

Items Descriptions

Model VPL-EW275/EW245/EW225/EX275/EX271/EX245/EX241/

EX225/EX221

INPUT OUTPUT (Computer/video)

INPUT A RGB/YPBPR input connector: Mini D-sub 15-pin

female, G with sync/Y: 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated, RGB/P

BPR: 0.7 Vp-p ± 2 dB,

75 ohms terminated, Sync signal: TTL level high impedance, positive/negative

Audio input connector (VPL-EW275/EW245/EW225/ EX275/EX245/EX225 only): Stereo mini jack, rated

input 500 mVrms, input impedance more than 47 kohms

INPUT B RGB input connector: Mini D-sub 15-pin female,

RGB: 0.7 Vp-p ± 2 dB, 75 ohms terminated, Sync signal: TTL level high impedance, positive/negative

Audio input connector (VPL-EW275/EW245/EW225/ EX275/EX245/EX225 only): Stereo mini jack, rated

input 500 mVrms, input impedance more than 47 kohms

INPUT C HDMI input connector (Audio output is available

only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.): HDMI 19-pin, HDCP, HDMI audio support

S VIDEO (SVIDEO IN)

S video input connector: Mini DIN 4-pin, Y: 1 Vp-p ± 2dB, sync negative, 75 ohms terminated, C: (burst signal) 0.286 (NTSC)/0.3 (PAL/SECAM) Vp-p ± 2 dB, 75 ohms terminated

Audio input connector (VPL-EW275/EW245/EW225/ EX275/EX245/EX225 only): Phono jack × 2, rated

input 500 mVrms, input impedance more than 47 kohms

VIDEO (VIDEO IN)

Video input connector: Pin jack, 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated

Audio input connector (VPL-EW275/EW245/EW225/ EX275/EX245/EX225 only): Shared with S VIDEO

OUTPUT MONITOR output connector: Mini D-sub 15-pin

female, G with sync/Y: 1 Vp-p ± 2 dB, sync negative, 75 ohms terminated, RGB/P

BPR: 0.7 Vp-p ± 2 dB,

75 ohms terminated, Sync signal: HD, VD 4 V (open), 1 Vp-p (75 ohms), positive/negative

Audio output connector (VPL-EW275/EW245/ EW225/EX275/EX245/EX225 only): Stereo mini jack,

1 Vrms (maximum volume, when inputting 500 mVrms), output impedance 5 kohms

Other connectors RS-232C connector: D-Sub 9-pin male

LAN connector: RJ45, 10BASE-T/100BASE-TX

USB connector: Type A

USB connector: Type B

Microphone input (VPL-EW275/EW245/EW225/ EX275/EX245/EX225 only): Mini jack

Operating temperature/

0 °C to 40 °C (32 °F to 104 °F)/35% ~ 85% (no

condensation) Operating humidity

Others

Specifications

Items Descriptions

Model VPL-EW275/EW245/EW225/EX275/EX271/EX245/EX241/

Storage temperature/ Storage humidity

Power requirements

Power consumption

Standby power 100V to 120V AC: 5.9W (when “Standby mode” is set to

EX225/EX221

–20 °C to +60 °C (–4 °F to 140 °F)/10% to 90% (no condensation)

VPL-EW275/EX275: 100V to 240V AC, 3.1A-1.3A, 50/60Hz VPL-EW245/EX245: 100V to 240V AC, 3.2A-1.3A, 50/60Hz VPL-EW225: 100V to 240V AC, 2.9A-1.2A, 50/60Hz VPL-EX271/EX241: 100V to 240V AC, 2.8A-1.2A, 50/60Hz VPL-EX225: 100V to 240V AC, 3.0A-1.2A, 50/60Hz VPL-EX221: 100V to 240V AC, 2.7A-1.2A, 50/60Hz

VPL-EW275:

100V to 120V AC: 303W 220V to 240V AC: 294W

VPL-EW245:

100V to 120V AC: 311W 220V to 240V AC: 299W

VPL-EW225:

100V to 120V AC: 287W 220V to 240V AC: 277W

VPL-EX275:

100V to 120V AC: 306W 220V to 240V AC: 298W

VPL-EX271:

100V to 120V AC: 276W 220V to 240V AC: 268W

VPL-EX245:

100V to 120V AC: 315W 220V to 240V AC: 305W

VPL-EX241:

100V to 120V AC: 273W 220V to 240V AC: 265W

VPL-EX225:

100V to 120V AC: 293W 220V to 240V AC: 285W

VPL-EX221:

100V to 120V AC: 268W 220V to 240V AC: 261W

“Standard”)/0.1W(when “Standby mode” is set to “Low”) 220V to 240V AC: 5.9W (when “Standby mode” is set to “Standard”)/0.2W(when “Standby mode” is set to “Low”)

Specifications

Items Descriptions

Model VPL-EW275/EW245/EW225/EX275/EX271/EX245/EX241/

EX225/EX221

Heat dissipation VPL-EW275:

100V AC: 1034 BTU/h

240V AC: 1003 BTU/h

VPL-EW245:

100V AC: 1061 BTU/h

240V AC: 1020 BTU/h

VPL-EW225:

100V AC: 980 BTU/h

240V AC: 945 BTU/h

VPL-EX275:

100V AC: 1044 BTU/h

240V AC: 1017 BTU/h

VPL-EX271:

100V AC: 942 BTU/h

240V AC: 915 BTU/h

VPL-EX245:

100V AC: 1075 BTU/h

240V AC: 1041 BTU/h

VPL-EX241:

100V AC: 932 BTU/h

240V AC: 904 BTU/h

VPL-EX225:

100V AC: 1000 BTU/h

240V AC: 973 BTU/h

VPL-EX221:

100V AC: 915 BTU/h

240V AC: 891 BTU/h

Standard dimensions (W/H/D)

VPL-EW275:

Approx. 365 × 105.3 × 267.7 mm (14

/32 inches)

Approx. 365 × 96.2 × 252 mm (14

/32 inches) (without projecting parts)

VPL-EW245/EX275/EX271/EX245:

Approx. 365 × 105.3 × 259.7 mm (14

/32 inches)

Approx. 365 × 96.2 × 252 mm (14

/32 inches) (without projecting parts)

VPL-EW225/EX241/EX225/EX221:

Approx. 365 × 105.3 × 252.5 mm (14

/16 inches)

Approx. 365 × 96.2 × 252 mm (14

/32 inches) (without projecting parts)

/8 × 4 5/32 ×

/8 × 3 25/32 ×

/8 × 4 5/32 ×

/8 × 3 25/32 ×

/8 × 4 5/32 ×

/8 × 3 25/32 ×

Mass VPL-EW275: Approx. 4.1 kg (9 lb 1 oz)

VPL-EW245: Approx. 3.9 kg (8 lb 9 oz)

VPL-EW225/EX225: Approx. 3.9 kg (8 lb 8 oz)

VPL-EX275/EX245: Approx. 4 kg (8 lb 11 oz)

VPL-EX271: Approx. 3.8 kg (8 lb 6 oz)

VPL-EX241/ EX221: Approx. 3.8 kg (8 lb 4 oz)

Supplied accessories

See “Checking the Supplied Accessories” in the supplied

Quick Reference Manual.

Others

Specifications

Items Descriptions

Model VPL-EW275/EW245/EW225/EX275/EX271/EX245/EX241/

Optional accessories

Notes

*1: For details, refer to “Acceptable Input Signals” on page 57. *2: Information on accessories in this manual is current as of May 2012. *3: Not all optional accessories are available in all countries and area. Please check with your local

Design and specifications of the unit, including the optional accessories, are subject to change without notice.

*2 *3

Sony Authorized Dealer.

EX225/EX221

Projector Lamp LMP-E212 (for replacement) USB wireless LAN module IFU-WLM3

Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

Specifications

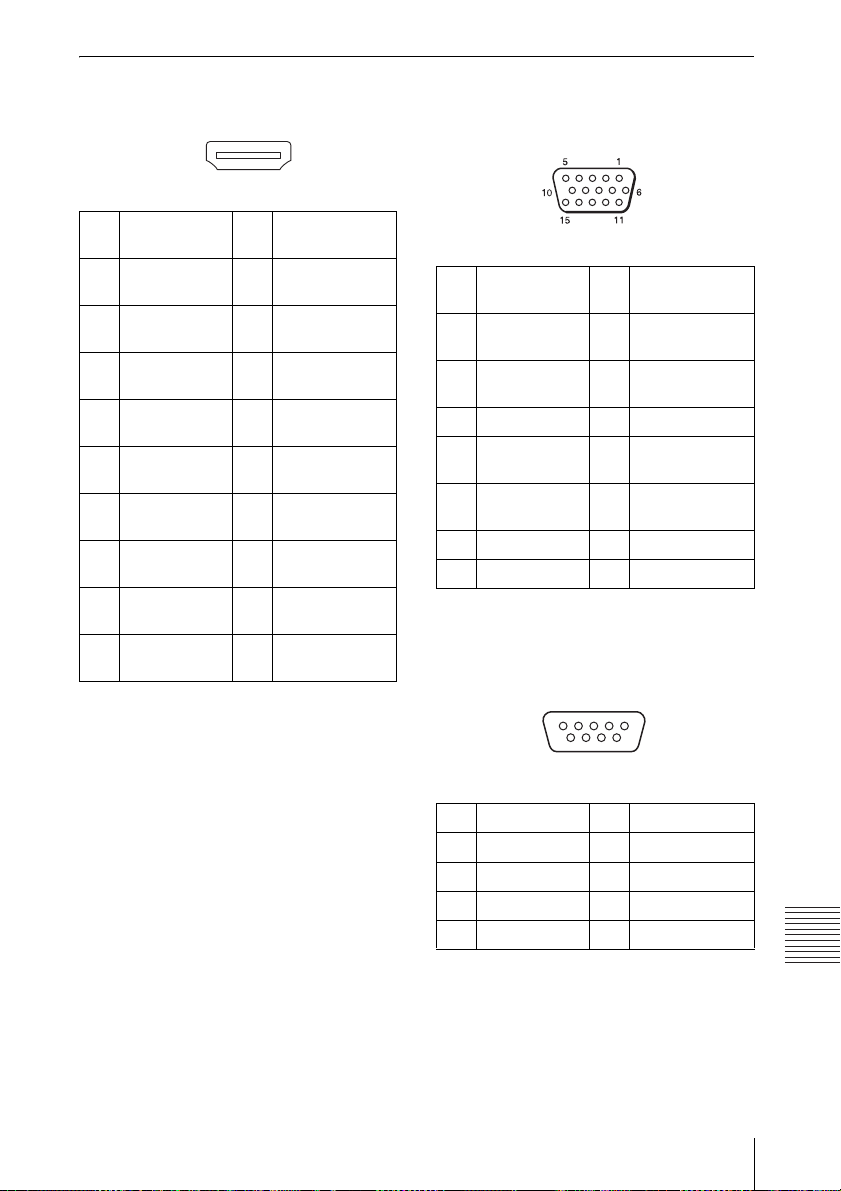

Pin assignment

HDMI connector (HDMI, female) RGB input connector (Mini D-sub

15-pin, female)

1 T.M.D.S.

Data2+

2 T.M.D.S.

Data2 Shield

3 T.M.D.S.

Data2 –

4 T.M.D.S.

Data1+

5 T.M.D.S.

Data1 Shield

6 T.M.D.S.

Data1 –

7 T.M.D.S.

Data0+

8 T.M.D.S.

Data0 Shield

9 T.M.D.S.

Data0 –

10 T.M.D.S.

Clock+

11 T.M.D.S.

Clock Shield

12 T.M.D.S.

Clock –

13 N.C.

14 RESERVED

(N.C.)

15 SCL

16 SDA

17 DDC GND

18 +5V Power

19 Hot Plug

Detect

1 Video input

(red) R

2 Video input

9 Power supply

input for DDC

10 GND

(green) G

3 Video input

11 GND

(blue) B

4 GND 12 DDC/SDA

5 RESERVE 13 Horizontal sync

signal

6 GND (R) 14 Vertical sync

signal

7 GND (G) 15 DDC/SCL

8 GND (B)

RS-232C connector (D-Sub 9-pin, male)

1NC 6NC

2RXDA 7RTS

3TXDA 8CTS

4DTR 9NC

5 GND

Specifications

Others

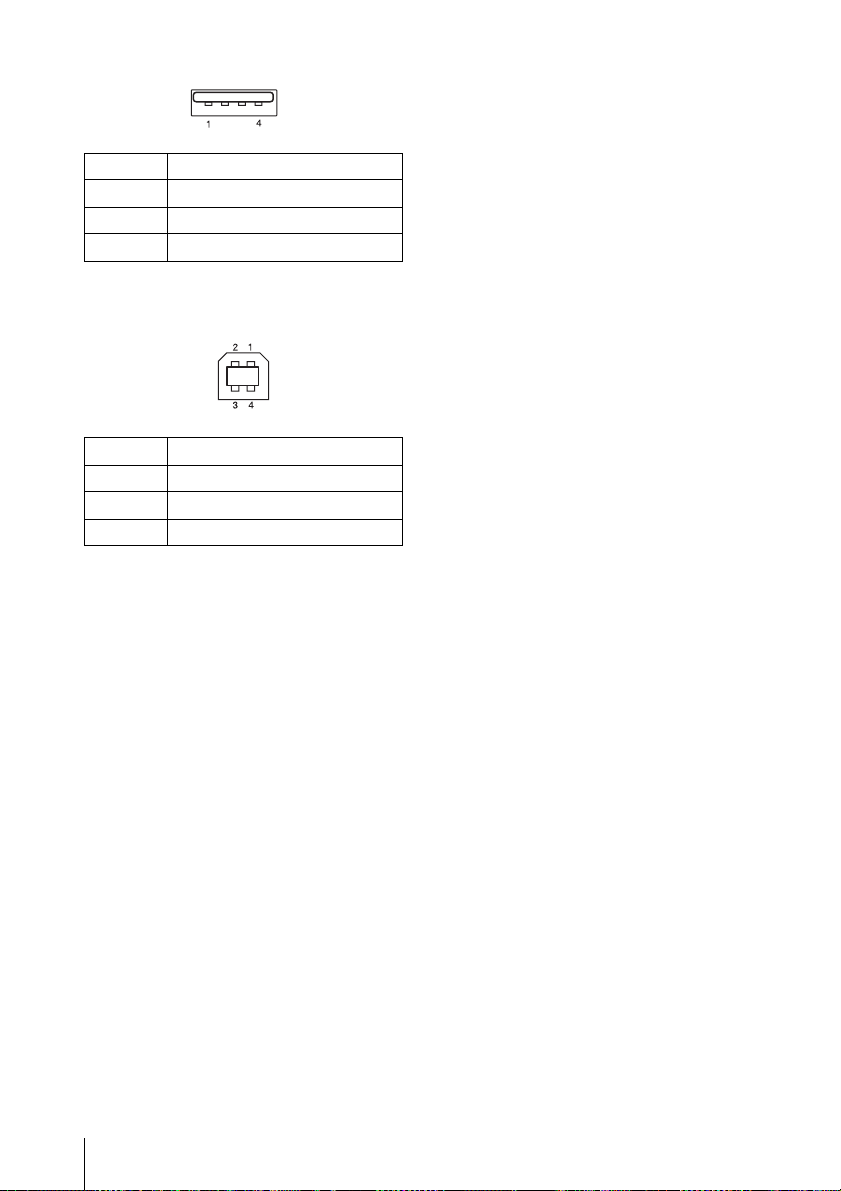

USB connector (Type A, female)

2 Data–

3 Data+

4Ground

(4.4 - 5.25 V)

BUS

USB connector (Type B, female)

1VCC (+5 V)

2 Data–

3 Data+

4Ground

Specifications

Acceptable Input Signals

Computer signal

Resolution

fH[kHz]/

fV[Hz]

640 × 350 31.5/70

37.9/85

640 × 400 31.5/70

37.9/85

640 × 480 31.5/60

35.0/67

37.9/73

37.5/75

43.3/85

800 × 600 35.2/56

37.9/60

48.1/72

46.9/75

53.7/85

832 × 624 49.7/75

1024 × 768 48.4/60

56.5/70

60.0/75

68.7/85

1152 × 864 64.0/70

67.5/75

77.5/85

1152 × 900 61.8/66

1280 × 960 60.0/60

1280 × 1024 64.0/60

80.0/75

91.1/85

1400 × 1050 65.3/60

1600 × 1200 75.0/60

Input connector

RGB/

BPR

zzz

1280 × 768 47.8/60

1280 × 720 45.0/60

1920 × 1080 67.5/60

1366 × 768 47.7/60

1440 × 900 55.9/60

zzz

HDMI RGB

Resolution

fH[kHz]/

fV[Hz]

1280 × 800 49.7/60

Digital TV signal

Input connector

RGB/

HDMI RGB

BPR

zzz

Input connector

Signal fV[Hz]

480i 60

576i 50

480p 60

576p 50

1080i 60

1080i 50

720p 60

720p 50

1080p 60

1080p 50

RGB/

HDMI

BPR

Analog TV signal

Signal fV[Hz]

NTSC 60

PA L/ S EC A M 5 0

Notes

Input connector

VIDEO/S VIDEO

*1: • When a signal other than the signals listed

in table is input, the picture may not be displayed properly.

• An input signal meant for screen resolution different from that of the panel will not be displayed in its original resolution. Text and lines may be uneven.

*2: This is identified as a movie delivery signal

of 720/60p.

*3: This is identified as a movie delivery signal

of 1080/60p.

*4: Only G with sync/Y is supported.

Others

Specifications

Projection Distance

The projection distance is the distance between the front of the lens and the surface of the projected image. The following describes the projection distance and height from the center of the lens to edge of screen by each projected screen size. Height H is the height from the bottom of the projected image (top for ceiling mount) to A (determined by drawing a perpendicular line from the center of the lens to projected image surface).

Floor Installation

Projection distance L

Height H from center of lens to edge of screen

Projected image

Center of lens

* The number will be minus when the bottom of the projected image is lower than A.

Projection Distance

Projection distance table (VPL-EW275)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.72 × 1.08

(68 × 42)

100 inch (2.54m) 2.15 × 1.35

(85 × 53)

120 inch (3.05m) 2.58 × 1.62

(102 × 64)

150 inch (3.81m) 3.23 × 2.02

(127 × 79)

200 inch (5.08m) 4.31 × 2.69

(170 × 106)

Projection Distance L

1.92-3.09 (76-121)

2.41-3.87 (95-152)

2.90-4.66

(114-183)

3.63-5.83

(143-229)

4.85-7.79

(191-306)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.20 (-8) -0.20 (-8)

-0.25 (-10) -0.25 (-10)

-0.29 (-12) -0.29 (-12)

-0.37 (-15) -0.37 (-15)

-0.49 (-19) -0.49 (-19)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EW275)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1 (Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.024366 × D-0.0315

(L=0.959286 × D-1.2399)

L=0.039132 × D-0.0357

(L=1.540634 × D-1.4060)

Expression#2 (Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00246 × D

(H=-0.09675 × D)

H=-0.00246 × D

(H=-0.09675 × D)

Projection Distance

Others

Projection distance table (VPL-EW245)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.72 × 1.08

(68 × 42)

100 inch (2.54m) 2.15 × 1.35

(85 × 53)

120 inch (3.05m) 2.58 × 1.62

(102 × 64)

150 inch (3.81m) 3.23 × 2.02

(127 × 79)

200 inch (5.08m) 4.31 × 2.69

(170 × 106)

Projection Distance L

2.43-3.90 (96-153)

3.04-4.89

(120-192)

3.66-5.88

(144-231)

4.58-7.36

(181-289)

6.11-9.82

(241-386)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.11 (-4) -0.11 (-4)

-0.13 (-5) -0.13 (-5)

-0.16 (-6) -0.16 (-6)

-0.20 (-8) -0.20 (-8)

-0.27 (-11) -0.27 (-11)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EW245)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.030704 × D-0.0319

(L=1.208801 × D-1.2545)

L=0.049310 × D-0.0360

(L=1.941336 × D-1.4163)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00135 × D

(H=-0.05300 × D)

Projection Distance

H=-0.00135 × D

(H=-0.05300 × D)

Projection distance table (VPL-EW225)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.72 × 1.08

(68 × 42)

100 inch (2.54m) 2.15 × 1.35

(85 × 53)

120 inch (3.05m) 2.58 × 1.62

(102 × 64)

150 inch (3.81m) 3.23 × 2.02

(127 × 79)

200 inch (5.08m) 4.31 × 2.69

(170 × 106)

Projection Distance L

2.35-3.06 (93-120)

2.94-3.83

(116-151)

3.53-4.61

(139-181)

4.42-5.77

(174-227)

5.91-7.70

(233-303)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.11 (-4) -0.11 (-4)

-0.13 (-5) -0.13 (-5)

-0.16 (-6) -0.16 (-6)

-0.20 (-8) -0.20 (-8)

-0.27 (-11) -0.27 (-11)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EW225)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.029654 × D-0.0291

(L=1.167491 × D-1.1464)

L=0.038671 × D-0.0282

(L=1.522489 × D-1.1109)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00135 × D

(H=-0.05300 × D)

H=-0.00135 × D

(H=-0.05300 × D)

Projection Distance

Others

Projection distance table (VPL-EX275/EX271/EX245)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.63 × 1.22

(64 × 48)

100 inch (2.54m) 2.03 × 1.52

(80 × 60)

120 inch (3.05m) 2.44 × 1.83

(96 × 72)

150 inch (3.81m) 3.05 × 2.29

(120 × 90)

200 inch (5.08m) 4.06 × 3.05

(160 × 120)

Projection Distance L

2.29-3.68 (90-145)

2.87-4.61

(113-181)

3.45-5.54

(136-218)

4.32-6.94

(170-273)

5.77-9.26

(227-364)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.20 (-8) -0.20 (-8)

-0.25 (-10) -0.25 (-10)

-0.30 (-12) -0.30 (-12)

-0.38 (-15) -0.38 (-15)

-0.51 (-20) -0.51 (-20)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EX275/EX271/EX245)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.028965 × D-0.0315

(L=1.140341 × D-1.2418)

L=0.046521 × D-0.0363

(L=1.831537 × D-1.4310)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00254 × D

(H=-0.10000 × D)

Projection Distance

H=-0.00254 × D

(H=-0.10000 × D)

Projection distance table (VPL-EX241/EX225)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.63 × 1.22

(64 × 48)

100 inch (2.54m) 2.03 × 1.52

(80 × 60)

120 inch (3.05m) 2.44 × 1.83

(96 × 72)

150 inch (3.81m) 3.05 × 2.29

(120 × 90)

200 inch (5.08m) 4.06 × 3.05

(160 × 120)

Projection Distance L

2.24-2.92 (89-115)

2.81-3.66

(111-144)

3.38-4.40

(133-173)

4.23-5.51

(167-217)

5.65-7.36

(223-290)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.20 (-8) -0.20 (-8)

-0.25 (-10) -0.25 (-10)

-0.30 (-12) -0.30 (-12)

-0.38 (-15) -0.38 (-15)

-0.51 (-20) -0.51 (-20)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EX241/EX225)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.028353 × D-0.0294

(L=1.116279 × D-1.1560)

L=0.036975 × D-0.0282

(L=1.455727 × D-1.1109)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00254 × D

(H=-0.10000 × D)

H=-0.00254 × D

(H=-0.10000 × D)

Projection Distance

Others

Projection distance table (VPL-EX221)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.63 × 1.22

(64 × 48)

100 inch (2.54m) 2.03 × 1.52

(80 × 60)

120 inch (3.05m) 2.44 × 1.83

(96 × 72)

150 inch (3.81m) 3.05 × 2.29

(120 × 90)

200 inch (5.08m) 4.06 × 3.05

(160 × 120)

Projection Distance L

2.41-2.88 (95-113)

3.02-3.60

(119-142)

3.63-4.33

(143-170)

4.54-5.42

(179-213)

6.06-7.24

(239-285)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.20 (-8) -0.20 (-8)

-0.25 (-10) -0.25 (-10)

-0.30 (-12) -0.30 (-12)

-0.38 (-15) -0.38 (-15)

-0.51 (-20) -0.51 (-20)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EX221)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.030411 × D-0.0233

(L=1.197284 × D-0.9154)

L=0.036318 × D-0.0234

(L=1.429835 × D-0.9228)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00254 × D

(H=-0.10000 × D)

Projection Distance

H=-0.00254 × D

(H=-0.10000 × D)

Ceiling Installation

Caution

Never mount the projector on the ceiling or move it by yourself. Be sure to consult with qualified Sony personnel (charged).

Height H from center of lens to edge of screen

Center of lens

Projected image

Projection distance L

Top side

* The number will be minus when the top of the projected image is higher than A.

Projection Distance

Others

Projection distance table (VPL-EW275)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.72 × 1.08

(68 × 42)

100 inch (2.54m) 2.15 × 1.35

(85 × 53)

120 inch (3.05m) 2.58 × 1.62

(102 × 64)

150 inch (3.81m) 3.23 × 2.02

(127 × 79)

200 inch (5.08m) 4.31 × 2.69

(170 × 106)

Projection Distance L

1.92-3.09 (76-121)

2.41-3.87 (95-152)

2.90-4.66

(114-183)

3.63-5.83

(143-229)

4.85-7.79

(191-306)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.20 (-8) -0.20 (-8)

-0.25 (-10) -0.25 (-10)

-0.29 (-12) -0.29 (-12)

-0.37 (-15) -0.37 (-15)

-0.49 (-19) -0.49 (-19)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EW275)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.024366 × D-0.0315

(L=0.959286 × D-1.2399)

L=0.039132 × D-0.0357

(L=1.540634 × D-1.4060)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00246 × D

(H=-0.09675 × D)

Note

For ceiling installation, consult with a ceiling mount manufacturer, and use a ceiling mount specified for use with this projector by the manufacturer.

Projection Distance

H=-0.00246 × D

(H=-0.09675 × D)

Projection distance table (VPL-EW245)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.72 × 1.08

(68 × 42)

100 inch (2.54m) 2.15 × 1.35

(85 × 53)

120 inch (3.05m) 2.58 × 1.62

(102 × 64)

150 inch (3.81m) 3.23 × 2.02

(127 × 79)

200 inch (5.08m) 4.31 × 2.69

(170 × 106)

Projection Distance L

2.43-3.90 (96-153)

3.04-4.89

(120-192)

3.66-5.88

(144-231)

4.58-7.36

(181-289)

6.11-9.82

(241-386)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.11 (-4) -0.11 (-4)

-0.13 (-5) -0.13 (-5)

-0.16 (-6) -0.16 (-6)

-0.20 (-8) -0.20 (-8)

-0.27 (-11) -0.27 (-11)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EW245)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.030704 × D-0.0319

(L=1.208801 × D-1.2545)

L=0.049310 × D-0.0360

(L=1.941336 × D-1.4163)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00135 × D

(H=-0.05300 × D)

Note

For ceiling installation, consult with a ceiling mount manufacturer, and use a ceiling mount specified for use with this projector by the manufacturer.

H=-0.00135 × D

(H=-0.05300 × D)

Projection Distance

Others

Projection distance table (VPL-EW225)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.72 × 1.08

(68 × 42)

100 inch (2.54m) 2.15 × 1.35

(85 × 53)

120 inch (3.05m) 2.58 × 1.62

(102 × 64)

150 inch (3.81m) 3.23 × 2.02

(127 × 79)

200 inch (5.08m) 4.31 × 2.69

(170 × 106)

Projection Distance L

2.35-3.06 (93-120)

2.94-3.83

(116-151)

3.53-4.61

(139-181)

4.42-5.77

(174-227)

5.91-7.70

(233-303)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.11 (-4) -0.11 (-4)

-0.13 (-5) -0.13 (-5)

-0.16 (-6) -0.16 (-6)

-0.20 (-8) -0.20 (-8)

-0.27 (-11) -0.27 (-11)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EW225)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.029654 × D-0.0291

(L=1.167491 × D-1.1464)

L=0.038671 × D-0.0282

(L=1.522489 × D-1.1109)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00135 × D

(H=-0.05300 × D)

Note

For ceiling installation, consult with a ceiling mount manufacturer, and use a ceiling mount specified for use with this projector by the manufacturer.

Projection Distance

H=-0.00135 × D

(H=-0.05300 × D)

Projection distance table (VPL-EX275/EX271/EX245)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.63 × 1.22

(64 × 48)

100 inch (2.54m) 2.03 × 1.52

(80 × 60)

120 inch (3.05m) 2.44 × 1.83

(96 × 72)

150 inch (3.81m) 3.05 × 2.29

(120 × 90)

200 inch (5.08m) 4.06 × 3.05

(160 × 120)

Projection Distance L

2.29-3.68 (90-145)

2.87-4.61

(113-181)

3.45-5.54

(136-218)

4.32-6.94

(170-273)

5.77-9.26

(227-364)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.20 (-8) -0.20 (-8)

-0.25 (-10) -0.25 (-10)

-0.30 (-12) -0.30 (-12)

-0.38 (-15) -0.38 (-15)

-0.51 (-20) -0.51 (-20)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EX275/EX271/EX245)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.028965 × D-0.0315

(L=1.140341 × D-1.2418)

L=0.046521 × D-0.0363

(L=1.831537 × D-1.4310)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00254 × D

(H=-0.10000 × D)

Note

For ceiling installation, consult with a ceiling mount manufacturer, and use a ceiling mount specified for use with this projector by the manufacturer.

H=-0.00254 × D

(H=-0.10000 × D)

Projection Distance

Others

Projection distance table (VPL-EX241/EX225)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.63 × 1.22

(64 × 48)

100 inch (2.54m) 2.03 × 1.52

(80 × 60)

120 inch (3.05m) 2.44 × 1.83

(96 × 72)

150 inch (3.81m) 3.05 × 2.29

(120 × 90)

200 inch (5.08m) 4.06 × 3.05

(160 × 120)

Projection Distance L

2.24-2.92 (89-115)

2.81-3.66

(111-144)

3.38-4.40

(133-173)

4.23-5.51

(167-217)

5.65-7.36

(223-290)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.20 (-8) -0.20 (-8)

-0.25 (-10) -0.25 (-10)

-0.30 (-12) -0.30 (-12)

-0.38 (-15) -0.38 (-15)

-0.51 (-20) -0.51 (-20)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EX241/EX225)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.028353 × D-0.0294

(L=1.116279 × D-1.1560)

L=0.036975 × D-0.0282

(L=1.455727 × D-1.1109)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00254 × D

(H=-0.10000 × D)

Note

For ceiling installation, consult with a ceiling mount manufacturer, and use a ceiling mount specified for use with this projector by the manufacturer.

Projection Distance

H=-0.00254 × D

(H=-0.10000 × D)

Projection distance table (VPL-EX221)

Unit: m (inches)

Projected image size

Diagonal D Width × Height

80 inch (2.03m) 1.63 × 1.22

(64 × 48)

100 inch (2.54m) 2.03 × 1.52

(80 × 60)

120 inch (3.05m) 2.44 × 1.83

(96 × 72)

150 inch (3.81m) 3.05 × 2.29

(120 × 90)

200 inch (5.08m) 4.06 × 3.05

(160 × 120)

Projection Distance L

2.41-2.88 (95-113)

3.02-3.60

(119-142)

3.63-4.33

(143-170)

4.54-5.42

(179-213)

6.06-7.24

(239-285)

Height H from center of lens to edge of

Minimum Projection

Distance L

-0.20 (-8) -0.20 (-8)

-0.25 (-10) -0.25 (-10)

-0.30 (-12) -0.30 (-12)

-0.38 (-15) -0.38 (-15)

-0.51 (-20) -0.51 (-20)

screen

Maximum Projection

Distance L

Projection distance formula (VPL-EX221)

D: Projected image size (Diagonal) H: Height H from center of lens to edge of screen

Expression#1(Projection distance L) Unit: m (inches)

Minimum Projection Distance L Maximum Projection Distance L

L=0.030411 × D-0.0233

(L=1.197284 × D-0.9154)

L=0.036318 × D-0.0234

(L=1.429835 × D-0.9228)

Expression#2(Height H from center of lens to edge of screen)

Height H from center of lens to edge of screen

Minimum Projection Distance L Maximum Projection Distance L

H=-0.00254 × D

(H=-0.10000 × D)

Note

For ceiling installation, consult with a ceiling mount manufacturer, and use a ceiling mount specified for use with this projector by the manufacturer.

H=-0.00254 × D

(H=-0.10000 × D)

Projection Distance

Others

Dimensions

Top (VPL-EW275)

/4)

6.7 (

/32)

9 (

/32)

252 (9

85 (3

365 (14 3/8)

/32)

Center of Lens

Unit: mm (inches)

Dimensions

Top (VPL-EW245/EX275/EX271/EX245)

85 (3

/32)

10.4 (

18.1 (

/32)

252 (9

365 (14 3/8)

Center of Lens

Unit: mm (inches)

Top (VPL-EW225/EX241/EX225)

/32)

85 (3

/32)

24.7 (

0.5 (

/16)

24.2 (

/32)

252 (9

365 (14 3/8)

Center of Lens

Unit: mm (inches)

Dimensions

Others

Top (VPL-EX221)

/16)

/32)

21 (

0.5 (

/16)

20.5 (

/32)

252 (9

Front

85 (3

365 (14 3/8)

/32)

Center of Lens

Unit: mm (inches)

Dimensions

Center of Lens

)

44.3

96.2

105.3

Unit: mm (inches)

Bottom (VPL-EW275)

14 (

/16)

/32)

27.5 (1

233.5 (9

/16)

Center of Lens

31.8

/4)

0.8 (

/32)

13.5 (

/4)

97.5 (3

/32)

45.3

/32)

38.5 (1

57.4

/32)

14 (

/16)

/32)

27.5 (1

102.5 (4 /32)

/32)

207 (8

228 (8

/4)

Unit: mm (inches)

Dimensions

Others

Bottom (VPL-EW245/EX275/EX271/EX245)

233.5 (9

/16)

14 (

/32)

Center of Lens

27.5 (1

31.8

/4)

/16)

31.8 (1

/32)

13.5 (

/4)

97.5 (3

0.8 (

/32)

45.3

/32)

38.5 (1

57.4

/32)

14 (

/16)

/32)

27.5 (1

102.5 (4 /32)

/32)

207 (8

228 (8

/4)

Unit: mm (inches)

Dimensions

Bottom (VPL-EW225/EX241/EX225/EX221)

233.5 (9

/16)

14 (

/32)

Center of Lens

27.5 (1

31.8

/4)

/16)

31.8 (1

/32)

13.5 (

/4)

97.5 (3

0.8 (

/32)

45.3

/32)

38.5 (1

57.4

/4)

/32)

14 (

/16)

/32)

27.5 (1

102.5 (4 /32)

/32)

207 (8

228 (8

Unit: mm (inches)

Dimensions

Others

Index

AC IN ........................................................6

Acceptable input signal ...........................57

Adjust Signal ........................................... 22

Air filter ................................................... 49

Air filter cover/Ventilation holes

(intake) ...............................................4

APA ........................................................... 6

Aspect ...........................................6, 21, 23

BLANK .....................................................7

Brightness ...............................................20

CC Display .............................................. 25

Color .......................................................20

Color Temp. ............................................ 20

Connecting a computer ............................. 9

Connecting a Video equipment ...............10

Connecting an external monitor and audio

equipment ........................................13

Connector panel .................................... 4, 5

Contrast ...................................................20

Control Key Lock .................................... 26

Control Panel Keys ................................... 6

Correcting trapezoidal distortion of the

projected image

(Keystone feature) ....................... 6, 17

Digital Zoom ............................................. 7

ECO MODE (Energy-saving mode) ......... 7

fH ............................................................30

Focus .......................................................15

Focus ring ..................................................4

Front feet (adjustable) .............................16

fV ............................................................30

Gamma Mode .......................................... 20

H (Horizontal) .........................................22

High Altitude Mode .................................29

Hue ..........................................................20

Image Flip ................................................29

Information menu ....................................30

Input ...........................................................5

Installation Attitude .................................29

Installation menu .....................................29

Keystone ....................................................6

Lamp cover ................................................4

Lamp Timer .............................................30

Lamp Timer Reset ...................................25

LAMP/COVER indicator ....................4, 43

LAN connector ..........................................6

Language .................................................26

Location and function of controls ..............4

Main unit ...................................................4

Messages list ............................................44

Model Name ............................................30

MUTING ...................................................7

Network Features .....................................31

Operation menu .......................................26

Optional accessories ................................54

Output ........................................................5

Phase, Pitch, Shift ....................................22

Picture menu ............................................20

Picture mode ............................................20

Pin assignment .........................................55

Projecting an image .................................14

Projector Station for Network

Presentation ......................................35

Index

Remote commander ...................................6

Remote control detector ............................4

Replacing the lamp ..................................47

Reset ........................................................20

RS-232C ....................................................6

Security bar ...............................................4

Security Lock ......................................4, 26

Selecting an input signal ...........................6

Serial No. .................................................30

Sharpness .................................................20

Signal Type ..............................................30

Smart APA ...............................................25

Speaker ....................................................25

Specifications ..........................................50

Status .......................................................26

The Connection/Power Menu ..................27

The Function menu ..................................25

The Screen menu .....................................21

Troubleshooting .......................................45

Turn off ................................................6, 18

Turn on ................................................6, 14

USB Display ............................................38

USB Media Viewer .................................39

Using a menu ...........................................19

Using the e-mail report Function ............33

About Trademarks

• Adobe and Adobe Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.

• Kensington is a registered trademark of Kensington Technology Group.

• The terms HDMI and HDMI HighDefinition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Internet Explore is registered trademarks of Microsoft Corporation in the United States and/or other countries.

• PJLink is a registered trademark of Japan Business Machine and Information System Industries Association.

• AMX is a trademark of AMX Corporation.

• All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders. In this manual, specified.

™

and ® marks are not

V Keystone ....................................6, 17, 29

Ventilation holes ........................................ 4

Volume ......................................................7

With No Input ..........................................27

With Static Signal ....................................27

Zoom .......................................................15

Index

Others

Sony Corporation

Sony VPL-EX245, VPL-EX275, VPL-EX225, VPL-EW275, VPL-EW245 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

B Overview

Location and Function of Controls

Main Unit

Connector Panel

Remote Commander and Control Panel Keys

Connecting the Projector

Connecting a Computer

Preparation

Connecting a Video equipment

Connecting a microphone

Connecting a USB memory device

Connecting a USB wireless LAN module

Connecting an External Monitor and Audio Equipment

B Projecting/Adjusting an Image

Projecting an Image

Adjusting the Projected image

Turning Off the Power

Using a MENU

Adjustments and Settings Using a Menu

The Picture Menu

The Screen Menu

The Function Menu

The Operation Menu

The Connection/Power Menu

The Installation Menu

The Information Menu

Using Network Features

Displaying the Control Window of the Projector with a Web Browser

Network

Confirming the Information regarding the Projector

Operating the Projector from a Computer

Using the e-mail report Function

Using Presentation Function via Network

Installing Projector Station for Network Presentation

Starting Projector Station for Network Presentation

Presentation Function via Network

Projecting an Image

Connection Settings

Using the Controller

Projecting an Image using USB Connection

Starting USB Display

Projecting an Image Using the Controller

Projecting an Image using USB Connection

Using USB Media Viewer

USB Media Viewer

Thumbnail Mode

Option menu

Display Mode

Option menu

Slideshow Mode

Option Menu

Indicators

Others

Messages List

Troubleshooting

Replacing the Lamp

Cleaning the Air Filter

Specifications

Projection Distance

Dimensions

Index
