Before operating the unit, please read this manual and supplied Quick Reference Manual thoroughly and retain it for future reference.

VPL-EW275/EW245/EW225 VPL-EX275/EX271/EX245/EX241/EX225/EX221

Not all models are available in all countries and area. Please check with your local Sony Authorized Dealer.

Table of Contents

Overview

Location and Function of Controls .... 4

Main Unit .....................................4

Connector Panel ...........................5

Remote Commander and Control

Panel Keys .................................6

Preparation

Connecting the Projector ................... 9

Connecting a Computer ................9

Connecting a Video

equipment ................................ 10

Connecting a microphone .......... 12

Connecting a USB memory

device ......................................12

Connecting a USB wireless LAN

module .................................... 13

Connecting an External Monitor and

Audio Equipment .................... 13

Projecting/Adjusting an Image

Projecting an Image ......................... 14

Adjusting the Projected image ... 15

Turning Off the Power ................18

The Connection/Power Menu ...........27

The Installation Menu ......................29

The Information Menu .....................30

Network

Using Network Features ...................31

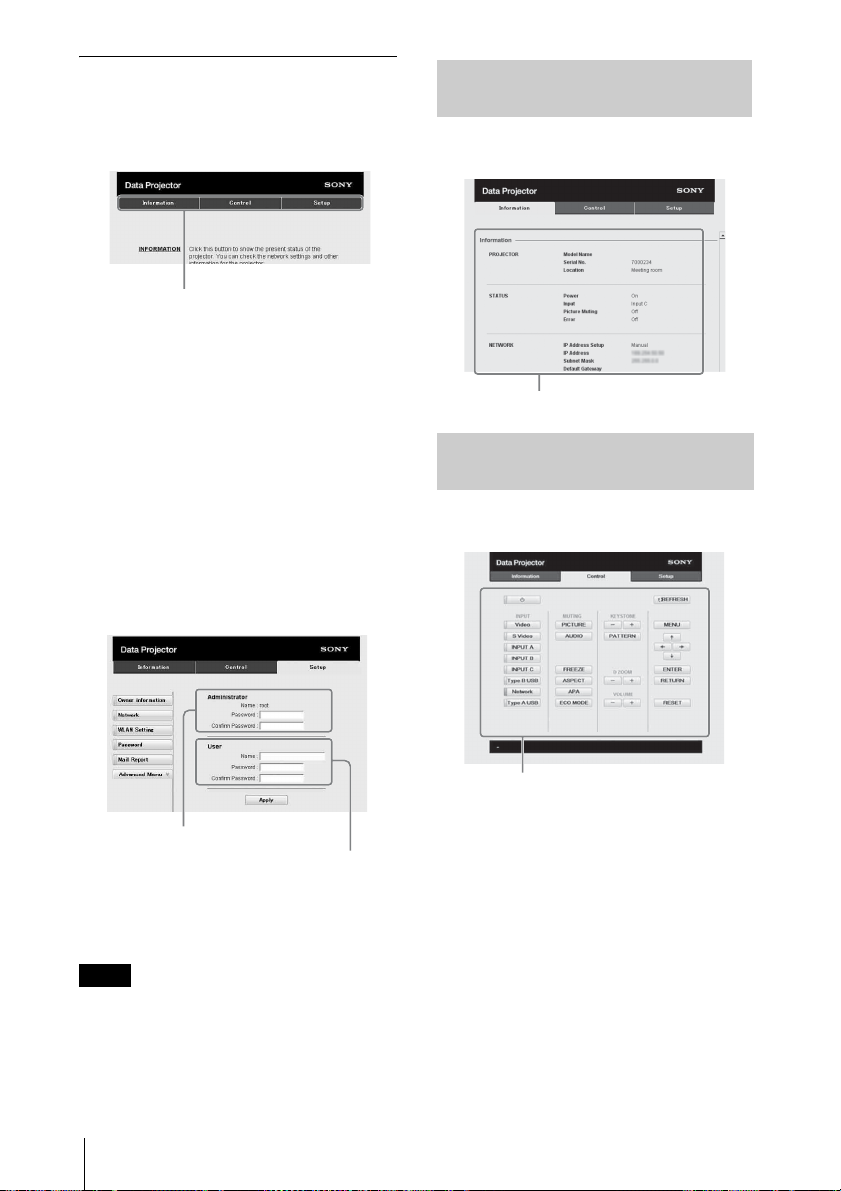

Displaying the Control Window of

the Projector with a Web

Browser ...................................31

Confirming the Information

regarding the Projector ............32

Operating the Projector from a

Computer .................................32

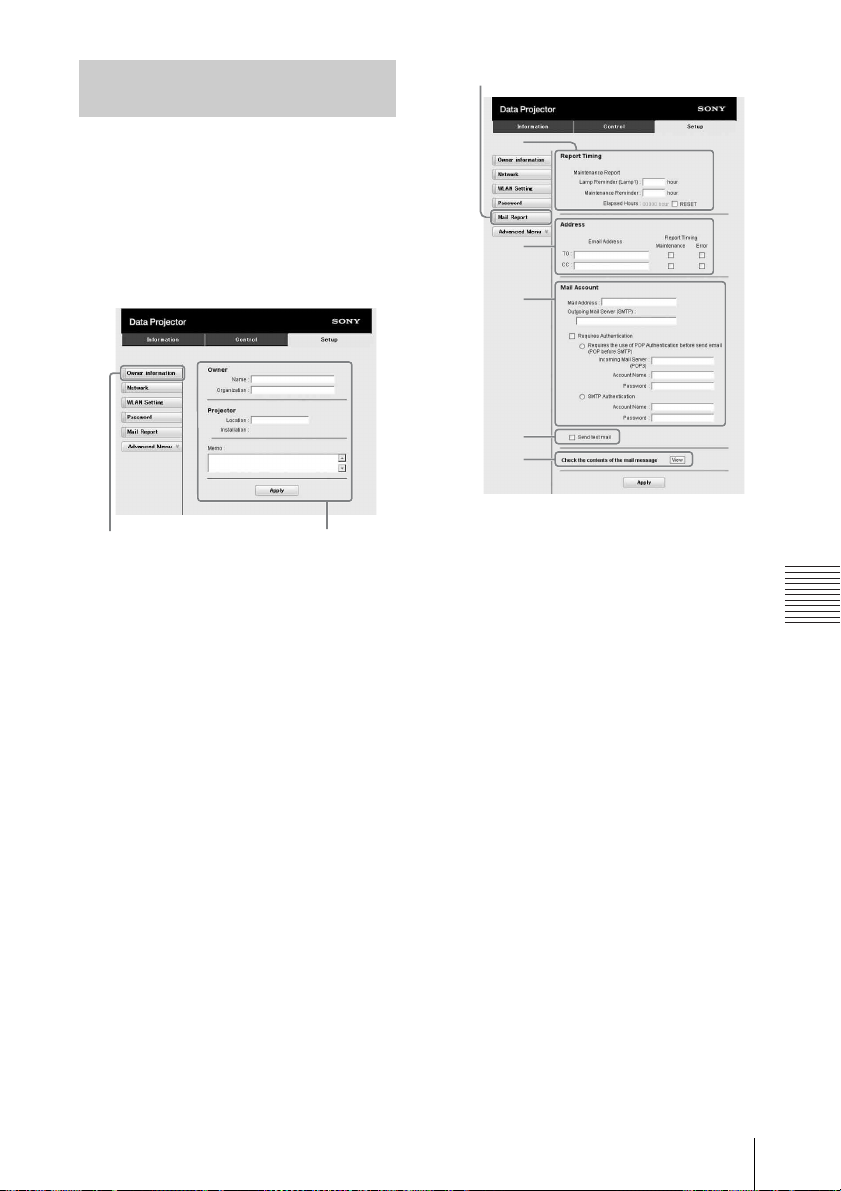

Using the e-mail report

Function ...................................33

Presentation Function via Network

Using Presentation Function via

Network .........................................35

Installing Projector Station for

Network Presentation ..............35

Starting Projector Station for

Network Presentation ..............35

Projecting an Image ....................36

Connection Settings ....................36

Using the Controller ...................37

Adjustments and Settings Using a Menu

Using a MENU ................................19

The Picture Menu .............................20

The Screen Menu ............................. 21

The Function Menu .......................... 25

The Operation Menu ........................ 26

Table of Contents

Projecting an Image using USB Connection

Projecting an Image using USB

Connection ....................................38

Starting USB Display .................38

Projecting an Image ....................38

Using the Controller ................... 38

USB Media Viewer

Using USB Media Viewer ................39

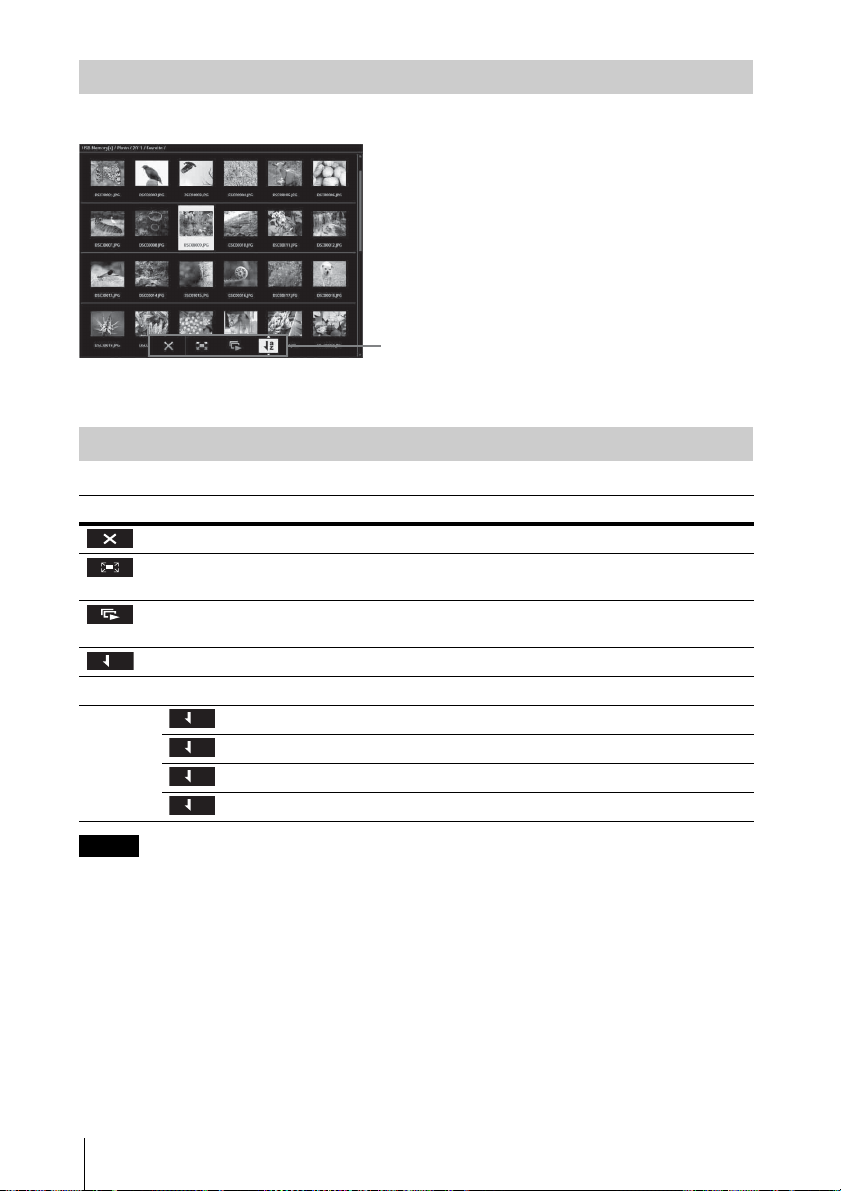

Thumbnail Mode ........................40

Option Menu ...............................40

Display Mode .............................41

Option Menu ...............................41

Slideshow Mode .........................41

Option Menu ...............................42

Others

Indicators ..........................................43

Messages List ...................................44

Troubleshooting ...............................45

Replacing the Lamp .........................47

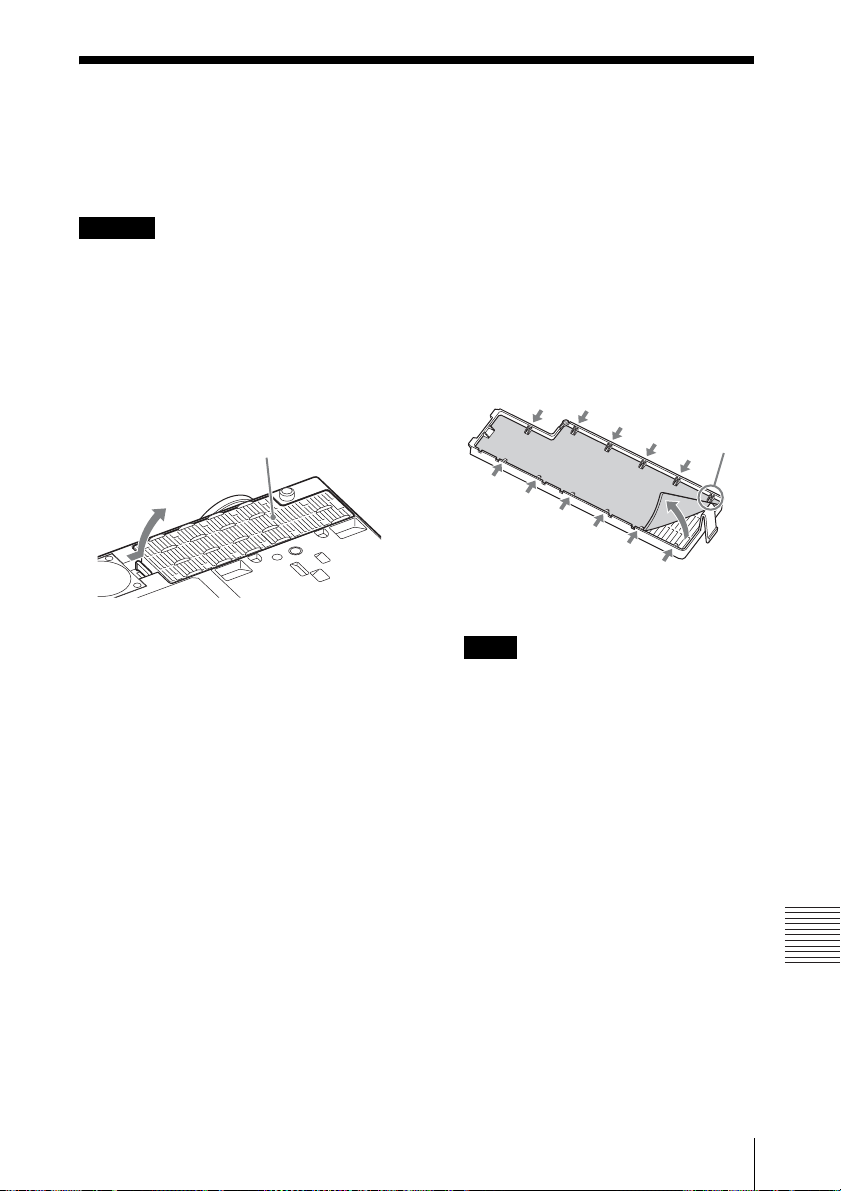

Cleaning the Air Filter .....................49

Specifications ...................................50

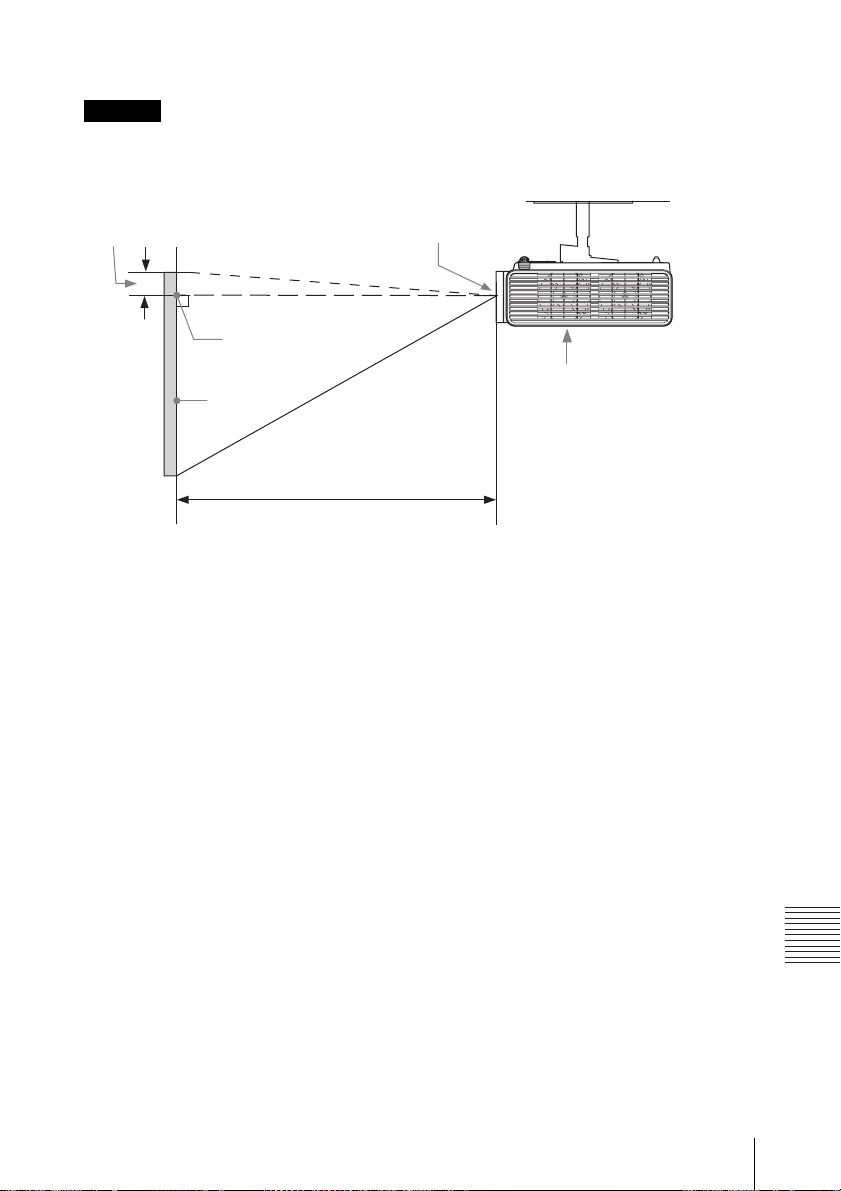

Projection Distance ..........................58

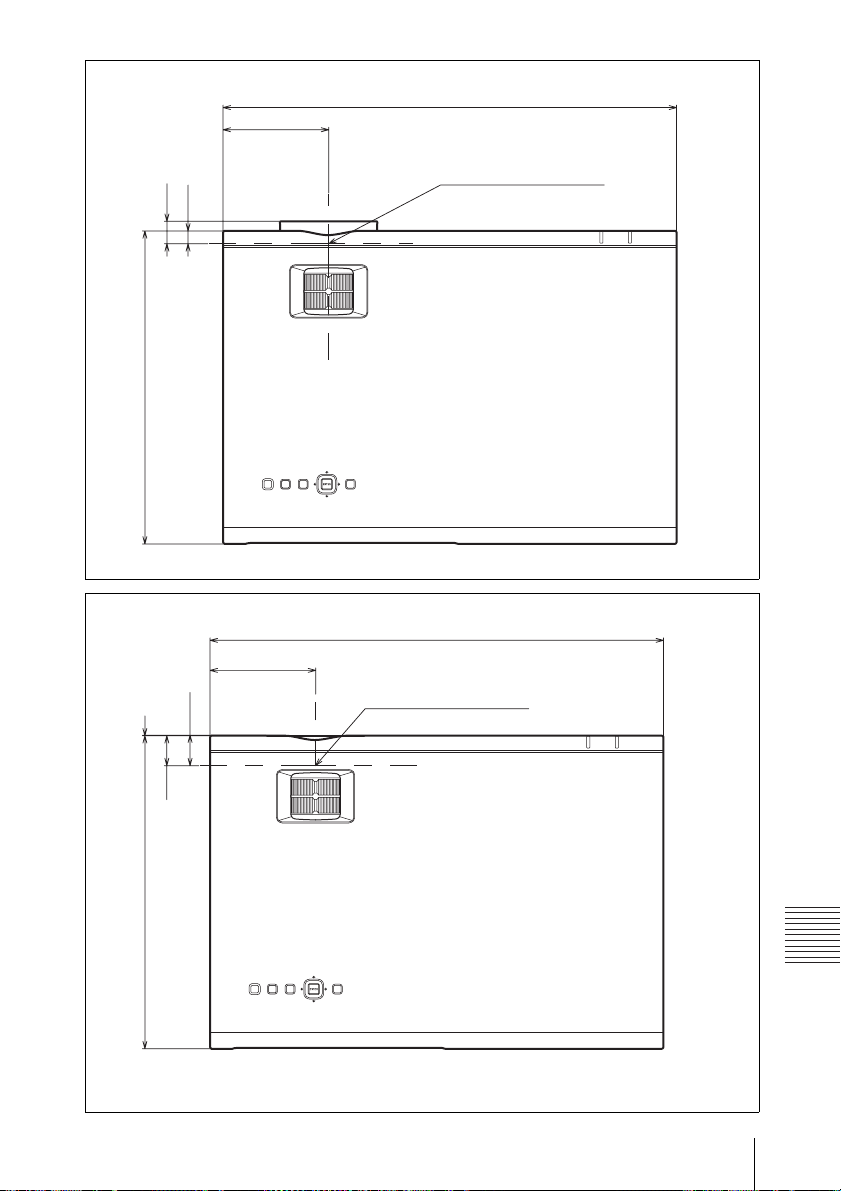

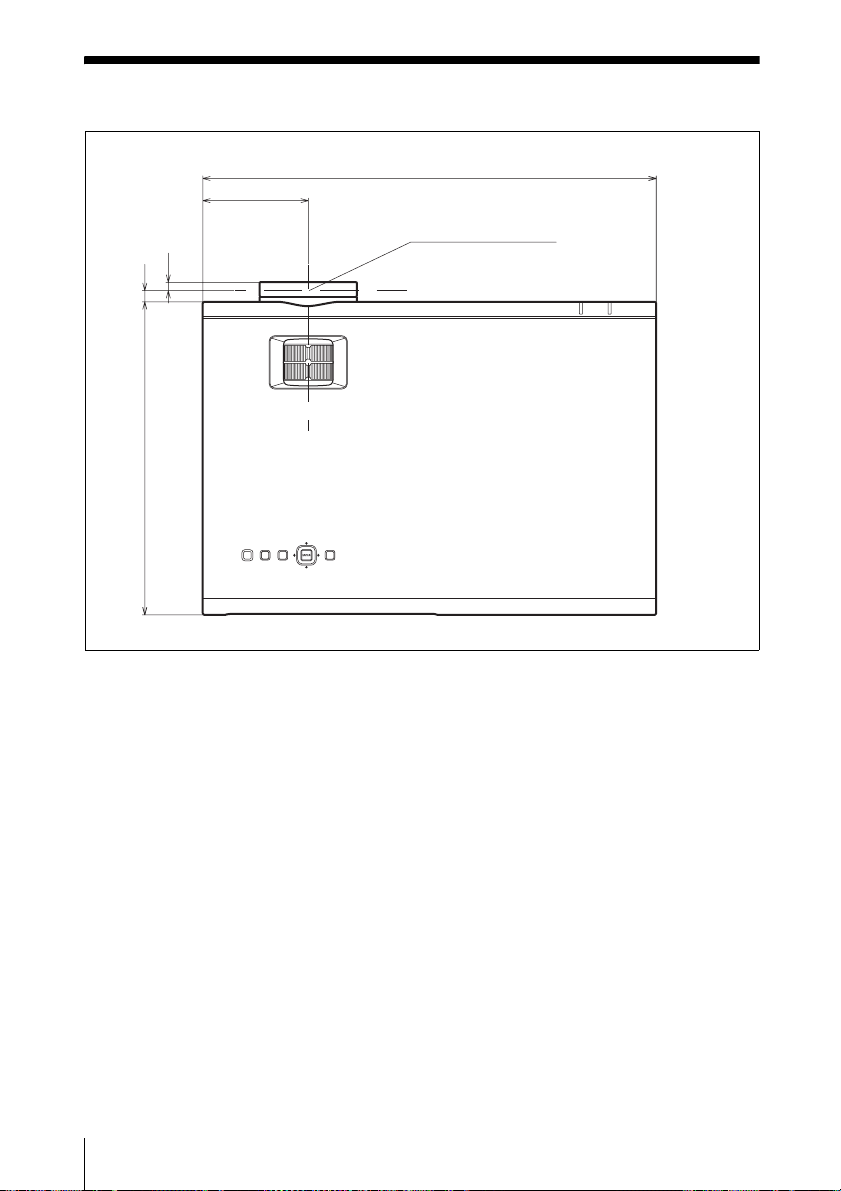

Dimensions .......................................72

Index .................................................78

Table of Contents

B Overview

Location and Function of Controls

Main Unit

5 4

7 8

qs qa

a Focus ring (page 15)

b Zoom ring (page 15)

c Lens

d Remote control detector

e ON/STANDBY indicator

(page 43)

f LAMP/COVER indicator

(page 43)

g Front feet (adjustable) (page 16)

7 8

Caution

Do not place anything near the ventilation holes as this may cause internal heat buildup. Do not place your hand near the ventilation holes and the circumference as this may cause injury.

l Speaker (VPL-EW275/EW245/

EW225/EX275/EX245/EX225 only)

m Connector panel (page 5)

n Security bar

Connects to a commercially available security chain or wire.

o Security lock

Connects to an optional security cable manufactured by Kensington. For details, visit Kensington’s web site. http://www.kensington.com/

p Control panel keys (page 6)

h Foot adjust button (page 16)

i Air filter cover/Ventilation holes

(intake) (page 49)

j Lamp cover (page 47)

k Ventilation holes (exhaust)

Location and Function of Controls

Connector Panel

VPL-EW275/EW245/EW225/EX275/EX245/EX225

4 5 6

VPL-EX271/EX241/EX221

6 7

Input (pages 9, 10)

a INPUT A

Video: RGB/YPBPR input connector

(RGB/YPBPR)

Audio: Audio input connector (AUDIO)

b INPUT B

Video: RGB input connector (RGB) Audio: Audio input connector (AUDIO)

c INPUT C

Video: HDMI input connector (HDMI) Audio: HDMI input connector (HDMI)

d S VIDEO (S VIDEO IN)

Video: S video input connector (S

VIDEO IN)

Audio: Audio input connector (L

(MONO) AUDIO/R)

8q;3

e VIDEO (VIDEO IN)

Notes

• The audio inputs of S VIDEO and VIDEO

• The audio input connector and audio output

Output (page 13)

f OUTPUT

8q;3qa

Video: Video input connector (VIDEO) Audio: Audio input connector (L

(MONO) AUDIO/R)

are shared.

from the HDMI connector are available only on VPL-EW275/EW245/EW225/EX275/ EX245/EX225.

Video: Monitor output connector

(MONITOR)

Audio: Audio output connector

(AUDIO)

Overview

Location and Function of Controls

Notes

• This connector outputs the projected image or audio only when INPUT A or INPUT B is used.

• The audio output connector is available only on VPL-EW275/EW245/EW225/EX275/ EX245/EX225.

h LAN connector (page 31)

i AC IN (∼) socket

Connects the supplied AC power cord.

j USB connector (Type A) ( )

(pages 12, 39)

k USB connector (Type B) ( )

Others

g RS-232C connector (RS-232C)

RS-232C compatible control connector. Connects the computer’s RS-232C connector and th e RS-232C cross cables.

(page 38)

l Microphone input ( )

Note

Microphone input is available only on VPLEW275/EW245/EW225/EX275/EX245/ EX225.

Remote Commander and Control Panel Keys

Remote Commander

INPUT

APA ECO MODE

Control Panel Keys

RETURN

ASPECT

D ZOOM

ENTER

KEYSTONE

VOLUME

PATTERN

FREEZE

RESET

BLANK

MUTING

1 6

a Turning on the power/Going to

standby mode

?/1 (On/Standby) key

b Selecting an input signal

(page 14)

INPUT key

c Operating a menu (page 19)

MENU key RESET key ENTER /V/v/B/b (arrow) keys RETURN key

d Adjusting the image (page 15)

ASPECT key (page 21) KEYSTONE key (page 17) PATTERN key (page 17) APA (Auto Pixel Alignment) key*

(page 17)

Note

Use this key when inputting a computer

signal via the RGB input connector (INPUT A or INPUT B).

Location and Function of Controls

e Using various functions during

projecting

D ZOOM (Digital Zoom) +/– key

Enlarges a portion of the image while projecting.

1 Press the D ZOOM + key to display

the digital zoom icon on the projected image.

2 Press the V/v/B/b keys to move the

digital zoom icon to the point on the image you want to enlarge.

3 Press the D ZOOM + key or the D

ZOOM – key repeatedly to change the enlargement ratio. The image can be

enlarged up to 4 times. Press the RESET key to restore the previous image.

BLANK key

Cuts off the projected image temporarily. Press again to restore the previous image. Picture muting helps reduce power consumption.

MUTING key (VPL-EW275/EW245/ EW225/EX275/EX245/EX225 only)

Mutes the audio output temporarily. Press again to restore the previous volume.

VOLUME +/– key (VPL-EW275/ EW245/EW225/EX275/EX245/ EX225 only)

Adjusts the volume output.

FREEZE key

Pauses a projected image. Press again to restore the image.

Notes

*1: Use this key when inputting a

computer signal. But it may not be used depending on the resolution of the input signal.

*2: Use this key when inputting a

computer signal.You cannot use this key when “Type A USB”, “Type B USB” or “Network” is selected as the input.

f Setting the energy–saving mode

easily

ECO MODE key

Energy-saving mode can be set easily. Energy-saving mode consists of “Lamp Mode,” “With No Input,” “With Static Signal” and “Standby Mode.”

1 Press the ECO MODE key to display

the ECO Mode menu.

ECO Mode

ECO

User

RETURN

:Sel

:Back

2 Press the V/v key or ECO MODE key

to select “ECO” or “User” mode. ECO: Sets each mode to the optimum

energy-saving value. Lamp Mode: Low With No Input: Standby With Static Signal: Lamp Dimming Standby Mode: Low

User: Sets each item of the ECO

Mode menu as you desire (go to step 3).

3 Select “User” then press the b key.

The setting items appear.

User

Lamp Mode High

Auto Power Saving

With No Input With Static Signal

Standby Mode

:S el

:S et

Off Lamp Dimming

Standard

RETURN

:Back

4 Press the V/v key to select the item

then press the ENTER key.

5 Press the V/v key to select the setting

value.

6 Press the ENTER key.

The screen returns to the User screen. For details on ECO Mode settings, see “Lamp Mode,” “With No Input,” “With Static Signal” and “Standby Mode” on the Connection/Power menu (page 27).

Overview

Location and Function of Controls

Others

g Infrared transmitter

About remote commander operation

• Direct the remote commander toward the remote control detector.

• The shorter the distance between the remote commander and the projector is, the wider the angle within which the remote commander can control the projector becomes.

• Make sure that nothing obstructs the infrared beam between the remote commander and the remote control detector on the projector.

Location and Function of Controls

B Preparation

Connecting the Projector

Notes

• Make sure all the equipment is powered off when connecting the projector.

• Use the proper cables for each connection.

• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

• For more information, refer also to the instruction manuals of the equipment you are connecting.

• Use a no-resistance audio cable.

Connecting a Computer

Connection with a computer is explained for each input signal.

INPUT A/INPUT B

For connecting a computer with an RGB output connector.

Mini D-sub 15-pin cable (supplied)

RGB output

connector

Audio output

Computer

connector

Preparation

Audio cable (Stereo mini plug) (not supplied)

Notes

• The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.

• It is recommended that you set the resolution of your computer to 1280 × 800 pixels (VPL-EW275/ EW245/EW225) or 1024 × 768 pixels (VPL-EX275/EX271/EX245/EX241/EX225/EX221) for the external monitor.

INPUT C

For connecting a computer with an HDMI output connector.

HDMI cable (not supplied)

HDMI output

connector

Computer

Connecting the Projector

Notes

• Audio output from the HDMI connector is available only on VPL-EW275/EW245/EW225/ EX275/EX245/EX225.

• Use HDMI-compatible equipment which has the HDMI Logo.

• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are recommended.)

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

USB connector (Type B) ( )

For connecting to a computer with a USB connector (“Projecting an Image using USB Connection” (page 38)).

USB connector

(Type A)

Computer

USB A-B cable (not supplied)

Connecting a Video equipment

Connections with a VHS video deck, DVD player, or BD player are explained for each input signal.

S VIDEO IN

For connecting video equipment with an S-video output connector.

S video cable (not supplied)

S video output

connector

Audio output

Computer

Note

The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.

connector

Audio cable (Phono plug × 2) (not supplied)

Connecting the Projector

VIDEO IN

For connecting video equipment with a video output connector.

Video cable (not supplied)

Video output

connector

Audio output

Video equipment

Note

connector

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.

INPUT A

For connecting video equipment with a YPBPR output connector.

Component – Mini D-sub 15-pin cable (not supplied)

YPBPR output

connector

Audio output

Video equipment

connector

Preparation

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

Note

The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.

Connecting the Projector

INPUT C

For connecting video equipment with an HDMI output connector.

HDMI cable (not supplied)

HDMI output

connector

Video equipment

Notes

• Audio output from the HDMI connector is available only on VPL-EW275/EW245/EW225/ EX275/EX245/EX225.

• Use HDMI-compatible equipment which has the HDMI Logo.

• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are recommended.)

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal or CEC (Consumer Electronics Control) Signal.

Connecting a microphone

Microphone ( )

For connecting a microphone.

Microphone (not supplied)

Notes

• The microphone input is available only on VPL-EW275/EW245/EW225/EX275/EX245/EX225.

• Only dynamic microphones are supported.

Connecting a USB memory device

USB connector (Type A) ( )

For connecting a USB memory device (“Using USB Media Viewer” (page 39)).

USB memory device (not supplied)

Connecting the Projector

Connecting a USB wireless LAN module

USB connector (Type A) ( )

For connecting a USB wireless LAN module IFU-WLM3 (not supplied) (“Presentation Function via Network” (page 35)).

USB wireless LAN module IFU-WLM3 (not supplied)

Notes

• Undesignated USB wireless LAN modules do not work.

• When connecting/disconnecting the USB wireless LAN module, make sure that the projector is in Standby mode (Standby Mode: “Low”), or the AC power cord is unplugged from the wall outlet.

Connecting an External Monitor and Audio Equipment

OUTPUT

Projected images or input audio can be output to display equipment such as a monitor or audio equipment such as speakers with a built-in amplifier.

Audio equipment

Audio input

connector

Audio cable (stereo mini plug) (not supplied)

Preparation

Display equipment

Notes

RGB input connector

Mini D-sub 15-pin cable (supplied)

• The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/ EX225.

• Projected images and audio can be output.

Connecting the Projector

B Projecting/Adjusting an Image

Projecting an Image

The size of a projected image depends on the distance between the projector and screen. Install the projector so that the projected image fits the screen size. For details on projection distances and projected image sizes, see “Projection Distance” (page 58).

Projector

1 Plug the AC power cord into the wall

outlet.

2 Connect all equipment to the projector

(page 9).

3 Press the ?/1 key to turn on the unit.

4 Turn on the connected equipment.

5 Select the input source.

Press the INPUT key on the projector to display the menu for switching input signal on the screen. Press the INPUT key repeatedly, or press the V/v key to select an image to be projected.

Video equipment

Wall outlet

Computer

6 When projecting a computer image,

switch your computer’s output to external display.

The method to switch the output varies depending on the type of computer.

(Example)

To project image files stored in a USB memory device, see “USB Media Viewer” (page 39). To project an image using USB Connection, see “Projecting an Image using USB Connection” (page 38). To use Presentation Function via Network, see “Presentation Function via Network” (page 35).

Projecting an Image

7 Adjust the focus, size and position of

the projected image (page 15).

Adjusting the Projected image

Focus Size (Zoom) Position

Projecting/Adjusting an Image

Focus ring

Zoom ring

Foot adjust button

Front feet (adjustable)

Projecting an Image

Adjusting the tilt of the projector with the front feet (adjustable)

By changing the tilt of the projector with the foot adjust buttons/front feet (adjustable), you can adjust the position of the projected image.

How to adjust the angle

1 Press and hold the foot adjust buttons.

2 Lift up the front of the projector to

adjust the angle.

3 Release the foot adjust buttons.

4 Turn the front feet (adjustable) to set

the angle of the projector precisely.

Notes

• Be careful not to let the projector down on your fingers.

• Do not push hard on the top of the projector with the front feet (adjustable) extended.

Changing the aspect ratio of the projected image

Press the ASPECT key on the remote commander to change the aspect ratio of the projected image. You can also change the setting in Aspect of the Screen menu (pages 21, 23).

Projecting an Image

Correcting trapezoidal distortion of the projected image (Keystone feature)

Normally the Keystone feature automatically adjusts the projected image. The Keystone feature may not work automatically if the screen is tilted. In this case, set Keystone manually.

1 Press the KEYSTONE key on the remote

commander or select V Keystone in the Installation menu.

2 Use the V/v/B/b keys to set the value. The

higher the value, narrower the top of the projected image. The lower the value, the narrower the bottom.

Note

Since the Keystone adjustment is an electronic correction, the image may be deteriorated.

Increase the number towards plus

Increase the number towards minus

Displaying a pattern

You can display a pattern for adjusting the projected image or a grid pattern with the PATTERN key on the remote commander. Press the PATTERN key again to restore the previous image. You can use a grid pattern as a guide to write text or to draw lines and shapes on the whiteboard or blackboard without using a computer.

Note

You cannot use this key when “Type A USB”, “Type B USB” or “Network” is selected as the input.

Automatically adjusts Phase, Pitch and Shift of projected image while a signal is input from a computer (APA (Auto Pixel Alignment))

Press the APA key on the remote commander. Press again to cancel adjusting during the setting. You can also set APA in the Screen Menu (page 22). If Smart APA in the Function menu is set to “On”, executes APA automatically when a signal is input (page 25).

Projecting/Adjusting an Image

Projecting an Image

Turning Off the Power

1 Press the ?/1 key on the unit or the remote commander.

The projector starts shutdown and turns off. If you press the ?/1 key within 10 seconds again, shutdown is cancelled.

2 Unplug the AC power cord from the wall outlet.

To turn off without displaying confirmation message

Press and hold the ?/1 key on the unit for a few seconds (page 44).

ECO gauge

This gauge indicates the current effectiveness of the projector’s ECO function. (For details on the ECO function, see “ECO MODE key” (page 7) and “ECO” (page 27).) The leaf icons are displayed when the projector is shut down. The number of displayed icons varies according to how much energy is saved as a result of using the ECO function.

Projecting an Image

ECO gauge

B Adjustments and Settings Using a Menu

Using a MENU

Note

The menu displays used for the explanation below may be different depending on the model you are using.

1 Press the MENU key to display the

menu.

2 Select the setting menu.

Use the V/v key to select the setting menu then press the b key or ENTER

key.

Setting menu


Picture Mode Standard Reset Contrast Brightness Color Hue Color Temp. Sharpness Expert Setting

:Sel :Set :Back

Low

3 Select the setting item.

Use the V/v key to select the setting menu then press the b key or ENTER

key.

To return to the selection screen of the setting menu, press the B or RETURN key.

Setting items


Picture Mode Standard

Reset Contrast Brightness Color Hue Color Temp. Sharpness Expert Setting

80 50 50 50

Low

operations in step 3 and then press the ENTER key to register the setting. To return to the selection screen of the setting items, press the B or RETURN key. You can press the RESET key to reset an item to its factory setting value to aid setting.

Using a pop-up menu

Press the V/v/B/b key to select an item. A selected item takes effect immediately, except “Language”, which will take effect after you press the ENTER key.

Picture Mode

Dynamic

Sta ndard

Presentation Blackbo ard Game Cinema

:Back

RETURN

:Sel

Using the setting menu

Press the V/v key to select the item. Press the ENTER key to register the setting and return to the previous screen.

Using the adjustment menu

To increase the value, press the V/b key and to decrease the number, press the v/B key. Press the ENTER key to register the setting and return to the previous screen.

Contrast

Adjustments and Settings Using a Menu

:Sel :Set :Back

4 Make the setting or adjustment for the

selected item.

The setting method varies, depending on the setting item. If the next menu window is displayed, select the item according to the

Adjust

Back

5 Press the MENU key to clear the

menu.

The menu disappears automatically if no operation is performed.

Using a MENU

The Picture Menu

The Picture is used to adjust the picture for each input signal.

Items Item descriptions

Picture Mode Dynamic: Emphasizes the contrast to produce a dynamic and vivid picture.

Reset

Contrast The higher the value, the greater the contrast. The lower the value, the lower

Brightness The higher the value, the brighter the picture. The lower the value, the darker

*3 *4

Color

*3 *4 *5

Hue

Color Temp.

Sharpness The higher the value, the sharper the picture. The lower the value, the softer

Expert Setting

Gamma

*1 *7

Mode

Standard: Provides an image which is natural and well balanced. Presentation Blackboard: Provides an image suitable for displaying on a blackboard. Game: Provides an image suitable for viewing games. Cinema: Provides an image suitable for viewing movies.

Resets the factory setting.

the contrast.

the picture.

The higher the value, the greater the intensity. The lower the value, the lower the intensity.

The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.

High/Middle/Low: The higher the value, the more bluish the picture. The lower the value, the more reddish the picture.

the picture.

Graphics1: Gamma correction to make halftones brighter. This setting is suitable when projecting highly colorful images, such as photos, in a bright place. Graphics2: Gamma correction to improve the reproduction of halftones. Highly colorful images, such as photos, can be reproduced in natural tones. Text: Improves black and white contrast. Suitable for images with lots of text content.

: Provides a bright image, suitable for presentations.

Notes

*1: When a computer signal is input, this option is available. *2: The settings in the Picture return to their factory defaults, except for Picture Mode. *3: When a video signal is input, this option is available. *4: When the signal without color burst signal is input after selecting “Video” or “S-Video”, this

option is unavailable. *5: When an analog TV signal is input, this option may not available, depending on the color system. *6: When “Picture Mode” is set to the item other than “Presentation” or “Blackboard,” this option

is available. *7: When “Picture Mode” is set to “Blackboard,” this option is unavailable.

The Picture Menu

The Screen Menu

The Screen menu is used to adjust the size, position and aspect ratio of the projected image for each input signal.

Items Item descriptions

Aspect

VPL-EW275/EW245/ EW225: When the computer signal is input

VPL-EW275/EW245/ EW225: When the video signal is input

VPL-EX275/EX271/ EX245/EX241/ EX225/EX221: When the computer signal is input

VPL-EX275/EX271/ EX245/EX241/ EX225/EX221: When the video signal is input

Changes the aspect ratio of the projected image (page 23).

4:3: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 4:3. 16:9: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 16:9. Full 1: Displays the image to fit the maximum projected image size without changing the aspect ratio of the input signal. Full 2: Displays the image to fit the maximum projected image size changing the aspect ratio of the input signal. Full 3: Displays the image to fit the maximum width or height, up to 1280 × 720 pixels, without changing the aspect ratio of the input signal. Normal: Displays the image on the center position of the projected screen without changing the resolution of the input signal or enlarging the image.

Zoom: Zooms the center area of a projected image.

4:3: Displays the image to fit the maximum projected image size

with an aspect ratio fixed to 4:3. 16:9: Displays the image to fit the maximum projected image size with an aspect ratio fixed to 16:9. Full 1: Displays the image to fit the maximum projected image size without changing the aspect ratio of the input signal. Normal: Displays the image on the center position of the projected screen without changing the resolution of the input signal or enlarging the image.

Adjustments and Settings Using a Menu

The Screen Menu

Items Item descriptions

Adjust Signal Adjusts the image of computer signal. Use this item if the edge of

the image is cut and reception is bad.

APA

*2 *3

Automatically adjusts the projected image to an optimum quality when you press the ENTER key (page 6).

Phase

Adjusts the dot phase of the display pixel and the input signal. Set to the value where looks clearest.

Pitch

The higher the value, the wider the horizontal image elements (pitch). The lower the value, the narrower the horizontal image elements (pitch).

Shift

H (Horizontal): The higher the value, the farther right the image is projected on the screen. The lower the value, the image farther left. V (Vertical): The higher the value, the farther up the image is projected on the screen. The lower the value, the image farther down.

Notes

*1: • Note that if the projector is used for profit or for public viewing, modifying the original picture

by switching to the aspect mode may constitute an infringement of the rights of authors or producers, which are legally protected.

• Depending on the input signal, setting items for aspect ratio or some other setting items cannot be set in some cases, or changing the aspect ratio setting may have no effect.

• A part of the image may be displayed in black, depending on the setting item.

*2: Available when a computer signal is input from the RGB input connector (INPUT A/INPUT B). *3: If the projected image includes large amount of black portion around it, the APA function will

not work properly and a part of the image may not be displayed on the screen and also optimum image cannot be obtained, depending on the type of input signal. In this case, adjust the “Phase,” “Pitch,” and “Shift” items manually.

*4: Available when a computer or a video signal is input from the RGB/YP

BPR input connector

(INPUT A).

The Screen Menu

Aspect

VPL-EW275/EW245/EW225

Input signal Recommended

setting value and

projected image

4:3 Full1

16:9 Full1

Computer signal

16:10 Full1

4:3 4:3

16:9 16:9

Video signal

*1 *2 *3

*4 *5

*1: If you select “Normal,” the image is

projected in the same resolution as the input signal without changing the aspect ratio of the original image.

*2: If you select “Full2,” the image is projected

to fit the projected image size, regardless of the aspect ratio of the image.

*3: If you adjust the projected image position

using an image with 16:9 aspect ratio and then switch the input source to 4:3 image, the top and bottom edge of the image may be hidden. In this a case, select “Full3.”

*4: Depending on the input signal, the

projected image may be projected as illustrated below. In this a case, select “16:9.”

Adjustments and Settings Using a Menu

*5: Depending on the input signal, the image

may be projected as illustrated below. In this a case, select “Zoom.”

The Screen Menu

VPL-EX275/EX271/EX245/EX241/ EX225/EX221

Input signal Recommended

setting value and

projected image

4:3

16:9

Full1

Computer signal

16:10 Full1

*1 *2

*1: If you select “Normal,” the image is

projected in the same resolution as the input signal without changing the aspect ratio of the original image.

*2: If you select “4:3,” the image is projected

to fit the projected image size, regardless of the aspect ratio of the image.

*3: Depending on the input signal, the

projected image may be projected as illustrated below. In this a case, select “16:9.”

The Screen Menu

4:3 4:3*3

*4: Depending on the input signal, the

projected image may be projected as illustrated below. In this a case, select “Zoom.”

16:9 16:9

Video signal

+ 56 hidden pages
