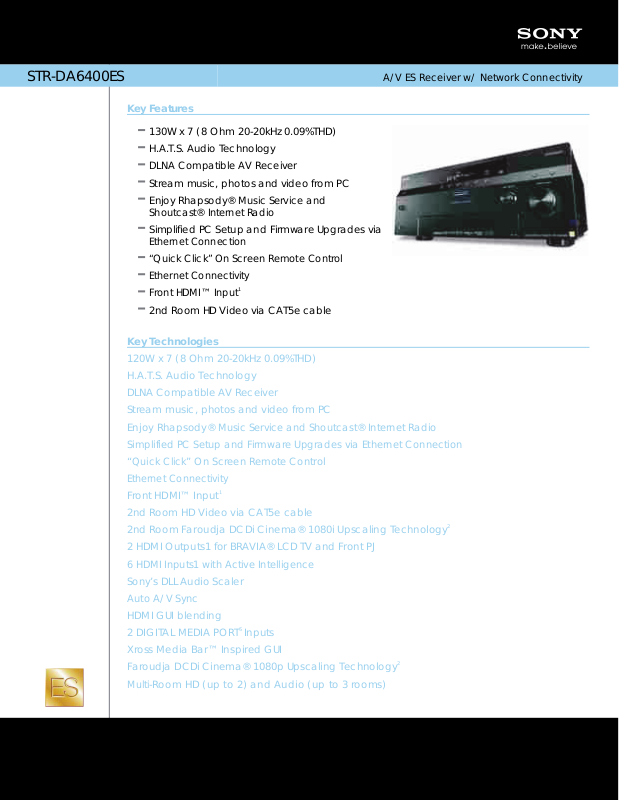

Sony STR-DA6400ES BROCHURE

STR-DA6400ES

A/V ES Receiver w/ Network Connectivity

Key Features

130W x 7 (8 Ohm 20-20kHz 0.09%THD)

H.A.T.S. Audio Technology

DLNA Compatible AV Receiver

Stream music, photos and video from PC

Enjoy Rhapsody®

Music Service and

Shoutcast® Internet Radio

Simplified PC Setup and Firmware Upgrades via Ethernet Connection

“

Quick Click”

On Screen Remote Control

Ethernet Connectivity

Front HDMI

™

Input

2nd Room HD Video via CAT5e cable

Key Technologies

120W x 7 (8 Ohm 20-20kHz 0.09%THD)

H.A.T.S. Audio Technology

DLNA Compatible AV Receiver

Stream music, photos and video from PC

Enjoy Rhapsody®

Music Service and Shoutcast® Internet Radio

Simplified PC Setup and Firmware Upgrades via Ethernet Connection

“

Quick Click” On Screen Remote Control

Ethernet Connectivity

Front HDMI™ Input

2nd Room HD Video via CAT5e cable

2nd Room Faroudja DCDi Cinema® 1080i Upscaling Technology

2 HDMI Outputs1 for BRAVIA® LCD TV and Front PJ

6 HDMI Inputs1 with Active Intelligence

Sony

’s DLL Audio Scaler

Auto A/V Sync

HDMI GUI blending

2 DIGITAL MEDIA PORT Inputs

Xross Media Bar™ Inspired GUI

Faroudja DCDi Cinema® 1080p Upscaling Technology

Multi

-Room HD (up to 2) and Audio (up to 3 rooms)

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 09/07/2010

STR-DA6400ES

A/V ES Receiver w/ Network Connectivity

Please visit the Dealer Source for current

information at www.sony.com/dealersource

Specifications

General

A/V SYNC (Lip Sync): Yes (Variable) Day/Night Function: Yes (Night Mode)

Features

Audio

dts® Decoding: Yes (dts® HD Master

Audio)

Dolby® TrueHD Decoding: Yes Dolby® Digital Decoding: Yes Dolby® Digital plus Decoding: Yes Dolby® Digital EX Decoding: Yes dts®-

ES Decoding:

Yes

dts® 96/24 Decoding: Yes dts® NEO:6 Decoding: Yes Dolby® Pro Logic® Decoding: Yes Dolby® Pro Logic® II Decoding: Yes Dolby® Pro Logic® IIX Decoding:

Yes

Dolby® Digital Dual Mono: Yes Amplification Relocation: Yes Digital Cinema Sound™

Technology:

Yes

Audio

Impedance: 8 Ohms Channel Power Rating: 7.1 Channel Power

Rating: 130W x 7 Amp Power (8 Ohm 20

20kHz THD 0.09%)

Sound Fields:

Movie - 4; Music - 7 (+DCHall); Auto Format Decoding - 21; 2 ch - 2; Headphone - 3

Zones: Zone2 -Speaker&Line (GUI); Zone 3

Line

Tuner Type: Auto Tuning, Direct Tuning,

Station Name, Presets 30/30/30 (XM/FM/AM)

Frequency Range: 192kHz

Convenience

Preset Memory: 30 Sirius® Presets XM® Connect and Play™ Compatible: Yes

(Neural 5.1 Surround Sound Decoding)

XM® Memory Presets: 30 AM/FM Memory Presets: 30 FM - 30 AM Timer Clock: Yes (Sleep)

Inputs and Outputs

Analog Audio Input(s) (Total): 5 (Rear) Analog Audio Output(s): 2 (Rear) Component Video (Y/Pb/Pr ) Input(s): 3

(Rear)

Phono Input(s): 1 (Rear) Multi-Channel Input(s): 1 (Rear, 7.1

Channel)

Digital Media Port: 2 (Rear) HDMI™ Connection Output(s): 2 (Rear) HDMI™ Connection Input(s): 6 (Rear) Optical Audio Input(s): 5 (1 Front/4 Rear) Optical Audio Output(s): 2 (Rear)

Coaxial Audio Digital Input(s): 3 (Rear) Component Video (Y/Pb/Pr) Output(s): 2

(Rear)

HD Component Video Input(s): 3 (Rear) HD Component Video Output(s): 1 (Rear) Composite Video Input(s): 5 (Rear) Composite Video Output(s): 3 (Rear-1

Monitor Output, 2 Video Outputs)

Subwoofer Output(s): 17 points (40-200Hz) AC Outlet: Yes Antenna Terminal (AM Loop): 1 (Rear) Antenna Terminal (FM 75 Ohm): 1 (Rear) Headphone Output(s): 1 (Front- Gold) RS232 Control: Yes 12V Trigger Output(s): 3 (Rear) IR Input(s): 2 (Rear) IR Output(s): 1 (Rear) Multi-Channel Output(s): 1 (Rear, 5.1 Pre

out)

Ethernet Connection(s): 1 Cat5e Cable for

video output only (rear)

Cat5e Connection: 1 Cat5e Cable for video

output to CAV-CVB1 (not supplied) (rear)

Power

Power Requirements: 120 V 60Hz Power Consumption (in Operation):

480W/580VA

Power Consumption (in Standby): 0.7W

Dimensions

Weight: 34.5 lbs (16.5Kg) Measurements: 16 15/16 x 6 3/4 x

16.15/16: (430x175x430mm)

UPC Code:

027242732100

1. Requires HDMI connector (sold separately).

2. 1080/60p requires HDMI connector (sold separately) and compatible HDTV with 1080/60p display capability, and 24p True Cinema requires 24p-capable HDTV. Upscaled image quality may vary.

3. When used with supporting video sources.

4. BRAVIA Sync for Theatre feature works with select Sony HDTVs and home theater products. Please refer to owner’s manual for compatibility.

5. DIGITAL MEDIA PORT and accessories required (sold separately).

6. Requires satellite radio subscription and radio antenna (both sold separately). Antenna placement restrictions apply.

7. Playback depends on recording conditions.

8. Rhapsody Music Service requires subscription and connection to the Internet via Ethernet cable.

Shoutcast Internet Radio Service requires a connection to the

Internet via Ethernet cable.
