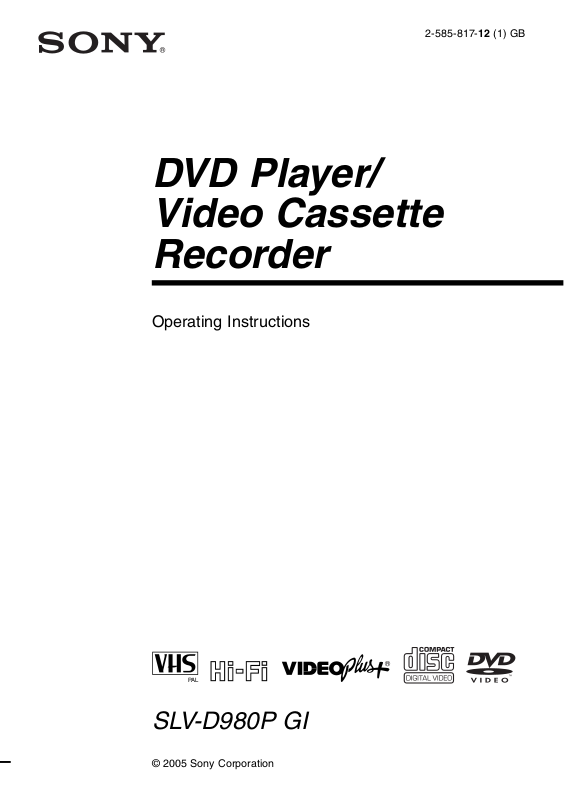

2-585-817-12 (1) GB

DVD Player/ Video Cassette Recorder

Operating Instructions

PAL

SLV-D980P GI

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Mains lead must only be changed at a qualified service shop.

This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD player/Video Cassette Recorder is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

Notice for customers in the United Kingdom and Republic of Ireland

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience. Should the fuse in the plug supplied need to be replaced, a 3 AMP fuse approved by ASTA or BSI to BS1362, (i.e., marked with or mark) must be used. If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

Precautions

Safety

• This unit operates on 220 – 240 V AC, 50 Hz. Check that the unit’s operating voltage is identical with your local power supply.

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

Installing

• Do not install the unit in a confined space such as a bookshelf or similar unit.

• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.

• Keep the unit and discs away from equipment with strong magnets, such as microwave ovens, or large loudspeakers.

• Do not place heavy objects on the unit.

• Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.

• If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit and cause damage to the video head and tape. When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit.

VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under license from Gemstar Development Corporation.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is di sposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WARNING

Welcome!

Caution

Thank you for purchasing this Sony DVD Player/Video Cassette Recorder. Before operating this player, please read this manual thoroughly and retain it for future reference.

For use of the VCR

Television programmes, films, video tapes and other materials may be copyrighted. Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of this recorder with cable television transmission may require authorization from the cable television transmitter and/or programme owner.

For use of the DVD player

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Welcome!

Table of contents

2 WA RN I N G 3 Welcome! 3 Caution 6 About this manual 6 This player can play the following discs 8 Notes about discs

Getting Started

9 Step 1 : Unpacking 10 Step 2 : Setting up the remote commander 12 Step 3 : Connecting the DVD-VCR 15 Step 4 : Setting up the DVD-VCR with the Auto Set Up function 17 Step 5 : Selecting a language 18 Step 6 : Setting the clock 20 Step 7 : Presetting channels

Basic Operations

28 Playing discs 33 Guide to the on-screen display 36 Locking the disc tray (Child Lock) 37 Playing a tape 40 Recording TV programmes 44 Recording TV programmes using the

VIDEO Plus+

48 Recording TV programmes using the

timer

51 Checking/changing/cancelling timer

settings

Table of contents

system

Advanced Hookups

53 A/V Receiver hookup 55 S-Video/Component Video hookup

DVD Settings and Adjustments

57 Audio Setup 60 Screen Setup 64 Setting the display or sound track

language

66 Parental Control (limiting playback

by children)

DVD Additional Operations

69 Using the DVD’s menu 71 Zooming into a scene 72 Changing the angles 74 Displaying the subtitle 75 Various play mode functions

(Programme play, Shuffle play, Repeat play)

80 Changing the sound 81 Virtual surround setting 83 Playing an MP3 audio track 88 Playing JPEG image files 92 Playing VIDEO CDs with “PBC On/

Off” functions

VCR Additional Operations

94 Quick Timer Recording 96 Recording stereo and bilingual

programmes

98 Searching using index function 100 Adjusting the picture (tracking) 102 Changing menu options 104 Editing

Additional Information

107 General setup information 109 Troubleshooting 115 Glossary 117 Specifications 118 Index to parts and controls 123 DVD Audio/Subtitle Language 124 Index

Table of contents

About this manual

This player can play the

• This manual mainly explains operations using the remote, but the same operations can also be performed using the buttons on the DVD-VCR having the same or similar names.

• “DVD” may be used as a general term for DVD VIDEOs, DVD+RWs/DVD+Rs, and DVD-RWs/DVD-Rs.

• The meaning of the icons used in this manual is described below:

Icon Meaning

Functions available for DVD VIDEOs and DVD-RWs/DVDRs in video mode or DVD+RWs/DVD+Rs

Functions available for DVDRWs in VR (Video Recording) mode

Functions available for VIDEO CDs, Super VCDs or CD-Rs/ CD-RWs in video CD format or Super VCD format

Functions available for music CDs or CD-Rs/CD-RWs in music CD format

Functions available for DATA CDs (CD-ROMs/CD-Rs/CDRWs containing MP3 tracks or JPEG files)

Functions available for DATA DVDs (DVD-ROMs/DVD+RWs/ DVD+Rs/DVD-RWs/DVD-Rs containing MP3 JPEG files)

Functions available for VHS VIDEOs

* MP3 (MPEG 1 Audio Layer 3) is a standard format

defined by ISO/MPEG which compresses audio data.

* audio

* audio tracks or

following discs

Format of discs

DVD VIDEO

DVD-RW/-R

DVD+RW/+R

VIDEO CD/ Music CD

CD-RW/-R

“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD+R DL,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks.

Note about CDs/DVDs

The player can play CD-ROMs/CD-Rs/CD-RWs recorded in the following formats:

– music CD format – video CD format – MP3 audio tracks and JPEG image files of

format conforming to ISO 9660* Level 1/ Level 2, or its extended format, Joliet

– KODAK Picture CD format

* A logical format of files and folders on CD-ROMs,

defined by ISO (International Organization for Standardization).

About this manual

The player can play DVD-ROMs/DVD+RWs/ DVD+Rs/DVD-RWs/DVD-Rs recorded in the following formats:

– MP3 audio tracks and JPEG image files of

format conforming to UDF (Universal Disk Format).

Region code

Your player has a region code printed on the back of the unit and only will play DVD VIDEO discs (playback only) labelled with identical region codes. This system is used to protect copyrights.

DVDs labelled will also play on this player.

If you try to play any other DVD VIDEO, a message will appear on the TV screen to indicate that the disc is not playable. Depending on the DVD VIDEO, no region code indication may be labelled even though playing the DVD VIDEO is prohibited by area restrictions.

DVD PLAYER/ VIDEO CASSETTE RECORDER MODEL NO.

SLV-DXXXX

NO.

~AC 220–240V 50Hz 20W

ALL

Region code

Example of discs that the player cannot play

The player cannot play the following discs:

• CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on the previous page.

• CD-ROMs recorded in PHOTO CD format.

• Data part of CD-Extras

• DVD Audios

• HD layer on Super Audio CDs

Also, the player cannot play the following discs:

• A DVD VIDEO with a different region code.

• A disc that has a non-standard shape (e.g., card, heart).

• A disc with paper or stickers on it.

• A disc that has the adhesive of cellophane tape or a sticker still left on it.

Notes about DVD+RWs/DVD+Rs, DVD-RWs/DVD-Rs or CD-Rs/CDRWs

Some DVD+RWs/DVD+Rs, DVD-RWs/DVDRs, or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played.

continued

This player can play the following discs

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs.

Music discs encoded with copyright protection technologies

This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

Notes about discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth. Wipe the disc from the centre out.

Note on DualDiscs

This product is designed to playback discs that conform to the Compact Disc (CD) standard. A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side of a DualDisc may not play on this product because these discs do not conform to the CD standard. “DualDisc” is a trademark of the Recording Industry Association of America (RIAA).

Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs.

Notes about discs

Getting Started

Step 1 : Unpacking

Check that you have received the following items with the DVD-VCR:

• Remote commander • Aerial cable

• R6 (size AA) batteries

Note

• The supplied remote commander is for the exclusive use of this DVD-VCR.

Getting Started

Unpacking

Step 2 : Setting up the remote commander

Inserting the batteries

Insert two size AA (R6) batteries by matching the + and – on the batteries to the diagram inside the battery compartment.

Insert the negative (–) end first, then push in and down until the positive (+) end clicks into position.

Using the remote

Remote sensor

commander

You can use this remote commander to operate this DVDVCR and a Sony TV. Buttons on the remote commander marked with a dot (•) can be used to operate your Sony TV.

If the TV does not have the symbol near the remote sensor, this remote commander will not operate the TV.

To operate Set TV / DVD·VIDEO to

the DVD player DVD·VIDEO

the VCR DVD·VIDEO

your TV TV

Notes

• With normal use, the batteries should last about three to six months.

• If you do not use the remote commander for an extended period of time, remove the batteries to avoid possible damage from battery leakage.

• Do not use a new battery with an old one.

• Do not use different types of batteries.

• Do not leave the remote commander in an extremely hot or humid place.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction.

the DVD-VCR

at the DVD-VCR

and point at the remote sensor at your TV

, then press SELECT DVD and point at the remote sensor at

, then press SELECT VIDEO and point at the remote sensor

TV /

DVD·VIDEO

SELECT

VIDEO

SELECT

DVD

Setting up the remote commander

Controlling other TVs with the remote commander

The remote commander is preprogrammed to control non-Sony TVs. If your TV is listed in the following table, set the appropriate manufacturer’s code number.

Set TV / DVD·VIDEO at the top of the remote commander to TV.

Hold down ?/1, and enter your TV’s code number using the number buttons.

Then release ?/1.

Now you can use the ?/1, VOL +/–, PROG +/–, MUTING*, TV/VIDEO, 0-9 and

-/--* buttons to control your TV. You can also use the buttons marked with a dot (•) to control a Sony TV. To control the DVD-VCR, reset TV DVD·VIDEO.

* for Sony TV only

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

/ DVD·VIDEO to

Getting Started

Manufacturer Code number

Sony 01, 02

Akai 68

Ferguson 52

Grundig 10, 11

Hitachi 24

JVC 33

Loewe 45

Mivar 09, 70

NEC 66

Nokia 15, 16, 69

Notes

• If you enter a new code number, the code number previously entered will be erased.

• If the TV uses a different remote control system from the one programmed to work with the DVD-VCR, you cannot control your TV with the remote commander.

• When you replace the batteries of the remote commander, the code number may change. Set the appropriate code number every time you replace the batteries.

Manufacturer Code number

Panasonic 17, 49

Philips 06, 07, 08

Saba 12, 13

Samsung 22, 23

Sanyo 25

Sharp 29

Telefunken 36

Thomson 43

To sh ib a 38

Setting up the remote commander

Step 3 : Connecting the DVD-VCR

Note that “Advanced Hookups” (page 53) explains additional hookup methods that will optimize the picture and sound for a true “hometheatre” experience.

If your TV has a Scart (EURO-AV) connector, see page 13.

If your TV does not have a Scart (EURO-AV) connector

Mains lead

to mains

AERIAL IN

Aerial cable (supplied)

: Signal flow

Note

• When you connect the DVD-VCR and your TV only with an aerial cable, you have to tune

Connecting the DVD-VCR

Disconnect the aerial cable from your TV and connect it to on the rear panel of the DVD-VCR.

Connect of the DVD-VCR and the aerial input of your TV using the supplied aerial cable.

Connect the mains lead to the mains.

your TV to the DVD-VCR (see page 15).

If your TV has a Scart (EURO-AV) connector

Getting Started

Scart (EURO-AV)

: Signal flow

Mains lead

AERIAL IN

Aerial cable (supplied)

Scart cable (not supplied)

Disconnect the aerial cable from your TV and connect it to on the rear panel of the DVD-VCR.

Connect of the DVD-VCR and the aerial input of your TV using the supplied aerial cable.

Connect LINE-1 (EURO AV) on the DVD-VCR and the Scart (EURO-AV) connector on the TV with the optional Scart cable.

This connection improves picture and sound quality.

LINE-1 (EURO AV)

to mains

Connect the mains lead to the mains.

continued

Connecting the DVD-VCR

Additional connections

To a satellite or digital tuner with Line Through

Using the Line Through function, you can watch programmes from a satellite or digital tuner connected to this DVD-VCR on the TV even when the DVD-VCR is turned off. When you turn on the satellite or digital tuner, this DVD-VCR automatically sends the signal from the satellite or digital tuner to the TV without turning itself on.

Connect the satellite or digital tuner to the LINE-3 connector as shown above.

Turn off the DVD-VCR.

To watch a programme, turn on the satellite or digital tuner and the TV.

Notes

• This function may not work with some types of satellite or digital tuners.

• When the DVD-VCR is turned off, set the TV to the video channel.

• The Line Through function will not operate properly if “Power Save” in “OPTION” menu is

set to “On.” Set “Power Save” to “Off” to ensure proper operation.

LINE-3

Scart cable (not supplied)

: Signal flow

LINE OUT

Connecting the DVD-VCR

Step 4 : Setting up the DVD-VCR with the

Auto Set Up function

Before using the DVD-VCR for the first time, set up the DVD-VCR using the Auto Set Up function. With this function, you can set TV channels, guide channels for the VIDEO Plus+ system, and DVD-VCR clock automatically.

Before you start…

• To control the DVD-VCR, set TV DVD·VIDEO remote (page 10).

to DVD·VIDEO on the

SET UP

V/v/B/b

ENTER

Getting Started

Turn on your TV and set it to the video channel.

If your TV does not have a Scart (EURO-AV) connector, tune the TV to channel 21 (the initial RF channel for this DVD-VCR). Refer to your TV manual for TV tuning instructions. If the picture does not appear clearly, see “To change the RF channel” on page 16.

Connect the mains lead to the mains.

The DVD-VCR automatically turns on and the DVD-VCR starts searching for all of the receivable channels and presets them (in the appropriate order for your local area).

If you want to change the order of the channels or disable unwanted programme positions, see “Changing/disabling programme positions” on page 22.

After the search is complete, the current time appears for any stations that transmit a time signal. If the time does not appear, set the clock manually. See “Setting the clock” on page 18.

Setting up the DVD-VCR with the Auto Set Up function

AUTO SETUP

Please wait

RETURN

10%

SET UP

To cancel the Auto Set Up function

Press SET UP.

To change the RF channel

If the picture does not appear clearly on the TV, change the RF channel on the DVDVCR and TV. Select “Install” in the “OPTION” menu, then press V/v to select “Video Output CH.” Select the RF channel by pressing the B/b buttons and press ENTER. Then, tune the TV to the new RF channel so that a clear picture appears.

Tip

• If you want to change the language for the on-screen display from the one preset in the Auto Set Up function, see page 17.

Notes

• Whenever you operate the Auto Set Up function, some of the settings (VIDEO Plus+, timer, etc.) will be reset. If this happens, you have to set them again.

• Auto preset starts automatically only when you plug in the mains lead for the first time after you purchase the DVD-VCR.

• If you want to use the Auto Set Up function again, select “Install” in the “OPTION” menu, then press V/v to select “Auto Setup.”

• Auto preset can be performed by pressing x on the unit during power off with no tape inserted.

continuously for 5 seconds or more

Setting up the DVD-VCR with the Auto Set Up function

Step 5 : Selecting a language

You can change the on-screen display language.

Before you start…

• Turn on the DVD-VCR and your TV.

• To control the DVD-VCR, set TV DVD·VIDEO

to DVD·VIDEO on the

remote (page 10).

• Set your TV to the video channel so that the signal from the player appears on the TV screen.

• If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

SET UP

V/v

ENTER

Getting Started

SET UP

ENTER

SET UP

Press SET UP, then press V/v to select (OPTION) and press ENTER.

Language Clock Install User Set Auto Power Off Screen Messages Power Save

ENTER

Press V/v to select “Language,” then press ENTER.

The “LANGUAGE SET” menu appears.

English Français Deutsch Español Italiano Nederlands

ENTER

Press V/v to select the desired language, then press ENTER.

Press SET UP to exit the menu.

Selecting a language

OPTION

:English

[ Off ] [ On ] [ Off ]

SET UP

RETURN

LANGUAGE SET

SET UP

RETURN

Step 6 : Setting the clock

You must set the time and date on the DVDVCR to use the timer features properly.

The Auto Clock Set function works only if a station in your area is broadcasting a time signal.

Before you start…

• Turn on the DVD-VCR and your TV.

• To control the DVD-VCR, set TV

DVD·VIDEO to DVD·VIDEO on the remote (page 10).

• Set your TV to the video channel so that

the signal from the player appears on the TV screen.

• If the DVD player is in play mode, you

cannot display the setup menu. Stop the DVD playback.

SET UP

V/v/B/b

ENTER

Setting the clock

SET UP

ENTER

Press SET UP, then press V/v to select (OPTION) and press ENTER.

Press V/v to select “Clock,” then press ENTER.

The “CLOCK SET” menu appears.

Press V/v to set the hour.

Language Clock Install User Set Auto Power Off Screen Messages Power Save

ENTER

Time Date 12:00 01/JAN /2005 SAT Auto Clock

vVb

ENTER

Time Date 18:00 01/JAN /2005 SAT Auto Clock

vVb

ENTER

:English

RETURN

CLOCK SET

Year

[ On ]

RETURN

CLOCK SET

Year

[ On ]

RETURN

OPTION

[ Off ] [ On ] [ Off ]

SET UP

ENTER

Press b to select the minutes and set the minutes by pressing V/v.

Time Date 18:30 01/JAN /2005 SAT Auto Clock

vVb

ENTER

RETURN

CLOCK SET

Year

[ On ]

SET UP

Getting Started

ENTER

Set the day, month, and year in sequence by pressing b to select the item to be set, and press V/v to select the digits, then press b.

The day of the week is set automatically.

Press b to select “Auto Clock.”

Press V/v to select “On” for the setting of the Auto Clock Set function.

The DVD-VCR automatically sets the clock according to the time signal broadcast between

Time Date 18:30 28/SEP /2005 WED Auto Clock

vVb

Time Date 18:30 28/SEP /2005 WED Auto Clock

ENTER

CLOCK SET

Year

[ On ]

RETURN

CLOCK SET

Year

[ On ]

SET UP

the channels PR 1 to PR 5.

If you do not need the Auto Clock Set function,

vVb

ENTER

RETURN

SET UP

select “Off.”

Press ENTER to confirm the setting.

ENTER

SET UP

Tips

• If you set “Auto Clock” to “On,” the Auto Clock Set function is activated whenever the DVD-

• To change the digits while setting, press B to return to the item to be changed, and select the

Press SET UP to exit the menu.

VCR is turned off. The time is adjusted automatically by making reference to the time signal from the station.

digits by pressing V/v.

Note

• The clock display appears when VIDEO mode is selected with no tape inserted or when the DVD-VCR is turned off.

Setting the clock

Step 7 : Presetting channels

If some channels could not be preset using the Auto Set Up function, you can preset them manually.

Before you start…

• Turn on the DVD-VCR and your TV.

• To control the DVD-VCR, set TV DVD·VIDEO

to DVD·VIDEO on the

remote (page 10).

• Set your TV to the video channel so that the signal from the player appears on the TV screen.

• If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

SET UP

V/v/B/b

ENTER O RETURN

Presetting channels

SET UP

ENTER

Press SET UP, then press V/v to select (OPTION) and press ENTER.

Press V/v to select “Install,” then press ENTER.

The “INSTALL” menu appears.

Press V/v to select “Manual Setup,” then press ENTER.

Language Clock Install User Set Auto Power Off Screen Messages Power Save [ Off ]

ENTER

Auto Setup Manual Setup Video Output CH

ENTER

4 5

VvB

RETURN

OPTION

:English

[ Off ] [ On ]

SET UP

RETURN

INSTALL

[

CH21

SET UP

RETURN

TV STATION TABLE

NAME AAB – LMN – CDE – I J K –

ENTER

SWAPPING :

CLEAR

DELETE :

]

ENTER

Press V/v to select the row which you want to preset, then press b.

To display other pages for programme positions 6 to 80, press V/v repeatedly.

PR CH MFT NAME

VvB

RETURN

MANUAL TUNING

: 5 : – – – : – : – – – –

ENTERMEMORY :

Getting Started

ENTER

Press B/b repeatedly until the channel you want is displayed.

Press V/v to select “NAME,” then press b.

Enter the station name.

1 Press V/v to select a character.

Each time you press V, the character

PR CH MFT NAME

VvB

RETURN

PR CH MFT NAME

VvB

RETURN

PR CH MFT NAME

MANUAL TUNING

: 5 : – – – : – : – – – –

MANUAL TUNING

: 5 : 33 : – : – – – –

MANUAL TUNING

: 5 : 33 : – : O – – –

changes as shown below.

A t B t … t Z t 0 t 1 t … t 9 t

– (space) t A

VvB

RETURN

2 Press b to set the next character.

The next space flashes. To correct a character, press B/b until the character you want to correct flashes, then reset it. You can set up to 4 characters for the station name.

ENTERMEMORY :

ENTER

RETURN

SET UP

Press ENTER to confirm the station name.

Press O RETURN, then press SET UP to exit the menu.

continued

Presetting channels

If the picture is not clear

If the picture is not clear, you may use the Manual Fine Tuning (MFT) function. After step 5, press V/v to select “MFT.” Press B/b to get a clear picture. Then press ENTER.

Tip

• The DVD-VCR must receive channel information for station names to appear automatically.

Note

• When adjusting MFT, the menu may become difficult to read due to interference from the picture being received.

Changing/disabling programme positions

After setting the channels, you can change the programme positions as you like. If any programme positions are unused or contain unwanted channels, you can disable them.

You can also change the station names. If the station names are not displayed, you can enter them manually.

Changing programme positions

Before you start…

• Turn on the DVD-VCR and your TV.

• To control the DVD-VCR, set TV

/ DVD·VIDEO to DVD·VIDEO on the remote (page 10).

• Set your TV to the video channel so that the signal from the player appears on the TV screen.

• If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

SET UP

ENTER

Press SET UP, then press V/v to select (OPTION) and press ENTER.

Language Clock Install User Set Auto Power Off Screen Messages Power Save

SET UP

V/v

ENTER

O RETURN

:English

RETURN

ENTER

OPTION

[ Off ] [ On ] [ Off ]

SET UP

Presetting channels

ENTER

Press V/v to select “Install,” then press ENTER.

The “INSTALL” menu appears.

Auto Setup Manual Setup Video Output CH

INSTALL

[

CH21

]

ENTER

Press V/v to select “Manual Setup,” then press ENTER.

Press V/v to select the row containing the programme position you want to change.

To display other pages for programme positions 6 to 80, press V/v repeatedly.

Press ENTER, then press V/v to move to the desired programme position.

1 2 3 4 5

VvB

RETURN

1 2 3 4 5

VvB

RETURN

1 2 3 4 5CH29

VvB

RETURN

ENTER

TV STATION TABLE

CH 27 29 30 32

SWAPPING :

TV STATION TABLE

CH 27 29 30 32

SWAPPING :

TV STATION TABLE

30 32

SWAPPING :

RETURN

NAME AAB – LMN – CDE – I J K –

DELETE :

NAME AAB – LMN – CDE – I J K –

DELETE :

NAME AAB –

CDE – I J K – LMN –

SET UP

ENTER CLEAR

ENTER

Press ENTER to confirm the setting.

To change the programme position of another station, repeat steps 4 through 6.

Getting Started

RETURN

SET UP

Press O RETURN, then press SET UP to exit the menu.

continued

Presetting channels

Disabling unwanted programme positions

After presetting channels, you can disable unused programme positions. The disabled positions will be skipped later when you press the PROG +/– buttons.

Before you start…

• Turn on the DVD-VCR and your TV.

• To control the DVD-VCR, set TV DVD·VIDEO

to DVD·VIDEO on the

remote (page 10).

• Set your TV to the video channel so that the signal from the player appears on the TV screen.

• If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

CLEAR

SET UP

V/v

ENTER

O RETURN

Presetting channels

SET UP

ENTER

Press SET UP, then press V/v to select (OPTION) and press ENTER.

Press V/v to select “Install,” then press ENTER.

The “INSTALL” menu appears.

Language Clock Install User Set Auto Power Off Screen Messages Power Save

Auto Setup Manual Setup Video Output CH

ENTER

:English

RETURN

OPTION

[ Off ] [ On ] [ Off ]

SET UP

INSTALL

[

CH21

SET UP

]

ENTER

Press V/v to select “Manual Setup,” then press ENTER.

1 2 3 4 5

VvB

RETURN

TV STATION TABLE

CH 27 29 30 32

SWAPPING :

NAME AAB – LMN – CDE – I J K –

DELETE :

ENTER CLEAR

Getting Started

ENTER

CLEAR

Press V/v to select the row which you want to disable.

To display other pages for programme positions 6 to 80, press V/v repeatedly.

Press CLEAR.

The selected row will be cleared as shown on the right.

1 2 3 4 5

VvB

RETURN

1 2 3 4 5

VvB

RETURN

TV STATION TABLE

CH 27 29 30 32

SWAPPING :

TV STATION TABLE

CH 27

30 32

SWAPPING :

NAME AAB – LMN – CDE – I J K –

DELETE :

NAME AAB –

CDE – I J K –

DELETE :

Repeat steps 4 and 5 for any other programme positions you want to disable.

Press O RETURN, then press SET UP to exit the menu.

RETURN

SET UP

Note

• Be sure to select the programme position you want to disable correctly. If you disable a programme position by mistake, you need to reset that channel manually.

ENTER CLEAR

continued

Presetting channels

Changing the station names

You can change or enter the station names (up to 4 characters). The DVD-VCR must receive channel information for station names to appear automatically.

Before you start…

• Turn on the DVD-VCR and your TV.

• To control the DVD-VCR, set TV DVD·VIDEO

to DVD·VIDEO on the

remote (page 10).

• Set your TV to the video channel so that the signal from the player appears on the TV screen.

• If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback.

SET UP

V/v/B/b

ENTER O RETURN

SET UP

ENTER

Press SET UP, then press V/v to select (OPTION) and press ENTER.

Press V/v to select “Install,” then press ENTER.

The “INSTALL” menu appears.

Press V/v to select “Manual Setup,” then press ENTER.

1 2 3 4 5

VvB

RETURN

:English

Language Clock Install User Set Auto Power Off Screen Messages Power Save

RETURN

ENTER

Auto Setup Manual Setup Video Output CH

RETURN

ENTER

TV STATION TABLE

NAME

AAB –

LMN –

CDE –

I J K –

SWAPPING :

DELETE :

OPTION

[ Off ] [ On ] [ Off ]

SET UP

INSTALL

[

CH21

SET UP

ENTER CLEAR

]

Presetting channels

ENTER

Press V/v to select the row which you want to change or enter the station name, then press b.

To display other pages for programme positions 6 to 80, press v/V repeatedly.

PR CH MFT NAME

vVB

RETURN

MANUAL TUNING

: 5 : 33 : – : – – – –

ENTERMEMORY :

Getting Started

ENTER

RETURN

SET UP

Press V/v to select “NAME,” then press b.

Enter the station name.

1 Press V/v to select a character.

Each time you press V, the character

PR CH MFT NAME

vVB

RETURN

PR CH MFT NAME

MANUAL TUNING

: 5 : 33 : – : – – – –

MANUAL TUNING

: 5 : 33 : – : O – – –

changes as shown below.

A t B t … t Z t 0 t 1 t … t 9 t – (space) t A

vVB

RETURN

2 Press b to set the next character.

The next space flashes. To correct a character, press B/b until the character you want to correct flashes, then reset it.

You can set up to 4 characters for the station name.

Press ENTER to confirm the new name.

Press O RETURN, then press SET UP to exit the menu.

ENTERMEMORY :

Presetting channels

Basic Operations

Playing discs

Depending on the disc, some operations may be different or restricted. Refer to the operating instructions supplied with your disc.

Before you start...

• Turn on the DVD-VCR and your TV.

• Set your TV to the video channel so that the signal from the player appears on the TV screen.

•Set TV

/ DVD·VIDEO to DVD·VIDEO, then press SELECT DVD to control the DVD player (page 10).

?/1 Z

m/M y

./> X

x H

Playing discs

Press Z to open the disc tray and place a disc on the disc tray.

with the playback side facing down

Press H.

The disc tray closes and the DVD player starts playback. The display window shows the playback time.* Depending on the disc, a menu may appear on the TV screen. For DVDs, see page 69. For VIDEO CDs, see page 92.

* “– – – – –” appears when no disc

is loaded.

Tips

• To make a video timer reservation during DVD playback, we recommend performing the operations under “Quick Timer Recording” (page 94).

• During DVD playback, DVD-VCR does not standby even if the VCR stops recording.

Hour Minute Second

Notes

• You can change the screen type using the “SCREEN SETUP” menu (see “Screen Setup” on page 60).

• Stop VIDEO playback while playing back a disc.

• If you play a DVD or VIDEO CD that has scratches, the player may stop playback at the point of the scratch.

• Playback of play lists longer than 10 hours recorded in VR mode is not guaranteed.

Additional tasks

To Press

Stop play x

Pause play*

Resume play after pause H

Go to the next frame in pause mode

Go to the previous frame in pause mode

Go to the next chapter, track, or scene in continuous play mode

Go back to the previous chapter, track, or scene in continuous play mode

SKIP

REPLAY

> NEXT on the remote or M on the unit

. PREV on the remote or m on the unit

Basic Operations

continued

Playing discs

To Press

Locate a point quickly

m or M on the remote (or hold down m or M on the unit)

The playback speed changes as follows each time you press the button on the remote (or depending on how long you press the button on the unit):

•DVD

fast forward: PLAY t ×1.4 ••N•*

t 1M t 2M t 3M t 4M t 5M t 6M fast reverse: PLAY t 1m t 2m t 3m t 4m t 5m t 6m

• CD, MP3 and VIDEO CD

fast forward: PLAY t 1M t 2M t 3M fast reverse: PLAY t 1m t 2m t 3m

When you find the point you want, press H.

Watch slow motion in continuous play mode (DVD and VIDEO CD only)

X during playback, then press or y The playback speed changes as follows each time you

press or y:

•DVD forward slow motion: ×0.6

••N•*2 t 2 y t 3 y

reverse slow motion (except for DVD-RW in VR mode): 1 t 2 t 3

•VIDEO CD forward slow motion only: 1 y t 2 y t 3 y

To resume normal playback, press H.

Replay the previous scene for 10 seconds in continuous play

mode*

REPLAY

(Instant Replay)

Briefly fast forward the current scene for 30 seconds in continuous play mode*

3*4

SKIP

(Instant Advance)

Stop play and remove the disc Z

If you pause the DVD player for more than 5 minutes, the DVD player will automatically

stop.

Playback quickly or slowly with sound (

only)” on page 31).

For DVD VIDEOs and DVD-RWs/DVD-Rs or DVD+RWs/DVD+Rs only

You can press SKIP up to 4 times. This allows you to fast forward up to 2 minutes in

see “To playback quickly or slowly with sound (DVD

total.

Playing discs

Tips

• The Instant Replay function is useful when you want to review a scene or dialogue that you missed.

• The Instant Advance function is useful when you want to pass over a scene that you do not want to watch.

+ 94 hidden pages
