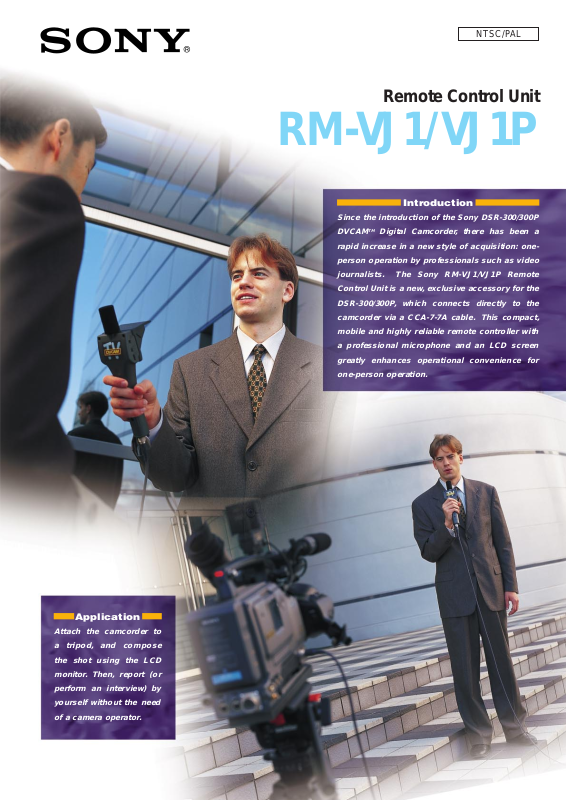

Sony RM-VJ1, RM-VJ1P Specifications
NTSC/PAL
Remote Control Unit
RM-V J1/V J1 P
Introduction
Since the introduction of the Sony DSR-300/300P
DVCAM
TM
Digital Camcorder, there has been a
rapid increase in a new style of acquisition: oneperson operation by professionals such as video
journalists. The Sony RM-VJ1/VJ1P Remote
Control Unit is a new,exclusive accessory for the
DSR-300/300P, which connects directly to the
camcorder via a CCA-7-7A cable. This compact,
mobile and highly reliable remote controller with
a professional microphone and an LCD screen
greatly enhances operational convenience for
one-person operation.
Application
Attach the camcorder to
a tripod, and compose
the shot using the LCD
monitor. Then, report (or
perform an interview) by
yourself without the need
of a camera operator.
MK7266V1OHB99JAN
Distributed by
Printed in Japan
General
Signal input: Composite (RM-VJ1: NTSC, RM-VJ1P: PAL)
Power consumption: 3 W (at operation), 1.3 W (backlight off)
Dimensions: 261(H) x 77.4(W) x 32.5(D) mm (w/o projections)
(10 3/8 x 3 1/8 x 1 5/16 inches)
Mass: 240 g (8 oz)
Operation temperature: 0°C to 40°C (32°F to 104°F)
Cable length: 7 m (20 ft) (CCA-7-7A only)
Monitor
Display: 2.5-inch TFT LCD, 180K dot (NTSC/PAL)
Microphone
Connector: 4-pin (equivalent to ECM-77BC)
Directivity: Omni-directional
© 1999 Sony Corporation. All rights reser ved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
DVCAM and ClipLink are trademarks of Sony Corporation.
Sony is a registered trademark of Sony Corporation.
All other trademarks are the property of their respective owners.
Features
Specifications
Hand-held Monitor
♦
2.5-inch color TFT LCD monitor
♦
Brightness control capability
♦
Monitor hood for a field production use
♦
LCD backlight OFF capability:
Power Save software
High Quality Microphone
♦
Omni-directional type for superior
sound quality
♦
Volume control function
♦
Lavaliere Microphones (ECM-44BC/55BC/77BC)
can be connected instead of
the attached microphone
Dimensions
Unit: mm
Remote Control of
Camcorder Functions
♦
REC Start/Stop, REC Review
(with auto videolight on/off if attached)
♦
Zoom control*
♦
TAKE, NG marking for ClipLinkTMoperation
* Requires lens with remote zoom capability
Others
♦
Enables DC power supply
from the camcorder
♦
Company name label
can be attached
Supplied Accessory
♦
CCA-7-7A Camera Cable
♦
Strap for Remote Control Unit
♦
Instruction Manual
77.4
276
30
54
36 × 70
