Sony PSP-1003, PSP-1002 User Manual

PSP-1002 PSP-1003

3-097-556-21(1)

Quick Reference

Using the Home Menu

Introduction

GAME

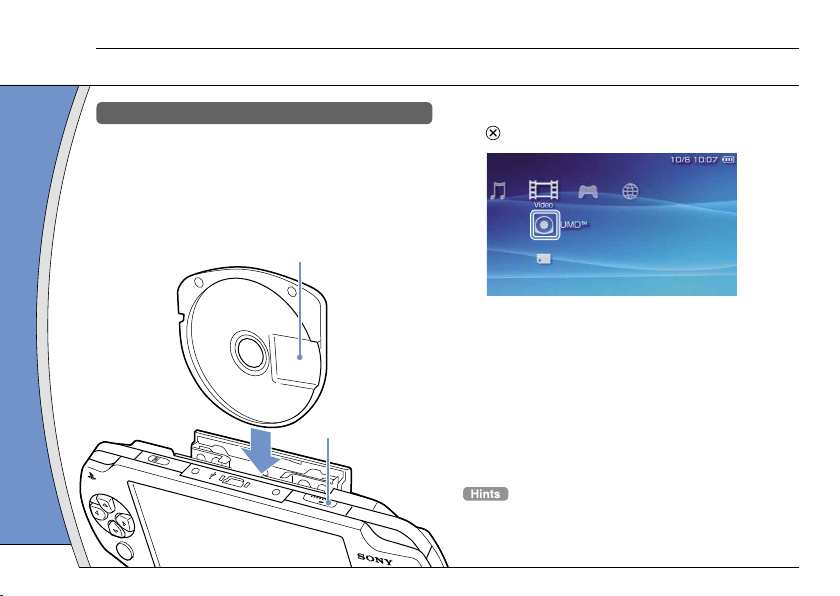

Playing games

VIDEO

Playing video

MUSIC

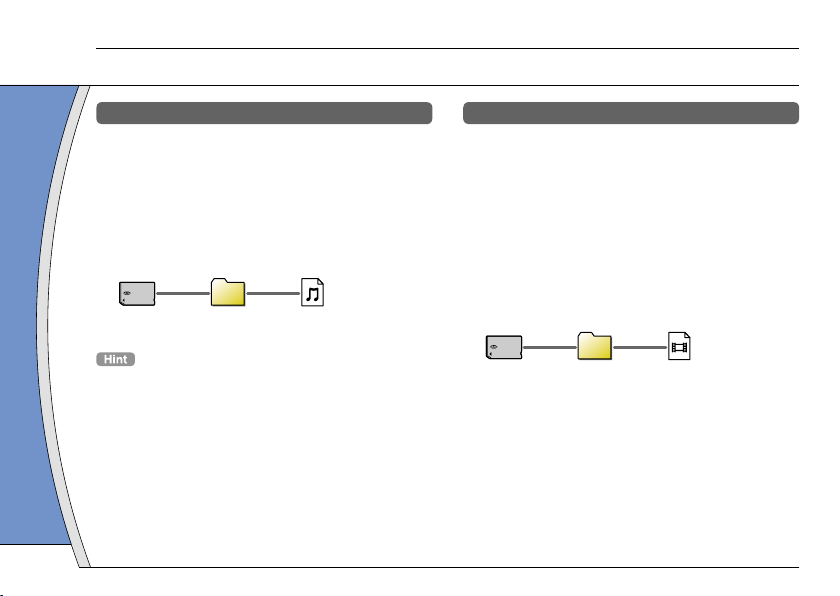

Playing music


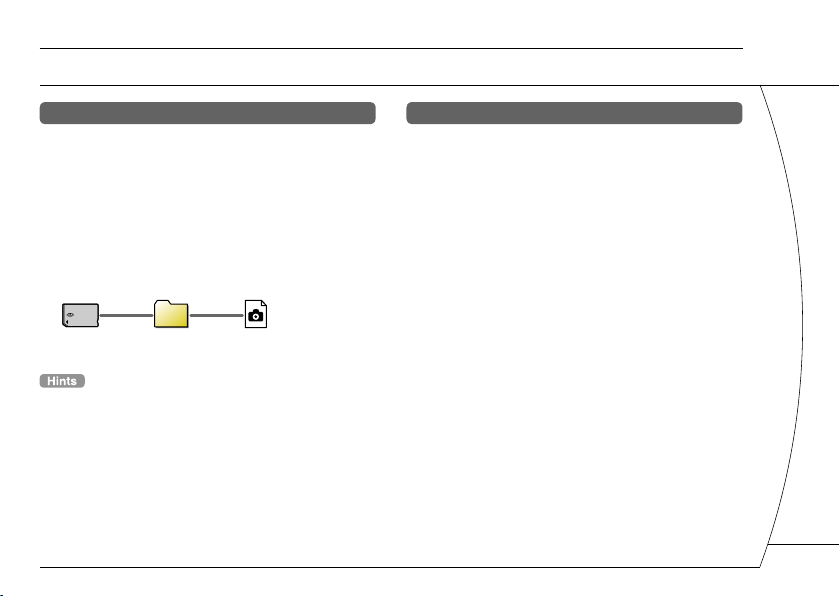

Displaying images

NETWORK

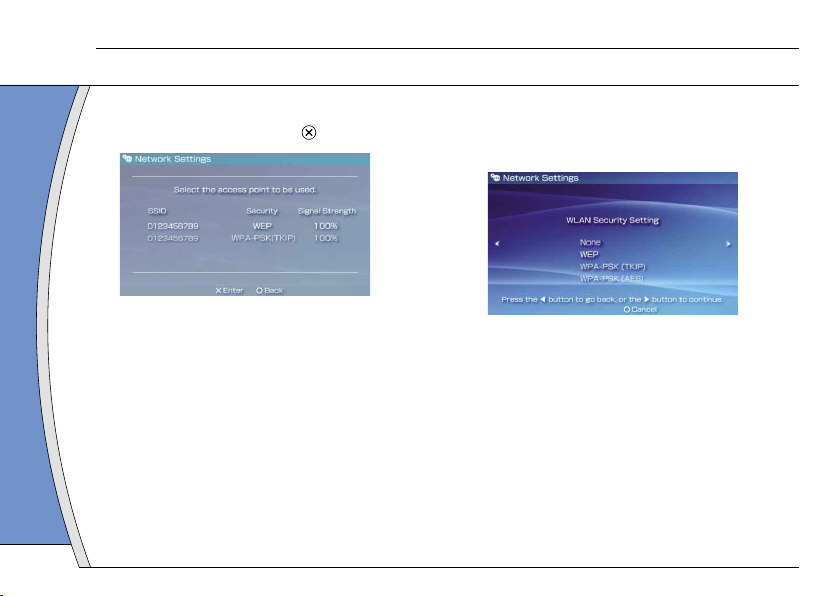

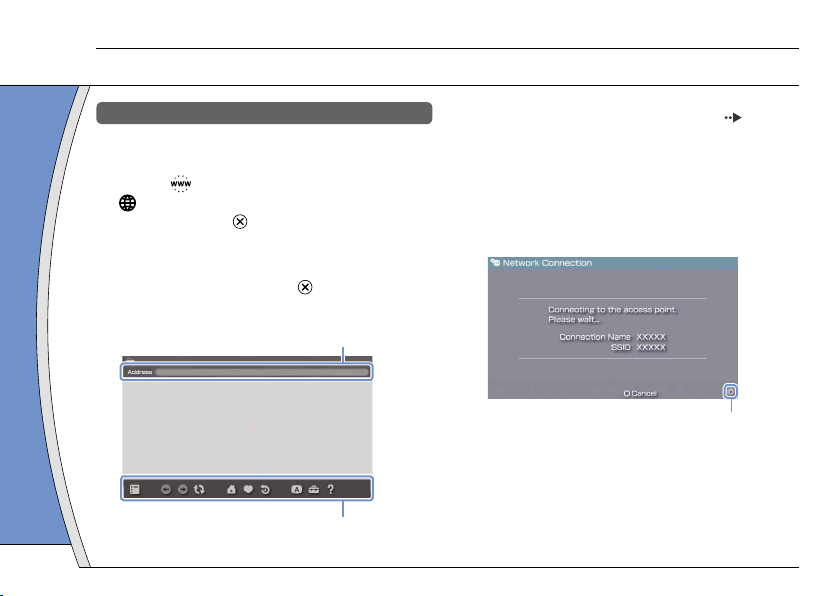

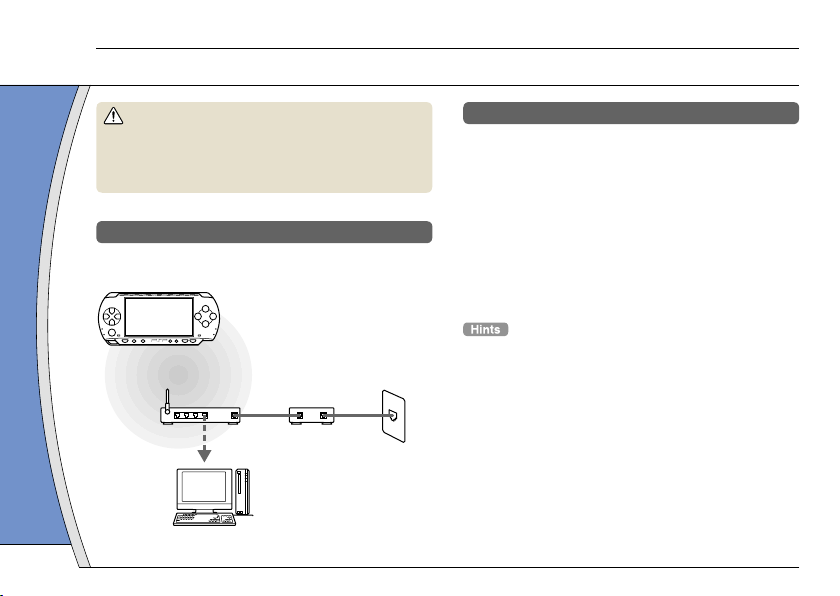

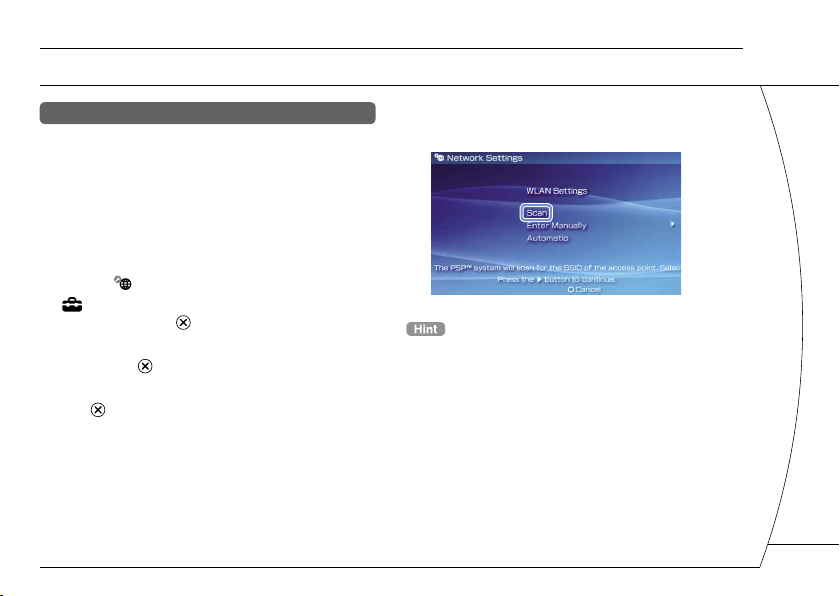

Connecting to the Internet

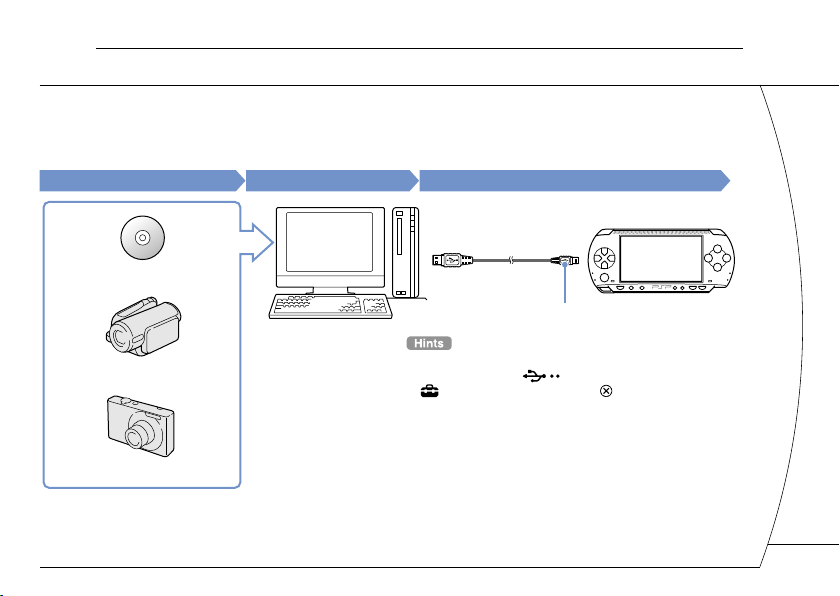

SETTINGS

Adjusting PSP® system settings

Busy icon:

This icon is displayed when a page is loading.

Category

Select a category using the left or right button.

Select an item using the up or down button.

Press the button to conﬁrm the selected item.

Item

POWER

HOLD

SELECT

HOME

VOL

START

This document describes basic operations of the PSP® system. For detailed instructions, refer to the online user’s guide ( page 23) : http://manuals.playstation.net/document/

Directional buttons:

Used to select

categories/items

button:

Cancels selected operations

button:

Conﬁrms selected items

HOME button:

Returns to the Home Menu

Select an icon, and then press the button to display the options menu.

While playing content, press the button to display the control panel.

button: Displays the options menu/control panel

Icons Options menu

Control panel

Checking the package contents

Preparation

Check that you have all of the following items. If any items are missing, contact the appropriate PSP® customer service helpline which can be found within every PSP® format software manual.

PSP® (PlayStation®Portable) system

Battery Pack

Printed Materials

AC Adaptor AC Adaptor

(PSP-1003 only)

AC Adaptor

(PSP-1002 only)

AC Power Cord

(PSP-1002 only)

Preparation

Checking the package contents

Headphones* with Remote Control

* Ear Friendly Headphones (PSP-1003 only)

Memory Stick Duo™ (32 MB)

Wrist Strap

Pouch

Cloth

Supplied with the Value Pack only

About the PSP® system documentation

The PSP® system documentation includes the following:

• Safety and Support

Before using the product, carefully read this document ﬁrst. It contains safety information related to the use of the PSP® system, troubleshooting, speciﬁcations and other information.

• Quick Reference (this document)

This document contains information on basic hardware operations of the PSP® system.

• User’s Guide

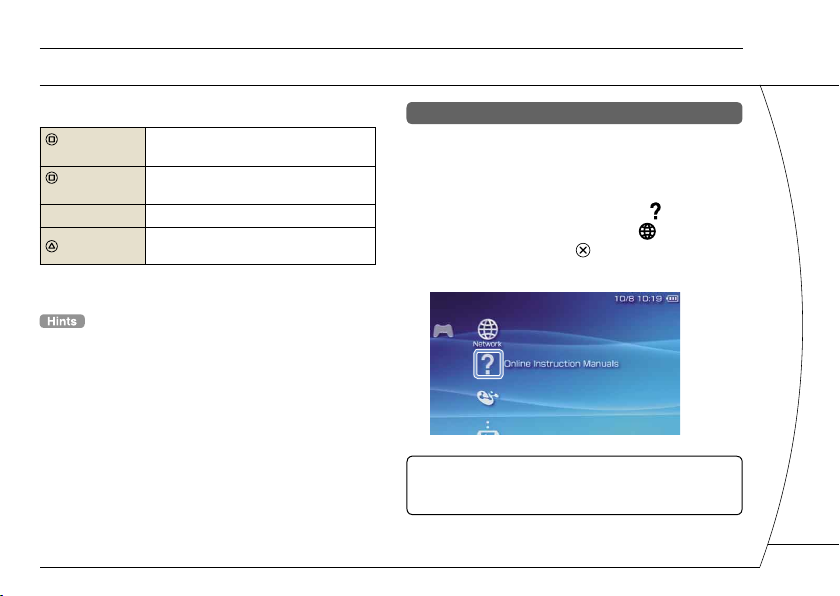

(http://manuals.playstation.net/document/) This online document is accessed through the Internet and contains detailed information related to the use of the PSP® system software ( page 23).

Preparing the PSP® system for use

Preparation

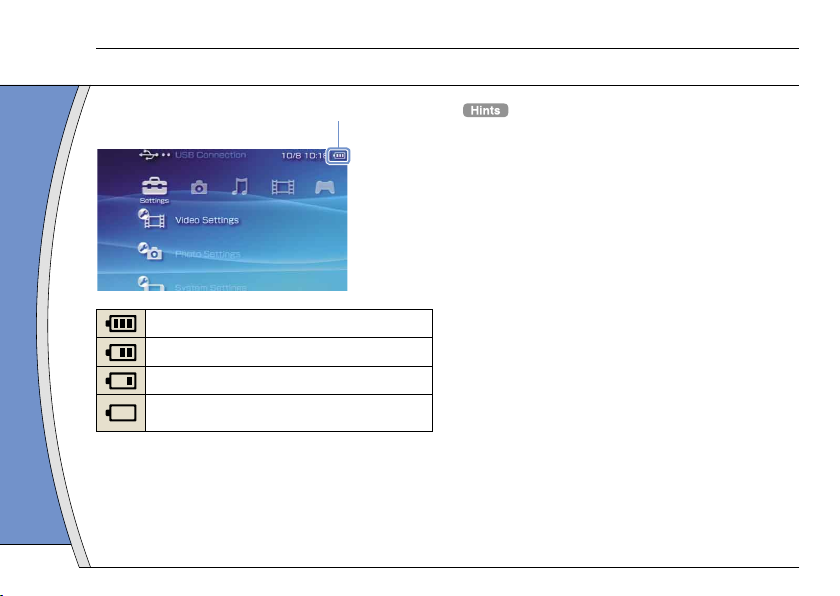

Charging the battery

Before using the PSP® system for the ﬁrst time after purchase, you must follow these steps to charge the battery.

Caution

• The socket-outlet shall be installed near the equipment and shall be easily accessible.

• Do not plug the AC Power Cord for the PSP

system into an electrical outlet until you have made all other connections.

Notice

Do not use the PSP® system with the AC Adaptor when the Battery Pack is not inserted in the system. If the AC Adaptor is disconnected suddenly, it may result in damage to the system.

1 Insert the Battery Pack.

While holding down the PUSH button, slide the battery cover in the direction of the arrow. Align the bottom surface of the Battery Pack with the system to attach the battery.

UMD

Align the tabs, and then slide the cover in the direction of the arrow until it locks ﬁrmly into place.

UMD

Preparation

Preparing the PSP® system for use

2 Attach the AC Adaptor* to charge the

battery.

POWER

HOLD

SELECT

HOME

VOL

START

The POWER indicator lights up in orange, indicating that charging has begun. The POWER indicator will turn off when the battery is fully charged.

POWER indicator

* Some regions and countries may use a different

AC Adaptor from the one illustrated.

To electrical outlet

Initial setup

1 Slide the POWER/HOLD switch up.

POWER/HOLD switch

The POWER indicator lights up in green, and the initial setup screen is displayed.

2 Follow the on-screen instructions to

make settings for system language, time zone, date and time and nickname.

When you have completed initial setup, the Home Menu ( page 2) is displayed.

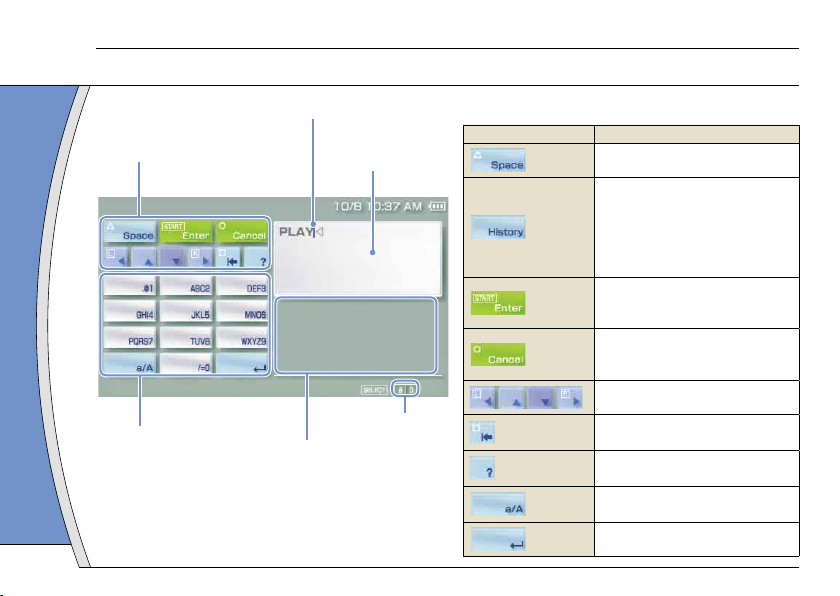

• See "Using the on-screen keyboard" ( page 24) for information on entering characters.

• Settings made during initial setup can be changed later in

(Settings). See the user’s guide ( page 23) for details.

Part names and functions

Preparation

System

WLAN switch (left side)

POWER/HOLD switch (right side)

( page 10)

OPEN latch (top) ( page 12)

HOLD indicator

( page 10)

POWER indicator

( page 10)

LCD screen

L button

Directional buttons

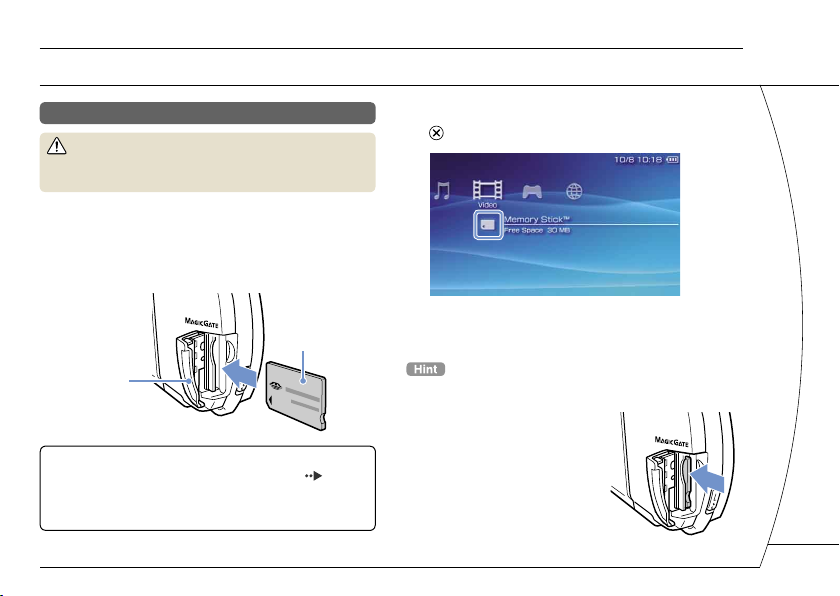

Memory Stick Duo™

access indicator

( page 13)

WLAN access indicator

Lights up when using the

wireless LAN feature

Analog stick

Strap holder

HOME button

Displays the Home Menu

Volume - button

Volume + button

START button

SELECT button

R button

button button

Sound button

( page 9)

Display button

( page 9)

POWER

HOLD

SELECT

HOME

VOL

START

Using the sound button

Press and release

Each time you press the button, the tone changes among HEAVY POPS JAZZ UNIQUE OFF. *1

Press for more than one second

The sound is muted. *2

*1 : The tone can be changed only when using headphones.

Also, the tone setting is temporarily set to “OFF” during gameplay.

*2 : To clear muting, press the sound button again. You can

also clear by pressing the volume + or volume - button on the system or on the Remote Control.

Using the display button

Press and release

Each time you press the button, the display changes among three levels of screen brightness. *1

Press for more than one second

The backlight turns off and the screen goes blank. *2

*1 : The highest level (level 4) can be selected only while the

PSP® system is plugged in using the AC Adaptor.

*2 : To turn the backlight back on, press any of the PSP®

system buttons.

Preparation

Part names and functions

Headphones with Remote Control

The headphones with Remote Control are supplied with the Value Pack and are also sold separately.

HOME

VOL

Headphones

Remote Control

Basic operations

Use the POWER/HOLD switch to turn the system on or off, or to put it into sleep or hold mode.

POWER/HOLD switch

POWER indicator

HOLD indicator

POWER/HOLD switch

Turning the system on / Putting into sleep mode

Slide up

B Turning the system off

Slide up and hold for more than three seconds

C Locking the system buttons*

Slide down

*All operations using system buttons are locked.

POWER indicator

Solid green

Power on

Solid orange

Charging

Flashing green

Charge level is low

Light off

Power off/in sleep mode

HOLD indicator

Solid yellow

In hold mode

Power and sleep mode functions
