Mini Hi-Fi Component System

Operating Instructions

3-862-899-71(1)

MHC-V717 MHC-V515

Page 2

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.

This stereo system is equipped with the Dolby Btype noise reduction system*. * Manufactured under license from Dolby Laboratories Licensing Corporation. DOLBY and the double-D symbol a are trademarks of Dolby Laboratories Licensing Corporation.

This system can play the following discs

VIDEO CDs Audio CDs

Disc logo

Contents Audio + Video Audio

(moving pictures) Disc size 12 cm/8 cm 12 cm/8 cm Play time 74 min./20 min. 74 min./20 min.

Note on VIDEO CDs

This system conforms to VIDEO CDs without PBC functions (Ver. 1.1) and VIDEO CDs with PBC functions (Ver. 2.0) of VIDEO CD standards. You can enjoy two kinds of playback according to the disc type.

Disc type You can

VIDEO CDs without Enjoy video playback PBC functions (moving pictures) as (Ver. 1.1 discs) well as audio CDs.

VIDEO CDs with Play interactive PBC functions software using menu (Ver. 2.0 discs) screens displayed on

the TV screen (menu playback), in addition to the video playback function of VIDEO CDs without PBC functions. Moreover, you can play high or standard quality still picture.

* PBC = Play Back Control

Page 3

Table of Contents

Getting Started

Step 1: Hooking up the system............ 4

Step 2: Setting the time ......................... 8

Step 3: Presetting radio stations .......... 9

Connecting optional AV

components .................................... 10

Basic Operations

Playing a VIDEO CD ........................... 14

Playing a CD ......................................... 16

Recording a CD/VIDEO CD .............. 18

Listening to the radio........................... 19

Recording from the radio .................... 20

Playing a tape........................................ 21

Recording from a tape ......................... 23

Singing along: Karaoke ...................... 24

The VIDEO CD/CD Player

Playing a VIDEO CD with PBC

functions (Ver. 2.0) ........................ 26

Checking the remaining time ............. 27

Using the on-screen display ............... 28

Locating a specific part of a disc ........ 30

Resuming playback from the point you

stopped a VIDEO CD .................... 34

Setting the sharpness ........................... 35

Playing the CD tracks repeatedly ...... 36

Playing the CD tracks in random

order ................................................ 37

Programming the CD tracks ............... 38

Playing CDs without interruption ..... 39

The Tape Deck

Recording on a tape manually ........... 40

Recording a CD by specifying track

order ................................................ 41

DJ Effects

Looping part of a CD ........................... 43

Flashing part of a CD ........................... 43

Sound Adjustment

Adjusting the sound ............................ 44

Selecting the audio emphasis ............. 45

Selecting the surround effect .............. 47

Adjusting the graphic equalizer* ....... 47

Making a personal audio emphasis

file* .................................................. 48

Other Features

Mixing and recording sounds ............ 50

Falling asleep to music ........................ 51

Waking up to music ............................. 51

Timer-recording radio programs ....... 53

Additional Information

Precautions ............................................ 54

Troubleshooting ................................... 55

Specifications ........................................ 58

Glossary ................................................. 60

Index....................................................... 61

* MHC-V717 only

Page 4

Getting Started

Step 1: Hooking up the system

Do the following procedure 1 to 7 to hook up your system using the supplied cords and accessories.

To the video input

AM loop antenna

FM antenna

Front speaker

(Right)

Connect the speakers.

Connect the speaker cords of front speakers to the SPEAKER jacks of the same color .

Keep the speaker cords away from the antennas to prevent noise.

Insert only the stripped portion.

+ –

Front speaker

(Left)

Note

The type of speakers supplied vary according to the model you purchased (see "Specifications" on page 58).

Red (‘)

Black (’)

Page 5

Connect the FM/AM antennas.

Set up the AM loop antenna, then connect it.

Jack type A

Extend the FM lead

AM loop antenna

antenna horizontally.

3 Connect the video input jack of your

TV to the VIDEO OUT jack with the supplied video connecting cable.

Jack type B

AM loop antenna

Extend the FM lead antenna horizontally.

FM75

FM75 COAXIAL

VIDEO OUT

When using a TV

Turn on the TV and select the video input so you can view the pictures from this system.

Tip

For even higher quality video images, you can use an optional S VIDEO cord to connect the S VIDEO input jack on your TV to the S VIDEO OUT jack

continued

Page 6

Step 1: Hooking up the system (continued)

4 Set SYSTEM SELECT (color system)

to the appropriate position (PAL or NTSC), according to your TV.

PALNTSC

AUTO

SYSTEM SELECT

If your TV automatically changes the color system according to the input signal:

The factory setting (AUTO) automatically changes the color system of the video output according to the color system of the current VIDEO CD.

If the color system of your TV is NTSC:

Set SYSTEM SELECT to NTSC.

Pictures recorded in the PAL color system will be stretched vertically and will be displayed with the upper and lower parts of the picture cut off.

If the color system of your TV is PAL:

Set SYSTEM SELECT to PAL.

Pictures recorded in the NTSC color system will be stretched horizontally and will be displayed with the upper and lower parts of the screen masked in black.

Note

Be sure to turn off the system before changing the SYSTEM SELECT setting.

Set VOLTAGE SELECTOR to position of your local power line voltage (for models with a voltage selector).

VOLTAGE SELECTOR

110-120V 220-240V

Connect the power cord to a wall outlet.

Demo mode appears in the display.

Deactivate the demo mode by

pressing DISPLAY/DEMO when the system power is turned off.

The demo mode is also deactivated when you set the time.

To attach the front speaker pads

Attach the supplied front speaker pads to the bottom of the speakers to stabilize the speakers and prevent them from slipping.

Page 7

Inserting two size AA (R6) batteries into the remote

Using the remote

You can use the shaded buttons shown below to operate Sony TV.

When carrying this system

Do the following to protect the CD mechanism.

1 Press FUNCTION repeatedly until “CD”

appears in the display.

2 Hold down CD LOOP and press so

that "LOCK" appears in the display.

TV/VIDEO

To Press

Turn the TV on or TV . off

Switch the TV's TV/VIDEO. video input

Change the TV TV CH +/–. channels

Adjusts the volume TV VOL +/–. of the TV speaker(s)

TV TV VOL +/

TV CH +/

Tip

With normal use, the batteries should last for about six months. When the remote no longer operates the system, replace both batteries with new ones.

Note

If you do not use the remote for a long period of time, remove the batteries to avoid possible damage from battery leakage.

Page 8

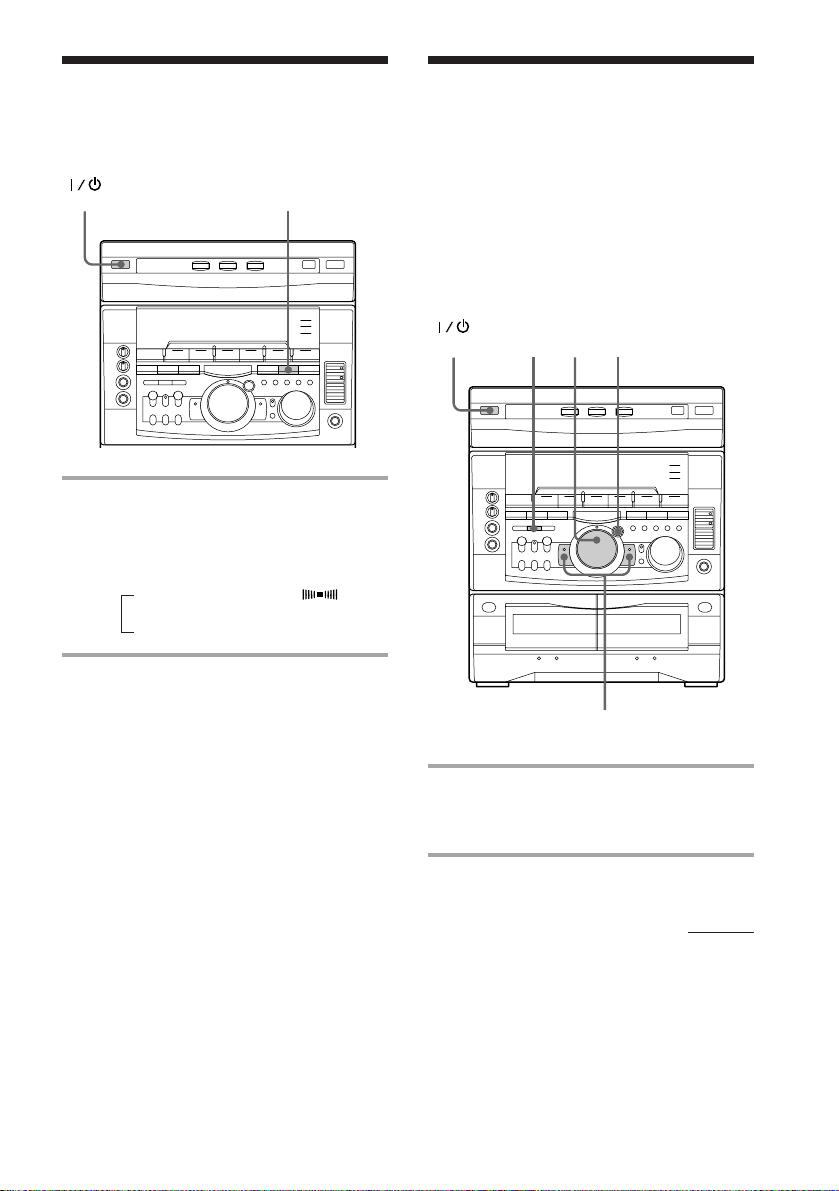

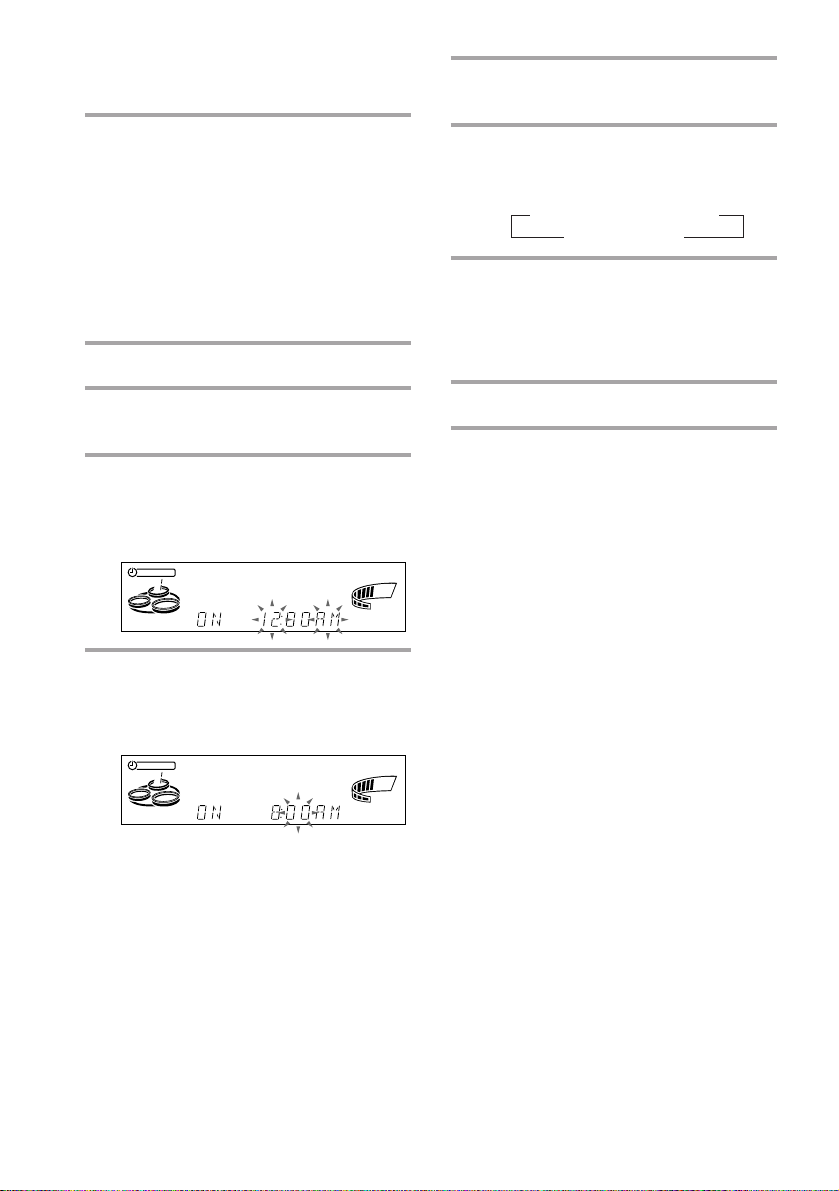

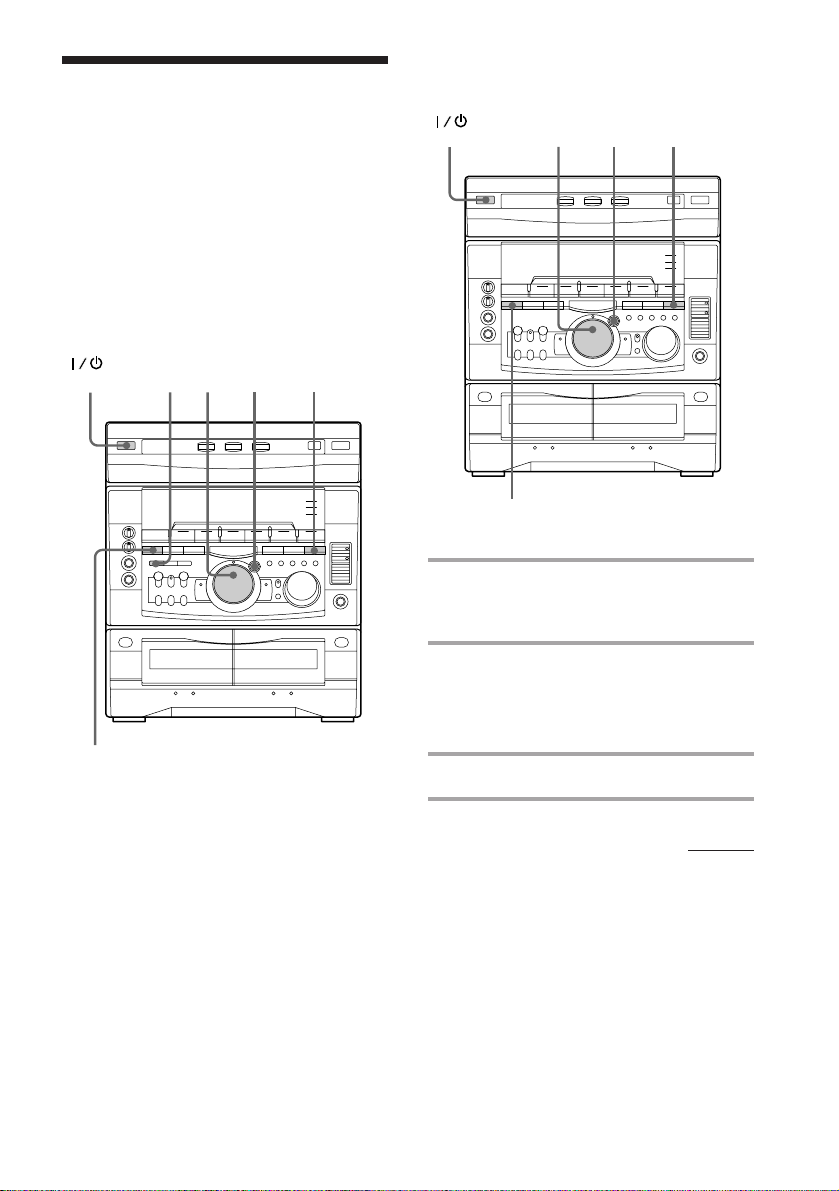

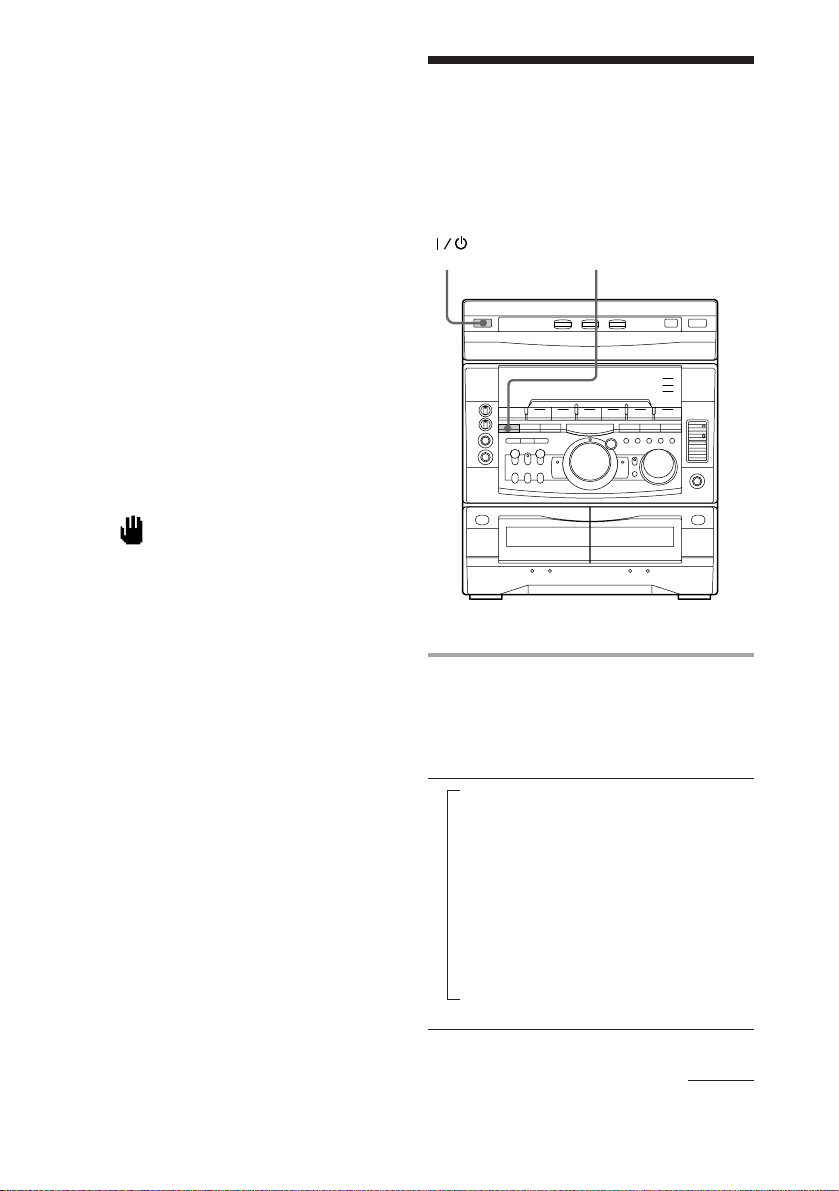

Step 2: Setting the

4 Turn the jog dial to set the minute.

time

You must set the time before using the timer functions.

1 Press CLOCK/TIMER SET.

The hour indication flashes.

3,52,4

5 Press ENTER/NEXT.

The clock starts working.

Tips

• If you’ve made a mistake, start over from step 1.

• Setting the time deactivates the demo mode. If you want to display the demo mode, press DISPLAY/DEMO when the power is off.

Note

The previous explanation shows you how to set the time while the power is off. To change the time while the power is on, do the following: 1 Press CLOCK/TIMER SET. 2 Turn the jog dial to select SET CLOCK. 3 Press ENTER/NEXT. 4 Perform steps 2 through 5 above.

2 Turn the jog dial to set the hour.

3 Press ENTER/NEXT.

The minute indication flashes.

Page 9

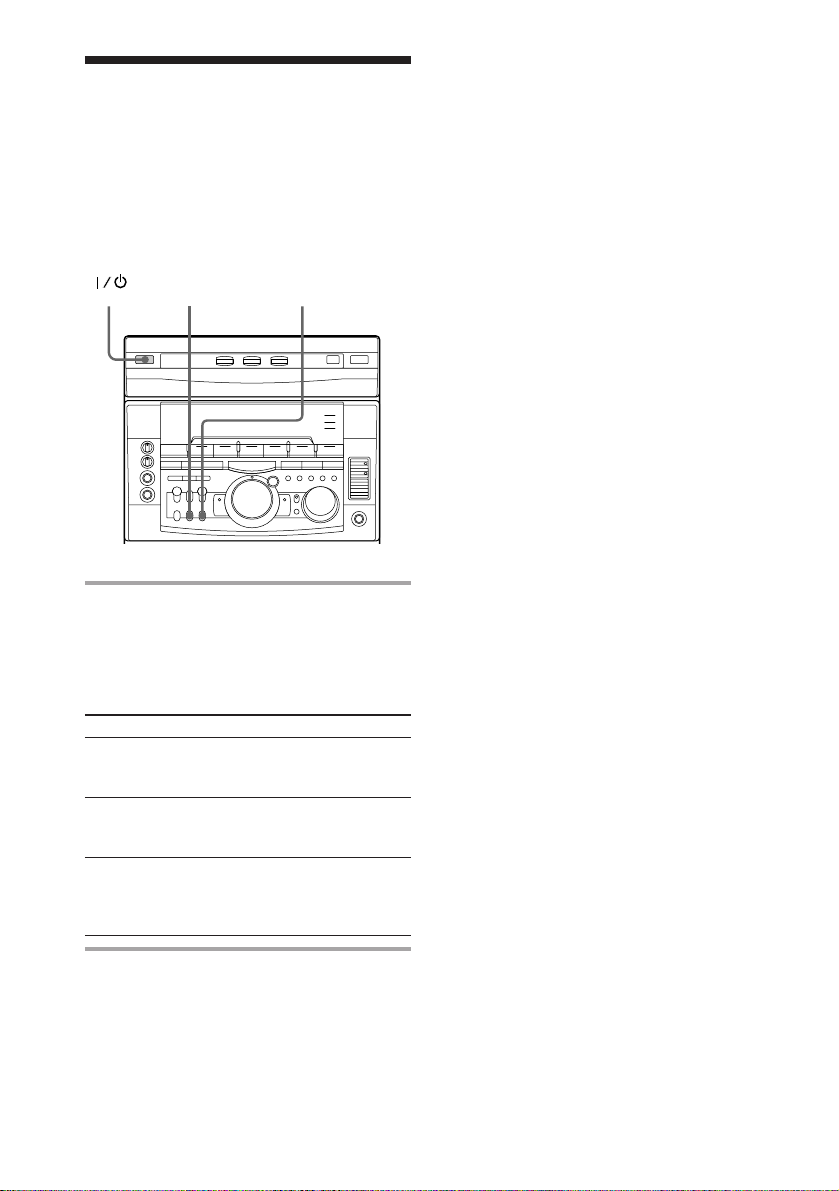

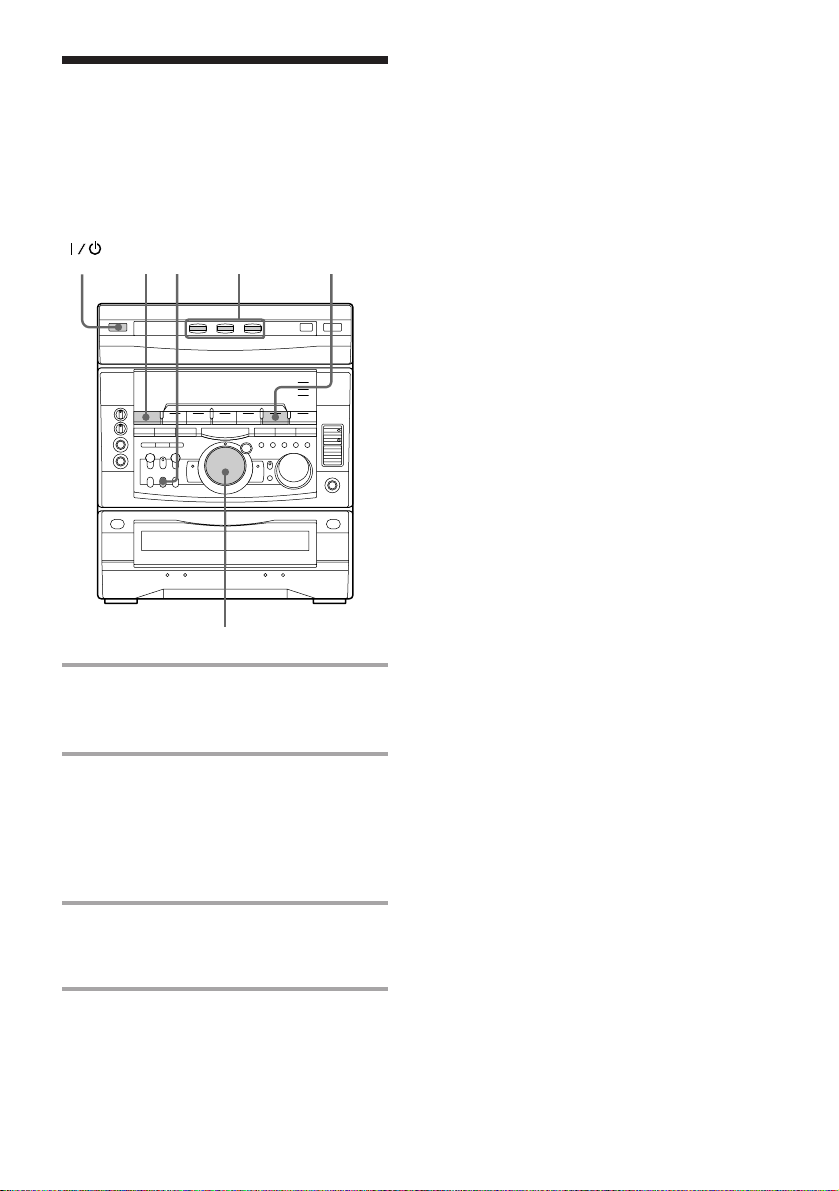

Step 3: Presetting radio stations

You can preset the following number of stations:

– 2 band model: 20 for FM, 10 for AM. – 3 band model: 20 for FM, 10 for MW, and

10 for SW.

(Power)

541

2 Press and hold + or – until the

frequency indication starts to change, then release.

Scanning stops when the system tunes in a station. “TUNED” and “STEREO” (for a stereo program) appear.

MONO

ALL DISCS

3 Press TUNER MEMORY.

A preset number appears in the display.

Preset number

TUNED STEREO

VOLUME

kHz

MHz

1 Press TUNER/BAND repeatedly

until the band you want appears in the display.

The bands you can receive vary depending on the model you purchased. Be sure to check which bands you can receive.

Every time you press this button, the band changes as follows: 2 band model:

FM ˜ AM 3 band model: FM n MW n SW

ALL DISCS

VOLUME

ß

4 Turn the jog dial to select the preset

number you want.

5 Press ENTER/NEXT.

The station is stored.

6 Repeat steps 1 to 5 to store other

stations.

To tune in a station with a weak signal

Press + or – repeatedly in step 2 to tune in the station manually.

To change the preset number

Start over from step 1.

continued

Page 10

Step 3: Presetting radio stations (continued)

Tip

The preset stations are retained for half a day even if you unplug the power cord or if a power failure occurs.

Connecting optional AV components

To enhance your system, you can connect optional components. Refer to the instructions of each component.

Connecting audio components

Select one of the following two connections, depending on the equipment to be connected and method of connecting.

Connecting an MD deck for digital recording

You can record from CD into the MD deck digitally by connecting an optical cable.

To the DIGITAL IN jack of the MD deck

Note

You cannot record from a VIDEO CD to an MD deck digitally. When you record from a VIDEO CD to an MD deck, connect an optional audio cable to the audio output. (See “Connecting an MD deck for analog recording.”)

Page 11

Connecting an MD deck for analog recording

Make sure to match the color of the plugs and the connectors. To listen to the sound of the connected MD deck, press FUNCTION repeatedly until “MD” appears.

To the audio output of the MD deck

To the audio input of the MD deck

Connecting a super woofer speaker

You can connect an optional super woofer speaker.

To super woofer

Tip

When you connect a Sony MD deck, you can use the MD (, P, and p buttons on this unit’s remote to perform play, pause, and stop operations.

Note

If you cannot select “MD” even when you have pressed FUNCTION, press FUNCTION when the power is turned off. “VIDEO” will be switched to “MD”. To return to “VIDEO” do the same procedure.

while pressing

continued

Page 12

Connecting optional AV components (continued)

Connecting a VCR

Make sure to match the color of the plugs and the connectors. To listen to the sound of the connected VCR, hold down FUNCTION and press when the power is turned off. This switches the “MD” function to “VIDEO”. Once you enable the “VIDEO” function, just press FUNCTION repeatedly until “VIDEO” appears.

By connecting the audio output jacks of your VCR to the MD/VIDEO (AUDIO) IN jacks using an optional audio cable, you can enjoy video playback in powerful stereo sound.

Moreover, if you connect the video input on the VCR to the MD/VIDEO (AUDIO) OUT jacks and VIDEO OUT (or S VIDEO OUT) jack using the supplied video connecting cable (or an optional S VIDEO connecting cable), you can record the audio and video signals from a VIDEO CD onto video tape.

To the audio outputs of the VCR using an optional audio cable

To the audio inputs of the VCR using an optional audio cable

To the video input of the VCR using the video cable

To the S VIDEO input of the VCR using an optional S VIDEO cable

Note

If the sound is distorted when selecting “VIDEO”, or you want to switch back to “MD”, repeat the operation described above for switching to “VIDEO”.

Page 13

Connecting outdoor antennas

Connect the outdoor antenna to improve the reception.

FM antenna

Connect the optional FM outdoor antenna. You can also use the TV antenna instead.

Jack type A

AM antenna

Connect a 6- to 15- meter (20- to 50- feet) insulated wire to the AM antenna terminal. Leave the supplied AM loop antenna connected.

Jack type A

Screw clamp

Insulated wire (not supplied)

FM75

75-ohm coaxial cable (not supplied)

Ground wire (not supplied)

Jack type B

IEC standard socket connector (not supplied)

Ground wire (not supplied)

Screw clamp

FM75 COAXIAL

FM75

Ground wire (not supplied)

Jack type B

Insulated wire (not supplied)

Screw clamp

FM75 COAXIAL

Ground wire (not supplied)

Important

If you connect an outdoor antenna, ground from y terminal with the screw clamp. To prevent a gas explosion, do not connect the ground wire to a gas pipe.

Page 14

SHUFFLE REPEAT 1

ALL1 DISCS PROGRAM

STEP

VOLUME

SYNC

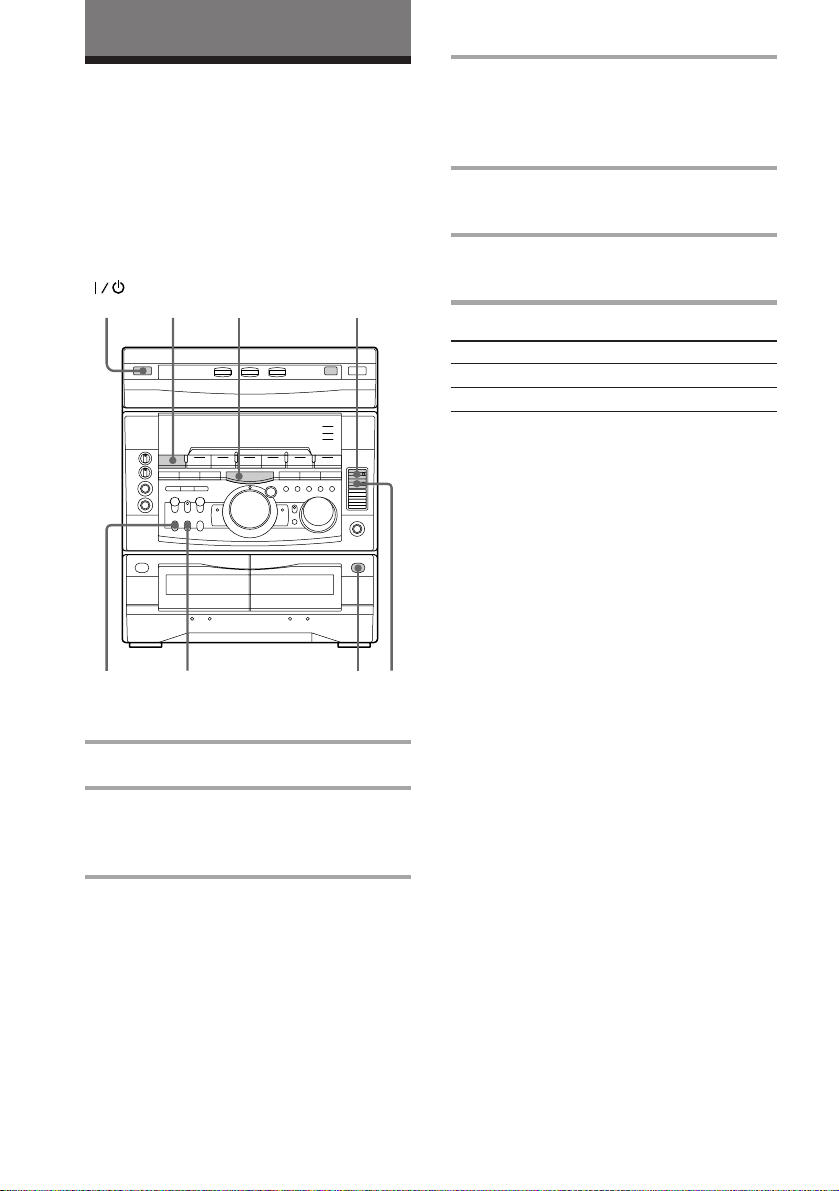

Basic Operations

Playing a VIDEO CD

You can play both VIDEO CDs without PBC functions (Ver. 1.1) and VIDEO CDs with PBC functions (Ver. 2.0).

You can enjoy two kinds of playback according to the disc type.

DISC SKIP/

(Power)

MODE

= +PLAY

EX-CHANGE

VOLUME

0 )

PREV NEXT

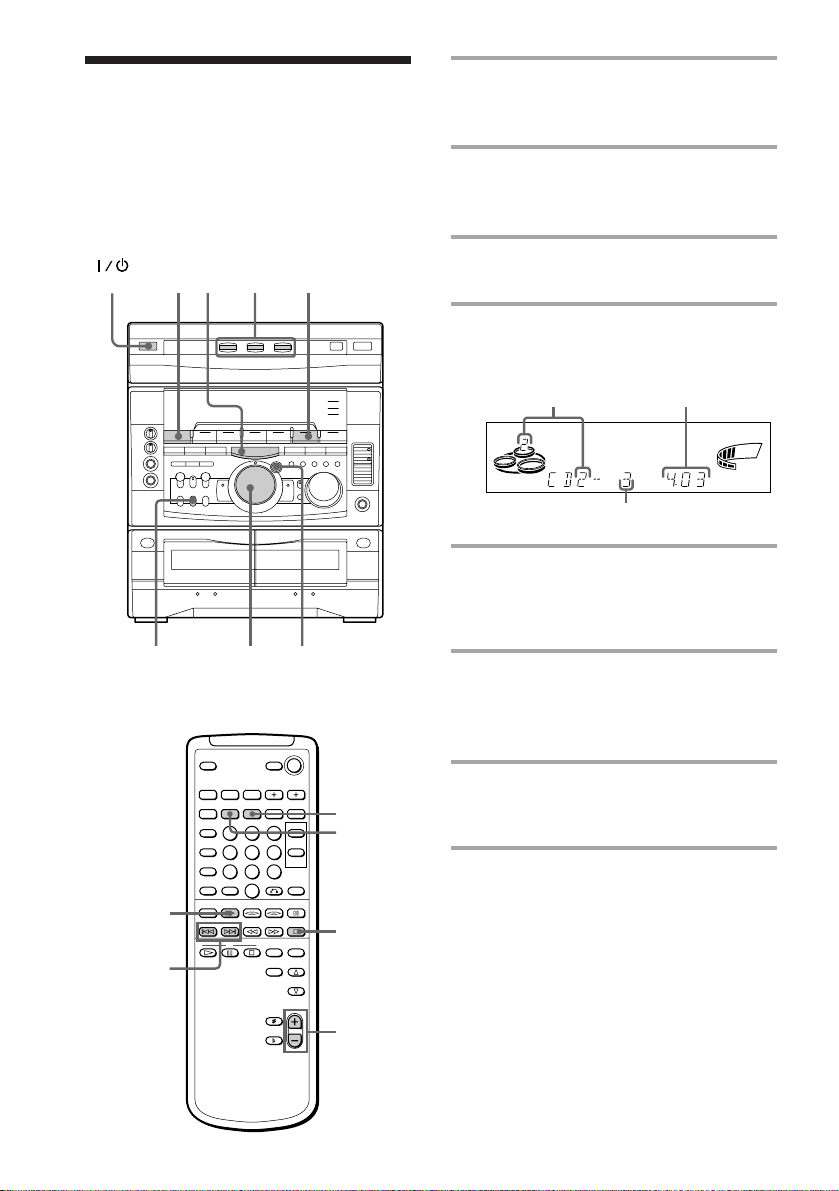

1 Turn on your TV and select the

video input.

Refer to the operating instructions supplied with your TV if you need help.

2 Press § and place up to two VIDEO

CDs on the disc tray.

If a disc is not placed properly, it will not be recognized.

With the label side up. When you play a VIDEO CD single, place it on the inner circle of the tray.

To insert a third disc, press DISC SKIP/ EX-CHANGE to rotate the disc tray.

3 Press one of the DISC 1~3 buttons.

The disc tray closes and playback starts. If you press CD (P (or CD ( on the remote) when the disc tray is closed, playback starts from the CD whose button is lit green.

Disc tray number

Playing time

CD (

(PREV/NEXT)

TV TV VOL +/ TV CH +/

D.SKIP

p 0/)=/+

VOL +/

Track number

Page 15

To Do this

Stop play Press p. Pause Press CD (P (or P on the

remote)*1. Press again to resume play.

Select a track or Press NEXT to go forward, scene PREV to go back.

Or, during play or pause, turn the jog dial clockwise (to go forward) or counterclockwise (to go back) and release it when you reach the desired track. (Or press + (to go forward) or = (to go back) on the remote.)*

Find a point in a Press 0 or ) during track or scene*2playback. (Lock Search

1 Press once to start searching.

function) 2 Press again to increase the

search speed. Each time you press the button, the speed changes as follows: 1 (slow) n 2 (normal) n 3 (high) n 1 (slow) … 3 Press CD (P to stop searching at the desired point.

Select a VIDEO Press a DISC 1~3 button or CD in stop mode DISC SKIP/EX-CHANGE (or

D.SKIP on the remote).

Play only the Press PLAY MODE VIDEO CD you repeatedly until “1 DISC” have selected appears.

Play all VIDEO Press PLAY MODE repeatedly

CDs*

until “ALL DISCS” appears.

Remove the Press §. VIDEO CD

Exchange other Press DISC SKIP/ VIDEO CDs EX-CHANGE. while playing

Adjust the Turn VOLUME (or press VOL volume +/– on the remote).

Tips

• Pressing CD (P when the power is off automatically turns the power on and starts VIDEO CD playback if there is a VIDEO CD in the tray (One Touch Play).

• You can switch from another source to the VIDEO CD player and start playing a VIDEO CD just by pressing CD (P or the DISC 1~3 buttons (Automatic Source Selection).

• If there is no VIDEO CD in the player, “CD NO DISC” appears in the display.

• When a disc tray holding a VIDEO CD is selected (or playing), the DISC 1~3 button for that tray lights green. When a disc tray holding a VIDEO CD is not selected, the DISC 1~3 button for that tray lights orange. When all disc trays are empty, the DISC 1~3 buttons all light green.

Basic Operations

*1There may be some disturbance in the video

image.

Only for VIDEO CDs without PBC functions (Ver.

1.1).

This function cannot be used during menu playback of a VIDEO CD with the PBC functions (Ver. 2.0).

Page 16

Playing a CD

— Normal play

You can play up to three CDs in a row.

(Power)

MODE

= +PLAY

0 )

VOLUME

DISC SKIP/

EX-CHANGE

1 Press § and place up to two CDs on

the disc tray.

If a disc is not placed properly it will not be recognized.

With the label side up. When you play a single CD, place it on the inner circle of the tray.

To insert a third disc, press DISC SKIP/ EX-CHANGE to rotate the disc tray.

2 Press one of the DISC 1~3 buttons.

The disc tray closes and play starts. If you press CD (P (or CD ( on the

remote) when the disc tray is closed, play starts from the CD loaded on the tray whose button is lit green.

Disc tray number

SYNC

ALL1 DISCS PROGRAM

SHUFFLE REPEAT 1

Playing time

STEP

VOLUME

Track number

D.SKIP

CD (

p 0/)=/+

VOL +/

Page 17

To Do this

Stop play Press p. Pause Press CD (P (or P on the

remote). Press again to resume play.

Select a track During play or pause, turn the

jog dial clockwise (to go forward) or counterclockwise (to go back) and release it when you reach the desired track. (Or press + (to go forward) or = (to go back) on the remote.)

Find a point in a Press 0 or ) during track playback. (Lock Search Press CD (P to stop function) searching at the desired point.

Select a CD Press a DISC 1~3 button or in stop mode DISC SKIP/EX-CHANGE (or

D.SKIP on the remote).

Play only the Press PLAY MODE CD you have repeatedly until “1 DISC” selected appears.

Play all CDs Press PLAY MODE repeatedly

until “ALL DISCS” appears. Remove the CD Press §. Exchange other Press DISC SKIP/

CDs while EX-CHANGE. playing

Adjust the Turn VOLUME (or press VOL volume +/– on the remote).

Tips

• Pressing CD (P when the power is off automatically turns the power on and starts CD playback if there is a CD in the tray (One Touch Play).

• You can switch from another source to the CD player and start playing a CD just by pressing CD (P or the DISC 1~3 buttons (Automatic Source Selection).

• If there is no CD in the player, “CD NO DISC” appears in the display.

• When a disc tray holding a CD is selected (or playing), the DISC 1~3 button for that tray lights green. When a disc tray holding a CD is not selected, the DISC 1~3 button for that tray lights orange. When all disc trays are empty, the DISC 1~3 buttons all light green.

Basic Operations

Page 18

Recording a CD / VIDEO CD

— CD Synchro Recording

2 Press § and place a CD.

Then press again to close the disc tray. If the indicator for the tray you want to

record is not lit green, press DISC SKIP/ EX-CHANGE repeatedly so that it lights green.

The CD SYNC button lets you record from a CD to a tape easily. You can use TYPE I (normal) or TYPE II (CrO2) tapes. The recording level is adjusted automatically.

(Power)

DOLBY NR

DISC SKIP/

EX-CHANGE

1 Press § and insert a blank tape into

deck B.

With the side you want to record facing forward

With the label side up. When you play a single CD, place it on the inner circle of the tray.

3 Press CD SYNC.

Deck B stands by for recording and the CD player stands by for playback. The indicator on TAPE B ( (for front side) lights up.

4 Press DIRECTION repeatedly to

select A to record on one side. Select ß (or RELAY) to record on both sides.

5 Press P PAUSE.

Recording starts.

To stop recording

Press p.

Tips

• If you want to record from the reverse side, press TAPE B 9 to light its indicator after pressing CD SYNC.

• When you record on both sides, be sure to start from the front side. If you start from the reverse side, recording stops at the end of the reverse side.

• When you want to reduce the hiss noise in lowlevel high-frequency signals, press DOLBY NR so that “DOLBY NR” appears after pressing CD SYNC.

Note

You cannot listen to other sources while recording.

Page 19

Listening to the radio

–– Preset Tuning

Preset radio stations in the tuner's memory first (see “Step 3: Presetting radio stations”).

(Power)

VOLUMESTEREO/MONO

1 Press TUNER/BAND repeatedly

until the band you want appears in the display.

The bands you can receive vary depending on the model you purchased. Be sure to check which bands you can receive.

Every time you press the button, the band changes as follows:

2 band model: FM ˜ AM 3 band model: FM n MW n SW

2 Turn the jog dial (or press = or

+ on the remote) to tune in the

desired preset station.

Turn counterclockwise (or press = on the remote) for lower preset numbers.

Preset number Frequency

Turn clockwise (or press + on the remote) for higher preset numbers.

Basic Operations

TUNER/ BAND

=/+

VOL +/

ALL DISCS

To Do this

Turn off the radio Press . Adjust the volume Turn VOLUME (or press

VOL +/– on the remote).

VOLUME

kHz

MHz

continued

Page 20

Listening to the radio (continued)

To listen to non-preset radio stations

Use manual or automatic tuning in step 2. For manual tuning, press + or – repeatedly. For automatic tuning, press and hold + or –.

Tips

• Pressing TUNER/BAND when the power is off automatically turns the power on and tunes to the last received station (One Touch Play).

• You can switch from another source to the radio just by pressing TUNER/BAND (Automatic Source Selection).

• When an FM program is noisy, press STEREO/MONO so that “MONO” appears in the display. There will be no stereo effect, but the reception will improve. Press the button again to restore the stereo effect.

• To improve broadcast reception, reorient the supplied antennas.

Recording from the radio

You can record the radio program on a tape by calling up a preset station. You can use TYPE I (normal) or TYPE II (CrO2) tapes. The recording level is automatically adjusted.

(Power)

DOLBY NR

1 Press TUNER/BAND to select the

band you want.

2 Turn the jog dial to tune in a preset

station.

Turn counterclockwise for lower preset numbers.

Preset number

ALL DISCS

Turn clockwise for higher preset numbers.

Frequency

VOLUME

kHz

MHz

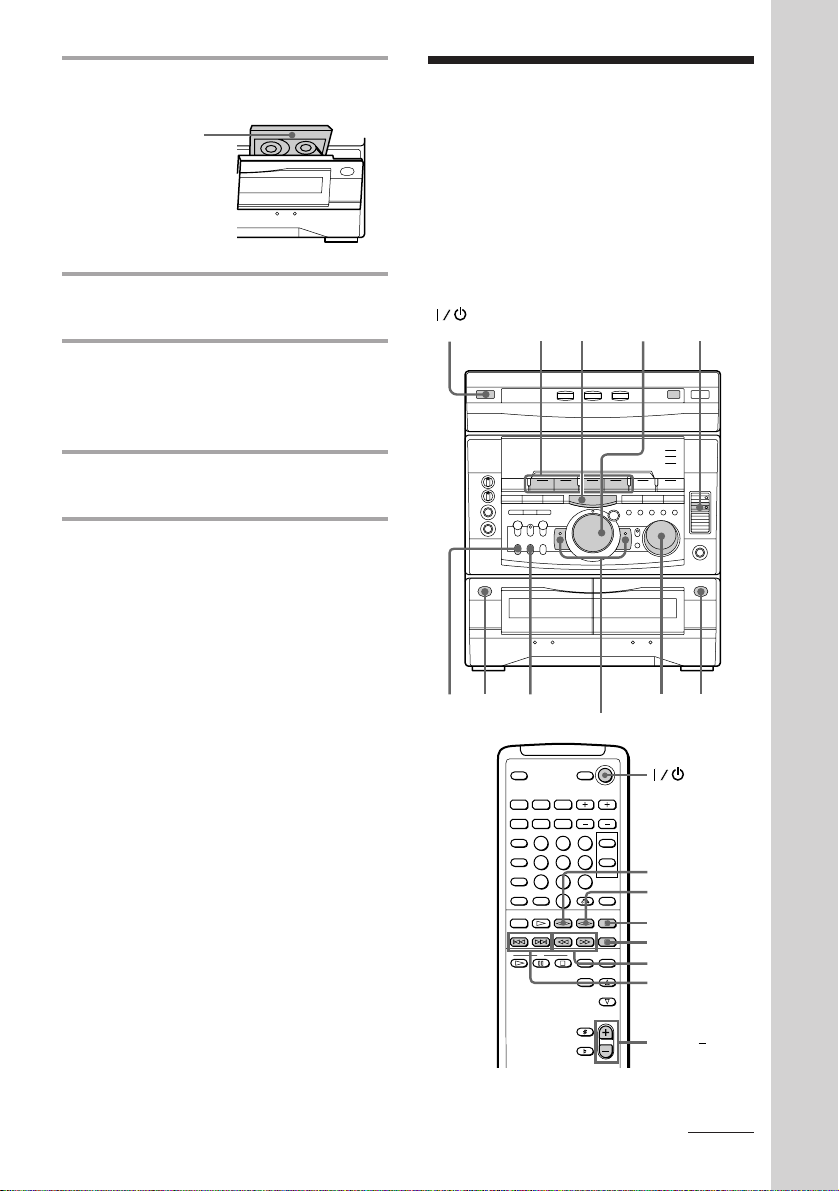

Page 21

3 Press § and insert a blank tape into

deck B.

With the side you want to record facing forward

4 Press r REC.

Deck B stands by for recording.

5 Press DIRECTION repeatedly to

select A to record on one side. Select ß (or RELAY) to record on both sides.

6 Press P PAUSE.

Recording starts.

To stop recording

Press p.

Tips

• If you want to record from the reverse side, press TAPE B 9 to light its indicator after pressing r REC.

• When you record on both sides, be sure to start from the front side. If you start from the reverse side, recording stops at the end of the reverse side.

•To record non-preset stations, use + and – in step 2 to tune in the desired station manually.

• When you want to reduce the hiss noise in lowlevel high-frequency signals, press DOLBY NR so that “DOLBY NR” appears after pressing r REC.

• If noise is heard while recording from the radio, move the respective antenna to reduce the noise.

Playing a tape

You can use any type of tape, TYPE I (normal), TYPE II (CrO2) or TYPE IV (metal) , since the deck automatically detects the tape type. You can also use the jog dial’s AMS* functions to quickly search for songs you want to hear. To select either deck A or B, press DECK A 9 ( or DECK B 9 ( on the remote.

DOLBY NR

= +p

0 )

P PAUSE

VOLUME

DECK A 9( DECK B 9(

P p

0/) =/+

(Power)

Basic Operations

VOL +/

continued

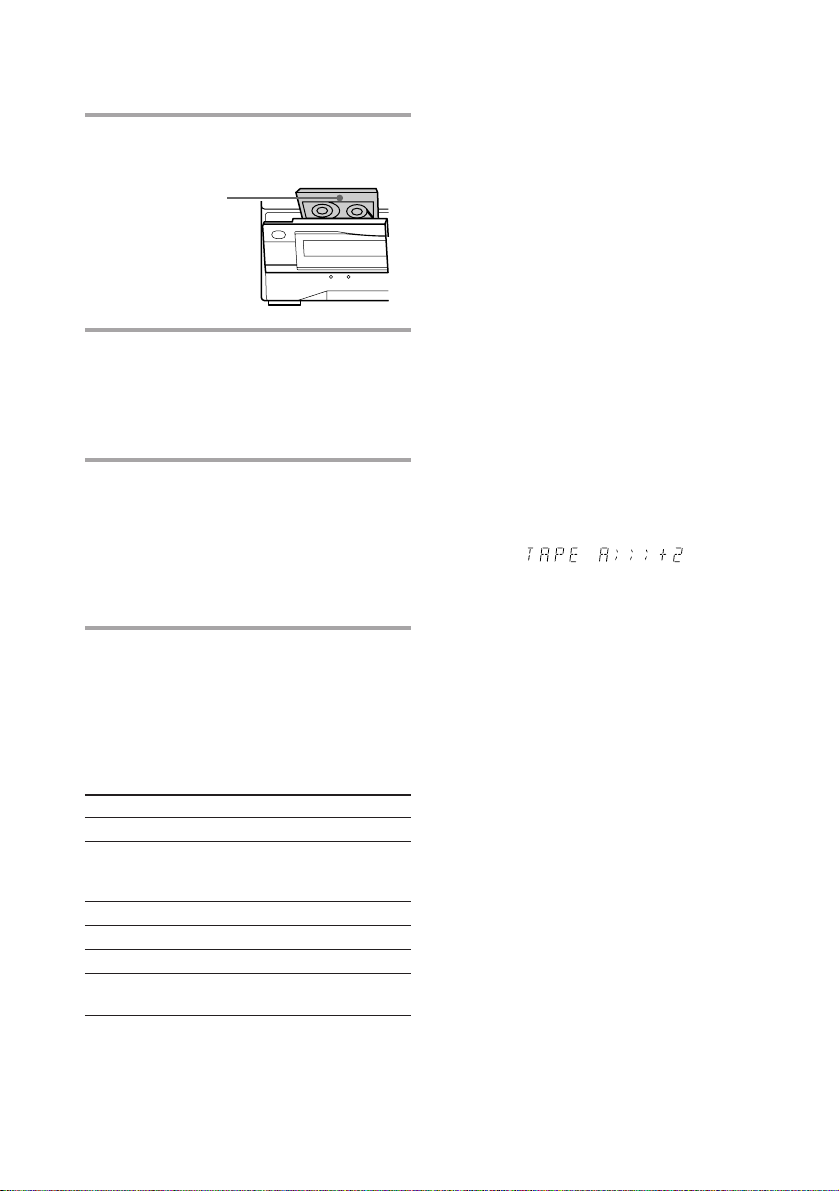

Page 22

Playing a tape (continued)

1 Press § and insert a recorded tape

in deck A or B.

With the side you want to play facing forward

Tips

• Pressing TAPE A (or TAPE B) ( or 9 when the power is off automatically turns the power on and starts tape playback if there is a tape in the deck (One Touch Play).

• You can switch from another source to the tape deck just by pressing TAPE A (or TAPE B) ( or 9 (Automatic Source Selection).

• When you want to reduce the hiss noise in lowlevel high-frequency signals, press DOLBY NR so that “DOLBY NR” appears.

• When dubbing tapes originally recorded with Dolby NR, the dubbed tape is automatically played with Dolby NR.

2 Press DIRECTION repeatedly to

select A to play one side. Select ß* to play both sides.

To play both decks in succession, select RELAY (relay play).**

3 Press TAPE A (or TAPE B) (

(DECK A (or DECK B) ( on the remote).

Press TAPE A (or TAPE B) 9 to play the reverse side. (Press DECK A (or DECK B) ( again on the remote to play the reverse side.) The tape starts playing.

* The deck stops automatically after repeating the sequence five times.

** Relay play always follows the following sequence:

Deck A (front side), Deck A (reverse side), Deck B (front side), Deck B (reverse side).

To Do this

Stop play Press p. Pause Press P PAUSE (or P on

the remote). Press again

to resume play. Fast-forward Press 0 or ). Rewind Press 0 or ). Remove the cassette Press §. Adjust the volume Turn VOLUME (or press

VOL +/– on the remote).

Searching for the beginning of a track (AMS*)

During playback, turn the jog dial the same direction as the 9 or ( indicator to go forward. Turn the opposite direction to go back. (Or press = or + on the remote.)

The search direction, + (forward) or – (back), and number of songs being skipped (1~9) appear in the display.

Example: searching forward 2 songs

* AMS (Automatic Music Sensor)

Notes

The AMS function may not operate correctly under the following circumstances: – When the unrecorded space between songs is less

than 4 seconds long.

– If completely different information is recorded on

the left and right channels.

– When there are continuous sections of extremely

low level or low frequency sound (like those of a baritone sax).

– When the unit is placed near a television. (In this

case, we recommend moving the unit farther away from the television or turning off the television.)

Page 23

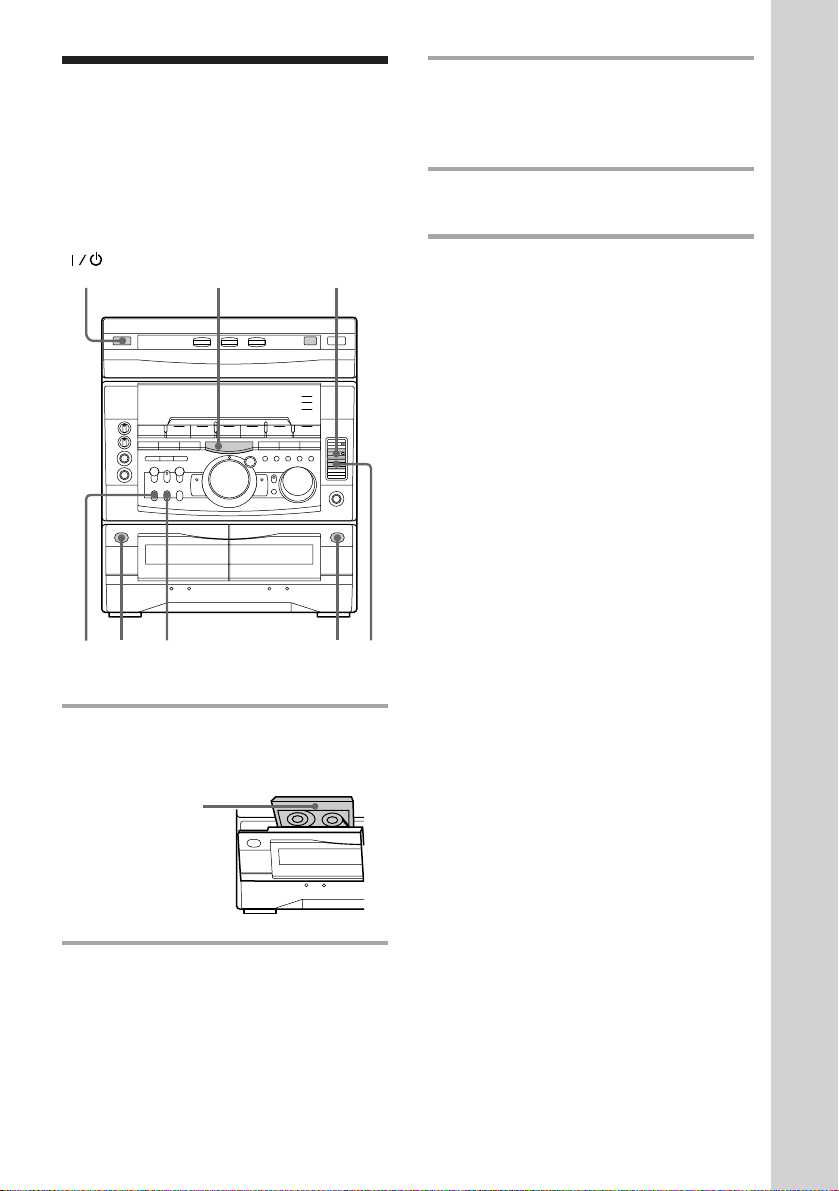

Recording from a tape

— High-speed Dubbing

You can use TYPE I (normal) or TYPE II (CrO2) tapes. The recording level is automatically adjusted.

3 Press DIRECTION repeatedly to

select A to record on one side. Select ß (or RELAY) to record on both sides.

4 Press P PAUSE.

Dubbing starts.

(Power)

DOLBY NR

123

1 Press § and insert a recorded tape

in deck A and a blank tape in deck B.

With the side you want to play/record facing forward

To stop dubbing

Press p.

Tips

• When you dub on both sides, start recording from the front side. If you record from the reverse side, recording stops at the end of the reverse side.

• If you set DIRECTION to ß when the tapes you use have different lengths, the tape in each deck reverses independently. If you select RELAY, the tapes in both decks reverse together.

• You don’t have to set DOLBY NR, since the tape in deck B is automatically recorded in the same state as the tape in deck A.

Basic Operations

2 Press HI-DUB.

Deck B stands by for recording.

Page 24

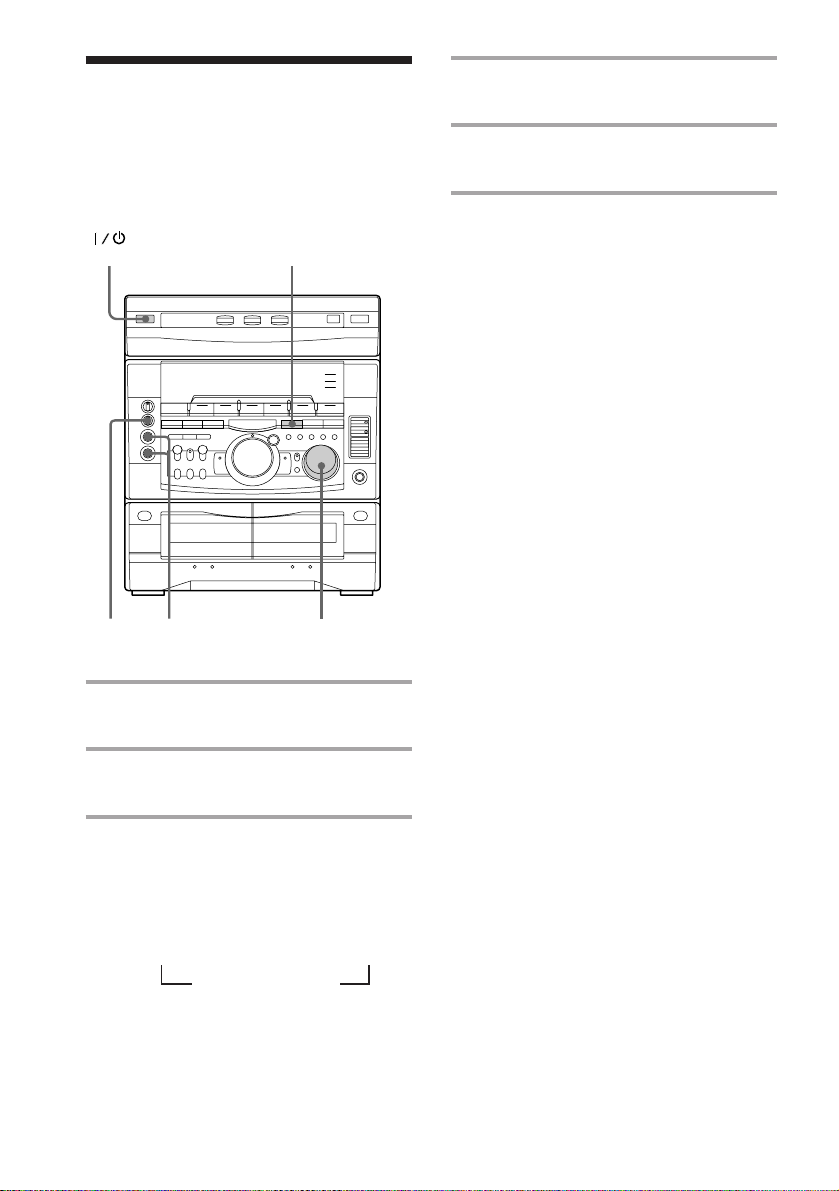

Singing along: Karaoke

You can sing along with any stereo CD or tape by turning down the singer’s voice. You need to connect an optional microphone.

(Power)

4 Start playing the music and adjust

the volume.

5 Adjust the microphone volume by

turning MIC LEVEL.

When you use VIDEO CDs

Turn on your TV and switch it to the appropriate video input.

Refer to the operating instructions supplied with your TV for details.

When you are done

Turn MIC LEVEL to MIN and disconnect the microphone from MIC 1 or MIC 2, then press KARAOKE PON/MPX repeatedly so that “h” disappears.

Tip

You can use two microphones connecting to MIC 1 and MIC 2 at the same time.

Note

With some songs, vocals may not be cancelled when you select “KARAOKE PON”.

21,5

VOLUME

1 Turn MIC LEVEL to MIN to turn

down the microphone control level.

2 Connect an optional microphone to

MIC 1 or MIC 2.

3 Press KARAOKE PON/MPX

repeatedly to obtain the karaoke effect you desire.

Every time you press the button, the display changes as follows:

KARAOKE PON n MPX R n MPX L

EFFECT OFF (ON) N The h indicator appears in the display

when a karaoke mode is activated. To sing karaoke with decreasing the

vocal level of a CD, select “KARAOKE PON”. To sing karaoke of multiplex CD or tape, select “MPX R” or “MPX L”.

Page 25

Adjusting the microphone echo

Adjusting the key

This function allows you to adjust the key to suit your vocal range when playing a VIDEO CD or standard audio CD.

(Power)

ECHO LEVEL

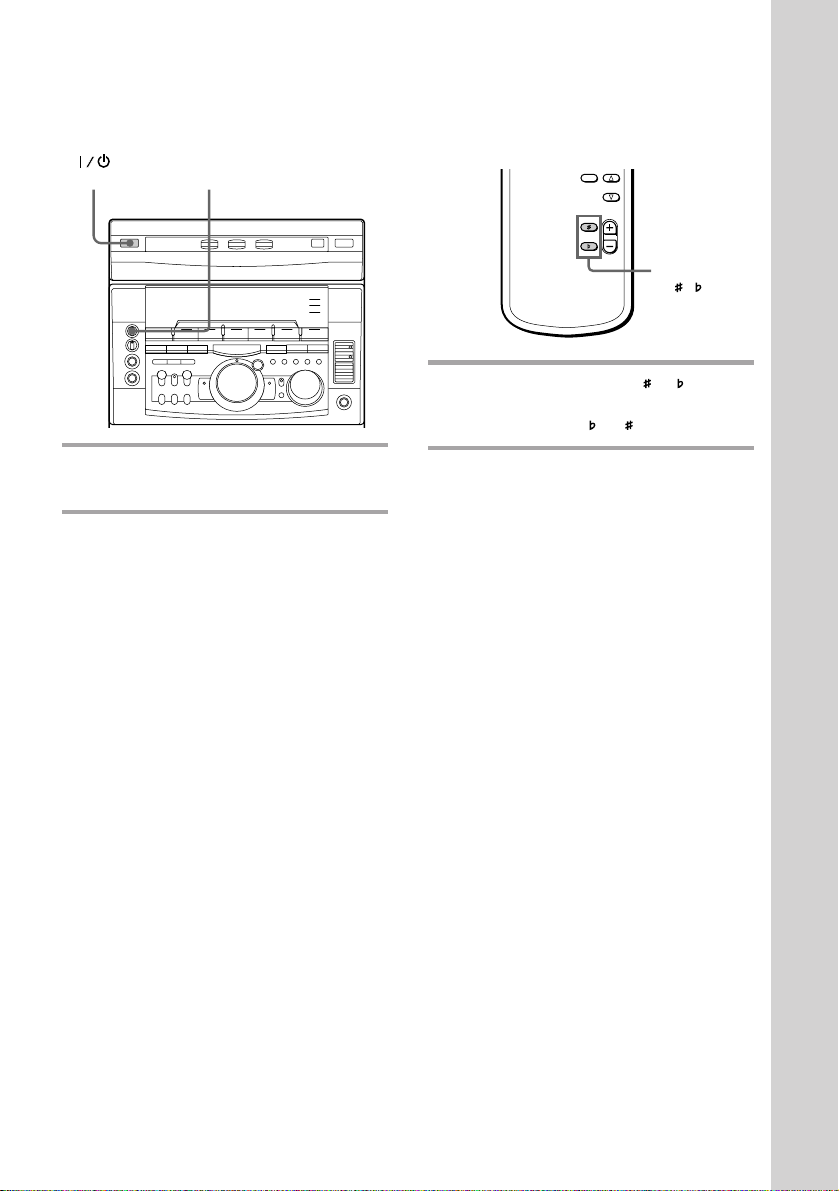

/ Turn ECHO LEVEL to adjust the

echo effect.

To cancel the echoing

Turn ECHO LEVEL to MIN.

KEY

CONTROL

/ Press KEY CONTROL or .

You can adjust the key higher of lower in 13 halftone steps ( 6 ~ 6).

Note

This function can be used with the CD/VCD player only.

Basic Operations

Page 26

The VIDEO CD/CD Player

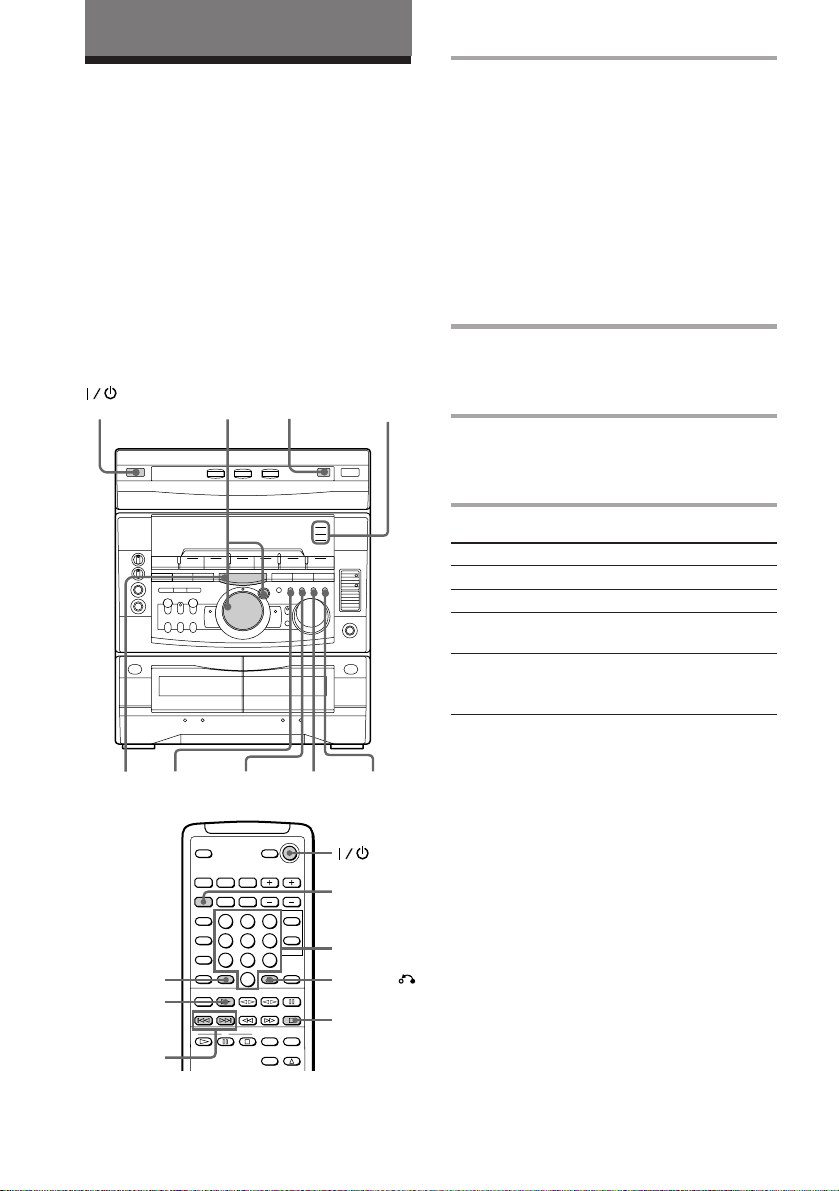

Playing a VIDEO CD with PBC functions (Ver. 2.0)

–– PBC Play

The PBC (Play Back Control) function display menus on your TV screen to let you enjoy interactive software.

Be sure to read the instructions supplied with each disc for details regarding its use since different discs have different menu formats and structures.

(Power)

DISC SKIP

EX-CHANGE

VCD/PBC

indicators

1 Start playing a VIDEO CD with PBC

functions (Ver. 2.0).

The VIDEO CD and PBC indicators light up and a PBC menu appears on your TV.

• VIDEO CD : Lights during playback of a VIDEO CD.

• PBC : Lights during PBC playback of a PBC compatible VIDEO CD (Ver. 2.0).

• PBC OFF : Lights when a PBC compatible VIDEO CD (Ver. 2.0) is played without using the PBC functions (see below).

2 Turn the jog dial to select a number

from the menu, then press ENTER/ NEXT or SELECT.

3 Continue according to the

instructions on the menus to enjoy interactive playback.

To Do this

Stop play Press p. See the rest of a menu Pres NEXT. Go back to the top of a Press PREV.

menu Go back to a previous Press RETURN (or

menu ˆ RETURN on the

remote).

SELECT, CD (

PREV/NEXT

SELECTp NEXTPREVRETURN

>10

D.SKIP

Numeric buttons

RETURN

Page 27

To cancel PBC Playback of VIDEO CDs with PBC functions (Ver. 2.0)

There are two ways to cancel the PBC functions.

• Before you start playing, select the track you want using the jog dial, =/+, then press ENTER/NEXT (or CD ( on the remote).

• Before you start playing, select the track number using the number buttons on the remote.

The PBC OFF indicator lights up and playback begins from the selected track. Still images, such as the menu screens, will not be shown.

To select a menu number using the remote

Press the numeric buttons in the order you want in step 2. To enter track numbers 10 or over, first press >10, then press the numerical buttons. To enter 0, use the 10/0 button.

Tips

• When appears on the TV screen, you have pressed an invalid button. Press a button indicated by the instructions on the menu screen.

• When you press NEXT during menu playback or while playing moving pictures, the next scene on the disc appears. Also refer to the instructions supplied with the disc.

Note

During menu playback, you cannot go to the next disc, even if you’ve selected “ALL DISCS.” Press D. SKIP on the remote to go to the next disc.

Checking the remaining time

You can check the remaining time of the current track or that of the CD.

(Power)

/ Press DISPLAY/DEMO during

playback.

Each time you press the button during normal playback, the display changes as follows:

nPlaying time on the current track

Remaining time on the current track

Remaining time on current CD

Clock display (for eight seconds)

Effect (P FILE) name or “EFFECT ON (OFF)”

Name of spectrum analyzer display pattern

DISPLAY/DEMO

continued

Page 28

SCREEN

Checking the remaining time (continued)

(VIDEO CDs with PBC functions (Ver. 2.0))

nPlaying time on the current track*

Clock display (for eight seconds)

Effect (P FILE) name or “EFFECT ON (OFF)”

Name of spectrum analyzer display pattern

* May not appear with still images, etc.

To check the total playing time and the number of tracks on a CD

Press DISPLAY/DEMO in the stop mode. If you press DISPLAY/DEMO again, the

clock display appears for eight seconds then the display returns to the previous indication.

Tip

While playing an audio CD or a VIDEO CD without PBC functions (Ver. 1.1), the current track number and playing time of the current track appear in the display.

Using the on-screen display

You can check the current operating status and disc information of VIDEO CDs or audio CDs during playback or in stop mode by superimposing a display on top of the images on your TV screen.

/ Press ON SCREEN.

Each time you press this button, the onscreen display changes as follows:

n ON SCREEN 1 n ON SCREEN 2

ON SCREEN OFF N

ON SCREEN 1 display

• During playback of an audio CD (except Program Play mode)

PLAYCD

0 : 20

3 4 5

DISC 1 - 3

CONTINUE

6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

1 Current disc and track number 2 Play mode 3 Elapsed time of current track 4 Music calendar*

* The track numbers in the numerical calendar

disappear after they are played.

Page 29

• During playback of an audio CD in Program Play mode

PLAY

1 2

DISC 2-10 PROGRAM

1. D 1 - 3

2. D 2 - 10

3. D 1 - 4

0 : 20

1 Current disc and track number 2 “PROGRAM” 3 Programmed disc and track numbers 4 Elapsed time of current track

• During stop mode of a VIDEO CD with PBC functions

STOPVCD

1 2

ACTIVE AUTO PBC

40 : 00DISC 1

1 “ACTIVE” or no display 2 “AUTO PBC” 3 Total playing time of current disc

1 “ACTIVE”* or no display 2 “PROGRAM” 3 Programmed disc and track numbers 4 Total playing time of program

* For VIDEO CD only

ON SCREEN 2 display

• During playback of a VIDEO CD

DISC 1 - 7 0 : 55

1 Current disc and track number* 2 Elapsed time of current track

* “SCENE” and number is displayed during

menu playback of a VIDEO CD with PBC functions

• During playback of an audio CD

Display is the same as ON SCREEN 1.

• During stop mode of a VIDEO CD (except Program Play mode)

• During stop mode of a VIDEO CD or audio CD (except Program Play mode)

STOPVCD

1 2

ACTIVE

CONTINUE

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

40 : 00DISC 1

1 “ACTIVE”* or no display 2 Play mode 3 Music calendar 4 Total playing time of current CD

* For VIDEO CD only

• During stop mode of a VIDEO CD or audio CD in Program Play mode

STOPVCD

ACTIVE

PROGRAM

1. D 1 - 3 6. D 3 - 20

2. D 2 - 10

3. D 1 - 4

4. D 3 - 2

5. D 1 - 12

40 : 00TOTAL

1 2

RESUME ACTIVE

CONTINUE

DISC 1 DISC 2 DISC 3

VCD STOP

CD VCD

........

40 : 00DISC. 2

REPEAT 1

1-99TRTR 1-10

1 “RESUME” or no display 2 “ACTIVE” or no display 3 Play mode* 4 Total track numbers of each disc 5 Current disc number and total playing

time of current disc

6 “REPEAT 1” or no display

* “AUTO PBC” display for a VIDEO CD with

PBC functions

continued

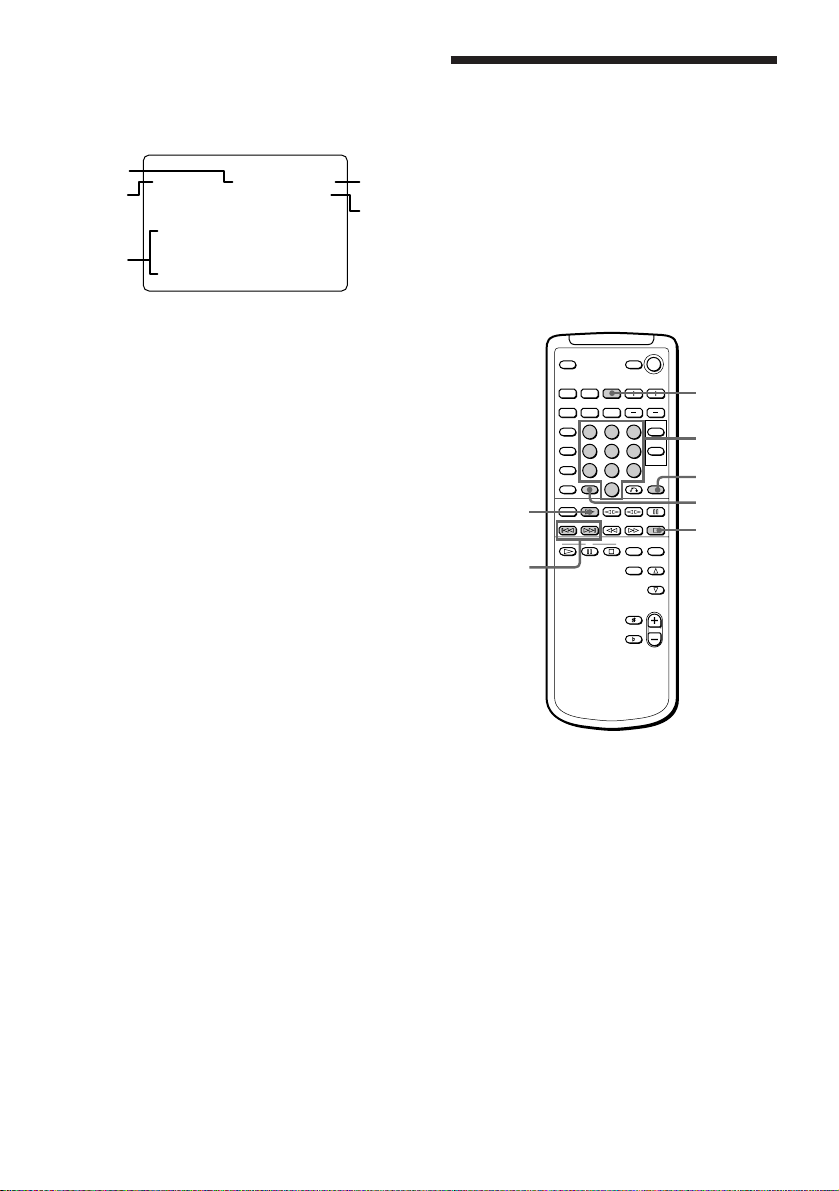

Page 30

Using the on-screen display (continued)

• During stop mode of an audio CD (except Program Play mode)

CONTINUE DISC 1

DISC 1 DISC 2

DISC 3

1 Current disc number 2 Play mode 3 Disc number and track numbers 4 Total playing time of current disc 5 “REPEAT 1” or no display

CD STOP

CD VCD

........

40 : 00

REPEAT 1

1-99TRTR 1-10

Locating a specific part of a disc

–– Special Menu

This player has 4 different search features. Select the search feature you want from the SPECIAL MENU.

The TV screen must be ON to use these functions.

ON SCREEN

• During stop mode of a VIDEO CD or audio CD in Program Play mode

Display is the same as ON SCREEN 1.

ON SCREEN OFF

No display (except for special menus).

Notes

• Normally, leave the display mode set to either ON SCREEN 1 or 2. When you select ON SCREEN OFF, you cannot check the operating status while operating the CD player. In this case, check the information on the front panel display.

• When you record video signals played back from this system onto a video tape (etc.), be sure to select ON SCREEN OFF. Otherwise, the display information will also be recorded on the video tape.

To switch language of on-screen display (Chinese model only)

You can switch the messages in the on–screen display from Chinese to English.

1 Press SPECIAL MENU. 2 Press 6.

The messages switch from Chinese to English.

To switch back to Chinese messages, repeat this operation.

CD (

PREV/NEXT

Numeric buttons

SPECIAL MENU >10

Page 31

Locating by Scene Number

–– Scene Search

On VIDEO CDs with PBC functions (Ver. 2.0), the menu screens, moving pictures, and still pictures are divided into “scenes” and each scene has an assigned scene number. This function lets you start playback from a specific scene.

1 Start playing a VIDEO CD with PBC

functions (Ver. 2.0).

2 Press SPECIAL MENU. 3 Press 1 to select “1) SCENE

SEARCH”.

“SCENE –” and the total number of scenes appear on the TV screen.

Total number of scenes

SCENE- (1-312)

5 Press CD (.

Playback starts from the selected scene.

To stop playback

Press p.

To check the scene number during playback

Press ON SCREEN repeatedly to select the ON SCREEN 2 display mode. The scene number appears on the TV screen. (See “Using the On-Screen Display” for details.)

Notes

• On some CDs, you may not be able to start

playing from the scene you select because starting playback from certain scenes is prohibited. In this case, play either starts from scene 1 (during stop mode) or continues from the current scene (during playback).

• Some CDs may not display the scene you select

on the TV screen.

• When you select the ON SCREEN OFF display

mode, no information is shown on the TV screen.

continued

4 Press the numeric buttons (1 – 10/0)

to select the scene you want.

To enter scene number 103: Press 1 m 10/0 m 3. The selected scene

number appears on the TV screen.

Selected scene number

SCENE 103 (1-312)

Page 32

Locating a specific part of a disc (continued)

Locating by elapsed time

–– Time Search

This function lets you use elapsed time as a guide to find a certain parts of a VIDEO CD without PBC functions (Ver. 1.1). “Elapsed time” means the time from the beginning of the disc. It is not the playing time of the current track as shown in the display.

It is especially useful when playing discs that have only a few track divisions.

This function cannot be used during menu playback of VIDEO CDs with PBC functions (Ver. 2.0).

1 Press SPECIAL MENU. 2 Press 2 to select “2) TIME

SEARCH.”

3 Press the numeric buttons (1 – 10/0)

to enter the time (in minutes) for the section you want.

To enter 10 minutes: Press 1 m 10/0. The selected elapsed time appears on the

TV screen. To reenter the time: Press CLEAR, and

then press 1 m 10/0 again.

Locating the track you want

–– Disc Digest

You can select the track you want by viewing the first frame of each track. Either 9 or 12 different tracks can be displayed on the TV screen at one time.

This function cannot be used during menu playback of VIDEO CDs with PBC functions (Ver. 2.0).

1 Press SPECIAL MENU. 2 Press 3 to select “3) DISC DIGEST.”

The first frame of tracks 1 through 9 (in default setting) on the current disc are displayed.

The sound of the first three seconds of each track on an audio CD plays, but there is no sound when using a VIDEO CD.

Current disc number

D 1 DIGEST

4 7

2 5

6 9

4 Press CD (.

Playback starts from the selected time.

To stop playback

Press p.

To use time search with VIDEO CDs with PBC functions (Ver. 2.0)

Select “2) TIME SEARCH” before you start playing the VIDEO CD, to light the PBC OFF indicator and play without PBC functions.

3 Press the numeric buttons (1 – 10/0)

to select the track you want.

To stop playback

Press p.

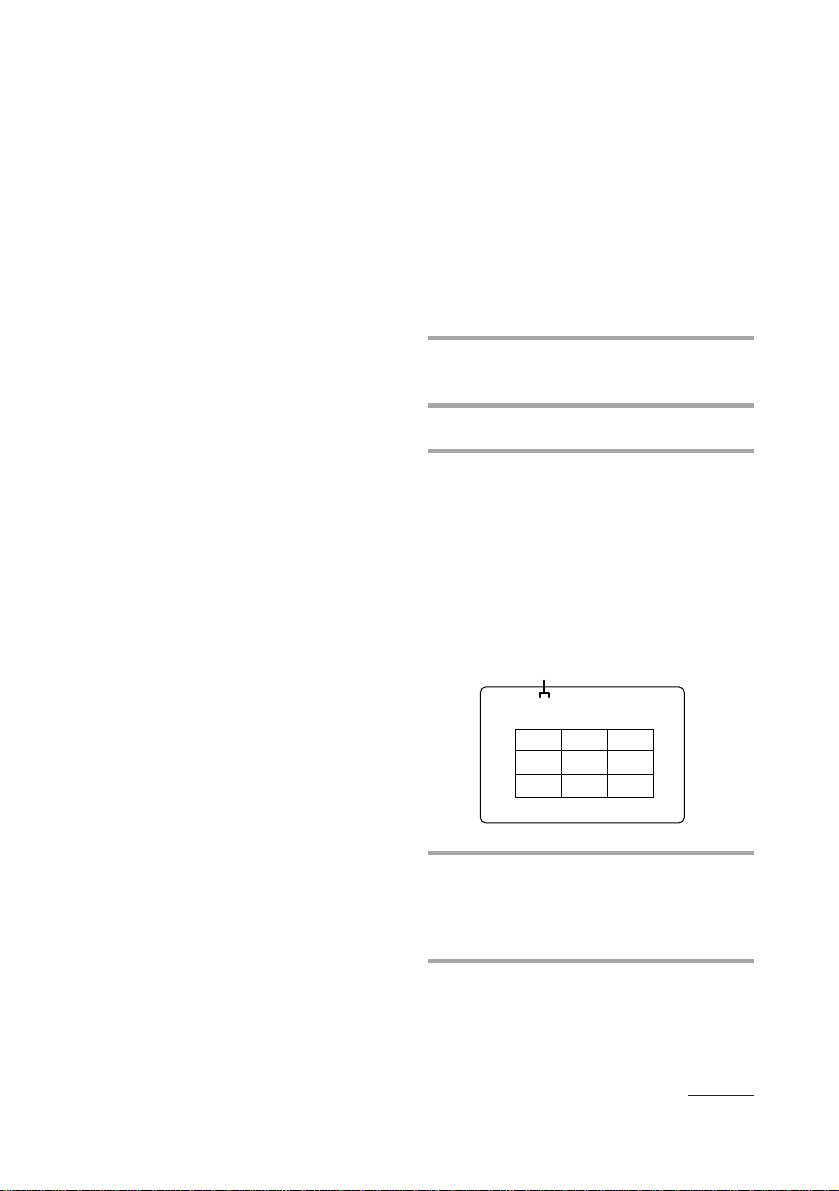

Page 33

To switch to a 12 frame display

You can switch the digest display from 9 to 12 frames.

1 Press SPECIAL MENU. 2 Press 5. 3 Proceed with steps 1 and 2 of “Locating the

track you want”. The first frames of tracks 1 through 12 are displayed.

To switch back to the 9 frame display, repeat this operation.

To display the next 9 or 12 tracks

Press NEXT. The first frame of tracks 10 through 18 (or 13 through 24) are displayed.

When there are more tracks in the disc, “+” appears in the upper right corner of the TV screen.

To display previous tracks, press PREV.

To switch to the digest of another disc during disc digest

Press D. SKIP during disc digest.

To use disc digest with VIDEO CDs with PBC functions (Ver. 2.0)

Select “3) DISC DIGEST” before you start playing the VIDEO CD, to light the PBC OFF indicator and play without PBC functions.

Tips

• In step 2, you can select tracks even if they have

not been displayed yet. Use the numeric buttons to select the track you want.

• In step 2, you can play the track you want

immediately after the first frame is displayed by pressing CD (.

Notes

• Video images will not be shown for audio CDs.

• The play mode automatically switches to normal mode if you start disc digest during Shuffle or Program Play.

Locating a section within a track

–– Track Digest

You can have the CD player divide a VIDEO CD track into either 9 or 12 different sections and display the first scene of each section on the TV screen. This might be useful when playing discs with few track divisions, such as movies.

This function cannot be used during menu playback of VIDEO CDs with PBC functions (Ver. 2.0).

1 Start playing the VIDEO CD track

you want.

2 Press SPECIAL MENU. 3 Press 4 to select “4) TRACK

DIGEST.”

The current track is divided into 9 sections (in default setting) and the first frame of each section is displayed.

The sound of the first three seconds of each track on an audio CD plays, but there is no sound when using a VIDEO CD.

Current track number

TRACK 1 DIGEST

1 4 7

2 5

6 9

4 Press the numeric buttons to select

the section you want.

Playback starts from a point near the selected frame.

To stop playback

Press p.

continued

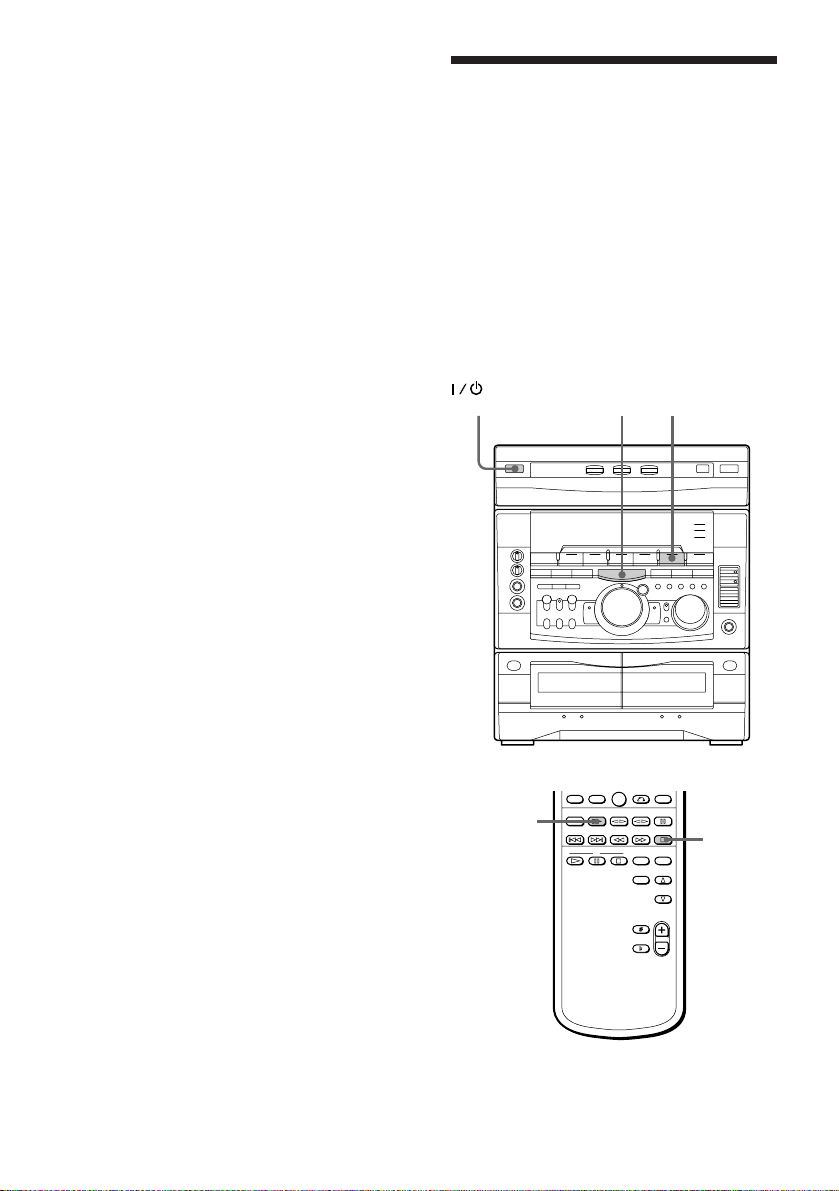

Page 34

CD (

Locating a specific part of a disc (continued)

To switch to a 12 frame display

You can switch the digest display from 9 to 12 frames.

1 Press SPECIAL MENU. 2 Press 5. 3 Proceed with steps 2 and 3 of “Locating a

section within a track”. The track is divided into 12 sections and the first frame of each section is displayed.

To switch back to the 9 frame display, repeat this operation.

To switch to the digest of another track during track digest

Press PREV or NEXT during track digest; however, this does not work during Shuffle Play or Program Play.

To use track digest with VIDEO CDs with PBC functions (Ver. 2.0)

Select “4) TRACK DIGEST” before you start playing the VIDEO CD, to light the PBC OFF indicator and play without PBC functions.

Tips

• In step 3, you can select sections even if they have

not been displayed yet. Use the numeric buttons to select the track you want.

• In step 3, you can play the section you want

immediately after the first frame is displayed by pressing CD (.

Note

Tracks less than 40 seconds long may be divided into fewer than 12 sections.

Resuming playback from the point you stopped a VIDEO CD

–– Resume Play

The unit memorizes the point where you stopped the VIDEO CD so you can resume from that point. Resume play is not cancelled when you turn off the system.

Note that resume play is not available when playing an audio CD.

(Power)

Page 35

1 While playing a VIDEO CD, press p

to stop playback.

“RESUME” appears on your TV screen. If “RESUME” does not appear, Resume Play is not available.

2 Press CD (P (or CD ( on the

remote).

The player starts playback from the point you stopped the VIDEO CD in step

To view from the beginning of the VIDEO CD

When “RESUME” appears in the display, press p, then press CD (P (or CD ().

Notes

• Resume Play is not available in the Digest, Shuffle, or Program Play modes.

• Depending on where you stopped the VIDEO CD, the player may resume playback from a different point.

• The point at which you stopped playback is cleared when:

– you press number buttons, PLAY MODE, or p. – you press DISC SKIP/EX-CHANGE (or D.SKIP

on the remote). – you press SPECIAL MENU. – you turn the jog dial. – you remove the VIDEO CD. – you unplug the unit’s AC power cord.

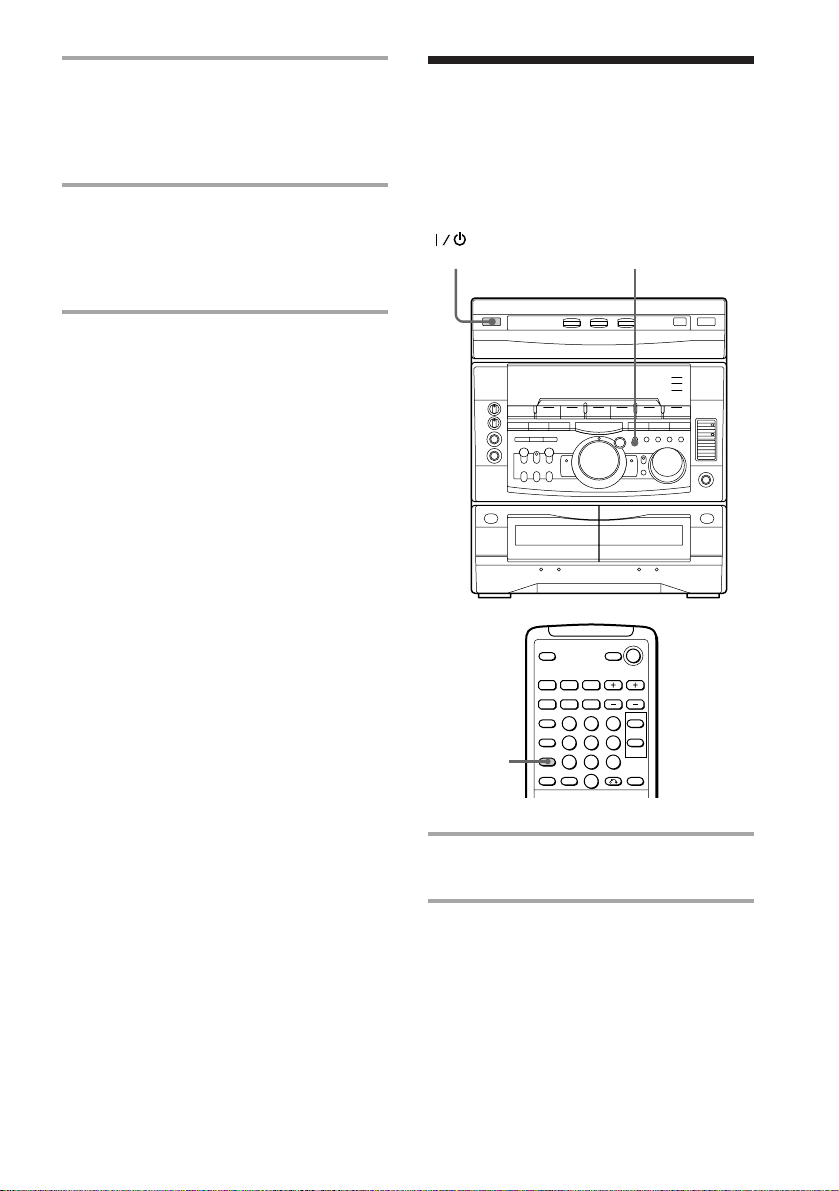

Setting the sharpness

–– Active Picture

This function emphasizes the outline of the picture to create a sharper image.

(Power)

ACTIVE

/ Press ACTIVE so that “ACTIVE

PICTURE” appears in the display.

To cancel

Press ACTIVE again to display “ACTIVE OFF”.

Notes

• The active picture function is not available when playing audio CDs.

• “ACTIVE OFF” is selected automatically when you turn the system off.

Page 36

Playing the CD tracks repeatedly

–– Repeat Play

This function lets you repeat a single CD or all CDs in normal play, Shuffle Play and Program Play.

To cancel Repeat Play

Press REPEAT so that “REPEAT” or “REPEAT 1” disappears from the display.

(Power)

REPEATPLAY MODE

/ Press REPEAT during playback

until “REPEAT” appears in the display.

Repeat Play starts. Do the following procedure to change the repeat mode.

To repeat Press

All the tracks on PLAY MODE repeatedly the current CD until “1 DISC”

All the tracks on PLAY MODE repeatedly all CDs until “ALL DISCS” appears

Only one track REPEAT repeatedly until

appears in the display.

in the display.

“REPEAT 1” appears in the display while playing the track you want to repeat.

Page 37

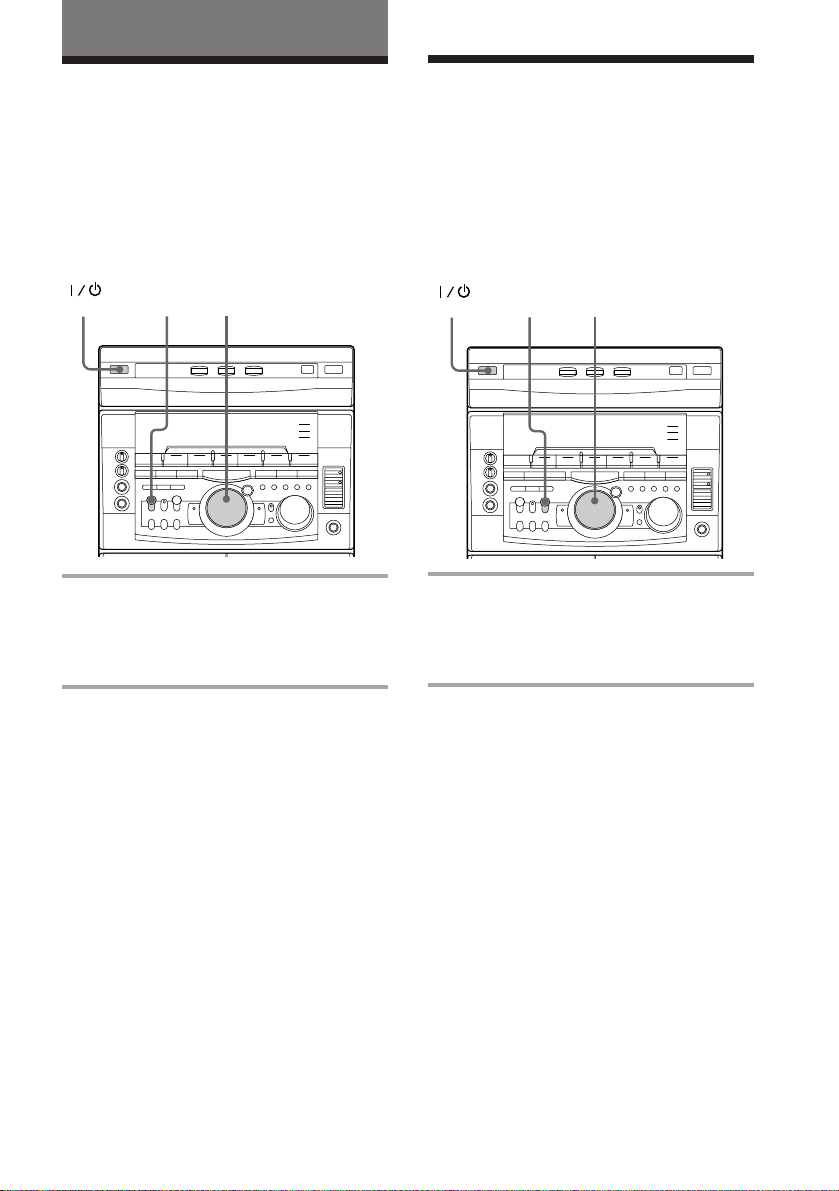

Playing the CD tracks in random order

–– Shuffle Play

You can play all the tracks on one CD or all CDs in random order.

(Power)

DISC 1~3

Jog dial

To cancel Shuffle Play

Press PLAY MODE repeatedly until “SHUFFLE” or “PROGRAM” disappears from the display. The tracks continue playing in their original order.

To select a desired CD

Press DISC 1~3.

Tips

• You can start Shuffle Play during normal play by

pressing PLAY MODE repeatedly to select “SHUFFLE”.

• To skip a track, turn the jog dial clockwise (or

press + on the remote).

1 Press FUNCTION repeatedly until

“CD” appears in the display, then place a CD.

2 Press PLAY MODE repeatedly until

“1 DISC SHUFFLE ” or “ALL DISCS SHUFFLE” appears in the display.

“ALL DISCS” shuffles all the CDs in the player. “1 DISC” shuffles the CD whose DISC indicator is green.

3 Press CD (P.

“J” appears and then all the tracks play in random order.

Page 38

—

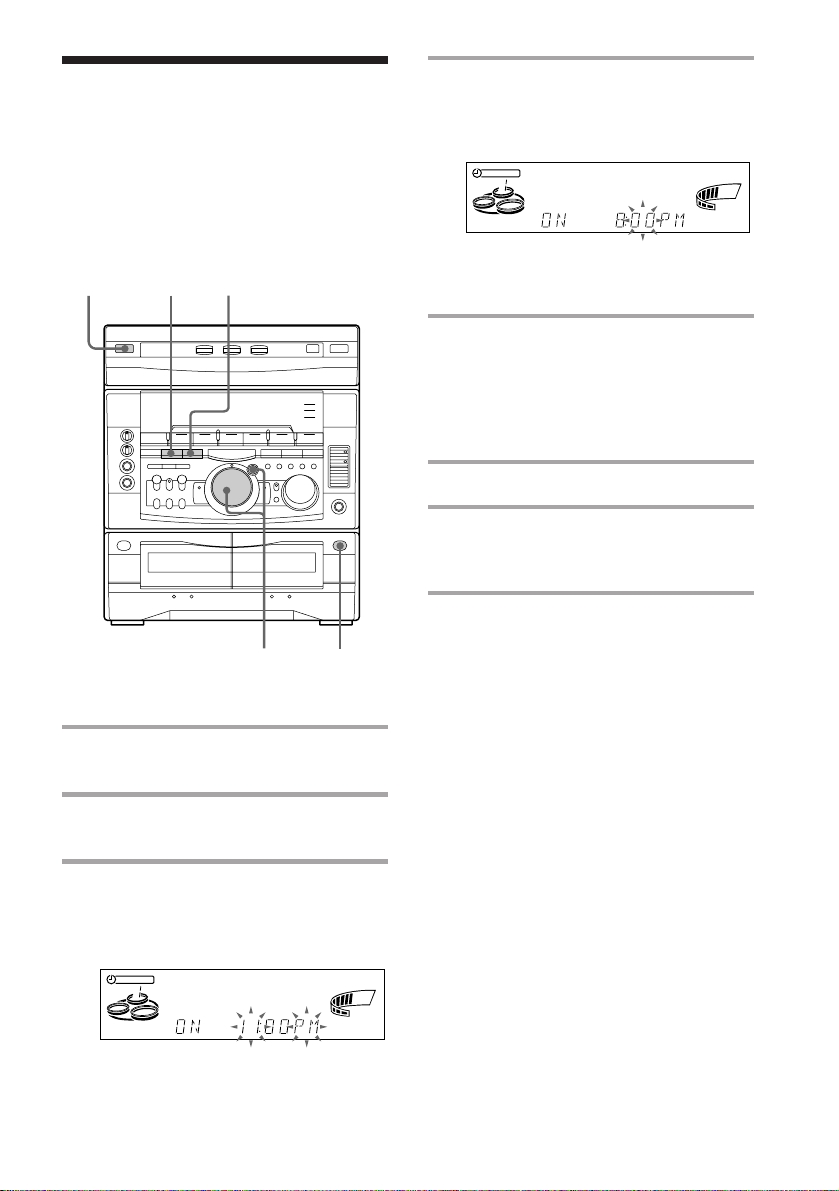

Programming the CD tracks

–– Program Play

You can make a program of up to 32 tracks from all the CDs in the order you want them to be played.

(Power)

1 Press FUNCTION repeatedly until

“CD” appears in the display, then place a CD.

2 Press PLAY MODE repeatedly until

“PROGRAM” appears in the display.

3 Press one of the DISC 1~3 buttons to

select a CD.

4 Turn the jog dial until the desired

track appears in the display.

Total playing time

Disc number

(including selected track)

SYNC

CD (

=/+

CLEAR CHECK

VOL +/

ALL1 DISCS PROGRAM SHUFFLE REPEAT 1

Track number

5 Press ENTER/NEXT.

The track is programmed. The program step number appears, followed by the total playing time.

6 To program additional tracks,

repeat steps 3 to 5. Skip step 3 to select tracks from the same disc.

7 Press CD (P.

All the tracks play in the order you selected.

STEP

VOLUME

Page 39

To cancel Program Play

Press PLAY MODE repeatedly until “PROGRAM” or “SHUFFLE” disappears from the display.

To Press

Check the CHECK on the remote program repeatedly. After the last

track, “CHECK END” appears.

Clear a track from CLEAR on the remote in the end stop mode.

Clear a specific CHECK on the remote track repeatedly until the

number of the track to be erased lights up, then press CLEAR.

Add a track to the 1 Select the disc tray with a program DISC 1~3 button.

2 Select the track by

turning the jog dial.

3 Press ENTER/NEXT.

Clear the entire p once in stop mode or program twice while playing.

Tips

• The program you made remains in the CD player even after it has been played back. Press CD (P to play the same program again.

• If “--.--” appears instead of the total playing time during programming, this means:

– you have programmed a track number

which exceeds 20.

– the total playing time has exceeded 100 minutes.

Playing CDs without interruption

–– CD Non-Stop Play

You can play CDs without pausing between tracks.

You cannot use this function with VIDEO CDs.

(Power)

1 Press FUNCTION repeatedly until

“CD” appears in the display, then place a CD.

2 Press CD NON-STOP to light the

indicator.

“NON-STOP PLAY” appears in the display.

3 Press CD (P.

To cancel Non-Stop Play

Press CD NON-STOP so that the indicator goes out and “NON-STOP OFF” appears in the display.

Page 40

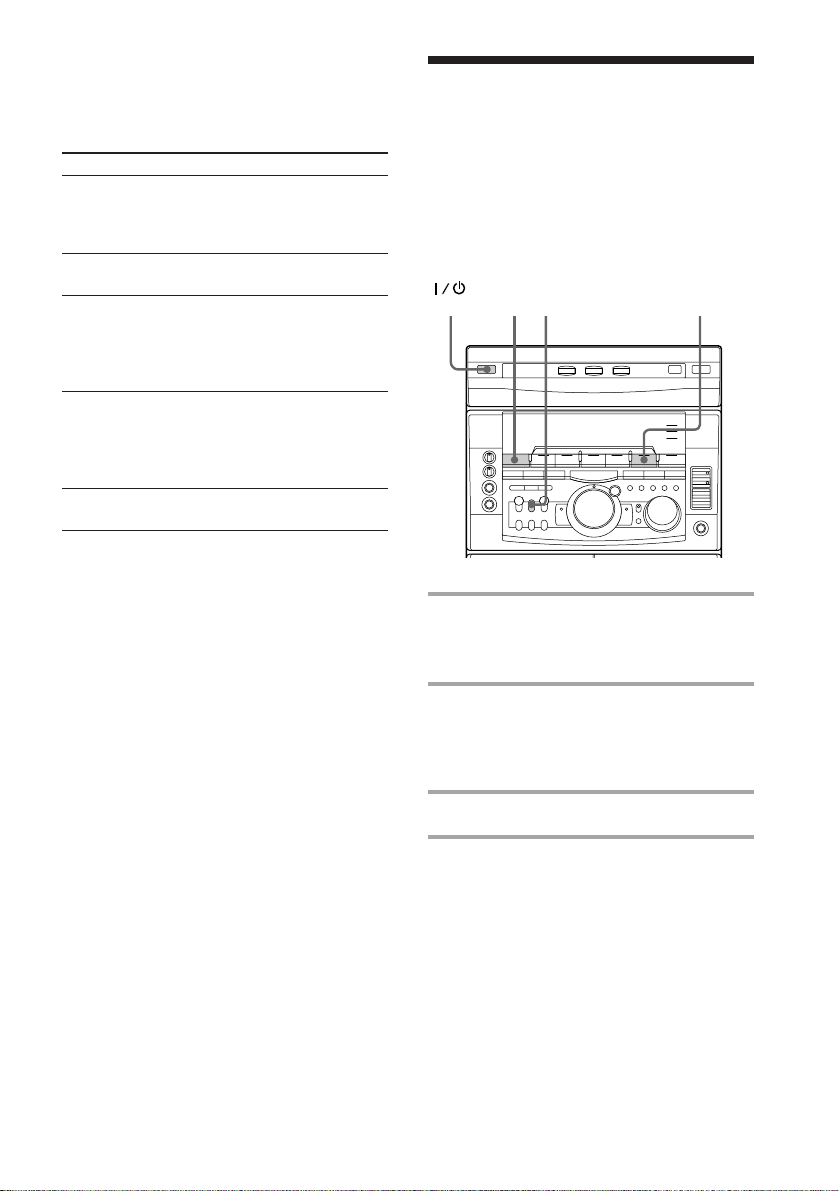

The Tape Deck

Recording on a tape manually

You can record from CD, tape, or radio as you like. For example, you can record just the songs you want or record from the middle of the tape. The recording level is adjusted automatically.

(Power)

4 Press DIRECTION repeatedly to

select A to record on one side. Select ß (or RELAY) to record on both sides.

5 Press P PAUSE.

Recording starts.

6 Start playing the source to be

recorded.

To Press

Stop recording p. Pause recording P PAUSE.

Tips

• If you want to record from the reverse side, press TAPE B 9 to light its indicator after pressing r REC.

• When you want to reduce the hiss noise in lowlevel high-frequency signals, press DOLBY NR so that “DOLBY NR” appears after pressing r REC.

• When recording from a CD, you can use the jog dial to select tracks during rec pause mode (after pressing r REC in step 3 and before pressing P PAUSE in step 5).

DOLBY NR

1 Insert a blank tape into deck B. 2 Press FUNCTION repeatedly until

the source you want to record (e.g., CD) appears.

3 Press r REC.

Deck B stands by for recording. The indicator on TAPE B ( (for front side) lights up.

Page 41

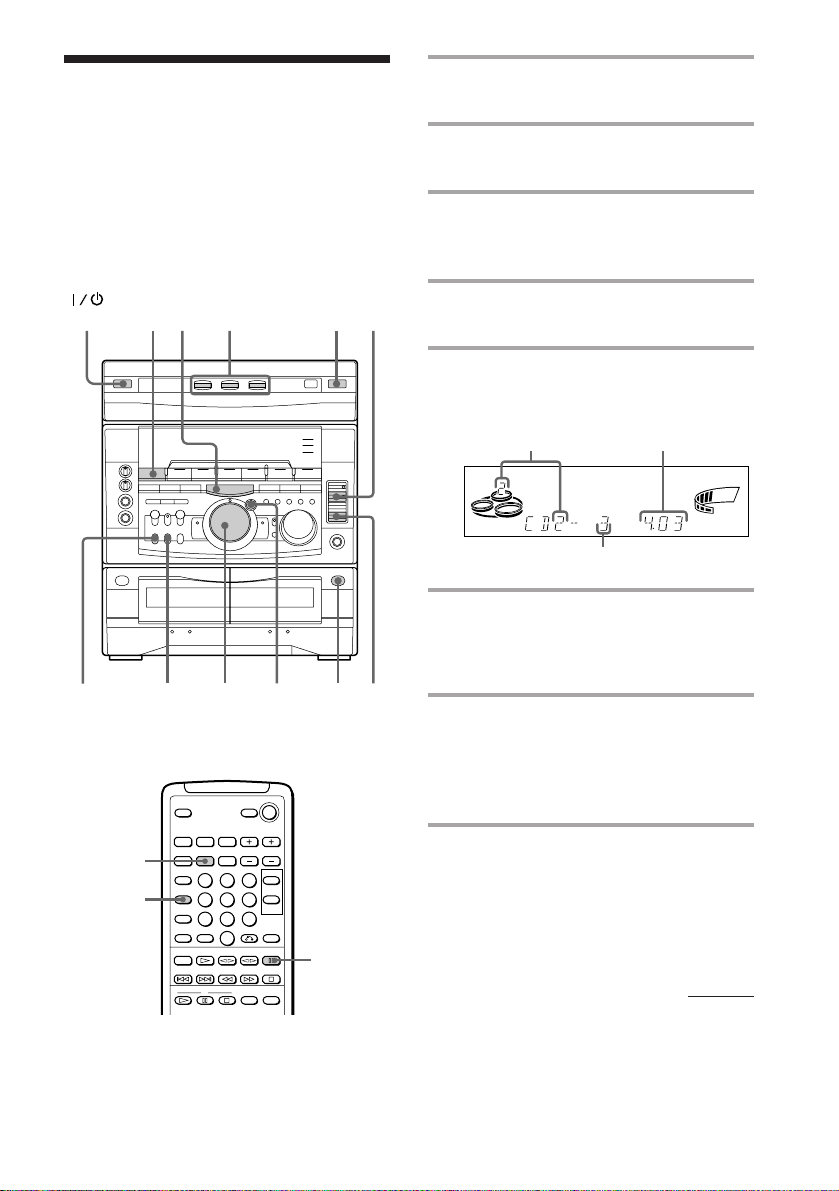

Recording a CD by specifying track order

— Program Edit

You can record tracks from all the CDs in the order you want. When programming, make sure the playing times for each side do not exceed the length of one side of the tape.

1 Place a CD and insert a blank tape

into deck B.

2 Press FUNCTION repeatedly until

“CD” appears in the display.

3 Press PLAY MODE repeatedly until

“PROGRAM” appears in the display.

(Power)

11, EDIT

CHECK

EDIT

DOLBY NR

4 Press one of the DISC 1~3 buttons to

select a CD.

5 Turn the jog dial until the desired

track appears in the display.

Total playing time

Disc number

ALL1 DISCS PROGRAM SHUFFLE REPEAT 1

(including selected track)

SYNC

Track number

STEP

VOLUME

6 Press ENTER/NEXT.

The track is programmed. The program step number appears, followed by the total playing time.

7 To program additional tracks to be

recorded on side A, repeat steps 4 to

Skip step 4 to select tracks from the same disc.

8 Press P on the remote to insert a

pause at the end of side A.

“P” appears in the display and the total playing time resets to “0.00” in the display.

continued

Page 42

Recording a CD by specifying track order (continued)

Selecting tape length automatically

9 Repeat steps 5 and 6 for tracks from

the same disc or steps 4 to 6 for tracks from another disc to program the remaining tracks to be recorded on side B.

10 Press CD SYNC.

Deck B stands by for recording and the CD player stands by for playback. The indicator on TAPE B ( (for front side) lights up.

11 Press DIRECTION repeatedly to

select A to record on one side. Select ß (or RELAY) to record on both sides.

12 Press P PAUSE.

Recording starts.

To stop recording

Press p.

To check the order

Press CHECK on the remote repeatedly. After the last track, “CHECK END” appears.

To cancel Program Edit

Press PLAY MODE repeatedly until “PROGRAM” or “SHUFFLE” disappears from the display.

Tip

When you want to reduce the hiss noise in low-level high-frequency signals, press DOLBY NR so that “DOLBY NR” appears after pressing CD SYNC.

—Tape Select Edit

You can check the most suitable tape length for recording a CD. Note that you cannot use Tape Select Edit for discs containing over 20 tracks.

1 Insert a CD. 2 Press FUNCTION repeatedly until

“CD” appears in the display.

3 Press EDIT once.

The required tape length for the currently selected CD appears, followed by the total playing time for side A and side B respectively.

Note

You cannot use this function after programming. In order to use this function, you must first cancel the program by pressing PLAY MODE repeatedly until “PROGRAM” or “SHUFFLE” disappears from the display.

Page 43

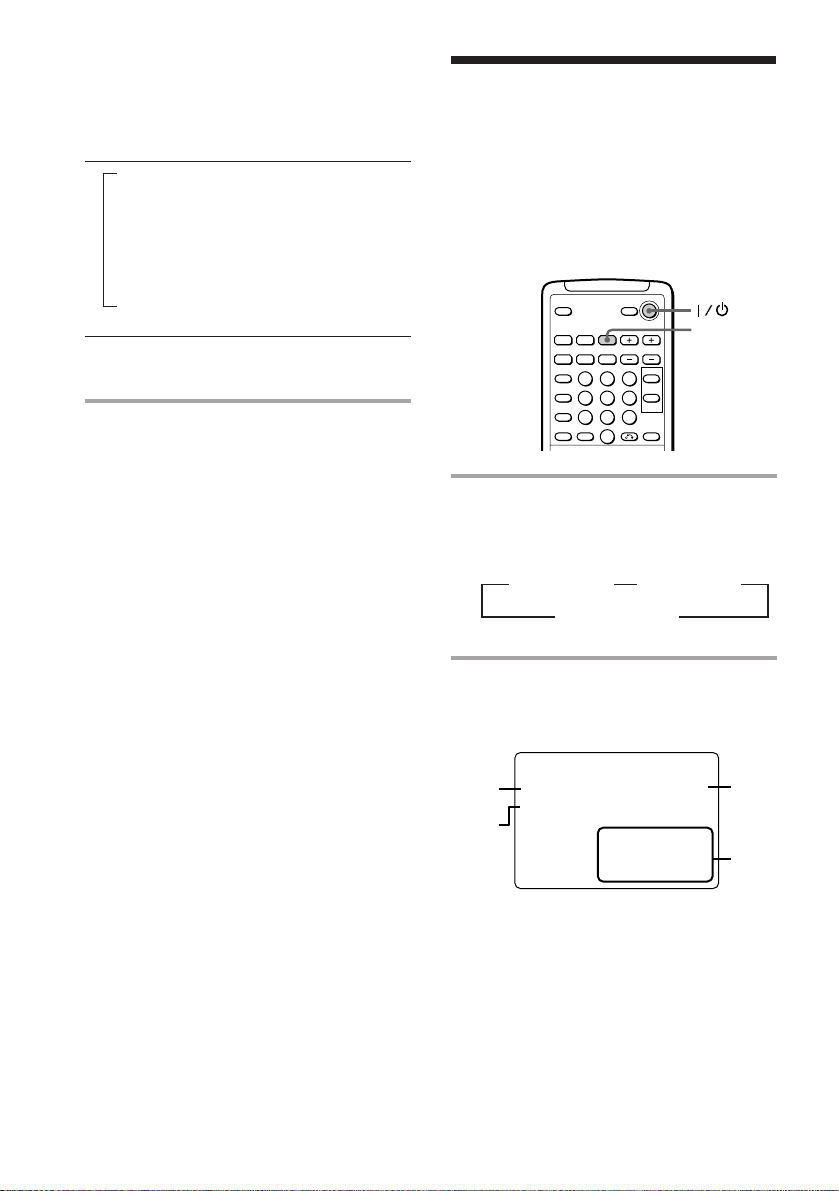

DJ Effects

Looping part of a CD

— CD Loop

With the loop function, you can repeat part of a CD during playback. This lets you create original recordings.

You cannot use this function with VIDEO CDs.

(Power)

CD LOOP

/ Press and hold CD LOOP during

playback at the point you want to start the Loop function, and release to resume normal play.

Jog dial

Flashing part of a CD

— CD Flash

With the flash function, you can “flash” the CD sound during playback. This lets you create original recordings.

You cannot use this function with VIDEO CDs.

(Power)

CD FLASH

/ Press and hold CD FLASH during

playback at the point you want to start the Flash function, and release to resume normal play.

Jog dial

To adjust the loop length

Turn the jog dial while holding CD LOOP (or press FILE SELECT 4 or $ while holding CD LOOP on the remote) to select different loop lengths (LOOP 1~20).

To adjust the flash length

Turn the jog dial while holding CD FLASH (or press FILE SELECT 4 or $ while holding CD FLASH on the remote) to select different flash lengths (FLASH 1~20).

To use CD LOOP and CD FLASH together

Press and hold both CD LOOP and CD FLASH at the same time.

Notes

• The loop and flash length cannot be adjusted during this operation. Adjust the loop and flash lengths independently beforehand if necessary.

• To record the flash effect, use the analog (MD/ VIDEO (AUDIO) OUT) connections or this unit’s tape deck.

Page 44

Sound Adjustment

Adjusting the sound

You can reinforce the bass, create a more powerful sound, and listen with headphones.

(Power)

To reinforce bass (DBFB)

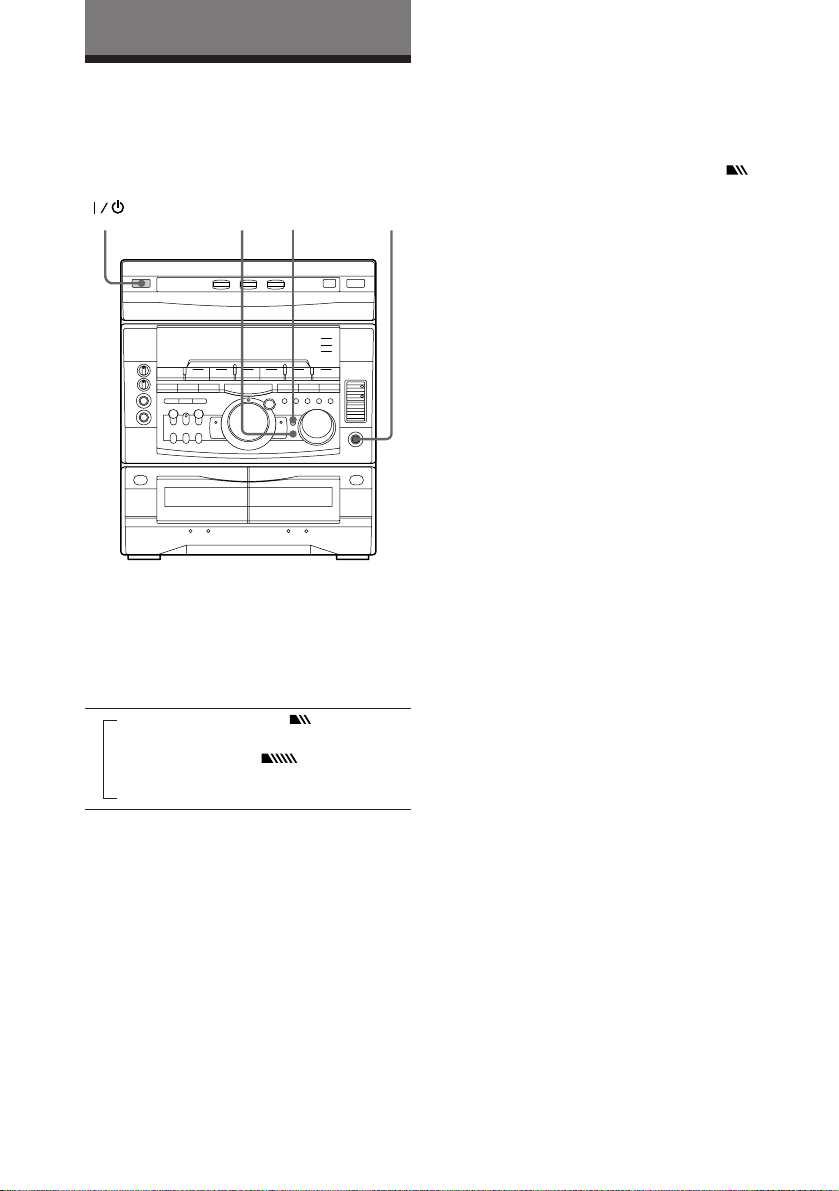

Press DBFB*. Every time you press the button, the display

changes as follows:

nDBFB NORMAL (DBFB )

DBFB HIGH (DBFB )

DBFB OFF (off)

DBFB GROOVE PHONES

Notes

• With some songs, the music will sound distorted when you use the DBFB system with the graphic equalizer if the bass is too strong. Adjust the bass slowly while listening to music so that you can monitor the effect of the adjustment.

• Cancelling GROOVE sets DBFB to “DBFB and flattens the equalizer curve. To cancel the DBFB level, press DBFB until the indication disappears. Adjust the equalization to obtain the effect you desire.

”

To listen through the headphones

Connect the headphones to PHONES jack. No sound will come from the speakers.

Note

If you have connected a super woofer, please note that sound comes from the super woofer even when the headphones are connected. Turn off the power of the super woofer when using headphones.

* DBFB = Dynamic Bass Feedback

For a powerful sound (GROOVE)

Press GROOVE. The volume switches to power mode, DBFB is automatically set to full strength, the equalizer curve changes, and the “GROOVE” button lights up. Press GROOVE again to return to the previous volume.

Page 45

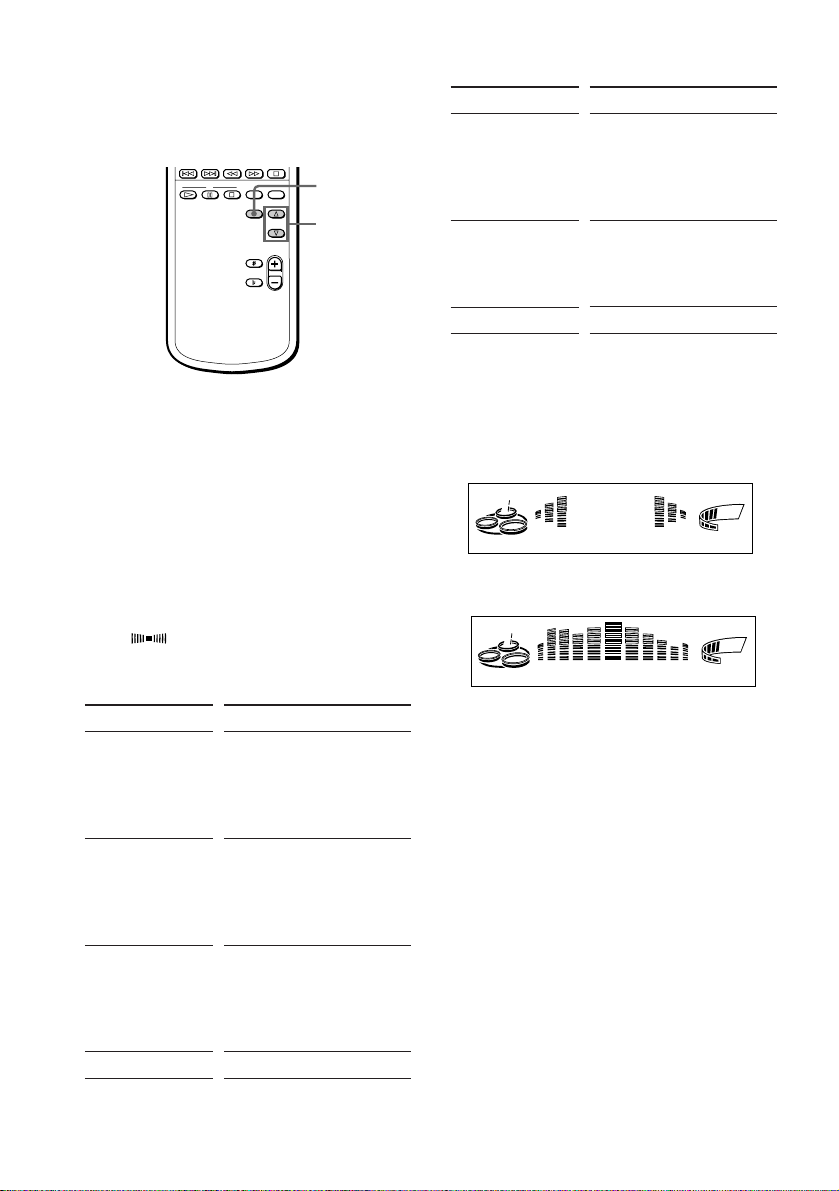

Selecting the audio

MHC-V515

emphasis

The audio emphasis menu lets you select the sound characteristic according to the sound you are listening to.

The personal file function (see “Making a personal audio emphasis file”) lets you store your own effects (MHC-V717 only).

MHC-V717

(Power)

DISPLAY/DEMO

EFFECT

(Power)

DISPLAY/DEMO

1 Press FILE SELECT.

The last effect chosen appears in the display.

2 Use the jog dial to select the preset

you desire.

The preset name appears in the display. See the chart “Music menu options”.

3 Press ENTER/NEXT.

continued

Page 46

Selecting the audio emphasis (continued)

When using the remote

Press FILE SELECT 4 or $ to switch effects.

ON/OFF FILE SELECT

4/$

To cancel the effect

MHC-V717

Press EFFECT on the front panel (or the remote) repeatedly so that “EFFECT OFF” appears in the display.

MHC-V515

Press FILE SELECT ON/OFF on the remote repeatedly so that “EFFECT OFF” appears in the display.

MHC-V515

Effect

ROCK

For

Standard music sources POP JAZZ DANCE SOUL

ACTION ROMANCE DRAMA

Soundtracks

and special listening

situations SPORTS

FLAT

Listening without effects

To change the spectrum analyzer display

Press DISPLAY/DEMO repeatedly to select one of the displays below.

Pattern 1

ALL DISCS

(Changes with music)

VOLUME

Music menu options

“SUR ” appears if you select an effect with surround effects.

MHC-V717

Effect

ROCK

For

Standard music sources POP JAZZ DANCE SOUL

ACTION ROMANCE SF

Soundtracks

and special listening

situations DRAMA SPORTS

SHOOTING

Video games RACING RPG BATTLE ADVENTURE

P FILE 1~5

Personal file

Pattern 2

ALL DISCS

VOLUME

Note

The spectrum analyzer display changes each time you cycle through the information display (i.e., function n clock n effect).

Page 47

Selecting the

Adjusting the graphic

surround effect

You can enjoy the surround effect.

(Power)

/ Press SURROUND to turn the

surround effect on or off.

Every time you press the button, the display changes as follows:

n SURROUND ON (SUR )

SURROUND OFF (off)

Tip (for MHC-V717 only)

If you want to memorize the effect, store it into a personal file (see “Making a personal audio emphasis file”).

Note

When you choose other sound effects, the surround effects will be canceled.

SURROUND

equalizer

(MHC-V717 only)

You can adjust the sound by raising or lowering the levels of specific frequency ranges.

Before operation, first select the audio emphasis you want for your basic sound.

(Power)

1 Select the audio emphasis you want

for your basic sound (see “Selecting the audio emphasis”).

2 Press GEQ CONTROL.

continued

Page 48

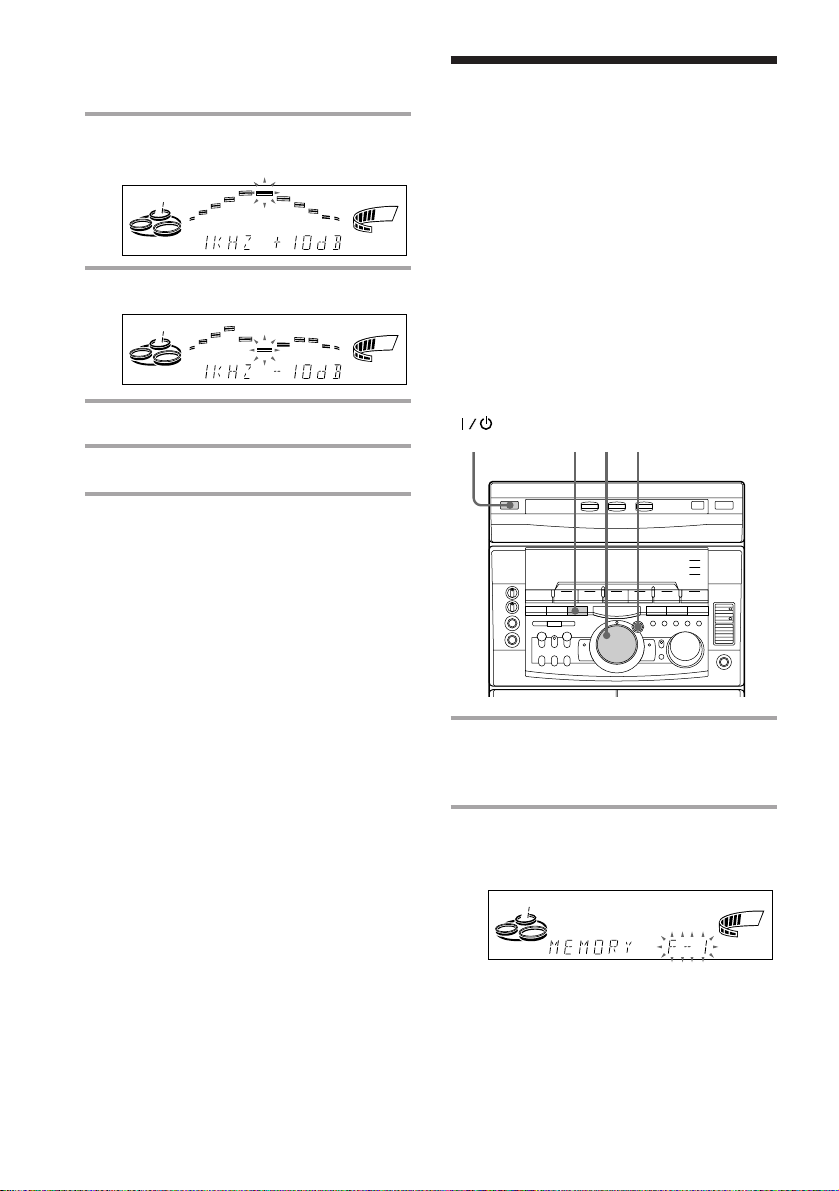

Adjusting the graphic equalizer (continued)

Making a personal

3 Press + or – repeatedly to select a

frequency band.

ALL DISCS

VOLUME

4 Turn the jog dial to adjust level.

ALL DISCS

VOLUME

5 Repeat steps 3 and 4. 6 Press ENTER/NEXT when finished.

Note

If you choose another menu audio emphasis (other than “EFFECT OFF”) the adjusted sound effect is lost. To retain the adjusted sound effect for future use, store it in a personal file. (See “Making a personal audio emphasis file”.)

audio emphasis file

—Personal file

(MHC-V717 only)

You can create a personal file of audio patterns (surround effect and graphic equalizer) and store them in the memory of the unit. Later call up an audio pattern to play a favorite tape, CD, or radio program. Create up to five audio files.

Before operation, first select the audio emphasis you want for your basic sound.

(Power)

1 Obtain the sound effect you want by

using the graphic equalizer and surround effect.

2 Press P FILE MEMORY.

The personal file number appears in the display.

ALL DISCS

VOLUME

Page 49

3 Use the jog dial to select the file

number (P FILE) where you want to store the sound effect.

4 Press ENTER/NEXT.

The adjusted sound effects are stored under the selected file number. The settings previously stored at this memory location are erased and replaced by the new settings.

To call up the personal file

1 Press FILE SELECT. 2 Use the jog dial to select the personal file

you desire.

3 Press ENTER/NEXT.

Page 50

Other Features

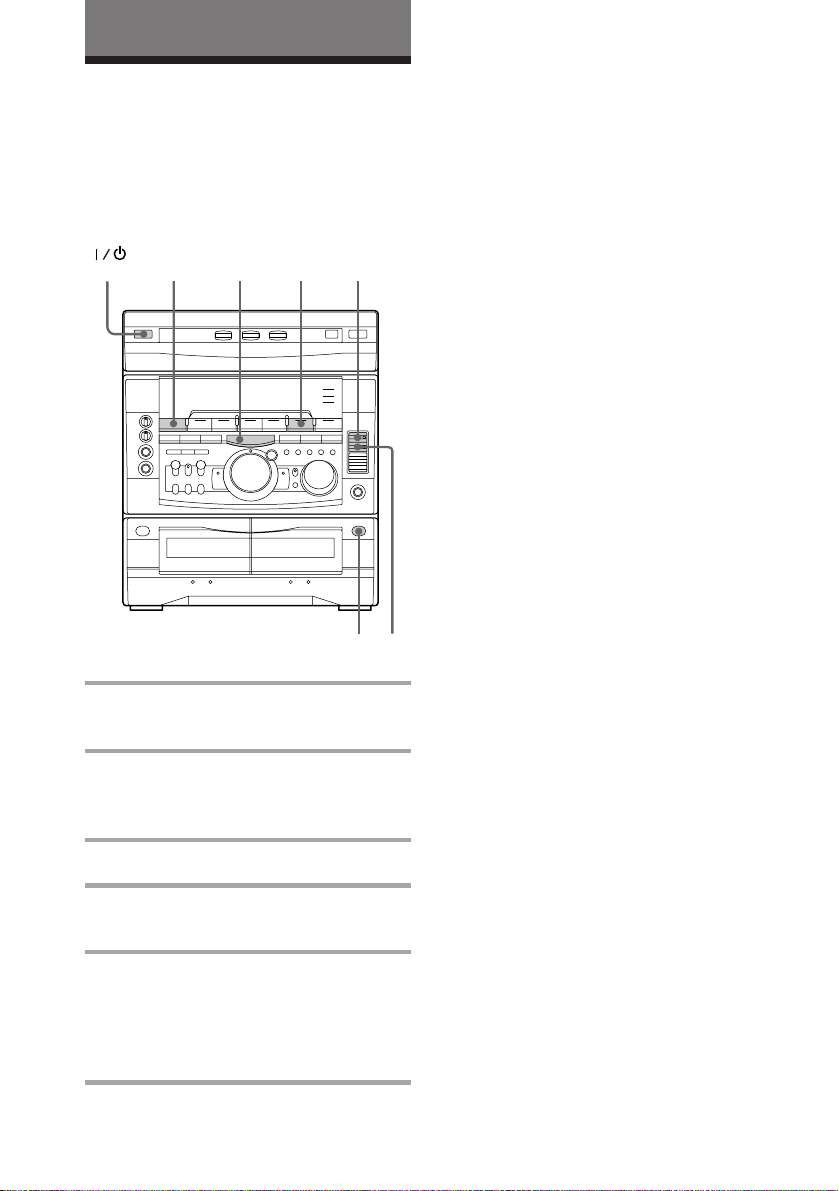

Mixing and recording sounds

You can “mix” sounds by playing one of the components and singing or speaking into a microphone (not supplied). The mixed sounds can be recorded on a tape.

(Power)

To stop recording

Press p.

Tips

• If acoustic feedback (howling) occurs, move the microphone away from the speakers or change the direction of the microphone.

• If you want to record your voice through the microphone only, you can do so by selecting the CD function and not playing a CD.

• When high level sound signals are input, the unit automatically adjusts the recording level to prevent distortion of the recorded sound signal (Auto Level Control function).

Notes

• If you press EFFECT or recall a sound effect, the karaoke mode is cancelled.

• The instrumental sound may be reduced as well as the singer’s voice when the sound is recorded in monaural.

• The singer’s voice may not be reduced when:

—only a few instruments are playing. —a duet is being played. —the source has strong echoes or chorus. —the singer’s voice deviates from the center. —the voice on the source is singing in high

soprano or tenor.

1 Do the above steps 1 to 5. Then,

insert a tape in deck B.

2 Press FUNCTION repeatedly to

select the source you desire and set it to pause mode.

3 Press r REC. 4 Press P PAUSE.

Recording starts.

5 Press CD (P to start playing the

CD player (or TAPE A ( for tape deck A).

Playback starts. Start singing along with the music.

Page 51

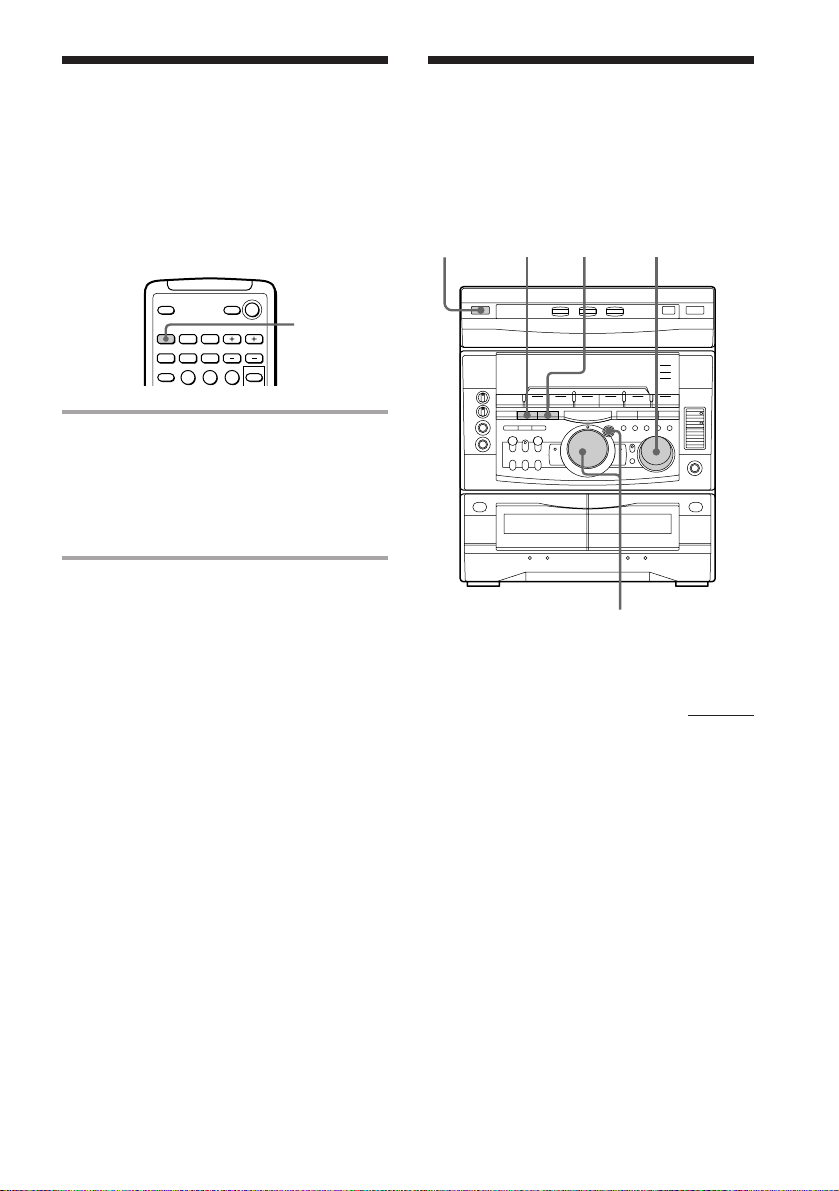

Falling asleep to music

— Sleep Timer

You can let the system turn off at the preset time, so you can sleep to the music. You can preset the time to be turned off by 10 minutes.

SLEEP

/ Press SLEEP.

Every time you press the button, the minute display (the turn-off time) changes as follows:

AUTO n 90MIN n 80MIN n 70MIN n … n 10MIN n OFF n AUTO

When you choose “AUTO”

The power turns off when the current CD or tape finishes playback (for up to 100 minutes).

To check the remaining time

Press SLEEP once.

To change the time to turn off

Select the time you want by pressing SLEEP.

To cancel the Sleep Timer function

Press SLEEP repeatedly until “OFF” appears.

…

Waking up to music

— Wake-up Timer

You can wake up to music at a preset time every day. Make sure you have set the clock (see “Step 2: Setting the time”).

TIMER

SELECT

4,5,6,7,8

continued

Page 52

Waking up to music (continued)

6 Set the time to stop playback

following the above procedure.

1 Prepare the music source you want

to play.

• CD: Insert a CD. To start from a specific track, make a program (see “Programming the CD tracks”).

• Tape: Insert an tape with the side you want to play facing forward.

• Radio: Tune in the preset station you want (see “Step 3: Presetting radio stations”).

2 Adjust the volume. 3 Press CLOCK/TIMER SET.

“SET (DAILY 1)” appears.

4 Turn jog dial to select DAILY 1 or 2,

then press ENTER/NEXT.

“ON” appears and the hour digits flash in the display.

1 2 RECSLEEP

ALL DISCS

VOLUME

5 Set the time to start playback.

Turn jog dial to set the hour, then press ENTER/NEXT.

The minute indication starts flashing.

1 2 RECSLEEP

7 Turn jog dial until the music source

you want appears.

The indications change as follows:

n TUNER ˜ CD PLAY N

n TAPE PLAY N

8 Press ENTER/NEXT.

The type of timer (DAILY 1 or DAILY 2), followed by the start time, stop time and the music source, appears, then the original display appears.

9 Turn off the power.

To check the setting

Press TIMER SELECT and turn the jog dial to select the respective mode (DAILY 1 or DAILY 2), then press ENTER/NEXT.

To change the setting, start over from step 1.

To cancel the timer operation

Press TIMER SELECT and turn the jog dial to

select “TIMER OFF”, then press ENTER/ NEXT.

Tip

The power turns on 15 seconds before the preset time.

ALL DISCS

Turn jog dial to set the minute, then press ENTER/NEXT.

The hour indication flashes again.

VOLUME

Page 53

Timer-recording radio programs

To timer-record, you must preset the radio station (see “Step 3: Presetting radio stations”) and set the clock (see “Step 2: Setting the time”) beforehand.

TIMER

1 Tune in the preset radio station (see

“Listening to the radio”).

2 Press CLOCK/TIMER SET.

“SET (DAILY 1)” appears.

3 Turn jog dial to select “REC”, then

press ENTER/NEXT.

“ON” appears and the hour digits flash in the display.

12REC SLEEP

SELECT

3,4,5

4 Set the time to start recording.

Turn the jog dial to set the hour, then press ENTER/NEXT.

The minute indication starts flashing.

12REC SLEEP

ALL DISCS

Turn the jog dial to set the minute, then press ENTER/NEXT.

The hour indication flashes again.

VOLUME

5 Set the time to stop recording

following the above procedure.

The start time appears, followed by the stop time, the preset radio station to be recorded (e.g., “TUNER FM 5”), then the original display appears.

6 Insert a recordable tape. 7 Turn off the power.

When the recording starts, the volume level is set to the minimum.

To check the setting

Press TIMER SELECT and turn the jog dial to select “REC”, then press ENTER/NEXT.

To change the setting, start over from step 1.

To cancel the timer operation

Press TIMER SELECT and turn the jog dial to select “TIMER OFF”, then press ENTER/ NEXT.

Note

If the power is on at the preset time, the recording will not be made.

ALL DISCS

VOLUME

Page 54

Additional Information

Precautions

On operating voltage

Before operating the system, check that the operating voltage of your system is identical with the voltage of your local power supply.

On safety

• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

• Unplug the system from the wall outlet (mains) if it is not to be used for an extended period of time. To disconnect the cord (mains lead), pull it out by the plug. Never pull the cord itself.

• Should any solid object or liquid fall into the component, unplug the stereo system and have the component checked by qualified personnel before operating it any further.

• The AC power cord must be changed only at the qualified service shop.

On placement

• Place the stereo system in a location with adequate ventilation to prevent heat build-up in the stereo system.

• Do not place the unit in an inclined position.

• Do not place the unit in locations where it is; — Extremely hot or cold — Dusty or dirty — Very humid — Vibrating — Subject to direct sunlight

On operation

• If the stereo system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the CD player. Should this occur, the system will not operate properly. Remove the CD and leave the system turned on for about an hour until the moisture evaporates.

• When you move the system, take out any discs.

Notes on CDs

• Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out.

• Do not use solvents such as benzene, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

• Do not expose the CD to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.

Cleaning the cabinet

Use a soft cloth slightly moistened with mild detergent solution.

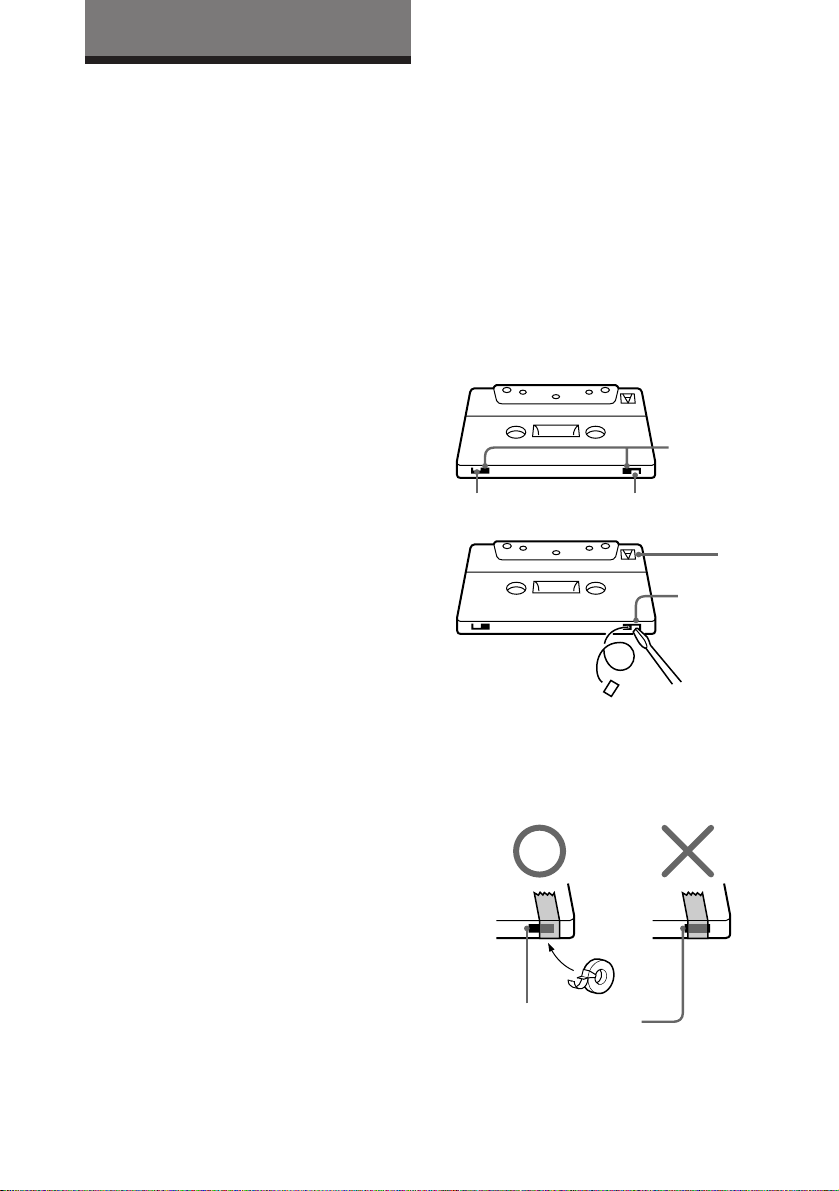

To save a tape permanently

To prevent a tape from being accidentally recorded over, break off the cassette tab from side A or B as illustrated.

Detector slots

Tab of side B

If you later want to reuse the tape for recording, cover the broken tab with adhesive tape. However, be careful not to cover the detector slots which allow the tape player to automatically detect the type of tape.

Tab of side A

Side A

Break off the cassette tab of side A

If you have any questions or problems concerning your stereo system, please consult your nearest Sony dealer.

Detector slots

Page 55

Before placing a cassette in the tape deck

Take up any slack in the tape. Otherwise the tape may get entangled in the parts of the tape deck and become damaged.

When using a tape longer than 90 minutes

The tape is very elastic. Do not change the tape operations such as play, stop, and fast-winding etc. frequently. The tape may get entangled in the tape deck.

Cleaning the tape heads

Clean the tape heads after every 10 hours of use. When the tape heads become dirty;

— the sound is distorted — there is a decrease in sound level — the sound drops out — the tape does not erase completely

— the tape does not record Make sure to clean the tape heads before you start an important recording or after playing an old tape. Use separately sold dry-type or wet-type cleaning cassette. For details, refer to the instructions of the cleaning cassette.

Demagnetizing the tape heads

Demagnetize the tape heads and the metal parts that have contact with the tape every 20 to 30 hours of use with a separately sold demagnetizing cassette. For details, refer to the instructions of the demagnetizing cassette.

In case color irregularity is observed on nearby a TV screen.

With the magnetically shielded type of speaker system, the speakers can be installed near a TV set. However, color irregularity may still be observed on the TV screen depending on the type of your TV set.

If color irregularity is observed…

Turn off the TV set once, then turn it on after 15 to 30 minutes.

If color irregularity is observed again…

Place the speakers farther away from the TV set.

Troubleshooting

If you run into any problem using this stereo system, use the following check list.

First, check that the power cord is connected firmly and the speakers are connected correctly and firmly.

Should any problem persist, consult your nearest Sony dealer.

General

The display starts flashing as soon as you plug in the power cord even though you haven’t turned on the power (demonstration mode).

•Press DISPLAY/DEMO when the power is turned off.

The demonstration mode appears automatically the first time you plug in the power cord. If there is a power outage lasting longer than half a day, redo the following:

— Clock setting (see “Step 2: Setting the

time”)

— Preset stations (see “Step 3: Presetting

radio stations”)

— Timer settings (see “Waking up to

music” and “Timer-recording radio programs”).

There is no sound.

•Rotate VOLUME clockwise.

•The headphones are connected.

•Insert only the stripped portion of the speaker cord into the SPEAKER jack. Inserting the vinyl portion of the speaker cord will obstruct the speaker connections.

continued

Page 56

Troubleshooting (continued)

Speakers

There is severe hum or noise.

•A TV or VCR is placed too close to the stereo system. Move the stereo system away from the TV or VCR.

The sound from the connected source is distorted.

•If “VIDEO” appears in the display when you press FUNCTION, switch the display to “MD” (see “Note: Connecting a VCR”).

“12:00” flashes in the display.

•A power interruption occurred. Set the clock and timer settings again.

The timer does not function.

•Set the clock correctly.

DAILY 1, DAILY 2, and REC do not appear when you press the TIMER SELECT button.

•Set the timer correctly.

•Set the clock.

The remote does not function.

•There is an obstacle between the remote and the system.

•The remote is not pointing in the direction of the system’s sensor.

•The batteries have run down. Replace the batteries.

There is acoustic feedback.

•Decrease the volume level.

•Move the microphone away form the speakers or change the direction of the microphone.

The color irregularity on a TV screen persists.

•Turn off the TV set once, then turn it on after 15 to 30 minutes. If the color irregularity still persists, place the speakers farther away from the TV set.

Sound comes from one channel or unbalanced left and right volume.

•Check the speaker connection and speaker placement.

Sound lacks bass.

•Check that the speaker’s + and – jacks are connected correctly.

VIDEO CD/CD Player

There is no picture.

•Check that the player is connected securely.

•Make sure you operate the TV correctly.

•Make sure you set the SYSTEM SELECT correctly, according to your TV (color) system.

•Press FUNCTION repeatedly until “CD” is displayed.

An after image of the last picture remains on the screen, or the picture is unclear.

•Press ACTIVE repeatedly until “ACTIVE OFF” appears.

The CD tray does not close.

•The CD is not placed properly.

The CD will not play.

•The CD is not lying flat in the disc tray.

•The CD is dirty.

•The CD is inserted label side down.

•Moisture condensation has built up. Remove the CD and leave the system turned on for about an hour until the moisture evaporates.

Play does not start from the first track.

•The player is in program or shuffle mode. Press PLAY MODE repeatedly until “PROGRAM” or “SHUFFLE” disappear.

“OVER” is displayed.

•You have reached the end of the CD. Press 0 to return.

Page 57

Tape Deck

Tuner

The tape does not record.

•No tape in the cassette holder.

•The tab has been removed from the cassette (see “To save a tape permanently” on page 54).

•The tape has reeled to the end.

The tape does not record nor play or there is a decrease in sound level.

•The heads are dirty. Clean them (see “Cleaning the tape heads” on page 55).

•The record/playback heads are magnetized. Demagnetize them (see “Demagnetizing the tape heads” on page

55).

The tape does not erase completely.

•The record/playback heads are magnetized. Demagnetize them (see “Demagnetizing the tape heads” on page

55).

There is excessive wow or flutter, or the sound drops out.

•The capstans or pinch rollers are dirty. Clean them (see “Cleaning the tape heads” on page 55).

Noise increases or the high frequencies are erased.

•The record/playback heads are magnetized. Demagnetize them (see “Demagnetizing the tape heads” on page

55).

After pressing ( (9) or §, there is a mechanical noise, “EJECT” appears in the display, and the unit enters standby mode automatically.

• The cassette tape was not inserted correctly. Eject the tape and turn the power back on.

Severe hum or noise (“TUNED” or “STEREO” flashes in the display).

•Adjust the antenna.

•The signal strength is too weak. Connect the external antenna.

A stereo FM program cannot be received in stereo.

•Press STEREO/MONO so that “STEREO” appears.

If other troubles not described above occur, reset the system as follows:

1 Unplug the power cord. 2 Plug the power cord back in. 3 Press p, ENTER/NEXT, and at the

same time.

4 Press to turn on the power.

The system is reset to the factory settings. All the settings you made, such as the preset stations, clock, and timer are cleared. You should set them again.

Page 58

Specifications

Amplifier section

MHC-V717:

The following measured at AC 110, 220 V 50/60 Hz DIN power output (rated) 85 + 85 watts

Continuous RMS power output (reference)

The following measured at AC 120, 240 V 50/60 Hz DIN power output (rated) 105 + 105 watts

Continuous RMS power output (reference)

Peak music power output (reference)

MHC-V515:

The following measured at AC 110, 220 V 50/60 Hz DIN power output (rated) 50 + 50 watts

Continuous RMS power output (reference)

The following measured at AC 120, 240 V 50/60 Hz DIN power output (rated) 60 + 60 watts

Continuous RMS power output (reference)

Peak music power output (reference)

(8 ohms at 1 kHz, DIN)

110 + 110 watts (8 ohms at 1 kHz, 10% THD)

(8 ohms at 1 kHz, DIN)

130 + 130 watts (8 ohms at 1 kHz, 10% THD)

1500 watts

(6 ohms at 1 kHz, DIN)

65 + 65 watts (6 ohms at 1 kHz, 10% THD)

(6 ohms at 1 kHz, DIN)

75 + 75 watts (6 ohms at 1 kHz, 10% THD)

1000 watts

Inputs MD/VIDEO (AUDIO) IN (phono jacks):

MIC 1/2 (phone jack): sensitivity 1 mV,

Outputs MD/VIDEO (AUDIO) OUT (phono jacks):

VIDEO OUT (phono jack):max. output level

S-VIDEO OUT (4-pin/mini-DIN jack):

PHONES (stereo phone jack):

SPEAKER: MHC-V717: accepts impedance of 8 to

MHC-V515: accepts impedance of 6 to

SUPER WOOFER: Voltage 1 V, impedance 1

voltage 450/250 mV, impedance 47 kilohms

impedance 10 kilohms

voltage 250 mV impedance 1 kilohms

1Vp-p, unbalanced,Sync negative, load impedance 75 ohms

Y: 1Vp-p, unbalanced, Sync negative, C: 0.286Vp-p, load impedance 75 ohms

accepts headphones of 8 ohms or more

16 ohms

kilohm

VIDEO CD/CD player section

System Compact disc and digital

Laser Semiconductor laser

Laser output Max. 44.6

Wavelength 780 – 790 nm Frequency response 2 Hz – 20 kHz (±0.5 dB) Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB Video color system format

CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wavelength 600 nm Output Level –18 dBm

audio and video system (λ=780nm)

Emission duration: continuous

*This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.

NTSC, PAL

Page 59

Tape player section

Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz (±3 dB), (DOLBY NR OFF) using Sony TYPE I

Wow and flutter ±0.15% W.Peak (IEC)

cassette 40 – 14,000 Hz (±3 dB), using Sony TYPE II cassette

0.1% W.RMS (NAB) ±0.2% W.Peak (DIN)

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 2 band models: 87.5 – 108.0 MHz 3 band (FM–MW–SW) models:

Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz

AM tuner section

Tuning range 2 Band type: 531 – 1,602 kHz

3 Band type: Middle Eastern models: MW: 531 – 1,602 kHz

SW: 5.95 – 17.90 MHz

Other models: MW: 531 – 1,602 kHz

SW: 5.95 – 17.90 MHz

Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz

87.5 – 108.0 MHz

(with the tuning interval set at 9 kHz) 530 – 1,710 kHz (with the tuning interval set at 10 kHz)

(with the tuning interval set at 9 kHz)

(with the tunig interval set at 5 kHz)

(with the tuning interval set at 9 kHz) 530 – 1,710 kHz (with the tuning interval set at 10 kHz)

(with the tuning interval set at 5 kHz)

Speaker

SS-JV770 for MHC-V717

Speaker system 4-way, 5-unit,

Speaker units Woofer: 17 cm, cone type Center Tweeter: 5 cm, cone type Side Tweeter: 5 cm, cone type x2 Super Tweeter: 2 cm, dome type Nominal impedance 8 ohms Dimensions (w/h/d) Approx. 230 x 335 x 310

Mass Approx. 5 kg net per

SS-JV550 for MHC-V515

Speaker system 3-way, bass-reflex type Speaker units Woofer: 15 cm, cone type Tweeter: 5 cm, cone type Super Tweeter: 2 cm, dome type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 220 x 335 x 305

Mass Approx. 4.5 kg net per

bass-reflex type

speaker

General

Power requirements Thai and Chinese models: Other models:

Power consumption: MHC-V717: 250 watts

Dimensions (w/h/d) Approx. 280 x 335 x 380

Mass: MHC-V717:

Supplied accessories: AM loop antenna (1)

Design and specifications are subject to change without notice.

220 V

AC, 50/60 Hz 110 - 120 V or 220 - 240 V AC, 50/60 Hz Adjustable with voltage selector

MHC-V515: 165 watts

/8 x 111/8 x 15

mm (13 in.)

Approx. 10.5 kg MHC-V515: Approx. 9.6 kg

Remote RM-SV55 (1) Batteries (2) FM lead antenna (1) Speaker cords (2) Video cable (1) Front speaker pads (8)

Page 60

Glossary

Auto Pause

An automatically pauses according to the signal encoded on the disc while playing a VIDEO CD. If the CD player does not resume play for a long time, press CD ( to resume play manually.

Menu Playback

Playback using the menu screens recorded on VIDEO CDs with PBC functions. You can enjoy simple interactive software using the menu playback function.

Playback Control (PBC)

Signals encoded on VIDEO CDs (Version 2.0) to control playback.

By using menu screens recorded on VIDEO CDs with PBC functions, you can enjoy playing simple interactive software, software with search functions, and so on.

When you select a VIDEO CD with PBC functions on this player, the PBC indicator lights up.

VIDEO CD

A compact disc which contains moving pictures.

VIDEO CDs contain compact picture information using the MPEG 1 format, one of the world wide standards of digital compact technology. The picture information is compressed about 120 times. Consequently, a 12 cm VIDEO CD can contain up to 74 minutes of moving pictures.

VIDEO CDs also contain compact audio information. Sounds outside the range of human hearing are compressed while the sounds we can hear are not compressed. VIDEO CDs can hold six times the audio information of conventional audio CDs.

There are two versions for VIDEO CDs: Version 1.1 (VIDEO CDs without PBC

functions): You can play only moving pictures and

sounds. Version 2.0 (VIDEO CDs with PBC functions): You can play still pictures and enjoy PBC

functions. This player can play to both versions.

Track

Sections of a picture or a music piece on disc. Each track is assigned a track number to help you locate the track you want.

Page 61

Index

Active Picture 35 Adjusting

the audio emphasis 45 the on-screen display

28~30 the operating voltage 6 the sound 44 the volume 15, 17, 19, 22

Antennas 5, 13 Automatic Source Selection

15, 17, 20, 22

Batteries 7

CD player 16, 26~39 CD Synchro Recording 18 Clock setting 8 Connecting. See Hooking up

Karaoke

adjusting the key 25 adjusting the

microphone echo 25 reducing the vocals

(KARAOKE PON) 24 singing along with a

multiplex CD or tape (MPX R/MPX L) 24

Lock Search 15, 17 Loop 43

Microphone mixing 50

Normal Play 14, 16

One Touch Play 15, 17, 20,

Radio stations

presetting 9 tuning in 19

Recording

a CD/VIDEO CD 18 a radio program 20

timer recording 53 Repeat Play 36 Resetting the system 57

Saving recordings 54 Searching

Scene search 31

Time search 32 Selecting

the audio emphasis 45

the color system 6 Setting the time 8 Shuffle Play 37 Sleep Timer 51 Sound adjustment 44 Speakers 4, 11 Special Menu 30

Digest

disc 32 track 33

Display 27, 28

Edit 42

F, G

Flash 43

H, I, J

Hooking up

optional components 10 the antennas 5, 13 the power 6 the system 4

P, Q

Personal file 48 Playing

a CD/VIDEO CD 14, 16 a preset radio station 19 tracks in random order (Shuffle Play) 37 tracks in the desired

order (Program Play) 38 tracks repeatedly

(Repeat Play) 36 Presetting radio stations 9 Preset tuning 19 Program Play 38 Protecting recordings 54

T, U

Timer

falling asleep to music

51 timer recording 53 waking up to music 51

Troubleshooting 55 Tuner 9, 19 Tuning interval 10, 59

VIDEO CD/CD player 14,

16, 26~39

W, X, Y, Z

Wake-up timer 51

Page 62

626364

Page 63

Page 64

Sony Corporation Printed in Malaysia
