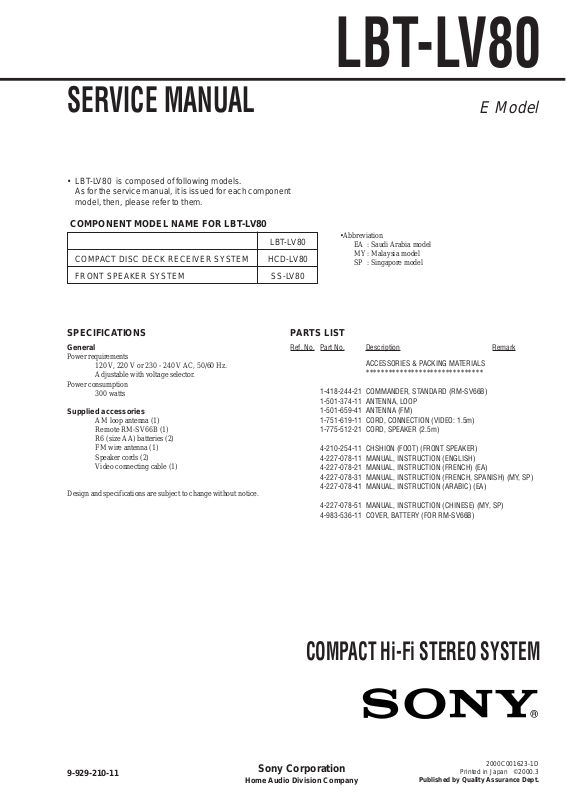

Sony LBT-LV80 Service Manual

LBT-LV80

SERVICE MANUAL

• LBT-LV80 is composed of following models.
As for the service manual, it is issued for each component
model, then, please refer to them.

COMPONENT MODEL NAME FOR LBT-LV80

LBT-LV80
COMPACT DISC DECK RECEIVER SYSTEM HCD-LV80
FRONT SPEAKER SYSTEM SS-LV80

SPECIFICATIONS

General

Power requirements

120 V, 220 V or 230 - 240 V AC, 50/60 Hz.
Adjustable with voltage selector.

Power consumption

300 watts

Supplied accessories

AM loop antenna (1)
Remote RM-SV66B (1)
R6 (size AA) batteries (2)
FM wire antenna (1)
Speaker cords (2)
Video connecting cable (1)

Design and specifications are subject to change without notice.

PARTS LIST

Ref. No. Part No. Description Remark

E Model

•Abbreviation

EA : Saudi Arabia model
MY: Malaysia model
SP : Singapore model

ACCESSORIES & PACKING MATERIALS

*******************************

1-418-244-21 COMMANDER, STANDARD (RM-SV66B)
1-501-374-11 ANTENNA, LOOP
1-501-659-41 ANTENNA (FM)
1-751-619-11 CORD, CONNECTION (VIDEO: 1.5m)
1-775-512-21 CORD, SPEAKER (2.5m)

4-210-254-11 CHSHION (FOOT) (FRONT SPEAKER)
4-227-078-11 MANUAL, INSTRUCTION (ENGLISH)
4-227-078-21 MANUAL, INSTRUCTION (FRENCH) (EA)
4-227-078-31 MANUAL, INSTRUCTION (FRENCH, SPANISH) (MY, SP)
4-227-078-41 MANUAL, INSTRUCTION (ARABIC) (EA)

4-227-078-51 MANUAL, INSTRUCTION (CHINESE) (MY, SP)
4-983-536-11 COVER, BATTERY (FOR RM-SV66B)

9-929-210-11

COMPACT Hi-Fi STEREO SYSTEM

Sony Corporation

Home Audio Division Company

2000C001623-1D

Printed in Japan ©2000.3

Published by Quality Assurance Dept.
