LBT-LV60

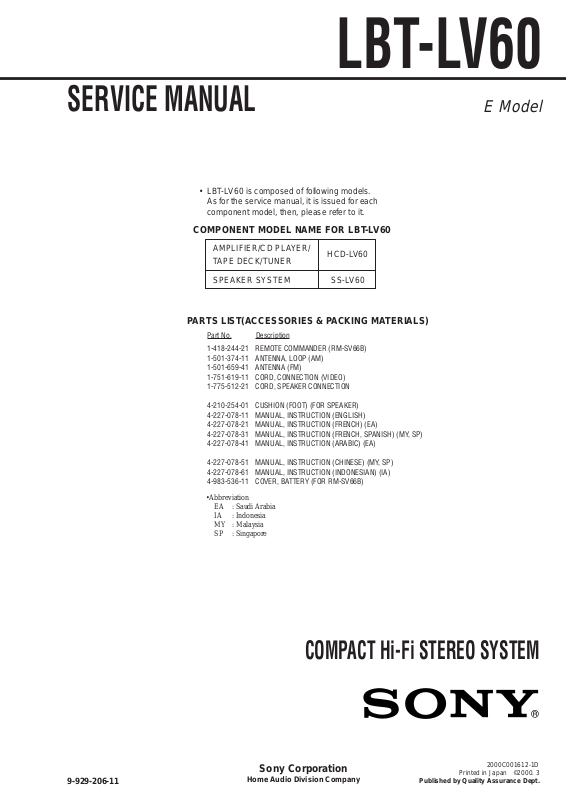

SERVICE MANUAL

E Model

•LBT-LV60 is composed of following models. As for the service manual, it is issued for each component model, then, please refer to it.

COMPONENT MODEL NAME FOR LBT-LV60

AMPLIFIER/CD PLAYER/

HCD-LV60

TAPE DECK/TUNER

SPEAKER SYSTEM

SS-LV60

PARTS LIST(ACCESSORIES & PACKING MATERIALS)

Part No.

Description

1-418-244-21 REMOTE COMMANDER (RM-SV66B) 1-501-374-11 ANTENNA, LOOP (AM) 1-501-659-41 ANTENNA (FM)

1-751-619-11 CORD, CONNECTION (VIDEO) 1-775-512-21 CORD, SPEAKER CONNECTION

4-210-254-01 CUSHION (FOOT) (FOR SPEAKER)

4-227-078-11 MANUAL, INSTRUCTION (ENGLISH) 4-227-078-21 MANUAL, INSTRUCTION (FRENCH) (EA)

4-227-078-31 MANUAL, INSTRUCTION (FRENCH, SPANISH) (MY, SP) 4-227-078-41 MANUAL, INSTRUCTION (ARABIC) (EA)

4-227-078-51 MANUAL, INSTRUCTION (CHINESE) (MY, SP) 4-227-078-61 MANUAL, INSTRUCTION (INDONESIAN) (IA) 4-983-536-11 COVER, BATTERY (FOR RM-SV66B)

•Abbreviation

EA : Saudi Arabia IA : Indonesia MY : Malaysia

SP : Singapore

COMPACT Hi-Fi STEREO SYSTEM

		Sony Corporation	2000C001612-1D
			Printed in Japan ©2000. 3
	9-929-206-11	Home Audio Division Company
			Published by Quality Assurance Dept.
