Introduction

Thank you for choosing this Sony product.
Before operating the TV, please read this manual
thoroughly and retain it for future reference.
The illustrations used in this manual may differ
depending on your TV model.

Location of the identification label

Labels for TV Model No. and Power Supply
rating (in accordance with applicable safety
regulation) are located on the rear of the TV.
Labels for AC adapter Model No. and Serial No.
are located at the bottom of AC adapter.

Notice for customers in South Africa

The Euro/South Africa converter plug should be
fitted as follows.

1 Insert the power supply

or CEE7 plug in to the
converter plug.

2 Use an appropriate

screwdriver to attach the
screw tightly without
damaging the screw
head.

3 TEST: Grip the converter

plug, and pull the VDE
cord set/transformer to
ensure it is fully secure, if
not then increase the
torque setting and further tighten.
Re-test.
The converter plug is now ready for use.

Disposal of the TV set

Disposal of Old Electrical &
Electronic Equipment (Applicable
in the European Union and other
European countries with separate
collection systems)

This symbol is on the remote control.

Disposal of the TV set

Disposal of Old Electrical &
Electronic Equipment
(Applicable in Republic
of India)

India only

This symbol indicates that this product shall not
be treated as household waste and may not be
dropped in garbage bins. Product owners are
advised to deposit their product at the nearest
collection point for the recycling of electrical
and electronic equipment.Your co-operation
shall facilitate proper disposal & help prevent
potential negative consequences/hazards to
the environment and human health, which could
otherwise be caused by inappropriate waste
disposal including improper handling,
accidental breakage, damage and/ or improper
recycling of e-waste.The recycling of materials
will help to conserve natural resources. For
more detailed information about recycling of this
product, please contact your local civic office,
your household waste disposal service provider
or the store where you made the purchase. You
may contact our company’s toll free number in
India for assistance.

Trademark information

• HDMI, the HDMI Logo, and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC
in the United States and other countries.

• Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.

• “BRAVIA” and are trademarks of
Sony Corporation.

• MHL, Mobile High-Definition Link and the MHL
Logo are trademarks or registered trademarks
of MHL Licensing, LLC.

GB

2

Table of Contents

Start-up Guide

Checking the accessories..................................4

1: Attaching the Table-Top Stand ......................4

2: Connecting an antenna/cable/VCR................4

3: Preventing the TV from toppling over.............5

4: Performing the initial set-up............................5

Detaching the Table-Top Stand from the TV...... 5

Safety information...............................................6

Precautions ........................................................7

Operating the TV

Overview of the remote ......................................8

Overview of the TV controls and indicators........9

Using Optional Equipment

Viewing pictures from the connected

equipment ........................................................10

Using MHL function..........................................11

Using Menu Functions

Photo Frame Mode........................................... 12

Favourites........................................................ 12

Photo/Music/Video .......................................... 13

FM Radio

(except KLV-40EX43B, KLV-32EX33B)........... 14

Settings ........................................................... 15

Picture .............................................................15

Sound..............................................................16

Screen.............................................................17

Channel Set-up ...............................................18

Parental Lock ..................................................19

Set-up..............................................................19

Eco ..................................................................20

Additional Information

Installing the accessories

(Wall-Mount Bracket) ....................................... 21

TV installation dimensions table......................21

Screw and hook locations diagram/table .......22

Troubleshooting ............................................... 23

Specifications.....................................Back cover

• Before operating the TV, please read “Safety information” (page 6). Retain this manual for future reference.

• Instructions about “Installing Wall Mount Bracket” are included within this TV’s instructions manual.

GB

3

Start-up Guide

Checking the accessories

Table-Top Stand (1)

Fixing screws for Table-Top Stand (2)

Remote (1)

AC power cord (1)

AC adapter (1)

Cable holders (2)

Size AA batteries (R6 type) (2)

x To insert batteries into the remote

1: Attaching the Table-Top Stand

~ • For best picture quality, do not expose the

screen to direct illumination or sunlight.

• If using an electric screwdriver, set the tightening
torque at approximately 1.5 N·m (15 kgf·cm).

2: Connecting an antenna/ cable/VCR

Connecting an antenna/cable

Antenna cable
(not supplied)

Connecting an antenna/cable and VCR

Thick and soft
cloth

GB

4

AV cable

(not

supplied)

VCR

Antenna cable

(not supplied)

3: Preventing the TV from

3

2

1

toppling over

*Anchor bolts (M6 / M4) (not supplied)

2

Follow the instructions on the screen.

Strong
cord (not
supplied)

OR

*Anchor bolts (M6 / M4) (not supplied)

Strong
cord (not
supplied)

Wall-anchor
(not
supplied)

* KLV-40EX430, KLV-40EX43A, KLV-40EX43B :

Use M6 anchor bolts
KLV-32EX330, KLV-32EX33A, KLV-32EX33B :
Use M4 anchor bolts

4: Performing the initial set­up

~ • You can also tune channels manually

(page 18).

• Language options vary depending on model.

• Select “Home” from “Location” for the best TV
settings to use the TV in the home.

Detaching the Table-Top Stand from the TV

~ • Do not remove the Table-Top Stand for any

reason other than to wall-mount the TV.

Thick and soft
cloth

x To bundle the AC adapter

~ • You can bundle the AC adapter as an optional

step. Do not bundle it for any reason other than
to wall-mount the TV.

• Make sure that the label is facing outwards
when bundling AC adapter.

Start-up Guide

~ • When the TV is in standby mode (the 1

(standby) indicator on the TV front panel is red),
press "/1 on the remote to turn on the TV.

• Make sure that the TV is completely turned off
before unplugging the AC power cord or DC
cable. Unplugging the AC power cord or DC
cable while the TV is turned on may cause the
TV to malfunction.

1

2

3

GB

5

Safety information

m

WARNING

Batteries must not be exposed to
excessive heat such as sunshine, fire or
the like.

Installation/Set-up

Install and use the TV set in accordance
with the instructions below in order to
avoid any risk of fire, electrical shock or
damage and/or injuries.

Installation

• The TV set should be installed near
an easily accessible AC power outlet.

• Place the TV set on a stable, level
surface to avoid it from falling down
and cause personal injury or damage
to the TV.

• Only qualified service personnel
should carry out wall installations.

• For safety reasons, it is strongly
recommended that you use Sony
accessories, including:
– Wall-Mount Bracket

SU-WL50B (KLV-40EX430,
KLV-40EX43A, KLV-40EX43B)
SU-WL100 (KLV-32EX330,
KLV-32EX33A, KLV-32EX33B)

• Be sure to use the screws supplied
with the Wall-mount bracket when
attaching the mounting hooks to the
TV set. The supplied screws are
designed as indicated by illustration
when measured from the attaching
surface of the mounting hook.
The diameter and length of the
screws differ depending on the Wall­mount bracket model.
Use of screws other than those
supplied may result in internal
damage to the TV set or cause it to
fall, etc.

32" TV: 6.5 mm ~ 10 mm
40" TV: 8 mm ~ 12 mm

Screw (supplied with the
Wall-mount bracket)

Mounting Hook
Hook attachment on rear of

TV set

Transporting

• Before transporting the TV set,
disconnect all cables.

• Two or more people are needed to
transport a large TV set.

• When
transporting the
TV set by hand,
hold it as shown in
the illustration. Do
not put stress on
the LCD panel
and the frame around the screen.

• When transporting the TV set, do not
subject it to jolts or excessive
vibration.

GB

6

• When transporting the TV set for
repairs or when moving, pack it using
the original carton and packing
material.

Ventilation

• Never cover the ventilation holes or
insert anything in the cabinet.

• Leave space around the TV set as
shown below.

• It is strongly recommended that you
use a Sony wall-mount bracket in
order to provide adequate air­circulation.

Installed on the wall

30 cm

10 cm 10 cm

Leave at least this space around
the set.

10 cm

Installed with stand

30 cm

10 cm

Leave at least this space around the
set.

• To ensure proper ventilation and
prevent the collection of dirt or dust:
– Do not lay the TV set flat, install

upside down, backwards, or
sideways.

– Do not place the TV set on a shelf,

rug, bed or in a closet.

– Do not cover the TV set with a

cloth, such as curtains, or items
such as newspapers, etc.

– Do not install the TV set as shown

below.

Air circulation is blocked.

Wall

10 cm

6 c

Wall

AC power cord

Handle the AC power cord and outlet as
follows in order to avoid any risk of fire,
electrical shock or damage and/or
injuries:
– Use only Sony supplied AC power

cords, not those of other brands.

– Insert the plug fully into the AC power

outlet.

– Operate the TV set on a 110-240 V AC

supply only.

– When wiring cables, be sure to

unplug the AC power cord for your
safety and take care not to catch your
feet on the cables.

– Disconnect the AC power cord from

the AC power outlet before working
on or moving the TV set.

– Keep the AC power cord away from

heat sources.

– Unplug the AC power plug and clean

it regularly. If the plug is covered with
dust and it picks up moisture, its
insulation may deteriorate, which
could result in a fire.

Notes

• Do not use the supplied AC power
cord on any other equipment.

• Do not pinch, bend, or twist the AC
power cord excessively. The core
conductors may be exposed or
broken.

• Do not modify the AC power cord.

• Do not put anything heavy on the AC
power cord.

• Do not pull on the AC power cord
itself when disconnecting the AC
power cord.

• Do not connect too many appliances
to the same AC power outlet.

• Do not use a poor fitting AC power
outlet.

NOTE ON AC adapter

Warning

To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To prevent fire or shock hazard, do not
place objects filled with liquids, such as
vases, on the apparatus.
Do not install this equipment in a
confined space, such as a bookshelf or
similar unit.

• Please ensure that the AC power
outlet is installed near the equipment
and shall be easily accessible.

• Be sure to use the supplied AC
adapter and AC power cords.
Otherwise it may cause a
malfunction.

• Connect the AC adapter to an easily
accessible AC power outlet.

• Do not coil the
AC power
cord around
the AC
adapter. The
core wire may
be cut and/or it may cause a
malfunction of the TV.

• Do not touch the AC adapter with wet
hands.

• If you notice an abnormality in the AC
adapter, disconnect it from the AC
power outlet immediately.

• The set is not disconnected from the
AC source as long as it is connected
to the AC power outlet, even if the set
itself has been turned off.

Prohibited Usage

Do not install/use the TV set in locations,
environments or situations such as those
listed below, or the TV set may
malfunction and cause a fire, electrical
shock, damage and/or injuries.

Location:

• Outdoors (in direct sunlight), at the
seashore, on a ship or other vessel,
inside a vehicle, in medical
institutions, unstable locations, near
water, rain, moisture or smoke.

• If the TV is placed
in the changing
room of a public
bath or hot
spring, the TV
may be damaged
by airborne sulfur, etc.

Environment:

• Places that are hot, humid, or
excessively dusty; where insects may
enter; where it might be exposed to
mechanical vibration, near flammable
objects (candles, etc). The TV set
shall not be exposed to dripping or
splashing and no objects filled with
liquids, such as vases, shall be
placed on the TV.

• Do not place the
TV in a humid or
dusty space, or
in a room with
oily smoke or
steam (near
cooking tables or humidifiers). Fire,
electric shock, or warping may result.

• Do not install the TV in places subject
to extreme temperature such as in
direct sunlight, near a radiator or a
heating vent. The TV may overheat in
such condition which can cause
deformation of the enclosure and/or
TV malfunction.

Situation:

• Do not use when your hands are wet,
with the cabinet removed, or with
attachments not recommended by
the manufacturer. Disconnect the TV
set from AC power outlet and antenna
during lightning storms.

• Do not install
the TV so that it
sticks out into
an open space.
Injury or
damage from a
person or
object bumping into the TV may
result.

Broken pieces:

• Do not throw anything at the TV set.
The screen glass may break by the
impact and cause serious injury.

• If the surface of the TV set cracks, do
not touch it until you have unplugged
the AC power cord. Otherwise
electric shock may result.

When not in use

• If you will not be using the TV set for
several days, the TV set should be
disconnected from the AC power for
environmental and safety reasons.

• As the TV set is not disconnected
from the AC power when the TV set is
just turned off, pull the plug from the
AC power outlet to disconnect the TV
set completely.

• However, some TV sets may have
features that require the TV set to be
left in standby to work correctly.

For children

• Do not allow children to climb on the
TV set.

• Keep small accessories out of the
reach of children, so that they are not
mistakenly swallowed.

If the following problems
occur...

Turn off the TV set and unplug the AC

power cord immediately if any of the
following problems occur.
Ask your dealer or Sony service centre
to have it checked by qualified service
personnel.

When:

– AC power cord is damaged.
– Poor fitting of AC power outlet.
– TV set is damaged by being

dropped, hit or having something
thrown at it.

– Any liquid or solid object falls through

openings in the cabinet.

About LCD Monitor
Temperature

When the LCD Monitor is used for an
extended period, the panel surrounds
become warm. You may feel hot when
touching there by the hand.

Precautions

Viewing the TV

• View the TV in moderate light, as
viewing the TV in poor light or during
long period of time, strains your eyes.

• When using headphones, adjust the
volume so as to avoid excessive
levels, as hearing damage may
result.

LCD Screen

• Although the LCD screen is made
with high-precision technology and

99.99% or more of the pixels are
effective, black dots may appear or
bright points of light (red, blue, or
green) may appear constantly on the
LCD screen. This is a structural
property of the LCD screen and is not
a malfunction.

• Do not push or scratch the front filter,
or place objects on top of this TV set.
The image may be uneven or the LCD
screen may be damaged.

• If this TV set is used in a cold place, a
smear may occur in the picture or the
picture may become dark. This does
not indicate a failure. These
phenomena disappear as the
temperature rises.

• Ghosting may occur when still
pictures are displayed continuously.
It may disappear after a few
moments.

• The screen and cabinet get warm
when this TV set is in use. This is not
a malfunction.

• The LCD screen contains a small
amount of liquid crystal. Follow your
local ordinances and regulations for
disposal.

Handling and cleaning the
screen surface/cabinet of the
TV set

Be sure to unplug the AC power cord
connected to the TV set from AC power
outlet before cleaning.
To avoid material degradation or screen
coating degradation, observe the
following precautions.

• To remove dust from the screen
surface/cabinet, wipe gently with a
soft cloth. If dust is persistent, wipe
with a soft cloth slightly moistened
with a diluted mild detergent solution.

• Never spray
water or
detergent directly
on the TV set. It
may drip to the
bottom of the
screen or exterior parts and enter the
TV set, and may cause damage to the
TV set.

• Never use any type of abrasive pad,
alkaline/acid cleaner, scouring
powder, or volatile solvent, such as
alcohol, benzene, thinner or
insecticide. Using such materials or
maintaining prolonged contact with
rubber or vinyl materials may result in
damage to the screen surface and
cabinet material.

• Periodic vacuuming of the ventilation
openings is recommended to ensure
to proper ventilation.

• When adjusting the angle of the TV
set, move it slowly so as to prevent
the TV set from moving or slipping off
from its table stand.

Optional Equipment

Keep optional components or any
equipment emitting electromagnetic
radiation away from the TV set.
Otherwise picture distortion and/or noisy
sound may occur.

(Caution about handling the
remote control)
Notes

• Observe the correct polarity when
inserting batteries.

• Do not use different types of batteries
together or mix old and new batteries.

• Dispose of batteries in an
environmentally friendly way. Certain
regions may regulate the disposal of
batteries. Please consult your local
authority.

• Handle the remote with care. Do not
drop or step on it, or spill liquid of any
kind onto it.

• Do not place the remote in a location
near a heat source, a place subject to
direct sunlight, or a damp room.

GB

7

Operating the TV

Overview of the remote

Selects input source.
In Text mode: Holds the
current page.

Operates the BRAVIA Sync
and USB compatible
equipment that is connected
to the TV.

Displays a photo, clock,
calendar and listen to music at
the same time.

Selects, adjusts or confirmed
selected items.

Returns to the previous screen.
In USB mode: Stops the
playback.

Displays or cancels the menu.

Exit Text mode, or switches to a
TV display when displaying
external input.

View Twin Picture and PIP
(page 9).

Turns the TV on or switch to
standby mode.

Displays the BRAVIA Sync
Menu and then select
connected HDMI/MHL
equipment from “Device
Selection”.

Available when operation guide
appears on the screen.

Displays information about the
programme/input or reveals
hidden information in Text
mode.

Displays a list of shortcuts to
some setting menus.

Dual Sound (page 16).

Selects desired scene modes
from the “Scene Select” menu.

In TV mode: Selects channels.
In Text mode: Selects pages.

Displays text information.

Adjusts volume.

Mute or restore sound.

GB

8

Selects the desired wide mode
(page 9).

In TV mode: Selects the next or
previous channel.
In Text mode: Selects the next or
previous page.

Returns to the previous channel
or input watched (for more than
15 seconds).

x To change the Wide Mode

For TV, Video, Component or HDMI (except PC input)/
MHL

Wide Zoom* Normal Full Zoom* Normal Full 1 Full 2

* Parts of the top and bottom of the picture may be cut off.
~ • Some options may not be available depending on the signal source.

PC or HDMI PC Input (PC timing)

x To view Twin Picture and PIP (Picture in Picture)

Twin Picture Availability

In Main Window In Sub Window

Component

HDMI 1/MHL or HDMI 2
(except PC input mode)

TV programme or
Video 1

TV programme or
Video 1/2

In Main Window In Sub Window

PC
HDMI 1/MHL or HDMI 2
(PC timing)

PIP Availability

TV programme
or Video 1/2

To return to single picture mode: (Twin Picture only)/ /RETURN/“Single Picture” from Options
menu.

~ • In sub window, you can select the TV channel or video input by pressing OPTIONS and select “Sub-window”.

• You cannot change the size of the pictures.

• Picture smoothness may decrease when picture size reduce.

Overview of the TV controls and indicators

Front View

Standby indicator

Lights up in red when
in standby.

Input select / Enter

• Selects input source.

• In TV menu: Confirm
the selected items.

Operating the TV

Remote sensor

Picture Off/Timer indicator

• Lights up in green when
you select “Picture Off”.

• Lights up in amber when
you set the timer or “Photo
Frame Mode”.

~ • Do not put anything over the sensor, doing so may affect its function.

Power indicator

• Lights up in green when
the TV is turned on.

• Flashes while the remote
is being operated.

Home

Displays or cancels
the menu.

Volume

• Adjusts volume.

• In TV menu: Moves
through the options
right or left.

Power

Turns the TV on or
switch to standby
mode.

Channel

• Selects the next or
previous channel.

• In TV menu: Moves
through the options up or
down.

GB

9

Using Optional Equipment

BCD

E

Viewing pictures from the connected equipment

Turn on the connected equipment, then press / or / on the TV to display the connected
equipment list.

Rear View

A

A (Digital still camera, Camcorder, USB storage media)
Access photo/music/video files stored on a USB device (page 13).

B HDMI IN 1/MHL or HDMI IN 2 (Home Theatre systems, Camcorder, Blu-ray Disc player, DVD

player, PC with HDMI output and Mobile device)

Connect to the HDMI IN 1/MHL or HDMI IN 2 jack if the equipment has an HDMI jack. If the equipment
has a DVI jack, connect the DVI jack to the HDMI IN 1/MHL jack through a DVI - HDMI adapter interface
(not supplied), and connect audio out jack of the equipment to the PC/HDMI 1 AUDIO IN jack. If the
equipment is compatible with MHL, connect the MHL jack of the equipment to the HDMI IN 1/MHL jack
through a MHL - HDMI cable (not supplied).

~ • The HDMI jacks can support PC timing in HDMI PC mode. See page 17 for supported PC input signal.

• Be sure to use only an authorized HDMI cable bearing the HDMI logo, or an authorized MHL cable bearing the
MHL logo.

C PC IN or PC/HDMI 1 AUDIO IN (PC)

Connect to the PC IN jack and the PC/HDMI 1 AUDIO IN. It is recommended to use a PC cable
with ferrite core.

D 1/ 1 (DVD player, VCR, Video game equipment, S VHS/ Hi8/ DVC camcorder)

Connect to the video jack 1 and the audio jacks 1. If you connect mono equipment, connect to
the L (MONO) jack .

E / or 2 (DVD player with component output)

Connect to the component jacks and the audio jacks / . For better picture quality, component
connection is recommended if your DVD player has a component video output. When using the
component video jack as the video jack 2 select “Video 2” in the “Video 2/Component Input”
menu (page 20).

F / AUDIO OUT (Headphone)

Connect with an audio cable or headphones. You can listen to TV sound through your stereo system or
headphones. You can select “Variable” or “Fixed” in the “Audio Out” menu (page 16).

G

Connect AC adapter to the jack.

F G

10

GB

Using MHL function

MHL Cable
(not supplied)

The MHL (Mobile High-Definition Link) enables the TV to communicate with connected MHL-compatible
device. When connecting MHL-compatible device, TV simultaneously charges the connected device
while playing photo/music/video from it. You can use the TV remote control to control the connected
MHL-compatible device.

~ • If “Auto Input Change (MHL)” is set to “On” (page 20), the TV automatically switches to MHL mode when

MHL-compatible device is connected to HDMI IN 1/MHL jack. The availability of “Auto Input Change(MHL)”
depends on whether the MHL-compatible device can support this feature.

• You can continue normal usage of the connected MHL-compatible device (such as receiving calls) depending
on its capability.

• Some remote functions may not be available depending on features of the connected MHL-compatible device.
Please refer to the device manual for details.

• You can continue charging the MHL-compatible device even when the TV is in standby mode.

• This product is officially MHL-certified for guaranteed operation with other MHL-certified devices. If you
encounter any problems when using the MHL function, please consult the device manufacturer for support.

Using Optional Equipment

11

GB

Using Menu Functions

Photo Frame Mode

1
2

3

4
5

• To exit Home menu:

1 Photo Frame Mode

Display Photo, Music and Clock calendar at the same time.

x To enter Photo Frame Mode

1 OR

2 “Photo Frame Mode” OR

3 “Settings” “Set-up” “Photo Frame Settings” “Image Selection”/“Music Selection”

~ • To exit Photo Frame mode: / /

2 Favourites

Store up to 10 channels or external inputs.

x To add a current channel or external inputs into Favourites list

1 “Favourites” “Add to Favourites” OR

2 “Add to Favourites”

x To watch a channel or external input

Favourites

Add to Favourites

TV 1

Confirm Exit

Select

~ • To exit Favourites List:

• When you run the “Auto Tuning”, only the programme channels in your Favourites list will be cleared.

12

GB

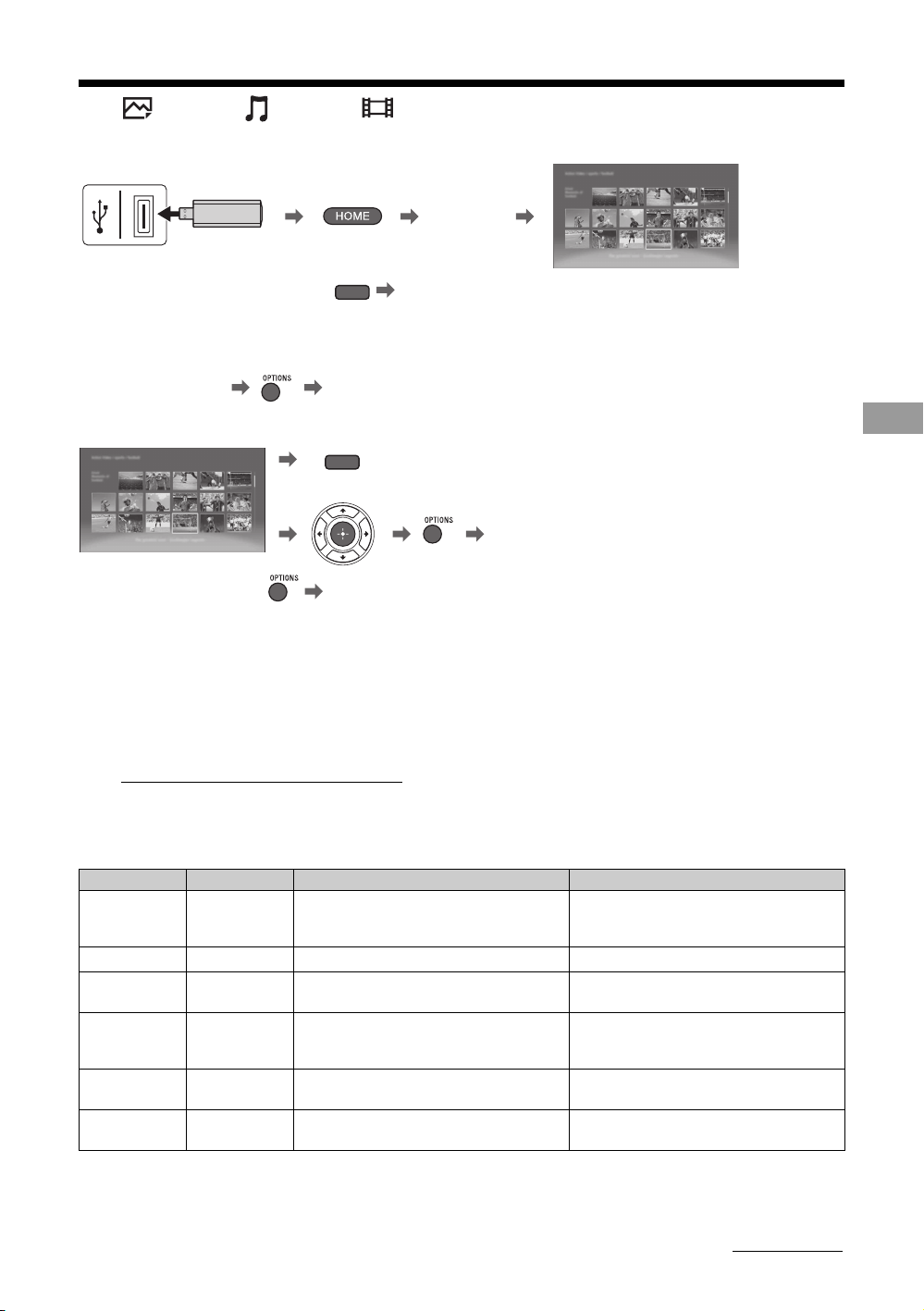

3 Photo/ Music/ Video

Playback photo/music/video files via USB devices.

Side View

“Photo”/
“Music”/
“Video”

z • If more than one USB detected: “Device Selection”

• If you connect the USB device when “USB Auto Start” is set to “On” (page 19), the thumbnail view of the last
played photo/music/video appears automatically.

red

x To adjust the picture and sound setting (Video)

When playing video “Picture” / “Sound”

x To play a photo as slideshow (Photo)

green

~ • To stop slideshow: “Stop Slideshow”

~ • While the TV is accessing the data on the USB device, do not turn off the TV or connected USB device,

disconnect the USB cable, or remove the USB device.

• Sony will not be held liable for any damage to, or loss of, data on the recording media due to a malfunction of
any connected devices or the TV.

• The file name and folder name may not display correctly in some cases.

• When you connect a Sony digital still camera, set the camera’s USB connection mode to Auto or Mass
Storage. For more information about USB connection mode, refer to the instructions supplied with your digital
camera.

• Check the website below for updated information about compatible USB devices.
http://www.sony-asia.com/bravia/flash.html

• Use a USB storage device that is compliant with USB mass storage device class standards.

OR

“Slideshow”

Using Menu Functions

USB Video format

Extension Container Video Codec Audio Codec

.avi AVI

.wmv, .asf ASF WMV v9, XviD, MPEG-4 SP/ASP, VC-1 MP3 / WMA v8

.mp4, .mov,

.3gp

.mkv MKV

.mpg, .mpeg PS MPEG1, MPEG2 MP

.ts, .mts, .m2ts TS MPEG2 MP, VC-1, H.264 BP/MP/HP

MP4

XviD, MPEG1, MPEG2 MP, H.264 BP/MP/

HP, MPEG-4 SP/ASP

H.264 BP/MP/HP, MPEG-4 SP/ASP, H.263,

Motion JPEG

H.264 BP/MP/HP, MPEG-4 SP/ASP,

WMV v9, VC-1

PCM / MPEG1 Layer1, 2 / MP3 /

AAC-LC, PS, SBR/ Dolby Digital (2ch) /

WMA v8

MPEG1 Layer1, 2 / MP3/AAC-LC, PS, SBR

PCM / MPEG1 Layer1, 2 / MP3 /

AAC-LC, PS, SBR/ Dolby Digital (2ch) /

WMA v8

MPEG1 Layer1, 2 / MP3 /

Dolby Digital (2ch)

MPEG1 Layer1, 2 / MP3 /

ACC-LC, PS, SBR

Continued

13

GB

USB Music format USB Photo format

Extension Audio Codec Extension Image Codec

.mp3 MP3 .jpg, .jpeg JPEG

.wma WMA v8

.wav WAV

.m4a MP4

DCF2.0 or EXIF2.21 supported.

~ • Playback of the above file formats is not guaranteed.

• The USB device supports FAT16 , FAT32 and NTFS.

4 FM Radio (except KLV-40EX43B, KLV-32EX33B)

~ • For first time using FM Radio function:

• To access FM Radio mode

“Settings” “Channel Set-up” “FM Radio Set-up” “Auto Tuning” (page 18)

“FM Radio”

x To listen to preset stations:

1 In FM Radio mode “Settings” “Channel Set-up” “FM Radio Set-up” (page 18)

OR

2 In FM Radio mode “FM Radio Presets”

~ • To exit “Channel Set-up” menu:

• To select desired preset FM Radio stations:

/

x To listen to non-preset stations:

To search desired station

In FM Radio
mode

~ • If “Please set-up FM Radio.” appears, perform 1 in “To listen to preset stations”.

To tune FM frequency

/

x To show photo or picture while listening to FM Radio

In FM Radio mode “Photo Frame Mode”

~ • To exit “Photo Frame Mode”:

x To reduce power consumption in FM Radio

1 “Power Saving” OR

2 “Settings” “Eco” “Power Saving”

~ • To exit from “Picture Off”: Any key except , or

~ • To exit FM Radio mode:

• If the station has a noisy sound, press G/g to improve the sound quality.

• If the FM stereo programme has static noise, press until “Mono” appears to reduce noise.

GB

14

5 Settings

~ • The options you can adjust vary depending on the situation. Unavailable options are greyed out or not

displayed.


Picture Mode Sets a picture mode. The options that can be selected differ depending on the

“Scene Select” settings.

Reset Resets all the “Picture” settings except “Picture Mode” and “Intelligent Picture

Plus Set-up” to the factory settings.

Backlight Adjusts the brightness of the backlight.

Picture Increases or decreases picture contrast.

Brightness Brightens or darkens the picture.

Colour Increases or decreases colour intensity.

Hue Increases or decreases the green tones and red tones.

Sharpness Sharpens or softens the picture.

Colour
Temperature

Noise Reduction Reduces the picture noise (snowy picture) in a weak broadcast signal.

MPEG Noise
Reduction

Cinema Drive Provides improved picture movement when playing BD (Blu-ray Disc), DVD or

Advanced Settings Set “Picture” settings in more detail.

Intelligent Picture
Plus Set-up

Adjusts the whiteness of the picture.

Reduces the picture noise in MPEG-compressed video.

VCR images taken on film, reducing picture blur and graininess. Select “Auto” to
represent original film-based content.

~ • If the image contains irregular signals or too much noise, “Cinema Drive” is

automatically turned off even if “Auto” is selected.

“Reset”: Resets all the advanced settings to the factory settings.
“Adv. Contrast Enhancer”: Automatically adjusts “Backlight” and “Picture” to the

most suitable settings judging from the brightness of the screen. This setting is
especially effective for dark images scenes, and will increase the contrast
distinction of the darker picture scenes.

“Black Corrector”: Enhances black areas of the picture for stronger contrast.
“Gamma”: Adjusts the balance between bright and dark areas of the picture.
“Clear White”: Emphasises white colours.
“Live Colour”: Makes colours more vivid.
“LED Motion Mode”: Provides smoother picture movement.

“Intelligent Picture Plus”: Improves the picture when viewing TV programme or

video input.
“Signal Level Indicator”: Turns on/off the “Signal Level Indicator” feature. When
“On” is selected, the signal level bar will be displayed when you select a channel
or video input.

“Picture Optimisation”: Enhances the picture to your preferred settings.

Using Menu Functions

15

GB

Sound

Sound Mode Sets a sound mode. The options that can be selected differ depending on the

“Scene Select” settings.

Reset Resets all the “Sound” settings except “Sound Mode”, “Dual Sound”, “Speakers”,

“Audio Out” and “HDMI/DVI Audio Source” to the factory settings.

7 Band Equalizer Adjusts sound frequency settings.

Balance Emphasises left or right speaker balance.

Intelligent Volume Minimizes the difference in volume level between all programmes and adverts

(e.g. adverts tend to be louder than programmes).

Volume Offset Adjusts the volume level of the current input relative to other inputs.

Surround Selects the suitable surround effects depending on the genre of TV programme

(movie, sport, music, etc.) or video game.

Bass Booster Produces a fuller sound for more impact, by emphasising the bass sounds.

Dual Sound “Stereo”/“Mono”: For stereo broadcasts.

Speakers Selects sound output from TV speakers or external audio equipment.

Audio Out “Variable”: When using an external audio system, volume output from audio out

HDMI/DVI Audio
Source
(only in HDMI 1
input mode)

“Main”/“Sub”/“Mono”: For bilingual broadcasts, select “Main” for sound

channel 1, “Sub” for sound channel 2, or “Mono” for mono channel, if available.

~ • If the signal is very weak, the sound becomes monaural automatically.

• If the stereo sound is noisy when receiving a NICAM programme, select “Mono”. The
sound becomes monaural, but the noise is reduced.

• The “Dual Sound” setting is memorized for each programme position.

• You cannot listen to stereo broadcast sound when “Mono” is selected.

z • If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”,

“Main” or “Sub”. However, when the external equipment connected to the HDMI jack
(except HDMI 1) is selected, this is fixed to “Stereo”.

• If you access to FM Radio mode, set “Dual Sound” to “Stereo” or “Mono”.

You can also turn on the connected equipment that is compatible with BRAVIA
Sync Control, after making the appropriate settings of BRAVIA Sync Control.

can be controlled using the TV’s remote.
“Fixed”: The audio output of the TV is fixed. Use your audio receiver’s volume
control to adjust the volume (and other audio settings) through your audio system.

Switches the audio signal for HDMI input when a DVI device is connected. Select
from “Auto”, “HDMI Audio” and “PC Audio”.

16

GB

Screen

Wide Mode For details about wide mode, see page 9.

Auto Wide Automatically changes the wide mode according to the input signal from an

external equipment. To keep your setting, select “Off”.

z • Even if “Auto Wide” is set to “On” or “Off”, you can always modify the format of the

screen by pressing repeatedly.

4:3 Default Selects the default screen mode for use with 4:3 broadcasts.

Auto Display Area

Display Area Adjusts the picture display area.

Horizontal Shift Adjusts the horizontal position of the picture when “Wide Mode” is set to “Wide

Vertical Shift Adjusts the vertical position of the picture when “Wide Mode” is set to “Wide

PC Settings Selects screen mode or adjusts the display position, phase and pitch of the

PC input signal reference chart for PC and HDMI IN 1, 2

Selects “On” to automatically adjusts the display area based upon the content or
“Off” to choose from the “Display Area” options.

“Full Pixel”: Displays the picture for 1080/50i, 1080/60i, 1080/50p and 1080/60p
sources (HDMI or component input only) or 1080/24p sources (HDMI input only)
in the original size.
“+1”: Displays pictures in their original size. This option may not be available
depending on input signal.

“Normal”: Displays pictures in their recommended size.
“-1”: Enlarges the picture so that the edges are outside the visible display area.

Zoom” or “Zoom”.

Zoom” or “Zoom”.

picture when the TV receives an input signal from the connected PC.

Using Menu Functions

Signals Horizontal (Pixel) Vertical (Line)

VGA 640 480 31.5 60 VGA

SVGA 800 600 37.9 60 VESA Guidelines

XGA 1024 768 48.4 60 VESA Guidelines

WXGA 1280 768 47.4 60 VESA

WXGA 1280 768 47.8 60 VESA

WXGA 1360 768 47.7 60 VESA

SXGA* 1280 1024 64 60 VESA

HDTV* 1920 1080 67.5 60 EIA

* For KLV-40EX430, KLV-40EX43A, KLV-40EX43B only.

~ • This TV’s PC input does not support Sync on Green/Composite Sync and interlaced signal.

• This TV’s PC input supports signals in the above chart with a 60 Hz vertical frequency.

Horizontal
frequency (kHz)

Ver ti ca l
frequency (Hz)

Standard

17

GB

Channel Set-up

1 Digit Direct When “1 Digit Direct” is set to “On”, select a channel using one preset number

Auto Tuning Tunes in all the available channels.

Programme Sorting Changes the order in which the channels are stored on the TV.

Programme Labels Assigns a channel name of your choice up to seven letters or numbers.

Manual Programme
Preset

button (0 - 9) on the remote.

~ • When “1 Digit Direct” is set to “On”, you cannot select channel numbers 10 and above

entering next digit using the remote.

Before selecting “Label”/“AFT”/“Audio Filter”/“Skip”/“Colour System”, press
PROG +/– to select the programme number with the channel. You cannot select
a programme number that is set to “Skip” (page 18).
“Programme”/“TV System”/“Frequency”: Presets programme channels
manually.

1 Select “Programme”, then press .
2 Press F/f to select the programme number you want to manually tune

(if tuning a VCR, select channel 0), then press RETURN.

3 Press F/f to select “TV System”, then press .
4 Press F/f to select your TV broadcast systems, then press .
5 Press F/f to go to the frequency range indication (“VHF Low”, “VHF High” or

“UHF”), then press .

6 Tune the channels as follows:

Press G/g to search for the next available channel. When a channel has been

found, the search will stop. To continue searching, press
Repeat the procedure above to preset other channels manually.
“Label”: Assigns a name of your choice, up to seven letters or numbers, to the
selected channel.
“AFT”: Fine-tune the selected channel manually. When “On” is selected, the fine
tuning is performed automatically.
“Audio Filter”: Improves the sound of individual channels when distortion occurs
in mono broadcasts in TV system “B/G”, “I” and “D/K”.

~ • You cannot receive stereo or dual sound when “High” is selected.

“Skip”: Skips unused channels when you press PROG +/– to select channels.
(You can still select a skipped channel using the number buttons.)
“Colour System”: Selects the colour system (“Auto”, “PAL”, “SECAM”,
“NTSC3.58”, “NTSC4.43” or “PAL60”) according to the channel.

“Signal Level”: Displays the signal level for programme currently being watched.

FM Radio Set-up Preset up to 30 FM radio stations that can be received in your area.

“Auto Tuning”: Automatically tune and store all the available channels.

G/g.

1 Select “Auto Tuning”, then press .
2 Select “OK” to automatically tune in all the available channels.

“FM Radio Presets”: Manually tune and store each available channel one at a

time.

~ • To enable this feature, access to FM Radio mode by using Home Menu (page 12),

then preset your desired FM radio stations according to the steps mentioned above.

18

GB

Parental Lock

PIN Code Sets up TV to block channel or external input. Use 0-9 on the remote to enter a

four-digit PIN code.

Change PIN Code Selects to change your PIN code.

Programme Block Blocks an individual channel from being watched. To view a blocked channel,

External Input Lock Locks an external input from being watched. To view a blocked external input,

~ • Entering the correct PIN code for blocked channel or external input will temporarily deactivates the “Parental

Lock” feature. To reactivate the “Parental Lock” settings, turn off and on the TV.

z • If you lost your PIN code, see page 23.

select “Unblocked”.

select “Unblocked”.

Set-up

Photo Frame
Settings

USB Auto Start Automatically enters the thumbnail view of the last played Photo/Music/Video

Clock/Timers “Sleep Timer”: Set the time in minutes that you would like the TV to remain on

Auto Start-up Starts the initial set-up procedure (page 5).

Language Selects the language in which the menus are displayed.

Start-up Logo Select “On” to display logo when the TV is turned on. Select “Off” to disable it.

“Display Mode”: Allows you to select the display mode. Select from “Image and

Clock”, “Full Screen Image” and “Full Screen Clock”.
“Clock Display”: Allows you to select the clock display. Select from “Calendar”,
“Analogue Clock”, “Digital Clock”, “Calendar and Clock” and “Clock”. “Calendar”,
“Calendar and Clock” and “Clock” can be displayed only when “Display Mode” is
“Full Screen Clock”. “Calendar”, “Analogue Clock” and “Digital Clock” can be
displayed only when “Display Mode” is “Image and Clock”.
“Audio Application”: Allows you to select “FM Radio” or “Music”. Select “Off” to
disable this function.

“Image Selection”: Selects image.
“Music Selection”: Selects music.
“Slideshow Setting”: Allows you to select “Slideshow” of multiple photos or

“Single View” of a photo.
“Music Playback Setting”: Allows you to select “All Tracks” or “Single Track” for
music playback.
“Duration”: Selects the time period after which the TV automatically switches to
standby mode.
“First day of the week”: Sets “Sunday” or “Monday” as the first day of the week
on the calendar.

when the TV is turned on and a USB device is connected to the USB port then
turned on.

before shutting off automatically.
“On Timer”: Turns on the TV from standby mode at a time you set, and tuned to
a channel or input of your preference.
“Clock Set”: Set the current time and date. This feature also can be set from initial
set-up.

Using Menu Functions

Continued

19

GB

AV Set-up “Video Labels”: Assigns a name to any equipment connected to the side and

rear jacks.

1 Press F/f to select the desired input source, then press .
2 Press F/f to select the preset labels option, then press to assign a name to

connected equipment.

~ • When the input source is set to “Skip” in the “Video Labels” under the “AV Set-up”

menu, that input is greyed out in the list.

“Colour System”: Selects the colour system (“Auto”, “PAL”, “SECAM”,
“NTSC3.58”, “NTSC4.43” or “PAL60”) according to the composite video signal
from the input source.
“Video 2/Component Input”: Select “Auto” to have the TV detects and switch
between the component video jack or the video jack 2 when component
video jack or video jack 2 is connected.

~ • You cannot use the component video jack and the video jack 2 at the same

time.

“Headphone/Audio Out”: Sets the sound output to headphones or external
audio system connected to the TV. Disconnect headphones from the TV when you
select “Audio Out”.

BRAVIA Sync
Settings

Product
Information

Factory Settings Resets all settings to factory settings. After completing this process, the initial

Allows the TV to communicate with equipment that is compatible with the BRAVIA
Sync Control function, and connected to the HDMI jacks of the TV. Note that
communication settings must also be made on the connected equipment.
“BRAVIA Sync Control”: Sets whether or not to link the operations of the TV and
the connected equipment that is compatible with BRAVIA Sync Control. When set
to “On”, the following functions are available. If the specific Sony equipment that
is compatible with BRAVIA Sync Control is connected, this setting is applied to the
connected equipment automatically when the “BRAVIA Sync Control” is set to
“On” using the TV.
“Auto Devices Off”: When this is set to “On”, the connected equipment that is
compatible with BRAVIA Sync Control turns off when you turn off the TV by remote.
“Auto TV On”: When this is set to “On”, the TV turns on when you turn on the
connected equipment that is compatible with BRAVIA Sync Control.
“Auto Input Change (MHL)”: When this is set to “On”, TV changes settings
according to the output signal of MHL source device.
“BRAVIA Sync Device List”: Displays a list of connected equipment that is
compatible with BRAVIA Sync Control. Selects “Enable” to update the “BRAVIA
Sync Device List”.
“Device Control Keys”: Select button functions of the TV’s remote control to
operate the connected equipment.

~ • You cannot use “BRAVIA Sync Control” if the TV operations are linked to the

operations of an audio system that is compatible with BRAVIA Sync Control.

• Some equipment with “BRAVIA Sync Control” does not support the “Device Control”
feature.

Displays your TV’s product information.

set-up screen is displayed.

Eco

Reset Resets the current Eco settings to the default values.

Power Saving Reduces power consumption of the TV by adjusting the backlight.

When you select “Picture Off”, the picture is switched off, and the (Picture Off)
indicator on the TV front panel lights up in green. The sound remains unchanged.

Idle TV Standby Turns the TV off after it has been kept idle for the preset length of time.

PC Power
Management

GB

20

Switches the TV to standby mode when the TV receives no signal from the PC
input source for 30 seconds.

Additional Information

Installing the accessories (Wall-Mount Bracket)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installing of your TV be
performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this
product.

Your TV can be installed using the Wall-Mount Bracket SU-WL50B (KLV-40EX430, KLV-40EX43A,
KLV-40EX43B), SU-WL100 (KLV-32EX330, KLV-32EX33A, KLV-32EX33B) (sold separately).

• Refer to the Instructions supplied with the Wall-Mount Bracket to properly carry out the installation.

• Refer to “Detaching the Table-Top Stand from the TV” (page 5).
~ • Place the TV on the stand, when securing the Mounting Hook.

Sufficient expertise is required for installing these products, especially to determine the strength of the wall for
withstanding the TV’s weight. Be sure to entrust the attachment of these products to the wall to Sony dealers or
licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any
damage or injury caused by mishandling or improper installation.

Note when installing

When using the Wall-Mount Bracket, the space between the wall and the TV will be 6 cm. Use this space
to route cables to the TV.

SU-WL50B:
(KLV-40EX430, KLV-40EX43A, KLV-40EX43B)

Screw
(+PSW 6 × 16)

Mounting Hook

Thick and
soft cloth

SU-WL100:
(KLV-32EX330, KLV-32EX33A, KLV-32EX33B)

Screw
(+PSW 4 × 12)

Mounting Hook

Thick and
soft cloth

TV installation dimensions table

SU-WL50B

A

bba c

B

c

a

C

E

D

Additional Information

Screen centre point

KLV-40EX430/
KLV-40EX43A/
KLV-40EX43B

Unit: mm

ABCDE

930 568 249 548 114

Continued

GB

21

SU-WL100

A

E

F

G

H

B

C

125

D

Screen centre point

Unit: mm

Angle (0°) Angle (20°)

ABCDEFGH

KLV-32EX330/
KLV-32EX33A/

737 459 16 259 112 249 425 249

KLV-32EX33B

Figures in the above table may differ slightly depending on the installation.

WARNING

The wall that the TV will be installed on should be capable of supporting a weight of at least four times
that of the TV. Refer to “Specifications” for its weight.

Screw and hook locations diagram/table

SU-WL100SU-WL50B

a

Hook

a

b
c

b

a

c

b

c

Base Bracket

a

b

c

c

b

a

a

b

KLV-40EX430/KLV-40EX43A/KLV-40EX43B
KLV-32EX330/KLV-32EX33A/KLV-32EX33B

GB

22

Screw location Hook location

SU-WL50B SU-WL50B SU-WL100

e, j b -

--a

Troubleshooting

When the 1 (standby) indicator is flashing,
count how many times it flashes (interval time
is three seconds).

Press "/1 on the TV to turn it off, disconnect the
AC power cord, and inform your dealer or Sony
service centre of how the indicator flashes
(number of flashes).

When it is not flashing

Check the items listed below. If the problem still
persists, have your TV serviced by qualified
service personnel.


No picture and no sound

• Check the antenna/cable connection.

• Connect the TV to the AC power outlet, and press

"/1 on the TV. If the 1 (standby) indicator lights up
in red, press "/1.

No picture from the connected equipment

• Turn the connected equipment on.

• Check the connection between the optional
equipment and the TV.

• Press repeatedly to select the desired input.

• Correctly insert the USB / MHL device.

• For USB device: Make sure that the USB device has
been properly formatted.

• For MHL device: Ensure that the MHL device is
connected to the HDMI1/MHL jack using an MHL
cable.

• Operations are not guaranteed for all USB / MHL
devices. Also, operations differ depending on the
features of the USB / MHL device.

Double images or ghosting

• Check the antenna/cable connection, location or
direction.

Only snow and noise appear on the screen

• Check if the antenna is broken or bent.

• Check if the antenna has reached the end of its
serviceable life (three to five years in normal use,
one to two years at the seaside).

Distorted picture (dotted lines or stripes)

• Keep the TV away from electrical noise sources
such as cars, motorcycles, hair-dryers or optional
equipment.

• When installing optional equipment, leave some
space between the optional equipment and the TV.

• Check the antenna/cable connection.

• Keep the antenna/cable away from other connecting
cables.

Picture or sound noise when viewing a TV channel

• Adjust “AFT” (Automatic Fine Tuning) to obtain
better picture reception (page 18).

Tiny black points and/or bright points appear on
the screen

• The screen is composed of pixels. This is not a
malfunction.

Picture contours are distorted

• Change the current setting of “Cinema Drive” to
other settings (page 15).

No colour on programmes

• Select “Reset” (page 15).

Sound

No sound, but good picture

• Press 2 +/– or % (Mute).

• Check if the “Speakers” is set to “TV Speakers”
(page 16).

No sound or noisy sound

• Check if the TV system setting is appropriate
(page 18).

Channels

Some channels are blank

• The channel is for scrambled/subscription service
only. Subscribe to a pay TV service.

• Channel is used only for data (no picture or sound).

• Contact the broadcaster for transmission details.

General

The TV turns off automatically (the TV enters
standby mode)

• Check if the “Sleep Timer” is activated (page 19).

• Check if the “Idle TV Standby” is activated
(page 20).

Some input sources cannot be selected

• Select “Video Labels” and cancel “Skip” of the input
source (page 20).

The remote does not function

• Replace the batteries.

HDMI equipment does not appear on “BRAVIA
Sync Device List”

• Check that your equipment is compatible with
BRAVIA Sync Control.

Cannot select “Off” in “BRAVIA Sync Control”

• If you have connected any audio system that is
compatible with BRAVIA Sync Control, you cannot
select “Off” in this menu. To change the audio output
to the TV speaker, select “TV Speakers” in the
“Speakers” menu (page 16).

The “Parental Lock” password has been forgotten

• Enter 9999 for the PIN code (PIN code 9999 is
always accepted.) (page 19).

Additional Information

23

GB

©

Specifications

System

Panel system
TV system
Colour/video system
Channel coverage
Sound output

Input/Output jacks

Antenna (aerial)/cable

/ COMPONENT IN

VIDEO IN 2

HDMI IN 1, 2

MHL
(common with HDMI IN 1)

/ VIDEO IN 1

AUDIO OUT/i

PC IN

PC/ HDMI1 AUDIO IN

LCD (Liquid Crystal Display) Panel

B/G, I, D/K, M

PAL, PAL60, SECAM, NTSC4.43, NTSC3.58

Analogue: UHF/VHF/Cable, depending on your country/area selection

5 W + 5 W

75 ohm external terminal for VHF/UHF
YPBPR (Component Video):1080p (50, 60Hz), 1080i (50, 60Hz), 720p (50, 60Hz), 576p, 576i,

Audio input (phono jacks)
Video input (common phono pin with Y input)
Video: 1080p (50, 60Hz), 1080/24p, 1080i (50, 60Hz), 720p (50, 60Hz), 576p, 576i, 480p, 480i,

PC Formats
Audio: Two channel linear PCM: 32, 44.1 and 48kHz, 16, 20 and 24 bits, Dolby Digital
Analogue audio input (stereo minijack) (HDMI IN 1 Only, common with PC IN)

Video: 1080/24p, 1080i (50, 60Hz), 720p (50, 60Hz), 576p, 576i, 480p, 480i
Audio: Two channel linear PCM: 32, 44.1 and 48kHz, 16, 20 and 24 bits, Dolby Digital

Video/Audio input (phono jacks)
Audio output (stereo minijack)

Headphones jack
Analogue RGB (Mini D-sub 15-pin)

Audio input (stereo minijack) (common for HDMI IN 1 and PC IN)

USB port

AC adapter input

480p, 480i

Model Name KLV-

40EX430 40EX43A 40EX43B 32EX330 32EX33A 32EX33B

Power and others

Power requirements
Screen size (measured

diagonally)
Display resolution
Power consumption

Approx. 101.6 cm/ 40 inches Approx. 80.0 cm/ 32 inches

1,920 dots (horizontal) × 1,080 lines (vertical) 1,366 dots (horizontal) × 768 lines (vertical)

82 W (when using the AC adapter) 55 W (when using the AC adapter)

110-240 V AC, 50/60 Hz

Dimensions (Approx.) (w × h × d)
with Table-Top Stand (mm)
without Table-Top Stand (mm)

930 × 586 × 208 737 × 477 × 167

930 × 568 × 61 737 × 459 × 61

Mass (Approx.)
with Table-Top Stand (kg)
without Table-Top Stand (kg)

Optional accessories

Wall-Mount Bracket:SU-WL50B (KLV-40EX430, KLV-40EX43A, KLV-40EX43B)

6.9 4.7

6.6 4.5

SU-WL100 (KLV-32EX330, KLV-32EX33A, KLV-32EX33B)

Operating temperature

Operating humidity

10 % - 80 % RH (non-condensing)

Design and specifications are subject to change without notice.

Customer support

0 ºC - 40 ºC

2012 Sony Corporation Printed in Malaysia
