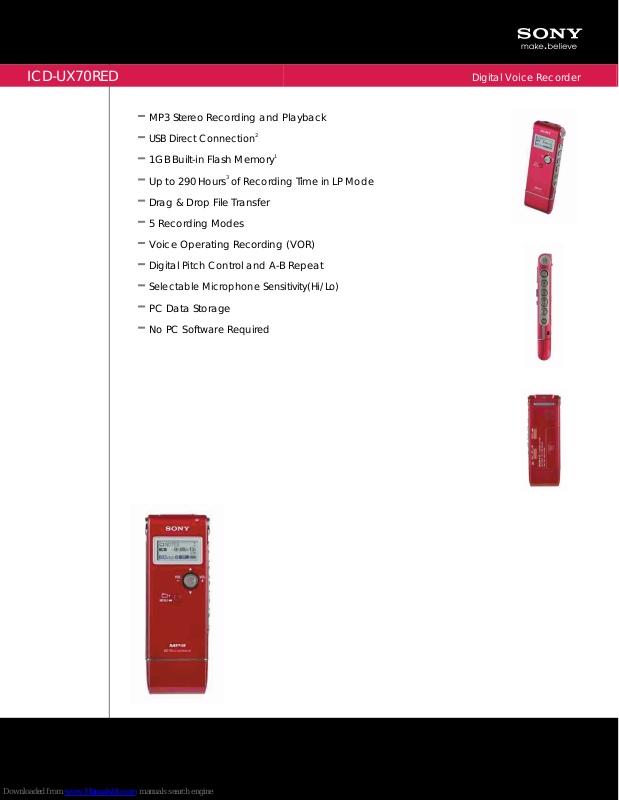

Sony ICD-UX70RED Specifications

ICD-UX70RED

Digital Voice Recorder

MP3 Stereo Recording and Playback

USB Direct Connection

2

1GB Built-in Flash Memory

1

Up to 290 Hours

of Recording Time in LP Mode

3

Drag & Drop File Transfer

5 Recording Modes

Voice Operating Recording (VOR)

Digital Pitch Control and A

-B Repeat

Selectable Microphone Sensitivity(Hi/Lo)

PC Data Storage

No PC Software Required

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 07/03/2010

ICD-UX70RED

Digital Voice Recorder

Please visit the Dealer Source for current information at

www.sony.com/dealersource

Features

MP3 Stereo Recording and Playback Allows you to playback

up to 18 hours of MP3 files and record using the MP3 file
format.

5

USB Direct Connection allows you to plug your voice recorder

directly into a USB port on a computer or hub, eliminating the
need for cables.

2

1GB Built-in Flash Memory uses a high capacity IC chip,

which may be recorded over and used again and again with
distortion free clarity.

1

Up to 290 Hours Recording Time LP mode gives you plenty of
time to record everything you need.

3

Drag & Drop File Transfer allows you to easily drag files from
your PC right to the voice recorder, no software is required.
Supports Hi-Speed USB.

Voice Operated Recording (VOR) stops the recording during
silent pauses, saving valuable recording time, then begins
recording again without missing a single syllable because of
the digital buffer.

Digital Pitch Control and A-B Repeat allows recordings to be
heard at slower than normal speeds without distortion to
facilitate transcribing and editing, or at faster than normal
speeds to move quickly to a desired portion.

Selectable Microphone Sensitivity (Hi/Lo) enables you to
record different situations, from group meetings to individuals,
more effectively.

PC Data Storage

No PC application software required

Windows/MAC compatible

Stereo Headphones supplied

U5 Recording Modes

LP/SP/STLP/STSP/ST

Compatible with Dragon NaturallySpeaking®.

Preferred

legal, medical & professional voice to print software.

Specifications

General

Function:

Switch: Rec/Pause, Cue, Review, Stop, Play/Stop

Convenience

Operation Controls:

Record/Pause, Stop, Forward, Play/Pause,

Rewind, A-B Repeat

Hardware

LCD: Display: Alarm, Connecting, Hold Mark,

ST/STSP/STLP/SP/LP/Mode, Voice Operated Recording, Title and
Artist name/ID3 tag, Back Light, Files Number, Folder, Full Dot

­matrix Display, Mic Sensitivity(H/L), Memory Remain, Repeat,
Play/Remain Time, Erase, Battery Remain, Date & Time, Rec
Date/Time, Title/ID3-tag

Speakers: Inner Speaker: 10mm

Inputs and Outputs

Headphone Jack:

Earphone Jack, Mic Jack, USB

Output(s): Max: 90mW

Memory

Memory Size:

1GB

Dimensions

Weight: 1.7oz (48g) (incl. 1 AAA battery)
Measurements: 1.35 x 3.8 x 0.52" (34.4w x 99.0h x 13.4d mm)

Supplied Accessories

AAA Alkaline Battery (1)
Stereo Headphone
USB Extension Cable
Warranty Card
Customer Registration Flyer
Customer Support URL Info

Optional Accessories

MIC
Connecting Cable
Active Speaker
Battery Charger
Rechargeable Battery
USB AC Adapter

Color:

Red

UPC Code:

027242738553

1. User available memory = 1,005,780,992 bytes, a portion of which is used for data management functions,
with default 5 folder settings. Total available space will be reduced as the number of folders increases.

2. Not all products with USB connection may communicate with each other due to chipset variations.

3. Approximate recording times. Battery life will vary based on product settings, usage patterns, environment
and battery condition.

4. Non metric weights and measurements are approximate and may vary.

5. Playback is calculated in MP3 format on 4 minutes per song at 128kbps.

© 2008 Sony Electronics, Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony is a

registered trademark of Sony. Microsoft and Windows are trademarks of Microsoft Corporation in the United
States and other countries.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate.
