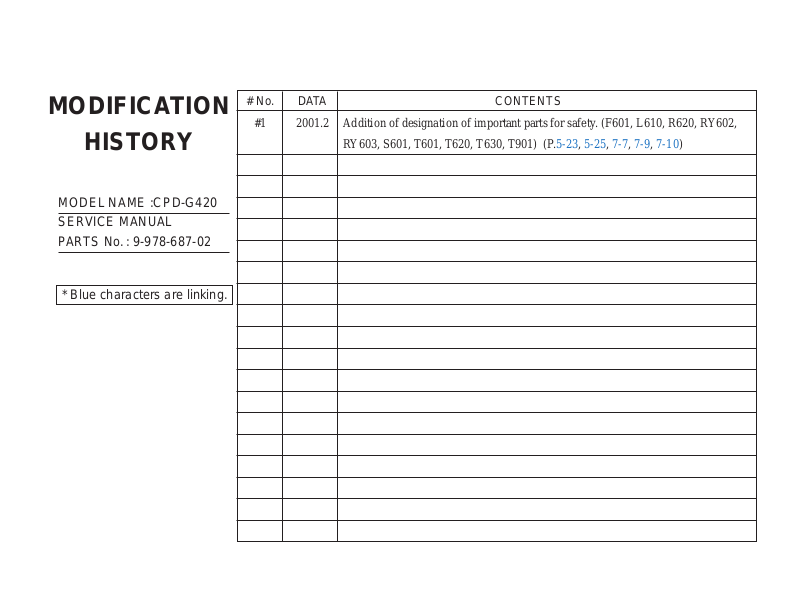

MODIFICATION
# No. DATA CONTENTS
#1 2001.2 Addition of designation of important parts for safety. (F601, L610, R620, RY602,
HISTORY
MODEL NAME :CPD-G420
SERVICE MANUAL
PARTS No. : 9-978-687-02
* Blue characters are linking.
RY603, S601, T601, T620, T630, T901) (P.5-23, 5-25, 7-7, 7-9, 7-10)
CPD-G420
[without LCC]
SERVICE MANUAL
SPECIFICATIONS
CRT 0.24 mm aperture grille pitch
19 inches measured diagonally
90-degree deflection
FD Trinitron
Viewable image size Approx. 365 × 274 mm (w/h)
Resolution
Maximum Horizontal: 1920 dots
Recommended Horizontal: 1280 dots
Input signal levels Video signal
Standard image area Approx. 352 × 264 mm (w/h)
3
(14
/8 × 107/8 inches)
18.0" viewing image
Vertical: 1440 lines
Vertical: 1024 lines
Analog RGB: 0.700 Vp-p
(positive), 75 Ω
SYNC signal
H/V separate or composite sync:
TTL 2 kΩ, Polarity free
Sync on Green: 0.3 Vp-p
(negative)
7
(13
/8 × 101/2 inches)
or
Approx. 330 × 264 mm (w/h)
(13 × 10
1
/2 inches)
N. Hemisphere Model
Deflection frequency* Horizontal: 30 to 110 kHz
AC input voltage/current 100 to 240 V, 50 – 60 Hz, 2.0 – 1.0 A
Power consumption Approx. 130 W (with no USB devices
Dimensions Approx. 451 × 471 ×
Mass Approx. 25.5 kg (56 lb 3 oz)
Plug and Play DDC2B/DDC2Bi, GTF**
* Recommended horizontal and vertical timing condition
• Horizontal sync width duty should be more than 4.8% of
total horizontal time or 0.8 µs, whichever is larger.
• Horizontal blanking width should be more than 2.3 µsec.
• Vertical blanking width should be more than 450 µsec.
** If the input signal is Generalized Timing Formula (GTF)
compliant, the GTF feature of the monitor will automatically
provide an optimal image for the screen.
Design and specifications are subject to change without notice.
Chassis No. SCC-L33C-A
CR1
Vertical: 48 to 170 Hz
connected)
7
(17
/8 × 185/8 × 181/4 inches)
CHASSIS
461 mm (w/h/d)
TRINITRON
®
COLOR COMPUTER DISPLAY
CPD-G420
SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder
splashes and bridges.
2. Check the interboard wiring to ensure that no wires are
“pinched” or contact high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps,
and mounting hardware have been replaced. Be absolutely
certain that you have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point
them out to the customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious
signs of deterioration. Point them out to the customer and
recommend their replacement.
6. Check the line cords for cracks and abrasion. Recommend
the replacement of any such line cord to the customer.
7. Check the B+ and HV to see if they are specified values.
Make sure your instruments are accurate; be suspicious of
your HV meter if sets always have low HV.
8. Check the antenna terminals, metal trim, “metallized”
knobs, screws, and all other exposed metal parts for AC
Leakage. Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground
and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or
RCA WT-540A. Follow the manufacturers’ instructions to
use these instruments.
2. A battery-operated AC milliammeter. The Data Precision
245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa SH-63Trd are
examples of a passive VOMs that are suitable. Nearly all
battery operated digital multimeters that have a 2 V AC
range are suitable. (See Fig. A)
WARNING!!
NEVER TURN ON THE POWER IN A CONDITION IN
WHICH THE DEGAUSS COIL HAS BEEN REMOVED.
To Exposed Metal
Parts on Set
0.15 µF
1.5 k
Ω
Earth Ground
AC
Voltmeter
(0.75 V)
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
¡ ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL FOR
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE CRITICAL FOR SAFE OPERATION
ARE IDENTIFIED IN THIS MANUAL. FOLLOW THESE
PROCEDURES WHENEVER CRITICAL COMPONENTS
ARE REPLACED OR IMPROPER OPERATION IS
SUSPECTED.
AVERTISSEMENT!!
NE JAMAIS METTRE SOUS TENSION QUAND LA
BOBINE DE DEMAGNETISATION EST ENLEVÉE.
ATTENTION AUX COMPOSANTS RELATIFS À LA
SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE TRAME ET
UNE MARQUE
NE LES REMPLACER QUE PAR UNE PIÈCE PORTANT LE
NUMÉRO SPECIFIÉ. LES RÉGLAGES DE CIRCUIT DONT
L’IMPORTANCE EST CRITIQUE POUR LA SÉCURITÉ DU
FONCTIONNEMENT SONT IDENTIFIÉS DANS LE
PRÉSENT MANUEL. SUIVRE CES PROCÉDURES LORS
DE CHAQUE REMPLACEMENT DE COMPOSANTS CRITIQUES, OU LORSQU’UN MAUVAIS FONCTIONNEMENT
EST SUSPECTÉ.
¡ SONT CRITIQUES POUR LA SÉCURITÉ.
– 2 –
POWER SAVING FUNCTION
This monitor meets the power-saving guidelines set by VESA,
E
NERGY STAR, and NUTEK. If no signal is input to the
monitor from your computer, the monitor will automatically
reduce power consumption as shown below.
CPD-G420
Power mode Power
consumption*
normal
operation
active off**
≤ 135 W (CPD-G520)
≤ 130 W (CPD-G420)
≤ 3 W orange
! (power)
indicator
green
(deep sleep)***
power off Approx. 0 W off
* Figures reflect power consumption when no USB compatible
peripherals are connected to the monitor.
** When your computer enters power saving mode, the input signal is
cut and NO SIGNAL appears on the screen before the monitor enters
active off mode. After a few seconds, the monitor enters power saving
mode.
*** “Deep sleep” is power saving mode defined by the Environmental
Protection Agency.
DIAGNOSIS
Failre
+B failure
Amber → Off
(0.5 sec) (0.5 sec)
Horizontal / Vertical Deflection
failure, Thermal protector
ABL protector
Amber → Off
(1.5 sec) (0.5 sec)
Amber → Off
(0.5 sec) (1.5 sec)
HV failure
Amber → Off → Amber → Off
(0.25 sec) (0.25 sec) (0.25 sec) (1.25 sec)
Aging / Self Test
Amber → Off → Green → Off
(0.5 sec) (0.5 sec) (0.5 sec) (0.5 sec)
Out of scan range
Green (OSD indication)
Aging Mode (Video Aging) : During Power Save, press MENU button for longer than 2 second.
Self Test (OSD Color Bar) : During Power Save, push up Control button for longer than 2 second.
Reliability Check Mode : During Power Save, push down Control button for longer than 2 second.
– 3 –
Power LED
CPD-G420
TIMING SPECIFICATION
MODE AT PRODUCTION
RESOLUTION
CLOCK
— HORIZONTAL —
H-FREQ
H. TOTAL
H. BLK
H. FP
H. SYNC
H. BP
H. ACTIV
— VERTICAL —
V. FREQ (HZ)
V. TOTAL
V. BLK
V. FP
V. SYNC
V. BP
V. ACTIV
— SYNC —
INT(G)
EXT (H/V) /POLARITY
EXT (CS) /POLARITY
INT/NON INT
MODE 1 MODE 2 MODE 3
640 X 480 1280 X 1024 1600 X 1200
25.175 MHz 157.500 MHz 229.500 MHz
31.469 kHz 91.146 kHz 106.250 kHz
usec usec usec
31.778 10.971 9.412
6.356 2.844 2.440
0.636 0.406 0.279
3.813 1.016 0.837
1.907 1.422 1.325
25.422 8.127 6.972
59.940 Hz 85.024 Hz 85.000 Hz
lines lines lines
525 1072 1250
45 48 50
10 1 1
23 3
33 44 46
480 1024 1200
NO NO NO
YES N/N YES P/P YES P/P
NO NO NO
NON INT NON INT NON INT
2000.8.9 VER.
– 4 –
TABLE OF CONTENTS
Section Title Page
1. GENERAL ................................................................. 1-1
2. DISASSEMBLY
2-1. Cabinet Removal ............................................... 2-1
2-2. A1 Board (C BLOCK) Removal ....................... 2-2
2-3. A1 Board, US Board Removal .......................... 2-2
2-4. Bezel Assembly, H1 Board Removal ............... 2-3
2-5. D Board Removal .............................................. 2-3
2-6. Service Position .................................................. 2-4
2-7. Picture Tube Removal ........................................ 2-5
2-8. Harness Location ............................................... 2-6
3. SAFETY RELATED ADJUSTMENT............. 3-1
4. ADJUSTMENTS ..................................................... 4-1
CPD-G420
5. DIAGRAMS
5-1. Block Diagrams .................................................. 5-1
5-2. Frame Schematic Diagram ................................. 5-7
5-3. Circuit Boards Location ..................................... 5-9
5-4. Schematic Diagrams and Printed Wiring
Boards ................................................................. 5-9
(1) Schematic Diagram of A1 Board ...................... 5-11
(2) Schematic Diagram of US Board ...................... 5-15
(3) Schematic Diagram of DA Board ..................... 5-17
(4) Schematic Diagram of N Board ........................ 5-19
(5) Schematic Diagrams of
D (a, b, c) Board ........................................ 5-21
(6) Schematic Diagram of H1 Board ....................... 5-29
5-5. Semiconductors ................................................. 5-31
6. EXPLODED VIEWS
6-1. Chassis ............................................................... 6-1
6-2. Picture Tube ...................................................... 6-2
6-3. Packing Materials ............................................... 6-3
7. ELECTRICAL PARTS LIST ............................ 7-1
– 5 –
The operating instructions mentioned here are partial abstracts
4
Precautions
Warning on power connections
• Use the supplied power cord. If you use a different power cord,
be sure that it is compatible with your local power supply.
• Before disconnecting the power cord, wait at least 30 seconds
after turning off the power to allow the static electricity on the
screen’s surface to discharge.
• After the power is turned on, the screen is demagnetized
(degaussed) for about a few seconds. This generates a strong
magnetic field around the screen which may affect data stored
on magnetic tapes and disks placed near the monitor. Be sure to
keep magnetic recording equipment, tapes, and disks away
from the monitor.
Installation
Do not install the monitor in the following places:
• on surfaces (rugs, blankets, etc.) or near materials (curtains,
draperies, etc.) that may block the ventilation holes
• near heat sources such as radiators or air ducts, or in a place
subject to direct sunlight
• in a place subject to severe temperature changes
• in a place subject to mechanical vibration or shock
• on an unstable surface
• near equipment which generates magnetism, such as a
transformer or high voltage power lines
• near or on an electrically charged metal surface
Maintenance
• Clean the screen with a soft cloth. If you use a glass cleaning
liquid, do not use any type of cleaner containing an anti-static
solution or similar additive as this may scratch the screen
’s
coating.
• Do not rub, touch, or tap the surface of the screen with sharp or
abrasive items such as a ballpoint pen or screwdriver. This type
of contact may result in a scratched picture tube.
• Clean the cabinet, panel and controls with a soft cloth lightly
moistened with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder or solvent, such as alcohol or
benzene.
Transportation
When you transport this monitor for repair or shipment, use the
original carton and packing materials.
Use of the tilt-swivel
This monitor can be adjusted within the angles shown below. To
find the center of the monitor
’s turning radius, align the center of
the monitor’s screen with the centering dot on the stand.
Hold the monitor at the bottom with both hands when you turn it
horizontally or vertically. Be careful not to pinch your fingers at
the back of the monitor when you tilt the monitor up vertically.
The equipment should be installed near an easily accessible
outlet.
Example of plug types
for 100 to 120 V AC for 200 to 240 V AC for 240 V AC only
90˚
5˚
90˚
15˚
Centering dot
5
US
Identifying parts and controls
See the pages in parentheses for further details.
1
INPUT (input) switch (page 9)
This switch selects the INPUT 1 (video input 1 connector:
y
1) or INPUT 2 (video input 2 connector:
y
2).
2
PICTURE EFFECT button (page 11)
This button is used to change the preset picture effects
’
modes.
3
MENU button (page 10)
This button is used to display or close the menu.
4
Control button (OK,
M
/
m
) (page 11)
This button is used to make adjustments to the monitor and
call up the CONTRAST menu directly.
5
!
(power) switch and indicator (pages 7, 18, 22)
This button turns the monitor on and off. The power indicator
lights up in green when the monitor is turned on, and lights up
in orange when the monitor is in power saving mode.
6
Video input 2 connector (BNC) (page 6)
This connector inputs RGB video signals (0.700 Vp-p,
positive) and sync signals.
7
Video input 1 connector (HD15) (page 6)
This connector inputs RGB video signals (0.700 Vp-p,
positive) and sync signals.
* DDC (Display Data Channel) is a standard of VESA.
8
USB (universal serial bus) downstream connectors
(page 8)
Use these connectors to link USB peripheral devices to the
monitor.
9
USB (universal serial bus) upstream connector
(page 8)
Use this connector to link the monitor to a USB compliant
computer.
q;
AC IN connector (page 7)
This connector provides AC power to the monitor.
AC IN
2 R G B HD VD
1
INPUT
PICTURE EFFECT
MENU
OK
12
Front
Rear
rear side
forward side
forward side
rear side
5
4
3
2
1
6
7
8
9
10
11
12
13
14
15
Pin No. Signal
1 Red
2 Green
(Sync on Green)
3 Blue
4 ID (Ground)
5 DDC Ground*
6 Red Ground
7 Green Ground
8 Blue Ground
Pin No. Signal
9 DDC + 5V*
10 Ground
11 ID (Ground)
12 Bi-Directional
Data (SDA)*
13 H. Sync
14 V. Sync
15 Data Clock
(SCL)*
SECTION 1
from the Operating Instruction Manual. The page numbers of
the Operating Instruction Manual remain as in the manual.
GENERAL
1-1
6
Setup
Before using your monitor, check that the following accessories
are included in your carton:
• Power cord (1)
• HD15 video signal cable (1)
• USB cable (1)
• Exclusive Power Mac G3/G4 adapter (1)
• Warranty card (1)
• Notes on cleaning the screen
’s surface (1)
• This instruction manual (1)
Step 1:Connect your monitor to
your computer
Turn off the monitor and computer before connecting.
Notes
• Do not touch the pins of the video signal cable connector as this might
bend the pins.
• When connecting the video signal cable, check the alignment of the
HD15 connector. Do not force the connector in the wrong way or the
pins might bend.
x
Connecting to an IBM PC/AT or compatible
computer
x
Connecting to a Macintosh or compatible
computer
* Connect the supplied adapter to the computer before connecting the
cable. This adapter is compatible only with Power Mac G3/G4
computers that have 3 rows of pins. If you connect to the other version
of Macintosh series computer that has 2 rows of pins, you will need a
different adapter (not supplied).
x
Connecting to the 5 BNC connectors
* Connect the cables from left to right in the following order: Red-Green-
Blue-HD-VD.
Note
Plug & Play (DDC) does not apply to the 5 BNC connectors. If you want
to use Plug & Play, connect your computer to the connector using the
supplied video signal cable.
AC IN
1
2 R G B HD VD
video signal cable
(supplied)
IBM PC/AT or compatible
computer
to HD15
to video output
AC IN
1
2 R G B HD VD
Use the supplied exclusive Power Mac G3/G4 adapter.
to HD15
exclusive Power
Mac G3/G4 adapter
(supplied)
*
Power Mac G3/G4
video signal cable
(supplied)
to video output
AC IN
1
2 R G B HD VD
to R/G/B input
to HD/VD
input
Refer to the preceding
examples to connect to your
computer.
video signal cable
(SMF-400, not supplied)
*
7
US
Step 2:Connect the power cord
With the monitor and computer switched off, first connect the
power cord to the monitor, then connect it to a power outlet.
Step 3:Turn on the monitor and
computer
First turn on the monitor, then turn on the computer.
The installation of your monitor is complete.
If necessary, use the monitor
’s controls to adjust the picture.
If no picture appears on your screen
• Check that the monitor is correctly connected to the computer.
• If NO SIGNAL appears on the screen, try changing the input
signal (page 9), and confirm that your computer
’s graphics
board is completely seated in the correct bus slot.
• If you are replacing an old monitor with this model and OUT
OF SCAN RANGE appears on the screen, reconnect the old
monitor. Then adjust the computer
’s graphics board so that the
horizontal frequency is between 30
– 130 kHz (CPD-G520),
30 – 110 kHz (CPD-G420) and the vertical frequency is
between 48 – 170 Hz.
For more information about the on-screen messages, see
“Trouble
symptoms and remedies
” on page 20.
Setup on various OS (Operating System)
This monitor complies with the
“DDC” Plug & Play standard and
automatically detects all the monitor
’s information. No specific driver
needs to be installed to the computer.
If you connect the monitor to your PC, and then boot your PC for the first
time, the setup Wizard may be displayed on the screen. Click on
“Next”
several times according to the instructions from the Wizard until the Plug
& Play Monitor is automatically selected so that you can use this monitor.
AC IN
1
2 R G B HD VD
to AC IN
to a power outlet
power cord (supplied)
1-2
8
Connecting Universal Serial Bus
(USB) compliant peripherals
Your monitor has one upstream and four downstream USB
connectors. They provide a fast and easy way to connect USB
compliant peripheral devices (such as keyboards, mice, printers
and scanners) to your computer using a standardized USB cable.
To use your monitor as a hub for your peripheral devices, connect
the USBs as illustrated below.
1
Turn on the monitor and computer.
2
Connect your computer to the square upstream
connector using the supplied USB cable.
For customers using Windows
If a message appears on your screen, follow the on-screen instructions
and select Generic USB Hub as the default setting.
3
Connect your USB compliant peripheral devices to
the rectangular downstream USB connectors.
Notes
• Not all computers and/or operating systems support USB
configurations. Check your computer
’s instruction manual to see if you
can connect USB devices.
• In most cases, USB driver software needs to be installed on the host
computer. Refer to the peripheral device
’s instruction manual for
further details.
• The monitor functions as a USB hub as long as the monitor is either
“on” or in power saving mode.
• If you connect a keyboard or mouse to the USB connectors and then
boot your computer for the first time, the peripheral devices may not
function. First connect the keyboard and mouse directly to the
computer and set up the USB compliant devices. Then connect them to
this monitor.
Selecting the on-screen menu
language (LANGUAGE)
English, French, German, Spanish, Italian, Dutch, Swedish,
Russian and Japanese versions of the on-screen menus are
available. The default setting is English.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
OPTION and press the control button.
3
Move the control button up or down to highlight
LANGUAGE and press the control button.
4
Move the control button up or down until the desired
language appears on the screen. Then press the
control button to select the language.
Each time you move the control button up or down, the
language can be selected appears cyclically.
• ENGLISH
• FRANÇAIS: French
• DEUTSCH: German
• ESPAÑOL: Spanish
• ITALIANO: Italian
• NEDERLANDS: Dutch
• SVENSKA: Swedish
• : Russian
• : Japanese
To close the menu
Press the MENU button. If no buttons are pressed, the menu closes
automatically after about 45 seconds.
To reset to English
Select ENGLISH in step 4 above.
to USB compliant
peripheral devices
to a USB compliant
computer
MENU
CONTRAST
CONTRAST
50
/IBR GHT
1024x768 / 85Hz
b
OK
MENU
E
OPT ONI
CONTROL
LOCK
OFF
ON
XIT
:
bb
OK
OK
OPT ONI
LANGUAGE
ENGL ISH
MENU
EXI T
:
bb
OK
9
US
Selecting the input signal
You can connect two computers to this monitor using the video
input 1 (HD15) and video input 2 (BNC) connectors. To select
one of the two computers, use the INPUT switch.
Move the INPUT switch.
The selected connector appears on the screen for 3 seconds.
“INPUT 1”: HD15 or “INPUT 2”: BNC appears on the screen.
Note
If no signal is input to the selected connector, NO SIGNAL appears on the
screen. After a few seconds, the monitor enters the power saving mode. If
this happens, switch to the other connector.
INPUT
12
1-3
10
Customizing Your Monitor
You can make numerous adjustments to your monitor using the
on-screen menu.
Navigating the menu
Press the MENU button to display the menu on the screen. See
page 11 for more information on using the MENU and control
buttons.
Use the control button to select one of the following menus.
x
Displaying the current input signal
When you press the MENU button to display the menu, the
horizontal/vertical frequencies of the current input signal are
displayed in the menu. If the signal matches one of this monitor
’s
factory preset modes, the resolution is also displayed.
1
CONTRAST/BRIGHT
(page 12)
Adjusts the contrast and
brightness. You can also
call up this menu directly by
moving the control button
up or down while there is no
menu on the screen.
2
SIZE/CENTER (page
12)
Adjusts the size or
centering.
3
GEOMETRY (page 13)
Adjusts the rotation and
shape of the picture.
4
CONVERGENCE (page
14)
Adjusts the picture
’s
horizontal and vertical
convergence.
5
SCREEN (page 14)
Adjusts the picture
’s
quality.
The options include:
• degaussing the screen
(DEGAUSS)
• adjusting the moire
cancellation (CANCEL
MOIRE)
• adjusting the landing
(LANDING) (CPD-G520
only)
MENU
CONTRAST
CONTRAST
50
/IBR GHT
1024x768 / 85Hz
b
CONTRAST
CONTRAST
50
/IBR GHT
MENU
EXI T
:
MENU
E
SZE
45
/I CENTER
XIT
:
MENU
E
GEOMETRY
45
XIT
:
MENU
E
CONVERGENCE
T
B
45
XIT
:
6
COLOR (page 15)
Adjusts the picture
’s color
temperature to match the
monitor’s colors to a printed
picture’s colors.
7
OPTION (page 17)
Adjusts the monitor
’s
options.
The options include:
• locking the controls
• changing the on-screen
menu’s language
• changing the on-screen
menu position
• changing the picture
’s
color temperature setting
mode
8
RESET (page 18)
Resets the adjustments.
MENU
E
COLOR
5000K
XIT
:
:
EASY
MENU
E
OPT ONI
CONTROL
LOCK
OFF
ON
XIT
:
MENU
E
RESET
CURRENT
MODE
CANCEL
OK
1
2
XIT
:
CONTRAST
CONTRAST
50
/IBR GHT
1024x768 / 85Hz
the vertical
frequencies of
the current
input signal
the horizontal
frequencies/
resolution of the
current input signal
MENU
E
SCREEN
DEGAUSS
CANCEL
OK
XIT
:
11
US
x
Using the MENU and control buttons
1
Display the menu.
Press the MENU button to display the menu on the screen.
2
Select the menu you want to adjust.
Highlight the desired menu by moving the control button up
or down. Then press the control button.
3
Adjust the menu.
Move the control button up or down to make the adjustment
and press the control button.
If you want to select another menu;
move the control button up or down to select and press the
control button to exit the menu.
4
Close the menu.
Press the MENU button. If no buttons are pressed, the menu
closes automatically after about 45 seconds.
Adjusting the picture quality
(PICTURE EFFECT)
Press the PICTURE EFFECT button.
Each time you press the button, the three picture modes cyclically
change as follows.
MENU
OK
b
OK
OK
b
OK
MENU
Select For
PROFESSIONAL
accurate and consistent display color.
Choose this for professional desktop
publishing and graphic applications.
STANDARD
images with high contrast and
brightness.
Choose this mode for commonly used
applications, such as spreadsheets,
word processing, E-mail, or WEB
surfing.
DYNAMIC
extremely vivid and photo-realistic
images.
Brighter than “STANDARD” mode,
choose this for intense graphic
applications such as games, DVD
playback, or entertainment software.
PICTURE EFFECT
PROFESSI ONAL
DYNAMI C
STANDARD
b
1-4
12
Adjusting the brightness and
contrast (CONTRAST/BRIGHT)
These settings are stored in memory for the signals from the
currently selected input connector.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight .
Then press the control button.
The CONTRAST/BRIGHT menu appears on the screen.
3
Move the control button up or down to highlight
6
or . Then press the control button.
4
Move the control button up or down to adjust the
contrast (
6
) or brightness ( ). Then press the
control button.
If you are using the sRGB mode
If you selected the sRGB mode in the COLOR MODE ( ) of the
OPTION ( ) menu, the following CONTRAST/BRIGHT menu
appears on the screen.
You cannot adjust the contrast (
6
) or brightness ( ) on this
screen. If you want to adjust them, select a mode other than sRGB
in the COLOR MODE ( ) of the OPTION ( ) menu.
For more information about using the sRGB mode, see
“Adjusting the color of the picture (COLOR)
” on page 15.
Adjusting the centering of the
picture (SIZE/CENTER)
This setting is stored in memory for the current input signal.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
SIZE/CENTER and press the control button.
The SIZE/CENTER menu appears on the screen.
3
Move the control button up or down to select for
horizontal adjustment, or for vertical adjustment.
Then press the control button.
4
Move the control button up or down to adjust the
centering.
Adjusting the size of the picture
(SIZE/CENTER)
This setting is stored in memory for the current input signal.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
SIZE/CENTER and press the control button.
The SIZE/CENTER menu appears on the screen.
3
Move the control button up or down to select for
horizontal adjustment, or for vertical
adjustment. Then press the control button.
4
Move the control button up or down to adjust the
size.
CONTRAST
s
:/
RGB
/IBR GHT
MENU
EXI T
:
13
US
Automatically sizing and centering
the picture (AUTO)
You can easily adjust the picture to fill the screen by using the
SIZE/CENTER menu.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
SIZE/CENTER and press the control button.
The SIZE/CENTER menu appears on the screen.
3
Move the control button up or down to select
(AUTO). Then press the control button.
The adjustment window appears on the screen.
4
Move the control button up or down to select OK.
Then press the control button.
The picture automatically fills the screen.
Notes
• If you do not want to use the AUTO function, select CANCEL in step 4.
• This function is intended for use with a computer running Windows or
similar graphic user interface software that provides a full-screen
picture. It may not work properly if the background color is dark or if
the input picture does not fill the screen to the edges (such as an MSDOS prompt).
• The displayed image moves for a few seconds while this function is
performed. This is not a malfunction.
Adjusting the shape of the picture
(GEOMETRY)
The GEOMETRY settings allow you to adjust the rotation and
shape of the picture.
The (rotation) setting is stored in memory for all input signals.
All other settings are stored in memory for the current input
signal.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
GEOMETRY and press the control button.
The GEOMETRY menu appears on the screen.
3
Move the control button up or down to select the
desired adjustment item. Then press the control
button.
The adjustment bar appears on the screen.
4
Move the control button up or down to make the
adjustment. Then press the control button.
For more information about using the RESET mode, see
“Resetting the adjustments (RESET)
” on page 18.
Select To
rotate the picture
expand or contract the picture sides
shift the picture sides to the left or right
adjust the picture width at the top of the screen
shift the picture to the left or right at the top of the
screen
0
RESET
reset all the GEOMETRY adjustments to the
factory setting levels. Select OK.
1-5
14
Adjusting the convergence
(CONVERGENCE)
The CONVERGENCE settings allow you to adjust the quality of
the picture by controlling the convergence. The convergence
refers to the alignment of the red, green, and blue color signals.
If you see red or blue shadows around letters or lines, adjust the
convergence.
These settings are stored in memory for all input signals.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
CONVERGENCE and press the control button.
The CONVERGENCE menu appears on the screen.
3
Move the control button up or down to select the
desired adjustment item. Then press the control
button.
The adjustment bar appears on the screen.
4
Move the control button up or down to make the
adjustment. Then press the control button.
For more information about using the RESET mode, see
“Resetting the adjustments (RESET)
” on page 18.
Adjusting the picture quality
(SCREEN)
The SCREEN settings allow you to degauss (demagnetize) the
monitor manually and adjust the picture quality by controlling the
moire and landing.
• If the color is not uniform or picture is fuzzy, degauss the
monitor (DEGAUSS).
• If elliptical or wavy patterns appear on the screen, cancel the
moire (CANCEL MOIRE).
• If the color is irregular at the corners of the screen, adjust the
landing (LANDING) (CPD-G520 only).
The monitor is automatically demagnetized (degaussed) when the
power is turned on.
The screen is degaussed for about 2 seconds. If a second degauss
cycle is needed, allow a minimum interval of 20 minutes for the
best result.
The CANCEL MOIRE setting is stored in memory for the current
input signal. All other settings are stored in memory for all input
signals.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
SCREEN and press the control button.
The SCREEN menu appears on the screen.
3
Move the control button up or down to select the
desired adjustment item. Then press the control
button.
The adjustment bar appears on the screen.
4
Move the control button up or down to make the
adjustment. Then press the control button.
Select To
horizontally shift red or blue shadows
vertically shift red or blue shadows
T
TOP
vertically shift red or blue shadows at the top of
the screen
B
BOTTOM
vertically shift red or blue shadows at the bottom
of the screen
0
RESET
reset all the CONVERGENCE adjustments to
the factory setting levels. Select OK.
15
US
* Moire is a type of natural interference which produces soft, wavy lines
on your screen. It may appear due to interference between the pattern
of the picture on the screen and the phosphor pitch pattern of the
monitor.
** The LANDING and RESET functions are for CPD-G520 only.
Note
The picture may become fuzzy when the CANCEL MOIRE function is
activated.
Adjusting the color of the picture
(COLOR)
The COLOR settings allow you to adjust the picture
’s color
temperature by changing the color level of the white color field.
Colors appear reddish if the temperature is low, and bluish if the
temperature is high. This adjustment is useful for matching the
monitor’s color to a printed picture
’s colors.
You can set the color temperature for each of the video input
connectors.
x
Select the COLOR mode
There are 4 types of adjustment modes, EASY, PRESET,
EXPERT, and sRGB. The default setting is EASY which can be
adjustable from 5000K to 11000K.
If you want to set another mode (other than EASY), select the
desired mode in the OPTION ( ) menu. Then adjust the
selected mode in each COLOR ( ) menu.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
OPTION and press the control button.
The OPTION menu appears on the screen.
3
Move the control button up or down to highlight
COLOR MODE. Then press the control button.
4
Move the control button up or down to select the
COLOR mode.
Select To
DEGAUSS
degauss the monitor. To degauss the monitor
manually, select OK.
CANCEL
MOIRE
adjust the degree of moire cancellation until
the moire* is at a minimum
LANDING
**
reduce any color irregularities in the screen
’s
top left corner to a minimum
LANDING
**
reduce any color irregularities in the screen
’s
top right corner to a minimum
LANDING
**
reduce any color irregularities in the screen
’s
bottom left corner to a minimum
LANDING
**
reduce any color irregularities in the screen
’s
bottom right corner to a minimum
0
RESET
**
reset all the SCREEN adjustments to the
factory setting levels. Select OK.
INPUT
PICTURE EFFECT
MENU
OK
12
Example of moire
MENU
E
OPT ONI
COLOR MODE
EASY
EXPERT
sRGB
PRESET
XIT
:
(continued)
1-6
16
x
EASY mode
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
COLOR and press the control button.
The COLOR menu appears on the screen.
3
Move the control button up or down to highlight .
Then press the control button.
The adjustment bar appears.
4
Move the control button up or down to fine tune the
color temperature.
The new color temperature setting you fine tuned between
5000K to 11000K is stored in memory.
x
PRESET mode
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
COLOR and press the control button.
The COLOR menu appears on the screen.
3
Move the control button up or down to highlight .
Then press the control button.
The adjustment bar appears.
4
Move the control button up or down to select the
desired temperature.
The preset color temperatures are 5000K, 6500K, and 9300K.
Since the default setting is 9300K, the whites will change
from a bluish hue to a reddish hue as the temperature is
lowered to 6500K and 5000K.
x
EXPERT mode
You can make additional adjustments to the color in greater detail
by selecting the EXPERT mode.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
COLOR and press the control button.
The COLOR menu appears on the screen.
3
Move the control button up or down to adjust the
R (red), G (green), and B (blue) component of input
signal for each of GAIN (
6
) and BIAS ( ). Then
press the control button.
If you want to reset the EXPERT adjustments, select
0
(RESET) in COLOR menu. Then select OK in the RESET
window.
x
sRGB mode
The sRGB color setting is an industry standard color space
protocol designed to correlate the displayed and printed colors of
sRGB compliant computer products. To adjust the colors to the
sRGB profile, simply select the sRGB mode in the COLOR
MODE ( ) menu of the OPTION ( ) menu.
However, in order to display the sRGB colors correctly (
γ
= 2.2,
6500K), you must set the PICTURE EFFECT mode to
PROFESSIONAL (page 11) and your computer to the sRGB
profile. If you select this mode, you cannot operate the
CONTRAST/BRIGHT menu adjustments.
Note
Your computer and other connected products (such as a printer), must be
sRGB compliant.
MENU
E
COLOR
5000K
XIT
:
:
EASY
5000K
6500K
9300K
:
PRESET
MENU
EXI T
:
COLOR
45
MENU
E
COLOR
R
G
B
R
G
B
XIT
:
:
EXPERT
MENU
E
COLOR
XIT
:
s
:/
RGB
:
sRGB
17
US
Restoring the color from the EASY, PRESET, or
sRGB modes (IMAGE RESTORATION)
The colors of most display monitors tend to gradually change
brilliance over several years of service. The IMAGE
RESTORATION feature found in the EASY, PRESET, and
sRGB menus allows you to restore the color to the original factory
quality levels. The explanation below explains how to restore the
monitor’s color from the EASY mode for example.
First, select the EASY, PRESET, or sRGB mode in the OPTION
menu (page 15).
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
COLOR and press the control button.
The COLOR menu appears on the screen.
3
Move the control button up or down to highlight
IMAGE RESTORATION. Then press the control
button.
4
Move the control button up or down to select OK.
Then press the control button.
The picture disappears while the color is being restored (about
2 seconds). After the color is restored, the picture reappears
on the screen again.
Notes
• Before using this feature, the monitor must be in normal operation
mode (green power indicator on) for at least 30 minutes. If the monitor
goes into power saving mode, you must return the monitor to normal
operation mode and wait for 30 minutes for the monitor to be ready.
You may need to adjust your computer
’s power saving settings to keep
the monitor in normal operation mode for the full 30 minutes. If the
monitor is not ready, the following message will appear.
• The monitor may gradually lose its ability to perform this function due
to the natural aging of the picture tube.
Additional settings (OPTION)
You can lock the controls, change the on-screen language, change
the menu position, and set the COLOR mode.
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
OPTION and press the control button.
The OPTION menu appears on the screen.
3
Move the control button up or down to select the
desired adjustment item.
Adjust the selected item according to the following
instructions.
x
Locking the controls (CONTROL LOCK)
You can protect the adjustment data by locking the
controls. Move the control button up or down to
highlight (CONTROL LOCK) and press the control
button. Then move the control button up or down to
select ON and press the control button.
Only the
!
(power) switch, MENU button, INPUT switch, and
(CONTROL LOCK) of the OPTION menu will operate.
If any other items are selected, the mark appears on the
screen.
To cancel the control lock
Repeat the procedure above and set (CONTROL LOCK) to OFF.
x
Changing the on-screen language
(LANGUAGE)
See page 8.
x
Changing the menu’s position
(OSD POSITION)
Change the menu
’s position if it is blocking an image on the
screen.
Move the control button up or down to select (OSD
POSITION) for horizontal adjustment, or (OSD
POSITION) for vertical adjustment and press the
control button. Then move the control button up or
down to shift the on-screen menu.
x
Setting the COLOR mode
See page 15.
I MAGE
RESTORAT I ON
OK
CANCEL
MENU
E
COLOR
XIT
:
I MAGE
RESTORAT I ON
AVA
AFTER
WARM UP
LABLEI
MENU
E
COLOR
XIT
:
1-7
18
Resetting the adjustments (RESET)
This monitor has the following 2 reset methods.
x
Resetting all the adjustment data for the
current input signal
1
Press the MENU button.
The menu appears on the screen.
2
Move the control button up or down to highlight
0
RESET and press the control button.
3
Move the control button up or down to select
0
1
and press the control button.
4
Move the control button up or down to select OK
and press the control button.
Note that the following items are not reset by this method:
• on-screen menu language (page 8)
• color mode setting in the OPTION menu (EASY, PRESET,
EXPERT, sRGB) (page 15)
• color temperature setting in the PRESET mode (5000K,
6500K, 9300K) (page 16)
• on-screen menu position (page 17)
x
Resetting all of the adjustment data for all
input signals
Select
0
2 in step 3 above.
Note
The RESET function does not function when (CONTROL LOCK)
is set to ON.
Technical Features
Preset and user modes
When the monitor receives an input signal, it automatically
matches the signal to one of the factory preset modes stored in the
monitor’s memory to provide a high quality picture at the center
of the screen. (See Appendix for a list of the factory preset
modes.) For input signals that do not match one of the factory
preset modes, the digital Multiscan technology of this monitor
ensures that a clear picture appears on the screen for any timing in
the monitor’s frequency range (horizontal: 30
– 130 kHz (CPD-
G520), 30 – 110 kHz (CPD-G420), vertical: 48
– 170 Hz). If the
picture is adjusted, the adjustment data is stored as a user mode
and automatically recalled whenever the same input signal is
received.
Note for Windows users
For Windows users, check your graphics board manual or the
utility program which comes with your graphics board and select
the highest available refresh rate to maximize monitor
performance.
Power saving function
This monitor meets the power-saving guidelines set by VESA,
E
NERGY
S
TAR, and NUTEK. If no signal is input to the
monitor from your computer, the monitor will automatically
reduce power consumption as shown below.
* Figures reflect power consumption when no USB compatible
peripherals are connected to the monitor.
** When your computer enters power saving mode, the input signal is
cut and NO SIGNAL appears on the screen before the monitor enters
active off mode. After a few seconds, the monitor enters power saving
mode.
*** “Deep sleep” is power saving mode defined by the Environmental
Protection Agency.
MENU
E
RESET
1
2
XIT
:
CURRENT
MODE
CANCEL
OK
Power mode Power
consumption
*
!
(power)
indicator
normal
operation
≤
135 W (CPD-G520)
≤
130 W (CPD-G420)
green
active off**
(deep sleep)***
≤
3 W orange
power off Approx. 0 W off
19
US
Troubleshooting
Before contacting technical support, refer to this section.
If thin lines appear on your screen
(damper wires)
The visible lines on your screen especially when the background
screen color is light (usually white), are normal for the Trinitron
monitor. This is not a malfunction. These are shadows from the
damper wires used to stabilize the aperture grille. The aperture
grille is the essential element that makes a Trinitron picture tube
unique by allowing more light to reach the screen, resulting in a
brighter, more detailed picture.
On-screen messages
If there is something wrong with the input signal, one of the
following messages appears on the screen.
If NO SIGNAL appears on section
1
This indicates that no signal is input from the selected connector.
If OUT OF SCAN RANGE appears on line
1
This indicates that the input signal is not supported by the
monitor’s specifications.
For more information, see
“Trouble symptoms and remedies
” on
page 20.
Displaying this monitor
’s name, serial number,
and date of manufacture.
While the monitor is receiving a video signal, press and hold the
MENU button for more than 5 seconds to display this monitor
’s
information box.
If the problem persists, call your authorized Sony dealer and give
the following information.
• Model name: CPD-G520 or CPD-G420
• Serial number
• Name and specifications of your computer and graphics board.
2
The selected connector
This message shows the currently selected connector
(INPUT 1 or INPUT 2).
3
The remedies
The following messages appear on the screen.
• If ACTIVATE BY COMPUTER appears on the screen, try
pressing any key on the computer or moving the mouse, and
confirm that your computer
’s graphics board is completely
seated in the correct bus slot.
• If CHECK SIGNAL CABLE appears on the screen, check
that the monitor is correctly connected to the computer
(page 6).
• If CHECK INPUT SELECTOR appears on the screen, try
changing the input signal (page 9).
Damper wires
IIONNFORMAT
MON I I INGS WORKTOR
I
I VATE
2:NO
BY
S
COMPUTER
W
R
G
B
GNALI
S GNAL CABLEI
NPUT
I NPUT SELECTOR
ACT
CHECK
CHECK
2
The selected connector and the frequencies of the
current input signal
This message shows the currently selected connector
(INPUT 1 or INPUT 2). If the monitor recognizes the
frequencies of the current input signal, the horizontal and
vertical frequencies are also displayed.
3
The remedies
CHANGE SIGNAL TIMING appears on the screen. If you
are replacing an old monitor with this monitor, reconnect the
old monitor. Then adjust the computer
’s graphics board so
that the horizontal frequency is between 30
– 130 kHz
(CPD-G520), 30
– 110 kHz (CPD-G420), and the vertical
frequency is between 48
– 170 Hz.
W
R
G
B
IIONNFORMAT
MON I I INGS WORKTOR
I1:.200 0 /kHz 85Hz
RANGE
S GNAL TIIINGM
NPUT
OUT OF SCAN
CHANGE
W
R
G
B
SER NO
:
1234567
MODEL
:
CPD G520
MANUFACTURED
: 2000-52
INFORMATION
MENU
Example
b
1-8
20
Trouble symptoms and remedies
If the problem is caused by the connected computer or other equipment, please refer to the connected equipment
’s instruction manual.
Use the self-diagnosis function (page 22) if the following recommendations do not resolve the problem.
Symptom Check these items
No picture
If the
!
(power) indicator is not lit
• Check that the power cord is properly connected.
• Check that the
!
(power) switch is in the
“on” position.
If the NO SIGNAL message appears
on the screen, or if the
!
(power) indicator is orange
• Check that the video signal cable is properly connected and all plugs are
firmly seated in
their sockets (page 6).
• Check that the INPUT switch setting is correct (page 9).
• Check that the video input connector
’s pins are not bent or pushed in.
x
Problems caused by the connected computer or other equipment
• The computer is in power saving mode. Try pressing any key on the keyboard or moving
the mouse.
• Check that the computer
’s power is “on.”
• Check that the graphic board is completely seated in the proper bus slot.
If the OUT OF SCAN RANGE
message appears on the screen
x
Problems caused by the connected computer or other equipment
• Check that the video frequency range is within that speci
fied for the monitor. If you
replaced an old monitor with this monitor, reconnect the old monitor and adjust the
frequency range to the following.
Horizontal: 30 – 130 kHz (CPD-G520), 30
– 110 kHz (CPD-G420)
Vertical: 48
–
170 Hz
If no message is displayed and the
!
(power) indicator is green or
flashing orange
• Use the Self-diagnosis function (page 22).
If using a Macintosh system
• When connecting to a Power Mac G3/G4 that has 3 rows of pins, check that the supplied
exclusive Power Mac G3/G4 adapter and the video signal cable are properly connected
(page 6).
• If you connect to the other version of Macintosh series computer that has 2 rows of pins,
you will need a different adapter (not supplied).
Picture flickers, bounces,
oscillates, or is scrambled
• Isolate and eliminate any potential sources of electric or magnetic
fields such as other
monitors, laser printers,
fluorescent lighting, televisions, or electric fans.
• Move the monitor away from power lines or place a magnetic shield near the monitor.
• Try plugging the monitor into a different AC outlet, preferably on a different circuit.
• Try turning the monitor 90
°
to the left or right.
x
Problems caused by the connected computer or other equipment
• Check your graphics board manual for the proper monitor setting.
• Confirm that the graphics mode (VESA, Macintosh 21" Color, etc.) and the frequency of
the input signal are supported by this monitor (Appendix). Even if the frequency is within
the proper range, some graphics boards may have a sync pulse that is too narrow for the
monitor to sync correctly.
• Adjust the computer
’s refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy
• Adjust the contrast and brightness (page 12).
• Degauss the monitor* (page 14).
• Adjust the degree of moire cancellation until the moire is minimal, or set CANCEL
MOIRE to OFF (page 14).
21
US
* If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard,
but this is not a
malfunction.
Picture is ghosting
• Eliminate the use of video cable extensions and/or video switch boxes.
• Check that all plugs are
firmly seated in their sockets.
Picture is not centered or sized
properly
• Set the AUTO ( ) function to OK (on) in the SIZE/CENTER menu (page 13).
• Adjust the size or centering (page 12). Note that with some input signals and/or graphics
boards the periphery of the screen is not fully utilized.
Edges of the image are curved
• Adjust the geometry (page 13).
Wavy or elliptical pattern (moire)
is visible
• Adjust the degree of moire cancellation until the moire is minimal (page 14).
x
Problems caused by the connected computer or other equipment
• Change your desktop pattern.
Color is not uniform
• Degauss the monitor* (page 14). If you place equipment that generates a magnetic
field,
such as a speaker, near the monitor, or if you change the direction the monitor faces, color
may lose uniformity.
• Adjust the landing (page 14) (CPD-G520 only).
White does not look white
• Adjust the color temperature (page 15).
• Check that the 5 BNC connectors are connected in the correct order (page 6).
Letters and lines show red or blue
shadows at the edges
• Adjust the convergence (page 14).
Monitor buttons do not operate
( appears on the screen)
• If the control lock is set to ON, set it to OFF (page 17).
IMAGE RESTORATION function
does not operate
• Before using this function, the monitor must be in normal operation mode (green power
indicator on) for at least 30 minutes. For more information on using the IMAGE
RESTORATION function, see page 17.
• Adjust the computer
’s power saving settings to keep the monitor in normal operation
mode for more than 30 minutes.
• The monitor may gradually lose its ability to perform this function due to the natural aging
of the picture tube.
USB peripherals do not function
• Check that the appropriate USB connectors are securely connected (page 8).
• Check that the
!
(power) switch is in the
“on” position. Then reconnect the USB cable to
the monitor.
x
Problems caused by the connected computer or other equipment
• Check that the power of any self-powered USB compliant peripheral devices is
“on.”
• Install the latest version of the device driver on your computer. Contact your device
’s
manufacturer for information about the appropriate device driver.
• If your USB compliant keyboard or mouse does not function, connect them directly to
your computer, reboot your computer, and make any necessary adjustments to the USB
settings. Then reconnect the keyboard or mouse to the monitor. If you connect a ke yboard
or mouse to the USB connectors and then boot your computer for the
first time, the
peripheral devices may not function.
A hum is heard right after the
power is turned on
• This is the sound of the auto-degauss cycle. When the power is turned on, the monitor is
automatically degaussed for a few seconds.
Symptom Check these items
I MAGE
RESTORAT I ON
AVA
AFTER
WARM UP
LABLEI
MENU
E
COLOR
XIT
:
1-9
22
Self-diagnosis function
This monitor is equipped with a self-diagnosis function. If there is
a problem with your monitor or computer(s), the screen will go
blank and the
!
(power) indicator will either light up green or
flash orange. If the
!
(power) indicator is lit in orange, the
computer is in power saving mode. Try pressing any key on the
keyboard or moving the mouse.
x
If the
!
(power) indicator is green
1
Disconnect any plugs from the video input 1 and 2
connectors, or turn off the connected computer(s).
2
Press the
!
(power) button twice to turn the monitor
off and then on.
3
Hold the control button upward for 2 seconds
before the monitor enters power saving mode.
If all four color bars appear (white, red, green, blue), the monitor
is working properly. Reconnect the video input cables and check
the condition of your computer(s).
If the color bars do not appear, there is a potential monitor failure.
Inform your authorized Sony dealer of the monitor
’s condition.
x
If the
!
(power) indicator is
fl
ashing orange
Press the
!
(power) button twice to turn the monitor off
and then on.
If the
!
(power) indicator lights up green, the monitor is working
properly.
If the
!
(power) indicator is still flashing, there is a potential
monitor failure. Count the number of seconds between orange
flashes of the
!
(power) indicator and inform your authorized
Sony dealer of the monitor
’s condition. Be sure to note the model
name and serial number of your monitor. Also note the make and
model of your computer and graphic board.
Specifications
CPD-G520
CRT 0.24 mm aperture grille pitch
21 inches measured diagonally
90-degree deflection
FD Trinitron
Viewable image size Approx. 403.8
×
302.2 mm (w/h)
(16
×
12 inches)
19.8" viewing image
Resolution
Maximum Horizontal: 2048 dots
Vertical: 1536 lines
Recommended Horizontal: 1600 dots
Vertical: 1200 lines
Input signal levels Video signal
Analog RGB: 0.700 Vp-p
(positive), 75
Ω
SYNC signal
H/V separate or composite sync:
TTL 2 k
Ω
, Polarity free
Sync on Green: 0.3 Vp-p
(negative)
Standard image area Approx. 388
×
291 mm (w/h)
(15
3
/
8
×
11
1
/
2
inches)
or
Approx. 364
×
291 mm (w/h)
(14
3
/
8
×
11
1
/
2
inches)
Deflection frequency* Horizontal: 30 to 130 kHz
Vertical: 48 to 170 Hz
AC input voltage/current 100 to 240 V, 50
– 60 Hz, 2.0 – 1.0 A
Power consumption Approx. 135 W (with no USB devices
connected)
Dimensions Approx. 497
×
502
×
485 mm (w/h/d)
(19
5
/
8
×
19
×
18
7
/
8
inches)
Mass Approx. 30 kg (66 lb 2 oz)
Plug and Play DDC2B/DDC2Bi, GTF**
Supplied accessories See page 6
INPUT
PICTURE EFFECT
MENU
OK
12
!
(power) indicator
OK
23
US
CPD-G420
CRT 0.24 mm aperture grille pitch
19 inches measured diagonally
90-degree deflection
FD Trinitron
Viewable image size Approx. 365
×
274 mm (w/h)
(14
3
/
8
×
10
7
/
8
inches)
18.0" viewing image
Resolution
Maximum Horizontal: 1920 dots
Vertical: 1440 lines
Recommended Horizontal: 1280 dots
Vertical: 1024 lines
Input signal levels Video signal
Analog RGB: 0.700 Vp-p
(positive), 75
Ω
SYNC signal
H/V separate or composite sync:
TTL 2 k
Ω
, Polarity free
Sync on Green: 0.3 Vp-p
(negative)
Standard image area Approx. 352
×
264 mm (w/h)
(13
7
/
8
×
10
1
/
2
inches)
or
Approx. 330
×
264 mm (w/h)
(13
×
10
1
/
2
inches)
Deflection frequency* Horizontal: 30 to 110 kHz
Vertical: 48 to 170 Hz
AC input voltage/current 100 to 240 V, 50
– 60 Hz, 2.0 – 1.0 A
Power consumption Approx. 130 W (with no USB devices
connected)
Dimensions Approx. 451
×
471
×
461 mm (w/h/d)
(17
7
/
8
×
18
5
/
8
×
18
1
/
4
inches)
Mass Approx. 25.5 kg (56 lb 3 oz)
Plug and Play DDC2B/DDC2Bi, GTF**
Supplied accessories See page 6
* Recommended horizontal and vertical timing condition
• Horizontal sync width duty should be more than 4.8% of
total horizontal time or 0.8 µs, whichever is larger.
• Horizontal blanking width should be more than 2.3 µsec.
• Vertical blanking width should be more than 450 µsec.
** If the input signal is Generalized Timing Formula (GTF)
compliant, the GTF feature of the monitor will automatically
provide an optimal image for the screen.
Design and specifications are subject to change without notice.
1-10
CPD-G420
2-1. CABINET REMOVAL
Push in the tip of a screwdriver
about 10mm to unlock the claw.
Cabinet
SECTION 2
DISASSEMBLY
Cabinet
5
Four screws
(+BVTT 4 x 8)
7
EMI shield
Bezel assembly
Bezel assembly
4
Four screws
(+BVTT 4 x 8)
2
Two claws
A
EMI shield
3
Push the upper side of the cabinet
inthe direction of arrow A, disconnect claws,
then remove the cabinet
lifting it up in the direction of arrow B.
B
1
Two screws
(+BVTP 4 x 16)
C
6
Slide the EMI shield in the direction
of arrow C and remove four claws.
2-1
2-2. A1 BOARD (C BLOCK) REMOVAL
CN318
1
A1 board
CPD-G420
2-3. A1 BOARD, US BOARD REMOVAL
9
8
Input/out
terminal board assembly
CN313
3
Four screws
(+BVTP 3 x 8)
Video case
5
Two screws (HEX)
6
Screw
(+BVTP 3 X 10)
GND
GND
CN315
4
Video shield
10
A1 board
7
Two screws
(+BVTP 3 X 8)
12
USB block assembly
2-2
CN2601
CN315
1
Two screws
(+BVTT 4 x 6)
2
Video block assembly
11
Screw (+BVTT 4 x 6)
15
US board
13
Five screws
(+BVTT 3 x 8)
14
USB case
Loading...
