Page 1
4-239-872-14(1)
Mini Hi-Fi
Component
System
Operating Instructions
Owner’s Record
The model and serial numbers are located on the rear panel of the unit. Record the serial
number in the space provided below. Refer to them whenever you call upon your Sony
dealer regarding this product.
Model No. Serial No.
MHC-GX40/GX30/GX20
MHC-RG110/RG33/RG22
MHC-RL3
© 2002 Sony Corporation
1
Page 2
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To prevent fire, do not Cover the ventilation of the
apparatus with news papers, table-cloths, curtains,
etc. And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.
This appliance is classified as
a CLASS 1 LASER product.
This label is located on the
rear exterior.
Don’t throw away the battery with
general house waste, dispose of it
correctly as chemical waste.
NOTICE FOR THE CUSTOMERS IN THE
U.S.A.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
Note to CATV system installer:
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
NOTICE FOR THE CUSTOMERS IN
CANADA
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE
THIS POLARIZED AC PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
Except for European models
ENERGY STAR
registered mark.
As an
ENERGY STAR
®
is a U.S.
®
Partner,
Sony Corporation has determined
that this product meets the
®
STAR
guidelines for energy
ENERGY
efficiency.
GB
2
Page 3
Table of Contents
List of Button Locations
and Reference Pages
Main unit ............................................... 4
Sub woofer ............................................ 5
Remote Control ..................................... 6
Getting Started
Hooking up the system .......................... 7
Inserting two R6 (size AA) batteries
into the remote ................................ 9
Setting the clock .................................. 10
CD
Loading a CD ...................................... 10
Playing a CD — Normal Play/
Shuffle Play/Repeat Play...............11
Programing CD tracks
— Program Play ............................ 12
Tuner
Presetting radio stations....................... 13
Listening to the radio — Preset Tuning/
Manual Tuning .............................. 15
Using the Radio Data System
(RDS)* .......................................... 16
Tape
Loading a tape .....................................16
Playing a tape ...................................... 17
Recording to a tape — CD Synchro
Recording/Recording Manually .... 18
Timer-recording radio programs .........19
Sound Adjustment
Using the sub woofer........................... 20
Adjusting the sound ............................. 20
Selecting the sound effect.................... 20
Selecting the surround effect ............... 20
Display
Turning off the display
— Power Saving Mode ................. 21
Using the CD display .......................... 21
Other Features
Enhancing video game sound
— Game Sync ...............................22
Mixing video game sound with other
sound source — Game Mixing ..... 22
Falling asleep to music
— Sleep Timer .............................. 22
Waking up to music — Daily Timer ... 23
Optional Components
Hooking up video game machine ........ 24
Troubleshooting
Problems and remedies........................ 25
Messages ............................................. 26
Additional Information
Precautions .......................................... 27
Specifications ...................................... 28
* European model only
GB
3
Page 4
List of Button Locations and Reference Pages
How to use this page
Use this page to find the location of buttons and other
parts of the system that are mentioned in the text.
Main unit
ALPHABETICAL ORDER
A – E
AUDIO jacks ws (24)
CD wj (11, 12, 18)
CD SYNC 7 (18)
Deck A w; ( 1 6, 17)
Deck B qh (16 – 19)
DISC 1 – 3 0 (11, 12)
DISC SKIP/EX-CHANGE qa (10,
11)
Disc tray 9 (10)
DISPLAY 2 (16, 21)
EFFECT ON/OFF qj (20 )
123 549
G – Z
GAME wf (22, 24)
GAME EQ ql (20, 24)
GAME MIXING 4 (22)
GROOVE 6 (20)
MOVIE EQ 5 (20)
MUSIC EQ 3 (20)
PHONES jack qf
REC PAUSE/START 8 (18)
TAPE A/B wg (16, 18)
TUNER/BAND wh (13 – 15, 18)
VIDEO jack wd (24)
VOLUME control qd
Illustration number
r
TUNER/BAND wh (13 – 15, 18)
Name of button/part Reference page
67
RR
BUTTON DESCRIPTIONS
?/1 (power) 1
Z OPEN/CLOSE qs
Z (deck B) qg
M qk
. qk
> qk
X qk
H qk
x qk
m qk
Z (deck A) wa
8
wj
wh
wg
wf
wd
0
qa
qs
qd
ws
qf
wa
w;
qg
qh
qjqkql
GB
4
Page 5
Sub woofer
(MHC-GX40 only)
List of Button Locations and Reference Pages
ALPHABETICAL ORDER
A – Z
Indicator 1 (20)
ON/OFF 2 (20)
1
2
GB
5
Page 6
Remote Control
ALPHABETICAL ORDER
A – G
CD ql (11, 12, 18)
CLEAR w; (12)
CLOCK/TIMER SELECT 2
(19, 23)
CLOCK/TIMER SET 3 (10, 19,
23)
DISPLAY 6 (16, 21)
D.SKIP 7 (11)
ENTER qg (10, 12 – 14, 19, 23)
EQ +/– qf (20)
GAME 0 (22, 24)
GROOVE qd (20)
O – Z
ON/OFF qh (20)
PLAY MODE wa (11, 12, 17)
PRESET +/– 5 (13 – 15)
REPEAT 8 (11)
SLEEP 1 (22)
STEREO/MONO 8 (15)
SURROUND qa (20)
TAPE A/B 9 (16, 18)
TUNER MEMORY qj (13, 14)
TUNER/BAND qk (13 – 15, 18)
TUNING +/– 5 (13 – 15)
VOL +/– qs
12 34
wa
w;
ql
qk
qj
qh
BUTTON DESCRIPTIONS
?/1 (power) 4
M 5
. 5
> 5
X 5
N 5
m 5
x 5
5
6
7
8
9
q;
qa
qs
qg
qd
qf
GB
6
Page 7
Getting Started
Hooking up the system
Perform the following procedure 1 to 5 to hook up your system using the supplied cords and
accessories.
FM antenna
Getting Started
AM loop antenna
Front speaker (Right)
* MHC-GX40 only
1 Connect the front speakers.
Connect the speaker cords to the SPEAKER
jacks as shown below.
Insert only the stripped portion
R
+
Red/Solid
(3)
Black/Stripe (#)
L
+
–
Sub woofer speaker*
Front speaker (Left)
2 Connect the sub woofer speaker.
(MHC-GX40 only)
Connect the speaker cords to the SUB
WOOFER OUT jack and SUB WOOFER
CONTROL jack as shown below.
SUB WOOFER OUT jack
SUB WOOFER CONTROL jack
continued
GB
7
Page 8
Hooking up the system (continued)
3 Connect the FM/AM antennas.
Set up the AM loop antenna, then connect
it.
Jack type A
AM loop antenna
Jack type B
AM loop antenna
Extend the FM lead antenna
horizontally
Extend the FM lead antenna
horizontally
4 For models with a voltage selector, set
VOLTAGE SELECTOR to the local
power line voltage.
Depending on the model, the VOLTAGE
SELECTOR may differ.
*
220V230 - 240V
120V
* Saudi Arabian model: 120 – 127 V
5 Connect the power cord to a wall outlet.
The demonstration appears in the display.
F
M
7
5
When you press ?/1, the system turns on
and the demonstration automatically ends.
If the supplied adapter on the plug does not
fit your wall outlet, detach it from the plug
A
M
(only for models equipped with an adapter).
To connect optional components
See page 24.
To attach the front speaker pads
Attach the supplied front speaker pads to the
bottom of the speakers to stabilize the speakers
F
M
C
O
A
M
and prevent them from slipping.
7
5
A
X
IA
L
Note
Keep the speaker cords away from the antennas to
prevent noise.
GB
8
Page 9
Placing the sub woofer (MHC-GX40
only)
Since the human ear cannot detect the direction
and position where the bass sound being
reproduced by a woofer (below 150 Hz) comes
from, you can place the woofer wherever you
like in your room. To obtain a better bass
reproduction, we recommend you to place the
woofer on a solid floor where the resonance is
unlikely to occur.
Notes
• Always place the woofer vertically, keeping a few
centimeters from away the wall.
• If the woofer is placed in the center of a room, the
bass could be extremely weakened. This is due to
the influence of the standing wave of the room. If
this happened, move the woofer away from the
center of a room or eliminate the cause of the
standing wave, by placing a bookshelf on the wall,
etc.
When carrying this system
Perform the following procedure to protect
the CD mechanism.
1 Make sure that all discs are removed
from the system.
2 Press ?/1 to turn off the system.
3 Unplug the power cord.
Inserting two R6 (size AA) batteries into the remote
e
E
E
e
Tip
With normal use, the batteries should last for about
six months. When the remote no longer operates the
system, replace both batteries with new ones.
Note
If you do not use the remote for a long period of time,
remove the batteries to avoid possible damage from
battery leakage.
Getting Started
GB
9
Page 10
CD
Setting the clock
1 Press ?/1 to turn on the system.
2 Press CLOCK/TIMER SET on the
remote.
3 Press . or > on the remote
repeatedly to set the hour.
4 Press ENTER on the remote.
The minute indication flashes.
5 Press . or > on the remote
repeatedly to set the minute.
6 Press ENTER on the remote.
The clock starts working.
To adjust the clock
1 Press CLOCK/TIMER SET on the remote.
2 Press . or > on the remote to select
“CLOCK SET”, then press ENTER on the
remote.
3 Do the same procedures as step 3 to 6
above.
Note
The clock settings are canceled when you disconnect
the power cord or if a power failure occurs.
Loading a CD
1 Press Z OPEN/CLOSE.
The disc tray opens.
2 Place a CD with the label side up on the
disc tray.
To insert additional discs, press DISC
SKIP/EX-CHANGE to rotate the disc tray.
3 Press Z OPEN/CLOSE to close the disc
tray.
10
GB
Page 11

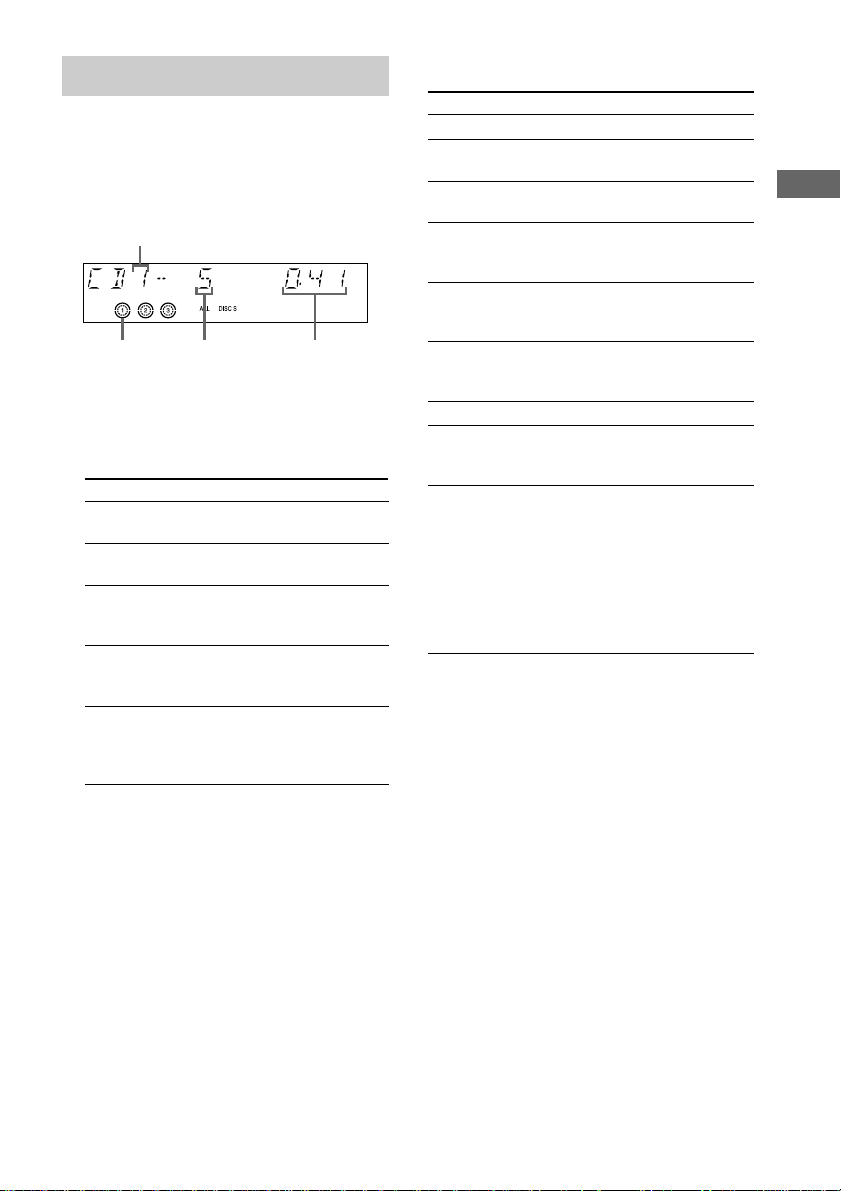

Playing a CD
— Normal Play/Shuffle Play/Repeat Play
This system lets you play the CD in different
play modes.
Disc tray number
Disc presence
indicator
1 Press CD.
2 Press PLAY MODE on the remote
repeatedly until the mode you want
appears in the display.
Select To play
ALL DISCS
(Normal Play)
1DISC
(Normal Play)
ALL DISCS
SHUF
(Shuffle Play)
1DISC SHUF
(Shuffle Play)
PGM (Program
Play)
3 Press H (or N on the remote).
Track number Playing time
All CDs in the disc tray
continuously.
The CD you have selected
in original order.
The tracks on all CDs in
random order.
The tracks on the CD you
have selected in random
order.
The tracks on all CDs in the
order you want them to be
played (see “Programing
CD tracks” on page 12).
Other Operations
To Do this
Stop play Press x.
Pause Press X. Press again to resume
Select a track During play or pause, press >
Find a point
in a track
Select a CD in
stop mode
Switch to CD
function from
another source
Remove a CD Press Z OPEN/CLOSE.
Exchange other
CDs while
playing
Play repeatedly
(Repeat Play)
* You cannot select “REP” and “ALL DISCS
SHUF” at the same time.
**When you select “REP 1”, that track is repeated
endlessly until “REP 1” is canceled.
Note
The play mode cannot be changed while playing a
disc. To change the play mode, press x first to stop
playing.
play.
or ..
During play, press and hold M or
m. Release it when you find the
desired point.
Press DISC 1 – 3 or DISC SKIP/
EX-CHANGE (or D.SKIP on the
remote).
Press DISC 1 – 3 (Automatic
Source Selection).
Press DISC SKIP/EX-CHANGE.
Press REPEAT on the remote
during play until “REP” or “REP
1” appears.
REP*: For all the tracks on the CD
up to five times.
REP 1**: For a single track only.
To cancel playing repeatedly, press
REPEAT until “REP” or “REP 1”
disappears.
CD
11
GB
Page 12
Programing CD tracks
— Program Play
You can make a program of up to 25 tracks
from all the CDs in the order you want to play
them.
1 Press CD.
2 Press PLAY MODE on the remote
repeatedly until “PGM” appears in the
display.
3 Press one of DISC 1 – 3 to select a CD.
To program all the tracks on a CD at once,
proceed to step 5 with “AL” displayed.
4 Press . or > until the desired
track appears in the display.
Disc tray number
Selected track number
5 Press ENTER on the remote.
The track is programed. The program step
number appears, followed by the total
playing time.
Total playing time
(including selected track)
6 Program additional discs or tracks.
To program Repeat steps
Other discs 3 and 5
Other tracks on the
same disc
Other tracks on other
discs
4 and 5
3 to 5
7 Press H (or N on the remote).
Other Operations
To Do this
Cancel Program
Play
Clear a track from
the end
Tips
• The program you made remains after Program Play
finishes. To play the same program again, press CD,
then press H (or N on the remote).
• “--.--” appears when the total CD program time
exceeds 100 minutes, or when you select a CD track
whose number is 21 or over.
Press PLAY MODE on the
remote repeatedly until “PGM”
and “SHUF” disappear.
Press CLEAR on the remote in
stop mode.
12
GB
Page 13
Tuner
Presetting radio stations
Setting presets through
automatic tuning
You can preset up to 20 FM stations and 10
AM stations. You can then tune in any of those
stations simply by selecting the corresponding
preset number.
There are two ways to store the station presets.
To Method
Automatically preset
all of the stations that
can be received in
your area
Manually set the radio
frequency of your
favourite stations
Automatic Tuning Preset
Manual Tuning Preset
1 Press TUNER/BAND repeatedly to
select “FM” or “AM”.
2 Press and hold m or M (or TUNING –
or + on the remote) until the frequency
indication starts to change, then
release it.
Scanning stops automatically when the
system tunes in a station. “TUNED” and
“STEREO” (for an FM stereo program)
appear.
If “TUNED” does not appear and the
scanning does not stop
Set the frequency of the desired radio
station as described in steps 2 through 6 of
“Setting presets through manual tuning”.
3 Press TUNER MEMORY on the remote.
A preset number appears in the display.
The stations are stored from preset number
1.
Preset number
Tuner
4 Press . or > (or PRESET – or +
on the remote) repeatedly to select the
desired preset number.
5 Press ENTER on the remote.
6 Repeat steps 1 to 5 to store other
stations.
continued
13
GB
Page 14
Presetting radio stations (continued)
Setting presets through
manual tuning
1 Press TUNER/BAND repeatedly to
select “FM” or “AM”.
2 Press m or M (or TUNING – or + on
the remote) repeatedly to tune in the
desired station.
3 Press TUNER MEMORY on the remote.
A preset number appears in the display.
The stations are stored from preset number
1.
4 Press . or > (or PRESET – or +
on the remote) repeatedly to select the
desired preset number.
5 Press ENTER on the remote.
6 Repeat steps 1 to 5 to store other
stations.
Other Operations
To Do this
Tune in a station
with a weak
signal
Set another
station to an
existing preset
number
To change the AM tuning interval
(except for the European and Middle
Eastern models)
The AM tuning interval is factory-set to 9 kHz
(10 kHz in some areas). To change the AM
tuning interval, tune in any AM station first,
then turn off the system. While holding down
TUNER/BAND, turn the system back on.
When you change the interval, all the AM
preset stations are erased. To reset the interval,
repeat the same procedure.
Note
You cannot change the AM tuning interval in the
Power Saving Mode.
Tips
• The preset stations are retained for half a day even
if you disconnect the mains lead or if a power
failure occurs.
• To improve broadcast reception, reorient or move
the supplied antenna near a window or outdoors.
Follow the procedure described in
“Setting presets through manual
tuning”.
Start over from step 1. After step
3, press . or > (or PRESET
– or + on the remote) repeatedly to
select the preset number you want
to store the other station.
14
GB
Page 15
Listening to the radio
You can listen to a radio station either by
selecting a preset station, or by manually tuning
in the station.
Listening to a preset station
— Preset Tuning
Preset radio stations in the tuner’s memory first
(see “Presetting radio stations” on page 13).
1 Press TUNER/BAND repeatedly to
select “FM” or “AM”.
2 Press . or > (or PRESET – or + on
the remote) repeatedly to select the
desired preset station.
Preset number Frequency
Listening to non-preset radio
station
— Manual Tuning
1 Press TUNER/BAND repeatedly to
select “FM” or “AM”.
2 Press m or M (or TUNING – or + on
the remote) repeatedly to tune in the
desired station.
Tips
• To improve broadcast reception, adjust the supplied
antennas.
• When an FM stereo program has static noise, press
STEREO/MONO on the remote repeatedly until
“MONO” appears. There will be no stereo effect,
but the reception will improve.
• Press and hold m or M (or TUNING – or + on
the remote). The frequency indication changes and
scanning stops when the system tunes in a station
(Automatic Tuning).
• To record from the radio, see “Recording to a tape”
on page 18 or “Timer-recording radio programs” on
page 19.
Tuner
15
GB
Page 16
Tape
Using the Radio Data System (RDS)
(MHC-RG110/RG33/RG22, MHC-RL3,
European model only)
What is the Radio Data System?
Radio Data System (RDS) is a broadcasting
service that allows radio stations to send
additional information along with the regular
program signal. This tuner offers convenient
RDS features like station name display and
location of stations by program type. RDS is
available only on FM stations.*
Note
RDS may not work properly if the station you tuned
in is not transmitting the RDS signal properly or if the
signal is weak.
* Not all FM stations provide RDS service, nor do
they provide the same types of services. If you are
not familiar with the RDS system, check with your
local radio stations for details on RDS services in
your area.
Receiving RDS broadcasts
Simply select a station from the FM band.
When you tune in a station that provides RDS
services, the station name appears in the
display.
To check the RDS information
Each time you press DISPLAY, the display
changes cyclically as follows:
Station name* t Frequency t Program
type* t Clock display t Effect status
* If the RDS broadcast is not received, the station
name and program type may not appear in the
display.
Loading a tape
1Press TAPE A/B repeatedly to select
deck A or B.
2Press Z .
3Insert a tape in deck A or B with the
side you want to play/record facing
forward.
With the side
you want to
play/record
facing forward.
16
GB
Page 17
Playing a tape
You can use TYPE I (normal) tape.
1 Load a tape.
To play both decks in succession, press
PLAY MODE on the remote repeatedly
until “RELAY” (Relay Play)* appears in
the display.
2 Press H (or N on the remote).
The tape starts playing.
* After the playback of the front side of deck A,
deck B plays the front side, then stops.
Other Operations
To Do this
Stop play Press x.
Pause Press X. Press again to
Fast-forward
or rewind
Remove
the cassette
resume play.
Press m or M.
Press Z.
Searching for the beginning of the
current or the next track (AMS)*
To go forward
Press > during playback.
“TAPE A (or TAPE B) >>> +1” appears.
To go back
Press . during playback.
“TAPE A (or TAPE B) <<< –1” appears.
* AMS (Automatic Music Sensor)
Note
The AMS function may not operate correctly under
the following circumstances:
– When the unrecorded space between songs is less
than 4 seconds long.
– When the system is placed near a television.
Tape
17
GB
Page 18
Recording to a tape
— CD Synchro Recording/Recording Manually
You can record from a CD, tape (or connected components) or radio. You can use TYPE I (normal)
tapes. The recording level is adjusted automatically.
Steps Recording from a CD
(CD Synchro Recording)
Recording from a CD/tape/radio manually
1 Load a recordable tape into deck B.
2 Press CD.
3 Load the CD you want to record.
Press CD, TAPE A/B or TUNER/BAND.
Load the CD or tape (or other music
source), or tune in the station you want
to record.
4 Press CD SYNC. Press REC PAUSE/START.
Deck B stands by for recording.
“REC” flashes.
5 Press REC PAUSE/START.
Recording starts.
To stop recording
Press x.
Tip
For recording from the radio:
If noise is heard while recording from the radio, move
the respective antenna to reduce the noise.
Press REC PAUSE/START, and then start
playing the desired source to record.
Note
You cannot listen to other sources while recording.
18
GB
Page 19
Timer-recording radio programs
You can record a preset radio station from a
specified time.
To timer-record, you must first preset the radio
station (see “Presetting radio stations” on page
13) and set the clock (see “Setting the clock”
on page 10).
1 Tune in the preset radio station (see
“Listening to the radio” on page 15).
2 Press CLOCK/TIMER SET on the
remote.
“DAILY SET” appears.
3 Press . or > on the remote
repeatedly to select “REC SET”, then
press ENTER on the remote.
“ON” appears and the hour indication
flashes in the display.
4 Set the time to start recording.
Press . or > on the remote
repeatedly to set the hour, then press
ENTER on the remote.
The minute indication starts flashing.
Press . or > on the remote
repeatedly to set the minute, then press
ENTER on the remote.
5 Repeat step 4 to set the time to stop
recording.
The start time appears, followed by the stop
time, the preset radio station to be recorded
(e.g., “TUNER FM 5”), then the original
display appears.
6 Load a recordable tape into deck B.
7 Press ?/1 to turn off the system.
When the recording starts, the volume level
is set to minimum.
Other Operations
To Do this
Check the
setting
Change the
setting
Cancel the timer Press CLOCK/TIMER SELECT
Notes
• If the system is on at the preset time, the recording
will not be made.
• When you use the Sleep Timer, Timer-recording
and Daily Timer will not turn on the system until
the Sleep Timer turns it off.
• You cannot activate the Daily Timer and Timerrecording at the same time.
Press CLOCK/TIMER SELECT
on the remote and press . or
> on the remote repeatedly to
select “REC SELECT”, then press
ENTER on the remote.
Start over from step 1.
on the remote and press . or
> on the remote repeatedly to
select “TIMER OFF”, then press
ENTER on the remote.
Tape
19
GB
Page 20
Sound Adjustment
Using the sub woofer
(MHC-GX40 only)
You can use the sound of the sub woofer to suit
the sound source.
Press ON/OFF on the sub woofer.
The indicator lights up while the sub woofer
turns on.
Press the button again to turn off the sub
woofer.
Tip
You can use VOLUME (VOL – or + on the remote)
to adjust the volume of the sub woofer linked to the
front speakers.
To cancel the effect
Press EFFECT ON/OFF (or ON/OFF on the
remote).
Sound effect options
“SURR” appears if you select an effect with
surround effects.
MUSIC EQ
Effect
ROCK
POP
MOVIE EQ
Effect
MOVIE Soundtracks and special listening
Standard music sources
situations
Adjusting the sound
You can reinforce the bass and create a more
powerful sound.
Press GROOVE.
“GROOVE” appears in the display and the
volume switches to power mode.
Press the button again to cancel GROOVE.
Selecting the sound effect
Selecting the effect from the music
menu
Press MUSIC EQ, MOVIE EQ or GAME EQ
(or EQ – or + on the remote*) repeatedly to
select the preset you desire.
The preset name appears in the display.
See the chart “Sound effect options”.
* You can select all of the effects in order.
GAME EQ
Effect
GAME PlayStation 1, 2 and other video
game music sources
Selecting the surround effect
Press SURROUND on the remote.
“SURR” appears in the display.
Press the button again to cancel SURROUND.
20
GB
Page 21
Display
Turning off the display
— Power Saving Mode
Even if the system is off, the system consumes
power to display the clock and to stay
responsive to commands from the remote.
Power saving mode reduces the amount of
power consumed during standby.
In this mode, the clock is not displayed.
Press DISPLAY repeatedly while the
system is off until the demonstration
display or the clock display disappears.
To cancel the Power Saving Mode
Press DISPLAY while the system is off. Each
time you press the button, the display switches
cyclically as follows:
Demonstration display t Clock display* t
No display (Power Saving Mode)
* The clock is displayed only if you set the clock.
Tip
The timer continues to operate in Power Saving
Mode.
Using the CD display
Checking the remaining time
Press DISPLAY repeatedly during play.
Each time you press the button, the display
changes cyclically as follows:
Elapsed playing time on the current track t
Remaining time on the current track t
Remaining time on the current CD t Clock
display (for eight seconds) t Effect status
Checking the total playing
time
Press DISPLAY repeatedly in stop mode.
Each time you press the button, the display
changes cyclically as follows:
During normal play mode:
Total number of tracks and total playing time
t Clock display (for eight seconds) t Effect
status
During Program Play mode when
there is a program:
The last track number of the program and the
total playing time t Total number of
programed tracks (for five seconds) t Clock
display (for eight seconds) t Effect status
Sound Adjustment/Display
21
GB
Page 22
Other Features
Enhancing video game sound
— Game Sync
You need to connect a video game machine
(see “Hooking up video game machine” on
page 24).
Press GAME.
Tips
• In the standby mode, the system automatically turns
on.
• The GAME EQ is automatically selected.
• These operations cannot be performed in the Power
Saving Mode.
Mixing video game sound with other sound source
— Game Mixing
1 Select the desired source sound.
2 Press GAME MIXING.
Each time you press the button, the level of the
game sound changes cyclically as follows:
MIXING LOW t MIXING MID t
MIXING HIGH t MIXING OFF
Tips
• The GAME MIXING indicator lights up while
Game Mixing is activated.
• Once Game Mixing is activated, it will remain
active while the power is on even if the source
sound is changed.
Note
If you start recording while Game Mixing is
activated, Game Mixing is canceled. To record the
mixed sound, press GAME MIXING after step 4 of
“Recording from a CD/tape/radio manually” on page
18, and then press REC PAUSE/START to start the
recording.
Falling asleep to music
— Sleep Timer
You can set the system to turn off after a
certain time, so that you can fall asleep to
music.
Press SLEEP on the remote.
Each time you press the button, the minute
display (the turn-off time) changes cyclically as
follows:
AUTO* t 90 MIN t 80 MIN t 70 MIN
t … t 10 MIN t OFF
* The system turns off when the current CD or tape
finishes playback (for up to 100 minutes).
Other Operations
To Press
Check the
remaining time**
Change the
time to turn off
Cancel the Sleep
Timer function
**You cannot check the remaining time when you
select “AUTO”.
SLEEP on the remote once.
SLEEP on the remote
repeatedly to select the time you
want.
SLEEP on the remote
repeatedly until “SLEEP OFF”
appears.
22
GB
Page 23
Waking up to music
— Daily Timer
You can wake up to music at a preset time.
Make sure you have set the clock (see “Setting
the clock” on page 10).
1 Prepare the music source you want to
play.
• CD: Load a CD. To start from a
specific track, make a program (see
“Programing CD tracks” on page 12).
• Tape: Load a tape with the side you
want to play facing forward.
• Radio: Tune in the preset station you
want (see “Listening to the radio” on
page 15).
2 Adjust the volume.
3 Press CLOCK/TIMER SET on the
remote.
“DAILY SET” appears.
4 Press ENTER on the remote.
“ON” appears and the hour indication
flashes.
5 Set the time to start playing.
Press . or > on the remote
repeatedly to set the hour, then press
ENTER on the remote.
The minute indication flashes.
Press . or > on the remote
repeatedly to set the minute, then press
ENTER on the remote.
6 Repeat step 5 to set the time to stop
playing.
7 Press . or > on the remote
repeatedly until the music source you
want appears.
The indication changes as follows:
t
TUNER y CD PLAY
t
TAPE PLAY
T
T
8 Press ENTER on the remote.
The type of timer (“DAILY”), followed by
the start time, stop time, and the music
source appear, then the original display
appears.
9 Press ?/1 to turn off the system.
Other Operations
To Do this
Check the setting Press CLOCK/TIMER
SELECT on the remote and
press . or > on the
remote repeatedly to select
“DAILY”, then press ENTER
on the remote.
Change the setting Start over from step 1.
Cancel the timer Press CLOCK/TIMER
SELECT on the remote and
press . or > on the
remote repeatedly to select
“TIMER OFF”, then press
ENTER on the remote.
Tip
The system turns on 15 seconds before the preset
time.
Notes
• When you use the Sleep Timer, the Daily Timer
will not turn on the system until the Sleep Timer
turns it off.
• You cannot activate the Daily Timer and Timer-
recording at the same time.
• If the system is on at the preset time, you cannot
activate the Daily Timer.
Other Features
23
GB
Page 24
Optional Components
Hooking up video game machine
To enhance your system, you can connect optional components. Refer to the operating instructions
provided with each component.
Optional video game machine
From the audio and video output of
the video game machine
A VIDEO INPUT jack
Use a video cable (not supplied) to connect the
video output of the optional video game
machine to this jack.
B AUDIO INPUT jacks
Use audio cords (not supplied) to connect the
audio output of the optional video game
machine to these jacks. You can then output
audio through this system.
C VIDEO OUT jack
Use a video cable (not supplied) to connect the
video input of TV to this jack.
TV
To the video input of a TV
Notes
• The video game machine image may appear on the
TV screen even if the system is turned off.
• See “Selecting the sound effect” on page 20 for
video game sound effects.
• If you press GAME while the system is off, the
system turns on, the function switches to GAME,
and the equalizer also switches to the GAME EQ.
• If you press GAME while the system is on, the
function switches to GAME and the equalizer
automatically switches to the GAME EQ in the
same manner.
24
GB
Page 25
Troubleshooting
Problems and remedies
If you have any problem using this system, use
the following check list.
First, check that the power cord is connected
firmly and the speakers are connected correctly
and firmly.
Should any problem persist, consult your
nearest Sony dealer.
General
The display starts flashing as soon as you plug
in the power cord even though you have not
turned on the system (see step 5 of “Hooking up
the system” on page 8).
• Press DISPLAY twice while the system is off.
The demonstration disappears.
“– –:– –” lights in the display.
• A power interruption occurred. Set the clock and
timer settings again.
The clock setting/radio presetting/timer is
canceled.
• The power cord is disconnected or a power
failure occurs longer than half a day.
Redo the following:
—“Setting the clock” on page 10
—“Presetting radio stations” on page 13
If you have set the timer, also redo “Waking up
to music” on page 23 and “Timer-recording radio
programs” on page 19.
There is no sound.
• Turn VOLUME clockwise.
• The headphones are connected.
• Insert only the stripped portion of the speaker
cord into the SPEAKER jack. Inserting the vinyl
portion of the speaker cord will obstruct the
speaker connections.
• There is no audio output during timer recording.
There is severe hum or noise.
• A TV or VCR is placed too close to the system.
Move the system away from the TV or VCR.
The timer does not function.
• Set the clock correctly.
“DAILY” and “REC” do not appear when you
press CLOCK/TIMER SET.
• Set the timer correctly.
• Set the clock.
The remote does not function.
• There is an obstacle between the remote and the
system.
• The remote is not pointing in the direction of the
system’s sensor.
• The batteries have run down. Replace the
batteries.
There is acoustic feedback.
• Reduce the volume.
The color irregularity on a TV screen persists.
• Turn off the TV set once, then turn it on after 15
to 30 minutes. If the color irregularity still
persists, place the speakers farther away from the
TV set.
Speakers
Sound comes from one channel or unbalanced
left and right volume.
• Check the speaker connection and speaker
placement.
Sound lacks bass.
• Check that the speaker’s + and – jacks are
connected correctly.
continued
Optional Components/Troubleshooting
25
GB
Page 26
Problems and remedies (continued)
Tuner
CD Player
The CD tray does not close.
• The CD is not placed properly.
The CD will not play.
• The CD is not lying flat in the disc tray.
• The CD is dirty.
• The CD is loaded label side down.
• There is moisture on the CD.
Play does not start from the first track.
• The player is in program or shuffle mode. Press
PLAY MODE repeatedly until “PGM” or
“SHUF” disappears.
The disc tray does not open and “LOCKED”
appears.
• Contact your Sony dealer or local authorized
Sony service facility.
Tape Deck
The tape does not record.
• No tape in the cassette holder.
• The tab has been removed from the cassette (see
“To save a tape permanently” on page 27).
• The tape has reeled to the end.
The tape does not record nor play or there is a
decrease in sound level.
• The heads are dirty (see “Cleaning the tape
heads” on page 28).
• The record/playback heads are magnetized (see
“Demagnetizing the tape heads” on page 28).
The tape does not erase completely.
• The record/playback heads are magnetized (see
“Demagnetizing the tape heads” on page 28).
There is excessive wow or flutter, or the sound
drops out.
• The capstans or pinch rollers are dirty (see
“Cleaning the tape heads” on page 28).
Noise increases or the high frequencies are
erased.
• The record/playback heads are magnetized (see
“Demagnetizing the tape heads” on page 28).
There is severe hum or noise (“TUNED” or
“STEREO” flashes in the display).
• Adjust the antenna.
• The signal strength is too weak. Connect the
external antenna.
A stereo FM program cannot be received in
stereo.
• Press STEREO/MONO on the remote repeatedly
until “MONO” disappears.
If other troubles not described above
occur, reset the system as follows:
1 Unplug the power cord.
2 Plug the power cord back in.
3 Press x, GROOVE, and ?/1 at the same
time.
4 Press ?/1 to turn on the system.
The system is reset to the factory settings. All
the settings you made are cleared.
Messages
One of the following messages may appear or
flash in the display during operation.
NO DISC
• There is no CD on the disc tray.
OVER
• You have reached the end of the CD.
“PROTECT” and “PUSH POWER” appear
alternately.
• A strong signal was input. Press ?/1 to turn off
the system, leave the system turned off for a
while, then press ?/1 again to turn on the
system. If “PROTECT” and “PUSH POWER”
appear alternately even after the system is turned
on again, press ?/1 to turn off the system and
check the speaker cord.
26
GB
Page 27
Additional Information
Precautions
On operating voltage
Before operating the system, check that the operating
voltage of your system is identical with the voltage of
your local power supply.
On safety
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet, even if the unit itself has been turned off.
• Unplug the system from the wall outlet (mains) if it
is not to be used for an extended period of time. To
disconnect the cord (mains lead), pull it out by the
plug. Never pull the cord itself.
• Should any solid object or liquid fall into the
component, unplug the system and have it checked
by qualified personnel before operating it any
further.
• The AC power cord must be changed only at a
qualified service shop.
On placement
• Do not place the system in an inclined position.
• Do not place the system in locations where it is:
— Extremely hot or cold
— Dusty or dirty
— Very humid
— Subject to vibrations
— Subject to direct sunlight.
• Use caution when placing the unit or speakers on
surfaces that have been specially treated (with wax,
oil, polish, etc.) as staining or discoloration of the
surface may result.
On heat build up
• Although the system heats up during operation, this
is not a malfunction.
• Place the system in a location with adequate
ventilation to prevent heat build up in the system.
• If you continuously use this system at a large
volume, the cabinet temperature of the top, side and
bottom rises considerably. To avoid burning
yourself, do not touch the cabinet.
• To prevent a malfunction, do not cover the
ventilation hole for the cooling fan.
On operation
• If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens inside the CD
player. Should this occur, the system will not
operate properly. Remove the CD and leave the
system turned on for about an hour until the
moisture evaporates.
• When you move the system, take out any discs.
Notes on CDs
• Before playing, clean the CD with a cleaning cloth.
Wipe the CD from the center out.
• Do not use solvents.
• Do not expose the CD to direct sunlight or heat
sources.
Note on CD-R/CD-RW playback
Discs recorded on CD-R/CD-RW drives may not be
played back because of scratches, dirt, recording
condition or the drive’s characteristics. Besides, the
discs, which are not yet finalized at the end of
recording, cannot be played back.
Music discs encoded with copyright
protection technologies
This product is designed to playback discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with copyright
protection technologies are marketed by some record
companies. Please be aware that among those discs,
there are some that do not conform to the CD
standard and may not be playable by this product.
Cleaning the cabinet
Use a soft cloth slightly moistened with mild
detergent solution.
To save a tape permanently
To prevent a tape from being accidentally recorded
over, break off the cassette tab from side A or B as
illustrated. If you later want to reuse the tape for
recording, cover the broken tab with adhesive tape.
Tab of side B
Break off the
cassette tab
of side A
Tab of side A
continued
Additional Information
If you have any questions or problems concerning
your stereo system, please consult your nearest Sony
dealer.
27
GB
Page 28
Precautions (continued)
Specifications
Before placing a cassette in the tape
deck
Take up any slack in the tape. Otherwise the tape may
get entangled in the parts of the tape deck and become
damaged.
When using a tape longer than 90
minutes
The tape is very elastic. Do not change the tape
operations such as play, stop, and fast-winding
frequently. The tape may get entangled in the tape
deck.
Cleaning the tape heads
Clean the tape heads after every 10 hours of use.
Be sure to clean the tape heads before you start an
important recording or after playing an old tape. Use
a separately sold dry-type or wet-type cleaning
cassette. For details, refer to the instructions of the
cleaning cassette.
Demagnetizing the tape heads
Demagnetize the tape heads and the metal parts that
have contact with the tape every 20 to 30 hours of use
with a separately sold demagnetizing cassette. For
details, refer to the instructions of the demagnetizing
cassette.
AUDIO POWER SPECIFICATIONS:
(MHC-GX40/GX20 USA model only)
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
with 6 ohms loads both channels driven, from
120 – 10,000 Hz; rates 60 watts per channel
minimum RMS power, with no more than 10%
total harmonic distortion from 250 milliwatts to
rated output.
Total harmonic distortion less than 0.07%
(6 ohms at 1 kHz, 30 W)
Amplifier section
North American models:
MHC-GX40
Front speaker
Continuous RMS power output (reference)
Total harmonic distortion less than 0.07%
Sub woofer
Continuous RMS power output (reference)
Total harmonic distortion less than 0.07%
MHC-GX30
Continuous RMS power output (reference)
Total harmonic distortion less than 0.07%
MHC-GX20
Continuous RMS power output (reference)
Total harmonic distortion less than 0.07%
60 + 60 watts (6 ohms at
1 kHz, 10% THD)
(6 ohms at 1 kHz, 30 W)
120 watts (12 ohms at
40 Hz, 10% THD)
(12 ohms at 40 Hz, 60 W)
75 + 75 watts (6 ohms at
1 kHz, 10% THD)
(6 ohms at 1 kHz, 40 W)
60 + 60 watts (6 ohms at
1 kHz, 10% THD)
(6 ohms at 1 kHz, 30 W)
28
GB
Page 29
European models:
MHC-RG33, MHC-RL3
DIN power output (rated) 60 + 60 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
75 + 75 watts (6 ohms at
1 kHz, 10% THD)
Music power output (reference)
150 + 150 watts (6 ohms
at 1 kHz, 10% THD)
MHC-RG110/RG22
DIN power output (rated) 50 + 50 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
60 + 60 watts (6 ohms at
1 kHz, 10% THD)
Music power output (reference)
120 + 120 watts (6 ohms
at 1 kHz, 10% THD)
Other models:
MHC-RG33
The following measured at AC 120, 220, 240 V,
50/60 Hz
DIN power output (rated) 60 + 60 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
75 + 75 watts (6 ohms at
1 kHz, 10% THD)
MHC-RG22
The following measured at AC 120, 127, 220, 240 V
50/60 Hz
DIN power output (rated) 50 + 50 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
60 + 60 watts (6 ohms at
1 kHz, 10% THD)
Inputs
AUDIO INPUT (phono jack):
voltage 250 mV,
impedance 47 kilohms
Outputs
PHONES (stereo mini jack):
accepts headphones of
8 ohms or more
Front speaker: accepts impedance of 6 to
16 ohms
Sub woofer speaker (MHC-GX40 only):
accepts impedance of 12
to 16 ohms
CD player section
System Compact disc and digital
audio system
Laser Semiconductor laser
(λ=780 nm)
Emission duration:
continuous
Frequency response 2 Hz – 20 kHz (±0.5 dB)
Wavelength 780 – 790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
Tape deck section
Recording system 4-track 2-channel stereo
Frequency response 50 – 13,000 Hz (±3 dB),
Wow and flutter ±0.15% W.Peak (IEC)
using Sony TYPE I
cassette
0.1% W.RMS (NAB)
±0.2% W.Peak (DIN)
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohms unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Pan-American models: 530 – 1,710 kHz (with the
European and Middle Eastern models:
Other models: 530 – 1,710 kHz (with the
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
interval set at 10 kHz)
531 – 1,710 kHz (with the
interval set at 9 kHz)
531 – 1,602 kHz (with the
interval set at 9 kHz)
interval set at 10 kHz)
531 – 1,602 kHz (with the
interval set at 9 kHz)
Speaker
North American model:
Front speaker SS-RG55 for MHC-GX40
Speaker system 3-way, 3-unit,
Speaker units
Woofer: 13 cm, cone type
Tweeter: 5 cm, cone type
Super tweeter: 2 cm, dome type
Nominal impedance 6 ohms
Dimensions (w/h/d)
Mass Approx. 3.6 kg net per
Sub woofer speaker SS-WG99 for MHC-GX40
Speaker system Passive sub woofer
Speaker units
Woofer: 15 cm, cone type
Nominal impedance 12 ohms
Dimensions (w/h/d)
Mass Approx. 4.0 kg
bass-reflex type
Approx. 200 × 325 × 237 mm
speaker
Approx. 210 × 325 × 239 mm
continued
Additional Information
29
GB
Page 30
Specifications (continued)
Canadian model:
Front speaker SS-RG66A for MHC-GX30
Speaker system 3-way, 3-unit,
Speaker units
Sub Woofer: 13 cm, cone type
Woofer: 13 cm, cone type
Tweeter: 5 cm, cone type
Nominal impedance 6 ohms
Dimensions (w/h/d)
Mass Approx. 4.2 kg net per
European models:
Front speaker SS-RL3 for MHC-RL3
Speaker system 2-way, 2-unit,
Speaker units
Woofer: 13 cm, cone type
Tweeter: 5 cm, cone type
Nominal impedance 6 ohms
Dimensions (w/h/d)
Mass Approx. 2.9 kg net per
Front speaker SS-RG110 for MHC-RG110
Speaker system 3-way, 3-unit,
Speaker units
Woofer: 13 cm, cone type
Tweeter: 5 cm, cone type
Super tweeter: 2 cm, dome type
Nominal impedance 6 ohms
Dimensions (w/h/d)
Mass Approx. 3.6 kg net per
Other models:
Front speaker SS-RG66A for MHC-RG33
Speaker system 3-way, 3-unit, bass-reflex
Speaker units
Sub Woofer: 13 cm, cone type
Woofer: 13 cm, cone type
Tweeter: 5 cm, cone type
Nominal impedance 6 ohms
Dimensions (w/h/d)
Mass Approx. 4.2 kg net per
Front speaker SS-RG55 for MHC-GX20/RG22
Speaker system 3-way, 3-unit,
Speaker units
Woofer: 13 cm, cone type
Tweeter: 5 cm, cone type
Super tweeter: 2 cm, dome type
Nominal impedance 6 ohms
Dimensions (w/h/d)
Mass Approx. 3.6 kg net per
bass-reflex type
Approx. 215 × 356 × 260 mm
speaker
bass-reflex type
Approx. 200 × 325 × 220 mm
speaker
bass-reflex type
Approx. 200 × 325 × 237 mm
speaker
type
Approx. 215 × 356 × 260 mm
speaker
bass-reflex type
Approx. 200 × 325 × 237 mm
speaker
General
Power requirements
North American models: 120 V AC, 60 Hz
European models: 230 V AC, 50/60 Hz
Australian model: 230 – 240 V AC,
Argentine models: 220 V AC, 50/60 Hz
Mexican models: 120 V AC, 60 Hz
Saudi Arabian model: 120 – 127/220/230 –
Thai model: 220 V AC, 50/60 Hz
Other models: 120 V, 220 V or
Power consumption
USA models:
MHC-GX40: 140 watts
MHC-GX20: 105 watts
Canadian models:
MHC-GX40: 140 watts
MHC-GX30: 125 watts
MHC-GX20: 105 watts
European models:
MHC-RG33, MHC-RL3: 125 watts
MHC-RG110/RG22: 105 watts
Other models:
MHC-RG33: 125 watts
MHC-RG22: 105 watts
Dimensions (w/h/d)
Mass
North American models:
HCD-GX40: Approx. 9.0 kg
HCD-GX30: Approx. 9.0 kg
HCD-GX20: Approx. 8.5 kg
European models:
HCD-RG33, HCD-RL3: Approx. 9.0 kg
HCD-RG110/RG22: Approx. 8.5 kg
Other models:
HCD-RG33: Approx. 9.5 kg
HCD-RG22: Approx. 9.0 kg
Supplied accessories: Remote Commander (1)
Design and specifications are subject to change
without notice.
50/60 Hz
240 V AC, 50/60 Hz
Adjustable with voltage
selector
230 – 240 V AC,
50/60 Hz
Adjustable with voltage
selector
0.5 watts (at the Power
Saving Mode)
0.5 watts (at the Power
Saving Mode)
Approx. 280 × 325 × 412 mm
Batteries (2)
AM loop antenna (1)
FM lead antenna (1)
Front speaker pads (8)
30
GB
Page 31
Page 32
Sony Corporation Printed in China
Loading...
