2-660-930-12(1)

DVD Home Theatre System

Operating Instructions

DAV-FX900KW

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

To prevent fire, do not cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc. And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

Don’t throw away the battery with general house waste, dispose of it correctly as chemical waste.

This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear of the unit.

Precautions

Safety

• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.

• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet (mains), even if the unit itself has been turned off.

• Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.

Installing

• Allow adequate air circulation to prevent internal heat buildup.

• Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.

• Do not install the unit near heat sources such as radiators, or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.

• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.

• Keep the unit and discs away from equipment with strong magnets, such as microwave ovens, or large loudspeakers.

• Do not place heavy objects on the unit.

• If the unit is brought directly from a cold to a warm location, moisture may condense inside the DVD Home Theatre System and cause damage to the lenses. When you first install the unit, or when you move it from a cold to a warm location, wait for about 30 minutes before operating the unit.

Welcome!

Thank you for purchasing Sony DVD Home Theatre System. Before operating this system, please read this manual thoroughly and retain it for future reference.

Table of Contents

Welcome! ................................................ 2

About This Manual ................................. 5

This System Can Play the Following

Discs ................................................. 6

Getting Started – BASIC –

Step 1: Assembling the Speakers

and Installing the Surround

Amplifier .................................... 9

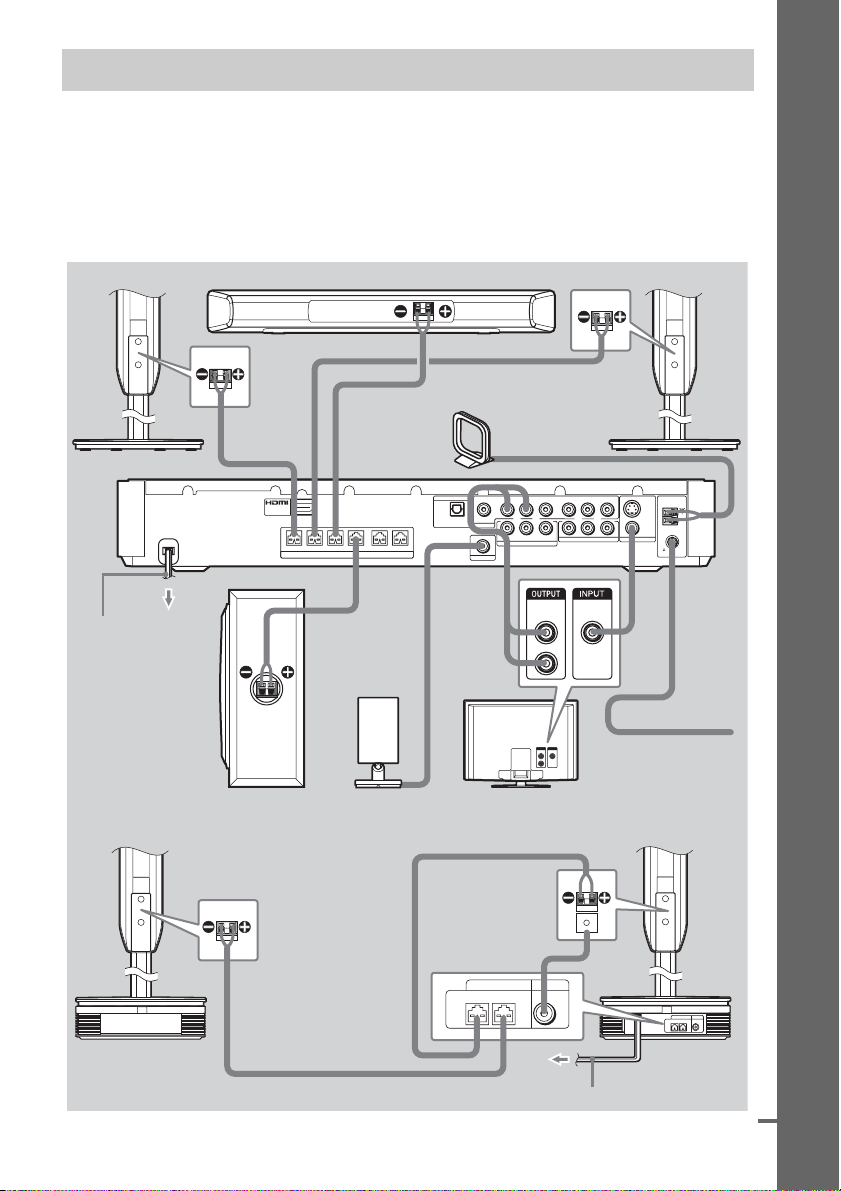

Step 2: Connecting the System and

TV ............................................. 15

Step 3: Positioning the System... 19 Step 4: Performing the Quick

Setup........................................ 20

Getting Started – ADVANCED –

Turning off the Demonstration ............. 23

Installing the Speakers and the IR

transmitter on a Wall ...................... 24

TV Hookup (Advanced) ....................... 26

Other Component Hookup.................... 30

Basic Operations

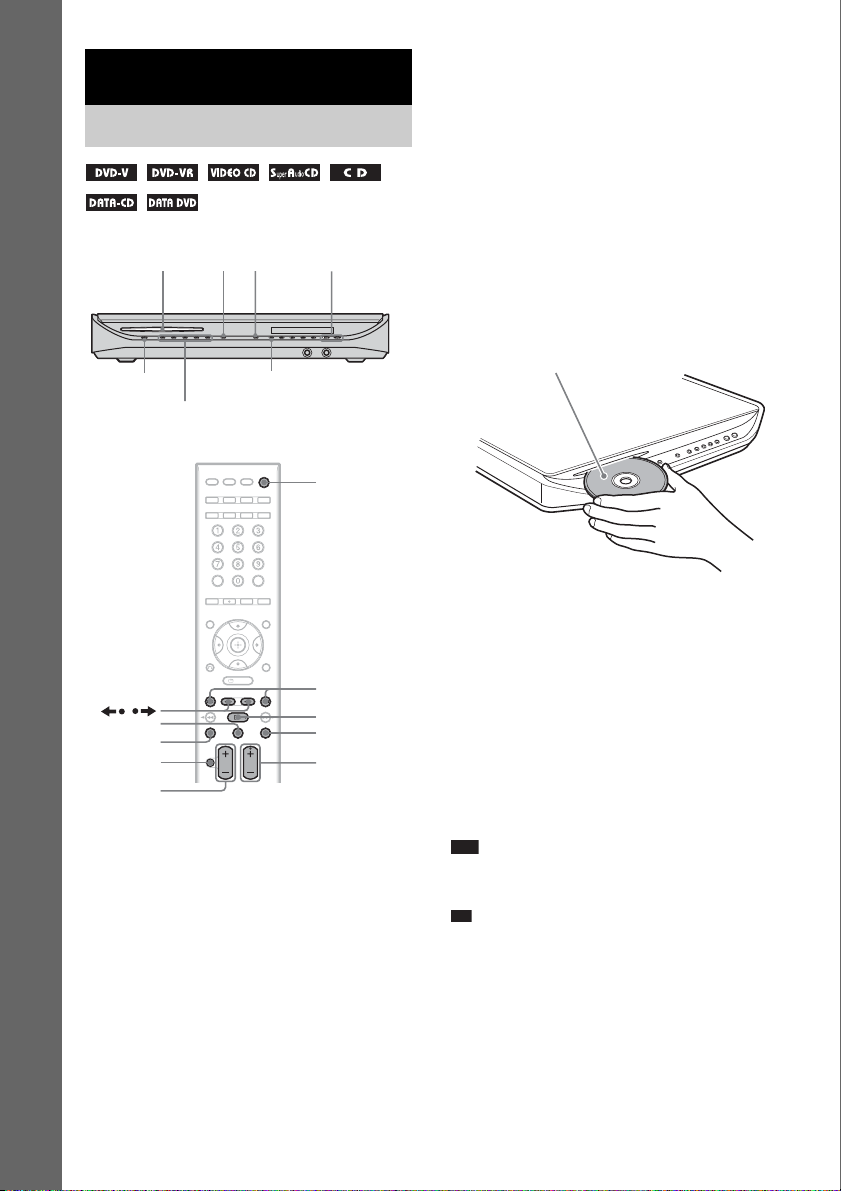

Playing Discs ................................ 32

Enjoying the Radio or Other

Components............................ 34

Enjoying TV or VCR Sound from All

Speakers.................................. 35

Selecting the Movie or Music

Mode ........................................ 35

Sound Adjustments

Enjoying Surround Sound by Using Sound

Field ................................................ 36

Enjoying Multiplex Broadcast Sound... 38

(DUAL MONO)

Various Functions for Playing Discs

Searching for a Particular Point

on a Disc ......................................... 39

(Scan, Slow-motion Play, Freeze

Frame) Searching for a Title/Chapter/Track/

Scene, etc. ....................................... 40

Searching by Scene ............................... 41

(Picture Navigation)

Resuming Playback from the Point Where

You Stopped the Disc..................... 42

(Resume Play)

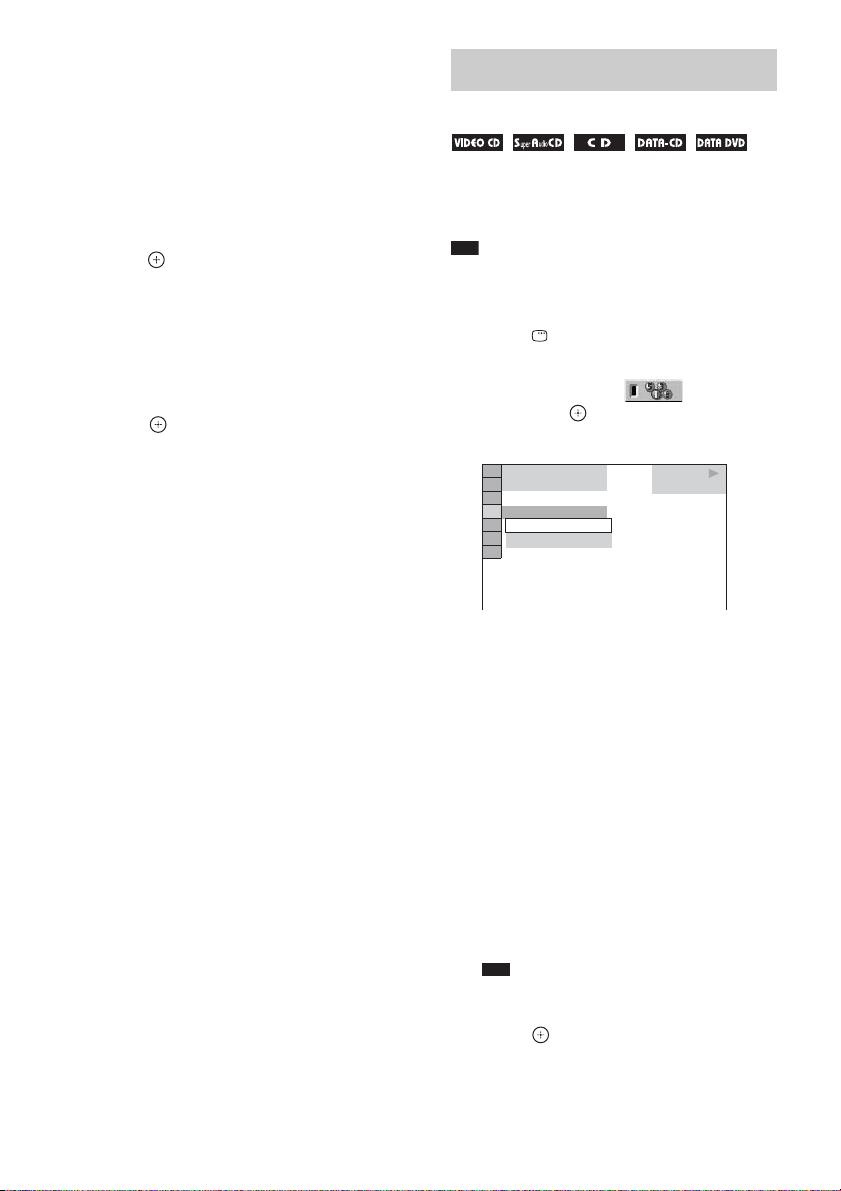

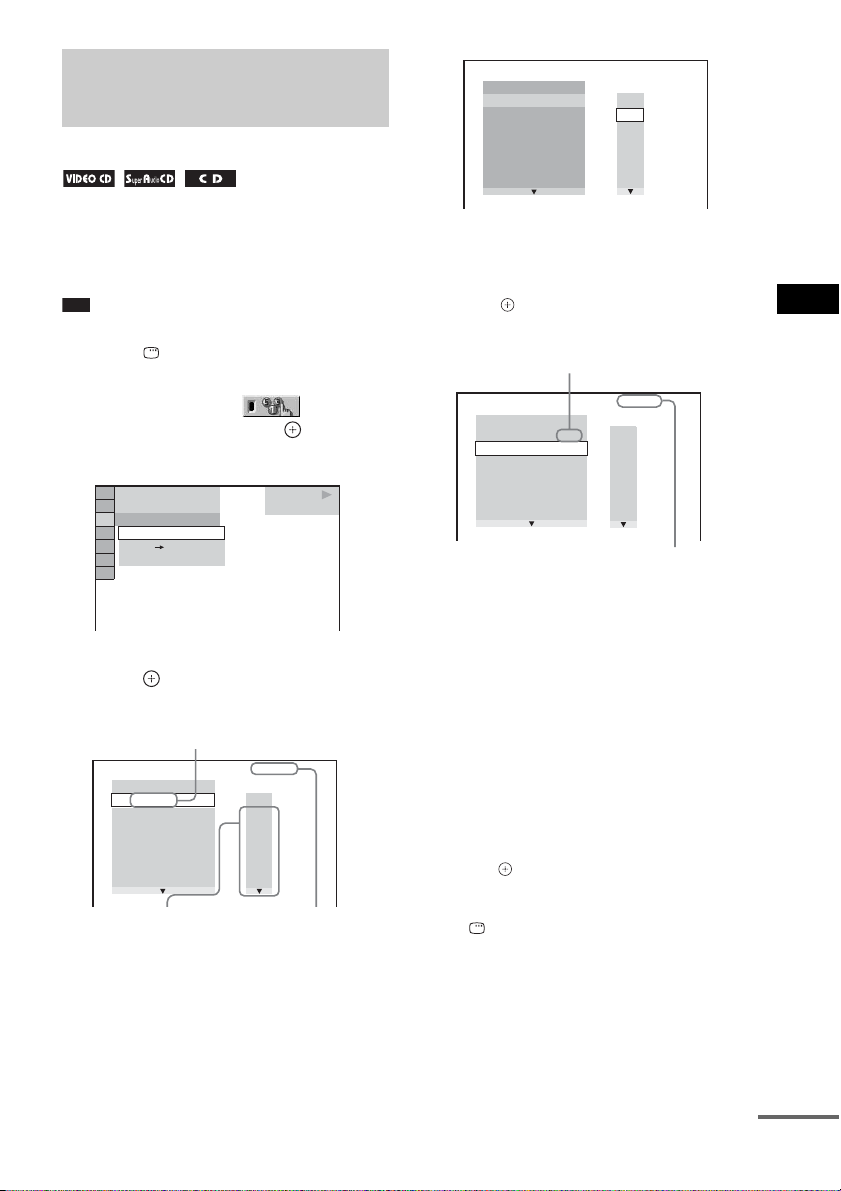

Creating Your Own Program................ 43

(Program Play)

Playing in Random Order ..................... 44

(Shuffle Play)

Playing Repeatedly ............................... 45

(Repeat Play)

Using the DVD’s Menu........................ 46

Changing the Sound.............................. 47

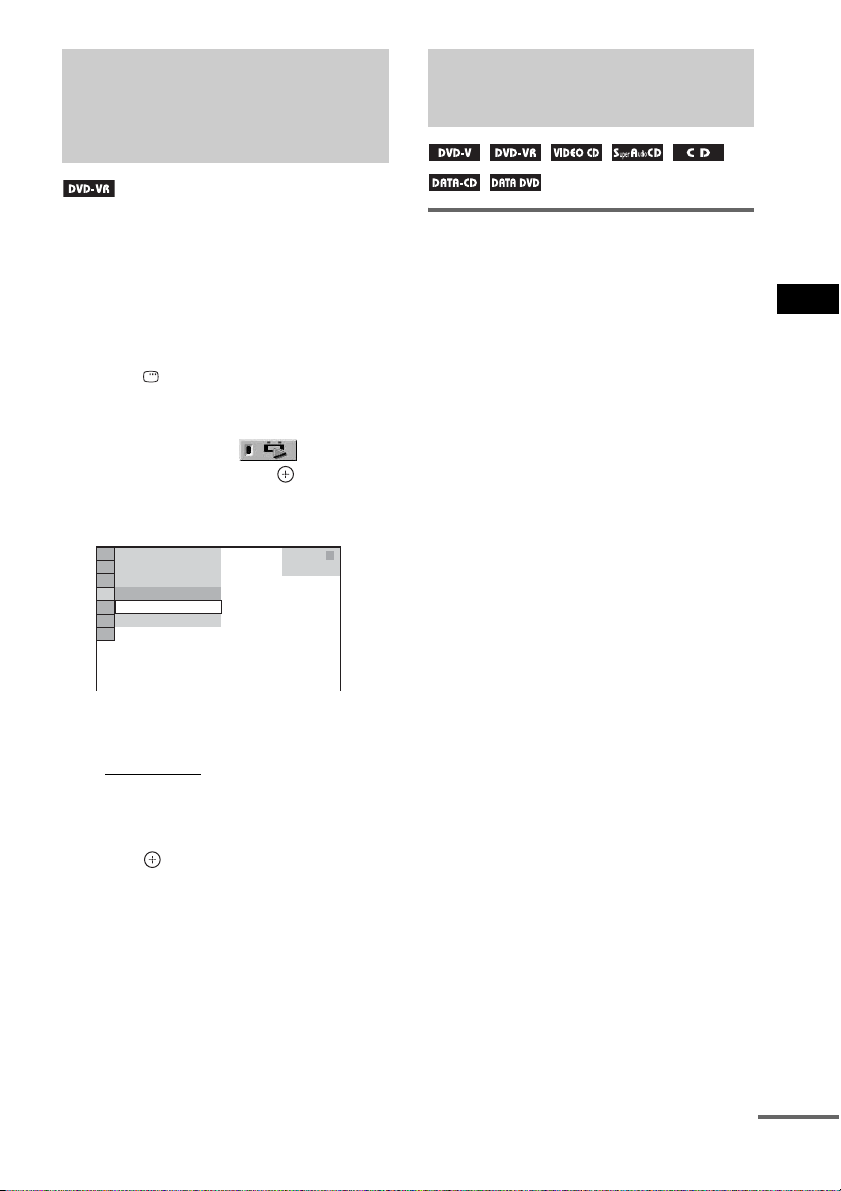

Selecting [ORIGINAL] or [PLAY LIST]

on a DVD-R/DVD-RW .................. 49

Viewing Information About

the Disc........................................... 49

Changing the Angles ............................ 52

Displaying the Subtitles........................ 52

Adjusting the Delay Between the Picture

and Sound....................................... 53

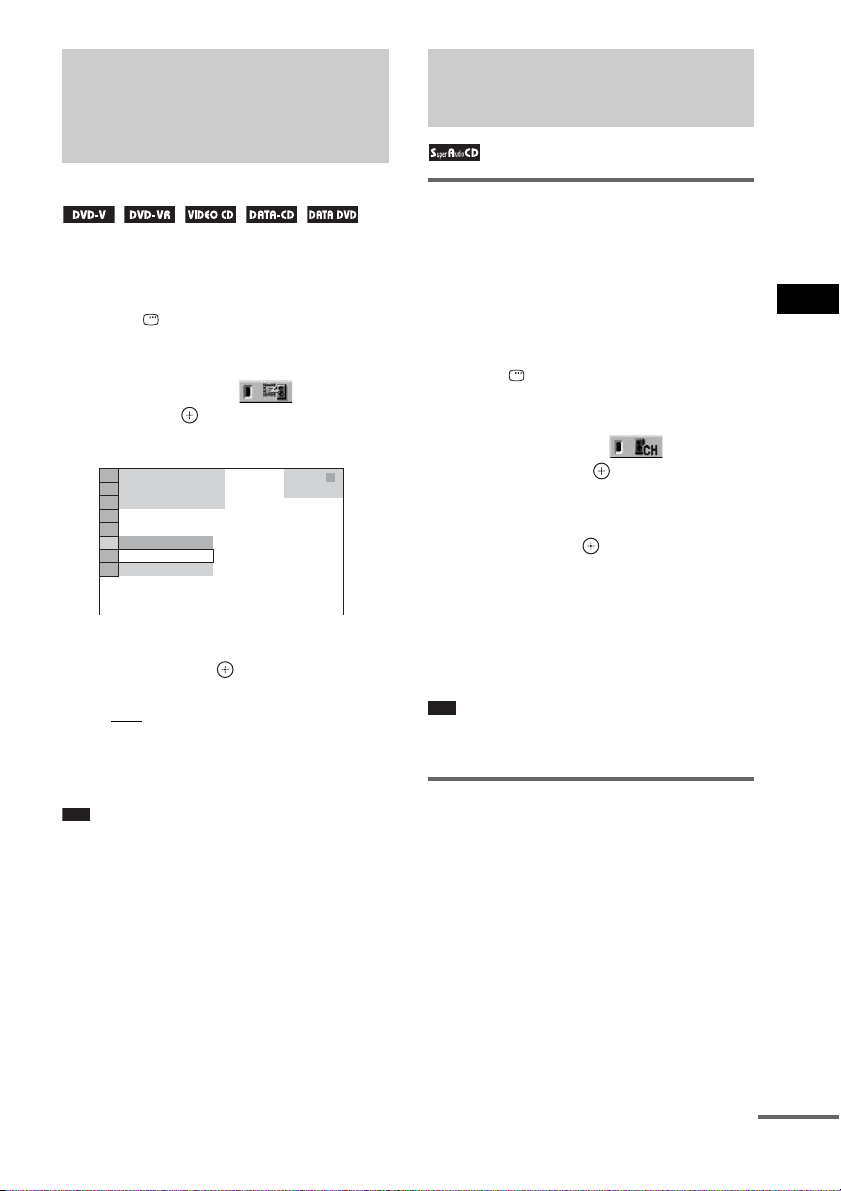

(A/V SYNC) Selecting a Playback Area for a Super

Audio CD ....................................... 53

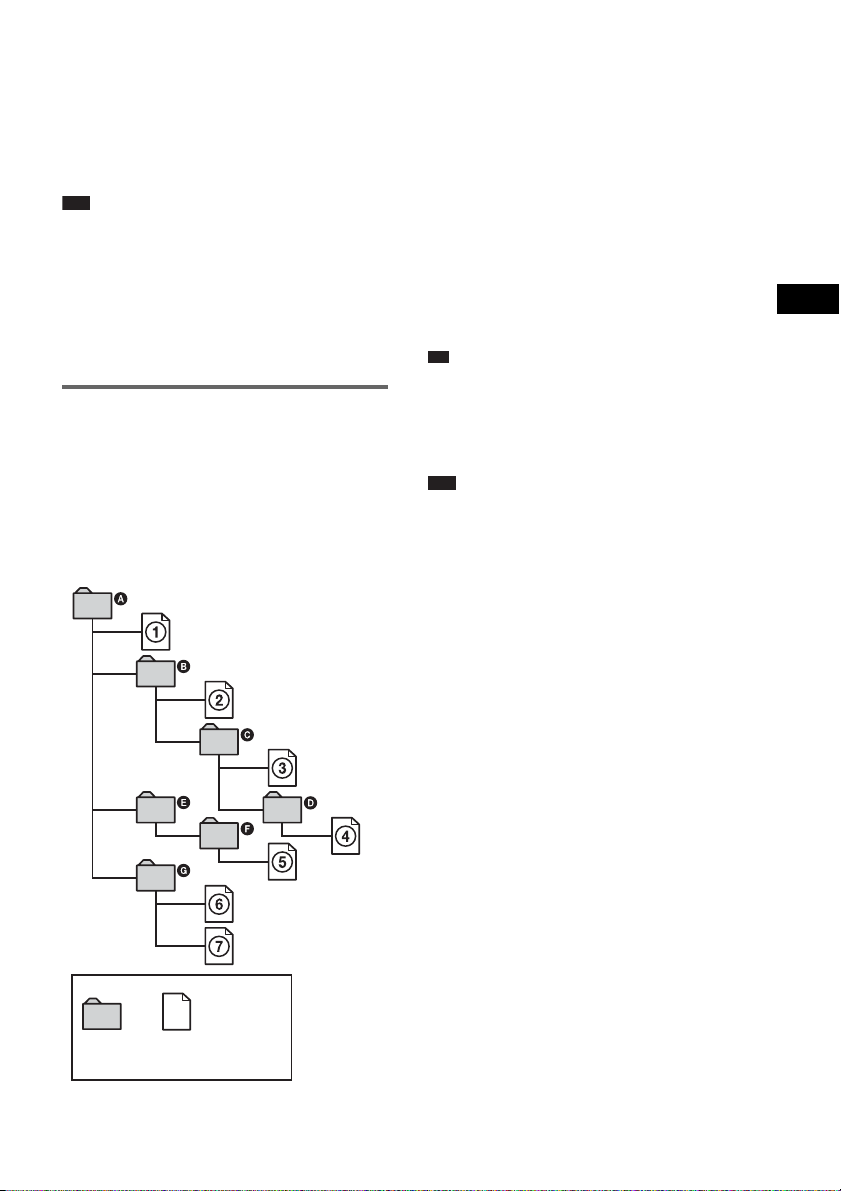

About MP3 Audio Tracks and JPEG

Image Files ..................................... 54

Playing DATA CDs or DATA DVDs with

MP3 Audio Tracks and JPEG Image

Files ................................................ 56

Playing Audio Tracks and Images as a

Slide Show with Sound .................. 58

Enjoying DivX® Videos ...................... 60

Playing VIDEO CDs with PBC Functions

(Ver.2.0) ......................................... 62

(PBC Playback)

Tuner Functions

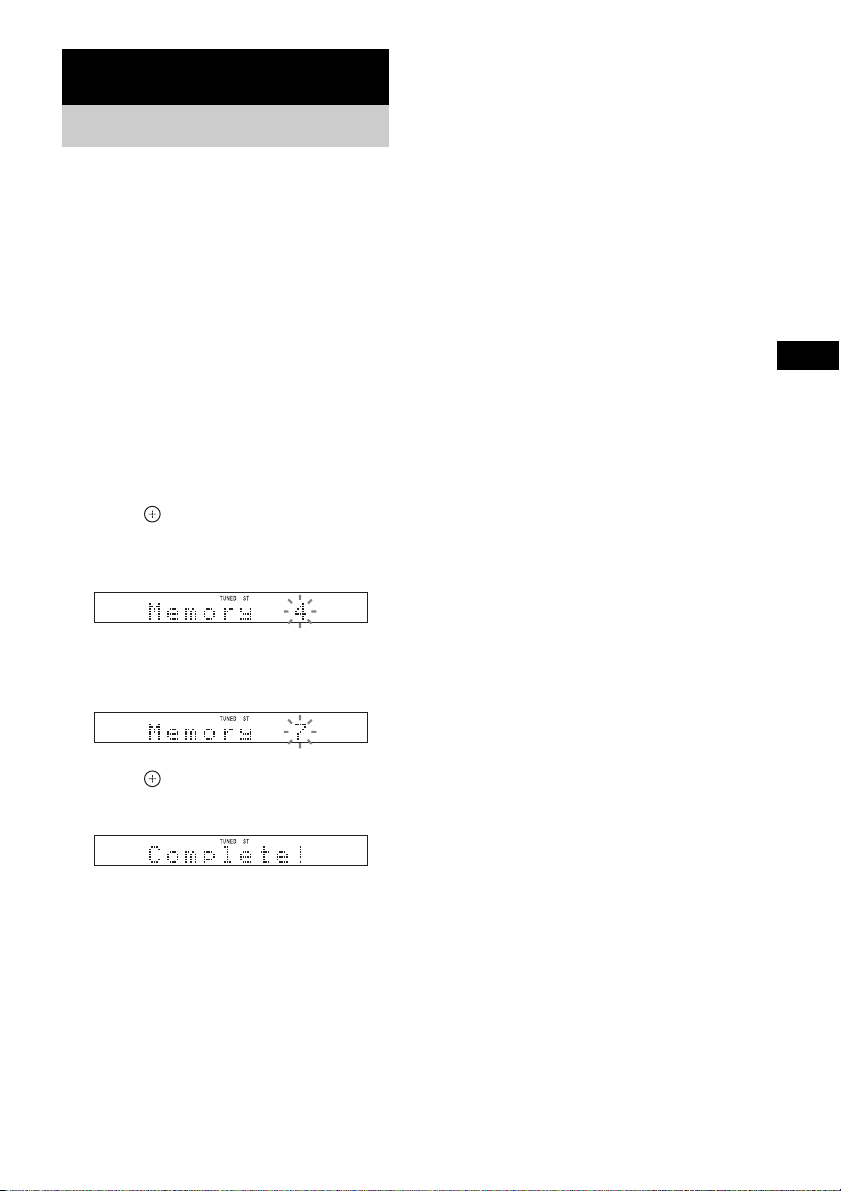

Presetting Radio Stations...................... 63

Listening to the Radio........................... 64

Other Operations

Controlling the TV with the Supplied

Remote ........................................... 66

Using the THEATRE SYNC

Function.......................................... 67

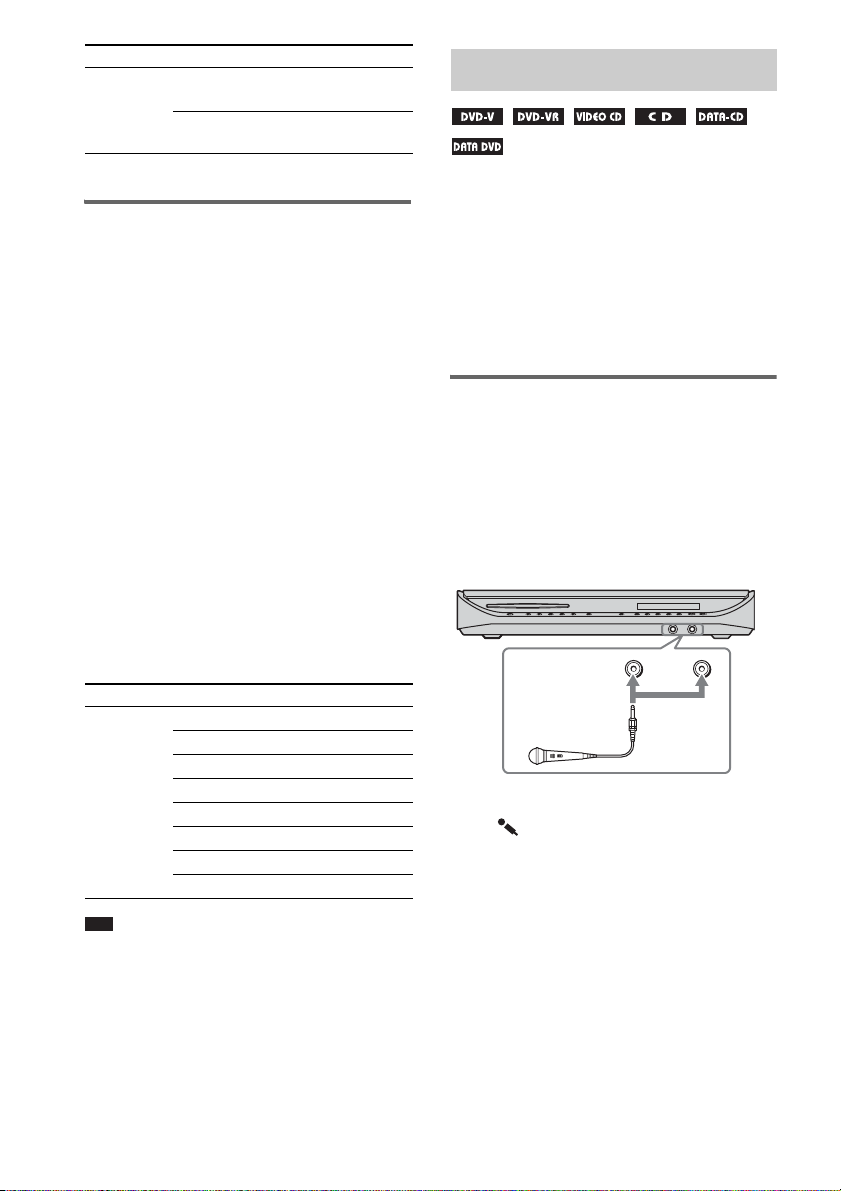

Enjoying Karaoke ................................. 68

Using the Sound Effect......................... 72

Using the Sleep Timer .......................... 72

Changing the Brightness of the Front

Panel Display .................................. 73

Advanced Settings and Adjustments

Locking Discs ....................................... 74

(CUSTOM PARENTAL CONTROL, PARENTAL CONTROL)

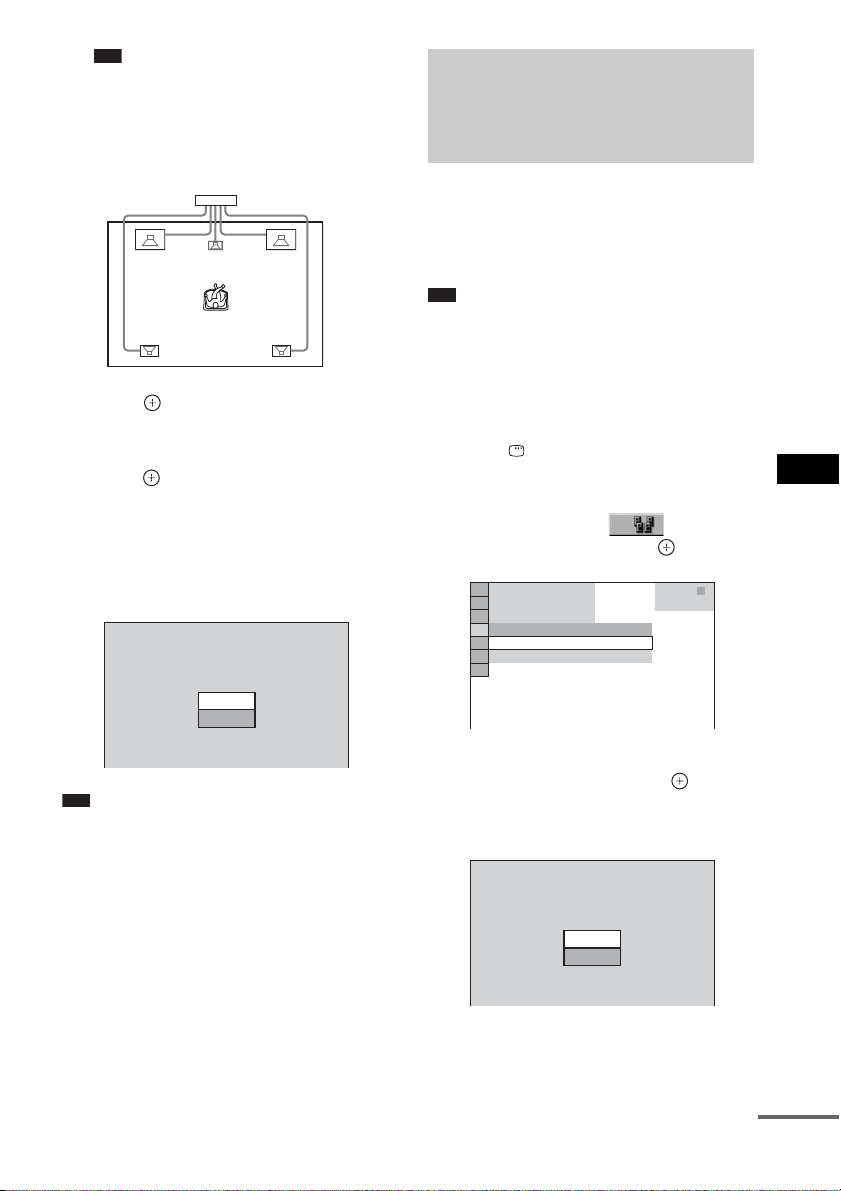

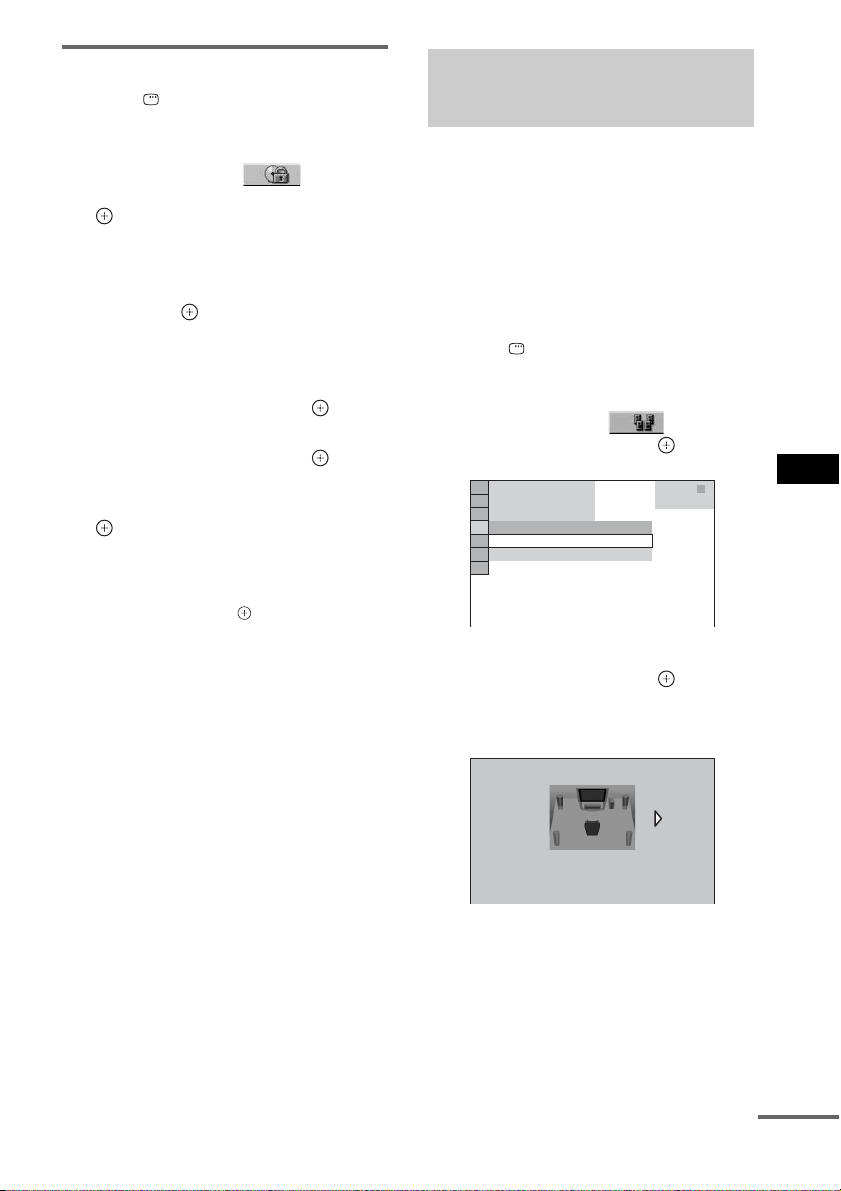

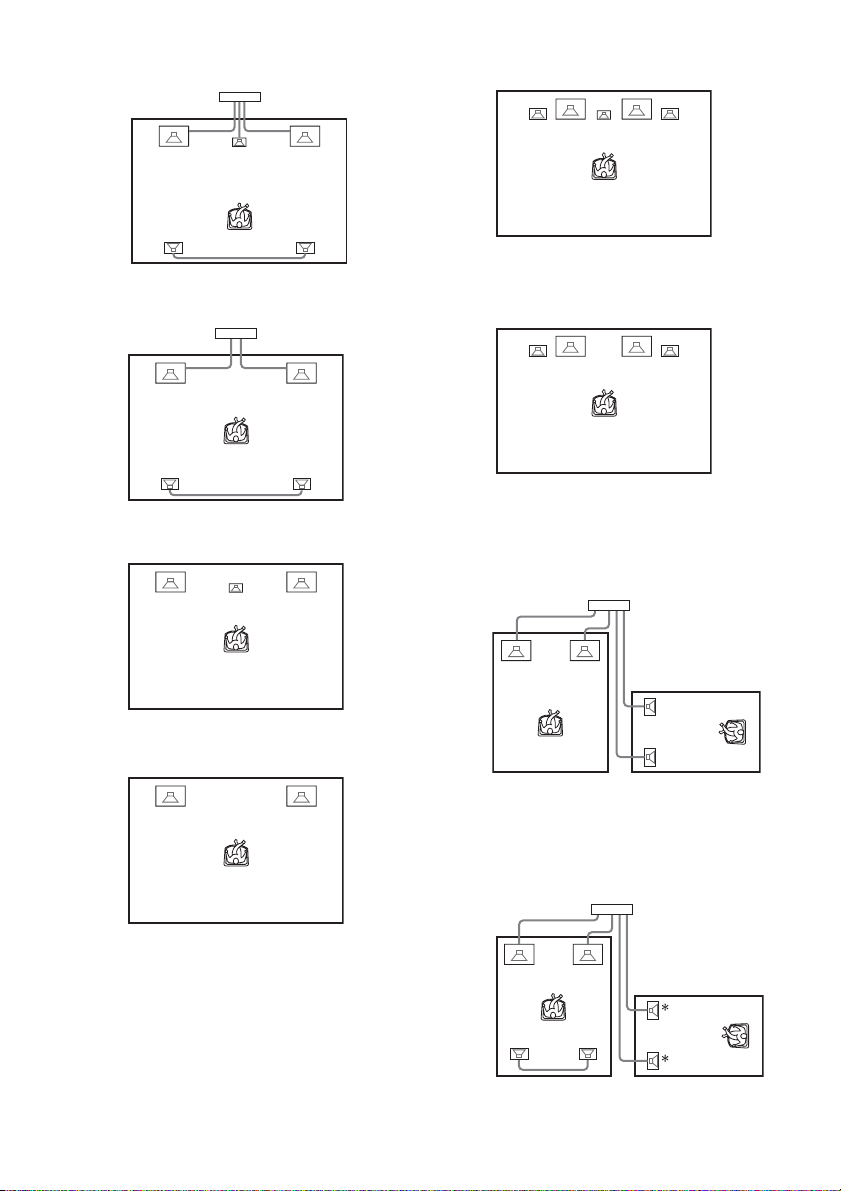

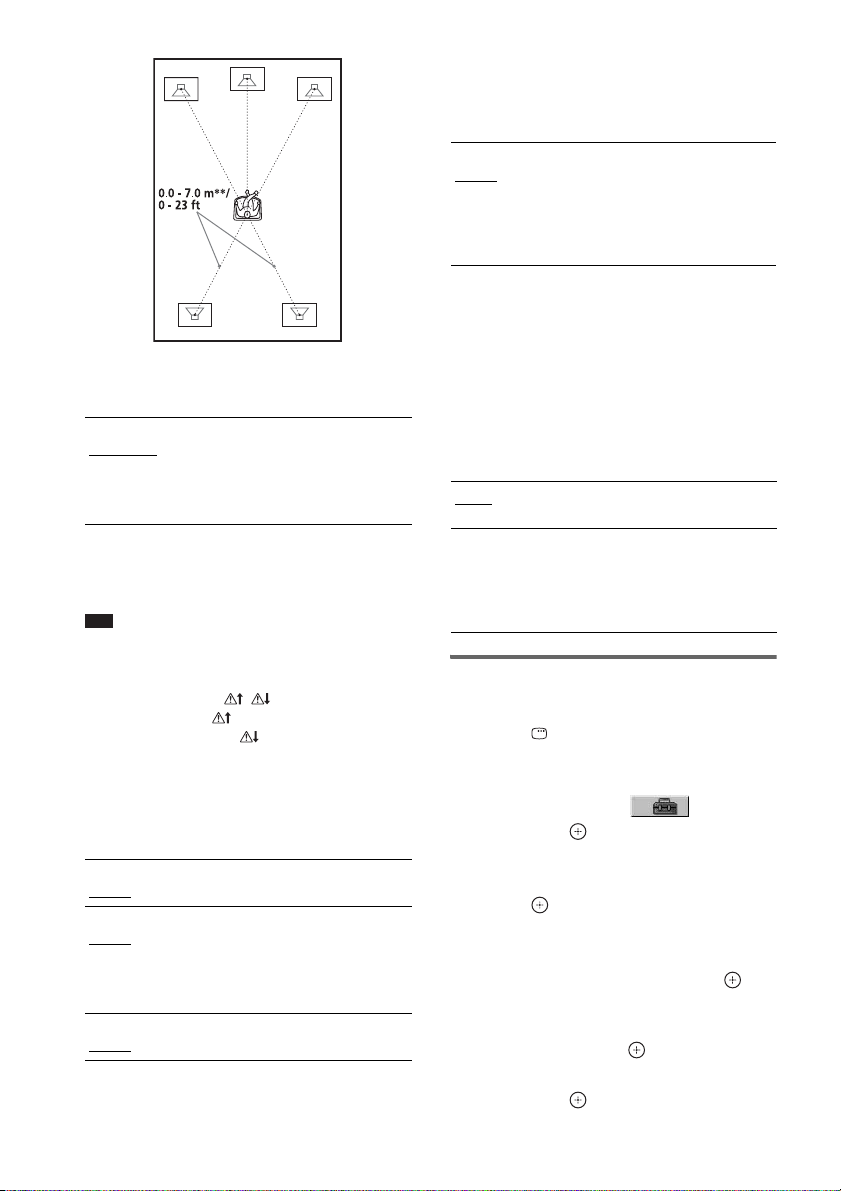

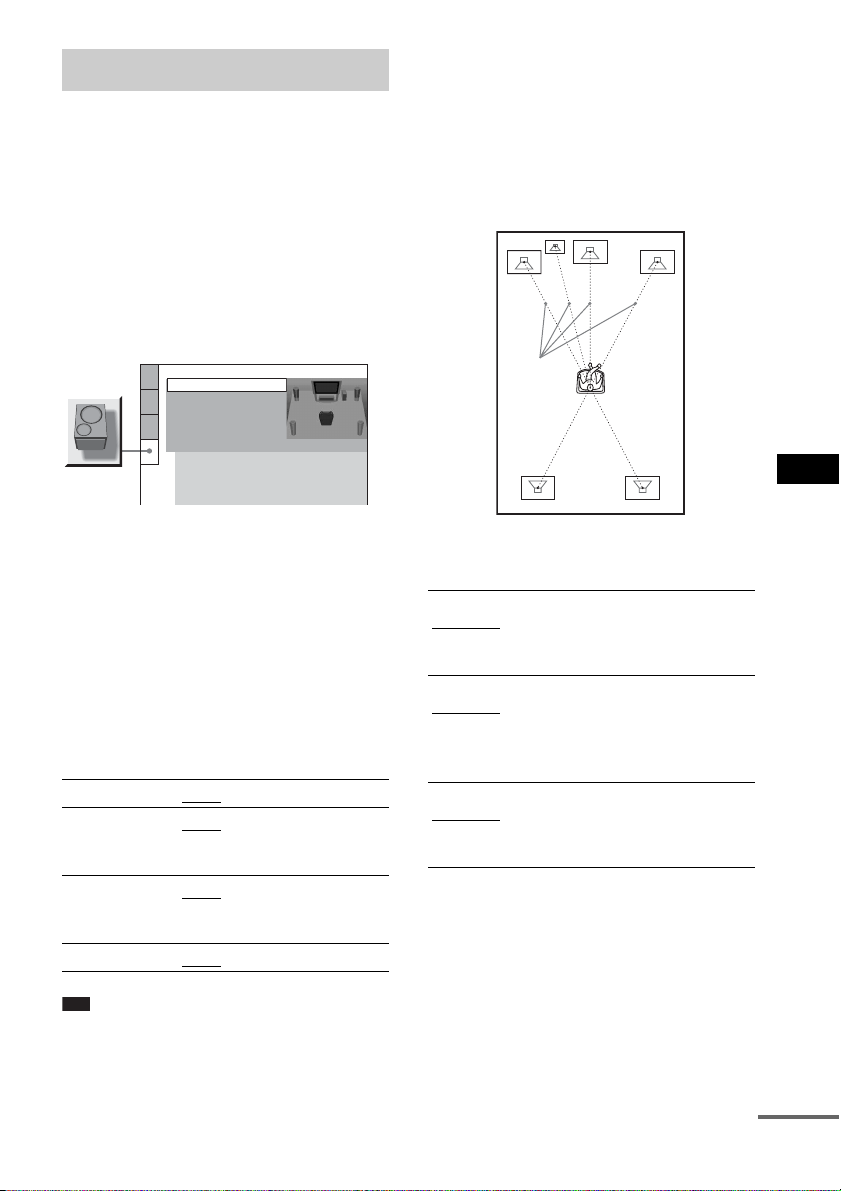

Getting Optimal Surround Sound for a

Room .............................................. 77

(SPEAKER FORMATION)

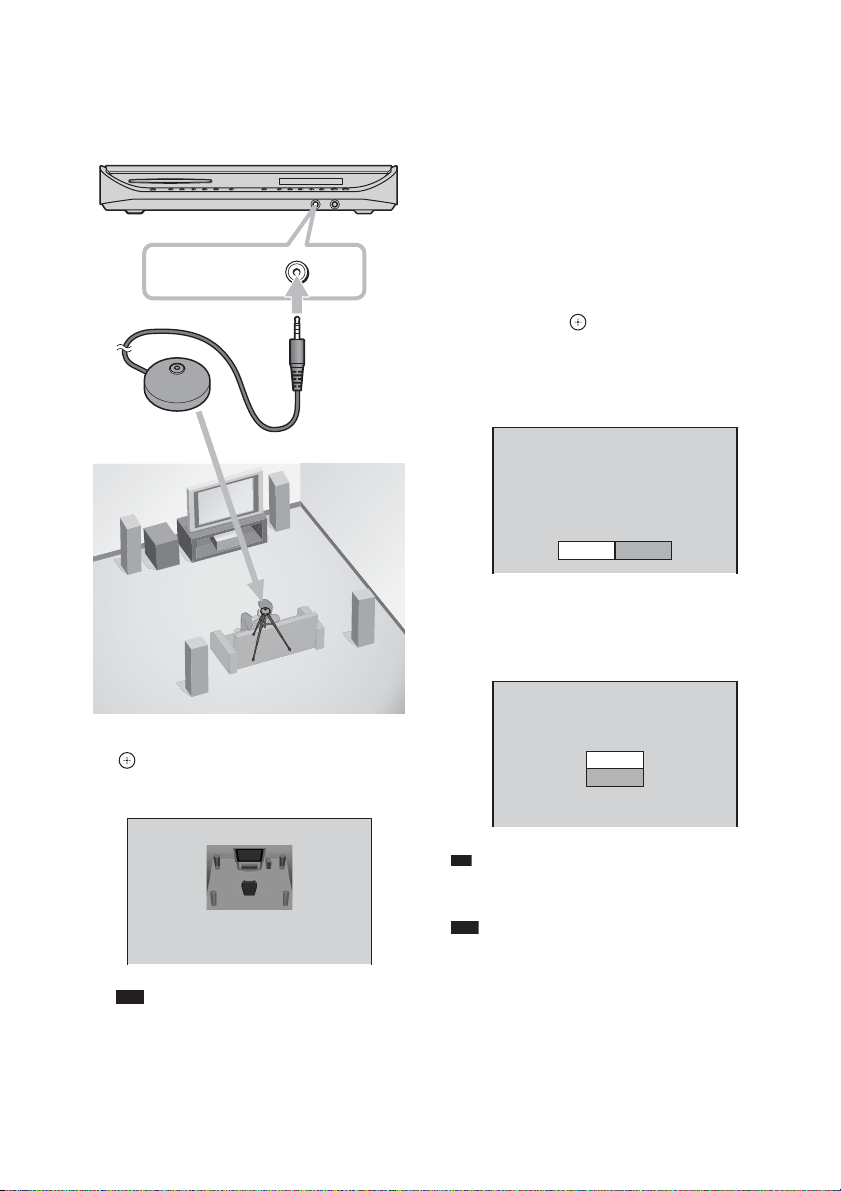

Calibrating the Appropriate Settings

Automatically ................................. 79

(AUTO CALIBRATION)

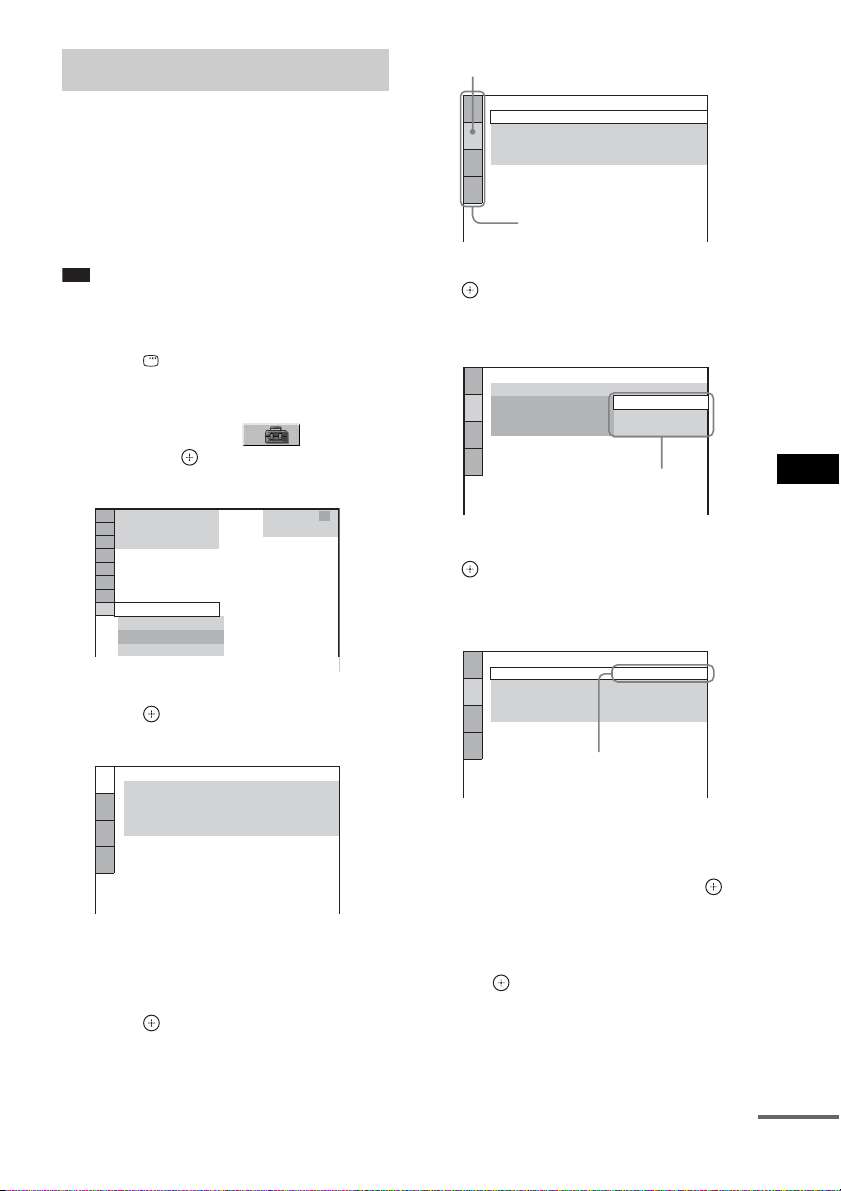

Using the Setup Display........................ 81

Setting the Display or Sound Track

Language ........................................ 82

[LANGUAGE SETUP]

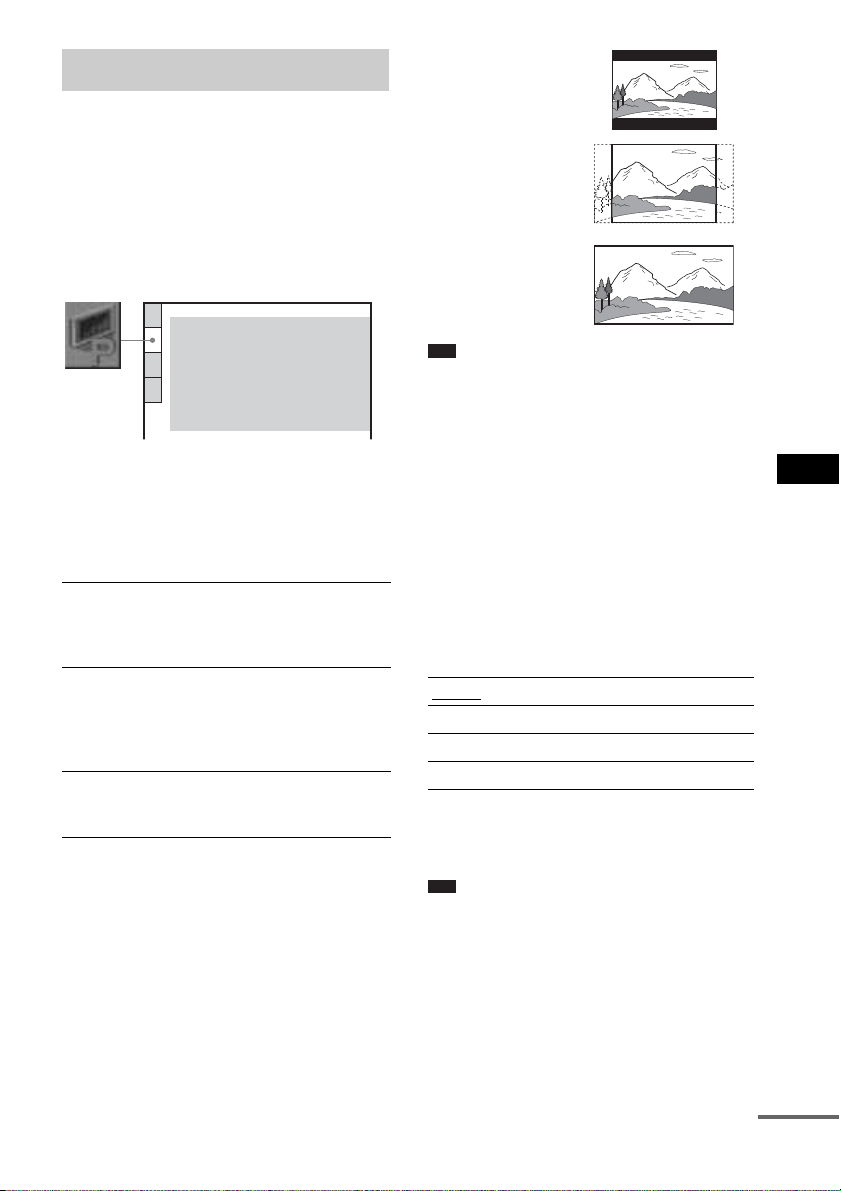

Settings for the Display......................... 83

[SCREEN SETUP]

Custom Settings .................................... 85

[CUSTOM SETUP]

Settings for the Speakers....................... 87

[SPEAKER SETUP]

Returning to the Default Settings..........89

Additional Information

Precautions ............................................ 90

Notes about the Discs............................ 91

Troubleshooting .................................... 91

Self-diagnosis Function ........................ 95

(When letters/numbers appear in

the display)

Specifications ........................................ 96

Glossary ................................................ 98

Language Code List ............................ 102

Index to Parts and Controls................. 103

Guide to the Control Menu Display.... 106

DVD Setup Display List .....................110

AMP Menu List .................................. 111

Index ................................................... 112

About This Manual

• The instructions in this manual describe the controls on the remote. You can also use the controls on the system if they have the same or similar names as those on the remote.

• The Control Menu items may be different depending on the area.

• “DVD” may be used as a general term for DVD VIDEOs, DVD+RWs/DVD+Rs, and DVD-RWs/DVD-Rs.

• Measurements are expressed in feet (ft) for North American models.

• The following symbols are used in this manual.

Symbol Meaning

Functions available for DVD VIDEOs, DVD-Rs/DVD-RWs in video mode, and DVD+Rs/ DVD+RWs

Functions available for DVD-Rs/ DVD-RWs in VR (Video Recording) mode

Functions available for VIDEO CDs (including Super VCDs or CDRs/CD-RWs in video CD format or Super VCD format)

Functions available for Super Audi o CDs

Functions available for music CDs or CD-Rs/CD-RWs in music CD format, including discs containing CD Graphics (Latin American models only)

Functions available for DATA CDs (CD-ROMs/CD-Rs/CD-RWs) containing MP31) audio tracks, JPEG image files, and DivX video files

Functions available for DATA DVDs (DVD-ROMs/DVD-Rs/ DVD-RWs/DVD+Rs/DVD+RWs) containing MP31) audio tracks, JPEG image files, and DivX video files

2)3)

DivX® is a video file compression technology, developed by DivX, Inc.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

MP3 (MPEG1 Audio Layer 3) is a standard format

defined by ISO/MPEG which compresses audio data.

This System Can Play the Following Discs

Format of discs

DVD VIDEO

DVD-RW/ DVD-R

DVD+RW/ DVD+R

Super Audio CD

VIDEO CD (Ver. 1.1 and

2.0 discs)/CD Graphics (Latin American models only)/ Audio CD

CD-RW/CD-R (audio data) (MP3 files) (JPEG files)

“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD VIDEO,” and the “CD” logos are trademarks.

Disc logo

Note about CDs/DVDs

The system can play CD-ROMs/CD-Rs/CDRWs recorded in the following formats:

– audio CD format

– CD Graphics (Latin American models only)

– video CD format

– MP3 audio tracks, JPEG image files, and

DivX video files of format conforming to ISO 9660 Level 1/Level 2, or its extended format, Joliet

The system can play DVD-ROMs/DVD+RWs/ DVD-RWs/DVD+Rs/DVD-Rs recorded in the following formats:

– MP3 audio tracks, JPEG image files and

DivX video files of format conforming to UDF (Universal Disc Format)

Example of discs that the system cannot play

The system cannot play the following discs:

• CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on page 6

• CD-ROMs recorded in PHOTO CD format

• Data part of CD-Extras

• DVD Audios

• DATA DVDs that do not contain MP3 audio tracks, JPEG image files, or DivX video files.

• DVD-RAMs

Also, the system cannot play the following discs:

• A DVD VIDEO with a different region code (page 7, 100)

• A disc that has a non-standard shape (e.g., card, heart)

• A disc with paper or stickers on it

• A disc that has the adhesive of cellophane tape or a sticker still left on it

Notes about CD-R/CD-RW/DVD-R/ DVD-RW/DVD+R/DVD+RW

In some cases, CD-R/CD-RW/DVD-R/DVDRW/DVD+R/DVD+RW cannot be played on this system due to the recording quality or physical condition of the disc, or the

characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, see the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

Note on DualDisc

A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.

About Multi Session CD

• This system can play Multi Session CDs when an MP3 audio track is contained in the first session. Any subsequent MP3 audio tracks recorded in later sessions can also be played back.

• This system can play Multi Session CDs when a JPEG image file is contained in the first session. Any subsequent JPEG image files recorded in later sessions can also be played back.

• If audio tracks and images in music CD format or video CD format are recorded in the first session, only the first session will be played back.

Region code

Your system has a region code printed on the rear of the unit and will only play DVDs labeled with the same region code.

DVD VIDEOs labeled will also play on this

ALL

system. If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even though playing the DVD VIDEO is prohibited by area restrictions.

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this system plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs.

Copyrights

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System.

* Manufactured under license from Dolby

Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories.

** Manufactured under license from Digital Theater

Systems, Inc. “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

Getting Started – BASIC –

See Unpacking in Specifications, page 96.

Inserting batteries into the remote

You can control the system using the supplied remote. Insert two R6 (size AA) batteries by matching the 3 and # ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor on the system.

Getting Started – BASIC –

Note

• Do not leave the remote in an extremely hot or humid place.

• Do not use a new battery with an old one.

• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction.

• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Attaching the foot pads to the subwoofer

Attach the supplied foot pads to the bottom of the subwoofer to stabilize the subwoofer and prevent it from slipping.

Step 1: Assembling the Speakers and Installing the Surround Amplifier

Before connecting the speakers, attach the speaker stand to the speaker. About how to connect the speaker cords to the SPEAKER jacks, see page 16. The IR receiver cord should be used for the surround speaker (L) only. The illustrations below show how to install the surround speaker (L).

Note

• Spread a cloth on the floor to avoid damaging the floor.

• You can use the speaker without the speaker stand by installing it on the wall (page 24).

1 Secure the post to the base.

The long post is for floor use, the short post is for tabletop use.

Getting Started – BASIC –

Post (long)

2 Secure the base with the screws.

Screws with washer (long) (3) (supplied)

Base

Post (short)

Bottom of the base

continued

3 Pull the speaker cord out to a straight length of about 700 mm (28 inch). Fold back about

100 mm (4 inch) and twist together.

About 100 mm (4 inch)

4 Draw the IR receiver cord first, and then the speaker cord through the hole on the base.

Stand the speaker up, and untwist and straighten out the speaker cord.

Untwist and straighten out the speaker cord.

Getting Started – BASIC –

Bottom of the base

IR receiver cord

Speaker cord

5 Secure the pedestal to the post with the screws.

Screws with washer (long) (3) (supplied)

6 Connect the IR receiver cord to the speaker and run the cord around the pin.

7 Connect the speaker cords to the speaker. Then run the cords through the slots (A, B,

C, and D) all the way.

Getting Started – BASIC –

continued

8 Slide the speaker down slowly onto the pedestal.

Getting Started – BASIC –

Adjust the length of the speaker cord (and the IR receiver cord).

Note

• Do not catch the speaker cord (and the IR receiver cord) between the speaker and the pedestal.

• Do not drop the speaker when mounting.

9 Secure the speaker with the screws in order 1 to 2.

Screws with washer (short) (2) (supplied)

Installing the surround amplifier (speaker base)

You can put on the surround speaker (L) to the surround amplifier, the surround speaker (R) to the speaker base. The illustrations below show how to attach the surround speaker (L) to the surround amplifier.

Note

• Lay the surround speakers down when attaching the surround amplifier and speaker base.

1 Attach the spacers.

Spacers (4) (supplied)

Guide pins (2) (supplied)

Push open the cover (surround amplifier only).

2 Attach the surround amplifier (speaker base) to the surround speaker with the guide

pins.

Rear of surround speaker

Getting Started – BASIC –

3 Secure the surround amplifier (speaker base) with the screws to the circle marked holes.

Run cords through the slot.

Screws (4) (supplied)

continued

4 Connect the speaker cords and the IR receiver cord to the surround amplifier.

From surround speaker (R).

SS-TS56W

From surround speaker (L).

SPEAKER

SUR L SUR R

Getting Started – BASIC –

5 Bundle the cords into the storage space. Stand the speaker up.

The speaker base has storage space in the back.

Attach the cover (surround amplifier only).

Storage space

Step 2: Connecting the System and TV

This hookup is the basic connection of the system to the speakers and TV. For other TV connections, see page 26. For other component connection, see page 30. To accept progressive signals, see page 28. To change the color system (PAL or NTSC), see page 18.

Refer to the connection diagram below, and read the additional information from 1 to 4 on the following pages.

Front speaker (R)

Center speaker

AM loop antenna (aerial)

Front speaker (L)

Getting Started – BASIC –

AC power cord

(mains lead)

OUT

(DVD ONLY)

Subwoofer

FRONT R FRONT L SUR R SUR LCENTER WOOFER

SPEAKER

IR transmitter

OPTICAL DIGITAL

TV/VCR2

COAXIAL

TV/VCR1

DIR-T1

RLAUDIO IN VIDEO INDIGITAL IN

RLAUDIO IN VIDEO IN

TV/VCR2

COMPONENT VIDEO IN

YPB/CBPR/C

S VIDEO (DVD ONLY)

VIDEO

MONITOR OUT

COAXIAL

YPB/CBPR/C

COMPONENT VIDEO OUT

AUDIO

OUT

FM wire antenna (aerial)

Surround speaker (L)Surround speaker (R)

SS-TS56W

SPEAKER

SUR L SUR R

AC power cord (mains lead)

continued

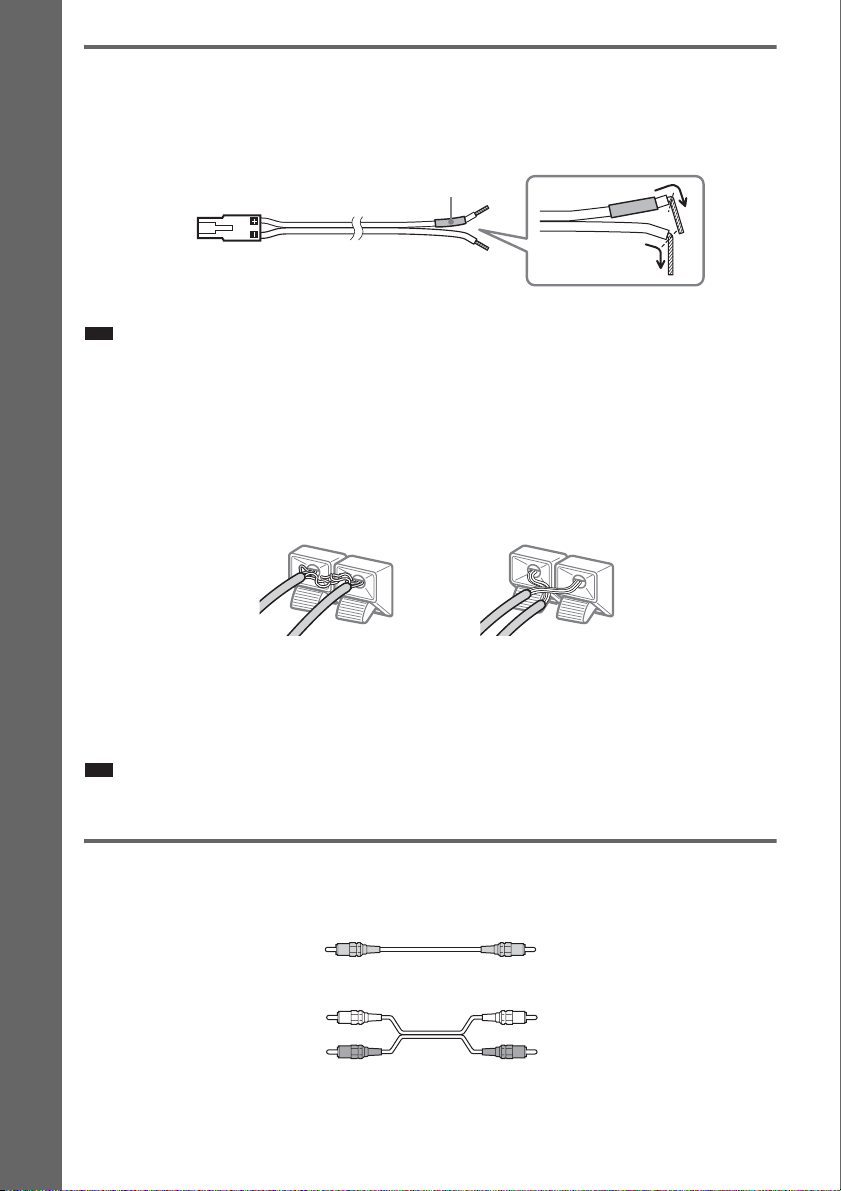

1 Connecting the Speakers

Required cords

The connector and color tube of the speaker cords are the same color as the label of the jacks to be connected.

Color tube

(+)

(–)

Getting Started – BASIC –

Note

• Do not catch the speaker cord insulation in the SPEAKER jack.

To avoid short-circuiting the speakers

Short-circuiting of the speakers may damage the system. To prevent this, be sure to follow these precautions when connecting the speakers. Make sure the bare wire of each speaker cord does not touch another speaker terminal or the bare wire of another speaker cord, such as shown below.

Stripped speaker cord is touching another speaker terminal.

Stripped cords are touching each other due to excessive removal of insulation.

After connecting all the components, speakers, and AC power cord (mains lead), output a test tone to check that all the speakers are connected correctly. For details on outputting a test tone, see page 88. If no sound is heard from a speaker while outputting a test tone, or a test tone is output from a speaker other than the one currently displayed on the Setup Display, the speaker may be short-circuited. If this happens, check the speaker connection again.

Note

• Be sure to match the speaker cord to the appropriate terminal on the components: 3 to 3, and # to #. If the cords are reversed, the sound will lack bass and may be distorted.

2 Connecting the TV

Required cords

A Video cord

B Audio cord (not supplied)

Yellow

White (L/audio)

Red (R/audio)

• When you want to output the TV sound or stereo sound of a 2 channel source from the 6 speakers, select the “Dolby Pro Logic,” “Dolby Pro Logic II MOVIE,” or “Dolby Pro Logic II MUSIC” sound field (page 36).

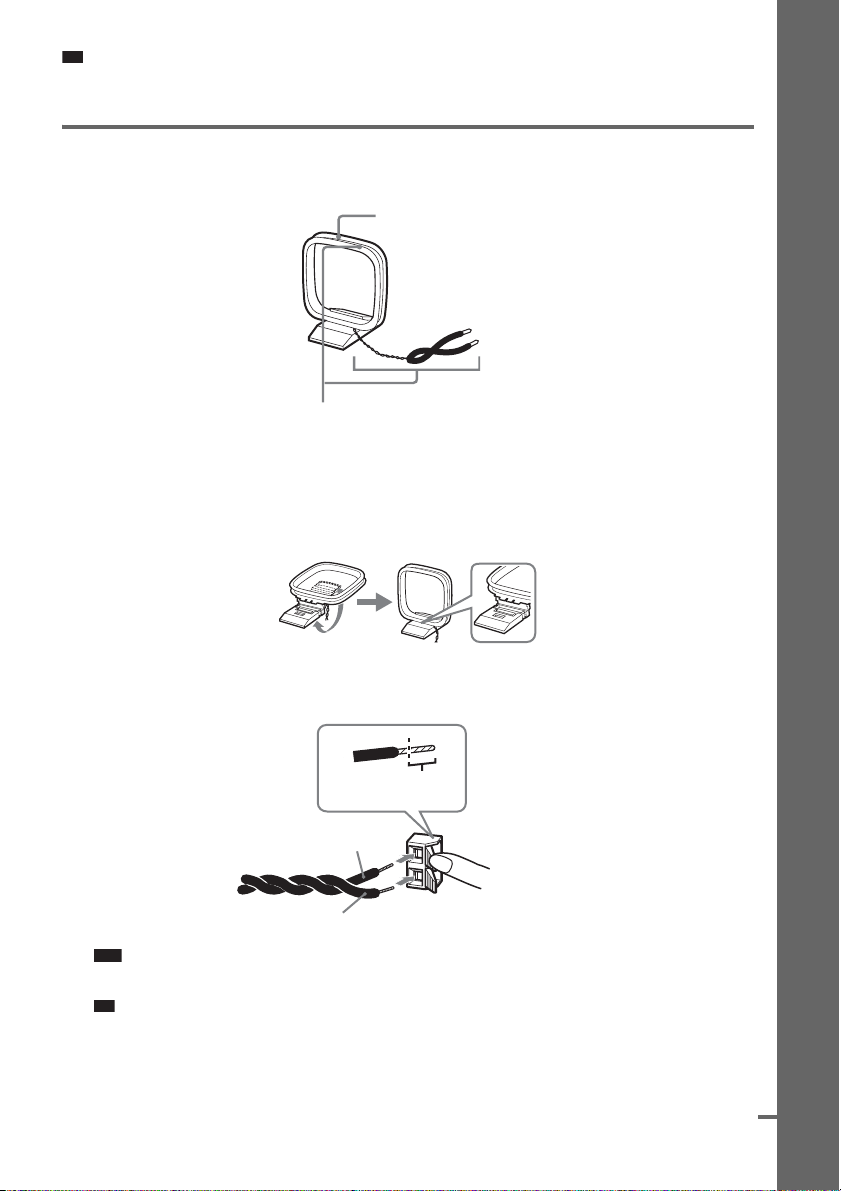

3 Connecting the Antenna (Aerial)

To connect the AM antenna (aerial)

Plastic stand (supplied)

Antenna (aerial)

The shape and the length of the antenna (aerial) is designed to receive AM signals. Do not dismantle or roll up the antenna (aerial).

1 Remove only the loop part from the plastic stand. 2 Set up the AM loop antenna (aerial).

Getting Started – BASIC –

3 Connect the cords to the AM antenna (aerial) terminals.

Cord (A) or cord (B) can be connected to either terminal.

Insert until this part.

Note

• Do not place the AM loop antenna (aerial) near the system or other AV equipment, as noise may result.

• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.

Insert the cords pushing down the terminal clamp.

4 Make sure the AM loop antenna (aerial) is connected firmly by pulling softly.

continued

To connect the FM wire antenna (aerial)

Connect the FM wire antenna (aerial) to the COAXIAL FM 75 Ω jack.

FM wire antenna (aerial) (supplied)

COAXIAL FM 75 Ω jack

FM wire antenna (aerial) (supplied)

COAXIAL FM 75 Ω jack

Getting Started – BASIC –

Note

• Be sure to fully extend the FM wire antenna (aerial).

• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.

• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the system to an outdoor FM antenna (aerial) as shown below.

System

Outdoor FM antenna (aerial)

4 Connecting the AC power cord (mains lead)

Before connecting the AC power cord (mains lead) of this system to a wall outlet (mains), connect the speakers to the system. Install this system so that the power cord can be unplugged from the wall socket immediately in the event of trouble.

Changing the color system (PAL or NTSC)

(Asian, Australian, and Middle Eastern models only)

Depending on the TV to be connected, you may be required to select either PAL or NTSC for the color system. The initial setting of the system for Australian and Middle Eastern models is PAL. The initial setting of the system for Asian models is NTSC.

To change the color system

1 Turn off the system by pressing "/1. 2 Turn on the system by pressing "/1 while pressing X on the system.

You need to hold X until the set powers on. Each time you perform this operation, the color system toggles between PAL and NTSC. “NTSC” lights up in the front display when the color system is set to NTSC.

Step 3: Positioning the System

Positioning the speakers

For the best possible surround sound, all the speakers other than the subwoofer should be the same distance from the listening position (A). The front speakers can be placed from 0.0 to 7.0 meters (0 to 23 ft) (A) from the listening position. Install the IR transmitter and IR receiver of the surround speaker (L) in direct line with each other. For details, see “To adjust the IR transmitter and IR receiver of the surround speaker (L)” (page 22).

Place speakers as illustrated below.

IR transmitter

IR receiver of the surround speaker (L)

The following diagram indicates the infrared transmission area (the range that the infrared rays can reach).

Top view

Infrared signal

IR transmitter

Approx. 10m (33 ft)

Surround speaker (L)

Side view

Infrared signal

IR transmitter

IR receiver

Note

• Do not install the surround speaker (L) (or IR receiver) in a place exposed to direct sunlight or strong light such as an incandescent lamp.

• The cord of the IR transmitter and IR receiver is for this system only.

• Do not step on or place objects other than supplied speakers on the surround amplifier and speaker base.

• When you install the speaker on the surround amplifier or speaker base, make sure the speaker is properly stacked.

• Do not set the speakers in an inclined position.

• Do not place the speakers in locations that are:

– Extremely hot or cold

– Dusty or dirty

– Very humid

– Subject to vibrations

– Subject to direct sunlight

• Use caution when placing the speakers and/or speaker stands (not supplied) that are attached with the speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or discoloration may result.

• When cleaning, use a soft cloth such as a cleaning cloth for glasses.

• Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.

• Do not lean or hang on the speaker, as the speaker may fall down.

• If transmission is poor, you can also connect the surround speakers to the system by the speaker cords (OPTION) (supplied).

• When you change the positions of the speakers, it is recommended that you change the settings. For details, see “Getting Optimal Surround Sound for a Room” (page 77) and “Calibrating the Appropriate Settings Automatically” (page 79).

Approx. 10m (33 ft)

Surround speaker (L)

Getting Started – BASIC –

Step 4: Performing the Quick Setup

Follow the steps below to make the minimum number of basic adjustments for using the system.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

FRENCH

SPANISH

PORTUGUESE

Getting Started – BASIC –

C/X/x/c,

1 Turn on the TV. 2 Press [/1 and POWER on the surround

amplifier.

Note

• Make sure that the function is set to “DVD.”

3 Switch the input selector on your TV so

that the signal from the system appears on the TV screen.

[Press [ENTER] to run QUICK SETUP.] appears at the bottom of the screen. If this message does not appear, display the Quick Setup and perform again (page 21).

4 Press without inserting a disc.

The Setup Display for selecting the language used in the on-screen display appears.

"/1

DISPLAY

5 Press X/x to select a language.

The system displays the menu and subtitles in the selected language.

6 Press .

The Setup Display for selecting the aspect ratio of the TV to be connected appears.

SCREEN SETUP

TV TYPE:

HDMI RESOLUTION: YC

BCR

/RGB (HDMI): COLOR SYSTEM (VIDEO CD): SCREEN SAVER: BACKGROUND: BLACK LEVEL:

BLACK LEVEL

4:3 OUTPUT:

4:3 LETTER BOX

JACKET PICTURE

(COMPONENT OUT):

16:9 16:9

4:3 PAN SCAN

OFF

FULL

7 Press X/x to select the setting that

matches your TV type.

x If you have a 4:3 standard TV

[4:3 LETTER BOX] or [4:3 PAN SCAN] (page 83)

x If you have a wide-screen TV or a 4:3 standard TV with a wide-screen mode

[16:9] (page 83)

8 Press .

The Setup Display for selecting the speaker formation appears.

9 Press C/c to select the speaker

formation image as the speakers are actually positioned, then press .

For details, see “Getting Optimal Surround Sound for a Room” (page 77).

SPEAKER FORMATION

STANDARD(WIRELESS)

10Connect the calibration mic to the

A.CAL MIC jack on the front panel and press X/x to select [YES], then press

Set up the calibration mic at the ear level using a tripod, etc. (not supplied). The front of each speaker should face the calibration mic, and there should be no obstruction between the speakers and the calibration mic. Be quiet during the measurement.

A.CAL MIC

Calibration mic

AUTO CALIBRATION

Connect calibration mic. Start measurement?

YES NO

Auto Calibration starts.

Note

• Loud test sound is output when [AUTO CALIBRATION] starts. You cannot turn the

volume down. Give consideration to children and neighbor.

• Avoid being in the measurement area and making noise during the measurement (which takes about 1 minute), as it may interfere with measurement.

11 Unplug the calibration mic and press C/

c to select [YES].

Quick Setup is finished. All connections and setup operations are complete.

Measurement complete.

FRONT L : FRONT R : CENTER : SUBWOOFER : SURROUND L : SURROUND R : If OK, unplug calibration mic and select YES.

Note

• Reflections from walls or the floor may affect measurements.

• If measurement fails, follow the message then retry [AUTO CALIBRATION].

To quit the Quick Setup

Press DISPLAY in any Step.

• If you change the position of the speakers, reset the speaker settings. See “Getting Optimal Surround Sound for a Room” (page 77) and “Calibrating the Appropriate Settings Automatically” (page 79).

• If you want to change any of the settings, see “Using the Setup Display” (page 81).

To recall the Quick Setup display

1 Press DISPLAY when the system is in

stop mode.

The Control Menu appears.

2 Press X/x to select [SETUP], then

press .

The options for [SETUP] appear.

)

1 2 ( 2 7

)

1 8 ( 3 4

: :

QUICK

QUICK CUSTOM RESET

BNR

YES

5.0m 0.0dB

5.0m

0.0dB

5.0m + 1.0dB

5.0m + 4.0dB

3.0m

2.0dB

3.0m

2.0dB

DVD VIDEO

continued

Getting Started – BASIC –

3 Press X/x to select [QUICK], then press .

The Quick Setup display appears.

To adjust the IR transmitter and IR receiver of the surround speaker (L)

After connecting the speakers, surround amplifier, IR transmitter, and the AC power cords (mains leads), adjust the wireless system for good transmission.

"/1

Getting Started – BASIC –

POWER/ ON LINE indicator

POWER

1 Press "/1 on the system and POWER on

the surround amplifier.

The system and surround amplifier turn on and the POWER/ON LINE indicator turns red.

2 Orient the IR transmitter and IR receiver of

the surround speaker (L) to face each other.

Adjust the position until the POWER/ON LINE indicator turns green.

• The IR transmitter is movable for easy reorientation.

Note

• Make sure that there is no obstruction such as a person or object between the IR transmitter and the IR receiver of the surround speaker (L). Otherwise, the sound from the surround speakers may be interrupted.

• If the POWER/ON LINE indicator turns red, transmission is not occuring. Adjust the position of the IR transmitter and surround speaker (L) until the POWER/ON LINE indicator turns green.

• If the POWER/ON LINE indicator flashes red, the IR receiver is receiving an infrared ray from another Sony’s wireless product. Move the IR transmitter and/or the surround speaker (L) so that the POWER/ ON LINE indicator turns green.

To place the surround speaker (L) in the (R) position

Depending on the location of the wall outlet (mains), you can also place the surround speaker (L) (with the IR receiver) in the (R) position if necessary.

1 Press AMP MENU. 2 Press X/x repeatedly until “SL SR REV”

appears in the front panel display, then press or c.

3 Press X/x to select the setting.

•REV ON: Sets the surround speaker (L) (with the IR receiver) in the (R) position.

•REV OFF: Sets the surround speaker (L) (with the IR receiver) in the (L) position.

4 Press .

The setting is made.

5 Press AMP MENU.

The AMP menu turns off.

Getting Started – ADVANCED –

Turning off the Demonstration

"/1

X/x/c,

AMP MENU

After connecting the AC power cord (mains lead), the demonstration appears in the front panel display. When you press "/1 on the remote, the demonstration turns off.

Note

• When you pr ess "/1 on the system, the demonstration

does not turn off.

• When you set the demonstration mode in the AMP menu to on, the demonstration does not turn off even though you press "/1 on the remote. To turn off the demonstration, set the demonstration mode to off, then press "/1 on the remote. When the demonstration mode is set to off, the system saves power in standby mode.

• DEMO OFF: sets the demonstration mode off.

4 Press .

The setting is reflected.

5 Press AMP MENU.

The AMP menu turns off.

Getting Started – ADVANCED –

Setting the demonstration mode on/off

1 Press AMP MENU. 2 Press X/x repeatedly until “DEMO”

appears in the front panel display, then press or c.

3 Press X/x to select the setting.

• DEMO ON: sets the demonstration mode on.

Installing the Speakers and the IR transmitter on a Wall

1 Prepare screws (not supplied) that are

suitable for the hole on the back of each speaker. See the illustrations below.

4 mm (

/32 inch)

30 mm (1 3/16 inch)

4.6 mm

/16 inch)

(

10 mm

(

/32 inch)

Hole on the back of the speaker

Note

• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where reinforcement is applied.

• Contact a screw shop or installer regarding the wall material or screws to be used.

• Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or improper screw installation, natural calamity, etc.

Installing the IR transmitter on a wall

You can hang the IR transmitter on a wall when:

– there is an obstruction between the IR

transmitter and IR receiver of the surround speaker (L).

– people often pass between the IR transmitter

and IR receiver of the surround speaker (L).

2 Fasten the screws to the wall.

For the front and surround speakers

330 mm (

13 inch

8 to 10 mm

(

/32 to 13/32

inch

)

3 Hang the speakers on the screws.

4.6 mm

(

/16 inch)

10 mm

/32 inch)

(

When hanging both the IR transmitter and surround speaker (L), adjust the position of the IR transmitter after deciding the position of the surround speaker (L).

1 Rotate the stand of the IR transmitter.

)

IR transmitter

Stand

2 Install 2 commercially available screws in

the wall so that it protrudes 4 mm (

Install the screws 30 mm (1

30 mm (1 3/16 inch)

4 mm (3/16 inch)

/16 inch).

/16 inch) apart.

3 Hang the IR transmitter via hole on the

bottom of the stand on the screw.

Make sure that the IR transmitter does not move after installation.

IR transmitter

Note

• Use screws suitable for the material and strength of the wall.

• Do not install the IR transmitter to a wall of low strength.

• Sony is not lia ble for any damage or accident incurred by incorrect installation (i.e. low strength wall, etc.), incorrect use of this product, or natural disaster.

• When connecting/disconnecting the cord, detach the IR transmitter from the wall first.

Getting Started – ADVANCED –

Stand

• You can store the cords in the troughs in the bottom of the stand.

Stand

Troughs

TV Hookup (Advanced)

Select a hookup suitable for the jacks on your TV.

Connecting the video/HDMI* cords

Sends a played back DVD image to a TV. Check the jacks of your TV, and choose connection method A, B, C, or D. Picture quality improves in order from A (standard) to D (HDMI).

TV with HDMI* jack

To HDMI* IN

To COMPONENT

To HDMI* OUT

VIDEO OUT

OUT

(DVD ONLY)

FRONT R FRONT L SUR R SUR LCENTER WOOFER

VIDEO

TV with VIDEO IN jack

* HDMI (high-definition multimedia interface)

The system is based on version 1.1 of High-Definition Multimedia Interface Specifications.

The system incorporates High-Definition Multimedia Interface (HDMITM) technology.

TV/VCR2

OPTICAL DIGITAL

SPEAKER

S VIDEO

TV with S VIDEO IN jack

RLAUDIO IN VIDEO INDIGITAL IN

COAXIAL

TV/VCR1

RLAUDIO IN VIDEO IN

TV/VCR2

DIR-T1

To VIDEO

PB/CB

PR/CR

TV with COMPONENT VIDEO IN jacks

COMPONENT VIDEO IN

YPB/CBPR/C

COMPONENT VIDEO OUT

S VIDEO (DVD ONLY)

VIDEO

MONITOR OUT

COAXIAL

To S VIDEO

HDMI, the HDMI logo and High-Definition Multimedia Interface trademarks or registered trademarks of HDMI Licensing LLC.

A To connect to a TV with the VIDEO IN jack

Connect the video cord.

Yellow

B To connect to a TV with the S VIDEO IN jack

Connect an S video cord (not supplied). When using the S video jack instead of the video jacks, your TV monitor must also be connected via an S video jack. S video signals are on a separate bus from the video signals and will not be output through the video jacks.

C To connect to a TV with the COMPONENT VIDEO IN jacks

Connect a component video cord (not supplied). To use the COMPONENT VIDEO OUT jacks (Y, PB/ C

B, PR/CR) instead of the video jacks, your TV monitor must be equipped with via COMPONENT

VIDEO IN jacks (Y, P

B/CB, PR/CR). If your TV accepts progressive format signals, you must use this

connection and set the output channel of the system to progressive format (page 28).

Green Blue Red

D To connect to a TV with the HDMI (high-definition multimedia

interface)/DVI (digital visual interface) input jack

Use a certified HDMI (high-definition multimedia interface) cord (not supplied) to enjoy high quality digital picture and sound through the HDMI OUT (high-definition multimedia interface out) jack. Note that Super Audio CD sound is not output from the HDMI OUT (high-definition multimedia interface out) jack.

Getting Started – ADVANCED –

To connect to a TV with DVI (digital visual interface) input

Use an HDMI (high-definition multimedia interface)-DVI (digital visual interface) converter cord (not supplied) with an HDMI (high-definition multimedia interface)-DVI (digital visual interface) adaptor (not supplied). The DVI (digital visual interface) jack will not accept any audio signals. Furthermore, you cannot connect the HDMI OUT (high-definition multimedia interface out) jack to DVI (digital visual interface) jacks that are not HDCP (high-bandwidth digital content protection) compliant (e.g., DVI (digital visual interface) jacks on PC displays).

When connecting to a standard 4:3 screen TV

Depending on the disc, the image may not fit your TV screen. To change the aspect ratio, see page 83.

continued

Does your TV accept progressive signals?

Progressive is the method for displaying TV images which reduces flickering, and sharpens the image. To display using this method, you need to connect to a TV that accepts progressive signals.

PROGRESSIVE

FUNCTION +/–

“PROGRE” lights up in the front panel display when the system outputs progressive signals.

1 Press FUNCTION +/– repeatedly to select “DVD.” 2 Press PROGRESSIVE.

Each time you press PROGRESSIVE, the display changes as follows:

t P AUTO (PROGRESSIVE AUTO)

P VIDEO (PROGRESSIVE VIDEO)

INTERLACE

x P AUTO (PROGRESSIVE AUTO)

Select this setting when:

– your TV accepts progressive signals, and,

– the TV is connected to the COMPONENT VIDEO OUT jacks. Normally select this under the above condition. This automatically detects the software type, and selects the appropriate conversion method.

Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions are not met.

x P VIDEO (PROGRESSIVE VIDEO)

Select this setting when:

– your TV accepts progressive signals, and,

– the TV is connected to the COMPONENT VIDEO OUT jacks, and,

– you want to fix the conversion method to PROGRESSIVE VIDEO for video-based software. Select this if the image is not clear when you select PROGRESSIVE AUTO.

Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions are not met.

x INTERLACE

Select this setting when:

– your TV does not accept progressive signals, or,

– your TV is connected to jacks other than the COMPONENT VIDEO OUT jacks (MONITOR

OUT (VIDEO/S VIDEO)).

You cannot select INTERLACE while “HDMI” lights up in the front panel display.

About DVD software types and the conversion method

DVD software can be divided into 2 types: film-based software and video-based software. Video-based software is derived from TV, such as dramas and sit-coms, and displays images at 30 frames/60 fields per second. Film-based software is derived from film and displays images at 24 frames per second. Some DVD software contains both video and film. In order for these images to appear natural on your screen when output in progressive format, the progressive signals need to be converted to match the type of DVD software that you are watching.

Note

• When you play video-based software in progressive signal format, sections of some types of images may appear unnatural due to the conversion process when output through the COMPONENT VIDEO OUT jacks. Even though you set to “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO,” images from the MONITOR OUT (VIDEO or S VIDEO) jack are unaffected as they are output in the interlace format.

Getting Started – ADVANCED –

Other Component Hookup

You can enjoy other component by connecting the VIDEO/AUDIO OUT jacks of another component.

Connecting the system and the other component

Outputs the other component through the speakers of this system.

VCR, digital satellite receiver

or PlayStation 2, etc.

To TV/VCR1 (COMPONENT VIDEO IN)

To TV/VCR1 (VIDEO IN/AUDIO IN)

COAXIAL

DIGITAL

PB/CB

PR/CR

VIDEO

OUT

AUDIO

OUT

To TV/VCR1 (DIGITAL IN COAXIAL)

OUT

(DVD ONLY)

OPTICAL

DIGITAL

OUT

VCR, digital satellite receiver

or PlayStation 2, etc.

VIDEO

OUT

AUDIO

OUT

FRONT R FRONT L SUR R SUR LCENTER WOOFER

SPEAKER

To TV/VCR2 (OPTICAL DIGITAL IN)

OPTICAL

DIGITAL

TV/VCR2

COAXIAL

TV/VCR1

DIR-T1

RLAUDIO IN VIDEO INDIGITAL IN

RLAUDIO IN VIDEO IN

COMPONENT VIDEO IN

YPB/CBPR/C

COMPONENT VIDEO OUT

TV/VCR2

To TV/VCR2 (VIDEO IN/ AUDIO IN)

MONITOR OUT

S VIDEO (DVD ONLY)

VIDEO

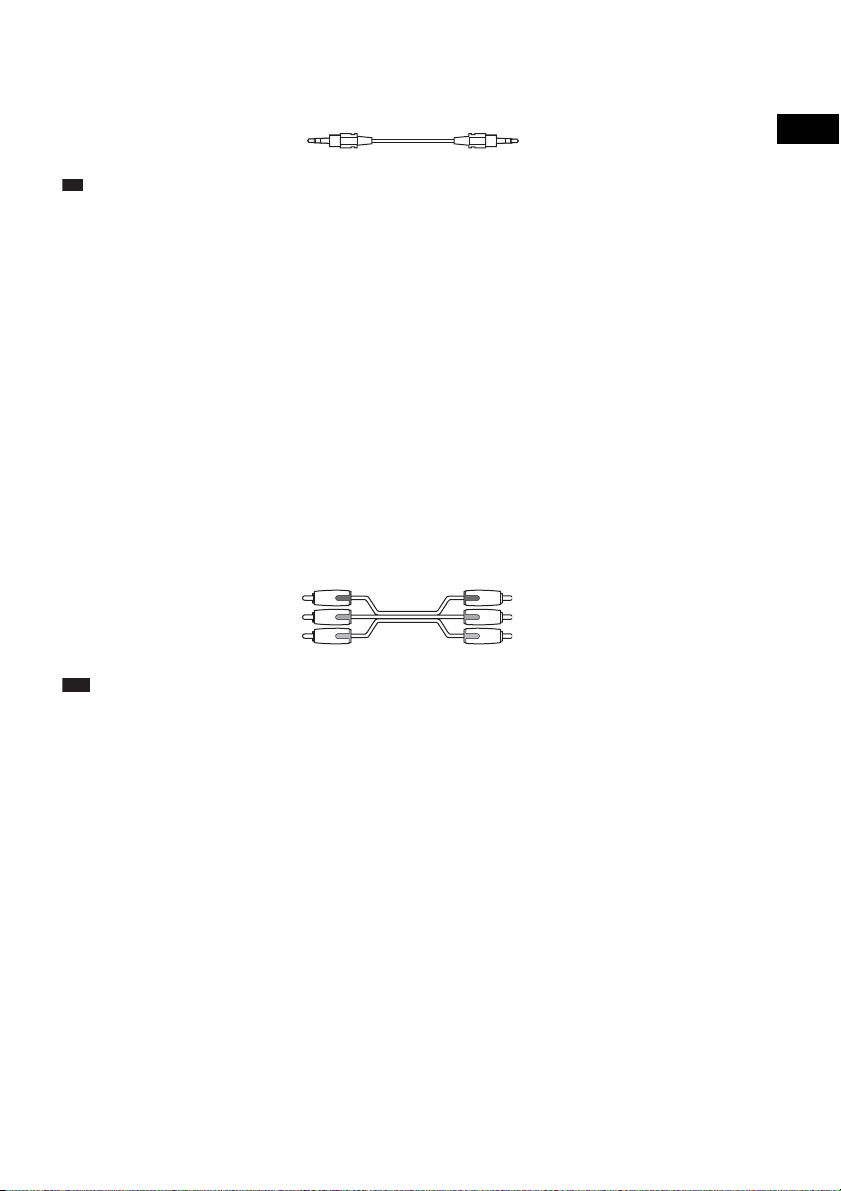

To connect the VIDEO/AUDIO OUT jacks of other component to the TV/ VCR1 or 2 (VIDEO IN/AUDIO IN) jacks of this system

Connect the VCR or other components to the TV/VCR1 or 2 (VIDEO IN/AUDIO IN) jacks using the video/audio cord (not supplied). When connecting a cord, be sure to match the color-coded sleeves to the appropriate jacks on the components.

Yellow (Video) White (L/audio) Red (R/audio)

COAXIAL

To listen to the portable audio source sound through the system

Connect the audio output jacks of the portable audio source to the AUDIO IN jack on the front panel of the system with the stereo mini-plug cord (not supplied).

• When listening to MP3 format recordings using a portable audio source, you can enhance the sound. Press FUNCTION +/- to select “AUDIO.” Connect the portable audio source. Press SOUND FIELD repeatedly until “A.F.D. STD” appears in the front panel display. To cancel, select other than “A.F.D. STD.”

If you connect a digital satellite receiver with an DIGITAL OUT (OPTICAL or COAXIAL) jack

The digital satellite receiver can be connected to the TV/VCR1 (DIGITAL IN COAXIAL) jack or TV/ VCR2 (OPTICAL DIGITAL IN) jack instead of the TV/VCR1 or 2 (AUDIO IN) jacks of the system. The system can accept both the digital and analog signals. Digital signals have priority over analog signals. If the digital signal ceases, the analog signal will be processed after 2 seconds.

If you connect a digital satellite receiver without an DIGITAL OUT jack

Connect the digital satellite receiver to the TV/VCR1 or 2 jacks only of the system.

To connect the COMPONENT VIDEO OUT jacks of the other component to the COMPONENT VIDEO IN jacks of this system

Connect the other components to the TV/VCR1 (COMPONENT VIDEO IN) jacks (Y, PB/CB, PR/CR) using the component video cord (not supplied). When connecting a cord, be sure to match the colorcoded sleeves to the appropriate jacks on the components.

Green Blue Red

Getting Started – ADVANCED –

Note

• Be sure to make connections securely to avoid hum and noise.

Basic Operations

Playing Discs

Disc slot

FUNCTION

Adjust the volume

4 Press DISC 1-5.

Press the button of the disc number you want.

When no disc is in the disc stocker you selected, “No Disc” appears. Perform next Step while “*DISC-1* (eg., 2-5)” flashes.

5 Press A. 6 Load a disc.

Push the disc into the disc slot until the disc is pulled in automatically.

The disc is drawn into the system automatically.

Basic Operations

"/1

DISC SKIP

MUTING

VOLUME +/–

DISC 1-5

Depending on the DVD VIDEO or VIDEO CD, some operations may be different or restricted. Refer to the operation details supplied with your disc.

1 Turn on your TV. 2 Switch the input selector on the TV to

this system.

3 Press "/1.

The system turns on. Unless the system is set to “DVD,” press

FUNCTION +/– to select “DVD.”

"/1

./>

H x

FUNCTION +/–

With the playback side facing down

To load other discs, press DISC 1-5 (that is not loaded with a disc) and A and load the disc.

The system starts playback (continuous play) of the disc whose DISC indicator is green. To play back other discs, press DISC SKIP on the remote or DISC 1-5 of the system.

Adjust the volume on the system. The volume level appears on the TV screen

and in the front panel display.

Note

• Depending on the system status, the volume level may not appear on the TV screen.

• The DISC 1-5 indicators change color as follows:

– green: the disc is selected, or the disc is being

played back.

– off: there is no disc.

– orange: a disc is loaded in the disc stocker but not

selected.

– The indicator turns off if an unplayable disc is

inserted.

To save the power in standby mode

Press "/1 while the system turns on. To cancel standby mode, press "/1 once.

Additional operations

To Press

Stop x Pause X Resume play after pause X or H

Go to the next chapter, track, or scene

Go back to the preceding chapter, track, or scene

Mute the sound MUTING. To cancel

Change a disc while playing another disc

Play the desired disc directly DISC 1-5 on the

Stop play and remove the desired disc

Replay the previous scene* (instant replay)

Briefly fast forward the current scene**

* DVD VIDEOs/DVD-RWs/DVD-Rs only. The

button can be used except for DivX video files.

** DVD VIDEOs/DVD-RWs/DVD-Rs/DVD+RWs/

DVD+Rs only. The button can be used except for DivX video files.

Note

• You may not be able to use the Instant Replay or Instant Advance function with some scenes.

• When playing CD Graphics (Latin American models only), the picture may not appear smoothly.

> (except for JPEG)

. (except for JPEG)

muting, press it again or VOLUME + to adjust the sound volume.

DISC SKIP

system. DISC 1-5 and A on the

system.

during playback.

(instant advance)

during playback.

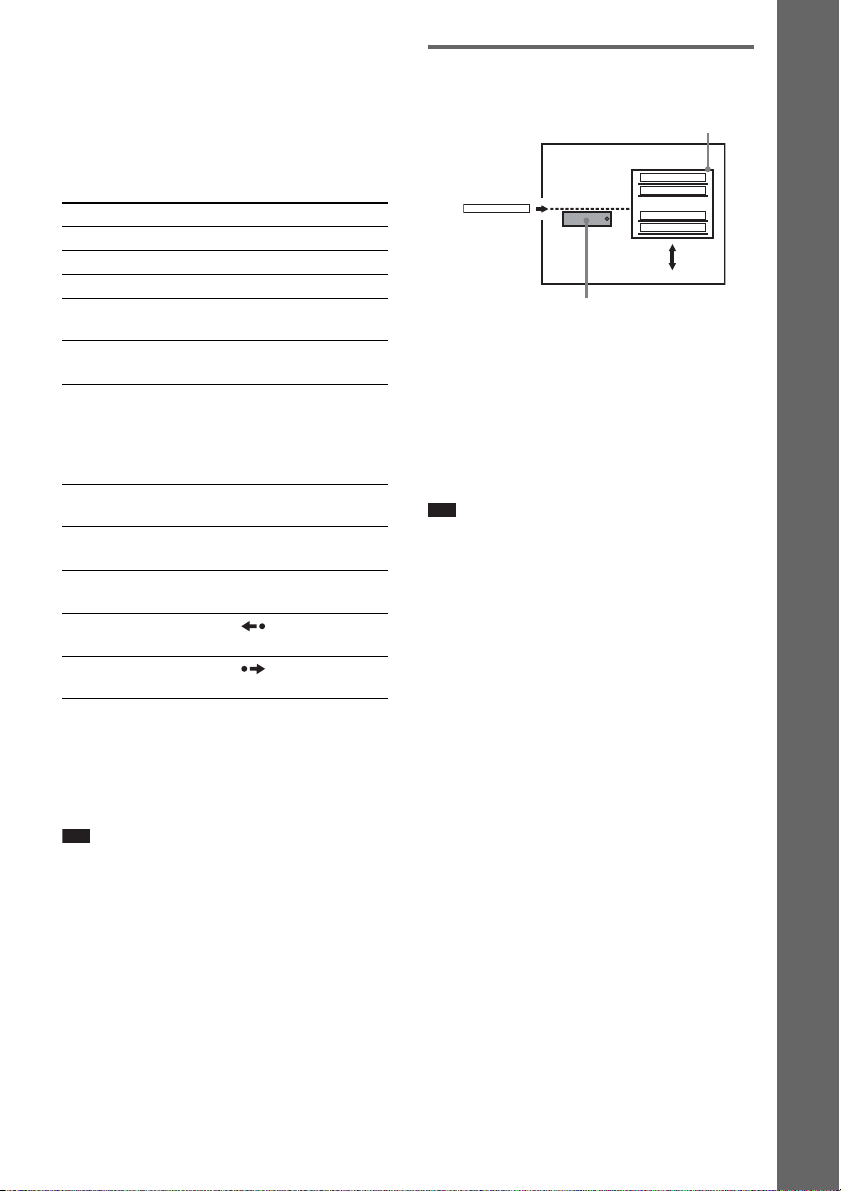

About DVD 5-DISC changer

Stocker

Disc

DISC 3

Playing unit

The disc changer consists of a playing unit and a stocker which transports the discs to the disc slot and the playing unit. For example, if you press DISC 3, the stocker moves until the DISC 3 comes to the position of the playing unit and then moves the DISC 3 over the playing unit.

Note

• Do not insert discs while playing.

• Noise may come from the disc changer when changing discs or turning the system on and off. However, this is just noise produced by the operation of the internal mechanisms and does not indicate a malfunction.

• 8 cm (3-inch) CDs or DVDs cannot be stored in the stocker.

Do not insert an 8 cm (3-inch) CD with an 8 cm (3-inch) adapter. It may damage the system and disc.

DISC 1

DISC 2

DISC 4

DISC 5

Basic Operations

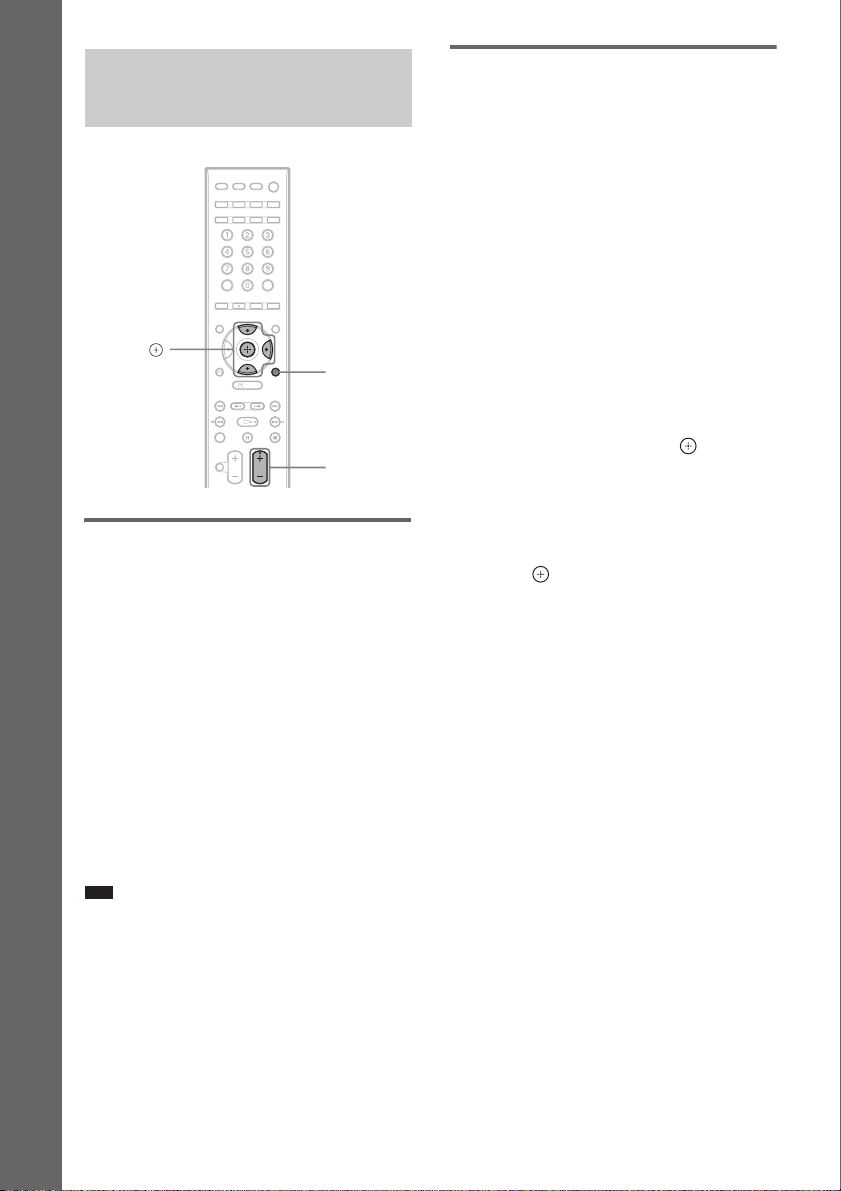

Enjoying the Radio or Other Components

X/x/c,

Basic Operations

Selecting the connected component

You can use a VCR or other components connected to the TV/VCR 1 or 2 jacks on the rear panel. Refer to the operation manual supplied with the components for further information on the operation.

Press FUNCTION +/– repeatedly until “TV/ VCR1”or “TV/VCR2”appears in the front panel display.

Each time you press FUNCTION +/–, the mode of the system changes in the following sequence.

AMP MENU

FUNCTION +/–

Changing the input level of the sound from connected components

Distortion may occur when listening to a component connected to the TV/VCR 1 or 2 jacks on the rear of the unit or to the AUDIO IN jack on the front panel. This is not a malfunction and will depend on the component connected. To prevent this, you can change the input level from the sound of the other components.

1 Press FUNCTION +/– repeatedly until

“TV/VCR1,” “TV/VCR2,” or “AUDIO” appears in the front panel display.

2 Press AMP MENU. 3 Press X/x repeatedly until

“ATTENUATE” appears in the front panel display, then press or c.

4 Press X/x to select a setting.

• ATT ON: attenuates the input level. The output level is changed.

• ATT OFF: normal input level.

5 Press .

The setting is reflected.

6 Press AMP MENU.

The AMP menu turns off.

DVD t TUNER FM t TUNER AM t TV/VCR1 t TV/VCR2 t AUDIO t …

Note

• When you use both the TV/VCR 1 (AUDIO IN) jacks (analog connection) and TV/VCR 1 (DIGITAL IN COAXIAL) jack (digital connection), or the TV/ VCR 2 (AUDIO IN) jacks (analog connection) and TV/VCR 2 (OPTICAL DIGITAL IN) jack (digital connection) at the same time, the digital connection takes priority.

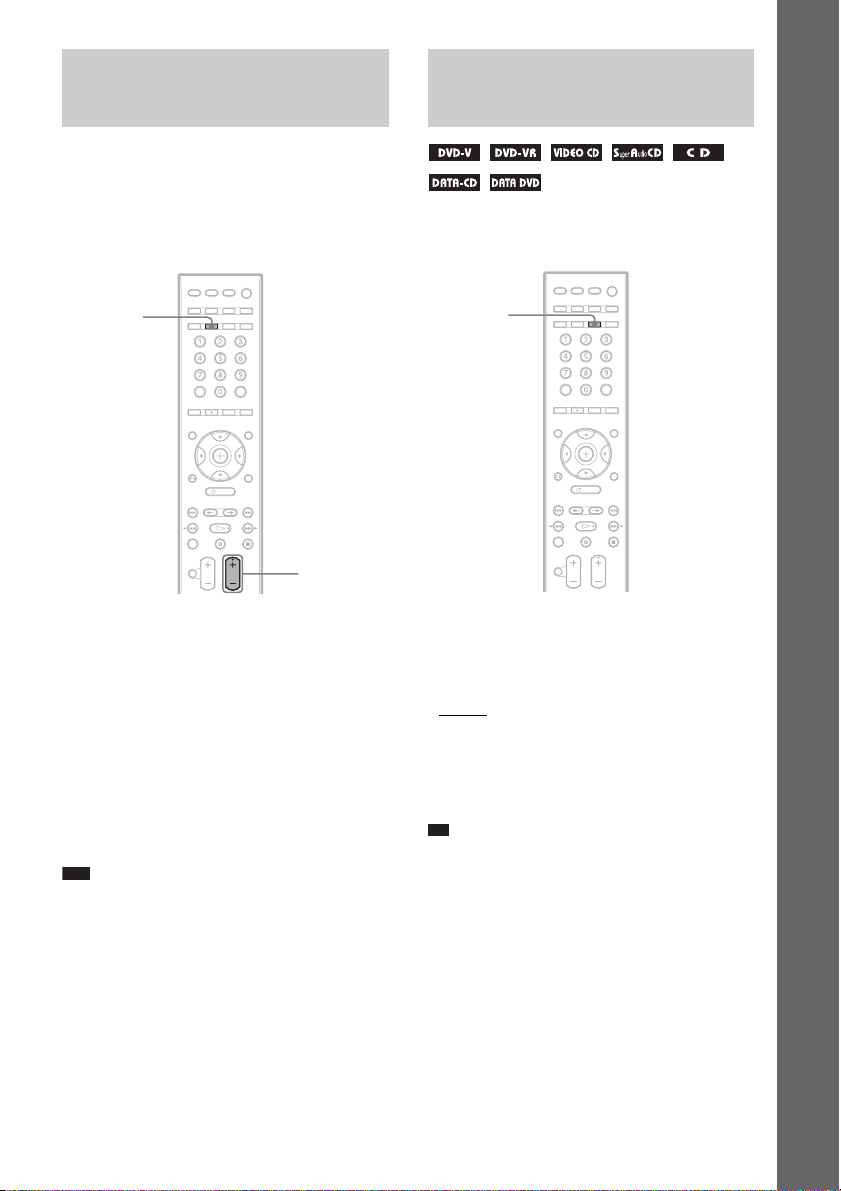

Enjoying TV or VCR Sound

Selecting the Movie or

from All Speakers

You can enjoy TV or VCR sound from all the speakers in this system. For details, see “TV Hookup (Advanced)” (page 26) and “Other Component Hookup” (page 30).

SOUND FIELD

FUNCTION +/–

1 Press FUNCTION +/– repeatedly until

“TV/VCR1” or “TV/VCR2” appears in the front panel display.

2 Press SOUND FIELD repeatedly until

the sound field you want appears in the front panel display.

When you want to output the TV sound or stereo sound of a 2 channel source from the 6 speakers, select the “PRO LOGIC,” “PLII MOVIE,” or “PLII MUSIC” sound field. For details of sound field, see page 36.

Note

Music Mode

You can choose a suitable sound mode for movies or music.

MOVIE/ MUSIC

Press MOVIE/MUSIC during playback.

Press MOVIE/MUSIC repeatedly until the mode you want lights up in the front panel display. The default setting is underlined.

•AUTO

: selects the mode automatically to produce the sound effect depending on the disc.

• MOVIE: provides the sound for movies.

• MUSIC: provides the sound for music.

• When the movie or music mode is selected, “MOVIE” or “MUSIC” is displayed in the front panel display.

Basic Operations

Sound Adjustments

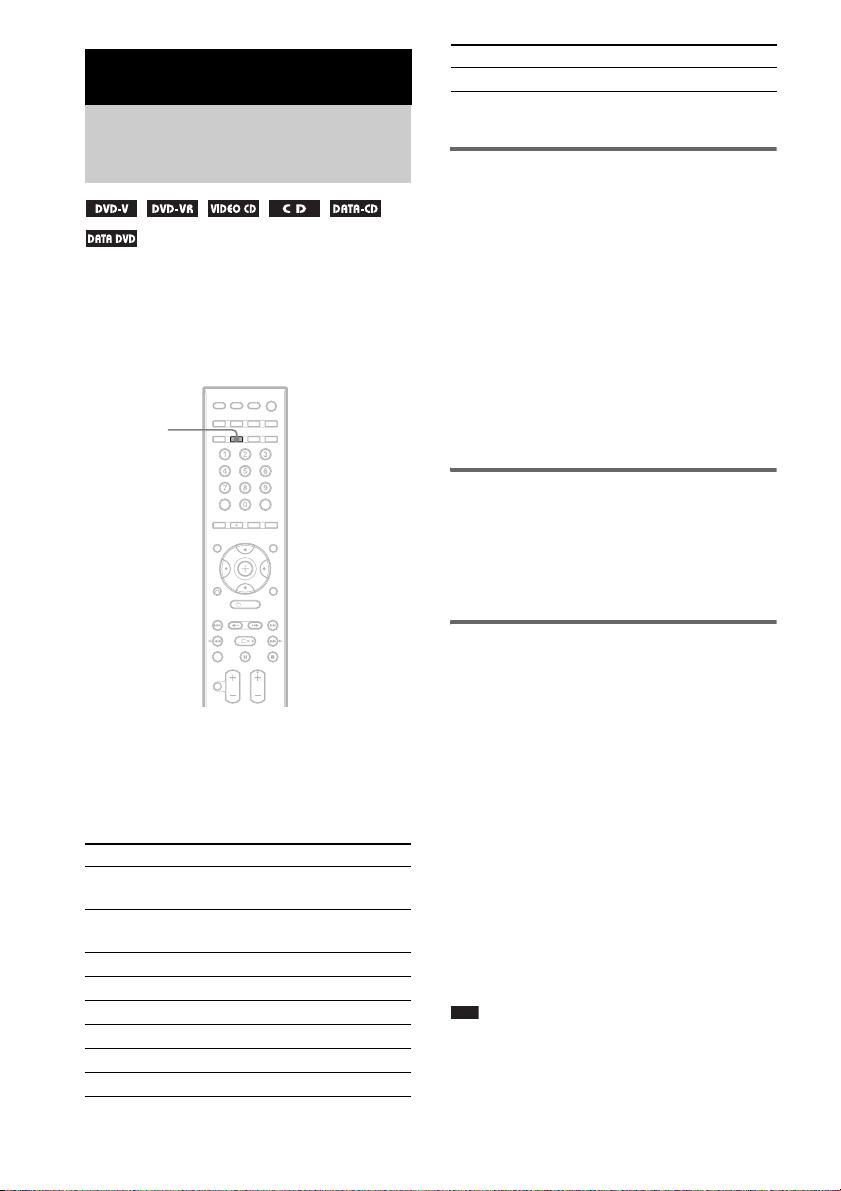

Enjoying Surround Sound

Sound field Display

2 CHANNEL STEREO 2CH STEREO

* Use DCS Technology

by Using Sound Field

You can take advantage of surround sound simply by selecting one of system’s preprogrammed sound fields. They bring the exciting and powerful sound of movie theaters into your home.

SOUND FIELD

Press SOUND FIELD.

Press SOUND FIELD repeatedly until the sound field you want appears in the front panel display.

All sound field

Sound field Display

AUTO FORMAT DIRECT STANDARD

AUTO FORMAT DIRECT MULTI

Dolby Pro Logic PRO LOGIC

Dolby Pro Logic II MOVIE PLII MOVIE

Dolby Pro Logic II MUSIC PLII MUSIC

CINEMA STUDIO EX A C. ST. EX A*

CINEMA STUDIO EX B C. ST. EX B*

CINEMA STUDIO EX C C. ST. EX C*

A.F.D. STD

A.F.D. MULTI

Automatic outputting of the original sound

x AUTO FORMAT DIRECT STANDARD

The auto decoding function automatically detects the type of audio signal being input (Dolby Digital, DTS, or standard 2 channel stereo) and performs the proper decoding if necessary. This mode presents the sound as it was recorded/encoded, without adding any effects (e.g. reverberation). However, if there are no low frequency signals (Dolby Digital LFE, etc.), it will generate a low frequency signal for output to the subwoofer.

Outputting the sound from multiple speakers

x AUTO FORMAT DIRECT MULTI

This mode lets you enjoy audio playback of all types of discs from multiple speakers.

Outputting 2 channel sources like CDs by 5.1channel

x Dolby Pro Logic

Dolby Pro Logic produces five output channels from 2 channel sources. This mode performs Pro Logic decoding to the input signal and output to front, center, and surround speakers. Meanwhile, the surround channel becomes monaural.

x Dolby Pro Logic II MOVIE/MUSIC

Dolby Pro Logic II produces five full-bandwidth output channels from 2 channel sources. This is done using an advanced, high-purity matrix surround decoder that extracts the spatial properties of the original recording without adding any new sounds or tonal colorations.

Note

• When the input signal is multi channel source, Dolby Pro Logic and Dolby Pro Logic II MOVIE/MUSIC are canceled and the multi channel source is output directly.

• When the bilingual broadcast sound is input, Dolby

Pro Logic and Dolby Pro Logic II MOVIE/MUSIC are not effective.

Enjoying Digital Cinema Sound

About DCS (Digital Cinema Sound)

In collaboration with Sony Pictures Entertainment, Sony measured the sound environment of their studios and integrated the data of the measurement and Sony’s own DSP (Digital Signal Processor) technology to develop “Digital Cinema Sound.” “Digital Cinema Sound” simulates in a home theater an ideal movie theater sound environment based on the preference of the movie director.

x CINEMA STUDIO EX A (Cinema Studio EX A)

Reproduces the sound characteristics of the Sony Pictures Entertainment “Cary Grant Theater” cinema production studio. This is a standard mode, great for watching most any type of movie.

x CINEMA STUDIO EX B (Cinema Studio EX B)

Reproduces the sound characteristics of the Sony Pictures Entertainment “Kim Novak Theater” cinema production studio. This mode is ideal for watching science-fiction or action movies with lots of sound effects.

x CINEMA STUDIO EX C (Cinema Studio EX C)

Reproduces the sound characteristics of the Sony Pictures Entertainment scoring stage. This mode is ideal for watching musicals or classic films where music is featured in the soundtrack.

About Cinema Studio EX

Cinema Studio EX is ideal for enjoying the movie software encoded with multi channel format, such as the Dolby Digital DVD. This mode reproduces the sound characteristics of Sony Pictures Entertainment’s studios. Cinema Studio EX consists of the following 3 elements.

• Virtual Multi Dimension Creates 5 sets of virtual speakers surrounding

the listener from a single pair of actual surround speakers.

• Screen Depth Matching In a movie theater, sound seems to come from inside the image reflected on the movie screen. This element creates the same sensation in your listening room by shifting the sound of the front speakers “into” the screen.

• Cinema Studio Reverberation Reproduces the reverberations peculiar to a movie theater. Cinema Studio EX is the integrated mode which operates these elements simultaneously.

Note

• The virtual speaker effect may cause increased noise

in the playback signal.

• When listening with sound fields that employ virtual

speakers, you will not be able to hear any sound coming directly from the surround speakers.

Using only the front speaker and subwoofer

x 2 CHANNEL STEREO

This mode outputs the sound from the front left and right speakers and subwoofer. Standard 2 channel (stereo) sources completely bypass the sound field processing. Multi channel surround formats are downmixed to two channels. This allows you to play any source using only the front left and right speakers and subwoofer.

To turn the surround effect off

Press SOUND FIELD repeatedly until “A.F.D. STD” or “2CH STEREO” appears in the front panel display.

• The system memorizes the last sound field selected

for each function mode. Whenever you select a function such as DVD or TUNER, the sound field that was last applied to function is automatically applied again. For example, if you listen to DVD with PRO LOGIC as the sound field, then change to another function, and then return to DVD, PRO LOGIC will be applied again.

Sound Adjustments

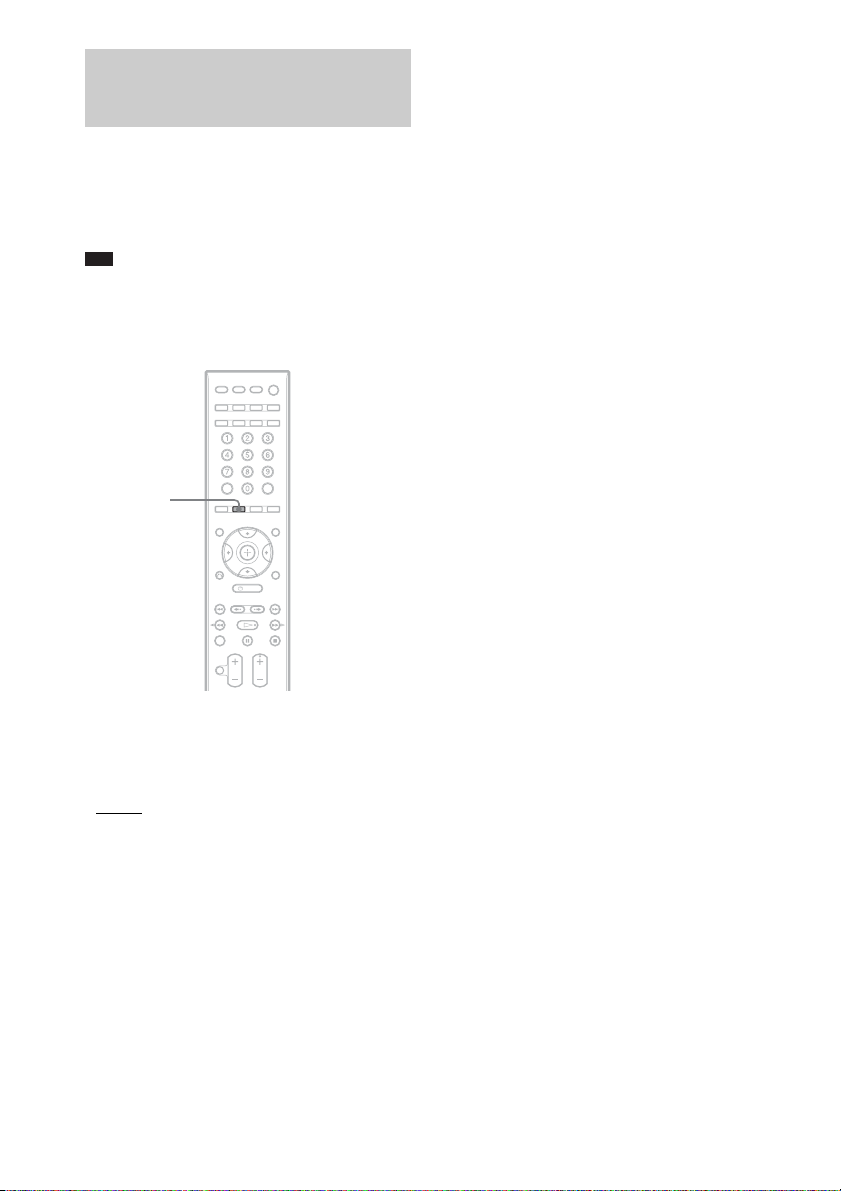

Enjoying Multiplex Broadcast Sound

(DUAL MONO)

You can enjoy multiplex broadcast sound when the system receive the Dolby Digital multiplex broadcast signal.

Note

• To receive the Dolby Digital signal, you need to connect a digital satellite tuner to the system with an optical cable (page 30) and set the digital output mode of the digital satellite tuner to Dolby Digital.

AUDIO

Press AUDIO.

Press AUDIO repeatedly until the signal you want appears in the front panel display. The default setting is underlined.

•MAIN

: Sound of the main language will be

output.

• SUB: Sound of the sub language will be

output.

• MAIN+SUB: Mixed sound of both the main

and sub languages will be output.

Various Functions for Playing Discs

Searching for a Particular

With each press, playback speed becomes faster.

Note

• In the case of Latin American models, the Scan function does not work for CD Graphics.

Point on a Disc

(Scan, Slow-motion Play, Freeze Frame)

You can quickly locate a particular point on a disc by monitoring the picture or playing back slowly.

Note

• Depending on the DVD/DivX video/VIDEO CD, you may not be able to do some of the operations described.

Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)

(except for JPEG)

Press /m or M/ while playing a disc. When you find the point you want, press H to return to normal speed. Each time you press / m or M/ during scan, the playback speed changes. With each press the indication changes as shown below. Actual speeds may differ with some discs.

Playback direction

× 2B t 1M t 2M t 3M

3M (DVD VIDEO/DVD-VR mode/DivX video/ VIDEO CD only) × 2B (DVD VIDEO/Super Audio CD/CD only)

Watching frame by frame (Slow-motion Play)

(DVD VIDEO, DVD-R, DVD-RW, DivX video, VIDEO CD only)

Press /m or M/ when the system is in pause mode. To return to the normal playback speed, press H. Each time you press /m or M/ during Slow-motion Play, the playback speed changes. Two speeds are available. With each press the indication changes as follows:

Playback direction

2 y 1

Opposite direction (DVD VIDEO only)

2 y 1

Playing one frame at a time (Freeze Frame)

(except for Super Audio CD, CD, MP3, and JPEG)

When the system is in the pause mode, press (step) to go to the next frame. Press (step) to go to the preceding frame (DVD VIDEO/DVDR/DVD-RW only). To return to normal playback, press H.

Note

• You cannot search for a still picture on a DVD-R/ DVD-RW in VR mode.

• For DATA CDs/DATA DVDs, this function works only for DivX video files.

Various Functions for Playing Discs

Opposite direction

× 2b t 1m t 2m t 3m

3m (DVD VIDEO/DVD-VR mode/DivX video/ VIDEO CD only) × 2b (DVD VIDEO only)

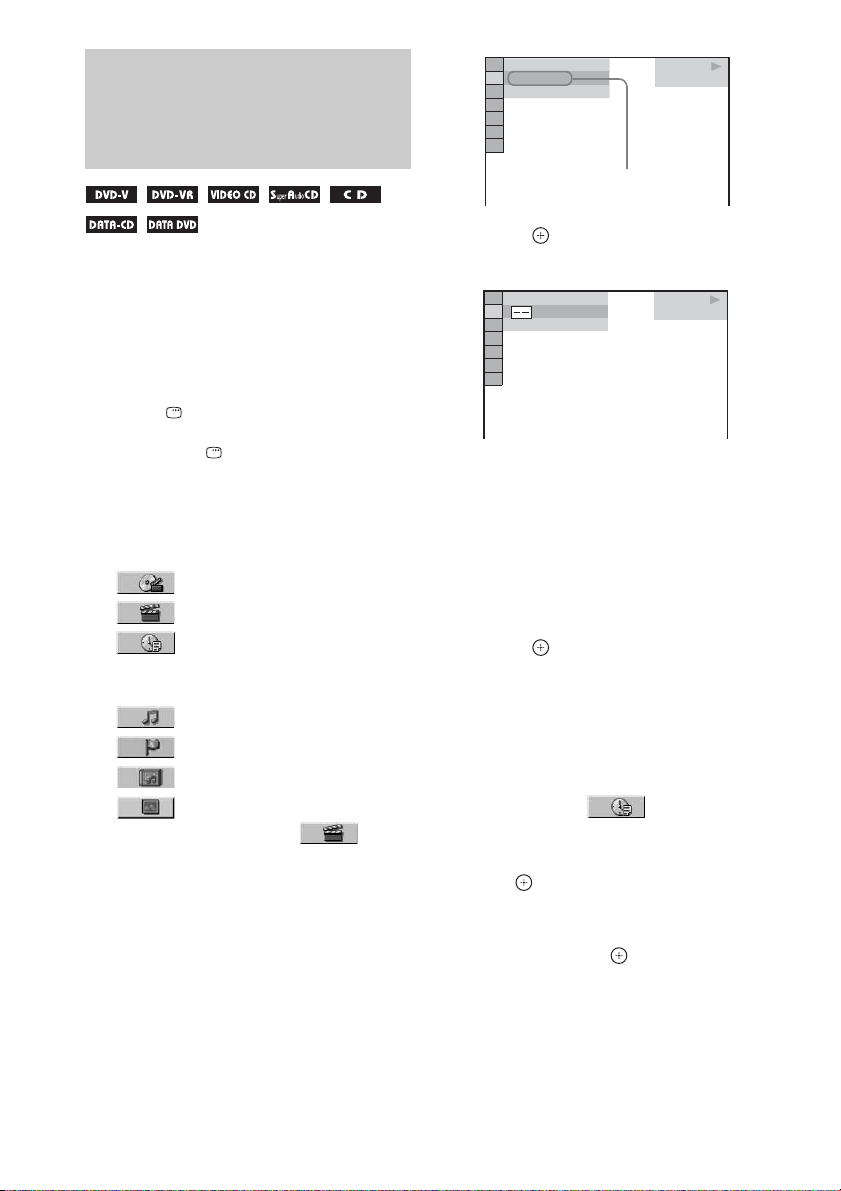

Searching for a Title/ Chapter/Track/Scene, etc.

You can search a DVD by title or chapter, and you can search a VIDEO CD/Super Audio CD/ CD/DATA CD/DATA DVD by track, index, or scene. As titles and tracks are assigned unique numbers on the disc, you can select the desired one by entering its number. Or, you can search for a scene using the time code.

1 Press DISPLAY. (When playing a

DATA CD/DATA DVD with JPEG image files, press DISPLAY twice.)

The Control Menu appears.

2 Press X/x to select the search method.

The display will show different items depending on the disc.

[TITLE], [TRACK], [SCENE]

[CHAPTER], [INDEX]

[TIME/TEXT]

Select [TIME/TEXT] to search for a starting point by inputting the time code.

[TRACK]

[INDEX]

[ALBUM]

[FILE]

Example: when you select [CHAPTER]

[** (**)] is selected (** refers to a number). The number in parentheses indicates the total number of titles, chapters, tracks, indexes, scenes, albums or files.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

Selected row

DVD VIDEO

3 Press .

[** (**)] changes to [– – (**)].

)

1 2 ( 2 7

)

( 3 4

1 : 3 2 : 5 5

DVD VIDEO

4 Press X/x or the number buttons to

select the title, chapter, track, index, scene, etc., number you want to search for.

If you make a mistake

Cancel the number by pressing CLEAR, then select another number.

5 Press .

The system starts playback from the selected number.

To search for a scene using the time code (DVD VIDEO and DVD-VR mode only)

1 In Step 2, select [TIME/TEXT].

[T **:**:**] (playing time of the current title) is selected.

2 Press .

[T **:**:**] changes to [T --:--:--].

3 Input the time code using the number

buttons, then press .

For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter [2:10:20].

• When the Contr ol Menu display is turned off, you can search for a chapter (DVD VIDEO/DVD-R/DVDRW), track (VIDEO CD/Super Audio CD/CD), or file (DATA CD/DATA DVD (DivX video)) by pressing the number buttons and .

Note

• You cannot search for a scene on a DVD+RW/ DVD+R using the time code.

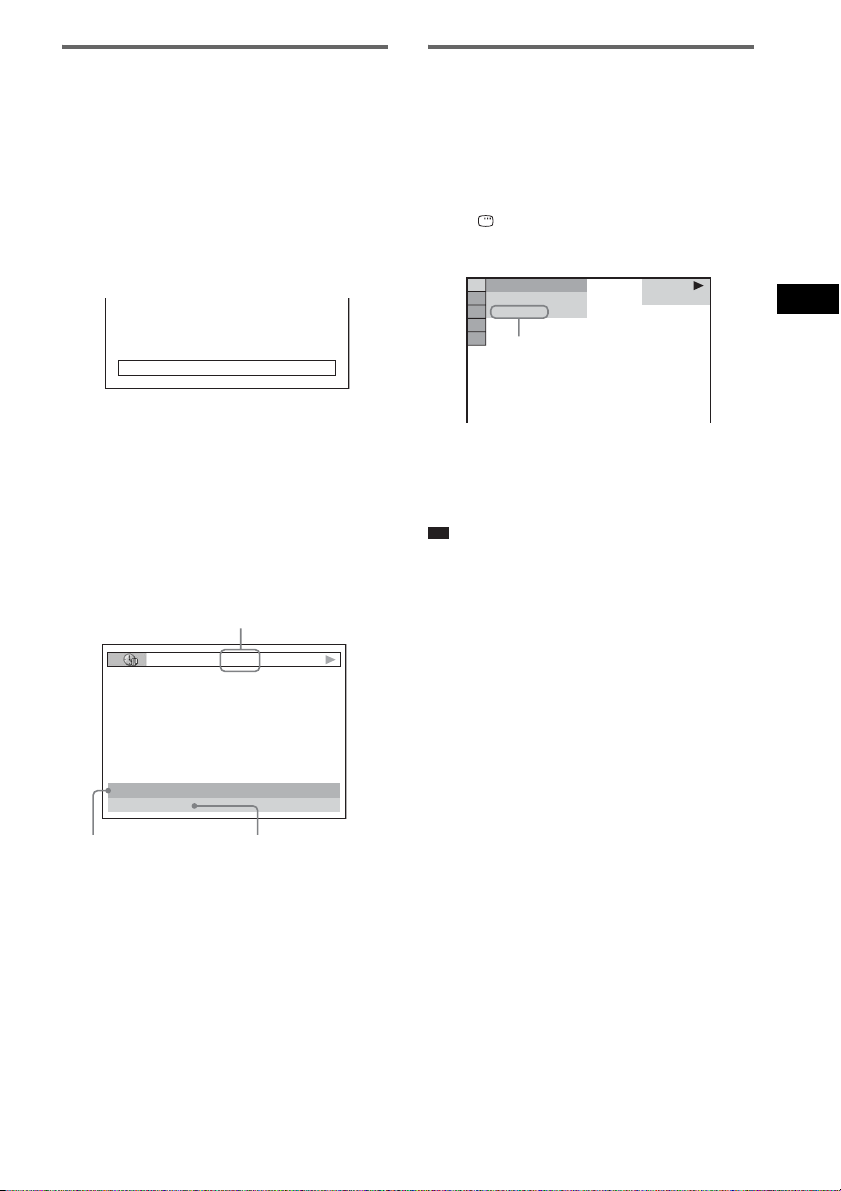

Searching by Scene

(Picture Navigation)

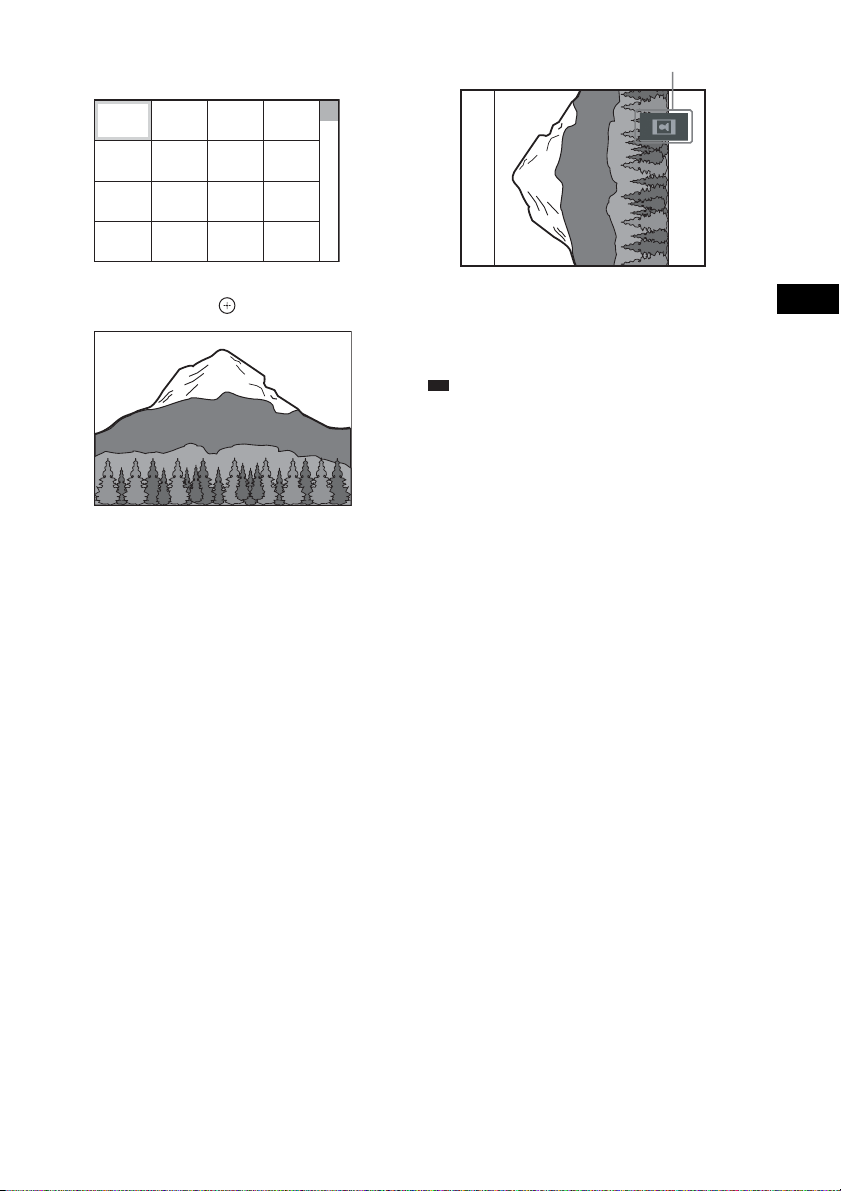

You can divide the screen into 9 subscreens and find the desired scene quickly.

1 Press PICTURE NAVI during playback.

The following display appears.

CHAPTER VIEWER

ENTER

2 Press PICTURE NAVI repeatedly to

select an item.

• [TITLE VIEWER] (DVD VIDEO only)

• [CHAPTER VIEWER] (DVD VIDEO only)

• [TRACK VIEWER] (VIDEO CD/ Super VCD only)

3 Press .

The first scene of each title, chapter, or track appears as follows.

4 Press C/X/x/c to select a title, chapter,

or track, and press .

Playback starts from the selected scene.

To return to normal play during setting

Press O RETURN or DISPLAY.

Note

• Depending on the disc, you may not be able to select some items.

Various Functions for Playing Discs

Resuming Playback from the Point Where You Stopped the Disc

(Resume Play)

When you stop the disc, the system remembers the point where you pressed x and “Resume” appears in the front panel display. As long as you do not remove the disc, Resume Play will work even if the system enters standby mode by pressing "/1.

1 While playing a disc, press x to stop

playback.

“Resume” appears in the front panel display.

If “Resume” does not appear, Resume Play is not available.

2 Press H.

The system starts playback from the point where you stopped the disc in Step 1.

Note

• Depending on where you stop the disc, the system may not resume playback from exactly the same point.

• The point where you stopped playing may be cleared when:

– you eject the disc.

– the system enters standby mode (DATA CD/

DATA DVD only).

– you change or reset the settings on the Setup

Display.

– you change the function by pressing FUNCTION

+/–.

– you disconnect the AC power cord (mains lead).

• For DVD-Rs/DVD-RWs in VR mode, VIDEO CDs, CDs, Super Audio CDs, DATA CDs, and DATA DVDs, the system remembers the resume playback point for the current disc.

• The resume point is cleared when:

– you select another disc.

• Resume Play does not work during Program Play and Shuffle Play.

• This function may not work properly with some discs.

• When using the Resume function on CD Graphics (Latin American models only), playback starts from the beginning of the track.

• To play from the be ginning of the disc, press x twice, then press H.

To enjoy a disc that is played before by resume playback (Multi-disc Resume)

(DVD VIDEO, VIDEO CD only)

This system stores the point where you stopped the disc for up to 40 discs and resumes playback the next time you insert the same disc. If you store a resume playback point for the 41st disc, the resume playback point for the first disc is deleted. To activate this function, set [MULTI-DISC RESUME] in [CUSTOM SETUP] to [ON]. For details, see “[MULTI-DISC RESUME] (DVD VIDEO/VIDEO CD only)” (page 86).

• To play from the be ginning of the disc, press x twice, then press H.

Note

• If [MULTI-DISC RESUME] in [CUSTOM SETUP] is set to [OFF] (page 86), the resume point is cleared when you change the function by pressing FUNCTION +/–.

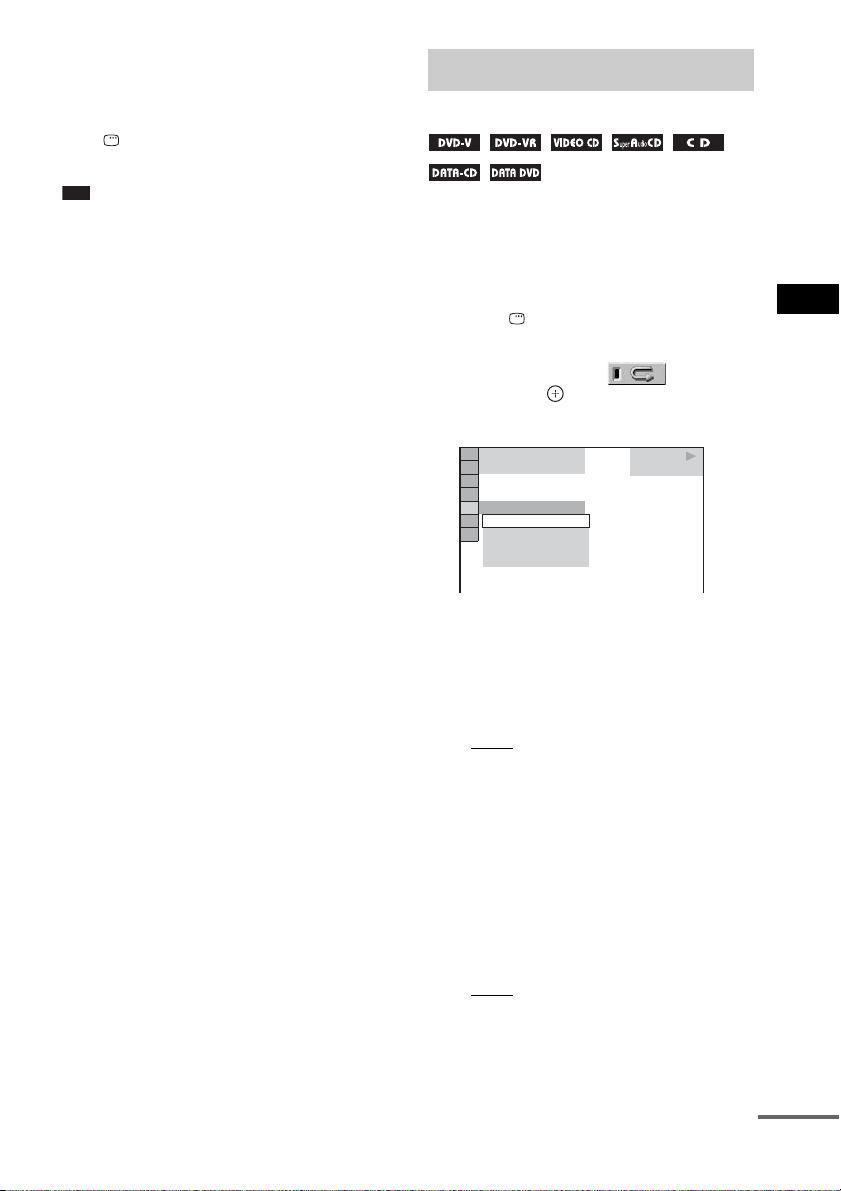

Creating Your Own Program

(Program Play)

You can play the contents of a disc in the order you want by arranging the order of the tracks on the disc to create your own program. You can program up to 99 tracks.

Note

• You can program the track on the current disc only.

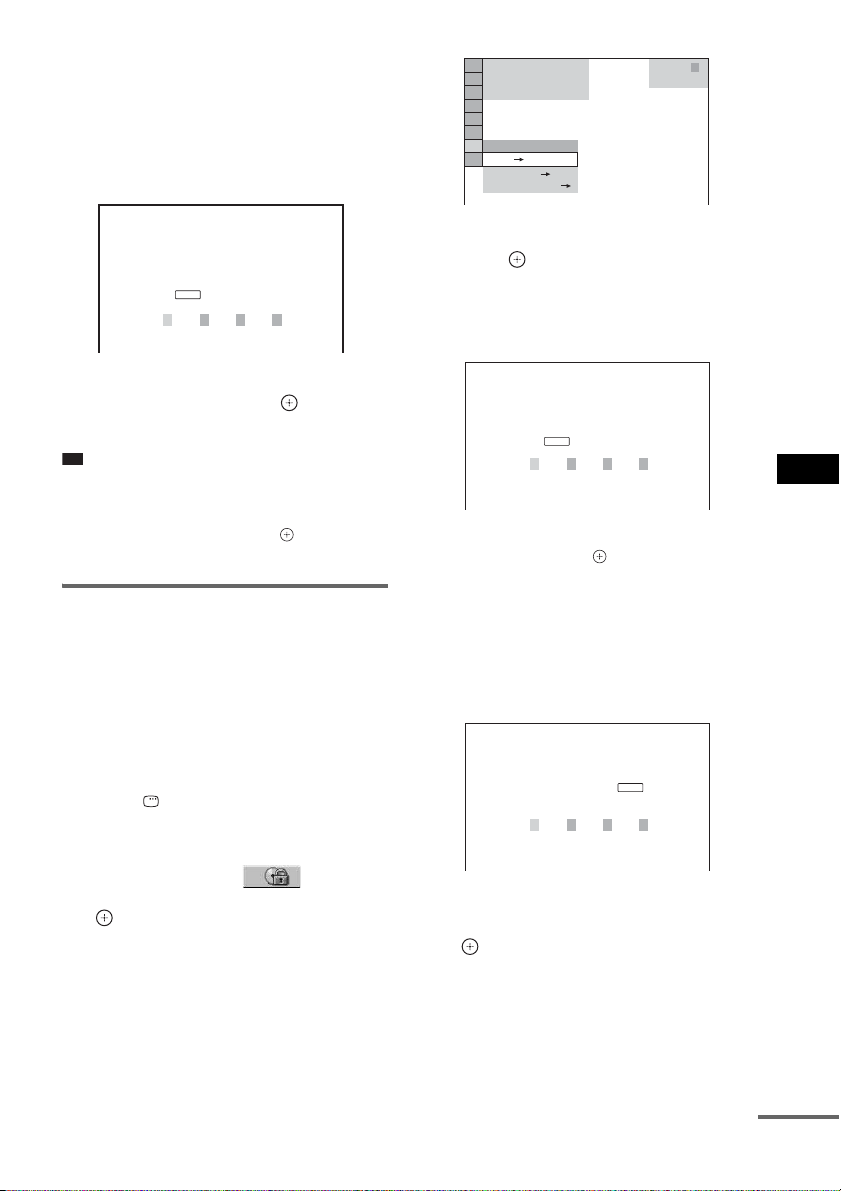

1 Press DISPLAY.

The Control Menu appears.

2 Press X/x to select

[PROGRAM], then press .

The options for [PROGRAM] appear.

T OFF

OFF SET ON

6 (14)

2 : 5 0

PLAY

3 Press X/x to select [SET t], then

press .

[TRACK] is displayed when you play a VIDEO CD, Super Audio CD, or CD.

PROGRAM

ALL CLEAR

1. TRACK

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

Tracks recorded on a disc

– – – – – – – – – – – –

0:00:00 T

– –

01 02 03 04 05 06

Total time of the programmed tracks

4 Press c.

The cursor moves to the track row [T] (in this case, [01]).

PROGRAM

ALL CLEAR

1. TRACK

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

– – – –

– – – – – – – – – –

0:00:00 T

– – 01 02 03 04 05 06

5 Select the track you want to program.

For example, select track [02]. Press X/x to select [02] under [T], then press . The track number may be displayed in 3 digits for a Super Audio CD.

Selected track

– – – – – – – – – – – –

0:15:30 T

– – 01 02 03 04 05 06

PROGRAM

ALL CLEAR

1. TRACK 0 2

2. TRACK

3. TRACK

4. TRACK

5. TRACK

6. TRACK

7. TRACK

Total time of the programmed tracks

6 To program other tracks, repeat steps 4

to 5.

The programmed tracks are displayed in the selected order.

7 Press H to start Program Play.

Program Play starts. When the program ends, you can restart the

same program again by pressing H.

To return to normal play

Press CLEAR, or select [OFF] in St ep 3. T o p lay the same program again, select [ON] in Step 3 and press .

To turn off the Control Menu

Press DISPLAY repeatedly until the Control Menu is turned off.

Various Functions for Playing Discs

continued

To change or cancel a program

1 Follow steps 1 to 3 of “Creating Your Own

Program.”

2 Select the program number of the track you

want to change or cancel using X/x. If you want to delete the track from the program, press CLEAR.

3 Follow Step 5 for new programming. To

cancel a program, select [--] under [T], then press .

To cancel all of the tracks in the programmed order

1 Follow steps 1 to 3 of “Creating Your Own

Program.”

2 Press X and select [ALL CLEAR]. 3 Press .

Playing in Random Order

(Shuffle Play)

You can have the system “shuffle” tracks. Subsequent “shuffling” may produce a different playing order.

Note

• Same song may be played repeatedly during MP3 playback.

• You can shuffle the track on the current disc only.

1 Press DISPLAY during playback.

The Control Menu appears.

2 Press X/x to select [SHUFFLE],

then press .

The options for [SHUFFLE] appear.

OFF

OFF TRACK

6 (14)

2 : 5 0

PLAY

3 Press X/x to select the item to be

shuffled.

x When playing a VIDEO CD, Super Audio CD, or CD

• [TRACK]: shuffles tracks on the disc.

x When Program Play is activated

• [ON]: shuffles tracks selected in Program Play.

x When playing a DATA CD (except for DivX) or DATA DVD (except for DivX)

• [ON]: shuffles MP3 audio tracks in the album on the current disc. When no album is selected, the first album will play in random order.

Note

• A track already played is also selected in

random order.

4 Press .

Shuffle Play starts.

To return to normal play

Press CLEAR, or select [OFF] in Step 3.

To turn off the Control Menu

Press DISPLAY repeatedly until the Control Menu is turned off.

Note

• You cannot use this function with VIDEO CDs and Super VCDs with PBC playback.

Playing Repeatedly

(Repeat Play)

You can play all the titles, tracks or albums on a disc or a single title, chapter, track, or album repeatedly. You can use a combination of Shuffle or Program Play modes.

1 Press DISPLAY during playback.

The Control Menu appears.

2 Press X/x to select [REPEAT],

then press .

The options for [REPEAT] appear.

Various Functions for Playing Discs

6 (14)

2 : 5 0

OFF

OFF ALL DISCS ONE DISC TRACK

PLAY

3 Press X/x to select the item to be

repeated.

The default setting is underlined.

x When playing a DVD VIDEO or DVDVR

•[OFF]: does not play repeatedly.

• [ALL DISCS]: repeats all of the discs.

• [ONE DISC]: repeats all of the titles on the current disc. (When playing a DVDVR, [ONE DISC] repeats all of the titles of the selected type.)

• [TITLE]: repeats the current title on a disc.

• [CHAPTER]: repeats the current chapter.

x When playing a VIDEO CD, Super Audio CD, or CD

•[OFF]: does not play repeatedly.

• [ALL DISCS]: repeats all of the discs.

• [ONE DISC]: repeats all of the tracks on the current disc.

• [TRACK]: repeats the current track.

continued

x When playing a DATA CD or DATA DVD

• [OFF]: does not play repeatedly.

• [ALL DISCS]: repeats all of the discs.

• [ONE DISC]: repeats all of the albums on the current disc.

• [ALBUM]: repeats the current album.

• [TRACK] (MP3 audio tracks only): repeats the current track.

• [FILE] (DivX video files only): repeats the current file.

4 Press .

The item is selected. To return to normal play, press CLEAR, or

select [OFF] in Step 3.

To turn off the Control Menu

Press DISPLAY repeatedly until the Control Menu is turned off.

Note

• You cannot use this function with VIDEO CDs and Super VCDs with PBC playback.

• When playing a DATA CD/DATA DVD which contains MP3 audio track and JPEG image files, and their playing time are not the same, the audio sound will not match the image.

• When [MODE (MP3, JPEG)] is set to [IMAGE (JPEG)] (page 58), you cannot select [TRACK].

Using the DVD’s Menu

A DVD is divided into a lot of sections, which make up a picture or music feature. These sections are called “titles.” When you play a DVD which contains several titles, you can select the title you want using TOP MENU. When you play DVDs that allow you to select items such as the language for the subtitles and the language for the sound, select these items using MENU.

1 Press TOP MENU or MENU.

The disc’s menu appears on the TV screen. The contents of the menu vary from disc to

disc.

2 Press C/X/x/c or the number buttons to

select the item you want to play or change.

3 Press .

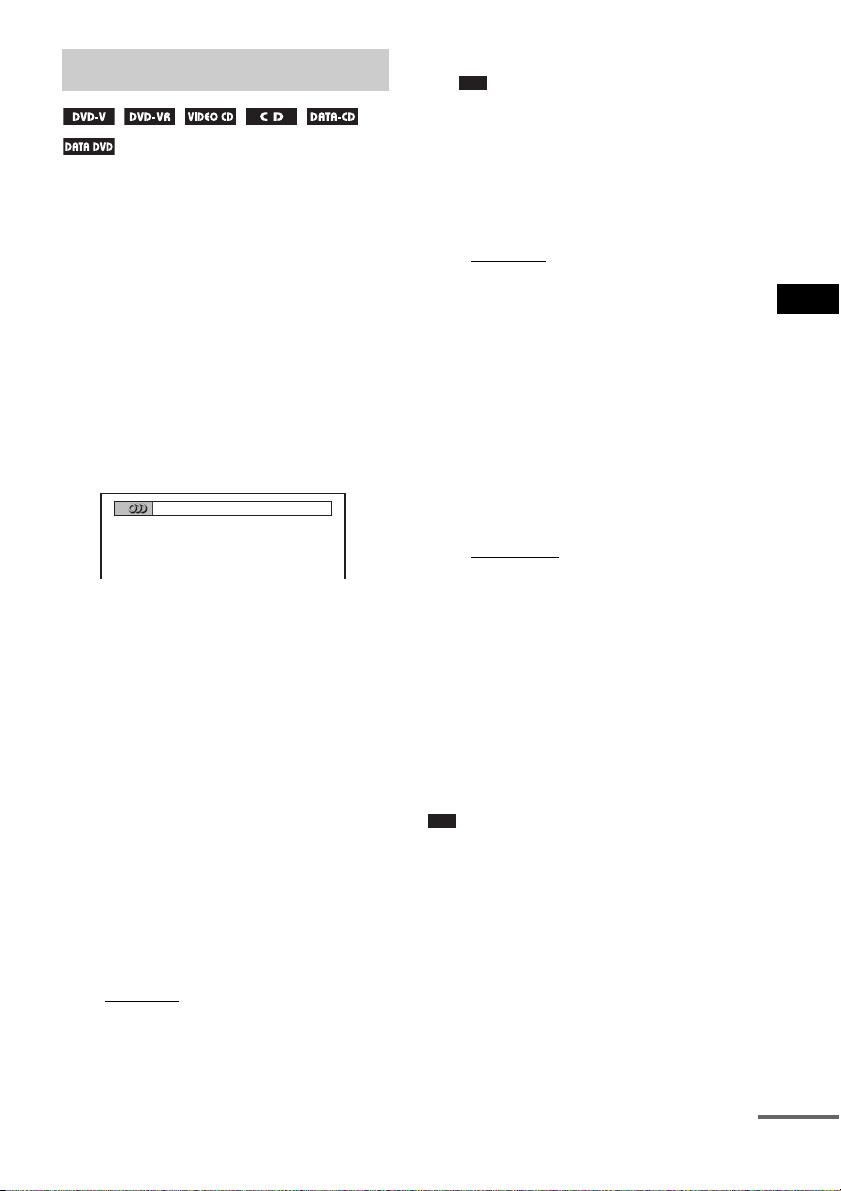

Changing the Sound

When playing a DVD VIDEO or DATA CD/ DATA DVD (DivX video files) recorded in multiple audio formats (PCM, Dolby Digital, MPEG audio, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language. With VIDEO CDs, CDs, DATA CDs, or DATA DVDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers.

1 Press AUDIO during playback.

The following display appears.

1:ENGLISH DOLBY DIGITAL 3/2.1

2 Press AUDIO repeatedly to select the

desired audio signal.

x When playing a DVD VIDEO

Depending on the DVD VIDEO, the choice of language varies.

When 4 digits are displayed, they indicate a language code. Refer to “Language Code List” (page 102) to see which language the code represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats.

x When playing a DVD-VR

The types of sound tracks recorded on a disc are displayed. The default setting is underlined. Example:

•[1: MAIN]

• [1: SUB] (sub sound)

• [1: MAIN+SUB] (main and sub sound)

•[2: MAIN]

•[2: SUB]

(main sound)

•[2: MAIN+SUB]

Note

• [2: MAIN], [2: SUB], and [2: MAIN+SUB] do not appear when one audio stream is r ecorded on the disc.

x When playing a VIDEO CD, CD, DATA CD (MP3 audio), or DATA DVD (MP3 audio)

The default setting is underlined.

• [STEREO]

: the standard stereo sound

• [1/L]: the sound of the left channel

(monaural)

• [2/R]: the sound of the right channel

(monaural)

x When playing a DATA CD (DivX video) or DATA DVD (DivX video)

The choice of DATA CD or DATA DVD audio signal formats differ, depending on the DivX video file contained on the disc. The format is shown in the display.

x When playing a Super VCD

The default setting is underlined.

• [1:STEREO]

: the stereo sound of the

audio track 1

• [1:1/L]: the sound of the left channel of

the audio track 1 (monaural)

• [1:2/R]: the sound of the right channel of

the audio track 1 (monaural)

• [2:STEREO]: the stereo sound of the

audio track 2

• [2:1/L]: the sound of the left channel of

the audio track 2 (monaural)

• [2:2/R]: the sound of the right channel of

the audio track 2 (monaural)

Note

• While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select [2:STEREO], [2:1/L], or [2:2/R].

• You cannot change the sound for Super Audio CDs.

continued

Various Functions for Playing Discs

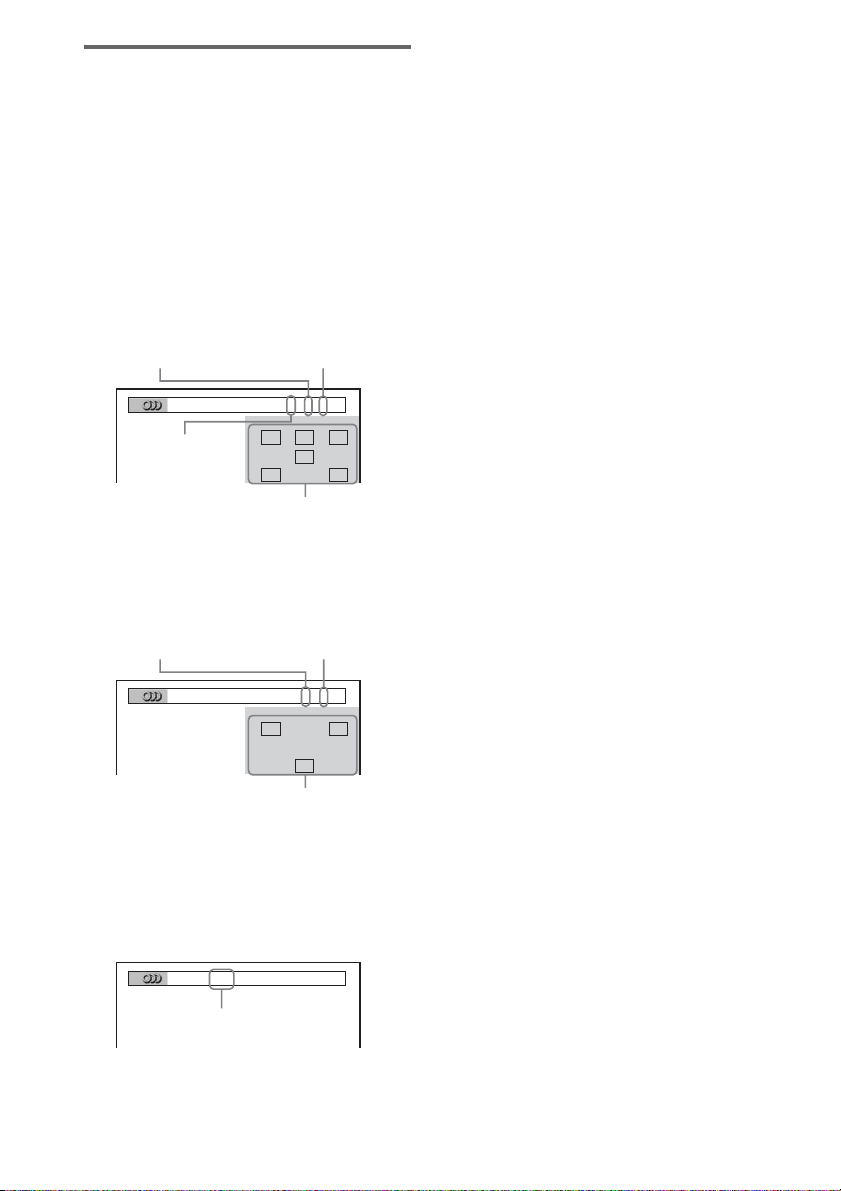

Checking the audio signal format

(DVD, DivX video only)

If you press AUDIO repeatedly during playback, the format of the current audio signal (PCM, Dolby Digital, DTS, etc.) appears as shown below.

x When playing a DVD

Example:

Dolby Digital 5.1 ch

LFE (Low

Surround (L/R)

Frequency Effect)

About audio signals

Audio signals recorded in a disc contain the sound elements (channels) shown below. Each channel is output from a separate speaker.

• Front (L)

• Front (R)

•Center

• Surround (L)

• Surround (R)

• Surround (Monaural): This signal can be either the Dolby Surround Sound processed signals or the Dolby Digital sound’s monaural Surround audio signals.

• LFE (Low Frequency Effect) signal

1:ENGLISH DOLBY DIGITAL

Front (L/R) + Center

Currently playing program format

3 / 2 .1

LRC

LFE

LS RS

Example:

Dolby Digital 3 ch

Surround

Front (L/R)

2:SPANISH DOLBY DIGITAL

(Monaural)

2 / 1

Currently playing program format

x When playing a DATA CD (DivX video) or DATA DVD (DivX video)

Example:

MP3 audio

1: MP3 128k

Bit rate

Selecting [ORIGINAL] or

Viewing Information About [PLAY LIST] on a DVD-R/ DVD-RW

Some DVD-Rs/DVD-RWs in VR (Video Recording) mode have two types of titles for playback: originally recorded titles ([ORIGINAL]) and titles that can be created on recordable DVD players for editing ([PLAY LIST]). You can select the type of title to be played.

1 Press DISPLAY when the system is

in stop mode.

The Control Menu appears.

2 Press X/x to select [ORIGINAL/

PLAY LIST], then press .

The options for [ORIGINAL/PLAY LIST] appear.

)

1 ( 4 4

(

2 8

1 : 3 0 : 5 0 PLAY LIST PLAY LIST ORIGINAL

)

DVD-VR

3 Press X/x to select a setting.

The default setting is underlined.

• [PLAY LIST] from [ORIGINAL] for editing.

• [ORIGINAL]: plays the titles originally recorded.

: plays the titles created

4 Press .

the Disc

Viewing the playing time and remaining time in the front panel display

You can check disc information, such as the remaining time, total number of titles in a DVD, tracks in a VIDEO CD, Super Audio CD, CD, or MP3, file name of a DivX video using the front panel display (page 104).

Press DISPLAY.

Each time you press DISPLAY while playing the disc, the display changes 1 t 2 t ... t 1 t ... Some displayed items may disappear after a few seconds.

When playing a DVD VIDEO or DVD-R/DVD-RW

1 Playing time and number of the current title 2 Remaining time of the current title 3 Playing time and number of the current

chapter

4 Remaining time of the current chapter 5 Disc name 6 Title and chapter

When playing a DATA CD (DivX video) or DATA DVD (DivX video)

1 Playing time of the current file 2 Current file name 3 Current album and file number

When playing a VIDEO CD (without PBC functions), Super Audio CD, or CD

1 Playing time of the current track 2 Remaining time of the current track 3 Playing time of the disc 4 Remaining time of the disc 5 Disc name 6 Track and index*

continued

Various Functions for Playing Discs

* VIDEO CD only.

When playing a DATA CD (MP3 audio) or DATA DVD (MP3 audio)

1 Playing time and current track number 2 Track (file) name

• When playing VIDEO CDs with PBC functions, the playing time is displayed.

Note

• The system can only display the first level of the DVD/CD text, such as the Disc name or title.

• If an MP3 file name cannot be displayed, “*” will appear in the front panel display instead.

• The disc name or track name may not be displayed depending on the text.

• Playing time of MP3 audio tracks and DivX video files may not be displayed correctly.

Checking the playing time and remaining time

You can check the playing time and remaining time of the current title, chapter, or track, and the total playing time or remaining time of the disc. You can also check the DVD text and MP3 folder name/file name recorded on the disc.

1 Press DISPLAY during playback.

The following display appears.

T 1:01:57

Time information

• C–**:**:** Remaining time of the current chapter

x When playing a VIDEO CD (with PBC functions)

•**:** Playing time of the current scene

x When playing a VIDEO CD (without PBC functions), Super Audio CD, or CD

•T **:** Playing time of the current track

• T–**:** Remaining time of the current track

•D **:** Playing time of the current disc

• D–**:** Remaining time of the current disc

x When playing a DATA CD (MP3 audio) or DATA DVD (MP3 audio)

•T **:** Playing time of the current track

x When playing a DATA CD (DivX video) or DATA DVD (DivX video)

•**:**:** Playing time of the current file

Note

• Only alphabetical letters and numbers can be displayed.

• Depending on the type of disc being played, the system can only display a limited number of characters. Also, depending on the disc, not all text characters will be displayed.

2 Press DISPLAY repeatedly to change

the time information.

The display and the kinds of time that you can check depend on the disc you are playing.

x When playing a DVD VIDEO or DVDRW

• T **:**:** Playing time of the current title

• T–**:**:** Remaining time of the current title

• C **:**:** Playing time of the current chapter

Checking the play information

of the disc

To check DVD/Super Audio CD/CD text

Press DISPLAY repeatedly in Step 2 to display text recorded on the DVD/Super Audio CD/CD. The DVD/Super Audio CD/CD text appears only when text is recorded in the disc. You cannot change the text. If the disc does not contain text, “NO TEXT” appears.

BRAHMS SYMPHONY

Checking the date information

(JPEG only)

You can check the date information during playback when the Exif* tag is recorded in the JPEG image data.

Press DISPLAY twice during playback.

The Control Menu appears.

)

1 ( 8

)

1 ( 2 0 01/ 01/ 2006

Date information

DATA CD

JPEG

Various Functions for Playing Discs

To check DATA CD/DATA DVD (MP3 audio/DivX video) text

By pressing DISPLAY while playing MP3 audio tracks or DivX video files on a DATA CD/DATA DVD, you can display the name of the album/track/file, and the audio bit rate (the amount of data per second of the current audio) on your TV screen.

Bit rate*

128k

17:30T

JAZZ RIVER SIDE

Album name Track/file name

* Appears when:

– playing an MP3 audio track on DATA CDs/DATA

DVDs.

– playing a DivX video file that contains MP3 audio

signals on DATA CDs/DATA DVDs.

* “Exchangeable Image File Format” is a digital

camera image format defined by the Japan Electronics and Information Technology Industries Association (JEITA).

• Date information is [YYYY/MM/DD]. YYYY: Year MM: Month DD: Day

• Date information differs depending on the area.

Changing the Angles Displaying the Subtitles

If various angles (multi-angles) for a scene are recorded on a DVD VIDEO, you can change the viewing angle.

Press ANGLE during playback.

Each time you press ANGLE, the angle changes.

Note

• Depending on the DVD VIDEO, you may not be able to change the angle even if multi-angles are recorded on the DVD VIDEO.

If subtitles are recorded on a disc, you can turn the subtitles on or off while playing. If multilingual subtitles are recorded on the disc, you can change the subtitle language while playing, or turn the subtitles on or off whenever you want.

Press SUBTITLE during playback.

Each time you press SUBTITLE, the subtitle language changes.

Note

• Depending on the DVD VIDEO, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off.

• You can change the subtitles if the DivX video file has an “.AVI” or “.DIVX” extension and contains subtitle information within the same file.

Adjusting the Delay

Selecting a Playback Area Between the Picture and Sound

(A/V SYNC)

When the sound does not match the pictures on the screen, you can adjust the delay between the picture and sound.

1 Press DISPLAY when the system is

in stop mode.

The Control Menu appears.

2 Press X/x to select [A/V SYNC],

then press .

The options for [A/V SYNC] appear.

)

1 ( 1 2

)

1 ( 2 8 T

OFF OFF ON

0 : 0 0 : 0 2

DVD VIDEO

3 Press X/x to select the setting you

want and press .

The default setting is underlined.

•[OFF

]: does not adjust.

• [ON]: adjusts the difference between picture and sound.

The selected setting takes effect.

Note

• Depending on the input stream, this function may not be effective.

• Depending on the sound field, this function may not be effective.

for a Super Audio CD

Selecting a playback area on a 2 channel + Multi-channel Super Audio CD

Some Super Audio CDs consist of a 2 channel playback area and a multi-channel playback area. You can select the playback area you want to listen to.

1 Press DISPLAY when the system is

in stop mode.

The Control Menu appears.

2 Press X/x to select [MULTI/

2CH], then press .

The options for [MULTI/2CH] appear.

3 Press X/x to select the setting you

want and press .

• [MULTI]: plays the multi-channel playback area.

• [2CH]: plays the 2 channel playback area. “MULTI” lights up in the front panel display when playing the multi-channel playback area.

Note

• You cannot change the playback area during playback.

Selecting a playback layer when playing a hybrid Super Audio CD

Some Super Audio CDs consist of an HD layer and a CD layer. You can select the playback layer you want to listen to.

Press SA-CD/CD when the system is in stop mode.

Each time you press the button, an HD layer or a CD layer is alternately selected. When playing a CD layer, “CD” lights up in the front panel display.

Various Functions for Playing Discs

continued

Note

• Each play mode function works only within the selected layer or playback area.

• When you select a CD layer, you cannot change a playback area.

• Super Audio CD audio signals are not output from the HDMI OUT (high-definition multimedia interface out) jack.

About MP3 Audio Tracks and JPEG Image Files

What is MP3/JPEG?

MP3 is audio compression technology that satisfies the ISO/MPEG regulations. JPEG is image compression technology.

Discs that the system can play

You can play back DATA CDs (CD-ROMs/CDRs/CD-RWs) or DATA DVDs (DVD-Rs/DVDRWs/DVD+Rs/DVD+RWs/DVD-ROMs) recorded in MP3 (MPEG1 Audio Layer 3) or JPEG format. However, the DATA CDs must be recorded according to ISO 9660 Level 1, Level 2 or Joliet format and DATA DVDs of Universal Disk Format (UDF) for the system to recognize the tracks (or files). You can also play discs recorded in Multi Session. See the instructions supplied with the CD-R/ CD-RW or DVD-R/DVD-RW drives and the recording software (not supplied) for details on the recording format.

About the Multi-Session disc

If MP3 audio tracks or JPEG image files are recorded in the first session, the system will also play MP3 audio tracks or JPEG image files in other sessions. If audio tracks and images in audio CD format or video CD format are recorded in the first session, only the first session will be played back.

Note

• The system may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format.

MP3 audio track or JPEG image file that the system can play

The system can play the MP3 audio tracks or JPEG image files:

• which have the extension “.MP3” (MP3 audio

track) or “.JPG”/“.JPEG” (JPEG image file)

• which conform to the DCF* image file format

* “Design rule for Camera File system”: Image

standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association (JEITA).

Note

• The system will play any data with the extension “.MP3,” “.JPG,” or “.JPEG” even if they are not in MP3 or JPEG format. Playing this data may generate a loud noise which could damage your speaker system.

• The system does not conform to audio in MP3PRO format.

Playback order of MP3 audio tracks or JPEG image files

The playback order of MP3 audio tracks or JPEG image files recorded on a DATA CD or DATA DVD is as follows:

x Structure of disc contents

Tree 1 Tree 2 Tree 3 Tree 4 Tree 5

ROOT

When you insert a DATA CD or DATA DVD, the numbered tracks (or files) are played sequentially, from 1 through 7. Any subalbums/tracks (or files) contained within a currently selected album take priority over the next album in the same tree. (Example: C contains D so 4 is played before 5.)

When you press MENU and the list of album names appears (page 56), the album names are arranged in the following order: A t B t C t D t F t G. Albums that do not contain tracks (or files) (such as album E) do not appear in the list.

• If you add numbe rs (01, 02, 03, etc.) to the front of the track (or file) names when you store the tracks (or files) in a disc, the tracks (or files) will be played in that order.

• A disc with many trees takes longer to start playback.

Note

• Playback order may differ from the illustration depending on the software you use to create the DATA CD or DATA DVD, or if there are more than 200 albums and 300 files in each album.

• The system can recognize up to 200 albums, and will not play any albums beyond the 200th.

• The system may take longer time to playback, when progressing to the following album or jump to other album.

• Some type of JPEG files cannot be played.

Various Functions for Playing Discs

Track (MP3 audio) or

Album

File (JPEG image)

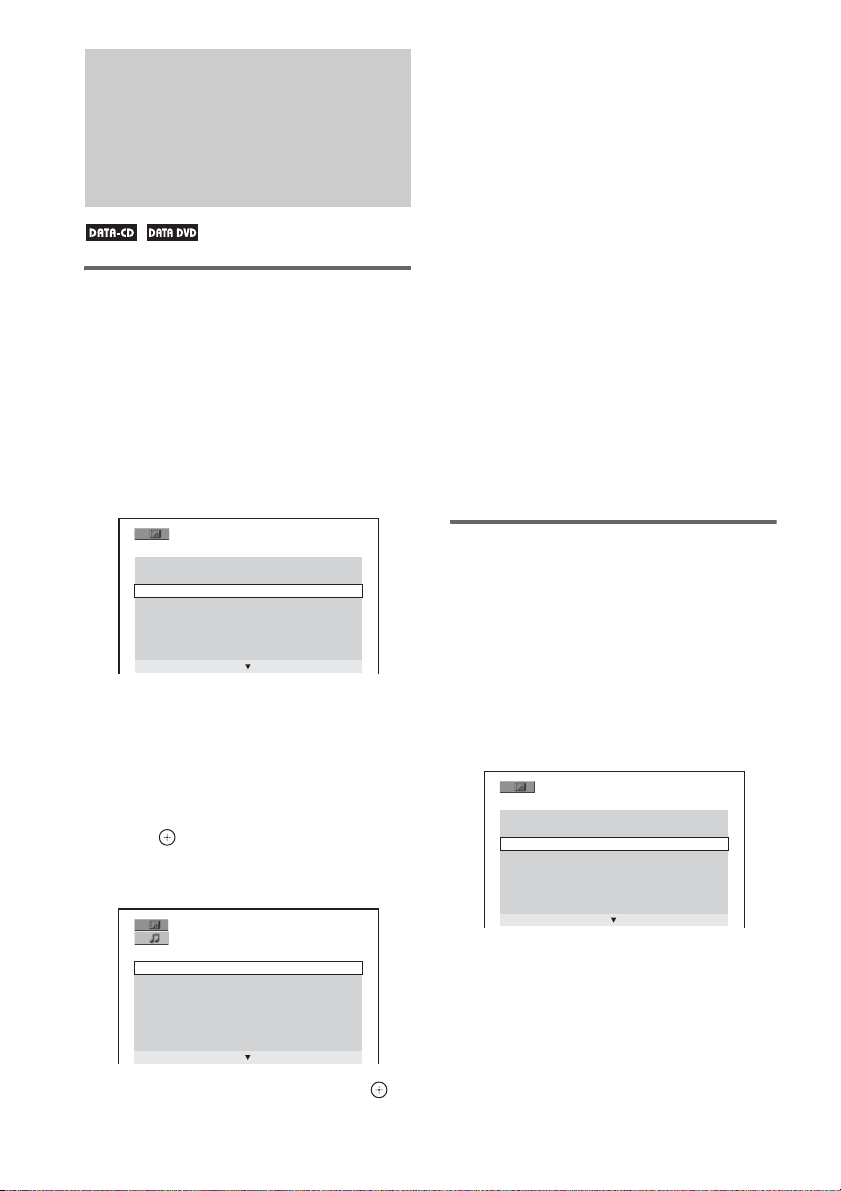

Playing DATA CDs or DATA DVDs with MP3 Audio Tracks and JPEG Image Files

Selecting an MP3 audio track or album

1 Load a DATA CD or DATA DVD.

The system starts playing from the first album.

2 Press MENU.

The albums recorded on the DATA CD or DATA DVD appear. When an album is being played, its title is shaded.

(

3 0

)

ROCK BEST HIT KARAOKE MY FAVOURITE SONG R&B JAZZ CLASSIC SALSA OF CUBA BOSSA NOVA

3 Press X/x to select an album.

x When selecting an album

Press H to start playing the selected album.

x When selecting a track

Press . The list of tracks contained in the album

appears.

M Y FAVOURITE SONG 1 ( 2 5 6

WALTZ FOR DEBBY MY ROMANCE MILES TONES MY FUNNY VALENTINE AUTUM LEAVES ALL BLUES SOMEDAY MY PRINCE W...

Press X/x to select a track and press .

The selected track starts playing. You can turn the track list off by pressing MENU. Pressing MENU again will display the album list.

To stop playback

Press x.

To play the next or previous MP3 audio track

Press ./>. Note that you can select the next album by continuing to press > after the last track on the current album, but that you cannot return to the previous album by pressing .. To return to the previous album, select the album from the album list.

To return to the previous display

Press O RETURN.

To turn off the display

Press MENU.

Selecting a JPEG image file or album

1 Load a DATA CD or DATA DVD.

The system starts playing from the first album.

2 Press MENU.

The albums recorded on the DATA CD or DATA DVD appear. When an album is being played, its title is shaded.

(

3 0

)

ROCK BEST HIT KARAOKE MY FAVOURITE SONG R&B JAZZ CLASSIC SALSA OF CUBA BOSSA NOVA

3 Press X/x to select an album.

x When selecting an album

Press H to start playing the selected album.

x When selecting an image

Press PICTURE NAVI.

Images of files in the album appear in 16

subscreens.

1234

5678

9101112

13 14 15 16

Press C/X/x/c to select the image you want to view and press .

To play the next or previous JPEG image file

Press C/c when the Control Menu is not displayed. Note that you can select the next album by continuing to press c after the last image on the current album, but that you cannot return to the previous album by pressing C. To return to the previous album, select the album from the album list.

To rotate a JPEG image

When a JPEG image file is displayed on the screen, you can rotate the image by 90 degrees. Press X/x while viewing an image. Each time you press X, the image rotates counterclockwise by 90 degrees. Example of when you press X once:

Rotating direction

Press CLEAR to return to normal view.

To stop playback

Press x.

• A scroll box is displayed at the right side of the screen. To display the additional image files, select the bottom image and press x. To return to the previous image, select the top image and press X.

Various Functions for Playing Discs

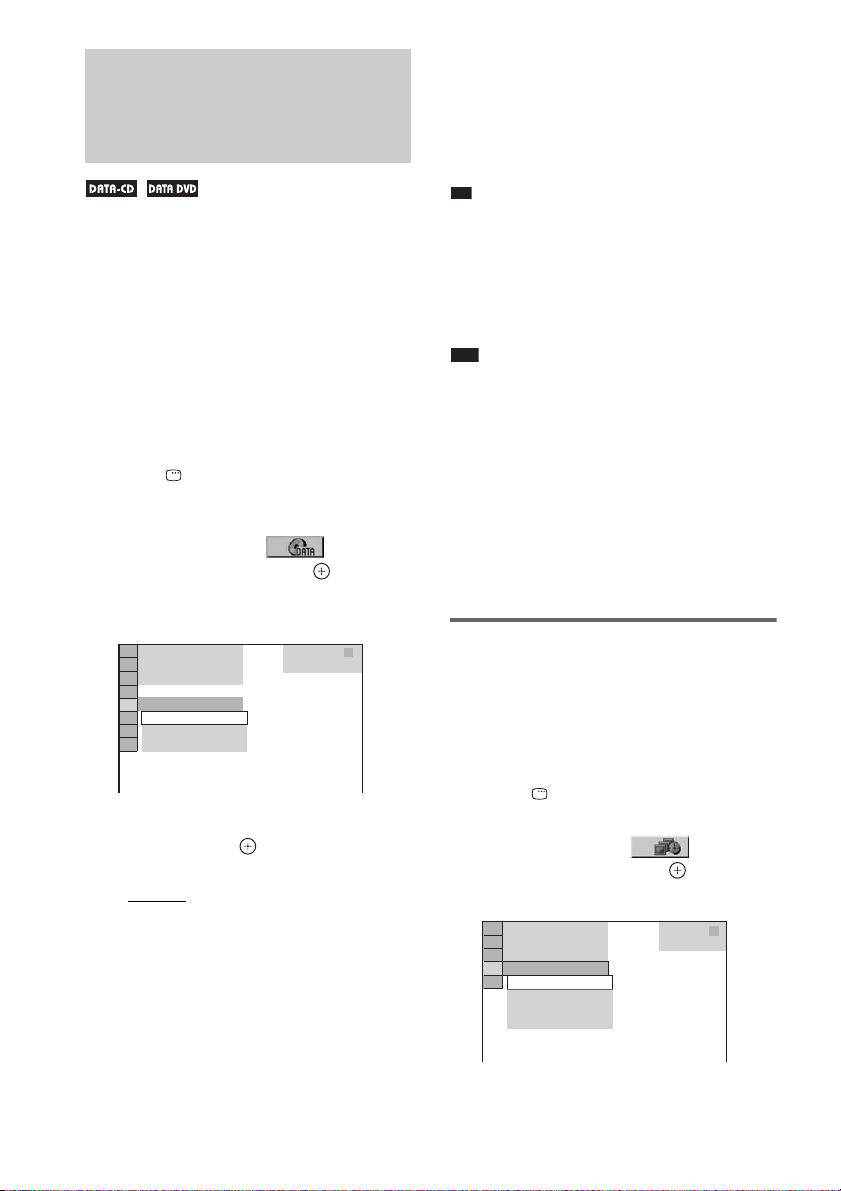

Playing Audio Tracks and Images as a Slide Show with Sound

You can play a slide show with sound by first placing both MP3 and JPEG files in the same album on a DATA CD or DATA DVD. When you play back the DATA CD or DATA DVD, select [AUTO] mode as explained below.

1 Load a DATA CD or DATA DVD.

The system starts playing from the first album.

2 Press x.

The system stops playback.

3 Press DISPLAY when the system is

in stop mode.

The Control Menu appears.

4 Press X/x to select [MODE

(MP3, JPEG)], then press .

The options for [MODE (MP3, JPEG)] appear.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

AUTO

AUTO AUDIO (MP3) IMAGE (JPEG)

DATA CD

MP3

5 Press X/x to select the setting you

want and press .

The default setting is underlined.

•[AUTO]

: plays both the JPEG image files and MP3 audio tracks in the same album as a slide show.

• [AUDIO (MP3)]: plays only MP3 audio tracks continuously.

• [IMAGE (JPEG)]: plays only JPEG image files as a slide show.

6 Press MENU.

The list of albums recorded on the DATA CD or DATA DVD appears.

7 Press X/x to select the album you want

and press H.

The system starts playing the selected album. You can turn the album list on and off by pressing MENU repeatedly.

• When you select [AUTO], the system can recognize up to 300 MP3 tracks and 300 JPEG files in a single album. When you select [AUDIO (MP3)] or [IMAGE (JPEG)], the system can recogniz e up to 600 MP3 and 600 JPEG files in a single album. A maximum of 200 albums can be recognized regardless of the selected mode.

Note

• If you set [MODE (MP3, JPEG)] to [IMAGE (JPEG)] on a disc that contains MP3 tracks only or [AUDIO (MP3)] on a disc that contains JPEG files only, you may not be able to change the [MODE (MP3, JPEG)] setting.

• PICTURE NAVI does not work when [AUDIO (MP3)] is selected.

• If you play large MP3 track data and JPEG image data at the same time, the sound may skip. It is recommended that you set the MP3 bit rate to 128 kbps or lower when creating the file. If the sound still skips, then reduce the size of the JPEG file.

Specifying the slide show duration

(JPEG only)

When you play JPEG image files using slide show, you can specify the duration for slides to appear on the screen.

1 Press DISPLAY twice.

The Control Menu for JPEG appears.

2 Press X/x to select

[INTERVAL], then press .

The options for [INTERVAL] appear.

12)

3 (

1( 10 / 29 / 2 004 NORMAL

NORMAL

FAST

SLOW1 SLOW2

DATA CD

JPEG

3 Press X/x to select the setting you

want.

The default setting is underlined.

• [NORMAL]

: sets the duration to about 6 to 9 seconds. (Images that are four million pixels or more will lengthen the duration.)

• [FAST]: sets the duration shorter than [NORMAL].

• [SLOW1]: Sets the duration longer than [NORMAL].

• [SLOW2]: Sets the duration longer than [SLOW1].

4 Press .

The selected setting takes effect.

Note

• Some JPEG files may take longer to display than others, which may make the duration seems longer than the option you selected. Especially progressive JPEG files or JPEG files of 3,000,000 pixels or more.

Selecting an effect for image files in the slide show

(JPEG only)

When you play a JPEG image file, you can select the effect to be used when viewing the slide show.

1 Press DISPLAY twice.

The Control Menu for JPEG appears.

2 Press X/x to select [EFFECT],

then press .

The options for [EFFECT] appear.

• [MODE2]: The image stretches out from left to right of the screen.

• [MODE3]: The image stretches out from the center of the screen.

• [MODE4]: The images randomly cycle through the effects.

• [MODE5]: The next image slides over the previous image.

• [OFF]: Turns off this function.

4 Press .

The selected setting takes effect.

Various Functions for Playing Discs

12)

3 (

1 0 / 2 3 / 2 0 0 4

MODE1

MODE1 MODE2 MODE3 MODE4 MODE5 OFF

DATA CD

JPEG

3 Press X/x to select the setting you

want.

The default setting is underlined.

• [MODE1] to bottom.

: The image sweeps in from top

Enjoying DivX® Videos

About DivX Video Files

DivX® is a video file compression technology, developed by DivX, Inc. This product is an official DivX You can play DATA CDs and DATA DVDs that contain DivX

DATA CDs and DATA DVDs that the system can play

Playback of DATA CDs (CD-ROMs/CD-Rs/ CD-RWs) and DATA DVDs (DVD-ROMs/ DVD-Rs/DVD-RWs/DVD+Rs/DVD+RWs) on this system is subject to certain conditions:

– With DATA CDs/DATA DVDs that contain

DivX video files in addition to MP3 audio tracks or JPEG image files, the system plays

only the DivX video files. However, this system only plays DATA CDs whose logical format is ISO 9660 Level 1/Level 2 or Joliet, and DATA DVDs of Universal Disk Format (UDF). Refer to the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format.

About playback order of data on DATA CDs or DATA DVDs

See “Playback order of MP3 audio tracks or JPEG image files” (page 55). Note that the playback order may not be applicable, depending on the software used for creating the DivX video file, or if there are more than 200 albums and 600 DivX video files in each album.

Note

• The system may not be able to play some DATA

CDs/DATA DVDs created in the Packet Write format.

DivX video files that the system can play

The system can play data that is recorded in DivX format, and which has the extension “.AVI,” or “.DIVX.” The system will not play

Certified product.

video files.

files with the extension “.AVI” or “.DIVX” if they do not contain a DivX video.

• For details about playable MP3 audio tracks or JPEG image files on DATA CDs or DATA DVDs, see “Discs that the system can play” (page 54).

Note

• The system may not play a DivX video file when the file has been combined from two or more DivX video files.

• The system cannot play a DivX video file of size more than 720 (width) × 576 (height) or 2GB.

• Depending on the DivX video file, sound may skip or not match the pictures on the screen.

• The system cannot play some DivX video files that are longer than 3 hours.

• Depending on the DivX video file, the picture may pause or be unclear. In which case, it is recommended that you create the file at a lower bit rate. If the sound is still noisy, MP3 is the recommended audio format. Note, however, this system does not conform to WMA (Windows Media Audio) format.

• Because of the compression technology used for DivX video files, it may take some time after you press H for the picture to appear.

Selecting an album

1 Press MENU.

A list of albums on the disc appears. Only albums that contain DivX video files are listed.

( 3 )

SUMMER 2003 NEW YEAR'S DAY MY FAVOURITES

2 Press X/x to select the album you want

to play.

3 Press H.

The system starts playing the selected album.

To select DivX video files, see “Selecting a DivX video file” (page 61).

To go to the next or previous

page

Press C/c.

To turn off the display

Press MENU repeatedly.

To stop playback

Press x.

Selecting a DivX video file

1 After Step 2 of “Selecting an album,”

press .

The list of files in the album appears.

• If the number of viewing times is preset, you can play the DivX video files as many times as the preset number. The following occurrences are counted:

– when the system is turned off.

– when another file is played.

Various Functions for Playing Discs

M Y FAVOURITES 1 ( 2

HAWAII 2004 VENUS

)

2 Press X/x to select a file and press .

The selected file starts playing.

To go to the next or previous page

Press C/c.

To return to the previous display

Press O RETURN.

To stop playback

Press x.

To play the next or previous DivX video file without turning on the above file list

You can select the next or previous DivX video file in the same album by pressing ./>. You can also select the first file of the next album by pressing > during playback of the last file of the current album. Note that you cannot return to the previous album by pressing .. To return to the previous album, select it from the album list.

Playing VIDEO CDs with PBC Functions (Ver.2.0)

(PBC Playback)

With PBC (Playback Control) functions, you can enjoy simple interactive operations, search functions, and other such operations. PBC playback allows you to play VIDEO CDs interactively by following the menu on the TV screen.

1 Start playing a VIDEO CD with PBC

functions.

The menu for your selection appears.

2 Select the item number you want by the

number buttons.

3 Press . 4 Follow the instructions in the menu for

interactive operations.

Refer to the operation details supplied with the disc, as the operating procedure may differ depending on the VIDEO CD.

To go back to the menu

Press O RETURN.

Note

• Depending on the VIDEO CD, [Press ENTER] in Step 3 may appear as [Press SELECT] in the instructions supplied with the disc. In this case, press H.

• To play without using PBC, press ./> or the number buttons while the system is stopped to select a track, then press H or . The system starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice, then press H.

Tuner Functions

Presetting Radio Stations

You can preset 20 FM stations, and 10 AM stations. Before tuning, make sure to turn down the volume to minimum.

1 Press FUNCTION +/– repeatedly until

“TUNER FM” or “TUNER AM” appears in the front panel display.

2 Press and hold TUNING + or – until the

auto scanning starts.

Scanning stops when the system tunes in a station. “TUNED” and “ST” (for stereo program) appear in the front panel display.

3 Press MENU. 4 Press X/x repeatedly until “Memory?”

appears in the front panel display.

5 Press .

A preset number appears in the front panel display.

To change the AM tuning interval (except for Russian and Middle Eastern models)

The AM tuning interval can be set to either 10 kHz or 9 kHz. To change the AM tuning interval, first tune in any AM station, then turn off the system by pressing "/1 on the system. While holding down > (on the system), press "/1 on the system to turn on the power. If you change the interval, AM preset stations will be erased. To reset the interval, repeat the same procedure.

Tuner Functions

6 Press X/x to select the preset number

you want.

7 Press .

The station is stored.

8 Repeat 1 to 7 to store other stations.

To change the preset number

Restart from Step 1.

Listening to the Radio

Preset radio stations in the system’s memory first (see “Presetting Radio Stations” (page 63)).

1 Press FUNCTION +/– repeatedly until

“TUNER FM” or “TUNER AM” appears in the front panel display.

The last received station is tuned in.

2 Press PRESET + or – repeatedly to

select the preset station you want.

Each time you press the button, the system tunes in one preset station.

3 Adjust the volume by pressing

VOLUME +/–.

To turn off the radio

Press "/1.

To listen to non-preset radio stations

Use manual or automatic tuning in Step 2. For manual tuning, press TUNING + or – repeatedly. For automatic tuning, press and hold TUNING + or –. The automatic tuning stops automatically when the system receives the radio station. To stop the automatic tuning manually, press TUNING + or –.

To listen to radio stations when you know the frequencies

Use direct tuning in Step 2.

1 Press D.TUNING. 2 Press the number buttons to select the

frequency number you want to listen to.

3 Press .

• If an FM program is noisy, press MENU, and select “FM Mode?” by pressing X/x, then press . Press X/x to select “MONO,” then press . There will be no stereo effect, but the reception will improve. To restore the stereo effect, select “STEREO.”

• To improve reception, reorient the supplied antennas (aerials).

Naming preset stations

You can enter a name for preset stations. These names (for example, “XYZ”) appear in the system’s front panel display when a station is selected. Note that no more than one name can be entered for each preset station.

1 Press FUNCTION +/– repeatedly until

“TUNER FM” or “TUNER AM” appears in the front panel display.

The last received station is tuned in.

2 Press PRESET + or – repeatedly to

select the preset station you want to create an index name for.

3 Press MENU. 4 Press X/x repeatedly until “Name In?”

appears in the front panel display.

5 Press . 6 Create a name by using the cursor

buttons.

Press X/x to select a character, then press c to move the cursor to the next position.

Letters, numbers, and other symbols can be input for a radio station name.

If you make a mistake

Press C/c repeatedly until the character to be changed flashes, then press X/x to select the desired character.

To erase the character, press C/c repeatedly until the character to be erased flashes, then press CLEAR.

7 Press .

“Complete!” appears in the front panel display, and the station name is stored.

• You can check the frequency by pressing DISPLAY repeatedly (page 65).

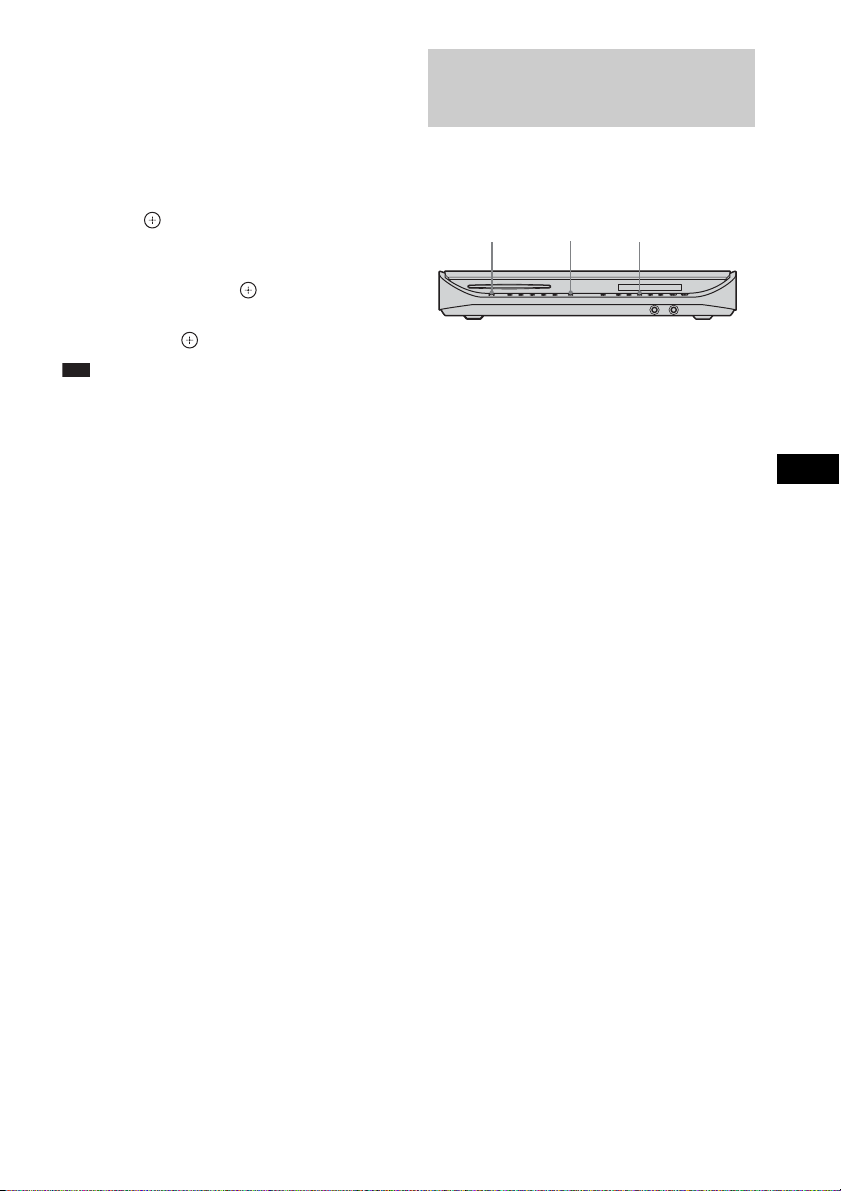

Viewing the station name or frequency in the front panel display

When the system is set to “TUNER AM” or “TUNER FM,” you can check the frequency using the front panel display.

Press DISPLAY.

Each time you press DISPLAY, the display changes as shown.

1 Station name* 2 Frequency**

* This is displayed if you have entered a name for a

preset station.

** Returns to the original display when s everal seconds

has elapsed.

Tuner Functions

Other Operations

Controlling the TV with the Supplied Remote

By adjusting the remote signal, you can control your TV with the supplied remote.

Note

• When you replace the batteries of the remote, the code number may reset itself to the default (SONY) setting. Reset the appropriate code number.

Controlling TVs with the remote

Press and hold TV [/1 while entering your TV’s manufacturer’s code (see the table) using the number buttons. Then release TV [/1.

If you set successfully the manufacturer’s code, the TV button flashes twice slowly. If the setting is unsuccessful, the TV button flashes 5 times quickly.

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer Code number

SONY/AIWA 501 (default)

DAEWOO 503, 506, 515, 544

FISHER 508, 545

GOLDSTAR/LG 503, 515, 517, 544, 568

GRUNDIG 533

HITACHI 503, 514, 515, 517, 544, 557

ITT/NOKIA 521, 522

JVC 516

LOEWE 515

MAGNAVOX 503, 515, 517, 518, 544, 566

MITSUBISHI/MGA 503, 527, 544, 566, 568

PANASONIC 509, 553, 572

PHILIPS 518, 557, 558

PIONEER 509, 525, 551

Manufacturer Code number

RCA/PROSCAN 503, 510, 544

SAMSUNG 515, 517, 544, 557, 566, 569,

SANYO 508, 545, 567

SHARP 517, 535, 565

TELEFUNKEN/ SABA

THOMSON 530, 537, 547, 549

TOSHIBA 535, 541, 551

ZENITH 543, 567

574

530, 537, 547, 549, 558

CATV

Manufacturer Code number

SONY 821, 824, 825

HAMLIN/REGAL 836, 837, 838, 839, 840

JERROLD 830, 831

JERROLD/GI 806, 807, 808, 809, 810, 811,

OAK 841, 842, 843

PANASONIC 816, 826, 832, 833, 834, 835

PIONEER 828, 829

SCIENTIFIC ATLANTA

TOCOM/PHILIPS 830, 831

ZENITH 826, 827

812, 813, 814

815, 816, 817, 844

To control the TV

You can control the TV by using following buttons.

By pressing You can

TV [/1 Turn the TV on or off.

TV/VIDEO Switch the TV’s input source

TV VOL +/–* Adjust the TV volume.

TV CH +/–* Select the TV channel.

Number buttons* Select the TV channel.

* To use these buttons while in the TV mode (the TV

button flashes), press the TV button.

between the TV and other input sources.

- is for selecting a channel number greater than

10. (For example, for channel 25, press -, then 2 and 5.)

Note

• Depending on the TV, you may not be able to control your TV or to use some of the buttons above.

• The TV mode turns off when you do not operate the remote for 10 seconds.

Using the THEATRE SYNC Function

THEATRE SYNC allows you to turn on your SONY TV and this system, changes the system mode to “DVD,” and then switches the TV’s input source you set with one button push.

Preparing for the THEATRE SYNC function

Press and hold TV/VIDEO while entering the code for the TV’s input source connected to this system (see the table) using the number buttons.

The TV’s input source is selected. If you successfully set the TV’s input source code, the TV button flashes twice slowly. If the setting is unsuccessful, the TV button flashes 5 times quickly. Set your TV’s input to the input you used to connect the system. For details, see the instructions of your TV.

By pressing Number TV’s input source

TV/VIDEO 0 No input source

1VIDEO1

2VIDEO2

3VIDEO3

4VIDEO4

5VIDEO5

6VIDEO6

7VIDEO7

8VIDEO8

9* COMPONENT 1

CLEAR* COMPONENT 2

PICTURE NAVI*

AUDIO* COMPONENT 4

SUBTITLE* HDMI 1

ANGLE* HDMI 2

SOUND FIELD*

(Default)

COMPONENT 3

HDMI 3

continued

Other Operations

By pressing Number TV’s input source

MOVIE/ MUSIC*

DYNAMIC BASS*

* Except for North American models.

HDMI 4

HDMI 5

Operating for the THEATRE SYNC function

Point the remote to the direction of TV and this system, then press THEATRE SYNC once.

While transmitting the code from the remote, the TV button flashes. If this function does not work, change the transmit time. The transmit time varies depending on the TV.

To change the transmit time

Press and hold TV CH +* while entering the code for transmit time (see the table) using the number buttons.

The transmit time from the remote is selected. If you successfully set the transmit time code, the TV button flashes twice slowly. If the setting is unsuccessful, the TV button flashes 5 times quickly.

* Functions as both TV CH + and FUNCTION +

button.

By pressing Number Transmit time

TV CH + 1 0.5 (Default)

31.5

52.5

73.5

Note

• This function is only for SONY TVs. (This function may not work on some SONY TVs.)

• If distance between TV and this system is too far, this function may not work. Install the system near the TV.

• Keep the remote pointed in the direction of the TV and this system while the TV button is flashing.

• Keep the remote pointed in the direction of the TV and this system while entering the code.

Enjoying Karaoke

You can enjoy karaoke (singing along with a disc) by setting the system to karaoke mode. You can connect two microphones (not supplied) to the system. Karaoke mode allows you to play any source using only the front left and right speakers and subwoofer.

* Only Russian models, supplied with one

microphone.

Setting the system to karaoke mode

1 Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel display.

2 Plug a microphone into the AUDIO IN/

MIC1 or MIC 2 jack.

AUDIO IN / MIC 1 /

A.CAL MIC MIC 2

The system enters karaoke mode. “ ” lights up in the front panel display.

You can also turn the karaoke mode on by pressing KARAOKE MODE.

3 Start playing the music.

Microphone sound is output with DVD function.

To cancel karaoke mode

Disconnect the microphones or press KARAOKE MODE again.

Note

• Microphone sound may drop when changing discs.

• Before connecting, press MIC VOL – to set the microphone volume to minimum.

• You cannot change the sound field during karaoke mode.

• In karaoke mode, the overall volume may drop.

• When you play the Super Audio CD layer of the Super Audio CD (page 100), the karaoke mode set to off automatically.

• If you set [TEST TONE] to [ON] (page 88) during the karaoke mode, the karaoke mode is set to off automatically.

• Microphone sound is not output when:

– the microphone is not connected to the system

properly.

– the microphone volume is set to minimum.

• The karaoke play is performed with the audio channel you selected using AUDIO (page 47).

Adjusting the microphone

You can adjust the microphone volume and level of the echo effect.

To adjust the microphone volume

Press MIC VOL +/– to adjust the microphone volume.

To add the echo effect

Press ECHO.

Each time you press ECHO, the echo level changes as follows:

Dolby Digital Karaoke format

(DVD only)

Dolby Digital format, which reproduces surround sound using 5 channels, can also contain the “Dolby Digital Karaoke” format which is specialized for karaoke. In the Dolby Digital Karaoke format discs, guide melody and guide vocal tracks are recorded in addition to the accompaniment. You can select them when the system is in karaoke mode.

Speaker output in normal Dolby Digital format (5 channel surround)

Front speaker (L)

Surround speaker (L)

Center

speaker

Speaker output in Dolby Digital Karaoke format

Accompaniment (L)

Front speaker (R)

Surround speaker (R)

Accompaniment (R)

Other Operations

ECHO OFF t ECHO 1

ECHO 3 T ECHO2

To cancel the echo effect, select “ECHO OFF.”

Note

• If howling occurs:

– move the microphone away from the speakers.

– lower the microphone volume or echo level.

– lower the overall volume.

Guide melody

Guide vocal 1

You can select any of these. These are output from the front speakers (L, R).

Guide vocal 2

You can check the audio information using AUDIO

(page 47).

continued

Example:

1:ENGLISH DOLBY DIGITAL

2/0: Recorded only with

accompaniment.

3/0: Recorded with guide

melody.

3/1: Recorded with guide melody

and guide vocal.

3/2: Recorded with guide melody

and two kinds of guide vocals.

3 / 2

Changing the key (Key Control)

You can change the key to suit your vocal range.

Press KEYCON # or 2 to suit your vocal range in karaoke mode.

You can adjust the key higher or lower in 13 steps (

Note

• Depending on the discs, you may not be able to

• The key automatically returns to the original key

• You can change the key using [KEY CONTROL] in

26 – #6).

change the key.

when:

– you turn off the power.

– you change the function.

– you stop playback.

– the title or track changes.

– you change the album.

– the play item is changed during PBC playback.

– you perform Scan Play.

– you cancel karaoke mode.

the Control Menu display (page 106).

Playing karaoke with any stereo disc (Karaoke Pon)

You can enjoy karaoke with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the sound of the vocals.

Press KARAOKE PON in karaoke mode.

To cancel Karaoke Pon mode

Press KARAOKE PON again.

Note

• This function may not work well in the following cases:

– Only a few instruments are playing

– A duet is playing

– The vocals on the disc deviate from the center

– Monaural-recorded discs (the accompaniment is

also reduced)

– Multiplex

• During Karaoke Pon mode, the stereo effect is reduced.

• Karaoke Pon mode is automatically canceled when:

– you turn off the power.

– you change the function.

– AUDIO stream is changed.

– you set [VOCAL] to [ON].

– you cancel karaoke mode.

• You can turn Karaoke Pon mode on and off by using [KARAOKE PON] in the Control Menu display (page 106).

Turning the vocals on and off (Vocal)

(DVD VIDEO, VIDEO CD, CD only)

When playing a DVD with the Dolby Digital Karaoke format in karaoke mode, you can turn on or off the guide vocal recorded in the karaoke track. When playing a VIDEO CD/CD in karaoke mode, you can listen to the vocals.

1 Press DISPLAY twice in karaoke

mode.

The Control Menu for karaoke mode appears.

2 Press X/x repeatedly to select

[VOCAL], then press .

The options for [VOCAL] appear.

3 Press X/x repeatedly to select [ON],

then press .

x When playing a DVD VIDEO

You can listen to the guide vocal recorded in the Dolby Digital karaoke format track.

x When playing a VIDEO CD/CD

You can listen to the vocals.

To cancel the Vocal function

Select [OFF] in step 3.

Note

• The Vocal function works only with the Dolby Digital Karaoke format.

• If the guide vocal is not recorded on the disc, you cannot use the Vocal function.

• When you turn the Vocal function on and off while playing a Super VCD, the sound may cut off for a moment.

• The Vocal function is canceled when:

– you turn off the power.

– you change the function.

– AUDIO stream is changed.

– you turn Karaoke Pon mode on.

– you cancel karaoke mode.

Note

• When playing a DVD VIDEO, the function works

• Depending on the discs, you may not be able to

• The channel returns to the default setting when:

• When playing a DVD VIDEO recorded o nly with one

Selecting the vocals (Vocal Select)

(DVD VIDEO, VIDEO CD, CD only)

After you set [VOCAL] to [ON], you can change the guide vocal channel. You can select different kinds of vocals when using the Vocal function.

1 Press DISPLAY twice in karaoke

mode.

The Control Menu for karaoke mode appears.

2 Press X/x repeatedly to select

[VOCAL SELECT], then press .

The options for [VOCAL SELECT] appear.

3 Press X/x repeatedly to select the

desired vocal channel, then press .

The output channel changes as follows. The default settings are underlined.

x When playing a DVD VIDEO

•[1+2]: Guide vocal 1+2

• [1]: Guide vocal 1

• [2]: Guide vocal 2

x When playing a VIDEO CD/CD

•[L+R]: Same sound is output from both speakers.

• [STEREO]: The standard stereo sound

x When playing a Super VCD

•[1:L+R]

• [1:STEREO]: The stereo sound of the audio track 1

•[2:L+R]

• [2:STEREO]: The stereo sound of the audio track 2

only with the Dolby Digital Karaoke format.

change the guide vocal channel.

– you turn off the power.

– you change the functions.

– AUDIO stream is changed.

– you cancel karaoke mode.

kind of guide vocal, select [1].

Other Operations

Using the Sound Effect Using the Sleep Timer

Reinforcing bass frequencies

You can reinforce bass frequencies.

Press DYNAMIC BASS.

Bass frequencies are effectively reinforced.

To turn off the sound effect

Press DYNAMIC BASS again.

You can set the system to turn off at a preset time, so you can fall asleep listening to music. You can preset the time in 10 minutes decrements.

Press SLEEP.

Each time you press this button, the minutes display (the remaining time) changes as follows:

SLEEP 90M t SLEEP 80M t SLEEP 70M

SLEEP OFF T SLEEP 10M ..... SLEEP 60M

To check the remaining time

Press SLEEP once.

To change the remaining time

Press SLEEP repeatedly to select the desired time.

To cancel the Sleep Timer function

Press SLEEP repeatedly until “SLEEP OFF” appears in the front panel display.

Changing the Brightness of the Front Panel Display

The brightness of the front panel display can be set to either of 2 levels.

1 Press AMP MENU. 2 Press X/x repeatedly until “DIMMER”

appears in the front panel display, then press or c.

3 Press X/x to select the brightness of

the front panel display.

• DIMMER ON: The front panel display becomes dark.

• DIMMER OFF: Bright.

4 Press .

The setting is reflected.

5 Press AMP MENU.

The AMP menu turns off.

Other Operations

Advanced Settings and Adjustments

Locking Discs

(CUSTOM PARENTAL CONTROL, PARENTAL CONTROL)

You can set 2 kinds of playback restrictions for the desired disc.

• Custom Parental Control You can set playback restrictions so that the system will not play inappropriate discs.

• Parental Control Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. Scenes may be blocked or replaced with different scenes.

The same password is used for both Custom Parental Control and Parental Control.

Preventing playback of specific discs [CUSTOM PARENTAL CONTROL]

You can set the same Custom Parental Control password for up to 40 discs. When you set the 41st-disc, the first disc is canceled.

1 Insert the disc you want to lock.

If the disc is playing, press x to stop playback.

2 Press DISPLAY while the system is

in stop mode.

The Control Menu appears.

3 Press X/x to select

[PARENTAL CONTROL], then press

The options for [PARENTAL CONTROL] appear.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF ON PLAYER PASSWORD

DVD VIDEO

4 Press X/x to select [ON t], then press

x If you have not entered a password

The display for registering a new password appears.

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press

Enter a 4-digit password using the number buttons, then press .

The display for confirming the password appears.

x When you have already registered a password

The display for entering the password appears.

PARENTAL CONTROL

Enter password, then press

ENTER

5 Enter or re-enter your 4-digit password

using the number buttons, then press

[Custom parental control is set.] appears and the screen returns to the Control Menu.

To turn off the Custom Parental Control function

1 Follow steps 1 through 3 of “Preventing

playback of specific discs [CUSTOM PARENTAL CONTROL].”

2 Press X/x to select [OFF t], then press

3 Enter your 4-digit password using the

number buttons, then press .

To play a disc for which Custom

Parental Control is set

1 Insert the disc for which Custom Parental

Control is set.

The [CUSTOM PARENTAL CONTROL] display appears.

)

1 2 ( 2 7

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF ON PLAYER PASSWORD

DVD VIDEO

CUSTOM PARENTAL CONTROL

Custom parental control is already set. To play, enter your password

ENTER

and press

2 Enter your 4-digit password using the

number buttons, then press .

The system is ready for playback.

• If you forget your password, enter the 6-digit number “199703” using the number buttons when the [CUSTOM PARENTAL CONTROL] display asks you for your password, then press . The display will ask you to enter a new 4-digit password.

Limiting playback for children [PARENTAL CONTROL]

(DVD only)

Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. The [PARENTAL CONTROL] function allows you to set a playback limitation level.

1 Press DISPLAY while the system is

in stop mode.

The Control Menu appears.

2 Press X/x to select

[PARENTAL CONTROL], then press

The options for [PARENTAL CONTROL] appear.

3 Press X/x to select [PLAYER t], then

press .

x If you have not entered a password

The display for registering a new password appears.

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press

Enter a 4-digit password using the number buttons, then press .

The display for confirming the password appears.

x When you have already registered a password

The display for entering the password appears.

PARENTAL CONTROL

Enter password, then press

ENTER

4 Enter or re-enter your 4-digit password

using the number buttons, then press

The display for setting the playback limitation level appears.

Advanced Settings and Adjustments

continued

PARENTAL CONTROL

LEVEL: OFF STANDARD:

USA

PARENTAL CONTROL

LEVEL: STANDARD: USA

4: PG13

5 Press X/x to select [STANDARD], then

press .

The selection items for [STANDARD] are displayed.

PARENTAL CONTROL

LEVEL: STANDARD:

OFF USA USA

OTHERS

6 Press X/x to select a geographic area

as the playback limitation level, then press .

The area is selected. When you select [OTHERS t], select and

enter a standard code in the table of “Parental Control Area Code List” (page 102) using the number buttons.

7 Press X/x to select [LEVEL], then press

The selection items for [LEVEL] are displayed.

PARENTAL CONTROL

LEVEL: OFF STANDARD:

OFF

NC17

6: 5:

8 Press X/x to select the level you want,

then press .

Parental Control setting is complete.

The lower the value, the stricter the limitation.

To turn off the Parental Control function

Set [LEVEL] to [OFF] in Step 8.

To play a disc for which Parental Control is set

1 Insert the disc and press H.

The display for entering your password appears.

2 Enter your 4-digit password using the

number buttons, then press .

The system starts playback.

• If you forget your password, remove the disc and repeat steps 1 to 3 of “Preventing playback of specific discs [CUSTOM PARENTAL CONTROL].” When you are asked to enter your password, enter “199703” using the number buttons, then press . The display will ask you to enter a new 4-digit password. After you enter a new 4-digit password, replace the disc in the system and press H. When the display for entering your password appears, enter your new password.

Note

• When you play discs which do not have the Parental Control function, playback cannot be limited on this system.

• Depending on the disc, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is canceled, the level returns to the previous level.

Changing the password

1 Press DISPLAY while the system is

in stop mode.

The Control Menu appears.

2 Press X/x to select

[PARENTAL CONTROL], then press

The options for [PARENTAL CONTROL] appear.

3 Press X/x to select [PASSWORD t],

then press .

The display for entering the password appears.

4 Enter your 4-digit password using the

number buttons, then press .

5 Enter a new 4-digit password using the

number buttons, then press .

6 To confirm your password, re-enter it

using the number buttons, then press

If you make a mistake entering your password

Press C before you press and input the correct number.

Getting Optimal Surround Sound for a Room

(SPEAKER FORMATION)

Depending on the shape of the room, there will be some speakers you cannot install. For the better surround sound, it is recommended that first you decide the position of the speakers.

1 Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel display.

2 Press DISPLAY when the system is

in stop mode.

The Control Menu appears.

3 Press X/x to select [SPEAKER

FORMATION], then press .

)

1 ( 4 4

)

3 ( 2 8 T

0 : 0 3 : 0 4 SPEAKER FORMATION SPEAKER FORMATION AUTO CALIBRATION

DVD VIDEO

4 Press X/x to select [SPEAKER

FORMATION], then press .

The options for [SPEAKER FORMATION] appear.

Advanced Settings and Adjustments

SPEAKER FORMATION

STANDARD(WIRELESS)

5 Press C/c to select a setting.

• [STANDARD (WIRELESS)]: when installing the front and center speakers, connecting the system with the speaker

continued

cords and surround speakers using the wireless system.

• [NO CENTER]: when installing the front and surround speakers.

• [NO SURROUND]: when installing the center and front speakers.

• [ALL FRONT]: when installing all the speakers in front of the listening position.

• [ALL FRONT - NO CENTER]: when installing the front and surround speakers in front of the listening position.

• [SECOND ROOM]: when installing the front speakers in one room and surround speakers in another. Connect the surround speakers to the system.

• [FRONT ONLY]: when installing the front speakers.

You can also install the speakers as below. Connect the speakers* (impedance 3.0 ohms - not supplied) by the supplied speaker cords (OPTION, 15 m/50 ft. × 2) to the system.

Note

• Speaker sound in the other room is the same as that of the front and surround speakers.

• [STANDARD (WIRED)]: when

installing all the speakers and connecting the system by the speaker cords.

6 Press .

The selected setting takes effect.

7 Press X/x to select [YES] or [NO], then

press .

• [YES]: continue with [AUTO

CALIBRATION], see Step 5 of “Calibrating the Appropriate Settings Automatically” (page 79).

• [NO]: exit [SPEAKER FORMATION].

SPEAKER FORMATION

Continue with AUTO CALIBRATION?

Calibrating the Appropriate Settings Automatically

(AUTO CALIBRATION)

D. C. A. C. (Digital Cinema Auto Calibration) can set the appropriate surround sound automatically.

Note

• Loud test sound is output when [AUTO CALIBRATION] starts. You cannot turn the volume down. Give consideration to children and neighbor.

1 Press FUNCTION +/– repeatedly until

“DVD” appears in the front panel display.

2 Press DISPLAY when the system is

in stop mode.

The Control Menu appears.

3 Press X/x to select [SPEAKER

FORMATION], then press .

)

1 ( 4 4

)

3 ( 2 8 T

0 : 0 3 : 0 4 SPEAKER FORMATION SPEAKER FORMATION AUTO CALIBRATION

DVD VIDEO

Advanced Settings and Adjustments

YES NO

Note

• In order to enjoy the surround sound after you change the position of the speakers, it is recommended you set [SPEAKER FORMATION], and then set [AUTO CALIBRATION].

• To set [AUTO CALIBRATION], you need to connect the supplied calibration mic.

• The front panel display indicates the selected [SPEAKER FORMATION]. It does not indicate the speakers which output sound.

• When you change the [SIZE] setting, the [STANDARD (WIRED)] or [STANDARD (WIRELESS)] of [SPEAKER FORMATION] setting remains the same, but the other settings of [SPEAKER FORMATION] return to [STANDARD (WIRELESS)].

4 Press X/x to select [AUTO

CALIBRATION], then press .

The options for [AUTO CALIBRATION] appear.

AUTO CALIBRATION

Connect calibration mic. Start measurement?

YES NO

Connect the calibration mic to the A.CAL MIC jack on the front panel, and set it up at the ear level using a tripod, etc. (not

continued

supplied). The front of each speaker should

face the calibration mic, and there should be no obstruction between the speakers and the calibration mic. Be quiet during the measurement.

A.CAL MIC

Calibration mic

• Reflections from walls or the floor may affect measurements.

• If an error message appears, follow the message, then select [YES]. An error message appears when:

– the calibration mic is not connected.

– front speakers are not correctly connected.

– surround speakers are not correctly

connected.

– front and surround speakers are not correctly

connected.

– subwoofer is not connected.

6 Press C/X/x/c to select [YES] or [NO],

then press .

x The measurement is OK.

Disconnect the calibration mic, then select [YES]. The result is implemented.

Measurement complete.

FRONT L : FRONT R : CENTER : SUBWOOFER : SURROUND L : SURROUND R : If OK, unplug calibration mic and select YES.

x The measurement is not OK.

Follow the message, then select [YES] to retry.

YES

5.0m 0.0dB

5.0m

0.0dB

5.0m + 1.0dB

5.0m + 4.0dB

3.0m

2.0dB

3.0m

2.0dB

Measurement failure.

Check speaker connection.

5 Press X/x to select [YES], then press

Calibration starts.

Measuring. Please wait a moment.

Retry?

YES NO

• You can check the distance between the listening position and each speaker. See page 87.

Note

• While the Auto Calibration function works:

– do not turn off the power.

Note

• Avoid being in the measurement area and making noise during the measurement (about 1 minute), to avoid measurement failure. During the measurement, test signals are output from the speakers.

– do not press any button.

– do not change the volume.

– do not change the function.

– do not change the disc.

– do not insert or eject a disc.

– do not disconnect the calibration mic.

Using the Setup Display

By using the Setup Display, you can make various adjustments to items such as picture and sound. For an overall list of Setup Display items, see page 110. Displayed items differ depending on the country model.

Note

• Playback settings stored in the disc take priority over the Setup Display settings and not all the functions described may work.

1 Press DISPLAY when the system is

in stop mode.

The Control Menu appears.

2 Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

)

1 2 ( 2 7

)

BNR

1 8 ( 3 4

: :

QUICK

QUICK CUSTOM RESET

DVD VIDEO

3 Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

ENGLISH ENGLISH

ORIGINAL

ENGLISH

4 Press X/x to select the setup item from

the displayed list: [LANGUAGE SETUP], [SCREEN SETUP], [CUSTOM SETUP], or [SPEAKER SETUP]. Then press .

The Setup item is selected. Example: [SCREEN SETUP]

Selected item

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

4:3 OUTPUT:

Setup items

JACKET PICTURE

16:9

FULL

5 Select an item using X/x, then press

The options for the selected item appear. Example: [TV TYPE]

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

4:3 OUTPUT:

4:3 LETTER BOX

16:9 16:9

4:3 PAN SCAN

Options

6 Select a setting using X/x, then press

The setting is selected and setup is complete.

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND:

4:3 OUTPUT:

To reset all of the [SETUP] settings

1 Select [RESET] in Step 3 and press . 2 Select [YES] using X/x.

You can also quit the process and return to the Control Menu by selecting [NO] here.

3 Press .

All the settings explained on pages 82 to 89 return to the default settings. Do not press [/ 1 while resetting the system as it takes a few seconds to complete.

4:3 LETTER BOX

JACKET PICTURE

Selected setting

FULL

Advanced Settings and Adjustments

continued

Note

• When you turn the system on after resetting and no disc is in the system, the guide message appears on the TV screen. To perform the Quick Setup (page 20), press , to return to normal screen, press CLEAR.

Setting the Display or Sound Track Language

[LANGUAGE SETUP]

[LANGUAGE SETUP] allows you to set various languages for the on-screen display or sound track.

Select [LANGUAGE SETUP] in the Setup Display. To use the display, see “Using the Setup Display” (page 81).

LANGUAGE SETUP

OSD: MENU: AUDIO: SUBTITLE:

x [OSD] (On-Screen Display)

Switches the display language on the screen.

x [MENU] (DVD VIDEO only)

You can select the desired language for the disc’s menu.

x [AUDIO] (DVD VIDEO only)

Switches the language of the sound track. When you select [ORIGINAL], the language given priority in the disc is selected.

x [SUBTITLE] (DVD VIDEO only)

Switches the language of the subtitle recorded on the DVD VIDEO. When you select [AUDIO FOLLOW], the language for the subtitles changes according to the language you selected for the sound track.

• If you select [OTHERS t] in [MENU], [AUDIO],

and [SUBTITLE], select and enter a language code from “Language Code List” (page 102) using the number buttons.

Note

• When you select a language in [MENU], [AUDIO], or [SUBTITLE] that is not recorded on the DVD VIDEO, one of the recorded languages will be automatically selected (depending on the disc, the language may not be selected automatically).

ENGLISH ENGLISH

ORIGINAL

ENGLISH

Settings for the Display

SCREEN SETUP

TV TYPE: HDMI RESOLUTION: YC

BCR

/RGB (HDMI):

16:9

AUTO

YCBC

COLOR SYSTEM (VIDEO CD): AUTO

SCREEN SAVER: BACKGROUND: JACKET PICTURE

[SCREEN SETUP]

[4:3 LETTER BOX]

Choose settings according to the TV to be connected.

Select [SCREEN SETUP] in the Setup Display. To use the display, see “Using the Setup Display” (page 81). The default settings are underlined.

BLACK LEVEL:

BLACK LEVEL (COMPONENT OUT): 4:3 OUTPUT:

x [TV TYPE]

Selects the aspect ratio of the connected TV (4:3 standard or wide). The default setting varies, depending on the country model.

[4:3 LETTER BOX]

[4:3 PAN SCAN]

[16:9]

Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.

Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

Select this when you connect a wide-screen TV or a TV with a wide mode function.

OFF

FULL

[4:3 PAN SCAN]

[16:9]

Note

• Depending on the DVD, [4:3 LETTER BOX] may be selected automatically ins tead of [4:3 PAN SCAN] or vice versa.

x [HDMI RESOLUTION]

Selects the type of video signals output from the HDMI OUT (high-definition multimedia interface out) jack. When you select [AUTO] (default), the system outputs video signals of the highest resolution acceptable for your TV. If the picture is not clear, natural or to your satisfaction, try another option that suits the disc and your TV/projector, etc. For details, refer also to the instruction manual supplied with the TV/projector, etc.

[AUTO]

[1920 × 1080i*]

[1280 × 720p*]

[720 × 480p*]

* i: interlace, p: progressive

** Depending on the country, [720 × 480/576p] may

appear.

Note

• Even when a setting other than [AUTO] is selected and the connected TV cannot accept the resolution, the system automatically adjusts the video signals that are suitable for the TV.

• When the HDMI indicator on the front panel lights up, images from the S VIDEO OUT jack is enlarged vertically. (Except when [720 × 480p] is selected.)

Normally, select this.

Sends 1920 × 1080i video signals.

Sends 1280 × 720p video signals.

Sends 720 × 480p video signals.**

x [YCBCR/RGB (HDMI)]

Selects the type of HDMI signal output from HDMI OUT jack.

continued

Advanced Settings and Adjustments

[YCBCR]

[RGB]

Note

• If the playback picture becomes distorted, set

BCR] to [RGB].

[YC

• If the HDMI OUT jack is connected to equipment with a DVI jack, [RGB] signals will be automatically output even when you select [YCBCR].

Outputs YCBCR signals.

Outputs RGB signals.

x [COLOR SYSTEM (VIDEO CD)] (Asian, Australian, and Middle Eastern models only)

Select the color system when you play a VIDEO CD.

[AUTO]

[PAL]

[NTSC]

Note

• You cannot change the color system of the disc itself.

• You can change the color system of the system according to the connected TV (page 18).

Outputs the video signal in the system of the disc, either PAL or NTSC. If your TV uses a DUAL system, select [AUTO].

Changes the video signal of an NTSC disc and outputs it in the PAL system.

Changes the video signal of a PAL disc and outputs it in the NTSC system.

x [SCREEN SAVER]

The screen saver image appears when you leave the system in pause or stop mode for 15

minutes, or when you play back a Super Audio CD, CD, DATA CD (MP3 audio), or DATA DVD for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged (ghosting). Press any button (e.g.,

button) to cancel the screen saver.

[ON]

[OFF]

Turns on the screen saver.

Turns off the screen saver.

x [BACKGROUND]

Selects the background color or picture on the TV screen in stop mode or while playing a Super Audio CD, CD, DATA CD (MP3 audio) DATA DVD

, or

[JACKET PICTURE]

[GRAPHICS]

[BLUE]

[BLACK]

The jacket picture (still picture) appears, but only when the jacket picture is already recorded on the disc (CD-EXTRA, etc.). If the disc does not contain a jacket picture, the [GRAPHICS] picture appears.

A preset picture stored in the system appears.

The background color is blue.

The background color is black.

x [BLACK LEVEL]

(Except for Asian, Australian, and Middle Eastern models)

Selects the black level (setup level) for the video signals output from the jacks other than COMPONENT VIDEO OUT/HDMI OUT.

[ON]

[OFF]

Sets the black level of the output signal to the standard level.

Lowers the standard black level. Use this when the picture becomes too white.

x [BLACK LEVEL (COMPONENT OUT)]

(Except for Asian, Australian, and Middle Eastern models)

Selects the black level (setup level) for the video signals output from the COMPONENT VIDEO OUT jacks. You cannot select this and the setting is not effective when the system outputs progressive signal.

[OFF]

[ON]

Sets the black level of the output signal to the standard level.

Raise the standard black level. Use this when the picture becomes too black.

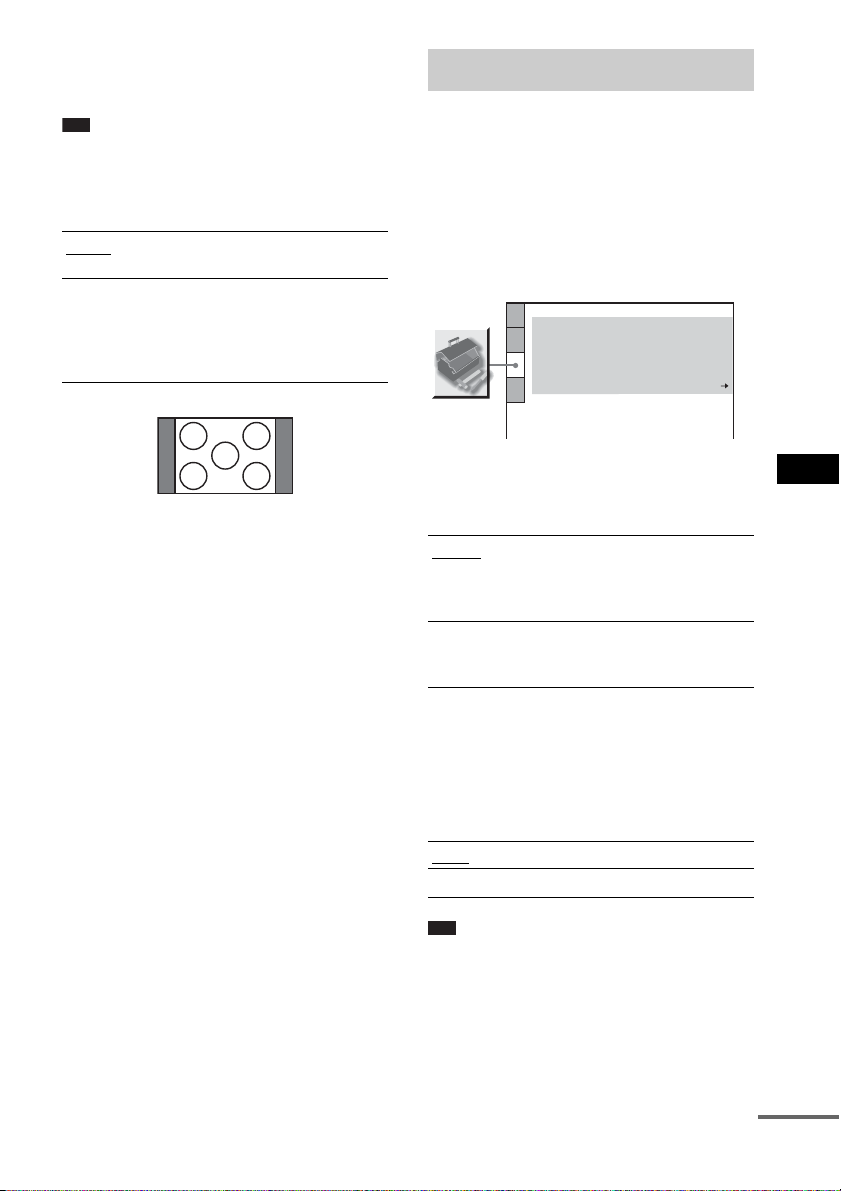

x [4:3 OUTPUT]

This setting is effective only when you set [TV TYPE] in [SCREEN SETUP] to [16:9] (page 83). Adjust to watch 4:3 aspect ratio progressive signals. If you can change the aspect ratio on your progressive format compatible TV, change the setting on your TV, not the system.

Note that this setting is effective only for HDMI connection or progressive signals output from the COMPONENT VIDEO OUT jacks.

Note

• This setting is effective only when “P AUTO (PROGRESSIVE AUTO)” or “P VIDEO (PROGRESSIVE VIDEO)” is selected by using PROGRESSIVE (page 28).

[FULL]

[NORMAL]

Select this when you can change the aspect ratio on your TV.

Select this when you cannot change the aspect ratio on your TV. Shows a 16:9 aspect ratio signal with black bands on left and right sides of the image.

16:9 aspect ratio TV

Custom Settings

[CUSTOM SETUP]

Use this to set up playback related and other settings.

Select [CUSTOM SETUP] in the Setup Display. To use the display, see “Using the Setup Display” (page 81). The default settings are underlined.

CUSTOM SETUP

PAUSE MODE: TRACK SELECTION: MULTI-DISC RESUME: AUDIO DRC: AUDIO (HDMI): DivX:

Registration Code

x [PAUSE MODE] (DVD VIDEO/DVD-R/ DVD-RW only)

Selects the picture in pause mode.

AUTO

OFF

ON OFF OFF

Advanced Settings and Adjustments

[AUTO]

The picture, including subjects that move dynamically, is output with no jitter. Normally select this position.

[FRAME]

The picture, including subjects that do not move dynamically, is output in high resolution.

x [TRACK SELECTION] (DVD VIDEO only)

Gives the sound track which contains the highest number of channels priority when you play a DVD VIDEO on which multiple audio formats (PCM, DTS, MPEG audio, or Dolby Digital format) are recorded.

[OFF]

[AUTO]

Note

• When you set the item to [AUTO], the language may change. The [TRACK SELECTION] setting has higher priority than the [AUDIO] settings in [LANGUAGE SETUP] (page 82). (Depending on the disc, this function may not work.)

• If PCM, DTS, Dolby Digi tal sound, and MPEG audio tracks have the same number of channels, the system selects PCM, DTS, Dolby Digital sound, and MPEG audio tracks in this order.

No priority given.

Priority given.

continued

x [MULTI-DISC RESUME] (DVD VIDEO/ VIDEO CD only)

Switches the Multi-disc Resume setting on or off.

x [DivX]

Displays the registration code for this system. For more information, go to http://www.divx.com

on the Internet.

[ON]

[OFF]

Stores the resume settings in memory for up to 40 discs.

Does not store the resume settings in memory. Playback restarts at the resume point only for the current disc in the system.

x [AUDIO DRC] (DVD VIDEO only)

Narrows the dynamic range of the sound track. Useful for watching movies at low volume late at night.

[OFF]

[STANDARD]

[MAX]

No compression of dynamic range.

Reproduces the sound track with the kind of dynamic range that the recording engineer intended.

Compresses dynamic range fully.

x [AUDIO (HDMI)]

Selects the type of audio signal output from the HDMI OUT jack.

[OFF]

[AUTO]

[PCM]

The sound is not output from the HDMI OUT jack.

Outputs audio signals that is matched to the requested audio stream from the connected TV.

Converts Dolby Digital, DTS (digital theater system), or 96 kHz/24 bit PCM (pulse code modulation) signals to 48 kHz/ 16 bit PCM (pulse code modulation).

Note

• A loud noise (or no sound) will be output if you connect the system to a TV that is not compatible with DOLBY DIGITAL/DTS (digital theater system) signals and [AUTO] is selected. In this case, select [PCM].

• When you connect the system and TV with the HDMI cord and [AUTO] or [PCM] is selected, AUDIO DRC, A/V SYNC, DYNAMIC BASS, MOVIE/ MUSIC, and sound field are not applied to the sound that is output from the TV.

Settings for the Speakers

[SPEAKER SETUP]

To obtain the best possible surround sound, set for the size of the speakers you have connected and their distance from your listening position. Then use the test tone to adjust the level and the balance of the speakers to the same level.

Select [SPEAKER SETUP] in the Setup Display. For details, see “Using the Setup Display” (page 81). The default settings are underlined.

SPEAKER SETUP

SIZE: DISTANCE(FRONT): DISTANCE(SURROUND): LEVEL(FRONT): LEVEL(SURROUND): TEST TONE:

FRONT: CENTER: SURROUND: SUBWOOFER:

OFF

YES YES YES YES

[SPEAKER FORMATION] return to [STANDARD (WIRELESS)].

x [DISTANCE (FRONT)]

The default distance setting for the speakers in relation to the listening position is shown below. When you set the distance using the Quick Setup (page 20), the settings is automatically displayed.

0.0 - 7.0 m2)/ 0 - 23 ft

Advanced Settings and Adjustments

To return to the default setting when changing a setting

Select the item, then press CLEAR. Note that only the [SIZE] setting does not return to the default setting.

x [SIZE]

If you do not connect center or surround speakers, set the parameters for [CENTER] and [SURROUND]. Since the front speaker and subwoofer setting is fixed, you cannot change them.

[FRONT]

[CENTER]

[SURROUND]

[SUBWOOFER]

Note

• When you change the [SIZE] setting, the [STANDARD (WIRED)] or [STANDARD (WIRELESS)] of [SPEAKER FORMATION] setting remains the same, but the other settings of

[YES]

[YES]: Normally select this.

[NONE]: Select this if no center speaker is used.

[YES]: Normally select this.

[NONE]: Select this if no surround speaker is used.

[YES]

Be sure to change the value in the Setup Display when you move the speakers.

[L/R]

3.0 m/10 ft

[CENTER]

3.0 m/10 ft

(appears when you set [CENTER] to [YES] in the [SIZE] setting.)

[SUBWOOFER]

3.0 m/10 ft

When you perform the Quick Setup (page 20), the

default settings are changed.

0.0 to 6.9 meters for North American models.

Front speaker distance from the

listening position can be set in

0.2 meter (1 ft) increments from

0.0 to 7.0 meters2) (0 to 23 ft).

Center speaker distance from the

listening position can be set in

0.2 meter (1 ft) increments from

0.0 to 7.0 meters2) (0 to 23 ft).

Subwoofer distance from the

listening position can be set in

0.2 meter (1 ft) increments from

0.0 to 7.0 meters2) (0 to 23 ft).

x [DISTANCE (SURROUND)]

The default distance setting for the speakers in relation to the listening position is shown below. When you set the distance using the Quick Setup (page 20), the settings is automatically displayed.

continued

x [LEVEL (SURROUND)]

You can vary the level of surround speakers as follows. Be sure to set [TEST TONE] to [ON] for easy adjustment.

Be sure to change the value in the Setup Display when you move the speakers.

[L/R]

3.0 m/10 ft

(appears when you set [SURROUND] to [YES] in the [SIZE] setting.)

* When you perform the Quick Setup (page 20), the

default settings are changed.

** 0.0 to 6.9 meters for North American models.

Note

• Depending on the input stream, the [DISTANCE] setting may not be effective.

• When the speaker distance setting is not in the recommended range, / ** m is displayed (** being the number). indicates over the recommended distance. indicates below.

x [LEVEL (FRONT)]

Surround speaker distance from

the listening position can be set in

0.2 meter (1 ft) increments from

0.0 to 7.0 meters** (0 to 23 ft).

You can vary the level of front speakers as follows. Be sure to set [TEST TONE] to [ON] for easy adjustment.

[L/R]

0.0 dB

[CENTER]

0.0 dB

(appears when you set [CENTER] to [YES] in the [SIZE] setting.)

[SUBWOOFER]

0.0 dB

Set this between –15.0 dB and +10.0 dB in 1.0 dB increments.

[L/R]

0.0 dB

(appears when you set [SURROUND] to [YES] in the [SIZE] setting.)

Set this between –15.0 dB and +10.0 dB in 1.0 dB increments.

To adjust the volume of all the speakers at one time

Press VOLUME +/– on the system, or press VOLUME +/– on the remote.

x [TEST TONE]

The speakers will emit a test tone to adjust [LEVEL (FRONT)] and [LEVEL (SURROUND)].

[OFF]

[ON]

The test tone is not emitted from the speakers.

The test tone is emitted from each speaker in sequence while adjusting level. When you select one of the [SPEAKER SETUP] items, the test tone is emitted from each speaker in sequence.

Adjusting the speaker level by using the test tone

1 Press DISPLAY when the system is

in stop mode.

The Control Menu appears.

2 Press X/x to select [SETUP],

then press .

The options for [SETUP] appear.

3 Press X/x to select [CUSTOM], then

press .

The Setup Display appears.

4 Press X/x repeatedly to select

[SPEAKER SETUP], then press or c.

5 Press X/x repeatedly to select [TEST

TONE], then press or c.

6 Press X/x repeatedly to select [ON],

then press .

You will hear the test tone from each speaker in sequence.

7 From your listening position, adjust the

value of [LEVEL (FRONT)] or [LEVEL (SURROUND)] using C/X/x/c.

The test tone is emitted from only the speaker which you are adjusting.

8 Press when you have finished

making adjustments.

9 Press X/x repeatedly to select [TEST

TONE], then press .

10Press X/x repeatedly to select [OFF],

then press .

Note

• The test tone signals are not output from the HDMI OUT jack.

Returning to the Default Settings

You can return the system parameters, such as preset stations, to the default settings.

"/1

1 Press "/1 to turn on the system. 2 Press x, A, and "/1 on the system at

the same time.

“COLD RESET” appears in the front panel display and the default settings are returned.

Advanced Settings and Adjustments

Additional Information

Precautions

On power sources

• AC power cord (mains lead) must be changed only at the qualified service shop.

• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet (mains), even if the unit itself has been turned off.

On placement

• Place the system in a location with adequate ventilation to prevent heat build-up in the system.

• At high volume, over long periods of time, the cabinet becomes hot to the touch. This is not a malfunction. However, touching the cabinet sh ould be avoided. Do not place the unit in a confined space where ventilation is poor as this may cause overheating.

• Do not block the ventilation slots by putting anything on the system. The system is equipped with a high power amplifier. If the ventilation slots are blocked, the unit can overheat and malfunction.

• Do not place t he system on a soft surface such as a rug and do not block the ventilation holes.

• Do not place the system in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.

On operation

• If the system is br ought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the system. Should this occur, the system may not operate properly. In this case, remove the disc and leave the system turned on for about half an hour until the moisture evaporates.

• When you move the system, take out any disc. If you don’t, the disc may be damaged.

On adjusting volume

• Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is suddenly played.

On cleaning

• Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your system, please consult your nearest Sony dealer.

On cleaning discs, disc/lens cleaner

• Do not use a commercially available cleaning disc or disc/lens cleaner (wet or spray type). These may cause apparatus to malfunction.

On your TV’s color

• If the speakers should cause the TV screen to have color irregularity, turn off the TV then turn it on after 15 to 30 minutes. If color irregularity should persist, place the speakers farther away from the set.

IMPORTANT NOTICE

Caution: This system is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.

The nameplate is located on the bottom exterior.

On moving the system

When you carry the system, use the following procedure to protect the inner mechanism.

1 Press FUNCTION +/– repeatedly to select

“DVD.”

2 Make sure that all discs are removed from

the system.

3 Press x and . simultaneously.

“MECHA LOCK” appears in the front panel display after “STANDBY.”

4 Remove the AC power cord (mains lead)

from the wall outlet (mains).

Notes about the Discs Troubleshooting

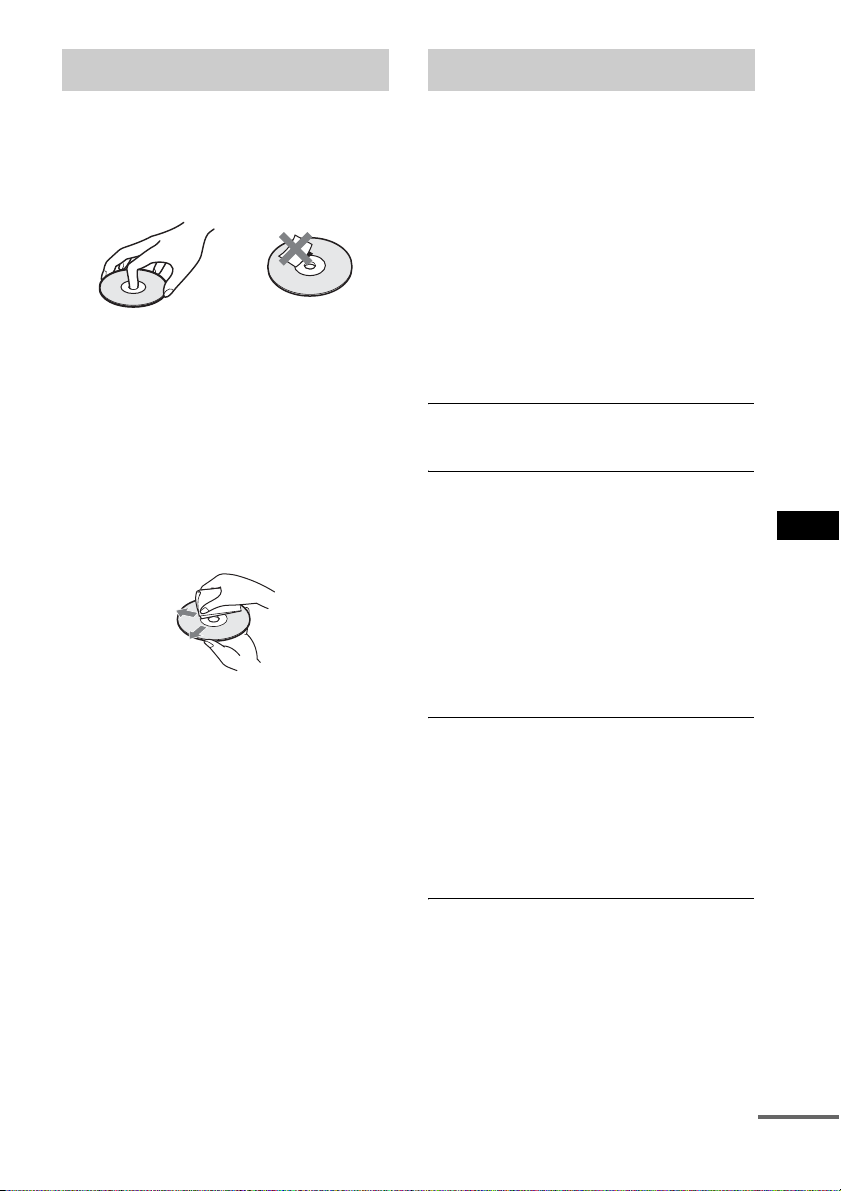

On handling discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs.

This system can only play back a standard circular disc. Using neither standard nor circular discs (e.g., card, heart, or star shape) may cause a malfunction.

Do not use a disc that has a commercially available accessory attached, such as a label or ring.

If you experience any of the following difficulties while using the system, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer. Note that if service personnel changes some parts during repair, these parts may be retained. In the event of a problem with the surround amplifier, have a Sony dealer check the entire system together (system, IR transmitter, and surround speaker (L)).

Power

The power is not turned on.

• Check that the AC power cord (mains lead) is connected securely.

If “PROTECTOR” and “PUSH POWER” appears alternately in the front panel display.

Press "/1 to turn off the system, and check the following items after “STANDBY” disappears.

• Are the + and – speaker cords short-circuited?

• Are you using only the specified speakers?

• Is anything blocking the ventilation holes of the system?

After checking the above items and fixing any problems, turn on the system. If the cause of the problem cannot be found even after checking all the above items, consult your nearest Sony dealer.

The POWER/ON LINE indicator does not turn on.

• The + and – speaker cords are short-circuited. In this case, disconnect the AC power cord (mains lead) of the surround amplifier from the wall outlet (mains), reconnect, and then turn the surround amplifier on.


There is no picture.

• The video connecting cords are not connected securely.

• The video connecting cords are damaged.

• The system is not connected to the correct TV input jack (page 15, 26).

• The video input on the TV is not set so that you can view pictures from the system.

Additional Information

continued

• You have set progressive format but your TV cannot accept the signal in progressive format. In this case, return the setting to interlace format (the default setting) (page 28).

• Even if your TV is compatible with progressive format (525p/625p) signals, the image may be affected when you set progressive format. In this case, return the setting to interlace format (the default setting) (page 28).

• Re-connect the connecting cord securely.

• The system is connected to an input device that is not HDCP (high-bandwidth digital content protection) compliant (“HDMI” on the front panel does not light up). See page 104.

• If the HDMI OUT jack is used for video output, changing the [HDMI RESOLUTION] setting in [SCREEN SETUP] may solve the problem (page 83). Connect the TV and the system using a video jack other than the HDMI OUT, and switch the TV’s input to the connected video input so that you can see the on-screen displays. Change the [HDMI RESOLUTION] setting in [SCREEN SETUP], and switch the TV’s input back to HDMI. If the picture still does not appear, repeat the steps and try other options.

• You have selected “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” using the PROGRESSIVE button on the remote (“PROGRE” lights up in the front panel display) even though your TV cannot accept the progressive signal. In this case, disconnect the HDMI cord from the system and then select “INTERLACE” so that the PROGRESSIVE indicator turns off.

• If the signal from the S VIDEO OUT jack is distorted, change the [HDMI RESOLUTION] setting in [SCREEN SETUP] to [720 × 480p]*.

* Depending on the country, [720 × 480/576p] may

appear.

Picture noise appears.

• The disc is dirty or flawed.

• If the picture output from your system goes through your VCR to get to your TV, the copyprotection signal applied to some DVD programs could affect picture quality. If you still experience problems even when you connect your system directly to your TV, try connecting your system to your TV’s S video input (page 26).

Even though you set the aspect ratio in [TV TYPE] of [SCREEN SETUP], the picture does not fill the screen.

• The aspect ratio on the disc is fixed.

Color irregularity occurs on the TV screen.

The subwoofer and the front speakers in this system are magnetically shielded to prevent magnetic leakage. However, some leakage may occur, as a high-strength magnet is employed. If this happens, check the following items:

• If the speakers are used with a CRT-based TV or projector, install the sp eakers at least 0.3 m (1.0 ft) from the TV set.

• If the color irregularity persists, turn off the TV set once, then turn it on after 15 to 30 minutes.

• If howling occurs, reposition the speakers farther away from the TV set.

• Make sure that no magnetic object (magnetic latch on a TV stand, health care device, toy, etc.) is placed near the speakers.

Sound

There is no sound.

• The speaker cord is not connected securely.

• Press MUTING on the remote if “MUTING ON” is displayed in the front panel display.

• The system is in pause mode or in Slow-motion Play mode. Press H to return to normal play mode.

• Fast forward or fast reverse is performed. Press H to return to normal play mode.

• Check the speaker settings (page 87).

• Super Audio CD audio signals are not output from the HDMI OUT jack.

• The equipment connected to the HDMI OUT jack does not conform to the audio signal format, in this case set [AUDIO (HDMI)] in [CUSTOM SETUP] to [PCM] (page 86).

No sound is output from the HDMI OUT jack.

• Set [AUDIO (HDMI)] in [CUSTOM SETUP] to [AUTO] or [PCM] (page 86).

• The HDMI OUT jack is connected to a DVI (digital visual interface) device (DVI (digital visual interface) jacks do not accept audio signals).

• The HDMI OUT jack does not output Super Audio CD sound.

• Try the following: 1 Turn the system off and on again. 2 Turn the connected equipment off and on again. 3 Disconnect and then connect the HDMI cord again.

The left and right sounds are unbalanced or reversed.

• Check that the speakers and components are connected correctly and securely.

There is no sound from the subwoofer.

• Check the speaker connections and settings (page 15, 87).

• Set the sound field to “A.F.D. STD” (page 36).

Severe hum or noise is heard.

• Check that the speakers and components are connected securely.

• Check that the connecting cords are away from a transformer or motor, and at least 3 meters (10 ft) away from your TV set or a fluorescent light.

• Move your TV away from the audio components.

• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.

• Clean the disc.

The sound loses stereo effect when you play a VIDEO CD, a CD, or an MP3.

• Set [AUDIO] to [STEREO] by pressing AUDIO (page 47).

• Make sure the system is connected properly.

The surround effect is difficult to hear when you are playing a Dolby Digital, DTS, or MPEG audio sound track.

• Make sure the sound field function is on (page 36).

• Check the speaker connections and settings (page 15, 87).

• Depending on the DVD, the output signal may not be the entire 5.1 channel. It may be monaural or stereo even if the sound track is recorded in Dolby Digital or MPEG audio format.

The sound comes from the center speaker only.

• Depending on the disc, the sound may come from the center speaker only.

No sound is heard from the center speaker.

• Check the speaker connections and settings.

• Make sure the sound field function is on (page 36).

• Depending on the source, the effect of the center speaker may be less noticeable.

No sound or only a very low-level sound is heard from the surround speakers.

• Check the speaker connections and settings.

• Make sure the sound field function is on (page 36).

• Depending on the source, the effect of the surround speakers may be less noticeable.

• Wireless setting of the surround speaker is not correct (page 22).

• The plasma display may interfere with transmission, in which case, adjust the position of the IR transmitter and IR receiver of the surround speaker (L) (page 22).

• Do not install the surround speaker (L) in a place exposed to direct sunlight or strong light such as an incandescent lamp.

• Clean the surface of the IR transmitter and IR receiver of the surround speaker (L).

Microphone sound is not output.

• A function other than DVD is selected.

• The Super Audio CD layer of a Super Audio CD is played.

• The microphone is not connected to the system properly.

• The microphone volume is set to minimum.

There is no sound from the speakers that are indicated in the front panel display.

• The front panel display indicates the selected [SPEAKER FORMATION]. It does not indicate the speakers which output sound (page 36, 77).

Operation

Radio stations cannot be tuned in.

• Check that the antenna (aerial) is connected securely. Adjust the antenna (aerial) or connect an external antenna (aerial) if necessary.

• The signal strength of the stations is too weak (when tuning in with automatic tun ing). Use direct tuning.

• No stations have been preset or the preset stations have been cleared (when tuning by scanning preset stations). Preset the stations (page 63).

• Press DISPLAY so that the frequency appears in the front panel display.

The remote does not function.

• There are obstacles between the remote and the system.

• The distan ce between the remote and the system is too far.

• The remote is not pointed at the remote sensor on the system.

• The batteries in the remote are weak.

The POWER/ON LINE indicator momentarily turns red.

• The indicator momentarily turns red. This is not a malfunction.

The POWER/ON LINE indicator flashes in red.

• Move the wireless system away from any other nearby wireless system(s).

• Point the IR transmitter at the IR receiver of the surround speaker (L).

The disc does not play.

• There is no disc inserted.

Additional Information

continued

• The disc is upside down. Insert the disc with the playback side facing down.

• The system cannot play CD-ROMs, etc. (page 6).

• The region code on the DVD does not match the system.

• Moisture has condensed inside the system and may cause damage to the lenses. Remove the disc and leave the system turned on for about half an hour.

The MP3 audio track cannot be played.

• The DATA CD is not recorded in the MP3 format that conforms to ISO 9660 Level 1/Level 2, or Joliet.

• The DATA DVD is not recorded in an MP3 format that conforms to UDF (Universal Disk Format).

• The MP3 audio track does not have the extension “.MP3.”

• The data is not formatted in MP3 even though it has the extension “.MP3.”

• The data is not MPEG1 Audio Layer 3 data.

• The system cannot play audio tracks in MP3PRO format.

• The [MODE (MP3, JPEG)] setting has been set to [IMAGE (JPEG)] (page 58).

• If you cannot change the [MODE (MP3, JPEG)] setting, re-load the dis c or turn the system off, then on.

• The DATA CD/DATA DVD contains a DivX video file.

The JPEG image file cannot be played.

• The DATA CD is not recorded in a JPEG format that conforms to ISO 9660 Level 1/Level 2, or Joliet.

• The DATA DVD is n ot recorded in a JPEG format that conforms to UDF (Universal Disk Format).

• It has an extension other than “.JPEG” or “.JPG.”

• It is larger than 3,072 (width) × 2,048 (height) in normal mode, or more than 2,000,000 pixels in Progressive JPEG which is mainly used on the Internet WEB site.

• It does not fit the screen (those images are reduced).

• The [MODE (MP3, JPEG)] setting has been set to [AUDIO (MP3)] (page 58).

• If you cannot change the [MODE (MP3, JPEG)] setting, re-load the dis c or turn the system off, then on.

• The DATA CD/DATA DVD contains a DivX video file.

The MP3 audio tracks and JPEG image file starts playing simultaneously.

• [AUTO] has been selected in [MODE (MP3, JPEG)] (page 58).

The DivX video file cannot be played.

• The file is not created in DivX format.

• The file has an extension other than “.AVI” or “.DIVX.”

• The DATA CD/DATA DVD is not created in a DivX format that conforms to ISO 9660 Level 1/ Level 2 or, Joliet/UDF.

• The DivX video file is larger than 720 (width) 576 (height).

The titles of album/track/file name are not displayed correctly.

• The system can only display numbers and letters of the alphabets. Other characters are displayed as [*].

A disc does not start playing from the beginning.

• Program Play, Shuffle Play, or Repeat Play has been selected. Press CLEAR to cancel these functions before playing a disc.

• Resume Play has been selected. During stop, press x on the system or the remote and then start playback (page 42).

• The title, DVD or PBC menu automatically appears on the TV screen.

The system starts playing the disc automatically.

• The DVD features an auto playback function.

Playback stops automatically.

• Some discs may contain an auto pause signal. While playing such a disc, the system stops playback at the auto pause signal.

You cannot perform some functions such as Stop, Search, Slow-motion Play, or Repeat Play.

• Depending on the disc, you may not be able to perform some of the operations above. See the operating manual that came with the disc.

Messages do not appear on the screen in the language you want.

• In the Setup Display, select the desired language for the on-screen display in [OSD] under [LANGUAGE SETUP] (page 82).

The language for the sound track cannot be changed.

• Multilingual tracks are not recorded on the DVD being played.

• The DVD prohibits changing the language for the sound track.

The subtitle language cannot be changed.

• Multilingual subtitles are not recorded on the DVD being played.

• The DVD prohibits changing the subtitles.

The subtitle cannot be turned off.

• The DVD prohibits turning off subtitles.

The angles cannot be changed.

• Multi-angles are not recorded on the DVD being played (page 52).

• The DVD prohibits changing the angles.

A disc cannot be ejected and “LOCKED” appears in the front panel display.

• Contact you r Sony dealer or local authorized Sony service facility.

[Data error] appears on the TV screen when playing a DATA CD or DATA DVD.

• The MP3 audio track/JPEG image file/DivX video file you want to play is broken.

• The data is not MPEG1 Audio Layer 3 data.

• The JPEG image file format does not conform to DCF.

• The JPEG image file has the extension “.JPG” or “.JPEG,” but is not in JPEG format.

• The file you want to play has the extension “.AVI” or “.DIVX” but is not in DivX format, or is in DivX format but does not conform to a DivX Certified profiles.

The system does not work normally.

• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then reconnect after several minutes.

Self-diagnosis Function

(When letters/numbers appear in the display)

When the self-diagnosis function is activated to prevent the system from malfunctioning, a 5character service number (e.g., C 13 50) with a combination of a letter and 4 digits appears on the screen and the front panel display. In this case, check the following table.

C:13:50

First 3 characters of the service number

C 13 The disc is dirty.

C 31 The disc is not inserted correctly.

E XX

(xx is a number)

When displaying the version number on the screen

When you turn on the system, the version number [VER.X.XX] (X is a number) may appear on the screen. Although this is not a malfunction and for Sony service use only, normal system operation will not be possible. Turn off the system, and then turn on the system again to operate.

Cause and/or corrective action

,Clean the disc with a soft cloth

(page 91).

,Restart the system, then re-inse rt

the disc correctly.

To prevent a malfunction, the system has performed the selfdiagnosis function.

,Contact your nearest Sony

dealer or local authorized Sony service facility and give the 5character service number.

Example: E 61 10

Additional Information

VER.X.XX

Specifications

Amplifier section

Latin American models: Stereo mode (rated) 100 W + 100 W (3 ohms at

1 kHz, 1 % THD)

Surround mode (reference) RMS output power, 10 %

THD Front: 133 W + 133 W (with SS-TS55) Center*: 133 W (with SS-CT52) Surround*: 133 W + 133 W** (3 ohms) Subwoofer*: 235 W

(with SS-WS53) Mexican, Argentine, and other models: Stereo mode (rated) 108 W + 108 W (3 ohms at

1 kHz, 1 % THD) Surround mode (reference) RMS output power, 10 %

THD

Front: 143 W + 143 W

(with SS-TS55)

Center*: 143 W

(with SS-CT52)

Surround*: 143 W + 143

W** (3 ohms)

Subwoofer*: 285 W

(with SS-WS53)

* Depending on the sound field settings and the source,

there may be no sound output.

** When connecting the surround speakers to the system

by the speaker cords.

Inputs (Analog) TV/VCR 1, TV/VCR 2 (AUDIO IN)

Sensitivity: 450/250 mV AUDIO IN/MIC 1 Sensitivity:

AUDIO IN 250/125 mV/

MIC 1 1 mV MIC 2 Sensitivity: 1 mV

Inputs (Digital)

TV/VCR1 (COAXIAL IN)/TV/VCR2 (OPTICAL IN)

impedance: 75 ohms/–

Super Audio CD/DVD system

Laser Semiconductor laser

(Super Audio CD/DVD:

λ = 650 nm)

(CD: λ = 790 nm)

Emission duration:

continuous Signal format system NTSC/PAL

Tuner section

System PLL quartz-locked digital

synthesizer system FM tuner section Tuning range 87.5-108.0 MHz (50 kHz

step) Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Asian models: 531-1,602 kHz (with the

interval set at 9 kHz)

530-1,710 kHz (with the

interval set at 10 kHz) Latin American models: 530-1,710 kHz (with the

interval set at 10 kHz)

531-1,710 kHz (with the

interval set at 9 kHz) Antenna (aerial) AM loop antenna (aerial) Intermediate frequency 450 kHz

Video section

Outputs VIDEO: 1 Vp-p 75 ohms

S VIDEO:

Y: 1 Vp-p 75 ohms

C: 0.286 Vp-p 75 ohms

COMPONENT:

Y: 1 Vp-p 75 ohms

PB/CB, PR/CR: 0.7 Vp-p

75 ohms

HDMI OUT: Type A (19

pin) Inputs TV/VCR1: 1 Vp-p

75 ohms

TV/VCR2: 1 Vp-p

75 ohms

COMPONENT:

Y: 1 Vp-p 75 ohms

PB/CB, PR/CR: 0.7 Vp-p

75 ohms

Speakers Front/Surround

Speaker system Bass reflex, magnetically

shielded Speaker unit Woofer: 70 × 100 mm

cone type

Tweeter: 25 mm dia.

balanced dome type Rated impedance 3.0 ohms Dimensions (approx.) 92 × 593 × 80 mm (w/h/d)

280 × 1,200 × 280 mm

(w/h/d) with stand (long)

280 × 715 × 280 mm

(w/h/d) with stand (short)

Mass (approx.) 1.6 kg

3.5 kg with stand (long)

3.0 kg with stand (short)

Center

Speaker system Closed, magnetically

shielded Speaker unit 30 × 80 mm dia. cone type Rated impedance 3.0 ohms Dimensions (approx.) 380 × 47 × 61 mm

(w/h/d) Mass (approx.) 0.5 kg

Subwoofer

Speaker system Bass reflex, magnetically

shielded Speaker unit 200 mm dia. cone type Rated impedance 1.5 ohms Dimensions (approx.) 170 × 396 × 442 mm

(w/h/d) Mass (approx.) 8.1 kg

General

Power requirements Latin American models: 110 - 240 V AC, 50/60 Hz Mexican models: 120 V AC, 60 Hz Taiwan models: 120 V AC, 50/60 Hz Other models: 220 - 240 V AC, 50/60 Hz Power consumption On: 170 W

Standby: 0.3 W (at the

Power Saving Mode) Dimensions (approx.) 445 × 71 × 400 mm

(w/h/d) incl. projecting

parts Mass (approx.) 6.0 kg

Surround amplifier (TA-WR4)

Surround mode (reference) RMS output power, 10 %

THD Latin American models: 130 W + 130 W

(with SS-TS55,

SS-TS56W) Mexican, Argentine, and other models:

140 W + 140 W

(with SS-TS55,

SS-TS56W) Power requirements Latin American models: 110 - 240 V AC, 50/60 Hz Mexican models: 120 V AC, 60 Hz Taiwan models: 120 V AC, 50/60 Hz Other models: 220 - 240 V AC, 50/60 Hz Power consumption 50 W Dimensions (approx.) 280 × 60 × 280 mm (w/h/d) Mass (approx.) 1.6 kg

Unpacking

• Speakers (5)

• Subwoofer (1)

• AM loop antenna (aerial) (1)

• FM wire antenna (aerial) (1)

• Speaker cords (5 m × 5, 3 m ×1)

• Speaker cords (OPTION) (15 m × 2)

• Video Cord (1)

• Remote Commander (remote) (1)

• R6 (size AA) batteries (2)

• Calibration mic (1)

• Foot pads (1 set)

• Posts (long × 4, short × 4)

• Bases (4)

• Pedestal (4)

• Screws with washer (short) (8)

• Screws with washer (long) (24)

• Surround amplifier (1)

• Speaker base (1)

• Spacers (8)

• Guide pins (4)

• Screws (8)

• IR transmitter (1)

• IR receiver cord (1)

• Microphone (1)

• Operating Instructions

• Speaker and TV connections (card) (1)

Use for connecting the surround speakers to the

system by the speaker cords.

The IR receiver cord and IR transmitter are for this

system only. You cannot use a commercially available extension cord.

Russian models only

Additional Information

Design and specifications are subject to change without notice.

Glossary

Album

Section of a music piece or an image on a data CD containing MP3 audio tracks or JPEG files.

Chapter

Subdivision of a title on a DVD. A title is composed of several chapters.

Digital Cinema Auto Calibration

Digital Cinema Auto Calibration was developed by Sony to automatically measure and adjusts the speaker settings to your listening environment in a short period of time.

Digital Direct Twin Drive Subwoofer

Utilizing Sony's proprietary S-Master technology, the Digital Direct Twin Drive Subwoofer features two S-Master Digital Amplifiers that provide dedicated power to a strategically located subwoofer for astounding sound performance. Easy to set up, Digital Direct Twin Drive Subwoofer provides a stable sound field over a much larger listening area without having to adjust frequency levels.

Digital Infrared Audio Transmission

Recent times have been witness to the rapid spread of DVDs, Digital Broadcasting Satellite Receiver and other high-quality media. In order to ensure that the subtle nuances endowed by these high-quality media would be transmitted with no accompanying deterioration, Sony developed a technology called “Digital Infrared Audio Transmission” for the infrared transmission of digital audio signals using no compression, and it introduced it into the system. This technology transfers digital audio signals using no compression inside the subcarrier frequency band allocated by the IEC (International Electronic Committee) and JEITA (Japan Electronics and Information Technology Industries Association) for hi-fi audio transmission applications. (See Fig. 1)

Analog transmission

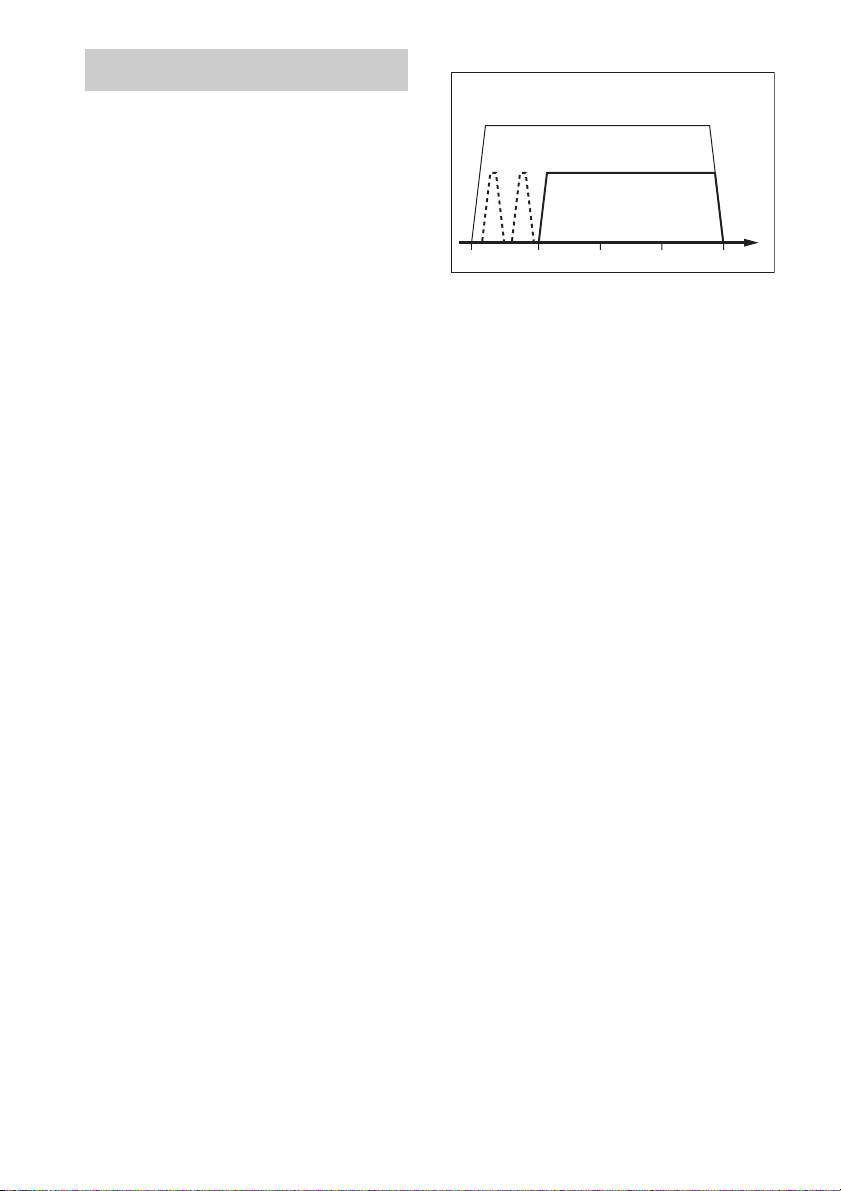

Fig. 1 Signal spectrum for digital infrared audio transmission

DivX

Digital transmission (Digital infrared Audio Transmission)

[MHz]

5432

Digital video technology created by DivX, Inc. Videos encoded with DivX technology are among the highest quality with a relatively small file size.

Dolby Digital

This movie theater sound format is more advanced than Dolby Surround Pro Logic. In this format, the surround speakers output stereo sound with an expanded frequency range, and a subwoofer channel for deep bass is independently provided. This format is also called “5.1” with the subwoofer channel designed as the 0.1 channel (since it functions only when a deep bass effect is needed). All six channels in this format are recorded separately for superior channel separation. Furthermore, since all the signals are processed digitally, less signal degradation occurs.

Dolby Pro Logic II

Dolby Pro Logic II creates five full-bandwidth output channels from 2 channel sources. This is done using an advanced, high-purity matrix surround decoder that extracts the spatial properties of the original recording without adding any new sounds or tonal colorations.

x Movie mode

The Movie mode is for use with stereo television shows and all programs encoded in Dolby Surround. The result is enhanced soundfield directionality that approaches the quality of discrete 5.1-channel sound.

x Music mode

The Music mode is for use with any stereo music recordings, and provides a wide and deep sound space.

Dolby Surround Pro Logic

As one method of decoding Dolby Surround, Dolby Surround Pro Logic produces four channels from 2 channel sound. Compared with the former Dolby Surround system, Dolby Surround Pro Logic reproduces left-to-right panning more naturally and localizes sounds more precisely. To take full advantage of Dolby Surround Pro Logic, you should have one pair of surround speakers and a center speaker. The surround speakers output monaural sound.

DTS

Digital audio compression technology developed by Digital Theater Systems, Inc. This technology conforms to 5.1-channel surround. This format comprises of stereo rear channel and there is discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio. The good channel separation is realized due to the all channel data being recorded discretely and processed in digitally.

DVD

A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and singlesided DVD, at 4.7 GB (Giga Byte), is 7 times that of a CD. Furthermore, the data capacity of a dual-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD 9.4 GB, and a dual-layer and double-sided DVD 17 GB. The picture data uses the MPEG 2 format, one of a worldwide standard of digital compression technology. The picture data is compressed to about 1/40 of its original size. The DVD also uses the variable rate coding technology that processes allocated data according to the status of the picture. The audio data is recorded in Dolby Digital as well as in PCM, allowing you to enjoy more realistic audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

DVD-RW

A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.

DVD+RW

A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format.

File

A JPEG image or a DivX video on a DATA CD/ DATA DVD. (“File” is an exclusive definition for this system.) A single file consists of a single image or movie.

Film based software, Video based software

DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theaters. Video based DVDs, such as television dramas or sit-coms, displays images at 30 frames (or 60 fields) per second.

HDMI (high-definition multimedia interface)

HDMI is an interface that supports both video and audio on a single digital connection. The HDMI connection carries standard to high definition video signals and multi-channel audio signals to AV components such as HDMI equipped TVs, in digital form without degradation. Since the video signals are compatible with the current DVI (digital visual interface) format, HDMI jacks can be connected to DVI (digital visual interface) jacks by way of an HDMI -DVI (digital visual interface) converter cord. The HDMI specification supports HDCP (high-bandwidth digital contents protection), a copy protection technology that incorporates coding technology for digital video signals.

continued

Additional Information

Interlace format (Interlaced scanning)

The Interlace format is the NTSC standard method for displaying TV images at 30 frames per second. Each frame is scanned twice alternately between the even numbered scanning lines and then odd numbered scanning lines, at 60 times per second.

Mica-reinforced-cellular-diaphragm

The Mica-reinforced-cellular-diaphragm is made of a light weight and highly rigid composite material that consists of Mica flake and synthetic fiber. It is constructed with layers of Mica flake. This construction realizes diaphragm with low density and high rigidity at the same time. In this system, a Mica-reinforced-cellulardiaphragm is used for the subwoofer.

Multi-angle function

Various angles of a scene, or viewpoints of the video camera are recorded on some DVDs.

Multilingual function

Several languages for the sound or subtitles in a picture are recorded on some DVDs.

Parental Control

A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback is completely prohibited, violent scenes are skipped or replaced with other scenes and so on.

Playback Control (PBC)

Signals encoded on VIDEO CDs (Version 2.0) to control playback. By using menu screens recorded on VIDEO CDs with PBC functions, you can enjoy playing simple interactive programs, programs with search functions, and so on.

Progressive format (sequential scanning)

In contrast to the Interlace format, the progressive format can reproduce 50 - 60 frames per second by reproducing all scanning lines (525 lines for the NTSC system, 625 lines for the PAL system). The overall picture quality increases and still images, text and horizontal

lines appear sharper. This format is compatible with the 525 or 625 progressive format.

Region Code

This system is used to protect copyrights. A region number is allocated on each DVD system or DVD disc according to the sales region. Each region code is shown on the system as well as on the disc packaging. The system can play discs that match its region code. The system can also play discs with the “ ” mark. Even when the

ALL

region code is not shown on the DVD, the region limit may still apply.

Scene

On a VIDEO CD with PBC (playback control) functions, the menu screens, moving pictures and still pictures are divided into sections called “scenes.”

Super Audio CD

Super Audio CD is a new high-quality audio disc standard where music is recorded in the DSD (Direct Stream Digital) format (conventional CDs are recorded in the PCM format). The DSD format, using a sampling frequency 64 times higher than that of a conventional CD, and with 1-bit quantization, achieves both a wide frequency range and a wide dynamic range across the audible frequency range, and so provides music reproduction extremely faithful to the original sound.

x Types of Super Audio CDs

There are two types of discs, depending on the Super Audio CD layer and CD layer combination.

• Super Audio CD layer: A high-density signal layer for Super Audio CD

•CD layer

: A layer that is readable by a

conventional CD player

100

Sony DAV-FX900KW Users guide

Specifications and Main Features

Frequently Asked Questions

User Manual

WARNING

Welcome!

About This Manual

This System Can Play the Following Discs

Note about CDs/DVDs

Example of discs that the system cannot play

About Multi Session CD

Region code

Note on playback operations of DVDs and VIDEO CDs

Copyrights

Step 1: Assembling the Speakers and Installing the Surround Amplifier

Step 2: Connecting the System and TV

1 Connecting the Speakers

2 Connecting the TV

3 Connecting the Antenna (Aerial)

4 Connecting the AC power cord (mains lead)

Changing the color system (PAL or NTSC)

Step 3: Positioning the System

Positioning the speakers

Step 4: Performing the Quick Setup

Turning off the Demonstration

Setting the demonstration mode on/off

Installing the Speakers and the IR transmitter on a Wall

Installing the IR transmitter on a wall

TV Hookup (Advanced)

Connecting the video/HDMI* cords

Does your TV accept progressive signals?

Other Component Hookup

Connecting the system and the other component

Basic Operations

Playing Discs

About DVD 5-DISC changer

Enjoying the Radio or Other Components

Selecting the connected component

Changing the input level of the sound from connected components

Sound Adjustments

Automatic outputting of the original sound

Outputting the sound from multiple speakers

Outputting 2 channel sources like CDs by 5.1channel

Enjoying Digital Cinema Sound

Using only the front speaker and subwoofer

Enjoying Multiplex Broadcast Sound

Various Functions for Playing Discs

Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)

Watching frame by frame (Slow-motion Play)

Playing one frame at a time (Freeze Frame)

Searching for a Title/ Chapter/Track/Scene, etc.

Searching by Scene

Resuming Playback from the Point Where You Stopped the Disc

Creating Your Own Program

Playing in Random Order

Playing Repeatedly

Using the DVD’s Menu

Changing the Sound

Checking the audio signal format

Viewing the playing time and remaining time in the front panel display

Checking the playing time and remaining time

Checking the date information

Changing the Angles Displaying the Subtitles

Selecting a playback area on a 2 channel + Multi-channel Super Audio CD

Selecting a playback layer when playing a hybrid Super Audio CD

About MP3 Audio Tracks and JPEG Image Files

What is MP3/JPEG?

Discs that the system can play

MP3 audio track or JPEG image file that the system can play

Playback order of MP3 audio tracks or JPEG image files

Playing DATA CDs or DATA DVDs with MP3 Audio Tracks and JPEG Image Files

Selecting an MP3 audio track or album

Selecting a JPEG image file or album

Playing Audio Tracks and Images as a Slide Show with Sound

Specifying the slide show duration

Selecting an effect for image files in the slide show

Enjoying DivX® Videos

About DivX Video Files

Selecting a DivX video file

Playing VIDEO CDs with PBC Functions (Ver.2.0)
