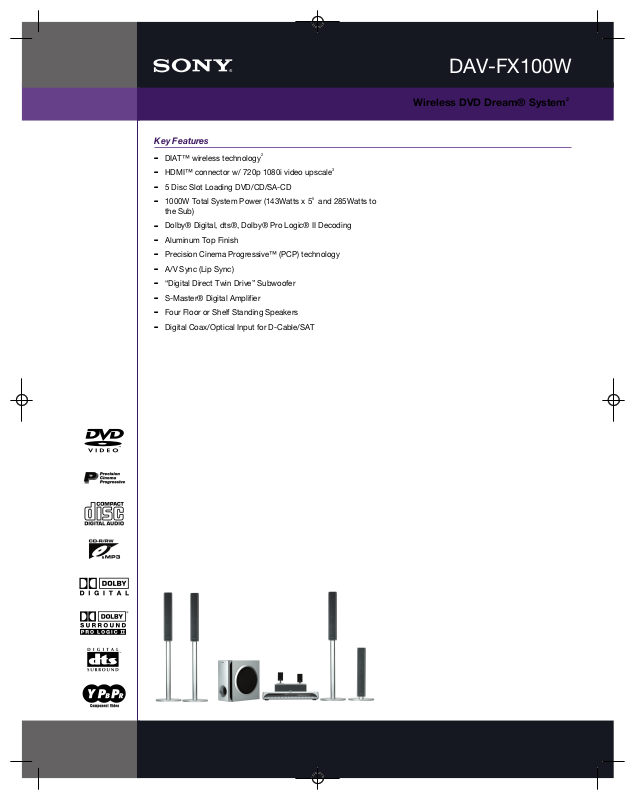

Sony DAV-FX100W Marketing Specifications
DAV-FX100W
Key Features
DIAT™ wireless technology
HDMI™ connector w/ 720p 1080i video upscale
5 Disc Slot Loading DVD/CD/SA-CD
1000W Total System Power (143Watts x 55and 285Watts to
the Sub)
Dolby® Digital, dts®, Dolby® Pro Logic® II Decoding
Aluminum Top Finish
Precision Cinema Progressive™ (PCP) technology
A/V Sync (Lip Sync)
“Digital Direct Twin Drive” Subwoofer
S-Master® Digital Amplifier
Four Floor or Shelf Standing Speakers
Digital Coax/Optical Input for D-Cable/SAT
2
3
Wireless DVD Dream® System
2
DAV-FX100W
Wireless DVD Dream® System
Features
Key Features
DIAT™ wireless technology
S-Master® Digital Amplifier
Digital Cinema Sound™ System
CD/SA-CD Text
Dolby® Digital EX, dts®, and Dolby® Pro Logic® II
Decoding
5-Disc DVD/SA-CD/CD Changer with Progressive
Scan Output
CD-R/RW, Super Audio CD® (Multi), MP3 & JPEG
Playback
1
5.1 Speaker System --- 2 Front Speakers, 2 Rear
Speakers, Center Speaker and Subwoofer
4 Floor or Shelf Standing Speakers
Input Function DVD, (SA-CD, CD, Video, Sat, Tuner
AM/FM)
Digital Coax/Optical Input for D-Cable/SAT
Pre-Programmed Luminous A/V Remote
Commander® Remote Control
Color Coded Speaker Connections
On Screen Display (OSD)
Power Save Mode
Specifications
Receiver
Power
Power Requirements: 120V AC, 60Hz
Power Consumption: 130 Watts (at stand by less than
0.3 Watts)
Inputs and Outputs
Analog Audio Input(s): 2 (Rear)
Optical Audio Input(s): 1 (Rear)
Coaxial Audio Digital Input(s): 1 (Rear)
Composite Video Input(s): 2 (Rear)
Composite Video Output(s): 1 (Rear)
S-Video Output(s): 1 (Rear)
Component Video (Y/Pb/Pr) Output(s): 1 (Rear)
HDMI Connection Output(s): 1 (Rear)
Headphone Input(s): Headphone Jack (3.5mm)
Speaker Terminal Type: Front, Center, Surround,
Subwoofer (DAV Modular Connector)
Audio
Digital Amplifier: S-Master® Digital Amplifier
Sound Mode: Bass Boost function-DSGX, Dolby®
Digital, dts®, Dolby® Pro Logic® II Decoding,
Digital Cinema Sound™ Technology - Cinema
Studio EX, A/V Sync (simple)
DVD, VCD, CD Player
Audio
Format(s) Supported: SA-CD, CD, CD-R, CD-RW,
MP3,JPEG Playback
2
4
1
2
Video
Type: 5 DVD Slot-in with Tray Lock
Playback: CD-R / CD-RW / DVD-R / +R / +R DL /
+RW / -RW / -RW(VR) / DVD-RW(CPRM)
Format: DVD, DVD-R, DVD-RW, DVD+R, DVD+RW,
DVD-RW VR Mode, DVD-RW CPRM Mode,
DVD+R DL, Video CD, JPEG Playblack
Picture Ability: Progressive Scan, Precision Cinema
Progressive™ technology, VCD Version 2.0,
Picture Navigator, OSD Control
Play Mode: Shuffle, Program, Repeat
DAC (D/A Converter): 108 MHz / 12 bit
Tuner
Audio
Tuner Frequency Range: AM: 530-1,710 kHz
FM: 87.5-108.0 MHz
Front Speaker
Speaker
Speaker System: 2 way
Speaker Type: Enclosure- Bass Reflex (Ported)
Tweeter: 1" (2.5 cm)- Nano-fine
Speaker Unit: 2 3/4" x 4" (7cm x 10cm), 2 1/8"x 4
1/3" (5.5cm x 11cm)
Center Speaker
Speaker
Speaker System: 2 way
Speaker Type: Enclosure- Bass Reflex (Ported)
Tweeter: 1" (2.5 cm)- Nano-fine
Surround Speaker
Speaker
Speaker System: 1 way (Full Range)
Speaker Type: Enclosure- Bass Reflex (Ported)
Speaker System: DIAT Wireless Audio System
Speaker Unit: 2 3/4" x 4" (7cm x 10cm)
Tweeter: 1" (2.5 cm)- Nano-fine
Subwoofer Speaker
Speaker
Speaker System: DDTD (Single Unit)
Speaker Type: Enclosure- Bass Reflex (Ported)
Subwoofer: Passive
Speaker Unit: 8"
DAV-FX100W
Weight
1
1
Receiver: 11 lbs, 7 oz (5.2 Kg); Front: 7 lbs, 11 oz (3.5
Kg); Center: 2 lbs, 7 oz (1.1 Kg); Surround: 7 lbs,
8 oz (3.4 Kg); Subwoofer: 17 lbs, 3 oz (7.8 Kg);
Surround Amplifier: 3 lbs, 2 oz (1.4 Kg); Base
Stand: 16 oz (450 g)
Dimensions (WHD)
Receiver: 17"x 2 3/4 x 14 10/13" (445 x 70 x 375mm)
; Front: 10 7/16 x 43 5/8 x 10 7/16" (265 x 1108 x
265mm); Center: 11 13/16 x 3 1/9 x 4 9/16" (300
x 79 x 116mm); Surround: 10 7/16 x 43 5/8 x 10
7/16" (265 x 1108 x 265mm); Subwoofer: 8 1/9 x
15 1/16 x 15 7/16" (206 x 382 x 392mm);
Surround Amplifier: H: 2 1/4 "; Base Stand: H:2
1/4"
UPC Code
0272426684160
1. Pla yback ma y not be co mpati ble w ith a ll di scs, dep endin g on
rec ordin g con ditio ns.
2. As wit h all wi rlele ss pr oduct s, ac tual per forma nce w ill v ary
dep endin g on env ironm ent
3. Wir ed co nnect ion r ecomm ended fo r HDV 10 80i v ideo
4. Rem ote C omman derTM re mote con trol sup ports mo st
man ufact urers .
5. Wat tage mea sured in 20 Hz to 20 kHz
©20 05 So ny El ectro nics Inc . All ri ghts res erved .
Son y, Di gital Ci nema Sou nd, P recis ion C inema Pr ogres sive, Re mote
Com mande r, an d S-M aster ar e tra demar ks of So ny. D olby and Pr o
Log ic ar e reg ister ed tr adema rks o f Dol by La borat ories . HDM I, th e
HDM I log o and Hi gh-De finit ion M ultim edia Int erfac e are tr adema rks o r
reg ister ed tr adema rks o f HDM I Lic ensin g LLC . Dts is a tra demar k of
Dig ital The ater Sys tems, L. P. Al l oth er tr adema rks a re pr opert y of the ir
res pecti ve ow ners.
Fea tures an d spe cific ation s are su bject to ch ange wit hout not ice.
Non -metr ic we ights an d mea sures ar e app roxim ate.
®
Sony Electronics Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com/dn
Last Updated 2005-08-15
