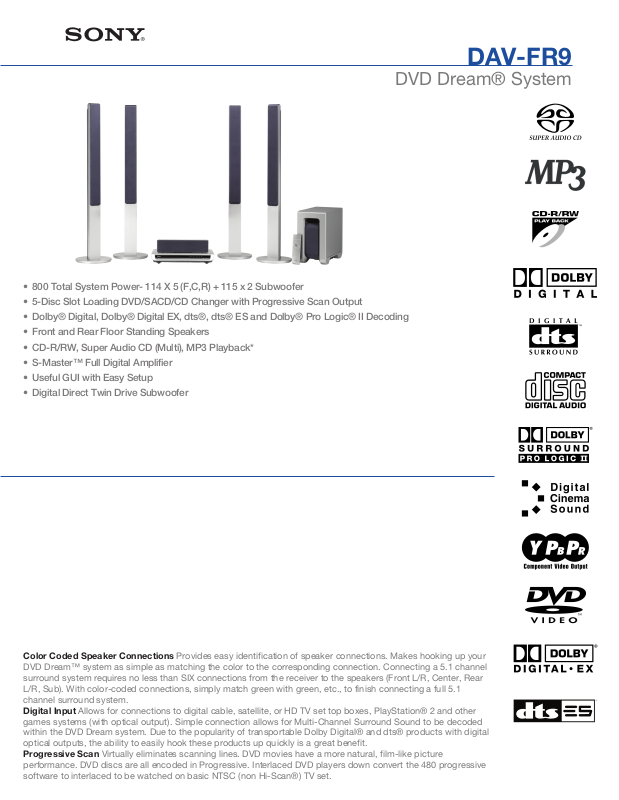

Sony DAV-FR9 BROCHURE
DVD Dream® System
• 800 Total System Power- 114 X 5 (F,C,R) + 115 x 2 Subwoofer
• 5-Disc Slot Loading DVD/SACD/CD Changer with Progressive Scan Output
• Dolby® Digital, Dolby® Digital EX, dts®, dts® ES and Dolby® Pro Logic® II Decoding
• Front and Rear Floor Standing Speakers
• CD-R/RW, Super Audio CD (Multi), MP3 Playback*
• S-Master™ Full Digital Amplifier
• Useful GUI with Easy Setup
• Digital Direct Twin Drive Subwoofer
DAV-FR9
Color Coded Speaker Connections Provides easy identification of speaker connections. Makes hooking up your
DVD Dream™ system as simple as matching the color to the corresponding connection. Connecting a 5.1 channel
surround system requires no less than SIX connections from the receiver to the speakers (Front L/R, Center, Rear
L/R, Sub). With color-coded connections, simply match green with green, etc., to finish connecting a full 5.1
channel surround system.
Digital Input Allows for connections to digital cable, satellite, or HD TV set top boxes, PlayStation® 2 and other
games systems (with optical output). Simple connection allows for Multi-Channel Surround Sound to be decoded
within the DVD Dream system. Due to the popularity of transportable Dolby Digital® and dts® products with digital
optical outputs, the ability to easily hook these products up quickly is a great benefit.
Progressive Scan Virtually eliminates scanning lines. DVD movies have a more natural, film-like picture
performance. DVD discs are all encoded in Progressive. Interlaced DVD players down convert the 480 progressive
software to interlaced to be watched on basic NTSC (non Hi-Scan®) TV set.
DAV-FR9
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
DVD Dream® System
For more information:
http://www.sony.com/dn
Features
General
• 5-Disc DVD/SACD/CD Changer
with Progressive Scan Output
• 800 Watts Total System Power
(114Wx5,Powered Sub 115Wx2)
• CD-R/RW, Super Audio CD (Multi),
MP3 Playback*
• JPEG Playback with Slide Show
• Dolby® Digital, dts®, and Dolby®
Pro Logic® II Decoding
• S-Master™ Full Digital Amplifier
• 6 Speaker System, Front/Rear
Floor Standing Speakers, Center
Channel and Active Powered
Subwoofer
• Front and Rear Floor Standing
Speakers
• Tuner with 20 FM + 10 AM Station
Presets
• Progressive Scan Output (480P)
• Input Function DVD, (SACD, CD,
Video, Sat, Tuner (AM/FM))
Audio
• Bass Enhancement Function
• Digital Cinema Sound™ System
• Total Power Output 800W Front
Speaker: 114W x 2 (1 kHz, 10%
THD); Center Speaker: 114W x 1 (1
kHz, 10 % THD); Rear Speaker:
114W x 2 (1 kHz, 10 % THD);
Subwoofer: 115W x 2 ( 100 Hz,
10% THD)
• CD/SACD Text
• Play Modes (Shuffle, Program,
Repeat)
Inputs and Outputs
• Component Video and S-Video
Outputs
• Digital Input for Satellite TV, etc.
• 2 Analog Audio Inputs
• Headphone Jack 3.5mm Mini Pin
• Digital Audio Input x 1 (Optical)
• Video Signal Outputs x 3 (1
Composite,1 Component,1
S-Video Output)
• Pre Out Surround Back for 6.1
Convenience
• Color Coded Speaker Connections
• Pre-Programmed Luminous A/V
Remote Commander® Remote
Control
• On Screen Display (OSD)
• Power Save Mode
Specifications
DVD/CD/SACD Changer
• Video DA Converter 10 bit
• Audio DA Converter 1 bit
Tuner
• FM Tuning Range 87.5 - 108 MHz
• AM Tuning Range 530 - 1710 kHz
Front/Rear Speaker
• Tweeter Unit Dimension 1"
• Woofer Unit Dimension 2 3/4"
Woofers
• Speaker System 2 way type
Center Speaker
• Tweeter Unit Dimension 1"
• Woofer Unit Dimension 2 3/4"
Woofer
• Speaker System 2 way type
Subwoofer
• Speaker System Bass Reflex Type
• Dual Woofer Unit Dimension 6 1/4"
x (2)
Weights and Measurements
• Front/Rear Speakers 3.5" x 43" x
3" (90 x 1113 x 75mm)
• Front/Rear Weights 9.7 lbs (4.1 kg)
• Center Dimensions 19" x 3.5" x 3"
(356 x 92 x 76mm)
• Center Weights 2.2 lbs (0.95kg)
• Subwoofer Dimensions 7.9 x 14.5
x 17.6" (201 x 369 x 449mm)
• Subwoofer Weight 32lbs (9.5 kg)
Supplied Accessories
• Instruction Manual
• Remote Commander® Remote
Control RM-SP350
• Lengths of Supplied Speaker
Cable: 16.4' x 3 (Front
Speakers/Center Speaker); 49.2' x
2 (Rear Surround Speakers)
Optional Accessories
• WS-FV11D Optional Speaker
Stands - Floor
• WS-DAV10D Optional Speaker
Stands - Wall
Weights & Measures
• Main Unit: 144.4 lbs (5.5kg)
• main unit: 17 x 2.75 x 15.6" (430 x
70 x 398mm)
UPC Codes
• 0272426457830
©2004 Sony Electronics Inc. All rights reserved.
Features and specifications are subject to
change without notice. All trademarks
referenced herein are trademarks of Sony or
their respective owners.
*CD-R/RW playback may not be compatible
with all discs, depending on recording
conditions.
