Sony CDX-G3100UP Operating Instruction

4-542-303-11(1)
FM/AM Compact Disc Player
The warranty for this product is included in this manual (page 21, 22).

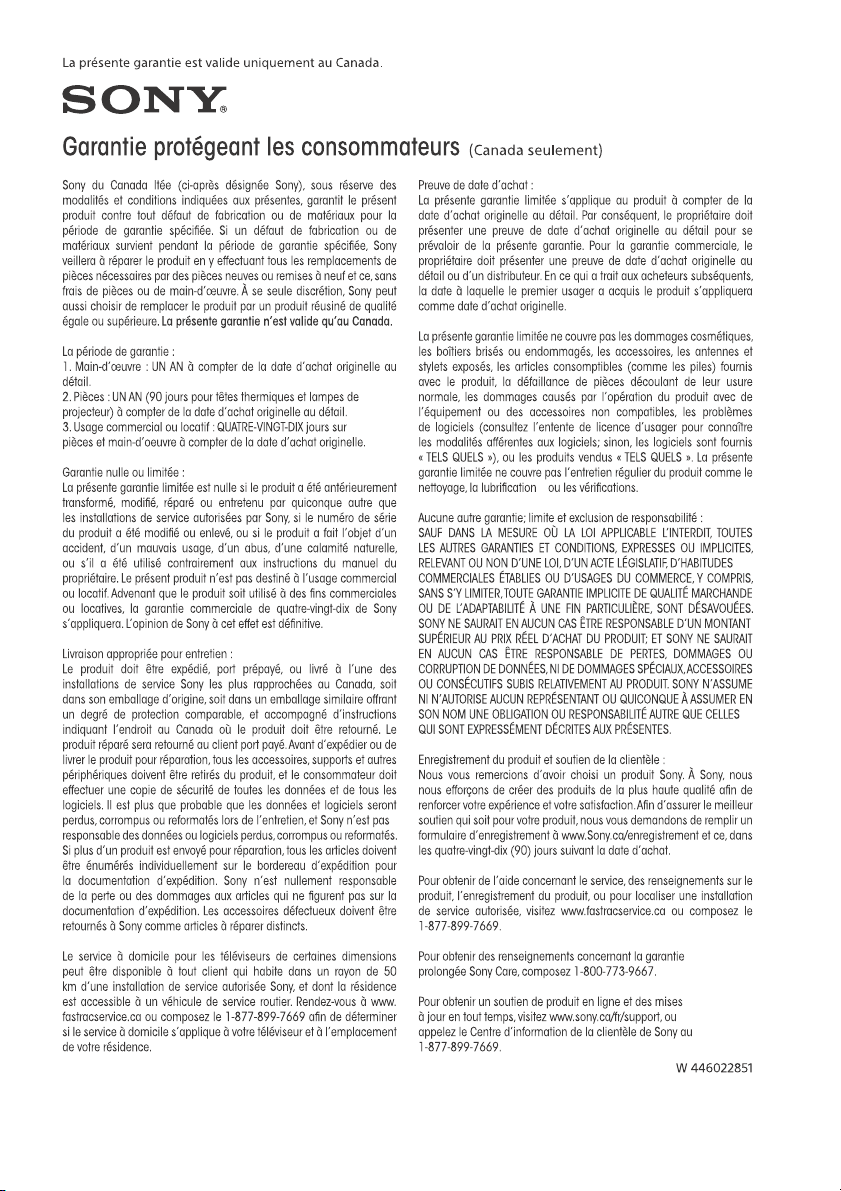

La garantie de ce produit est inclus dans le présent manuel (page 22).
Owner’s Record
The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.
Model No. CDX-G3100UP
Serial No.
For the connection/installation, see page 17. Pour de plus amples informations sur le raccordement/
installation, reportez-vous à la page 18.
Operating Instructions
Mode d’emploi
GB
FR
To cancel the demonstration (DEMO) display, see page 10. Pour annuler l’affichage de démonstration (DEMO), reportez-
vous à la page 10.
CDX-G3100UP
For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use. For details, see “Connection/Installation” (page 17).
The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.
Warning
FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.
POUR LES CLIENTS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Note on the lithium battery
Do not expose the battery to excessive heat such as direct sunlight, fire or the like.
Warning if your car’s ignition has no ACC position
Be sure to set the AUTO OFF function (page 10). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.
CAUTION
The use of optical instruments with this product will increase eye hazard.
For the State of California, USA only
Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate
2GB
Table of Contents
Important notice
The warranty for this product is included in this manual (page 21, 22). Keep this manual for future use.
Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Guide to Parts and Controls . . . . . . . . . . . . . . . . . . 4
Getting Started
Detaching the Front Panel. . . . . . . . . . . . . . . . . . . . 5
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting an iPod/USB Device. . . . . . . . . . . . . . . 6
Connecting Other Portable Audio Device . . . . . . . 6
Listening to the Radio
Listening to the Radio . . . . . . . . . . . . . . . . . . . . . . . 6
Using Radio Data System (RDS) . . . . . . . . . . . . . . . 7
Playback
Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Playing an iPod/USB Device . . . . . . . . . . . . . . . . . . 7
Searching and Playing Tracks . . . . . . . . . . . . . . . . . 8
Listening to Pandora®
Setting up Pandora® . . . . . . . . . . . . . . . . . . . . . . . . 9
Streaming Pandora®. . . . . . . . . . . . . . . . . . . . . . . . . 9
Available Operations in Pandora®. . . . . . . . . . . . . . 9
Settings
Canceling the DEMO Mode . . . . . . . . . . . . . . . . . . 10
Basic Setting Operation . . . . . . . . . . . . . . . . . . . . . 10
General Setup (GENERAL) . . . . . . . . . . . . . . . . . . . 10
Sound Setup (SOUND) . . . . . . . . . . . . . . . . . . . . . . 10
Display Setup (DISPLAY) . . . . . . . . . . . . . . . . . . . . . 11
Additional Information
Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connection/Installation
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Parts List for Installation . . . . . . . . . . . . . . . . . . . . . 17
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3GB
Guide to Parts and Controls
Main unit
Front panel release buttonSRC (source)
Turn on the powe r. Change the source.
OFF
Press and hold for 1 second to turn the source off and display the clock. Press and hold for more than 2 seconds to turn off the power and the display. If the unit is turned off and the display disappears, operation by the remote commander is not available.
Control dial
Rotate to adjust the volume.
PUSH ENTER
Enter the selected item.
MENU
Open the setup menu.
Disc slotDisplay windowSEEK +/–
Tune in radio stations automatically. Press and hold to tune manually.
/ (prev/next)
/ (fast-reverse/fast-forward)  (disc eject) (browse) (page 8, 9)
Enter the browse mode during playback.
(back)
Return to the previous display.
MODE (page 6, 8, 9)
Receptor for the remote commanderPTY (program type)
Select PTY in RDS.
Number buttons (1 to 6)
Receive stored radio stations. Press and hold to store stations.
ALBUM /
Skip an album for audio device. Press and hold to skip albums continuously. Press to thumbs up, or to thumbs down in Pandora® (page 9).
(repeat) SHUF (shuffle) PAU SE
MEGA BASS
Press to turn on/off the MEGA BASS function.
DSPL (display)
Press to change display items.
SCRL
Press and hold to scroll a display item.
AUX input jackUSB port
4GB
RM-X211 Remote commander
The VOL (volume) + button has a tactile dot.
ATT (atte nuate)
Attenuate the sound. Press again to cancel the attenuation.
SOUND
Open the SOUND menu directly.
MENU
Press and hold to open the setup menu.
///
Select a setup item, etc.
ENTER
Enter the selected item.
/ (prev/next) +/– (album +/–)
VOL (Volume) +/–
Remove the insulation film before use.
Getting Started
Detaching the Front Panel
You can detach the front panel of this unit to prevent theft.
1 Press and hold OFF  until the unit turns
off, press the front panel release button , then pull the panel towards you to remove.
Caution alarm
If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.
Attaching the front panel
Setting the Clock
1 Press MENU, rotate the control dial to
select [GENERAL], then press it.
2 Rotate the control dial to select [CLOCK-
ADJ], then press it.
The hour indication flashes.
3 Rotate the control dial to set the hour
and minute.
To move the digital indication, press SEEK +/–.
4 After setting the minute, press MENU.
The setup is complete and the clock starts.
To display the clock
Press DSPL.
5GB
Connecting an iPod/USB Device
1 Turn down the volume on the unit. 2 Connect the iPod/USB device to the unit.
To connect an iPod/iPhone, use the USB connection cable for iPod (not supplied).
Connecting Other Portable Audio Device
Listening to the Radio
Listening to the Radio
To listen to the radio, press SRC to select [TUNER].
Storing automatically (BTM)
1 Press MODE to change the band (FM1,
FM2, FM3, AM1 or AM2).
2 Press MENU, rotate the control dial to
select [GENERAL], then press it.
3 Rotate the control dial to select [BTM],
then press it.
The unit stores stations in order of frequency on the number buttons.
1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect the portable audio device to the
AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied)*.
* Be sure to use a straight type plug.
4 Press SRC to select [AUX].
To match the volume level of the connected device to other sources
Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit. Press MENU, then select [SOUND] [AUX VOL] (page 10).
Tuning
1 Press MODE to change the band (FM1,
FM2, FM3, AM1 or AM2).
2 Perform tuning.
To tune manually
Press and hold SEEK +/– to locate the approximate frequency, then press SEEK +/– repeatedly to fine adjust to the desired frequency.
To tune automatically
Press SEEK +/–. Scanning stops when the unit receives a station.
Storing manually
1 While receiving the station that you want
to store, press and hold a number button (1 to 6) until [MEM] appears.
Receiving the stored stations
1 Select the band, then press a number
button (1 to 6).
6GB
Using Radio Data System (RDS)
Playback
Selecting program types (PTY)
1 Press PTY during FM reception. 2 Rotate the control dial until the desired
program type appears, then press it.
The unit starts to search for a station broadcasting the selected program type.
Typ e o f pro gram s
NEWS (News), INFORM (Information), SPORTS
(Sports), TA LK (Talk), ROCK (Rock), CLS ROCK (Classic Rock), ADLT HIT (Adult Hits), SOFT RCK (Soft Rock), TOP 40 (Top 40), COUNTRY (Country), OLDIES (Oldies), SOFT (Soft), NOSTALGA (Nostalgia), JAZZ (Jazz), CLASSICL (Classical), R AND B (Rhythm and Blues), SOFT R B (Soft Rhythm and Blues), LANGUAGE (Foreign Language), REL MUSC (Religious Music), REL TALK (Religious Talk), PERSNLTY (Personality), PUBLIC (Public), COLLEGE (College), WEATHER (Weather)
Setting clock time (CT)
The CT data from the RDS transmission sets the clock.
1 Set [CT-ON] in [GENERAL] (page 10).
Playing a Disc
1 Insert the disc (label side up).
Playback starts automatically.
Playing an iPod/USB Device
In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on an iPod and iPhone, unless otherwise specified by the text or illustrations.
For details on the compatibility of your iPod, see “About iPod” (page 12) or visit the support site on the back cover.
MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices (such as a USB flash drive, digital media player, Android™ phone) compliant with the USB standard can be used. Depending on the digital media player or Android phone, setting the USB connection mode to MTP is required.
Notes
For details on the compatibility of your USB device,
visit the support site on the back cover.
Playback of the following MP3/WMA files is not
supported.
lossless compression filescopyright-protected filesDRM (Digital Rights Management) filesMulti-channel audio files
1 Connect an iPod/USB device to the USB
port (page 6).
Playback starts. If a device is already connected, to start playback, press SRC to select [USB] ([IPD] appears in the display when the iPod is recognized).
2 Adjust the volume on this unit.
To stop playback
Press and hold OFF for 1 second.
7GB
To remove the device
Stop playback, then remove the device.
Caution for iPhone
When you connect an iPhone via USB, phone call volume is controlled by the iPhone, not the unit. Do not inadvertently increase the volume on the unit during a call, as a sudden loud sound may result when the call ends.
Operating an iPod directly (Passenger control)
1 During playback, press and hold MODE
until [MODE IPOD] appears.
Operations of the iPod become available. Note that the volume can be adjusted only by the unit.
To exit passenger control
Press and hold MODE until [MODE AUDIO] appears.
Searching and Playing Tracks
Repeat play and shuffle play
1 During playback, press (repeat) or
SHUF repeatedly to select the desired play mode.
Playback in the selected play mode may take time to start.
Available play modes differ depending on the selected sound source.
To exit the Quick-BrowZer mode
Press (browse).
Searching by skipping items (Jump mode)
1 Press (browse). 2 Press SEEK +. 3 Rotate the control dial to select the item.
The list is jumped in steps of 10% of the total number of items.
4 Press ENTER to return to the Quick-
BrowZer mode.
The selected item appears.
5 Rotate the control dial to select the
desired item, then press it.
Playback starts.
Searching a track by name (Quick­BrowZer™)
1 During CD or USB playback, press
(browse)* to display the list of search categories.
When the track list appears, press (back) repeatedly to display the desired search category.
* During USB playback, press (browse) for more
than 2 seconds to directly return to the beginning of the category list.
2 Rotate the control dial to select the
desired search category, then press it to confirm.
3 Repeat step 2 to search the desired track.
Playback starts.
8GB
Listening to Pandora®
Pandora® is available to stream music through your iPhone. You can control Pandora® on a USB­connected iPhone from this unit. The Pandora® service is not available in some countries/regions.
Setting up Pandora®
1 Check the compatibility of your mobile
device by visiting the support site on the back cover.
2 Download the latest version of the
Pandora® application from your smartphone’s app store. A list of compatible devices can be found at www.pandora.com/everywhere/mobile
Streaming Pandora®
1 Connect the iPhone to this unit (page 6). 2 Press SRC to select [PANDORA USB]. 3 Launch Pandora® application on your
mobile device.
4 Press PAUSE to start playback.
2 Press SEEK + to select the sorting order
[BY DATE] or [A TO Z].
3 Rotate the control dial to select the
desired station, then press it.
Playback starts.
Bookmarking
The track currently being played can be bookmarked and stored in your Pandora® account.
1 During playback, press MODE.
Available Operations in Pandora®
“Thumbs” feedback
“Thumbs Up” or “Thumbs Down” feedback allows you to personalize stations.
1 During playback, press  (Thumbs Up) or
(Thumbs Down).
Using the station list
The station list allows you to easily select a desired station.
1 During playback, press (browse).
9GB
Settings
Canceling the DEMO Mode
You can cancel the demonstration display which appears when the source is off and the clock is displayed.
1 Press MENU, rotate the control dial to
select [DISPLAY], then press it.
2 Rotate the control dial to select [DEMO],
then press it.
3 Rotate the control dial to select [DEMO-
OFF], then press it.
The setting is complete.
4 Press (back) twice.
The display returns to normal reception/play mode.
Basic Setting Operation
You can set items in the following setup categories: General setup (GENERAL), Sound setup (SOUND), Display setup (DISPLAY)
1 Press MENU. 2 Rotate the control dial to select the setup
category, then press it.
The items that can be set differ depending on the source and settings.
3 Rotate the control dial to select the
options, then press it.
To return to the previous display
Press (back).
General Setup (GENERAL)
CLOCK-ADJ (clock adjust) (page 5)
CAUT ALM (caution alarm)
Activates the caution alarm: [ON], [OFF] (page 5). (Available only while the source is off and the clock is displayed.)
BEEP
Activates the beep sound: [ON], [OFF].
AUTO OFF
Shuts off automatically after a desired time when the unit is turned off: [NO], [30S] (30 seconds), [30M] (30 minutes), [60M] (60 minutes).
AUX-A (AUX audio)
Activates the AUX source display: [ON], [OFF]. (Available only while the source is off and the clock is displayed.)
CT (clock time)
Activates the CT function: [ON], [OFF].
BTM (page 6)
Sound Setup (SOUND)
MEGABASS (mega bass)
Reinforces bass sound in synchronization with the volume level: [ON], [OFF].
EQ5 PRESET
Selects an equalizer curve from 10 equalizer curves or off: [OFF], [R AND B], [ROCK], [POP], [DANCE], [HIP-HOP], [ELECTRONICA], [JAZZ], [SOUL], [COUNTRY], [CUSTOM]. The equalizer curve setting can be memorized for each source.
EQ5 SETTING
Sets [CUSTOM] of EQ5.
BASE
Selects a preset equalizer curve as a basis for further customizing: [BAND1] (low frequency), [BAND2] (mid-low frequency), [BAND3] (mid frequency), [BAND4] (mid-high frequency), [BAND5] (high frequency). The volume level is adjustable in 1 dB steps, from -10 dB to +10 dB.
BALANCE
Adjusts the sound balance: [RIGHT-15] – [CENTER] – [LEFT-15].
FAD ER
Adjusts the relative level: [FRONT-15] – [CENTER] – [REAR-15].
SW LEVEL (subwoofer level)
Adjusts the subwoofer volume level: [+2 dB] – [0 dB] – [-2 dB].
AUX VOL (AUX volume level)
Adjusts the volume level for each connected auxiliary device: [+18 dB] – [0 dB] – [-8 dB]. This setting negates the need to adjust the volume level between sources.
10GB
Display Setup (DISPLAY)
DEMO (demonstration)
Activates the demonstration: [ON], [OFF].
DIMMER
Changes the display brightness: [ON], [OFF].
COLOR
Sets a preset color for the display and buttons on the main unit. Selects from 11 preset colors, 1 customized color and 4 preset patterns.
CUSTOM-C (custom color)
Registers a customized color for the display and buttons.
RGB RED, RGB GRN, RGB BLUE
Adjustable color range: [0] – [32] ([0] cannot be set for all color ranges).
DAYNIGHT
Sets a different color for DAY/NIGHT mode according to the dimmer setting.
[DAY]: [DIMMER] sets to [OFF].[NIGHT]: [DIMMER] sets to [ON].
SND SYNC (sound synchronization)
Selects the color with sound synchronization: [ON], [OFF].
AUTO SCR (auto scroll)
Scrolls long items automatically: [ON], [OFF].
M.DISPLAY (motion display)
Shows moving patterns: [ON], [OFF].
Additional Information
Precautions
Cool off the unit beforehand if your car has been
parked in direct sunlight.
Do not leave the front panel or audio devices
brought in inside the car, or it may cause malfunction due to high temperature in direct sunlight.
Power antenna (aerial) extends automatically.
Moisture condensation
Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.
To maintain high sound quality
Do not splash liquid onto the unit or discs.
Notes on discs
Do not expose discs to direct sunlight or heat
sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
Before playing, wipe the discs
with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.
This unit is designed to play
back discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.
Discs that this unit CANNOT play
Discs with labels, stickers, or sticky tape or
paper attached. Doing so may cause a malfunction, or may ruin the disc.
Discs with non-standard shapes (e.g., heart,
square, star). Attempting to do so may damage the unit.
8 cm (3
Notes on CD-R/CD-RW discs
If the multi-session disc begins with a CD-DA
session, it is recognized as a CD-DA disc, and other sessions are not played back.
Discs that this unit CANNOT play
CD-R/CD-RW of poor recording quality.CD-R/CD-RW recorded with an incompatible
CD-R/CD-RW which is finalized incorrectly.
1
/4 in) discs.
recording device.
11GB
CD-R/CD-RW other than those recorded in
MP3/WMA
Folder (album)
MP3/WMA file (track)
+ side up
music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi­session.
Playback order of MP3/WMA files
About iPod
You can connect to the following iPod models.
Update your iPod devices to the latest software before use.
Compatible iPhone/iPod models
Compatible Model USB iPhone 5s iPhone 5c iPhone 5 iPhone 4s iPhone 4 iPhone 3GS iPhone 3G iPod touch (5th generation) iPod touch (4th generation) iPod touch (3rd generation) iPod touch (2nd generation) iPod classic iPod nano (7th generation) iPod nano (6th generation) iPod nano (5th generation) iPod nano (4th generation) iPod nano (3rd generation) iPod nano (2nd generation) iPod nano (1st generation)*
* Passenger control is not available for iPod nano (1st
generation).
“Made for iPod,” and “Made for iPhone,” mean
that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.
Maintenance
Replacing the lithium battery of the remote commander
Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the remote commander becomes shorter.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type.
Notes on the lithium battery
Keep the lithium battery out of the reach of children.
Should the battery be swallowed, immediately consult a doctor.
Wipe the battery with a dry cloth to ensure a good
contact.
Be sure to observe the correct polarity when installing
the battery.
Do not hold the battery with metallic tweezers,
otherwise a short-circuit may occur.
Cleaning the connectors
The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 5) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.
12GB
Notes
For safety, turn off the ignition before cleaning the
connectors, and remove the key from the ignition switch.
Never touch the connectors directly with your fingers
or with any metal device.
Specifications
FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.
POUR LES CLIENTS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC.
AUDIO POWER SPECIFICATIONS
Tuner section
FM
Tuning range: 87.5 – 107.9 MHz Antenna (aerial) terminal:
Intermediate frequency:
Usable sensitivity: 7 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 73 dB Separation: 50 dB at 1 kHz Frequency response: 20 – 15,000 Hz
AM
Tuning range: 530 – 1,710 kHz Antenna (aerial) terminal:
Sensitivity: 26 μV
CD Player section
Signal-to-noise ratio: 95 dB Frequency response: 10 – 20,000 Hz Wow and flutter: Below measurable limit The maximum number of: (CD-R/CD-RW only)
folders (albums): 150 (including root folder)files (tracks) and folders: 300 (may less than 300
CEA2006 Standard Power Output: 17 Watts RMS × 4 at 4 Ohms < 1% THD+N SN Ratio: 80 dBA (reference: 1 Watt into 4 Ohms)
External antenna (aerial) connector
FM CCIR: -1,956.5 to -487.3 kHz and
+500.0 to +2,095.4 kHz
External antenna (aerial) connector
if folder/file names contain many characters)
displayable characters for a folder/file name: 32
(Joliet)/64 (Romeo)
Corresponding codec: MP3 (.mp3) and WMA (.wma)
USB Player section
Interface: USB (Full-speed) Maximum current: 1 A The maximum number of recognizable tracks:
folders (albums): 256files (tracks) per folder: 256
Corresponding codec:
MP3 (.mp3) and WMA (.wma)
Power amplifier section
Output: Speaker outputs Speaker impedance: 4 – 8 ohms Maximum power output: 55 W × 4 (at 4 ohms)
General
Outputs:
Audio outputs terminal (rear, sub) Power antenna (aerial)/Power amplifier control
terminal (REM OUT)
Inputs:
Remote controller input terminal Antenna (aerial) input terminal AUX input jack (stereo mini jack) USB port
Power requirements: 12 V DC car battery (negative
ground (earth))
Dimensions:
Approx. 178 mm × 50 mm × 177 mm
1
(7
/8 in × 2 in × 7 in) (w/h/d)
Mounting dimensions:
Approx. 182 mm × 53 mm × 160 mm
1
(7
/4 in × 2 1/8 in × 6 5/16 in) (w/h/d) Mass: Approx. 1.2 kg (2 lb 11 oz) Package contents:
Main unit (1) Remote commander (1): RM-X211 Parts for installation and connections (1 set)
Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.
Design and specifications are subject to change without notice.
13GB
Copyrights
Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
Android is a trademark of Google Inc.
Troubleshooting
The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures. For details on using the fuse and removing the unit from the dashboard, see “Connection/Installation” (page 17). If the problem is not solved, visit the support site on the back cover.
General
No power is being supplied to the unit.
If the unit is turned off and the display
disappears, the unit cannot be operated with the remote commander. Turn on the u nit.
No sound.
The position of the fader control [FADER] is not
set for a 2-speaker system.
No beep sound.
An optional power amplifier is connected and
you are not using the built-in amplifier.
The contents of the memory have been erased.
The power supply lead or battery has been
disconnected or not connected properly.
Stored stations and correct time are erased. The fuse has blown. Makes a noise when the position of the ignition is switched.
The leads are not matched correctly with the car’s
accessory power connector.
During playback or reception, the demonstration mode starts.
If no operation is performed for 5 minutes with
[DEMO-ON] set, the demonstration mode starts. Set [DEMO-OFF] (page 11).
The display disappears from/does not appear in the display window.
The dimmer is set to [DIM-ON] (page 11).The display disappears if you press and hold OFF.
Press OFF on the unit until the display appears.
The connectors are dirty (page 12).
The operation buttons do not function. The disc will not eject.
Press DSPL and (back)/MODE for more than 2
seconds to reset the unit. The contents stored in memory are erased. For your safety, do not reset the unit while you are driving.
Radio reception
Stations cannot be received. The sound is hampered by noises.
The connection is not correct.
If your car has built-in radio antenna (aerial) in
the rear/side glass, connect an REM OUT lead (blue/white striped) or accessory power supply lead (red) to the power supply lead of a car’s antenna (aerial) booster.
Check the connection of the car antenna
(aerial).
If the auto antenna (aerial) will not extend,
check the connection of the power antenna (aerial) control lead.
Preset tuning is not possible.
The broadcast signal is too weak.
RDS
PTY displays [- - - - - - - -].
The current station is not an RDS station.RDS data has not been received.The station does not specify the program type.
CD playback
The disc does not play back.
Defective or dirty disc.The CD-R/CD-RW is not for audio use (page 11).
14GB
MP3/WMA files cannot be played back.
The disc is incompatible with the MP3/WMA
format and version. For details on playable discs and formats, visit the support site on the back cover.
MP3/WMA files take longer to play back than others.
The following discs take a longer time to start
playback. A disc recorded with a complicated tree
structure.
A disc recorded in Multi Session.A disc to which data can be added.
The sound skips.
Defective or dirty disc.
USB device playback
You cannot play back items via a USB hub.
This unit cannot recognize USB devices via a USB
hub.
A USB device takes longer to play back.
The USB device contains files with a complicated
tree structure.
The sound is intermittent.
The sound may be intermittent at a high-bit-rate
of more than 320 kbps.
Audio file cannot be played back.
USB device formatted with file systems other
than FAT16 or FAT32 are unsupported.*
* This unit supports FAT16 and FAT32, but some USB
device may not support all of these FAT. For details, refer to the operating instruction of each USB device or contact the manufacturer.
Pandora® operation
Pandora® connection is not possible.
Shut down the Pandora® application on the
mobile device, and then launch it again.
Error displays/Messages
ERROR: The disc or USB device cannot be played.
Clean or insert the disc correctly, or make sure the
disc is not blank or defective.
Connect the USB device again.
HUB NO SUPRT: USB hubs are not supported.
IPD STOP: iPod playback has finished.
Operate your iPod/iPhone to start playback.
NO DEV: A USB device is not connected or recognized. Make sure the USB device or USB cable is securely
connected.
NO MUSIC: There is no playable file. Insert a disc or connect a USB device containing
playable files (page 13).
OVERLOAD: The USB device is overloaded. Disconnect the USB device, then press SRC to
select another source.
The USB device has a fault, or an unsupported
device is connected.
PUSH EJT: The disc could not be ejected properly. Press (eject).
READ: Now reading information. Wait until reading is complete and playback
starts automatically. This may take some time depending on the disc structure.
USB NO SUPRT: The USB device is not supported. For details on the compatibility of your USB
device, visit the support site on the back cover.
or : The beginning or
the end of the disc has been reached.
: The character cannot be displayed.
For Pandora® operation:
CANNOT SKIP: Skipping tracks is not allowed.
Wait until the commercial ends, next track
begins, or select another station on the list. Pandora® limits the number of skips allowed on their service.
NO NETWORK: The network connection is unstable or lost. Make the network connection again on the
device, or wait until the network connection is established.
NO STATION: No stations on your account. Create the station on the mobile device.
NOT ALLOWED: The selected operation is not allowed.
“Thumbs” feedback is not allowed.
Wait until the commercial ends.Some functions, such as Shared Station, do not
permit feedback. Wait until the next track begins, or select another station on the list.
Bookmark is not allowed.
Wait until the commercial ends.Select another track or station, then try it again.
15GB
Loading...
+ 33 hidden pages
