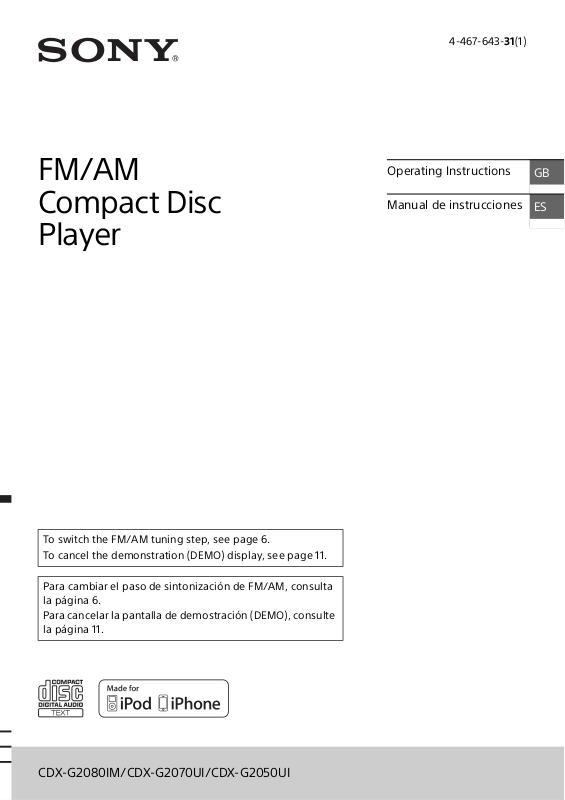

Sony CDX-G2070UI Users guide [es, en]

4-467-643-31(1)
FM/AM Compact Disc Player
To switch the FM/AM tuning step, see page 6. To cancel the demonstration (DEMO) display, see page 11.
Operating Instructions
Manual de instrucciones
GB
Para cambiar el paso de sintonización de FM/AM, consulta la página 6.
Para cancelar la pantalla de demostración (DEMO), consulte la página 11.
CDX-G2080IM/CDX-G2070UI/CDX-G2050UI
Be sure to install this unit in the dashboard of the car for safety. For installation and connections, see the supplied installation/connections manual.
Laser Diode Properties
Emission Duration: ContinuousLaser Output: Less than 53.3 W
(This output is the value measurement at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.)
Note on the lithium battery
Do not expose the battery to excessive heat such as direct sunlight, fire or the like.
Warning if your car’s ignition has no ACC position
Be sure to set the AUTO OFF function (page 11). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.
2GB
Table of Contents
Guide to Parts and Controls. . . . . . . . . . . . . . 4
Getting Started
Detaching the Front Panel. . . . . . . . . . . . . . . 5
Switching the FM/AM Tuning Step . . . . . . . . 6
Setting the Clock. . . . . . . . . . . . . . . . . . . . . . . 6
Connecting an iPod/USB Device . . . . . . . . . . 6
Connecting Other Portable Audio
Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Listening to the Radio
Listening to the Radio . . . . . . . . . . . . . . . . . . 7
Using Radio Data System (RDS). . . . . . . . . . . 8
Playback
Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . 9
Playing an iPod/USB Device . . . . . . . . . . . . . 9
Searching and Playing Tracks . . . . . . . . . . . 10
Settings
Canceling the DEMO Mode . . . . . . . . . . . . . .11
Basic Setting Operation . . . . . . . . . . . . . . . . .11
GENERAL Setup. . . . . . . . . . . . . . . . . . . . . . . .11
SOUND Setup . . . . . . . . . . . . . . . . . . . . . . . . 12
EQ3 PRESET . . . . . . . . . . . . . . . . . . . . . . . 12
EQ3 SETTING . . . . . . . . . . . . . . . . . . . . . . 12
DISPLAY Setup . . . . . . . . . . . . . . . . . . . . . . . 12
Additional Information
Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 16
3GB

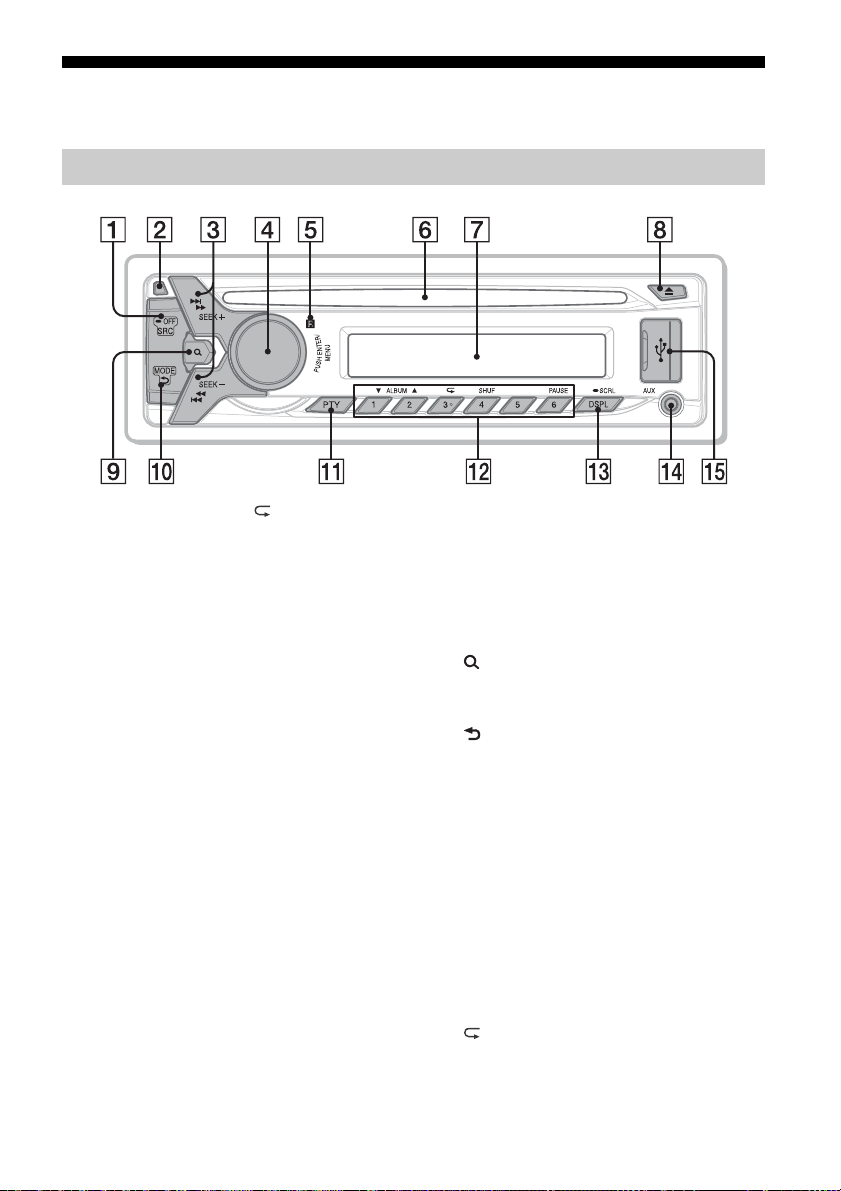

Guide to Parts and Controls
Main unit
The number 3/ (repeat) button has a tactile dot.
SRC (source)
Turn on the power. Change the source.
-OFF
Press and hold for 1 second to turn off the power. Press and hold for more than 2 seconds to turn off the power and the display. If the unit is turned off and the display disappears, it is unable you to operate with the remote.
Front panel release buttonSEEK +/–
Tune in radio stations automatically. Press and hold to tune manually.
/ (prev/next) / (reverse/ fast-forward)
Control dial
Rotate to adjust the volume.
ENTER
Enter the selected item.
MENU
Open the setup menu.
Receptor for the remote commanderDisc slot
Display window  (disc eject) (browse) (page 10)
Enter the browse mode during playback.
(back)
Return to the previous display.
MODE (page 7, 9)
PTY (program type)
Select PTY in RDS.
Number buttons (1 to 6)
Receive stored radio stations. Press and hold to store stations.
ALBUM /
Skip an album for audio device. Press and hold to skip albums continuously.
(repeat) SHUF (shuffle) PAU SE
DSPL (display)
Change display items.
-SCRL (scroll)
Press and hold to scroll a display item.
AUX input jackUSB port
4GB

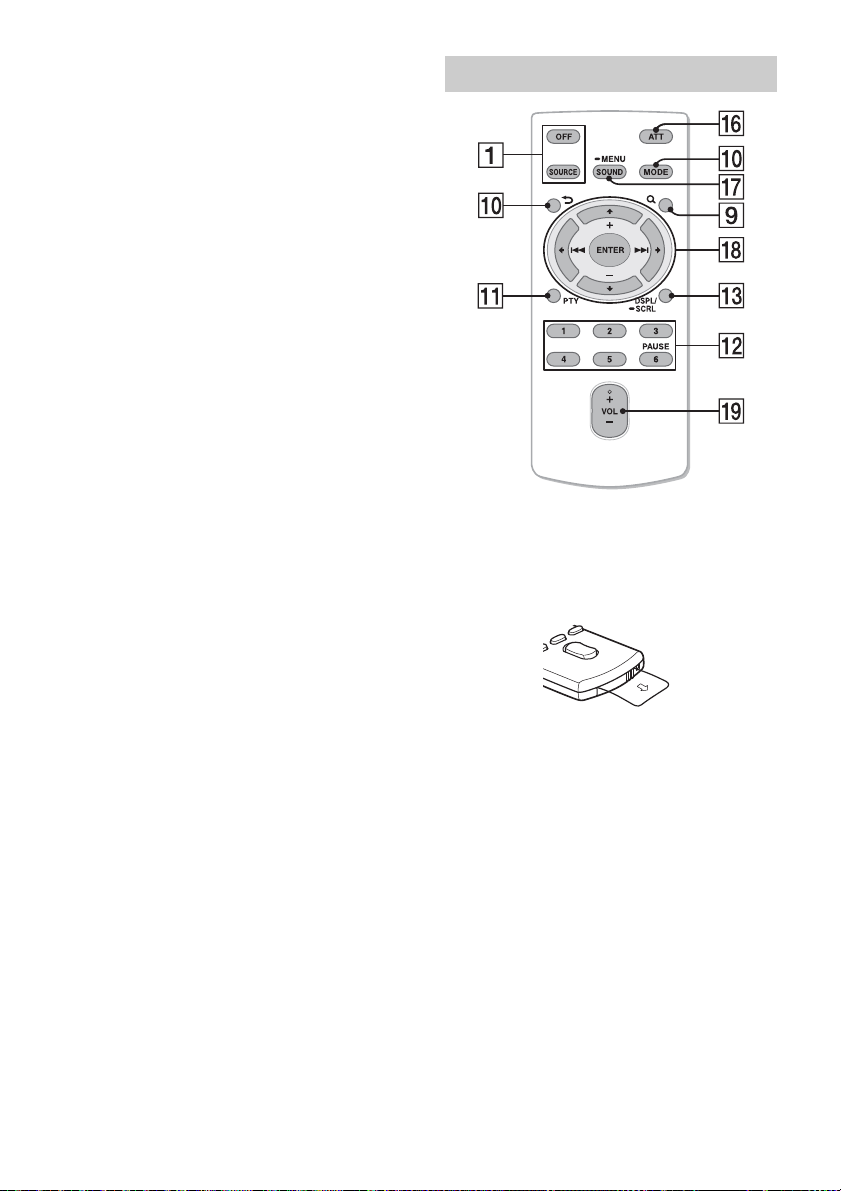

RM-X211 Remote
The VOL (volume) + button has a tactile dot.
Getting Started

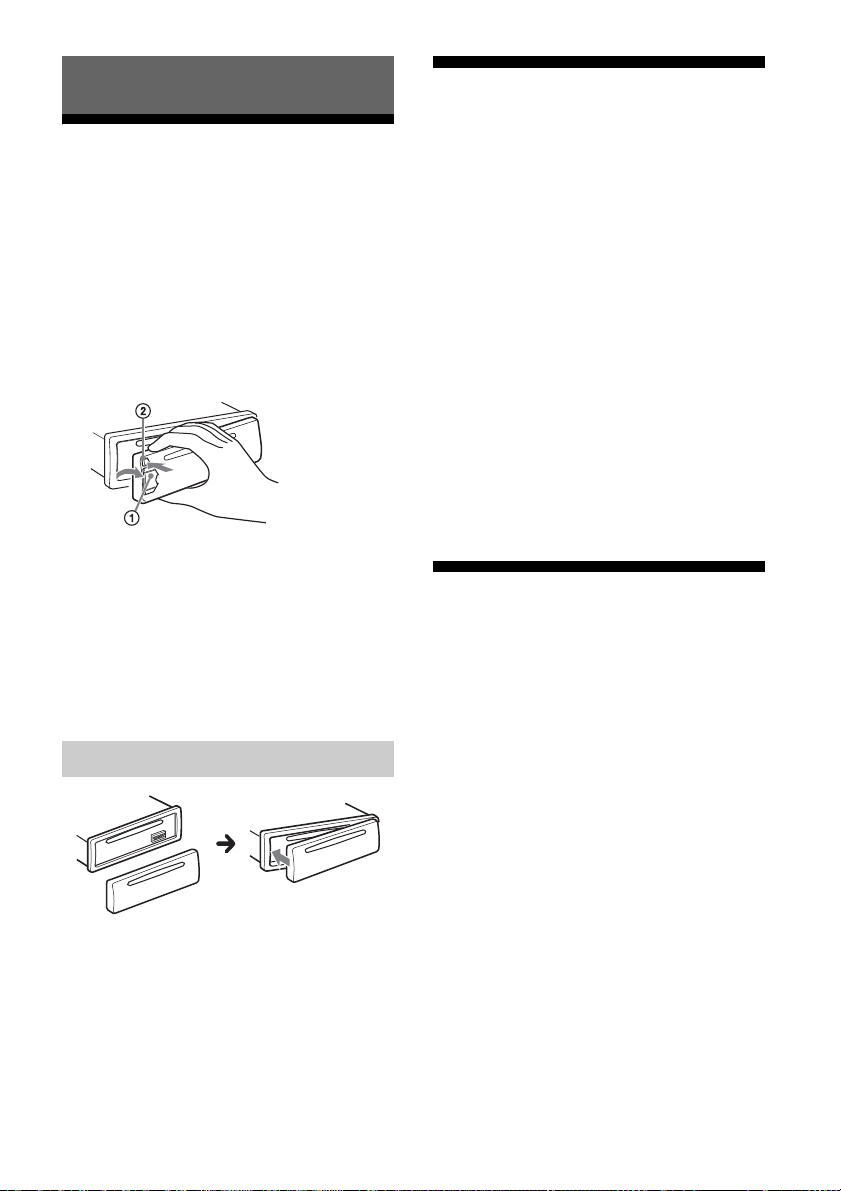

Detaching the Front Panel
You can detach the front panel of this unit to prevent theft.
1 Press and hold OFF .
The unit is turned off.
2 Press the front panel release button
, then remove the panel by pulling it towards you.
Remove the insulation film before use.
ATT (attenuate)
Attenuate the sound. Press again to cancel the attenuated sound.
SOUND
Open the SOUND menu directly.
-MENU
Press and hold to open the setup menu.
 ()/ (+)/ (–)/ ()/ENTER
Setup items, etc. can be operated by ///.
VOL (volume) +/–
Caution alarm
If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.
Attaching the front panel
5GB
Switching the FM/AM

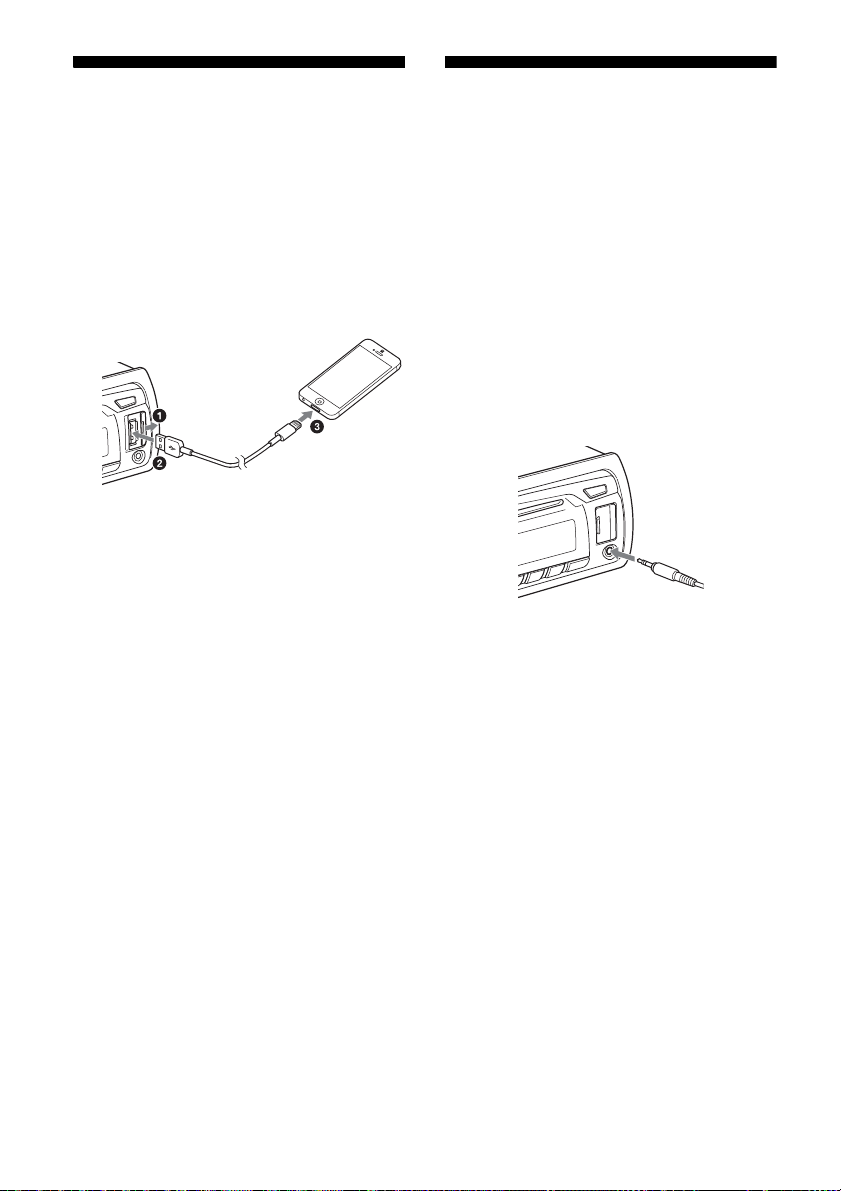

When connecting iPhone 5
Connecting an iPod/USB
Tuning Step
Set the FM/AM tuning step of your country. This setting appears when this unit is turned off.
1 Press MENU, rotate the control dial
to select [GENERAL], then press it.
2 Rotate the control dial to select
[TUNER-STP], then press it.
3 Rotate the control dial to select
from [50K/9K], [100K/10K] or [200K/10K], then press it.
Setting the Clock 1 Press MENU, rotate the control dial
to select [GENERAL], then press it.
2 Rotate the control dial to select
[CLOCK-ADJ], then press it.
The hour indication flashes.
Device 1 Turn down the volume on the unit.
2 Connect the iPod/USB device to the
unit.
To connect an iPod/iPhone, use the USB connection cable for iPod (not supplied).
3 Rotate the control dial to set the
hour and minute.
To move the digital indication, press SEEK +/–.
4 After setting the minute, press
MENU.
The setup is complete and the clock starts.
To display the clock, press DSPL.
6GB
Connecting Other Portable Audio Device
1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect the portable audio device
to the AUX input jack (stereo mini jack) on the unit with a connecting cord* (not supplied).
* Be sure to use a straight type plug.
4 Press SRC to select [AUX].
Listening to the Radio
Listening to the Radio
Tuning step setting is required (page 6).
To listen to the radio, press SRC to select [TUNER].
Storing automatically (BTM)
1 Press MODE to change the band
(FM1, FM2, FM3, AM1 or AM2).
2 Press MENU, rotate the control dial
to select [GENERAL], then press it.
3 Rotate the control dial to select
[BTM], then press it.
The unit stores stations in order of frequency on the number buttons.
To match the volume level of the connected device to other sources
Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit. Press MENU and rotate the control dial. Select [SOUND] [AUX VOL] (page 12).
Tuning
1 Press MODE to change the band
(FM1, FM2, FM3, AM1 or AM2).
2 Perform tuning.
To tune manually
Press and hold SEEK +/– to locate the approximate frequency, then press SEEK +/– repeatedly to fine adjust to the desired frequency.
To tune automatically
Press SEEK +/–. Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.
Storing manually
1 While receiving the station that you
want to store, press and hold a number button (1 to 6) to display [MEM].
7GB
Receiving the stored stations
Setting clock time (CT)
1 Select the band, then press a
number button (1 to 6).
Using Radio Data System (RDS)
Selecting program types (PTY)
Use PTY to display or search for a desired program type.
1 Press PTY during FM reception. 2 Rotate the control dial until the
desired program type appears, then press it.
The unit starts to search for a station broadcasting the selected program type.
Typ e of progra ms
NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious
classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children’s program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music),
OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)
The CT data from the RDS transmission sets the clock.
1 Set [CT-ON] in GENERAL setup
(page 11).
8GB
Playback

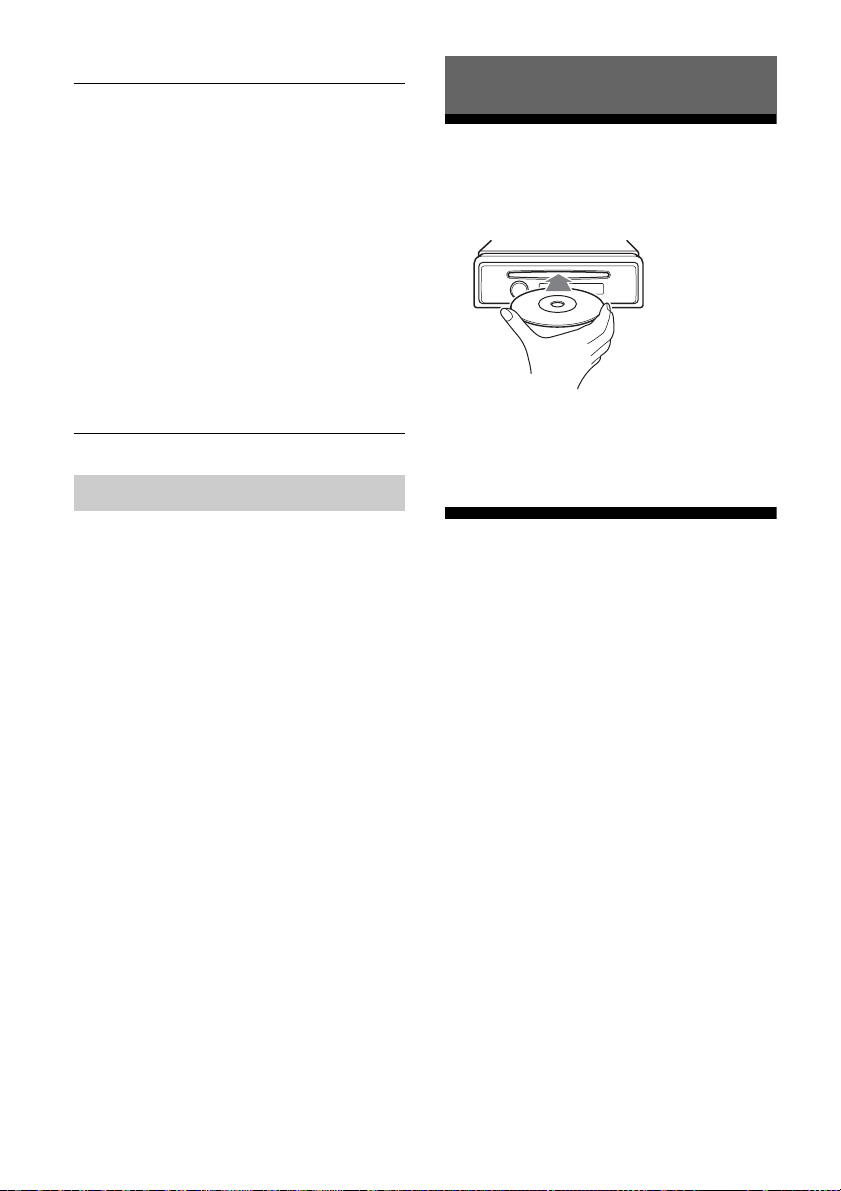

Playing a Disc 1 Insert the disc (label side up).
Playback starts automatically.
Playing an iPod/USB Device
In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on an iPod and iPhone, unless otherwise specified by the text or illustrations.
For details on the compatibility of your iPod, see “About iPod” (page 14) or visit the support site on the back cover.
MSC (Mass Storage Class)-type USB devices (such as a USB flash drive, digital media player, Android™ phone) compliant with the USB standard can be used. Depending on the digital media player or Android phone, setting the USB connection mode to MSC is required.
Notes
For details on the compatibility of your USB
device, visit the support site on the back cover.
Playback of the following MP3/WMA files is not
supported.
lossless compression filescopyright-protected filesDRM (Digital Rights Management) filesMulti-channel audio files
1 Connect an iPod/USB device to the
USB port (page 6).
Playback starts. If a device is already connected, to start playback, press SRC to select [USB] ([IPD] appears in the display when the iPod is recognized).
2 Adjust the volume on this unit.
To stop playb ack
Press and hold OFF for 1 second.
To remove the device
Stop playback, then remove the device.
Caution for iPhone
When you connect an iPhone via USB, phone call volume is controlled by the iPhone, not the unit. Do not inadvertently increase the volume on the unit during a call, as sudden loud sound may result when the call ends.
Operating an iPod directly (Passenger control)
Press and hold MODE during playback to display [MODE IPOD] to enable operation by the iPod directly. Note that the volume can be adjusted only by the unit.
To exit passe ng er c ontrol
Press and hold MODE to display [MODE AUDIO].
9GB
Searching and Playing Tracks
Searching by skip items (Jump mode)
1 Press (browse)
Repeat play and shuffle play
1 During playback, press (repeat)
for repeat play, or SHUF for shuffle play.
2 Press (repeat) or SHUF repeatedly
to select the desired repeat or shuffle play mode.
Playback in selected play mode may take time to start.
Available play modes differ depending on the selected sound source.
Searching a track by name (Quick­BrowZer™)
1 During CD or USB playback, press
(browse)* to display the list of
search categories.
When the track list appears, press (back) repeatedly.
* During playback, press (browse) for more
than 2 seconds to directly return to the beginning of the category list.
2 Press SEEK +. 3 Rotate the control dial to select the
item.
The list is jumped in steps of 10% of the total number of items.
4 Press ENTER to return to the Quick-
BrowZer mode.
The selected item appears.
5 Rotate the control dial to select the
desired item, then press it.
Playback starts.
2 Rotate the control dial to select the
desired search category, then press it to confirm.
3 Repeat step 2 to search the desired
track.
Playback starts.
To exit the Quick-BrowZer mode
Press (browse).
10GB
GENERAL SetupSettings
Canceling the DEMO Mode
You can cancel the demonstration display which appears while this unit is turned off.
1 Press MENU, rotate the control dial
to select [DISPLAY], then press it.
2 Rotate the control dial to select
[DEMO], then press it.
3 Rotate the control dial to select
[DEMO-OFF], then press it.
The setting is complete.
4 Press (back) twice.
The display returns to normal reception/ play mode.
Basic Setting Operation
You can set items in the menu to the following procedure. The following items can be set depending on the source and setting.
CLOCK-ADJ (Clock Adjust) (page 6)
TUNER-STP (Tuner Step) (page 6)
(Available only when the unit is turned off.)
CAUT ALM (Caution Alarm)
Activates the caution alarm: [ON], [OFF] (page 5). (Available only when the unit is turned off.)
BEEP
Activates the beep sound: [ON], [OFF].
AUTO OFF
Shuts off automatically after a desired time when the unit is turned off: [NO], [30S] (30 seconds), [30M] (30 minutes), [60M] (60 minutes).
AUX-A (AUX Audio)
Activates the AUX source display: [ON], [OFF]. (Available only when the unit is turned off.)
CT (Clock Time)
Activates the CT function: [ON], [OFF].
BTM (page 7)
1 Press MENU. 2 Rotate the control dial to select the
setup category, then press it.
Setup categories are follows:
GENERAL setup (page 11)SOUND setup (page 12)DISPLAY setup (page 12)
3 Rotate the control dial to select the
options, then press it.
To return to the previous display
Press (back).
11GB
SOUND Setup DISPLAY Setup
EQ3 PRESET
Selects an equalizer curve from the following equalizer curves or off: [XPLOD], [VOCAL], [EDGE], [CRUISE], [SPACE], [GRAVITY] (except India model), [BOLLYWD] (India model only), [CUSTOM], [OFF]. The equalizer curve setting can be memorized for each source.
EQ3 SETTING
Sets [CUSTOM] of EQ3. Selects the equalizer settings: [LOW], [MID], [HIGH]. To restore the factory-set equalizer curve, press and hold ENTER before the setting is complete.
BALANCE
Adjusts the sound balance: [RIGHT-15] – [CENTER] – [LEFT-15].
FAD ER
Adjusts the relative level: [FRONT-15] – [CENTER] – [REAR-15].
LOUDNESS (Dynamic Loudness)
Reinforces bass and treble for clear sound at low volume levels: [ON], [OFF].
SW LEVEL (Subwoofer Level)
Adjusts the subwoofer volume level: [+2 dB] - [0 dB] - [-2 dB].
AUX VOL (AUX Volume Level)
Adjusts the volume level for each connected auxiliary device: [+18 dB] - [0 dB] - [-8 dB]. This setting negates the need to adjust the volume level between sources.
DEMO (Demonstration)
Activates the demonstration: [ON], [OFF].
BLK OUT (Black Out)
Turns off the illumination automatically for any source (e.g., during radio reception/ CD playback, etc.) if no operation is performed for 5 seconds: [ON], [OFF]. To turn the light back on, press any button on the unit or the remote commander.
DIMMER
Changes the display brightness: [ON], [OFF].
AUTO SCR (Auto Scroll)
Scrolls long items automatically: [ON], [OFF].
M.DISPLAY (Motion Display)
Shows moving patterns: [ON], [OFF].
12GB
Loading...
+ 28 hidden pages
