CDP-CE575
SERVICE MANUAL
Ver 1.1 2001.07
US Model
Canadian Model
AEP Model
Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM59-5BD27
Base Unit Name BU-5BD27
Optical Pick-up Name PXR-104X
SPECIFICATIONS
Compact disc player
Laser Semiconductor laser (λ =
Frequency response 2 Hz to 20 kHz ± 0.5 dB
Dynamic range More than 93 dB
Harmonic distortion Less than 0.0045%
Outputs
Jack
type
ANALOG
OUT
DIGITAL
OUT
(OPTICAL)
PHONES
Phono
jacks
Optical
output
connector
Stereo
phone
jack
780 nm)
Emission duration:
continuous
Maximum
output level
2 V
(at 50 kilohms)
–18 dBm
10 mW
Load
impedance
Over 10
kilohms
Wave
length:
660 nm
32 ohms
General
Power requirements 120 V AC, 60 Hz
Power consumption 11 W
Dimensions (approx.) 430 x 110 x 400 mm
(w/h/d) (17 x 4 3/8 x 15 3/4 in.)
Mass (approx.) 5.2 kg (11 lbs 8 oz)
Supplied accessories
Audio cord (2 phono plugs – 2 phono plugs) (1)
Remote commander (remote) (1)
R6 (size AA) batteries (2)
Design and specifications are subject to change
without notice.
incl. projecting parts
9-929-586-12 Sony Corporation
2001G0500-1 Home Audio Company
C 2001.7 Shinagawa Tec Service Manual Production Group
COMPACT DISC PLAYER
CDP-CE575
Ver 1.1 2001.07
TABLE OF CONTENTS
1. SERVICEING NOTES ............................................ 3
2. GENERAL ................................................................... 6
3. DISASSEMBLY
3-1. Disassemb ly Flow ........................................................... 8
3-2. Case (409538) ................................................................. 9
3-3. F ront Panel Section ......................................................... 9
3-4. CD Mechanism Deck (CDM59-5BD27) ........................ 10
3-5. MAIN Board ................................................................... 10
3-6. Base Unit (BU-5BD27)................................................... 11
3-7. Table Assy ....................................................................... 11
3-8. Sensor Board ................................................................... 12
3-9. Loading Motor Board ..................................................... 12
4. ASSEMBLY................................................................. 13
5. TEST MODE.............................................................. 14
6. ELECTRICAL ADJUSTMENTS......................... 18
7. DIAGRAMS
7-1. Note for Printed Wiring Boards and
Schematic Diagrams ....................................................... 21
7-2. Printed Wiring Board – BD Section – ........................... 22
7-3. Schematic Diagram – BD Section – .............................. 23
7-4. Printed Wiring Boards
– MOTOR/SENSOR Section –....................................... 24
7-5. Schematic Diagram – MOTOR/SENSOR Section – .... 25
7-6. Schematic Diagram – MAIN Section (1/2) – ................ 26
7-7. Schematic Diagram – MAIN Section (2/2) – ................ 27
7-8. Printed Wiring Boards – MAIN Section – .................... 28
7-9. Printed Wiring Boards – DISPLAY Section – .............. 30
7-10. Schematic Diagram – DISPLAY Section – ................... 31
7-11. IC Pin Function Description ........................................... 32
8. EXPLODED VIEWS
8-1. Case Section .................................................................... 36
8-2. F ront Panel Section ......................................................... 37
8-3. Chassis Section ............................................................... 38
8-4. CD Mechanism Deck Section-1
(CDM59-5BD27) ............................................................ 39
8-5. CD Mechanism Deck Section-2
(CDM59-5BD27) ............................................................ 40
8-6. Base Unit Section (BU-5BD27) ..................................... 41
SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The A C leaka ge from an y e xposed metal part to earth gr ound and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT -540A. Follo w the manufacturers’ instructions to use these
instruments.
2. A battery-operated A C milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa SH-63T rd are e xamples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2 V A C range are suitable. (See Fig. A)
To Exposed Metal
Parts on Set
1.5 k
0.15 µF
Fig. A. Using an AC voltmeter to check AC leakage.
Ω
Earth Ground
AC
voltmeter
(0.75 V)
9. ELECTRICAL PARTS LIST ............................... 42
2
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED
LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANU AL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS P AR UNE MARQUE 0
SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE
DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ
DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES
NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
CDP-CE575
SECTION 1
SERVICING NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objecti ve lens.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation exposure.
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on
the rear exterior.
HOW T O OPEN THE DISC T ABLE WHEN PO WER
SWITCH TURNS OFF
Insert a tapering driver into the aperture of the unit bottom, and
turn it in the direction of the arrow (to OUT direction).
table
tapering driver
*To close the disc table, turn the tapering
driver in the reverse direction (to IN direction).
Carry out the “S curve check” in “CD section adjustment” and
check that the S curve waveforms is output three times.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be damaged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270 ˚C during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
NOTES ON CLEANING OF OPTICAL PICK-UP LENS
Do not clean up the optical pick-up lens.
MODEL IDENTIFICATION
– BACK PANEL –
Part No.
Model Part No.
US model 4-233-720-0s
Canadian model 4-233-720-1s
AEP model 4-233-720-2s
3
CDP-CE575
SHIPMENT MODE
Performed when returning the unit to the customer.
Custom File Erases all custom files and initializes settings.
Procedure:
1. Remove the discs from all trays.
2. While pressing the DISK SKIP button and PROGRAM button, press the POWER button to turn ON the power.
3. “NO DISC” is displayed, indicating that the mode has ended.
Note:“NO DISC” may be displayed even if there are discs on the
trays.
CD-TEXT TEST DISC
This unit is able to display the TEXT data (character information) written in the CD on its fluorescent indicator tube.
The CD-TEXT TEST DISC (TGCS-313:4-989-366-01) is used for checking the display.
To check, perform the following procedure.
Checking Method:
1. Set the test disc on a free tray, and chuck the disc.
2. Press the H button and playback the disc.
3. The following will be displayed on the fluorescent indicator tube.
Display : 1kHz/0 dB/ L&R
4. Turn the l AMS L knob to switch the track. The text data of each track will be displayed.
For details of the displayed contents for each track, refer to “Table 1 : CD-TEXT TEST DISC TEXT Data Contents” and “Table 2 : CDTEXT TEST DISC Recorded Contents and Display”.
Restrictions in CD-TEXT Display
In this unit, some special characters will not be displayed properly. These will be displayed as a space or a character resembling it. For
details, refer to “Table 2 : CD-TEXT DISC Recorded Contents and Display”.
Table 1 : CD-TEXT TEST DISC TEXT Data Contents (TRACKS No. 1 to 41:Normal Characters)
TRACK
No.
1 1kHz/0dB/L&R
2 20Hz/0dB/L&R
3 40Hz/0dB/L&R
4 100Hz/0dB/L&R
5 200Hz/0dB/L&R
6 500Hz/0dB/L&R
7 1kHz/0dB/L&R
8 5kHz/0dB/L&R
9 7kHz/0dB/L&R
10 10kHz/0dB/L&R
11 16kHz/0dB/L&R
12 18kHz/0dB/L&R
13 20kHz/0dB/L&R
14 1kHz/0dB/L&R
15 1kHz/-1dB/L&R
16 1kHz/-3dB/L&R
17 1kHz/-6dB/L&R
18 1kHz/-10dB/L&R
19 1kHz/-20dB/L&R
20 1kHz/-60dB/L&R
21 1kHz/-80dB/L&R
Displayed Contents
TRACK
No.
22 1kHz/-90dB/L&R
23 Infinity Zero w/o emphasis//L&R
24 Infinity Zero with emphasis//L&R
25 400Hz+7kHz(4:1)/0dB/L&R
26 400Hz+7kHz(4:1)/-10dB/L&R
27 19kHz+20kHz(1:1)/0dB/L&R
28 19kHz+20kHz(1:1)/-10dB/L&R
29 100Hz/0dB/L*
30 1kHz/0dB/L*
31 10kHz/0dB/L*
32 20kHz/0dB/L*
33 100Hz/0dB/R*
34 1kHz/0dB/R*
35 10kHz/0dB/R*
36 20kHz/0dB/R*
37 100Hz Square Wave//L&R
38 1kHz Square Wave//L&R
39 1kHz w/emphasis/-0.37dB/L&R
40 5kHz w/emphasis/-4.53dB/L&R
41 16kHz w/emphasis/-9.04dB/L&R
Displayed Contents
Note : The contents of Track No. 1 to 41 are the same as those of the current TEST DISC-their titles are displayed.
4
Table 2: CD-TEXT TEST DISC Recorded Contents and Display
(In this unit, some special characters cannot be displayed. This is no a fault.)
CDP-CE575
TRACK
No.
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
to
99
Recorded contents Display
! ” # $% & ´ (21h to 27h)1kHz 0dB L&R
( ) + , – . / (28h to 2Fh)
*
01234567 (30h to 37h)
8 9 : ; < = > ? (38h to 3Fh)
@A B C D E F G (40h to 47h)
H I J K L M N O (48h to 4Fh)
P QR S T U VW (50h to 57h)
X Y Z [ ¥ ] ^ _ (58h to 5Fh)
a b c d e f g (60h to 57h)
′
h i j k l m n o (68h to 6Fh)
p q r s t u v w (70h to 77h)
xyz{ I }
~
(78h to 7Fh)
i ¢ £ ¤ ¥ § (A0h to A7h) 8859-1
¬
9 C ª
•±23
1
†
º ¿ (B8h to BFh)
–
PR
µ ¶ • (B0h to B7h)
′
14123
(A8h to AFh)
4
АБВГДЕЖЗ (C0h to C7h)
ИЙКЛМНОП (C8h to CFh)
DСТУФХЦ
ШЩЪЫЬY
˙
(D0h to C7h)
Я (D8h to DFh)
абвгдежз (E0h to E7h)
ийклмноп (E8h to FFh)
∂ стуфхц÷ (F0h to F7h)
шщъыьy я (F8h to FFh)
´
No.66
No.67
to
No.99
T All the same
T All the same
T All the same
T All the same
T All the same
T All the same
T All the same
X Y Z [ \ ] ^ _ (58····
T All the same
T All the same
T All the same
T All the same
(A0···· i¢£¤¥ are not displayed
(A8····
(B0····
(B8····
(C0····
(C8····
(D0····
(D8····
(E0···· а бвгдежз are not displayed
(E8···· è é ê ë ì í î ï are not displayed
(F0···· ∂ стуфхц ÷ are not displayed
(F8···· ø ùúûüy
T All the same
T All the same
to
T All the same
ÿ are not displayed
5
CDP-CE575
SECTION 2
GENERAL
Parts Identification
Front Panel
The items are arranged in alphabetical order.
Refer to the pages indicated in parentheses ( ) for details.
This section is extracted from
instruction manual.
CHECK qh (13)
CLEAR qj (13, 14, 16, 17)
CONTINUE 2 ( 9, 13, 15, 18)
DISC 1–5 3 (9, 10, 13)
Disc compartment ws (9)
DISC SKIP 9 (9, 12, 13)
Display 4 (11)
EX-CHANGE 8 (12, 15)
FADER ql (14, 20)
MEGA CONTROL 0 (18, 19)
MENU wf (8, 16, 17)
Rear Panel
2ND CD IN jacks 3 (8)
ANALOG OUT L/R jacks 4 (6)
CONTROL A1II jacks 1 (6, 20)
DIGITAL OUT OPTICAL jack 2 (7)
Mains lead 5 (6)
4
PEAK SEARCH qk (15)
PHONES jack wh (10)
POWER 1 (7, 9, 16)
PROGRAM qd (9, 13, 18)
Remote sensor wa (6)
REPEAT qf (10, 18)
SHUFFLE qs (9, 10, 18)
TIME EDIT qg (14)
TIME/TEXT w; (11)
X-FADE/NO DELAY wg (19, 20)
BUTTON DESCRIPTIONS
A OPEN/CLOSE wj (7, 9, 10, 11)
H 5 (9, 13, 15, 18, 20, 22)
X 6 (10, 15, 18, 22)
x 7 (10, 15, 18)
lAMSL (DISC) dial qa (10,
13, 15, 17, 18, 19)
m/M (AMS+/–) wd (10, 14, 17,
18)
6
CDP-CE575
Remote Control
Parts Identification
ANALOG OUT LEVEL +/– wh (6,
7, 10)
CD1/2/3 switch 1 (7)
CHECK 9 (13)
CLEAR ws (13, 14, 16, 17)
CONTINUE 3 ( 9, 13, 15, 18)
DISC/CAPS 6 (10, 17)
DISC SKIP +/– qh (9, 12, 13)
ENTER wa (17)
FADER/DEL w; (14, 20)
HIGH-LIGHT wd (12)
MEGA CONTROL 4 (18, 19)
MUSIC SCAN qa (10)
NAME INPUT qs (17)
NO DELAY ql (19, 20)
Number buttons 7 (10, 13, 17)
PROGRAM qj (9, 13, 18)
REPEAT 0 (10, 18)
SHUFFLE 2 (9, 10, 18)
TIME/TEXT/SPACE 5 (11, 17)
X-FADE qk (19, 20)
BUTTON DESCRIPTIONS
>10 8 (10, 13)
N wf (9, 13, 15, 18, 20, 22)
X qd (10, 15, 18, 22)
x wg (10, 15, 18)
./> qf (10, 13, 15, 17, 18,
19)
m/M qg (10, 14, 17, 18)
5
7
CDP-CE575
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
SET
3-2. CASE (409538)
(Page 9)
3-3. FRONT PANEL SECTION
(Page 9)
3-4. CD MECHANISM DECK
(CDM59-5BD27)
(Page 10)
SECTION 3
DISASSEMBLY
3-6. BASE UNIT (BU-5BD27)
(Page 11)
3-7. TABLE ASSY
(Page 11)
3-8. SENSOR BOARD
(Page 12)
3-5. MAIN BOARD
(Page 10)
3-9. LOADING MOTOR BOARD
(Page 12)
8
3-2. CASE (409538)
)
2
connector
(CN601)
2
connector
(CN602)
4
claw
3
four screws
(BVTP3
×
8)
5
front panel section
4
claw
1
wire (flat type) (15 core)
(CN801)
2
connectors
(CN351)
1
two screws
(case3 TP2)
3
case (409538)
2
two screws
(BVTP3 × 8)
1
two screws
(case3 TP2
CDP-CE575
3-3. FRONT PANEL SECTION
9
CDP-CE575
3-4. CD MECHANISM DECK (CDM59-5BD27)
3
three screws
5
screw
(BVTP3
(BVTP3
×
8)
a
×
8)
9
CD mechanism deck (CDM59-5BD27)
2
three screws
(BVTP3
×
8)
4
Slide the tray until the screw
that fixes the table assy can be
seen through around hole
in the table assy.
3-5. MAIN BOARD
6
a
7
wire (flat type) (21 core)
(CN301)
8
connector
(CN311)
1
Insert a tapering driver from the bottom of the chassis,
and turn it in the direction of the arrow until the base unit
goes down to the lowest position.
3 two screws
(PTTWH3 × 6)
2 two screws
(BVTP3 × 8)
10
5 MAIN board
1 three screws
(BVTP3 × 8)
4 two PC board holders
)
3-6. BASE UNIT (BU-5BD27)
CDP-CE575
Note: When installing the BU
on the chassis, set the
lever (lifter) in free
position, the gear (U/D)
in UP position, and insert
the shaft into the
groove of gear (U/D).
b
3-7. TABLE ASSY
4
two screws
(PTPWH M2.6)
gear (U/D)
9
BU section
b
lever (lifter)
three screws
(BTTP M2.6)
q;
clamp
7
holder (BU) assy
qa
bracket (guide)
gear
(loading C)
3
4
two screws
(PTPWH M2.6)
5
base unit (BU-5BD27)
6
four compression springs (932)
1
wire (flat type) (21 core
(CN101)
2
two screws
(PTPWH M2.6)
7
two screws
(BTTP M2.6)
8
bracket (guide 2)
qs
table assy
Note: When installing the table assy
on the chassis assy, engage
the gear (loading C) with the groove
by looking into the gear through
a hole in the table assy.
e
4
e
3
2
two screws
(BTTP M2.6)
1
d
c
6
bracket (guide)
Slide the tray until the screw
that fixes the bracket (guide)
can be seen through a round
c
hole , in the table assy.
d
wire (flat type)
(6 core) (CN15)
5
screw
(BTTP M2.6)
11
CDP-CE575
)
3-8. SENSOR BOARD
2 tray
1 screw
(PTPWH M2.6)
3 belt (rotary)
3-9. LOADING MOTOR BOARD
4 LOADING MOTOR board
5 SENSOR board
3 two screws
4 two screws
(BTTP M2.6)
(BTTP M2.6)
4 two screws
(BTTP M2.6
12
1 belt (loading)
2 connector
(CN13)
SECTION 4
ASSEMBLY
Note: Follow the assembly procedure in the numerical order given.
ADJUSTING PHASE OF SWING GEAR AND GEAR (U/D)
5 stopper washer (FR)
3 Let the swing gear through under the
chassis and engage its dowel
with the groove of rotary encoder.
h
f
g
g
CDP-CE575
4 Push fully the shaft of shaft gear and
align the hole shape of gear (loading B).
6 screw
(PTPWH M2.6)
2 Install the rotary encoder so that
its groove comes to the position
shown in the figure.
f
1 Insert the shaft gear up to the
position where its shaft comes
out by 5 mm.
8 screw
(PTPWH M2.6)
f
h
circle mark
circle mark
7 gear (U/D)
gear (RV)
swing gear
Fig. A
q; screw
(PTPWH M2.6)
9 gear (RV)
Note: Align swing gear, a circle mark
on the gear (U/D), and the teeth
of gear (RV) to the position
showing in the Fig. A.
13
CDP-CE575
r
SECTION 5
TEST MODE
ADJ MODE
NOTE:This mode cannot be performed without a general remote com-
mander.
1. Chuck the CD first, and then turn OFF the power.
2. Shor t-circuit the test point TP (ADJ) of the MAIN board and
ground with a lead wire.
3. Press the [POWER] button to turn ON the power.
The CD is playback the 2nd track automatically and the ADJ
mode is set.
4. To exit the mode, press the [POWER] button to turn OFF the
power.
ADJ Mode Special Function Table
Button Function
DISC 1 RFDC display
DISC 2 Decision of Disc size (8/12 cm)
DISC 3 Chang e the slice level
DISC 4 Chang e the focus bias (high/middle/low)
DISC 5 Track jump (1st y 20th)
TIME/TEXT TRK off/on
M Offset (VC), EF bias display
m Offset (RF, FE, TRK) display
EX-CHANGE Focus bias down
DISK SKIP Focus bias up
X-FADE Track gain up/down
EDIT Disc kind (aluminum/RW), side (8/12 cm) display
CHECK S-curve mode
CLEAR RFCK t GFS t error rate display
PEAK SERCH Best point of focus bias, jitter value display
FADER Auto gain display
Connecting Location:
– MAIN BOARD (Component Side) –
FLUORESCENT INDICATOR TUBE, LED ALL LIT,
AND KEY CHECK MODE
1. Short-circuit the test TP (AFADJ) of the MAIN board and
ground with a lead wire.
2. Press the [POWER] button to turn ON the power.
The whole fluorescent indicator tube lights up.
3. All buttons have individual button numbers.
When a button is pressed, the button number is counted up
and displayed.
10
button number Displays button numbe
When remote controller signals are received, “RM **” will be
displayed.
(** are the numbers corresponding to the remote controller
buttons)
When using the remote controller, switch the [CD1/2/3] switch
to CD1.
4. To exit the mode, press the [POWER] button to turn OFF the
power.
TP (AFADJ)
R301
TP (ADJ)
14
Buttons and Corresponding Button Numbers
12345
678910
11 12 13 14 15
16 17 18 19 20
All lit
Partial lighting 1
Button Button Number or Display
DISC1 12
DISC2 11
DISC3 10
DISC4 9
DISC5 8
CONTINUE 13
SHUFFLE 14
PROGRAM 15
REPEAT 22
TIME/TEXT 21
EDIT 4
CHECK 3
CLEAR 2
PEAK SEARCH 1
FADER 0
H Partial lighting 1 (grid check)
X 25
x Partial lighting 1 (segment check)
EX-CHANGE 27
DISC SKIP 28
M 19
m 20
MENU 18
X-FADE, NO DELAY 17
MEGA CONTROL 16
l AMS L (push) 29
l AMS L (rutn) When rotated clockwise: The music
calendar numerals light up in ascending
order.
When rotated counterclockwise: The music
calendar numerals light up in descending
order.
A OPEN/CLOSE All lit (LED lighting)
Partial lighting 2
Light altemately
R
Light altemately
r
R
Light altemately
r
CDP-CE575
15
CDP-CE575

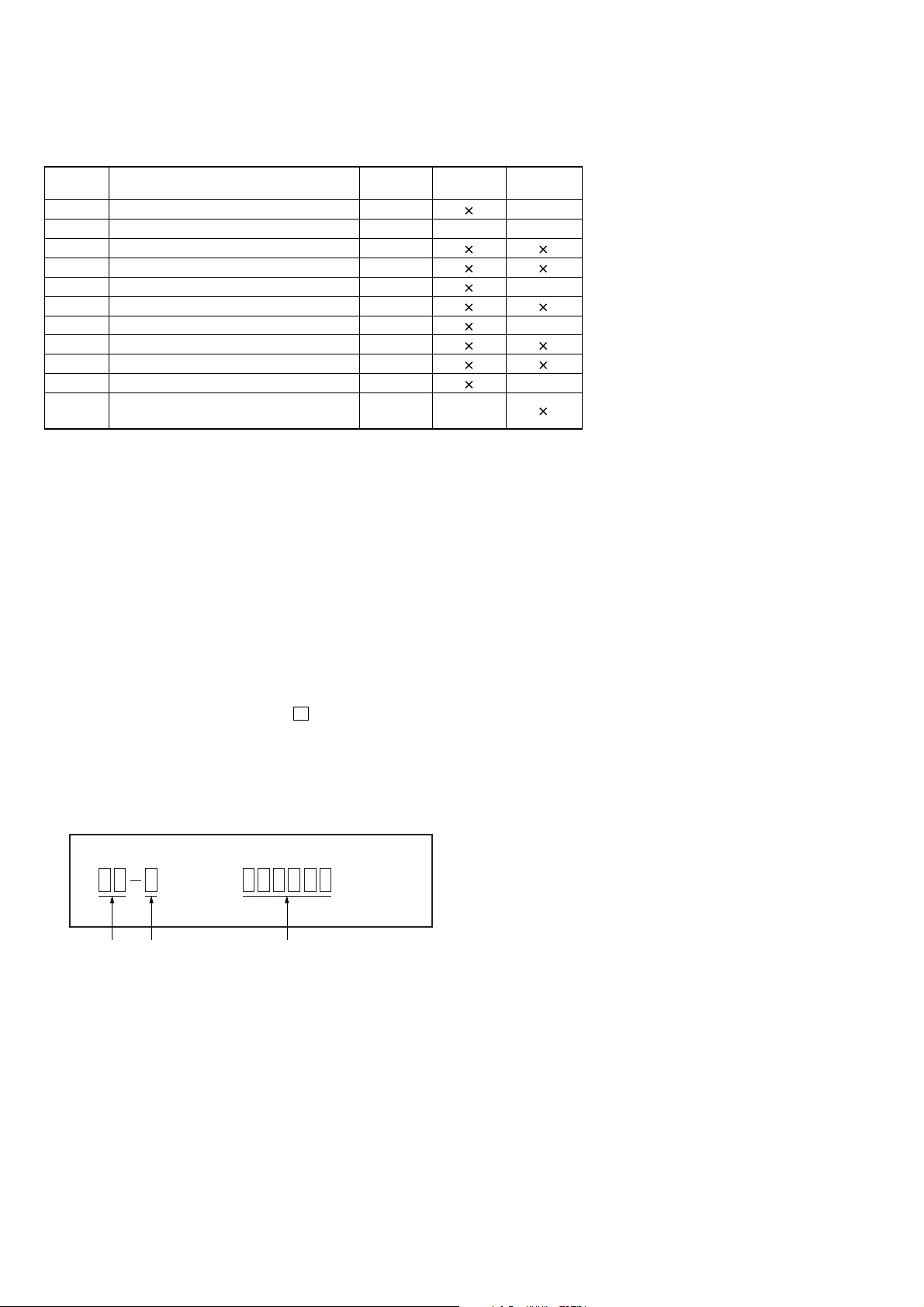

AGING MODE
For the aging mode, three modes of all mode, disc table mode, and loading mode are available.
Code No. Status All mode
0 CLOSE (Tray close) a a
1 TOC read aa a
2 Access to last track a
3 Play of last track (2 sec) a
4 EX OPEN (Tray open while chucking) a a
5 EX SKIP (Disc tray rotate) a
6 EX CLOSE (Tray close) a a
7 Access to first track a
8 Play of first track (2 sec) a
9 OPEN (tray open) a a
DISC SKIP (Disc tray rotate,
A
and change next disc)
aa
Disc table Loading
mode mode
The discs are selected in the order of DISC 1 → DISC 2 → DISC 3 → DISC 4 → DISC 5 → DISC 1....Empty trays are skipped.
But the order is random in the disc table mode.
This set has the Aging mode for operation check of the mechanism deck.
• If a failure occurred
The aging operation stops and a faulty status is displayed on the fluorescent indicator tube.
• If no failure occurs
The aging operation continues repeatedly.
Note: Do not use the test disc when performing aging.
Aging will not be performed properly if discs with tracks shorter than 4 seconds are used.
Procedure:
1. Press the [POWER] button and turn ON the power.
2. Set discs on all trays.
(More than two discs if five are not available)
3. All mode:
Press the
[CHECK], [CONTINUE] and x buttons at the same time.
Disc table mode:
Press the [CHECK], [CONTINUE] and [DISC SKIP] buttons at the same time.
Loading mode:
Press the [CHECK], [CONTINUE] and [EX-CHANGE] buttons at the same time.
4. Aging starts, and the fluorescent indicator tube will display as follows.
display
(a) (b) (c)
(a) A : All mode
AD : Disc table mode
AL : Loading mode
NG : failure occurred
(b) Code No.
(c) Aging count (000001 to 999999)
5. To exit the mode, press the [POWER] button to turn OFF the power.
16
CDP-CE575
MECHANISM DECK CHECK MODE
For the mechanism desk check mode, two modes of the disc table mode and the loading mode are available.
In the mechanism deck check mode, the disc table rotating time and the loading time in each section are measured and displayed.
Disc T able Mode
Procedure:
1. Press the [POWER] button while pressing three buttons of H , [ OPEN/CLOSE], and [REPEAT] simultaneously.
2. Start the table mode, and turn to right then turn to left, and display rotating time as follows.
display
A
R5.7 L5.8
3. To release from this mode, press the
Loading Mode
Procedure:
1. Press the
2. Start the loading mode and display as follows.
Operation Display
Start START – –. –
Open and close CLOSE 1.9
BU up BU UP 0.5
EX open EX OPEN 1.9
EX close EX CLOSE 2.2
BU down BU DOWN 0.4
Open OPEN 1.7
3. To change the display, turn the [ AMS ] knob.
4. To release from this mode, press the
[POWER] button while pressing three buttons of H , [ OPEN/CLOSE], and [TIME/TEXT] simultaneously.
[POWER] button to turn OFF the power.
lL
[POWER] button to turn OFF the power.
A
17
CDP-CE575
+
–
BD board
TP (RFAC)
TP (VC)
oscilloscope
Ver 1.1 2001.07
SECTION 6
ELECTRICAL ADJUSTMENTS
Note:
1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given.
2. Use PATD-012 disc (4-225-203-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10MΩ impedance.
4. Clean the object lens by an applicator with neutral detergent when the
signal level is low than specified value with the following checks.
S Curve Check
Connection:
oscilloscope
BD board
TP (FE1)
TP (VC)
+
–
Procedure:
1. Set the test disc (PATD-012). Disc chucking operation is
complete, then press the [POWER] button to turn the power
off.
2. Connect an oscilloscope to test point TP (FE1) and TP (VC)
on the BD board.
3. Connect between test point TP (ADJ) on the MAIN board and
GND by lead wire.
4. Press the [POWER] button to turn the power on and enter the
ADJ mode.
Then playback the number two track automatically, press the
x button to stop the playback.
5. Press the [CHECK] button actuate the focus search. (actuate
the focus search when disc table is moving in and out)
6. Check the oscilloscope waveform (S-curve) is symmetrical
between A and B. And confirm peak to peak level within 2 ± 1
Vp-p.
Procedure:
1. Set the test disc (PATD-012). Disc chucking operation is
complete, then press the [POWER] button to turn the power
off.
2. Connect an oscilloscope to test point TP (RFDC) and TP (VC)
on the BD board.
3. Connect between test point TP (ADJ) on the MAIN board and
GND by lead wire.
4. Press the [POWER] button to turn the power on and enter the
ADJ mode, then playback the number two track automatically .
5. Confirm that oscilloscope waveform is clear and check the level
of between RFDC top and VC is correct or not.
Note: A clear RFDC signal waveform means that the shape “◊” can be
clearly distinguished at the center of the waveform.
RFDC signal waveform
VOLT/DIV: 200 mV
TIME/DIV: 500 ns
±
level: 1.15
VC
0.35 Vp-p
Checking Location: BD board
RFAC Level Check
Connection:
S-curve waveform
symmetry
A
B
Note: • Try to measure several times to make sure than the ratio of A : B
or B : A is more than 10 : 7.
• Take sweep time as long as possible and light up the
brightness to obtain best waveform.
within 2
±
1 Vp-p
Checking Location: BD board
RFDC Level Check
Connection:
oscilloscope
BD board
TP (RFDC)
TP (VC)
+
–
Procedure:
1. Set the test disc (PATD-012). Disc chucking operation is
complete, then press the
[POWER] button to turn the power
off.
2. Connect an oscilloscope to test point TP (RFA C) and TP (VC)
on the BD board.
3. Connect between test point TP (ADJ) on the MAIN board and
GND by lead wire.
4. Press the [POWER] button to turn the power on and enter the
ADJ mode, then playback the number two track automatically .
5. Confirm that oscilloscope waveform is clear and check RF AC
signal level is correct or not.
Note: A clear RFAC signal waveform means that the shape “◊” can be
clearly distinguished at the center of the waveform.
RFAC signal waveform
VOLT/DIV: 200 mV
TIME/DIV: 500 ns
±
level: 1.35
0.4 Vp-p
18
Checking Location: BD board
CDP-CE575
Ver 1.1 2001.07
E-F Balance Check
Connection:
oscilloscope
BD board
TP (TE1)
TP (VC)
+
–
Procedure:
1. Set the test disc (PATD-012). Disc chucking operation is
complete, then press the [POWER] button to turn the power
off.
2. Connect an oscilloscpe to test point TP (TE1) and TP (VC) on
the BD board.
3. Connect between test point TP (ADJ) on the MAIN board and
GND by lead wire.
4. Press the [POWER] button to turn the power on and enter the
ADJ mode, then playback the number two track automatically .
5. Press the [TIME] button. (The tracking servo and the sledding
servo are turned OFF)
6. Check the level B of the oscilliscope waveform and the A (DC
voltage) of the center of the Traverse waveform.
Confirm the following :
A/B x 100 = less than ± 22%
Traverse W a v ef orm
Center of
the waveform
Checking Location:
– BD BOARD (Conductor Side) –
IC150
TP
(VC)
IC131
TP
(TE1)
TP
(FE1)
TP
(RFDC)
IC101
TP
(RFAC)
B
0V
level: 1.15 ± 0.5 Vp-p
A (DC
voltage)
7. Press the [TIME] button. (The tracking serv o and sledding servo
are turned ON)
Confirm the C (DC voltage) is almost equal to the A (DC
voltage) is step 6.
Traverse W a v ef orm
0V
Tracking servo
Sled servo
OFF
Tracking servo
Sled servo
ON
C (DC
voltage)
Checking Location: BD board
19
CDP-CE575
MEMO
20
SECTION 7
d
DIAGRAMS
CDP-CE575
7-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side: Parts on the pattern face side seen from
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the par ts face side seen from
(Component Side) the parts face are indicated.
• Indication of transistor
Q
B
CE
These are omitted.
C
Q
B
E
These are omitted.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/
specified.
f
•
• C : panel designation.
Note:
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part
number specified.
• A : B+ Line.
• B : B– Line.
• Voltages and waveforms are dc with respect to ground
• Voltages are taken with a V OM (Input impedance 10 MΩ).
• Waveforms are taken with a oscilloscope.
• Circled numbers refer to waveforms.
• Signal path.
: internal component.
under no-signal conditions.
no mark : CD PLAY
Voltage variations may be noted due to normal production tolerances.
Voltage variations may be noted due to normal production tolerances.
J : CD PLAY
c : DIGITAL OUT
4
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro
spécifié.
W or less unless otherwise
• Circuit Boards Location
KEY (A) board
POWER SW board
KEY (B) board
LOADING MOTOR board
DISPLAY board
SENSOR board
BD board
JUNCTION boar
MAIN board
HEADPHONE board
2121
CDP-CE575
Ver 1.1 2001.07
7-2. PRINTED WIRING BOARD – BD Section –• See page 21 for Circuit Boards Location.
1
A
BD BOARD
(COMPONENT SIDE)
B
C
D
E
F
G
C199
FB191
R192
2 3 4 5 6 7 8 9 10 11 12 13
TP (FE1)
TP (TE1)
TP (RFDC)
M101
(SPINDLE)
C122
C121
C120
R120
RB102
IC101
C123
R123
R121
C125
R122
TP (RFAC)
TP (DGND)
(LIMIT)
R127
S101
R126
C126
R125
RB101
C183
C173
R129
R181
R182
R172
R171
R191
C184
BD BOARD
(CONDUCTOR SIDE)
M
R183
C174
R173
(SLED)
1-681-001-
M102
CN101
C171
C191
M
C150
C112
R110
R184
R174
R111
R112
C193
C194
C111
C110
C181
C182
C172
C192
X191
R143
C102
C101
C131
C151
C103
C132
R103
C130
R101
C140
R134
R102
R140
R142
C152
C153
E
C154
R146
Q132
R149
R136
R137
1-681-001-
R138
R152
R151
C138
Q131
E
C158
C133
C134
C137
11
(11)
R155
TP (VC)
R153
C145
R145
C136
IC150
R141
R144
IC131
C124
R135
R139
C139
CN102
A
MAIN BOARD
CN301
(Page 28)
11
(11)
• Semiconductor
Location
Ref. No. Location
IC101 C-8
IC131 E-8
IC150 E-10
Q131 F-6
Q132 E-6
OPTICAL PICK-UP
BLOCK
(PXR-104X)
2222
7-3. SCHEMATIC DIAGRAM – BD Section –• See page 32 for Waveforms. • See page 29 for IC Block Diagrams.
TP (RFDC)
CDP-CE575
Ver 1.1 2001.07
(Page 26)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0 sont
critiques pour la sécurité. Ne les remplacer que
par une pièce portant le numéro spécifié.
2323
CDP-CE575
7-4. PRINTED WIRING BOARDS – MOTOR/SENSOR Section –• See page 21 for Circuit Boards Location.
MAIN BOARD
CN311
(Page 28)
(TABLE SENSOR)
(DISC SENSOR)
1
4
2
3
2424
7-5. SCHEMATIC DIAGRAM – MOTOR/SENSOR Section –• See page 29 for IC Block Diagram.
CDP-CE575
(Page 26)
2525
CDP-CE575
7-6. SCHEMATIC DIAGRAM – MAIN Section (1/2) –• See page 32 for Waveform.
(Page 23)
(Page 31)
(Page 27)
(Page 25)
2626
7-7. SCHEMATIC DIAGRAM – MAIN Section (2/2) –
CDP-CE575
(Page 26)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
2727
Replace only with part number specified.
Les composants identifiés par une marque 0 sont
critiques pour la sécurité. Ne les remplacer que
par une pièce portant le numéro spécifié.
CDP-CE575
7-8. PRINTED WIRING BOARDS – MAIN Section – • See page 21 for Circuit Boards Location.
1 2 3 4 5 6 7 8 9 9 9 9
MAIN BOARD
JW20
A
J301
L
ANALOG
OUT
R
2ND CD
IN
J381
CONTROL
A1 II
L
R
DIGITAL
OUT
OPTICAL
IC303
C381
B
C
D
(CHASSIS)
E
F
C382
R520
JW18
JW19
C507
R420
C407
C508
R517
R421
R521
C408
Q503
E
R417
3
C325
1
JW25
Q381
R383
CN603
C326
E
R381
R382
D381
1
2
Q403
E
R418
L381
C620
JW21
Q404
Q402
R518
E
R415
E
R422
E
Q355
R522
R519
E
Q504
R419
C350
R414
R353
R409
D352
R354
R515
JW22
R514
E
R356
R355
JW123
Q502
JW24
R513
E
R352
Q356
C505
Q352
R351
JW23
R350
R412
R413
C405
E
Q353
Q354
E
JW26
E
R509
R510
R511
R512
R411
R410
1
8
C351
14
IC502
85
JW28 JW29
JW27
JW32
4
JW33
IC402
5
R407
R406
D353
T601
POWER
TRANSFORMER
JW30
JW31
C406
C404
C506
R507
R506
C504
JW34
JW37
JW36
*
NOT REPLACEABLE:
BUILT IN
TRANSFORMER
D608
R602
R620
JW35
C611
D607
JW38
EB601
D606
JW39
JW40
C616
JW41
D603
D604
R610
JW58
D602
D601
JW59
JW60
JW42
JW43
JW56
JW44
D605
C609
JW48
JW57
JW61
JW45
JW47
JW54
JW55
C619
JW46
JW49
JW50
JW51
JW52
JW53
C613
JW62
JW63
C602
R612
R611
(Page 22) (Page 24)
BD BOARD
A
CN101
CN301
JW998
R314
JW74
R315
JW72
JW73
JW71
D610
JW68
Q601
JW69
E
JW70
JW64
JW65
C603
C610
R329
L602
C608
13
JW66
R616
IC602
13
IC601
D612
R613
JW75
R324
R325
R326
JUNCTION BOARD
B
Q307
E
CN311
R327
C607
JW107
JW76
JW92
1
CN11
JW77
JW93
JW94
R601
IC603
JW78
R307
JW106
R840
JW89
IC301
JW90
IC302
R308
R309
TP(AFADJ)
R317
JW91
R300
R303
R310
R551
R552
R452
R451
JW114
JW115
JW116
X301
R301
14
IC351
85
C301
JW118
JW117
JW119
R311
R312
TP(ADJ)
R302
JW113
JW120
JW122
CN351
JW121
13
1-681-132-
(US, CND) (AEP)
11
(11)21(21)
C551
R553
JW87
R453
JW81
JW80
JW79
JW96
JW95
C604
3
JW97
JW98
C840
JW99
C830
JW82
JW100
R316
R318
C305
C820
JW83
JW101
C303
Q311
JW108
C810
JW84
JW85
E
JW109
JW88
R305
R306
C302
D301
JW110
JW102
JW103
C304
JW104
JW105
R810
C451
R820
R830
JW112
JW111
CN801
(CHASSIA)
G
H
POWER SW BOARD
(AC IN)
CN602
CN601
1
2
2
1
C601
S601
POWER
1-681-135-
(US, CND) (AEP)
11
(11)21(21)
• Semiconductor Location
Ref. No. Location
D301 E-9
D352 C-3
D353 D-4
D381 D-2
D601 E-6
D602 E-6
D603 E-6
D604 E-6
D605 F-7
D606 E-6
Ref. No. Location
D607 E-6
D608 D-5
D610 F-7
D612 F-8
IC301 D-9
IC302 E-9
IC303 C-1
IC351 B-9
IC402 C-4
Ref. No. Location
IC502 A-4
IC601 F-8
IC602 E-8
IC603 F-9
Q307 C-8
Q311 E-9
Q352 B-3
Q353 C-3
Q354 D-4
Ref. No. Location
Q355 D-3
Q356 D-3
Q381 D-2
Q402 C-2
Q403 C-2
Q404 C-2
Q502 B-3
Q503 C-2
Q504 B-3
Q601 F-7
DISPLAY BOARD
CNP801
(Page 30)
C
HEADPHONE BOARD
JW3
1
CN881
JW2
3
JW1
R881
R882
C881
C883
C882
1-681-136-
J881
PHONES
(US, CND) (AEP)
11
(11)21(21)
2828
• IC Block Diagrams – BD Board –
CDP-CE575
– JUNCTION Board –
IC101 CXD2587Q
DOUT
60
DIGITAL
OUT
LRCK
PCMD
BCK
EMPH
XVDD
XTAI
XTAO
XVSS
AVDD1
AOUT1
AIN1
LOUT1
AVSS1
AVSS2
LOUT2
AIN2
AOUT2
AVDD2
RMUT
LMUT
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
D/A
INTERFACE
TIMING
1
2
SQCK
SQSO
LOGIC
NOISE SHAPER
OVER SAMPLING
DIGITAL FILTER
3
XRST
PWM
3rd ORDER
SERIAL IN
INTERFACE
4
SYSM
VDD
59
58
INTERNAL BUS
PWM
VSS
AVDD3
57
ERROR
CORRECTOR
16K
RAM
SUBCODE
PROCESSOR
FILI
PCO
54
56
55
DIGITAL
PLL
EFM
DEMODULATOR
SERVO
INTERFACE
SERVO AUTO
SEQUENCER
CPU
INTERFACE
7
8
5
6
XLAT
CLOK
DATA
FILO
53
SENS
CLTV
52
9
AVSS3
10
SCLK
BIAS
RFAC
51
49
50
ASYMMETRY
CORRECTION
11 12
VDD
ATSK
SPOA
ASYI
13
ASYO
48
14
SPOB
XLON
AVDD0
IGEN
WFCK
46
XUGF
45
XPCK
AVSS0
GFS
47
1516171819
ADIO
44
SERVO DSP
FOCUS
SERVO
TRACKING
SERVO
SLED
SERVO
20
C2PO
SCOR
CE
TE
RFDC
43
41
42
OPERATIONAL
AMPLIFIER
ANALOG SWITCH
A/D
CONVERTER
PWM GENERATOR
CLOCK
GENERATOR
FOCUS PWM
GENERATOR
TRACKING
PWM GENERATOR
SLED PWM
GENERATOR
DIGITAL
CLV
MIRR, DFCT,
FOK
DETECTOR
IC131 CXA2581N-T4 IC11 BA6780
RW/ROM
DC OFST
30
RFDCI
A
VOFST
B
C
D
B
C
A
D
SE
40
FE
39
VC
38
VC
APC AMP
A
B
C
D
APC-OFF
(Hi-Z)
RW/ROM
A
(H/L)
–
+
RFAC
SUMMING
AMP
BCD
GM
GM
B
D
A
C
DVC
VC
LD
1
PD
EQ IN
AC SUM
GND
SW
DVCC
DVC
RFAC
2
3
4
5
6
A
7
B
8
C
9
D
10
E
11
F
12
13
DVC
14
15
XTSL
37
TES1
36
TEST
35
VSS
34
33
FRDR
32
FFDR
TRDR
31
TFDR
30
SRDR
29
28
SFDR
SSTP
27
MDP
26
25
LOCK
FOK
24
DFCT
23
22
MIRR
COUT
21
DVC
RW/ROM
EQ ON/OFF
RW/ROM
RW/ROM
RW/ROM
RW/ROM
RW/ROM
RW/ROM
–
+
VOFST
–
+
–
+
VOFST
–
+
–
+
DVC
VCC
EQ
RFAC
VCA
VCC
–
+
DVC
VC
VC
–
+
DVC
VC
29
RFDCO
28
VC
VC
27
26
RFC
25
VFC
BST
24
23
RFG
22
VCC
21
CEI
20
CE
19
TE BAL
18
TE
17
FEI
16
FE
VIN1
FIN1
RIN1
IOUT
VREF
VREG
VCC
OUT1+
OUT1-
1
2
3
REVERSIBLE DRIVER
4
5
VOLTAGE
REFERENCE
6
LOW VOLTAGE
7
8
+-
9
FWD/REV CONTROLLER
VEE
OUTPUT
OUTPUT
COVERNER DRIVER
FWD/REV CONTROLLER
VEE VCC
AMPLIFIER
COVERNER
DETECTION
LOAD CURRENT
OUTPUT
COVERNER
18
VIN2
17
FIN2
16
RIN2
15
CT2
14
VEE
FBIN-
13
12
FBIN+
11
OUT2+
10
OUT2-
2929
CDP-CE575
7-9. PRINTED WIRING BOARDS – DISPLAY Section –• See page 21 for Circuit Boards Location.
1 2 3 4 5 6 7 8 9 10 11 12
DISPLAY BOARD
JW4
R807
. AMS >
(DISC)
PUSH ENTER
S801
ROTARY ENCODER
JW5
JW6
R815
D801, S821
MEGA CONTROL
R816
DISC
SKIP
Q807
R821
JW7
R824
S825
C803
S811
(AMS+)
X
m
(AMS–)
R811
R852
R853
JW10
S812
R823
S824
JW8
R814
S815
D801
S821
E
R813
S814
EX-CHANGE
JW9
R822
S822
NO DELAY
S811-815, 821-827,
S831-838, 841-846
X-FADE
S813
R812
S823
s
R854
R855
MENU
A
B
C
MAIN BOARD
CN801
(Page 28)
CNP801
M
R861
Q805
E
Q804
E
Q806
E
13
IC802
C861
1-681-133-
(US, CND) (AEP)
11
(11)21(21)
CN811
41
JW17
Q803
E
Q802
E
Q801
E
JW11
H
12 5 55 58 59
R803
R801
JW12
R802
JW13
C852
C853
C854
R851
C855
C801
JW14
IC801
FL801
FLUORESCENT INDICATOR TUBE
JW15
JW16
C862
R805
R862
R806
R804
R846
C
A
OPEN/CLOSE
S846
CN812
31
KEY(B) BOARD
13
CNP812
D
R841
FADER
R842
PEAK
SEARCH
R843
CLEAR CHECK
R844 R845
S844 S845S843S842S841
EDIT
1-681-137-
(US, CND) (AEP)
11
(11)21(21)
KEY(A) BOARD
CNP811
TIME/TEXT
R831
S831 S832
DISC 5 DISC 4 DISC 3 DISC 2
R825
R832 R833 R834
S833 S834 S835
R826
REPEAT
R837 R836
S838S827S826
PROGRAM SHUFFLE
S837
DISC 1
R835
S836
CONTINUE
1-681-134-
(US, CND) (AEP)
11
(11)21(21)
• Semiconductor
Location
Ref. No. Location
D801 B-3
IC801 A-8
IC802 B-12
Q801 A-6
Q802 A-6
Q803 A-6
Q804 A-12
Q805 A-12
Q806 A-12
Q807 B-2
3030
7-10. SCHEMATIC DIAGRAM – DISPLAY Section –• See page 32 for Waveform.
CDP-CE575
(Page 26)
3131
CDP-CE575
• Waveforms
– BD Board –
1 IC101 ta (RFAC) (CD Play Mode) 6 IC101 w; (SCOR) (CD Play Mode)
1.3 Vp-p
13.4 ms
2 IC101 rd (RFDC) (CD Play Mode) 7
1.4 Vp-p
3 IC101 el (FE) (CD Play Mode)
approx.
200 mVp-p
4 IC101 ra (TE) (CD Play Mode)
approx.
400 mVp-p
5 IC101 wh (MDP) (CD Play Mode)
2.7 V
IC101 yj (XTAO)
59 ns
(CD Play Mode)
5.2 Vp-p
5.9 Vp-p
– MAIN Board –
qa IC301 es (XTAL)
100 ns
– DISPLAY Board –
qs IC801 t; (OSCO)
508 ns
5 Vp-p
2.3 Vp-p
7-11. IC PIN FUNCTION DESCRIPTION
•
BD BOARD IC101 CXD2587Q
(DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, DIGITAL FILTER, D/A CONVERTER)
Pin No. Pin Name I/O Description
1SQSOO
2 SQCK I
3 XRST I
4 SYSM I
5 DATA I
6 XLAT I
7 CLOK I
8 SENS O
9 SCLK I
10 VDD —
11 ATSK I/O
12 SPOA I
13 SPOB I
14 XLON O
15 WFCK O
16 XUGF O
17 XPCK O
18 GFS O
19 C2PO O
20 SCOR O
21 COUT I/O
22 MIRR I/O
23 DFCT I/O
24 FOK I/O
25 LOCK I/O
26 MDP O
27 SSTP I
28 SFDR O
29 SRDR O
30 TFDR O
31 TRDR O
32 FFDR O
33 FRDR O
34 VSS —
35 TEST I
36 TES1 I
37 XTSL I
38 VC I
39 FE I
40 SE I
41 TE I
42 CE I
Subcode Q data output to the system controller (IC301)
Subcode Q data reading clock signal input from the system controller (IC301)
System reset signal input from the system controller (IC301) “L”: reset
Analog line muting on/off control signal input terminal “H”: line muting on
Not used (fixed at “L”)
Command serial data input from the system controller (IC301)
Command latch pulse input from the system controller (IC301)
Command serial data transfer clock signal input from the system controller (IC301)
Internal status monitor output to the system controller (IC301)
SENSE serial data reading clock input from the system controller (IC301)
Power supply terminal (+5V) (digital system)
Input pin for anti-shock Not used (fixed at “L”)
Microcomputer escape interface input A terminal Not used (fixed at “L”)
Microcomputer escape interface input B terminal Not used (fixed at “L”)
Microcomputer escape interface output terminal Not used (open)
WFCK output terminal Not used (open)
Not used (open)
Not used (open)
Not used (open)
Not used (open)
Subcode sync (S0+S1) detection signal output to the system controller (IC301)
Numbers of track counted signal input/output terminal Not used (open)
Mirror signal input/output terminal Not used (open)
Defect signal input/output terminal Not used (open)
Focus OK input/output terminal Not used (open)
GFS is sampled by 460 Hz “H” when GFS is “H” Not used (open)
Spindle motor (M101) servo drive signal output to the AN48005B (IC150)
Limit in detect switch (S101) input terminal
Sled servo drive PWM signal (+) output to the AN48005B (IC150)
Sled servo drive PWM signal (–) output to the AN48005B (IC150)
Tracking servo drive PWM signal (+) output to the AN48005B (IC150)
Tracking servo drive PWM signal (–) output to the AN48005B (IC150)
Focus servo drive PWM signal (+) output to the AN48005B (IC150)
Focus servo drive PWM signal (–) output to the AN48005B (IC150)
Ground terminal (digital system)
Input terminal for the test (fixed at “L”)
Input terminal for the test (fixed at “L”)
Input terminal for the system clock frequency setting “L”: 45.1584 MHz, “H”: 22.5792 MHz
(fixed at “L” in this set)
Middle point voltage (+2.5V) input from the CXA2581N (IC131)
Focus error signal input from the CXA2581N (IC131)
Sled error signal input from the CXA2581N (IC131)
Tracking error signal input from the CXA2581N (IC131)
Command chip enable signal input from the CXA2581N (IC131)
7.5
µ
s
3232
Pin No. Pin Name I/O Description
43 RFDC I
44 ADIO O
45 AVSS0 —
46 IGEN I
47 AVDD0 —
48 ASYO O
49 ASYI I
50 BIAS I
51 RFAC I
52 AVSS3 —
53 CLTV I
54 FILO O
55 FILI I
56 PCO O
57 AVDD3 —
58 VSS —
59 VDD —
60 DOUT O
61 LRCK O
62 PCMD O
63 BCK O
64 EMPH O
65 XVDD —
66 XTAI I
67 XTAO O
68 XVSS —
69 AVDD1 —
70 AOUT1 O
71 AIN1 I
72 LOUT1 O
73 AVSS1 —
74 AVSS2 —
75 LOUT2 O
76 AIN2 I
77 AOUT2 O
78 AVDD2 —
79 RMUT O
80 LMUT O
RF signal input from the CXA2581N (IC131)
Monitor output of the A/D converter input signal Not used (open)
Ground terminal (digital system)
Stabilized current input for operational amplifiers
Power supply terminal (+5V) (digital system)
Playback EFM full-swing output terminal
Playback EFM asymmetry comparator voltage input terminal
Playback EFM asymmetry circuit constant current input terminal
EFM signal input from the CXA2581N (IC131)
Ground terminal (digital system)
Internal VCO control voltage input of the playback master PLL
Filter output for master clock of the playback master PLL
Filter input for master clock of the playback master PLL
Phase comparison output for master clock of the playback EFM master PLL
Power supply terminal (+5V) (digital system)
Ground terminal (digital system)
Power supply terminal (+5V) (digital system)
Digital audio signal output to the DIGITAL OUT OPTICAL (IC303)
L/R sampling clock signal (44.1 kHz) output terminal Not used (open)
D/A interface serial data output terminal Not used (open)
Bit clock signal (2.8224 MHz) output terminal Not used (open)
De-emphasis control signal output terminal Not used (open)
Power supply terminal (+5V) (crystal oscillator system)
System clock input terminal (16.9344 MHz)
System clock output terminal (16.9344 MHz)
Ground terminal (crystal oscillator system)
Power supply terminal (+5V) (analog system)
L-ch analog audio signal output terminal
L-ch operational amplifiers input terminal
L-ch line output terminal
Ground terminal (analog system)
Ground terminal (analog system)
R-ch line output terminal
R-ch operational amplifiers input terminal
R-ch analog audio signal output terminal
Power supply terminal (+5V) (analog system)
R-ch line muting on/off control signal output terminal
L-ch line muting on/off control signal output terminal
CDP-CE575
33
CDP-CE575
• MAIN BOARD IC301 CXP84648-085Q (SYSTEM CONTROLLER)
Pin No. Pin Name I/O Description
1 to 4 A3 to A6 O
5
6 to 13 D0 to D7 I/O Two-way data bus with the static RAM (IC302)
14 CE O Chip select signal output to the static RAM (IC302)
15 to 18 NC
19
20 LOAD OUT O Loading motor (M10) drive signal output to the BA6780 (IC11)
21 LOAD IN O Loading motor (M10) drive signal output to the BA6780 (IC11)
22
23
24
25 to 27 A13, A14, A7 O
28
29
30
31
32
33
34
35
36
37
38 NC — Not used (open)
39 VERSION I Model Destination setting terminal
40 ADJ I Setting terminal for the test mode
41 KEY4 I
GND — Ground terminal
WE O Write enable signal output to the static RAM (IC302)
FL CLK O Serial data transfer clock signal output to the FL driver (IC801)
FL DATA O Serial data output to the FL driver (IC801)
FL RST O Reset signal output to the FL driver (IC801)
DSENS I Detect signal input from the disc sensor (D11)
NC — Not used (open)
RST I
EXTAL I Main system clock input terminal (10 MHz)
XTAL O Main system clock output terminal (10 MHz)
VSS — Ground terminal
TX O Sub system clock output terminal Not used (open)
TEX I Sub system clock input terminal Not used (fixed at “L”)
AVSS — Ground terminal (for A/D converter)
AVREF I Reference voltage input terminal (+5V)
Address signal output to the static RAM (IC302)
— Not used (open)
Address signal output to the static RAM (IC302)
System reset signal input from the reset signal generator (IC603) “L”: reset
For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H”
Key input terminal (A/D input) (S941 to S845) FADER, PEAK SEARCH, CLEAR, CHECK,
EDIT keys input
42 KEY3 I
43 KEY2 I
44 KEY1 I
45 NC — Not used (open)
46
47 FLT O Serial data latch pulse output to the FL driver (IC801)
48 CLK O Serial data transfer clock signal output to the CXD2587Q (IC101)
49 NC O Not used (open)
50 DATA O Serial data output to the CXD2587Q (IC101)
51 SQCK O Sub-code Q data reading clock signal output to the CXD2587Q (IC101)
52 SQSO I Sub-code Q data signal input from the CXD2587Q (IC101)
53 NC — Not used (open)
54 SENSE I Internal status (SENSE) signal input from the CXD2587Q (IC101)
55 NC I Not used (fixed at “H”)
56 RMIN I Remote control signal input from the remote control receiver (IC802)
TSENS I Detect signal input from the table sensor (D10)
Key input terminal (A/D input) (S831 to S838) DISC 5, DISC 4, DISC 3, DISC 2, DISC 1,
CONTINUE, SHUFFLE, PROGRAM keys input
Key input terminal (A/D input) (S821 to S827) MEGA CONTROL, X-FADER NO DELAY,
MENU, m (AMS–), M (AMS+), TIME/TEXT, REPEAT keys input
Rotary encoder key input terminal (A/D input) (S801, S811 to S815) l AMS L (DISC)
PUSH ENTER, H, X, s, EX-CHANGE, DISC SKIP keys input
34
Pin No. Pin Name I/O Description
57 NC I Not used (fixed at “H”)
58 XLT O Serial data latch pulse signal output to the CXD2587Q (IC101)
59, 60 NC — Not used (open)
61 SCOR I Sub-code sync (S0+S1) detection signal input from the CXD2587Q (IC101)
62 BUSIN I Sircs remote control signal input from the CONTROL A1II
63 BUSOUT O Sircs remote control signal output to the CONTROL A1II
64 SMUTE O Muting on/off control signal output terminal “H” active
65 LDON/RW O Laser power control signal output to the CXA2581N (IC131) “H” active
66 TBLL O Table motor drive signal (counterclockwise) output to the BA6780 (IC11)
67 TBLR O Table motor drive signal (clockwise) output to the BA6780 (IC11)
68, 69 S2, S1 I Detect signal input from the table address detect switch (S200)
70 OUT SW I Detect signal input from the open/close detect switch (S11)
71 A8 O
72 VDD — Power supply terminal (+5V)
73 NC — Not used (fixed at “H”)
74 to 80
A9 to A12,
A0 to A2
Address signal output to the static RAM (IC302)
O
Address signal output to the static RAM (IC302)
CDP-CE575
35
CDP-CE575
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
8-1. CASE SECTION
2
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference number in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
• Abbreviation
CND: Canadian model
3
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
#1
1
not supplied
Front panel section
#1
2
Ref. No. Part No. Description Remark
1 4-231-683-11 PANEL, LOADING
2 4-210-291-01 SCREW (CASE 3 TP2)
36
Ref. No. Part No. Description Remark
3 4-231-686-11 CASE (409538)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
8-2. FRONT PANEL SECTION
55
54
CDP-CE575
57
56
57
51
52
58
57
59
60
57
57
61
62
57
not supplied
supplied with
headphone board J881
Ref. No. Part No. Description Remark
51 4-231-928-01 KNOB (AMS)
52 3-354-981-11 SPRING (SUS), RING
54 1-681-134-11 KEY (A) BOARD (US, CND)
54 1-681-134-21 KEY (A) BOARD (AEP)
55 4-231-973-01 BUTTON (POWER)
56 1-681-135-11 POWER SW BOARD (US, CND)
56 1-681-135-21 POWER SW BOARD (AEP)
57 4-951-620-01 SCREW (2.6X8), +BVTP
58 1-681-137-11 KEY (B) BOARD (US, CND)
Ref. No. Part No. Description Remark
58 1-681-137-21 KEY (B) BOARD (AEP)
59 X-4953-512-1 PANEL ASSY, FRONT (US, CND)
59 X-4953-521-1 PANEL ASSY, FRONT (AEP)
60 A-4476-754-A DISPLAY BOARD (US, CND)
60 A-4476-660-A DISPLAY BOARD (AEP)
61 1-757-649-11 WIRE (FLAT TYPE) (15 CORE)
62 1-681-136-11 HEADPHONE BOARD (US, CND)
62 1-681-136-21 HEADPHONE BOARD (AEP)
37
CDP-CE575
8-3. CHASSIS SECTION
#1
CDM59-5BD27
#1
106
102
101
not supplied
#1
not supplied
103
not supplied
104
105
#1
T601
#1
#1
not supplied
101
107
110
#1
#1
109
102
Ref. No. Part No. Description Remark
101 4-232-237-01 FOOT (DIA. 30)
102 X-4953-448-1 FOOT ASSY
103 4-943-687-01 HOLDER, BOARD
104 A-4725-582-A MAIN BOARD, COMPLETE (US, CND)
104 A-4725-593-A MAIN BOARD, COMPLETE (AEP)
105 1-757-648-11 WIRE (FLAT TYPE) (21 CORE)
106 3-703-249-01 SCREW, S TIGHT, +PTTWH 3X6
107 3-703-244-21 BUSHING (2104), CORD
38
#1
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety .
Replace only with part number specified.
Ref. No. Part No. Description Remark
109 4-233-720-01 PANEL, BACK (US)
109 4-233-720-11 PANEL, BACK (CND)
109 4-233-720-21 PANEL, BACK (AEP)
0 110 1-575-651-21 CORD, POWER (AEP)
0 110 1-783-531-31 CORD, POWER (US, CND)
0 T601 1-435-342-11 TRANSFORMER, POWER (US, CND)
0 T601 1-435-343-11 TRANSFORMER, POWER (AEP)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
8-4. CD MECHANISM DECK SECTION-1
501
502
502
503
512
503
505
506
507
508
503
506
509
502
not supplied
not supplied
CD MECHANISM DECK SECTION-2
504
M11
510
506
511
502
502
511
not
supplied
(CDM59-5BD27)
CDP-CE575
Ref. No. Part No. Description Remark
501 1-676-245-11 SENSOR BOARD
502 4-218-253-31 SCREW (M2.6), +BTTP
* 503 X-4924-457-1 ROLLER ASSY
504 4-224-602-01 TABLE
505 4-224-617-01 GEAR (RM-E)
506 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
507 4-224-616-01 GEAR (RM-M)
Ref. No. Part No. Description Remark
508 4-224-615-03 GEAR (RM-B)
509 4-225-328-01 BELT (ROTARY)
510 4-224-603-01 TRAY
511 4-224-619-01 BRACKET (GUIDE)
512 A-4672-867-A MOTOR ASSY, ROTARY (TRAY)
M11 1-541-632-12 MOTOR, DC (TRAY)
39
CDP-CE575
d
8-5. CD MECHANISM DECK SECTION-2
(CDM59-5BD27)
573
not supplied
560
557
M10
561
558
559
S200
562
563
565
551
551
566
564
551
567
568
555
569
551
570
not supplied
not supplie
571
572
556
554
Ref. No. Part No. Description Remark
551 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
552 X-4952-312-1 HOLDER (BU) ASSY
553 4-959-996-01 SPRING (932), COMPRESSION
554 4-225-885-01 BELT (LOADING)
555 4-225-844-01 GEAR (LOADING A)
551
551
558
BU-5BD27
551
553
552
Ref. No. Part No. Description Remark
* 564 4-951-619-01 CUSHION (A)
565 4-224-606-01 GEAR (RV)
566 4-224-605-01 GEAR (U/D)
567 X-4952-019-2 PULLEY (A) ASSY, CHUCKING
568 1-471-061-11 MAGNET ASSY
553
551
556 4-224-613-01 GEAR (SHAFT)
557 1-676-244-11 LOADING MOTOR BOARD
558 4-218-253-31 SCREW (M2.6), +BTTP
559 4-224-607-01 GEAR, SWING
560 4-224-609-01 GEAR (LOADING C)
561 4-224-608-01 COLLAR, SWING
562 4-224-611-01 GEAR (LOADING B)
563 3-016-533-01 WASHER (FR), STOPPER
40
569 4-221-688-01 PULLEY (B), CHUCKING
570 4-224-618-01 LEVER (LIFTER)
571 1-791-930-11 WIRE (FLAT TYPE) (6 CORE)
572 1-676-246-11 JUNCTION BOARD
573 A-4672-879-A MOTOR ASSY, LOADING
M10 1-541-632-12 MOTOR, DC (LOADING)
S200 1-418-746-11 ENCODER, ROTARY
(BU, TABLE ADDRESS DETECT)
8-6. BASE UNIT SECTION
(BU-5BD27)
CDP-CE575
606
605
607
M101
608
604
603
602
Ref. No. Part No. Description Remark
601 4-951-620-01 SCREW (2.6X8), +BVTP
602 A-4725-568-A BD BOARD, COMPLETE
603 4-951-940-01 INSULATOR (BU)
604 4-917-565-01 SHAFT, SLED
0 605 1-796-033-11 OPTICAL PICK-UP (PXR-104X)
603
M102
609
601
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety .
Replace only with part number specified.
Ref. No. Part No. Description Remark
607 3-713-786-51 SCREW +P 2X3
608 4-917-567-01 GEAR (M)
609 4-917-564-01 GEAR (P), FLATNESS
M101 X-4917-523-3 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
606 1-782-817-11 WIRE (FLAT TYPE) (16 CORE)
41
CDP-CE575
BD
SECTION 9
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts specified in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Abbreviation
CND: Canadian model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-4725-568-A BD BOARD, COMPLETE
*******************
< CAPACITOR >
C101 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C102 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C103 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C110 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C111 1-164-156-11 CERAMIC CHIP 0.1uF 25V
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when ordering these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
C193 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C194 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C199 1-164-156-11 CERAMIC CHIP 0.1uF 25V
< CONNECTOR >
CN101 1-784-360-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P
CN102 1-777-937-11 CONNECTOR, FFC/FPC 16P
< SHORT >
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
C112 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C120 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C121 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C122 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V
C123 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C124 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C125 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V
C126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C130 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C131 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C132 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C133 1-126-607-11 ELECT CHIP 47uF 20% 4V
C134 1-126-607-11 ELECT CHIP 47uF 20% 4V
C136 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C137 1-126-209-11 ELECT CHIP 100uF 20% 4V
C138 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C139 1-162-921-11 CERAMIC CHIP 33PF 5% 50V
C140 1-164-505-11 CERAMIC CHIP 2.2uF 16V
C145 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V
C150 1-126-204-11 ELECT CHIP 47uF 20% 16V
C151 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C152 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C153 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C154 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C158 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V
C171 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C172 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C173 1-162-928-11 CERAMIC CHIP 120PF 5% 50V
C174 1-115-412-11 CERAMIC CHIP 680PF 5% 25V
C181 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C182 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C183 1-162-928-11 CERAMIC CHIP 120PF 5% 50V
C184 1-115-412-11 CERAMIC CHIP 680PF 5% 25V
C191 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C192 1-164-156-11 CERAMIC CHIP 0.1uF 25V
FB191 1-216-864-11 SHORT 0
< IC >
IC101 8-752-386-85 IC CXD2587Q
IC131 8-752-089-74 IC CXA2581N-T4
IC150 8-759-829-14 IC AN4800SB
< TRANSISTOR >
Q131 8-729-010-08 TRANSISTOR MSB710-RT1
Q132 8-729-600-22 TRANSISTOR 2SA1235TP-1EF
< RESISTOR >
R101 1-216-835-11 METAL CHIP 15K 5% 1/16W
R102 1-216-845-11 METAL CHIP 100K 5% 1/16W
R103 1-216-835-11 METAL CHIP 15K 5% 1/16W
R110 1-216-821-11 METAL CHIP 1K 5% 1/16W
R111 1-216-809-11 METAL CHIP 100 5% 1/16W
R112 1-216-833-11 METAL CHIP 10K 5% 1/16W
R120 1-216-839-11 METAL CHIP 33K 5% 1/16W
R121 1-216-833-11 METAL CHIP 10K 5% 1/16W
R122 1-216-845-11 METAL CHIP 100K 5% 1/16W
R123 1-216-857-11 METAL CHIP 1M 5% 1/16W
R125 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R126 1-216-833-11 METAL CHIP 10K 5% 1/16W
R127 1-216-821-11 METAL CHIP 1K 5% 1/16W
R129 1-216-815-11 METAL CHIP 330 5% 1/16W
R134 1-216-853-11 METAL CHIP 470K 5% 1/16W
R135 1-216-836-11 METAL CHIP 18K 5% 1/16W
R136 1-216-836-11 METAL CHIP 18K 5% 1/16W
R137 1-216-797-11 METAL CHIP 10 5% 1/16W
R138 1-216-798-11 RES-CHIP 12 5% 1/16W
R139 1-216-847-11 METAL CHIP 150K 5% 1/16W
R140 1-216-854-11 METAL CHIP 560K 5% 1/16W
R141 1-216-840-11 METAL CHIP 39K 5% 1/16W
42
CDP-CE575
BD DISPLAY
Ref. No. Part No. Description Remark
R142 1-216-841-11 METAL CHIP 47K 5% 1/16W
R143 1-216-855-11 METAL CHIP 680K 5% 1/16W
R144 1-216-846-11 METAL CHIP 120K 5% 1/16W
R145 1-216-830-11 METAL CHIP 5.6K 5% 1/16W
R146 1-216-845-11 METAL CHIP 100K 5% 1/16W
R149 1-216-821-11 METAL CHIP 1K 5% 1/16W
R151 1-216-845-11 METAL CHIP 100K 5% 1/16W
R152 1-216-833-11 METAL CHIP 10K 5% 1/16W
R153 1-216-864-11 SHORT 0
R155 1-216-836-11 METAL CHIP 18K 5% 1/16W
R171 1-218-720-11 METAL CHIP 15K 0.5% 1/16W
R172 1-218-720-11 METAL CHIP 15K 0.5% 1/16W
R173 1-218-720-11 METAL CHIP 15K 0.5% 1/16W
R174 1-216-809-11 METAL CHIP 100 5% 1/16W
R181 1-218-720-11 METAL CHIP 15K 0.5% 1/16W
R182 1-218-720-11 METAL CHIP 15K 0.5% 1/16W
R183 1-218-720-11 METAL CHIP 15K 0.5% 1/16W
R184 1-216-809-11 METAL CHIP 100 5% 1/16W
R191 1-216-817-11 METAL CHIP 470 5% 1/16W
R192 1-216-797-11 METAL CHIP 10 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB101 1-233-576-11 RES, CHIP NETWORK 100
RB102 1-233-576-11 RES, CHIP NETWORK 100
< SWITCH >
S101 1-572-085-11 SWITCH, LEAF (LIMIT)
Ref. No. Part No. Description Remark
< FLUORESCENT INDICATOR TUBE >
FL801 1-518-738-11 INDICATOR TUBE, FLUORESCENT
< IC >
IC801 8-759-829-13 IC MSM9202-06GS-BK
IC802 8-759-827-70 IC NJL64H400A-1
< TRANSISTOR >
Q801 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q802 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q803 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q804 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q805 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q806 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q807 8-729-029-66 TRANSISTOR DTC114ESA-TP
< RESISTOR >
R801 1-249-441-11 CARBON 100K 5% 1/4W
R802 1-249-441-11 CARBON 100K 5% 1/4W
R803 1-249-441-11 CARBON 100K 5% 1/4W
R804 1-249-441-11 CARBON 100K 5% 1/4W
R805 1-249-441-11 CARBON 100K 5% 1/4W
R806 1-249-441-11 CARBON 100K 5% 1/4W
R807 1-247-807-31 CARBON 100 5% 1/4W
R811 1-249-415-11 CARBON 680 5% 1/4W
R812 1-249-417-11 CARBON 1K 5% 1/4W
R813 1-249-419-11 CARBON 1.5K 5% 1/4W
< VIBRATOR >
X191 1-767-408-21 VIBRATOR, CRYSTAL (16MHz)
**************************************************************
A-4476-754-A DISPLAY BOARD (US, CND)
A-4476-660-A DISPLAY BOARD (AEP)
**************
2-389-320-01 CUSHION
* 4-997-495-01 GUIDE (FL)
< CAPACITOR >
C801 1-161-494-00 CERAMIC 0.022uF 25V
C802 1-164-159-11 CERAMIC 0.1uF 50V
C803 1-104-665-11 ELECT 100uF 20% 10V
C851 1-162-215-31 CERAMIC 47PF 5% 50V
C852 1-161-494-00 CERAMIC 0.022uF 25V
C853 1-162-282-31 CERAMIC 100PF 10% 50V
C854 1-162-282-31 CERAMIC 100PF 10% 50V
C855 1-162-282-31 CERAMIC 100PF 10% 50V
C861 1-104-665-11 ELECT 100uF 20% 10V
< CONNECTOR >
CN811 1-750-185-11 CONNECTOR, BOARD TO BOARD 4P
CNP801 1-784-776-11 CONNECTOR, FFC 15P
< LED >
D801 8-719-046-36 LED SEL5921A-TP15 (MEGA CONTROL)
R814 1-249-421-11 CARBON 2.2K 5% 1/4W
R815 1-247-843-11 CARBON 3.3K 5% 1/4W
R816 1-249-427-11 CARBON 6.8K 5% 1/4W
R821 1-249-415-11 CARBON 680 5% 1/4W
R822 1-249-417-11 CARBON 1K 5% 1/4W
R823 1-249-419-11 CARBON 1.5K 5% 1/4W
R824 1-249-421-11 CARBON 2.2K 5% 1/4W
R846 1-249-427-11 CARBON 6.8K 5% 1/4W
R851 1-247-843-11 CARBON 3.3K 5% 1/4W
R852 1-247-807-31 CARBON 100 5% 1/4W
R853 1-247-807-31 CARBON 100 5% 1/4W
R854 1-247-807-31 CARBON 100 5% 1/4W
R855 1-247-807-31 CARBON 100 5% 1/4W
R861 1-247-807-31 CARBON 100 5% 1/4W
R862 1-247-807-31 CARBON 100 5% 1/4W
< SWITCH >
S801 1-475-543-11 ENCODER, ROTARY
(l AMS L (DISC), PUSH ENTER)
S811 1-771-349-21 SWITCH, KEYBOARD (H)
S812 1-771-349-21 SWITCH, KEYBOARD (X)
S813 1-771-349-21 SWITCH, KEYBOARD (s)
S814 1-771-349-21 SWITCH, KEYBOARD (EX-CHANGE)
S815 1-771-349-21 SWITCH, KEYBOARD (DISC SKIP)
S821 1-771-349-21 SWITCH, KEYBOARD (MEGA CONTROL)
S822 1-771-349-21 SWITCH, KEYBOARD (X-FADE, NO DELAY)
S823 1-771-349-21 SWITCH, KEYBOARD (MENU)
S824 1-771-349-21 SWITCH, KEYBOARD (m, (AMS –))
S825 1-771-349-21 SWITCH, KEYBOARD (M, (AMS +))
43
CDP-CE575
DISPLAY HEADPHONE JUNCTION KEY (A) KEY (B)
LOADING MOTOR MAIN
Ref. No. Part No. Description Remark
S846 1-771-349-21 SWITCH, KEYBOARD (A OPEN/COLSE)
**************************************************************
1-681-136-11 HEADPHONE BOARD (US, CND)
1-681-136-21 HEADPHONE BOARD (AEP)
*****************
< CAPACITOR >
C881 1-162-294-31 CERAMIC 0.001uF 10% 50V
C882 1-162-294-31 CERAMIC 0.001uF 10% 50V
C883 1-164-159-11 CERAMIC 0.1uF 50V
< JACK >
J881 1-770-307-11 JACK (LARGE TYPE) (PHONES)
< RESISTOR >
R881 1-249-401-11 CARBON 47 5% 1/4W
R882 1-249-401-11 CARBON 47 5% 1/4W
**************************************************************
1-676-246-11 JUNCTION BOARD
***************
< CAPACITOR >
C10 1-124-589-11 ELECT 47uF 20% 16V
C11 1-161-494-00 CERAMIC 0.022uF 25V
Ref. No. Part No. Description Remark
R826 1-249-427-11 CARBON 6.8K 5% 1/4W
R831 1-249-415-11 CARBON 680 5% 1/4W
R832 1-249-417-11 CARBON 1K 5% 1/4W
R833 1-249-419-11 CARBON 1.5K 5% 1/4W
R834 1-249-421-11 CARBON 2.2K 5% 1/4W
R835 1-247-843-11 CARBON 3.3K 5% 1/4W
R836 1-249-427-11 CARBON 6.8K 5% 1/4W
R837 1-249-431-11 CARBON 15K 5% 1/4W
< SWITCH >
S826 1-771-349-21 SWITCH, KEYBOARD (TIME/TEXT)
S827 1-771-349-21 SWITCH, KEYBOARD (REPEAT)
S831 1-771-349-21 SWITCH, KEYBOARD (DISC 5)
S832 1-771-349-21 SWITCH, KEYBOARD (DISC 4)
S833 1-771-349-21 SWITCH, KEYBOARD (DISC 3)
S834 1-771-349-21 SWITCH, KEYBOARD (DISC 2)
S835 1-771-349-21 SWITCH, KEYBOARD (DISC 1)
S836 1-771-349-21 SWITCH, KEYBOARD (CONTINUE)
S837 1-771-349-21 SWITCH, KEYBOARD (SHUFFLE)
S838 1-771-349-21 SWITCH, KEYBOARD (PROGRAM)
**************************************************************
1-681-137-11 KEY (B) BOARD (US, CND)
1-681-137-21 KEY (B) BOARD (AEP)
*************
< RESISTOR >
< CONNECTOR >
CN11 1-573-911-11 PIN, CONNECTOR 13P
CN13 1-506-481-11 PIN, CONNECTOR 2P
* CN14 1-568-941-11 PIN, CONNECTOR 3P
CN15 1-784-767-11 CONNECTOR, FFC 6P
< IC >
IC11 8-759-356-03 IC BA6780
< RESISTOR >
R21 1-249-429-11 CARBON 10K 5% 1/4W
R22 1-249-426-11 CARBON 5.6K 5% 1/4W
R23 1-249-425-11 CARBON 4.7K 5% 1/4W
R24 1-249-430-11 CARBON 12K 5% 1/4W
R25 1-249-382-11 CARBON 1.2 5% 1/6W
R26 1-249-382-11 CARBON 1.2 5% 1/6W
< SWITCH >
S11 1-771-836-11 SWITCH, LEVER (SLIDE)
(OPEN/CLOSE DETECT)
**************************************************************
1-681-134-11 KEY (A) BOARD (US, CND)
1-681-134-21 KEY (A) BOARD (AEP)
*************
< CONNECTOR >
CNP811 1-750-194-11 CONNECTOR, BOARD TO BOARD 4P
< RESISTOR >
R825 1-247-843-11 CARBON 3.3K 5% 1/4W
R841 1-249-415-11 CARBON 680 5% 1/4W
R842 1-249-417-11 CARBON 1K 5% 1/4W
R843 1-249-419-11 CARBON 1.5K 5% 1/4W
R844 1-249-421-11 CARBON 2.2K 5% 1/4W
R845 1-247-843-11 CARBON 3.3K 5% 1/4W
< SWITCH >
S841 1-771-349-21 SWITCH, KEYBOARD (FADER)
S842 1-771-349-21 SWITCH, KEYBOARD (PEAK SEARCH)
S843 1-771-349-21 SWITCH, KEYBOARD (CLEAR)
S844 1-771-349-21 SWITCH, KEYBOARD (CHECK)
S845 1-771-349-21 SWITCH, KEYBOARD (EDIT)
**************************************************************
1-676-244-11 LOADING MOTOR BOARD
*********************
**************************************************************
A-4725-582-A MAIN BOARD, COMPLETE (US, CND)
A-4725-593-A MAIN BOARD, COMPLETE (AEP)
*********************
7-685-871-01 SCREW +BVTT 3X6 (S)
< CAPACITOR >
C301 1-164-159-11 CERAMIC 0.1uF 50V
C302 1-104-665-11 ELECT 100uF 20% 10V
C303 1-161-494-00 CERAMIC 0.022uF 25V
C304 1-161-494-00 CERAMIC 0.022uF 25V
C305 1-110-489-11 DOUBLE LAYER 1F 5.5V
C325 1-161-494-00 CERAMIC 0.022uF 25V
C326 1-104-665-11 ELECT 100uF 20% 10V
C350 1-126-962-11 ELECT 3.3uF 20% 50V
C351 1-126-963-11 ELECT 4.7uF 20% 50V
44
CDP-CE575
MAIN
Ref. No. Part No. Description Remark
C381 1-164-159-11 CERAMIC 0.1uF 50V
C382 1-164-159-11 CERAMIC 0.1uF 50V
C404 1-126-965-11 ELECT 22uF 20% 50V
C405 1-104-664-11 ELECT 47uF 20% 10V
C406 1-126-933-11 ELECT 100uF 20% 16V
C407 1-162-290-31 CERAMIC 470PF 10% 50V
C408 1-107-715-11 ELECT 22uF 20% 25V
C451 1-126-933-11 ELECT 100uF 20% 16V
C504 1-126-965-11 ELECT 22uF 20% 50V
C505 1-104-664-11 ELECT 47uF 20% 10V
C506 1-126-933-11 ELECT 100uF 20% 16V
C507 1-162-290-31 CERAMIC 470PF 10% 50V
C508 1-107-715-11 ELECT 22uF 20% 25V
C551 1-126-933-11 ELECT 100uF 20% 16V
C602 1-126-937-11 ELECT 4700uF 20% 16V
C603 1-126-767-11 ELECT 1000uF 20% 16V
C604 1-104-664-11 ELECT 47uF 20% 10V
C607 1-126-935-11 ELECT 470uF 20% 6.3V
C608 1-126-934-11 ELECT 220uF 20% 10V
C609 1-128-552-51 ELECT 47uF 20% 63V
C610 1-126-964-11 ELECT 10uF 20% 50V
C611 1-126-767-11 ELECT 1000uF 20% 16V
C613 1-126-935-11 ELECT 470uF 20% 6.3V
C616 1-161-494-00 CERAMIC 0.022uF 25V
C619 1-104-665-11 ELECT 100uF 20% 10V
0 C620 1-113-924-11 CERAMIC 0.0047uF 20% 250V
Ref. No. Part No. Description Remark
< IC >
IC301 8-752-919-06 IC CXP84648-085Q
IC302 8-759-825-10 IC BS62LV256SC-70 (T)
IC303 8-749-921-12 IC GP1F32T (DIGITAL OUT OPTICAL)
IC351 8-759-167-88 IC NJM4565D
IC402 8-749-015-59 IC BA4558-HT
IC502 8-749-015-59 IC BA4558-HT
IC601 8-759-039-69 IC uPC7805AHF
IC602 8-749-011-78 IC BA17807T
IC603 8-759-165-82 IC PST600E-T
< JACK >
J301 1-784-429-11 JACK, PIN 4P (ANALOG OUT, 2ND CD IN)
J381 1-779-655-21 JACK (SMALL TYPE) (2 GANG)
(CONTROL A1 II)
< COIL >
L381 1-410-503-11 INDUCTOR 3.3uH
L602 1-414-151-21 INDUCTOR 470uH
< TRANSISTOR >
Q307 8-729-029-56 TRANSISTOR DTA144ESA-TP
Q311 8-729-029-66 TRANSISTOR DTC114ESA-TP
Q352 8-729-029-56 TRANSISTOR DTA144ESA-TP
Q353 8-729-029-56 TRANSISTOR DTA144ESA-TP
Q354 8-729-029-56 TRANSISTOR DTA144ESA-TP
C810 1-161-494-00 CERAMIC 0.022uF 25V
C820 1-161-494-00 CERAMIC 0.022uF 25V
C830 1-161-494-00 CERAMIC 0.022uF 25V
C840 1-161-494-00 CERAMIC 0.022uF 25V
< CONNECTOR >
CN301 1-568-838-11 CONNECTOR, FFC 21P
CN311 1-573-911-11 PIN, CONNECTOR 13P
CN351 1-506-468-11 PIN, CONNECTOR 3P
CN603 1-792-131-11 LEAD (WITH CONNECTOR)
CN801 1-784-776-11 CONNECTOR, FFC 15P
< DIODE >
D301 8-719-911-19 DIODE 1SS133T-72
D352 8-719-911-19 DIODE 1SS133T-72
D353 8-719-911-19 DIODE 1SS133T-72
D381 8-719-911-19 DIODE 1SS133T-72
D601 8-719-024-99 DIODE 11ES2-NTA2B
D602 8-719-024-99 DIODE 11ES2-NTA2B
D603 8-719-024-99 DIODE 11ES2-NTA2B
D604 8-719-024-99 DIODE 11ES2-NTA2B
D605 8-719-024-99 DIODE 11ES2-NTA2B
D606 8-719-911-19 DIODE 1SS133T-72
D607 8-719-911-19 DIODE 1SS133T-72
D608 8-719-109-85 DIODE MTZJ-T-72-5.1B
D610 8-719-983-99 DIODE MTZJ-T-72-39D
D612 8-719-110-08 DIODE MTZJ-T-72-8.2B
Q355 8-729-029-56 TRANSISTOR DTA144ESA-TP
Q356 8-729-029-56 TRANSISTOR DTA144ESA-TP
Q381 8-729-119-78 TRANSISTOR 2SC1740S-QRT
Q402 8-729-141-26 TRANSISTOR 2SC3622ATP-LK
Q403 8-729-141-26 TRANSISTOR 2SC3622ATP-LK
Q404 8-729-141-26 TRANSISTOR 2SC3622ATP-LK
Q502 8-729-141-26 TRANSISTOR 2SC3622ATP-LK
Q503 8-729-141-26 TRANSISTOR 2SC3622ATP-LK
Q504 8-729-141-26 TRANSISTOR 2SC3622ATP-LK
Q601 8-729-140-97 TRANSISTOR 2SB734-T-34
< RESISTOR >
R300 1-249-427-11 CARBON 6.8K 5% 1/4W
R301 1-249-415-11 CARBON 680 5% 1/4W
R302 1-249-417-11 CARBON 1K 5% 1/4W
R303 1-249-429-11 CARBON 10K 5% 1/4W
R306 1-249-429-11 CARBON 10K 5% 1/4W
R307 1-249-429-11 CARBON 10K 5% 1/4W
R308 1-249-429-11 CARBON 10K 5% 1/4W
R309 1-249-429-11 CARBON 10K 5% 1/4W
R310 1-249-429-11 CARBON 10K 5% 1/4W
R311 1-249-429-11 CARBON 10K 5% 1/4W
R312 1-249-429-11 CARBON 10K 5% 1/4W
R314 1-247-807-31 CARBON 100 5% 1/4W
R315 1-247-807-31 CARBON 100 5% 1/4W
R316 1-249-429-11 CARBON 10K 5% 1/4W
R317 1-249-429-11 CARBON 10K 5% 1/4W
< GROUND TERMINAL >
EB601 1-537-770-21 TERMINAL BOARD, GROUND
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety .
Replace only with part number specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
R318 1-249-399-11 CARBON 33 5% 1/4W
R324 1-249-429-11 CARBON 10K 5% 1/4W
R325 1-247-807-31 CARBON 100 5% 1/4W
R326 1-249-425-11 CARBON 4.7K 5% 1/4W
R327 1-249-425-11 CARBON 4.7K 5% 1/4W
45
CDP-CE575
MAIN POWER SW SENSOR
Ref. No. Part No. Description Remark
R329 1-249-425-11 CARBON 4.7K 5% 1/4W
R350 1-247-807-31 CARBON 100 5% 1/4W
R351 1-247-807-31 CARBON 100 5% 1/4W
R352 1-249-441-11 CARBON 100K 5% 1/4W
R353 1-249-441-11 CARBON 100K 5% 1/4W
R354 1-249-441-11 CARBON 100K 5% 1/4W
R355 1-249-441-11 CARBON 100K 5% 1/4W
R356 1-249-441-11 CARBON 100K 5% 1/4W
R381 1-249-425-11 CARBON 4.7K 5% 1/4W
R382 1-249-429-11 CARBON 10K 5% 1/4W
R383 1-249-393-11 CARBON 10 5% 1/4W
R406 1-247-895-00 CARBON 470K 5% 1/4W
R407 1-249-425-11 CARBON 4.7K 5% 1/4W
R409 1-249-419-11 CARBON 1.5K 5% 1/4W
R410 1-249-429-11 CARBON 10K 5% 1/4W
R411 1-249-429-11 CARBON 10K 5% 1/4W
R412 1-249-429-11 CARBON 10K 5% 1/4W
R413 1-247-887-00 CARBON 220K 5% 1/4W
R414 1-249-409-11 CARBON 220 5% 1/4W
R415 1-249-409-11 CARBON 220 5% 1/4W
R417 1-249-427-11 CARBON 6.8K 5% 1/4W
R418 1-249-421-11 CARBON 2.2K 5% 1/4W
R419 1-249-421-11 CARBON 2.2K 5% 1/4W
R420 1-249-409-11 CARBON 220 5% 1/4W
R421 1-247-895-00 CARBON 470K 5% 1/4W
R422 1-249-421-11 CARBON 2.2K 5% 1/4W
R451 1-247-843-11 CARBON 3.3K 5% 1/4W
R452 1-249-429-11 CARBON 10K 5% 1/4W
R506 1-247-895-00 CARBON 470K 5% 1/4W
R507 1-249-425-11 CARBON 4.7K 5% 1/4W
Ref. No. Part No. Description Remark
< POWER TRANSFORMER >
0 T601 1-435-342-11 TRANSFORMER, POWER (US, CND)
0 T601 1-435-343-11 TRANSFORMER, POWER (AEP)
< VIBRATOR >
X301 1-579-175-11 VIBRATOR, CERAMIC (10MHz)
**************************************************************
1-681-135-11 POWER SW BOARD (US, CND)
1-681-135-21 POWER SW BOARD (AEP)
****************
< CAPACITOR >
0 C601 1-113-924-11 CERAMIC 0.0047uF 20% 250V
< CONNECTOR >
* CN601 1-580-230-31 PIN, CONNECTOR (PC BOARD) 2P
* CN602 1-568-226-11 PIN, CONNECTOR 2P
< SWITCH >
0 S601 1-762-581-11 SWITCH, AC POWER PUSH (1 KEY)
(POWER)
**************************************************************
1-676-245-11 SENSOR BOARD
*************
< CONNECTOR >
CN10 1-750-243-11 SOCKET, CONNECTOR 6P
R509 1-249-419-11 CARBON 1.5K 5% 1/4W
R510 1-249-429-11 CARBON 10K 5% 1/4W
R511 1-249-429-11 CARBON 10K 5% 1/4W
R512 1-249-429-11 CARBON 10K 5% 1/4W
R513 1-247-887-00 CARBON 220K 5% 1/4W
R514 1-249-409-11 CARBON 220 5% 1/4W
R515 1-249-409-11 CARBON 220 5% 1/4W
R517 1-249-427-11 CARBON 6.8K 5% 1/4W
R518 1-249-421-11 CARBON 2.2K 5% 1/4W
R519 1-249-421-11 CARBON 2.2K 5% 1/4W
R520 1-249-409-11 CARBON 220 5% 1/4W
R521 1-247-895-00 CARBON 470K 5% 1/4W
R522 1-249-421-11 CARBON 2.2K 5% 1/4W
R551 1-247-843-11 CARBON 3.3K 5% 1/4W
R552 1-249-429-11 CARBON 10K 5% 1/4W
R601 1-249-425-11 CARBON 4.7K 5% 1/4W
R602 1-249-411-11 CARBON 330 5% 1/4W
R611 1-247-843-11 CARBON 3.3K 5% 1/4W
R612 1-247-843-11 CARBON 3.3K 5% 1/4W
R613 1-247-807-31 CARBON 100 5% 1/4W
R616 1-249-429-11 CARBON 10K 5% 1/4W
R810 1-249-427-11 CARBON 6.8K 5% 1/4W
R820 1-249-427-11 CARBON 6.8K 5% 1/4W
R830 1-249-427-11 CARBON 6.8K 5% 1/4W
R840 1-249-427-11 CARBON 6.8K 5% 1/4W
< PHOTO INTERRUPTER >
D10 8-749-924-18 PHOTO INTERRUPTER RPI-1391
D11 8-749-017-45 SENSOR, PHOTO RPR-220C1N
< RESISTOR >
R10 1-249-416-11 CARBON 820 5% 1/4W
R11 1-249-407-11 CARBON 150 5% 1/4W
R12 1-249-429-11 CARBON 10K 5% 1/4W
**************************************************************
MISCELLANEOUS
**************
61 1-757-649-11 WIRE (FLAT TYPE) (15 CORE)
105 1-757-648-11 WIRE (FLAT TYPE) (21 CORE)
0 110 1-575-651-21 CORD, POWER (AEP)
0 110 1-783-531-31 CORD, POWER (US, CND)
512 A-4672-867-A MOTOR ASSY, ROTARY (TRAY)
568 1-471-061-11 MAGNET ASSY
571 1-791-930-11 WIRE (FLAT TYPE) (6 CORE)
573 A-4672-879-A MOTOR ASSY, LOADING
0 605 1-796-033-11 OPTICAL PICK-UP (PXR-104X)
606 1-782-817-11 WIRE (FLAT TYPE) (16 CORE)
M10 1-541-632-12 MOTOR, DC (LOADING)
M101 X-4917-523-3 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
M11 1-541-632-12 MOTOR, DC (TRAY)
46
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety .
Replace only with part number specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
CDP-CE575
Ref. No. Part No. Description Remark
S200 1-418-746-11 ENCODER, ROTARY
(BU, TABLE ADDRESS DETECT)
0 T601 1-435-342-11 TRANSFORMER, POWER (US, CND)
0 T601 1-435-343-11 TRANSFORMER, POWER (AEP)
************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
1-418-858-11 REMOTE COMMANDER (RM-DC545)
1-558-271-11 CORD, CONNECTION (RCA PIN PLUG)
1-777-241-11 CORD, CONNECTION (MINI PLUG) (CND)
4-233-301-11 MANUAL, INSTRUCTION (ENGLISH) (US)
4-233-301-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
(CND)
4-233-301-31 MANUAL, INSTRUCTION (ENGLISH, FRENCH,
GERMAN, SPANISH, DUTCH, SWEDISH,
ITALIAN , PORTUGUESE) (AEP)
4-981-643-01 COVER, BATTERY (for RM-DC545)
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety .
Replace only with part number specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
47
CDP-CE575
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.1 2001.07 Addition of electrical adjustments
1.0 2001.03 New
Loading...
