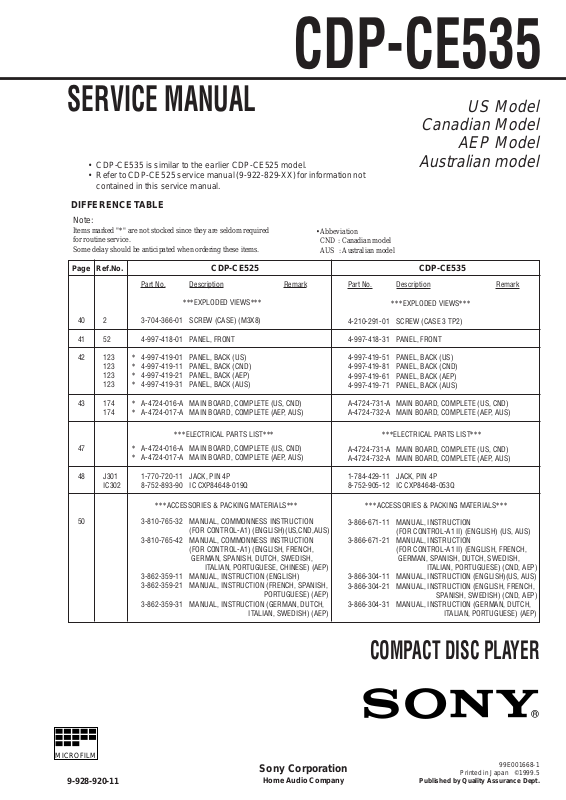

CDP-CE535

SERVICE MANUAL

Canadian Model

• CDP-CE535 is similar to the earlier CDP-CE525 model.

• Refer to CDP-CE525 service manual (9-922-829-XX) for inf ormation not contained in this service manual.

DIFFERENCE T ABLE

Note:

Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

Page Ref.No. CDP-CE525 CDP-CE535

Part No. Description Remark

***EXPLODED VIEWS***

40 2 3-704-366-01 SCREW (CASE) (M3X8)

41 52 4-997-418-01 PANEL, FRONT

42 123 * 4-997-419-01 PANEL, BACK (US)

123 * 4-997-419-11 PANEL, BACK (CND) 123 * 4-997-419-21 PANEL, BACK (AEP) 123 * 4-997-419-31 PANEL, BACK (AUS)

•Abbeviation

CND : Canadian model AUS : Australian model

Part No. Description Remark

***EXPLODED VIEWS***

4-210-291-01 SCREW (CASE 3 TP2)

4-997-418-31 PANEL, FRONT

4-997-419-51 PANEL, BACK (US) 4-997-419-81 PANEL, BACK (CND) 4-997-419-61 PANEL, BACK (AEP) 4-997-419-71 PANEL, BACK (AUS)

Australian model

US Model

AEP Model

43 174 * A-4724-016-A MAIN BOARD, COMPLETE (US, CND)

174 * A-4724-017-A MAIN BOARD, COMPLETE (AEP, AUS)

***ELECTRICAL PARTS LIST*** ***ELECTRICAL PARTS LIST***

47 * A-4724-016-A MAIN BOARD, COMPLETE (US, CND)

* A-4724-017-A MAIN BOARD, COMPLETE (AEP, AUS)

48 J301 1-770-720-11 JACK, PIN 4P

IC302 8-752-893-90 IC CXP84648-019Q

***ACCESSORIES & PACKING MATERIALS*** ***ACCESSORIES & PACKING MATERIALS***

50 3-810-765-32 MANUAL, COMMONNESS INSTRUCTION

(FOR CONTROL-A1) (ENGLISH)(US,CND,AUS)

3-810-765-42 MANUAL, COMMONNESS INSTRUCTION

(FOR CONTROL-A1) (ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH,

ITALIAN, PORTUGUESE, CHINESE) (AEP) 3-862-359-11 MANUAL, INSTRUCTION (ENGLISH) 3-862-359-21 MANUAL, INSTRUCTION (FRENCH, SPANISH,

PORTUGUESE) (AEP) 3-862-359-31 MANUAL, INSTRUCTION (GERMAN, DUTCH,

ITALIAN, SWEDISH) (AEP)

A-4724-731-A MAIN BOARD, COMPLETE (US, CND) A-4724-732-A MAIN BOARD, COMPLETE (AEP, AUS)

1-784-429-11 JACK, PIN 4P 8-752-905-12 IC CXP84648-053Q

3-866-671-11 MANUAL, INSTRUCTION

(FOR CONTROL-A1 II) (ENGLISH) (US, AUS)

3-866-671-21 MANUAL, INSTRUCTION

(FOR CONTROL-A1 II) (ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH,

ITALIAN, PORTUGUESE) (CND, AEP) 3-866-304-11 MANUAL, INSTRUCTION (ENGLISH)(US, AUS) 3-866-304-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH,

SPANISH, SWEDISH) (CND, AEP) 3-866-304-31 MANUAL, INSTRUCTION (GERMAN, DUTCH,

ITALIAN, PORTUGUESE) (AEP)

COMPACT DISC PLAYER

MICROFILM

9-928-920-11

Sony Corporation

Home Audio Company

99E001668-1

Published by Quality Assurance Dept.
