1 Information on this Document

1 Information on this Document

1.1 Validity

This document is valid for the following device types from firmware version4.50:

• SunnyBoy1300TL (SB1300TL-10)

• SunnyBoy1600TL (SB1600TL-10)

• SunnyBoy2100TL (SB2100TL)

1.2 Target Group

This document is intended for qualified persons and end users. Only qualified persons are allowed
to perform the activities marked in this document with a warning symbol and the caption
"Qualifiedperson". Tasks that do not require any particular qualification are not marked and can
also be performed by end users. Qualified persons must have the following skills:

• Knowledge of how an inverter works and is operated

• Training in how to deal with the dangers and risks associated with installing and using
electrical devices and installations

• Training in the installation and commissioning of electrical devices and installations

• Knowledge of the applicable standards and directives

• Knowledge of and compliance with this document and all safety information

1.3 Additional Information

Links to additional information can be found at www.SMA-Solar.com:

Document title and content Document type

"Operating Parameters"
Overview of All Inverter Operating Parameters and Their Con-

figuration Options
"Order Form for the SMAGridGuardCode"

To apply for the SMAGridGuard code to change grid-rele­vant operating parameters

"Efficiency and Derating"
Efficiency and Derating Behavior of the SunnyBoy, Sun-

nyTripower and SunnyMiniCentral Inverters
"Circuit Breaker"

Dimensioning and Selection of a Suitable AC Circuit Breaker
for Inverters under PV-Specific Influences

"Module Technology"
Use of Thin-Film and Back-Contact Modules

"Insulation Resistance (Riso) of Non-Galvanically Isolated PV
Systems"

Technical Information

Certificate

Technical Information

Technical Information

Technical Information

Technical Information

Operating Manual 5SB13-21TL-BE-en-11

1 Information on this Document

Document title and content Document type

"Leading Leakage Currents"
Information on the Design of Transformerless Inverters

"Temperature Derating" Technical Information
"Criteria for Selecting a Residual-Current Device" Technical Information
"Overvoltage protection" Technical Information

SMA Solar Technology AG

Technical Information

1.4 Symbols

Symbol Explanation

Indicates a hazardous situation which, if not
avoided, will result in death or serious injury

Indicates a hazardous situation which, if not
avoided, can result in death or serious injury

Indicates a hazardous situation which, if not
avoided, can result in minor or moderate injury

Indicates a situation which, if not avoided, can re­sult in property damage

Sections describing activities to be performed by
qualified persons only

Information that is important for a specific topic or
goal, but is not safety-relevant

Indicates a requirement for meeting a specific goal

Desired result

A problem that might occur

1.5 Nomenclature

Complete designation Designation in this document

Sunny Boy Inverter, product
Electronic Solar Switch ESS
SMA BLUETOOTH Wireless Technology BLUETOOTH

Operating ManualSB13-21TL-BE-en-116

SMA Solar Technology AG

2 Safety

2 Safety

2.1 Intended Use

The Sunny Boy is a transformerless PV inverter which converts the direct current of the PV array to
grid-compliant alternating current and feeds it into the utility grid.

The product is suitable for indoor and outdoor use.
The product must only be operated with PV arrays of protection class II in accordance with

IEC61730, application class A. The PV modules must be compatible with this product.
PV modules with a high capacity to ground must only be used if their coupling capacity does not

exceed 1.4μF (for information on how to calculate the coupling capacity, see the Technical
Information "Leading Leakage Currents" at www.SMA-Solar.com).

All components must remain within their permitted operating ranges at all times.
The product must only be used in countries for which it is approved or released by

SMASolarTechnologyAG and the grid operator.
Use this product only in accordance with the information provided in the enclosed documentation

and with the locally applicable standards and directives. Any other application may cause
personal injury or property damage.

Alterations to the product, e.g. changes or modifications, are only permitted with the express written
permission of SMASolarTechnologyAG. Unauthorized alterations will void guarantee and
warranty claims and usually void the operation permit. SMASolarTechnologyAG shall not be
held liable for any damage caused by such changes.

Any use of the product other than that described in the Intended Use section does not qualify as
appropriate.

The enclosed documentation is an integral part of this product. Keep the documentation in a
convenient place for future reference and observe all instructions contained therein.

The type label must remain permanently attached to the product.

2.2 Safety Information

This section contains safety information that must be observed at all times when working on or with
the product.

To prevent personal injury and property damage and to ensure long-term operation of the product,
read this section carefully and observe all safety information at all times.

Operating Manual 7SB13-21TL-BE-en-11

2 Safety

SMA Solar Technology AG

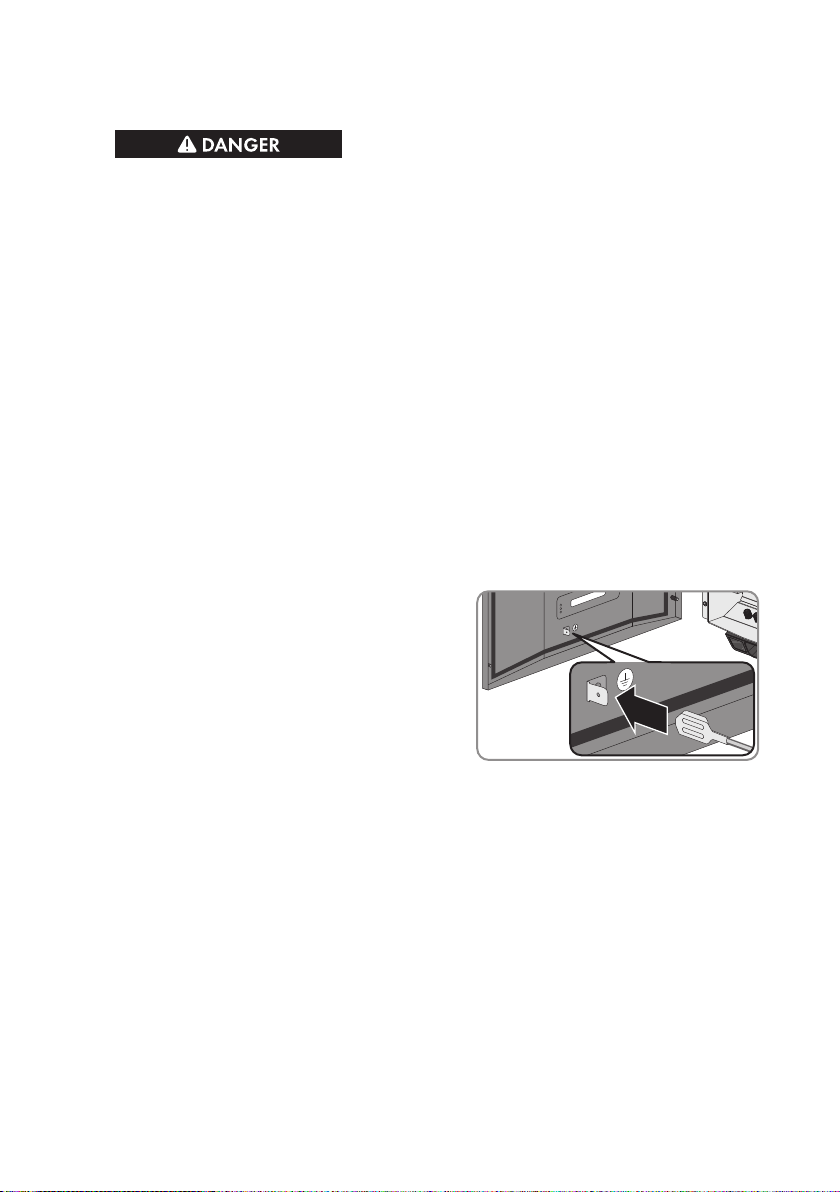

Danger to life due to high voltages of the PV array

When exposed to sunlight, the PV array generates dangerous DC voltage which is present in the
DC conductors and the live components of the inverter. Touching the DC conductors or the live
components can lead to lethal electric shocks. If you disconnect the DC connectors from the
inverter under load, an electric arc may occur leading to electric shock and burns.

• Do not touch uninsulated cable ends.

• Do not touch the DC conductors.

• Do not touch any live components of the inverter.

• Have the inverter mounted, installed and commissioned only by qualified persons with the
appropriate skills.

• If an error occurs, have it rectified by qualified persons only.

• Prior to performing any work on the inverter, disconnect it from all voltage sources as
described in this document (see Section10 "Disconnecting the Inverter from Voltage
Sources", page46).

Danger to life due to electric shock

Touching an ungrounded PV module or array frame can cause a fatal electric shock.

• Connect and ground the PV modules, array frame and electrically conductive surfaces so
that there is continuous conduction. Observe the applicable local regulations.

Risk of burns due to hot enclosure parts

Some parts of the enclosure can get hot during operation.

• During operation, do not touch any parts other than the enclosure lid of the inverter.

Risk of burns from hot heat sink

During operation, the heat sink at the top of the inverter can reach temperatures of over 70°C.

• Do not touch the heat sink.

• If the heat sink is soiled, clean it with a soft brush or a vacuum cleaner.

Operating ManualSB13-21TL-BE-en-118

SMA Solar Technology AG

2 Safety

Dust and water intrusion can damage the inverter.

If the inverter is equipped with an ESS, the inverter complies with degree of protection IP65 when
the ESS is plugged in and the inverter is closed.

If the ESS is not plugged in, moisture and dust can penetrate and damage the inverter. In order to
sufficiently protect the inverter during decommissioning, the DC inputs must be closed.

• Unlock and remove all DC connectors.

• Open all DC connectors.

• Close all DC inputs with the corresponding DC connectors and the supplied sealing plugs.

• Securely plug the ESS back in.

Damage to the display or the type label due to the use of cleaning agents

• If the inverter is dirty, clean the enclosure, the enclosure lid, the type label, the display and
the LEDs with a damp cloth only.

Operating Manual 9SB13-21TL-BE-en-11

3 Scope of Delivery

SMA Solar Technology AG

3 Scope of Delivery

Check the scope of delivery for completeness and any externally visible damage. Contact your
distributor if the scope of delivery is incomplete or damaged.

Figure 1: Components included in the scope of delivery

Position Quantity Designation

A 1 SunnyBoy
B 1 Wall mounting bracket
C 1 ElectronicSolarSwitch (ESS)*
D 1/2 Positive DC connector

SB1300TL-10/ 1600TL-10: 1pc.
SB2100TL: 2pcs.

E 1/2 Negative DC connector

SB1300TL-10/ 1600TL-10: 1pc.
SB2100TL: 2pcs.

F 2/4 Sealing plug

SB1300TL-10/ 1600TL-10: 2pcs.

SB2100TL: 4pcs.
G 1 Protective cap for AC pin connector on inverter
H 1 AC connection socket: bush insert, threaded sleeve, pres-

sure screw PG13.5, sealing ring PG13.5, fastening case

PG13.5, cable gland M20x1.5
I 1 M6x12 cylindrical screw
K 1 Conical spring washer
L 1 Jumper
M 1 Cable gland PG16 with single-hole cable support sleeve

Operating ManualSB13-21TL-BE-en-1110

SMA Solar Technology AG

3 Scope of Delivery

Position Quantity Designation

N 1 Operating manual, supplementary sheet with inverter de-

fault settings
O 1 Speedwire/Webconnect interface

* Optional

Operating Manual 11SB13-21TL-BE-en-11

4 Product Description

SMA Solar Technology AG

4 Product Description

4.1 Sunny Boy

The Sunny Boy is a transformerless PV inverter which converts the direct current of the PV array to
grid-compliant alternating current and feeds it into the utility grid.

Figure 2: Design of the SunnyBoy

Position Designation

A Type label

The type label uniquely identifies the inverter. You will require the information
on the type label to use the product safely and when seeking customer sup­port from the SMAServiceLine. You will find the following information on the
type label:

• Device type (Model)

• Serial number (SerialNo.)

• Date of manufacture

• Device-specific characteristics

B LEDs

The LEDs indicate the operating state of the inverter (see Section9.2 "LED Sig­nals", page44).

C ElectronicSolarSwitch (ESS)*

The ESS and the DC connectors together form a DC load-break switch. When
plugged in, the ESS forms a conductive path between the PV array and the in­verter. Removing the ESS interrupts the DC electric circuit and removing all DC
connectors disconnects the PV array completely from the inverter.

D Display

The display shows the current operating data and errors.

E Enclosure lid

* Optional

Operating ManualSB13-21TL-BE-en-1112

SMA Solar Technology AG

Symbols on the Inverter and on the Type Label

Symbol Explanation

By tapping on the enclosure lid, you can activate and operate the display
(see Section9.3, page45).

Inverter
Together with the green LED, this symbol indicates the operating state of

the inverter.
Ground fault

Together with the red LED, this symbol indicates the presence of a ground
fault in the PV array or that at least one of the varistors in the inverter is
defective (for troubleshooting, see service manual at www.SMA-Solar.­com).

Observe the documentation.
Together with the yellow LED, this symbol indicates an error or a distur-

bance (for troubleshooting, see the service manual at www.SMA-Solar.­com).

Operating principle of the ESS*:

• If the ESS is plugged in, the DC electric circuit is closed.

• To interrupt the DC electric circuit, you must perform the
following steps in the given order:

– Remove the ESS.
– Unlock and remove all DC connectors.

Grounding conductor
This symbol indicates the position for the grounding conductor terminal.

4 Product Description

Danger to life due to high voltages in the inverter; observe the waiting
time of tenminutes.

High voltages that can cause lethal electric shocks are present in the live
components of the inverter. Prior to performing any work on the inverter
always disconnect it from all voltage sources as described in this docu­ment (see Section10 "Disconnecting the Inverter from Voltage Sources",
page46).

Danger to life due to electric shock
The product operates at high voltages. All work on the product must be

carried out by qualified persons only.

Operating Manual 13SB13-21TL-BE-en-11

4 Product Description

Symbol Explanation

Risk of burns due to hot surfaces
The product can get hot during operation. Avoid contact during opera-

tion. Allow the product to cool down sufficiently before carrying out any
work.

Observe the documentation.
Observe all documentation supplied with the product.

Direct current

The product does not have a transformer.

Alternating current

WEEE designation
Do not dispose of the product together with the household waste but in

accordance with the locally applicable disposal regulations for electronic
waste.

CE marking
The product complies with the requirements of the applicable EU direc-

tives.
Degree of protectionIP65

The product is protected against dust intrusion and water jets from any
angle.

The product is suitable for outdoor installation.

SMA Solar Technology AG

RCM (Regulatory Compliance Mark)
The product complies with the requirements of the applicable Australian

standards.

* Optional

4.2 Interfaces and Functions

The inverter can be equipped or retrofitted with the following interfaces and functions:

Operating ManualSB13-21TL-BE-en-1114

SMA Solar Technology AG

4 Product Description

BLUETOOTH

Via BLUETOOTH, the inverter can communicate with various BLUETOOTH devices (for information
on supported SMAproducts, see www.SMA-Solar.com). The BLUETOOTH interface can be
retrofitted.

SMA Speedwire/Webconnect

The inverter is equipped with SMA Speedwire/Webconnect as standard. SMA Speedwire/
Webconnect is a type of communication based on the Ethernet standard. This enables inverter­optimized 10/100Mbit data transmission between Speedwire devices in PV systems and the
software Sunny Explorer. The Webconnect function enables direct data transmission between the
inverters of a small-scale system and the Internet portal SunnyPortal without any additional
communication device and for a maximum of four inverters per SunnyPortal system. In large-scale
PV power plants, data transmission to the Internet portal SunnyPortal is carried out via the
SMAClusterController. You can access your SunnyPortal system from any computer with an
Internet connection.

SMA Speedwire/Webconnect enables, for PV systems operated in Italy, the connection to or
disconnection of the inverter from the utility grid and definition of the frequency limits to be used
with IEC61850-GOOSE messages.

RS485 interface

The inverter can communicate via cables with special SMA communication products via the RS485
interface (information on supported SMAproducts at www.SMA-Solar.com). The RS485 interface
can be retrofitted.

Grid Management Services

The inverter is equipped with service functions for grid management.
Depending on the requirements of the grid operator, you can activate and configure the functions

(e.g. active power limitation) via operating parameters.

Fault indicator relay

The inverter is equipped with a fault indicator relay which will signal faults depending on the type
of output device connected. You can connect your own load to this relay (e.g. warning light,
acoustic signal) (see Section6.4 "Connecting the Fault Indicator Relay", page28).

All-pole sensitive residual-current monitoring unit

The all-pole sensitive residual-current monitoring unit detects alternating and direct differential
currents. In single-phase and three-phase inverters, the integrated differential current sensor detects
the current difference between the neutral conductor and the line conductor(s). If the current
difference increases suddenly, the inverter disconnects from the utility grid.

Operating Manual 15SB13-21TL-BE-en-11

5 Mounting

SMA Solar Technology AG

5 Mounting

5.1 Requirements for Mounting

Requirements for the mounting location:

Danger to life due to fire or explosion

Despite careful construction, electrical devices can cause fires.

• Do not mount the inverter in areas containing highly flammable materials or gases.

• Do not mount the inverter in a potentially explosive atmosphere.

☐ The mounting location must be inaccessible to children.
☐ A solid support surface must be available for mounting, e.g. concrete or masonry. When

mounted on drywall or similar materials in the living area, the inverter emits audible vibrations
during operation which could be perceived as annoying.

☐ The mounting location must be suitable for the weight and dimensions of the inverter (see

Section11 "Technical Data", page48).
☐ To ensure optimum operation, the ambient temperature should be between -25°C and 40°C.
☐ The mounting location should not be exposed to direct solar irradiation. Direct solar irradiation

can cause the inverter to overheat. As a result, the inverter reduces its power output.
☐ Climatic conditions must be met (see Section11 "Technical Data", page48).
☐ The mounting location should be freely and safely accessible at all times without the need for

any auxiliary equipment (such as scaffolding or lifting platforms). Non-fulfillment of these

criteria may restrict servicing.

Operating ManualSB13-21TL-BE-en-1116

SMA Solar Technology AG

Dimensions for mounting:

Figure 3: Position of the anchoring points

5 Mounting

Recommended clearances:

If you maintain the recommended clearances, adequate heat dissipation will be ensured. Thus, you
will prevent power reduction due to excessive temperature.

☐ Maintain the recommended clearances to walls as well as to other inverters or objects.
☐ If multiple inverters are mounted in areas with high ambient temperatures, increase the

clearances between the inverters and ensure sufficient fresh-air supply.

Operating Manual 17SB13-21TL-BE-en-11

5 Mounting

Figure 4: Recommended clearances

SMA Solar Technology AG

Permitted and prohibited mounting positions:

☐ The inverter must be mounted in one of the permitted positions. This will ensure that no

moisture can penetrate the inverter.
☐ The inverter should be mounted in such way that display messages and LED signals can be

read without difficulty.

Figure 5: Permitted and prohibited mounting positions

Operating ManualSB13-21TL-BE-en-1118

SMA Solar Technology AG

5 Mounting

5.2 Mounting the Inverter

Additionally required mounting material (not included in the scope of delivery):

☐ Two screws that are suitable for the support surface and the weight of the inverter
☐ Two washers suitable for the screws
☐ If necessary, two screw anchors suitable for the support surface and the screws

Risk of injury when lifting the inverter, or if it is dropped

The inverter weighs 16kg. There is risk of injury if the inverter is lifted incorrectly or dropped while
being transported or when attaching it to or removing it from the wall mounting bracket.

• Transport and lift the inverter carefully.

Procedure:

1.

Risk of injury due to damaged cables

There may be power lines or other supply lines (e.g. gas or water) routed in the wall.

• Ensure that no lines are laid in the wall which could be damaged when drilling holes.

2. Align the wall mounting bracket horizontally on the wall and use it to mark the position of the
drill holes.

3. Set the wall mounting bracket aside and drill the marked holes.

4. Insert screw anchors into the drill holes if the support surface requires them.

5. Secure the wall mounting bracket horizontally using screws and washers.

6. Hook the inverter into the wall mounting bracket,
ensuring that it cannot slide sideways out of the
bracket.

7. If local requirements stipulate the connection of additional grounding or equipotential
bonding, you must connect additional grounding to the inverter (see Section6.3.3, page27).

Operating Manual 19SB13-21TL-BE-en-11

5 Mounting

8. If no additional grounding or equipotential
bonding is required, secure the inverter to the
wall mounting bracket with the M6x12 screw to
prevent it from being lifted off.

9. Ensure that the inverter is securely in place.

SMA Solar Technology AG

Operating ManualSB13-21TL-BE-en-1120

SMA Solar Technology AG

6 Electrical Connection

6 Electrical Connection

6.1 Safety during Electrical Connection

Danger to life due to high voltages of the PV array

When exposed to sunlight, the PV array generates dangerous DC voltage which is present in the
DC conductors and the live components of the inverter. Touching the DC conductors or the live
components can lead to lethal electric shocks. If you disconnect the DC connectors from the
inverter under load, an electric arc may occur leading to electric shock and burns.

• Do not touch uninsulated cable ends.

• Do not touch the DC conductors.

• Do not touch any live components of the inverter.

• Have the inverter mounted, installed and commissioned only by qualified persons with the
appropriate skills.

• If an error occurs, have it rectified by qualified persons only.

• Prior to performing any work on the inverter, disconnect it from all voltage sources as
described in this document (see Section10 "Disconnecting the Inverter from Voltage
Sources", page46).

Damage to the inverter due to electrostatic discharge

Touching electronic components can cause damage to or destroy the inverter through
electrostatic discharge.

• Ground yourself before touching any component.

Operating Manual 21SB13-21TL-BE-en-11

6 Electrical Connection

SMA Solar Technology AG

6.2 Overview of the Connection Area

6.2.1 View from Below

Figure 6: Connection areas and enclosure openings at the bottom of the inverter

Position Designation

A Positive DC connector*
B Pin connector for the ESS**
C Negative DC connector*
D Enclosure opening with filler plug for the connection cable of the multifunction

relay
E Enclosure opening with filler plug for the data cables or network cables
E Pin connector for the AC connection socket

* As standard, SB1300TL and SB1600TL-10 are equipped with a positive and a negative DC connector

** Optional

Operating ManualSB13-21TL-BE-en-1122

SMA Solar Technology AG

6.2.2 Interior View

6 Electrical Connection

Figure 7: Connection areas in the interior of the inverter

Position Designation

A Slot and connection area for an SMA communication interface
B Flat male tab for grounding the cable shield when communication takes place

via RS485
C Fuse for the ESS*

* Optional

6.3 AC Connection

6.3.1 Requirements for the AC Connection

Cable requirements:

☐ External diameter: 5mm to 13mm
☐ Conductor cross-section: 1.5mm² to 2.5mm²

Operating Manual 23SB13-21TL-BE-en-11

6 Electrical Connection

SMA Solar Technology AG

☐ Insulation stripping length: 4mm
☐ The cable must be dimensioned in accordance with the local and national directives for the

dimensioning of cables. The requirements for the minimum wire size derive from these
directives. Examples of factors influencing cable dimensioning are: nominal AC current, type of
cable, routing method, cable bundling, ambient temperature and maximum desired line losses
(for calculation of line losses, see the design software "SunnyDesign" from software
version2.0 at www.SMA-Solar.com).

Load-break switch and cable protection:

Damage to the inverter due to the use of screw-type fuses as load-break switches

Screw-type fuses (e.g. DIAZED fuse or NEOZED fuse) are not load-break switches.

• Do not use screw-type fuses as load-break switches.

• Use a load-break switch or circuit breaker as a load disconnection unit (for information and
design examples, see the Technical Information "Circuit Breaker" at www.SMA-Solar.com).

☐ In PV systems with multiple inverters, protect each inverter with a separate circuit breaker.

Make sure to observe the maximum permissible fuse protection (see Section11 "Technical
Data", page48). This will prevent residual voltage being present at the corresponding cable
after disconnection.

☐ Loads installed between the inverter and the circuit breaker must be fused separately.

Residual-current monitoring unit:

☐ If an external residual-current device is required, install a residual-current device which trips at

a residual current of 100mA or higher (for details on selecting a residual-current device, see
the Technical Information "Criteria for Selecting a Residual-Current Device" at www.SMA­Solar.com).

Overvoltage category:

The inverter can be used in grids of installation categoryIII or lower in accordance with
IEC60664-1. That means that the inverter can be permanently connected to the grid-connection
point of a building. In case of installations with long outdoor cabling routes, additional measures to
reduce overvoltage categoryIV to overvoltage categoryIII are required (see the Technical
Information "Overvoltage protection" at www.SMA-Solar.com).

Grounding conductor monitoring:

The inverter is equipped with a grounding conductor monitoring device. This grounding conductor
monitoring device detects when there is no grounding conductor connected and disconnects the
inverter from the utility grid if this is the case. Depending on the installation site and grid
configuration, it may be advisable to deactivate the grounding conductor monitoring. This is
necessary, for example, in an IT system if there is no neutral conductor present and you intend to
install the inverter between two line conductors. If you are uncertain about this, contact your grid
operator or SMASolarTechnologyAG.

☐ Grounding conductor monitoring must be deactivated after initial start-up depending on the

grid configuration (see Section8.5, page42).

Operating ManualSB13-21TL-BE-en-1124

SMA Solar Technology AG

6 Electrical Connection

Safety in accordance with IEC62109 when the grounding conductor monitoring is
deactivated

In order to guarantee safety in accordance with IEC62109 when the grounding conductor
monitoring is deactivated, carry out one of the following measures:

• Connect a grounding conductor made of copper wire with a cross-section of at least
10mm² to the connecting terminal plate for the AC cable.

• Connect additional grounding with the same cross-section as the connected grounding
conductor to the connecting terminal plate for the AC cable (see Section6.3.3, page27
). This prevents touch current if the grounding conductor at the connecting terminal plate
for the AC cable fails.

Connection of additional grounding

In some countries, additional grounding is generally required. In each case, observe the
locally applicable regulations.

6.3.2 Connecting the Inverter to the Utility Grid

Figure 8: Components of the AC connection socket

Position Designation

A Bush insert
B Threaded sleeve
C Sealing ring PG13.5
D Fastening case 13.5
E Pressure screw PG13.5 for cable diameter 7mmto10mm
F Cable gland M20x1.5 for cable diameter 10mmto14mm

Operating Manual 25SB13-21TL-BE-en-11

6 Electrical Connection

SMA Solar Technology AG

Requirements:

☐ The connection requirements of the grid operator must be met.
☐ The grid voltage must be in the permissible range. The exact operating range of the inverter is

specified in the operating parameters (see the Technical Description "Operating Parameters"
at www.SMA-Solar.com).

Procedure:

1. Select a suitable cable gland for the AC cable.

2. Disconnect the circuit breaker and secure it against reconnection.

3. Dismantle the AC cable by 30mm.

4. Shorten L and N by 5mm each.

5. Strip the insulation of L, N and the grounding conductor by 4mm.

6. If the cable diameter is between 7mmand10mm, use sealing ring, fastening case and
pressure screw as follows:

• Push the sealing ring into the fastening
case.

• Thread the PG13.5 pressure screw and the
fastening case with sealing ring onto the
AC cable.

7. If the external cable diameter is between
10mmand14mm, thread cable gland
M20x1.5 onto the AC cable.

8. Slide the threaded sleeve over the AC cable.

9. Connect the grounding conductor, N and L to the bush insert as follows:

• Insert the grounding conductor into the
screw terminal with the ground symbol on
the bush insert and tighten the screw.

Operating ManualSB13-21TL-BE-en-1126

SMA Solar Technology AG

6 Electrical Connection

• Insert N (or respectively L2 in case of split phase) into screw terminal1 on the bush insert
and tighten the screw.

• Insert L (or respectively L1 in case of split phase) into screw terminal2 on the bush insert
and tighten the screw.

10. Ensure that all conductors are securely in place in the bush insert.

11. Screw the threaded sleeve tightly onto the bush
insert.

12. When using pressure screw, fastening case and
sealing ring, screw the pressure screw firmly
onto the threaded sleeve. The fastening case will
be pressed into the threaded sleeve and no
longer be visible.

13. When using the cable gland, screw the cable
gland firmly onto the threaded sleeve.

☑ The AC connection socket is mounted.

14. Insert the AC connection socket into the AC pin
connector on the inverter. Remove the protective
cap from the AC pin connector beforehand, if
required.

15. If the AC connection socket is not to be connected to the inverter immediately, close the AC
pin connector on the inverter with the protective cap provided.

6.3.3 Connecting Additional Grounding

If additional grounding or equipotential bonding is required locally, you can connect additional
grounding to the inverter. This prevents touch current if the grounding conductor at the connecting
terminal plate for the AC cable fails. The required clamping bracket, the screw and the conical
spring washer are part of the scope of delivery of the inverter.

Operating Manual 27SB13-21TL-BE-en-11

6 Electrical Connection

Additionally required material (not included in the scope of delivery):

☐ Ring terminal lug M6
☐ 1 grounding cable

Cable requirement:

☐ Grounding cable cross-section: max. 16mm²

Procedure:

1. Strip the grounding cable insulation.

2. Thread the ring terminal lug onto the grounding cable.

3. Align washer, grounding cable with ring terminal
lug and conical spring washer on the cylindrical
screw M6x12. The teeth of the conical spring
washer must be facing the metal shackle on the
inverter.

4. Insert the cylindrical screw through the metal shackle on the inverter and screw it onto the wall
mounting bracket (torque:6Nm).

SMA Solar Technology AG

6.4 Connecting the Fault Indicator Relay

You can use the fault indicator relay to have inverter errors displayed or reported. This requires a
parallel connection. Alternatively, you can choose to have fault-free operation displayed or
reported. This requires a series connection. You can connect several inverters to one fault indicator
or operation indicator. You must connect the fault indicator relay of several inverters in parallel.

In case of critical disturbances, the fault indicator relay will close immediately and trip the warning
signal through the connected load. In case of non-critical disturbances, the fault indicator relay will
only close after several flashing cycles of the yellow LED. When the inverter reconnects to the utility
grid, the fault indicator relay opens again.

Error message required by standard

In some countries, signaling of errors is required by standards, e.g. IEC62109-2. In order to
meet the standard requirement, take one of the following measures:

• Connect a display device to the fault indicator relay which signals either an error or the
undisturbed operation of the inverter.

• Activate the error alarm in SunnyPortal (for information on receiving error alarms via
SunnyPortal, see the SunnyPortal user manual at www.SunnyPortal.com). This requires
the inverter to be registered in SunnyPortal.

Operating ManualSB13-21TL-BE-en-1128

SMA Solar Technology AG

Connection plan:

6 Electrical Connection

Figure 9: Circuit diagram with multiple inverters for connection to an operation indicator and circuit diagram for
connection to a fault indicator (example)

Operating Manual 29SB13-21TL-BE-en-11

6 Electrical Connection

SMA Solar Technology AG

Overview of the connection area:

Figure 10: Fault indicator relay inside the inverter

Position Designation

A Terminals of the fault indicator relay
B Cable route
C Enclosure opening with filler plug

Requirement:

☐ The technical requirements of the fault indicator relay must be complied with (see Section11

"Technical Data", page48).

Cable requirements:

☐ The cable must be double-insulated.
☐ External diameter: 5mmto12mm
☐ Conductor cross-section: 0.08mm²to2.5mm²
☐ The cable type and cable-laying method must be appropriate for the application and location.

Destruction of the fault indicator relay as a result of contact overload

• Observe the maximum switching voltage and maximum switching current (see Section11
"Technical Data", page48).

• When connecting the fault indicator relay to the utility grid, protect it with an individual
circuit breaker.

Operating ManualSB13-21TL-BE-en-1130

SMA Solar Technology AG

Procedure:

1.

Danger to life due to electric shock

• Ensure that the inverter is disconnected from all voltage sources (see Section10
"Disconnecting the Inverter from Voltage Sources", page46).

2. Remove all screws from the enclosure lid and pull the enclosure lid forward smoothly.

3. Remove the grounding conductor from the bottom of the enclosure lid.

4. Prepare the cable:

• Dismantle the cable by no more than 15mm.

• Strip off the conductor insulation by max. 8mm.

5. Prepare the cable gland PG16 for connection to the fault indicator relay as follows:

• Remove the swivel nut from the cable gland and remove the filler plug.

• Remove the one-hole cable support sleeve from the cable gland and insert the cable into
the one-hole cable support sleeve.

• Press the one-hole cable support sleeve with the cable into the cable gland and lead the
cable into the inverter.

• Slide the swivel nut over the cable.

6. Connect the cable to the fault indicator relay in accordance with the circuit diagram.

7. Tighten the swivel nut of the cable gland.

8. Establish the grounding conductor connection
between the inverter and enclosure lid.

6 Electrical Connection

9. Position the enclosure lid on the enclosure and tighten it using the four screws (torque: 2Nm).

6.5 DC Connection

6.5.1 Requirements for the DC Connection

Requirements for the PV modules:

☐ All PV modules must be of the same type.
☐ All PV modules must be aligned and tilted identically.
☐ On the coldest day based on statistical records, the open-circuit voltage of the PV array must

never exceed the maximum input voltage of the inverter.

☐ The same number of series-connected PV modules must be connected to each string.
☐ The maximum input current per string must be maintained and must not exceed the through-

fault current of the DC connectors (see Section11 "Technical Data", page48).

Operating Manual 31SB13-21TL-BE-en-11

6 Electrical Connection

SMA Solar Technology AG

☐ The thresholds for the input voltage and the input current of the inverter must be adhered to

(see Section11 "Technical Data", page48).

☐ The positive connection cables of the PV modules must be fitted with the positive DC

connectors (for information on assembling DC connectors, see the DC connector installation
manual).

☐ The negative connection cables of the PV modules must be fitted with the negative DC

connectors (for information on assembling DC connectors, see the DC connector installation
manual).

☐ If the inverter is not equipped with an ESS and the regulations in the country of installation

require an external DC load-break switch, you must install an external DC load-break switch.

Use of Y adapters for parallel connection of strings

The Y adapters must not be used to interrupt the DC circuit.

• Do not use the Y adapters in the immediate vicinity of the inverter. The adapters must not
be visible or freely accessible.

• In order to interrupt the DC circuit, always disconnect the inverter as described in this
document (see Section10, page46).

6.5.2 Connecting the PV Array

Destruction of the inverter due to overvoltage

If the open-circuit voltage of the PV modules exceeds the maximum input voltage of the inverter,
the inverter can be destroyed due to overvoltage.

• If the open-circuit voltage of the PV modules exceeds the maximum input voltage of the
inverter, do not connect any strings to the inverter and check the design of the PV system.

Damage to the DC connectors due the use of contact cleaner of other cleaning agents

Some contact cleaners or other cleaning agents may contain substances that decompose the
plastic of the DC connectors.

• Do not use contact cleaners or other cleaning agents for cleaning the DC connectors.

Procedure:

1. Ensure that the circuit breaker is switched off and that it cannot be reconnected.

2. If an external DC load-break switch is installed, disconnect it from all voltage sources.

3. If the ESS is installed and plugged in, carefully remove the ESS.

4. Ensure that there is no ground fault in the PV array (see service manual at www.SMA­Solar.com).

Operating ManualSB13-21TL-BE-en-1132

SMA Solar Technology AG

6 Electrical Connection

5. Check whether the DC connectors have the correct polarity.
If the DC connector is equipped with a DC cable of the wrong polarity, the DC connector must

be assembled again. The DC cable must always have the same polarity as the DC connector.

6. Ensure that the open-circuit voltage of the PV array does not exceed the maximum input
voltage.

7. Connect the assembled DC connectors to the
inverter.

☑ The DC connectors snap into place.

Operating Manual 33SB13-21TL-BE-en-11

6 Electrical Connection

SMA Solar Technology AG

8.

Damage to the inverter due to moisture ingress

The inverter is only properly sealed when all unused DC inputs are closed with DC connectors
and sealing plugs.

• Do not insert the sealing plugs directly into the DC inputs on the inverter.

• For unused DC connectors, push down the
clamping bracket and push the swivel nut
up to the thread.

• Insert the sealing plug into the DC
connector.

• Tighten the DC connector (torque: 2Nm).

• Insert the DC connectors with sealing plugs
into the corresponding DC inputs on the
inverter.

☑ The DC connectors snap into place.

9. Ensure that all DC connectors are securely in place.

Operating ManualSB13-21TL-BE-en-1134

SMA Solar Technology AG

7 Commissioning

7 Commissioning

7.1 Commissioning Procedure

Procedure See

1. Connect to the communication interface. Installation manual of the com­munication interface

2. If the display language is not set correctly, adjust the set-

tings.

3. Commission the inverter and start a self-test, if required. Section7.3, page36 and

7.2 Changing the Display Language

Use the following figure to check whether the display language of the inverter is set correctly. If the
display language is not correct, you can change the display language of the inverter as described
in the following. Various languages are available depending on the country data set selected.

Section7.2, page35

Section7.4, page37

Figure 11: Switch for setting the display language

Language Switch S2 Switch S1

German B B
English / Italian* B A
French A B
Spanish / English** A A

* When country data set CEI0-21 is selected, the language is Italian.

** When country data set CEI0-21 is selected, the language is English.

Procedure:

1.

Danger to life due to electric shock

• Ensure that the inverter is disconnected from all voltage sources (see Section10
"Disconnecting the Inverter from Voltage Sources", page46).

Operating Manual 35SB13-21TL-BE-en-11

7 Commissioning

2. Remove all screws from the enclosure lid and pull the enclosure lid forward smoothly.

3. Remove the grounding conductor from the bottom of the enclosure lid.

4. Set the switches A and B in accordance with the desired language.

5. Connect the grounding conductor of the inverter to the bottom side of the enclosure lid.

6. Position the enclosure lid on the enclosure and tighten it using the four screws (torque: 2Nm).

7. Commission the inverter (see Section7.3, page36).

SMA Solar Technology AG

7.3 Commissioning the Inverter

Requirements:

☐ The inverter must be correctly mounted.
☐ The circuit breaker must be correctly rated and mounted.
☐ All cables must be correctly connected.
☐ Unused DC inputs must be sealed using the corresponding DC connectors and sealing plugs.
☐ The country data set must be set correctly for the country or the purpose.
☐ If the inverter is equipped with a BLUETOOTH interface, the NetID must be set (see installation

manual of the BLUETOOTH interface).
☐ The grounding conductor of the inverter must be connected to the bottom of the enclosure lid.
☐ The enclosure lid of the inverter must be firmly tightened.

Procedure:

1. If the ESS is available, plug it in.

2.

Risk of fire due to tightening the screw within the ESS

A perfect contact between the ESS and the inverter is only guaranteed if the ESS plug remains

flexible.

• Do not tighten the screw in the plug of the ESS.

3.

Damage to the inverter due to moisture and dust intrusion

If the ESS is not plugged in or incorrectly plugged in during operation, moisture and dust can

penetrate the inverter. If the ESS is not correctly plugged in, this can cause contacts in the ESS

to wear or the ESS might fall out. This can result in yield loss and damage to the ESS.

Always plug in the ESS as follows:

• Firmly plug the ESS in until it is flush with the enclosure.

• Ensure that the gap between the ESS and the enclosure is no more than 1mm.

4. If an external DC load-break switch is installed, switch it on.

5. Switch on the circuit breaker.

☑ The start-up phase begins.

Operating ManualSB13-21TL-BE-en-1136

SMA Solar Technology AG

Self-test in accordance with CEI0-21 during commissioning (applies to Italy only)

The Italian standard prescribes that an inverter can only operate on the utility grid after the

disconnection times for overvoltage, undervoltage, minimum frequency and maximum

frequency have been checked.

• If the country data set CEI0-21Int/ CEI0-21internal is set, start the self-test as soon
as the display shows the country data set (see Section7.4.1, page37).

☑ The green LED is glowing and the display alternates automatically between the device type or

designation of the inverter, the firmware version and the configured country data set.

✖ The green LED is flashing?

The DC input voltage is still too low or the inverter is checking the utility grid.

• Once the DC input voltage is sufficiently high and the grid connection conditions are met,
the inverter will start operation.

✖ The red LED is glowing?

The inverter has detected a ground fault or one of the varistors is defective.

• Rectify the error (see the service manual at www.SMA-Solar.com).

✖ The yellow LED is glowing or flashing?

An error or disturbance has occurred.

• Rectify the error or disturbance (see service manual at www.SMA-Solar.com).

✖ All LEDs are flashing?

The DC voltage is still too low and the start-up phase begins again. No error has occurred.

• Waiting for sufficient irradiation

✖ All LEDs have gone out?

The inverter is switched off because the ESS is not plugged in, the external DC load-break
switch is not switched on or irradiation is not sufficient.

• Ensure that the ESS is plugged in correctly or that the external DC load-break switch is
switched on.

7 Commissioning

7.4 Self-Test in Accordance with CEI 0-21 for PV Systems
≤6kW

7.4.1 Starting the Self-Test

The self-test only applies to inverters that are configured with the country data set
CEI 0-21Int or CEI0-21internal.

The self-test is only valid for inverters licensed for Italy and configured with the country data set
CEI0-21Int or CEI0-21internal.

The self-test is only required for inverters to be commissioned in Italy. The Italian standard requires
that all inverters feeding into the utility grid are equipped with a self-test function in accordance with
CEI0-21. During the self-test, the inverter will consecutively check the reaction times for
overvoltage, undervoltage, maximum frequency and minimum frequency.

Operating Manual 37SB13-21TL-BE-en-11

7 Commissioning

SMA Solar Technology AG

The self-test changes the upper and lower disconnection values for each protective function on a
linear basis for frequency monitoring and voltage monitoring. As soon as the measured value
exceeds the permitted disconnection threshold, the inverter disconnects from the utility grid. In this
way, the inverter determines the reaction time and checks itself.

After the self-test has been completed, the inverter automatically switches back to feed-in operation,
resets the original disconnection conditions and connects to the utility grid. The test takes
approximately threeminutes.

Requirements:

☐ Configured country data set: CEI0-21 Int or CEI0-21 internal or amended country data set

trimmed or Specialsetting based on one of the country data sets mentioned above.

☐ A report for entering the test results according to CEI0-21 must be available.
☐ The inverter must be in operation and in the start-up phase.

Procedure:

1. As soon as the configured country data set appears in the display, tap once on the display
within tenseconds.

☑ A message informing you that the self-test has started is shown in the display:

AvvioAutotest.

✖ The message AvvioAutotest is not shown in the display?

The tenseconds have elapsed so the self-test cannot start.

• Restart the self-test (see Section7.4.2, page39).

2. Tap on the display within 20seconds and enter the subsequent test results into the test report.

☑ The self-test starts.
☑ The inverter displays the results of the individual tests for overvoltage, undervoltage, maximum

frequency and minimum frequency. The results are displayed threetimes in succession for
tenseconds each.
Useful hint: If you want to have the next result displayed without waiting tenseconds, tap twice
on the enclosure lid.

✖ The information Autotestinterroto is shown in the display?

The self-test was cancelled due to an unexpected disconnection condition or the DC voltage is
too low to continue grid feed-in.

• Restart the self-test (see Section7.4.2, page39).

Example: Display messages for overvoltage test

- Name of the test: Autotest (59.S1) 240.00V

- Disconnection value: Valore di soglia con 230.00V

- Normative value: Va. taratura 253.00V

- Disconnection time: Tempo die intervento 0.02 s

- Current grid voltage: Tensione di rete Val.eff.: 229.80V

Operating ManualSB13-21TL-BE-en-1138

SMA Solar Technology AG

7 Commissioning

7.4.2 Restarting the Self-Test

1. Disconnect the circuit breaker and secure it against reconnection.

2. If the fault indicator relay is used, switch off the load supply voltage, if necessary.

3. If an external DC load-break switch is in use, switch it off for fiveminutes and then switch it on
again.

4. If an ESS is in use, pull it out of the inverter for fiveminutes and then plug it in again firmly.

5. Recommission the inverter (see Section7.3, page36).

☑ The inverter is back in the start-up phase and you can start the self-test once again (see

Section7.4.1, page37).

Operating Manual 39SB13-21TL-BE-en-11

8 Configuration

SMA Solar Technology AG

8 Configuration

8.1 Configuration Procedure

Once you have commissioned the inverter, you may have to adjust various settings via a
communication product. This section describes the procedure for configuration and gives an
overview of the steps you must perform in the prescribed order.

Procedure See

1. If the inverter is equipped with a communication inter­face, detect the inverter by means of a communication
product. This way, you can manage the data of the sys­tem or set inverter parameters.

2. If the inverter is equipped with a Speedwire/Webcon­nect interface, and the Webconnect function is to be
used, integrate the inverter in the network.

3. Check which country data set the inverter is set to. Supplementary sheet with the de-

4. If the country data set is not set correctly for your coun­try or your purpose, adjust to the required country data
set.

5. Change the system time and system password. Manual of the communication

6. If the inverter is installed in an IT network or another
grid configuration where deactivation of the grounding
conductor monitoring is required, deactivate the
grounding conductor monitoring.

Manual of the communication
product at www.SMA-Solar.com

Section8.3, page41

fault settings, type label or dis­play

Section8.4, page41

product at www.SMA-Solar.com
Section8.5, page42

8.2 Changing Operating Parameters

This section describes the basic procedure for changing operating parameters. Always change
operating parameters as described in this section. Some parameters that have sensitive functions
can only be viewed and changed by qualified persons (for further information on changing
parameters, refer to the manual of the communication product).

The operating parameters of the inverter are set to certain values by default. To optimize inverter
operation, you can change the operating parameters using a communication product.

Requirements:

☐ Depending on the type of communication, a computer with a BLUETOOTH or Ethernet

interface must be available.

Operating ManualSB13-21TL-BE-en-1140

SMA Solar Technology AG

☐ A communication product corresponding to the type of communication used must be

available.
☐ The inverter must be registered in the communication product.
☐ The changes to the grid-relevant parameters must be approved by the responsible grid

operator.
☐ When changing grid-relevant parameters, the SMAGridGuardcode must be available (see

the Certificate "Order Form for the SMAGridGuardCode" at www.SMA-Solar.com).

Procedure:

1. Call up the user interface of the communication product or software and log in as Installer or
User.

2. If required, enter the SMAGridGuardcode.

3. Select and set the required parameter.

4. Save settings.

8 Configuration

8.3 Integrating the Inverter into the Network

If the router supports DHCP and DHCP is enabled, the inverter will automatically be integrated into
the network. You will not need to carry out network configuration.

If the router does not support DHCP, automatic network configuration will not be possible and you
will need to use SMA Connection Assist to integrate the inverter into the network.

Requirements:

☐ The inverter must be in operation.
☐ There must be a router with Internet connection in the local network of the system.
☐ The inverter must be connected to the router.

Procedure:

• Integrate the inverter into the network by means of the SMAConnectionAssist. Download the
SMA Connection Assist and install it on the computer (see www.SMA-Solar.com).

8.4 Configuring the Country Data Set

By default, the inverter is set to a specific country data set. You can find the country data set to
which the inverter has been set on the enclosed supplementary sheet with the default settings or on
the type label. Each country data set contains various operating parameters which can be
individually set according to the respective country. You can change the parameters by means of a
communication product.

Operating Manual 41SB13-21TL-BE-en-11

8 Configuration

The country data set must be set correctly.

If you select a country data set which is not valid for your country and purpose, it can cause a
disturbance in the PV system and lead to problems with the grid operator. When selecting the
country data set, you must always observe the locally applicable standards and directives as
well as the properties of the PV system (e.g. PV system size, grid-connection point).

• If you are not sure which country data set is valid for your country or purpose, contact
your grid operator for information on which country data set is to be configured.

The basic procedure for changing operating parameters is explained in another section (see
Section8.2 "Changing Operating Parameters", page40).

Procedure:

• Select the parameter Default or Set country standard and adjust the required country data
set.

SMA Solar Technology AG

8.5 Deactivating Grounding Conductor Monitoring

If the inverter is to be installed in an IT network or another grid configuration in which deactivation
of the grounding conductor monitoring is required, deactivate the grounding conductor monitoring
as follows.

The basic procedure for changing operating parameters is explained in another section (see
Section8.2 "Changing Operating Parameters", page40).

Procedure:

• Set the parameter PE connection monitoring or PEOpnMon to Off.

Operating ManualSB13-21TL-BE-en-1142

SMA Solar Technology AG

9 Operation

9 Operation

9.1 Display Messages

9.1.1 Measuring Channels

Measuring channels are measured values shown on the display. Additionally, you can read out
further measuring channels via a communication product.

Measuring channel Explanation

E-Today Total amount of energy fed in
Status Indicates the current operating state (see Section9.1.2 "Status Mes-

sages", page43).
Pac AC power supplied
Vpv PV input voltage
E-Total Total amount of energy fed in
h-Total Total number of operating hours in feed-in operation
Warning / Disturbance / Er-

ror

Display of a current disturbance or error with corresponding error

message (for troubleshooting, see service manual at www.SMA-So-

lar.com). When certain disturbances occur, the disconnection value

and the current value are also displayed.

9.1.2 Status Messages

Status messages are shown in the second line of the display and always start with the word
"Mode". Status messages indicate operating states which do not represent errors or disturbances.
The inverter continues feeding into the utility grid.

Message Explanation

Derating This message can have several causes:

• Overtemperature in the inverter. The inverter reduces its power to prevent
overheating.

• External active power limitation via the PowerReducerBox and
SunnyWebBox. The inverter reduces its power output automatically due
to the grid operator's specifications. The PowerReducerBox transfers the
signal from the grid operator to the inverter via the SunnyWebBox.

Error The inverter has detected an error. The specific error message is also dis-

played (for troubleshooting, see service manual at www.SMA-Solar.com).

MPP The inverter is operating in MPP mode. MPP is the standard display message

when operating under normal irradiation conditions.
MPP-Peak The inverter is operating in MPP mode above its nominal power.
MPP-Search The inverter is calculating the MPP.

Operating Manual 43SB13-21TL-BE-en-11

9 Operation

Message Explanation

Grid mon. Grid monitoring. This message appears before the inverter is connected to the

utility grid, if irradiation is low, and following an error.
Offset Offset alignment of the measurement electronics
Riso Measurement of the insulation resistance of the PV system
Disturbance The inverter has detected a disturbance. The specific disturbance message is

also displayed (for troubleshooting, see service manual at www.SMA-Solar.-

com).
Stop Operation interrupted
V-Const Constant voltage mode
Waiting The conditions for grid connection are not (yet) fulfilled.

SMA Solar Technology AG

9.2 LED Signals

The LEDs indicate the operating state of the inverter.

Designation Status Explanation

Green LED glowing Operation

flashing

Red LED glowing Ground fault or varistor defective

Yellow LED glowing Permanent operation inhibition

flashing Error or disturbance

The specific status message is shown in the display (see
service manual at www.SMA-Solar.com).

The specific error or disturbance message is displayed (for
troubleshooting, see service manual at www.SMA-Solar.­com).

The specific error or disturbance message is displayed (for
troubleshooting, see service manual at www.SMA-Solar.­com).

The specific error or disturbance message is displayed (for
troubleshooting, see service manual at www.SMA-Solar.­com).

All LEDs are flashing

If the DC voltage is very low in the start-up phase, all threeLEDs go out and the start-up phase
begins again. If irradiation is very low, all threeLEDs are flashing. This flashing indicates a
normal operating state. No error has occurred.

All LEDs have gone out

If all threeLEDs have gone out, the inverter is switched off because the ESS is not plugged in,
the external DC switch-disconnector is not switched on or there is no irradiation.

Operating ManualSB13-21TL-BE-en-1144

SMA Solar Technology AG

9 Operation

9.3 Activating and Operating the Display

You can activate and operate the display by tapping on the enclosure lid.

Procedure:

1. Activate the display. Tap on the enclosure lid once.
☑ The backlight is switched on.

2. To move to the next line, tap on the enclosure lid once.

9.4 Calling Up Display Messages of the Start-Up Phase

Various inverter information is displayed during the start-up phase that can be called up whenever
required during operation.

Procedure:

• Tap on the enclosure lid twice.

☑ The display shows all messages of the start-up phase in sequence.

Operating Manual 45SB13-21TL-BE-en-11

10 Disconnecting the Inverter from Voltage Sources

SMA Solar Technology AG

10 Disconnecting the Inverter from Voltage Sources

Prior to performing any work on the inverter, always disconnect it from all voltage sources as
described in this section. Always adhere to the prescribed sequence.

Procedure:

1. Disconnect the circuit breaker and secure it against reconnection.

2. If an external DC load-break switch is installed, disconnect it from all voltage sources.

3. If an ESS is installed, carefully remove the ESS.

4. If the fault indicator relay is used, switch off the load supply voltage, if necessary.

5. Wait until the LEDs and the display have gone out.

6. Use a current clamp to ensure that no current is present in the DC cables.

7. Release and remove all DC connectors. Insert a

flat-blade screwdriver or an angled screwdriver
(blade width:3.5mm) into one of the side slots
and pull the DC connectors straight out. Do not
pull on the cable.

8. Ensure that no voltage is present at the DC

inputs on the inverter.

9. Pull the AC connection socket out of the AC pin

connector on the inverter. Turn the bush insert of
the AC connection socket to the left until the AC
connection socket releases.

10.

Danger to life due to high voltages

The capacitors in the inverter take tenminutes to discharge.

• Wait tenminutes before opening the inverter.

Operating ManualSB13-21TL-BE-en-1146

SMA Solar Technology AG

10 Disconnecting the Inverter from Voltage Sources

11.

Damage to the inverter due to electrostatic discharge

Touching electronic components can cause damage to or destroy the inverter through
electrostatic discharge.

• Ground yourself before touching any component.

Operating Manual 47SB13-21TL-BE-en-11

11 Technical Data

SMA Solar Technology AG

11 Technical Data

DC Input

SB1300TL-10 SB1600TL-10 SB2100TL

Maximum DC power at cosφ=1 1,400W 1,700V 2,200W
Maximum input voltage 600V 600V 600V
MPP voltage range 115Vto480V 155Vto480V 200Vto480V
Rated input voltage 400V 400V 400V
Minimum input voltage 100V 125V 125V
Initial input voltage 120V 150V 150V
Maximum input current 12A 12A 12A
Maximum short-circuit current* 18A 18A 18A
Maximum reverse current from the in-

verter in the system for max. 1ms
Number of independent MPP inputs 1 1 1
Overvoltage category in accordance

with IEC60664-1

* In accordance with IEC62109-2: ISC PV

0 A 0 A 0 A

II II II

AC Output

SB1300TL-10 SB1600TL-10 SB2100TL

Rated power at 230V, 50Hz 1,300W 1,600W 1,950W
Maximum apparent AC power at

cosφ=1
Rated grid voltage 230V 230V 230V
Nominal AC voltage 220V/230V/

AC voltage range 180Vto260V 180Vto260V 180Vto260V
Nominal AC current at 220V 5.9A 7.3A 8.7A
Nominal AC current at 230V 5.7A 7.0A 8.5A
Nominal AC current at 240V 5.4A 6.7A 8.1A
Maximum output current 7.2A 8.9A 11.0A
Inrush current 0 A 0 A 0 A

1,300VA 1,600VA 2,100VA

240V

220V/230V/

240V

220V/230V/

240V

Operating ManualSB13-21TL-BE-en-1148

SMA Solar Technology AG

11 Technical Data

SB1300TL-10 SB1600TL-10 SB2100TL

Total harmonic distortion of the output

≤3% ≤3% ≤3%
current with total harmonic distortion
of the AC voltage <2%, and AC
power >50% of the rated power

Rated power frequency 50Hz 50Hz 50Hz
AC power frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Operating range at AC power fre-

44Hzto55Hz 44Hzto55Hz 44Hzto55Hz

quency 50Hz
Operating range at AC power fre-

54Hzto65Hz 54Hzto65Hz 54Hzto65Hz

quency 60Hz
Power factor at rated power 1 1 1
Feed-in phases 1 1 1
Connection phases 1 1 1
Overvoltage category in accordance

III III III

with IEC60664-1

Efficiency

SB1300TL-10 SB1600TL-10 SB2100TL

Maximum efficiency, η
European efficiency, η

max

EU

96.0% 96.0% 96.0%

94.3% 95.0% 95.2%

General Data

Width x height x depth 440mmx299mmx214mm
Width x height x depth, with ESS 440mmx339mmx214mm
Weight 16kg
Length x width x height of the packaging 532mmx392mmx318mm
Weight including packaging 21.5kg
Climatic category in accordance with

IEC60721-3-4
Operating temperature range -25°Cto+60°C
Maximum permissible value for relative humid-

ity, non-condensing
Maximum operating altitude above mean sea

level (MSL)
Noise emission, typical ≤33dB(A)

Operating Manual 49SB13-21TL-BE-en-11

4K4H

100%

2,000m

11 Technical Data

SMA Solar Technology AG

Power loss in night mode 0.1W
Topology transformerless
Cooling method Convection
Degree of protection in accordance with

IP65

IEC60529
Protection class in accordance with IEC62103 I
Grid configurations TN-C, TN-S, TN-CS, TT(if V

>30V), IT, Delta

N_PE

IT, split phase

National standards and approvals, as per
10/2014*

AS4777, C10/11, CE, CEI0-21,

EN50438:2007, G83/2, IEC60068-2,

IEC61727, IEC62109-1, IEC62109-2,

NRS097-2-1, PPC, PPDS, RD1699,

RD661/2007, UTEC15-712-1, VDE-AR-

N4105, VDE0126-1-1, VFR2014

* RD1699: Contact the SMAServiceLine for restrictions in specific regions.

NRS097-2-1: This standard requires a separate label attached to the AC distribution board which
indicates the AC-side disconnection of the inverter in case of a grid failure (for further details, see
NRS097-2-1, Sect.4.2.7.1 and 4.2.7.2)
IEC62109-2: In order to meet the requirements of this standard, use of the fault indication relay must
be activated in the inverter or there must be a link to SunnyPortal with the fault alert via e-mail activated.

Protective Devices

DC reverse polarity protection Short-circuit diode
Input-side disconnection point* ElectronicSolarSwitch
DC overvoltage protection Thermally monitored varistors
AC short-circuit current capability Current control
Grid monitoring SMAGridGuard2.1
Maximum permissible fuse protection 16A
Ground fault monitoring Insulation monitoring: R
All-pole sensitive residual-current monitoring unit Available

* Optional

> 1MΩ

iso

Climatic Conditions

Installation in accordance with IEC60721-3-3, Class4K4H

Extended temperature range −25°Cto+60°C
Extended humidity range 0%to100%
Extended air pressure range 79.5kPato106kPa

Operating ManualSB13-21TL-BE-en-1150

SMA Solar Technology AG

11 Technical Data

Transport in accordance withIEC60721-3-2, Class2K3

Extended temperature range −25°Cto+70°C

Features

DC Connection SUNCLIX DC connector
AC connection AC connector
Display LC text display
Speedwire with Webconnect function As standard
BLUETOOTH Optional
RS485, galvanically isolated Optional

Fault Indicator Relay

Maximum AC switching voltage 240V
Maximum DC switching voltage 30V
Maximum AC switching current 1.0A
Maximum DC switching current 1.0A
Minimum electrical endurance when the maxi-

mum switching voltage and maximum switching
current are complied with*

* Corresponds to 20years at 12switching operations per day

1,000,000 switching cycles

ElectronicSolarSwitch

Electrical endurance in the event of short circuit,
at nominal current of 35A

Maximum switching current 35A
Maximum switching voltage 800V
Maximum PV power 11kW
Degree of protection when plugged in IP65
Degree of protection when unplugged IP21
Fuse for the ElectronicSolarSwitch F200, 600V/ 4A, fast acting (soldered, not

At least 50switching operations

replaceable)

Torques

Enclosure lid screws 2.0Nm
Screw for additional grounding 6.0Nm

Operating Manual 51SB13-21TL-BE-en-11

11 Technical Data

SMA Solar Technology AG

Cylindrical screw for attaching the enclosure to

6.0Nm

the wall mounting bracket
SUNCLIX swivel nut 2.0Nm
Communication interface connection 1.5Nm

Operating ManualSB13-21TL-BE-en-1152

SMA Solar Technology AG

12 Accessories

12 Accessories

You will find the accessories for your product in the following overview. If required, these can be
ordered from SMASolarTechnologyAG or your distributor.

Designation Brief description SMA order number

RS485 retrofit kit RS485 interface 485PB-NR
BLUETOOTH retrofit kit BLUETOOTH interface BTPBINV-NR

Operating Manual 53SB13-21TL-BE-en-11

13 Contact

SMA Solar Technology AG

13 Contact

If you have technical problems with our products, contact the SMAServiceLine. We need the
following information in order to provide you with the necessary assistance:

• Inverter device type

• Inverter serial number

• Inverter firmware version

• Special country-specific settings of the inverter (if applicable)

• Type and quantity of PV modules connected

• Mounting location and altitude of the inverter

• Inverter message

• Optional equipment, e.g. communication products

Australia SMA Australia Pty Ltd.

Sydney

Belgien/Bel­gique/België

Brasil Vide España (Espanha)
Česko SMA Central & Eastern Europes.r.o.

Chile Ver España
Danmark Se Deutschland (Tyskland)
Deutschland SMA Solar Technology AG

España SMA Ibérica Tecnología Solar,

SMA Benelux BVBA/SPRL
Mecheln

Praha

Niestetal

S.L.U.
Barcelona

Toll free for Australia: 1800SMAAUS
(1800762287)

International: +61294914200
+3215286 730

+420235010417

Medium Power Solutions
Wechselrichter: +495619522‑1499
Kommunikation: +495619522‑2499
SMA Online Service Center:

www.SMA.de/Service
Hybrid Energy Solutions

Sunny Island: +495619522-399
PV-Diesel Hybridsysteme:

+495619522-3199
Power Plant Solutions

Sunny Central: +495619522-299
Llamada gratuita en España:

900142222
Internacional: +34902142424

Operating ManualSB13-21TL-BE-en-1154

SMA Solar Technology AG

13 Contact

France SMA France S.A.S.

Lyon

Medium Power Solutions
Onduleurs : +33472090440
Communication : +33472090441

Hybrid Energy Solutions
Sunny Island : +33472090442

Power Plant Solutions
Sunny Central : +33472090443

India SMA Solar India Pvt. Ltd.

+912261713888

Mumbai

Italia SMA Italia S.r.l.

+39028934-7299

Milano
Κύπρος/Kıbrıs Βλέπε Ελλάδα/ Bkz. Ελλάδα (Yunanistan)
Luxemburg/

Luxembourg

Siehe Belgien

Voir Belgique
Magyarország lásd Česko (Csehország)
Nederland zie Belgien (België)
Österreich Siehe Deutschland
Perú Ver España
Polska Patrz Česko (Czechy)
Portugal SMA Solar Technology Portugal,

Unipessoal Lda

Gratuito em Portugal: 800208987
Internacional: +351212377860

Lisboa
România Vezi Česko (Cehia)
Schweiz Siehe Deutschland
Slovensko pozri Česko (Česká republika)
South Africa SMA Solar Technology South Africa

Pty Ltd.

08600SUNNY (0860078669)
International: +27(12)6431785

Centurion (Pretoria)
United King-

dom

Ελλάδα SMA Hellas AE

SMA Solar UK Ltd.

Milton Keynes

Αθήνα

+441908304899

8012229222
International: +302122229222

България Вижте Ελλάδα (Гърция)

Operating Manual 55SB13-21TL-BE-en-11

/01,234

9:;

5%6!78%

9:;*<+%,='3)>+%

13 Contact

SMA Solar (Thailand) Co., Ltd. +6626706999

대한민국 SMA Technology Korea Co., Ltd.서울+82-2-520-2666

+9712234-6177 SMA Middle East LLC

SMA Solar Technology AG

Other countries International SMA Service Line

Niestetal

Toll free worldwide: 00800SMASERVICE
(+8007627378423)

Operating ManualSB13-21TL-BE-en-1156

SMA Solar Technology AG

14 EC Declaration of Conformity

14 EC Declaration of Conformity

within the meaning of the EC directives

• 2004/108/EG (Electromagnetic compatibility, EMC)

• 2006/95/EG (Low voltage directive)

SMASolarTechnologyAG confirms herewith that the inverters described in this document are in
compliance with the fundamental requirements and other relevant provisions of the above­mentioned directives. The entire EC Declaration of Conformity can be found at www.SMA­Solar.com.

Operating Manual 57SB13-21TL-BE-en-11

SMA Solar Technology

www.SMA-Solar.com
