Skil 6772, 6692 Instruction Manual

SKIL Europe BV - Konijnenberg 60 4/05 2610393176 4825 BD Breda - The Netherlands

HAMMER DRILL 6692 (F0156692 . . ) 6772 (F0156772 . . )

INSTRUCTIONS page 10 INSTRUCTIONS page 12 HINWEISE Seite 15 INSTRUCTIES bladz. 18 INSTRUKTIONER sida 21 INSTRUKTION side 24 ANVISNING side 26 OHJEET sivu 29 INSTRUCCIONES pág. 31 INSTRUÇÕES pág. 34 ISTRUZIONI pag. 37 LEÍRÁS oldal 40

POKYNY strana 43

KILAVUZ sayfa 46

INSTRUKCJA strona 49

ИНСТРУКЦИИ страница 52 ІНСТРУКЦІЯ страница 55

O∆ΗΓΙΕΣ σελιδα 58

INSTRUCØIUNI pagina 62

YKA3AНИЕ страница 64

POKYNY strana 68

UPUTE stranica 71

UPUTSTVA stranica 73 NAVODILA stran 76

KASUTUSJUHEND lehekülg 79

INSTRUKCIJA lappuse 81 INSTRUKCIJA puslapis 84

FIN

GR RO

SCG

SLO

EST

www.skileurope.com

ME77

6692

650 W 1,9 kg

6772

750 W 1,9 kg

0-2800

ø12

G E

0-44800

p/min

0-44800

p/min

D B

A C

506

K J

MAX. Ø12 mm

MAX. 200 mm

65555 85555 10 4 4-5 5 5 15 -- 4-5 5 4-5 30 -- -- -- 4-5

1-3

▲

(

(HSS) ø 5, 6, 8 mm ø 5, 6, 8 mm ø 5, 6, 8 mm

In Deutschland

nicht lieferbar

2610389146

2610073400

2610389145

Magnetic

ACCESSORIES

PHILLIPS Nr 1, 2 POZIDRIV Nr 1, 2

M4, M5

)

PHILLIPS

POZIDRIV

SLOTTED

HSS

™

Hammer drill 6692/6772 INTRODUCTION

● This tool is intended for hammer drilling in brick,

concrete and stone as well as for drilling in wood, metal, ceramic and plastic; tools with electronic speed control and left/right rotation are also suitable for screwdriving and thread cutting

TECHNICAL SPECIFICATIONS 1 TOOL ELEMENTS 2

A Switch for on/off and speed control B Button for switch locking C Wheel for maximum speed control D Switch for changing direction of rotation E Switch for selecting drilling function F Auxiliary handle G Spindle-lock button H Dust filter system

SAFETY

GENERAL SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all

instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool.

1) WORK AREA

a) Keep work area clean and well lit.

Cluttered and dark areas invite accidents.

b) Do not operate power tools in explosive

atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

c) Keep children and bystanders away while operating

a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY a) Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of

electric shock.

e) When operating a power tool outdoors, use an

extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

3) PERSONAL SAFETY a) Stay alert, watch what you are doing and use

common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use safety equipment. Always wear eye protection.

Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Avoid accidental starting. Ensure the switch is in the

off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance

at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long

hair can be caught in moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are connected and properly used. Use of these devices

can reduce dust related hazards.

4) POWER TOOL USE AND CARE a) Do not force the power tool. Use the correct power

tool for your application. The correct power tool will do

the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn

it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source before

making any adjustments, changing accessories, or storing power tools. Such preventive safety measures

reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly

maintained power tools.

f) Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc.,

in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for

operations different from those intended could result in a hazardous situation.

5) SERVICE a) Have your power tool serviced by a qualified repair

person using only identical replacement parts. This

will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR HAMMER DRILLS

● Wear ear protectors with hammer drills (exposure to

noise can cause hearing loss)

● Use auxiliary handles supplied with the tool (loss of

control can cause personal injury)

● Read and save this instruction manual

● Avoid damage that can be caused by screws, nails and

other elements in your workpiece; remove them before you start working

● Always keep the cord away from moving parts of the tool

● When you put away the tool, switch off the motor and

ensure that all moving parts have come to a complete standstill

● Use completely unrolled and safe extension cords with a

capacity of 16 Amps (UK 13 Amps)

● In case of electrical or mechanical malfunction,

immediately switch off the tool and disconnect the plug

● SKIL can assure flawless functioning of the tool only

when original accessories are used

● Use only accessories with an allowable speed matching

at least the highest no-load speed of the tool

● This tool should not be used by people under the age of

16 years

● Be careful not to drill or drive into areas where electrical

wires may be contacted

● If the cord is damaged or cut through while working, do

not touch the cord, but immediately disconnect the plug

● Never use tool when cord is damaged; have it replaced

by a qualified person

● Always check that the supply voltage is the same as the

voltage indicated on the nameplate of the tool (tools with a rating of 230V or 240V can also be connected to a 220V supply)

● If the drill bit becomes unexpectedly jammed (causing a

sudden, dangerous reaction), immediately switch off the tool

● Be aware of the forces that occur as a result of jamming

(especially when drilling metals); always hold the tool firmly with both hands and take a secure stance

● Always disconnect plug from power source before

making any adjustment or changing any accessory

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

● Do not connect the blue (= neutral) or brown (= live) wire

in the cord of this tool to the earth terminal of the plug

● If for any reason the old plug is cut off the cord of this

tool, it must be disposed of safely and not left unattended

USE

● On/Off 3

● Switch locking for continuous use 4

● Speed control for smooth starting 5

● Maximum speed control

With wheel C the maximum speed can be adjusted from low to high (1-5)

- switch on the tool

- lock the switch

- turn wheel C to select maximum speed For determining speed, table ( can be used as reference

● Changing direction of rotation 6

- when not properly set in left/right position, switch A cannot be activated

! change direction of rotation only when tool is at a

complete standstill

● Normal drilling/screwdriving versus hammer drilling 7

! select drilling function only when tool is switched

off

● Changing bits 8

- insert the bit as deep as possible in the chuck

! do not use bits with a damaged shank ! push spindle-lock button only when tool is at a

complete standstill

● Adjusting drilling depth 9

● Holding and guiding the tool 0

! always use auxiliary handle (can be adjusted as

illustrated)

-keep the ventilation slots uncovered

- do not apply too much pressure on the tool; let the tool do the work for you

● Dust filter system !

For optimal dust suction performance

! always ensure that filter J is located in dust box K

before use

- only use the dust filter system when drilling in concrete, brick and stone

! do not use the dust filter system when drilling in

wood, metal and plastic

- only use drill bits for stone with a maximum diameter of 12 mm and a maximum length of 200 mm

- clean filter J and dust box K frequently

● Removing dust filter system @

! always close tube holder L when dust filter

system is not being used

● Mounting dust filter system #

● Use of dust filter system

- the dust filter system with its telescopic action can be used in both horizontal and vertical working positions

- dust box K ! keeps hanging down straight in all side handle positions

- ensure that the dust filter system firmly rests against the wall/floor/ceiling (which also ensures drilling at a straight 90° angle) $

! always pull switch A 2 to the maximum + select

position 5 with wheel C 2 when using the dust filter system

- remove drill bit from hole while tool is running to ensure dust suction performance

- when dust filter system is not mounted, tool can be used again for drilling wood, metal and plastic

● Left- and right-hand use of side handle/dust filter

system %

● Cleaning filter and dust box ^

In case of reduced dust suction performance, or when the collected dust has reached "MAX"-level M, filter J and dust box K should be cleaned

- remove dust box K from dust filter system by pressing two red tabs N and slightly turning dust box towards you

- remove filter J from dust box K and knock dust off of filter

! do not wash filter with soap and water

- empty dust box K

- put back filter J in dust box K until it snaplocks

- slide dust box K onto dust filter system until it snaplocks

- mount spare filter bag as illustrated, when necessary &

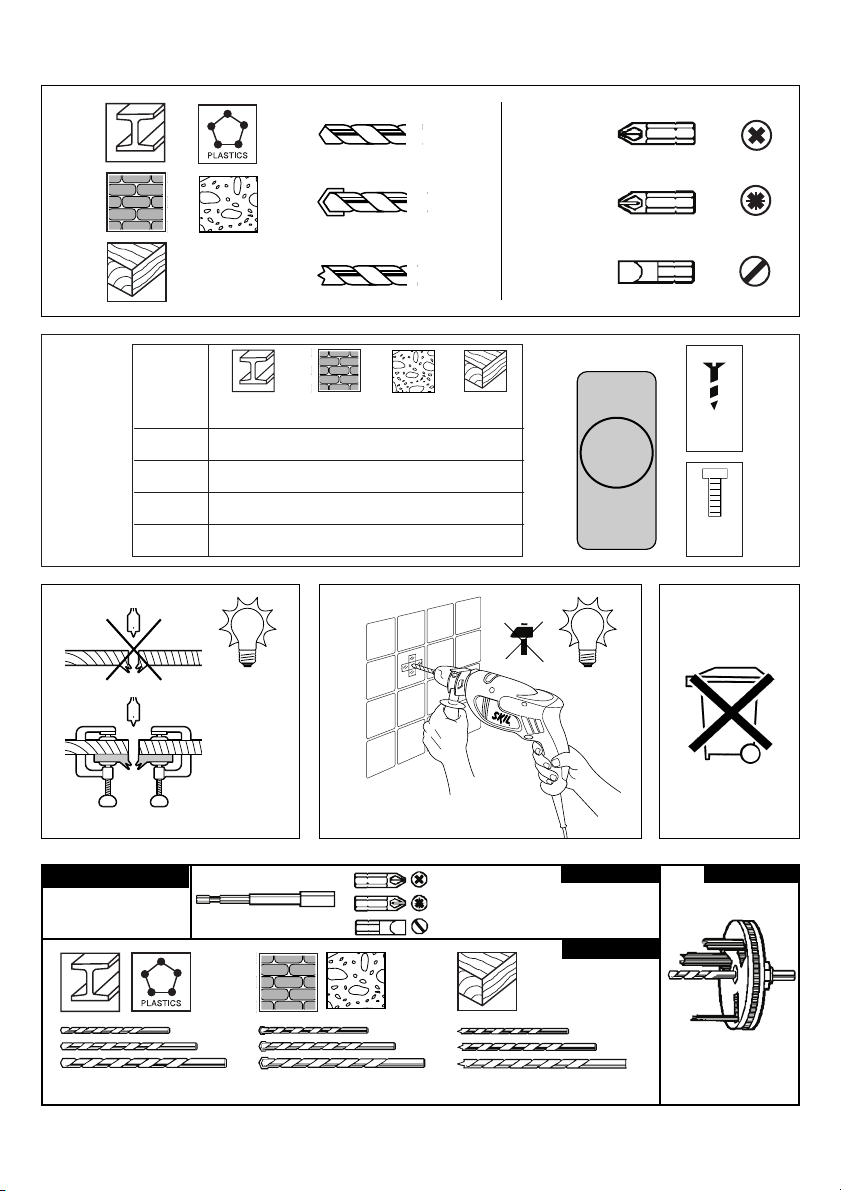

APPLICATION ADVICE

● Use the appropriate bits *

! only use sharp bits

● For drilling in concrete or stone a steady pressure on the

drill is required

● When drilling ferrous metals

- pre-drill a smaller hole, when a large hole is required

- lubricate drill bit occasionally with oil

● When turning in a screw at/near the cross cut end or an

edge of wood, pre-drill a hole in order to avoid cracking of the wood

● Splinterfree drilling in wood )

● Drilling in tiles without skidding ¡

● For more tips see www.skileurope.com

GUARANTEE / ENVIRONMENT

● Always keep tool and cord clean (especially the

ventilation slots)

! disconnect the plug before cleaning

● This SKIL product is guaranteed in accordance with

statutory/country-specific regulations; damage due to normal wear and tear, overload or improper handling will be excluded from the guarantee

● In case of a complaint, send the tool undismantled

together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skileurope.com)

● Do not dispose of electric tools, accessories and

packaging together with household waste material

(only for EU countries)

- in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ™ will remind you of this when the need for disposing occurs

Perceuse à percussion 6692/6772 INTRODUCTION

● L’outil est conçu pour les travaux de perçage en frappe

dans la brique, le béton et dans la pierre naturelle ainsi que le perçage dans le bois, le métal, la céramique et les matières plastiques; les outils avec réglage électronique de la vitesse et rotation à droite/à gauche sont également appropiés pour le vissage et le filetage

SPECIFICATIONS TECHNIQUES 1 ELEMENTS DE L'OUTIL 2

A Interrupteur pour mise en marche/arrêt et réglage de la

vitesse

B Bouton de blocage de l’interrupteur C Molette de réglage de la vitesse maximum D Commutateur pour inverser le sens de rotation E Commutateur pour sélectionner la fonction de perçage F Poignée auxiliaire G Bouton de blocage H Système de filtre à poussière

SECURITE

INSTRUCTIONS GENERALES DE SECURITE ATTENTION! Lisez toutes les instructions. Le non-

respect des instructions indiquées ci-après peut entraîner un choc électrique, un incendie et/ou de graves blessures sur les personnes. La notion d’«outil électroportatif» mentionnée par la suite se rapporte à des outils électriques raccordés au secteur (avec câble de raccordement).

1) PLACE DE TRAVAIL

a) Maintenez l’endroit de travail propre et bien éclairé.

Un lieu de travail en désordre ou mal éclairé augmente le risque d’accidents.

✎

CE DECLARATION OF CONFORMITY We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 60 745, EN 55 014, in accordance with the provisions of the directives 73/23/EC, 89/336/EC, 98/37/EC, 2002/96/EC. NOISE/VIBRATION Measured in accordance with EN 60 745 the sound pressure level of this tool is 100 dB(A) and the sound power level 111 dB(A) (standard deviation: 3 dB), and the vibration 11.7 m/s

(hand-arm method).

CE DÉCLARATION DE CONFORMITÉ Nous déclarons sous notre propre responsabilité que ce produit est en conformité avec les normes ou documents normalisés suivants: EN 60 745, EN 55 014, conforme aux réglementations 73/23/EC, 89/336/EC, 98/37/EC, 2002/96/EC. BRUIT/VIBRATION Mesuré selon EN 60 745 le niveau de la pression sonore de cet outil est 100 dB(A) et le niveau de la puissance sonore 111 dB(A) (déviation standard: 3 dB), et la vibration 11,7 m/s

(méthode main-bras).

CE KONFORMITÄTSERKLÄRUNG Wir erklären in alleiniger Verantwortung, daß dieses Produkt mit den folgenden Normen oder normativen Dokumenten übereinstimmt: EN 60 745, EN 55 014, gemäß den Bestimmungen der Richtlinien 73/23/EG, 89/336/EG, 98/37/EG, 2002/96/EG. GERÄUSCH/VIBRATION Gemessen gemäß EN 60 745 beträgt der Schalldruckpegel dieses Gerätes 100 dB(A) und der Schalleistungspegel 111 dB(A) (Standard- abweichung: 3 dB), und die Vibration 11,7 m/s

(Hand-Arm Methode).

CE CONFORMITEITSVERKLARING Wij verklaren, dat dit product voldoet aan de volgende normen of normatieve documenten: EN 60 745, EN 55 014, overeenkomstig de bepalingen van de richtlijnen 73/23/EG, 89/336/EG, 98/37/EG, 2002/96/EG. GELUID/VIBRATIE Gemeten volgens EN 60 745 bedraagt het geluidsdrukniveau van deze machine 100 dB(A) en het geluidsvermogen-niveau 111 dB(A) (standaard deviatie: 3 dB), en de vibratie 11,7 m/s

(hand-arm methode).

CE KONFORMITETSFÖRKLARING Vi intygar och ansvarar för, att denna produkt överensstämmer med följande norm och dokument: EN 60 745, EN 55 014, enl. bestämmelser och riktlinjema 73/23/EG, 89/336/EG, 98/37/EG, 2002/96/EG. LJUD/VIBRATION Ljudtrycksnivån som uppmätts enligt EN 60 745 är på denna maskin 100 dB(A) och ljudeffektnivån 111 dB(A) (standard deviation: 3 dB), och vibration 11,7 m/s2(hand-arm metod).

CE KONFORMITETSERKLÆRING Vi erklærer under almindeligt ansvar, at dette produkt er i overensstemmelse med følgende normer eller normative dokumenter: EN 60 745, EN 55 014, i henhold til bestemmelserne i direktiverne 73/23/EF, 89/336/EF, 98/37/EF, 2002/96/EF. STØJ/VIBRATION Måles efter EN 60 745 er lydtrykniveau af dette værktøj 100 dB(A) og lydeffektniveau 111 dB(A) (standard deviation: 3 dB), og vibrationsniveauet 11,7 m/s

(hånd-arm metoden).

CE SAMSVARSERKLÆRING Vi erklærer at det er under vårt ansvar at dette produkt er i samsvar med følgende standarder eller standard- dokumenter: EN 60 745, EN 55 014, i samsvar med reguleringer 73/23/EF, 89/336/EF, 98/37/EF, 2002/96/EF. STØY/VIBRASJON Målt ifølge EN 60 745 er lydtrykknivået av dette verktøyet 100 dB(A) og lydstyrkenivået 111 dB(A) (standard deviasjon: 3 dB), og vibrasjonsnivået 11,7 m/s

(hånd-arm metode).

CE TODISTUS STANDARDINMUKAISUUDESTA Todistamme täten ja vastaamme yksin siitä, että tämä tuote en allalueteltujen standardien ja standardoimisasiakirjojen vaatimusten mukainen EN 60 745, EN 55 014, seuraavien sääntöjen mukaisesti 73/23/ETY, 89/336/ETY, 98/37/ETY, 2002/96/ETY. MELU/TÄRINÄ Mitattuna EN 60 745 mukaan työkalun melutaso on 100 dB(A) ja yleensä työkalun äänen voimakkuus on 111 dB(A) (keskihajonta: 3 dB), ja tärinän voimakkuus 11,7 m/s

(käsi-käsivarsi metodi).

CE DECLARACION DE CONFORMIDAD Declaramos bajo nuestra sola responsabilidad que este producto está en conformidad con las normas o documentos normalizados siguientes: EN 60 745, EN 55 014, de acuerdo con las regulaciones 73/23/CE, 89/336/CE, 98/37/CE, 2002/96/CE. RUIDOS/VIBRACIONES Medido según EN 60 745 el nivel de la presión acústica de esta herramienta se eleva a 100 dB(A) y el nivel de la potencia acústica 111 dB(A) (desviación estándar: 3 dB), y la vibración a 11,7 m/s

(método brazo-mano).

CE DECLARAÇÃO DE CONFIRMIDADE Declaramos sob nossa exclusiva responsabilidade que este producto cumpre as seguintes normas ou documentos normativos: EN 60 745, EN 55 014, conforme as disposições das directivas 73/23/CE, 89/336/CE, 98/37/CE, 2002/96/CE. RUÍDO/VIBRAÇÕES Medido segundo EN 60 745 o nível de pressão acústica desta ferramenta é 100 dB(A) e o nível de potência acústica 111 dB(A) (espaço de erro: 3 dB), e a vibração 11,7 m/s

(método braço-mão).

FIN

05 SKIL Europe B.V. A. v.d. Kloot

CE DICHIARAZIONE DI CONFORMITÀ Dichiaramo, assumendo la piena responsabilità di tale dichiarazione, che il prodotto è conforme alle seguenti normative e ai relativi documenti: EN 60 745, EN 55 014 in base alle prescrizioni delle direttive CE 73/23, CE 89/336, CE 98/37, CE 2002/96. RUMOROSITÀ/VIBRAZIONE Misurato in conformità al EN 60 745 il livello di pressione acustica di questo utensile è 100 dB(A) ed il livello di potenza acustica 111 dB(A) (deviazione standard: 3 dB), e la vibrazione 11,7 m/s

(metodo mano-braccio).

CE MINÖSÉGI TANUSITVANY Teljes felelösségünk tudatában kijelentjük, hogy jelen termék a következö szabványoknak vagy

kötelezö hatósági elöírásoknak megfelel: EN 60 745, EN 55 014, a 73/23/EK, 89/336/EK, 98/37/EK, 2002/96/EK elöírásoknak megfelelöen. ZAJ/REZGÉS Az EN 60 745 alapján végzett mérések szerint ezen készülék hangnyomás szintje 100 dB(A) a hangteljesítmény szintje 111 dB(A) (normál eltérés: 3 dB), a kézre ható rezgésszám 11,7 m/s

CE STRVZUJÍCÍ PROHLÅ◊ENÍ Potvrzujeme na odpovπdnost, Ωe tento v¥robek odpovídå nåsledujícím normåm nebo normativním podkladüm: EN 60 745, EN 55 014, podle ustanovení smπrnic 73/23/EG, 89/336/EG, 98/37/EG, 2002/96/EG. HLUÇNOSTI/VIBRACÍ Mπ®eno podle EN 60 745 çiní tlak hlukové vlny tohoto p®ístroje 100 dB(A) a dávka hluçnosti 111 dB(A) (standardní odchylka: 3 dB), a vibrací 11,7 m/s

(metoda ruka-paΩe).

CE STANDARDIZASYON BEYANI Ye¤ane sorumlu olarak, bu ürünün aﬂa¤ıdaki standartlara veya standart belgelerine uygun oldu¤unu beyan ederiz: EN 60 745, EN 55 014, yönetmeli¤i hükümleri uyarınca 73/23/EC, 89/336/EC, 98/37/EC, 2002/96/EC. GÜRÜLTÜ//T‹TREﬁIM Ölçülen EN 60 745 göre ses basıncı bu makinanın seviyesi 100 dB(A) ve çal›ﬂma s›ras›ndaki gürültü 111 dB(A) (standart sapma: 3 dB), ve titreﬂim 11,7 m/s

(el-kol metodu).

05 SKIL Europe B.V. A. v.d. Kloot

ЗАЯВЛЕНИЕ О СООТВЕТСТВИИ Мы с полной ответственностыо заявляем, что это изделие соответствует следующим стандартам или стандартизованным документам: EN 60 745, EN 55 014, в соответсувии с инструкциями 73/23/EC, 89/336/EC, 98/37/EC, 2002/96/EC. ШУМНОСТИ/ВИБРАЦИИ При измерении в соответствии co стандартoм EN 60 745 уровень звукового давления для этого инструмента составляет 100 дБ (A) и уровeнь звуковой мощности - 111 дБ (A) (стандартное отклонение: 3 dB), и вибрации - 11,7 м/с

(по методу для рук).

CE ВІДПОВІДНІСТЬ Ми заявляємо, що відповідність даного продукту наступним стандартам і регулюючим документам повністю нашою відповідальністю: EN 60 745, EN 55 014, відповідно до положень директив 73/23/ЄС, 89/336/ЄС, 98/37/ЄС, 2002/96/ЄС. ШУМ/ВІБРАЦІЯ Зміряний відповідно до EN 60 745 рівень тиску звуку даного інструменту 100 дБ(А) i потужність звуку 111 дБ(А) (стандартне відхилення: 3 дБ), i вібрація 11,7 м/с

(ручна методика).

CE ∆ΗΛΩΣΗ ΣYMBATOTΗΤΑΣ ∆ηλούµε υπευθύνως τι το προϊν αυτ είναι κατασκευασµένο σύµφωνα µε τους εξής κανονισµούς ή κατασκευαστικές συστάσεις: EN 60 745, EN 55 014, κατά τις διατάξεις των κανονισµών της Κοινής Αγοράς 73/23/EK, 89/336/EK, 98/37/EK, 2002/96/EK. ΘΟΡYΒΟ/ΚΡΑ∆ΑΣΜΟYΣ Μετρηµένη σύµφωνα µε EN 60 745 η στάθµη ακουστικής πίεσης αυτού του εργαλείου ανέρχεται σε 100 dB(A) και η στάθµη ηχητικής ισχύoς σε 111 dB(A) (κοινή απκλιση: 3 dB), και ο κραδασµς σε 11,7 m/s

(µεθοδος χειρς/βραχίονα).

DECLARAØIE DE CONFORMITATE CE Declaråm pe proprie råspundere cå acest product este conform cu urmåtoarele standarde sau documente standardizate: EN 60 745, EN 55 014, în conformitate cu regulile 73/23/EC, 89/336/EC, 98/37/EC, 2002/96/EC. ZGOMOT/VIBRAØII Måsurat în conformitate cu EN 60 745 nivelul de presiune a sunetului generat de acest instrument este de 100 dB(A) iar nivelul de putere a sunetului 111 dB(A) (abaterea standard: 3 dB), iar nivelul vibraøiilor 11,7 m/s

(metoda mînå - braø).

CE ДЕKЛАPAЦИЯ ЗA CБOTВETCTBИE Декларираме на изцяло наша отговорност, че това изделие е съобразено със следните стандарти или стандартизирани документи: EN 60 745, EN 55 014, в съответствие с нормативната уредба на 73/23/EG, 89/336/EG, 98/37/EG, 2002/96/EG. ШУМ/ВИБPAЦИИ Измерено в съответствие с EN 60 745 нивото на звуково налягане на този инструмент е 100 dB(A) а нивото на звукова мощност е 111 dB(A) (стандартно отклонение: 3 dB), а вибрациите са 11,7 m/s

(метод ръка-рамо).

CE IZJAVA O USKLA ĐENOSTI Izjavljujemo uz punu odgovornost da je ovaj proizvod usklađen sa slijedeçim normama i normativnim dokumentima: EN 60 745, EN 55 014, prema odredbama smjernica 73/23/EG, 89/336/EG, 98/37/EG, 2002/96/EG. BUCI/VIBRACIJAMA Mjereno prema EN 60 745, prag zvuãnog tlaka ovog elektriãnog alata iznosi 100 dB(A) a jakost zvuka 111 dB(A) (standardna devijacija: 3 dB), a vibracija 11,7 m/s

(postupkom na ‰aci-ruci).

CE IZJAVA O USKLA ĐENOSTI Pod punom odgovorno‰çu izjavljujemo da je ovaj proizvod usklađen sa sledeçim standardima ili standardizovanim dokumentima: EN 60 745, EN 55 014, u skladu sa odredbama smernica 73/23/EG, 89/336/EG, 98/37/EG, 2002/96/EG. BUKA/VIBRACIJE Mereno u skladu sa EN 60 745, nivo pritiska zvuka ovog alata iznosi 100 dB(A), a jaãina zvuka 111 dB(A) (normalno odstupanje: 3 dB), a vibracija 11,7 m/s

(mereno metodom na ‰aci-ruci).

SCG

IZJAVA O USTREZNOSTI CE Odgovorno izjavljamo, da je ta izdelek v skladu z naslednjimi standardi ali standardnimi dokumenti: EN 60 745, EN 55 014, v skladu s predpisi navodil 73/23/EG, 89/336/EG, 98/37/EG, 2002/96/EG. HRUP/VIBRACIJA Izmerjeno v skladu s predpisom EN 60 745 je raven zvoãnega pritiska za to orodje 100 dB(A) in jakosti zvoka 111 dB(A) (standarden odmik: 3 dB), in vibracija 11,7 m/s

(metoda ‘dlan-roka’).

SLO

CE VASTAVUSDEKLARATSIOON Kinnitame ainuvastutajana, et see toode vastab järgmistele standarditele või

normdokumentidele: EN 60 745, EN 55 014 vastavalt direktiivide 73/23/EÜ, 89/336/EÜ, 98/37/EÜ, 2002/96/EÜ nõuetele. MÜRA/VIBRATSIOON Vastavalt kooskõlas normiga EN 60 745 läbi viidud mõõtmistele on antud seadme helirõhk 100 dB(A) ja helitugevus 111 dB(A) (standardkõrvalekalle: 3 dB), ja vibratsioon 11,7 m/s

(käe-randme-meetod).

EST

CE DEKLARÅCIJA PAR ATBILST±BU STANDARTIEM Mïs ar pilnu atbild¥bu pazi¿ojam, ka ‰is izstrÇdÇjums atbilst standartiem vai standartizÇcijas dokumentiem EN 60 745, EN 55 014 un ir saska¿Ç ar direkt¥vÇm 73/23/EG, 89/336/EG, 98/37/EG, 2002/96/EG. TROKSNIS/VIBRÅCIJA Saska¿Ç ar standartu EN 60 745 noteiktais instrumenta rad¥tÇ trok‰¿a ska¿as spiediena l¥menis ir 100 dB(A) un ska¿as jaudas l¥menis ir 111 dB (A) (pie tipiskÇs izkliedes: 3 dB), un vibrÇcijas intensitÇte ir 11,7 m/s

(strÇdÇjot rokas reÏ¥mÇ).

CE KOKYBñS ATITIKTIES DEKLARACIJA Mes atsakingai parei‰kiame, kad ‰is gaminys atitinka tokius standartus ir normatyvinius dokumentus: EN 60 745, EN 55 014 pagal EEB reglament˜ 73/23/EG, 89/336/EG, 98/37/EG, 2002/96/EG nuostatas. TRIUK·MINGUMAS/VIBRACIJA ·io prietaiso triuk‰mingumas buvo i‰matuotas pagal EN 60 745 reikalavimus keliamo triuk‰mo garso slògio lygis siekia 100 dB(A) ir akustinio galingumo lygis 111 dB(A) (standartinis nuokrypis: 3 dB), ir vibracijos pagreitis rankos pla‰takos srityje tipiniu atveju yra maÏesnis, kaip 11,7 m/s

(метод ръка-рамо).

OÂWIADCZENIE ZGODNOÂCI CE Niniejszym oÊwiadczamy ponoszàc osobistà odpowiedzialnoÊç, ˝e produkt wykonany jest zgodnie z nast´pujàcymi normami i dokumentami normalizujàcymi: EN 60 745, EN 55 014, z godnie z wytycznymi 73/23/WE, 89/336/WE, 98/37/WE, 2002/96/WE. HA¸ASU/WIBRACJE Pomiarów dokonano zgodnie z normà EN 60 745 ciÊnienie akustyczne narz´dzia wynosi 100 dB(A) zaÊ poziom mocy akustycznej 111 dB(A) (poziom odchylenie: 3 dB), zaÊ wibracje 11,7 m/s

(metoda d∏oƒ-r´ka).

Skil 6772, 6692 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
