Silverline Cordless Multi-Tool User Manual [en, de, es, fr, it]
3 Year Guarantee
*Register online within 30
days. Terms & Conditions apply
Garantie de 3 ans
*Enregistrez votre produit en ligne
dans les 30 jours. Sous réserve des
termes et conditions appliquées
3 Jahre Garantie
*Registrieren Sie sich innerhalb von 30
Tagen online. Es gelten die allgemeinen
Geschäftsbedingungen
www.silverlinetools.com
3 años de garantía
*Regístrese online dentro de 30 días.
Se aplican los términos y condiciones
3 anni di garanzia
*Registrarsi on-line entro 30 giorni.
Termini e Condizioni si applicano
3 Jaar Garantie
*Registreer online binnen 30 dagen.
Algemene voorwaarden van toepassing
959516
1.3Ah
7.2V Li-Ion Cordless Multi-Tool
7.2V Li-Ion Cordless Multi-Tool
Outil sans fil multifonction
Li-ion 7,2 V
Schnurloses 7,2-V-Li-Ionen-
Multifunktionswerkzeug
www.silverlinetools.com
Herramienta multifunción
inalámbrica 7,2 V
Utensile Multi-Uso a batteria
7.2V a Litio
7,2 V Li-ion draadloze Multi tool
1
8
3
2
4 5
9
6
7
10
2
®
1.3Ah
7.2V Li-Ion Cordless Multi-Tool
English .................. 4
Français ................ 8
Deutsch ................. 12
Español ................. 16
Italiano .................. 20
Nederlands ............ 24
www.silverlinetools.com
3
GB

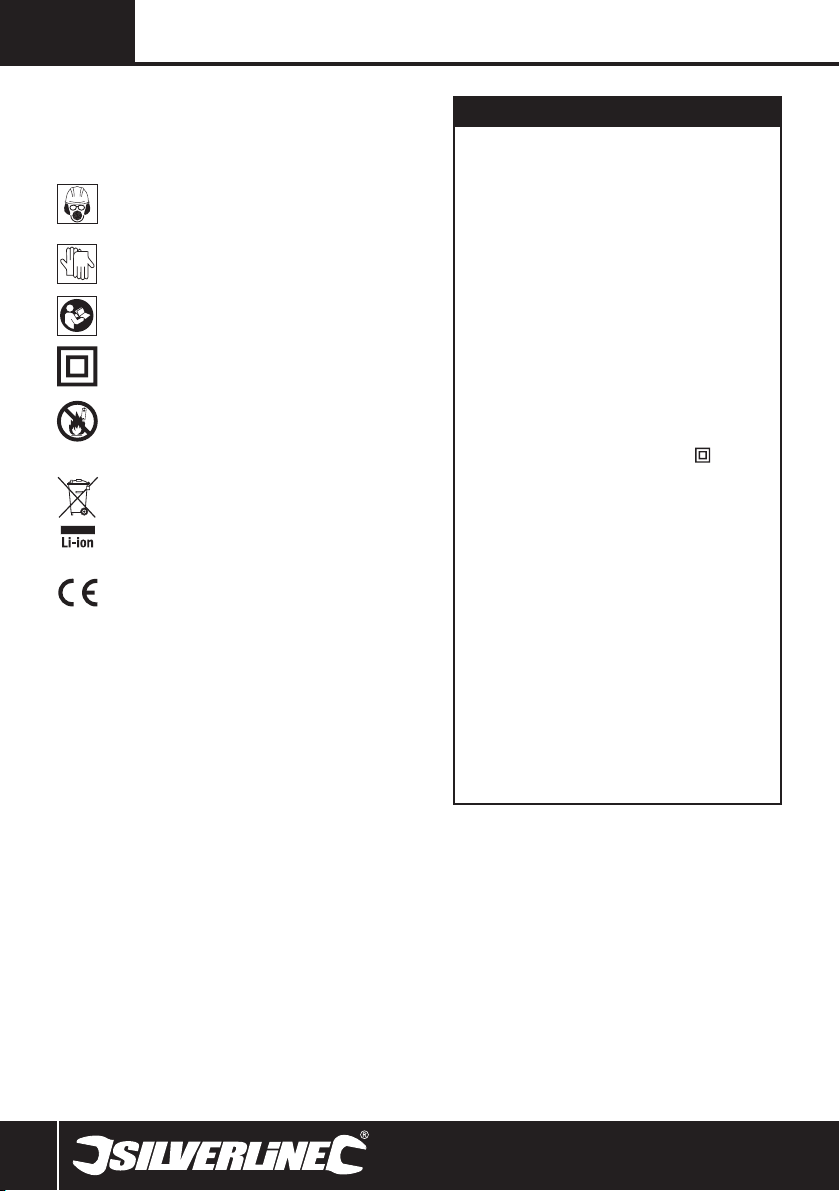

Description of Symbols
The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.
Wear hearing protection
Wear eye protection
Wear breathing protection
Wear head protection
Wear hand protection
Read instruction manual
Double insulated for additional protection
Do not incinerate battery packs
Environmental Protection
Waste electrical products and batteries, including li-ion
batteries, should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local
authority or retailer for recycling advice
Conforms to relevant legislation and safety standards
Specification
Voltage: ...................................................... 7.2V
Battery Type: .............................................. Li-Ion (Internal)
Battery Capacity: ........................................ 1.3Ah
No Load Speed: .......................................... 4500 -
20000min
Speed Settings: .......................................... 16
Collet Size(s): ..............................................Ø1.5, Ø 2.4,
Ø 3.2mm
Sound Pressure(LPA): ................................. 72dB(A)
Sound Power(LWA): .................................... 83dB(A)
Uncertainty: ................................................ 3dB(A)
Vibration: .................................................... 4.10m/s
Uncertainty: ................................................ 1.5m/s
Charger
Input Voltage: ............................................. 230V AC/50Hz
Output: ....................................................... 9V DC 400mA
Protection Class: ........................................
Charging Time ............................................ 3hrs
As part of our ongoing product development, specifications of
Silverline products may alter without notice.
Sound and vibration levels in the specification are determined
according to EN60745. The figures given can be used to compare
similar tools tested to this standard. These figures may be used to
assess exposure to noise and vibration levels.
The figures represent normal use for the tool in normal working
conditions. A poorly maintained, incorrectly assembled or mis-used
tool may produce increased levels of noise and vibration. The total
working period that you can operate this tool must factor in periods
where the tool is idle or switched off. Allow frequent rest breaks
It is in the interest of users to maximise their safety using the correct
safety equipment such as ear defenders that protect against loud
or repetitive noise and anti-vibration gloves that minimise vibration.
Do not operate the tool with your hands below a normal comfortable
www.osha.europa.eu provides information on sound and vibration
levels in the workplace that may be useful to domestic users who
when operating this tool.
temperature as vibration will have a greater effect.
use tools for long periods of time.
2
-1
2
Carefully read and understand this manual and any label attached to the tool
before use. Keep these instructions with the product for future reference.
Ensure all persons who use this product are fully acquainted with this manual.
Even when used as prescribed it is not possible to eliminate all residual risk
factors. Use with caution. If you are at all unsure of the correct and safe
manner in which to use this tool, do not attempt to use it.
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, fire and/
or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
4
7.2V Li-Ion Cordless Multi-Tool959516
Work Area Safety
a) Keep work area clean and well lit. Cluttered or dark areas invite
accidents
b) Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes
c) Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control
Electrical Safety
a) Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching outlets
will reduce risk of electric shock
b) Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded
c) Do not expose power tools to rain or wet conditions. Water enter-
ing a power tool will increase the risk of electric shock
d) Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away from heat,
oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock
e) When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock
f) If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock
NOTE: The term “residual current device (RCD)” may be replaced by
the term “ground fault circuit interrupter (GFCI)” or “earth leakage
circuit breaker (ELCB)”.
Personal Safety
a) Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in
serious personal injury
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries
c) Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the
switch on invites accidents
d) Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations
f) Dress properly. Do not wear loose clothing or jewellery. Keep
your hair, clothing and gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in moving parts
g) If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards
Power Tool Use & Care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer
at the rate for which it was designed
b) Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired
c) Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally
d) Store idle power tools out of the reach of children and do not al-
low persons unfamiliar with the power tool or these instructions
to operate the power tool. Power tools are dangerous in the hands
of untrained users
e) Maintain power tools. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that
may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by
poorly maintained power tools
f) Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control
g) Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous
situation
Service
a) Have your power tool serviced by a qualified repair person
using only identical replacement parts. This will ensure that the
safety of the power tool is maintained
Battery Charger Safety
Use the battery charger correctly
• Refer to the section of this manual relating to use of the battery charger
before attempting to charge the battery.
• Keep your battery charger clean; foreign objects or dirt may cause a
short or block air vents. Failure to follow these instructions may cause
overheating or fire
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard
Product Familiarisation
1 Collet Nut
2 Thread Cover
3 LED work light
4 On/Off Button
5 Speed Display
6 Speed Selector Buttons
7 Charging Socket
8 Spindle Lock Button
9 41pcs Accessory Kit
10 Charger
Unpacking Your Tool
• Carefully unpack and inspect your tool. Familiarise yourself with all its
features and functions.
• Ensure that all parts of the tool are present and in good condition. If any
parts are missing or damaged, have such parts replaced before attempting
to use this tool.
www.silverlinetools.com
5
GB
Operating Instructions
This cordless hobby tool is designed for grinding, polishing, drilling, sawing,
cutting, sanding and engraving. It is not designed to function as a screwdriver
or any purpose where there is strong resistance to turning. It is ideal for model
making and electronics plus other uses where accuracy is required. The lack
of a trailing mains cable increases freedom, precision and reduces risk of
damage when working with fragile materials. If the tool is operated correctly
and these instructions are followed, it will provide many years of service.
Charging the battery
• You can place the Li-Ion battery on charge at any time as the intelligent
charging system will charge from any level of existing charge in the battery
• The Speed Display (5) will indicate ‘Lo’ if you try to turn on the tool with the
battery in a low-charge state. The tool will not operate in this condition to
protect the Li-Ion battery from being fully discharged. You should charge the
tool as soon as possible and not store the tool in this low-charge condition
• The battery should be charged at 20˚C (room temperature)
1. Plug the Charger (10) into a mains socket
2. Insert the charger lead into the Charging Socket (7)
Note: Ensure that no metal parts are allowed to touch the charging socket as
this could cause an electrical short, damaging the battery
3. The Speed Display (5) doubles as a charging indica tor. It will count
from 01 to 99 as it charges, the display will flash as it approaches a full
charge and the display will switch off when the battery is fully charged
4. After 2-3hrs the ba ttery will be fully charged from a low-charge state
and should be disconnected from the power supply.
Note: The initial charge or charging after the tool has been in long term
storage may exceed 3 hours.
5. Allo w 15mins for the battery to cool before use
6. Disconnect the charger from the po wer supply and store in a clean, dry
environment out of the reach of children
7. Do not lea ve the battery on charge for extended periods
WARNING: Do not store the tool for long periods discharged. Always fully
charge the battery before long-term storage. The discharge rate of Li-Ion
batteries is very slow taking months to discharge but once fully discharged the
battery will no longer be functional if left in this state for weeks or months
IMPORTANT: Failure to follow the correct procedure when charging the battery
will result in permanent damage. You must follow the correct procedure
Note: After 3 or 4 charging cycles the battery will reach maximum capacity as
the charging circuitry adjusts to the battery.
Operating Instructions
Fitting an accessory in the collet
1. Open the Collet Nut (1) by depressing the Spindle Lock Button (8) and
unscrewing the collet nut anticlockwise so the jaws of the collet inside
can open
2. Place the accessory required in the collet
3. Depress the spindle lock button and rotate the collet nut clockwise to
secure the accessory in the collet nut
Note: To change the fitted collet, fully unscrew the collet nut to allow removal
of the fitted collet and replace with the required size collet.
Switching on & off
1. To start the hobby tool press the On/Off Button (4) or press one of the
Speed Selector Buttons (6)
2. To stop the tool press the On/Off Button again
3. Use the Speed Selector Buttons (6) to select the required speed as
shown on the Speed Display (5). The higher the number on the dial, the
faster the spindle rotates. There are 16 speeds in total
Handling
• Hold the tool securely, keeping hands well away from rotating parts. For
most purposes, it is most convenient to grip the tool like a pencil
• Practise using the tool with scrap material before starting a job. Be aware
that different accessories will require different techniques, and may require
different speed settings
• Applying excess pressure does not result in faster or more efficient
performance. If the pressure applied to the tool has a noticeable effect on
the speed of the tool, then reduce the pressure. Overloading the tool will
reduce its service life and could cause injury if it causes the accessory to
break apart
Notes:
• Always ensure that material is secure. If appropriate use a vice or clamp to
hold the item being worked on
• Never press the Spindle Lock Button (8) when the tool is operating
• Always select the appropriate collet for the size of accessory you are using
first before fitting the accessory
• Always allow the tool to reach full speed before using
• When using the supplied sanding drums, first loosen the Phillips screw
on the drum of the sanding drum mounting accessory, then slide on a
sanding drum and then re-tighten the Phillips screw so the sanding drum
is secure in use
• A slotted blade screwdriver is on the handle of the supplied collet spanner
for fitting various discs to the mandrel in the accessory kit
• When attaching a disc to the mandrel, ensure the disc is put between the
two washers fitted to the mandrel
• The supplied cutting discs are for cutting only and must not be used for
grinding or sanding
• When using brush accessories with bristles or wire use a low-speed setting
WARNING: Never fit any attachment with a maximum speed lower than the no
load speed of the machine.
WARNING: Always be aware of the material you are working with and the risk
of creating toxic dust that you may inhale or cause a skin irritation.
Additional Accessories
A wide range of craft tool accessories are available from your Silverline
stockist for this product.
Maintenance
WARNING: Always disconnect from power supply before carrying out any
maintenance/cleaning.
Cleaning
• Keep your tool clean at all times. Dirt and dust will cause internal parts
to wear quickly, and shorten the machine’s service life. Clean the body of
your machine with a soft brush, or dry cloth. If available, use clean, dry,
compressed air to blow through the ventilation holes
Disposal
This tool has an internal Li-Ion rechargeable battery. Discharge and remove
from the tool before disposal if Li-Ion batteries are recycled or require separate
disposal in your country or region.
Always adhere to national regulations when disposing of power tools that are
no longer functional and are not viable for repair.
• Do not dispose of power tools, or other waste electrical and electronic
equipment (WEEE), with household waste
• Contact your local waste disposal authority for information on the correct
way to dispose of power tools
6
Silverline Tools Guarantee
This Silverline product comes with a 3 year
guarantee
Register this product at www.silverlinetools.com within 30 days of
purchase in order to qualify for the 3 year guarantee. Guarantee period
begins according to the date of purchase on your sales receipt.
Terms & Conditions
Guarantee period becomes effective from the date of retail purchase as
detailed on your sales receipt.
PLEASE KEEP YOUR SALES RECEIPT
If this product develops a fault within 30 days of purchase, return it to the
stockist where it was purchased, with your receipt, stating details of the
fault. You will receive a replacement or refund.
If this product develops a fault after the 30 day period, return it to:
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date,
your name, address and place of purchase before any work can be
carried out.
You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools
to establish if the deficiencies are related to material or manufacturing of
the product.
Carriage will not be refunded. Items for return must be in a suitably clean
and safe state for repair, and should be packaged carefully to prevent
damage or injury during transportation. We may reject unsuitable or
unsafe deliveries.
All work will be carried out by Silverline Tools or its authorised
repair agents.
The repair or replacement of the product will not extend the period
of guarantee
Defects recognised by us as being covered by the guarantee shall be
corrected by means of repair of the tool, free of charge (excluding carriage
charges) or by replacement with a tool in perfect working order.
Retained tools, or parts, for which a replacement has been issued, will
become the property of Silverline Tools.
EC Declaration of Conformity
The undersigned: Mr Darrell Morris
as authorised by: Silverline Tools
Declares that the
Product Code: 959516
Description: 7.2V Li-Ion Cordless Multi-Tool
Conforms to the following Directives:
• Machinery Directive 2006/42/EC
• LVD Directive 2006/95/EC
• EMC Directive 2004/108/EC
• RoHS Directive 2011/65/EU
• EN 60745-1:2009+A11
• EN 60745-2-3:2011
• EN55014-1: 2006 +A1:2009 +A2:2011
• EN55014-2:1997 +A1:2001/+A2:2008
• EN61000-3-2: 2006 +A1:2009 +A2:2009
• EN61000-3-3: 2008
7.2V Li-Ion Cordless Multi-Tool959516
Registering your purchase
Registration is made at silverlinetools.com by selecting the Guarantee
Registration button. You will need to enter:-
• Your personal details
• Details of the product and purchase information
Once this information is entered your guarantee certificate will be created
in PDF format for you to print out and keep with your purchase.
The repair or replacement of your product under guarantee provides
benefits which are additional to and do not affect your statutory rights as
a consumer.
What is covered:
The repair of the product, if it can be verified to the satisfaction of Silverline
Tools that the deficiencies were due to faulty materials or workmanship
within the guarantee period.
If any part is no longer available or out of manufacture, Silverline Tools will
replace it with a functional replacement part.
Use of this product in the EU.
What is not covered:
Silverline Tools does not guarantee repairs required as a result of:
Normal wear and tear caused by use in accordance with the operating
instructions eg blades, brushes, belts, bulbs, batteries etc.
The replacement of any provided accessories drill bits, blades, sanding
sheets, cutting discs and other related items.
Accidental damage, faults caused by negligent use or care, misuse,
neglect, careless operation or handling of the product.
Use of the product for anything other than normal domestic purposes.
Change or modification of the product in any way.
Use of parts and accessories which are not genuine Silverline Tools
components.
Faulty installation (except installed by Silverline Tools).
Repairs or alterations carried out by parties other than Silverline Tools or its
authorised repair agents.
Claims other than the right to correction of faults on the tool named in
these guarantee conditions are not covered by the guarantee.
The technical documentation is kept by: Silverline Tools
Notified body: Intertek Testing Services
Place of declaration: Hangzhou, China
Date: 05/02/13
Signed by:
Director
Name and address of Manufacturer or Authorised representative:
Silverline Tools, Boundary Way, Lufton Trading Estate, Yeovil, Somerset,
BA22 8HZ United Kingdom
www.silverlinetools.com
7
F
Description des symboles
La plaque signalétique figurant sur votre outil peut présenter des symboles. Ces symboles constituent des informations importantes relatives au
produit ou des instructions concernant son utilisation.
Port de protection auditive
Port de lunettes de sécurité
Port du masque respiratoire
Port du casque
Port de gants
Lire le manuel d’instructions
Double isolation pour une protection supplémentaire
Ne pas brûler les batteries.
Protection de l’environnement
Les produits électriques usagés ne doivent pas être jetés avec
les ordures ménagères. Veuillez les recycler dans les centres
prévus à cet effet. Pour de plus amples informations, veuillez
contacter votre municipalité ou point de vente
Conforme à la réglementation et aux normes de sécurité
pertinentes
Caractéristiques techniques
Tension : .................................................... 7,2 V
Type de batterie : ....................................... Li-ion (interne)
Capacité de la batterie : ............................ 1,3 Ah
Vitesse à vide : .......................................... 4500 -20000
tr/min
Vitesse : ....................................................16 réglages
Pinces de serrage : ....................................Ø1,5 ; Ø 2,4 ;
Ø 3,2mm
Pression acoustique : ................................ 72 dB(A)
Puissance acoustique : .............................. 83 dB(A)
Incertitude : ............................................... 3 dB(A)
Vibration : .................................................. 4,10 m/s²
Incertitude : ............................................... 1,5 m/s²
Chargeur
Tension : .................................................... 230V CA /50 Hz
Sortie : .......................................................9 V DC 400 mA
Classe de protection : ................................
Temps de charge : ..................................... 3 heures
Les niveaux sonores et vibratoires des caractéristiques techniques
sont déterminés en fonction de la norme EN60745. Ces données
peuvent être utilisées pour comparer des outils similaires et testés
selon cette norme. Ces données peuvent être aussi pour estimer
l’exposition aux niveaux sonores et vibratoires.
Ces données correspondent à un usage normale de l’appareil, et ce
dans des conditions de travail normales. Un appareil mal entretenu,
mal assemblé ou mal utilisé peut augmenter les niveaux sonores
et vibratoires. La durée totale d’utilisation sur laquelle vous utilisez
l’appareil doit prendre en compte les périodes ou l’appareil est
éteint ou à l’arrêt. Faites des pauses régulièrement lorsque vous
C’est dans l’intérêt de l’utilisateur d’assurer au maximum sa sécurité
en s’équipant de protection de sécurité comme des casques anti-
bruit qui protègent contre les bruits répétitifs et forts, et des gants
anti-vibration pour diminuer les effets vibratoires. Ne pas utilisez
cet appareil avec vos mains sous des conditions en dessous de
températures normales, car l’effet vibratoire en est accentué.
Pour plus d’informations sur la directive des émissions sonores,
utilisez cette appareil.
visitez le site http://osha.europa.eu/fr.
Lisez attentivement ce manuel ainsi que toute étiquette apposée sur l’outil
et assurez-vous d’en comprendre le sens avant utilisation. Rangez ces
consignes avec l’outil, pour référence ultérieure. Assurez-vous que toute
personne venant à utiliser cet outil ait attentivement pris connaissance de
ce manuel.
Sachez qu’utiliser un outil conformément aux prescriptions ne garantit
pas l’élimination de tous les facteurs de risque. Procédez avec prudence.
N’utilisez pas cet outil si vous avez des doutes quant à la manière sûre et
correcte de procéder.
Consignes générales de sécurité
relatives aux appareils électriques
AVERTISSEMENT Veuillez lire l’intégralité des consignes de sécurité
et des instructions. Le non-respect de ces consignes et instructions peut
entraîner un risque de choc électrique, d’incendie et/ou se traduire par des
blessures graves
Veuillez conserver ces instructions et consignes de sécurité pour
référence ultérieure.
L’expression « appareil électrique » employée dans les présentes consignes
recouvre aussi bien les appareils filaires à brancher sur le secteur que les
appareils sans fils fonctionnant sous batterie.
8
Loading...
