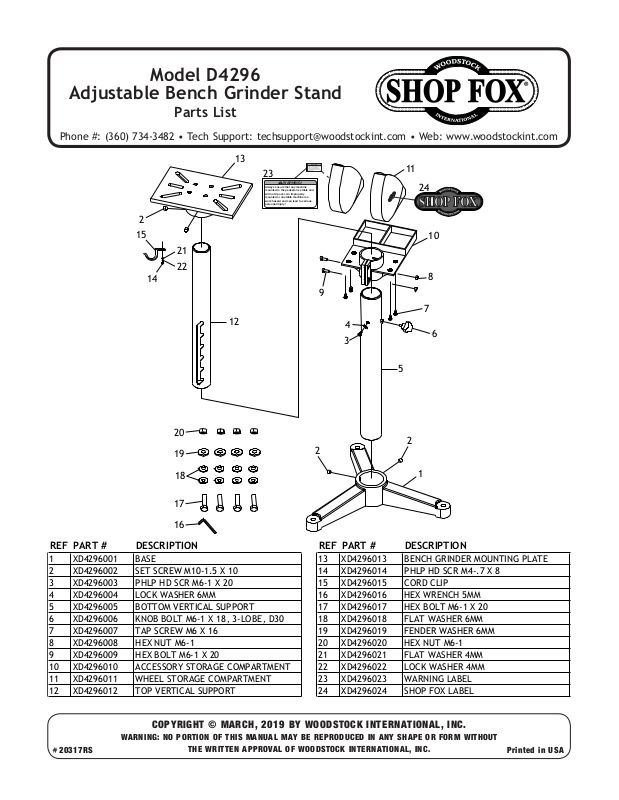

Model D4296
#20317RS
13
12 XD4296012 TOP VERTICAL SUPPORT 24 XD4296024 SHOP FOX LABEL
Adjustable Bench Grinder Stand
Parts List
Phone #: (360) 734-3482 • Tech Support: techsupport@woodstockint.com • Web: www.woodstockint.com
WARNING!
Always ensure that any machine
mounted to the pedestal is stable and
will not tip over. An improperly
mounted or unstable machine is a
work hazard and can lead to serious
15
23
Always ensure that any machine
mounted to the pedestal is stable and
will not tip over. An improperly
mounted or unstable machine is a
work hazard and can lead to serious
personal injury!
personal injury!
WARNING!
2
21
22
14
9
12
4
3
11
24
10
8
7
6
5
20
19
18
2
2
1
17
16
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 XD4296001 BASE 13 XD4296013 BENCH GRINDER MOUNTING PLATE
2 XD4296002 SET SCREW M10-1.5 X 10 14 XD4296014 PHLP HD SCR M4-.7 X 8
3 XD4296003 PHLP HD SCR M6-1 X 20 15 XD4296015 CORD CLIP
4 XD4296004 LOCK WASHER 6MM 16 XD4296016 HEX WRENCH 5MM
5 XD4296005 BOTTOM VERTICAL SUPPORT 17 XD4296017 HEX BOLT M6-1 X 20
6 XD4296006 KNOB BOLT M6-1 X 18, 3-LOBE, D30 18 XD4296018 FLAT WASHER 6MM
7 XD4296007 TAP SCREW M6 X 16 19 XD4296019 FENDER WASHER 6MM
8 XD4296008 HEX NUT M6-1 20 XD4296020 HEX NUT M6-1
9 XD4296009 HEX BOLT M6-1 X 20 21 XD4296021 FLAT WASHER 4MM
10 XD4296010 ACCESSORY STORAGE COMPARTMENT 22 XD4296022 LOCK WASHER 4MM
11 XD4296011 WHEEL STORAGE COMPARTMENT 23 XD4296023 WARNING LABEL
COPYRIGHT © MARCH, 2019 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in USA
